Indefinite
 Integral

             Definite
             Integral




                        1
Indefinite Integral       versus     Definite Integral




  A family of functions            The area under a curve
                                        (A number)




                                                            2
Archimedes




                                               http://www.philosophyprofessor.com/images/philosophers/archimedes.jpg


                                              Born:  About 287 BC in Syracuse, Sicily.
                                              Died:     212 or 211 BC in Syracuse.

                Generally regarded as the greatest mathematician and scientist of antiquity.
    He is called the "father of integral calculus" and also the "father of mathematical physics".

http://www.cs.drexel.edu/~crorres/Archimedes/contents.html




                                                                                                                       3
"Give me a lever long enough
           and a fulcrum strong enough,
and single­handedly I will move the world."
                                                 ­ Archimedes




                                                                4

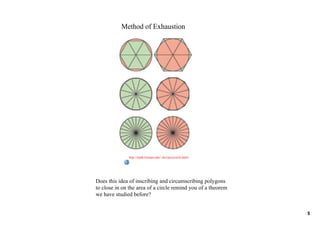

Method of Exhaustion




              http://math.furman.edu/~dcs/java/circle.html




Does this idea of inscribing and circumscribing polygons
to close in on the area of a circle remind you of a theorem
we have studied before?


                                                              5
6

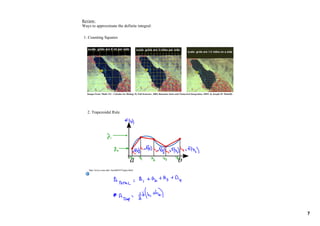

Review:
Ways to approximate the definite integral:

 1. Counting Squares




   Images from: Math 122 ­ Calculus for Biology II, Fall Semester, 2004, Riemann Sums and Numerical Integration, SDSU & Joseph M. Mahaffy





   2. Trapezoidal Rule




    http://www.csun.edu/~hcmth018/Trapez.html




                                                                                                                                            7
8
http://www.ecs.fullerton.edu/~mathews/a2001/Animations/Quadrature/Quadrature.html




                                                                                    9
Answer Key




        L6 =     = 1.2178...




        U6 =      = 1.5928...




1   4




        M6 =    = 1.3769...




1   4




                                       10

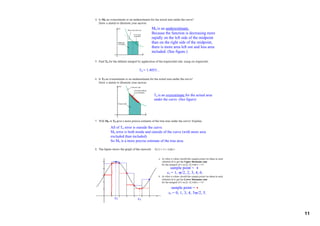

M6 is an underestimate.
                           Because the function is decreasing more
                           rapidly on the left side of the midpoint
                           than on the right side of the midpoint,
                           there is more area left out and less area
                           included. (See figure.)



                   T6 = 1.4053...




                             T6 is an overestimate for the actual area
                             under the curve. (See figure)




All of T6 error is outside the curve.
M6 error is both inside and outside of the curve (with more area
excluded than included)
So M6 is a more precise estimate of the true area.




                                        sample point =
                                      ci = 1, π/2, 2, 3, 4, 6.


                                         sample point =
                                       ci = 0, 1, 3, 4, 3π/2, 5.
  c2              c5


                                                                          11

More Related Content

Similar to CRMS Calculus 2010, April 12, 2010

Free221
Free221Free221
Free221
ziadabubeker

Pshs 3rd yr_functions
Pshs 3rd yr_functionsPshs 3rd yr_functions
Pshs 3rd yr_functionsRenee Tan

Pshs 3rd yr_functions_young_einstein
Pshs 3rd yr_functions_young_einsteinPshs 3rd yr_functions_young_einstein
Pshs 3rd yr_functions_young_einstein
Renee Tan

Midterm Study Guide
Midterm Study GuideMidterm Study Guide
Midterm Study Guidevhiggins1

Introdution to differential forms
Introdution to differential formsIntrodution to differential forms
Introdution to differential forms
Dunga Pessoa

Aquib kapil vasim
Aquib kapil vasimAquib kapil vasim
Aquib kapil vasim
jabi khan

Proyecto parcial ii
Proyecto parcial iiProyecto parcial ii
Proyecto parcial ii
AndresSuasnavas

Thinking with shapes
Thinking with shapesThinking with shapes
Thinking with shapes
Brendan Larvor

matrices-1.pdf
matrices-1.pdfmatrices-1.pdf
matrices-1.pdf
WunnamAlabani

Compass robot forming cirlce
Compass robot forming cirlceCompass robot forming cirlce
Compass robot forming cirlce
Christian Jay Avance

Discrete mathematics
Discrete mathematicsDiscrete mathematics
Discrete mathematics
Abubakar Sadiq Kabir

Algebra Trigonometry Problems
Algebra Trigonometry ProblemsAlgebra Trigonometry Problems
Algebra Trigonometry Problems
Don Dooley

Moment of inertia revision
Moment of inertia revisionMoment of inertia revision
Moment of inertia revision
UtkarshKushwaha16

Lecture co4 math21-1
Lecture co4 math21-1Lecture co4 math21-1
Lecture co4 math21-1
Lawrence De Vera

Gupte - first year paper_approved (1)
Gupte - first year paper_approved (1)Gupte - first year paper_approved (1)
Gupte - first year paper_approved (1)Shweta Gupte

The Day You Finally Use Algebra: A 3D Math Primer
The Day You Finally Use Algebra: A 3D Math PrimerThe Day You Finally Use Algebra: A 3D Math Primer
The Day You Finally Use Algebra: A 3D Math Primer
Janie Clayton


Similar to CRMS Calculus 2010, April 12, 2010 (20)

Free221
Free221Free221
Free221

Pshs 3rd yr_functions
Pshs 3rd yr_functionsPshs 3rd yr_functions
Pshs 3rd yr_functions

Pshs 3rd yr_functions_young_einstein
Pshs 3rd yr_functions_young_einsteinPshs 3rd yr_functions_young_einstein
Pshs 3rd yr_functions_young_einstein

Midterm Study Guide
Midterm Study GuideMidterm Study Guide
Midterm Study Guide

Introdution to differential forms
Introdution to differential formsIntrodution to differential forms
Introdution to differential forms

15 4
15 415 4
15 4

Aquib kapil vasim
Aquib kapil vasimAquib kapil vasim
Aquib kapil vasim

Proyecto parcial ii
Proyecto parcial iiProyecto parcial ii
Proyecto parcial ii

Mi2
Mi2Mi2
Mi2

0764141392
07641413920764141392
0764141392

MATH225Final
MATH225FinalMATH225Final
MATH225Final

Thinking with shapes
Thinking with shapesThinking with shapes
Thinking with shapes

matrices-1.pdf
matrices-1.pdfmatrices-1.pdf
matrices-1.pdf

Compass robot forming cirlce
Compass robot forming cirlceCompass robot forming cirlce
Compass robot forming cirlce

Discrete mathematics
Discrete mathematicsDiscrete mathematics
Discrete mathematics

Algebra Trigonometry Problems
Algebra Trigonometry ProblemsAlgebra Trigonometry Problems
Algebra Trigonometry Problems

Moment of inertia revision
Moment of inertia revisionMoment of inertia revision
Moment of inertia revision

Lecture co4 math21-1
Lecture co4 math21-1Lecture co4 math21-1
Lecture co4 math21-1

Gupte - first year paper_approved (1)
Gupte - first year paper_approved (1)Gupte - first year paper_approved (1)
Gupte - first year paper_approved (1)

The Day You Finally Use Algebra: A 3D Math Primer
The Day You Finally Use Algebra: A 3D Math PrimerThe Day You Finally Use Algebra: A 3D Math Primer
The Day You Finally Use Algebra: A 3D Math Primer


More from Fountain Valley School of Colorado

My Capstone Presentation, June 29, 2010
My Capstone Presentation, June 29, 2010My Capstone Presentation, June 29, 2010
My Capstone Presentation, June 29, 2010
Fountain Valley School of Colorado

CRMS Calculus May 31, 2010
CRMS Calculus May 31, 2010CRMS Calculus May 31, 2010
CRMS Calculus May 31, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 May 21, 2010
CRMS Calculus 2010 May 21, 2010CRMS Calculus 2010 May 21, 2010
CRMS Calculus 2010 May 21, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 May 17, 2010
CRMS Calculus 2010 May 17, 2010CRMS Calculus 2010 May 17, 2010
CRMS Calculus 2010 May 17, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 May 14, 2010
CRMS Calculus 2010 May 14, 2010CRMS Calculus 2010 May 14, 2010
CRMS Calculus 2010 May 14, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 May 12, 2010
CRMS Calculus 2010 May 12, 2010CRMS Calculus 2010 May 12, 2010
CRMS Calculus 2010 May 12, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 May 5, 2010
CRMS Calculus 2010 May 5, 2010CRMS Calculus 2010 May 5, 2010
CRMS Calculus 2010 May 5, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 May 3, 2010
CRMS Calculus 2010 May 3, 2010CRMS Calculus 2010 May 3, 2010
CRMS Calculus 2010 May 3, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 April 21, 2010
CRMS Calculus 2010 April 21, 2010CRMS Calculus 2010 April 21, 2010
CRMS Calculus 2010 April 21, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 April 19,2010
CRMS Calculus 2010 April 19,2010CRMS Calculus 2010 April 19,2010
CRMS Calculus 2010 April 19,2010
Fountain Valley School of Colorado

CRMS Calculus 2010 April 13, 2010
CRMS Calculus 2010 April 13, 2010CRMS Calculus 2010 April 13, 2010
CRMS Calculus 2010 April 13, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 April 5, 2010
CRMS Calculus 2010 April 5, 2010CRMS Calculus 2010 April 5, 2010
CRMS Calculus 2010 April 5, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 March 31, 2010
CRMS Calculus 2010 March 31, 2010CRMS Calculus 2010 March 31, 2010
CRMS Calculus 2010 March 31, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 March 30, 2010
CRMS Calculus 2010 March 30, 2010CRMS Calculus 2010 March 30, 2010
CRMS Calculus 2010 March 30, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 February 19, 2010
CRMS Calculus 2010 February 19, 2010CRMS Calculus 2010 February 19, 2010
CRMS Calculus 2010 February 19, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 February 17, 2010
CRMS Calculus 2010 February 17, 2010CRMS Calculus 2010 February 17, 2010
CRMS Calculus 2010 February 17, 2010
Fountain Valley School of Colorado

CRMS Calculus 2010 February 8, 2010_B
CRMS Calculus 2010 February 8, 2010_BCRMS Calculus 2010 February 8, 2010_B
CRMS Calculus 2010 February 8, 2010_B
Fountain Valley School of Colorado

CRMS Calculus 2010 February 8, 2010_A
CRMS Calculus 2010 February 8, 2010_ACRMS Calculus 2010 February 8, 2010_A
CRMS Calculus 2010 February 8, 2010_A
Fountain Valley School of Colorado

CRMS Calculus 2010 January 27, 2010
CRMS Calculus 2010 January 27, 2010CRMS Calculus 2010 January 27, 2010
CRMS Calculus 2010 January 27, 2010
Fountain Valley School of Colorado


More from Fountain Valley School of Colorado (20)

My Capstone Presentation, June 29, 2010
My Capstone Presentation, June 29, 2010My Capstone Presentation, June 29, 2010
My Capstone Presentation, June 29, 2010

CRMS Calculus May 31, 2010
CRMS Calculus May 31, 2010CRMS Calculus May 31, 2010
CRMS Calculus May 31, 2010

CRMS Calculus 2010 May 21, 2010
CRMS Calculus 2010 May 21, 2010CRMS Calculus 2010 May 21, 2010
CRMS Calculus 2010 May 21, 2010

CRMS Calculus 2010 May 17, 2010
CRMS Calculus 2010 May 17, 2010CRMS Calculus 2010 May 17, 2010
CRMS Calculus 2010 May 17, 2010

CRMS Calculus 2010 May 14, 2010
CRMS Calculus 2010 May 14, 2010CRMS Calculus 2010 May 14, 2010
CRMS Calculus 2010 May 14, 2010

CRMS Calculus 2010 May 12, 2010
CRMS Calculus 2010 May 12, 2010CRMS Calculus 2010 May 12, 2010
CRMS Calculus 2010 May 12, 2010

CRMS Calculus 2010 May 5, 2010
CRMS Calculus 2010 May 5, 2010CRMS Calculus 2010 May 5, 2010
CRMS Calculus 2010 May 5, 2010

CRMS Calculus 2010 May 3, 2010
CRMS Calculus 2010 May 3, 2010CRMS Calculus 2010 May 3, 2010
CRMS Calculus 2010 May 3, 2010

CRMS Calculus 2010 April 21, 2010
CRMS Calculus 2010 April 21, 2010CRMS Calculus 2010 April 21, 2010
CRMS Calculus 2010 April 21, 2010

Rolle's Theorem
Rolle's TheoremRolle's Theorem
Rolle's Theorem

CRMS Calculus 2010 April 19,2010
CRMS Calculus 2010 April 19,2010CRMS Calculus 2010 April 19,2010
CRMS Calculus 2010 April 19,2010

CRMS Calculus 2010 April 13, 2010
CRMS Calculus 2010 April 13, 2010CRMS Calculus 2010 April 13, 2010
CRMS Calculus 2010 April 13, 2010

CRMS Calculus 2010 April 5, 2010
CRMS Calculus 2010 April 5, 2010CRMS Calculus 2010 April 5, 2010
CRMS Calculus 2010 April 5, 2010

CRMS Calculus 2010 March 31, 2010
CRMS Calculus 2010 March 31, 2010CRMS Calculus 2010 March 31, 2010
CRMS Calculus 2010 March 31, 2010

CRMS Calculus 2010 March 30, 2010
CRMS Calculus 2010 March 30, 2010CRMS Calculus 2010 March 30, 2010
CRMS Calculus 2010 March 30, 2010

CRMS Calculus 2010 February 19, 2010
CRMS Calculus 2010 February 19, 2010CRMS Calculus 2010 February 19, 2010
CRMS Calculus 2010 February 19, 2010

CRMS Calculus 2010 February 17, 2010
CRMS Calculus 2010 February 17, 2010CRMS Calculus 2010 February 17, 2010
CRMS Calculus 2010 February 17, 2010

CRMS Calculus 2010 February 8, 2010_B
CRMS Calculus 2010 February 8, 2010_BCRMS Calculus 2010 February 8, 2010_B
CRMS Calculus 2010 February 8, 2010_B

CRMS Calculus 2010 February 8, 2010_A
CRMS Calculus 2010 February 8, 2010_ACRMS Calculus 2010 February 8, 2010_A
CRMS Calculus 2010 February 8, 2010_A

CRMS Calculus 2010 January 27, 2010
CRMS Calculus 2010 January 27, 2010CRMS Calculus 2010 January 27, 2010
CRMS Calculus 2010 January 27, 2010


Recently uploaded

Ethnobotany and Ethnopharmacology ......
Ethnobotany and Ethnopharmacology ......Ethnobotany and Ethnopharmacology ......
Ethnobotany and Ethnopharmacology ......
Ashokrao Mane college of Pharmacy Peth-Vadgaon

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
MysoreMuleSoftMeetup

Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
AzmatAli747758

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials
Excellence Foundation for South Sudan

ESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdfESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdf
Fundacja Rozwoju Społeczeństwa Przedsiębiorczego

Operation Blue Star - Saka Neela Tara
Operation Blue Star   -  Saka Neela TaraOperation Blue Star   -  Saka Neela Tara
Operation Blue Star - Saka Neela Tara
Balvir Singh

CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCECLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
BhavyaRajput3

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Basic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumersBasic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumers
PedroFerreira53928

Thesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.pptThesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.ppt
EverAndrsGuerraGuerr

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
MIRIAMSALINAS13

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
TechSoup

PART A. Introduction to Costumer Service
PART A. Introduction to Costumer ServicePART A. Introduction to Costumer Service
PART A. Introduction to Costumer Service
PedroFerreira53928

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason
Steve Thomason

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf
Special education needs

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptx
Jisc

Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345
beazzy04

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17
Celine George

Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxStudents, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
EduSkills OECD

Polish students' mobility in the Czech Republic
Polish students' mobility in the Czech RepublicPolish students' mobility in the Czech Republic
Polish students' mobility in the Czech Republic
Anna Sz.


Recently uploaded (20)

Ethnobotany and Ethnopharmacology ......
Ethnobotany and Ethnopharmacology ......Ethnobotany and Ethnopharmacology ......
Ethnobotany and Ethnopharmacology ......

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46

Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials

ESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdfESC Beyond Borders _From EU to You_ InfoPack general.pdf
ESC Beyond Borders _From EU to You_ InfoPack general.pdf

Operation Blue Star - Saka Neela Tara
Operation Blue Star   -  Saka Neela TaraOperation Blue Star   -  Saka Neela Tara
Operation Blue Star - Saka Neela Tara

CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCECLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Basic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumersBasic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumers

Thesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.pptThesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.ppt

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf

PART A. Introduction to Costumer Service
PART A. Introduction to Costumer ServicePART A. Introduction to Costumer Service
PART A. Introduction to Costumer Service

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptx

Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17

Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxStudents, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx

Polish students' mobility in the Czech Republic
Polish students' mobility in the Czech RepublicPolish students' mobility in the Czech Republic
Polish students' mobility in the Czech Republic


CRMS Calculus 2010, April 12, 2010

  • 1. Indefinite Integral Definite Integral 1
  • 2. Indefinite Integral versus Definite Integral A family of functions The area under a curve (A number) 2
  • 3. Archimedes http://www.philosophyprofessor.com/images/philosophers/archimedes.jpg Born:  About 287 BC in Syracuse, Sicily. Died:     212 or 211 BC in Syracuse. Generally regarded as the greatest mathematician and scientist of antiquity. He is called the "father of integral calculus" and also the "father of mathematical physics".  http://www.cs.drexel.edu/~crorres/Archimedes/contents.html 3
  • 4. "Give me a lever long enough  and a fulcrum strong enough,  and single­handedly I will move the world."                                                 ­ Archimedes 4
  • 5. Method of Exhaustion http://math.furman.edu/~dcs/java/circle.html Does this idea of inscribing and circumscribing polygons to close in on the area of a circle remind you of a theorem we have studied before? 5
  • 6. 6
  • 7. Review: Ways to approximate the definite integral: 1. Counting Squares Images from: Math 122 ­ Calculus for Biology II, Fall Semester, 2004, Riemann Sums and Numerical Integration, SDSU & Joseph M. Mahaffy   2. Trapezoidal Rule http://www.csun.edu/~hcmth018/Trapez.html 7

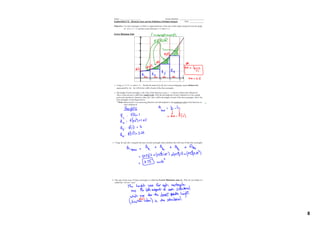

  • 8. 8
  • 10. Answer Key L6 =  = 1.2178... U6 =  = 1.5928... 1 4 M6 =  = 1.3769... 1 4 10
  • 11. M6 is an underestimate. Because the function is decreasing more  rapidly on the left side of the midpoint  than on the right side of the midpoint,  there is more area left out and less area  included. (See figure.) T6 = 1.4053... T6 is an overestimate for the actual area  under the curve. (See figure) All of T6 error is outside the curve. M6 error is both inside and outside of the curve (with more area  excluded than included) So M6 is a more precise estimate of the true area. sample point =  ci = 1, π/2, 2, 3, 4, 6. sample point =  ci = 0, 1, 3, 4, 3π/2, 5. c2 c5 11
