ATEQ Quickset TPMS Reset Relearn Tool User ManualTim Miller
This is the user manual of the ATEQ Quickset TPMS tool.
>> READ MORE: https://www.obdadvisor.com/best-tpms-tool-review/
Here is a detailed review of the best TPMS tools based on my own experience, including:
- Compatibility
- Features and Functions
- Pros and Cons
Check it out to get the REVIEW and some NOTES about using the tool.
데이타맥스프린터 Datamax M-Class 열전사감열 산업용 범용바코드프린터 매뉴얼HION IT
데이타맥스 M-Class 바코드프린터는 범용프린터로 USB 인쇄 지원을 통한 범용성 및 산업용 모델의 내구성을 더한 프린터 제품입니다.
데이타맥스 M-Class 바코드프린터는 범용프린터 군 중 가격 대비 성능이 가장 뛰어난 모델입니다.
혁신적인 모듈식 설계로 사용자가 현장에서 손쉽운 설치작업이 가능하도록 제작되었습니다.
철강, 자동차, 화학, 제조, 통신, 공공기관, 식품, 제약, 병원, 유통, 물류 창고, 도소매, 택배업체 등 다양한 업계에서 사용됩니다.
Form factor with a small footprint for an industrial printer to fit in tight spaces where work space is a premium
Rugged construction features a precision die-cast aluminum frame
Real time clock for accurate date-time labeling
Multi-language menu available in English, Spanish, German, Italian, and French
5-button, 128x64 LCD graphical backlit display is easy to read, enabling userfriendly label configuration set-up
Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer
Versatile media compatibility supports coated side in or coated side out ribbons without reconfiguring the printer or purchasing additional options resulting in easier ribbon inventory management
IntelliSEAQ™ printhead: proactive diagnostic tools allow easy access to printhead performance and history
Software: The M-Class utilizes widely used DPL and supports MCL designer and 123 Print. With the PL-Z and PL-I printer language emulations, users can easily integrate the printer to existing solutions
Increased productivity :
M-Class Mark II keeps up with high label demand applications, boasting 32% faster performance than the nearest competitor in its class. The modular design and field-installable options cut back on downtime and improve efficiency. With its unique form factor, the M-Class Mark II fits easily in tight spaces where work space is a premium.
One printer does it all :
The M-Class Mark II printer can be used in a wide variety of applications with a range of media compatibility, connectivity, emulation support, and options including RFID support. It is easy on the budget with the best value proposition for an industrial strength printer.
MODELS : M-4206
Print technology : Direct thermal / Thermal transfer (optional)
Print speed : 6 IPS (152 mm/s)
Resolution : 203 DPI (8 dots/mm)
Print Width : 4.25" (108mm)
RFID option : Not available
MODELS : M-4210
Print technology : Direct thermal / Thermal transfer (optional)
Print speed : 10 IPS (254 mm/s)
Resolution : 203 DPI (8 dots/mm)
Print Width : 4.25" (108mm)
RFID option : Available
MODELS : M-4308
Print technology : Direct thermal / Thermal transfer (optional)
Print speed : 8 IPS (203 mm/s)
Resolution : 300 DPI (12 dots/mm)
Print Width : 4.25" (108mm)
RFID option : Available
PRINT TECHNOLOGY
Maximum print width : 4.25” (108mm)
Print length range : 0.25” - 99” (6.35mm - 2514.6mm)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
ATEQ Quickset TPMS Reset Relearn Tool User ManualTim Miller
This is the user manual of the ATEQ Quickset TPMS tool.
>> READ MORE: https://www.obdadvisor.com/best-tpms-tool-review/
Here is a detailed review of the best TPMS tools based on my own experience, including:
- Compatibility
- Features and Functions
- Pros and Cons
Check it out to get the REVIEW and some NOTES about using the tool.
데이타맥스프린터 Datamax M-Class 열전사감열 산업용 범용바코드프린터 매뉴얼HION IT
데이타맥스 M-Class 바코드프린터는 범용프린터로 USB 인쇄 지원을 통한 범용성 및 산업용 모델의 내구성을 더한 프린터 제품입니다.
데이타맥스 M-Class 바코드프린터는 범용프린터 군 중 가격 대비 성능이 가장 뛰어난 모델입니다.
혁신적인 모듈식 설계로 사용자가 현장에서 손쉽운 설치작업이 가능하도록 제작되었습니다.
철강, 자동차, 화학, 제조, 통신, 공공기관, 식품, 제약, 병원, 유통, 물류 창고, 도소매, 택배업체 등 다양한 업계에서 사용됩니다.
Form factor with a small footprint for an industrial printer to fit in tight spaces where work space is a premium
Rugged construction features a precision die-cast aluminum frame
Real time clock for accurate date-time labeling
Multi-language menu available in English, Spanish, German, Italian, and French
5-button, 128x64 LCD graphical backlit display is easy to read, enabling userfriendly label configuration set-up
Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer
Versatile media compatibility supports coated side in or coated side out ribbons without reconfiguring the printer or purchasing additional options resulting in easier ribbon inventory management
IntelliSEAQ™ printhead: proactive diagnostic tools allow easy access to printhead performance and history
Software: The M-Class utilizes widely used DPL and supports MCL designer and 123 Print. With the PL-Z and PL-I printer language emulations, users can easily integrate the printer to existing solutions
Increased productivity :
M-Class Mark II keeps up with high label demand applications, boasting 32% faster performance than the nearest competitor in its class. The modular design and field-installable options cut back on downtime and improve efficiency. With its unique form factor, the M-Class Mark II fits easily in tight spaces where work space is a premium.
One printer does it all :
The M-Class Mark II printer can be used in a wide variety of applications with a range of media compatibility, connectivity, emulation support, and options including RFID support. It is easy on the budget with the best value proposition for an industrial strength printer.
MODELS : M-4206
Print technology : Direct thermal / Thermal transfer (optional)
Print speed : 6 IPS (152 mm/s)
Resolution : 203 DPI (8 dots/mm)
Print Width : 4.25" (108mm)
RFID option : Not available
MODELS : M-4210
Print technology : Direct thermal / Thermal transfer (optional)
Print speed : 10 IPS (254 mm/s)
Resolution : 203 DPI (8 dots/mm)
Print Width : 4.25" (108mm)
RFID option : Available
MODELS : M-4308
Print technology : Direct thermal / Thermal transfer (optional)
Print speed : 8 IPS (203 mm/s)
Resolution : 300 DPI (12 dots/mm)
Print Width : 4.25" (108mm)
RFID option : Available
PRINT TECHNOLOGY
Maximum print width : 4.25” (108mm)
Print length range : 0.25” - 99” (6.35mm - 2514.6mm)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
Congratulations……!!!!! A Good news for all of us. Now you can buy all electronic products like bluetooth relays, iPhone relays to automate your home, Fusion Series Controllers, Ethernet Controlled Relay, ethernet relay, ethernet relay control, remote controlled electrical switch, remote controlled dimmer, Push Notifications IOS, ios push notification server, wifi power switch, home automation ideas, wifi relay controller etc. only at https://www.controlanything.co.in/
Digital Watchdog DWVMAX480D86T User ManualJMAC Supply
Buy the Digital Watchdog DWVMAX480D86T at JMAC Supply.
https://www.jmac.com/Digital_Watchdog_DW_VMAX480D_86T_p/digital-watchdog-dwvmax480d86t.htm?=slideshare
In This PPT we are discussed about complete details of that product (Use,Operation, Technical details, Dimensions, Wiring, and etc..)
Please Support us and Follow our other Sites
https://automationtechplc2.blogspot.com
https://humidificationcontrol.blogspot.com
https://controlsandsystems.business.site
If you enjoyed this article, share it with your friends and colleagues.
VVDI 2 includes all the VVDI functions, the function of Tango, remote control generation and chip identification is improved, and also the coil’s stability has been enhanced.
More ever, users do no need to connect VVD2 with computer or other devices to identify chip or detect remote frequently.
Khung gầm chắc chắn, trọng lượng nhẹ
Hiệu năng ấn tượng so với đối thủ cùng phân khúc
Màn hình có độ sáng và sắc nét cao
Thời lượng pin cao (trên phiên bản FullHD)
Âm thanh tốt, loa và bass ấn tượng
Nguồn: https://laptops.vn/san-pham/hp-envy-13-2021/
Congratulations……!!!!! A Good news for all of us. Now you can buy all electronic products like bluetooth relays, iPhone relays to automate your home, Fusion Series Controllers, Ethernet Controlled Relay, ethernet relay, ethernet relay control, remote controlled electrical switch, remote controlled dimmer, Push Notifications IOS, ios push notification server, wifi power switch, home automation ideas, wifi relay controller etc. only at https://www.controlanything.co.in/
Digital Watchdog DWVMAX480D86T User ManualJMAC Supply
Buy the Digital Watchdog DWVMAX480D86T at JMAC Supply.
https://www.jmac.com/Digital_Watchdog_DW_VMAX480D_86T_p/digital-watchdog-dwvmax480d86t.htm?=slideshare
In This PPT we are discussed about complete details of that product (Use,Operation, Technical details, Dimensions, Wiring, and etc..)
Please Support us and Follow our other Sites
https://automationtechplc2.blogspot.com
https://humidificationcontrol.blogspot.com
https://controlsandsystems.business.site
If you enjoyed this article, share it with your friends and colleagues.
VVDI 2 includes all the VVDI functions, the function of Tango, remote control generation and chip identification is improved, and also the coil’s stability has been enhanced.
More ever, users do no need to connect VVD2 with computer or other devices to identify chip or detect remote frequently.
Khung gầm chắc chắn, trọng lượng nhẹ
Hiệu năng ấn tượng so với đối thủ cùng phân khúc
Màn hình có độ sáng và sắc nét cao
Thời lượng pin cao (trên phiên bản FullHD)
Âm thanh tốt, loa và bass ấn tượng
Nguồn: https://laptops.vn/san-pham/hp-envy-13-2021/
The official prayer released by the Catholic Bishops' Conference of the Philippines in preparation for the Apostolic Visit of His Holiness Pope Francis on January 2015.
Daily agri report by epic research limited of 15 february 2017Epic Research
Epic Research Limited consists team of proficient market experts. We offer daily reports on market to facilitate traders gain a quick overview on market's performance .
Daily agri commodity report by epic research of 26 december 2016Epic Research
Epic Research helps traders to gain overview of market by offering daily reports on market. Our team of experts depicts with most precise ncdex tips and other trading tips.
Daily agri report by epic research limited of 10 february 2017Epic Research
Epic Research is a leading financial advisory services provider. We offer daily report on different segment of market to enable traders gain a overview of market's performance .
How to use original Autel MaxiTPMS PAD, Autel MaxiTPMS PAD TPMS Sensor Programming Accessory Device
http://www.obd365.com/wholesale/autel-maxitpms-pad-sensor-accessory.html
싸이퍼랩 9700 윈도우즈 PDA (Windows® CE 6.0 R3 / Window® Embedded Handheld 6.5.3), 산업용PDA는 혹독한 현장에 적합하도록 설계되었으며 2 배터리(옵션) 운영으로 24시간 운영이 가능합니다.
타사의 경쟁 모델보다 CPU 처리속도, 메모리, 배터리 방진, 방수등급 등이 우월하면서도 가격 경쟁력 또한 우수합니다.
다양한 스캔 엔진을 제공하며 현장에서 교체 가능하도록 설계되었습니다.
(1D, 2D 다중모드, 최대 15m 바코드 인식)
Extended Range Laser
Technology : Laser
Light source : Visible laser diode 650 nm
Scan Angle : 13.5˚ ± 0.7˚
Print Contrast : Minimum 25% absolute dark/ light reflectance measured at 650 nm
Ambient Lighting : 4,844 lux (indoor) / 86,111 lux (sunlight)
Min. Distance : 2 in/ 5 cm (7.5 mil)
Max. Distance : 45 ft/ 9.1 m (100 mil retro-reflective)
Near/Far 2D Imager
Technology : Auto-focus 2D imager
Light source : Auto-adaptive illumination: 617 nm highly visible LEDs
Scan Angle : 14˚ (horizontal), 8.7˚ (vertical)
Print Contrast : Down to 40%
Ambient Lighting : From 0 to 100,000 lux
Min. Distance : 6 in/ 15 cm (10 mil)
Max. Distance : 50 ft/ 15 m (300mil)
Laser
Technology : Laser
Light source : Visible laser diode 650 nm
Scan Angle : 47˚±3˚(typical), 35˚±3˚(narrow)
Print Contrast : Minimum 20% absolute dark/ light reflectance measured at 650 nm
Ambient Lighting : 4,844 lux (indoor) / 86,111 lux (sunlight)
DOF : 1 to 45 in. / 2.5 to 114.3 cm
2D Imager
Technology : 752 x 480 pixels
Light source : 625 ±5 nm LEDs
Scan Angle : 40˚ (horizontal), 25˚ (vertical)
Print Contrast : Minimum 25% absolute dark/ light reflectance measured at 650 nm
Ambient Lighting : Max 96,900 lux (sunlight)
DOF :
5 mil code39 1.4 in./5.3cm to 7.5 in./19.1 cm
100% UPC 1.6 in./4.1cm to 12 in./30.5cm
5 mil PDF417 2.8 in./7.1cm to 4.5 in./11.4cm
다양한 키패드 선택
30-Key 및 38-Key 뉴메릭 키패드와 각각 4개 및 10개의 기능키
특정 52-Key 알파 뉴메릭키로 VT220 / TN3270 / TN5250 시스템 터미널 에뮬레이션 제공
우연한 터치에 의한 키패드 입력 오류를 방지하기 위한 키간격 유지 및 인체공학적 디자인
유연하고 효율적인 무선통신 제공
CCXv4 인증 IEEE 802.11 a/b/g/n
Bluetooth® 통신 Class II, V2.1
Push-to-talk (무전기, 동보전송 기능)
장시간 사용을 위한 주요 대안
표준 3600 mAh 뱃더리 및 대용량 5400 mAh 뱃더리 제공
최소 13 시간 계속 운용 (20초당 1번 레이저 스캐닝시)
두가지 Windows® 플랫폼 지원
Window® CE 6.0
Windows® Embedded Handheld 6.5
Android 6.0 (모델 : 9700A)
블루투스 및 무선랜 지원거리
블루투스 : 가시거리내에서 50m 지원
802.11 b/g: 가시거리 내에서 300 m 지원
802.11 a: 가시거리 내에서 250 m 지원
PERFORMANCE
Operating system : Windows® CE 6.0 R3 / Window® Embedded Handheld 6.5.3
CPU : TI OMAP 3730 1GHz
Memory : 4GB Nand FLASH / 512MB DDR SDRAM
Expansion : Micro SD slot with SDHC support
Operating power : Rechargeable 3.7V 3600 mAh / 5400 mAh Li-ion Battery
Working hours1 : 13 hours
Alert : 3 LED indicators (for RF, charging status and good reading) / Vibrator/ Speaker
Interface supported : USB, RS232
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
Nền tảng Kaby Lake G là công nghệ mới nhất mà Dell tin tưởng trong hàng loạt các thiết kế mới nhất của mình. Sự kết hợp giữa công nghệ này và những đặc điểm vốn có của thương hiệu Dell đã mang đến trải nghiệm nhẹ hơn, mượt hơn, êm ái hơn đối với người dùng. Trong đó, chiếc Dell XPS 15 9575 đã kế thừa trọn vẹn những tinh hoa đó. Mời bạn cùng tham khảo những ưu điểm vượt trội của dòng sản phẩm này trong bài viết sau.
Nguồn: https://laptops.vn/san-pham/dell-xps-15-9575/
Digital Watchdog DW-VF960H161T User ManualJMAC Supply
Buy the Digital Watchdog DW-VF960H161T at JMAC Supply.
https://www.jmac.com/Digital_Watchdog_DW_VF960H161T_p/digital-watchdog-dw-vf960h161t.htm?=slideshare
Explore the multifaceted world of Muntadher Saleh, an Iraqi polymath renowned for his expertise in visual art, writing, design, and pharmacy. This SlideShare delves into his innovative contributions across various disciplines, showcasing his unique ability to blend traditional themes with modern aesthetics. Learn about his impactful artworks, thought-provoking literary pieces, and his vision as a Neo-Pop artist dedicated to raising awareness about Iraq's cultural heritage. Discover why Muntadher Saleh is celebrated as "The Last Polymath" and how his multidisciplinary talents continue to inspire and influence.
2137ad - Characters that live in Merindol and are at the center of main storiesluforfor
Kurgan is a russian expatriate that is secretly in love with Sonia Contado. Henry is a british soldier that took refuge in Merindol Colony in 2137ad. He is the lover of Sonia Contado.
Hadj Ounis's most notable work is his sculpture titled "Metamorphosis." This piece showcases Ounis's mastery of form and texture, as he seamlessly combines metal and wood to create a dynamic and visually striking composition. The juxtaposition of the two materials creates a sense of tension and harmony, inviting viewers to contemplate the relationship between nature and industry.
2137ad Merindol Colony Interiors where refugee try to build a seemengly norm...luforfor
This are the interiors of the Merindol Colony in 2137ad after the Climate Change Collapse and the Apocalipse Wars. Merindol is a small Colony in the Italian Alps where there are around 4000 humans. The Colony values mainly around meritocracy and selection by effort.
2. 1
FCC Warning
This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to Part 15 of the FCC Rules. These limitations are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
a. Increase the separation between the equipment and receiver.
b. Connect the equipment into a different outlet from that the receiver is
connected.
c. Consult your local distributors or an experienced radio/TV technician for
help.
d. Shielded interface cables must be used in order to comply with emission
limits.
Changes or modifications to the equipment, which are not approved by the party
responsible for compliance could affect the user's authority to operate the
equipment.
Copyright
1999 All Rights Reserved.
Company has an on-going policy of upgrading its products and it may be
possible that information in this document is not up-to-date.
3. 2
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective
companies.
5. 4

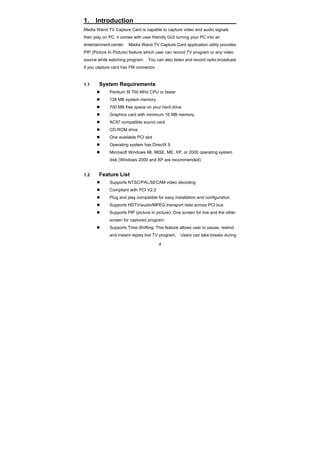

1. Introduction
Media Wand TV Capture Card is capable to capture video and audio signals
then play on PC, it comes with user friendly GUI turning your PC into an
entertainment center. Media Wand TV Capture Card application utility provides
PIP (Picture In Picture) feature which user can record TV program or any video
source while watching program. You can also listen and record radio broadcast
if you capture card has FM connector.
1.1 System Requirements
Pentium III 700 MHz CPU or faster
128 MB system memory
700 MB free space on your hard drive
Graphics card with minimum 16 MB memory
AC97 compatible sound card
CD-ROM drive
One available PCI slot
Operating system has DirectX 9
Microsoft Windows 98, 98SE, ME, XP, or 2000 operating system
disk (Windows 2000 and XP are recommended)
1.2 Feature List
Supports NTSC/PAL/SECAM video decoding
Compliant with PCI V2.2
Plug and play compatible for easy installation and configuration
Supports HDTV/audio/MPEG transport data across PCI bus
Supports PIP (picture in picture): One screen for live and the other
screen for captured program.
Supports Time-Shifting: This feature allows user to pause, rewind
and instant replay live TV program. Users can take breaks during
6. 5
a TV show or movie and will never miss a scene again.
Supports Scheduled Recording, user can preset timer to record TV
programs
Supports mono audio decoding for both TV audio (BTSC) and FM
radio
Supports MPEG, AVI and Quick Time file formats
Supports Windows Media Video & Audio, MPEG 1, MPEG 4,
MJPEG, MP3 and Cinepak compression formats
Offers infrared remote controller
1.3 Package Contents
One Media-Wand TV Capture Card
One user’s quick guide
One CD-ROM disk includes user’s manual and device driver
One remote controller with battery
One AV and S-Video to S-Video cable
One Audio Line Out to sound card cable
One IR sensor cable
One RF antenna cable (if the capture card has FM connector)
Attention:
‧ If any of above items is missing or damaged, please contact your local
dealer immediately.
‧ In order to use Media Wand TV Capture Card application utility, you have to
connect all cables or devices from the package.
7. 6
2. Hardware Installation
This Chapter describes how to install TV Capture Card hardware and cable
connections.
2.1 Hardware Installation Procedure
‧ Turn off the computer.
‧ Remove the system case.
‧ Insert the TV Capture card into an available PCI slot.
‧ Put system case back.
2.2 Hardware Connection Diagram
Warning: Don’t turn on your computer before all cables are plugged in.
Any wrong doings might damage the hardware.

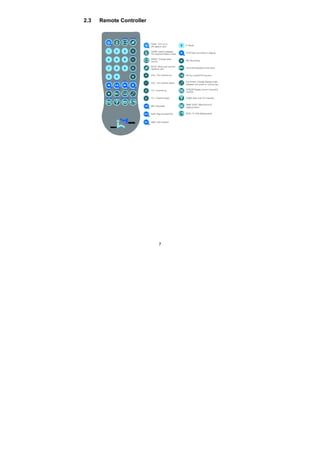

9. 8
3. Device Driver and Application Utility
Installation
This Chapter describes how to install TV Capture Card device driver and
software utility. Detailed capture card features like Time-Shifting, PIP, Auto
Scan, Channel Preview, Frame Capture, etc. will be described.
3.1 Software Installation
For Windows XP:
Step1. After complete hardware installation, turn on your system, boot into
windows. When operating system detects TV capture card, “Found
New Hardware Wizard” window will appear then click “Cancel”.
10. 9
Step2. Put Driver Application CD disk into CD-ROM drive, window below will
appear.
Install Driver and Application Software: Click this option to install capture
card device driver and application utility software.
User’s Manual: Click this option to read complete user’s manual.
Acrobat(R)Reader5.0: Click option if you want to Acrobat Reader on your
system.
11. 10
Step3. When following window appears in the installation process, always click
“Continue Anyway”:
Step4. When “Found New Hardware Wizard” appears, click “Next”:
12. 11
Step5. After system loads device driver, click “Finish” in the “Found New
Hardware Wizard”:
Step6. When “Found New Hardware Wizard” appears, click “Next”:
13. 12
Step7. After system loads device driver, click “Finish” in the “Found New
Hardware Wizard”:
Step8. When “Found New Hardware Wizard” appears, click “Next”:
14. 13
Step9. After system loads device driver, click “Finish” in the “Found New
Hardware Wizard”:
Step10. When “Found New Hardware Wizard” appears, click “Next”:
15. 14
Step11. After system loads device driver, click “Finish” in the “Found New
Hardware Wizard”:
16. 15
For Windows 2000:
Step1. After complete hardware installation, turn on your system, boot into
windows. When operating system detects TV capture card, “Found
New Hardware Wizard” window will appear then click “Cancel”.
17. 16

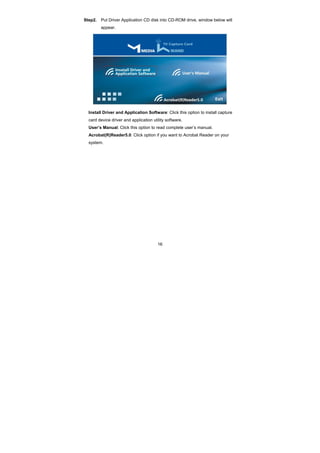

Step2. Put Driver Application CD disk into CD-ROM drive, window below will
appear.
Install Driver and Application Software: Click this option to install capture
card device driver and application utility software.
User’s Manual: Click this option to read complete user’s manual.
Acrobat(R)Reader5.0: Click option if you want to Acrobat Reader on your
system.
18. 17
Step3. When “Found New Hardware Wizard” window appears, click “Next”:
Step4. Click “Next”:

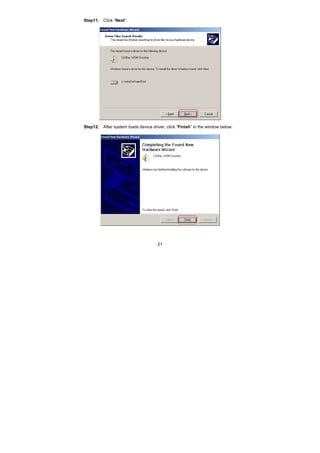

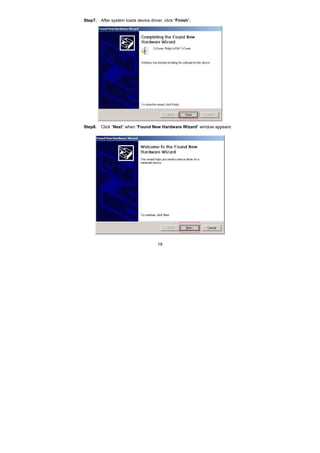

23. 22

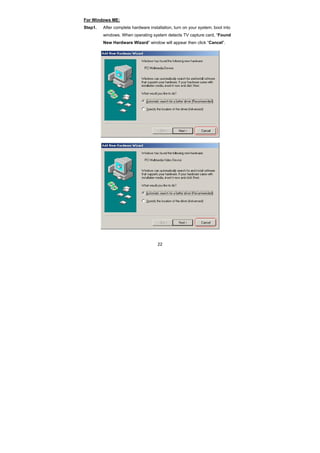

For Windows ME:
Step1. After complete hardware installation, turn on your system, boot into
windows. When operating system detects TV capture card, “Found
New Hardware Wizard” window will appear then click “Cancel”.
24. 23

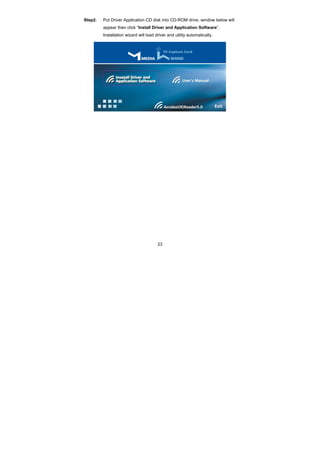

Step2. Put Driver Application CD disk into CD-ROM drive, window below will
appear then click “Install Driver and Application Software”.
Installation wizard will load driver and utility automatically.
25. 24
For Windows 98/98SE:
Step1. After complete hardware installation, turn on your system, boot into
windows. When operating system detects TV capture card, “Found
New Hardware Wizard” window will appear then click “Cancel”.
26. 25
Step2. Put Driver Application CD disk into CD-ROM drive, window below will
appear then click “Install Driver and Application Software”.
Installation wizard will load driver and utility automatically.
27. 26
Install Media Player 9 and DirectX9:
After driver and utility are installed, if your system does not have Media Player 9,
follow the instruction to install Media Player 9. Otherwise, click “Cancel” to
skip.
1) After capture card device driver and application software are loaded, install
DirectX9 window will appear, if you system does not have DirectX9
installed, click “OK” to install DirectX9, otherwise, click “Cancel” and
reboot system.
2) In “Installing Microsoft® DirectX®” window, select “I accept the
agreement” then click “Next” to continue.
28. 27
3) Click “Next” to continue installation.
4) Wait for operating system finishes installing DirectX9 components.
29. 28
5) After operating system finishes loading driver, click “Finish” to restart
system.
30. 29

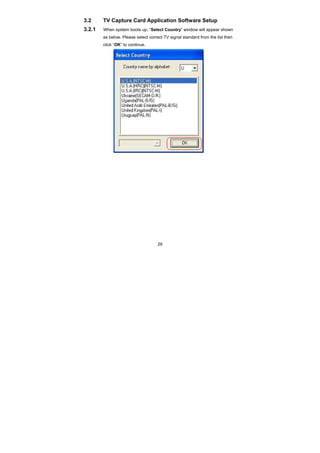

3.2 TV Capture Card Application Software Setup
3.2.1 When system boots up, “Select Country” window will appear shown
as below. Please select correct TV signal standard from the list then
click “OK” to continue.
31. 30
3.2.2 Click “Start” then select “All Programs TV Tuner Tuner
Application” to start Capture card application program, user’s
interface is shown as below:
Auto Scan: When you first time start this play panel, Auto Scan window will
appear. You can choose Cable/Antenna/Both to scan all available TV stations
and radio stations.
Always on Top: Click this button, this play panel will be always on top of other
windows.
Channel Down: Click this button to go to next lower channel.
Channel Up: Click this button to go to next higher channel.
Channel Preview: Preview next available channels (up to 25 channels).
Configuration: Setup video, TV tuner, capture video and record video/audio.
32. 31
Setup TV Tuner
You can manually select tuner standard, choose TV/Radio mode, fine tune video
and auto scan all TV stations and radio stations.
Video Standard: Supports NTSC-M, NTSC-J, PAL-B/G, PAL-D/K,
PAL-I, PAL-M, PAL-N, SECAM-D/K, SECAM-L, SECAM-B/G.
Mode: Supports Cable Mode (TV), Antenna Mode (Radio) and
Memory (preset memory).
Memory: Preset memory, you can save your favorite stations into
memory.
34. 33
Fine Tune: Tuning video color.
Reset Setting: Reset selected country, video standards and tuner type. Click
“YES” to reset all settings for the tuner.
Setup Video
You can setup video color, select input video source standard, display mode and
display resolution.
Color: Tuning display color.
Composite: Select input video standards from NTSC-M, NTSC-J, PAL-B/G,
35. 34
PAL-D/K, PAL-I, PAL-M, PAL-N, SECAM-D/K, SECAM-L, SECAM-B/G.
S-Video: Select input video standards from NTSC-M, NTSC-J, PAL-B/G,
PAL-D/K, PAL-I, PAL-M, PAL-N, SECAM-D/K, SECAM-L, SECAM-B/G.
Display Mode: Select from Overlay Surface (video memory shared by many
windows) and Primary Surface (video memory concentrate on one primary
window). Some of the graphics chipsets do not support Overlay Surface, it
results in no display in the viewing window. To fix this problem, simply select
Primary Surface.
36. 35
Preview
You can set to preview 4, 9, 16 or 25 channels on your screen and set time
duration for next available channel to be previewed.
Standard: Display 4, 9, 16 or 25 preview screens.
Duration: Elapse time to preview next available channel.
37. 36

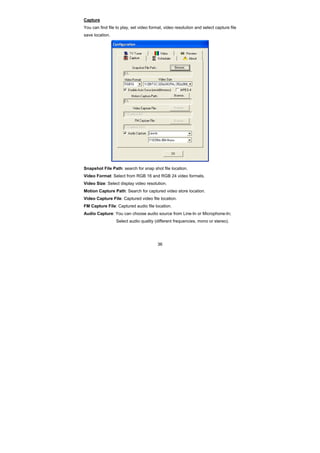

Capture
You can find file to play, set video format, video resolution and select capture file
save location.
Snapshot File Path: search for snap shot file location.
Video Format: Select from RGB 16 and RGB 24 video formats.
Video Size: Select display video resolution.
Motion Capture Path: Search for captured video store location.
Video Capture File: Captured video file location.
FM Capture File: Captured audio file location.
Audio Capture: You can choose audio source from Line-In or Microphone-In;
Select audio quality (different frequencies, mono or stereo).
38. 37
Scheduler
You can preset timer to record TV program.
In order to preset timer to record a TV program, you have to select a time slot
then set time frame you want to record TV program. Double click the time slot,
window below will appear, select TV channel, video source, make sure check
“Enable Record” otherwise capture card will not record program.
39. 38
Minimize Panel
Minimize play panel.
Mute/Unmute
Disable/Enable audio.
On/Off
Turn on/off play panel.
Play
Play recorded Video/Audio file.
Record
Record video/audio programs. Default recorded video is in MPEG-4 format and
audio in WAV format.
Still Image
Snap shot. You can capture on going video frame.
Time-Shifting
Enable/disable Time-Shifting. This feature allows user to pause, rewind and
instant replay live TV program. Users can take breaks during a TV show or
movie and will never miss a scene again. Once Time-Shifting starts, PIP (picture
in picture) will operate at same time. A smaller display screen at upper left corner
will record video program and live program still plays at regular screen.
40. 39
Full Screen: Click this button to swap PIP screens.
PIP: Turn on/off PIP screens.
Play/Pause: Pause and play recorded file.
* You can also swap PIP screens with Display key of the remote controller.
* When Time-shifting is running, recording, snapshot, change video
source and change channel functions will be disabled.
Video/FM
Switch between TV mode and radio mode.
Video Source
Select input video source.
41. 40
4. Trouble Shooting
Q1. Why when I play recorded video, radio program and time-shifting window, I
can not hear any sound?
A1: This problem causes by your system is set to “Surround Sound Speakers
(5.1 Surround), under this setting, Line In input port your system is used as audio
output. This results no audio input on your system, therefore when you are
recording files your recorded files have no audio. There are two solutions to
solve this problem.
Solution1: Go to “AC 97 Setting”, change “Surround Sound Speakers (5.1
Surround)” to “Stereo Speakers”.
Solution2: Go to “Volume Control”, click “Options”, select “Properties”. +W
hen new window pops out, select “Recording” then check “select”
under “Line In”.
PN:2041511000000
