COT2_RESISTOR_COLOR_CODING.pptx
- 1. SLIDESMANIA.COM Grade8 –SPACABRERA Good Afternoon! June 18,2021, Friday, 3:00PM – 4:00PM OnlineSynchronousClass TLE8Exploratory–Consumer ElectronicsServicing
- 2.
- 3.
- 4.
- 5.

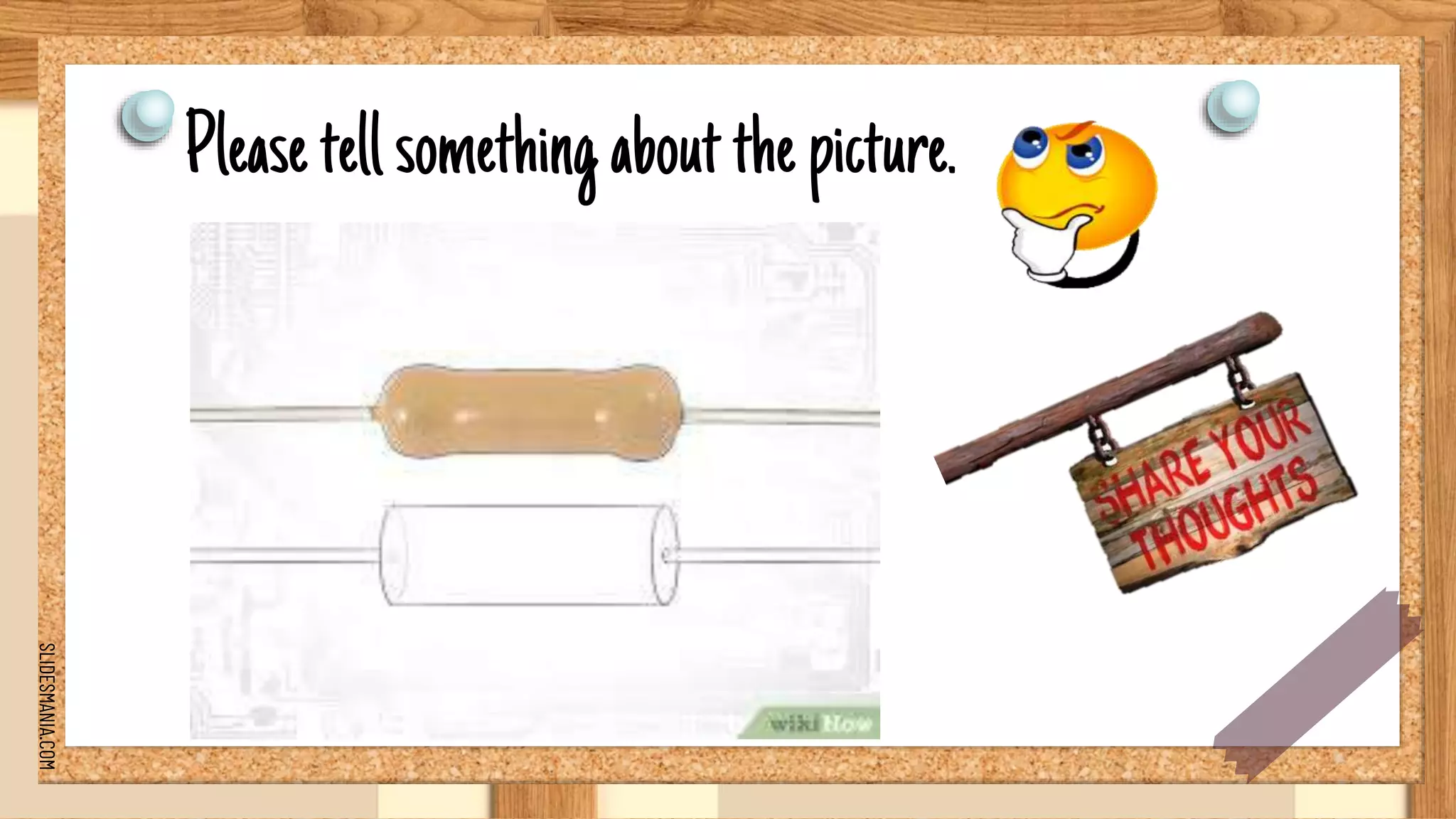

- 6.
- 7.

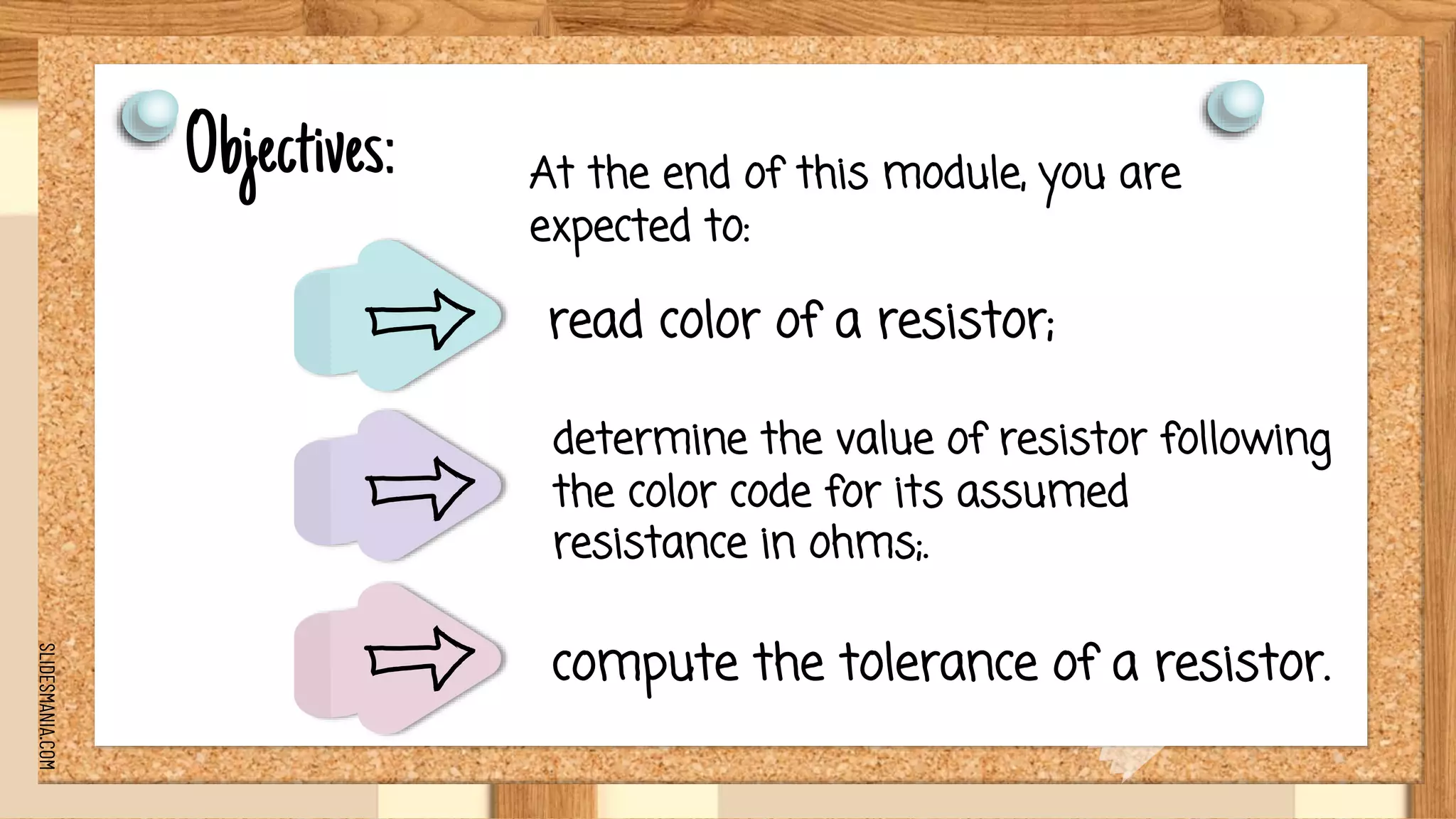

- 8. SLIDESMANIA.COM Objectives: At theend of this module, you are expected to: read color of a resistor; determine the value of resistor following the color code for its assumed resistance in ohms;. compute the tolerance of a resistor.

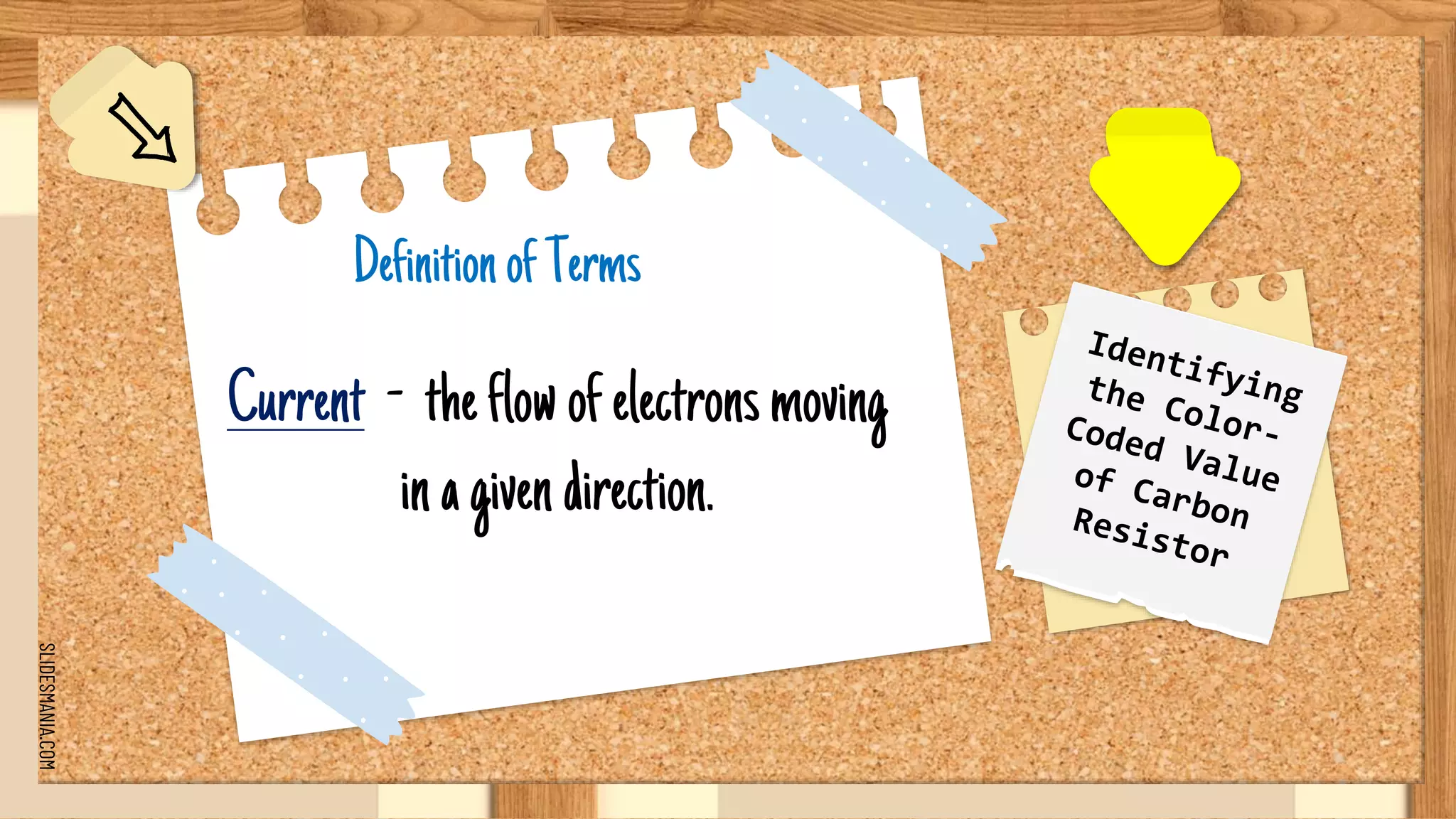

- 9.

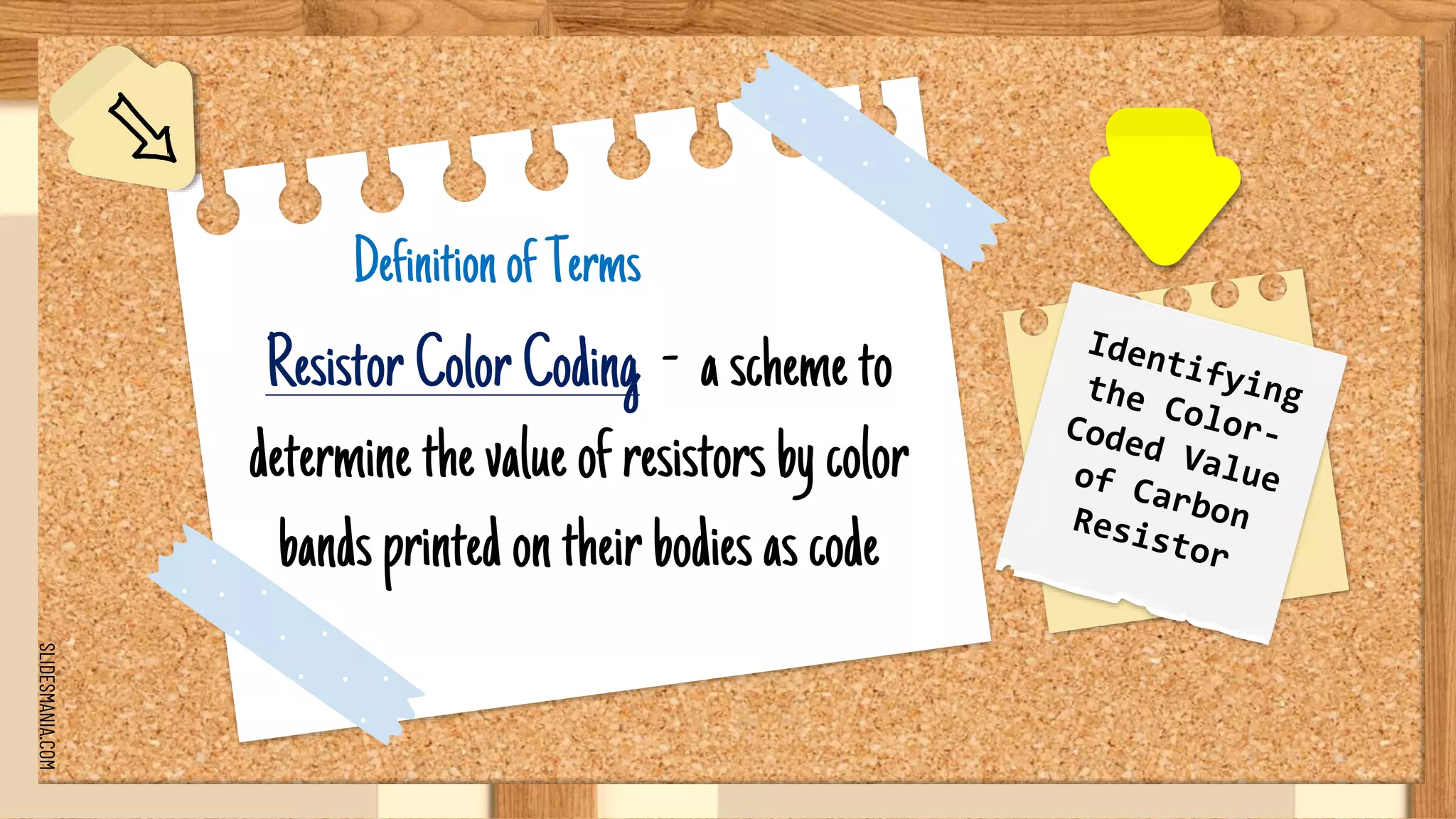

- 10. SLIDESMANIA.COM DefinitionofTerms ResistorColorCoding - aschemeto determine thevalueofresistors bycolor bandsprintedontheirbodies ascode

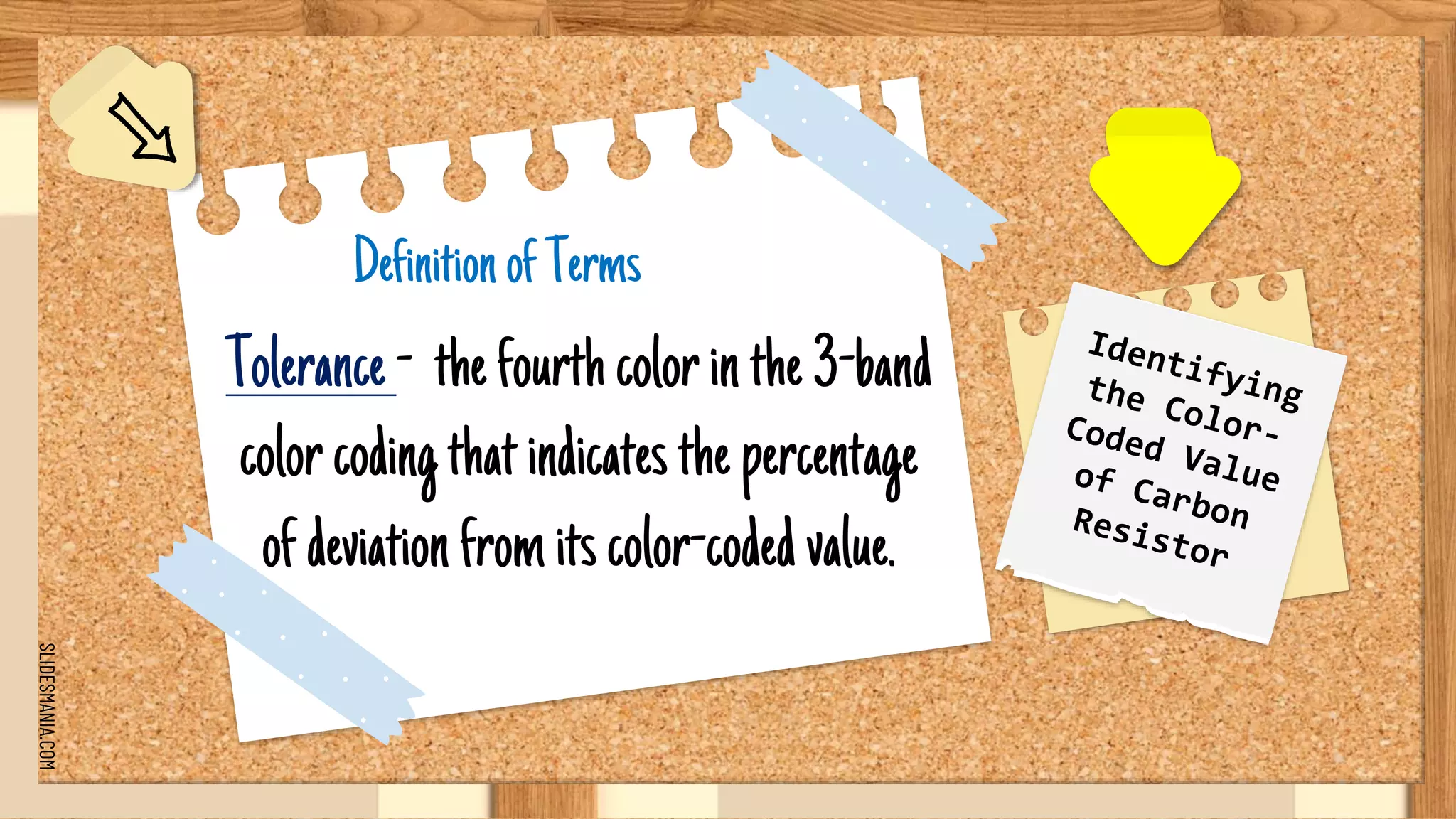

- 11.

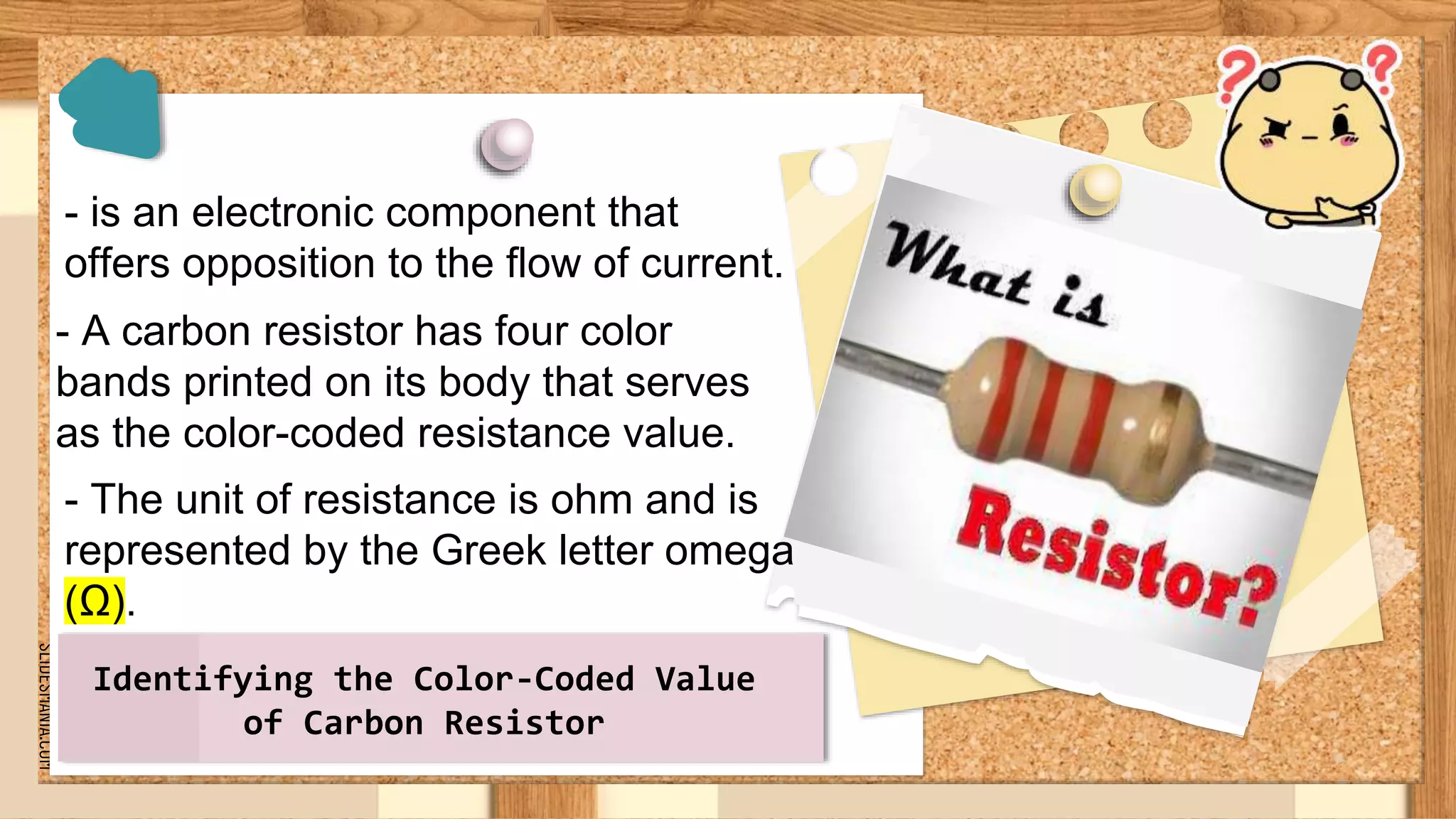

- 12. SLIDESMANIA.COM - is anelectronic component that offers opposition to the flow of current. Identifying the Color-Coded Value of Carbon Resistor - A carbon resistor has four color bands printed on its body that serves as the color-coded resistance value. - The unit of resistance is ohm and is represented by the Greek letter omega (Ω).

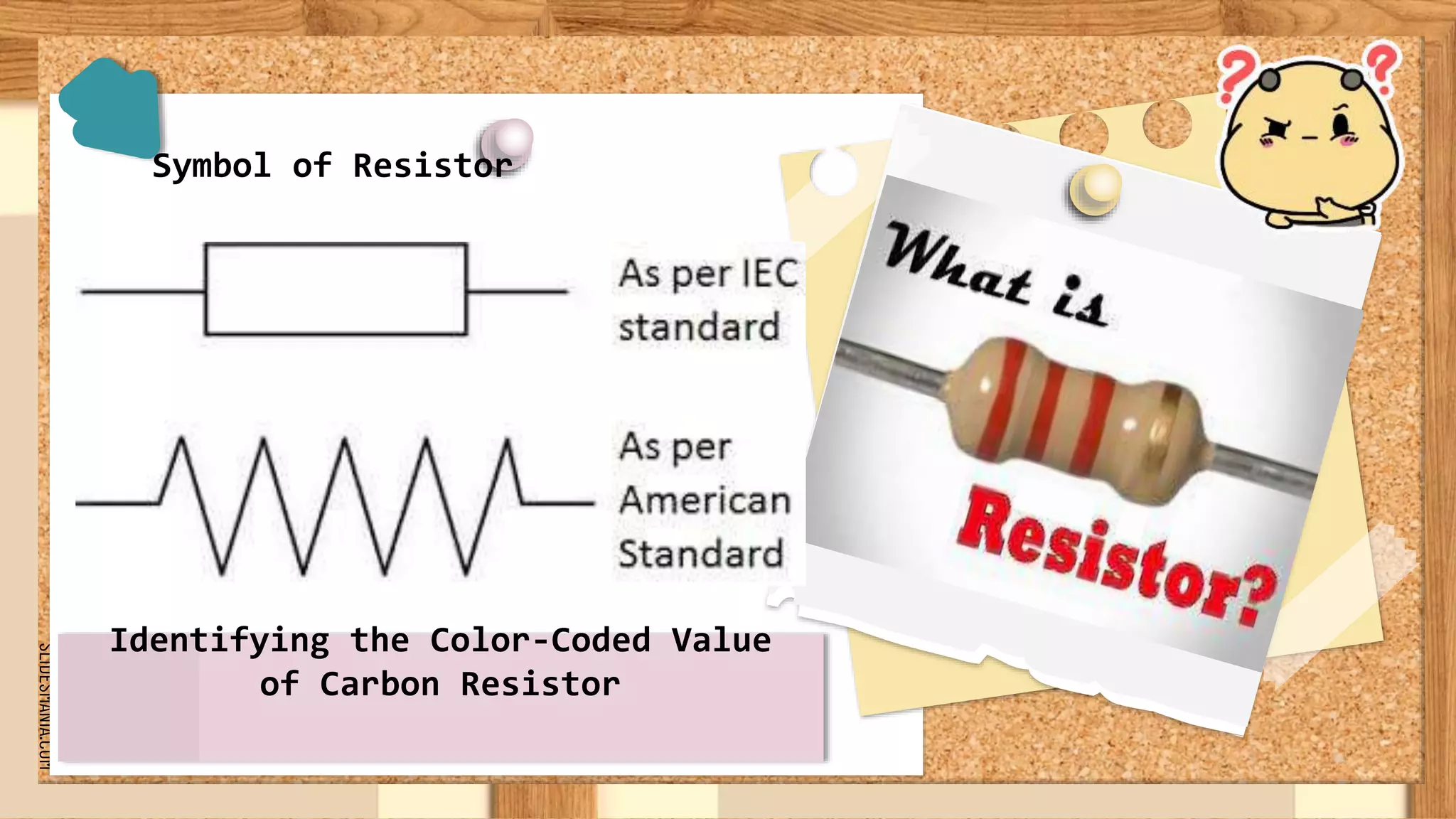

- 13. SLIDESMANIA.COM Identifying the Color-CodedValue of Carbon Resistor Symbol of Resistor

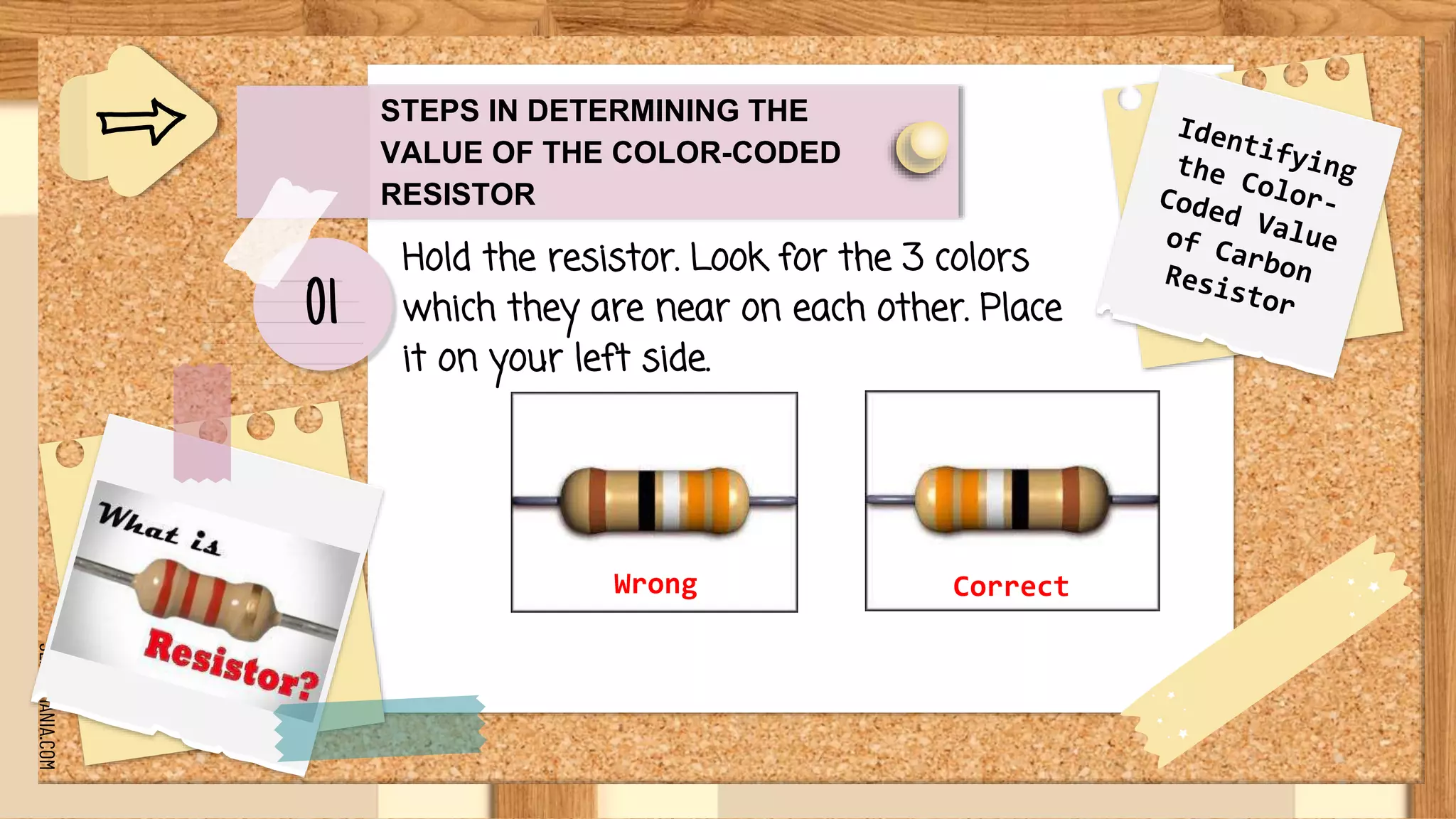

- 14. SLIDESMANIA.COM STEPS IN DETERMININGTHE VALUE OF THE COLOR-CODED RESISTOR Hold the resistor. Look for the 3 colors which they are near on each other. Place it on your left side. Wrong Correct 01

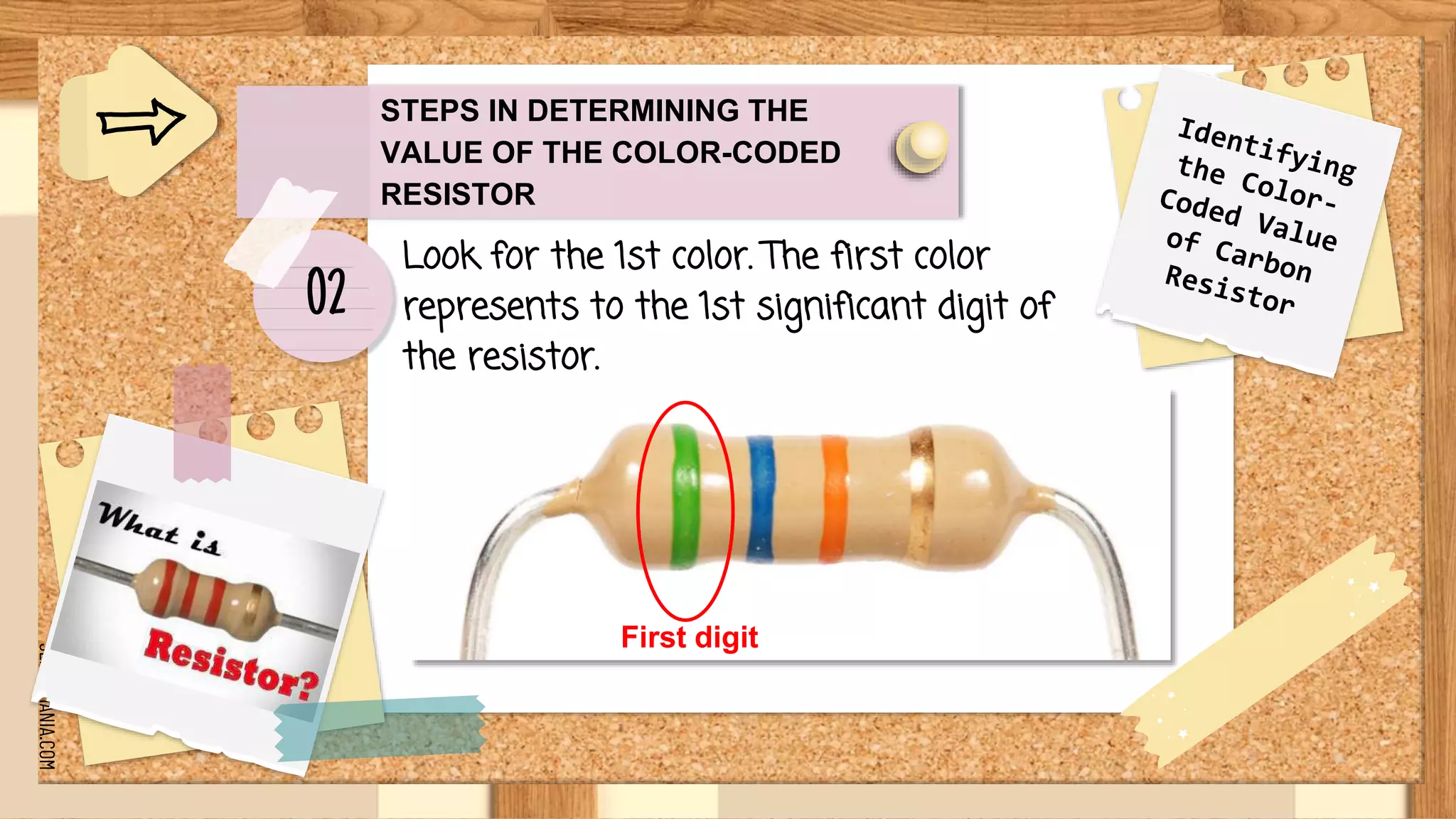

- 15. SLIDESMANIA.COM STEPS IN DETERMININGTHE VALUE OF THE COLOR-CODED RESISTOR Look for the 1st color. The first color represents to the 1st significant digit of the resistor. First digit 02
- 16. SLIDESMANIA.COM STEPS IN DETERMININGTHE VALUE OF THE COLOR-CODED RESISTOR Look for the 2nd color. The second color represents to the 2nd significant digit. Second digit 03
- 17. SLIDESMANIA.COM STEPS IN DETERMININGTHE VALUE OF THE COLOR-CODED RESISTOR Look for the third color. The third color represents to the number of zeros. Multiplier (number of zeroes) 04

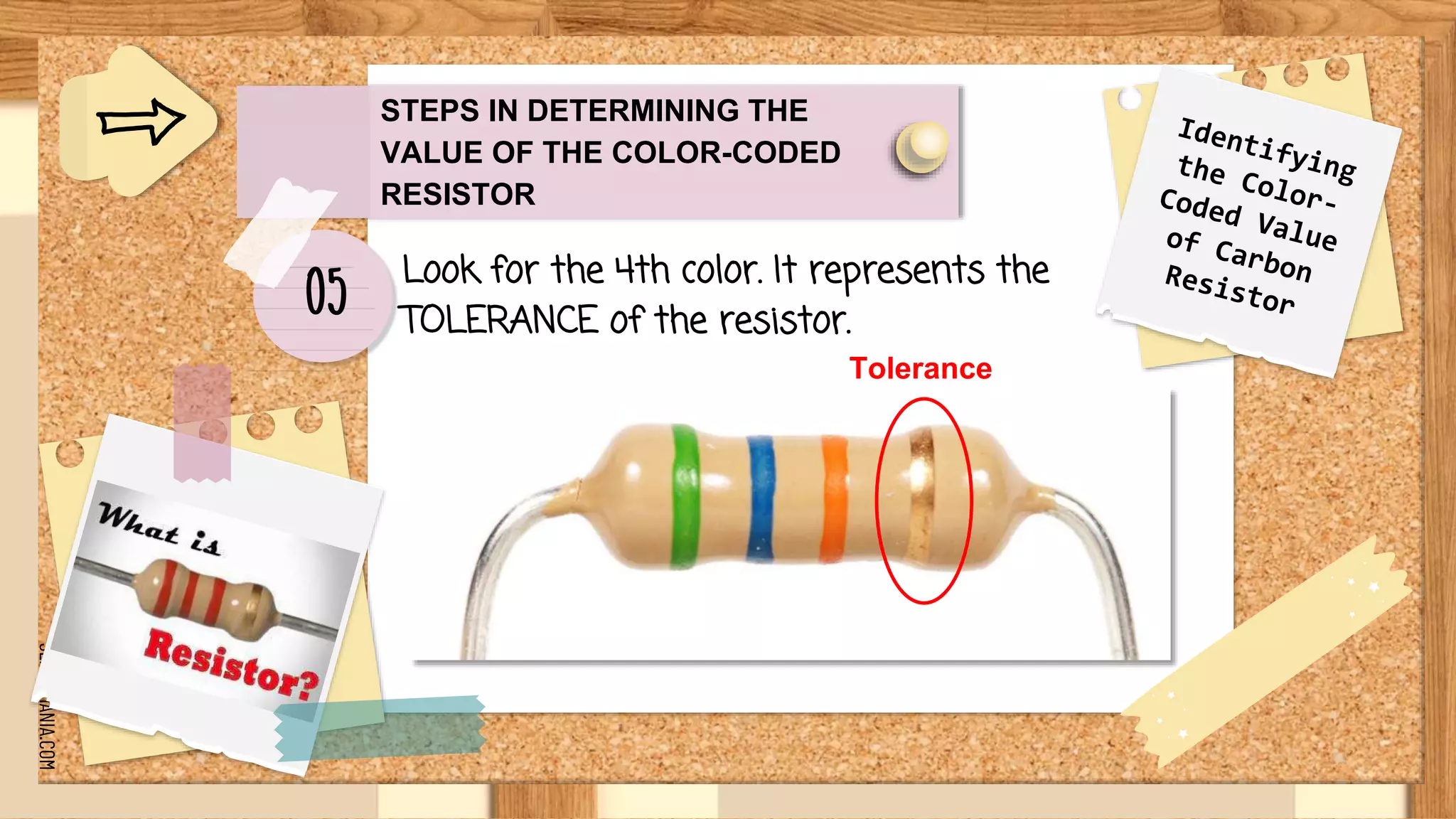

- 18. SLIDESMANIA.COM STEPS IN DETERMININGTHE VALUE OF THE COLOR-CODED RESISTOR Look for the 4th color. It represents the TOLERANCE of the resistor. Tolerance 05

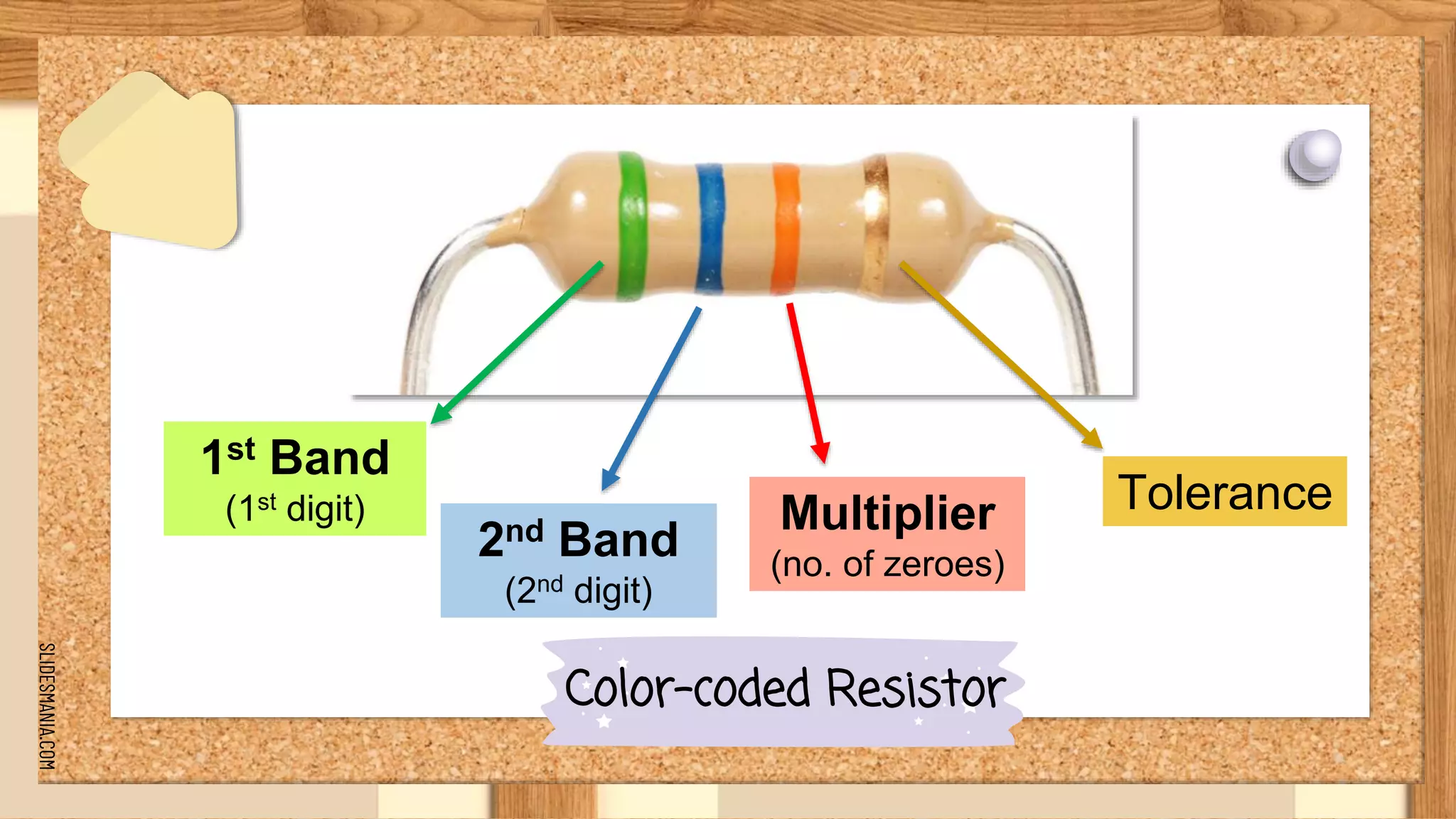

- 19. SLIDESMANIA.COM Color-coded Resistor 1st Band (1stdigit) 2nd Band (2nd digit) Multiplier (no. of zeroes) Tolerance
- 20. SLIDESMANIA.COM Color Coding Value BLACK0 Big BROWN 1 Bear RED 2 Races ORANGE 3 Our YELLOW 4 Young GREEN 5 Goat BLUE 6 But VIOLET 7 Vico GREY 8 Got WHITE 9 Wins BIG BEAR RACES OUR YOUNG GOAT BUT VICO GOT WINS

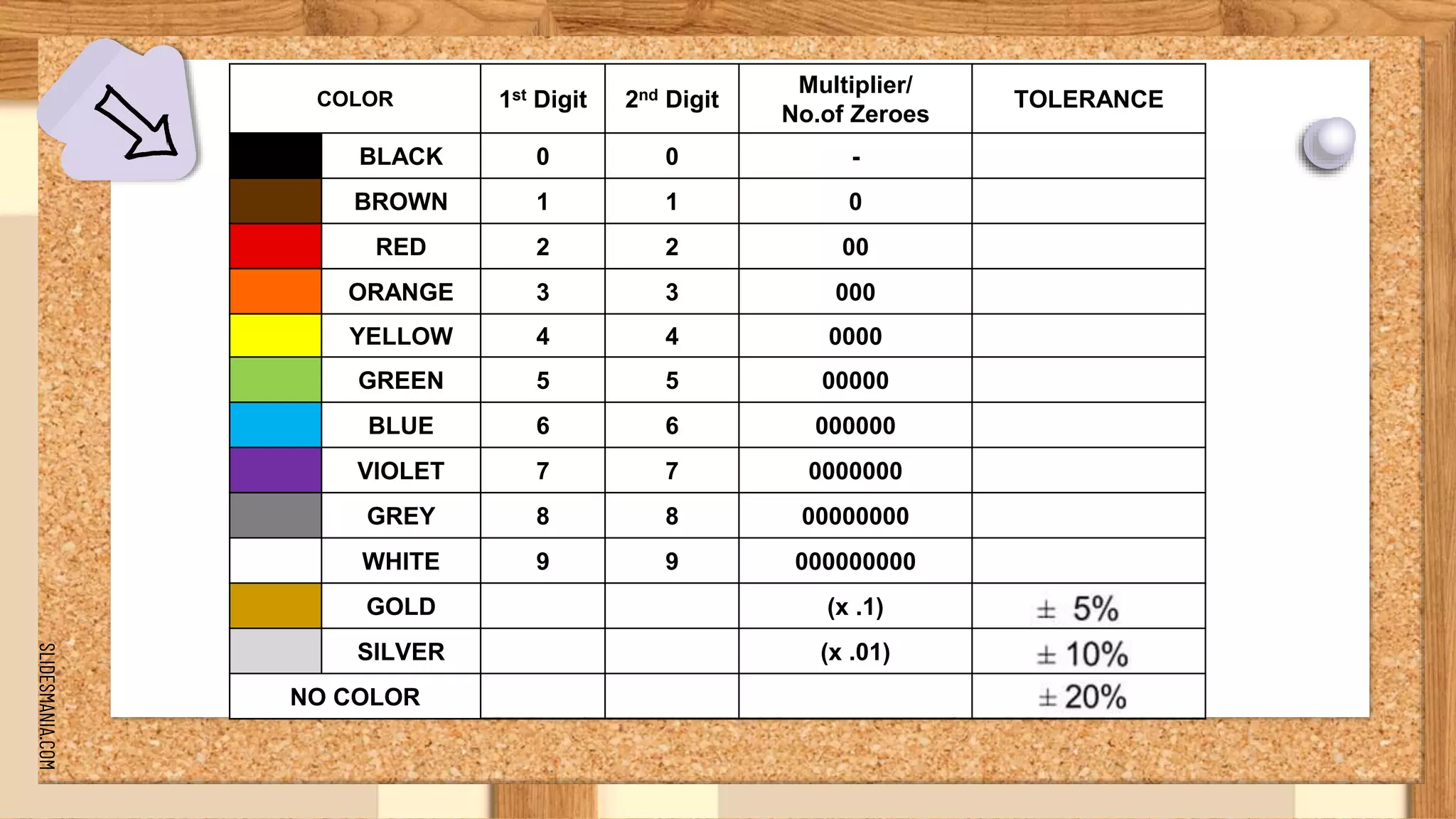

- 21. SLIDESMANIA.COM COLOR 1st Digit2nd Digit Multiplier/ No.of Zeroes TOLERANCE BLACK 0 0 - BROWN 1 1 0 RED 2 2 00 ORANGE 3 3 000 YELLOW 4 4 0000 GREEN 5 5 00000 BLUE 6 6 000000 VIOLET 7 7 0000000 GREY 8 8 00000000 WHITE 9 9 000000000 GOLD (x .1) SILVER (x .01) NO COLOR

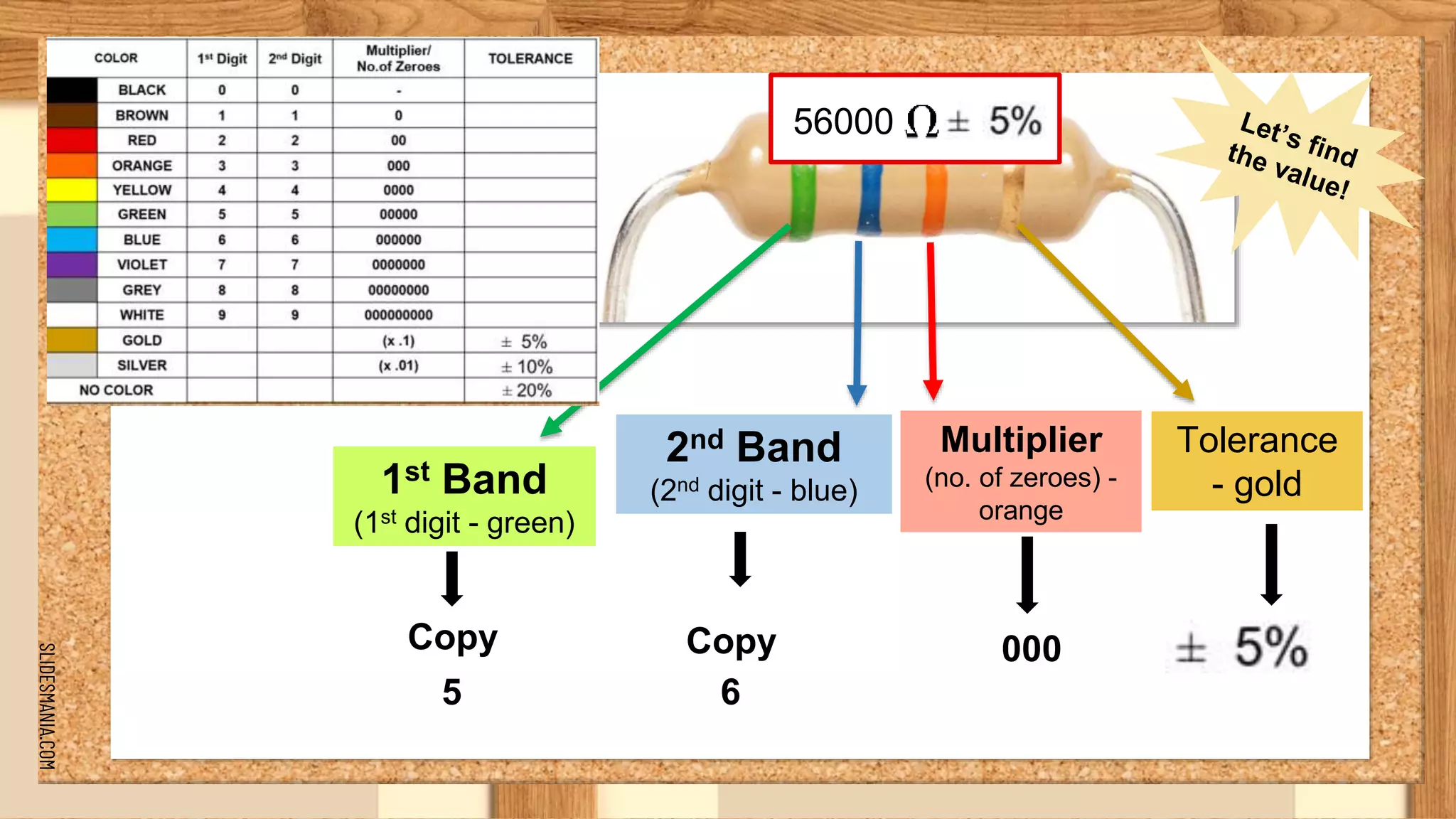

- 22. SLIDESMANIA.COM 1st Band (1st digit- green) 2nd Band (2nd digit - blue) Multiplier (no. of zeroes) - orange Tolerance - gold Copy 5 Copy 6 000 56000

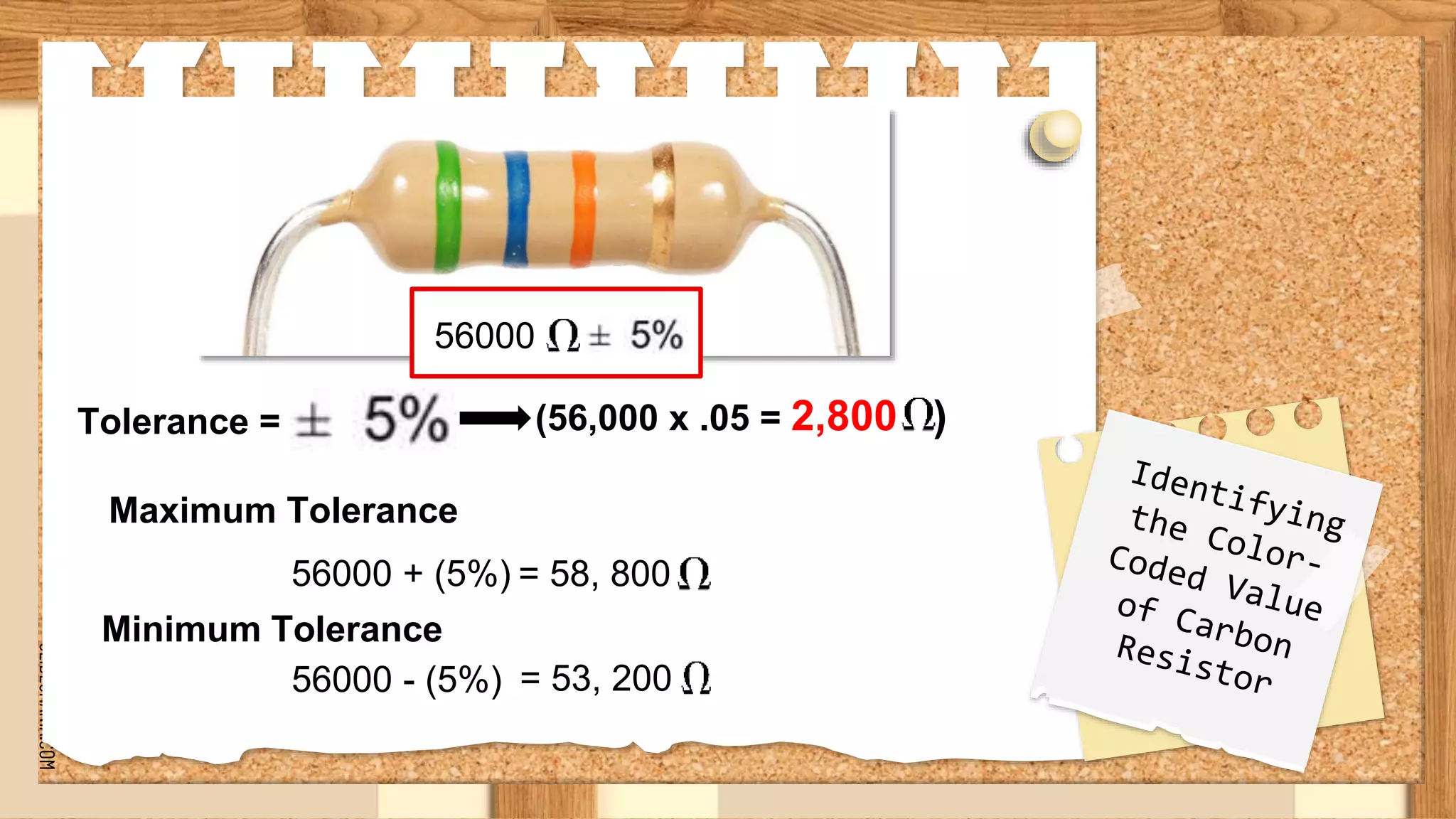

- 23. SLIDESMANIA.COM 56000 = 58, 800 MaximumTolerance Minimum Tolerance 56000 + (5%) 56000 - (5%) = 53, 200 Tolerance = (56,000 x .05 = 2,800 )
- 24. SLIDESMANIA.COM COLOR 1st Digit2nd Digit Multiplier/ No.of Zeroes TOLERANCE BLACK 0 0 - BROWN 1 1 0 RED 2 2 00 ORANGE 3 3 000 YELLOW 4 4 0000 GREEN 5 5 00000 BLUE 6 6 000000 VIOLET 7 7 0000000 GREY 8 8 00000000 WHITE 9 9 000000000 GOLD (x .1) SILVER (x .01) NO COLOR
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
Editor's Notes
- #2 Prayer Greetings Attendance
- #3 Sign in at least 10 mins b4 the class starts All things must be prepared before joining tha class becoz we have just limited time Just turn on camera when you are told to do so Wear something that is comfortable but presentable Always turn ur mic off to avoid unnecessary noise Use raise hand button until you are recognized to speak Then enjoy learning
- #12 The tolerance of a resistor is the maximum difference between its actual value and the required value and is generally expressed as a plus or minus percentage value.
- #13 1. It is being used in most electronics appliances to limit the flow of current. Resistors are very common and are the cheapest electronic components in the market for so many years. Their features are so interesting and very colorful. That is why resistors are very popular among students studying electronics. There are different types of resistors, but the most commonly used one is the carbon resistor.
- #14 Resistor color coded value is not absolute. The real resistance of the resistor is sometimes lower or higher than its color coded value but not to exceed its tolerance level. Resistance in any electric wire helps in manipulating the current that is flowing through the circuit. Also, it enables the measurement of current and voltage flowing through a circuit. Appliances such as electric heaters, electric ovens, and toasters all use resistors to turn current into heat, then using the heat lost from this resistor to warm the surrounding area. Protect against voltage spikes. Resistors also protect components against voltage spikes.
- #19 So please take note of this that Only Gold and Silver are the 2 colors that can be found in the 4th band 4th band : TOLERANCE
- #20 There are four color bands printed on the body of carbon resistor. Each color represents a number (0-9). To easily determine the first color, remember that color black is not used as first color or first digit because its figure is zero (0). While gold and silver is for third and fourth colors. If used as third color it signifies a multiplier. When used as fourth color it represents tolerance. The “left-hand” or the most significant color band is the band which is the nearest to a connecting lead with the color coded bands being read from left-to-right.
- #23 Another example at jamboard…
- #24 Therefore a 56,000 Ω stated resistance ± 5Ω tolerance means the resistor could range in actual value from as much as 58,800 to as little 53,200. Another example at jamboard
- #26 -
- #27 -

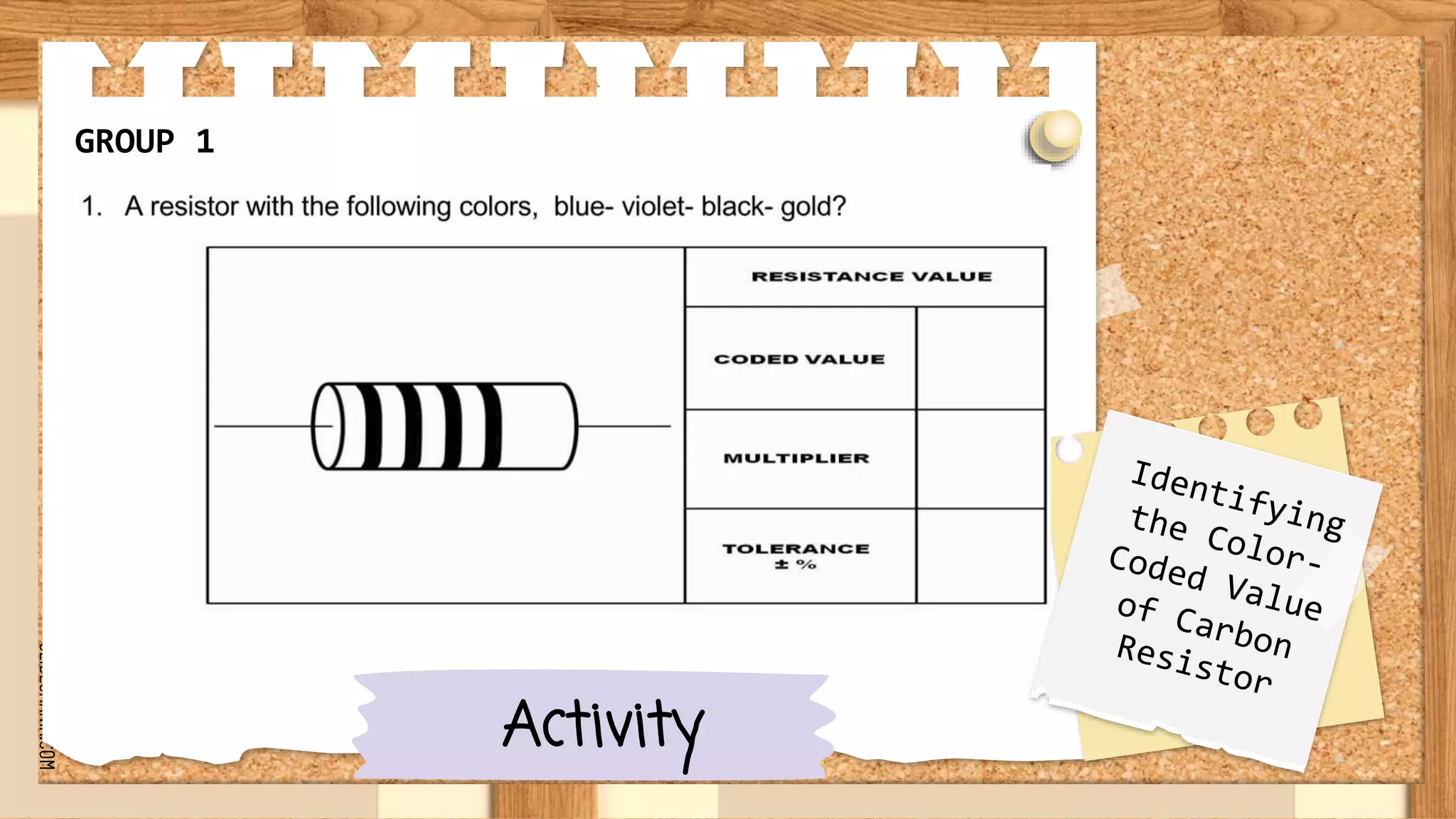

- #28 6-7 Ohms +/-5 + 70.35;Ohms - 63.65Ohms

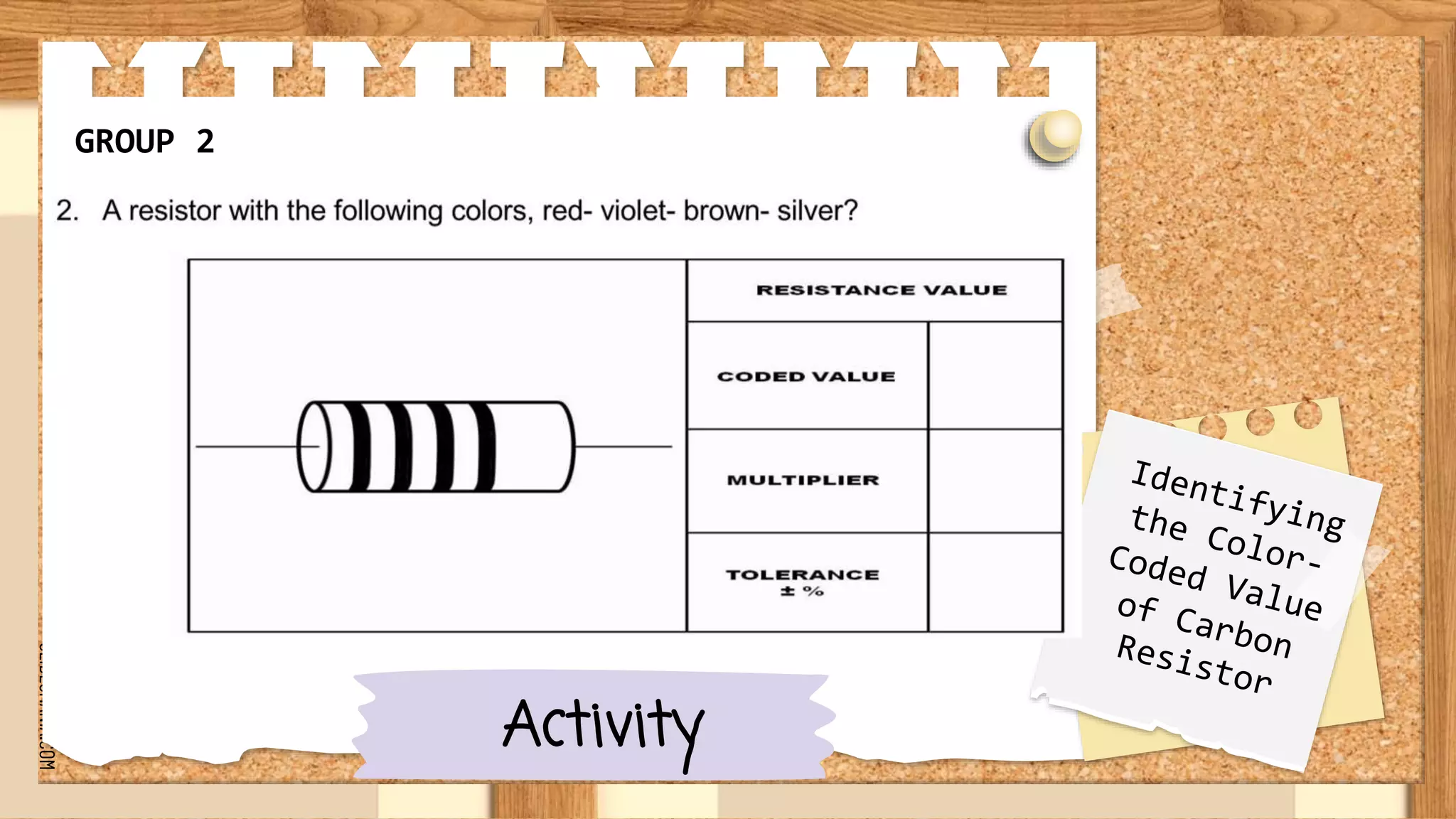

- #29 2,7,0 Ohms +/-10 270+27 = 297 Ohms 270-27 = 243 OHMS

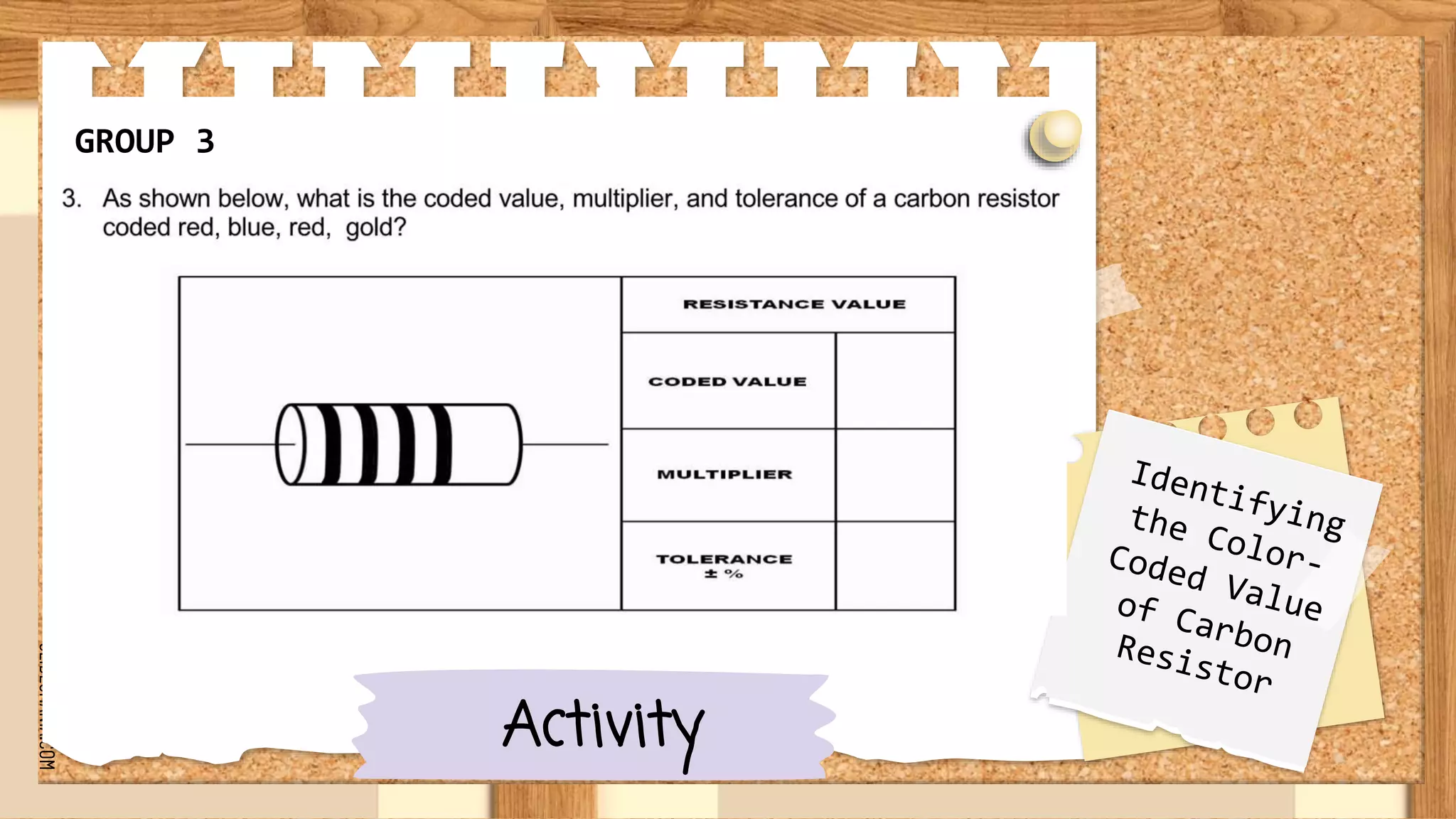

- #30 2,6,00 +-5

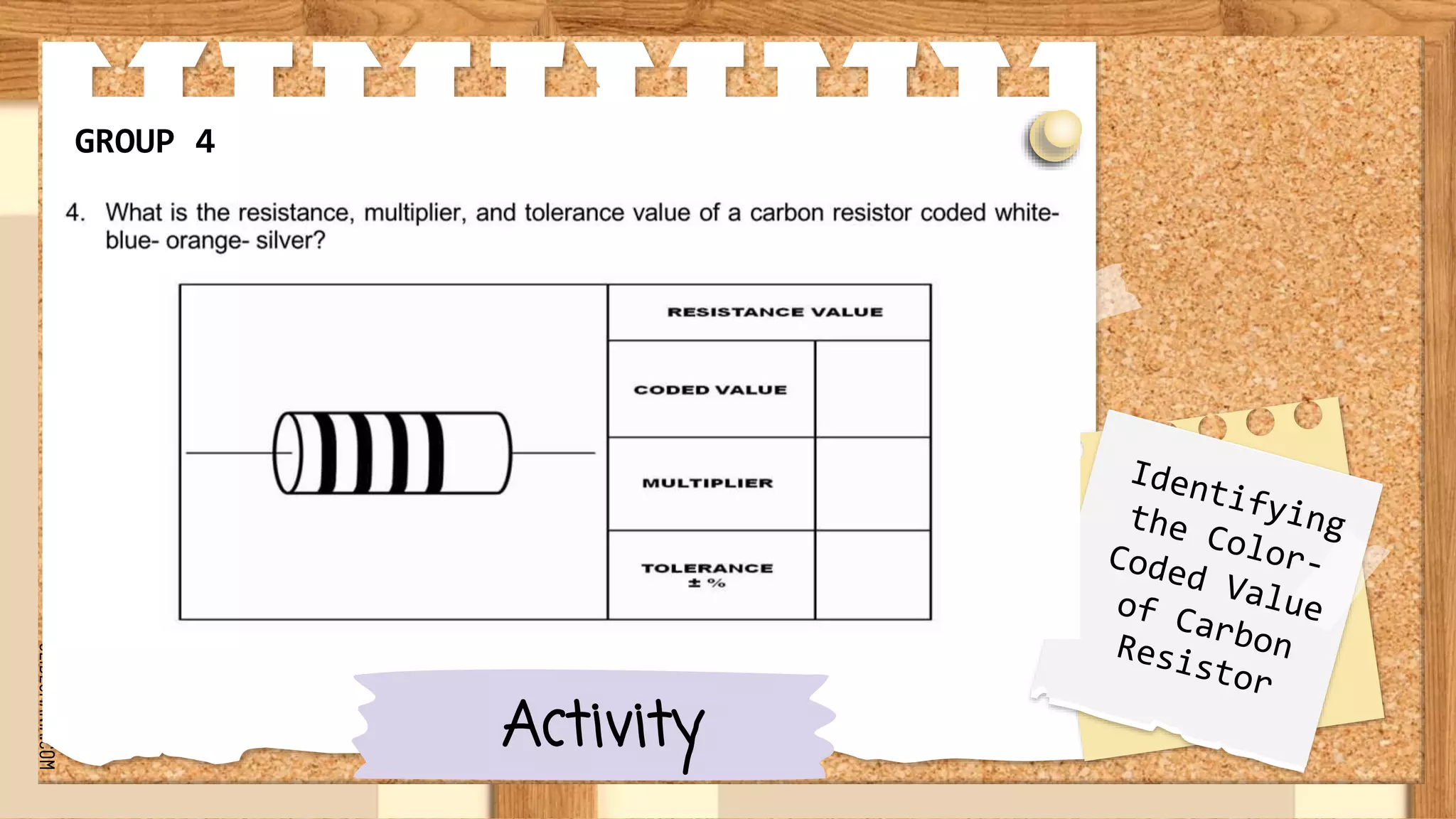

- #31 9,6,000 +-10%.. Who can sum up our lesson for today or your take aways?
