2. *
*Corporation Techs (IDI) is a distribution company
with over 4000 employees in 7 cities throughout 6
countries. IDI is the largest distributor of goods
throughout the world and for the past 15 years has
been the leader in logistical disbursement.
*Our mission is to be able to provide other
companies with efficient, safe and reliable shipping
and logistics. IDI strives to keep cost down to make
our clients profit. We strive to ensure that all
logistical support is kept confidential, safe, and
accessible to the client.
3. *

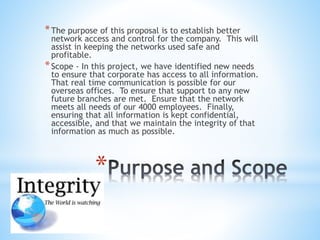

*The purpose of this proposal is to establish better
network access and control for the company. This will
assist in keeping the networks used safe and
profitable.
*Scope - In this project, we have identified new needs
to ensure that corporate has access to all information.
That real time communication is possible for our
overseas offices. To ensure that support to any new
future branches are met. Ensure that the network
meets all needs of our 4000 employees. Finally,
ensuring that all information is kept confidential,
accessible, and that we maintain the integrity of that
information as much as possible.
5. *

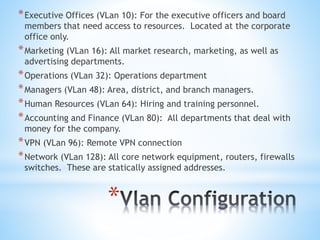

*Executive Offices (VLan 10): For the executive officers and board
members that need access to resources. Located at the corporate
office only.
*Marketing (VLan 16): All market research, marketing, as well as
advertising departments.
*Operations (VLan 32): Operations department
*Managers (VLan 48): Area, district, and branch managers.
*Human Resources (VLan 64): Hiring and training personnel.
*Accounting and Finance (VLan 80): All departments that deal with
money for the company.
*VPN (VLan 96): Remote VPN connection
*Network (VLan 128): All core network equipment, routers, firewalls
switches. These are statically assigned addresses.
6. *

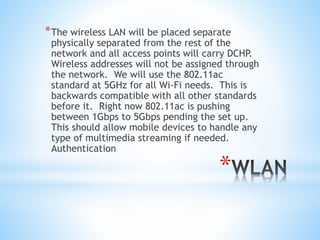

*The wireless LAN will be placed separate
physically separated from the rest of the
network and all access points will carry DCHP.
Wireless addresses will not be assigned through
the network. We will use the 802.11ac
standard at 5GHz for all Wi-Fi needs. This is
backwards compatible with all other standards
before it. Right now 802.11ac is pushing
between 1Gbps to 5Gbps pending the set up.
This should allow mobile devices to handle any
type of multimedia streaming if needed.
Authentication
7. *

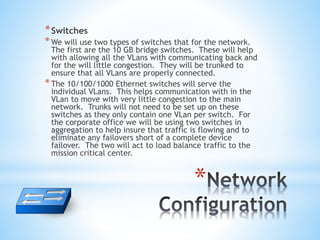

*Switches
*We will use two types of switches that for the network.
The first are the 10 GB bridge switches. These will help
with allowing all the VLans with communicating back and
for the will little congestion. They will be trunked to
ensure that all VLans are properly connected.
*The 10/100/1000 Ethernet switches will serve the
individual VLans. This helps communication with in the
VLan to move with very little congestion to the main
network. Trunks will not need to be set up on these
switches as they only contain one VLan per switch. For
the corporate office we will be using two switches in
aggregation to help insure that traffic is flowing and to
eliminate any failovers short of a complete device
failover. The two will act to load balance traffic to the
mission critical center.
8. *

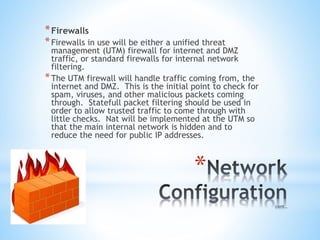

*Firewalls
*Firewalls in use will be either a unified threat
management (UTM) firewall for internet and DMZ
traffic, or standard firewalls for internal network
filtering.
*The UTM firewall will handle traffic coming from, the
internet and DMZ. This is the initial point to check for
spam, viruses, and other malicious packets coming
through. Statefull packet filtering should be used in
order to allow trusted traffic to come through with
little checks. Nat will be implemented at the UTM so
that the main internal network is hidden and to
reduce the need for public IP addresses.
9. *

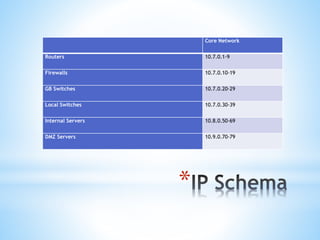

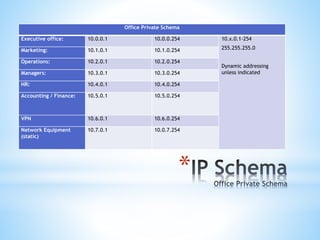

*Configuration of all routers will be with the
OSPF for both internal and external traffic.
This allows us the option to use more than just
Cisco equipment. OSPF is able to handle the
VLSM better than RIP.

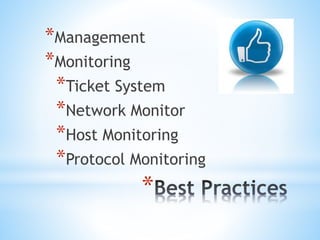

14. *

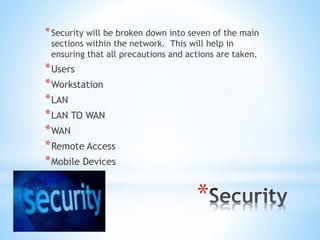

*Security will be broken down into seven of the main
sections within the network. This will help in
ensuring that all precautions and actions are taken.
*Users
*Workstation
*LAN
*LAN TO WAN
*WAN
*Remote Access
*Mobile Devices
15. *
*The new network is a large undertaking for
Corporation Techs. It is one that is needed
though. In order to stay head of costs and to
show our clients and future clients that we are
serious a major reconstruction is needed.
Support from at the management level is
critical in making the company a success.
*As an overview we are looking at the following:
*VLans
*DMZ implementation
*VPN for remote users
*Encrypted Wireless
16. *

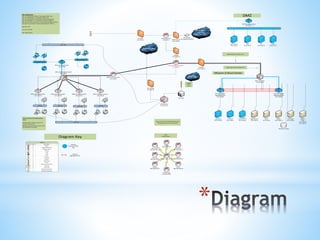

ISP INTERNET /
SSL VPN
200.200.210.X
VoIP Provider
PSTN
SIP Firewall
10.X.96.10
6 Multi-function device
11 Ethernet
11 Server
1 FTP server
1 Modem
8 Comm-link
3 Cloud
8 Manages switch
1 PBX
5 Firewall
6 ZERO Client
6 Printer
3 FastGB etherswitch
12 Router
1 Wireless access point
1 Relational database
Symbol Count Description
Legend
Vlan 96
10.X.96.6
Voice over IP And Video Conferencing
Through Sip and H.323 protocols
Corporate Vlan 16
Vlan32 Vlan 48
Firewall
10.X.128.10
Spanning Tree Secondary link
Corporate Vlan 10
Analog
POTS
RJ11
ADDS /
ESXI/
10.X.128.50
10.X.128.51
Intranet
10.0.128.57
Applications
10.X.128.55
DHCP
10.x.128.54
Media
10.X.128.53
Exchange
10.X.128.52
Database
10.0.128.58
Webserver
10.0.128.70
DNS
10.0.128.71
FTP
10.0.128.72
SMTP
10.0.128.73
DMZ
ISP Modem
ISP assigned Address
Mission Critical Center
Vlan Assignments
Vlan 10: Executive Offices in Corporate office only
Vlan 16: Marketing in Corporate office only
Vlan 32: Operations in Corporate and Branch offices
Vlan 48: Managers in Corporate and Branch Offices
Vlan 64: Human resources in Corporate and Branch offices
Vlan 80: Accounting in Corporate and Branch Offices
Vlan 96: VoIP
VLan 112: WLAN
Vlan 128: Servers
Vlan 64 Vlan 80
VPN
configuration

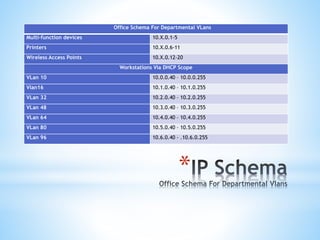

Office Schema For Departmental
VLans
Multi-function devices 10.X.X.1-5
Printers 10.X.X.6-11
Wireless Access Points 10.X.X.11-20
Workstations Via DHCP.
Spanning Tree Primary Link
Indicates
Corporate Office
Only
Diagram Key
Internal FTP
10.X.128.56
Office Managed Switch
10.X.128.34
Office Managed Switch
10.X.128.35
Border Router
10.X.128.1
DMZ Managed Switch
10.0.128.32
Office Managed Switch
10.X.128.33
Managed Switch
Aggregated links
10.X.128.31
Managed Switch
Aggregated links
10.X.128.30
MCC GB Switch
10.X.128.20
Indicates
Aggregated links
Office Managed Switch
10.X.128.37
Office Managed Switch
10.X.128.36
Office GB Managed Switch
10.X.128.21
UTM Firewall
10.X.128.11
Vlan 96
SIP GB Switch
10.X.96..20
Firewall
10.X.128.12
Internal Gateway Router
10.X.128.2
Office internal router
10.X.128.3
Firewall
10.X.128.13
Japan
200.200.200.25
Sydney
200.200.200.21
Tanzania
200.200.200.17
Warsaw
200.200.200.9
Sao Paulo
200.200.200.13
Billings
200.200.200.1
Hong Kong
200.200.2005
China
200.200.200.29
Router Hub at ISP
VM Back Up SAN
