The documents present site plans, sections, and diagrams for the proposed Corbett Village development project. The plans show the layout of the site along Expo Line tracks, with residential, retail, office, and parking structures. Diagrams provide details on programming, including square footages and performance criteria for different uses. Renderings depict the proposed promenade, park plaza, and Expo Line trail areas with landscaping, seating, and connections between buildings. Alternative proposals from three designers are shown at the end.

1. Corbett Village | Site Plan
la cienega boulevard
expo line
national bou
levard
jefferson boule
vard
expo line
oulevard
corbett street
ek
ballona cre
jefferson b
100 ft
north
clemson street

2. Corbett Village | Site Sections
10’
10’
10’
15’
40’ 35’
25’
10’
35’ 10’
15’
40’ 98’ 40’

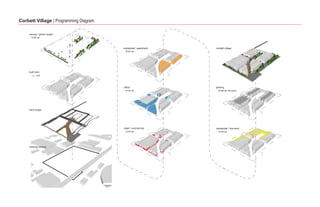

3. Corbett Village | Programming Diagram
canopy / green scape
62,892 sqft
residential / apartment corbett village
80,820 sqft
built form
1.5 : 1 FAR
office parking
66,455 sqft 190,080 sqft / 540 spaces
hard scape
retail / commercial residential / live-work
50,000 sqft 116,028 sqft
existing context
100 ft

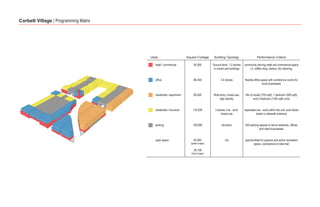

4. Corbett Village | Programming Matrix
Uses Square Footage Building Typology Performance Criteria
retail / commercial 50,000 Ground level, 1-2 stories community serving retail and commercial space
in mixed-use buildings i.e. coffee shop, bakery, dry cleaning,
office 66,455 3-4 stories flexible office space with conference rooms for
local businesses
residential / apartment 80,820 Multi-story, mixed-use, Mix of studio (700 sqft), 1 bedroom (900 sqft)
high density and 2 bedroom (1100 sqft) units
residential / live-work 116,028 3 stories, live - work seperated live - work within the unit, work faces
mixed-use street or sidewalk entrance
parking 190,080 structure 540 parking spaces to serve residents, offices
and retail businesses
open space 62,892 n/a opportunities for passive and active recreation
(green scape) space, connections to bike trail
29,108
(hard scape)

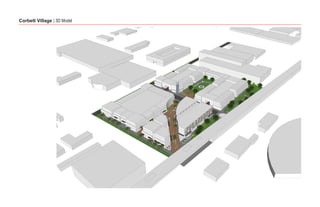

5. Corbett Village | 3D Model

6. Corbett Village | 3D Model
promenade entrance from expo line station promenade entrance from park plaza park plaza
promenade view of clock tower and park entrance to park plaza expo line trail and park

7. Corbett Village | Promenade
50 ft
north
pavement design entrance plaza from main square with neighborhood serving expo line station plaza improved street
creates flow through live-work residences water feature and retail opportunities & main connection to site landscaping to act as
site and parks outdoor dining buffer

8. Corbett Village | Promenade
10’
10’
10’
15’
40’ 35’
10’
10’
10’
15’
40’ 40’ 40’ 35’

9. Corbett Village | Park Plaza
50 ft
north
live-work open space with water sense of community connection to promenade
entrances feature and tree canopy with outdoor dining through continuation of
deck and plaza paving; paths of discovery

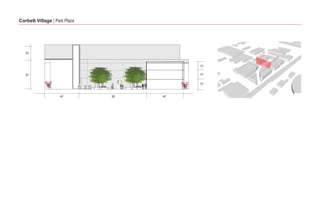

10. Corbett Village | Park Plaza
25’
10’
35’ 10’
15’
40’ 98’ 40’

11. Corbett Village | Expo Line Trail
50 ft
north
increased tree canopy & open space new hard scape; central fountain & bicyce facilities opportunities for improved expo line station
paths & benches gathering point outdoor dining plaza & connection to trail

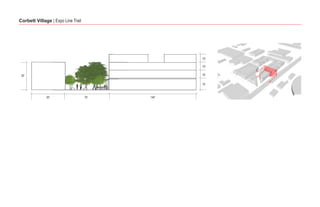

12. Corbett Village | Expo Line Trail
10’
10’
30’ 10’
15’
50’ 70’ 140’

13. Corbett Village | Proposals
by Laron Turley
N 100 feet

14. Corbett Village | Proposals
by Laron Turley
N O R T H
S O U T H
North Facade
South Facade

15. Corbett Village | Proposals
by Kevin Kohan
N 100 feet

16. Corbett Village | Proposals
by Kevin Kohan

17. Corbett Village | Proposals
by Patrick Whalen
N 100 feet

18. Corbett Village | Proposals
by Patrick Whalen
