The document discusses containers as tools for DevOps that enable better security and management of applications, promoting a microservice architecture for flexible deployments. It outlines fundamental knowledge for managing Windows server containers using Docker on Windows 10, including installation and creation processes. Key concepts covered include Docker's integration, the advantages of containers, and the differences between traditional and modern DevOps practices.

1. @ITProGuru
Dan Stolts (@ITProGuru)
Chief Technology Strategist
US DX North East – Audience
Blog: ITProGuru.com
dstolts@Microsoft.com
www.linkedin.com/in/danstolts
Containers: DevOps Enablers
of Technical Solutions
aka.ms/70-534-book
Blaize Stewart
Senior Consultant
www.blaize.net
@theonemule
Wintellect
www.wintellect.com
@Wintellectuals

2. @ITProGuru

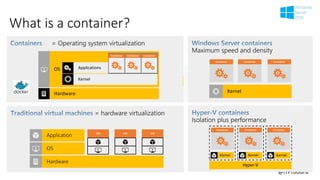

What is a container?

3. @ITProGuru

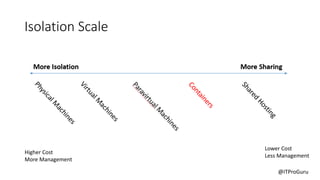

Isolation Scale
Higher Cost
More Management
Lower Cost
Less Management

4. Container Security
“Containers offer many overall
advantages. From a security
perspective, they create a method
to reduce attack surfaces and
isolate applications to only the
required components, interfaces,
libraries and network connections.”
– Aaron Grattafiori, NCC Group

5. @ITProGuru

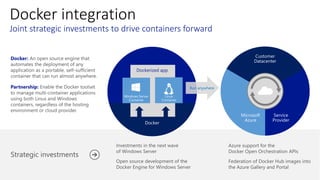

Docker integration
Docker:
Partnership:
Dockerized app
Run anywhere

6. What Problem(s) is Docker Trying to Solve?
 Enable DevOps
 The synthesis of operations and development working together
through the entire service lifecycle, from design through the
development process to production support.
 Support for Microservice Architecture (MSA)
 MSA is an approach to developing a single application as a suite of
small services, each running in its own process and communicating
with lightweight mechanisms, often an HTTP resource API.
 These services are built around business capabilities and
independently deployable by fully automated deployment
machinery.
 There is a bare minimum of centralized management of these
services, which may be written in different programming languages
and use different data storage technologies.

7. @ITProGuru
Dan Stolts (@ITProGuru)
Chief Technology Strategist
US DX North East – Audience
Blog: ITProGuru.com
dstolts@Microsoft.com
www.linkedin.com/in/danstolts
Containers: DevOps
Enablers of Technical
Solutions
aka.ms/70-534-book
Blaize Stewart
Senior Consultant
www.blaize.net
@theonemule
Wintellect
www.wintellect.com
@Wintellectuals

8. @ITProGuru

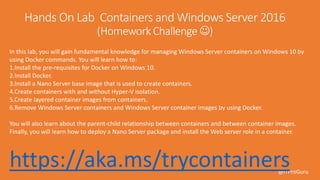

https://aka.ms/trycontainers
In this lab, you will gain fundamental knowledge for managing Windows Server containers on Windows 10 by
using Docker commands. You will learn how to:
1.Install the pre-requisites for Docker on Windows 10.
2.Install Docker.
3.Install a Nano Server base image that is used to create containers.
4.Create containers with and without Hyper-V isolation.
5.Create layered container images from containers.
6.Remove Windows Server containers and Windows Server container images by using Docker.
You will also learn about the parent-child relationship between containers and between container images.
Finally, you will learn how to deploy a Nano Server package and install the Web server role in a container.

9. @ITProGuru
Containers

10. @ITProGuru

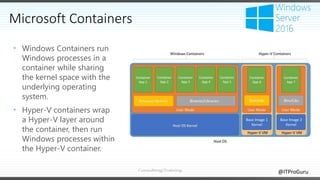

• Windows Containers run
Windows processes in a
container while sharing
the kernel space with the
underlying operating
system.
• Hyper-V containers wrap
a Hyper-V layer around
the container, then run
Windows processes within
the Hyper-V container.
Microsoft Containers

11. @ITProGuru
VM/VDI Based
Computing
Session Based Computing
AKA Terminal Services
Parent OS
Applications
Workloads
Hardware /
Hypervisor
Level
All users see and access same OS,
CPU, memory, apps, etc
No Overhead
OS, Apps, Config, Mgmt
EACH App/Workload; good isolation;
Huge Overhead Cost
Session Based Computing VS VM or VDI Based Computing
Session Based Computing VM or VDI Based Computing

12. @ITProGuru
Containers
Parent OS
Workloads
Hardware /
Hypervisor
Level
Application(s)
App App App App
App App App App
App App App App
App App App App
Linux VM
App App App App
Single OS All Workloads
Isolation EACH App
Container
App App
App App
App App
App App
App App
App App
App App
App App
App App
OS EACH Platform
Isolation EACH App
Container
Performance Advantages of Session Based Computing, Isolation Advantages of VMs
Low overhead of session based computing and application virtualization

13. @ITProGuru

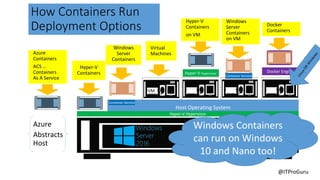

How Containers Run
Deployment Options
Virtual
Machines
Hyper-V
Containers
Windows
Server
Containers
Docker
Containers
VM
Windows
Server
Containers
on VM
Hyper-V
Containers
on VM
Azure
Abstracts
Host
Azure
Containers
ACS …
Containers
As A Service
Windows Containers
can run on Windows
10 and Nano too!

14. @ITProGuru
Nano Server installation
option - just enough OS

15. Docker Tools
 Docker Machine – Utility to provision Docker Hosts
 Docker Engine – The server side component responsible
for running and maintaining containers on a Docker Host.
 Docker Build – Create images using Dockerfiles
 Docker Run – Run instances of images as containers
 Docker Client – the client side tool for interacting with the
Docker Engine.
 Docker Compose – Orchestrates complex application with
multiple containers.
 Docker Hub – The Docker maintained repository for public
and private images. https://hub.docker.com/
 Docker Swarm – Clusters Docker Engines across multiple
hosts.
 Docker Datacenter – on premises managed container
solution

16. The Dockerfile
Instruction Description
FROM The source container to create from
ENV Set environmental variables for the image that are carried to the container
COPY Copies files and directories into the image from client
ADD Copies files and directories into the image from client
EXPOSE Tells Docker to expose a network port from the container
RUN Run a command in the image
CMD The command run when a container starts (One per Dockerfile)
ARG Arguments set when an image is built
ENTRYPOINT Allows a container to be run like an executable
WORKDIR Sets the working directory for COPY, ADD, RUN, CMD, and ENTRYPOINT
VOLUME Sets up a mountable volume inside a container

17. Deploying Docker Containers on Windows
Blaize Stewart

18. Docker on Linux + Installing Container Service
Dan Stolts

19. @ITProGuru
Tip: Must Read Book
Amazon…
The Phoenix Project: A Novel
about IT, DevOps, and Helping
Your Business Win Paperback
– October 16, 2014
The book is available on Audio Book
If you do not have an Audible Account, you get two free
books when signing up for your free account.
This is the BEST IT Book I have ever read.

20. @ITProGuru

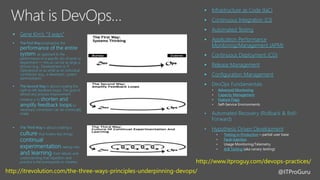

 Gene Kim’s “3 ways”



 Infrastructure as Code (IaC)
 Continuous Integration (CI)
 Automated Testing
 Application Performance
Monitoring/Management (APM)

 Release Management
 Configuration Management

• Advanced Monitoring
• Capacity Management
• Feature Flags
•
•
• Hypothesis Driven Development
• Testing in Production
• Fault Injection
•
• A/B Testing
http://itrevolution.com/the-three-ways-principles-underpinning-devops/
http://www.itproguy.com/devops-practices/

21. @ITProGuru

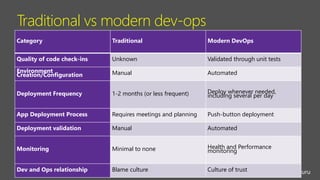

Traditional vs modern dev-ops
Category Traditional Modern DevOps
Quality of code check-ins Unknown Validated through unit tests
Environment
Creation/Configuration Manual Automated
Deployment Frequency 1-2 months (or less frequent) Deploy whenever needed,
including several per day
App Deployment Process Requires meetings and planning Push-button deployment
Deployment validation Manual Automated
Monitoring Minimal to none Health and Performance
monitoring
Dev and Ops relationship Blame culture Culture of trust

22. @ITProGuru
Split Services into small pieces
•
•
•
•
•
•
•
All Feature in Full App
•
•
•
•
•
•
Application
Feature A
Feature C
Feature E
Feature B
Feature D

23. @ITProGuru
Dev/Ops Process with Containers
Developers
Operations automates
deployment and
monitors deployed apps
from central repository
Operations collaborates with developers
to provide app metrics and insights
Developers update, iterate,
and deploy updated
containers
Central
Repository
Containers pushed to
central repository

24. @ITProGuru

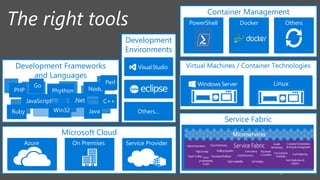

Virtual Machines / Container Technologies
Service Fabric
Development Frameworks
and Languages
.Net
PHP Node
C++
JavaRuby Win32
Go
Perl
Phython
JavaScript
Microsoft Cloud
Azure On Premises Service Provider
Container Management
PowerShell OthersDocker
Development
Environments
Others…

25. @ITProGuru
Applications
Clients
Infrastructure
Management
Databases &
Middleware
App Frameworks
& Tools
DevOps
PaaS

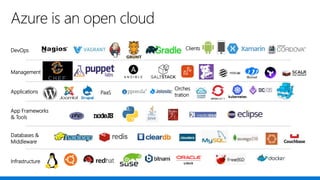

Azure is an open cloud
Orches
tration

26. @ITProGuru
https://itproguru.com/expert/2016/10/docker-create-container-change-
container-save-as-new-image-and-connect-to-container/
http://www.blaize.net/2016/10/an-introduction-to-docker/
http://www.blaize.net/2016/11/an-introduction-to-azure-container-services/
https://www.nccgroup.trust/us/our-research/understanding-and-hardening-
linux-containers/
https://msftdevops.learnondemandsystems.com/
ITProGuru.com
Blaize.net

27. @ITProGuru

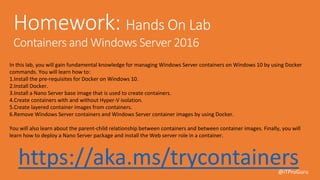

In this lab, you will gain fundamental knowledge for managing Windows Server containers on Windows 10 by using Docker
commands. You will learn how to:
1.Install the pre-requisites for Docker on Windows 10.
2.Install Docker.
3.Install a Nano Server base image that is used to create containers.
4.Create containers with and without Hyper-V isolation.
5.Create layered container images from containers.
6.Remove Windows Server containers and Windows Server container images by using Docker.
You will also learn about the parent-child relationship between containers and between container images. Finally, you will
learn how to deploy a Nano Server package and install the Web server role in a container.
https://aka.ms/trycontainers

28. @ITProGuru
1.
https://beta.docker.com/docs/
2.
3.
https://docs.docker.com/engine/installation/windows/

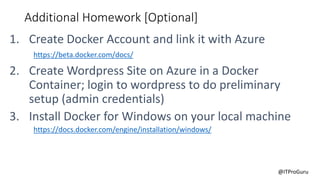

Additional Homework [Optional]

29. @ITProGuru

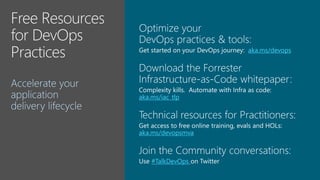

aka.ms/devops
aka.ms/iac_tlp
aka.ms/devopsmva
#TalkDevOps

30. @ITProGuru

https://aka.ms/trycontainers




 http://ITProGuru.com

 http://www.blaize.net
 http://aka.ms/windowscontainers
https://msdn.microsoft.com/virtualization/windowscontainers
