Connectors

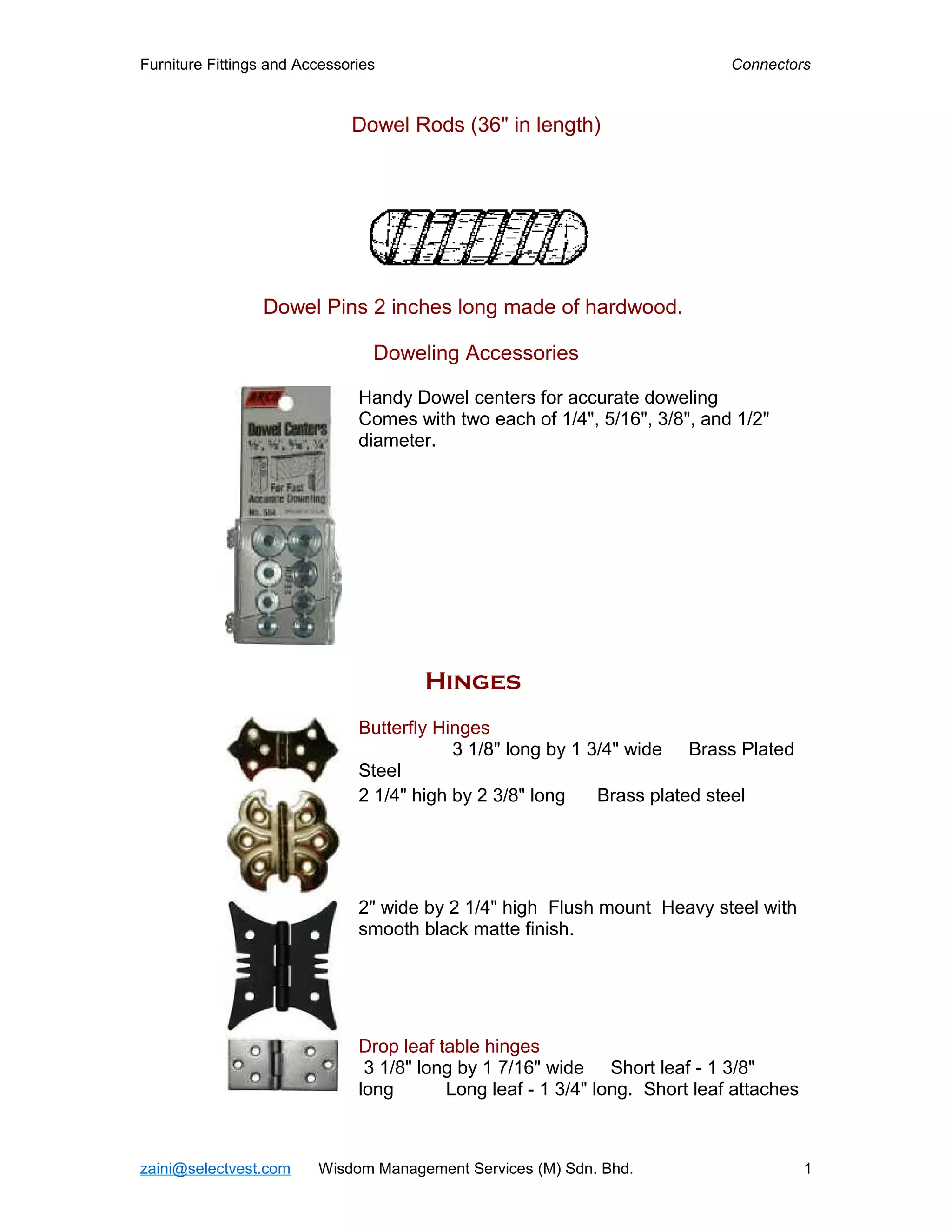

Furniture Fittings and Accessories Connectors

Dowel Rods (36" in length)

Dowel Pins 2 inches long made of hardwood.

Doweling Accessories

Handy Dowel centers for accurate doweling
Comes with two each of 1/4", 5/16", 3/8", and 1/2"
diameter.

Hinges
Butterfly Hinges
3 1/8" long by 1 3/4" wide Brass Plated
Steel
2 1/4" high by 2 3/8" long Brass plated steel

2" wide by 2 1/4" high Flush mount Heavy steel with
smooth black matte finish.

Drop leaf table hinges
3 1/8" long by 1 7/16" wide Short leaf - 1 3/8"
long Long leaf - 1 3/4" long. Short leaf attaches

zaini@selectvest.com Wisdom Management Services (M) Sdn. Bhd. 1

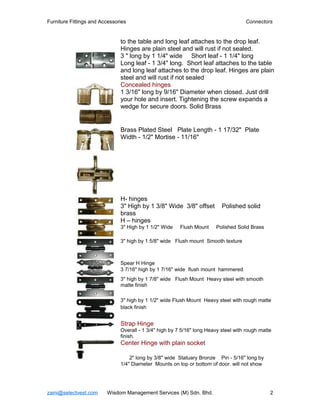

to the table and long leaf attaches to the drop leaf.
Hinges are plain steel and will rust if not sealed.
3 " long by 1 1/4" wide Short leaf - 1 1/4" long
Long leaf - 1 3/4" long. Short leaf attaches to the table
and long leaf attaches to the drop leaf. Hinges are plain
steel and will rust if not sealed
Concealed hinges
1 3/16" long by 9/16" Diameter when closed. Just drill
your hole and insert. Tightening the screw expands a
wedge for secure doors. Solid Brass

Brass Plated Steel Plate Length - 1 17/32" Plate
Width - 1/2" Mortise - 11/16"

H- hinges
3" High by 1 3/8" Wide 3/8" offset Polished solid
brass
H – hinges
3" High by 1 1/2" Wide Flush Mount Polished Solid Brass

3" high by 1 5/8" wide Flush mount Smooth texture

Spear H Hinge
3 7/16" high by 1 7/16" wide flush mount hammered
3" high by 1 7/8" wide Flush Mount Heavy steel with smooth
matte finish

3" high by 1 1/2" wide Flush Mount Heavy steel with rough matte
black finish

Strap Hinge
Overall - 1 3/4" high by 7 5/16" long Heavy steel with rough matte
finish.
Center Hinge with plain socket

2" long by 3/8" wide Statuary Bronze Pin - 5/16" long by
1/4" Diameter Mounts on top or bottom of door. will not show



when closed.

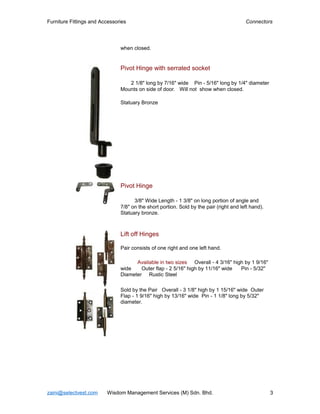

Pivot Hinge with serrated socket

2 1/8" long by 7/16" wide Pin - 5/16" long by 1/4" diameter
Mounts on side of door. Will not show when closed.

Statuary Bronze

Pivot Hinge

3/8" Wide Length - 1 3/8" on long portion of angle and
7/8" on the short portion. Sold by the pair (right and left hand).
Statuary bronze.

Lift off Hinges

Pair consists of one right and one left hand.

Available in two sizes Overall - 4 3/16" high by 1 9/16"
wide Outer flap - 2 5/16" high by 11/16" wide Pin - 5/32"
Diameter Rustic Steel

Sold by the Pair Overall - 3 1/8" high by 1 15/16" wide Outer
Flap - 1 9/16" high by 13/16" wide Pin - 1 1/8" long by 5/32"
diameter.

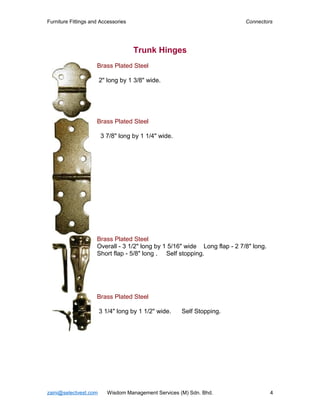

Trunk Hinges
Brass Plated Steel

2" long by 1 3/8" wide.

Brass Plated Steel

3 7/8" long by 1 1/4" wide.

Brass Plated Steel
Overall - 3 1/2" long by 1 5/16" wide Long flap - 2 7/8" long.
Short flap - 5/8" long . Self stopping.

Brass Plated Steel

3 1/4" long by 1 1/2" wide. Self Stopping.

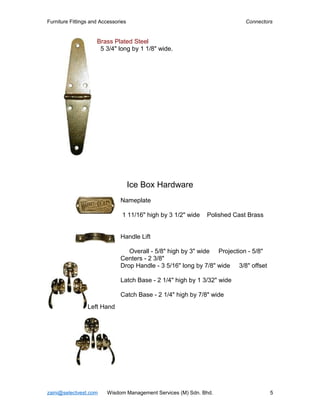

Brass Plated Steel
5 3/4" long by 1 1/8" wide.

Ice Box Hardware
Nameplate

1 11/16" high by 3 1/2" wide Polished Cast Brass

Handle Lift

Overall - 5/8" high by 3" wide Projection - 5/8"
Centers - 2 3/8"
Drop Handle - 3 5/16" long by 7/8" wide 3/8" offset

Latch Base - 2 1/4" high by 1 3/32" wide

Catch Base - 2 1/4" high by 7/8" wide
Left Hand



Right Hand

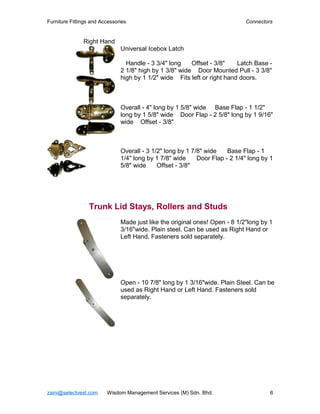

Universal Icebox Latch

Handle - 3 3/4" long Offset - 3/8" Latch Base -
2 1/8" high by 1 3/8" wide Door Mounted Pull - 3 3/8"
high by 1 1/2" wide Fits left or right hand doors.

Overall - 4" long by 1 5/8" wide Base Flap - 1 1/2"
long by 1 5/8" wide Door Flap - 2 5/8" long by 1 9/16"
wide Offset - 3/8"

Overall - 3 1/2" long by 1 7/8" wide Base Flap - 1
1/4" long by 1 7/8" wide Door Flap - 2 1/4" long by 1
5/8" wide Offset - 3/8"

Trunk Lid Stays, Rollers and Studs
Made just like the original ones! Open - 8 1/2"long by 1
3/16"wide. Plain steel. Can be used as Right Hand or
Left Hand. Fasteners sold separately.

Open - 10 7/8" long by 1 3/16"wide. Plain Steel. Can be
used as Right Hand or Left Hand. Fasteners sold
separately.

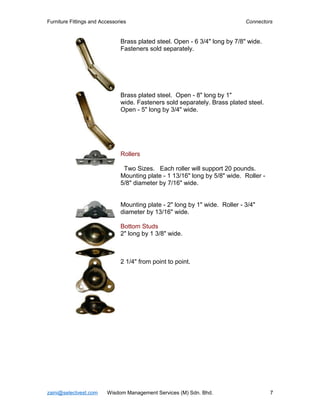

Brass plated steel. Open - 6 3/4" long by 7/8" wide.
Fasteners sold separately.

Brass plated steel. Open - 8" long by 1"
wide. Fasteners sold separately. Brass plated steel.
Open - 5" long by 3/4" wide.

Rollers

Two Sizes. Each roller will support 20 pounds.
Mounting plate - 1 13/16" long by 5/8" wide. Roller -
5/8" diameter by 7/16" wide.

Mounting plate - 2" long by 1" wide. Roller - 3/4"
diameter by 13/16" wide.

Bottom Studs
2" long by 1 3/8" wide.

2 1/4" from point to point.

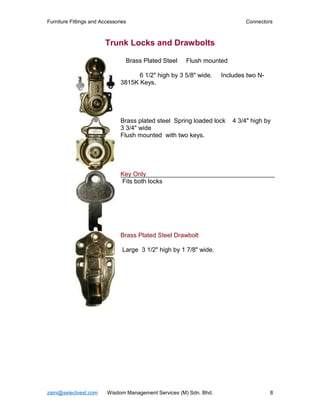

Trunk Locks and Drawbolts

Brass Plated Steel Flush mounted

6 1/2" high by 3 5/8" wide. Includes two N-
3815K Keys.

Brass plated steel Spring loaded lock 4 3/4" high by
3 3/4" wide
Flush mounted with two keys.

Key Only
Fits both locks

Brass Plated Steel Drawbolt

Large 3 1/2" high by 1 7/8" wide.

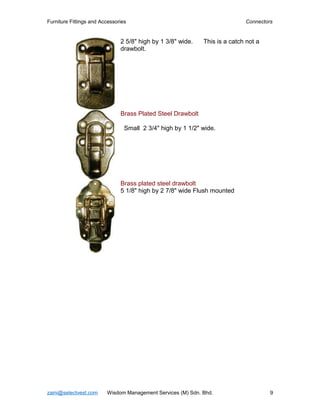

2 5/8" high by 1 3/8" wide. This is a catch not a
drawbolt.

Brass Plated Steel Drawbolt

Small 2 3/4" high by 1 1/2" wide.

Brass plated steel drawbolt
5 1/8" high by 2 7/8" wide Flush mounted
