This document provides specifications for a digital conductivity meter used to measure electrical conductivity in laboratories. The meter features a glass conductivity cell with platinum electrodes and a cell constant of approximately 1. It has a range of 0 to 199 mS/cm with at least 4 selectable ranges and a resolution of 0.1 μS/cm on the lowest scale. The meter automatically or manually temperature compensates from 0 to 50°C and has an accuracy of 1% of the range. Accessories include a voltage stabilizer, clamp and stand, operation manual, and dust cover.

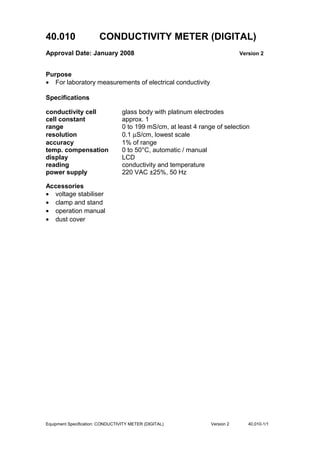

1. 40.010 CONDUCTIVITY METER (DIGITAL)
Approval Date: January 2008 Version 2
Purpose
• For laboratory measurements of electrical conductivity
Specifications
conductivity cell glass body with platinum electrodes
cell constant approx. 1
range 0 to 199 mS/cm, at least 4 range of selection
resolution 0.1 µS/cm, lowest scale
accuracy 1% of range
temp. compensation 0 to 50°C, automatic / manual
display LCD
reading conductivity and temperature
power supply 220 VAC ±25%, 50 Hz
Accessories
• voltage stabiliser
• clamp and stand
• operation manual
• dust cover
Equipment Specification: CONDUCTIVITY METER (DIGITAL) Version 2 40.010-1/1
