1.
1
Building Stream
Processing Applications
with Apache® Kafka’sTM
Exactly-Once Processing
Guarantees
Matthias J. Sax | Software Engineer
matthias@confluent.io
@MatthiasJSax

2.
2

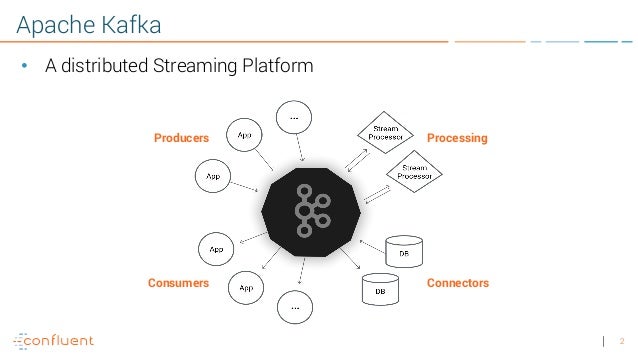

Apache Kafka
• A distributed Streaming Platform
Consumers
Producers
Connectors
Processing

3.
3

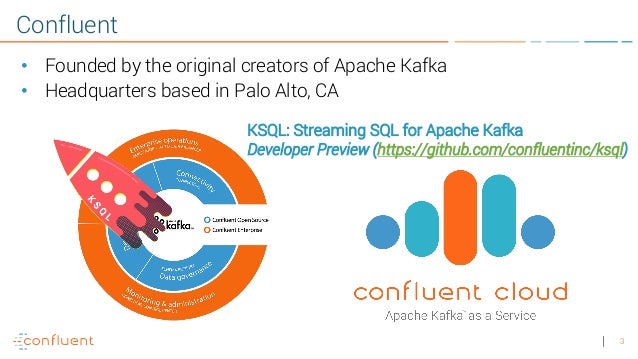

Confluent
• Founded by the original creators of Apache Kafka
• Headquarters based in Palo Alto, CA
KSQL: Streaming SQL for Apache Kafka
Developer Preview (https://github.com/confluentinc/ksql)

4.
4

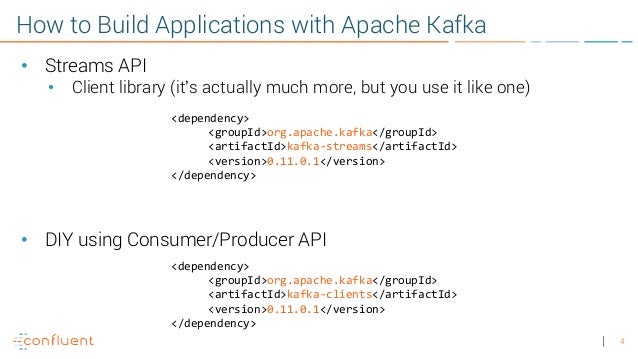

How to Build Applications with Apache Kafka
• Streams API
• Client library (it’s actually much more, but you use it like one)
• DIY using Consumer/Producer API
<dependency>
<groupId>org.apache.kafka</groupId>
<artifactId>kafka-streams</artifactId>
<version>0.11.0.1</version>
</dependency>
<dependency>
<groupId>org.apache.kafka</groupId>
<artifactId>kafka-clients</artifactId>
<version>0.11.0.1</version>
</dependency>

5.
5
Apache Kafka is a Streaming Platform
Does NOT run inside
the Kafka brokers!

6.
6

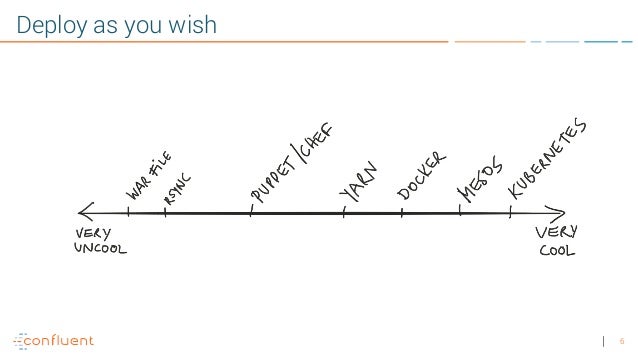

Deploy as you wish

7.
7

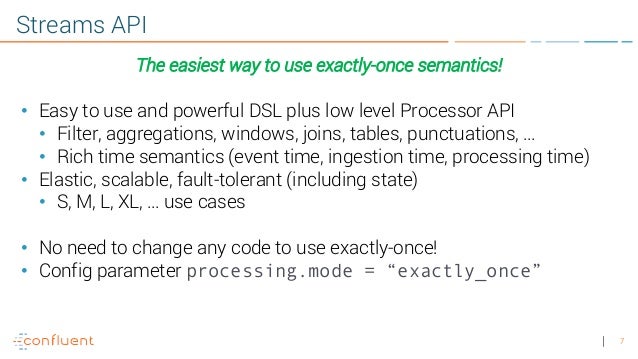

Streams API
The easiest way to use exactly-once semantics!
• Easy to use and powerful DSL plus low level Processor API
• Filter, aggregations, windows, joins, tables, punctuations, …
• Rich time semantics (event time, ingestion time, processing time)
• Elastic, scalable, fault-tolerant (including state)
• S, M, L, XL, … use cases
• No need to change any code to use exactly-once!
• Config parameter processing.mode = “exactly_once”

8.
8

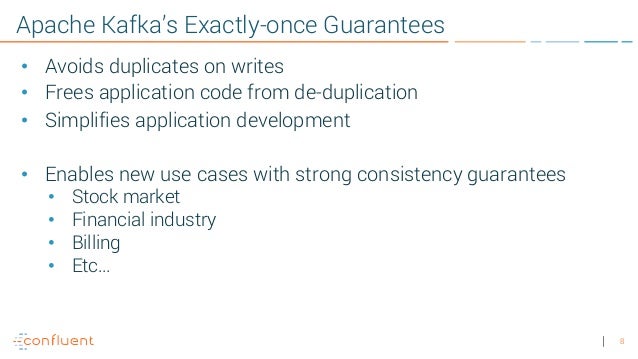

Apache Kafka’s Exactly-once Guarantees
• Avoids duplicates on writes
• Frees application code from de-duplication
• Simplifies application development
• Enables new use cases with strong consistency guarantees
• Stock market
• Financial industry
• Billing
• Etc…

9.
9
Core Concepts in Streams API

10.
10

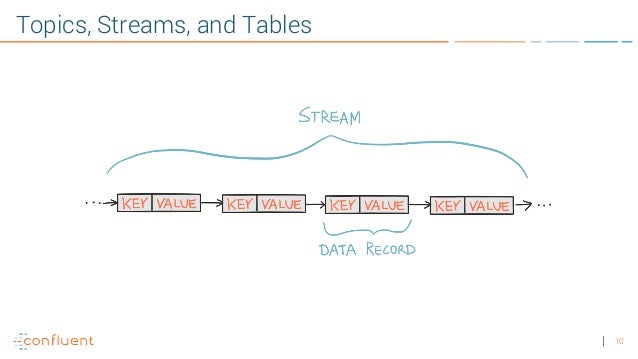

Topics, Streams, and Tables

11.
11

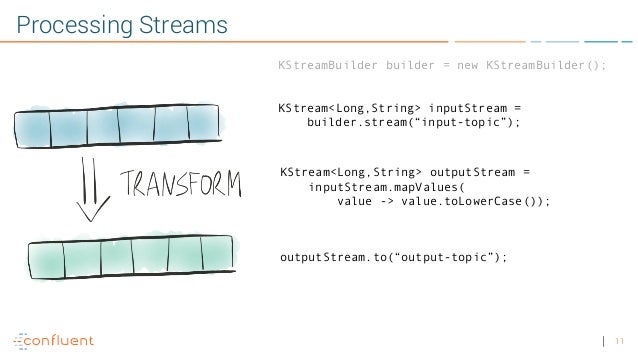

Processing Streams
KStreamBuilder builder = new KStreamBuilder();
KStream<Long,String> inputStream =
builder.stream(“input-topic”);
KStream<Long,String> outputStream =
inputStream.mapValues(
value -> value.toLowerCase());
outputStream.to(“output-topic”);

12.
12

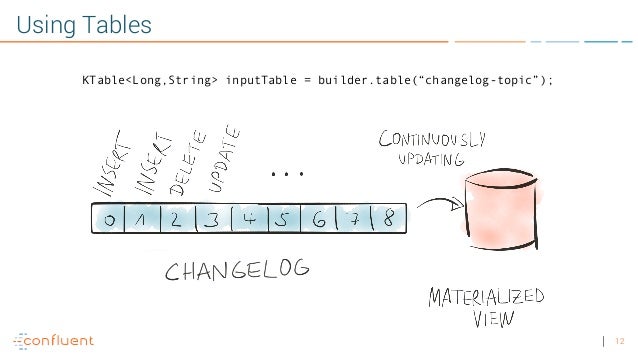

Using Tables
KTable<Long,String> inputTable = builder.table(“changelog-topic”);

13.
13

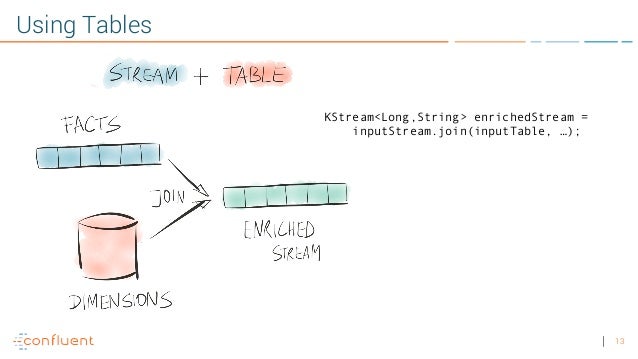

Using Tables
KStream<Long,String> enrichedStream =
inputStream.join(inputTable, …);

14.
14
Aggregating Streams
KTable<Long,Long> countPerKey =
enrichedStream.groupByKey()
.count();

15.
15
End-To-End Application and Exactly-Once
read – process – write
track input offsets – track state updates – write output

16.
16

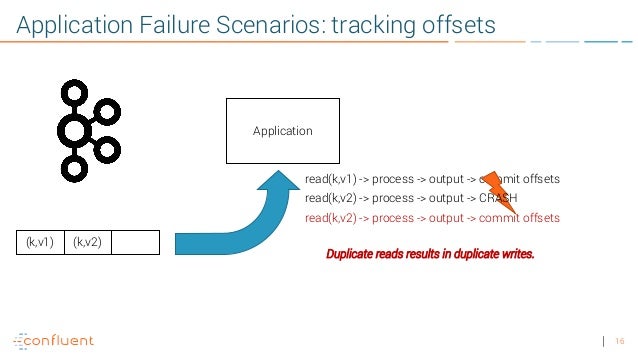

Application Failure Scenarios: tracking offsets
Application
(k,v1) (k,v2)
Duplicate reads results in duplicate writes.
read(k,v1) -> process -> output -> commit offsets
read(k,v2) -> process -> output -> commit offsets
read(k,v2) -> process -> output -> CRASH

17.
17

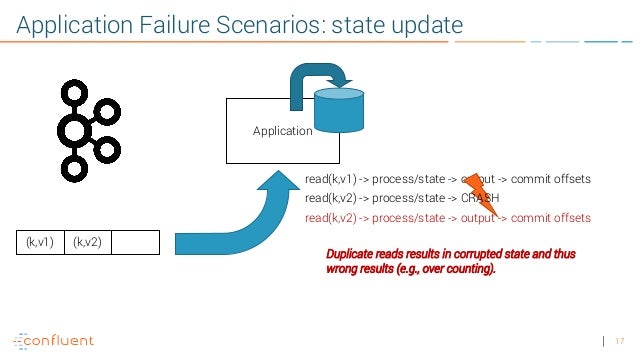

Application Failure Scenarios: state update
Application
(k,v1) (k,v2)
read(k,v1) -> process/state -> output -> commit offsets
read(k,v2) -> process/state -> output -> commit offsets
read(k,v2) -> process/state -> CRASH
Duplicate reads results in corrupted state and thus
wrong results (e.g., over counting).

18.
18

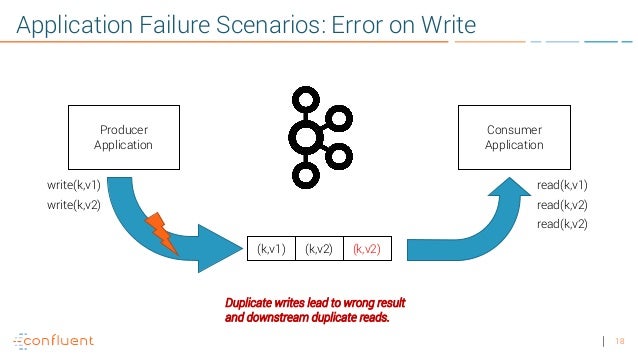

Application Failure Scenarios: Error on Write
Producer
Application
Consumer
Application
(k,v1) (k,v2)
Duplicate writes lead to wrong result
and downstream duplicate reads.
write(k,v1)
write(k,v2)
read(k,v1)
read(k,v2)
read(k,v2)
(k,v2)

19.
19

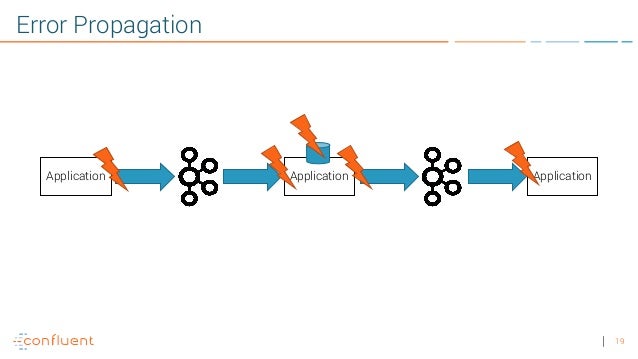

Error Propagation
Application Application Application

20.
20
Exactly-Once in Kafka Streams API
Kafka’s Streams API provides
Exactly-Once Processing Guarantees,
by an atomic read-process-write pattern.
This allows for deep processing pipelines with
exactly-one guarantees.

21.
21

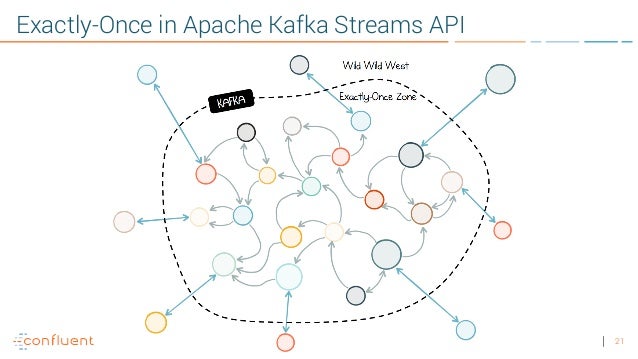

Exactly-Once in Apache Kafka Streams API

22.
22

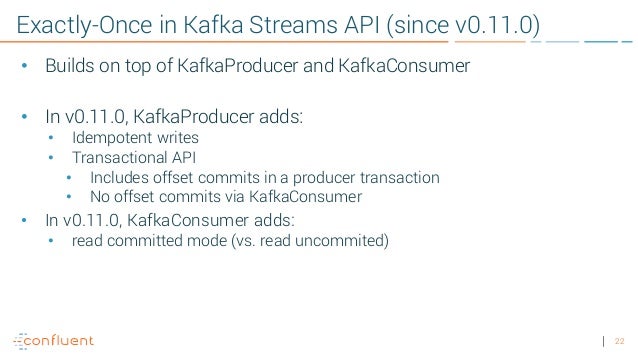

Exactly-Once in Kafka Streams API (since v0.11.0)
• Builds on top of KafkaProducer and KafkaConsumer
• In v0.11.0, KafkaProducer adds:
• Idempotent writes
• Transactional API
• Includes offset commits in a producer transaction
• No offset commits via KafkaConsumer
• In v0.11.0, KafkaConsumer adds:
• read committed mode (vs. read uncommited)

23.
23

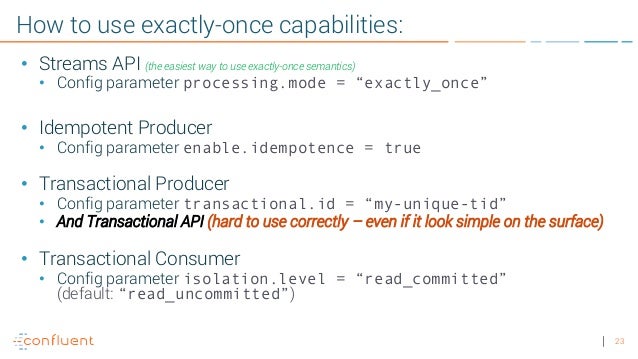

How to use exactly-once capabilities:
• Streams API (the easiest way to use exactly-once semantics)
• Config parameter processing.mode = “exactly_once”
• Idempotent Producer
• Config parameter enable.idempotence = true
• Transactional Producer
• Config parameter transactional.id = “my-unique-tid”
• And Transactional API (hard to use correctly – even if it look simple on the surface)
• Transactional Consumer
• Config parameter isolation.level = “read_committed”
(default: “read_uncommitted”)

24.
24

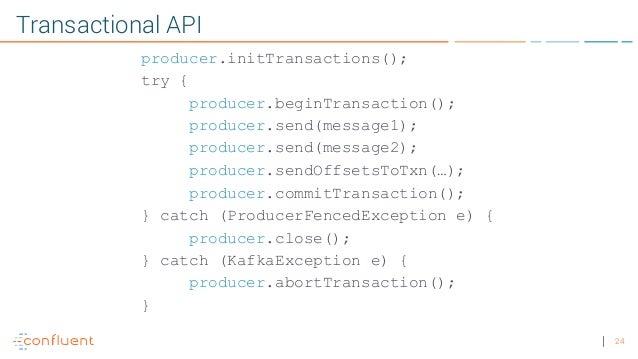

Transactional API
producer.initTransactions();
try {
producer.beginTransaction();
producer.send(message1);
producer.send(message2);
producer.sendOffsetsToTxn(…);
producer.commitTransaction();
} catch (ProducerFencedException e) {
producer.close();
} catch (KafkaException e) {
producer.abortTransaction();
}

25.
25
Summary
• Streams API is the easiest way to build applications with Apache Kafka
• It’s a library that enriches your application
• No compute cluster
• It provides end-to-end exactly-once processing guarantees
• Kafka’s exactly-once guarantees provide strong semantics that simplifies your
application code

26.
26

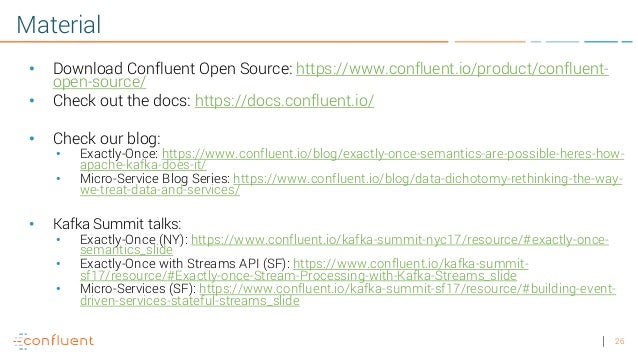

Material
• Download Confluent Open Source: https://www.confluent.io/product/confluent-
open-source/
• Check out the docs: https://docs.confluent.io/
• Check our blog:
• Exactly-Once: https://www.confluent.io/blog/exactly-once-semantics-are-possible-heres-how-
apache-kafka-does-it/
• Micro-Service Blog Series: https://www.confluent.io/blog/data-dichotomy-rethinking-the-way-
we-treat-data-and-services/
• Kafka Summit talks:
• Exactly-Once (NY): https://www.confluent.io/kafka-summit-nyc17/resource/#exactly-once-
semantics_slide
• Exactly-Once with Streams API (SF): https://www.confluent.io/kafka-summit-
sf17/resource/#Exactly-once-Stream-Processing-with-Kafka-Streams_slide
• Micro-Services (SF): https://www.confluent.io/kafka-summit-sf17/resource/#building-event-
driven-services-stateful-streams_slide

27.
27
Thank You
We are hiring!
