1. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]

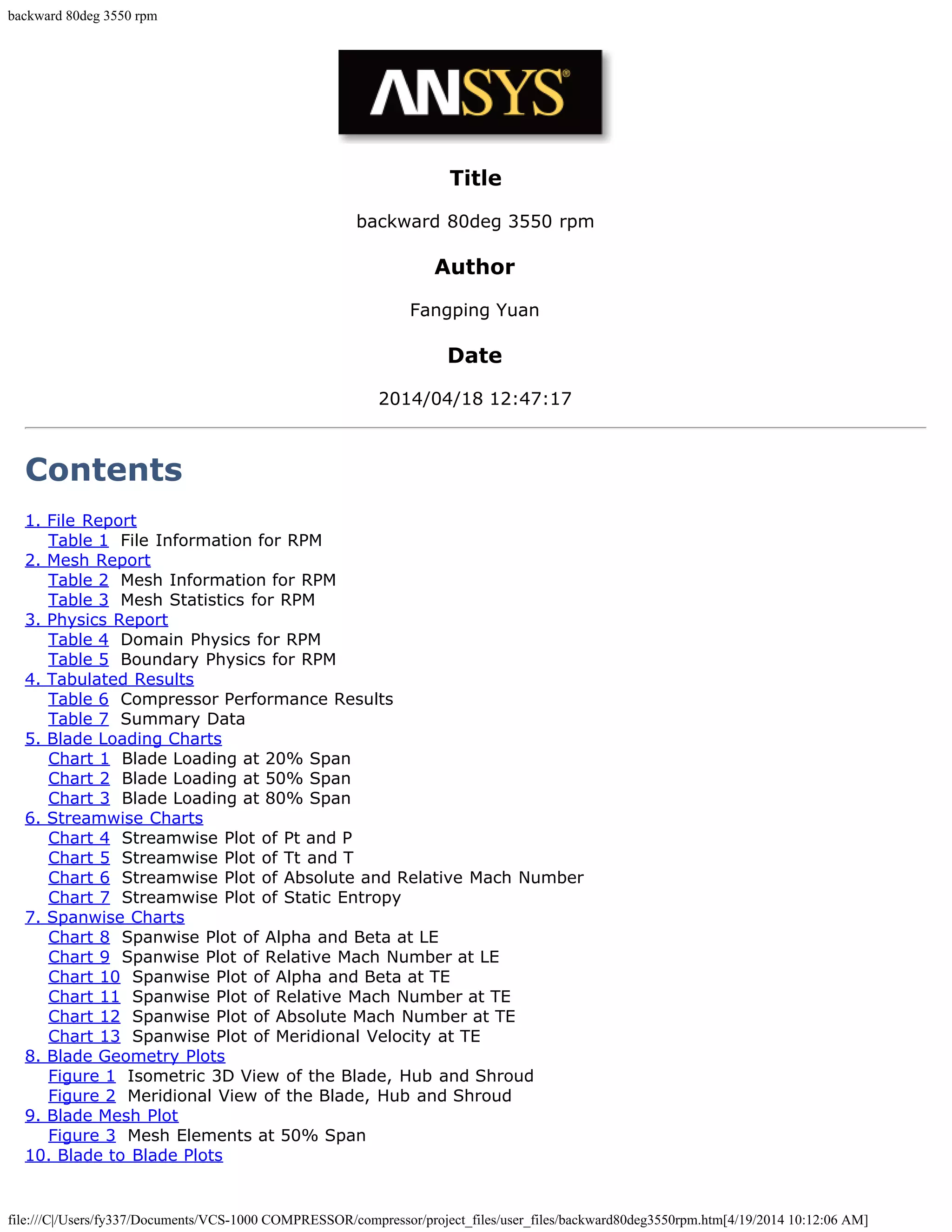

Title
backward 80deg 3550 rpm
Author
Fangping Yuan
Date
2014/04/18 12:47:17
Contents
1. File Report
Table 1 File Information for RPM
2. Mesh Report
Table 2 Mesh Information for RPM
Table 3 Mesh Statistics for RPM
3. Physics Report
Table 4 Domain Physics for RPM
Table 5 Boundary Physics for RPM
4. Tabulated Results
Table 6 Compressor Performance Results
Table 7 Summary Data
5. Blade Loading Charts
Chart 1 Blade Loading at 20% Span
Chart 2 Blade Loading at 50% Span
Chart 3 Blade Loading at 80% Span
6. Streamwise Charts
Chart 4 Streamwise Plot of Pt and P
Chart 5 Streamwise Plot of Tt and T
Chart 6 Streamwise Plot of Absolute and Relative Mach Number
Chart 7 Streamwise Plot of Static Entropy
7. Spanwise Charts
Chart 8 Spanwise Plot of Alpha and Beta at LE
Chart 9 Spanwise Plot of Relative Mach Number at LE
Chart 10 Spanwise Plot of Alpha and Beta at TE
Chart 11 Spanwise Plot of Relative Mach Number at TE
Chart 12 Spanwise Plot of Absolute Mach Number at TE
Chart 13 Spanwise Plot of Meridional Velocity at TE
8. Blade Geometry Plots
Figure 1 Isometric 3D View of the Blade, Hub and Shroud
Figure 2 Meridional View of the Blade, Hub and Shroud
9. Blade Mesh Plot
Figure 3 Mesh Elements at 50% Span
10. Blade to Blade Plots

2. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 4 Contour of M rel at 20% Span
Figure 5 Contour of M rel at 50% Span
Figure 6 Contour of M rel at 80% Span
Figure 7 Velocity Vectors at 20% Span
Figure 8 Velocity Vectors at 50% Span
Figure 9 Velocity Vectors at 80% Span
Figure 10 Contour of s at 20% Span
Figure 11 Contour of s at 50% Span
Figure 12 Contour of s at 80% Span
11. Meridional Plots
Figure 13 Contour of Mass Averaged P on Meridional Surface
Figure 14 Contour of Mass Averaged M rel on Meridional Surface
Figure 15 Vector of Area Averaged Cm on Meridional Surface
12. Circumferential Plots
Figure 16 Contour of P at Blade LE
Figure 17 Contour of M rel at Blade LE
Figure 18 Contour of s at Blade LE
Figure 19 Contour of P at Blade TE
Figure 20 Contour of M rel at Blade TE
Figure 21 Contour of s at Blade TE
13. Streamline Plot
Figure 22 Velocity Streamlines at Blade TE

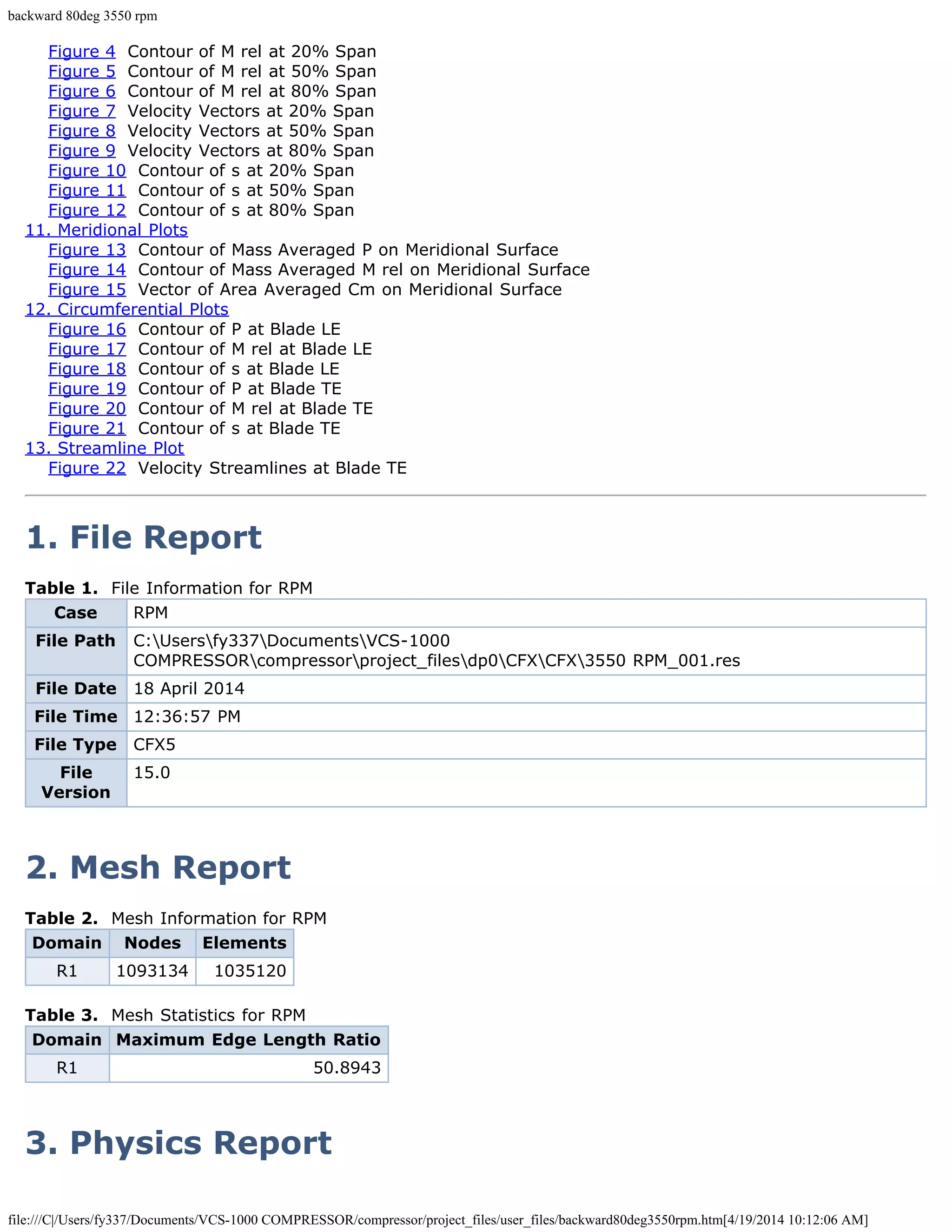

1. File Report
Table 1. File Information for RPM
Case RPM
File Path C:Usersfy337DocumentsVCS-1000
COMPRESSORcompressorproject_filesdp0CFXCFX3550 RPM_001.res
File Date 18 April 2014
File Time 12:36:57 PM
File Type CFX5
File
Version
15.0
2. Mesh Report
Table 2. Mesh Information for RPM
Domain Nodes Elements
R1 1093134 1035120
Table 3. Mesh Statistics for RPM
Domain Maximum Edge Length Ratio
R1 50.8943
3. Physics Report

3. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Table 4. Domain Physics for RPM
Domain - R1
Type Fluid
Location Inlet, Outlet, Passage Main
Materials
Water Ideal Gas
Fluid Definition Material Library
Morphology Continuous Fluid
Settings
Buoyancy Model Non Buoyant
Domain Motion Rotating
Alternate Rotation Model true
Angular Velocity 3.5500e+03 [rev min^-1]
Axis Definition Coordinate Axis
Rotation Axis Coord 0.3
Reference Pressure 1.0000e+00 [atm]
Heat Transfer Model Total Energy
Turbulence Model k epsilon
Turbulent Wall Functions Scalable
High Speed Model Off
Domain Interface - R1 to R1 Internal
Boundary List1 R1 to R1 Internal Side 1
Boundary List2 R1 to R1 Internal Side 2
Interface Type Fluid Fluid
Settings
Interface Models General Connection
Mass And Momentum Conservative Interface Flux
Mesh Connection GGI
Domain Interface - R1 to R1 Periodic 1
Boundary List1 R1 to R1 Periodic 1 Side 1
Boundary List2 R1 to R1 Periodic 1 Side 2
Interface Type Fluid Fluid
Settings
Interface Models Rotational Periodicity
Axis Definition Coordinate Axis
Rotation Axis Coord 0.3
Mesh Connection Automatic
Domain Interface - R1 to R1 Periodic 2
Boundary List1 R1 to R1 Periodic 2 Side 1
Boundary List2 R1 to R1 Periodic 2 Side 2

4. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Interface Type Fluid Fluid
Settings
Interface Models Rotational Periodicity
Axis Definition Coordinate Axis
Rotation Axis Coord 0.3
Mesh Connection Automatic
Domain Interface - R1 to R1 Periodic 3
Boundary List1 R1 to R1 Periodic 3 Side 1
Boundary List2 R1 to R1 Periodic 3 Side 2
Interface Type Fluid Fluid
Settings
Interface Models Rotational Periodicity
Axis Definition Coordinate Axis
Rotation Axis Coord 0.3
Mesh Connection Automatic
Table 5. Boundary Physics for RPM
Domain Boundaries
R1 Boundary - R1 Inlet
Type INLET
Location INBlock INFLOW
Settings
Flow Direction Normal to Boundary Condition
Flow Regime Subsonic
Heat Transfer Stationary Frame Total Temperature
Stationary Frame Total
Temperature
3.7740e+02 [K]
Mass And Momentum Stationary Frame Total Pressure
Relative Pressure 2.7200e-01 [atm]
Turbulence Medium Intensity and Eddy Viscosity Ratio
Boundary - R1 to R1 Internal Side 1
Type INTERFACE
Location SHROUD TIP GGI SIDE 1
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Internal Side 2
Type INTERFACE
Location SHROUD TIP GGI SIDE 2
Settings

5. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Periodic 1 Side 1
Type INTERFACE
Location INBlock PER1
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Periodic 1 Side 2
Type INTERFACE
Location INBlock PER2
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Periodic 2 Side 1
Type INTERFACE
Location OUTBlock PER1
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Periodic 2 Side 2
Type INTERFACE
Location OUTBlock PER2
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Periodic 3 Side 1
Type INTERFACE
Location Passage PER1
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 to R1 Periodic 3 Side 2
Type INTERFACE

6. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Location Passage PER2
Settings
Heat Transfer Conservative Interface Flux
Mass And Momentum Conservative Interface Flux
Turbulence Conservative Interface Flux
Boundary - R1 Outlet
Type OUTLET
Location OUTBlock OUTFLOW
Settings
Flow Regime Subsonic
Mass And Momentum Mass Flow Rate
Mass Flow Rate 8.0639e-02 [kg s^-1]
Boundary - R1 Blade
Type WALL
Location BLADE
Settings
Heat Transfer Adiabatic
Mass And Momentum No Slip Wall
Wall Roughness Smooth Wall
Boundary - R1 Hub
Type WALL
Location INBlock HUB, OUTBlock HUB, Passage HUB
Settings
Heat Transfer Adiabatic
Mass And Momentum No Slip Wall
Wall Roughness Smooth Wall
Boundary - R1 Shroud
Type WALL
Location INBlock SHROUD, OUTBlock SHROUD, Passage
SHROUD
Settings
Heat Transfer Adiabatic
Mass And Momentum No Slip Wall
Wall Roughness Smooth Wall
4. Tabulated Results
The first table below gives a summary of the performance results for the centrifugal compressor rotor. The
second table lists the mass or area averaged solution variables and derived quantities computed at the
inlet, leading edge (LE Cut), trailing edge (TE Cut) and outlet locations. The flow angles Alpha and Beta are
relative to the meridional plane; a positive angle implies that the tangential velocity is the same direction

7. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
as the machine rotation.
Table 6. Compressor Performance Results
Rotation Speed 371.7550 [radian s^-1]
Mass Flow Rate 1.0483 [kg s^-1]
Inlet Volume Flow Rate 1.4170 [m^3 s^-1]
Input Power 16127.6000 [W]
Reference Radius 0.3817 [m]
Inlet Flow Coefficient 0.0171
Exit Flow Coefficient 0.0818
Head Coefficient 4.5767
Work Input Coefficient 0.7641
Total Pressure Ratio 1.0869
Total Temperature Ratio 1.0196
Total Isentropic Efficiency % 95.1934
Total Polytropic Efficiency % 95.2377
Table 7. Summary Data
Quantity Inlet LE Cut TE Cut Outlet TE/LE TE-LE Units
Density 0.7367 0.7386 0.7683 0.7727 1.0403 0.0298 [kg m^-
3]
Pstatic 128121.0000 128541.0000 135394.0000 136383.0000 1.0533 6853.3600 [Pa]
Ptotal 128825.0000 128888.0000 139944.0000 140018.0000 1.0858 11055.4000 [Pa]
Ptotal (rot) 128824.0000 128855.0000 128370.0000 128286.0000 0.9962 -485.6560 [Pa]
Tstatic 376.9420 377.1190 381.8950 382.5550 1.0127 4.7766 [K]
Ttotal 377.4000 377.4210 384.7090 384.7960 1.0193 7.2883 [K]
Ttotal (rot) 377.4000 377.4000 377.4130 377.3990 1.0000 0.0132 [K]
Hstatic 7886.7800 8255.7100 18191.5000 19564.2000 2.2035 9935.7600 [J kg^-
1]
Htotal 8840.0900 8884.3200 24044.7000 24224.8000 2.7064 15160.4000 [J kg^-
1]
Rothalpy 8839.4000 8840.0100 8867.5500 8838.5800 1.0031 27.5449 [J kg^-
1]
Entropy -86.8945 -87.0027 -85.1872 -84.9648 0.9791 1.8155 [J kg^-
1 K^-1]
Mach (abs) 0.0924 0.0740 0.2271 0.2026 3.0677 0.1531
Mach (rel) 0.1221 0.1383 0.0796 0.1377 0.5754 -0.0587
U 37.7703 56.5627 141.8930 160.5180 2.5086 85.3307 [m s^-
1]
Cm 43.6577 31.5422 11.6017 10.1449 0.3678 -19.9405 [m s^-
1]
Cu 0.0205 3.0451 108.9030 95.6954 35.7630 105.8570 [m s^-
1]
C 43.6595 33.4007 109.6730 96.2600 3.2835 76.2723 [m s^-

8. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
1]
Distortion
Parameter
1.0003 1.1098 1.0094 1.0036 0.9096 -0.1003
Flow Angle:
Alpha
0.0317 10.5954 83.9321 84.2297 7.9215 73.3366 [degree]
Wu -37.7498 -53.5177 -32.9909 -64.8223 0.6164 20.5268 [m s^-
1]
W 57.7154 62.3383 35.2178 65.6602 0.5649 -27.1205 [m s^-
1]
Flow Angle:
Beta
-40.8493 -52.7799 -66.6149 -81.4633 1.2621 -13.8350 [degree]
5. Blade Loading Charts
Chart 1. Blade Loading at 20% Span
Chart 2. Blade Loading at 50% Span

9. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Chart 3. Blade Loading at 80% Span
6. Streamwise Charts
Chart 4. Streamwise Plot of Pt and P

10. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Chart 5. Streamwise Plot of Tt and T
Chart 6. Streamwise Plot of Absolute and Relative Mach Number

11. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Chart 7. Streamwise Plot of Static Entropy
7. Spanwise Charts
Chart 8. Spanwise Plot of Alpha and Beta at LE

12. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Chart 9. Spanwise Plot of Relative Mach Number at LE
Chart 10. Spanwise Plot of Alpha and Beta at TE

13. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Chart 11. Spanwise Plot of Relative Mach Number at TE
Chart 12. Spanwise Plot of Absolute Mach Number at TE

14. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Chart 13. Spanwise Plot of Meridional Velocity at TE
8. Blade Geometry Plots
Figure 1. Isometric 3D View of the Blade, Hub and Shroud

15. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 2. Meridional View of the Blade, Hub and Shroud

16. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
9. Blade Mesh Plot
Figure 3. Mesh Elements at 50% Span

17. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
10. Blade to Blade Plots
Figure 4. Contour of M rel at 20% Span

18. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 5. Contour of M rel at 50% Span

19. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 6. Contour of M rel at 80% Span

20. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 7. Velocity Vectors at 20% Span

21. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 8. Velocity Vectors at 50% Span

22. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 9. Velocity Vectors at 80% Span

23. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 10. Contour of s at 20% Span

24. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 11. Contour of s at 50% Span

25. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 12. Contour of s at 80% Span

26. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
11. Meridional Plots
Figure 13. Contour of Mass Averaged P on Meridional Surface

27. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 14. Contour of Mass Averaged M rel on Meridional Surface

28. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 15. Vector of Area Averaged Cm on Meridional Surface

29. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
12. Circumferential Plots
Figure 16. Contour of P at Blade LE

30. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 17. Contour of M rel at Blade LE

31. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 18. Contour of s at Blade LE

32. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 19. Contour of P at Blade TE

33. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 20. Contour of M rel at Blade TE

34. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
Figure 21. Contour of s at Blade TE

35. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
13. Streamline Plot
Figure 22. Velocity Streamlines at Blade TE

36. backward 80deg 3550 rpm
file:///C|/Users/fy337/Documents/VCS-1000 COMPRESSOR/compressor/project_files/user_files/backward80deg3550rpm.htm[4/19/2014 10:12:06 AM]
