This document outlines a workshop for coding a visual representation of a Chinese dragon kite using the Processing programming language. It provides step-by-step instructions for downloading necessary files, creating images for the dragon's head and body, and coding their animation. Key concepts covered include variable declarations, loops, conditionals, and graphics manipulation in Processing.

1. Coding Chinese
Dragons
in Processing 3
@stevebattle
steve.battle@uwe.ac.uk

2. This centipede style kite has a large Dragon head with a long train of disks for a tail.
Image courtesy of mosoma on flickr

3. Workshop goal
• The ‘Processing’
language is
about coding for
the visual arts.
In this workshop
you will learn
how to create an
animated Chinese
Dragon 'kite'.

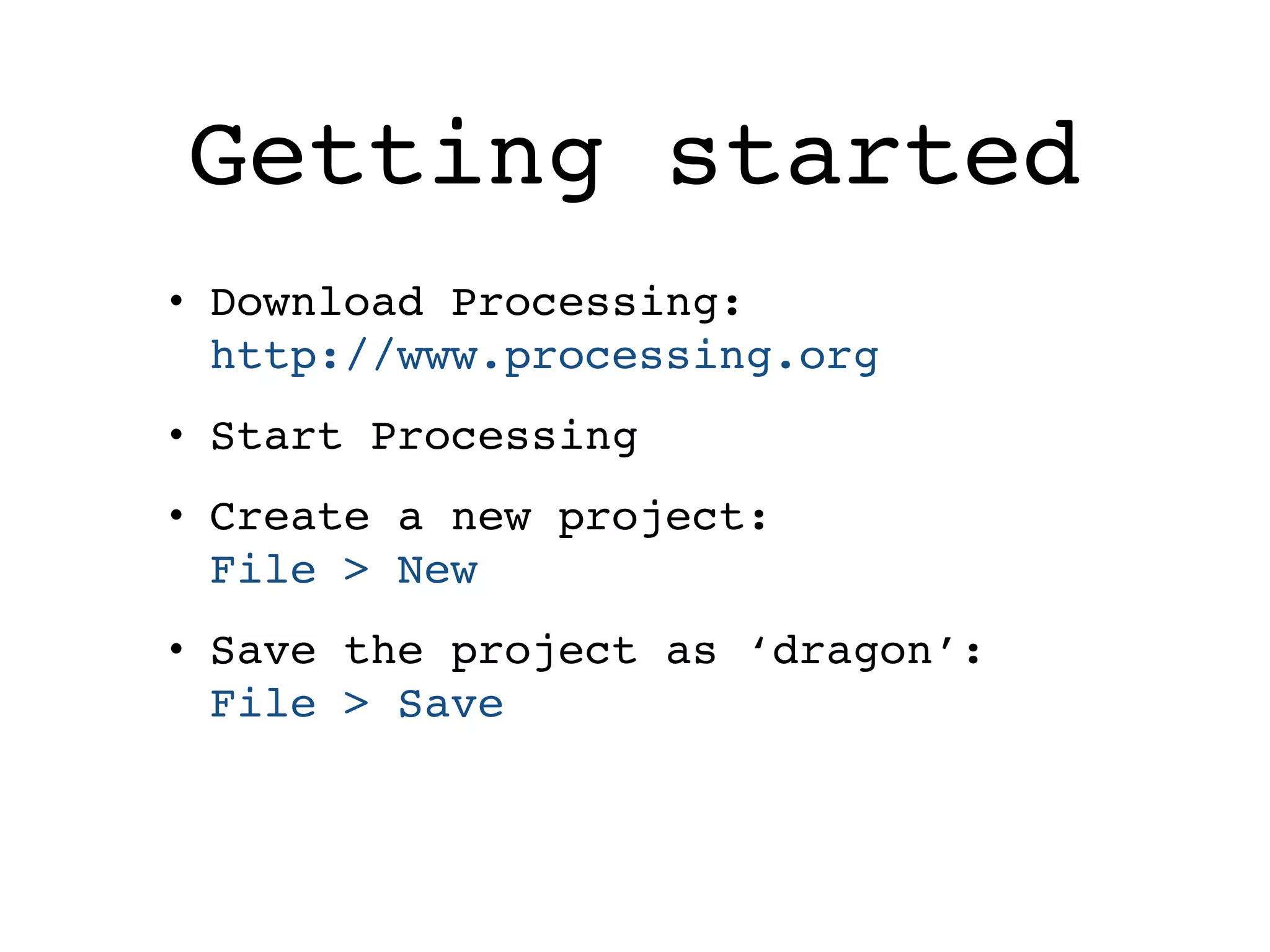

4. Getting started
• Download Processing:
http://www.processing.org
• Start Processing
• Create a new project:
File > New
• Save the project as ‘dragon’:
File > Save

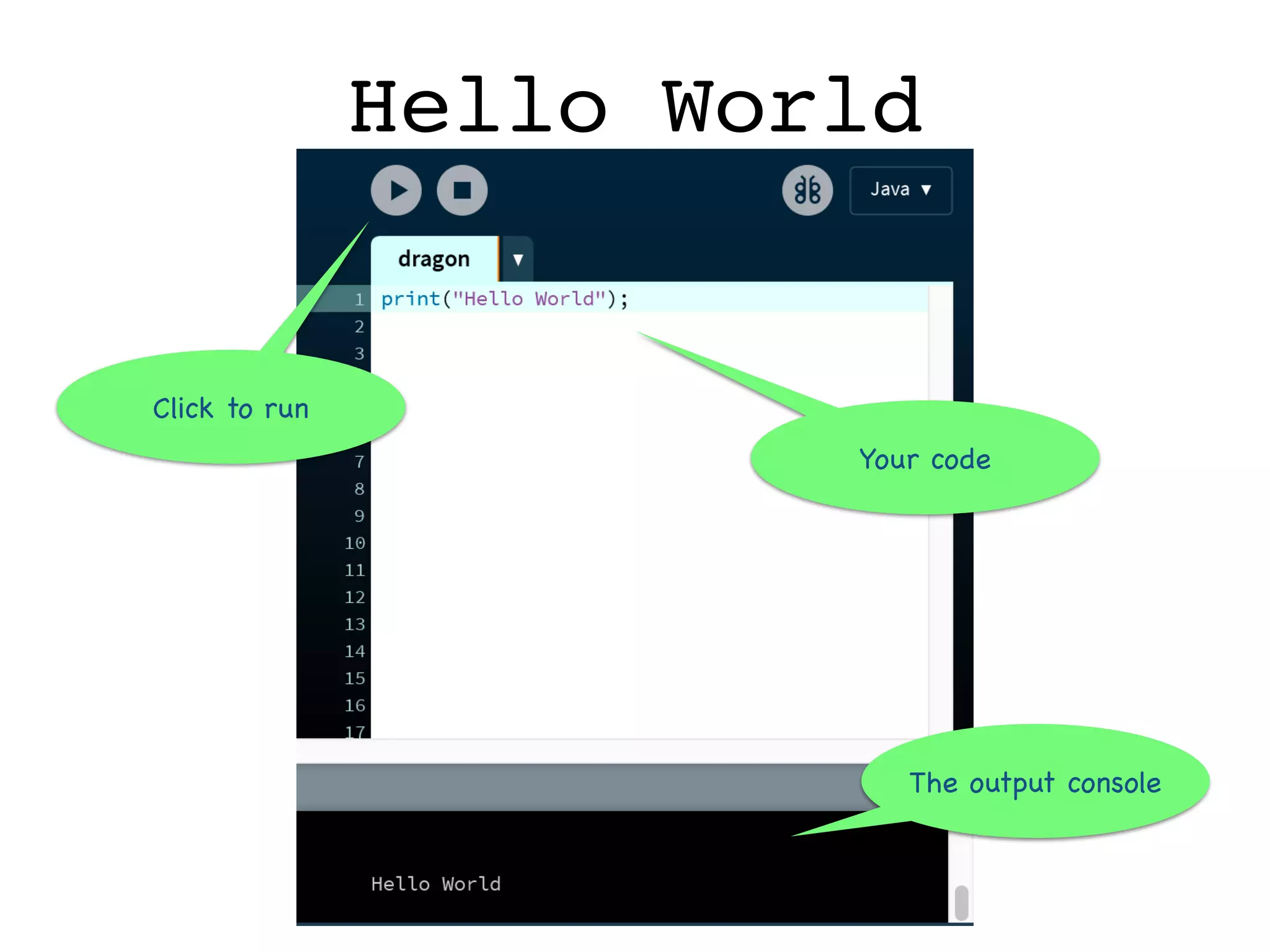

5. Hello World
The output console
Your code
Click to run

6. Computer Graphics
The display window

7. Blue Sky
•Tools >
•Color selector…
Don’t type this
value…
Select a nice blue sky
colour, Copy then paste it into
your code

8. The Dragon’s Head
• The image for the Dragon’s head is at:
http://stevebattle.github.io/dragon/head.gif
• Save image to “Downloads”
• Go back to Processing and select your code window.
• Sketch > Add File..
• Navigate to ‘head.gif’ in Downloads and Open.
• Confirm you have the image in your project:
• Sketch > Show Sketch Folder

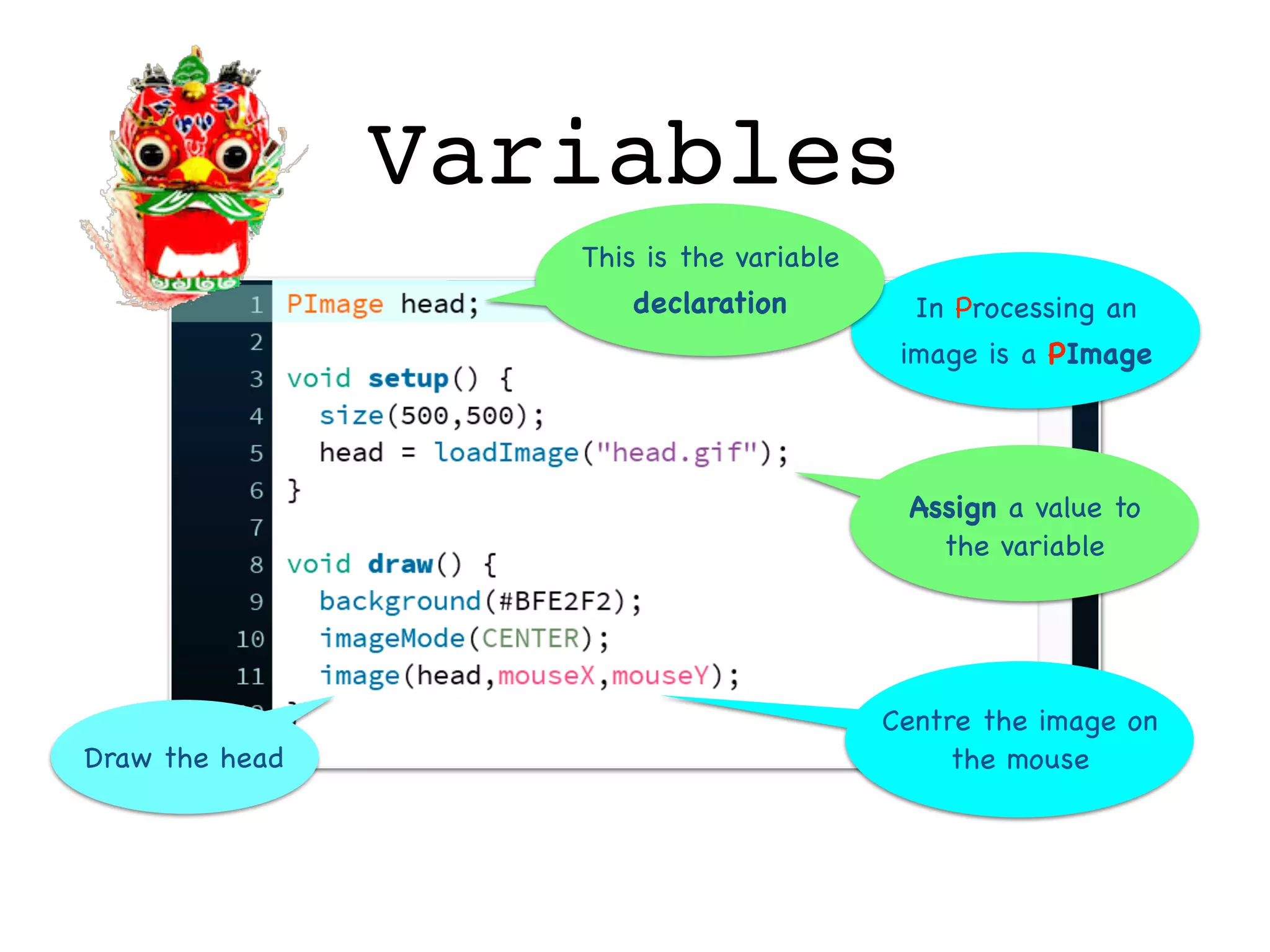

9. Variables
Draw the head
Assign a value to
the variable
Centre the image on
the mouse
In Processing an
image is a PImage
This is the variable
declaration

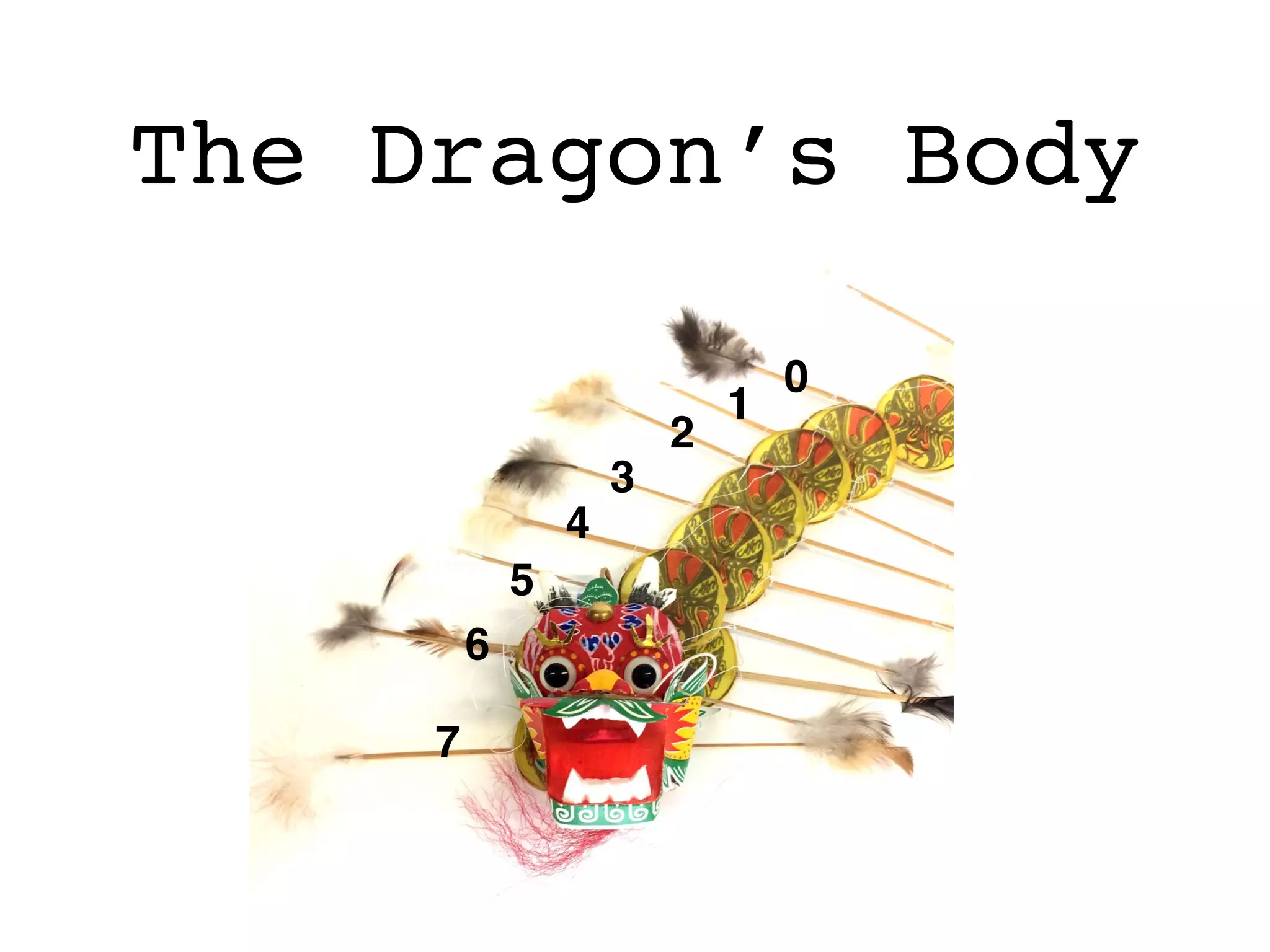

10. The Dragon’s Body
1
2
3
4
5
0
6
7

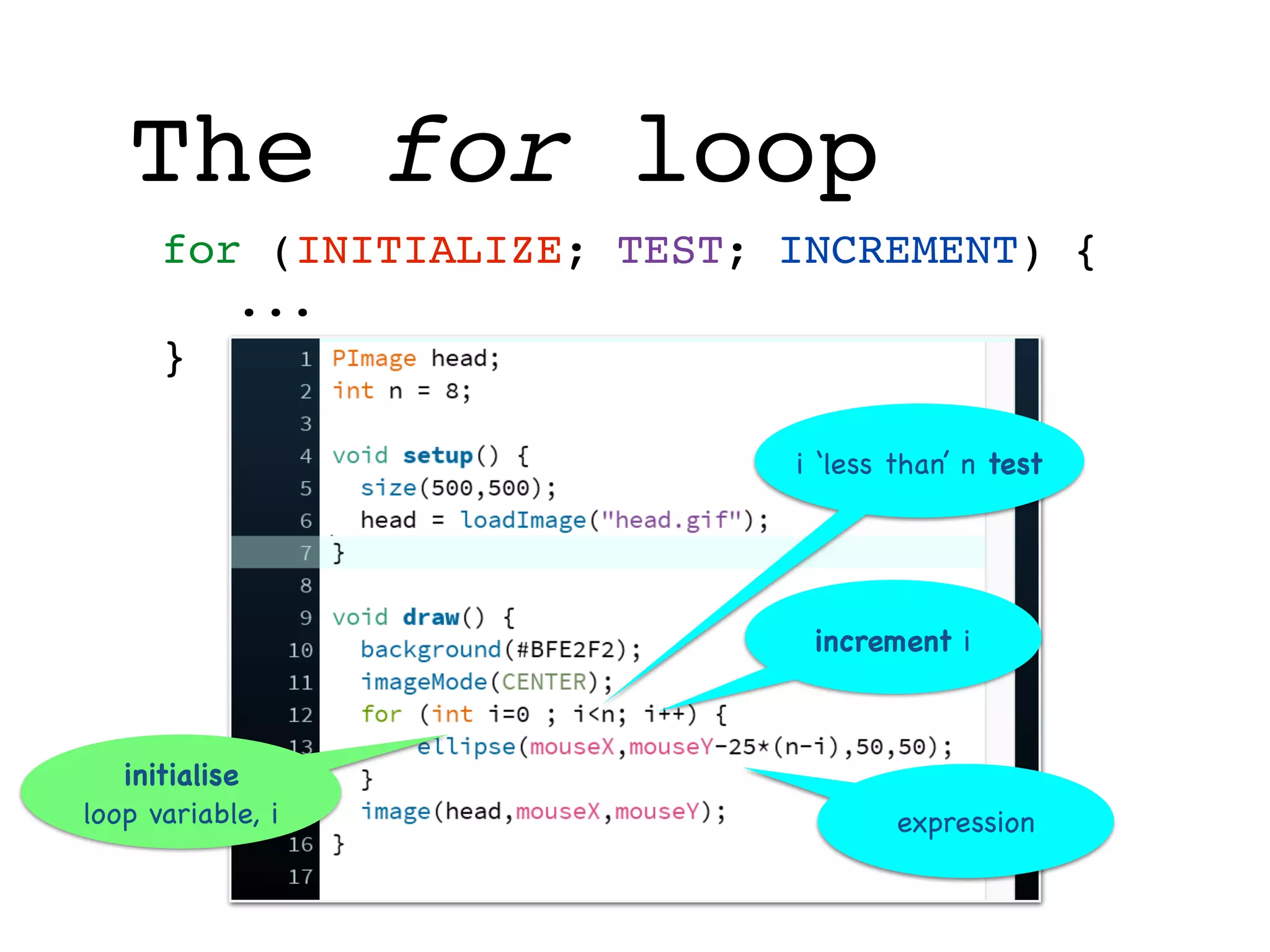

11. The for loop
for (INITIALIZE; TEST; INCREMENT) {
...
}
initialise
loop variable, i
i ‘less than’ n test
increment i
expression

12. Relations
< less than
> greater than
<= less than or equals
>= greater than or equals
!= not equals
== equals
e.g. i < n

13. low precedence
high precedence
Expressions
* times
/ divide
%
modulo
(remainder)
+ add
- subtract
multiplicative
operators come first
multiplicative
operators come first
multiplicative
operators come first
additive
operators come second
additive
operators come second
e.g. mouseY-25*(n-i)
Use brackets to
override precedence

14. Co-ordinates
x coordinate
ycoordinate
y increases
as you move down the
window
origin
In Processing it’s
called a PVector
An x,y coordinate is
called a vector

15. Arrays
ERROR!
p is empty
Declare the array
Initialise the array
store mouse
vector in array
get
earlier mouse vectors
from array

16. if (CONDITION) …
else …
if statement
if
statement checks that
p is not empty
Slow the frame-rate

17. The Dragon’s Body
• The image for the Dragon’s body is at:
http://stevebattle.github.io/dragon/body.gif
• Save image to “Downloads”
• Go back to Processing and select your code window.
• Sketch > Add File..
• Navigate to ‘body.gif’ in Downloads and Open.
• Confirm you have the image in your project:
• Sketch > Show Sketch Folder

18. Declare new variable
load image
display

19. Translate
Rotate
