The document discusses overhauling a CNC machine called Victor (V-Turn 36) at Bright Rims Manufacturing Sdn. Bhd.'s CNC Maintenance Department. Photos are included showing the machine's condition before and after overhaul in several areas, including the machine view, electrical cabinet, spindle drive, and turret assembly. After completing the overhaul work, the machine is reported to be ready for operation at 100% efficiency.

1. B e f o r e
Over hauling the CNC machine
Victor (V-Turn 36)
Bright Rims Manufacturing Sdn. Bhd.
CNC Maintenance Dept

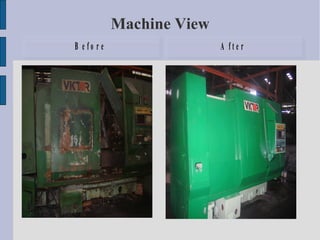

2. Machine View
B e f o r e A f t e r

3. Electrical cabinet section
B e f o r e A f t e r

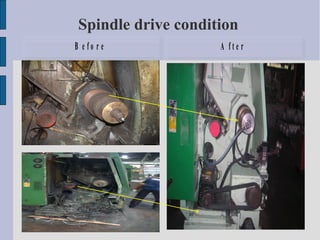

4. Spindle drive condition
B e f o r e A f t e r

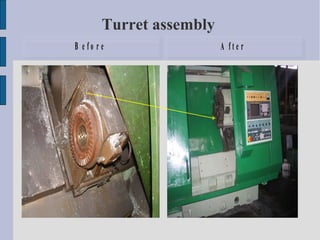

5. Turret assembly
B e f o r e A f t e r

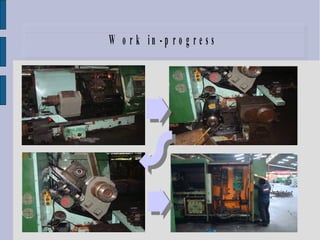

6. W o r k i n - p r o g r e s s

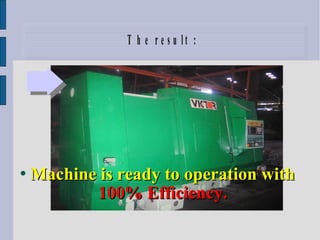

7. T h e r e s u l t :

Machine is ready to operation withMachine is ready to operation with
100% Efficiency.100% Efficiency.

8. T h a n k y o u
