The document discusses interoperating clouds using the Open Cloud Computing Interface (OCCI). It describes how the OCCI software package can be used to provide an OCCI interface to OpenStack, allowing for interoperability between different cloud platforms. Key points include that the OCCI library handles HTTP requests and maps them to the OCCI model, and that OpenStack defines authentication headers that OCCI implementations can leverage for security.

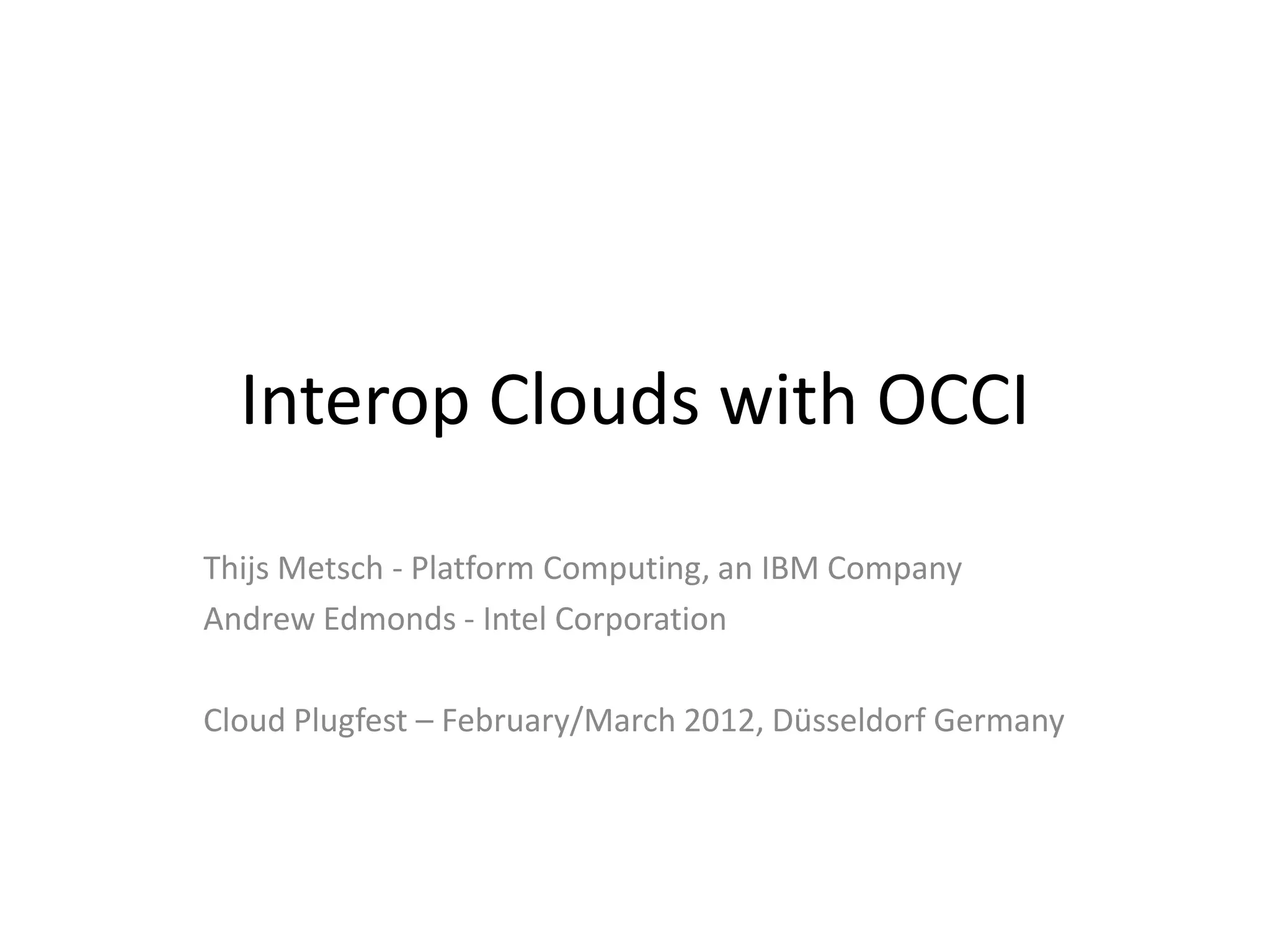

1. Interop Clouds with OCCI
Thijs Metsch - Platform Computing, an IBM Company
Andrew Edmonds - Intel Corporation
Cloud Plugfest – February/March 2012, Düsseldorf Germany

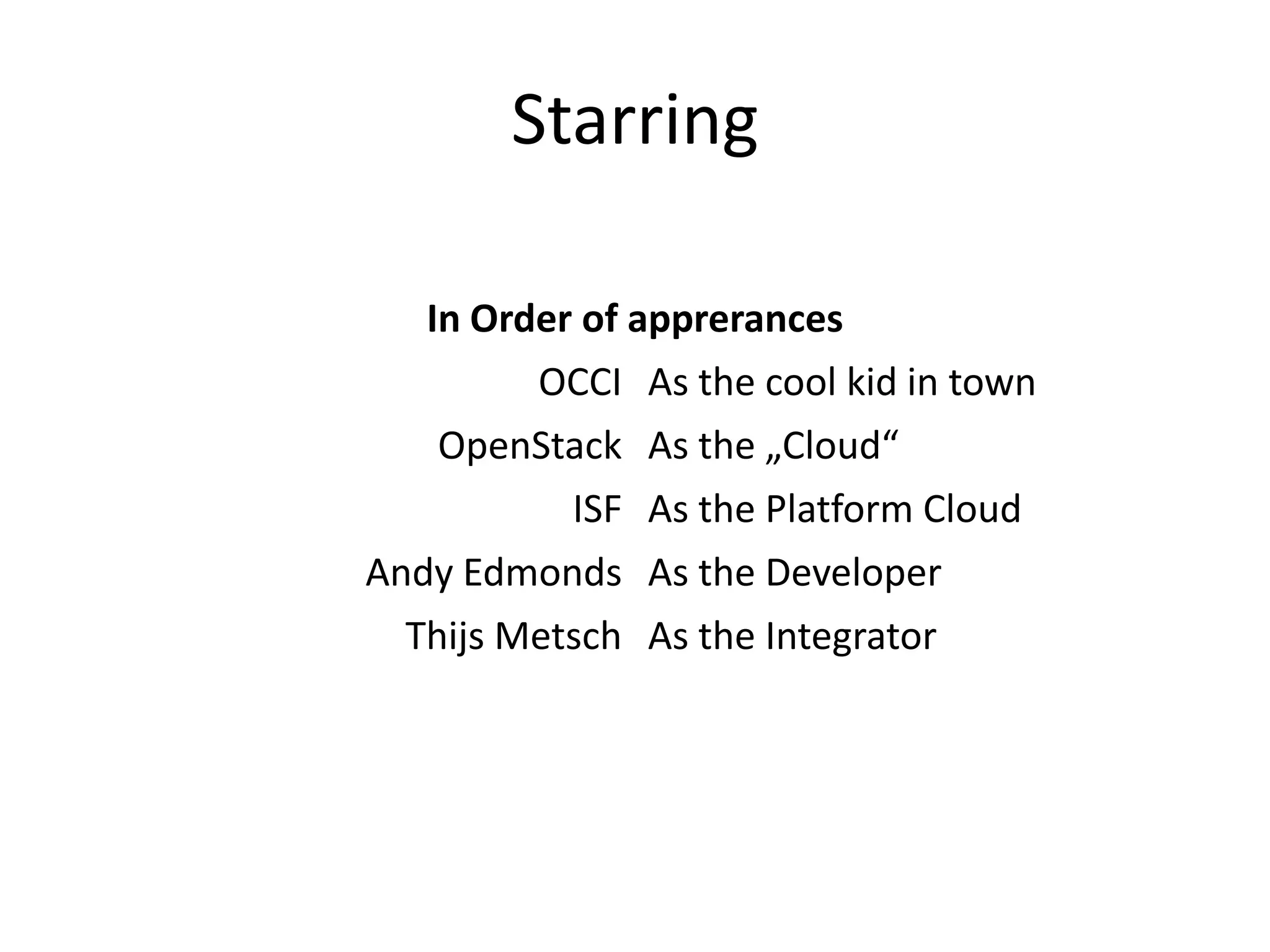

2. Starring
In Order of apprerances
OCCI As the cool kid in town
OpenStack As the „Cloud“
ISF As the Platform Cloud
Andy Edmonds As the Developer
Thijs Metsch As the Integrator

3. THE OCCI SOFTWARE PACKAGE

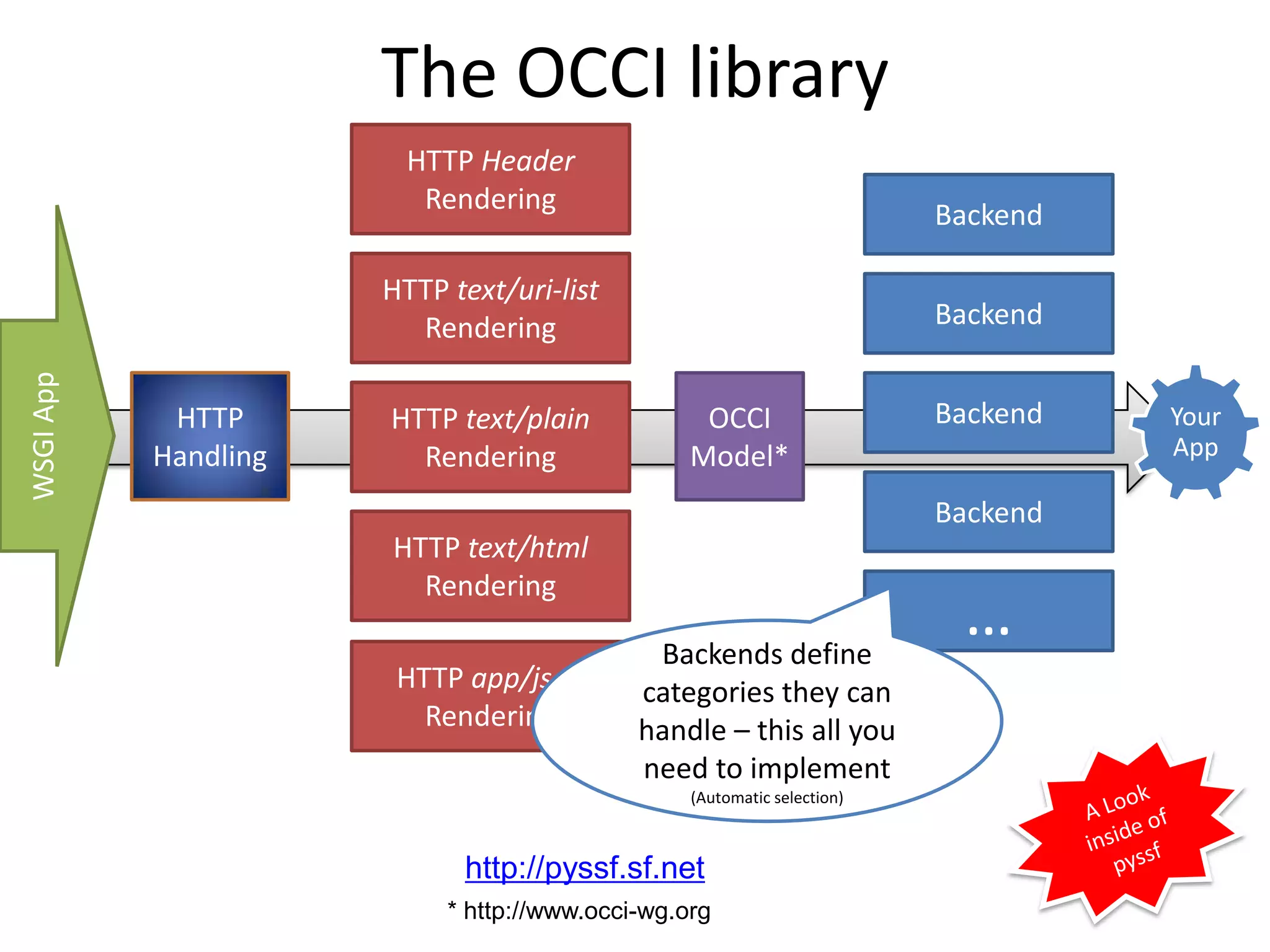

4. The OCCI library
HTTP Header
Rendering
Backend
HTTP text/uri-list
Rendering Backend
WSGI App
HTTP HTTP text/plain OCCI Backend Your
Handling Rendering Model* App
Backend
HTTP text/html
Rendering

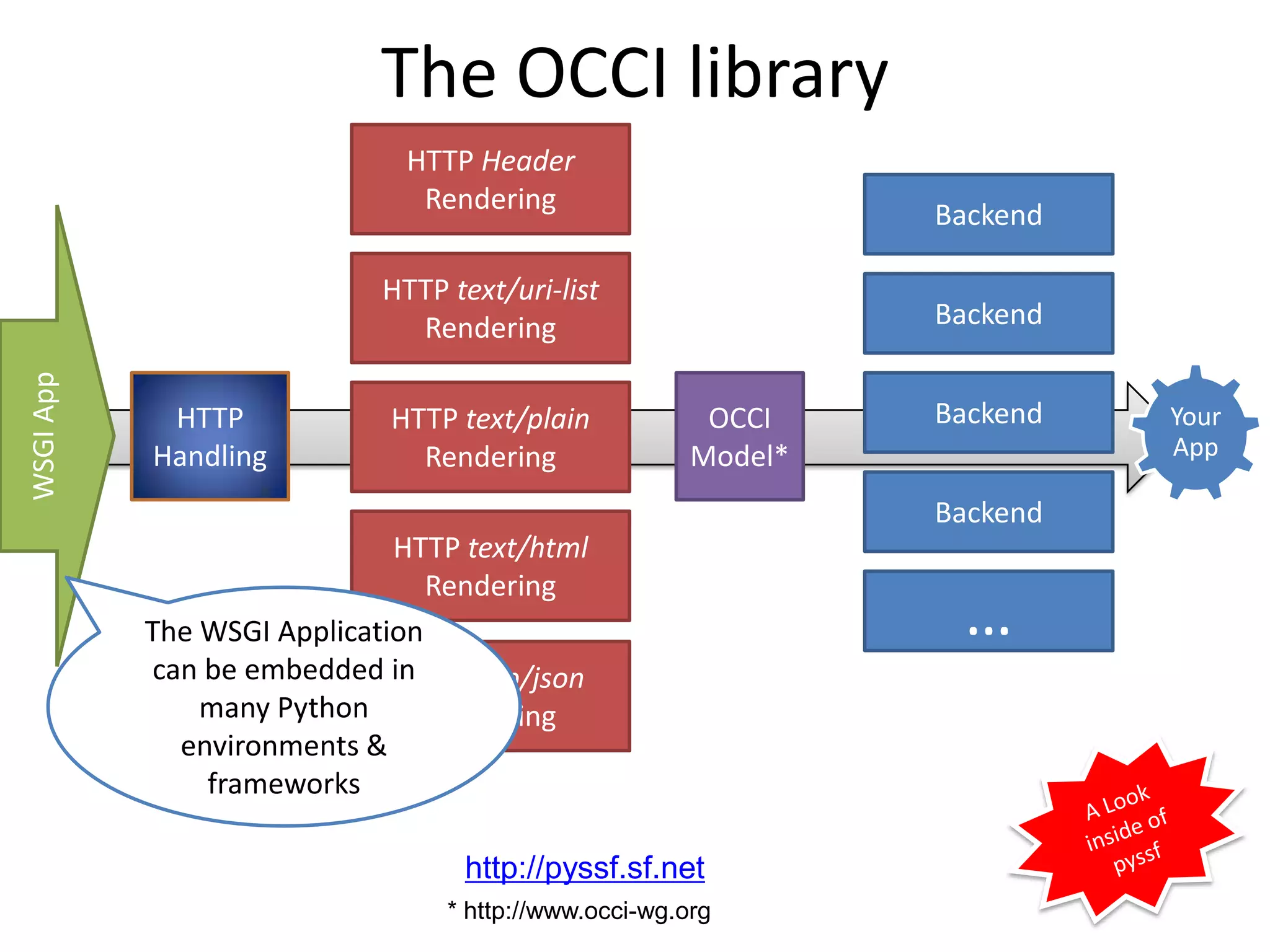

The WSGI Application …
can be embedded inHTTP app/json
many Python Rendering
environments &
frameworks
http://pyssf.sf.net
* http://www.occi-wg.org

5. The OCCI library
HTTP Header
Rendering
Backend
HTTP text/uri-list
Rendering Backend
WSGI App
HTTP HTTP text/plain OCCI Backend Your
Handling Rendering Model* App
Backend
HTTP text/html
Rendering

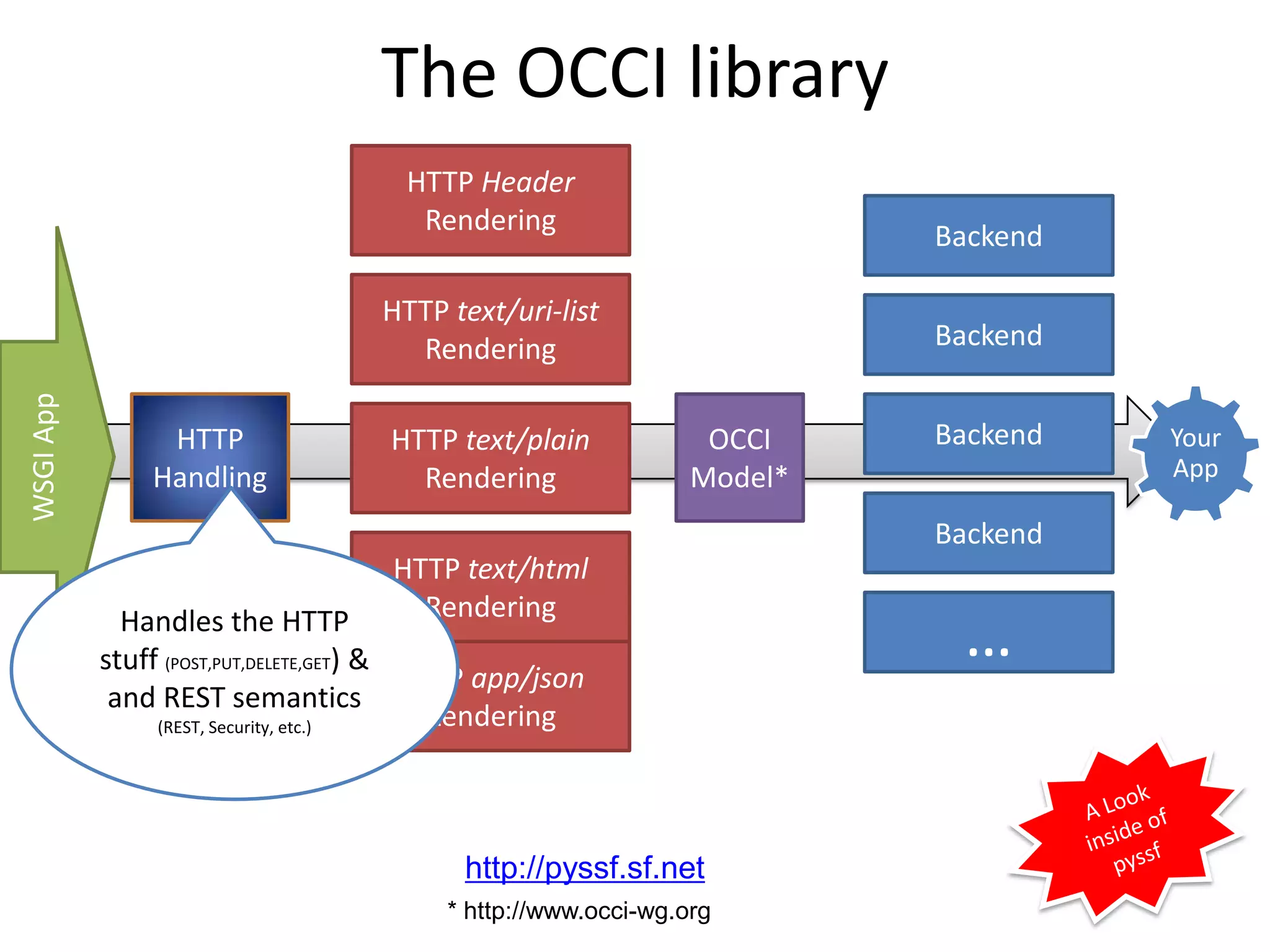

Handles the HTTP
stuff (POST,PUT,DELETE,GET) &
HTTP app/json
…
and REST semantics
(REST, Security, etc.) Rendering
http://pyssf.sf.net
* http://www.occi-wg.org

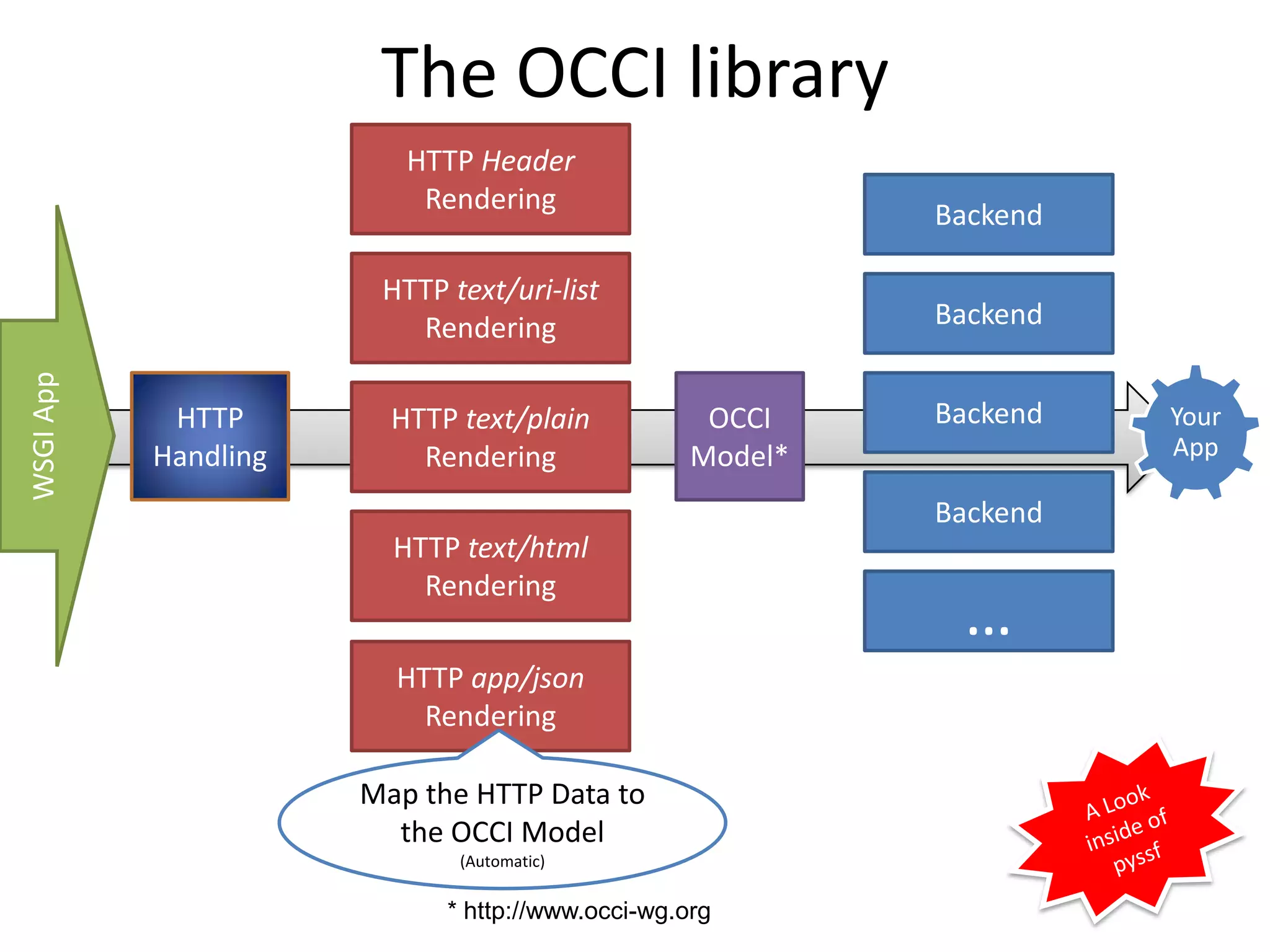

6. The OCCI library
HTTP Header
Rendering
Backend
HTTP text/uri-list
Rendering Backend
WSGI App
HTTP HTTP text/plain OCCI Backend Your
Handling Rendering Model* App
Backend
HTTP text/html
Rendering
…
HTTP app/json
Rendering
Map the HTTP Data to
the OCCI Model
(Automatic)
* http://www.occi-wg.org

7. The OCCI library
HTTP Header
Rendering
Backend
HTTP text/uri-list
Rendering Backend
WSGI App
HTTP HTTP text/plain OCCI Backend Your
Handling Rendering Model* App
Backend
HTTP text/html
Rendering
Backends define
…
HTTP app/json categories they can
Rendering handle – this all you
need to implement
(Automatic selection)
http://pyssf.sf.net
* http://www.occi-wg.org

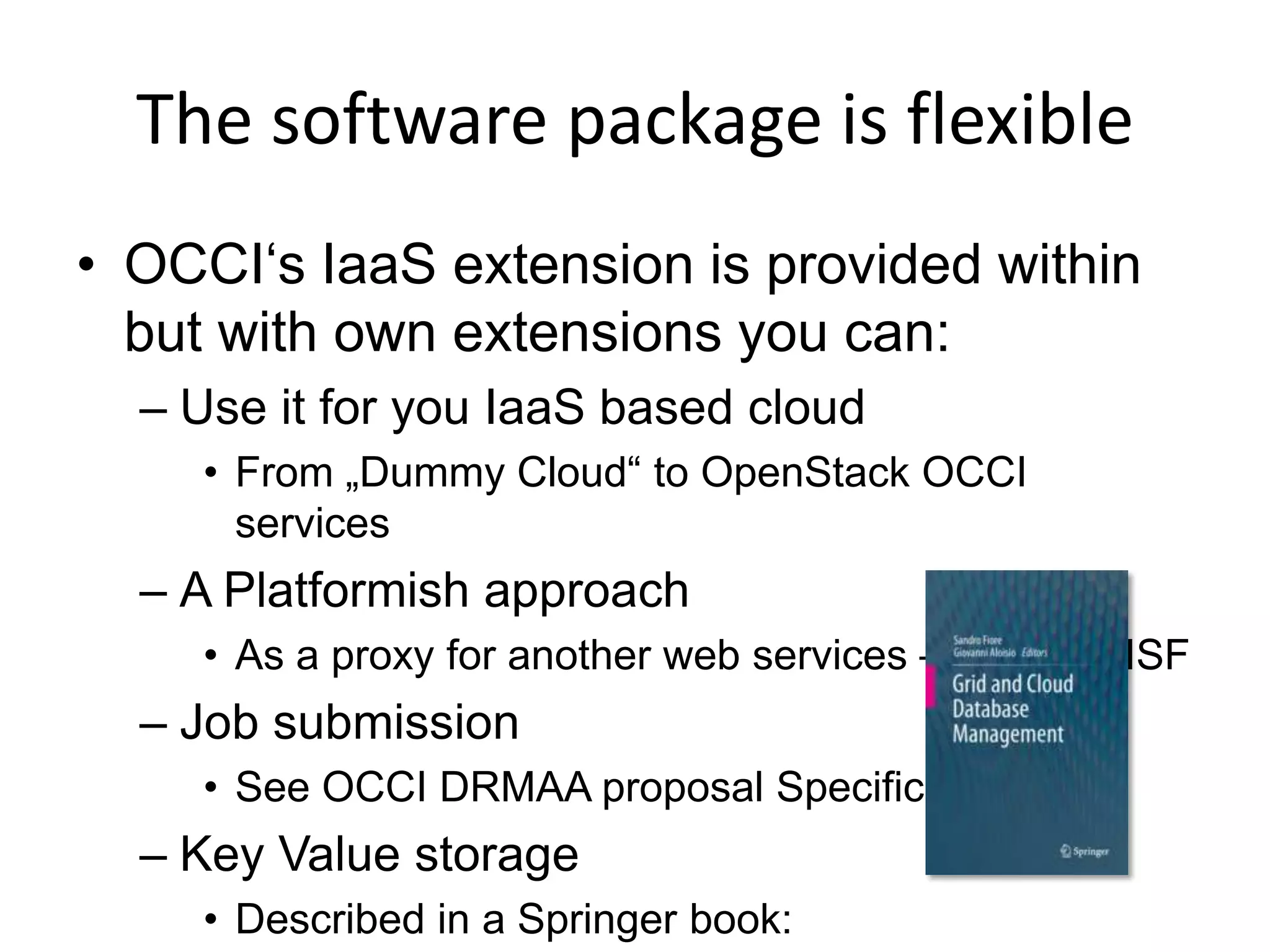

8. The software package is flexible
• OCCI‘s IaaS extension is provided within
but with own extensions you can:
– Use it for you IaaS based cloud
• From „Dummy Cloud“ to OpenStack OCCI
services
– A Platformish approach
• As a proxy for another web services – Platform ISF
– Job submission
• See OCCI DRMAA proposal Specification
– Key Value storage
• Described in a Springer book:

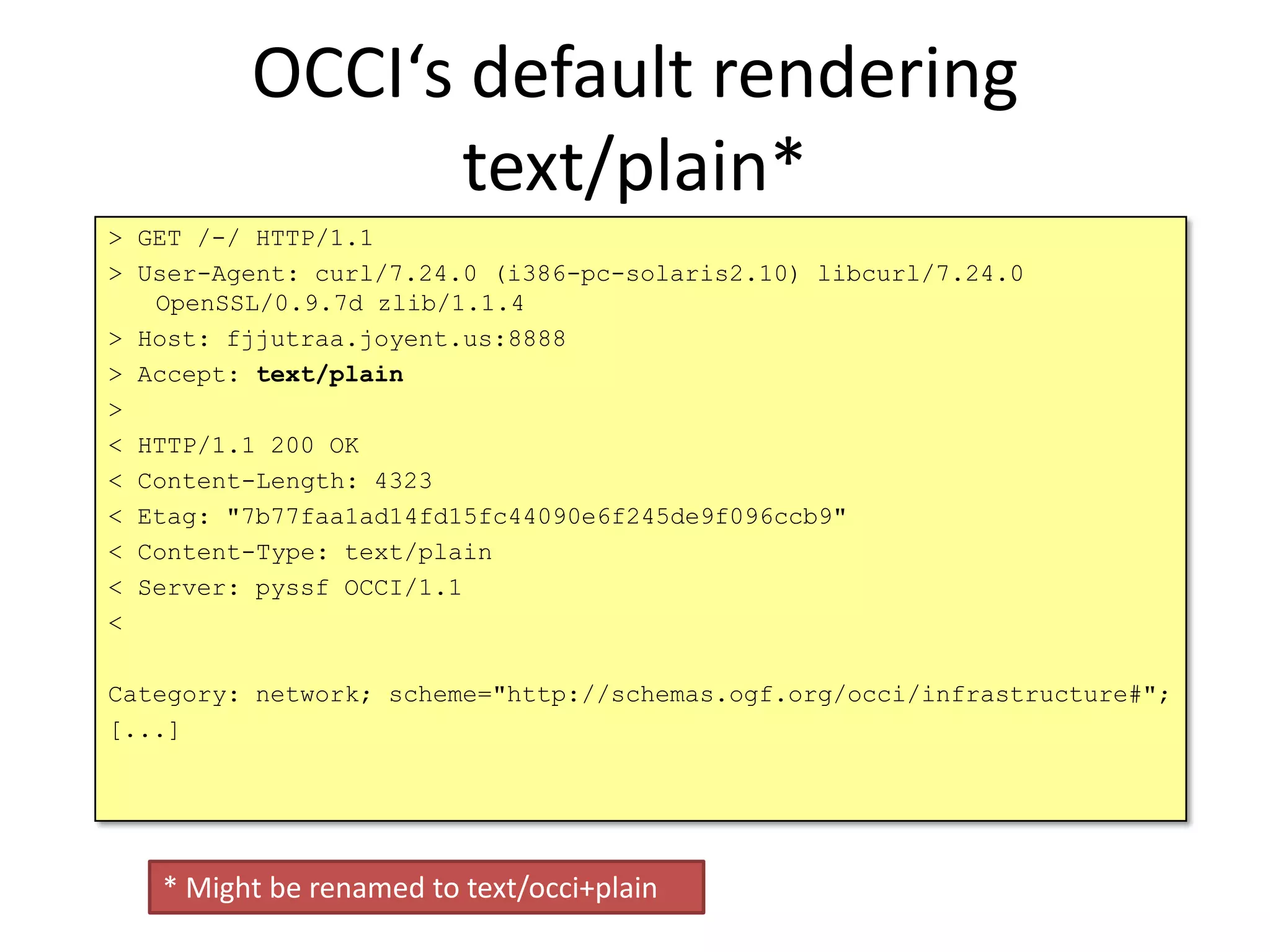

9. OCCI‘s default rendering
text/plain*
> GET /-/ HTTP/1.1
> User-Agent: curl/7.24.0 (i386-pc-solaris2.10) libcurl/7.24.0
OpenSSL/0.9.7d zlib/1.1.4
> Host: fjjutraa.joyent.us:8888
> Accept: text/plain
>
< HTTP/1.1 200 OK
< Content-Length: 4323
< Etag: "7b77faa1ad14fd15fc44090e6f245de9f096ccb9"
< Content-Type: text/plain
< Server: pyssf OCCI/1.1
<
Category: network; scheme="http://schemas.ogf.org/occi/infrastructure#";
[...]
* Might be renamed to text/occi+plain

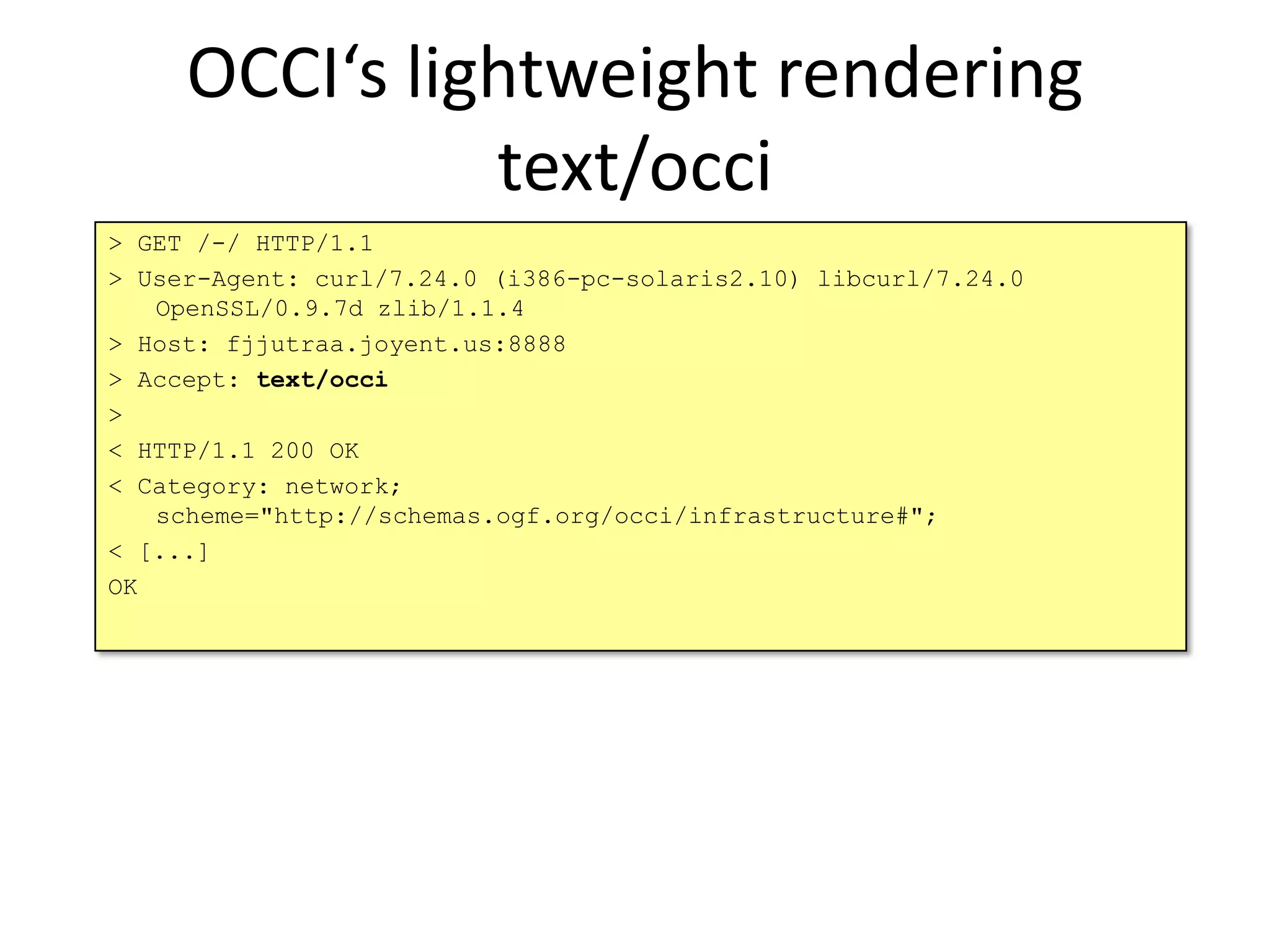

10. OCCI‘s lightweight rendering
text/occi
> GET /-/ HTTP/1.1
> User-Agent: curl/7.24.0 (i386-pc-solaris2.10) libcurl/7.24.0
OpenSSL/0.9.7d zlib/1.1.4
> Host: fjjutraa.joyent.us:8888
> Accept: text/occi
>
< HTTP/1.1 200 OK
< Category: network;
scheme="http://schemas.ogf.org/occi/infrastructure#";
< [...]
OK

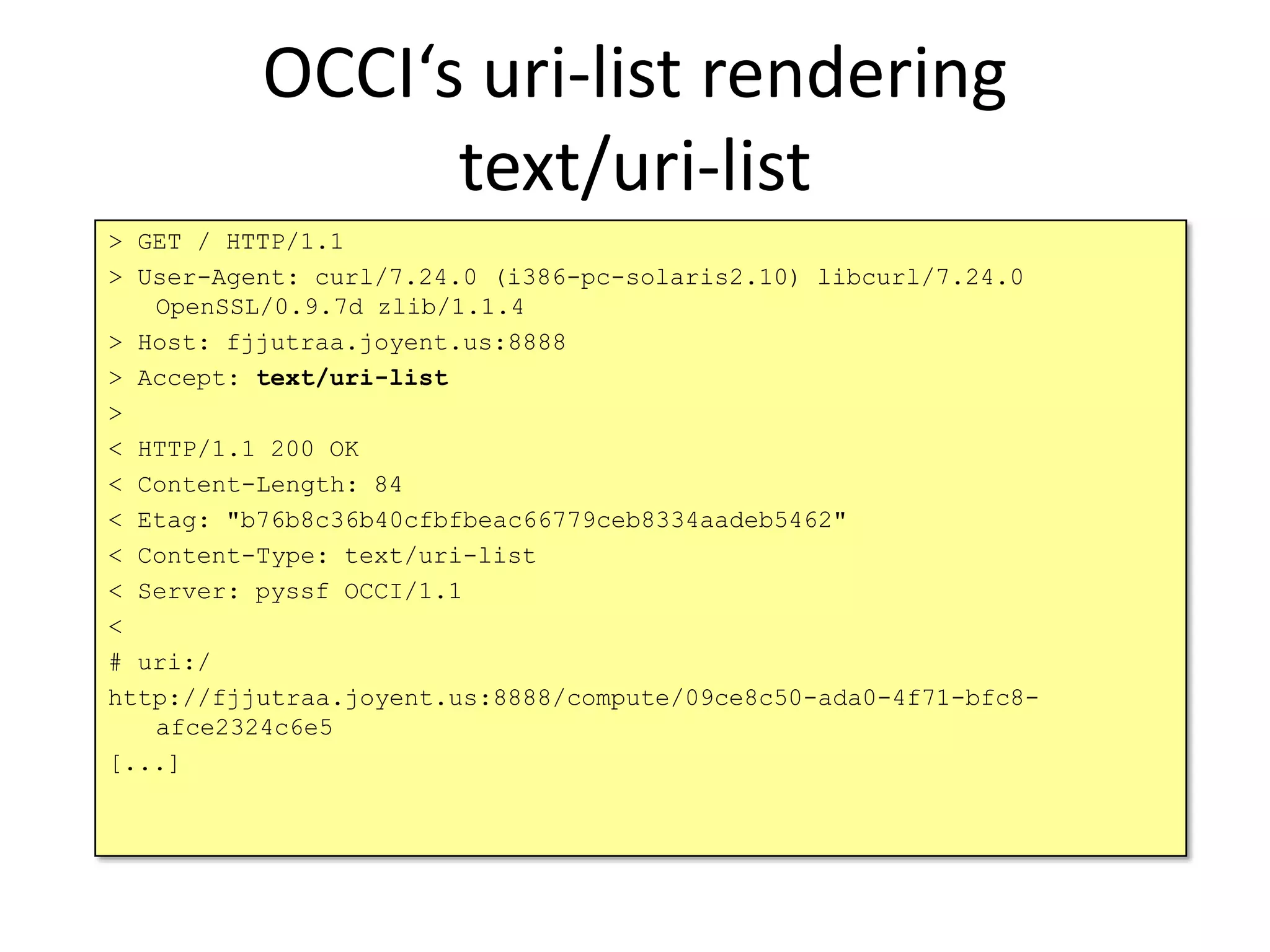

11. OCCI‘s uri-list rendering
text/uri-list
> GET / HTTP/1.1
> User-Agent: curl/7.24.0 (i386-pc-solaris2.10) libcurl/7.24.0
OpenSSL/0.9.7d zlib/1.1.4
> Host: fjjutraa.joyent.us:8888
> Accept: text/uri-list
>
< HTTP/1.1 200 OK
< Content-Length: 84
< Etag: "b76b8c36b40cfbfbeac66779ceb8334aadeb5462"
< Content-Type: text/uri-list
< Server: pyssf OCCI/1.1
<
# uri:/
http://fjjutraa.joyent.us:8888/compute/09ce8c50-ada0-4f71-bfc8-
afce2324c6e5
[...]

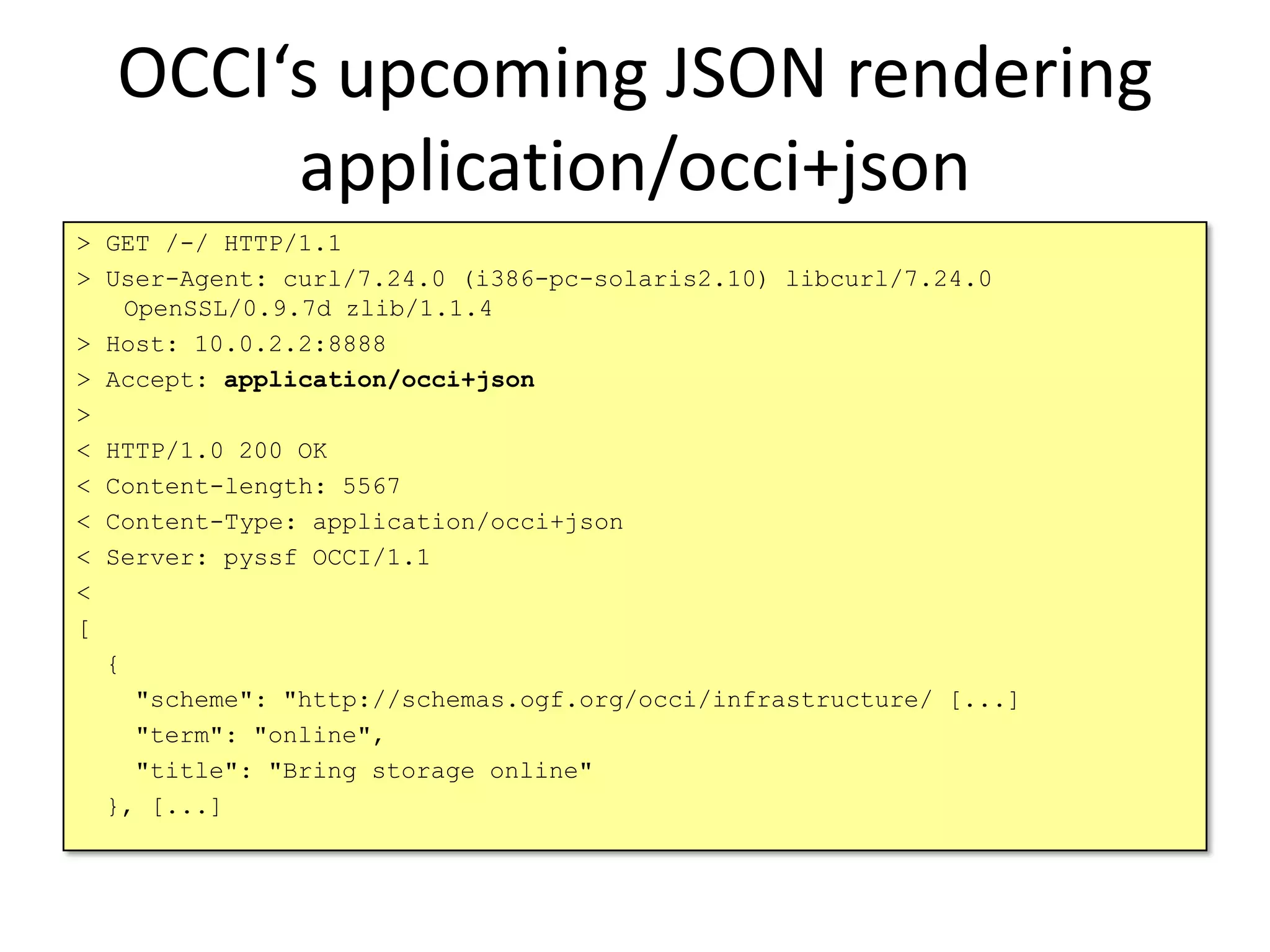

12. OCCI‘s upcoming JSON rendering
application/occi+json
> GET /-/ HTTP/1.1
> User-Agent: curl/7.24.0 (i386-pc-solaris2.10) libcurl/7.24.0
OpenSSL/0.9.7d zlib/1.1.4
> Host: 10.0.2.2:8888
> Accept: application/occi+json
>
< HTTP/1.0 200 OK
< Content-length: 5567
< Content-Type: application/occi+json
< Server: pyssf OCCI/1.1
<
[
{
"scheme": "http://schemas.ogf.org/occi/infrastructure/ [...]
"term": "online",
"title": "Bring storage online"
}, [...]

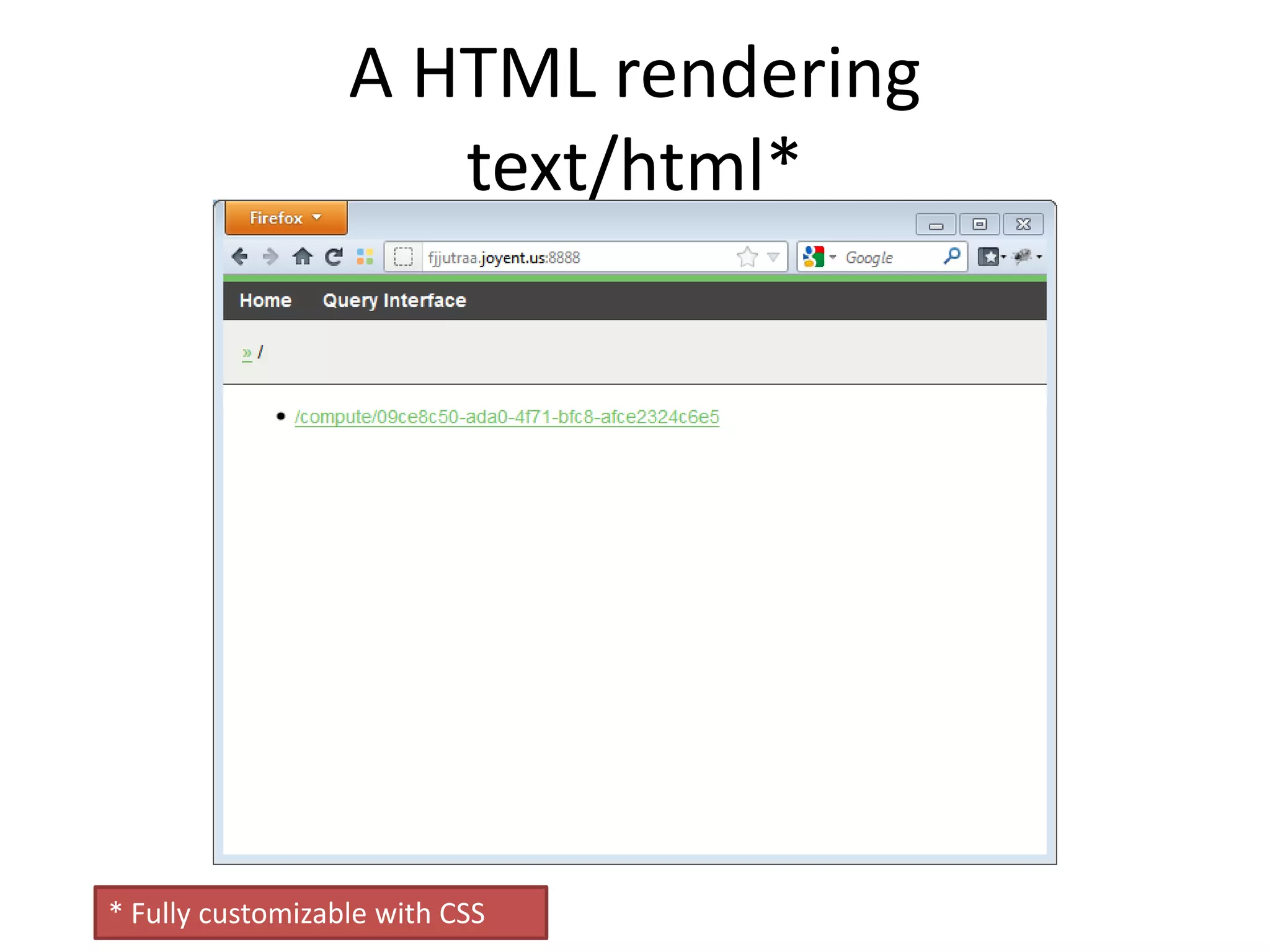

13. A HTML rendering
text/html*
* Fully customizable with CSS

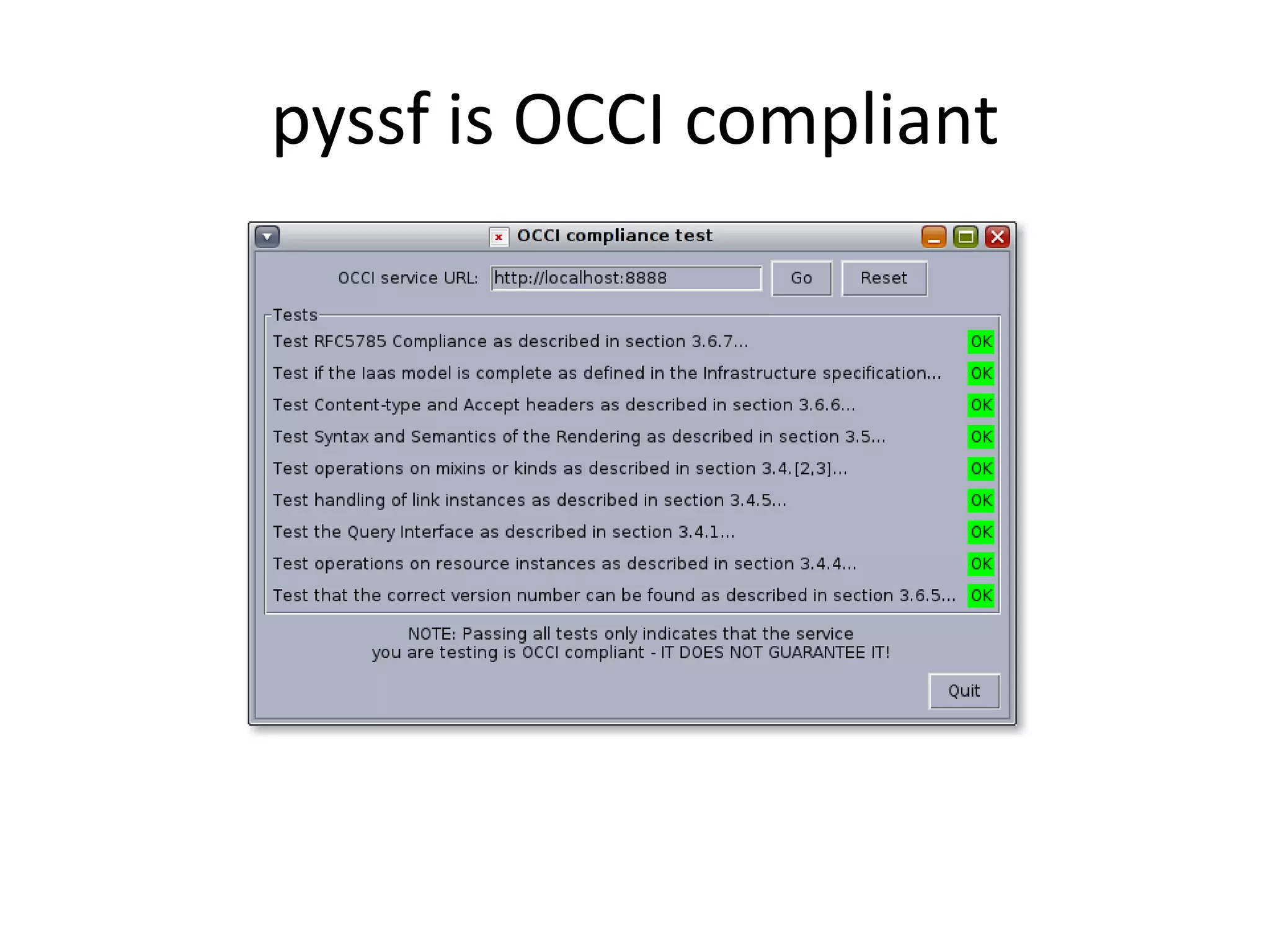

14. pyssf is OCCI compliant

15. OCCI & OPENSTACK

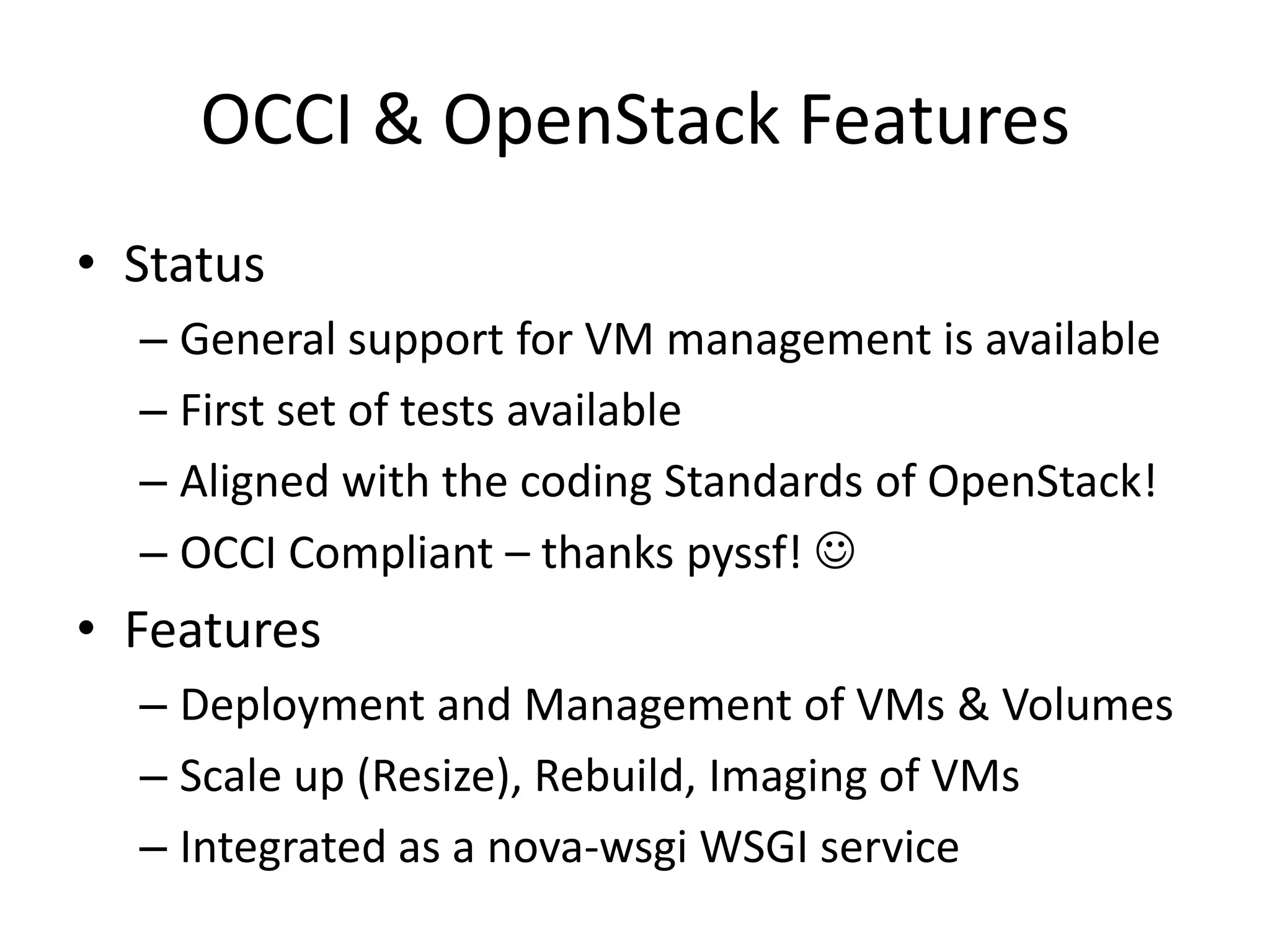

16. OCCI & OpenStack Features
• Status
– General support for VM management is available
– First set of tests available
– Aligned with the coding Standards of OpenStack!
– OCCI Compliant – thanks pyssf! 
• Features
– Deployment and Management of VMs & Volumes
– Scale up (Resize), Rebuild, Imaging of VMs
– Integrated as a nova-wsgi WSGI service

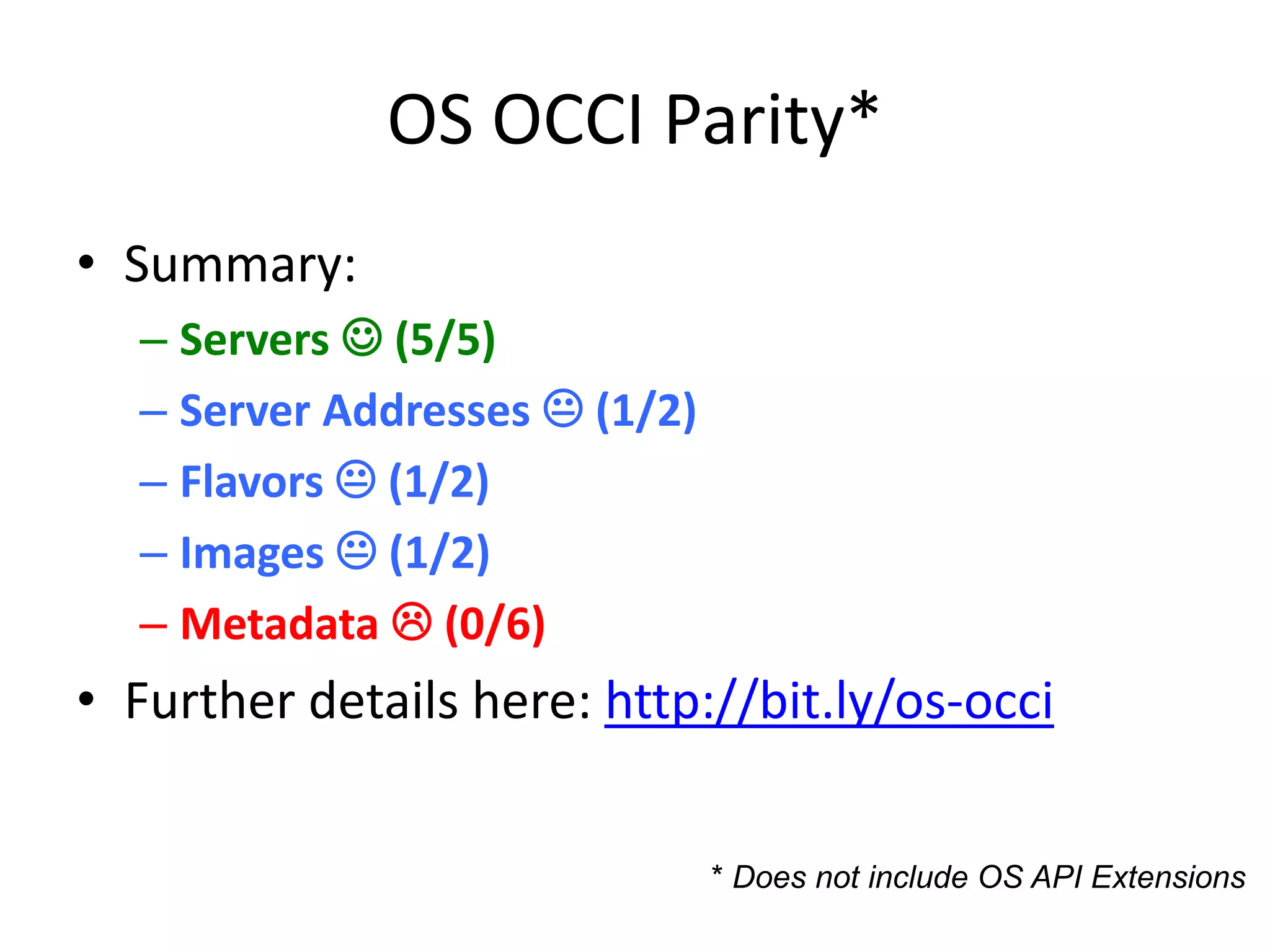

17. OS OCCI Parity*
• Summary:
– Servers  (5/5)
– Server Addresses  (1/2)
– Flavors  (1/2)
– Images  (1/2)
– Metadata  (0/6)
• Further details here: http://bit.ly/os-occi
* Does not include OS API Extensions

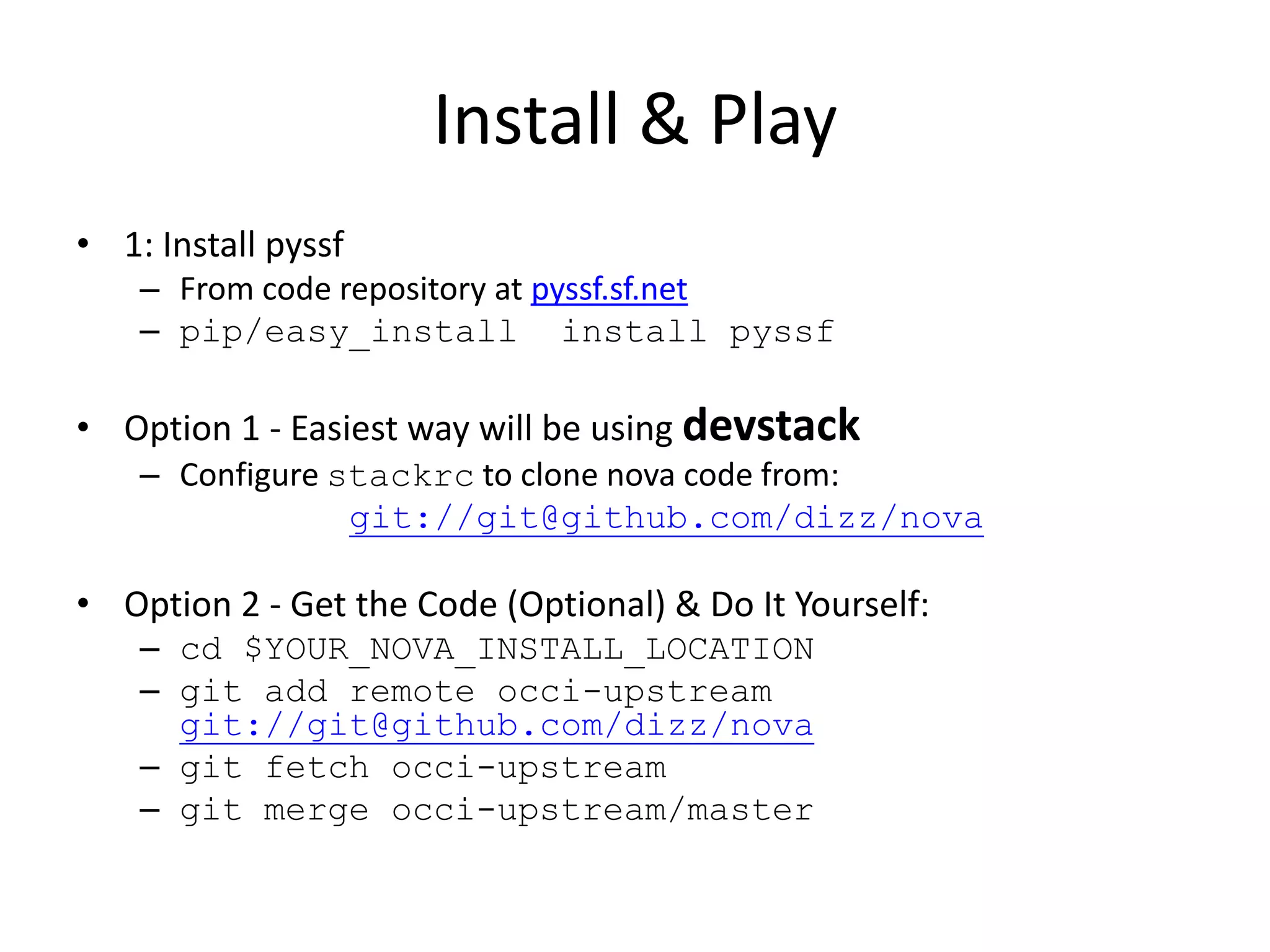

18. Install & Play
• 1: Install pyssf
– From code repository at pyssf.sf.net
– pip/easy_install install pyssf
• Option 1 - Easiest way will be using devstack
– Configure stackrc to clone nova code from:
git://git@github.com/dizz/nova
• Option 2 - Get the Code (Optional) & Do It Yourself:
– cd $YOUR_NOVA_INSTALL_LOCATION
– git add remote occi-upstream
git://git@github.com/dizz/nova
– git fetch occi-upstream
– git merge occi-upstream/master

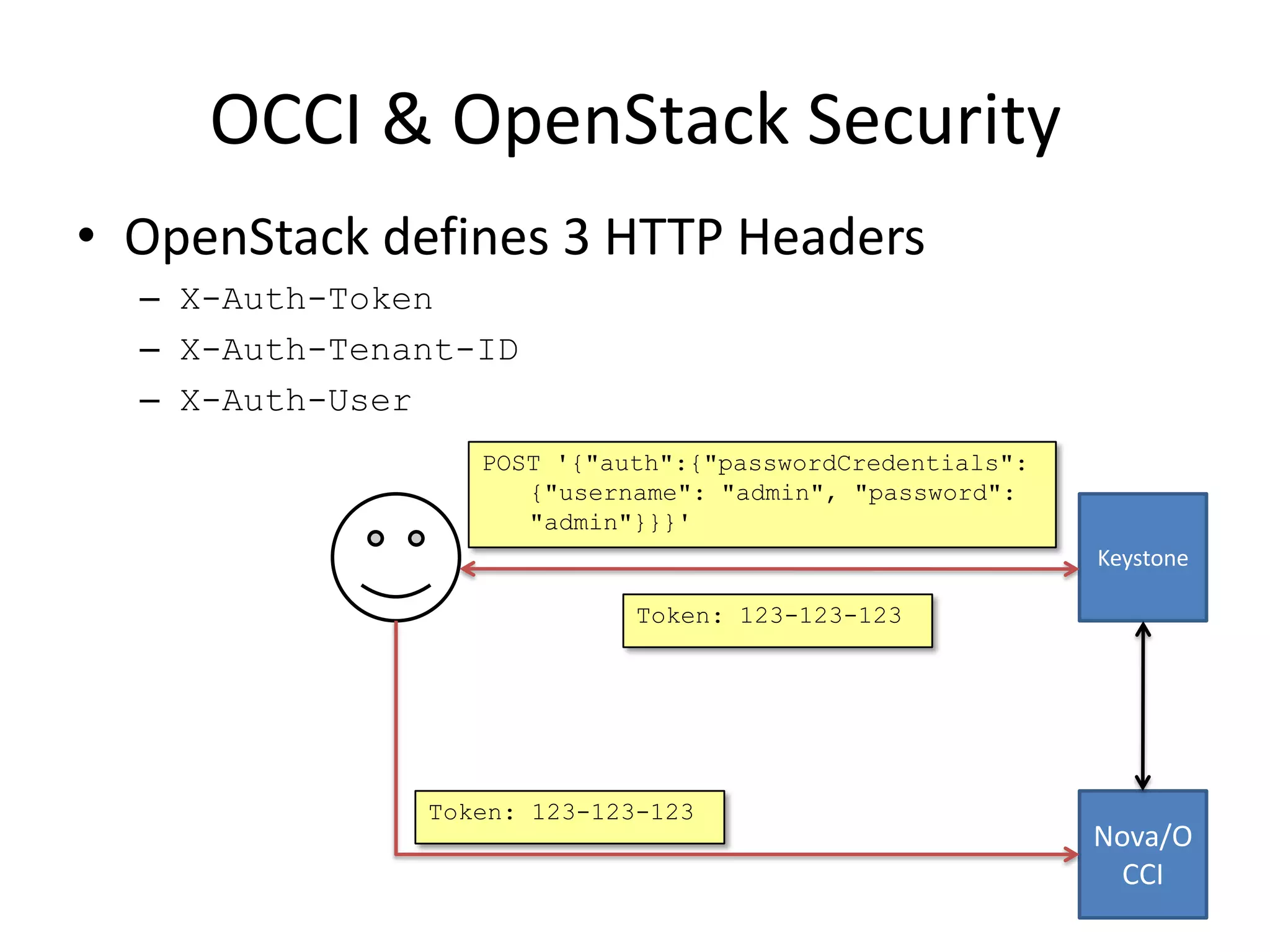

19. OCCI & OpenStack Security
• OpenStack defines 3 HTTP Headers
– X-Auth-Token
– X-Auth-Tenant-ID
– X-Auth-User
POST '{"auth":{"passwordCredentials":
{"username": "admin", "password":
"admin"}}}'
Keystone
Token: 123-123-123
Token: 123-123-123
Nova/O
CCI

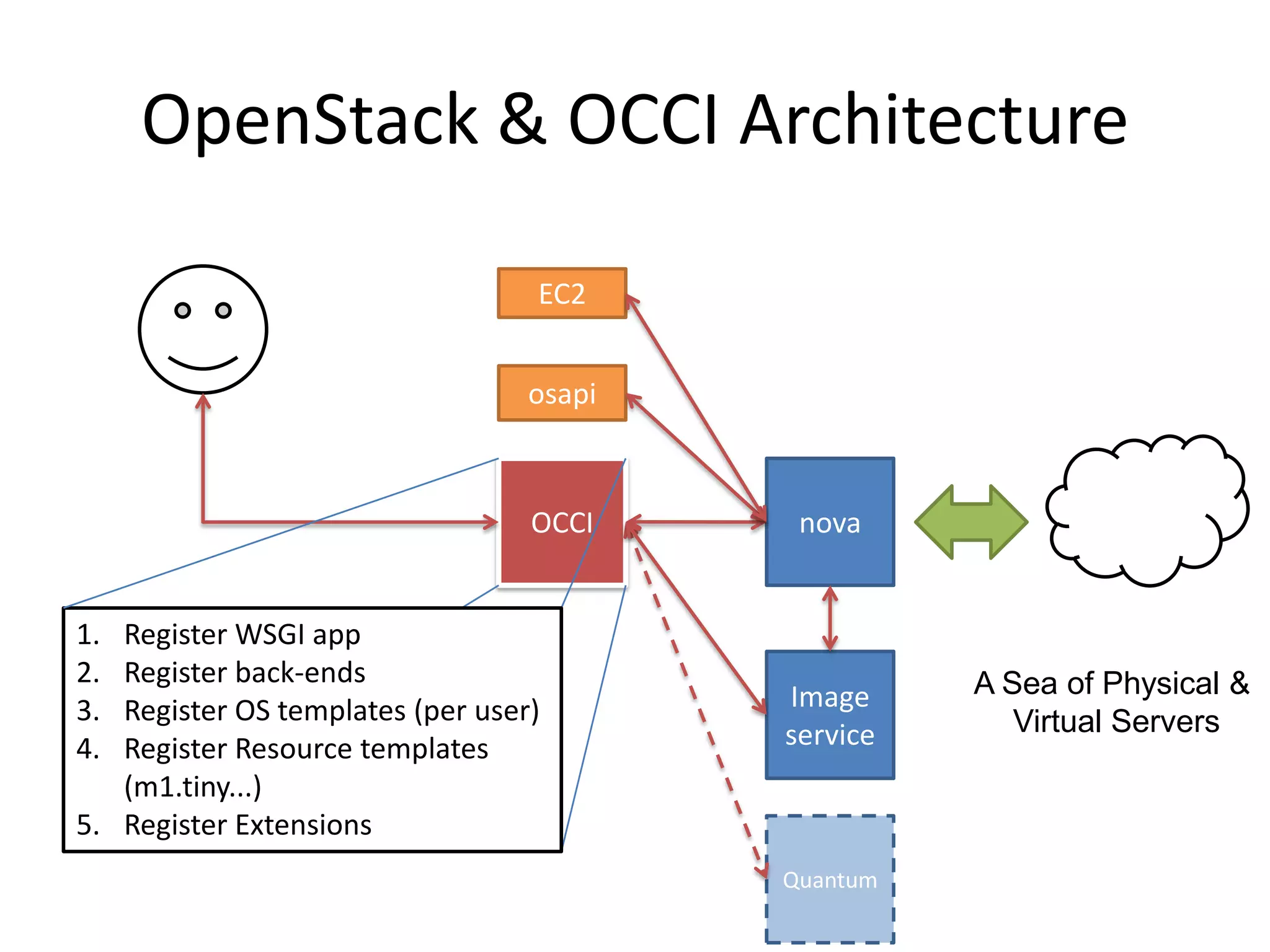

20. OpenStack & OCCI Architecture
EC2
osapi
OCCI nova
1. Register WSGI app
2. Register back-ends A Sea of Physical &
3. Register OS templates (per user) Image
service Virtual Servers
4. Register Resource templates
(m1.tiny...)
5. Register Extensions
Quantum

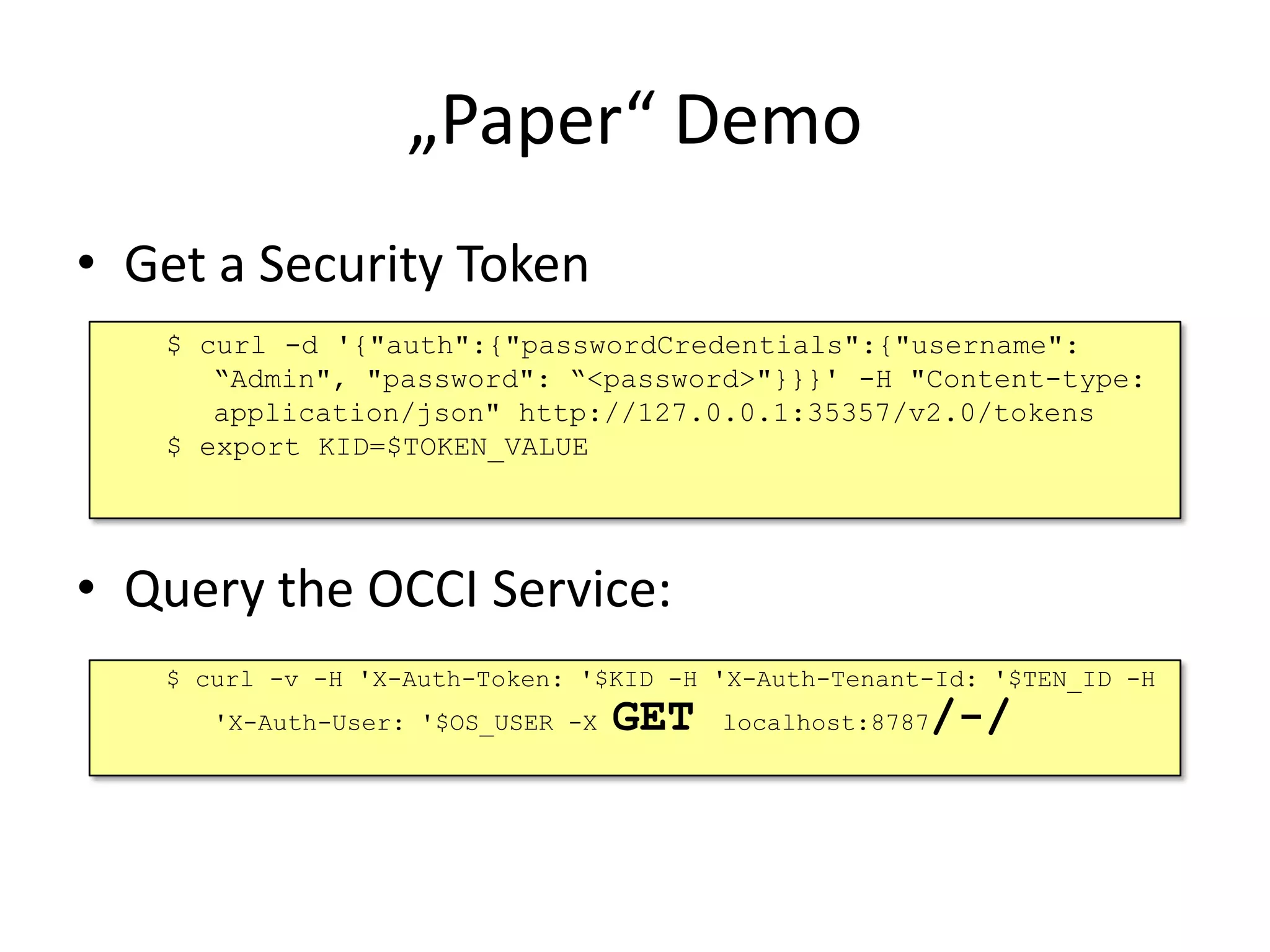

21. „Paper“ Demo
• Get a Security Token
$ curl -d '{"auth":{"passwordCredentials":{"username":
“Admin", "password": “<password>"}}}' -H "Content-type:
application/json" http://127.0.0.1:35357/v2.0/tokens
$ export KID=$TOKEN_VALUE
• Query the OCCI Service:
$ curl -v -H 'X-Auth-Token: '$KID -H 'X-Auth-Tenant-Id: '$TEN_ID -H
'X-Auth-User: '$OS_USER -X GET /-/
localhost:8787

22. An OCCI & OpenStack Sample
curl -v -X POST localhost:8787/compute/
-H 'Content-Type: text/occi'
-H 'X-Auth-Token: '$KID
-H 'X-Auth-Tenant-ID: ’$TEN_ID
-H 'X-Auth-User: ’$USER
-H 'Category: compute;
scheme="http://schemas.ogf.org/occi/infrastructure#";
class="kind"’
-H 'Category: m1.tiny;
scheme="http://schemas.openstack.org/template/resource#";
class="mixin"'
-H 'Category: cirros-0.3.0-x86_64-blank;
scheme="http://schemas.openstack.org/template/os#";
class="mixin"‘
That’s all! 

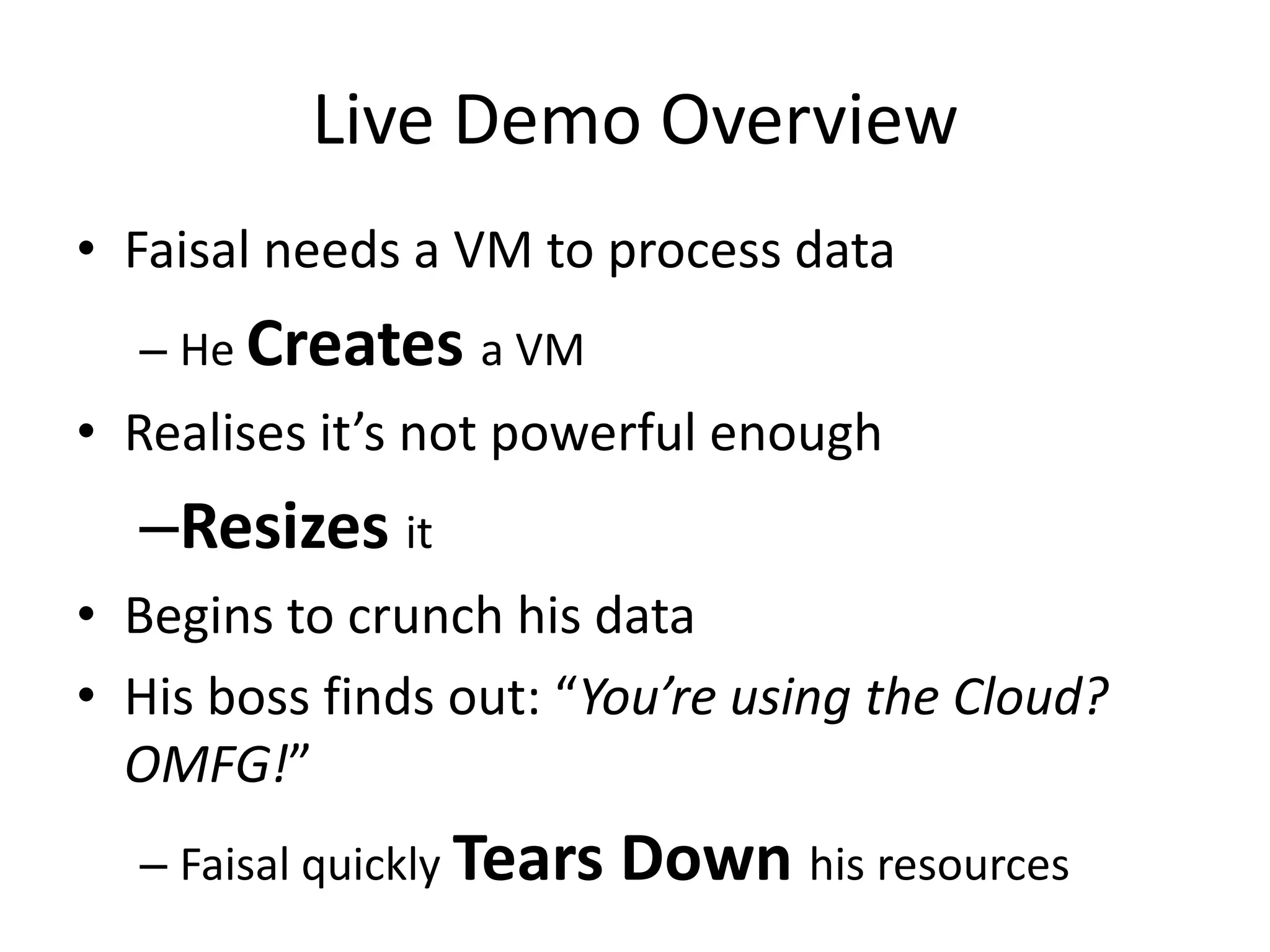

23. Live Demo Overview
• Faisal needs a VM to process data
– He Creates a VM
• Realises it’s not powerful enough
–Resizes it
• Begins to crunch his data
• His boss finds out: “You’re using the Cloud?
OMFG!”
– Faisal quickly Tears Down his resources

24. Developing with Open/Dev-Stack
• Experiences – „WAT!?“
– Devstack can be helpful
– BUT: Sometimes not!
– Set Root password!
• Unittesting
– Writing Unittests for our OCCI-api was straight
forward
• Changing APIs
– Especially integration with Keystone was „fun“

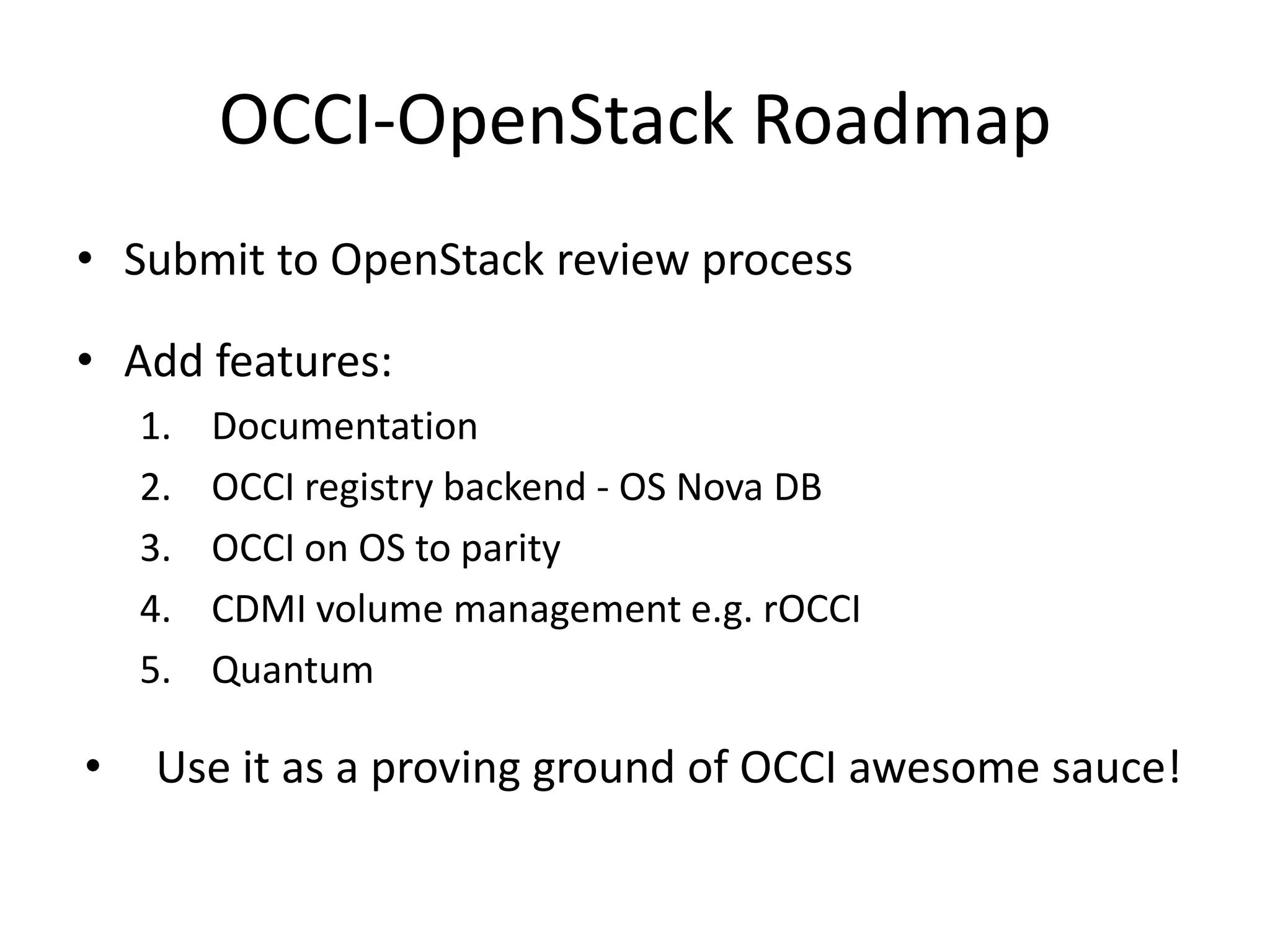

25. OCCI-OpenStack Roadmap
• Submit to OpenStack review process
• Add features:
1. Documentation
2. OCCI registry backend - OS Nova DB
3. OCCI on OS to parity
4. CDMI volume management e.g. rOCCI
5. Quantum
• Use it as a proving ground of OCCI awesome sauce!

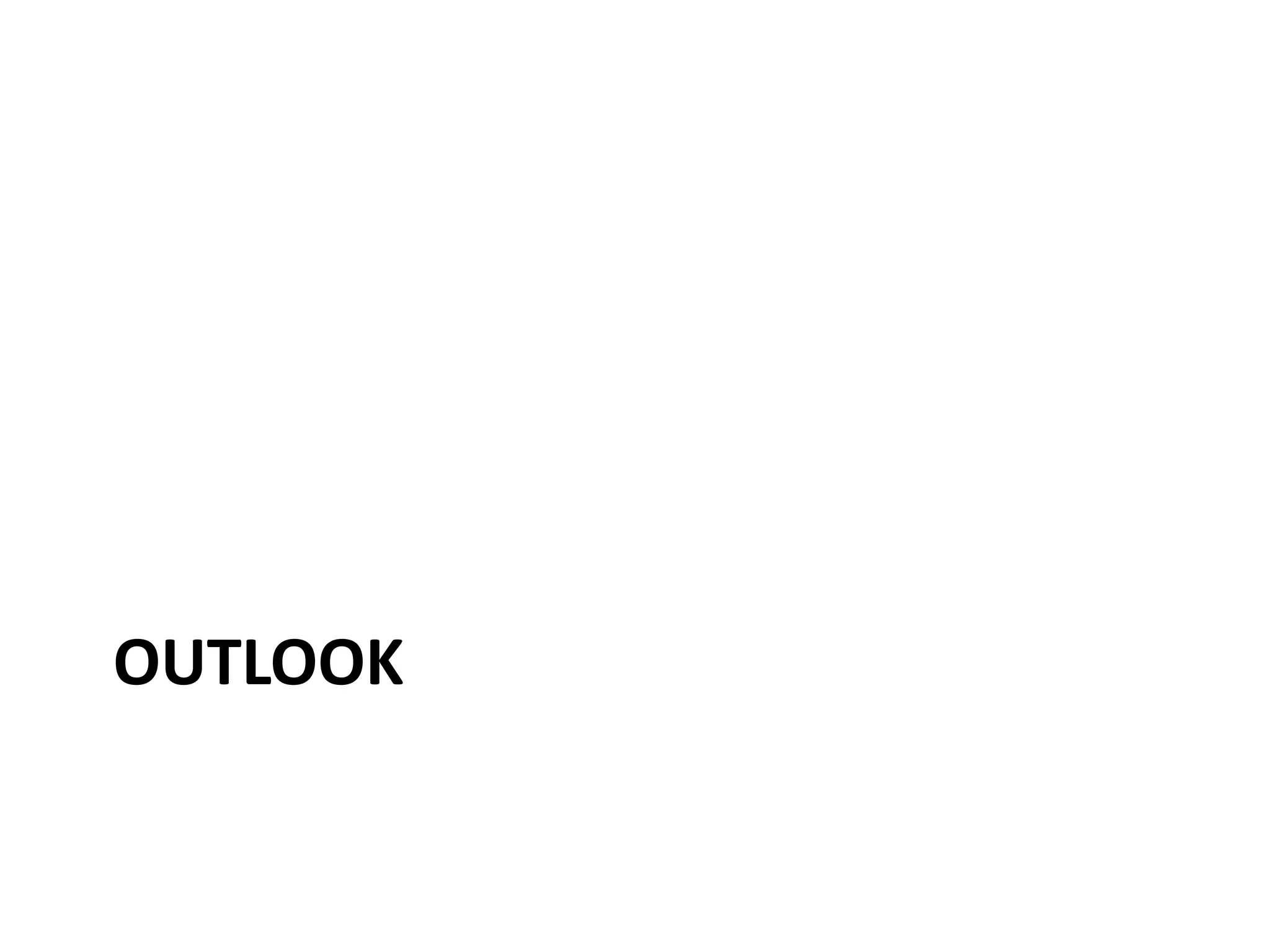

26. OUTLOOK

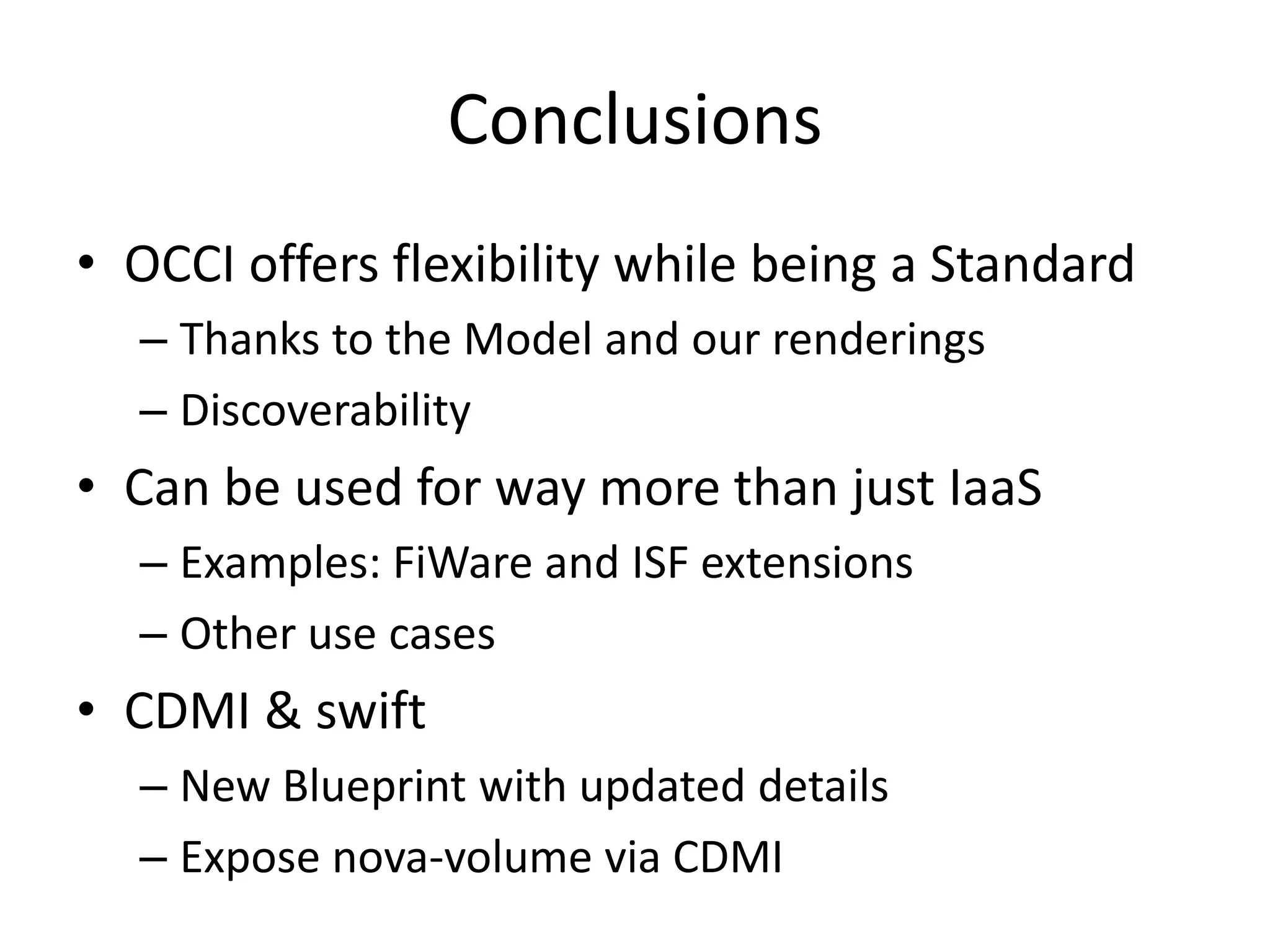

27. Conclusions
• OCCI offers flexibility while being a Standard
– Thanks to the Model and our renderings
– Discoverability
• Can be used for way more than just IaaS
– Examples: FiWare and ISF extensions
– Other use cases
• CDMI & swift
– New Blueprint with updated details
– Expose nova-volume via CDMI

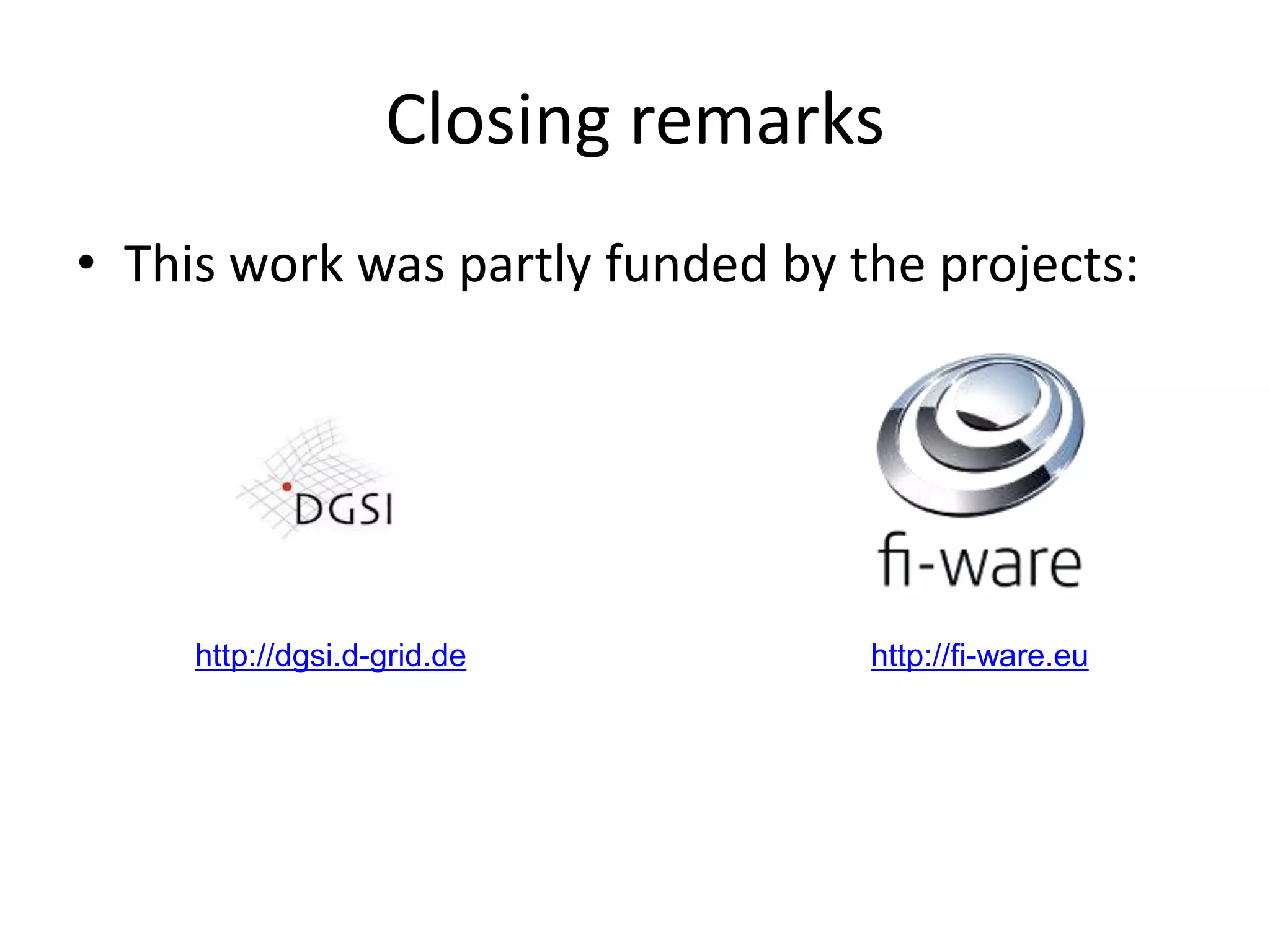

28. Closing remarks
• This work was partly funded by the projects:
http://dgsi.d-grid.de http://fi-ware.eu
