1. 07/06/2019 Big Data class by Alexandre Bergere 1
Cloud Architecture

2. 07/06/2019 Big Data class by Alexandre Bergere 2
alexandre.bergere@gmail.com
https://fr.linkedin.com/in/alexandrebergere
@AlexPhile
ESAIP
2013 - 2016
Avanade
2016 - 2019
Sr Anls, Data EngineeringStudent
Worked as a senior analyst at Avanade
France, I have developed my skills in data
analysis (MSBI, Power BI, R, Python) by
working on innovative projects and proofs of
concept in the energy industry.
ESAIP
Teacher
2016 - x
Freelance
2019 - x
Data Analyst & Data Architect

3. 07/06/2019 Big Data class by Alexandre Bergere 3

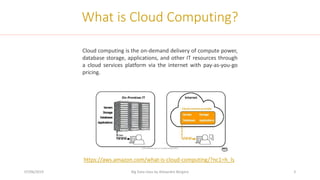

What is Cloud Computing?
Cloud computing is the on-demand delivery of compute power,
database storage, applications, and other IT resources through
a cloud services platform via the internet with pay-as-you-go
pricing.
https://aws.amazon.com/what-is-cloud-computing/?nc1=h_ls

4. 07/06/2019 Big Data class by Alexandre Bergere 4

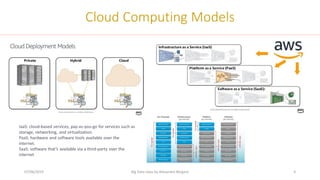

Cloud Computing Models
IaaS: cloud-based services, pay-as-you-go for services such as
storage, networking, and virtualization.
PaaS: hardware and software tools available over the
internet.
SaaS: software that’s available via a third-party over the
internet

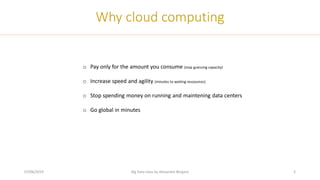

5. 07/06/2019 Big Data class by Alexandre Bergere 5
Why cloud computing
o Pay only for the amount you consume (stop guessing capacity)
o Increase speed and agility (minutes to waiting ressources)
o Stop spending money on running and maintening data centers
o Go global in minutes

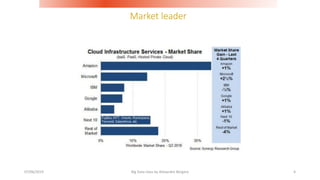

6. Market leader
07/06/2019 Big Data class by Alexandre Bergere 6

7. Market leader
07/06/2019 Big Data class by Alexandre Bergere 7

8. 07/06/2019 Big Data class by Alexandre Bergere 8

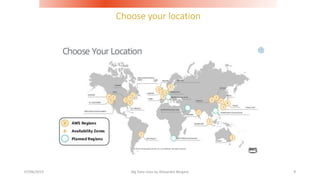

9. Choose your location
07/06/2019 Big Data class by Alexandre Bergere 9

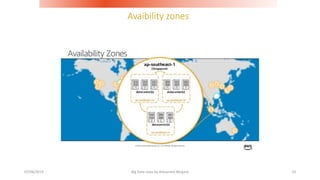

10. Avaibility zones
07/06/2019 Big Data class by Alexandre Bergere 10

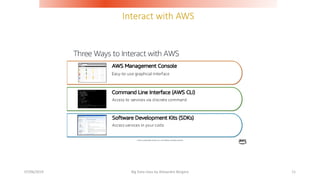

11. Interact with AWS
07/06/2019 Big Data class by Alexandre Bergere 11

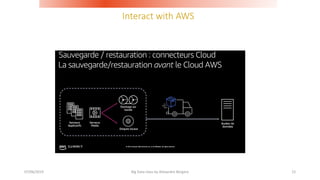

12. Interact with AWS
07/06/2019 Big Data class by Alexandre Bergere 12

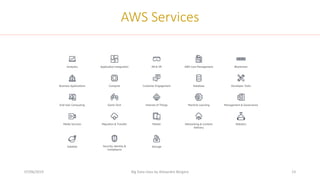

13. 07/06/2019 Big Data class by Alexandre Bergere 13
AWS Services

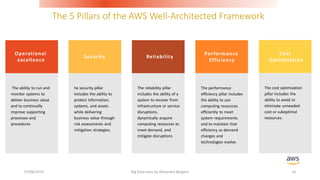

14. The 5 Pillars of the AWS Well-Architected Framework
07/06/2019 Big Data class by Alexandre Bergere 14
Operational
excellence
The ability to run and
monitor systems to
deliver business value
and to continually
improve supporting
processes and
procedures
he security pillar
includes the ability to
protect information,
systems, and assets
while delivering
business value through
risk assessments and
mitigation strategies.
The reliability pillar
includes the ability of a
system to recover from
infrastructure or service
disruptions,
dynamically acquire
computing resources to
meet demand, and
mitigate disruptions
The performance
efficiency pillar includes
the ability to use
computing resources
efficiently to meet
system requirements
and to maintain that
efficiency as demand
changes and
technologies evolve.
The cost optimization
pillar includes the
ability to avoid or
eliminate unneeded
cost or suboptimal
resources.
Security Reliability
Performance
Efficiency
Cost
Optimization

15. AWS Foundation Services
07/06/2019 Big Data class by Alexandre Bergere 15

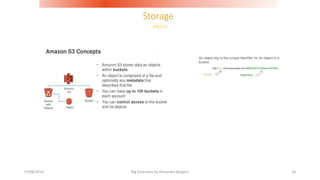

16. Storage
07/06/2019 Big Data class by Alexandre Bergere 16
AWS S3

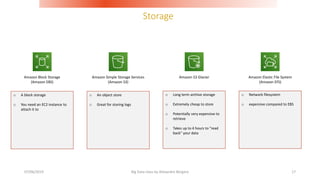

17. Storage
07/06/2019 Big Data class by Alexandre Bergere 17
o A block storage
o You need an EC2 instance to
attach it to
Amazon Block Storage
(Amazon EBS)
Amazon Simple Storage Services
(Amazon S3)
Amazon S3 Glacier
o An object store
o Great for storing logs
Amazon Elastic File System
(Amazon EFS)
o Long term archive storage
o Extremely cheap to store
o Potentially very expensive to
retrieve
o Takes up to 4 hours to "read
back" your data
o Network filesystem
o expensive compared to EBS

18. Compute
07/06/2019 Big Data class by Alexandre Bergere 18
Amazon EC2
(Amazon Elastic Compute Cloud)
AWS Lambda
web service that provides secure,
resizable compute capacity in the
cloud. It is designed to make web-
scale cloud computing easier for
developers.
AWS Lambda lets you run code
without provisioning or managing
servers. You pay only for the compute
time you consume - there is no charge
when your code is not running.

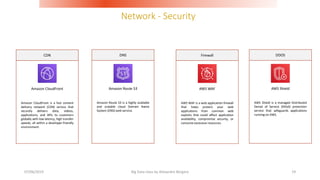

19. Network - Security
07/06/2019 Big Data class by Alexandre Bergere 19
Amazon CloudFront
CDN
Amazon Route 53
DNS
Amazon CloudFront is a fast content
delivery network (CDN) service that
securely delivers data, videos,
applications, and APIs to customers
globally with low latency, high transfer
speeds, all within a developer-friendly
environment.
Amazon Route 53 is a highly available
and scalable cloud Domain Name
System (DNS) web service.
AWS WAF
Firewall
AWS Shield
DDOS
AWS WAF is a web application firewall
that helps protect your web
applications from common web
exploits that could affect application
availability, compromise security, or
consume excessive resources.
AWS Shield is a managed Distributed
Denial of Service (DDoS) protection
service that safeguards applications
running on AWS.

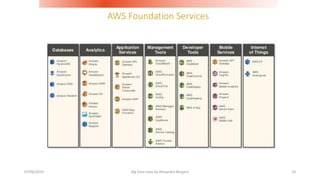

20. AWS Foundation Services
07/06/2019 Big Data class by Alexandre Bergere 20

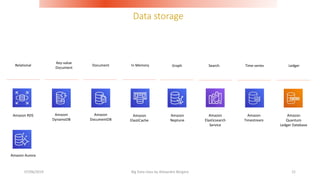

21. Data storage
07/06/2019 Big Data class by Alexandre Bergere 21
Amazon
Quantum
Ledger Database
Amazon
Elasticsearch
Service
Amazon RDS Amazon
DynamoDB
Relational
Key-value
Document
Amazon
DocumentDB
Document
Amazon
ElastiCache
In Memory Graph Time-series LedgerSearch
Amazon
Neptune
Amazon
Timestream
Amazon Aurora

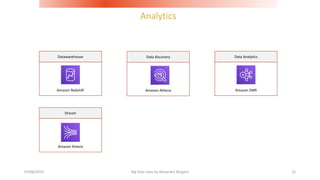

22. Analytics
07/06/2019 Big Data class by Alexandre Bergere 22
Amazon Redshift
Datawarehouse
Amazon Athena
Data discovery
Amazon EMR
Data Analytics
Amazon Kinesis
Stream

23. Management Tool
07/06/2019 Big Data class by Alexandre Bergere 23
AWS Cloud​Formation
Firewall
Amazon CloudWatch
Monitoring
AWS CloudFormation provides a
common language for you to describe
and provision all the infrastructure
resources in your cloud environment.
Amazon CloudWatch is a monitoring
and management service built for
developers, system operators, site
reliability engineers (SRE), and IT
managers.

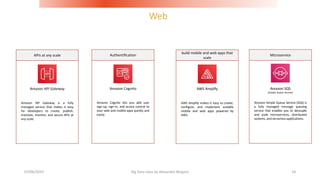

24. Web
07/06/2019 Big Data class by Alexandre Bergere 24
Amazon API Gateway
APIs at any scale
Amazon Cognito
Authentification
Amazon API Gateway is a fully
managed service that makes it easy
for developers to create, publish,
maintain, monitor, and secure APIs at
any scale.
Amazon Cognito lets you add user
sign-up, sign-in, and access control to
your web and mobile apps quickly and
easily.
AWS Amplify
build mobile and web apps that
scale
Amazon SQS
(Simple Queue Service)
Microservice
AWS Amplify makes it easy to create,
configure, and implement scalable
mobile and web apps powered by
AWS.
Amazon Simple Queue Service (SQS) is
a fully managed message queuing
service that enables you to decouple
and scale microservices, distributed
systems, and serverless applications.

25. 07/06/2019 Big Data class by Alexandre Bergere 25
Ressources

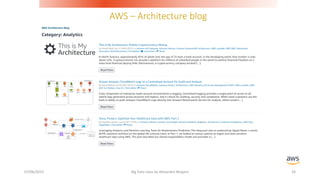

26. AWS – Architecture blog
07/06/2019 Big Data class by Alexandre Bergere 26

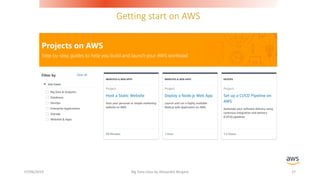

27. Getting start on AWS
07/06/2019 Big Data class by Alexandre Bergere 27

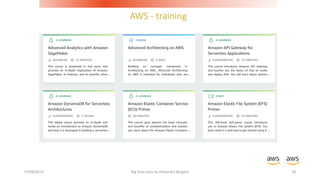

28. AWS - training
07/06/2019 Big Data class by Alexandre Bergere 28

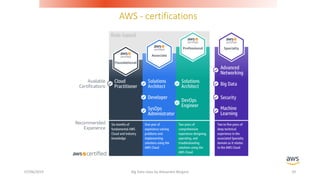

29. AWS - certifications
07/06/2019 Big Data class by Alexandre Bergere 29

30. 07/06/2019 Big Data class by Alexandre Bergere 30
Event

31. AWS – Architecture blog
07/06/2019 Big Data class by Alexandre Bergere 31
Bordeaux
Côte d’Azur
Grenoble
Lille
Lyon
Montpellier
Nantes
Paris
Rennes
Rouen
Toulouse

32. 07/06/2019 Big Data class by Alexandre Bergere 32

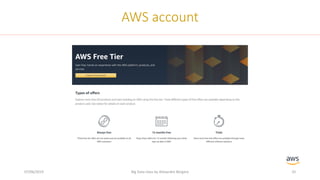

AWS account

33. 07/06/2019 Big Data class by Alexandre Bergere 33

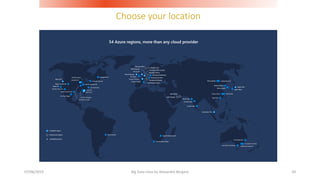

34. Choose your location
07/06/2019 Big Data class by Alexandre Bergere 34

35. 07/06/2019 Big Data class by Alexandre Bergere 35
Azure Services

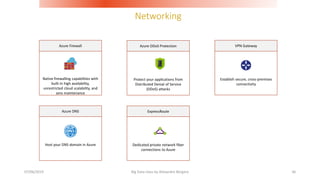

36. Networking
07/06/2019 Big Data class by Alexandre Bergere 36
Native firewalling capabilities with
built-in high availability,
unrestricted cloud scalability, and
zero maintenance
Azure Firewall
Protect your applications from
Distributed Denial of Service
(DDoS) attacks
Azure DDoS Protection
Establish secure, cross-premises
connectivity
VPN Gateway
Host your DNS domain in Azure
Azure DNS
Dedicated private network fiber
connections to Azure
ExpressRoute

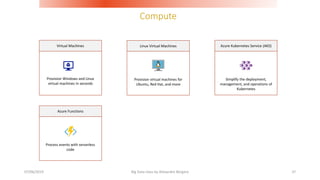

37. Compute
07/06/2019 Big Data class by Alexandre Bergere 37
Provision Windows and Linux
virtual machines in seconds
Virtual Machines
Provision virtual machines for
Ubuntu, Red Hat, and more
Linux Virtual Machines
Simplify the deployment,
management, and operations of
Kubernetes
Azure Kubernetes Service (AKS)
Process events with serverless
code
Azure Functions

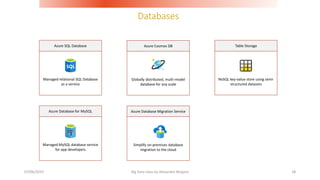

38. Databases
07/06/2019 Big Data class by Alexandre Bergere 38
Managed relational SQL Database
as a service
Azure SQL Database
Globally distributed, multi-model
database for any scale
Azure Cosmos DB
NoSQL key-value store using semi-
structured datasets
Table Storage
Managed MySQL database service
for app developers
Azure Database for MySQL
Simplify on-premises database
migration to the cloud
Azure Database Migration Service

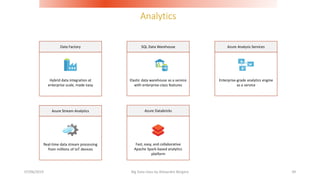

39. Analytics
07/06/2019 Big Data class by Alexandre Bergere 39
Fast, easy, and collaborative
Apache Spark-based analytics
platform
Azure Databricks
Real-time data stream processing
from millions of IoT devices
Azure Stream Analytics
Hybrid data integration at
enterprise scale, made easy
Data Factory
Enterprise-grade analytics engine
as a service
Azure Analysis Services
Elastic data warehouse as a service
with enterprise-class features
SQL Data Warehouse

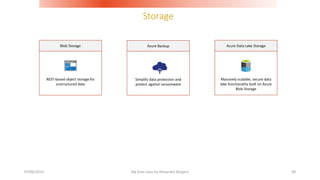

40. Storage
07/06/2019 Big Data class by Alexandre Bergere 40
REST-based object storage for
unstructured data
Blob Storage
Simplify data protection and
protect against ransomware
Azure Backup
Massively scalable, secure data
lake functionality built on Azure
Blob Storage
Azure Data Lake Storage

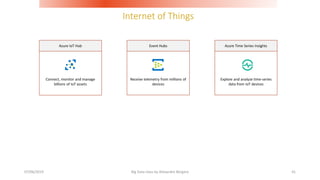

41. Internet of Things
07/06/2019 Big Data class by Alexandre Bergere 41
Connect, monitor and manage
billions of IoT assets
Azure IoT Hub
Explore and analyze time-series
data from IoT devices
Azure Time Series Insights
Receive telemetry from millions of
devices
Event Hubs

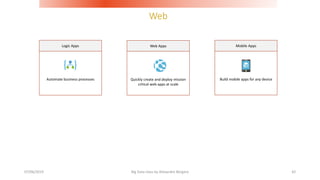

42. Web
07/06/2019 Big Data class by Alexandre Bergere 42
Automate business processes
Logic Apps
Quickly create and deploy mission
critical web apps at scale
Web Apps
Build mobile apps for any device
Mobile Apps

43. 07/06/2019 Big Data class by Alexandre Bergere 43
Ressources

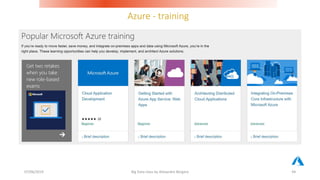

44. Azure - training
07/06/2019 Big Data class by Alexandre Bergere 44

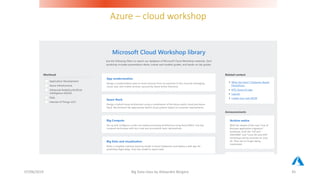

45. Azure – cloud workshop
07/06/2019 Big Data class by Alexandre Bergere 45

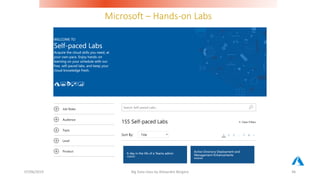

46. Microsoft – Hands-on Labs
07/06/2019 Big Data class by Alexandre Bergere 46

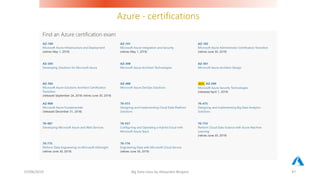

47. Azure - certifications
07/06/2019 Big Data class by Alexandre Bergere 47

48. 07/06/2019 Big Data class by Alexandre Bergere 48
Azure account

49. UPDATED DATA SERVICES COMPARISON: AWS VS. AZURE
07/06/2019 Big Data class by Alexandre Bergere 49
https://thomaslarock.com/2019/05/updated-data-services-comparison-aws-vs-azure/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+SQLRockstar+%28SQLRockstar%29

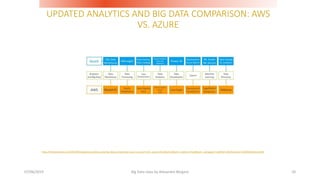

50. UPDATED ANALYTICS AND BIG DATA COMPARISON: AWS
VS. AZURE
07/06/2019 Big Data class by Alexandre Bergere 50
https://thomaslarock.com/2019/05/updated-analytics-and-big-data-comparison-aws-vs-azure/?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+SQLRockstar+%28SQLRockstar%29
