The document proposes the Classbox model, a minimal module model that supports local class extension. A Classbox acts as a namespace that can define classes and methods, with classes and methods belonging to exactly one Classbox. By making class extensions local to a Classbox, conflicts are avoided. The model also allows controlling class extensions and applying unanticipated changes without breaking existing clients. The implementation in Squeak modifies the VM for efficient method lookup based on Classbox imports before inheritance. Future work includes refining visibility control and formalizing the flattening property.

1. Classboxes: A Minimal Module Model
Supporting Local Class Extension
Alexandre Bergel, Stéphane Ducasse,
and Roel Wuyts
Software Composition Group
University of Bern (Switzerland)
bergel@iam.unibe.ch

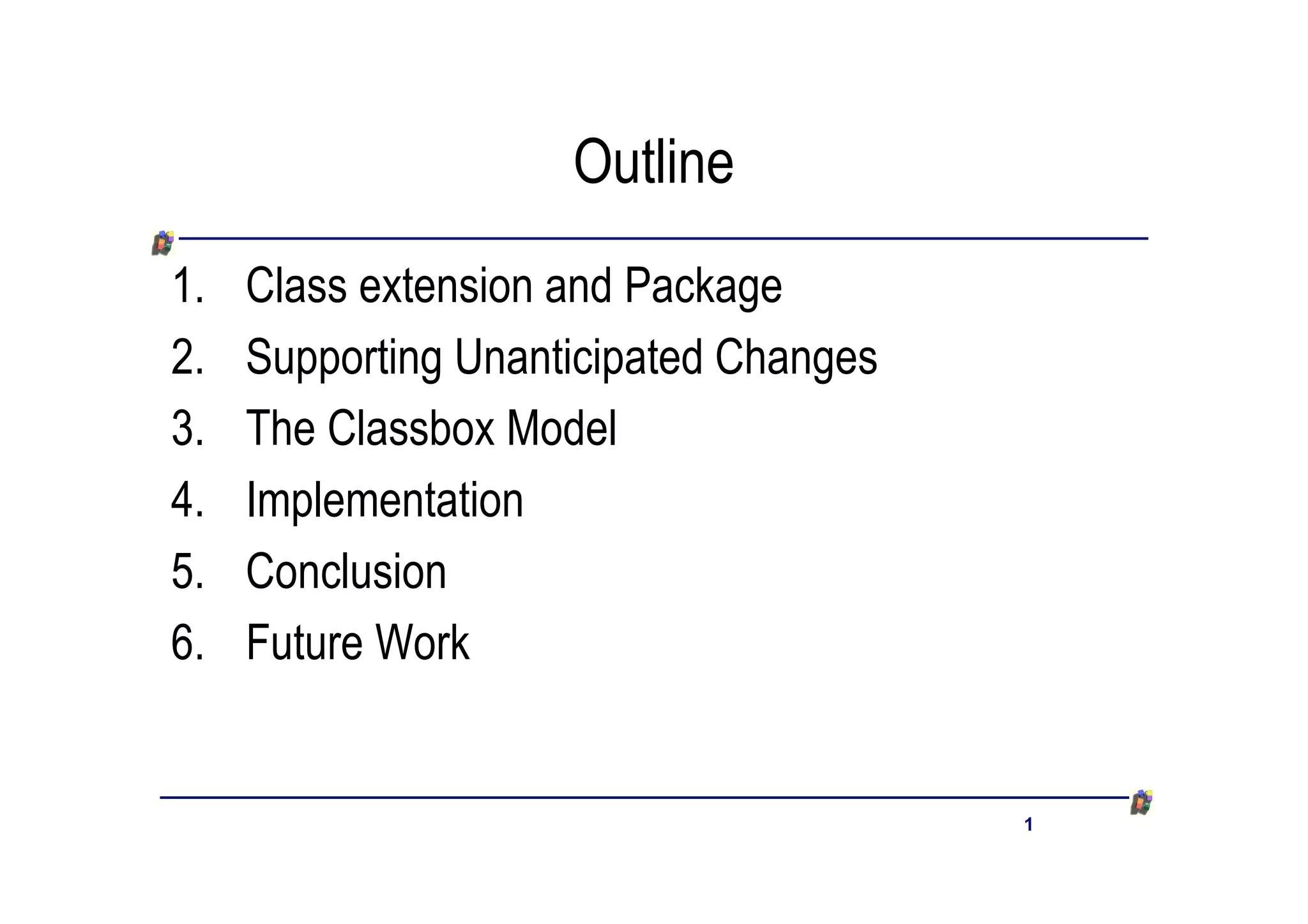

2. Outline
1. Class extension and Package
2. Supporting Unanticipated Changes
3. The Classbox Model
4. Implementation
5. Conclusion
6. Future Work
1

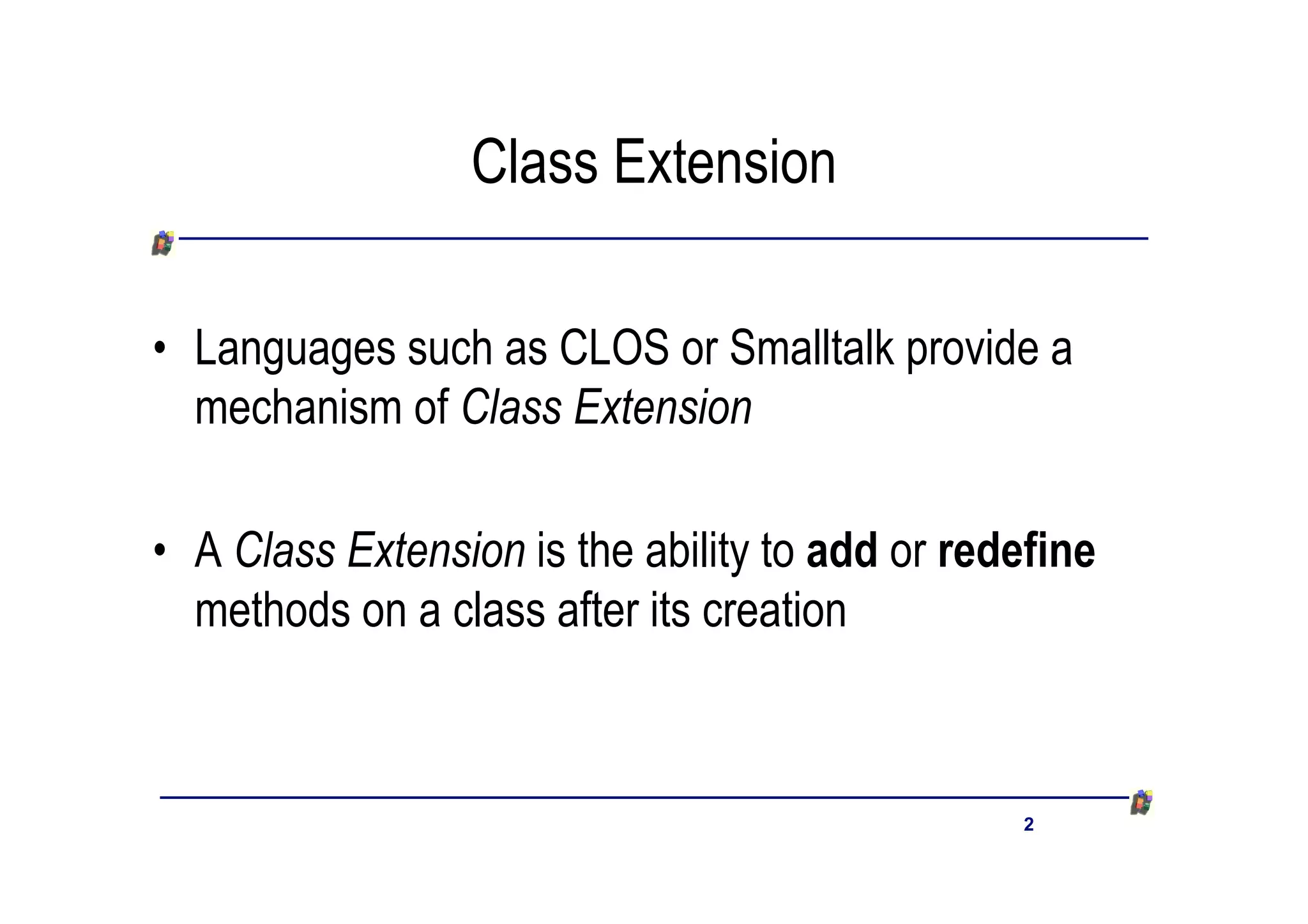

3. Class Extension
• Languages such as CLOS or Smalltalk provide a
mechanism of Class Extension
• A Class Extension is the ability to add or redefine
methods on a class after its creation
2

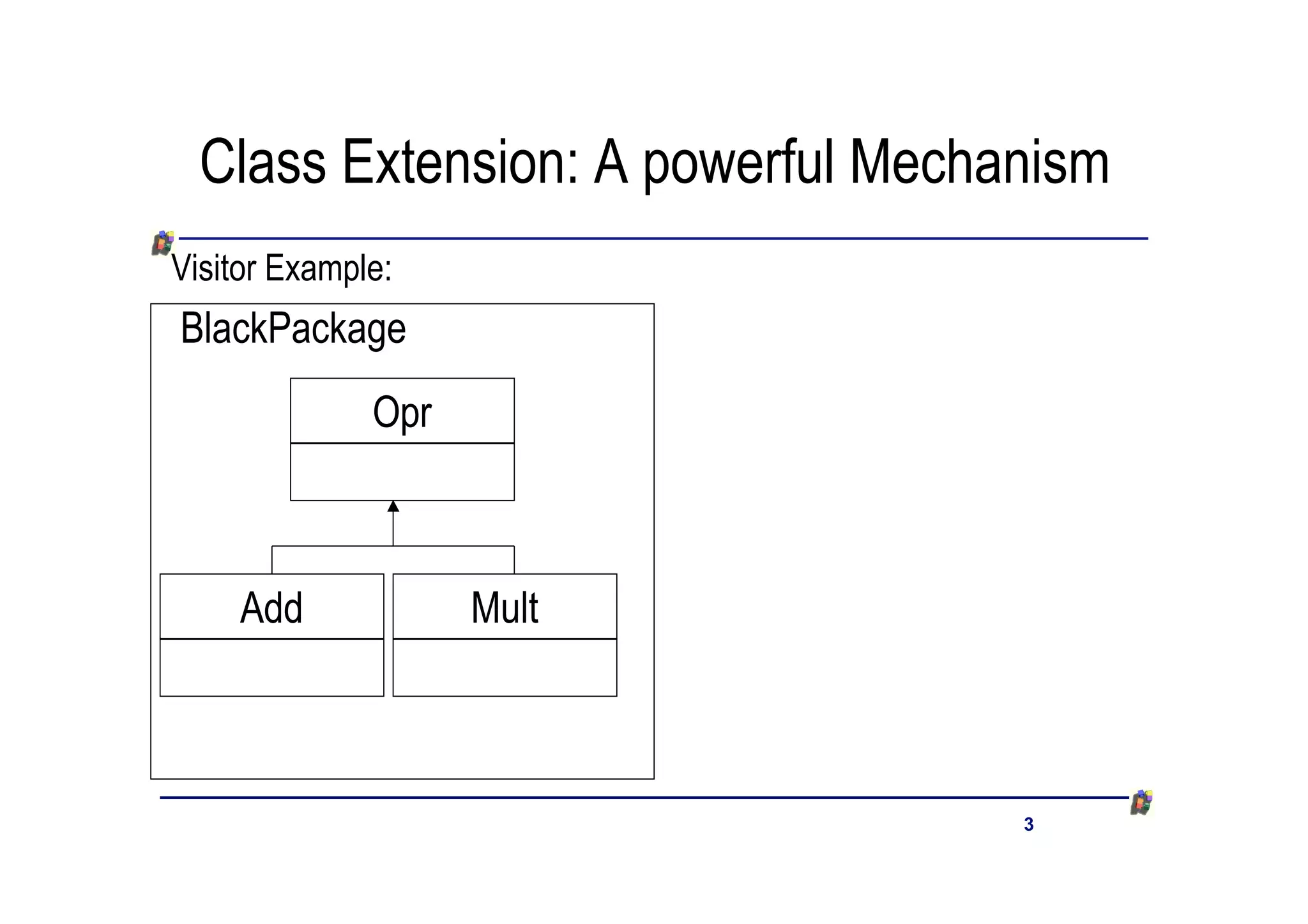

4. Class Extension: A powerful Mechanism
Visitor Example:
BlackPackage
Opr
Add Mult
3

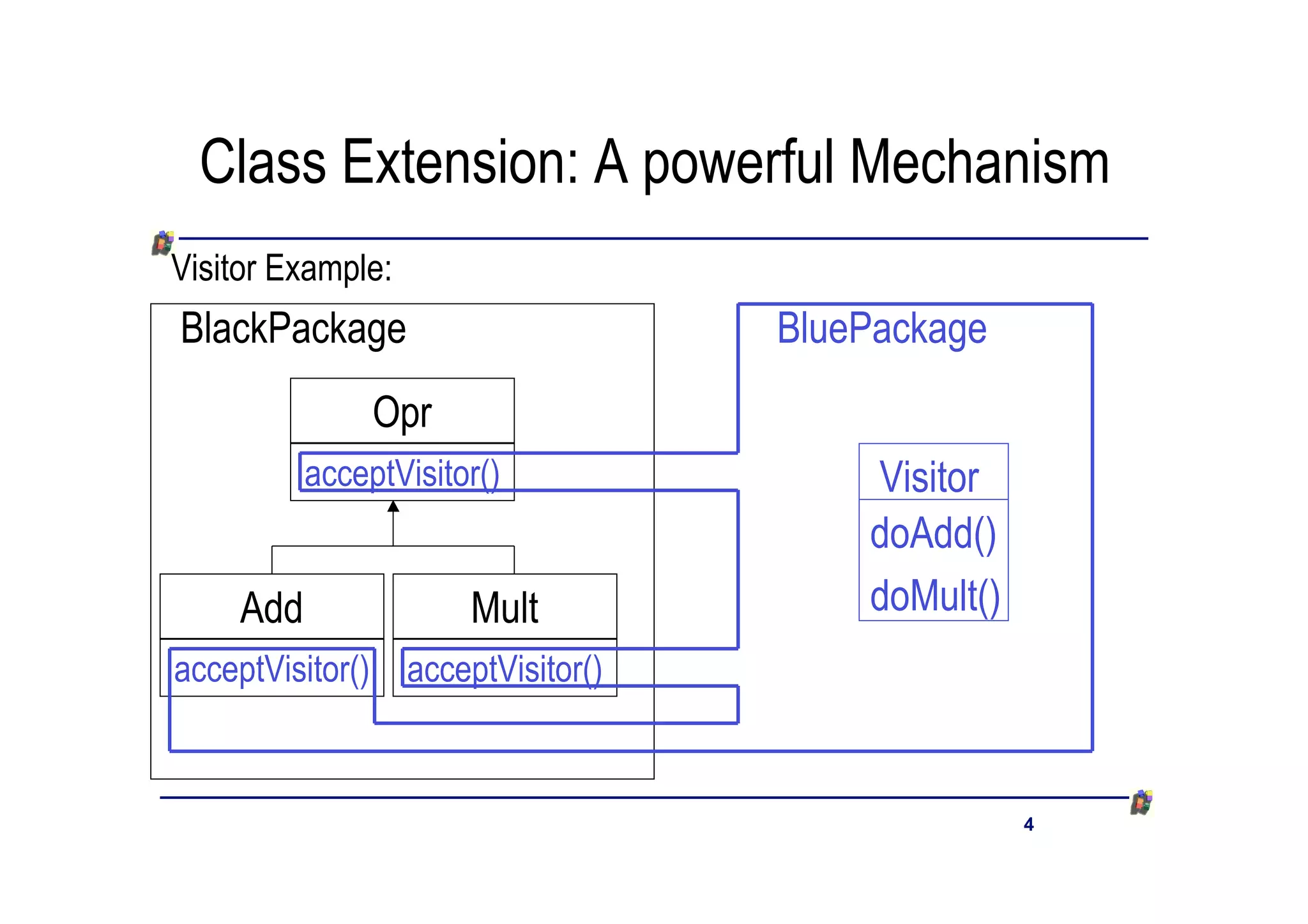

5. Class Extension: A powerful Mechanism
Visitor Example:
BlackPackage BluePackage
Opr
acceptVisitor() Visitor
doAdd()
Add Mult doMult()
acceptVisitor() acceptVisitor()
4

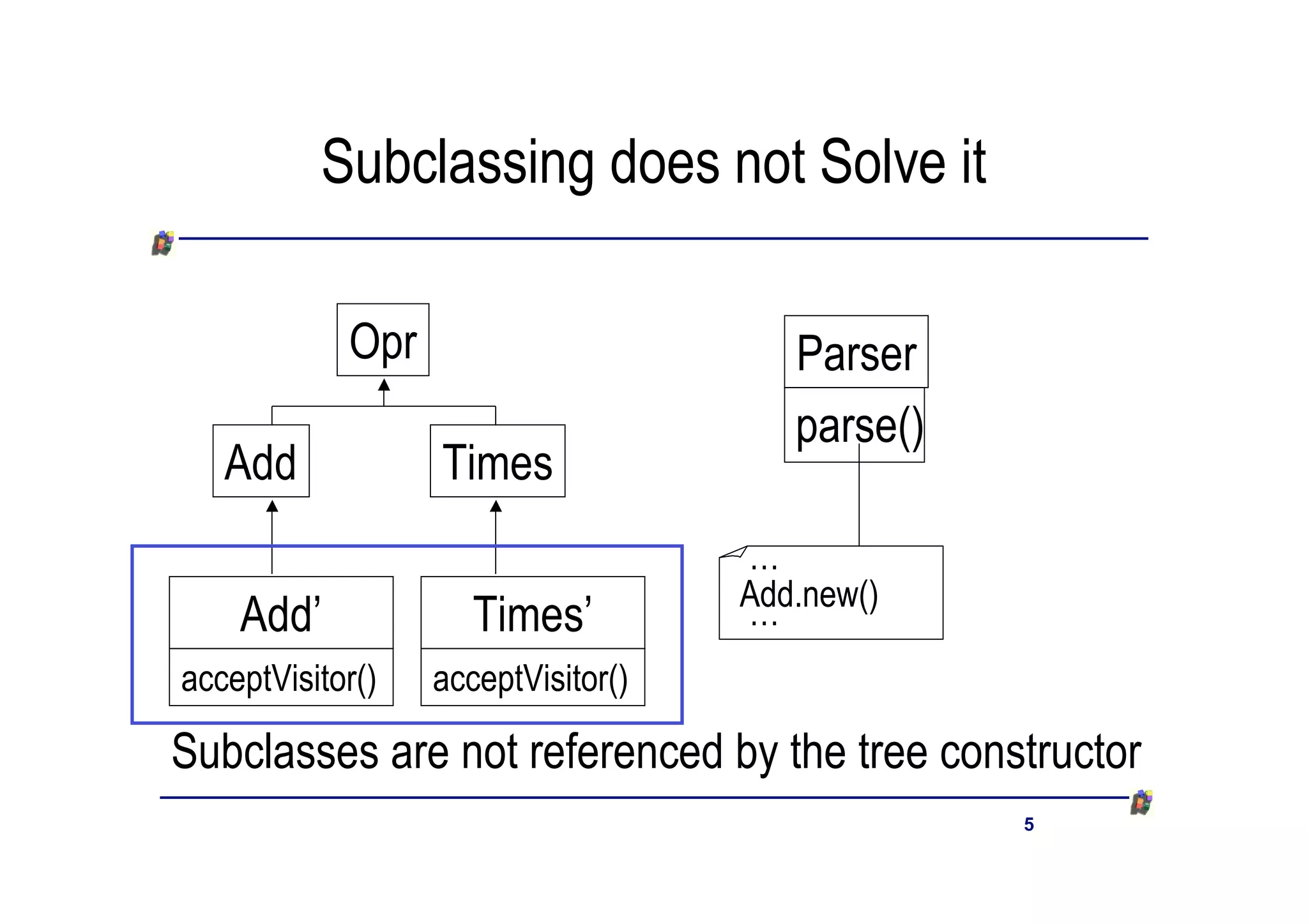

6. Subclassing does not Solve it
Opr Parser
parse()
Add Times
…
Add.new()
Add’ Times’ …
acceptVisitor() acceptVisitor()
Subclasses are not referenced by the tree constructor
5

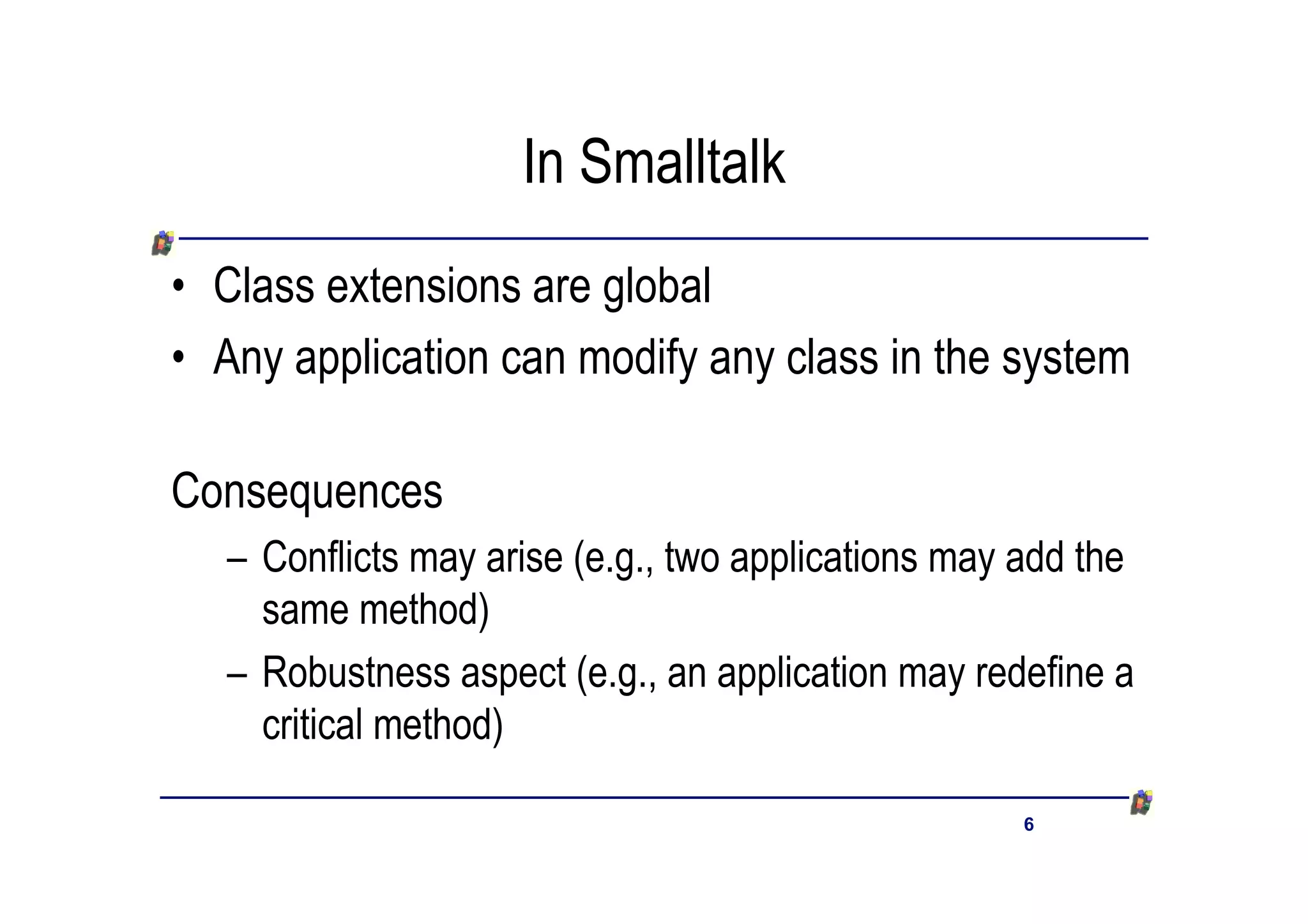

7. In Smalltalk
• Class extensions are global
• Any application can modify any class in the system
Consequences
– Conflicts may arise (e.g., two applications may add the
same method)
– Robustness aspect (e.g., an application may redefine a
critical method)
6

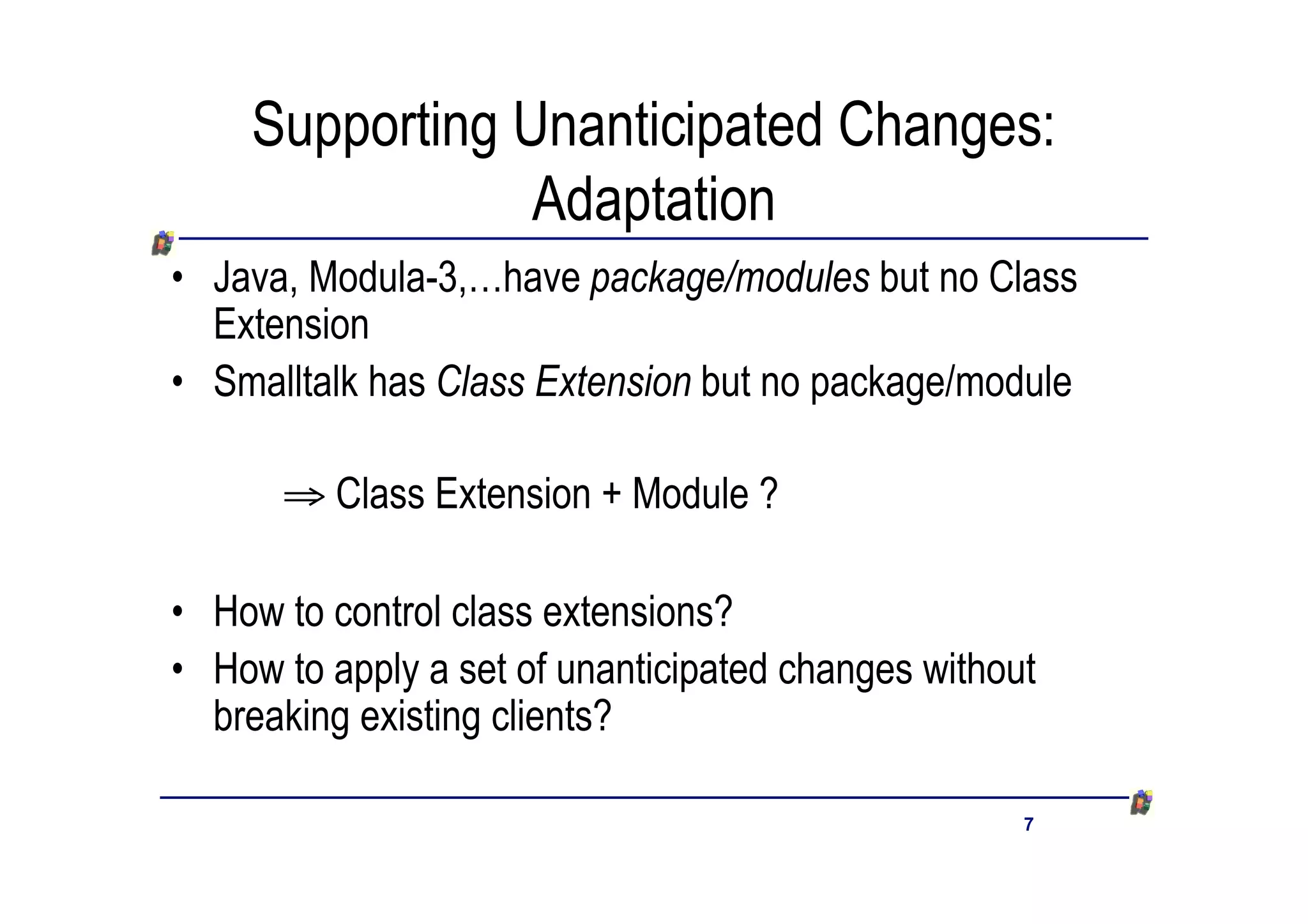

8. Supporting Unanticipated Changes:
Adaptation
• Java, Modula-3,…have package/modules but no Class
Extension
• Smalltalk has Class Extension but no package/module
fi Class Extension + Module ?
• How to control class extensions?
• How to apply a set of unanticipated changes without
breaking existing clients?
7

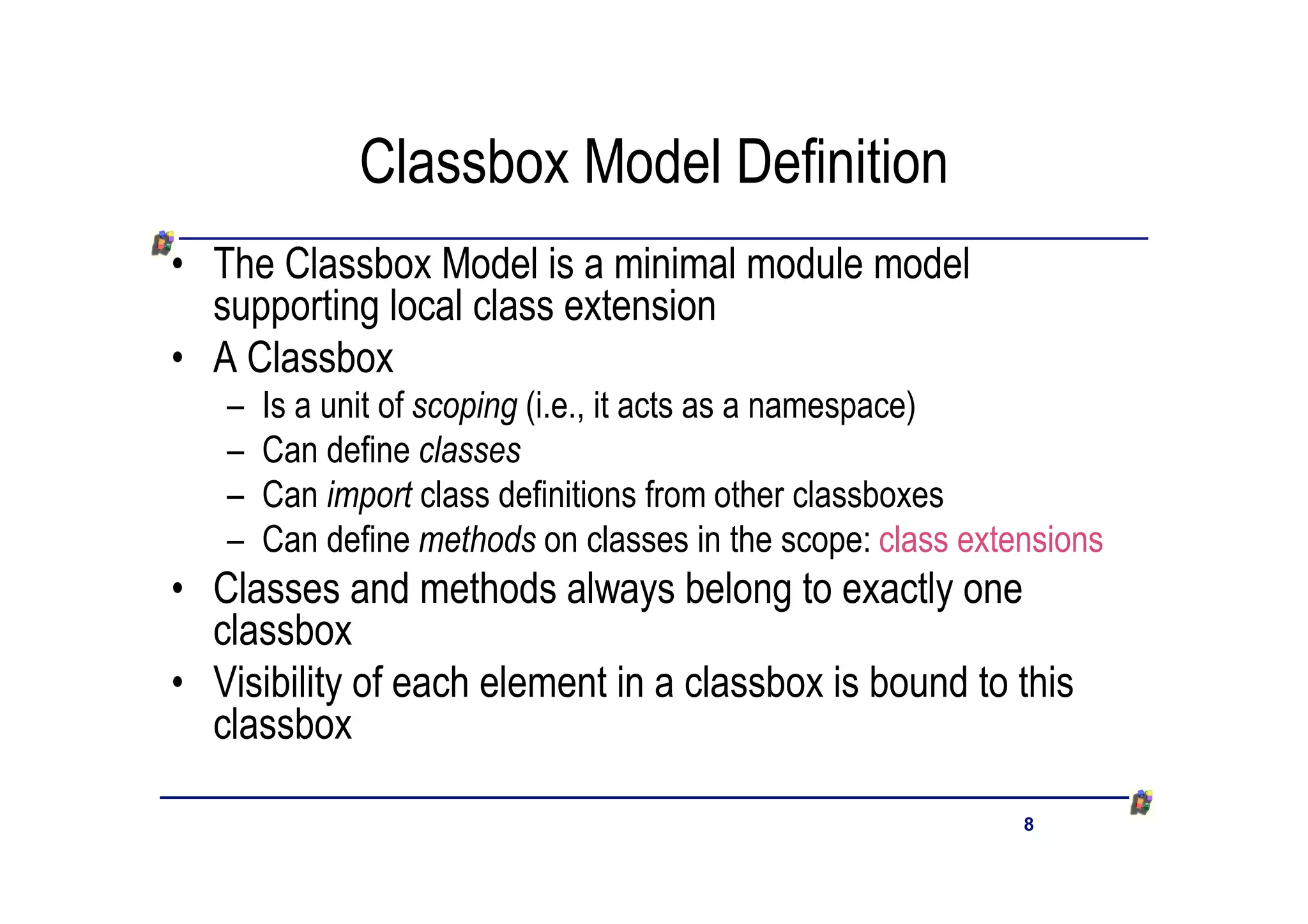

9. Classbox Model Definition
• The Classbox Model is a minimal module model
supporting local class extension
• A Classbox
– Is a unit of scoping (i.e., it acts as a namespace)
– Can define classes
– Can import class definitions from other classboxes
– Can define methods on classes in the scope: class extensions
• Classes and methods always belong to exactly one
classbox
• Visibility of each element in a classbox is bound to this
classbox
8

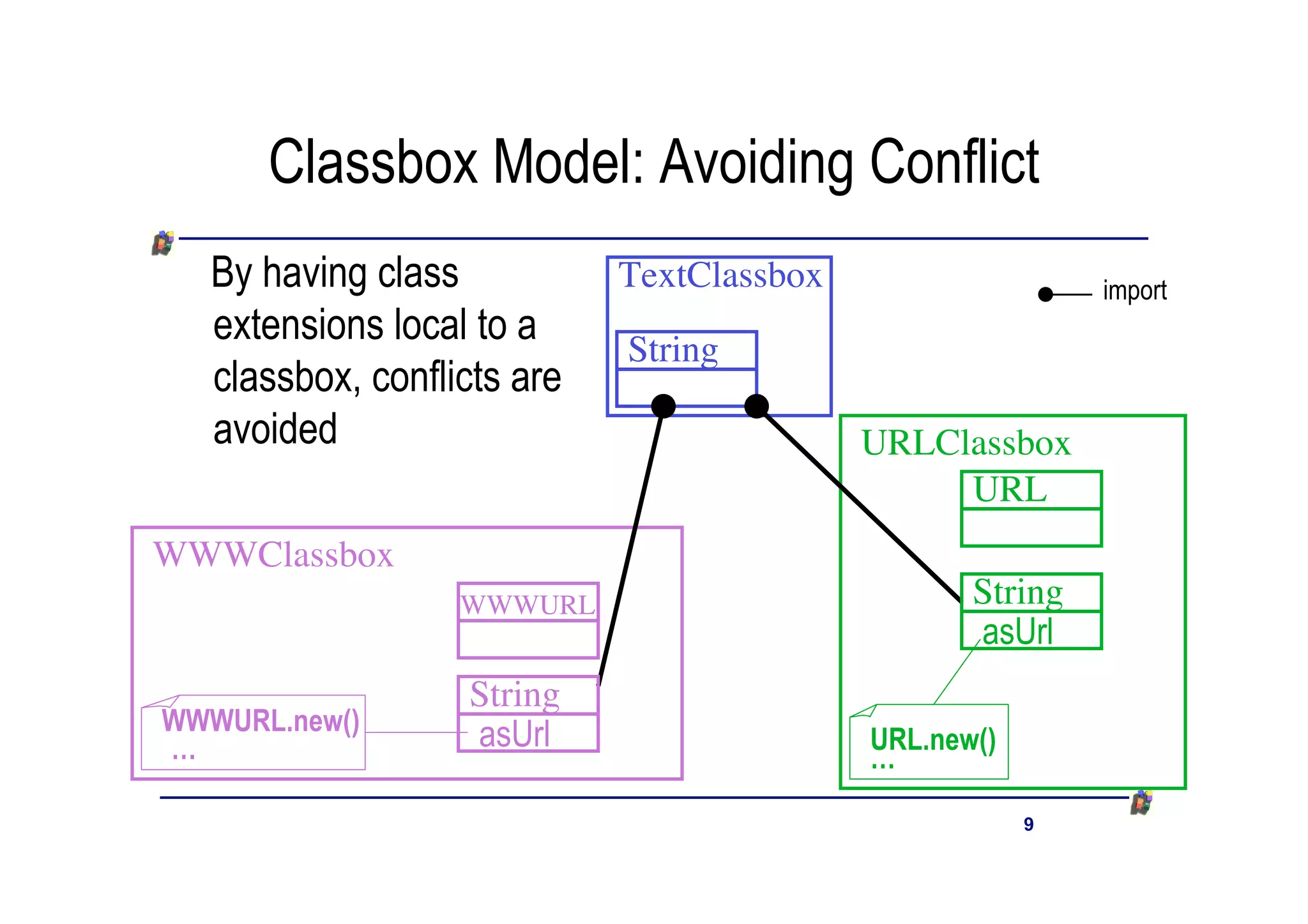

10. Classbox Model: Avoiding Conflict
By having class TextClassbox import
extensions local to a
String
classbox, conflicts are
avoided URLClassbox
URL
WWWClassbox
WWWURL String
asUrl
String
WWWURL.new() asUrl
… URL.new()
…
9

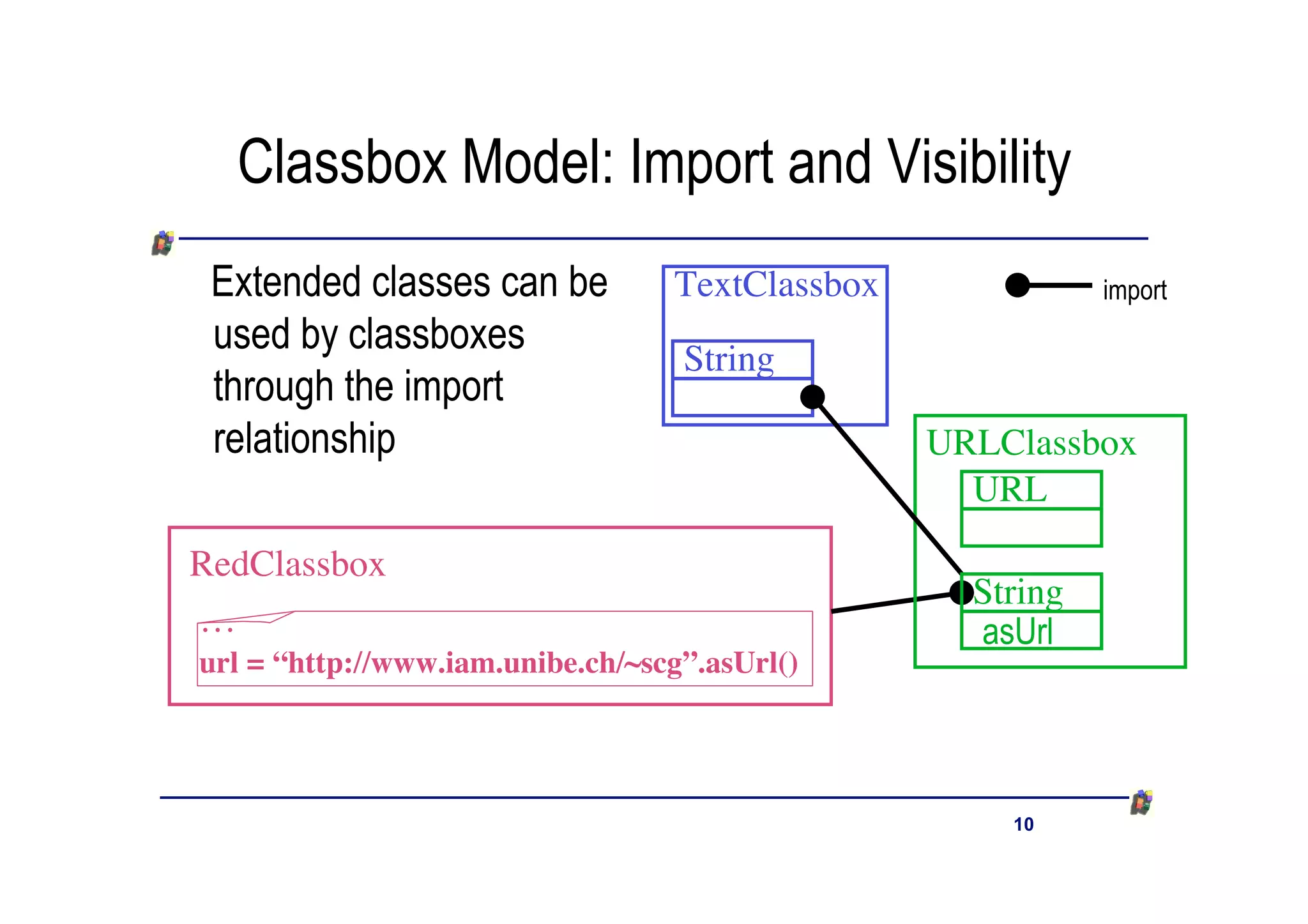

11. Classbox Model: Import and Visibility
Extended classes can be TextClassbox import
used by classboxes
String
through the import
relationship URLClassbox
URL
RedClassbox
String
… asUrl
url = “http://www.iam.unibe.ch/~scg”.asUrl()
10

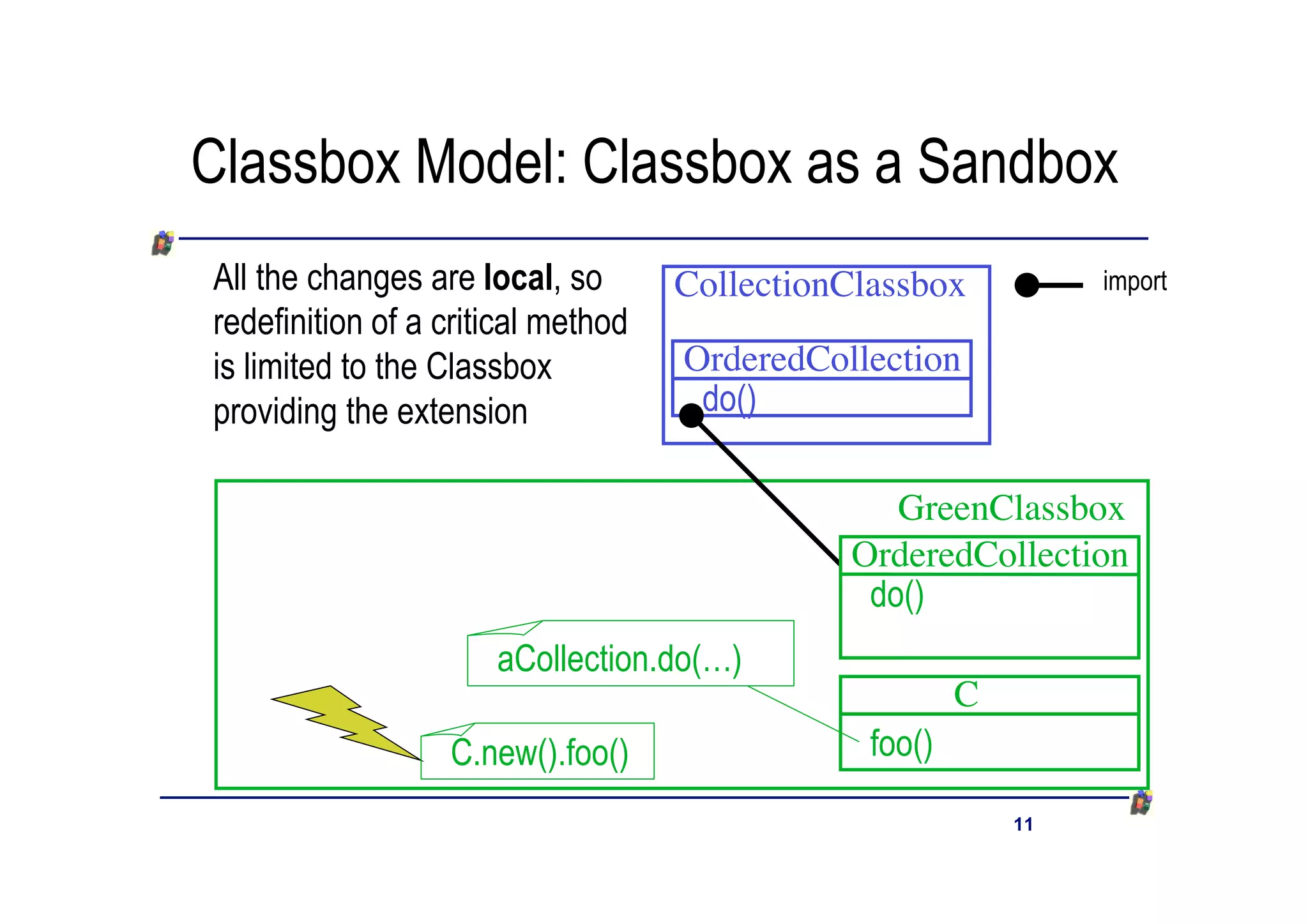

12. Classbox Model: Classbox as a Sandbox
All the changes are local, so CollectionClassbox import
redefinition of a critical method
is limited to the Classbox OrderedCollection
providing the extension do()
GreenClassbox
OrderedCollection
do()
aCollection.do(…)
C
C.new().foo() foo()
11

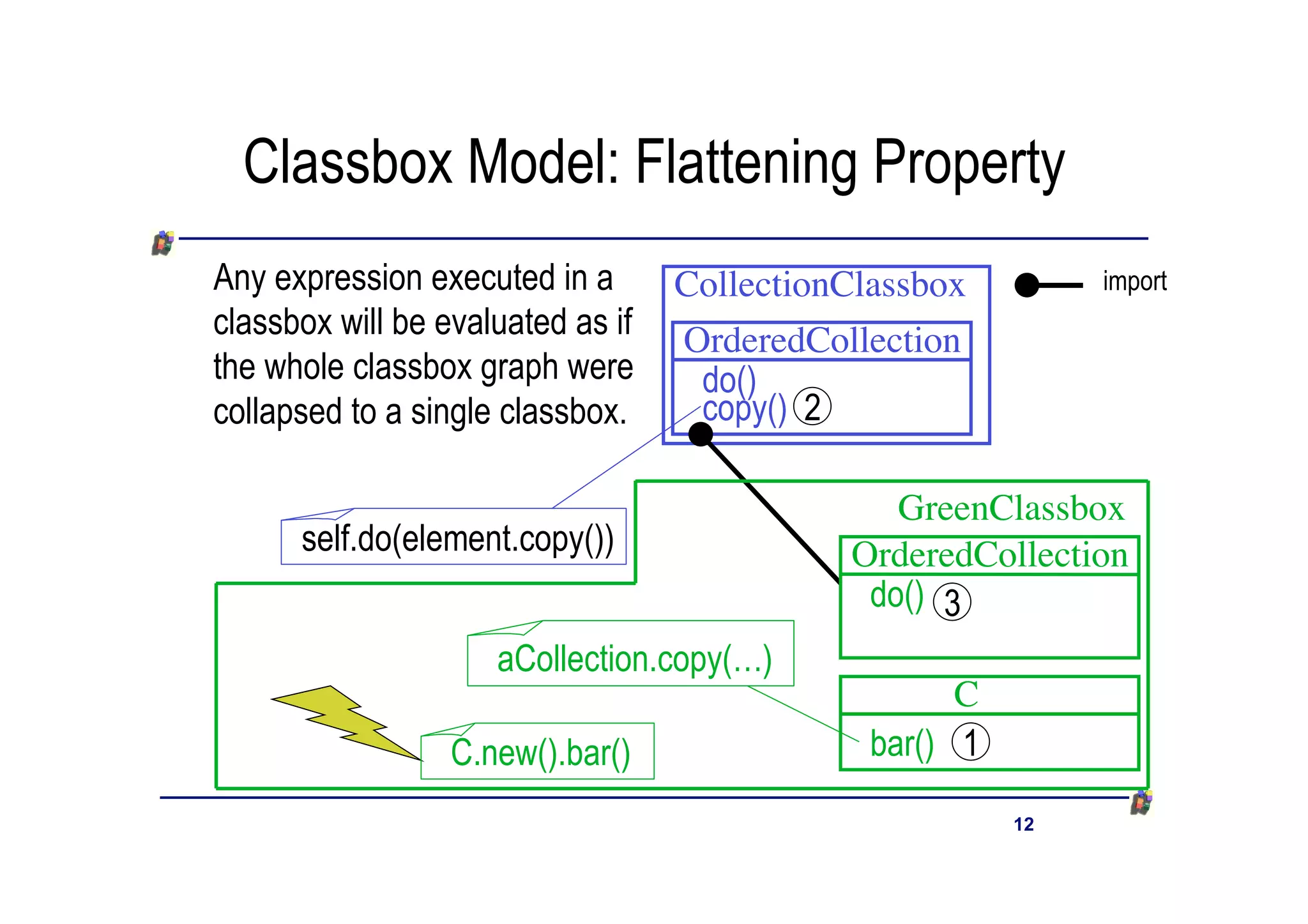

13. Classbox Model: Flattening Property
Any expression executed in a CollectionClassbox import
classbox will be evaluated as if OrderedCollection
the whole classbox graph were do()
collapsed to a single classbox. copy() 2
GreenClassbox
self.do(element.copy()) OrderedCollection
do() 3
aCollection.copy(…)
C
C.new().bar() bar() 1
12

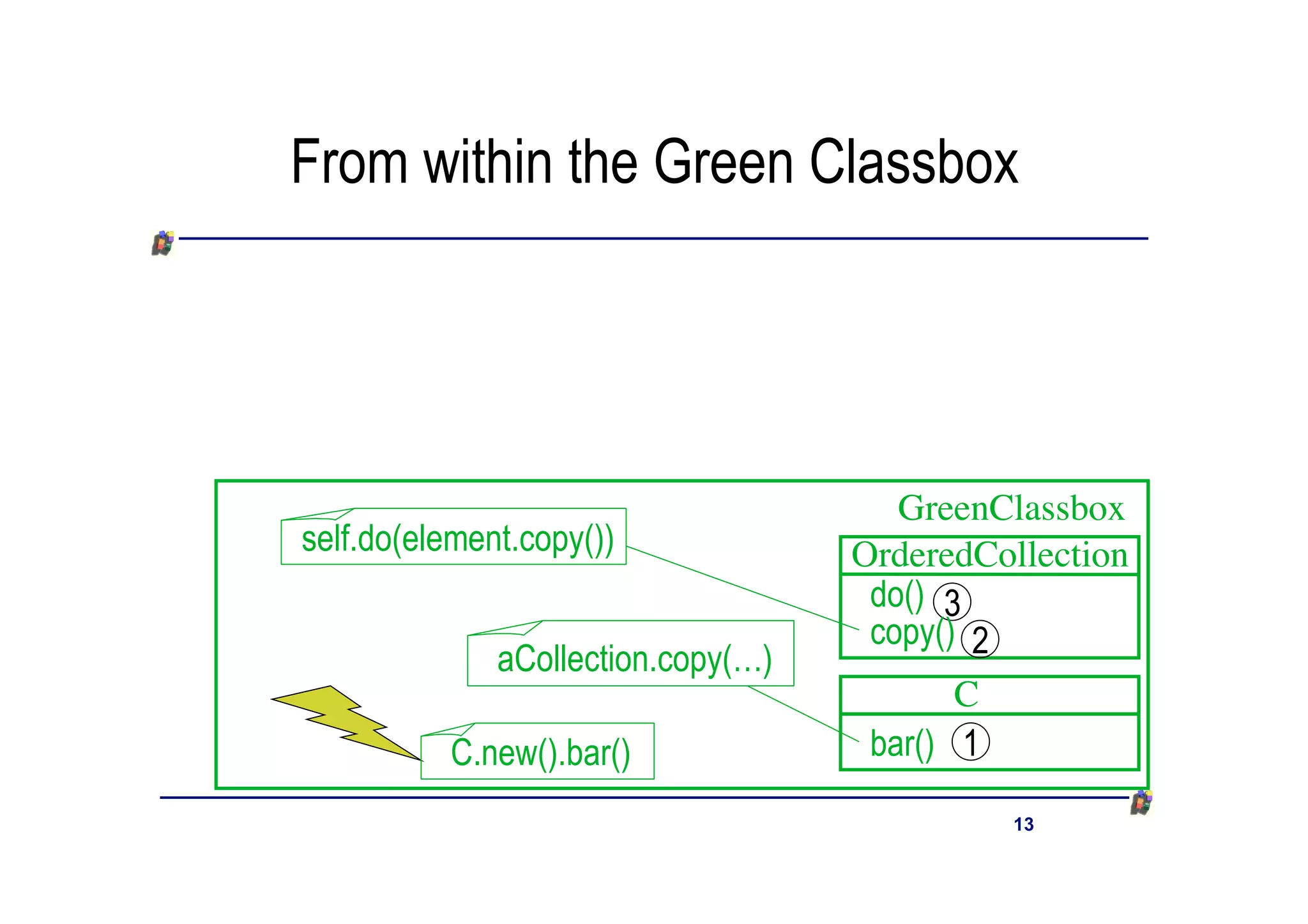

14. From within the Green Classbox
GreenClassbox
self.do(element.copy()) OrderedCollection
do() 3
copy() 2
aCollection.copy(…)
C
C.new().bar() bar() 1
13

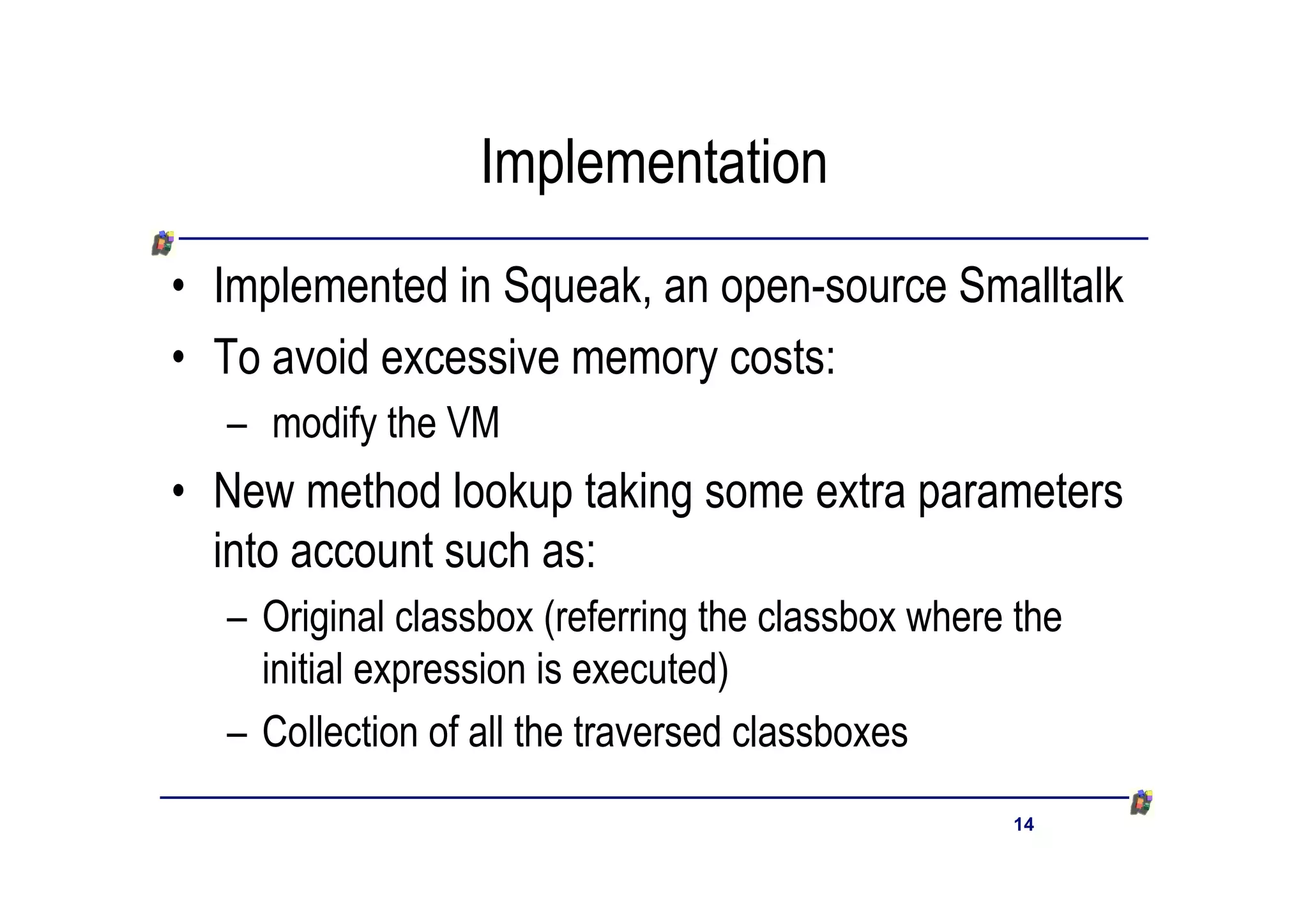

15. Implementation
• Implemented in Squeak, an open-source Smalltalk
• To avoid excessive memory costs:
– modify the VM
• New method lookup taking some extra parameters
into account such as:
– Original classbox (referring the classbox where the
initial expression is executed)
– Collection of all the traversed classboxes
14

16. Lookup: Imports before Inheritance
CollectionClassbox ImprovedClassbox PinkClassbox
OrderedCollection OrderedCollection Pink
do() do() foo()
copy()
aSortedCollection.copy()
SortedCollection SortedCollection SortedCollection
Pink.new().foo()
Lookup of the copy() method
15

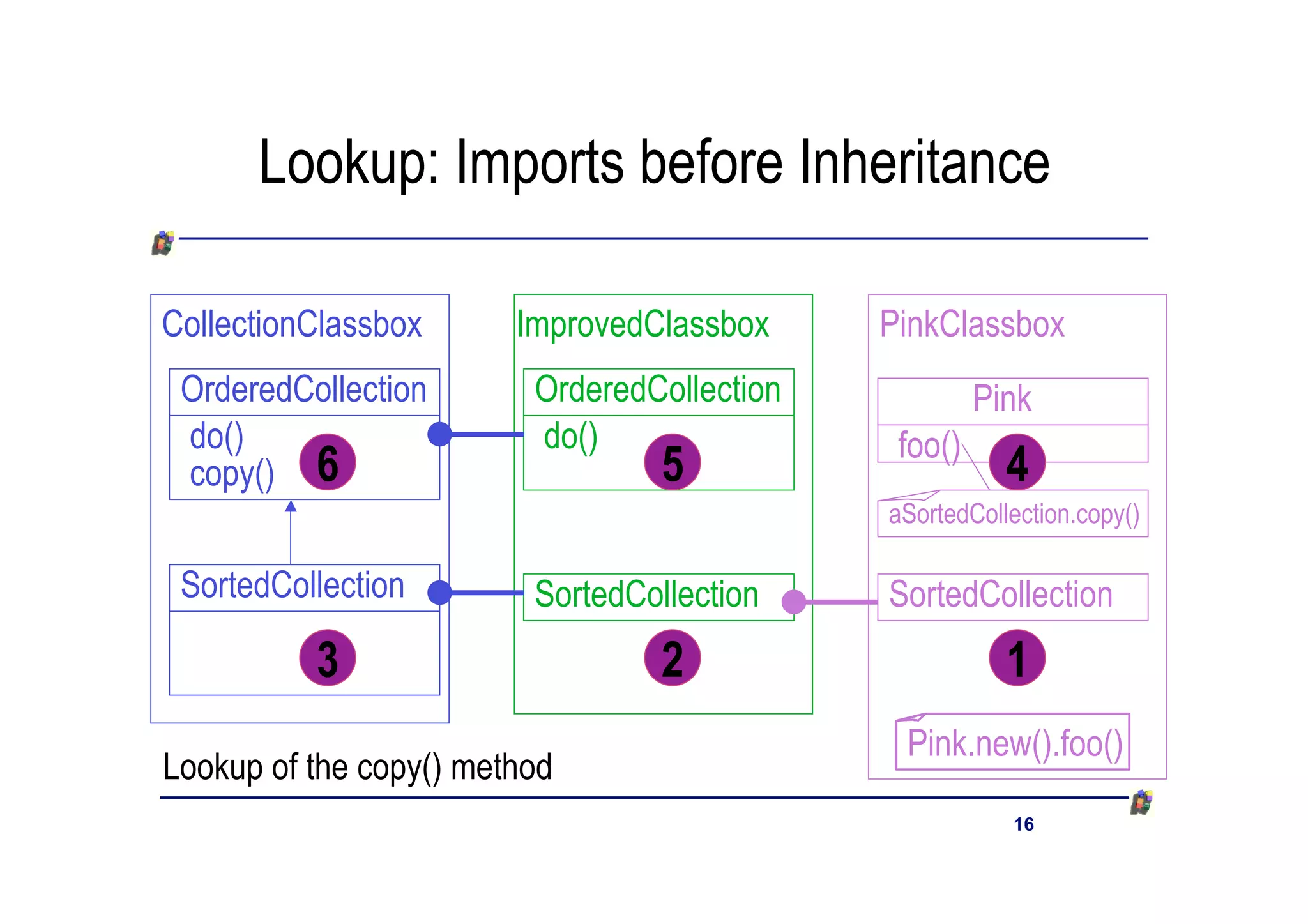

17. Lookup: Imports before Inheritance
CollectionClassbox ImprovedClassbox PinkClassbox
OrderedCollection OrderedCollection Pink
do() do() foo()
copy() 6 5 4
aSortedCollection.copy()
SortedCollection SortedCollection SortedCollection
3 2 1
Pink.new().foo()
Lookup of the copy() method
16

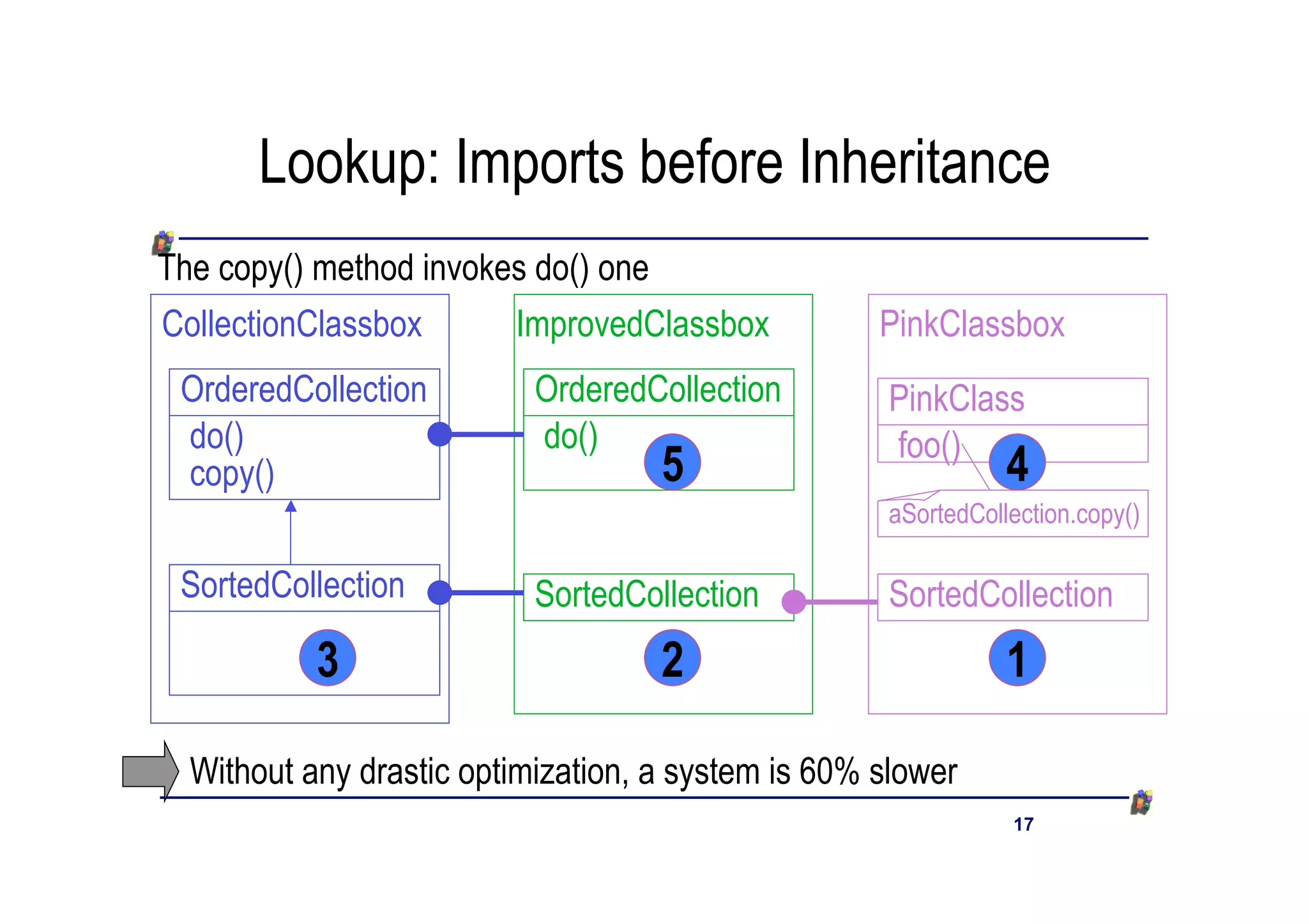

18. Lookup: Imports before Inheritance
The copy() method invokes do() one
CollectionClassbox ImprovedClassbox PinkClassbox
OrderedCollection OrderedCollection PinkClass
do() do() foo()
copy() 5 4
aSortedCollection.copy()
SortedCollection SortedCollection SortedCollection
3 2 1
Without any drastic optimization, a system is 60% slower
17

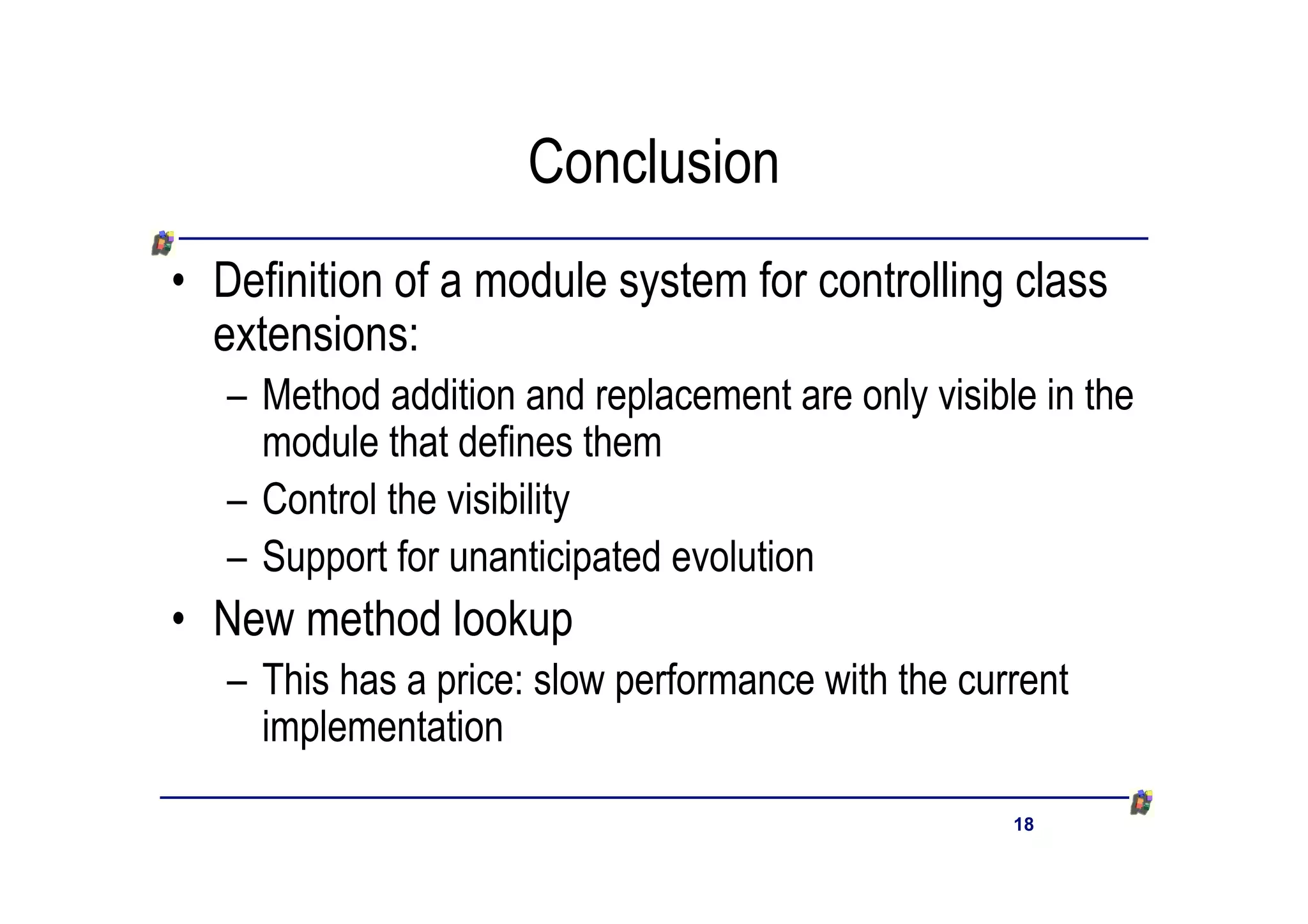

19. Conclusion
• Definition of a module system for controlling class
extensions:
– Method addition and replacement are only visible in the
module that defines them
– Control the visibility
– Support for unanticipated evolution
• New method lookup
– This has a price: slow performance with the current
implementation
18

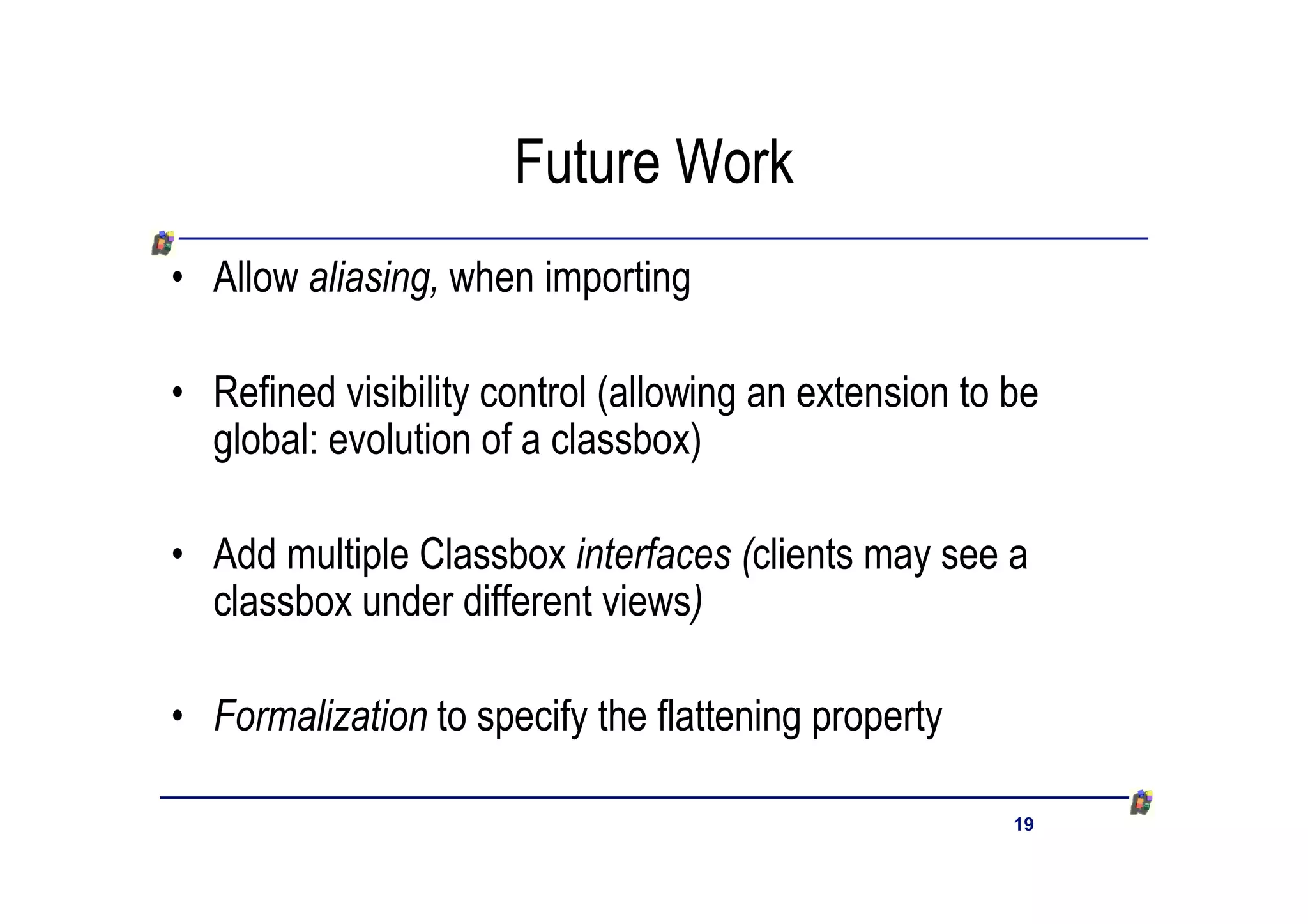

20. Future Work
• Allow aliasing, when importing
• Refined visibility control (allowing an extension to be
global: evolution of a classbox)
• Add multiple Classbox interfaces (clients may see a
classbox under different views)
• Formalization to specify the flattening property
19

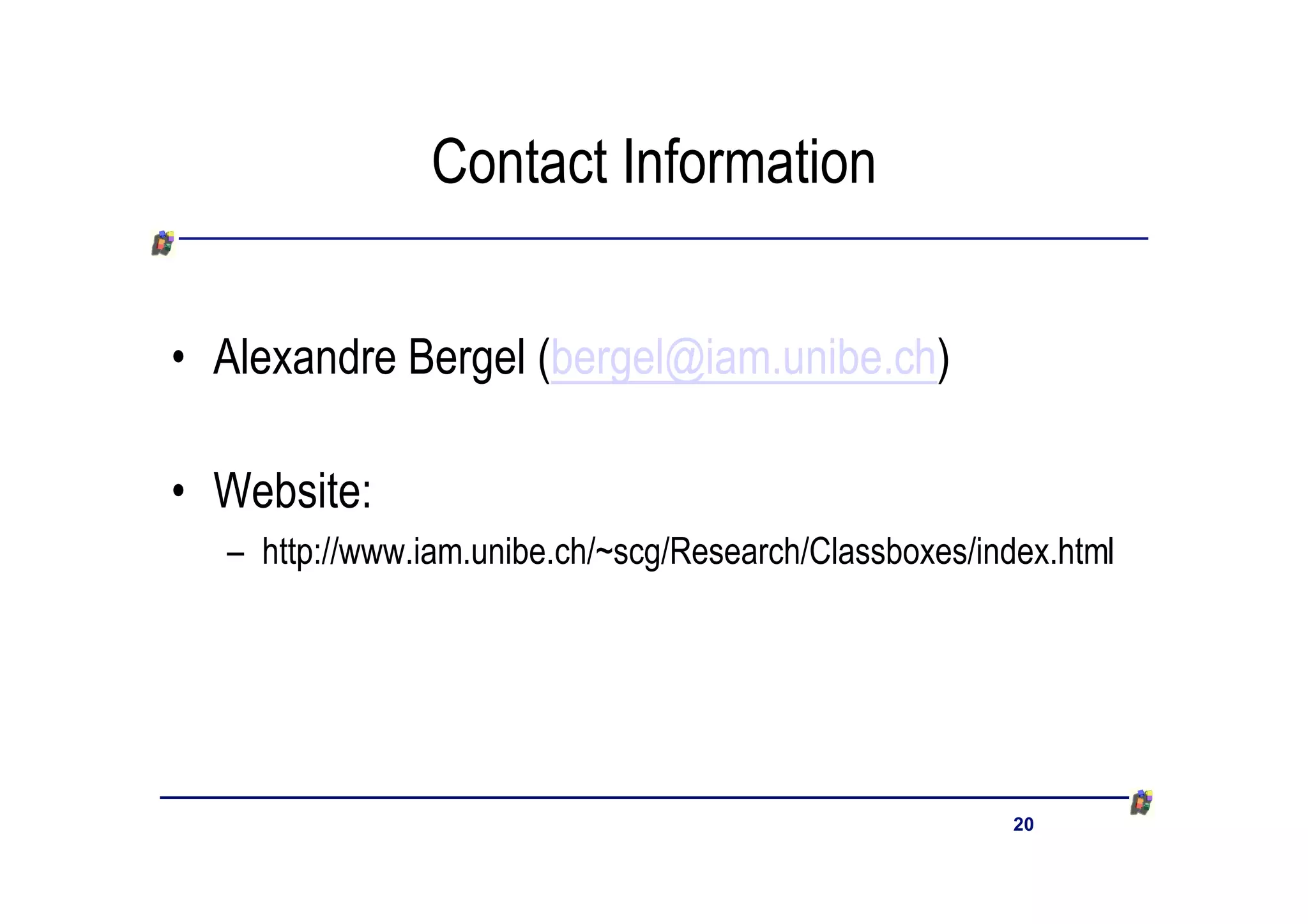

21. Contact Information
• Alexandre Bergel (bergel@iam.unibe.ch)
• Website:
– http://www.iam.unibe.ch/~scg/Research/Classboxes/index.html
20
