This document provides an overview of Christie Digital's projection and display solutions. It describes various resolution standards for displays. It also outlines Christie's product lines, which include 1-chip and 3-chip DLP projectors, LCD projectors, digital cinema projectors, 3D and visualization products, moving luminaires, simulation projectors, and medical innovation products. Christie's solutions include MicroTiles LED video walls, lens throw distance calculators, and video wall controllers.

1. PRODUCT OVERVIEW
CHRISTIE DIGITAL

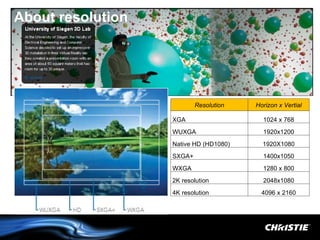

2. About resolution
Resolution Horizon x Vertial
XGA 1024 x 768
WUXGA 1920x1200
Native HD (HD1080) 1920X1080
SXGA+ 1400x1050
WXGA 1280 x 800
2K resolution 2048x1080
4K resolution 4096 x 2160

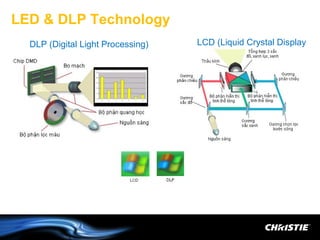

3. LED & DLP Technology
DLP (Digital Light Processing) LCD (Liquid Crystal Display

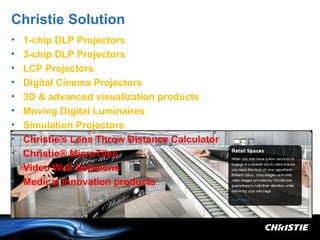

4. Christie Solution
• 1-chip DLP Projectors
• 3-chip DLP Projectors
• LCP Projectors
• Digital Cinema Projectors
• 3D & advanced visualization products
• Moving Digital Luminaires
• Simulation Projectors
• Christie's Lens Throw Distance Calculator
• Christie® MicroTiles
• Video Wall Solutions
• Medical Innovation products
•

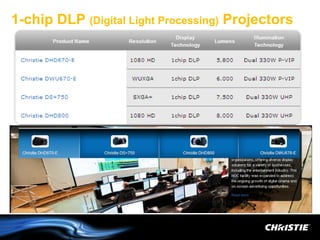

5. 1-chip DLP (Digital Light Processing) Projectors

6. 3-chip DLP Projectors

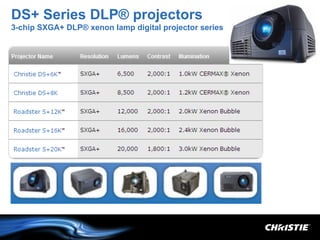

7. DS+ Series DLP® projectors
3-chip SXGA+ DLP® xenon lamp digital projector series

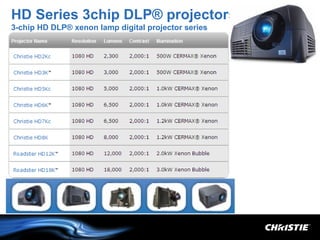

8. HD Series 3chip DLP® projectors
3-chip HD DLP® xenon lamp digital projector series

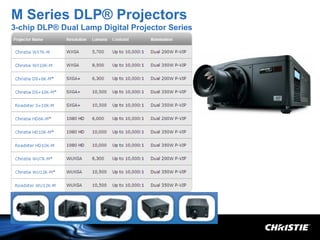

9. M Series DLP® Projectors
3-chip DLP® Dual Lamp Digital Projector Series

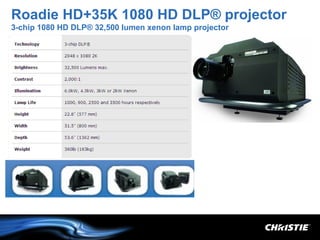

10. Roadie HD+35K 1080 HD DLP® projector
3-chip 1080 HD DLP® 32,500 lumen xenon lamp projector

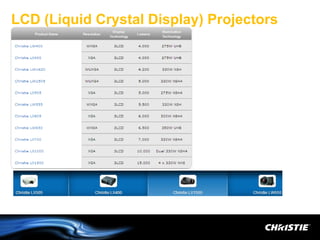

11. LCD (Liquid Crystal Display) Projectors

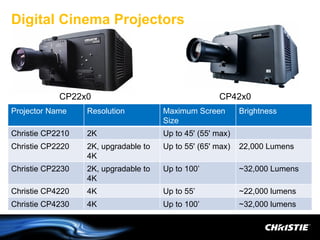

12. Digital Cinema Projectors
CP22x0 CP42x0
Projector Name Resolution Maximum Screen Brightness
Size
Christie CP2210 2K Up to 45' (55' max)
Christie CP2220 2K, upgradable to Up to 55' (65' max) 22,000 Lumens
4K
Christie CP2230 2K, upgradable to Up to 100’ ~32,000 Lumens
4K
Christie CP4220 4K Up to 55’ ~22,000 lumens
Christie CP4230 4K Up to 100’ ~32,000 lumens

13. Cinema Solution….
• Cine-IPM 2K Digital Cinema Image Processing
• Christie ACT Digital Cinema Theatre Control
• Cinema Lamps
• CDXL-SD Short Arc Lamps
• CDXL High Performance Lamps
• CXL Short Arc Xenon Lamps

14. 3D & advanced visualization products
Image Processors for 3D

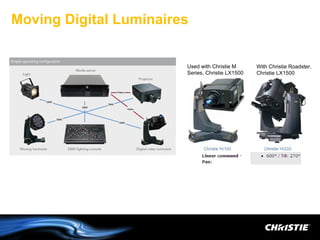

15. Moving Digital Luminaires
Used with Christie M With Christie Roadster,
Series, Christie LX1500 Christie LX1500

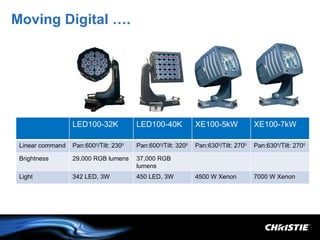

16. Moving Digital ….
LED100-32K LED100-40K XE100-5kW XE100-7kW
Linear command Pan:6000/Tilt: 2300 Pan:6000/Tilt: 3200 Pan:6300/Tilt: 2700 Pan:6300/Tilt: 2700
Brightness 29,000 RGB lumens 37,000 RGB
lumens
Light 342 LED, 3W 450 LED, 3W 4500 W Xenon 7000 W Xenon

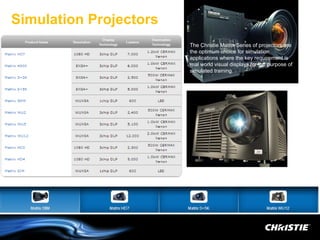

17. Simulation Projectors
The Christie Matrix Series of projectors are
the optimum choice for simulation
applications where the key requirement is
real world visual displays for the purpose of
simulated training.

18. Christie's Lens Throw Distance Calculator

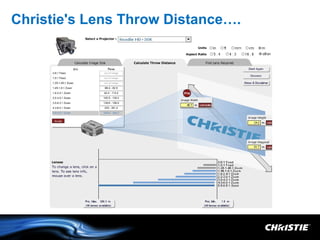

19. Christie's Lens Throw Distance….

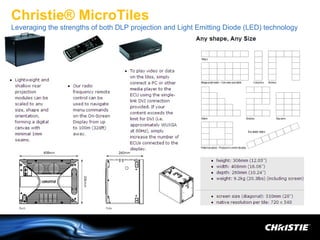

20. Christie® MicroTiles
Leveraging the strengths of both DLP projection and Light Emitting Diode (LED) technology

21. Micro Tiles..

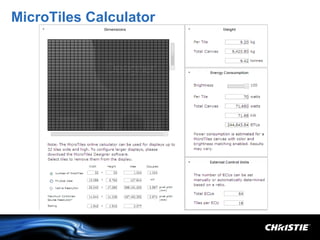

22. MicroTiles Calculator

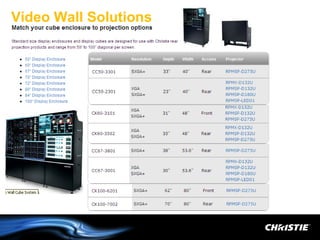

23. Video Wall Solutions

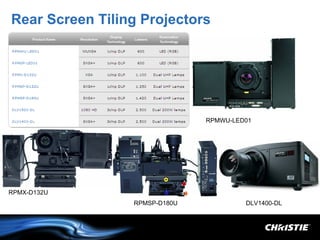

24. Rear Screen Tiling Projectors
RPMWU-LED01
RPMX-D132U
RPMSP-D180U DLV1400-DL

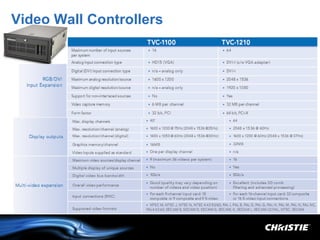

25. Video Wall Controllers

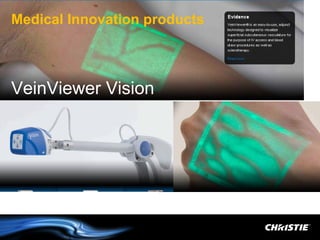

26. Medical Innovation products
VeinViewer Vision

27. Q&A
