Catalog fire de sutura Montigen

SMI, established in 1987 in Belgium, is a leading global manufacturer of surgical sutures, ensuring compliance with international quality standards and producing a range of absorbable and non-absorbable materials. With a strong export market comprising 80% of its turnover across 60 countries, the company has been recognized with awards for its exceptional performance in international trade. The provided catalogue includes detailed specifications on various suture materials, needle types, and their respective applications in surgical settings.

Embed presentation

For quality and safety General catalogue 2011 Contact: Tel/Fax: 031 415 56 23 Mobil: 0737 510 509 contact@montigen.ro ONTIGEN medical supplies www.montigen.ro

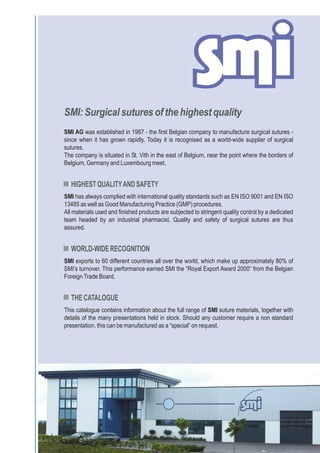

SMI: Surgical sutures of the highest quality SMI AG was established in 1987 - the first Belgian company to manufacture surgical sutures - since when it has grown rapidly. Today it is recognised as a world-wide supplier of surgical sutures. The company is situated in St. Vith in the east of Belgium, near the point where the borders of Belgium, Germany and Luxembourg meet. HIGHEST QUALITY AND SAFETY SMI has always complied with international quality standards such as EN ISO 9001 and EN ISO 13485 as well as Good Manufacturing Practice (GMP) procedures. All materials used and finished products are subjected to stringent quality control by a dedicated team headed by an industrial pharmacist. Quality and safety of surgical sutures are thus assured. WORLD-WIDE RECOGNITION SMI exports to 60 different countries all over the world, which make up approximately 80% of SMI’s turnover. This performance earned SMI the “Royal Export Award 2000“ from the Belgian Foreign Trade Board. THE CATALOGUE This catalogue contains information about the full range of SMI suture materials, together with details of the many presentations held in stock. Should any customer require a non standard presentation, this can be manufactured as a “special“ on request.
Certificates 1

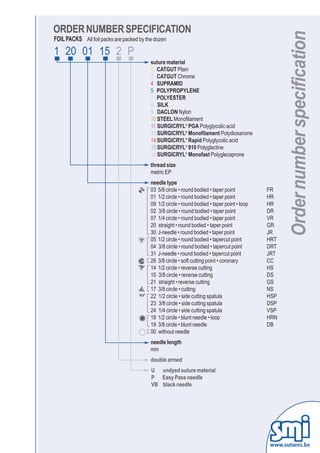

ORDER NUMBER SPECIFICATION FOIL PACKS All foil packs are packed by the dozen Order number specification 1 20 01 15 2 P suture material 1 CATGUT Plain 2 CATGUT Chrome 4 SUPRAMID 5 POLYPROPYLENE 7 POLYESTER 8 SILK 9 DACLON Nylon 10 STEEL Monofilament 11 SURGICRYL® PGA Polyglycolic acid 13 SURGICRYL® Monofilament Polydioxanone 14 SURGICRYL® Rapid Polyglycolic acid 15 SURGICRYL® 910 Polyglactine 16 SURGICRYL® Monofast Polyglecaprone thread size metric EP needle type 03 5/8 circle • round bodied • taper point FR 01 1/2 circle • round bodied • taper point HR 09 1/2 circle • round bodied • taper point • loop HR 02 3/8 circle • round bodied • taper point DR 07 1/4 circle • round bodied • taper point VR 20 straight • round bodied • taper point GR 30 J-needle • round bodied • taper point JR 05 1/2 circle • round bodied • tapercut point HRT 04 3/8 circle • round bodied • tapercut point DRT 31 J-needle • round bodied • tapercut point JRT 26 3/8 circle • soft cutting point • coronary CC 14 1/2 circle • reverse cutting HS 15 3/8 circle • reverse cutting DS 21 straight • reverse cutting GS 17 3/8 circle • cutting NS 22 1/2 circle • side cutting spatula HSP 23 3/8 circle • side cutting spatula DSP 24 1/4 circle • side cutting spatula VSP 18 1/2 circle • blunt needle • loop HRN 19 3/8 circle • blunt needle DB 00 without needle needle length mm double armed U undyed suture material P Easy Pass needle VB black needle www.sutures.be

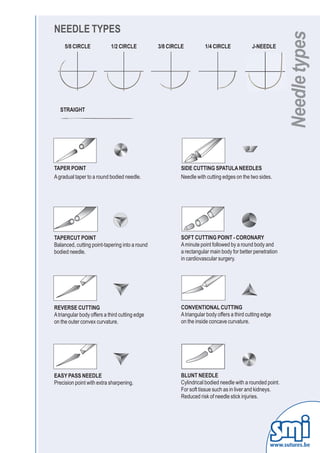

NEEDLE TYPES Needle types 5/8 CIRCLE 1/2 CIRCLE 3/8 CIRCLE 1/4 CIRCLE J-NEEDLE STRAIGHT TAPER POINT SIDE CUTTING SPATULA NEEDLES A gradual taper to a round bodied needle. Needle with cutting edges on the two sides. TAPERCUT POINT SOFT CUTTING POINT - CORONARY Balanced, cutting point-tapering into a round A minute point followed by a round body and bodied needle. a rectangular main body for better penetration in cardiovascular surgery. REVERSE CUTTING CONVENTIONAL CUTTING A triangular body offers a third cutting edge A triangular body offers a third cutting edge on the outer convex curvature. on the inside concave curvature. EASY PASS NEEDLE BLUNT NEEDLE Precision point with extra sharpening. Cylindrical bodied needle with a rounded point. For soft tissue such as in liver and kidneys. Reduced risk of needle stick injuries. www.sutures.be

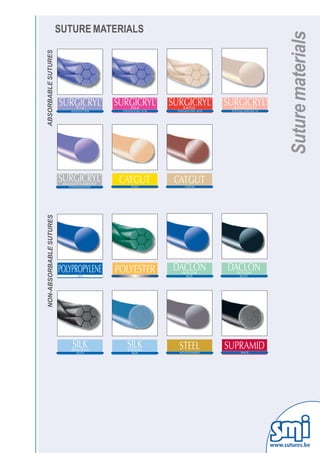

NON-ABSORBABLE SUTURES ABSORBABLE SUTURES SUTURE MATERIALS www.sutures.be Suture materials

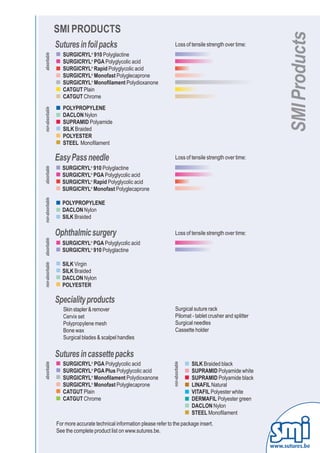

SMI PRODUCTS Sutures in foil packs SMI Products Loss of tensile strength over time: SURGICRYL® 910 Polyglactine SURGICRYL® PGA Polyglycolic acid absorbable SURGICRYL® Rapid Polyglycolic acid SURGICRYL® Monofast Polyglecaprone SURGICRYL® Monofilament Polydioxanone CATGUT Plain CATGUT Chrome POLYPROPYLENE DACLON Nylon non-absorbable SUPRAMID Polyamide SILK Braided POLYESTER STEEL Monofilament Easy Pass needle Loss of tensile strength over time: SURGICRYL® 910 Polyglactine SURGICRYL® PGA Polyglycolic acid absorbable SURGICRYL® Rapid Polyglycolic acid SURGICRYL® Monofast Polyglecaprone POLYPROPYLENE non-absorbable DACLON Nylon SILK Braided Ophthalmic surgery Loss of tensile strength over time: SURGICRYL PGA Polyglycolic acid ® absorbable SURGICRYL® 910 Polyglactine SILK Virgin SILK Braided non-absorbable DACLON Nylon POLYESTER Speciality products Skin stapler & remover Surgical suture rack Cervix set Pilomat - tablet crusher and splitter Polypropylene mesh Surgical needles Bone wax Cassette holder Surgical blades & scalpel handles Sutures in cassette packs SURGICRYL® PGA Polyglycolic acid SILK Braided black SURGICRYL® PGA Plus Polyglycolic acid SUPRAMID Polyamide white absorbable non-absorbable SURGICRYL® Monofilament Polydioxanone SUPRAMID Polyamide black SURGICRYL® Monofast Polyglecaprone LINAFIL Natural CATGUT Plain VITAFIL Polyester white CATGUT Chrome DERMAFIL Polyester green DACLON Nylon STEEL Monofilament For more accurate technical information please refer to the package insert. See the complete product list on www.sutures.be. www.sutures.be

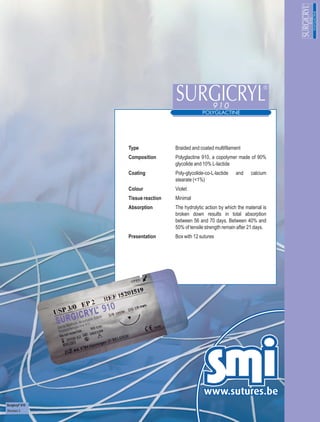

Type Braided and coated multifilament Composition Polyglactine 910, a copolymer made of 90% glycolide and 10% L-lactide Coating Poly-glycolide-co-L-lactide and calcium stearate (<1%) Colour Violet Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption between 56 and 70 days. Between 40% and 50% of tensile strength remain after 21 days. Presentation Box with 12 sutures Surgicryl® 910 Revision 3

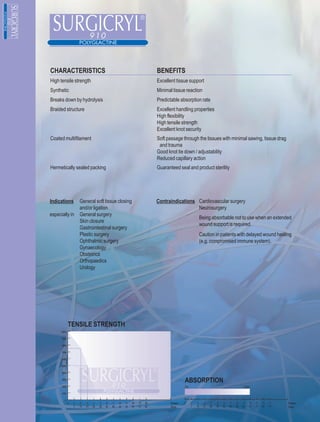

CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Skin closure wound support is required. Gastrointestinal surgery Plastic surgery Caution in patients with delayed wound healing Ophthalmic surgery (e.g. compromised immune system). Gynaecology Obstetrics Orthopaedics Urology TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days

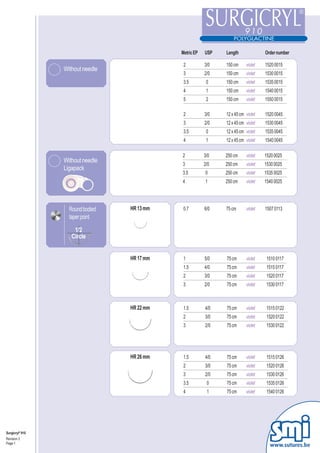

Metric EP USP Length Order number 2 3/0 150 cm violet 1520 0015 Without needle 3 2/0 150 cm violet 1530 0015 3.5 0 150 cm violet 1535 0015 4 1 150 cm violet 1540 0015 5 2 150 cm violet 1550 0015 2 3/0 12 x 45 cm violet 1520 0045 3 2/0 12 x 45 cm violet 1530 0045 3.5 0 12 x 45 cm violet 1535 0045 4 1 12 x 45 cm violet 1540 0045 2 3/0 250 cm violet 1520 0025 Without needle 3 2/0 250 cm violet 1530 0025 Ligapack 3.5 0 250 cm violet 1535 0025 4 1 250 cm violet 1540 0025 Round bodied HR 13 mm 0.7 6/0 75 cm violet 1507 0113 taper point 1/2 Circle HR 17 mm 1 5/0 75 cm violet 1510 0117 1.5 4/0 75 cm violet 1515 0117 2 3/0 75 cm violet 1520 0117 3 2/0 75 cm violet 1530 0117 HR 22 mm 1.5 4/0 75 cm violet 1515 0122 2 3/0 75 cm violet 1520 0122 3 2/0 75 cm violet 1530 0122 HR 26 mm 1.5 4/0 75 cm violet 1515 0126 2 3/0 75 cm violet 1520 0126 3 2/0 75 cm violet 1530 0126 3.5 0 75 cm violet 1535 0126 4 1 75 cm violet 1540 0126 Surgicryl® 910 Revision 3 Page 1 www.sutures.be

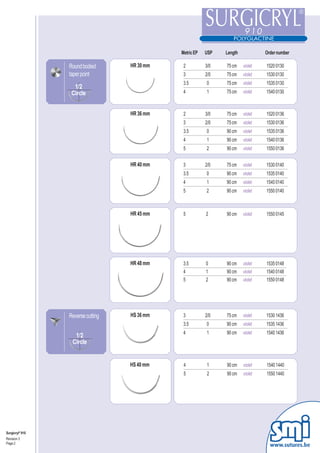

Metric EP USP Length Order number Round bodied HR 30 mm 2 3/0 75 cm violet 1520 0130 taper point 3 2/0 75 cm violet 1530 0130 3.5 0 75 cm violet 1535 0130 1/2 Circle 4 1 75 cm violet 1540 0130 HR 36 mm 2 3/0 75 cm violet 1520 0136 3 2/0 75 cm violet 1530 0136 3.5 0 90 cm violet 1535 0136 4 1 90 cm violet 1540 0136 5 2 90 cm violet 1550 0136 HR 40 mm 3 2/0 75 cm violet 1530 0140 3.5 0 90 cm violet 1535 0140 4 1 90 cm violet 1540 0140 5 2 90 cm violet 1550 0140 HR 45 mm 5 2 90 cm violet 1550 0145 HR 48 mm 3.5 0 90 cm violet 1535 0148 4 1 90 cm violet 1540 0148 5 2 90 cm violet 1550 0148 Reverse cutting HS 36 mm 3 2/0 75 cm violet 1530 1436 3.5 0 90 cm violet 1535 1436 4 1 90 cm 1540 1436 1/2 violet Circle HS 40 mm 4 1 90 cm violet 1540 1440 5 2 90 cm violet 1550 1440 Surgicryl® 910 Revision 3 Page 2 www.sutures.be

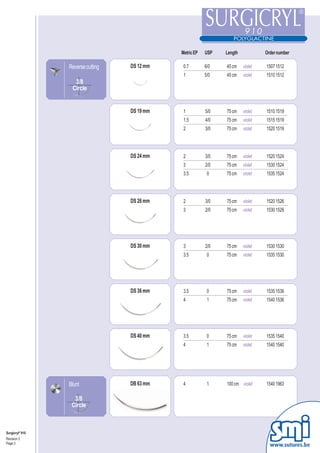

Metric EP USP Length Order number Reverse cutting DS 12 mm 0.7 6/0 45 cm violet 1507 1512 1 5/0 45 cm violet 1510 1512 3/8 Circle DS 19 mm 1 5/0 75 cm violet 1510 1519 1.5 4/0 75 cm violet 1515 1519 2 3/0 75 cm violet 1520 1519 DS 24 mm 2 3/0 75 cm violet 1520 1524 3 2/0 75 cm violet 1530 1524 3.5 0 75 cm violet 1535 1524 DS 26 mm 2 3/0 75 cm violet 1520 1526 3 2/0 75 cm violet 1530 1526 DS 30 mm 3 2/0 75 cm violet 1530 1530 3.5 0 75 cm violet 1535 1530 DS 36 mm 3.5 0 75 cm violet 1535 1536 4 1 75 cm violet 1540 1536 DS 40 mm 3.5 0 75 cm violet 1535 1540 4 1 75 cm violet 1540 1540 Blunt DB 63 mm 4 1 100 cm violet 1540 1963 3/8 Circle Surgicryl® 910 Revision 3 Page 3 www.sutures.be

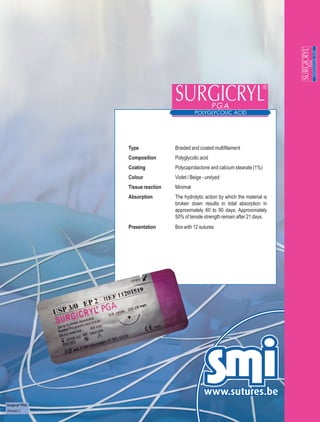

Type Braided and coated multifilament Composition Polyglycolic acid Coating Polycaprolactone and calcium stearate (1%) Colour Violet / Beige - undyed Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 60 to 90 days. Approximately 50% of tensile strength remain after 21 days. Presentation Box with 12 sutures Surgicryl® PGA Revision 3

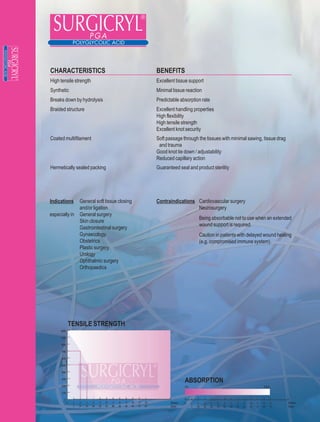

CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Skin closure wound support is required. Gastrointestinal surgery Gynaecology Caution in patients with delayed wound healing Obstetrics (e.g. compromised immune system). Plastic surgery Urology Ophthalmic surgery Orthopaedics TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days

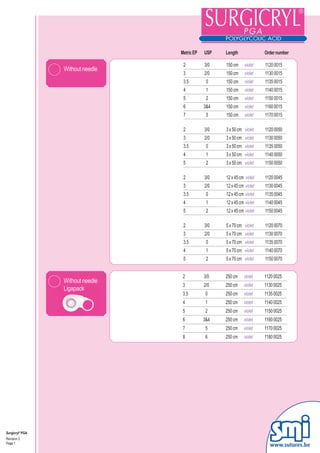

Metric EP USP Length Order number 2 3/0 150 cm violet 1120 0015 Without needle 3 2/0 150 cm violet 1130 0015 3.5 0 150 cm violet 1135 0015 4 1 150 cm violet 1140 0015 5 2 150 cm violet 1150 0015 6 3&4 150 cm violet 1160 0015 7 5 150 cm violet 1170 0015 2 3/0 3 x 50 cm violet 1120 0050 3 2/0 3 x 50 cm violet 1130 0050 3.5 0 3 x 50 cm violet 1135 0050 4 1 3 x 50 cm violet 1140 0050 5 2 3 x 50 cm violet 1150 0050 2 3/0 12 x 45 cm violet 1120 0045 3 2/0 12 x 45 cm violet 1130 0045 3.5 0 12 x 45 cm violet 1135 0045 4 1 12 x 45 cm violet 1140 0045 5 2 12 x 45 cm violet 1150 0045 2 3/0 5 x 70 cm violet 1120 0070 3 2/0 5 x 70 cm violet 1130 0070 3.5 0 5 x 70 cm violet 1135 0070 4 1 5 x 70 cm violet 1140 0070 5 2 5 x 70 cm violet 1150 0070 2 3/0 250 cm violet 1120 0025 Without needle 3 2/0 250 cm violet 1130 0025 Ligapack 3.5 0 250 cm violet 1135 0025 4 1 250 cm violet 1140 0025 5 2 250 cm violet 1150 0025 6 3&4 250 cm violet 1160 0025 7 5 250 cm violet 1170 0025 8 6 250 cm violet 1180 0025 Surgicryl® PGA Revision 3 Page 1 www.sutures.be

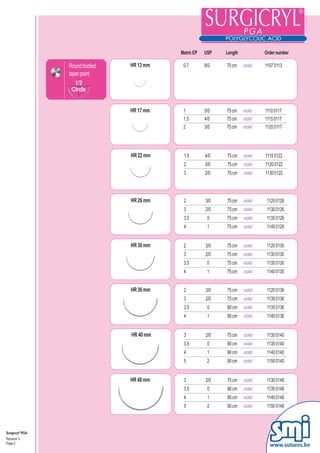

Metric EP USP Length Order number Round bodied HR 13 mm 0.7 6/0 75 cm violet 1107 0113 taper point 1/2 Circle HR 17 mm 1 5/0 75 cm violet 1110 0117 1.5 4/0 75 cm violet 1115 0117 2 3/0 75 cm violet 1120 0117 HR 22 mm 1.5 4/0 75 cm violet 1115 0122 2 3/0 75 cm violet 1120 0122 3 2/0 75 cm violet 1130 0122 HR 26 mm 2 3/0 75 cm violet 1120 0126 3 2/0 75 cm violet 1130 0126 3.5 0 75 cm violet 1135 0126 4 1 75 cm violet 1140 0126 HR 30 mm 2 3/0 75 cm violet 1120 0130 3 2/0 75 cm violet 1130 0130 3.5 0 75 cm violet 1135 0130 4 1 75 cm violet 1140 0130 HR 36 mm 2 3/0 75 cm violet 1120 0136 3 2/0 75 cm violet 1130 0136 3.5 0 90 cm violet 1135 0136 4 1 90 cm violet 1140 0136 HR 40 mm 3 2/0 75 cm violet 1130 0140 3.5 0 90 cm violet 1135 0140 4 1 90 cm violet 1140 0140 5 2 90 cm violet 1150 0140 HR 48 mm 3 2/0 75 cm violet 1130 0148 3.5 0 90 cm violet 1135 0148 4 1 90 cm violet 1140 0148 5 2 90 cm violet 1150 0148 Surgicryl® PGA Revision 3 Page 2 www.sutures.be
Metric EP USP Length Order number Round bodied FR 27 mm 2 3/0 75 cm violet 1120 0327 taper point 3 2/0 75 cm violet 1130 0327 5/8 Circle Reverse cutting DS 12 mm 0.7 6/0 45 cm violet 1107 1512 0.7 6/0 45 cm undyed 1107 1512U 3/8 1 5/0 45 cm violet 1110 1512 Circle DS 16 mm 1 5/0 75 cm violet 1110 1516 1 5/0 75 cm undyed 1110 1516U 1.5 4/0 45 cm violet 1115 1516 1.5 4/0 75 cm undyed 1115 1516U 2 3/0 75 cm violet 1120 1516 DS 19 mm 1 5/0 75 cm violet 1110 1519 1.5 4/0 75 cm violet 1115 1519 1.5 4/0 75 cm undyed 1115 1519U 2 3/0 75 cm violet 1120 1519 2 3/0 75 cm undyed 1120 1519U DS 24 mm 2 3/0 75 cm violet 1120 1524 2 3/0 75 cm undyed 1120 1524U 3 2/0 75 cm violet 1130 1524 3 2/0 75 cm undyed 1130 1524U 3.5 0 75 cm violet 1135 1524 DS 30 mm 2 3/0 75 cm violet 1120 1530 3 2/0 75 cm violet 1130 1530 3 2/0 75 cm undyed 1130 1530U 3.5 0 75 cm violet 1135 1530 DS 36 mm 3 2/0 75 cm violet 1130 1536 3.5 0 75 cm violet 1135 1536 4 1 75 cm violet 1140 1536 5 2 75 cm violet 1150 1536 DS 40 mm 3.5 0 75 cm violet 1135 1540 4 1 75 cm violet 1140 1540 Surgicryl® PGA Revision 3 Page 3 www.sutures.be

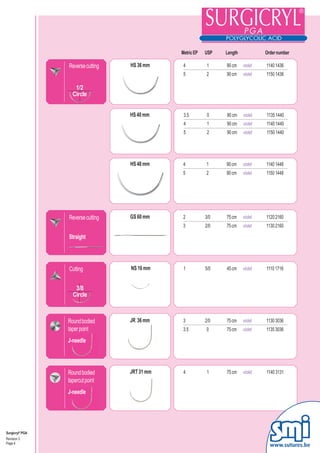

Metric EP USP Length Order number Reverse cutting HS 36 mm 4 1 90 cm violet 1140 1436 5 2 90 cm violet 1150 1436 1/2 Circle HS 40 mm 3.5 0 90 cm violet 1135 1440 4 1 90 cm violet 1140 1440 5 2 90 cm violet 1150 1440 HS 48 mm 4 1 90 cm violet 1140 1448 5 2 90 cm violet 1150 1448 Reverse cutting GS 60 mm 2 3/0 75 cm violet 1120 2160 3 2/0 75 cm violet 1130 2160 Straight Cutting NS 16 mm 1 5/0 45 cm violet 1110 1716 3/8 Circle Round bodied JR 36 mm 3 2/0 75 cm violet 1130 3036 taper point 3.5 0 75 cm violet 1135 3036 J-needle Round bodied JRT 31 mm 4 1 75 cm violet 1140 3131 tapercut point J-needle Surgicryl® PGA Revision 3 Page 4 www.sutures.be

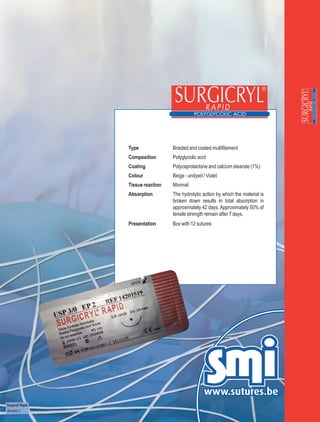

Type Braided and coated multifilament Composition Polyglycolic acid Coating Polycaprolactone and calcium stearate (1%) Colour Beige - undyed / Violet Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 42 days. Approximately 50% of tensile strength remain after 7 days. Presentation Box with 12 sutures Surgicryl® Rapid Revision 3

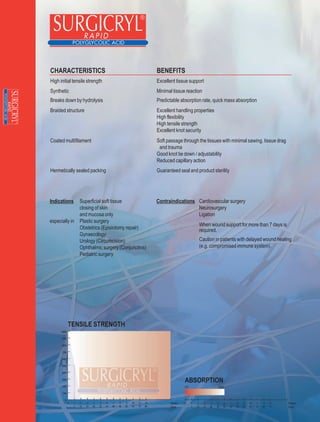

CHARACTERISTICS BENEFITS High initial tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate, quick mass absorption Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications Superficial soft tissue Contraindications Cardiovascular surgery closing of skin Neurosurgery and mucosa only Ligation especially in Plastic surgery When wound support for more than 7 days is Obstetrics (Episiotomy repair) required. Gynaecology Urology (Circumcision) Caution in patients with delayed wound healing Ophthalmic surgery (Conjunctiva) (e.g. compromised immune system). Pediatric surgery TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days

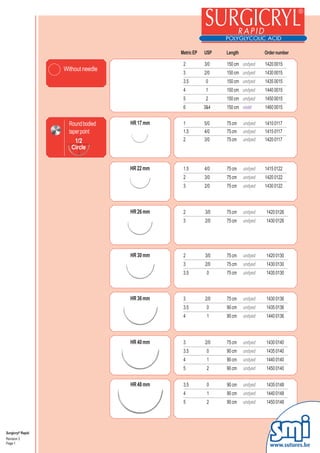

Metric EP USP Length Order number 2 3/0 3/0 150 cm 150 cm undyed 1420 0015 Without needle 3 2/0 150 cm undyed 1430 0015 3 2/0 150 cm 1430 0015 3.5 0 150 cm 1435 0015 3.5 0 150 cm undyed 1435 0015 4 1 150 cm undyed 1440 0015 5 2 150 cm undyed 1450 0015 6 3&4 150 cm violet 1460 0015 Round bodied HR 17 mm 1 5/0 75 cm undyed 1410 0117 taper point 1.5 4/0 75 cm undyed 1415 0117 1/2 2 3/0 75 cm undyed 1420 0117 Circle HR 22 mm 1.5 4/0 75 cm undyed 1415 0122 2 3/0 75 cm undyed 1420 0122 3 2/0 75 cm undyed 1430 0122 HR 26 mm 2 3/0 75 cm undyed 1420 0126 3 2/0 75 cm undyed 1430 0126 HR 30 mm 2 3/0 75 cm undyed 1420 0130 3 2/0 75 cm undyed 1430 0130 3.5 0 75 cm undyed 1435 0130 HR 36 mm 3 2/0 75 cm undyed 1430 0136 3.5 0 90 cm undyed 1435 0136 4 1 90 cm undyed 1440 0136 HR 40 mm 3 2/0 2/0 75 cm undyed 1430 0140 3.5 00 90 cm undyed 1435 0140 4 11 90 cm undyed 1440 0140 5 2 90 cm undyed 1450 0140 HR 48 mm 3.5 0 90 cm undyed 1435 0148 4 1 90 cm undyed 1440 0148 5 2 90 cm undyed 1450 0148 Surgicryl® Rapid Revision 3 Page 1 www.sutures.be

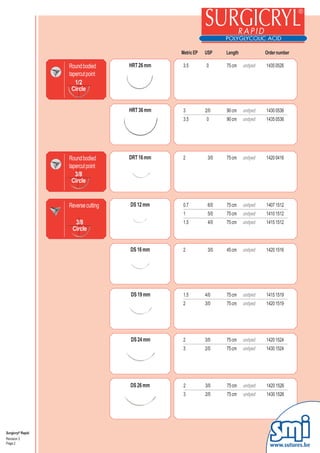

Metric EP USP Length Order number Round bodied HRT 26 mm 3.5 0 75 cm undyed 1435 0526 tapercut point 1/2 Circle HRT 36 mm 3 2/0 90 cm undyed 1430 0536 3.5 0 90 cm undyed 1435 0536 Round bodied DRT 16 mm 2 3/0 75 cm undyed 1420 0416 tapercut point 3/8 Circle Reverse cutting DS 12 mm 0.7 6/0 75 cm undyed 1407 1512 1 5/0 75 cm undyed 1410 1512 3/8 1.5 4/0 75 cm undyed 1415 1512 Circle DS 16 mm 2 3/0 45 cm undyed 1420 1516 DS 19 mm 1.5 4/0 75 cm undyed 1415 1519 2 3/0 75 cm undyed 1420 1519 DS 24 mm 2 3/0 75 cm undyed 1420 1524 3 2/0 75 cm undyed 1430 1524 DS 26 mm 2 3/0 75 cm undyed 1420 1526 3 2/0 75 cm undyed 1430 1526 Surgicryl® Rapid Revision 3 Page 2 www.sutures.be

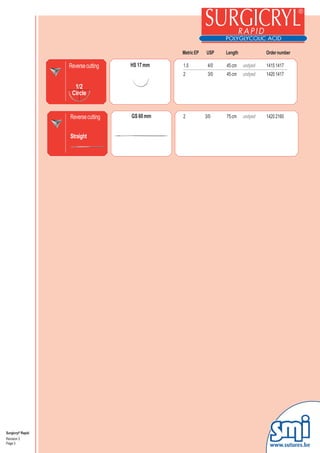

Metric EP USP Length Order number Reverse cutting HS 17 mm 1.5 4/0 45 cm undyed 1415 1417 2 3/0 45 cm undyed 1420 1417 1/2 Circle Reverse cutting GS 60 mm 2 3/0 75 cm undyed 1420 2160 Straight Surgicryl® Rapid Revision 3 Page 3 www.sutures.be
Type Monofilament Composition Polyglecaprone 25, a copolymer made of 75% glycolide and 25% Є-caprolactone Coating None Colour Violet / Beige - undyed Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 90 to 120 days. Approximately 60% of tensile strength remain after 7 days. Presentation Box with 12 sutures Surgicryl® Monofast Revision 3

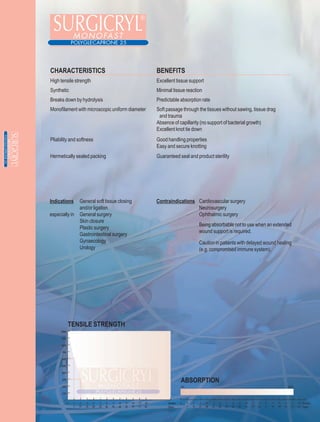

CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Ophthalmic surgery Skin closure Being absorbable not to use when an extended Plastic surgery wound support is required. Gastrointestinal surgery Gynaecology Caution in patients with delayed wound healing Urology (e.g. compromised immune system). TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days

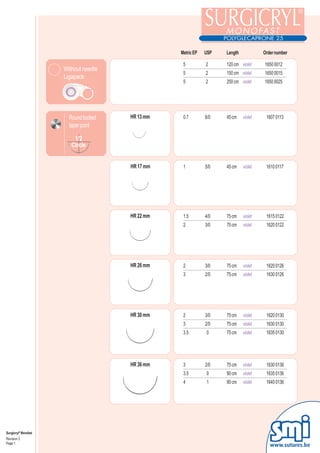

Metric EP USP Length Order number 5 2 120 cm violet 1650 0012 Without needle 5 2 150 cm violet 1650 0015 Ligapack 5 2 250 cm violet 1650 0025 Round bodied HR 13 mm 0.7 6/0 45 cm violet 1607 0113 taper point 1/2 Circle HR 17 mm 1 5/0 45 cm violet 1610 0117 HR 22 mm 1.5 4/0 75 cm violet 1615 0122 2 3/0 75 cm violet 1620 0122 HR 26 mm 2 3/0 75 cm violet 1620 0126 3 2/0 75 cm violet 1630 0126 HR 30 mm 2 3/0 75 cm violet 1620 0130 3 2/0 75 cm violet 1630 0130 3.5 0 75 cm violet 1635 0130 HR 36 mm 3 2/0 75 cm violet 1630 0136 3.5 0 90 cm violet 1635 0136 4 1 90 cm violet 1640 0136 Surgicryl® Monofast Revision 3 Page 1 www.sutures.be

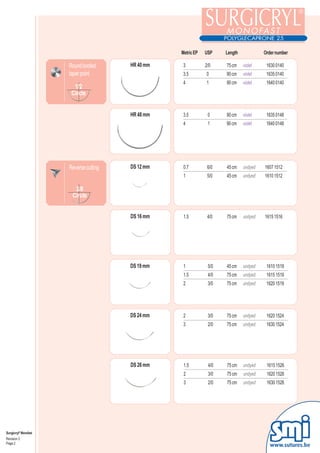

Metric EP USP Length Order number Round bodied HR 40 mm 3 2/0 75 cm violet 1630 0140 taper point 3.5 0 90 cm violet 1635 0140 4 1 90 cm violet 1640 0140 1/2 Circle HR 48 mm 3.5 0 90 cm violet 1635 0148 4 1 90 cm violet 1640 0148 Reverse cutting DS 12 mm 0.7 6/0 45 cm undyed 1607 1512 1 5/0 45 cm undyed 1610 1512 3/8 Circle DS 16 mm 1.5 4/0 75 cm undyed 1615 1516 DS 19 mm 1 5/0 45 cm undyed 1610 1519 1.5 4/0 75 cm undyed 1615 1519 2 3/0 75 cm undyed 1620 1519 DS 24 mm 2 3/0 75 cm undyed 1620 1524 3 2/0 75 cm undyed 1630 1524 DS 26 mm 1.5 4/0 75 cm undyed 1615 1526 2 3/0 75 cm undyed 1620 1526 3 2/0 75 cm undyed 1630 1526 Surgicryl® Monofast Revision 3 Page 2 www.sutures.be

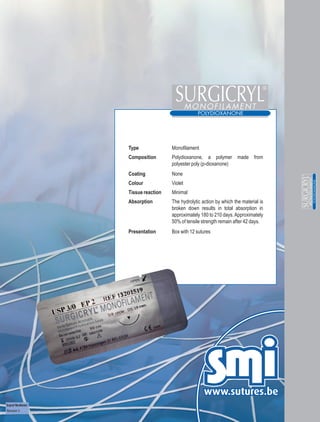

Type Monofilament Composition Polydioxanone, a polymer made from polyester poly (p-dioxanone) Coating None Colour Violet Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 180 to 210 days. Approximately 50% of tensile strength remain after 42 days. Presentation Box with 12 sutures Surgicryl® Monofilament Revision 3

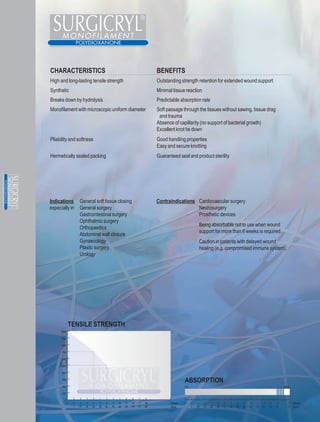

CHARACTERISTICS BENEFITS High and long-lasting tensile strength Outstanding strength retention for extended wound support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery especially in General surgery Neurosurgery Gastrointestinal surgery Prosthetic devices Ophthalmic surgery Being absorbable not to use when wound Orthopaedics support for more than 6 weeks is required. Abdominal wall closure Gynaecology Caution in patients with delayed wound Plastic surgery healing (e.g. compromised immune system). Urology TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days

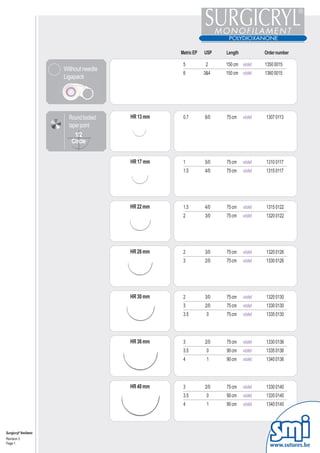

Metric EP USP Length Order number 5 2 150 cm violet 1350 0015 Without needle 6 3&4 150 cm violet 1360 0015 Ligapack Round bodied HR 13 mm 0.7 6/0 75 cm violet 1307 0113 taper point 1/2 Circle HR 17 mm 1 5/0 75 cm violet 1310 0117 1.5 4/0 75 cm violet 1315 0117 HR 22 mm 1.5 4/0 75 cm violet 1315 0122 2 3/0 75 cm violet 1320 0122 HR 26 mm 2 3/0 75 cm violet 1320 0126 3 2/0 75 cm violet 1330 0126 HR 30 mm 2 3/0 75 cm violet 1320 0130 3 2/0 75 cm violet 1330 0130 3.5 0 75 cm violet 1335 0130 HR 36 mm 3 2/0 75 cm violet 1330 0136 3.5 0 90 cm violet 1335 0136 4 1 90 cm violet 1340 0136 HR 40 mm 3 2/0 75 cm violet 1330 0140 3.5 0 90 cm violet 1335 0140 4 1 90 cm violet 1340 0140 Surgicryl® Monofilament Revision 3 Page 1 www.sutures.be

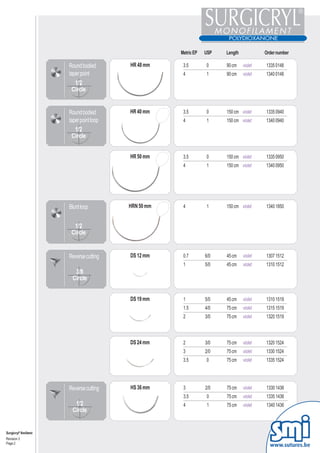

Metric EP USP Length Order number Round bodied HR 48 mm 3.5 0 90 cm violet 1335 0148 taper point 4 1 90 cm violet 1340 0148 1/2 Circle Round bodied HR 40 mm 3.5 0 150 cm violet 1335 0940 taper point loop 4 1 150 cm violet 1340 0940 1/2 Circle HR 50 mm 3.5 0 150 cm violet 1335 0950 4 1 150 cm violet 1340 0950 Blunt loop HRN 50 mm 4 1 150 cm violet 1340 1850 1/2 Circle Reverse cutting DS 12 mm 0.7 6/0 45 cm violet 1307 1512 1 5/0 45 cm violet 1310 1512 3/8 Circle DS 19 mm 1 5/0 45 cm violet 1310 1519 1.5 4/0 75 cm violet 1315 1519 2 3/0 75 cm violet 1320 1519 DS 24 mm 2 3/0 75 cm violet 1320 1524 3 2/0 75 cm violet 1330 1524 3.5 0 75 cm violet 1335 1524 Reverse cutting HS 36 mm 3 2/0 75 cm violet 1330 1436 3.5 0 75 cm violet 1335 1436 1/2 4 1 75 cm violet 1340 1436 Circle Surgicryl® Monofilament Revision 3 Page 2 www.sutures.be

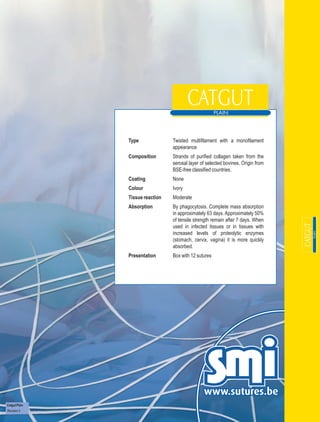

Type Twisted multifilament with a monofilament appearance Composition Strands of purified collagen taken from the serosal layer of selected bovines. Origin from BSE-free classified countries. Coating None Colour Ivory Tissue reaction Moderate Absorption By phagocytosis. Complete mass absorption in approximately 63 days. Approximately 50% of tensile strength remain after 7 days. When used in infected tissues or in tissues with increased levels of proteolytic enzymes (stomach, cervix, vagina) it is more quickly absorbed. Presentation Box with 12 sutures Catgut Plain Revision 3

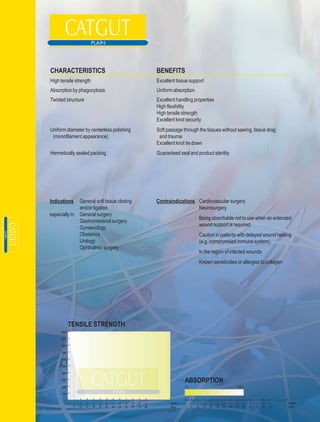

CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Absorption by phagocytosis Uniform absorption Twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Uniform diameter by centerless polishing Soft passage through the tissues without sawing, tissue drag (monofilament appearance) and trauma Excellent knot tie down Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Gastrointestinal surgery wound support is required. Gynaecology Obstetrics Caution in patients with delayed wound healing Urology (e.g. compromised immune system). Ophthalmic surgery In the region of infected wounds Known sensitivities or allergies to collagen TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days

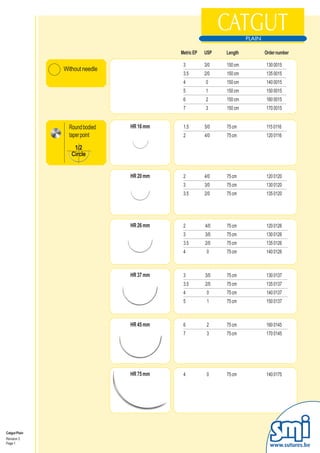

Metric EP USP Length Order number 3 2 3/0 3/0 150 cm 150 cm 14200015 130 0015 Without needle 3 2/0 150 cm 14300015 3.5 2/0 150 cm 135 0015 3.5 0 150 cm 1435 0015 4 0 150 cm 140 0015 5 1 150 cm 150 0015 6 2 150 cm 160 0015 7 3 150 cm 170 0015 Round bodied HR 16 mm 1.5 5/0 75 cm 115 0116 taper point 2 4/0 75 cm 120 0116 1/2 Circle HR 20 mm 2 4/0 75 cm 120 0120 3 3/0 75 cm 130 0120 3.5 2/0 75 cm 135 0120 2 3/0 75 cm 1420 0126 HR 26 mm 2 4/0 75 cm 120 0126 3 2/0 75 cm 1430 0126 3 3/0 75 cm 130 0126 3.5 2/0 75 cm 135 0126 4 0 75 cm 140 0126 2 3/0 75 cm 1420 0130 HR 37 mm 3 3/0 75 cm 130 0137 3 2/0 75 cm 1430 0130 3.5 2/0 75 cm 135 0137 3.5 0 75 cm 1435 0130 4 0 75 cm 140 0137 5 1 75 cm 150 0137 3 2/0 75 cm 1430 0136 HR 45 mm 6 2 75 cm 160 0145 3.5 0 90 cm 1435 0136 7 3 75 cm 170 0145 4 1 90 cm 1440 0136 3 2/0 75 cm 1430 0140 HR 75 mm 4 0 75 cm 140 0175 3.5 0 90 cm 1435 0140 4 1 90 cm 1440 0140 Catgut Plain Revision 3 Page 1 www.sutures.be
Metric EP USP Length Order number Reverse cutting DS 12 mm 2 1.5 3/0 5/0 75 cm 45 cm 1420 0130 115 1512 3 2/0 75 cm 1430 0130 3.5 0 75 cm 1435 0130 3/8 Circle DS 16 mm 3 1 2/0 6/0 75 cm 45 cm 1430 0136 110 1516 3.5 1.5 0 5/0 90 cm 75 cm 1435 0136 115 1516 4 2 1 4/0 90 cm 75 cm 1440 0136 120 1516 3 3/0 75 cm 130 1516 DS 19 mm 3 2 2/0 4/0 75 cm 1430 0140 120 1519 3.5 3 0 3/0 90 cm 75 1435 0140 130 1519 4 3.5 1 2/0 90 cm 75 1440 0140 135 1519 DS 24 mm 3.5 2 0 4/0 90 cm 75 1435 0148 120 1524 4 3 1 3/0 90 cm 75 1440 0148 130 1524 3.5 2/0 75 cm 135 1524 4 0 75 cm 140 1524 DS 37 mm 3.5 2/0 75 cm 135 1537 Catgut Plain Revision 3 Page 2 www.sutures.be

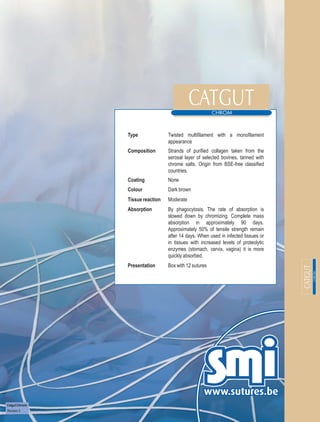

Type Twisted multifilament with a monofilament appearance Composition Strands of purified collagen taken from the serosal layer of selected bovines, tanned with chrome salts. Origin from BSE-free classified countries. Coating None Colour Dark brown Tissue reaction Moderate Absorption By phagocytosis. The rate of absorption is slowed down by chromizing. Complete mass absorption in approximately 90 days. Approximately 50% of tensile strength remain after 14 days. When used in infected tissues or in tissues with increased levels of proteolytic enzymes (stomach, cervix, vagina) it is more quickly absorbed. Presentation Box with 12 sutures Catgut Chrome Revision 3

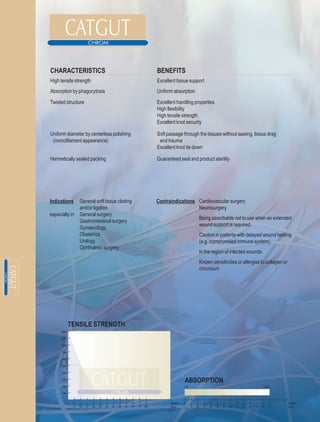

CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Absorption by phagocytosis Uniform absorption Twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Uniform diameter by centerless polishing Soft passage through the tissues without sawing, tissue drag (monofilament appearance) and trauma Excellent knot tie down Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Gastrointestinal surgery wound support is required. Gynaecology Obstetrics Caution in patients with delayed wound healing Urology (e.g. compromised immune system). Ophthalmic surgery In the region of infected wounds Known sensitivities or allergies to collagen or chromium TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
Metric EP USP Length Order number 2 4/0 3/0 150 cm 150 cm 14200015 220 0015 Without needle 3 2/0 150 cm 14300015 3 3/0 150 cm 230 0015 3.5 0 150 cm 1435 0015 3.5 2/0 150 cm 235 0015 4 0 150 cm 240 0015 5 1 150 cm 250 0015 6 2 150 cm 260 0015 7 3 150 cm 270 0015 8 4 150 cm 280 0015 Round bodied HR 15 mm 1 6/0 75 cm 210 0115 taper point 1.5 5/0 75 cm 215 0115 2 4/0 75 cm 220 0115 1/2 Circle 2 3/0 75 cm 1420 0126 HR 20 mm 1.5 5/0 75 cm 215 0120 3 2/0 75 cm 1430 0126 2 4/0 75 cm 220 0120 3 3/0 75 cm 230 0120 3.5 2/0 75 cm 235 0120 4 0 75 cm 240 0120 2 3/0 75 cm 1420 0130 HR 26 mm 1.5 5/0 75 cm 215 0126 3 2/0 75 cm 1430 0130 2 4/0 75 cm 220 0126 3.5 0 75 cm 1435 0130 3 3/0 75 cm 230 0126 3.5 2/0 75 cm 235 0126 4 0 75 cm 240 0126 5 1 75 cm 250 0126 HR 30 mm 2 4/0 75 cm 220 0130 3 3/0 75 cm 230 0130 3.5 2/0 75 cm 235 0130 4 0 75 cm 240 0130 5 1 75 cm 250 0130 HR 37 mm 2 4/0 75 cm 220 0137 3 3/0 75 cm 230 0137 3.5 2/0 75 cm 235 0137 4 0 75 cm 240 0137 5 1 75 cm 250 0137 Catgut Chrome Revision 3 Page 1 www.sutures.be
Metric EP USP Length Order number Round bodied HR 40 mm 3.5 2/0 75 cm 235 0140 taper point 4 0 75 cm 240 0140 5 1 75 cm 250 0140 1/2 Circle 6 2 75 cm 260 0140 HR 45 mm 4 0 75 cm 240 0145 6 2 75 cm 260 0145 HR 48 mm 5 1 75 cm 250 0148 HR 50 mm 6 2 75 cm 260 0150 6 2 90 cm 260 0150-90 Blunt DB 63 mm 5 1 75 cm 250 1963 3/8 Circle Reverse cutting HS 37 mm 4 0 75 cm 240 1437 5 1 75 cm 250 1437 1/2 Circle Catgut Chrome Revision 3 Page 2 www.sutures.be
Metric EP USP Length Order number Reverse cutting DS 12 mm 0.7 7/0 45 cm 207 1512 1 6/0 45 cm 210 1512 1.5 5/0 45 cm 215 1512 HR 3/8 36 Circle mm DS 16 mm 1.5 5/0 75 cm 215 1516 2 4/0 75 cm 220 1516 3 3/0 75 cm 230 1516 DS 19 mm 1.5 5/0 45 cm 215 1519 2 4/0 75 cm 220 1519 3 3/0 75 cm 230 1519 3.5 2/0 75 cm 235 1519 DS 24 mm 2 4/0 75 cm 220 1524 3 3/0 75 cm 230 1524 3.5 2/0 75 cm 235 1524 4 0 75 cm 240 1524 5 1 75 cm 250 1524 DS 30 mm 3 3/0 75 cm 230 1530 3.5 2/0 75 cm 235 1530 4 0 75 cm 240 1530 5 1 75 cm 250 1530 DS 37 mm 3 3/0 75 cm 230 1537 3.5 2/0 75 cm 235 1537 4 0 75 cm 240 1537 5 1 75 cm 250 1537 DS 40 mm 3 3/0 75 cm 230 1540 3.5 2/0 75 cm 235 1540 6 2 75 cm 260 1540 Catgut Chrome Revision 3 Page 3 www.sutures.be

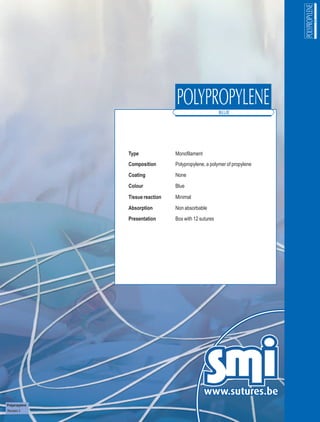

Type Monofilament Composition Polypropylene, a polymer of propylene Coating None Colour Blue Tissue reaction Minimal Absorption Non absorbable Presentation Box with 12 sutures Polypropylene Revision 3

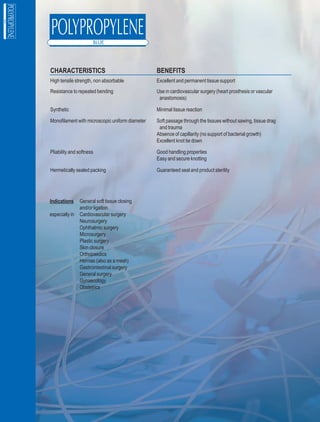

CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and permanent tissue support Resistance to repeated bending Use in cardiovascular surgery (heart prosthesis or vascular anastomosis) Synthetic Minimal tissue reaction Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation especially in Cardiovascular surgery Neurosurgery Ophthalmic surgery Microsurgery Plastic surgery Skin closure Orthopaedics Hernias (also as a mesh) Gastrointestinal surgery General surgery Gynaecology Obstetrics
Metric EP USP Length Order number Round bodied HR 10 mm 0.5 7/0 45 cm blue 505 0110 taper point 1/2 Circle HR 15 mm 0.7 6/0 75 cm blue 507 0115 1 5/0 75 cm blue 510 0115 1.5 4/0 75 cm blue 515 0115 HR 20 mm 1.5 4/0 75 cm blue 515 0120 HR 25 mm 1 5/0 75 cm blue 510 0125 1.5 4/0 75 cm blue 515 0125 2 3/0 75 cm blue 520 0125 3 2/0 75 cm blue 530 0125 3.5 0 75 cm blue 535 0125 4 1 75 cm blue 540 0125 HR 30 mm 2 3/0 75 cm blue 520 0130 3 2/0 75 cm blue 530 0130 3.5 0 75 cm blue 535 0130 HR 35 mm 3 2/0 75 cm blue 530 0135 3.5 0 75 cm blue 535 0135 HR 40 mm 3.5 0 75 cm blue 535 0140 4 1 90 cm blue 540 0140 5 2 75 cm blue 550 0140 Polypropylene Revision 3 Page 1 www.sutures.be

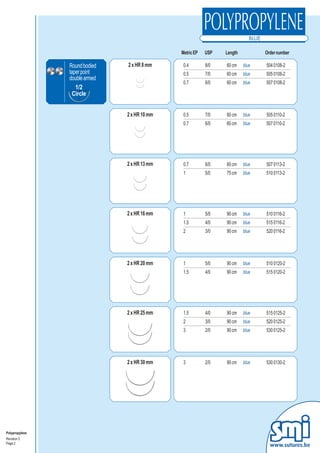

Metric EP USP Length Order number Round bodied 2 x HR 8 mm 0.4 8/0 60 cm blue 504 0108-2 taper point 0.5 7/0 60 cm blue 505 0108-2 double armed 0.7 6/0 60 cm blue 507 0108-2 1/2 Circle 2 x HR 10 mm 0.5 7/0 60 cm blue 505 0110-2 0.7 6/0 60 cm blue 507 0110-2 2 x HR 13 mm 0.7 6/0 60 cm blue 507 0113-2 1 5/0 75 cm blue 510 0113-2 2 x HR 16 mm 1 5/0 90 cm blue 510 0116-2 1.5 4/0 90 cm blue 515 0116-2 2 3/0 90 cm blue 520 0116-2 2 x HR 20 mm 1 5/0 90 cm blue 510 0120-2 1.5 4/0 90 cm blue 515 0120-2 2 x HR 25 mm 1.5 4/0 90 cm blue 515 0125-2 2 3/0 90 cm blue 520 0125-2 3 2/0 90 cm blue 530 0125-2 2 x HR 30 mm 3 2/0 90 cm blue 530 0130-2 Polypropylene Revision 3 Page 2 www.sutures.be

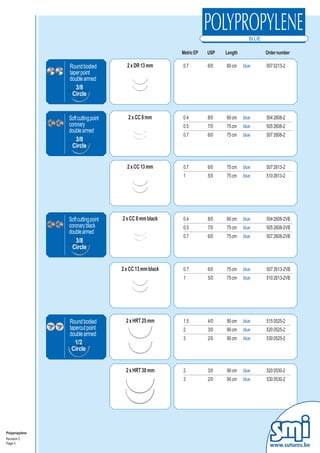

Metric EP USP Length Order number Round bodied 2 x DR 13 mm 0.7 6/0 60 cm blue 507 0213-2 taper point double armed 3/8 Circle Soft cutting point 2 x CC 8 mm 0.4 8/0 60 cm blue 504 2608-2 coronary 0.5 7/0 75 cm blue 505 2608-2 double armed 0.7 6/0 75 cm blue 507 2608-2 3/8 Circle 2 x CC 13 mm 0.7 6/0 75 cm blue 507 2613-2 1 5/0 75 cm blue 510 2613-2 Soft cutting point 2 x CC 8 mm black 0.4 8/0 60 cm blue 504 2608-2VB coronary black 0.5 7/0 75 cm blue 505 2608-2VB double armed 0.7 6/0 75 cm blue 507 2608-2VB 3/8 Circle 2 x CC 13 mm black 0.7 6/0 75 cm blue 507 2613-2VB 1 5/0 75 cm blue 510 2613-2VB Round bodied 2 x HRT 25 mm 1.5 4/0 90 cm blue 515 0525-2 tapercut point 2 3/0 90 cm blue 520 0525-2 double armed 3 2/0 90 cm blue 530 0525-2 1/2 Circle 2 x HRT 30 mm 2 3/0 90 cm blue 520 0530-2 3 2/0 90 cm blue 530 0530-2 Polypropylene Revision 3 Page 3 www.sutures.be
Metric EP USP Length Order number Reverse cutting DS 10 mm 0.7 6/0 45 cm blue 507 1510 3/8 Circle DS 12 mm 0.5 7/0 45 cm blue 505 1512 0.7 6/0 45 cm blue 507 1512 1 5/0 45 cm blue 510 1512 1.5 4/0 75 cm blue 515 1512 DS 16 mm 0.7 6/0 45 cm blue 507 1516 1 5/0 45 cm blue 510 1516 1.5 4/0 75 cm blue 515 1516 2 3/0 75 cm blue 520 1516 DS 19 mm 0.7 6/0 75 cm blue 507 1519 1 5/0 75 cm blue 510 1519 1.5 4/0 75 cm blue 515 1519 2 3/0 75 cm blue 520 1519 3 2/0 75 cm blue 530 1519 3.5 0 75 cm blue 535 1519 DS 24 mm 1.5 4/0 75 cm blue 515 1524 2 3/0 75 cm blue 520 1524 3 2/0 75 cm blue 530 1524 3.5 0 75 cm blue 535 1524 4 1 75 cm blue 540 1524 DS 30 mm 2 3/0 75 cm blue 520 1530 3 2/0 75 cm blue 530 1530 3.5 0 75 cm blue 535 1530 4 1 75 cm blue 540 1530 DS 36 mm 2 3/0 75 cm blue 520 1536 3 2/0 75 cm blue 530 1536 3.5 0 75 cm blue 535 1536 4 1 75 cm blue 540 1536 Polypropylene Revision 3 Page 4 www.sutures.be

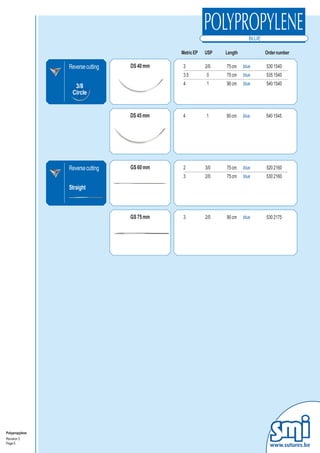

Metric EP USP Length Order number Reverse cutting DS 40 mm 3 2/0 75 cm blue 530 1540 3.5 0 75 cm blue 535 1540 4 1 90 cm 540 1540 3/8 blue Circle DS 45 mm 4 1 90 cm blue 540 1545 Reverse cutting GS 60 mm 2 3/0 75 cm blue 520 2160 3 2/0 75 cm blue 530 2160 Straight GS 75 mm 3 2/0 90 cm blue 530 2175 Polypropylene Revision 3 Page 5 www.sutures.be

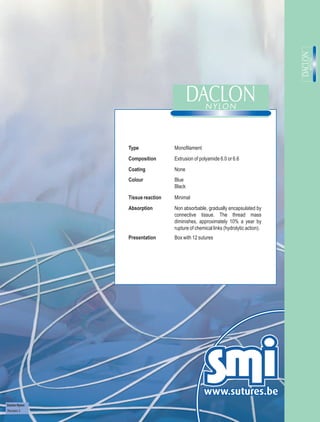

Type Monofilament Composition Extrusion of polyamide 6.0 or 6.6 Coating None Colour Blue Black Tissue reaction Minimal Absorption Non absorbable, gradually encapsulated by connective tissue. The thread mass diminishes, approximately 10% a year by rupture of chemical links (hydrolytic action). Presentation Box with 12 sutures Daclon Nylon Revision 3

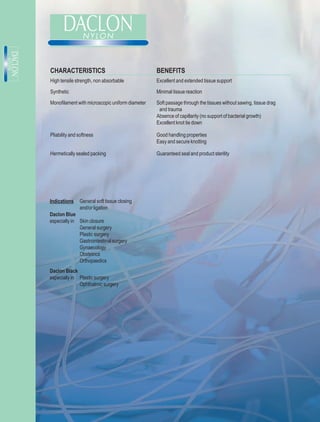

CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and extended tissue support Synthetic Minimal tissue reaction Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation Daclon Blue especially in Skin closure General surgery Plastic surgery Gastrointestinal surgery Gynaecology Obstetrics Orthopaedics Daclon Black especially in Plastic surgery Ophthalmic surgery

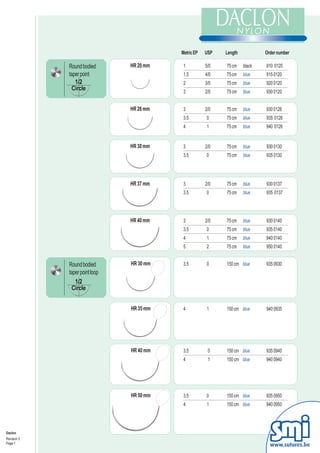

Metric EP USP Length Order number Round bodied HR 20 mm 1 5/0 75 cm black 910 0120 taper point 1.5 4/0 75 cm blue 915 0120 1/2 2 3/0 75 cm blue 920 0120 Circle 3 2/0 75 cm blue 930 0120 HR 26 mm 3 2/0 75 cm blue 930 0126 3.5 0 75 cm blue 935 0126 4 1 75 cm blue 940 0126 HR 30 mm 3 2/0 75 cm blue 930 0130 3.5 0 75 cm blue 935 0130 HR 37 mm 3 2/0 75 cm blue 930 0137 3.5 0 75 cm blue 935 0137 HR 40 mm 3 2/0 75 cm blue 930 0140 3.5 0 75 cm blue 935 0140 4 1 75 cm blue 940 0140 5 2 75 cm blue 950 0140 Round bodied HR 30 mm 3.5 0 150 cm blue 935 0930 taper point loop 1/2 Circle HR 35 mm 4 1 150 cm blue 940 0935 HR 40 mm 3.5 0 150 cm blue 935 0940 4 1 150 cm blue 940 0940 HR 50 mm 3.5 0 150 cm blue 935 0950 4 1 150 cm blue 940 0950 Daclon Revision 3 Page 1 www.sutures.be

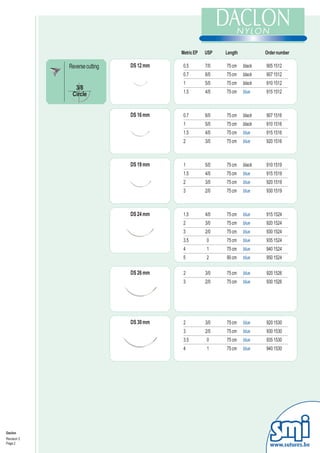

Metric EP USP Length Order number Reverse cutting DS 12 mm 0.5 7/0 75 cm black 905 1512 0.7 6/0 75 cm black 907 1512 1 5/0 75 cm black 910 1512 3/8 1.5 4/0 75 cm 915 1512 Circle blue DS 16 mm 0.7 6/0 75 cm black 907 1516 1 5/0 75 cm black 910 1516 1.5 4/0 75 cm blue 915 1516 2 3/0 75 cm blue 920 1516 DS 19 mm 1 5/0 75 cm black 910 1519 1.5 4/0 75 cm blue 915 1519 2 3/0 75 cm blue 920 1519 3 2/0 75 cm blue 930 1519 DS 24 mm 1.5 4/0 75 cm blue 915 1524 2 3/0 75 cm blue 920 1524 3 2/0 75 cm blue 930 1524 3.5 0 75 cm blue 935 1524 4 1 75 cm blue 940 1524 5 2 90 cm blue 950 1524 DS 26 mm 2 3/0 75 cm blue 920 1526 3 2/0 75 cm blue 930 1526 DS 30 mm 2 3/0 75 cm blue 920 1530 3 2/0 75 cm blue 930 1530 3.5 0 75 cm blue 935 1530 4 1 75 cm blue 940 1530 Daclon Revision 3 Page 2 www.sutures.be

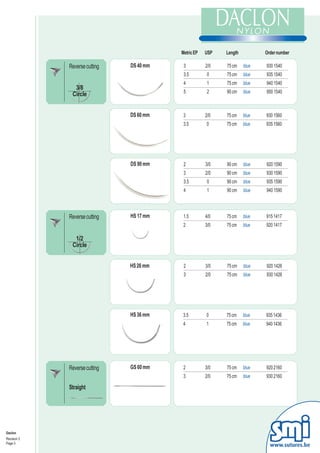

Metric EP USP Length Order number Reverse cutting DS 40 mm 3 2/0 75 cm blue 930 1540 3.5 0 75 cm blue 935 1540 4 1 75 cm blue 940 1540 3/8 5 2 90 cm 950 1540 Circle blue DS 60 mm 3 2/0 75 cm blue 930 1560 3.5 0 75 cm blue 935 1560 DS 90 mm 2 3/0 90 cm blue 920 1590 3 2/0 90 cm blue 930 1590 3.5 0 90 cm blue 935 1590 4 1 90 cm blue 940 1590 Reverse cutting HS 17 mm 1.5 4/0 75 cm blue 915 1417 2 3/0 75 cm blue 920 1417 1/2 Circle HS 26 mm 2 3/0 75 cm blue 920 1426 3 2/0 75 cm blue 930 1426 HS 36 mm 3.5 0 75 cm blue 935 1436 4 1 75 cm blue 940 1436 Reverse cutting GS 60 mm 2 3/0 75 cm blue 920 2160 3 2/0 75 cm blue 930 2160 Straight Daclon Revision 3 Page 3 www.sutures.be

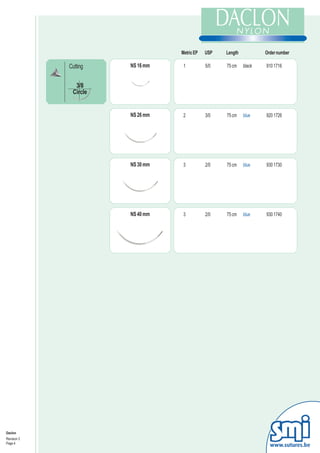

Metric EP USP Length Order number Cutting NS 16 mm 1 5/0 75 cm black 910 1716 3/8 Circle NS 26 mm 2 3/0 75 cm blue 920 1726 NS 30 mm 3 2/0 75 cm blue 930 1730 NS 40 mm 3 2/0 75 cm blue 930 1740 Daclon Revision 3 Page 4 www.sutures.be

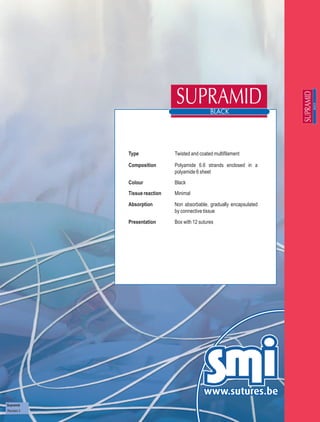

Type Twisted and coated multifilament Composition Polyamide 6.6 strands enclosed in a polyamide 6 sheet Colour Black Tissue reaction Minimal Absorption Non absorbable, gradually encapsulated by connective tissue Presentation Box with 12 sutures Supramid Revision 3

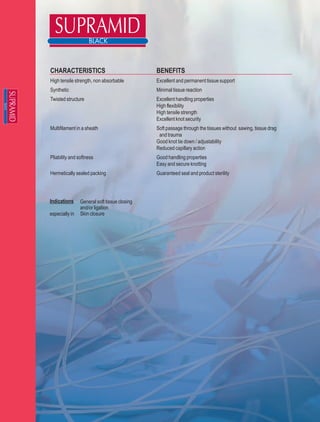

CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and permanent tissue support Synthetic Minimal tissue reaction Twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Multifilament in a sheath Soft passage through the tissues without sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation especially in Skin closure

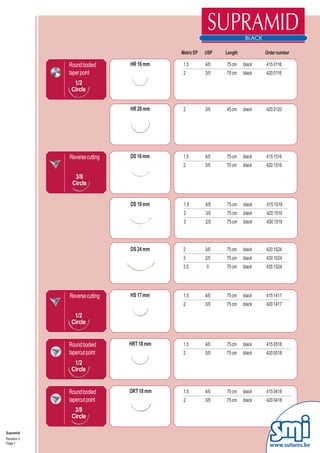

Metric EP USP Length Order number Round bodied HR 16 mm 1.5 4/0 75 cm black 415 0116 taper point 2 3/0 75 cm black 420 0116 1/2 Circle HR 20 mm 2 3/0 45 cm black 420 0120 Reverse cutting DS 16 mm 1.5 4/0 75 cm black 415 1516 2 3/0 75 cm black 420 1516 3/8 Circle DS 19 mm 1.5 4/0 75 cm black 415 1519 2 3/0 75 cm black 420 1519 3 2/0 75 cm black 430 1519 DS 24 mm 2 3/0 75 cm black 420 1524 3 2/0 75 cm black 430 1524 3.5 0 75 cm black 435 1524 Reverse cutting HS 17 mm 1.5 4/0 75 cm black 415 1417 2 3/0 75 cm black 420 1417 1/2 Circle Round bodied HRT 18 mm 1.5 4/0 75 cm black 415 0518 tapercut point 2 3/0 75 cm black 420 0518 1/2 Circle Round bodied DRT 18 mm 1.5 4/0 75 cm black 415 0418 tapercut point 2 3/0 75 cm black 420 0418 3/8 Circle Supramid Revision 3 Page 1 www.sutures.be

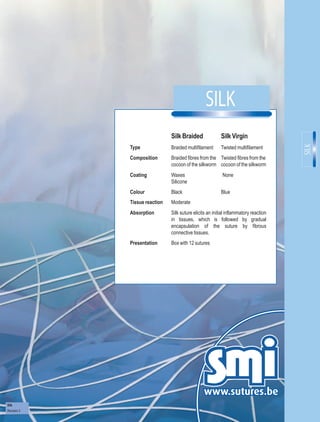

SILK Silk Braided Silk Virgin Type Braided multifilament Twisted multifilament Composition Braided fibres from the Twisted fibres from the cocoon of the silkworm cocoon of the silkworm Coating Waxes None Silicone Colour Black Blue Tissue reaction Moderate Absorption Silk suture elicits an initial inflammatory reaction in tissues, which is followed by gradual encapsulation of the suture by fibrous connective tissues. Presentation Box with 12 sutures Silk Revision 3

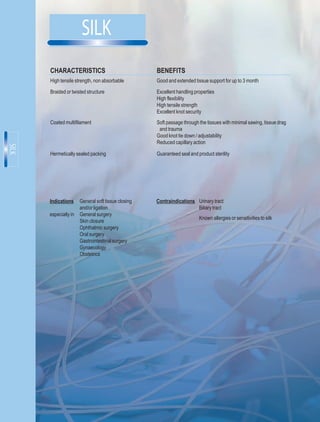

SILK CHARACTERISTICS BENEFITS High tensile strength, non absorbable Good and extended tissue support for up to 3 month Braided or twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Urinary tract and/or ligation Biliary tract especially in General surgery Known allergies or sensitivities to silk Skin closure Ophthalmic surgery Oral surgery Gastrointestinal surgery Gynaecology Obstetrics
Metric EP USP Length Order number 2 3/0 150 cm black 820 0015 Without needle 3 2/0 150 cm black 830 0015 3.5 0 150 cm black 835 0015 4 1 150 cm black 840 0015 5 2 150 cm black 850 0015 6 3&4 150 cm black 860 0015 2 3/0 6 x 45 cm black 820 0044 3 2/0 6 x 45 cm black 830 0044 3.5 0 6 x 45 cm black 835 0044 4 1 6 x 45 cm black 840 0044 1.5 4/0 17 x 45 cm black 815 0046 2 3/0 17 x 45 cm black 820 0046 3 2/0 17 x 45 cm black 830 0046 3.5 0 17 x 45 cm black 835 0046 4 1 17 x 45 cm black 840 0046 5 2 17 x 45 cm black 850 0046 1.5 4/0 13 x 60 cm black 815 0060 2 3/0 13 x 60 cm black 820 0060 3 2/0 13 x 60 cm black 830 0060 3.5 0 13 x 60 cm black 835 0060 4 1 13 x 60 cm black 840 0060 2 3/0 12 x 75 cm black 820 0075 3 2/0 12 x 75 cm black 830 0075 3.5 0 12 x 75 cm black 835 0075 4 1 12 x 75 cm black 840 0075 HR 12 mm 0.7 6/0 45 cm 807 0112 Round bodied black taper point 1/2 Circle HR 16 mm 0.7 6/0 45 cm black 807 0116 1 5/0 75 cm black 810 0116 1.5 4/0 75 cm black 815 0116 2 3/0 75 cm black 820 0116 Silk Revision 3 Page 1 www.sutures.be
Metric EP USP Length Order number HR 20 mm 1 5/0 75 cm black 810 0120 Round bodied 1.5 4/0 75 cm black 815 0120 taper point 2 3/0 75 cm black 820 0120 1/2 3 2/0 75 cm black 830 0120 Circle 3.5 0 75 cm black 835 0120 HR 26 mm 1.5 4/0 75 cm black 815 0126 2 3/0 75 cm black 820 0126 3 2/0 75 cm black 830 0126 3.5 0 75 cm black 835 0126 4 1 75 cm black 840 0126 HR 30 mm 2 3/0 75 cm black 820 0130 3 2/0 75 cm black 830 0130 3.5 0 75 cm black 835 0130 4 1 75 cm black 840 0130 HR 37 mm 3 2/0 75 cm black 830 0137 3.5 0 75 cm black 835 0137 4 1 75 cm black 840 0137 5 2 75 cm black 850 0137 GR 40 mm 3 2/0 2/0 75 cm 75 cm black 830 2040 830 2040 Round bodied taper point Straight Silk Revision 3 Page 2 www.sutures.be

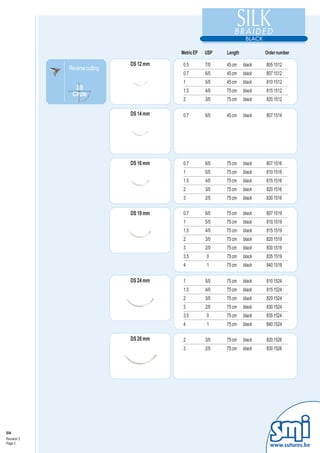

Metric EP USP Length Order number DS 12 mm 0.5 7/0 45 cm black 805 1512 Reverse cutting 0.7 6/0 45 cm black 807 1512 1 5/0 45 cm black 810 1512 3/8 1.5 4/0 75 cm black 815 1512 Circle 2 3/0 75 cm black 820 1512 DS 14 mm 0.7 6/0 45 cm black 807 1514 DS 16 mm 0.7 6/0 75 cm black 807 1516 1 5/0 75 cm black 810 1516 1.5 4/0 75 cm black 815 1516 2 3/0 75 cm black 820 1516 3 2/0 75 cm black 830 1516 DS 19 mm 0.7 6/0 75 cm black 807 1519 1 5/0 75 cm black 810 1519 1.5 4/0 75 cm black 815 1519 2 3/0 75 cm black 820 1519 3 2/0 75 cm black 830 1519 3.5 0 75 cm black 835 1519 4 1 75 cm black 840 1519 DS 24 mm 1 5/0 75 cm black 810 1524 1.5 4/0 75 cm black 815 1524 2 3/0 75 cm black 820 1524 3 2/0 75 cm black 830 1524 3.5 0 75 cm black 835 1524 4 1 75 cm black 840 1524 DS 26 mm 2 3/0 75 cm black 820 1526 3 2/0 75 cm black 830 1526 Silk Revision 3 Page 3 www.sutures.be

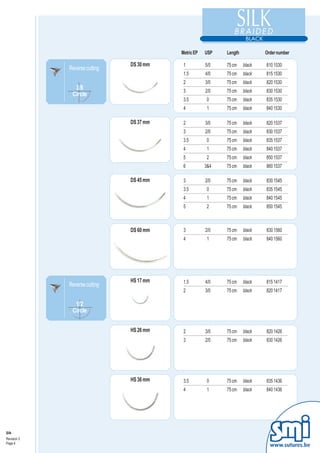

Metric EP USP Length Order number DS 30 mm 1 5/0 75 cm black 810 1530 Reverse cutting 1.5 4/0 75 cm black 815 1530 2 3/0 75 cm black 820 1530 3/8 3 2/0 75 cm black 830 1530 Circle 3.5 0 75 cm black 835 1530 4 1 75 cm black 840 1530 DS 37 mm 2 3/0 75 cm black 820 1537 3 2/0 75 cm black 830 1537 3.5 0 75 cm black 835 1537 4 1 75 cm black 840 1537 5 2 75 cm black 850 1537 6 3&4 75 cm black 860 1537 DS 45 mm 3 2/0 75 cm black 830 1545 3.5 0 75 cm black 835 1545 4 1 75 cm black 840 1545 5 2 75 cm black 850 1545 DS 60 mm 3 2/0 75 cm black 830 1560 4 1 75 cm black 840 1560 HS 17 mm 1.5 4/0 75 cm black 815 1417 Reverse cutting 2 3/0 75 cm black 820 1417 1/2 Circle HS 26 mm 2 3/0 75 cm black 820 1426 3 2/0 75 cm black 830 1426 HS 36 mm 3.5 0 75 cm black 835 1436 4 1 75 cm black 840 1436 Silk Revision 3 Page 4 www.sutures.be

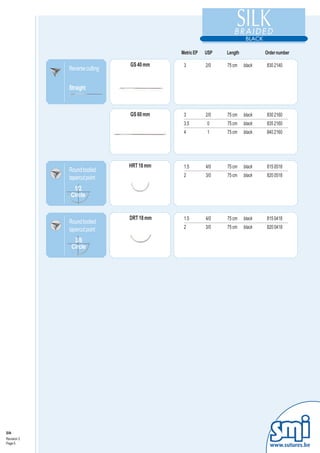

Metric EP USP Length Order number GS 40 mm 3 2/0 75 cm black 830 2140 Reverse cutting Straight GS 60 mm 3 2/0 75 cm black 830 2160 3.5 0 75 cm black 835 2160 4 1 75 cm black 840 2160 HRT 18 mm 1.5 4/0 75 cm black 815 0518 Round bodied tapercut point 2 3/0 75 cm black 820 0518 1/2 Circle DRT 18 mm 1.5 4/0 75 cm black 815 0418 Round bodied tapercut point 2 3/0 75 cm black 820 0418 3/8 Circle Silk Revision 3 Page 5 www.sutures.be

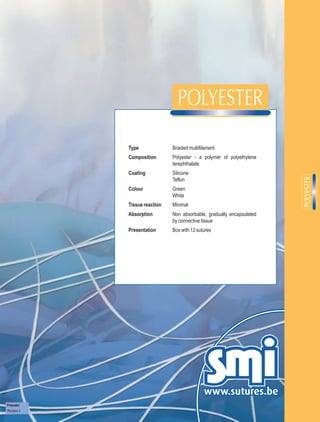

Type Braided multifilament Composition Polyester - a polymer of polyethylene terephthalate Coating Silicone Teflon Colour Green White Tissue reaction Minimal Absorption Non absorbable, gradually encapsulated by connective tissue Presentation Box with 12 sutures Polyester Revision 3

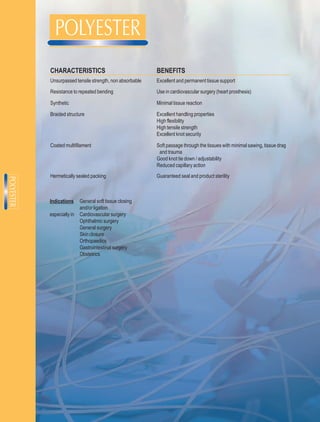

CHARACTERISTICS BENEFITS Unsurpassed tensile strength, non absorbable Excellent and permanent tissue support Resistance to repeated bending Use in cardiovascular surgery (heart prosthesis) Synthetic Minimal tissue reaction Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation especially in Cardiovascular surgery Ophthalmic surgery General surgery Skin closure Orthopaedics Gastrointestinal surgery Obstetrics

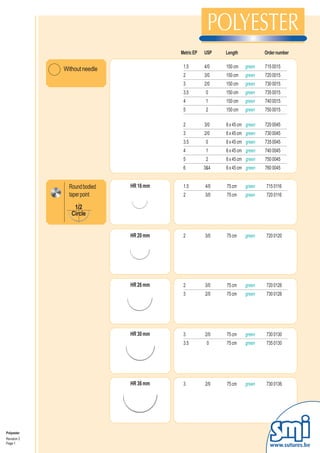

Metric EP USP Length Order number 2 1.5 3/0 4/0 6 x 45 cm 150 cm 720 0045 715 0015 Without needle 3 2/0 6 x 45 cm green 730 0045 2 3.5 3/0 0 150 cm 6 x 45 cm green 720 0015 735 0045 4 3 1 2/0 6 x 45 cm 150 cm green 740 0045 730 0015 5 2 6 x 45 cm 750 0045 3.5 0 150 cm green 735 0015 4 1 150 cm green 740 0015 5 2 150 cm green 750 0015 2 3/0 6 x 45 cm green 720 0045 3 2/0 6 x 45 cm green 730 0045 3.5 0 6 x 45 cm green 735 0045 4 1 6 x 45 cm green 740 0045 5 2 6 x 45 cm green 750 0045 6 3&4 6 x 45 cm green 760 0045 Round bodied HR 16 mm 1.5 4/0 75 cm green 715 0116 taper point 2 3/0 75 cm green 720 0116 1/2 Circle HR 20 mm 2 3/0 75 cm green 720 0120 HR 26 mm 2 3/0 75 cm green 720 0126 3 2/0 75 cm green 730 0126 HR 30 mm 3 2/0 75 cm green 730 0130 3.5 0 75 cm green 735 0130 HR 36 mm 3 2/0 75 cm green 730 0136 Polyester Revision 3 Page 1 www.sutures.be

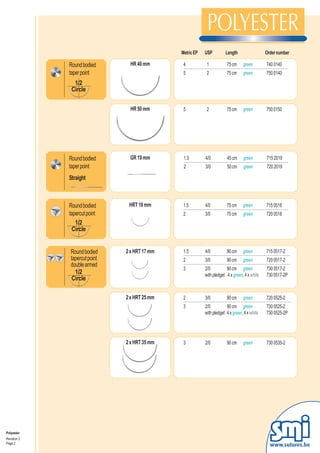

Metric EP USP Length Order number Round bodied HR 40 mm 4 1 75 cm green 740 0140 taper point 5 2 75 cm green 750 0140 1/2 Circle HR 50 mm 5 2 75 cm green 750 0150 Round bodied GR 19 mm 1.5 4/0 45 cm green 715 2019 taper point 2 3/0 50 cm green 720 2019 Straight Round bodied HRT 18 mm 1.5 4/0 75 cm green 715 0518 tapercut point 2 3/0 75 cm green 720 0518 1/2 Circle Round bodied 2 x HRT 17 mm 1.5 4/0 90 cm green 715 0517-2 tapercut point 2 3/0 90 cm green 720 0517-2 double armed 3 2/0 90 cm green 730 0517-2 1/2 with pledget 4 x green, 4 x white 730 0517-2P Circle 2 x HRT 25 mm 2 3/0 90 cm green 720 0525-2 3 2/0 90 cm green 730 0525-2 with pledget 4 x green, 4 x white 730 0525-2P 2 x HRT 35 mm 3 2/0 90 cm green 730 0535-2 Polyester Revision 3 Page 2 www.sutures.be

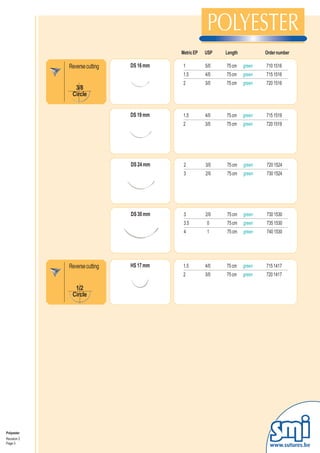

Metric EP USP Length Order number Reverse cutting DS 16 mm 1 5/0 75 cm green 710 1516 1.5 4/0 75 cm green 715 1516 2 3/0 75 cm green 720 1516 3/8 Circle DS 19 mm 1.5 4/0 75 cm green 715 1519 2 3/0 75 cm green 720 1519 DS 24 mm 2 3/0 75 cm green 720 1524 3 2/0 75 cm green 730 1524 DS 30 mm 3 2/0 75 cm green 730 1530 3.5 0 75 cm green 735 1530 4 1 75 cm green 740 1530 Reverse cutting HS 17 mm 1.5 4/0 75 cm green 715 1417 2 3/0 75 cm green 720 1417 1/2 Circle Polyester Revision 3 Page 3 www.sutures.be

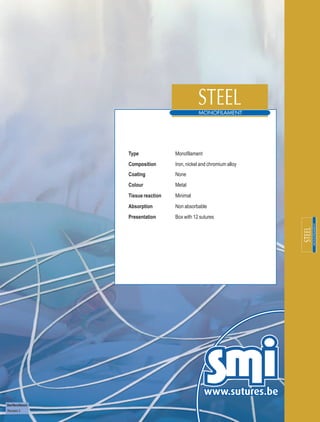

Type Monofilament Composition Iron, nickel and chromium alloy Coating None Colour Metal Tissue reaction Minimal Absorption Non absorbable Presentation Box with 12 sutures Steel Monofilament Revision 3

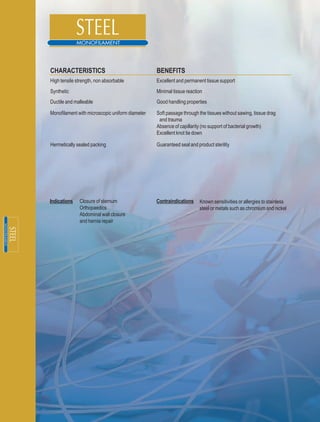

CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and permanent tissue support Synthetic Minimal tissue reaction Ductile and malleable Good handling properties Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Hermetically sealed packing Guaranteed seal and product sterility Indications Closure of sternum Contraindications Known sensitivities or allergies to stainless Orthopaedics steel or metals such as chromium and nickel Abdominal wall closure and hernia repair

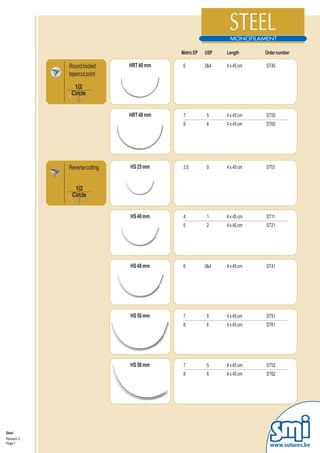

Metric EP USP Length Order number Round bodied HRT 40 mm 6 3&4 4 x 45 cm ST45 tapercut point 1/2 Circle HRT 48 mm 7 5 4 x 45 cm ST55 8 6 4 x 45 cm ST65 Reverse cutting HS 25 mm 3.5 0 4 x 45 cm ST01 1/2 Circle HS 40 mm 4 1 4 x 45 cm ST11 5 2 4 x 45 cm ST21 HS 48 mm 6 3&4 4 x 45 cm ST41 HS 50 mm 7 5 4 x 45 cm ST51 8 6 4 x 45 cm ST61 HS 58 mm 7 5 4 x 45 cm ST52 8 6 4 x 45 cm ST62 Steel Revision 3 Page 1 www.sutures.be

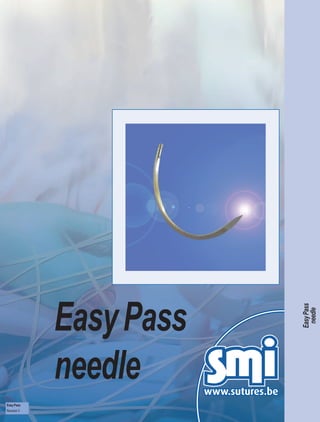

Easy Pass needle Easy Pass needle Easy Pass Revision 3

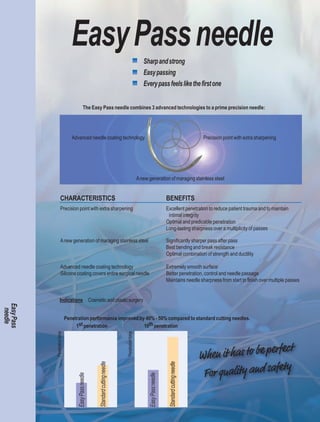

Easy Pass needle Sharp and strong Easy passing Every pass feels like the first one The Easy Pass needle combines 3 advanced technologies to a prime precision needle: Advanced needle coating technology Precision point with extra sharpening A new generation of maraging stainless steel CHARACTERISTICS BENEFITS Precision point with extra sharpening Excellent penetration to reduce patient trauma and to maintain intimal integrity Optimal and predicable penetration Long-lasting sharpness over a multiplicity of passes A new generation of maraging stainless steel Significantly sharper pass after pass Best bending and break resistance Optimal combination of strength and ductility Advanced needle coating technology Extremely smooth surface Silicone coating covers entire surgical needle Better penetration, control and needle passage Maintains needle sharpness from start to finish over multiple passes Indications Cosmetic and plastic surgery Easy Pass needle Penetration performance improved by 40% - 50% compared to standard cutting needles. 1st penetration 10th penetration Penetration force Penetration force fect W hen it has to be per ety or quality and saf Standard cutting needle Standard cutting needle F Easy Pass needle Easy Pass needle

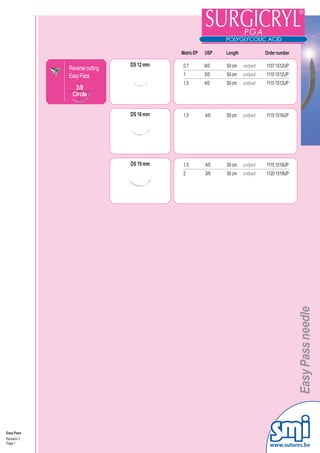

Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 1107 1512UP Reverse cutting undyed Easy Pass 1 5/0 50 cm undyed 1110 1512UP 1.5 4/0 50 cm undyed 1115 1512UP 3/8 Circle DS 16 mm 1.5 4/0 50 cm undyed 1115 1516UP DS 19 mm 1.5 4/0 50 cm undyed 1115 1519UP 2 3/0 50 cm undyed 1120 1519UP Easy Pass needle Easy Pass Revision 3 Page 1 www.sutures.be

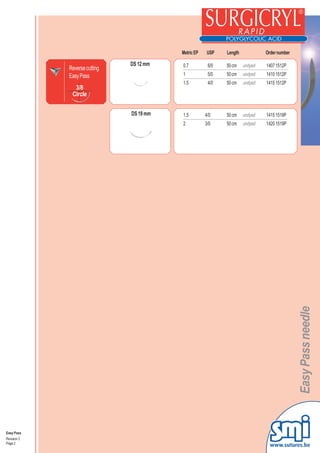

Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm undyed 1407 1512P Reverse cutting Easy Pass 1 5/0 50 cm undyed 1410 1512P 1.5 4/0 50 cm undyed 1415 1512P 3/8 Circle DS 19 mm 1.5 4/0 50 cm undyed 1415 1519P 2 3/0 50 cm undyed 1420 1519P Easy Pass needle Easy Pass Revision 3 Page 2 www.sutures.be
Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 1607 1512P Reverse cutting undyed Easy Pass 1 5/0 50 cm undyed 1610 1512P 1.5 4/0 50 cm undyed 1615 1512P 3/8 Circle DS 16 mm 1 5/0 50 cm undyed 1610 1516P 1.5 4/0 50 cm undyed 1615 1516P DS 19 mm 1.5 4/0 50 cm undyed 1615 1519P 2 3/0 50 cm undyed 1620 1519P Easy Pass needle Easy Pass Revision 3 Page 3 www.sutures.be
Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 507 1512P Reverse cutting blue Easy Pass 1 5/0 50 cm blue 510 1512P 3/8 Circle DS 16 mm 1 5/0 50 cm blue 510 1516P 1.5 4/0 50 cm blue 515 1516P DS 19 mm 1.5 4/0 50 cm blue 515 1519P 2 3/0 50 cm blue 520 1519P 3 2/0 50 cm blue 530 1519P DS 24 mm 3 2/0 50 cm blue 530 1524P Easy Pass needle Easy Pass Revision 3 Page 4 www.sutures.be

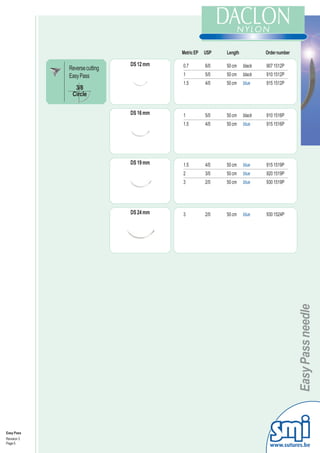

Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 907 1512P Reverse cutting black Easy Pass 1 5/0 50 cm black 910 1512P 1.5 4/0 50 cm blue 915 1512P 3/8 Circle DS 16 mm 1 5/0 50 cm black 910 1516P 1.5 4/0 50 cm blue 915 1516P DS 19 mm 1.5 4/0 50 cm blue 915 1519P 2 3/0 50 cm blue 920 1519P 3 2/0 50 cm blue 930 1519P DS 24 mm 3 2/0 50 cm blue 930 1524P Easy Pass needle Easy Pass Revision 3 Page 5 www.sutures.be

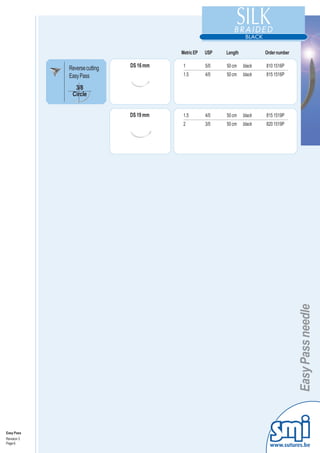

Metric EP USP Length Order number Reverse cutting DS 16 mm 1 5/0 50 cm black 810 1516P Easy Pass 1.5 4/0 50 cm black 815 1516P 3/8 Circle DS 19 mm 1.5 4/0 50 cm black 815 1519P 2 3/0 50 cm black 820 1519P Easy Pass needle Easy Pass Revision 3 Page 6 www.sutures.be
Ophthalmic surgery Ophthalmic surgery Ophthalmic Revision 3

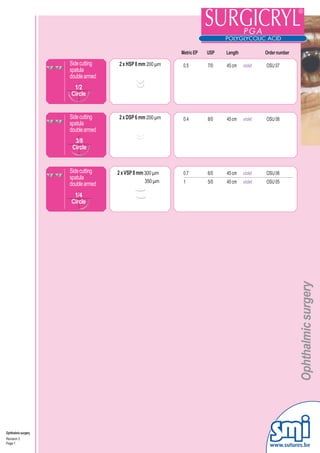

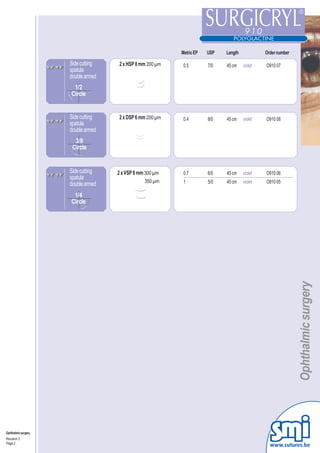

Metric EP USP Length Order number Side cutting 2 x HSP 8 mm 200 µm 0.5 7/0 45 cm violet O910 07 spatula double armed 1/2 Circle Side cutting 2 x DSP 6 mm 200 µm 0.4 8/0 45 cm violet O910 08 spatula double armed 3/8 Circle Side cutting 2 x VSP 8 mm 300 µm 0.7 6/0 45 cm violet O910 06 spatula 350 µm double armed 1 5/0 45 cm violet O910 05 1/4 Circle Ophthalmic surgery Ophthalmic surgery Revision 3 Page 2 www.sutures.be
Metric EP USP Length Order number Side cutting 2 x HSP 8 mm 200 µm 0.5 7/0 45 cm violet OSU 07 spatula double armed 1/2 Circle Side cutting 2 x DSP 6 mm 200 µm 0.4 8/0 45 cm violet OSU 08 spatula double armed 3/8 Circle Side cutting 2 x VSP 8 mm 300 µm 0.7 6/0 45 cm violet OSU 06 spatula 350 µm double armed 1 5/0 45 cm violet OSU 05 1/4 Circle Ophthalmic surgery Ophthalmic surgery Revision 3 Page 1 www.sutures.be

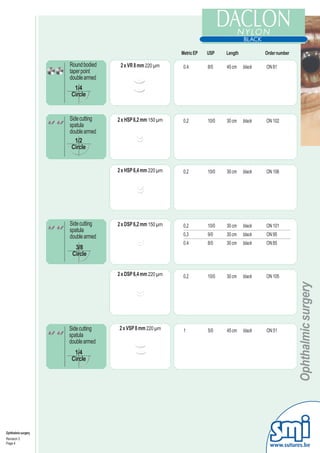

Metric EP USP Length Order number Round bodied 2 x VR 8 mm 220 µm 0.4 8/0 45 cm black ON 81 taper point double armed 1/4 Circle Side cutting 2 x HSP 6,2 mm 150 µm 0,2 10/0 30 cm black ON 102 spatula double armed 1/2 Circle 2 x HSP 6,4 mm 220 µm 0,2 10/0 30 cm black ON 106 Side cutting 2 x DSP 6,2 mm 150 µm 0,2 10/0 30 cm black ON 101 spatula double armed 0,3 9/0 30 cm black ON 95 0.4 8/0 30 cm black ON 85 3/8 Circle 2 x DSP 6,4 mm 220 µm 0,2 10/0 30 cm black ON 105 Ophthalmic surgery Side cutting 2 x VSP 8 mm 220 µm 1 5/0 45 cm black ON 51 spatula double armed 1/4 Circle Ophthalmic surgery Revision 3 Page 4 www.sutures.be

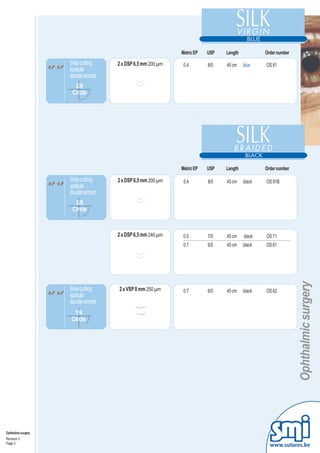

Metric EP USP Length Order number Side cutting 2 x DSP 6,5 mm 200 µm 0.4 8/0 45 cm blue OS 81 spatula double armed 3/8 Circle Metric EP USP Length Order number Side cutting 2 x DSP 6,5 mm 200 µm 0.4 8/0 45 cm black OS 81B spatula double armed 3/8 Circle 2 x DSP 6,5 mm 240 µm 0.5 7/0 45 cm black OS 71 0.7 6/0 45 cm black OS 61 Side cutting 2 x VSP 8 mm 250 µm 0.7 6/0 45 cm black OS 62 Ophthalmic surgery spatula double armed 1/4 Circle Ophthalmic surgery Revision 3 Page 3 www.sutures.be

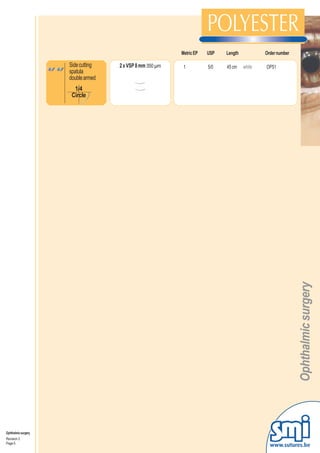

Metric EP USP Length Order number Side cutting 2 x VSP 8 mm 350 µm 1 5/0 45 cm white OP51 spatula double armed 1/4 Circle Ophthalmic surgery Ophthalmic surgery Revision 3 Page 5 www.sutures.be

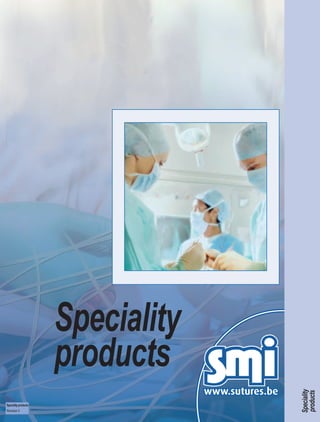

Speciality products Speciality products Speciality products Revision 3

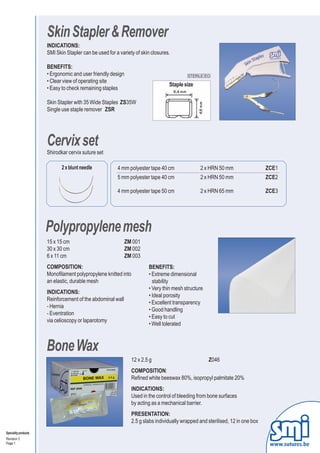

Skin Stapler & Remover INDICATIONS: SMI Skin Stapler can be used for a variety of skin closures. BENEFITS: • Ergonomic and user friendly design STERILE EO • Clear view of operating site Staple size • Easy to check remaining staples Skin Stapler with 35 Wide Staples ZS35W Single use staple remover ZSR Cervix set Shirodkar cervix suture set 2 x blunt needle 4 mm polyester tape 40 cm 2 x HRN 50 mm ZCE1 5 mm polyester tape 40 cm 2 x HRN 50 mm ZCE2 4 mm polyester tape 50 cm 2 x HRN 65 mm ZCE3 Polypropylene mesh 15 x 15 cm ZM 001 30 x 30 cm ZM 002 6 x 11 cm ZM 003 COMPOSITION: BENEFITS: Monofilament polypropylene knitted into • Extreme dimensional an elastic, durable mesh stability • Very thin mesh structure INDICATIONS: • Ideal porosity Reinforcement of the abdominal wall • Excellent transparency - Hernia • Good handling - Eventration • Easy to cut via celioscopy or laparotomy • Well tolerated Bone Wax 12 x 2.5 g Z046 COMPOSITION: Refined white beeswax 80%, isopropyl palmitate 20% INDICATIONS: Used in the control of bleeding from bone surfaces by acting as a mechanical barrier. PRESENTATION: 2.5 g slabs individually wrapped and sterilised, 12 in one box Speciality products Revision 3 Page 1 www.sutures.be

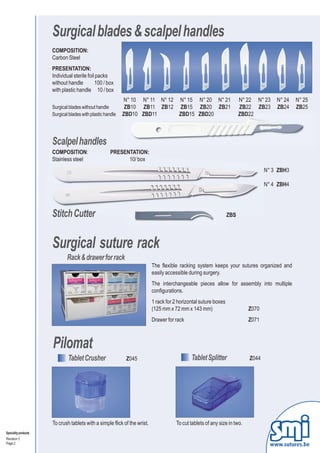

Surgical blades & scalpel handles COMPOSITION: Carbon Steel PRESENTATION: Individual sterile foil packs without handle 100 / box with plastic handle 10 / box N° 10 N° 11 N° 12 N° 15 N° 20 N° 21 N° 22 N° 23 N° 24 N° 25 Surgical blades without handle ZB10 ZB11 ZB12 ZB15 ZB20 ZB21 ZB22 ZB23 ZB24 ZB25 Surgical blades with plastic handle ZBD10 ZBD11 ZBD15 ZBD20 ZBD22 Scalpel handles COMPOSITION: PRESENTATION: Stainless steel 10/ box N° 3 ZBH3 N° 4 ZBH4 Stitch Cutter ZBS Surgical suture rack Rack & drawer for rack The flexible racking system keeps your sutures organized and easily accessible during surgery. The interchangeable pieces allow for assembly into multiple configurations. 1 rack for 2 horizontal suture boxes (125 mm x 72 mm x 143 mm) Z070 Drawer for rack Z071 Pilomat Tablet Crusher Z045 Tablet Splitter Z044 To crush tablets with a simple flick of the wrist. To cut tablets of any size in two. Speciality products Revision 3 Page 2 www.sutures.be

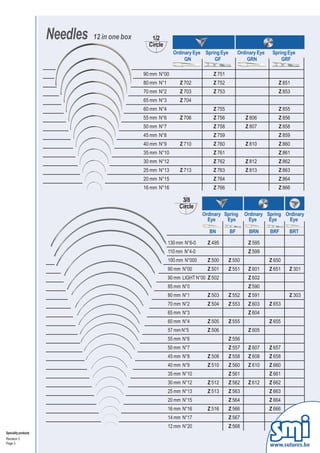

Needles 12 in one box 1/2 Circle Ordinary Eye Spring Eye Ordinary Eye Spring Eye GN GF GRN GRF 90 mm N°00 Z 751 80 mm N°1 Z 702 Z 752 Z 851 70 mm N°2 Z 703 Z 753 Z 853 65 mm N°3 Z 704 60 mm N°4 Z 755 Z 855 55 mm N°6 Z 706 Z 756 Z 806 Z 856 50 mm N°7 Z 758 Z 807 Z 858 45 mm N°8 Z 759 Z 859 40 mm N°9 Z 710 Z 760 Z 810 Z 860 35 mm N°10 Z 761 Z 861 30 mm N°12 Z 762 Z 812 Z 862 25 mm N°13 Z 713 Z 763 Z 813 Z 863 20 mm N°15 Z 764 Z 864 16 mm N°16 Z 766 Z 866 3/8 Circle Ordinary Spring Ordinary Spring Ordinary Eye Eye Eye Eye Eye BN BF BRN BRF BRT 130 mm N°6-0 Z 495 Z 595 110 mm N°4-0 Z 599 100 mm N°000 Z 500 Z 550 Z 650 90 mm N°00 Z 501 Z 551 Z 601 Z 651 Z 301 90 mm LIGHT N°00 Z 502 Z 602 85 mm N°0 Z 590 80 mm N°1 Z 503 Z 552 Z 591 Z 303 70 mm N°2 Z 504 Z 553 Z 603 Z 653 65 mm N°3 Z 604 60 mm N°4 Z 505 Z 555 Z 655 57 mm N°5 Z 506 Z 605 55 mm N°6 Z 556 50 mm N°7 Z 557 Z 607 Z 657 45 mm N°8 Z 508 Z 558 Z 608 Z 658 40 mm N°9 Z 510 Z 560 Z 610 Z 660 35 mm N°10 Z 561 Z 661 30 mm N°12 Z 512 Z 562 Z 612 Z 662 25 mm N°13 Z 513 Z 563 Z 663 20 mm N°15 Z 564 Z 664 16 mm N°16 Z 516 Z 566 Z 666 14 mm N°17 Z 567 12 mm N°20 Z 568 Speciality products Revision 3 Page 3 www.sutures.be

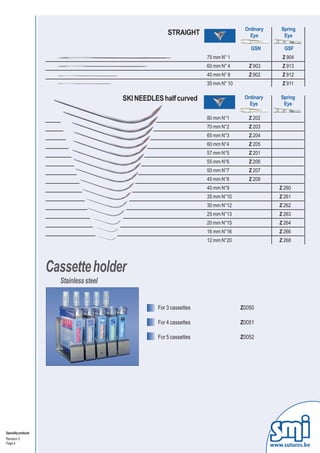

STRAIGHT Ordinary Spring Eye Eye GSN GSF 75 mm N° 1 Z 904 60 mm N° 4 Z 903 Z 913 40 mm N° 9 Z 902 Z 912 35 mm N° 10 Z 911 SKI NEEDLES half curved Ordinary Spring Eye Eye 80 mm N°1 Z 202 70 mm N°2 Z 203 65 mm N°3 Z 204 60 mm N°4 Z 205 57 mm N°5 Z 201 55 mm N°6 Z 206 50 mm N°7 Z 207 45 mm N°8 Z 208 40 mm N°9 Z 260 35 mm N°10 Z 261 30 mm N°12 Z 262 25 mm N°13 Z 263 20 mm N°15 Z 264 16 mm N°16 Z 266 12 mm N°20 Z 268 Cassette holder Stainless steel For 3 cassettes Z0050 For 4 cassettes Z0051 For 5 cassettes Z0052 Speciality products Revision 3 Page 4 www.sutures.be

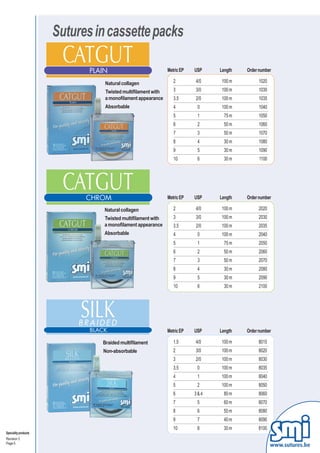

Sutures in cassette packs Metric EP USP Length Order number Natural collagen 2 4/0 100 m 1020 Twisted multifilament with 3 3/0 100 m 1030 a monofilament appearance 3.5 2/0 100 m 1035 Absorbable 4 0 100 m 1040 5 1 75 m 1050 6 2 50 m 1060 7 3 50 m 1070 8 4 30 m 1080 9 5 30 m 1090 10 6 30 m 1100 Metric EP USP Length Order number Natural collagen 2 4/0 100 m 2020 Twisted multifilament with 3 3/0 100 m 2030 a monofilament appearance 3.5 2/0 100 m 2035 Absorbable 4 0 100 m 2040 5 1 75 m 2050 6 2 50 m 2060 7 3 50 m 2070 8 4 30 m 2080 9 5 30 m 2090 10 6 30 m 2100 Metric EP USP Length Order number Braided multifilament 1.5 4/0 100 m 8015 Non-absorbable 2 3/0 100 m 8020 3 2/0 100 m 8030 3.5 0 100 m 8035 4 1 100 m 8040 5 2 100 m 8050 6 3&4 80 m 8060 7 5 60 m 8070 8 6 50 m 8080 9 7 40 m 8090 10 8 30 m 8100 Speciality products Revision 3 Page 5 www.sutures.be

More Related Content

PPTX
Practical skills in medical practice
byAvinash Bhondwe

PPT
Sutures Materials
byIAU Dent

PDF
Ytesonhuong chi-phau-thuat-b.braun-safil-quick
bySon Huong Medical Equipment

PDF
Overstitch by Apollo Endosurgery
byBen Gurion University of the Negev

PDF
09 mirror shine stainless steel
byArteferro Botnic

PDF
07 endcaps stainless steel
byArteferro Botnic

PDF
Catalog fire-de-sutura-montigen-smi
byMontigen

PDF
03 handrail supports stainless steel
byArteferro Botnic

Practical skills in medical practice
byAvinash Bhondwe

Sutures Materials
byIAU Dent

Ytesonhuong chi-phau-thuat-b.braun-safil-quick
bySon Huong Medical Equipment

Overstitch by Apollo Endosurgery
byBen Gurion University of the Negev

09 mirror shine stainless steel
byArteferro Botnic

07 endcaps stainless steel
byArteferro Botnic

Catalog fire-de-sutura-montigen-smi
byMontigen

03 handrail supports stainless steel
byArteferro Botnic


Similar to Catalog fire de sutura Montigen

PPTX
Surgical needles basics
byArfan Ahmed Shourov

PPT
Suture materials
byHaseeb Manzoor

PPTX
Suture materials and techniques
byDrAmrutaSardeshmukh

PPT
Suture material
byvasanramkumar

PPTX
Surgical Needles.pptx
byMahesh Raj

PPTX
Sutures
byBernard Chung

PPTX
Sutures
byReshma Kc

PDF
Six major elements_of_sewing
bywwwniranga

PDF
suturing WHITE.pdfswdmfkemkfmkdsmkmdfknfk
bymohamedelshial

PDF
005574 b.pdf
byMatías Hernández López

PDF
3.implant components and basic techniques3
bywww.ffofr.org - Foundation for Oral Facial Rehabilitiation

PPTX
SUTURING TECHNIQUE.pptx
bypranjalibawankar1

PDF
Biocalis lipoplasty catalogue
byUlas Ortakci

PDF
Ytesonhuong chi-phau-thuat-b.braun-mono-plus
bySon Huong Medical Equipment

PDF
woundclosureknottying other things to use.pdf
byLawrenceshamboko

PDF
Ytesonhuong chi-phau-thuat-b.braun-premilene
bySon Huong Medical Equipment

PDF
960004a new featured 2011 us_web.pdf
byMatías Hernández López

PPT
Mes Presentation 2012
bydbibber

PDF
760746a infinity intl_ss_web.pdf (from bel_air)
byMatías Hernández López

PDF
760746a infinity intl_ss_web.pdf
byMatías Hernández López

Surgical needles basics
byArfan Ahmed Shourov

Suture materials
byHaseeb Manzoor

Suture materials and techniques
byDrAmrutaSardeshmukh

Suture material
byvasanramkumar

Surgical Needles.pptx
byMahesh Raj

Sutures
byBernard Chung

Sutures
byReshma Kc

Six major elements_of_sewing
bywwwniranga

suturing WHITE.pdfswdmfkemkfmkdsmkmdfknfk
bymohamedelshial

005574 b.pdf
byMatías Hernández López

3.implant components and basic techniques3
bywww.ffofr.org - Foundation for Oral Facial Rehabilitiation

SUTURING TECHNIQUE.pptx
bypranjalibawankar1

Biocalis lipoplasty catalogue
byUlas Ortakci

Ytesonhuong chi-phau-thuat-b.braun-mono-plus
bySon Huong Medical Equipment

woundclosureknottying other things to use.pdf
byLawrenceshamboko

Ytesonhuong chi-phau-thuat-b.braun-premilene
bySon Huong Medical Equipment

960004a new featured 2011 us_web.pdf
byMatías Hernández López

Mes Presentation 2012
bydbibber

760746a infinity intl_ss_web.pdf (from bel_air)
byMatías Hernández López

760746a infinity intl_ss_web.pdf
byMatías Hernández López


Recently uploaded

PDF
Ryan’s Retina 6th Ed.................pdf
byMohammad Bawtag

PDF
Autoimmune diseases in children and anesthesia. Dalamagka, Maria
bycatlist1

PDF
4_5857478915135641976.pdf physiology of menstruation
bykdabhdhkryat94

PPTX
Evaluation of Back Pain: Clinical Identification of Pain Generators (Disc, Fa...
byDaradia: The Pain Clinic

PPTX
Lumbar Facet Joint Pain – A Pain Generator Based Diagnostic & Treatment Approach
byDaradia: The Pain Clinic

PDF
Scholar.postdoc - Anaesthesia: Dalamagka, Maria
bycatlist1

PPTX
metabolic syndrome and fasting ( Dr Mohammed bamashmos , sana'a University) ....
byAimanAlkhadher1

PDF
Echocardiography Oct. 15 2023 by Ichilov Hospital
byHaim R. Branisteanu

PPTX
EBOLA VIRUS DISEASE ppt -Ayurveda Detailing
byNandiniM72

PPTX
CURRENT ATLS GUIDELINES IN PEDIATRIC TRAUMA (2).pptx
byFaheem Andrabi

PPTX
Easy Peasy Gut: Complete Digestive Support
byEthniq

PPTX
Human Excretory System (RIT): Kidney Functions & Urine Formation Made Easy
byBALAJI SOMA

PPTX
Biotransformation and Excretion
byBadrinathSelvakumar

PPTX
Biostatistics- Data types and presentation
byAnkitMittal145

PPTX
Chemistry of Hemoglobin (Types, Derivatives and Disorders)
byDr. Santhosh Kumar. N

PPTX
Vitamin Deficiency- Vitamin A, C, D (MBBS)
byReenaz Shaik

PDF
Gastrointestinal Infection PCR Panel Diagnostic Screen
byFelixRendon3

PPTX
Drug use evaluation and WHO drug use Indicators.pptx
byLok Raj Pant

PPTX
Clinical Clerkship Case Presentation on Patient Care and Management (Pharm D)
byPriyankapadvalkar

PPTX
Nervous System: Organization & Functions
byBALAJI SOMA

Ryan’s Retina 6th Ed.................pdf
byMohammad Bawtag

Autoimmune diseases in children and anesthesia. Dalamagka, Maria
bycatlist1

4_5857478915135641976.pdf physiology of menstruation
bykdabhdhkryat94

Evaluation of Back Pain: Clinical Identification of Pain Generators (Disc, Fa...
byDaradia: The Pain Clinic

Lumbar Facet Joint Pain – A Pain Generator Based Diagnostic & Treatment Approach
byDaradia: The Pain Clinic

Scholar.postdoc - Anaesthesia: Dalamagka, Maria
bycatlist1

metabolic syndrome and fasting ( Dr Mohammed bamashmos , sana'a University) ....
byAimanAlkhadher1

Echocardiography Oct. 15 2023 by Ichilov Hospital
byHaim R. Branisteanu

EBOLA VIRUS DISEASE ppt -Ayurveda Detailing
byNandiniM72

CURRENT ATLS GUIDELINES IN PEDIATRIC TRAUMA (2).pptx
byFaheem Andrabi

Easy Peasy Gut: Complete Digestive Support
byEthniq

Human Excretory System (RIT): Kidney Functions & Urine Formation Made Easy
byBALAJI SOMA

Biotransformation and Excretion
byBadrinathSelvakumar

Biostatistics- Data types and presentation
byAnkitMittal145

Chemistry of Hemoglobin (Types, Derivatives and Disorders)
byDr. Santhosh Kumar. N

Vitamin Deficiency- Vitamin A, C, D (MBBS)
byReenaz Shaik

Gastrointestinal Infection PCR Panel Diagnostic Screen
byFelixRendon3

Drug use evaluation and WHO drug use Indicators.pptx
byLok Raj Pant

Clinical Clerkship Case Presentation on Patient Care and Management (Pharm D)
byPriyankapadvalkar

Nervous System: Organization & Functions
byBALAJI SOMA


Catalog fire de sutura Montigen

  • 1.
    For quality andsafety General catalogue 2011 Contact: Tel/Fax: 031 415 56 23 Mobil: 0737 510 509 contact@montigen.ro ONTIGEN medical supplies www.montigen.ro
  • 2.
    SMI: Surgical suturesof the highest quality SMI AG was established in 1987 - the first Belgian company to manufacture surgical sutures - since when it has grown rapidly. Today it is recognised as a world-wide supplier of surgical sutures. The company is situated in St. Vith in the east of Belgium, near the point where the borders of Belgium, Germany and Luxembourg meet. HIGHEST QUALITY AND SAFETY SMI has always complied with international quality standards such as EN ISO 9001 and EN ISO 13485 as well as Good Manufacturing Practice (GMP) procedures. All materials used and finished products are subjected to stringent quality control by a dedicated team headed by an industrial pharmacist. Quality and safety of surgical sutures are thus assured. WORLD-WIDE RECOGNITION SMI exports to 60 different countries all over the world, which make up approximately 80% of SMI’s turnover. This performance earned SMI the “Royal Export Award 2000“ from the Belgian Foreign Trade Board. THE CATALOGUE This catalogue contains information about the full range of SMI suture materials, together with details of the many presentations held in stock. Should any customer require a non standard presentation, this can be manufactured as a “special“ on request.
  • 3.
  • 4.
    ORDER NUMBER SPECIFICATION FOILPACKS All foil packs are packed by the dozen Order number specification 1 20 01 15 2 P suture material 1 CATGUT Plain 2 CATGUT Chrome 4 SUPRAMID 5 POLYPROPYLENE 7 POLYESTER 8 SILK 9 DACLON Nylon 10 STEEL Monofilament 11 SURGICRYL® PGA Polyglycolic acid 13 SURGICRYL® Monofilament Polydioxanone 14 SURGICRYL® Rapid Polyglycolic acid 15 SURGICRYL® 910 Polyglactine 16 SURGICRYL® Monofast Polyglecaprone thread size metric EP needle type 03 5/8 circle • round bodied • taper point FR 01 1/2 circle • round bodied • taper point HR 09 1/2 circle • round bodied • taper point • loop HR 02 3/8 circle • round bodied • taper point DR 07 1/4 circle • round bodied • taper point VR 20 straight • round bodied • taper point GR 30 J-needle • round bodied • taper point JR 05 1/2 circle • round bodied • tapercut point HRT 04 3/8 circle • round bodied • tapercut point DRT 31 J-needle • round bodied • tapercut point JRT 26 3/8 circle • soft cutting point • coronary CC 14 1/2 circle • reverse cutting HS 15 3/8 circle • reverse cutting DS 21 straight • reverse cutting GS 17 3/8 circle • cutting NS 22 1/2 circle • side cutting spatula HSP 23 3/8 circle • side cutting spatula DSP 24 1/4 circle • side cutting spatula VSP 18 1/2 circle • blunt needle • loop HRN 19 3/8 circle • blunt needle DB 00 without needle needle length mm double armed U undyed suture material P Easy Pass needle VB black needle www.sutures.be
  • 5.
    NEEDLE TYPES Needle types 5/8 CIRCLE 1/2 CIRCLE 3/8 CIRCLE 1/4 CIRCLE J-NEEDLE STRAIGHT TAPER POINT SIDE CUTTING SPATULA NEEDLES A gradual taper to a round bodied needle. Needle with cutting edges on the two sides. TAPERCUT POINT SOFT CUTTING POINT - CORONARY Balanced, cutting point-tapering into a round A minute point followed by a round body and bodied needle. a rectangular main body for better penetration in cardiovascular surgery. REVERSE CUTTING CONVENTIONAL CUTTING A triangular body offers a third cutting edge A triangular body offers a third cutting edge on the outer convex curvature. on the inside concave curvature. EASY PASS NEEDLE BLUNT NEEDLE Precision point with extra sharpening. Cylindrical bodied needle with a rounded point. For soft tissue such as in liver and kidneys. Reduced risk of needle stick injuries. www.sutures.be
  • 6.
    NON-ABSORBABLE SUTURES ABSORBABLE SUTURES SUTURE MATERIALS www.sutures.be Suture materials
  • 7.
    SMI PRODUCTS Sutures in foil packs SMI Products Loss of tensile strength over time: SURGICRYL® 910 Polyglactine SURGICRYL® PGA Polyglycolic acid absorbable SURGICRYL® Rapid Polyglycolic acid SURGICRYL® Monofast Polyglecaprone SURGICRYL® Monofilament Polydioxanone CATGUT Plain CATGUT Chrome POLYPROPYLENE DACLON Nylon non-absorbable SUPRAMID Polyamide SILK Braided POLYESTER STEEL Monofilament Easy Pass needle Loss of tensile strength over time: SURGICRYL® 910 Polyglactine SURGICRYL® PGA Polyglycolic acid absorbable SURGICRYL® Rapid Polyglycolic acid SURGICRYL® Monofast Polyglecaprone POLYPROPYLENE non-absorbable DACLON Nylon SILK Braided Ophthalmic surgery Loss of tensile strength over time: SURGICRYL PGA Polyglycolic acid ® absorbable SURGICRYL® 910 Polyglactine SILK Virgin SILK Braided non-absorbable DACLON Nylon POLYESTER Speciality products Skin stapler & remover Surgical suture rack Cervix set Pilomat - tablet crusher and splitter Polypropylene mesh Surgical needles Bone wax Cassette holder Surgical blades & scalpel handles Sutures in cassette packs SURGICRYL® PGA Polyglycolic acid SILK Braided black SURGICRYL® PGA Plus Polyglycolic acid SUPRAMID Polyamide white absorbable non-absorbable SURGICRYL® Monofilament Polydioxanone SUPRAMID Polyamide black SURGICRYL® Monofast Polyglecaprone LINAFIL Natural CATGUT Plain VITAFIL Polyester white CATGUT Chrome DERMAFIL Polyester green DACLON Nylon STEEL Monofilament For more accurate technical information please refer to the package insert. See the complete product list on www.sutures.be. www.sutures.be
  • 8.
    Type Braided and coated multifilament Composition Polyglactine 910, a copolymer made of 90% glycolide and 10% L-lactide Coating Poly-glycolide-co-L-lactide and calcium stearate (<1%) Colour Violet Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption between 56 and 70 days. Between 40% and 50% of tensile strength remain after 21 days. Presentation Box with 12 sutures Surgicryl® 910 Revision 3
  • 9.
    CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Skin closure wound support is required. Gastrointestinal surgery Plastic surgery Caution in patients with delayed wound healing Ophthalmic surgery (e.g. compromised immune system). Gynaecology Obstetrics Orthopaedics Urology TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 10.
    Metric EP USP Length Order number 2 3/0 150 cm violet 1520 0015 Without needle 3 2/0 150 cm violet 1530 0015 3.5 0 150 cm violet 1535 0015 4 1 150 cm violet 1540 0015 5 2 150 cm violet 1550 0015 2 3/0 12 x 45 cm violet 1520 0045 3 2/0 12 x 45 cm violet 1530 0045 3.5 0 12 x 45 cm violet 1535 0045 4 1 12 x 45 cm violet 1540 0045 2 3/0 250 cm violet 1520 0025 Without needle 3 2/0 250 cm violet 1530 0025 Ligapack 3.5 0 250 cm violet 1535 0025 4 1 250 cm violet 1540 0025 Round bodied HR 13 mm 0.7 6/0 75 cm violet 1507 0113 taper point 1/2 Circle HR 17 mm 1 5/0 75 cm violet 1510 0117 1.5 4/0 75 cm violet 1515 0117 2 3/0 75 cm violet 1520 0117 3 2/0 75 cm violet 1530 0117 HR 22 mm 1.5 4/0 75 cm violet 1515 0122 2 3/0 75 cm violet 1520 0122 3 2/0 75 cm violet 1530 0122 HR 26 mm 1.5 4/0 75 cm violet 1515 0126 2 3/0 75 cm violet 1520 0126 3 2/0 75 cm violet 1530 0126 3.5 0 75 cm violet 1535 0126 4 1 75 cm violet 1540 0126 Surgicryl® 910 Revision 3 Page 1 www.sutures.be
  • 11.
    Metric EP USP Length Order number Round bodied HR 30 mm 2 3/0 75 cm violet 1520 0130 taper point 3 2/0 75 cm violet 1530 0130 3.5 0 75 cm violet 1535 0130 1/2 Circle 4 1 75 cm violet 1540 0130 HR 36 mm 2 3/0 75 cm violet 1520 0136 3 2/0 75 cm violet 1530 0136 3.5 0 90 cm violet 1535 0136 4 1 90 cm violet 1540 0136 5 2 90 cm violet 1550 0136 HR 40 mm 3 2/0 75 cm violet 1530 0140 3.5 0 90 cm violet 1535 0140 4 1 90 cm violet 1540 0140 5 2 90 cm violet 1550 0140 HR 45 mm 5 2 90 cm violet 1550 0145 HR 48 mm 3.5 0 90 cm violet 1535 0148 4 1 90 cm violet 1540 0148 5 2 90 cm violet 1550 0148 Reverse cutting HS 36 mm 3 2/0 75 cm violet 1530 1436 3.5 0 90 cm violet 1535 1436 4 1 90 cm 1540 1436 1/2 violet Circle HS 40 mm 4 1 90 cm violet 1540 1440 5 2 90 cm violet 1550 1440 Surgicryl® 910 Revision 3 Page 2 www.sutures.be
  • 12.
    Metric EP USP Length Order number Reverse cutting DS 12 mm 0.7 6/0 45 cm violet 1507 1512 1 5/0 45 cm violet 1510 1512 3/8 Circle DS 19 mm 1 5/0 75 cm violet 1510 1519 1.5 4/0 75 cm violet 1515 1519 2 3/0 75 cm violet 1520 1519 DS 24 mm 2 3/0 75 cm violet 1520 1524 3 2/0 75 cm violet 1530 1524 3.5 0 75 cm violet 1535 1524 DS 26 mm 2 3/0 75 cm violet 1520 1526 3 2/0 75 cm violet 1530 1526 DS 30 mm 3 2/0 75 cm violet 1530 1530 3.5 0 75 cm violet 1535 1530 DS 36 mm 3.5 0 75 cm violet 1535 1536 4 1 75 cm violet 1540 1536 DS 40 mm 3.5 0 75 cm violet 1535 1540 4 1 75 cm violet 1540 1540 Blunt DB 63 mm 4 1 100 cm violet 1540 1963 3/8 Circle Surgicryl® 910 Revision 3 Page 3 www.sutures.be
  • 13.
    Type Braided and coated multifilament Composition Polyglycolic acid Coating Polycaprolactone and calcium stearate (1%) Colour Violet / Beige - undyed Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 60 to 90 days. Approximately 50% of tensile strength remain after 21 days. Presentation Box with 12 sutures Surgicryl® PGA Revision 3
  • 14.
    CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Skin closure wound support is required. Gastrointestinal surgery Gynaecology Caution in patients with delayed wound healing Obstetrics (e.g. compromised immune system). Plastic surgery Urology Ophthalmic surgery Orthopaedics TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 15.
    Metric EP USP Length Order number 2 3/0 150 cm violet 1120 0015 Without needle 3 2/0 150 cm violet 1130 0015 3.5 0 150 cm violet 1135 0015 4 1 150 cm violet 1140 0015 5 2 150 cm violet 1150 0015 6 3&4 150 cm violet 1160 0015 7 5 150 cm violet 1170 0015 2 3/0 3 x 50 cm violet 1120 0050 3 2/0 3 x 50 cm violet 1130 0050 3.5 0 3 x 50 cm violet 1135 0050 4 1 3 x 50 cm violet 1140 0050 5 2 3 x 50 cm violet 1150 0050 2 3/0 12 x 45 cm violet 1120 0045 3 2/0 12 x 45 cm violet 1130 0045 3.5 0 12 x 45 cm violet 1135 0045 4 1 12 x 45 cm violet 1140 0045 5 2 12 x 45 cm violet 1150 0045 2 3/0 5 x 70 cm violet 1120 0070 3 2/0 5 x 70 cm violet 1130 0070 3.5 0 5 x 70 cm violet 1135 0070 4 1 5 x 70 cm violet 1140 0070 5 2 5 x 70 cm violet 1150 0070 2 3/0 250 cm violet 1120 0025 Without needle 3 2/0 250 cm violet 1130 0025 Ligapack 3.5 0 250 cm violet 1135 0025 4 1 250 cm violet 1140 0025 5 2 250 cm violet 1150 0025 6 3&4 250 cm violet 1160 0025 7 5 250 cm violet 1170 0025 8 6 250 cm violet 1180 0025 Surgicryl® PGA Revision 3 Page 1 www.sutures.be
  • 16.
    Metric EP USP Length Order number Round bodied HR 13 mm 0.7 6/0 75 cm violet 1107 0113 taper point 1/2 Circle HR 17 mm 1 5/0 75 cm violet 1110 0117 1.5 4/0 75 cm violet 1115 0117 2 3/0 75 cm violet 1120 0117 HR 22 mm 1.5 4/0 75 cm violet 1115 0122 2 3/0 75 cm violet 1120 0122 3 2/0 75 cm violet 1130 0122 HR 26 mm 2 3/0 75 cm violet 1120 0126 3 2/0 75 cm violet 1130 0126 3.5 0 75 cm violet 1135 0126 4 1 75 cm violet 1140 0126 HR 30 mm 2 3/0 75 cm violet 1120 0130 3 2/0 75 cm violet 1130 0130 3.5 0 75 cm violet 1135 0130 4 1 75 cm violet 1140 0130 HR 36 mm 2 3/0 75 cm violet 1120 0136 3 2/0 75 cm violet 1130 0136 3.5 0 90 cm violet 1135 0136 4 1 90 cm violet 1140 0136 HR 40 mm 3 2/0 75 cm violet 1130 0140 3.5 0 90 cm violet 1135 0140 4 1 90 cm violet 1140 0140 5 2 90 cm violet 1150 0140 HR 48 mm 3 2/0 75 cm violet 1130 0148 3.5 0 90 cm violet 1135 0148 4 1 90 cm violet 1140 0148 5 2 90 cm violet 1150 0148 Surgicryl® PGA Revision 3 Page 2 www.sutures.be
  • 17.
    Metric EP USP Length Order number Round bodied FR 27 mm 2 3/0 75 cm violet 1120 0327 taper point 3 2/0 75 cm violet 1130 0327 5/8 Circle Reverse cutting DS 12 mm 0.7 6/0 45 cm violet 1107 1512 0.7 6/0 45 cm undyed 1107 1512U 3/8 1 5/0 45 cm violet 1110 1512 Circle DS 16 mm 1 5/0 75 cm violet 1110 1516 1 5/0 75 cm undyed 1110 1516U 1.5 4/0 45 cm violet 1115 1516 1.5 4/0 75 cm undyed 1115 1516U 2 3/0 75 cm violet 1120 1516 DS 19 mm 1 5/0 75 cm violet 1110 1519 1.5 4/0 75 cm violet 1115 1519 1.5 4/0 75 cm undyed 1115 1519U 2 3/0 75 cm violet 1120 1519 2 3/0 75 cm undyed 1120 1519U DS 24 mm 2 3/0 75 cm violet 1120 1524 2 3/0 75 cm undyed 1120 1524U 3 2/0 75 cm violet 1130 1524 3 2/0 75 cm undyed 1130 1524U 3.5 0 75 cm violet 1135 1524 DS 30 mm 2 3/0 75 cm violet 1120 1530 3 2/0 75 cm violet 1130 1530 3 2/0 75 cm undyed 1130 1530U 3.5 0 75 cm violet 1135 1530 DS 36 mm 3 2/0 75 cm violet 1130 1536 3.5 0 75 cm violet 1135 1536 4 1 75 cm violet 1140 1536 5 2 75 cm violet 1150 1536 DS 40 mm 3.5 0 75 cm violet 1135 1540 4 1 75 cm violet 1140 1540 Surgicryl® PGA Revision 3 Page 3 www.sutures.be
  • 18.
    Metric EP USP Length Order number Reverse cutting HS 36 mm 4 1 90 cm violet 1140 1436 5 2 90 cm violet 1150 1436 1/2 Circle HS 40 mm 3.5 0 90 cm violet 1135 1440 4 1 90 cm violet 1140 1440 5 2 90 cm violet 1150 1440 HS 48 mm 4 1 90 cm violet 1140 1448 5 2 90 cm violet 1150 1448 Reverse cutting GS 60 mm 2 3/0 75 cm violet 1120 2160 3 2/0 75 cm violet 1130 2160 Straight Cutting NS 16 mm 1 5/0 45 cm violet 1110 1716 3/8 Circle Round bodied JR 36 mm 3 2/0 75 cm violet 1130 3036 taper point 3.5 0 75 cm violet 1135 3036 J-needle Round bodied JRT 31 mm 4 1 75 cm violet 1140 3131 tapercut point J-needle Surgicryl® PGA Revision 3 Page 4 www.sutures.be
  • 19.
    Type Braided and coated multifilament Composition Polyglycolic acid Coating Polycaprolactone and calcium stearate (1%) Colour Beige - undyed / Violet Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 42 days. Approximately 50% of tensile strength remain after 7 days. Presentation Box with 12 sutures Surgicryl® Rapid Revision 3
  • 20.
    CHARACTERISTICS BENEFITS High initial tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate, quick mass absorption Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications Superficial soft tissue Contraindications Cardiovascular surgery closing of skin Neurosurgery and mucosa only Ligation especially in Plastic surgery When wound support for more than 7 days is Obstetrics (Episiotomy repair) required. Gynaecology Urology (Circumcision) Caution in patients with delayed wound healing Ophthalmic surgery (Conjunctiva) (e.g. compromised immune system). Pediatric surgery TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 21.
    Metric EP USP Length Order number 2 3/0 3/0 150 cm 150 cm undyed 1420 0015 Without needle 3 2/0 150 cm undyed 1430 0015 3 2/0 150 cm 1430 0015 3.5 0 150 cm 1435 0015 3.5 0 150 cm undyed 1435 0015 4 1 150 cm undyed 1440 0015 5 2 150 cm undyed 1450 0015 6 3&4 150 cm violet 1460 0015 Round bodied HR 17 mm 1 5/0 75 cm undyed 1410 0117 taper point 1.5 4/0 75 cm undyed 1415 0117 1/2 2 3/0 75 cm undyed 1420 0117 Circle HR 22 mm 1.5 4/0 75 cm undyed 1415 0122 2 3/0 75 cm undyed 1420 0122 3 2/0 75 cm undyed 1430 0122 HR 26 mm 2 3/0 75 cm undyed 1420 0126 3 2/0 75 cm undyed 1430 0126 HR 30 mm 2 3/0 75 cm undyed 1420 0130 3 2/0 75 cm undyed 1430 0130 3.5 0 75 cm undyed 1435 0130 HR 36 mm 3 2/0 75 cm undyed 1430 0136 3.5 0 90 cm undyed 1435 0136 4 1 90 cm undyed 1440 0136 HR 40 mm 3 2/0 2/0 75 cm undyed 1430 0140 3.5 00 90 cm undyed 1435 0140 4 11 90 cm undyed 1440 0140 5 2 90 cm undyed 1450 0140 HR 48 mm 3.5 0 90 cm undyed 1435 0148 4 1 90 cm undyed 1440 0148 5 2 90 cm undyed 1450 0148 Surgicryl® Rapid Revision 3 Page 1 www.sutures.be
  • 22.
    Metric EP USP Length Order number Round bodied HRT 26 mm 3.5 0 75 cm undyed 1435 0526 tapercut point 1/2 Circle HRT 36 mm 3 2/0 90 cm undyed 1430 0536 3.5 0 90 cm undyed 1435 0536 Round bodied DRT 16 mm 2 3/0 75 cm undyed 1420 0416 tapercut point 3/8 Circle Reverse cutting DS 12 mm 0.7 6/0 75 cm undyed 1407 1512 1 5/0 75 cm undyed 1410 1512 3/8 1.5 4/0 75 cm undyed 1415 1512 Circle DS 16 mm 2 3/0 45 cm undyed 1420 1516 DS 19 mm 1.5 4/0 75 cm undyed 1415 1519 2 3/0 75 cm undyed 1420 1519 DS 24 mm 2 3/0 75 cm undyed 1420 1524 3 2/0 75 cm undyed 1430 1524 DS 26 mm 2 3/0 75 cm undyed 1420 1526 3 2/0 75 cm undyed 1430 1526 Surgicryl® Rapid Revision 3 Page 2 www.sutures.be
  • 23.
    Metric EP USP Length Order number Reverse cutting HS 17 mm 1.5 4/0 45 cm undyed 1415 1417 2 3/0 45 cm undyed 1420 1417 1/2 Circle Reverse cutting GS 60 mm 2 3/0 75 cm undyed 1420 2160 Straight Surgicryl® Rapid Revision 3 Page 3 www.sutures.be
  • 24.
    Type Monofilament Composition Polyglecaprone 25, a copolymer made of 75% glycolide and 25% Є-caprolactone Coating None Colour Violet / Beige - undyed Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 90 to 120 days. Approximately 60% of tensile strength remain after 7 days. Presentation Box with 12 sutures Surgicryl® Monofast Revision 3
  • 25.
    CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Ophthalmic surgery Skin closure Being absorbable not to use when an extended Plastic surgery wound support is required. Gastrointestinal surgery Gynaecology Caution in patients with delayed wound healing Urology (e.g. compromised immune system). TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 26.
    Metric EP USP Length Order number 5 2 120 cm violet 1650 0012 Without needle 5 2 150 cm violet 1650 0015 Ligapack 5 2 250 cm violet 1650 0025 Round bodied HR 13 mm 0.7 6/0 45 cm violet 1607 0113 taper point 1/2 Circle HR 17 mm 1 5/0 45 cm violet 1610 0117 HR 22 mm 1.5 4/0 75 cm violet 1615 0122 2 3/0 75 cm violet 1620 0122 HR 26 mm 2 3/0 75 cm violet 1620 0126 3 2/0 75 cm violet 1630 0126 HR 30 mm 2 3/0 75 cm violet 1620 0130 3 2/0 75 cm violet 1630 0130 3.5 0 75 cm violet 1635 0130 HR 36 mm 3 2/0 75 cm violet 1630 0136 3.5 0 90 cm violet 1635 0136 4 1 90 cm violet 1640 0136 Surgicryl® Monofast Revision 3 Page 1 www.sutures.be
  • 27.
    Metric EP USP Length Order number Round bodied HR 40 mm 3 2/0 75 cm violet 1630 0140 taper point 3.5 0 90 cm violet 1635 0140 4 1 90 cm violet 1640 0140 1/2 Circle HR 48 mm 3.5 0 90 cm violet 1635 0148 4 1 90 cm violet 1640 0148 Reverse cutting DS 12 mm 0.7 6/0 45 cm undyed 1607 1512 1 5/0 45 cm undyed 1610 1512 3/8 Circle DS 16 mm 1.5 4/0 75 cm undyed 1615 1516 DS 19 mm 1 5/0 45 cm undyed 1610 1519 1.5 4/0 75 cm undyed 1615 1519 2 3/0 75 cm undyed 1620 1519 DS 24 mm 2 3/0 75 cm undyed 1620 1524 3 2/0 75 cm undyed 1630 1524 DS 26 mm 1.5 4/0 75 cm undyed 1615 1526 2 3/0 75 cm undyed 1620 1526 3 2/0 75 cm undyed 1630 1526 Surgicryl® Monofast Revision 3 Page 2 www.sutures.be
  • 28.
    Type Monofilament Composition Polydioxanone, a polymer made from polyester poly (p-dioxanone) Coating None Colour Violet Tissue reaction Minimal Absorption The hydrolytic action by which the material is broken down results in total absorption in approximately 180 to 210 days. Approximately 50% of tensile strength remain after 42 days. Presentation Box with 12 sutures Surgicryl® Monofilament Revision 3
  • 29.
    CHARACTERISTICS BENEFITS High and long-lasting tensile strength Outstanding strength retention for extended wound support Synthetic Minimal tissue reaction Breaks down by hydrolysis Predictable absorption rate Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery especially in General surgery Neurosurgery Gastrointestinal surgery Prosthetic devices Ophthalmic surgery Being absorbable not to use when wound Orthopaedics support for more than 6 weeks is required. Abdominal wall closure Gynaecology Caution in patients with delayed wound Plastic surgery healing (e.g. compromised immune system). Urology TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 30.
    Metric EP USP Length Order number 5 2 150 cm violet 1350 0015 Without needle 6 3&4 150 cm violet 1360 0015 Ligapack Round bodied HR 13 mm 0.7 6/0 75 cm violet 1307 0113 taper point 1/2 Circle HR 17 mm 1 5/0 75 cm violet 1310 0117 1.5 4/0 75 cm violet 1315 0117 HR 22 mm 1.5 4/0 75 cm violet 1315 0122 2 3/0 75 cm violet 1320 0122 HR 26 mm 2 3/0 75 cm violet 1320 0126 3 2/0 75 cm violet 1330 0126 HR 30 mm 2 3/0 75 cm violet 1320 0130 3 2/0 75 cm violet 1330 0130 3.5 0 75 cm violet 1335 0130 HR 36 mm 3 2/0 75 cm violet 1330 0136 3.5 0 90 cm violet 1335 0136 4 1 90 cm violet 1340 0136 HR 40 mm 3 2/0 75 cm violet 1330 0140 3.5 0 90 cm violet 1335 0140 4 1 90 cm violet 1340 0140 Surgicryl® Monofilament Revision 3 Page 1 www.sutures.be
  • 31.
    Metric EP USP Length Order number Round bodied HR 48 mm 3.5 0 90 cm violet 1335 0148 taper point 4 1 90 cm violet 1340 0148 1/2 Circle Round bodied HR 40 mm 3.5 0 150 cm violet 1335 0940 taper point loop 4 1 150 cm violet 1340 0940 1/2 Circle HR 50 mm 3.5 0 150 cm violet 1335 0950 4 1 150 cm violet 1340 0950 Blunt loop HRN 50 mm 4 1 150 cm violet 1340 1850 1/2 Circle Reverse cutting DS 12 mm 0.7 6/0 45 cm violet 1307 1512 1 5/0 45 cm violet 1310 1512 3/8 Circle DS 19 mm 1 5/0 45 cm violet 1310 1519 1.5 4/0 75 cm violet 1315 1519 2 3/0 75 cm violet 1320 1519 DS 24 mm 2 3/0 75 cm violet 1320 1524 3 2/0 75 cm violet 1330 1524 3.5 0 75 cm violet 1335 1524 Reverse cutting HS 36 mm 3 2/0 75 cm violet 1330 1436 3.5 0 75 cm violet 1335 1436 1/2 4 1 75 cm violet 1340 1436 Circle Surgicryl® Monofilament Revision 3 Page 2 www.sutures.be
  • 32.
    Type Twisted multifilament with a monofilament appearance Composition Strands of purified collagen taken from the serosal layer of selected bovines. Origin from BSE-free classified countries. Coating None Colour Ivory Tissue reaction Moderate Absorption By phagocytosis. Complete mass absorption in approximately 63 days. Approximately 50% of tensile strength remain after 7 days. When used in infected tissues or in tissues with increased levels of proteolytic enzymes (stomach, cervix, vagina) it is more quickly absorbed. Presentation Box with 12 sutures Catgut Plain Revision 3
  • 33.
    CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Absorption by phagocytosis Uniform absorption Twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Uniform diameter by centerless polishing Soft passage through the tissues without sawing, tissue drag (monofilament appearance) and trauma Excellent knot tie down Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Gastrointestinal surgery wound support is required. Gynaecology Obstetrics Caution in patients with delayed wound healing Urology (e.g. compromised immune system). Ophthalmic surgery In the region of infected wounds Known sensitivities or allergies to collagen TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 34.
    Metric EP USP Length Order number 3 2 3/0 3/0 150 cm 150 cm 14200015 130 0015 Without needle 3 2/0 150 cm 14300015 3.5 2/0 150 cm 135 0015 3.5 0 150 cm 1435 0015 4 0 150 cm 140 0015 5 1 150 cm 150 0015 6 2 150 cm 160 0015 7 3 150 cm 170 0015 Round bodied HR 16 mm 1.5 5/0 75 cm 115 0116 taper point 2 4/0 75 cm 120 0116 1/2 Circle HR 20 mm 2 4/0 75 cm 120 0120 3 3/0 75 cm 130 0120 3.5 2/0 75 cm 135 0120 2 3/0 75 cm 1420 0126 HR 26 mm 2 4/0 75 cm 120 0126 3 2/0 75 cm 1430 0126 3 3/0 75 cm 130 0126 3.5 2/0 75 cm 135 0126 4 0 75 cm 140 0126 2 3/0 75 cm 1420 0130 HR 37 mm 3 3/0 75 cm 130 0137 3 2/0 75 cm 1430 0130 3.5 2/0 75 cm 135 0137 3.5 0 75 cm 1435 0130 4 0 75 cm 140 0137 5 1 75 cm 150 0137 3 2/0 75 cm 1430 0136 HR 45 mm 6 2 75 cm 160 0145 3.5 0 90 cm 1435 0136 7 3 75 cm 170 0145 4 1 90 cm 1440 0136 3 2/0 75 cm 1430 0140 HR 75 mm 4 0 75 cm 140 0175 3.5 0 90 cm 1435 0140 4 1 90 cm 1440 0140 Catgut Plain Revision 3 Page 1 www.sutures.be
  • 35.
    Metric EP USP Length Order number Reverse cutting DS 12 mm 2 1.5 3/0 5/0 75 cm 45 cm 1420 0130 115 1512 3 2/0 75 cm 1430 0130 3.5 0 75 cm 1435 0130 3/8 Circle DS 16 mm 3 1 2/0 6/0 75 cm 45 cm 1430 0136 110 1516 3.5 1.5 0 5/0 90 cm 75 cm 1435 0136 115 1516 4 2 1 4/0 90 cm 75 cm 1440 0136 120 1516 3 3/0 75 cm 130 1516 DS 19 mm 3 2 2/0 4/0 75 cm 1430 0140 120 1519 3.5 3 0 3/0 90 cm 75 1435 0140 130 1519 4 3.5 1 2/0 90 cm 75 1440 0140 135 1519 DS 24 mm 3.5 2 0 4/0 90 cm 75 1435 0148 120 1524 4 3 1 3/0 90 cm 75 1440 0148 130 1524 3.5 2/0 75 cm 135 1524 4 0 75 cm 140 1524 DS 37 mm 3.5 2/0 75 cm 135 1537 Catgut Plain Revision 3 Page 2 www.sutures.be
  • 36.
    Type Twisted multifilament with a monofilament appearance Composition Strands of purified collagen taken from the serosal layer of selected bovines, tanned with chrome salts. Origin from BSE-free classified countries. Coating None Colour Dark brown Tissue reaction Moderate Absorption By phagocytosis. The rate of absorption is slowed down by chromizing. Complete mass absorption in approximately 90 days. Approximately 50% of tensile strength remain after 14 days. When used in infected tissues or in tissues with increased levels of proteolytic enzymes (stomach, cervix, vagina) it is more quickly absorbed. Presentation Box with 12 sutures Catgut Chrome Revision 3
  • 37.
    CHARACTERISTICS BENEFITS High tensile strength Excellent tissue support Absorption by phagocytosis Uniform absorption Twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Uniform diameter by centerless polishing Soft passage through the tissues without sawing, tissue drag (monofilament appearance) and trauma Excellent knot tie down Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Cardiovascular surgery and/or ligation Neurosurgery especially in General surgery Being absorbable not to use when an extended Gastrointestinal surgery wound support is required. Gynaecology Obstetrics Caution in patients with delayed wound healing Urology (e.g. compromised immune system). Ophthalmic surgery In the region of infected wounds Known sensitivities or allergies to collagen or chromium TENSILE STRENGTH ABSORPTION 0% 100% Weeks Weeks Days Days
  • 38.
    Metric EP USP Length Order number 2 4/0 3/0 150 cm 150 cm 14200015 220 0015 Without needle 3 2/0 150 cm 14300015 3 3/0 150 cm 230 0015 3.5 0 150 cm 1435 0015 3.5 2/0 150 cm 235 0015 4 0 150 cm 240 0015 5 1 150 cm 250 0015 6 2 150 cm 260 0015 7 3 150 cm 270 0015 8 4 150 cm 280 0015 Round bodied HR 15 mm 1 6/0 75 cm 210 0115 taper point 1.5 5/0 75 cm 215 0115 2 4/0 75 cm 220 0115 1/2 Circle 2 3/0 75 cm 1420 0126 HR 20 mm 1.5 5/0 75 cm 215 0120 3 2/0 75 cm 1430 0126 2 4/0 75 cm 220 0120 3 3/0 75 cm 230 0120 3.5 2/0 75 cm 235 0120 4 0 75 cm 240 0120 2 3/0 75 cm 1420 0130 HR 26 mm 1.5 5/0 75 cm 215 0126 3 2/0 75 cm 1430 0130 2 4/0 75 cm 220 0126 3.5 0 75 cm 1435 0130 3 3/0 75 cm 230 0126 3.5 2/0 75 cm 235 0126 4 0 75 cm 240 0126 5 1 75 cm 250 0126 HR 30 mm 2 4/0 75 cm 220 0130 3 3/0 75 cm 230 0130 3.5 2/0 75 cm 235 0130 4 0 75 cm 240 0130 5 1 75 cm 250 0130 HR 37 mm 2 4/0 75 cm 220 0137 3 3/0 75 cm 230 0137 3.5 2/0 75 cm 235 0137 4 0 75 cm 240 0137 5 1 75 cm 250 0137 Catgut Chrome Revision 3 Page 1 www.sutures.be
  • 39.
    Metric EP USP Length Order number Round bodied HR 40 mm 3.5 2/0 75 cm 235 0140 taper point 4 0 75 cm 240 0140 5 1 75 cm 250 0140 1/2 Circle 6 2 75 cm 260 0140 HR 45 mm 4 0 75 cm 240 0145 6 2 75 cm 260 0145 HR 48 mm 5 1 75 cm 250 0148 HR 50 mm 6 2 75 cm 260 0150 6 2 90 cm 260 0150-90 Blunt DB 63 mm 5 1 75 cm 250 1963 3/8 Circle Reverse cutting HS 37 mm 4 0 75 cm 240 1437 5 1 75 cm 250 1437 1/2 Circle Catgut Chrome Revision 3 Page 2 www.sutures.be

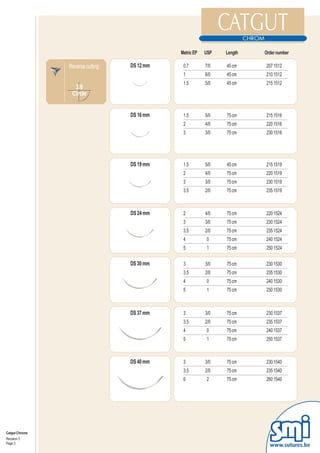

  • 40.
    Metric EP USP Length Order number Reverse cutting DS 12 mm 0.7 7/0 45 cm 207 1512 1 6/0 45 cm 210 1512 1.5 5/0 45 cm 215 1512 HR 3/8 36 Circle mm DS 16 mm 1.5 5/0 75 cm 215 1516 2 4/0 75 cm 220 1516 3 3/0 75 cm 230 1516 DS 19 mm 1.5 5/0 45 cm 215 1519 2 4/0 75 cm 220 1519 3 3/0 75 cm 230 1519 3.5 2/0 75 cm 235 1519 DS 24 mm 2 4/0 75 cm 220 1524 3 3/0 75 cm 230 1524 3.5 2/0 75 cm 235 1524 4 0 75 cm 240 1524 5 1 75 cm 250 1524 DS 30 mm 3 3/0 75 cm 230 1530 3.5 2/0 75 cm 235 1530 4 0 75 cm 240 1530 5 1 75 cm 250 1530 DS 37 mm 3 3/0 75 cm 230 1537 3.5 2/0 75 cm 235 1537 4 0 75 cm 240 1537 5 1 75 cm 250 1537 DS 40 mm 3 3/0 75 cm 230 1540 3.5 2/0 75 cm 235 1540 6 2 75 cm 260 1540 Catgut Chrome Revision 3 Page 3 www.sutures.be
  • 41.
    Type Monofilament Composition Polypropylene, a polymer of propylene Coating None Colour Blue Tissue reaction Minimal Absorption Non absorbable Presentation Box with 12 sutures Polypropylene Revision 3
  • 42.
    CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and permanent tissue support Resistance to repeated bending Use in cardiovascular surgery (heart prosthesis or vascular anastomosis) Synthetic Minimal tissue reaction Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation especially in Cardiovascular surgery Neurosurgery Ophthalmic surgery Microsurgery Plastic surgery Skin closure Orthopaedics Hernias (also as a mesh) Gastrointestinal surgery General surgery Gynaecology Obstetrics
  • 43.
    Metric EP USP Length Order number Round bodied HR 10 mm 0.5 7/0 45 cm blue 505 0110 taper point 1/2 Circle HR 15 mm 0.7 6/0 75 cm blue 507 0115 1 5/0 75 cm blue 510 0115 1.5 4/0 75 cm blue 515 0115 HR 20 mm 1.5 4/0 75 cm blue 515 0120 HR 25 mm 1 5/0 75 cm blue 510 0125 1.5 4/0 75 cm blue 515 0125 2 3/0 75 cm blue 520 0125 3 2/0 75 cm blue 530 0125 3.5 0 75 cm blue 535 0125 4 1 75 cm blue 540 0125 HR 30 mm 2 3/0 75 cm blue 520 0130 3 2/0 75 cm blue 530 0130 3.5 0 75 cm blue 535 0130 HR 35 mm 3 2/0 75 cm blue 530 0135 3.5 0 75 cm blue 535 0135 HR 40 mm 3.5 0 75 cm blue 535 0140 4 1 90 cm blue 540 0140 5 2 75 cm blue 550 0140 Polypropylene Revision 3 Page 1 www.sutures.be
  • 44.
    Metric EP USP Length Order number Round bodied 2 x HR 8 mm 0.4 8/0 60 cm blue 504 0108-2 taper point 0.5 7/0 60 cm blue 505 0108-2 double armed 0.7 6/0 60 cm blue 507 0108-2 1/2 Circle 2 x HR 10 mm 0.5 7/0 60 cm blue 505 0110-2 0.7 6/0 60 cm blue 507 0110-2 2 x HR 13 mm 0.7 6/0 60 cm blue 507 0113-2 1 5/0 75 cm blue 510 0113-2 2 x HR 16 mm 1 5/0 90 cm blue 510 0116-2 1.5 4/0 90 cm blue 515 0116-2 2 3/0 90 cm blue 520 0116-2 2 x HR 20 mm 1 5/0 90 cm blue 510 0120-2 1.5 4/0 90 cm blue 515 0120-2 2 x HR 25 mm 1.5 4/0 90 cm blue 515 0125-2 2 3/0 90 cm blue 520 0125-2 3 2/0 90 cm blue 530 0125-2 2 x HR 30 mm 3 2/0 90 cm blue 530 0130-2 Polypropylene Revision 3 Page 2 www.sutures.be
  • 45.
    Metric EP USP Length Order number Round bodied 2 x DR 13 mm 0.7 6/0 60 cm blue 507 0213-2 taper point double armed 3/8 Circle Soft cutting point 2 x CC 8 mm 0.4 8/0 60 cm blue 504 2608-2 coronary 0.5 7/0 75 cm blue 505 2608-2 double armed 0.7 6/0 75 cm blue 507 2608-2 3/8 Circle 2 x CC 13 mm 0.7 6/0 75 cm blue 507 2613-2 1 5/0 75 cm blue 510 2613-2 Soft cutting point 2 x CC 8 mm black 0.4 8/0 60 cm blue 504 2608-2VB coronary black 0.5 7/0 75 cm blue 505 2608-2VB double armed 0.7 6/0 75 cm blue 507 2608-2VB 3/8 Circle 2 x CC 13 mm black 0.7 6/0 75 cm blue 507 2613-2VB 1 5/0 75 cm blue 510 2613-2VB Round bodied 2 x HRT 25 mm 1.5 4/0 90 cm blue 515 0525-2 tapercut point 2 3/0 90 cm blue 520 0525-2 double armed 3 2/0 90 cm blue 530 0525-2 1/2 Circle 2 x HRT 30 mm 2 3/0 90 cm blue 520 0530-2 3 2/0 90 cm blue 530 0530-2 Polypropylene Revision 3 Page 3 www.sutures.be
  • 46.
    Metric EP USP Length Order number Reverse cutting DS 10 mm 0.7 6/0 45 cm blue 507 1510 3/8 Circle DS 12 mm 0.5 7/0 45 cm blue 505 1512 0.7 6/0 45 cm blue 507 1512 1 5/0 45 cm blue 510 1512 1.5 4/0 75 cm blue 515 1512 DS 16 mm 0.7 6/0 45 cm blue 507 1516 1 5/0 45 cm blue 510 1516 1.5 4/0 75 cm blue 515 1516 2 3/0 75 cm blue 520 1516 DS 19 mm 0.7 6/0 75 cm blue 507 1519 1 5/0 75 cm blue 510 1519 1.5 4/0 75 cm blue 515 1519 2 3/0 75 cm blue 520 1519 3 2/0 75 cm blue 530 1519 3.5 0 75 cm blue 535 1519 DS 24 mm 1.5 4/0 75 cm blue 515 1524 2 3/0 75 cm blue 520 1524 3 2/0 75 cm blue 530 1524 3.5 0 75 cm blue 535 1524 4 1 75 cm blue 540 1524 DS 30 mm 2 3/0 75 cm blue 520 1530 3 2/0 75 cm blue 530 1530 3.5 0 75 cm blue 535 1530 4 1 75 cm blue 540 1530 DS 36 mm 2 3/0 75 cm blue 520 1536 3 2/0 75 cm blue 530 1536 3.5 0 75 cm blue 535 1536 4 1 75 cm blue 540 1536 Polypropylene Revision 3 Page 4 www.sutures.be
  • 47.
    Metric EP USP Length Order number Reverse cutting DS 40 mm 3 2/0 75 cm blue 530 1540 3.5 0 75 cm blue 535 1540 4 1 90 cm 540 1540 3/8 blue Circle DS 45 mm 4 1 90 cm blue 540 1545 Reverse cutting GS 60 mm 2 3/0 75 cm blue 520 2160 3 2/0 75 cm blue 530 2160 Straight GS 75 mm 3 2/0 90 cm blue 530 2175 Polypropylene Revision 3 Page 5 www.sutures.be
  • 48.
    Type Monofilament Composition Extrusion of polyamide 6.0 or 6.6 Coating None Colour Blue Black Tissue reaction Minimal Absorption Non absorbable, gradually encapsulated by connective tissue. The thread mass diminishes, approximately 10% a year by rupture of chemical links (hydrolytic action). Presentation Box with 12 sutures Daclon Nylon Revision 3
  • 49.
    CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and extended tissue support Synthetic Minimal tissue reaction Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation Daclon Blue especially in Skin closure General surgery Plastic surgery Gastrointestinal surgery Gynaecology Obstetrics Orthopaedics Daclon Black especially in Plastic surgery Ophthalmic surgery
  • 50.
    Metric EP USP Length Order number Round bodied HR 20 mm 1 5/0 75 cm black 910 0120 taper point 1.5 4/0 75 cm blue 915 0120 1/2 2 3/0 75 cm blue 920 0120 Circle 3 2/0 75 cm blue 930 0120 HR 26 mm 3 2/0 75 cm blue 930 0126 3.5 0 75 cm blue 935 0126 4 1 75 cm blue 940 0126 HR 30 mm 3 2/0 75 cm blue 930 0130 3.5 0 75 cm blue 935 0130 HR 37 mm 3 2/0 75 cm blue 930 0137 3.5 0 75 cm blue 935 0137 HR 40 mm 3 2/0 75 cm blue 930 0140 3.5 0 75 cm blue 935 0140 4 1 75 cm blue 940 0140 5 2 75 cm blue 950 0140 Round bodied HR 30 mm 3.5 0 150 cm blue 935 0930 taper point loop 1/2 Circle HR 35 mm 4 1 150 cm blue 940 0935 HR 40 mm 3.5 0 150 cm blue 935 0940 4 1 150 cm blue 940 0940 HR 50 mm 3.5 0 150 cm blue 935 0950 4 1 150 cm blue 940 0950 Daclon Revision 3 Page 1 www.sutures.be
  • 51.
    Metric EP USP Length Order number Reverse cutting DS 12 mm 0.5 7/0 75 cm black 905 1512 0.7 6/0 75 cm black 907 1512 1 5/0 75 cm black 910 1512 3/8 1.5 4/0 75 cm 915 1512 Circle blue DS 16 mm 0.7 6/0 75 cm black 907 1516 1 5/0 75 cm black 910 1516 1.5 4/0 75 cm blue 915 1516 2 3/0 75 cm blue 920 1516 DS 19 mm 1 5/0 75 cm black 910 1519 1.5 4/0 75 cm blue 915 1519 2 3/0 75 cm blue 920 1519 3 2/0 75 cm blue 930 1519 DS 24 mm 1.5 4/0 75 cm blue 915 1524 2 3/0 75 cm blue 920 1524 3 2/0 75 cm blue 930 1524 3.5 0 75 cm blue 935 1524 4 1 75 cm blue 940 1524 5 2 90 cm blue 950 1524 DS 26 mm 2 3/0 75 cm blue 920 1526 3 2/0 75 cm blue 930 1526 DS 30 mm 2 3/0 75 cm blue 920 1530 3 2/0 75 cm blue 930 1530 3.5 0 75 cm blue 935 1530 4 1 75 cm blue 940 1530 Daclon Revision 3 Page 2 www.sutures.be
  • 52.
    Metric EP USP Length Order number Reverse cutting DS 40 mm 3 2/0 75 cm blue 930 1540 3.5 0 75 cm blue 935 1540 4 1 75 cm blue 940 1540 3/8 5 2 90 cm 950 1540 Circle blue DS 60 mm 3 2/0 75 cm blue 930 1560 3.5 0 75 cm blue 935 1560 DS 90 mm 2 3/0 90 cm blue 920 1590 3 2/0 90 cm blue 930 1590 3.5 0 90 cm blue 935 1590 4 1 90 cm blue 940 1590 Reverse cutting HS 17 mm 1.5 4/0 75 cm blue 915 1417 2 3/0 75 cm blue 920 1417 1/2 Circle HS 26 mm 2 3/0 75 cm blue 920 1426 3 2/0 75 cm blue 930 1426 HS 36 mm 3.5 0 75 cm blue 935 1436 4 1 75 cm blue 940 1436 Reverse cutting GS 60 mm 2 3/0 75 cm blue 920 2160 3 2/0 75 cm blue 930 2160 Straight Daclon Revision 3 Page 3 www.sutures.be
  • 53.
    Metric EP USP Length Order number Cutting NS 16 mm 1 5/0 75 cm black 910 1716 3/8 Circle NS 26 mm 2 3/0 75 cm blue 920 1726 NS 30 mm 3 2/0 75 cm blue 930 1730 NS 40 mm 3 2/0 75 cm blue 930 1740 Daclon Revision 3 Page 4 www.sutures.be
  • 54.
    Type Twisted and coated multifilament Composition Polyamide 6.6 strands enclosed in a polyamide 6 sheet Colour Black Tissue reaction Minimal Absorption Non absorbable, gradually encapsulated by connective tissue Presentation Box with 12 sutures Supramid Revision 3
  • 55.
    CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and permanent tissue support Synthetic Minimal tissue reaction Twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Multifilament in a sheath Soft passage through the tissues without sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Pliability and softness Good handling properties Easy and secure knotting Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation especially in Skin closure
  • 56.
    Metric EP USP Length Order number Round bodied HR 16 mm 1.5 4/0 75 cm black 415 0116 taper point 2 3/0 75 cm black 420 0116 1/2 Circle HR 20 mm 2 3/0 45 cm black 420 0120 Reverse cutting DS 16 mm 1.5 4/0 75 cm black 415 1516 2 3/0 75 cm black 420 1516 3/8 Circle DS 19 mm 1.5 4/0 75 cm black 415 1519 2 3/0 75 cm black 420 1519 3 2/0 75 cm black 430 1519 DS 24 mm 2 3/0 75 cm black 420 1524 3 2/0 75 cm black 430 1524 3.5 0 75 cm black 435 1524 Reverse cutting HS 17 mm 1.5 4/0 75 cm black 415 1417 2 3/0 75 cm black 420 1417 1/2 Circle Round bodied HRT 18 mm 1.5 4/0 75 cm black 415 0518 tapercut point 2 3/0 75 cm black 420 0518 1/2 Circle Round bodied DRT 18 mm 1.5 4/0 75 cm black 415 0418 tapercut point 2 3/0 75 cm black 420 0418 3/8 Circle Supramid Revision 3 Page 1 www.sutures.be
  • 57.
    SILK Silk Braided Silk Virgin Type Braided multifilament Twisted multifilament Composition Braided fibres from the Twisted fibres from the cocoon of the silkworm cocoon of the silkworm Coating Waxes None Silicone Colour Black Blue Tissue reaction Moderate Absorption Silk suture elicits an initial inflammatory reaction in tissues, which is followed by gradual encapsulation of the suture by fibrous connective tissues. Presentation Box with 12 sutures Silk Revision 3
  • 58.
    SILK CHARACTERISTICS BENEFITS High tensile strength, non absorbable Good and extended tissue support for up to 3 month Braided or twisted structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing Contraindications Urinary tract and/or ligation Biliary tract especially in General surgery Known allergies or sensitivities to silk Skin closure Ophthalmic surgery Oral surgery Gastrointestinal surgery Gynaecology Obstetrics
  • 59.
    Metric EP USP Length Order number 2 3/0 150 cm black 820 0015 Without needle 3 2/0 150 cm black 830 0015 3.5 0 150 cm black 835 0015 4 1 150 cm black 840 0015 5 2 150 cm black 850 0015 6 3&4 150 cm black 860 0015 2 3/0 6 x 45 cm black 820 0044 3 2/0 6 x 45 cm black 830 0044 3.5 0 6 x 45 cm black 835 0044 4 1 6 x 45 cm black 840 0044 1.5 4/0 17 x 45 cm black 815 0046 2 3/0 17 x 45 cm black 820 0046 3 2/0 17 x 45 cm black 830 0046 3.5 0 17 x 45 cm black 835 0046 4 1 17 x 45 cm black 840 0046 5 2 17 x 45 cm black 850 0046 1.5 4/0 13 x 60 cm black 815 0060 2 3/0 13 x 60 cm black 820 0060 3 2/0 13 x 60 cm black 830 0060 3.5 0 13 x 60 cm black 835 0060 4 1 13 x 60 cm black 840 0060 2 3/0 12 x 75 cm black 820 0075 3 2/0 12 x 75 cm black 830 0075 3.5 0 12 x 75 cm black 835 0075 4 1 12 x 75 cm black 840 0075 HR 12 mm 0.7 6/0 45 cm 807 0112 Round bodied black taper point 1/2 Circle HR 16 mm 0.7 6/0 45 cm black 807 0116 1 5/0 75 cm black 810 0116 1.5 4/0 75 cm black 815 0116 2 3/0 75 cm black 820 0116 Silk Revision 3 Page 1 www.sutures.be
  • 60.
    Metric EP USP Length Order number HR 20 mm 1 5/0 75 cm black 810 0120 Round bodied 1.5 4/0 75 cm black 815 0120 taper point 2 3/0 75 cm black 820 0120 1/2 3 2/0 75 cm black 830 0120 Circle 3.5 0 75 cm black 835 0120 HR 26 mm 1.5 4/0 75 cm black 815 0126 2 3/0 75 cm black 820 0126 3 2/0 75 cm black 830 0126 3.5 0 75 cm black 835 0126 4 1 75 cm black 840 0126 HR 30 mm 2 3/0 75 cm black 820 0130 3 2/0 75 cm black 830 0130 3.5 0 75 cm black 835 0130 4 1 75 cm black 840 0130 HR 37 mm 3 2/0 75 cm black 830 0137 3.5 0 75 cm black 835 0137 4 1 75 cm black 840 0137 5 2 75 cm black 850 0137 GR 40 mm 3 2/0 2/0 75 cm 75 cm black 830 2040 830 2040 Round bodied taper point Straight Silk Revision 3 Page 2 www.sutures.be
  • 61.
    Metric EP USP Length Order number DS 12 mm 0.5 7/0 45 cm black 805 1512 Reverse cutting 0.7 6/0 45 cm black 807 1512 1 5/0 45 cm black 810 1512 3/8 1.5 4/0 75 cm black 815 1512 Circle 2 3/0 75 cm black 820 1512 DS 14 mm 0.7 6/0 45 cm black 807 1514 DS 16 mm 0.7 6/0 75 cm black 807 1516 1 5/0 75 cm black 810 1516 1.5 4/0 75 cm black 815 1516 2 3/0 75 cm black 820 1516 3 2/0 75 cm black 830 1516 DS 19 mm 0.7 6/0 75 cm black 807 1519 1 5/0 75 cm black 810 1519 1.5 4/0 75 cm black 815 1519 2 3/0 75 cm black 820 1519 3 2/0 75 cm black 830 1519 3.5 0 75 cm black 835 1519 4 1 75 cm black 840 1519 DS 24 mm 1 5/0 75 cm black 810 1524 1.5 4/0 75 cm black 815 1524 2 3/0 75 cm black 820 1524 3 2/0 75 cm black 830 1524 3.5 0 75 cm black 835 1524 4 1 75 cm black 840 1524 DS 26 mm 2 3/0 75 cm black 820 1526 3 2/0 75 cm black 830 1526 Silk Revision 3 Page 3 www.sutures.be
  • 62.
    Metric EP USP Length Order number DS 30 mm 1 5/0 75 cm black 810 1530 Reverse cutting 1.5 4/0 75 cm black 815 1530 2 3/0 75 cm black 820 1530 3/8 3 2/0 75 cm black 830 1530 Circle 3.5 0 75 cm black 835 1530 4 1 75 cm black 840 1530 DS 37 mm 2 3/0 75 cm black 820 1537 3 2/0 75 cm black 830 1537 3.5 0 75 cm black 835 1537 4 1 75 cm black 840 1537 5 2 75 cm black 850 1537 6 3&4 75 cm black 860 1537 DS 45 mm 3 2/0 75 cm black 830 1545 3.5 0 75 cm black 835 1545 4 1 75 cm black 840 1545 5 2 75 cm black 850 1545 DS 60 mm 3 2/0 75 cm black 830 1560 4 1 75 cm black 840 1560 HS 17 mm 1.5 4/0 75 cm black 815 1417 Reverse cutting 2 3/0 75 cm black 820 1417 1/2 Circle HS 26 mm 2 3/0 75 cm black 820 1426 3 2/0 75 cm black 830 1426 HS 36 mm 3.5 0 75 cm black 835 1436 4 1 75 cm black 840 1436 Silk Revision 3 Page 4 www.sutures.be
  • 63.
    Metric EP USP Length Order number GS 40 mm 3 2/0 75 cm black 830 2140 Reverse cutting Straight GS 60 mm 3 2/0 75 cm black 830 2160 3.5 0 75 cm black 835 2160 4 1 75 cm black 840 2160 HRT 18 mm 1.5 4/0 75 cm black 815 0518 Round bodied tapercut point 2 3/0 75 cm black 820 0518 1/2 Circle DRT 18 mm 1.5 4/0 75 cm black 815 0418 Round bodied tapercut point 2 3/0 75 cm black 820 0418 3/8 Circle Silk Revision 3 Page 5 www.sutures.be
  • 64.
    Type Braided multifilament Composition Polyester - a polymer of polyethylene terephthalate Coating Silicone Teflon Colour Green White Tissue reaction Minimal Absorption Non absorbable, gradually encapsulated by connective tissue Presentation Box with 12 sutures Polyester Revision 3
  • 65.
    CHARACTERISTICS BENEFITS Unsurpassed tensile strength, non absorbable Excellent and permanent tissue support Resistance to repeated bending Use in cardiovascular surgery (heart prosthesis) Synthetic Minimal tissue reaction Braided structure Excellent handling properties High flexibility High tensile strength Excellent knot security Coated multifilament Soft passage through the tissues with minimal sawing, tissue drag and trauma Good knot tie down / adjustability Reduced capillary action Hermetically sealed packing Guaranteed seal and product sterility Indications General soft tissue closing and/or ligation especially in Cardiovascular surgery Ophthalmic surgery General surgery Skin closure Orthopaedics Gastrointestinal surgery Obstetrics
  • 66.
    Metric EP USP Length Order number 2 1.5 3/0 4/0 6 x 45 cm 150 cm 720 0045 715 0015 Without needle 3 2/0 6 x 45 cm green 730 0045 2 3.5 3/0 0 150 cm 6 x 45 cm green 720 0015 735 0045 4 3 1 2/0 6 x 45 cm 150 cm green 740 0045 730 0015 5 2 6 x 45 cm 750 0045 3.5 0 150 cm green 735 0015 4 1 150 cm green 740 0015 5 2 150 cm green 750 0015 2 3/0 6 x 45 cm green 720 0045 3 2/0 6 x 45 cm green 730 0045 3.5 0 6 x 45 cm green 735 0045 4 1 6 x 45 cm green 740 0045 5 2 6 x 45 cm green 750 0045 6 3&4 6 x 45 cm green 760 0045 Round bodied HR 16 mm 1.5 4/0 75 cm green 715 0116 taper point 2 3/0 75 cm green 720 0116 1/2 Circle HR 20 mm 2 3/0 75 cm green 720 0120 HR 26 mm 2 3/0 75 cm green 720 0126 3 2/0 75 cm green 730 0126 HR 30 mm 3 2/0 75 cm green 730 0130 3.5 0 75 cm green 735 0130 HR 36 mm 3 2/0 75 cm green 730 0136 Polyester Revision 3 Page 1 www.sutures.be
  • 67.
    Metric EP USP Length Order number Round bodied HR 40 mm 4 1 75 cm green 740 0140 taper point 5 2 75 cm green 750 0140 1/2 Circle HR 50 mm 5 2 75 cm green 750 0150 Round bodied GR 19 mm 1.5 4/0 45 cm green 715 2019 taper point 2 3/0 50 cm green 720 2019 Straight Round bodied HRT 18 mm 1.5 4/0 75 cm green 715 0518 tapercut point 2 3/0 75 cm green 720 0518 1/2 Circle Round bodied 2 x HRT 17 mm 1.5 4/0 90 cm green 715 0517-2 tapercut point 2 3/0 90 cm green 720 0517-2 double armed 3 2/0 90 cm green 730 0517-2 1/2 with pledget 4 x green, 4 x white 730 0517-2P Circle 2 x HRT 25 mm 2 3/0 90 cm green 720 0525-2 3 2/0 90 cm green 730 0525-2 with pledget 4 x green, 4 x white 730 0525-2P 2 x HRT 35 mm 3 2/0 90 cm green 730 0535-2 Polyester Revision 3 Page 2 www.sutures.be
  • 68.
    Metric EP USP Length Order number Reverse cutting DS 16 mm 1 5/0 75 cm green 710 1516 1.5 4/0 75 cm green 715 1516 2 3/0 75 cm green 720 1516 3/8 Circle DS 19 mm 1.5 4/0 75 cm green 715 1519 2 3/0 75 cm green 720 1519 DS 24 mm 2 3/0 75 cm green 720 1524 3 2/0 75 cm green 730 1524 DS 30 mm 3 2/0 75 cm green 730 1530 3.5 0 75 cm green 735 1530 4 1 75 cm green 740 1530 Reverse cutting HS 17 mm 1.5 4/0 75 cm green 715 1417 2 3/0 75 cm green 720 1417 1/2 Circle Polyester Revision 3 Page 3 www.sutures.be
  • 69.
    Type Monofilament Composition Iron, nickel and chromium alloy Coating None Colour Metal Tissue reaction Minimal Absorption Non absorbable Presentation Box with 12 sutures Steel Monofilament Revision 3
  • 70.
    CHARACTERISTICS BENEFITS High tensile strength, non absorbable Excellent and permanent tissue support Synthetic Minimal tissue reaction Ductile and malleable Good handling properties Monofilament with microscopic uniform diameter Soft passage through the tissues without sawing, tissue drag and trauma Absence of capillarity (no support of bacterial growth) Excellent knot tie down Hermetically sealed packing Guaranteed seal and product sterility Indications Closure of sternum Contraindications Known sensitivities or allergies to stainless Orthopaedics steel or metals such as chromium and nickel Abdominal wall closure and hernia repair
  • 71.
    Metric EP USP Length Order number Round bodied HRT 40 mm 6 3&4 4 x 45 cm ST45 tapercut point 1/2 Circle HRT 48 mm 7 5 4 x 45 cm ST55 8 6 4 x 45 cm ST65 Reverse cutting HS 25 mm 3.5 0 4 x 45 cm ST01 1/2 Circle HS 40 mm 4 1 4 x 45 cm ST11 5 2 4 x 45 cm ST21 HS 48 mm 6 3&4 4 x 45 cm ST41 HS 50 mm 7 5 4 x 45 cm ST51 8 6 4 x 45 cm ST61 HS 58 mm 7 5 4 x 45 cm ST52 8 6 4 x 45 cm ST62 Steel Revision 3 Page 1 www.sutures.be
  • 72.
    Easy Pass needle Easy Pass needle Easy Pass Revision 3
  • 73.
    Easy Pass needle Sharp and strong Easy passing Every pass feels like the first one The Easy Pass needle combines 3 advanced technologies to a prime precision needle: Advanced needle coating technology Precision point with extra sharpening A new generation of maraging stainless steel CHARACTERISTICS BENEFITS Precision point with extra sharpening Excellent penetration to reduce patient trauma and to maintain intimal integrity Optimal and predicable penetration Long-lasting sharpness over a multiplicity of passes A new generation of maraging stainless steel Significantly sharper pass after pass Best bending and break resistance Optimal combination of strength and ductility Advanced needle coating technology Extremely smooth surface Silicone coating covers entire surgical needle Better penetration, control and needle passage Maintains needle sharpness from start to finish over multiple passes Indications Cosmetic and plastic surgery Easy Pass needle Penetration performance improved by 40% - 50% compared to standard cutting needles. 1st penetration 10th penetration Penetration force Penetration force fect W hen it has to be per ety or quality and saf Standard cutting needle Standard cutting needle F Easy Pass needle Easy Pass needle
  • 74.
    Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 1107 1512UP Reverse cutting undyed Easy Pass 1 5/0 50 cm undyed 1110 1512UP 1.5 4/0 50 cm undyed 1115 1512UP 3/8 Circle DS 16 mm 1.5 4/0 50 cm undyed 1115 1516UP DS 19 mm 1.5 4/0 50 cm undyed 1115 1519UP 2 3/0 50 cm undyed 1120 1519UP Easy Pass needle Easy Pass Revision 3 Page 1 www.sutures.be
  • 75.
    Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm undyed 1407 1512P Reverse cutting Easy Pass 1 5/0 50 cm undyed 1410 1512P 1.5 4/0 50 cm undyed 1415 1512P 3/8 Circle DS 19 mm 1.5 4/0 50 cm undyed 1415 1519P 2 3/0 50 cm undyed 1420 1519P Easy Pass needle Easy Pass Revision 3 Page 2 www.sutures.be
  • 76.
    Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 1607 1512P Reverse cutting undyed Easy Pass 1 5/0 50 cm undyed 1610 1512P 1.5 4/0 50 cm undyed 1615 1512P 3/8 Circle DS 16 mm 1 5/0 50 cm undyed 1610 1516P 1.5 4/0 50 cm undyed 1615 1516P DS 19 mm 1.5 4/0 50 cm undyed 1615 1519P 2 3/0 50 cm undyed 1620 1519P Easy Pass needle Easy Pass Revision 3 Page 3 www.sutures.be
  • 77.
    Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 507 1512P Reverse cutting blue Easy Pass 1 5/0 50 cm blue 510 1512P 3/8 Circle DS 16 mm 1 5/0 50 cm blue 510 1516P 1.5 4/0 50 cm blue 515 1516P DS 19 mm 1.5 4/0 50 cm blue 515 1519P 2 3/0 50 cm blue 520 1519P 3 2/0 50 cm blue 530 1519P DS 24 mm 3 2/0 50 cm blue 530 1524P Easy Pass needle Easy Pass Revision 3 Page 4 www.sutures.be
  • 78.
    Metric EP USP Length Order number DS 12 mm 0.7 6/0 50 cm 907 1512P Reverse cutting black Easy Pass 1 5/0 50 cm black 910 1512P 1.5 4/0 50 cm blue 915 1512P 3/8 Circle DS 16 mm 1 5/0 50 cm black 910 1516P 1.5 4/0 50 cm blue 915 1516P DS 19 mm 1.5 4/0 50 cm blue 915 1519P 2 3/0 50 cm blue 920 1519P 3 2/0 50 cm blue 930 1519P DS 24 mm 3 2/0 50 cm blue 930 1524P Easy Pass needle Easy Pass Revision 3 Page 5 www.sutures.be
  • 79.
    Metric EP USP Length Order number Reverse cutting DS 16 mm 1 5/0 50 cm black 810 1516P Easy Pass 1.5 4/0 50 cm black 815 1516P 3/8 Circle DS 19 mm 1.5 4/0 50 cm black 815 1519P 2 3/0 50 cm black 820 1519P Easy Pass needle Easy Pass Revision 3 Page 6 www.sutures.be
  • 80.
    Ophthalmic surgery Ophthalmic surgery Ophthalmic Revision 3
  • 81.
    Metric EP USP Length Order number Side cutting 2 x HSP 8 mm 200 µm 0.5 7/0 45 cm violet O910 07 spatula double armed 1/2 Circle Side cutting 2 x DSP 6 mm 200 µm 0.4 8/0 45 cm violet O910 08 spatula double armed 3/8 Circle Side cutting 2 x VSP 8 mm 300 µm 0.7 6/0 45 cm violet O910 06 spatula 350 µm double armed 1 5/0 45 cm violet O910 05 1/4 Circle Ophthalmic surgery Ophthalmic surgery Revision 3 Page 2 www.sutures.be
  • 82.
    Metric EP USP Length Order number Side cutting 2 x HSP 8 mm 200 µm 0.5 7/0 45 cm violet OSU 07 spatula double armed 1/2 Circle Side cutting 2 x DSP 6 mm 200 µm 0.4 8/0 45 cm violet OSU 08 spatula double armed 3/8 Circle Side cutting 2 x VSP 8 mm 300 µm 0.7 6/0 45 cm violet OSU 06 spatula 350 µm double armed 1 5/0 45 cm violet OSU 05 1/4 Circle Ophthalmic surgery Ophthalmic surgery Revision 3 Page 1 www.sutures.be
  • 83.
    Metric EP USP Length Order number Round bodied 2 x VR 8 mm 220 µm 0.4 8/0 45 cm black ON 81 taper point double armed 1/4 Circle Side cutting 2 x HSP 6,2 mm 150 µm 0,2 10/0 30 cm black ON 102 spatula double armed 1/2 Circle 2 x HSP 6,4 mm 220 µm 0,2 10/0 30 cm black ON 106 Side cutting 2 x DSP 6,2 mm 150 µm 0,2 10/0 30 cm black ON 101 spatula double armed 0,3 9/0 30 cm black ON 95 0.4 8/0 30 cm black ON 85 3/8 Circle 2 x DSP 6,4 mm 220 µm 0,2 10/0 30 cm black ON 105 Ophthalmic surgery Side cutting 2 x VSP 8 mm 220 µm 1 5/0 45 cm black ON 51 spatula double armed 1/4 Circle Ophthalmic surgery Revision 3 Page 4 www.sutures.be
  • 84.
    Metric EP USP Length Order number Side cutting 2 x DSP 6,5 mm 200 µm 0.4 8/0 45 cm blue OS 81 spatula double armed 3/8 Circle Metric EP USP Length Order number Side cutting 2 x DSP 6,5 mm 200 µm 0.4 8/0 45 cm black OS 81B spatula double armed 3/8 Circle 2 x DSP 6,5 mm 240 µm 0.5 7/0 45 cm black OS 71 0.7 6/0 45 cm black OS 61 Side cutting 2 x VSP 8 mm 250 µm 0.7 6/0 45 cm black OS 62 Ophthalmic surgery spatula double armed 1/4 Circle Ophthalmic surgery Revision 3 Page 3 www.sutures.be
  • 85.
    Metric EP USP Length Order number Side cutting 2 x VSP 8 mm 350 µm 1 5/0 45 cm white OP51 spatula double armed 1/4 Circle Ophthalmic surgery Ophthalmic surgery Revision 3 Page 5 www.sutures.be
  • 86.
    Speciality products Speciality products Speciality products Revision 3
  • 87.
    Skin Stapler &Remover INDICATIONS: SMI Skin Stapler can be used for a variety of skin closures. BENEFITS: • Ergonomic and user friendly design STERILE EO • Clear view of operating site Staple size • Easy to check remaining staples Skin Stapler with 35 Wide Staples ZS35W Single use staple remover ZSR Cervix set Shirodkar cervix suture set 2 x blunt needle 4 mm polyester tape 40 cm 2 x HRN 50 mm ZCE1 5 mm polyester tape 40 cm 2 x HRN 50 mm ZCE2 4 mm polyester tape 50 cm 2 x HRN 65 mm ZCE3 Polypropylene mesh 15 x 15 cm ZM 001 30 x 30 cm ZM 002 6 x 11 cm ZM 003 COMPOSITION: BENEFITS: Monofilament polypropylene knitted into • Extreme dimensional an elastic, durable mesh stability • Very thin mesh structure INDICATIONS: • Ideal porosity Reinforcement of the abdominal wall • Excellent transparency - Hernia • Good handling - Eventration • Easy to cut via celioscopy or laparotomy • Well tolerated Bone Wax 12 x 2.5 g Z046 COMPOSITION: Refined white beeswax 80%, isopropyl palmitate 20% INDICATIONS: Used in the control of bleeding from bone surfaces by acting as a mechanical barrier. PRESENTATION: 2.5 g slabs individually wrapped and sterilised, 12 in one box Speciality products Revision 3 Page 1 www.sutures.be
  • 88.
    Surgical blades &scalpel handles COMPOSITION: Carbon Steel PRESENTATION: Individual sterile foil packs without handle 100 / box with plastic handle 10 / box N° 10 N° 11 N° 12 N° 15 N° 20 N° 21 N° 22 N° 23 N° 24 N° 25 Surgical blades without handle ZB10 ZB11 ZB12 ZB15 ZB20 ZB21 ZB22 ZB23 ZB24 ZB25 Surgical blades with plastic handle ZBD10 ZBD11 ZBD15 ZBD20 ZBD22 Scalpel handles COMPOSITION: PRESENTATION: Stainless steel 10/ box N° 3 ZBH3 N° 4 ZBH4 Stitch Cutter ZBS Surgical suture rack Rack & drawer for rack The flexible racking system keeps your sutures organized and easily accessible during surgery. The interchangeable pieces allow for assembly into multiple configurations. 1 rack for 2 horizontal suture boxes (125 mm x 72 mm x 143 mm) Z070 Drawer for rack Z071 Pilomat Tablet Crusher Z045 Tablet Splitter Z044 To crush tablets with a simple flick of the wrist. To cut tablets of any size in two. Speciality products Revision 3 Page 2 www.sutures.be
  • 89.
    Needles 12 in one box 1/2 Circle Ordinary Eye Spring Eye Ordinary Eye Spring Eye GN GF GRN GRF 90 mm N°00 Z 751 80 mm N°1 Z 702 Z 752 Z 851 70 mm N°2 Z 703 Z 753 Z 853 65 mm N°3 Z 704 60 mm N°4 Z 755 Z 855 55 mm N°6 Z 706 Z 756 Z 806 Z 856 50 mm N°7 Z 758 Z 807 Z 858 45 mm N°8 Z 759 Z 859 40 mm N°9 Z 710 Z 760 Z 810 Z 860 35 mm N°10 Z 761 Z 861 30 mm N°12 Z 762 Z 812 Z 862 25 mm N°13 Z 713 Z 763 Z 813 Z 863 20 mm N°15 Z 764 Z 864 16 mm N°16 Z 766 Z 866 3/8 Circle Ordinary Spring Ordinary Spring Ordinary Eye Eye Eye Eye Eye BN BF BRN BRF BRT 130 mm N°6-0 Z 495 Z 595 110 mm N°4-0 Z 599 100 mm N°000 Z 500 Z 550 Z 650 90 mm N°00 Z 501 Z 551 Z 601 Z 651 Z 301 90 mm LIGHT N°00 Z 502 Z 602 85 mm N°0 Z 590 80 mm N°1 Z 503 Z 552 Z 591 Z 303 70 mm N°2 Z 504 Z 553 Z 603 Z 653 65 mm N°3 Z 604 60 mm N°4 Z 505 Z 555 Z 655 57 mm N°5 Z 506 Z 605 55 mm N°6 Z 556 50 mm N°7 Z 557 Z 607 Z 657 45 mm N°8 Z 508 Z 558 Z 608 Z 658 40 mm N°9 Z 510 Z 560 Z 610 Z 660 35 mm N°10 Z 561 Z 661 30 mm N°12 Z 512 Z 562 Z 612 Z 662 25 mm N°13 Z 513 Z 563 Z 663 20 mm N°15 Z 564 Z 664 16 mm N°16 Z 516 Z 566 Z 666 14 mm N°17 Z 567 12 mm N°20 Z 568 Speciality products Revision 3 Page 3 www.sutures.be
  • 90.
    STRAIGHT Ordinary Spring Eye Eye GSN GSF 75 mm N° 1 Z 904 60 mm N° 4 Z 903 Z 913 40 mm N° 9 Z 902 Z 912 35 mm N° 10 Z 911 SKI NEEDLES half curved Ordinary Spring Eye Eye 80 mm N°1 Z 202 70 mm N°2 Z 203 65 mm N°3 Z 204 60 mm N°4 Z 205 57 mm N°5 Z 201 55 mm N°6 Z 206 50 mm N°7 Z 207 45 mm N°8 Z 208 40 mm N°9 Z 260 35 mm N°10 Z 261 30 mm N°12 Z 262 25 mm N°13 Z 263 20 mm N°15 Z 264 16 mm N°16 Z 266 12 mm N°20 Z 268 Cassette holder Stainless steel For 3 cassettes Z0050 For 4 cassettes Z0051 For 5 cassettes Z0052 Speciality products Revision 3 Page 4 www.sutures.be
  • 91.
    Sutures in cassettepacks Metric EP USP Length Order number Natural collagen 2 4/0 100 m 1020 Twisted multifilament with 3 3/0 100 m 1030 a monofilament appearance 3.5 2/0 100 m 1035 Absorbable 4 0 100 m 1040 5 1 75 m 1050 6 2 50 m 1060 7 3 50 m 1070 8 4 30 m 1080 9 5 30 m 1090 10 6 30 m 1100 Metric EP USP Length Order number Natural collagen 2 4/0 100 m 2020 Twisted multifilament with 3 3/0 100 m 2030 a monofilament appearance 3.5 2/0 100 m 2035 Absorbable 4 0 100 m 2040 5 1 75 m 2050 6 2 50 m 2060 7 3 50 m 2070 8 4 30 m 2080 9 5 30 m 2090 10 6 30 m 2100 Metric EP USP Length Order number Braided multifilament 1.5 4/0 100 m 8015 Non-absorbable 2 3/0 100 m 8020 3 2/0 100 m 8030 3.5 0 100 m 8035 4 1 100 m 8040 5 2 100 m 8050 6 3&4 80 m 8060 7 5 60 m 8070 8 6 50 m 8080 9 7 40 m 8090 10 8 30 m 8100 Speciality products Revision 3 Page 5 www.sutures.be
