CABLE TRAY
CABLE LADDER
CABLE TRUNKING
ACCESSORIES
CATALOGUE
Manufactured in the compliance with :
TCVN 3781-1983, TCVN 5026-1989, TCVN 5408:1991, TCVN 197:2002 and NEMA VE 1-2002/CSA C22.2 No. 126.1-02

2. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
CABLE TRUNKING
Page 1
1. Straight trunking:
Cable trunking system is a mean of hanging support for power and control cables and is used
in variety of commercial and industrial installations.
 Standard Specifications:
Materials: Stainless steel, galvanized steel or black steel
(finish: powder coated or hot dipped galvanize)
Standard length: 2.44 meters or 2.5 meters.
 Standard Colour:
White, grey or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
50175 25100 1.0
200 50100 1.2
300 50100 1.5
2. Flat bend trunking:
Flat bend trunking used to turn cable trunking on the right or on the left on the same plane. It
used cable trunking systems.
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
 Dimension: Width (mm) Height (mm) Thickness (mm)
50 150 25 100 1.0
200 50 100 1.2
300 50 100 1.5
3. Flat tee trunking:
W
H
10
W
50
Ln
Ln

3. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Flat tee trunking used to turn cable trunking to the other way on the same plane. It used to
connect straight trungking and cable trunking fittings by straight coupler in cable trunking
systems.
Page 2
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
50 175 25 50 1.0
100 200 50 100 1.2
300 50 100 1.5
4. Flat four way trunking:
Flat four way trunking used to turn one branch of cable trunking on the same plane. It used to
connection straight trunking and cable trunking by straight coupler in cable trunking systems.
 Standard Specification:
Materials : Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
50175 2550 1.0
200 50100 1.2
300 50100 1.5
5 .90 degrees bend trunking:
W
50
50
H
W
L
Lw
W
50
W
H
L
w
H 50
Ln
Ln
H
W

4. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Bend 900 trungking used to turn the cable trunking to the other way in quadrature on the same
plane of cable trunking systems. It used to connect straight trunking and cable trunking
fittings by straight coupler and angle coupler in cable trunking systems.
Page 3
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
50175 2550 1.0
200 50100 1.2
300 50100 1.5
6. Reducer trunking:
A
Reducer trunking used to reduce width of straight trunking. Reduces are available in any
prime width/reduced width combination.
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
7. Straight couple trunking:
Straight couples trunking used to connect straight trunking or straight trunking with degrees
bends, equal tees in the cable trunking systems.
 Standard Specification:
W1
A
B
W2
10
H

5. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
W
Page 4
8. End cap trunking:
50
H
At the and cap cable trunking or cable trunking systems.
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
50 150 25 100 1.0
200 50 100 1.2
300 50 100 1.5
Cable Trungking are manufactured in the compliance with : TCVN 3781 - 1983, TCVN 5026 -
1989, TCVN 5408 : 1991, TCVN 197 : 2002 and NEMA VE 1-2002/CSA C22.2 No 126.1-02 and
tested by QUATEST 3.

6. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Page 5
CABLE TRAY

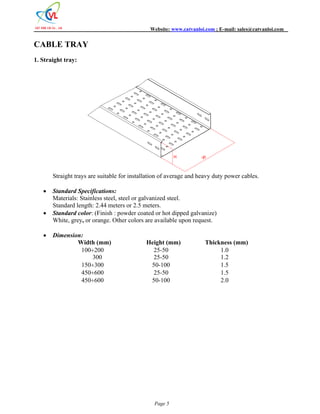

1. Straight tray:
W
H
Straight trays are suitable for installation of average and heavy duty power cables.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
Standard length: 2.44 meters or 2.5 meters.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey, or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
100200 25-50 1.0
300 25-50 1.2
150300 50-100 1.5
450600 25-50 1.5
450600 50-100 2.0

7. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
W 150 100
Page 6
2.Flat bend tray:
A
Flat bend tray used to turn the tray system on the right or on the left on the same. To connect
the straight trays or straight tray with other bend or equal tee by straight coupler in cable tray
system.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey, or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
100200 25-50 1.0
300 25-50 1.2
150300 50-100 1.5
450600 25-50 1.5
450600 50-100 2.0

8. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
W 100
Page 7
3. Flat tee tray:
150 100
A
W
H
B
Flat tee tray used to turn the tray system on the other way on the same plane. To connect the
straight trays or straight tray with other bend or equal tee by straight coupler in cable tray
system.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
100 200 25 50 1.0
300 2550 1.2
150300 50100 1.5
450600 2550 1.5
450600 50100 2.0

9. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Page 8
4. Flat four way tray:
A
W
W
H
100
Flat four way tray used to turn the tray system on the other way on the same plane. To connect
the straight trays or straight tray with other bend or equal tee by straight coupler or angle
couple in cable tray system.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey, or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
100200 2550 1.0
300 2550 1.2
150300 50100 1.5
450600 2550 1.5
450600 50100 2.0

10. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
5. 90 degrees internal and external bend tray:
B
C
D
Internal and external bend tray used to turn cable tray to quarter on the same plane. It used to
connect straight trays or degrees flat bends. Equal tee by straight coupler in cable tray systems.
Page 9
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey, or orange. Other colors are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
100200 2550 1.0
300 2550 1.2
150300 50100 1.5
450600 2550 1.5
450600 50100 2.0
W
H
B
H
D
H

11. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Page 10
6. Reducer tray:
W1
Reducer tray used to reduce the width of straight trays or width of degrees flat bends, width of
equal in cable tray systems.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
7. Straight coupler tray:
Straight couple tray used to connect straight trays or straight trunking with degrees flat bend,
flat equal tee in cable tray systems.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
W1
A
B A
10
H

12. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Page 11
8. Angle coupler tray:
Angle coupler tray used to connect straight trays or straight trunking with degrees flat bend,
flat equal tee in cable tray system.
 Standard Specifications:
Materials: Stainless steel, steel or galvanized steel.
 Standard color: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colors are available upon request.
Cable Tray are manufactured in the compliance with : TCVN 3781 - 1983, TCVN 5026 -1989,
TCVN 5408 : 1991, TCVN 197 : 2002 and NEMA VE 1-2002/CSA C22.2 No 126.1-02 and tested
by QUATEST 3.

13. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
CABLE LADDER
Page 12
1. Straight ladder:
W
80
10
Cable ladders are manufactured for install of power cable in the heavy cable distributions of
power station, and main power system of buildings. This type of ladder is produced in 2.5
meters length.
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
Standard length: 2.44 meters or 2.5 meters.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colours are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
200850 50100 1.5
9001100 50100 2.0
2. Flat bend ladder:
W
W 150
A
Flat bend ladder used to turn ladder system on the right or on the left on the same panel. It used
to connect straight ladders and cable degrees flat bend, equal tee by straight coupler in cable
ladder systems.
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colours are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
200850 50100 1.5

14. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
W
W 150 300
150 W4=W
W1=W
300 150
Page 13

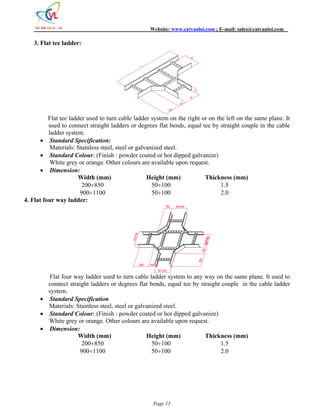

3. Flat tee ladder:
H
L
Flat tee ladder used to turn cable ladder system on the right or on the left on the same plane. It
used to connect straight ladders or degrees flat bends, equal tee by straight couple in the cable
ladder system.
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White grey or orange. Other colours are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
200850 50100 1.5
9001100 50100 2.0
4. Flat four way ladder:
W2=W
300 150
W3=W
Flat four way ladder used to turn cable ladder system to any way on the same plane. It used to
connect straight ladders or degrees flat bends, equal tee by straight couple in the cable ladder
system.
 Standard Specification
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White grey or orange. Other colours are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
200850 50100 1.5
9001100 50100 2.0

15. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
5 .90 degrees internal bend ladder; external bend ladder:
Internal bend ladder, external bend ladder used to turn cable ladder system to quarter on the
W
H
200 150
H
same plane. It used to connect straight ladders or degrees flat bends, equal tee by straight
couple in the cable ladder system.
W2
Page 14
 Standard Specification:
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White grey or orange. Other colours are available upon request.
 Dimension:
Width (mm) Height (mm) Thickness (mm)
200850 50100 1.5
9001100 50100 2.0
6. Reducer ladder:
W1
W1 W1
Reducer ladder used to reduce the width of straight ladders or width of degrees flat bends,
width of equal tee on the same plane.
 Standard Specification
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colours are available upon request.
150 200
W

16. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com
Page 15

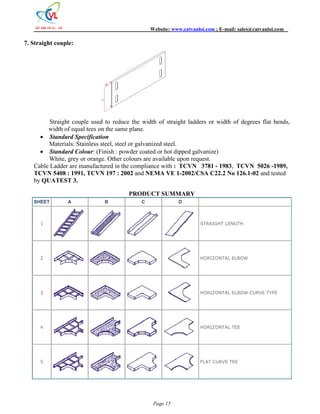

7. Straight couple:
10
H
Straight couple used to reduce the width of straight ladders or width of degrees flat bends,
width of equal tees on the same plane.
 Standard Specification
Materials: Stainless steel, steel or galvanized steel.
 Standard Colour: (Finish : powder coated or hot dipped galvanize)
White, grey or orange. Other colours are available upon request.
Cable Ladder are manufactured in the compliance with : TCVN 3781 - 1983, TCVN 5026 -1989,
TCVN 5408 : 1991, TCVN 197 : 2002 and NEMA VE 1-2002/CSA C22.2 No 126.1-02 and tested
by QUATEST 3.
PRODUCT SUMMARY
SHEET A B C D
1 STRAIGHT LENGTH
2 HORIZONTAL ELBOW
3 HORIZONTAL ELBOW CURVE TYPE
4 HORIZONTAL TEE
5 FLAT CURVE TEE

17. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com

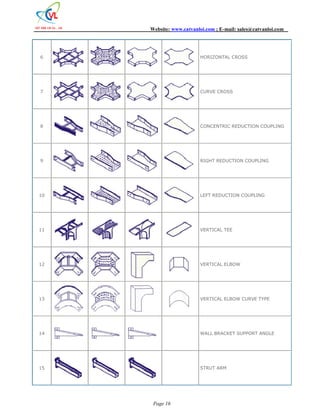

6 HORIZONTAL CROSS
7 CURVE CROSS
8 CONCENTRIC REDUCTION COUPLING
9 RIGHT REDUCTION COUPLING
10 LEFT REDUCTION COUPLING
11 VERTICAL TEE
12 VERTICAL ELBOW
13 VERTICAL ELBOW CURVE TYPE
14 WALL BRACKET SUPPORT ANGLE
15 STRUT ARM
Page 16

18. Website: www.catvanloi.com ; E-mail: sales@catvanloi.com

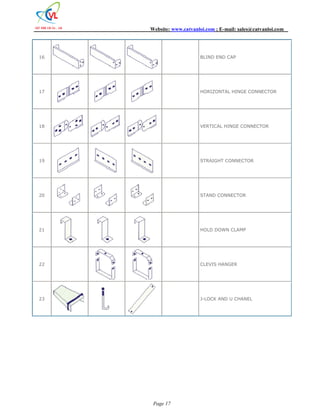

16 BLIND END CAP
17 HORIZONTAL HINGE CONNECTOR
18 VERTICAL HINGE CONNECTOR
19 STRAIGHT CONNECTOR
20 STAND CONNECTOR
21 HOLD DOWN CLAMP
22 CLEVIS HANGER
23 J-LOCK AND U CHANEL
Page 17

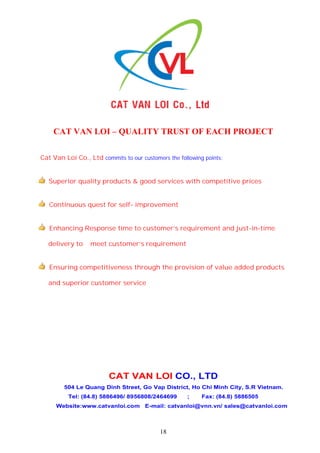

19. CAT VAN LOI – QUALITY TRUST OF EACH PROJECT
Cat Van Loi Co., Ltd commits to our customers the following points:
Superior quality products & good services with competitive prices
Continuous quest for self- improvement
Enhancing Response time to customer’s requirement and just-in-time
delivery to meet customer’s requirement
Ensuring competitiveness through the provision of value added products
18
and superior customer service
CAT VAN LOI CO., LTD
504 Le Quang Dinh Street, Go Vap District, Ho Chi Minh City, S.R Vietnam.
Tel: (84.8) 5886496/ 8956808/2464699 ; Fax: (84.8) 5886505
Website:www.catvanloi.com E-mail: catvanloi@vnn.vn/ sales@catvanloi.com
