1. Business layer
Lecturer: Ondrej Mihályi

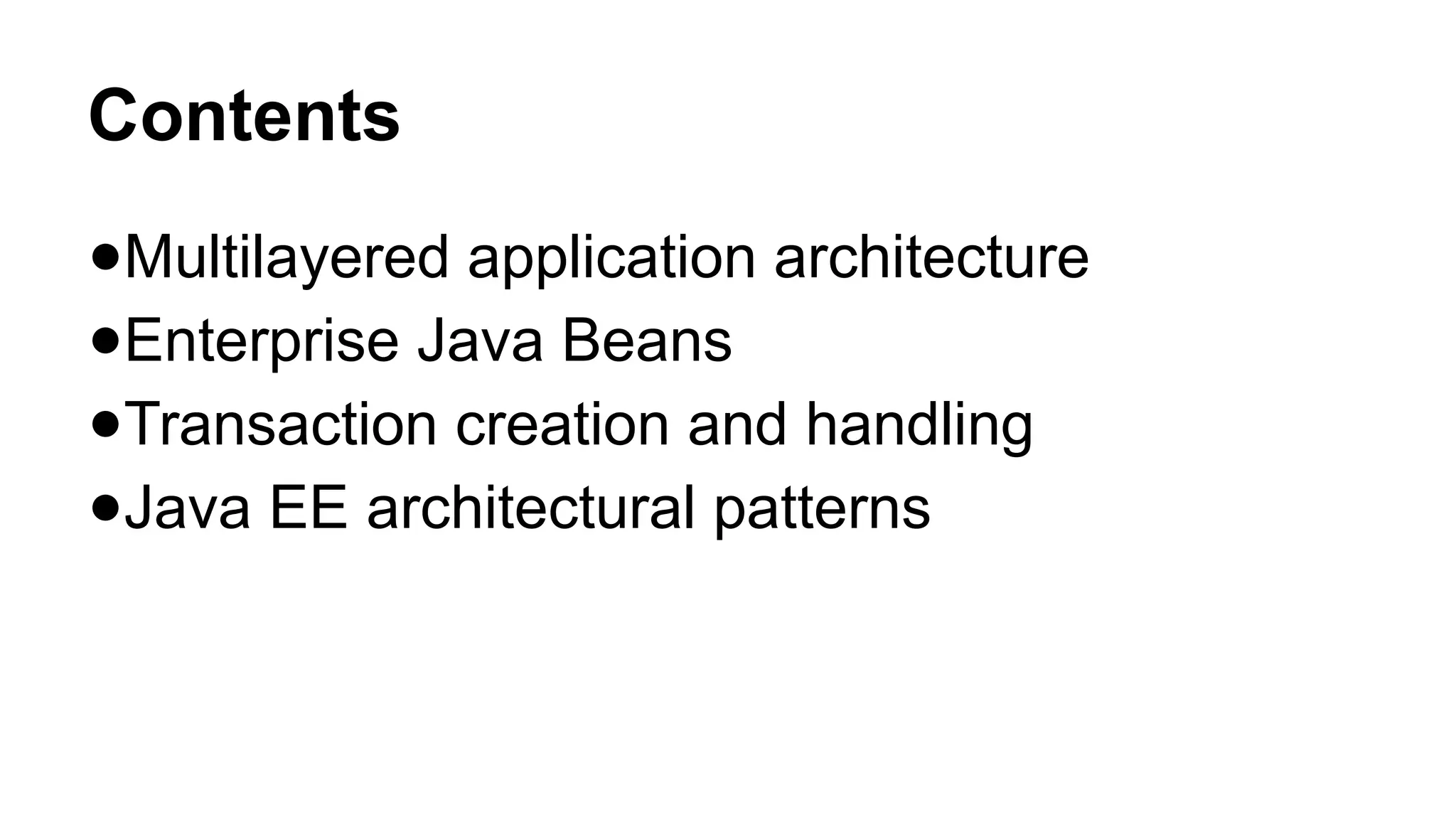

2. Contents
●Multilayered application architecture
●Enterprise Java Beans
●Transaction creation and handling
●Java EE architectural patterns

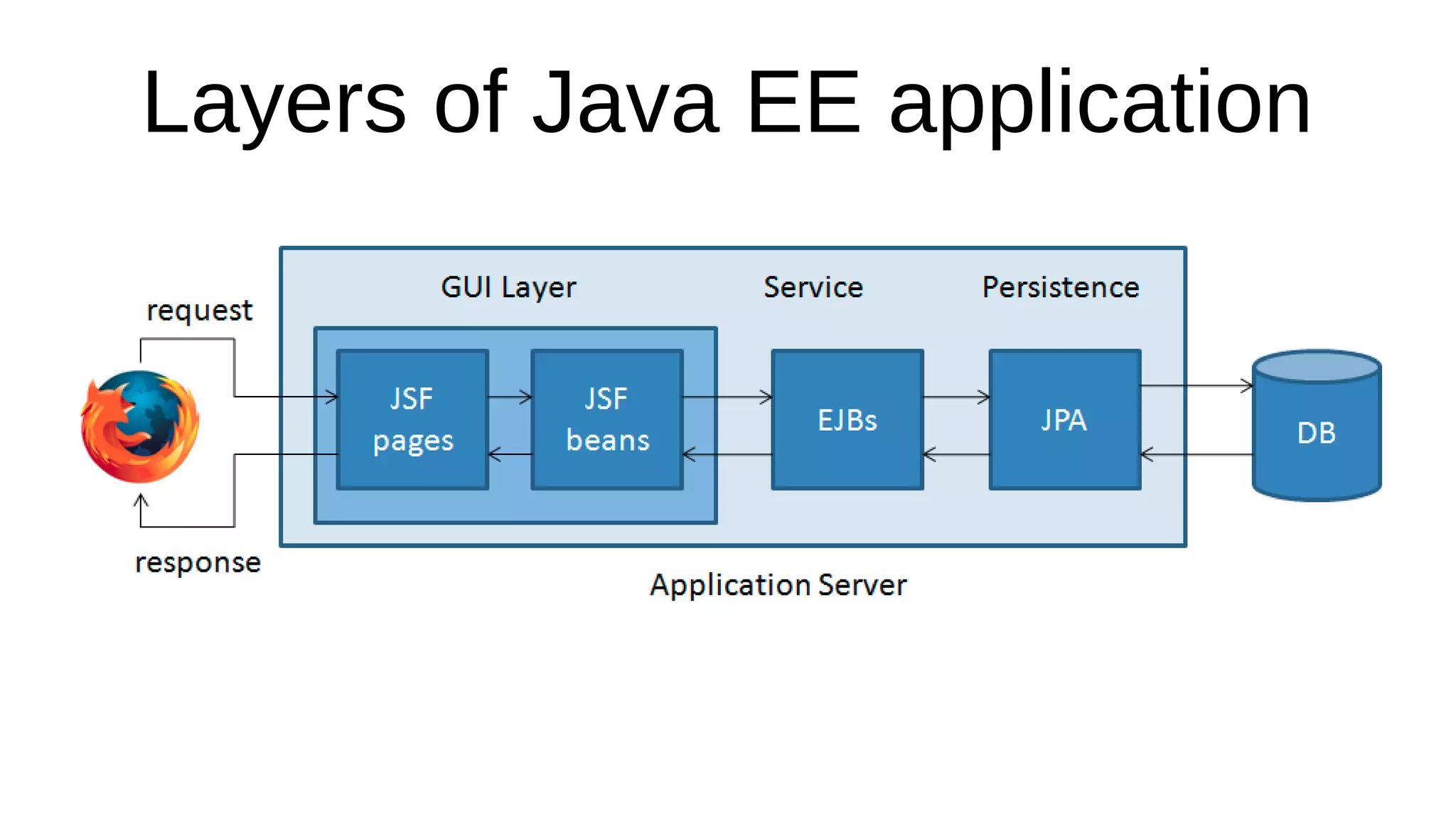

3. Layers of Java EE application

4. Traditional transactions
tx.begin();
try {
// … executing in transaction
tx.commit
} catch (Exception e) {
tx.rollback();
}

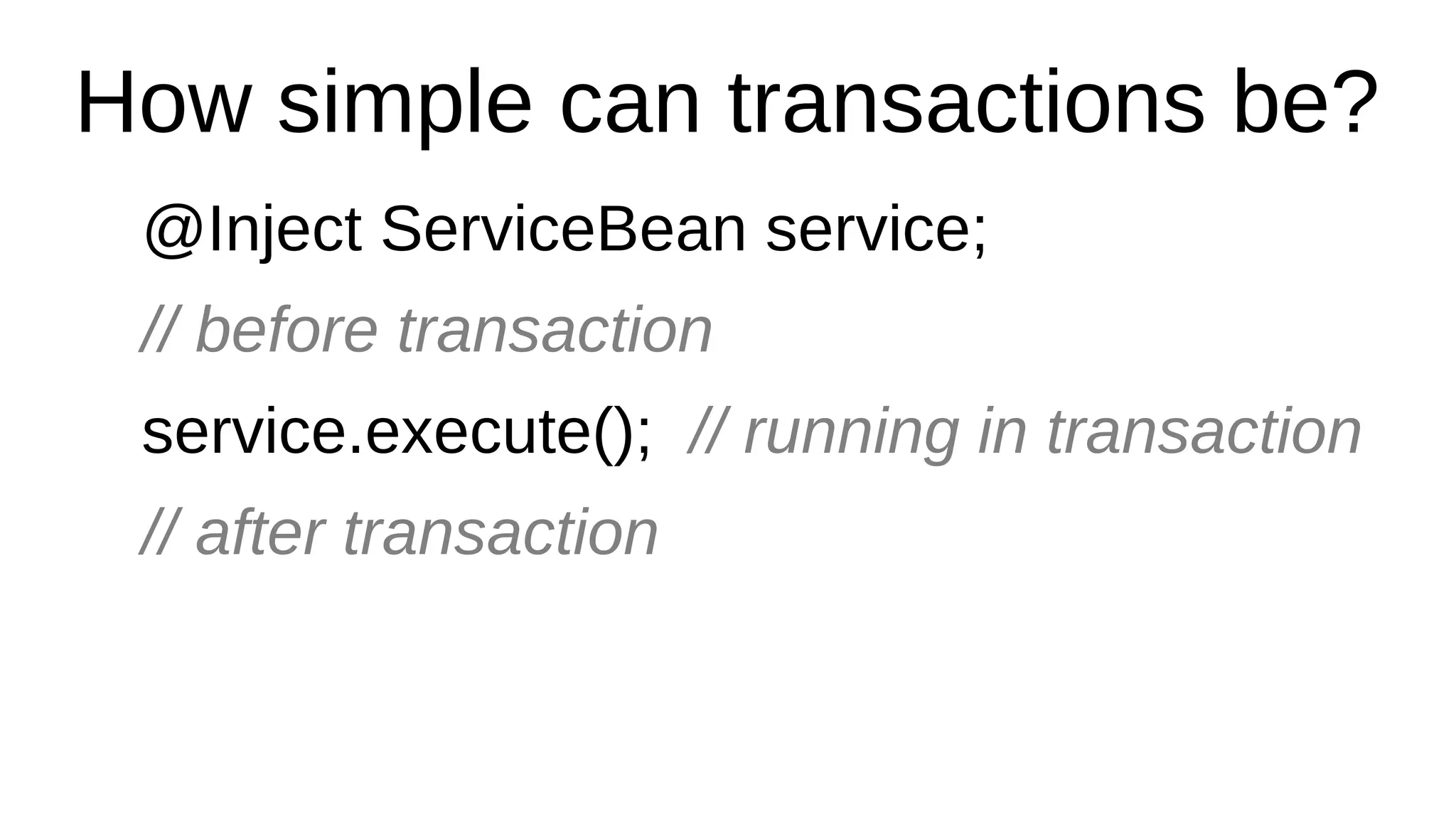

5. How simple can transactions be?
@Inject ServiceBean service;
// before transaction
service.execute(); // running in transaction
// after transaction

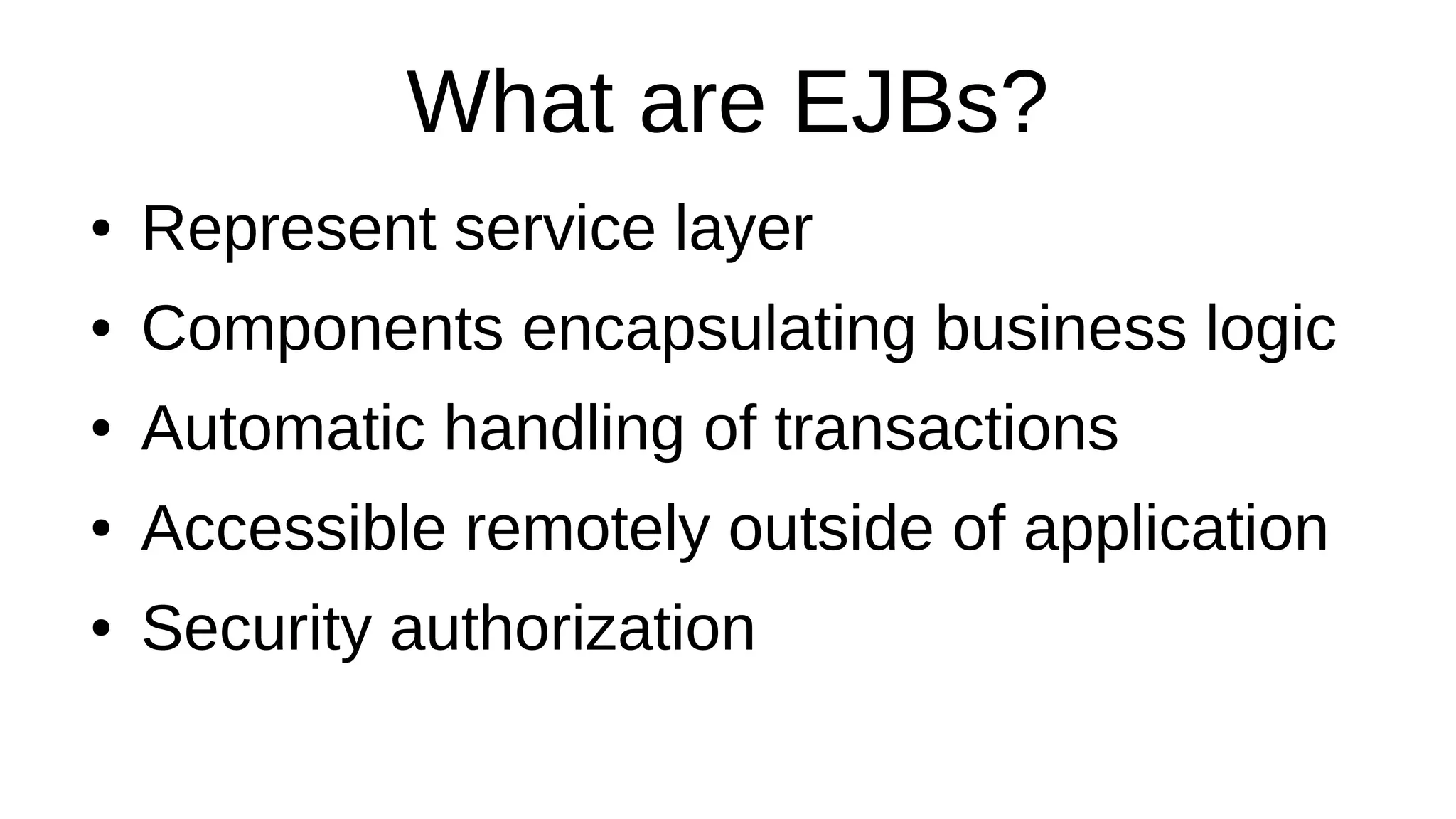

6. What are EJBs?
● Represent service layer
● Components encapsulating business logic
● Automatic handling of transactions
● Accessible remotely outside of application
● Security authorization

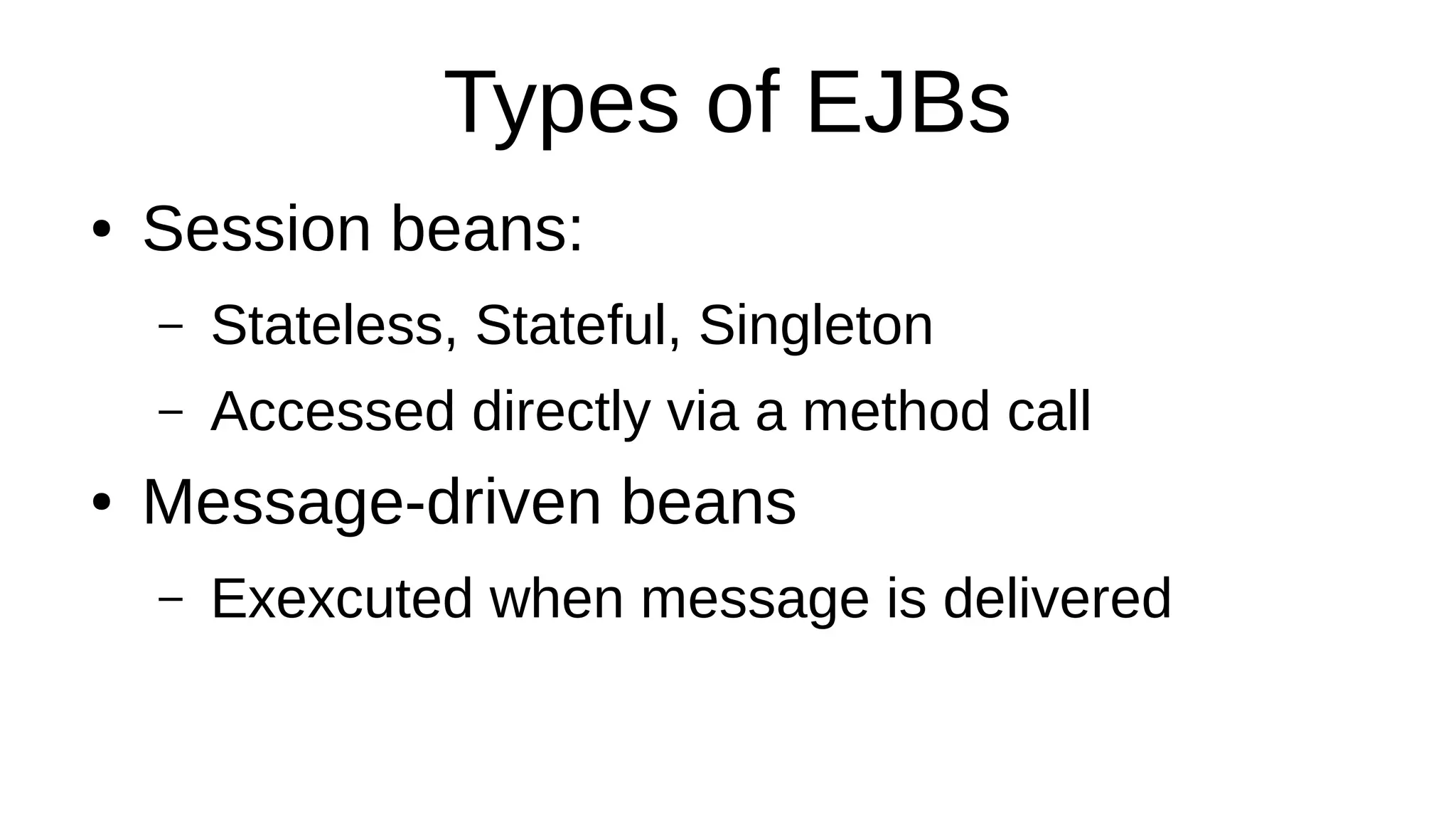

7. Types of EJBs
● Session beans:
– Stateless, Stateful, Singleton
– Accessed directly via a method call
● Message-driven beans
– Exexcuted when message is delivered

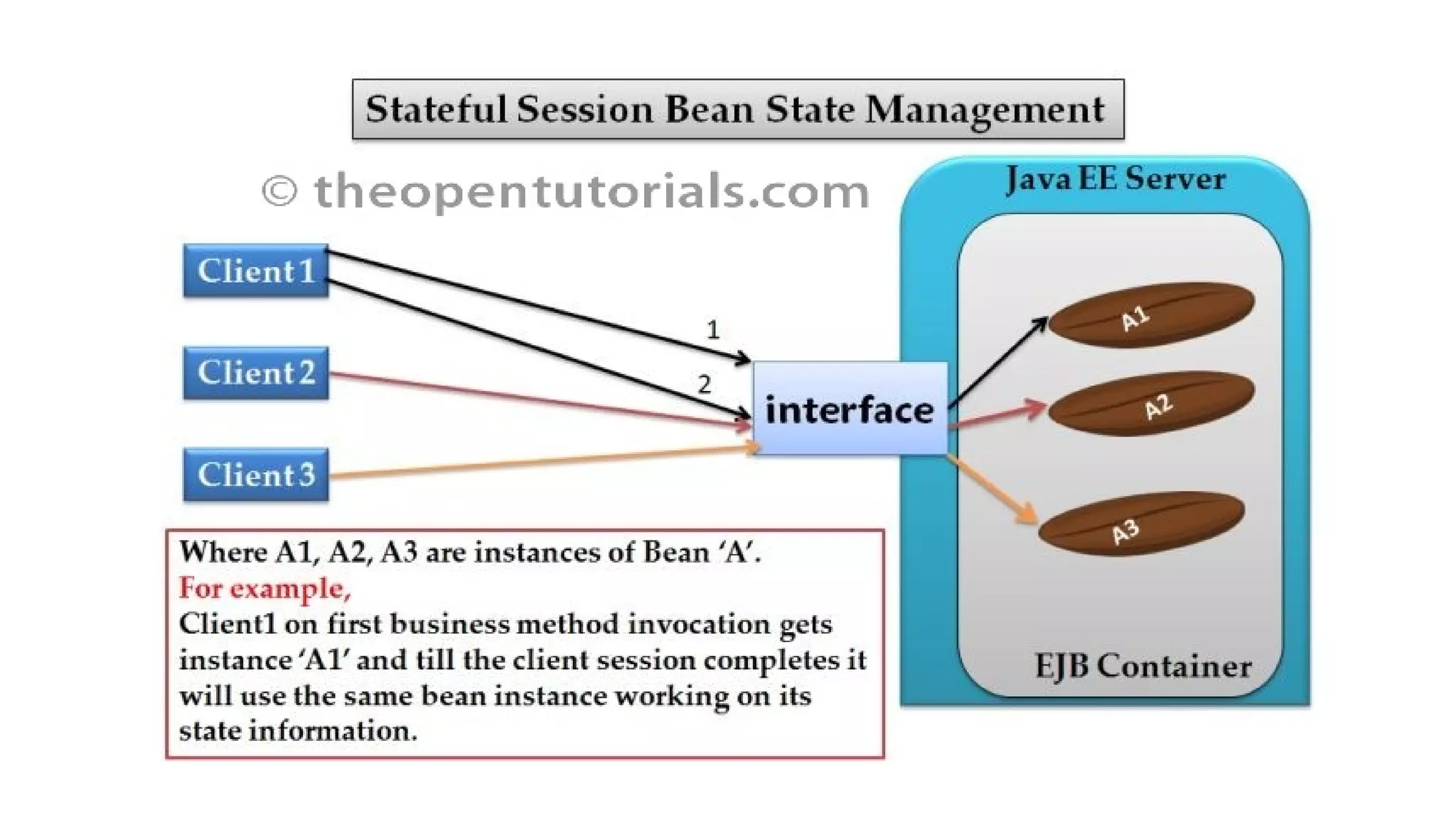

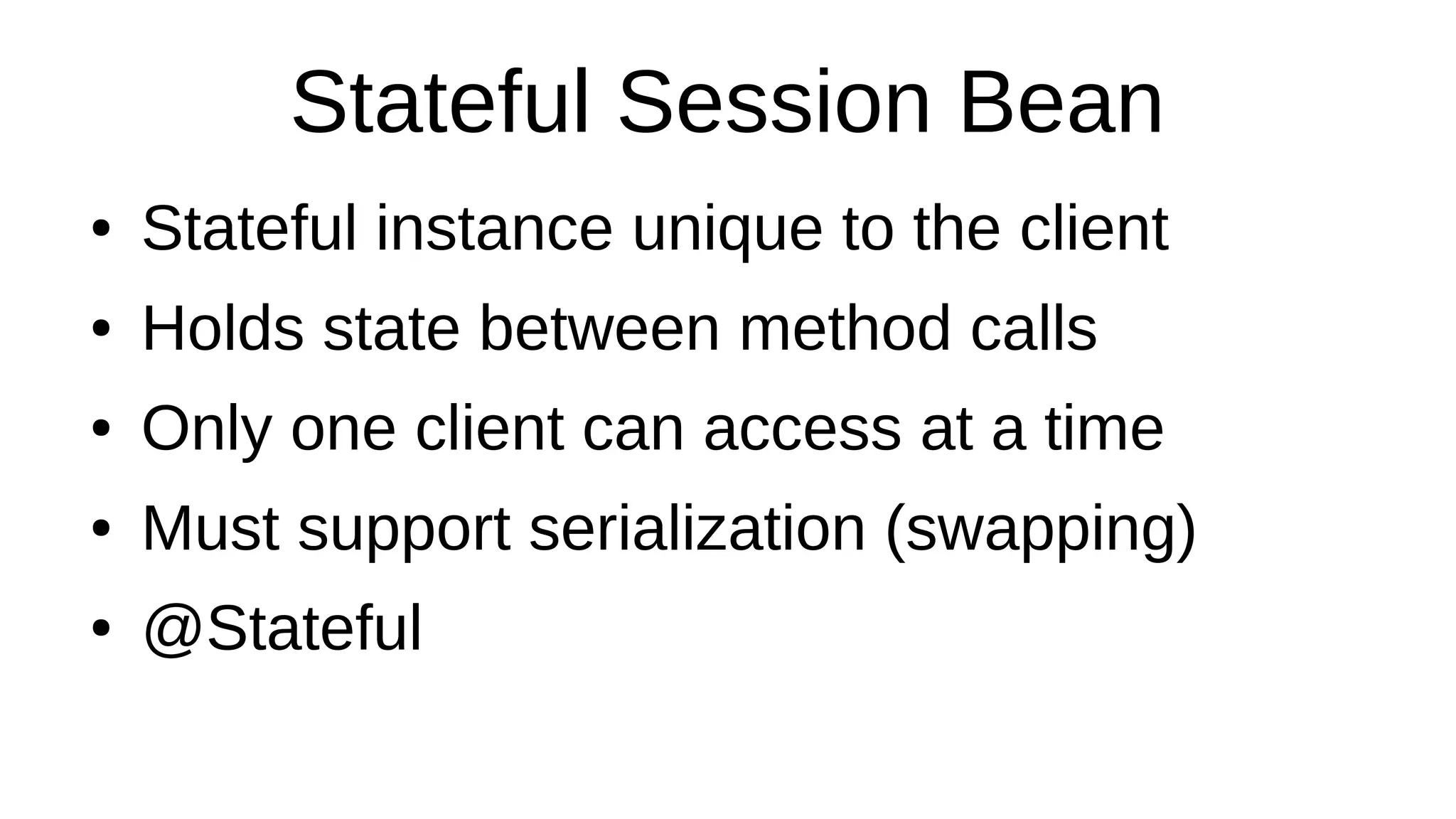

8. Stateful Session Bean
● Stateful instance unique to the client
● Holds state between method calls
● Only one client can access at a time
● Must support serialization (swapping)
● @Stateful

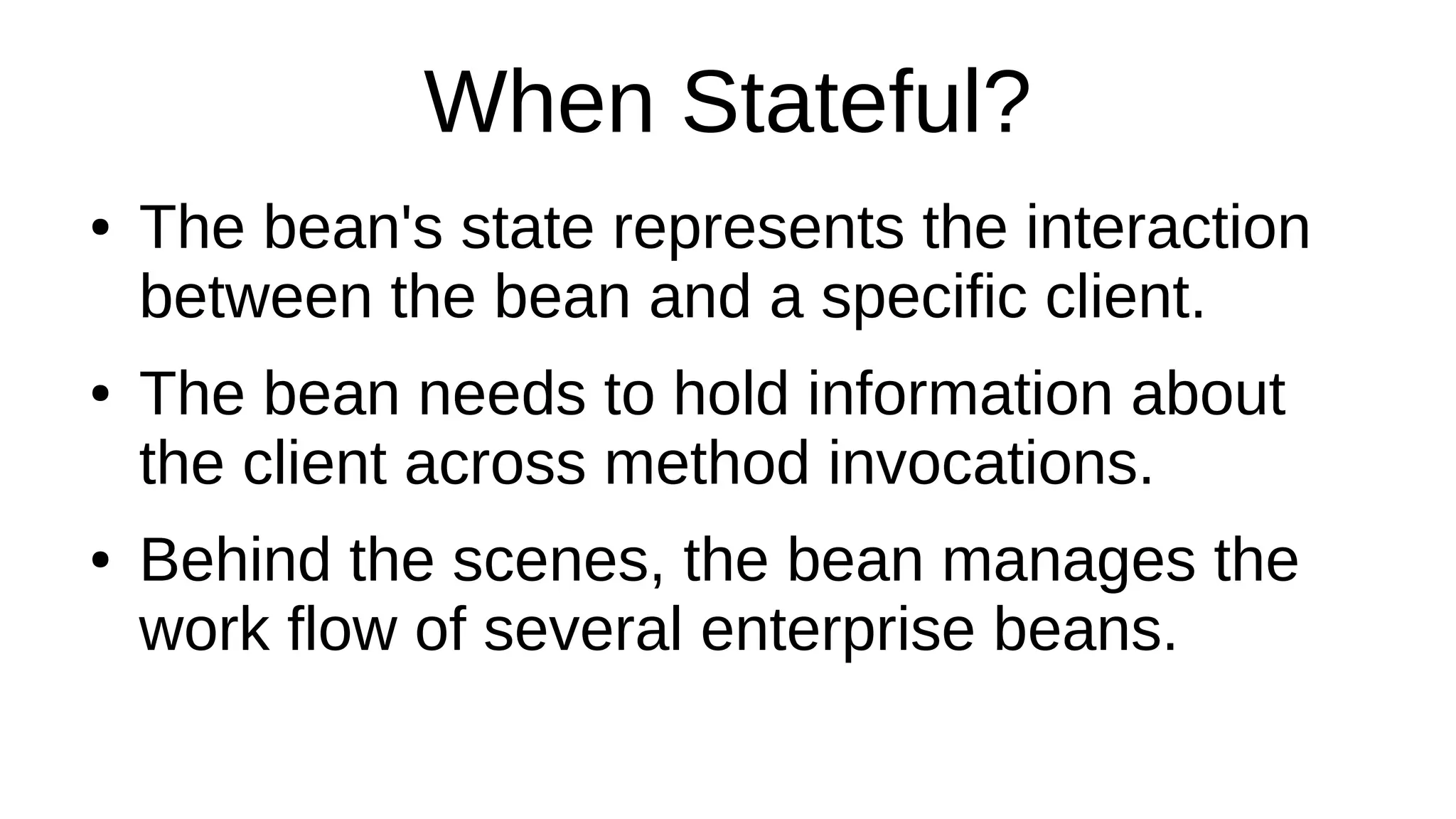

9. When Stateful?
● The bean's state represents the interaction
between the bean and a specific client.
● The bean needs to hold information about
the client across method invocations.
● Behind the scenes, the bean manages the
work flow of several enterprise beans.

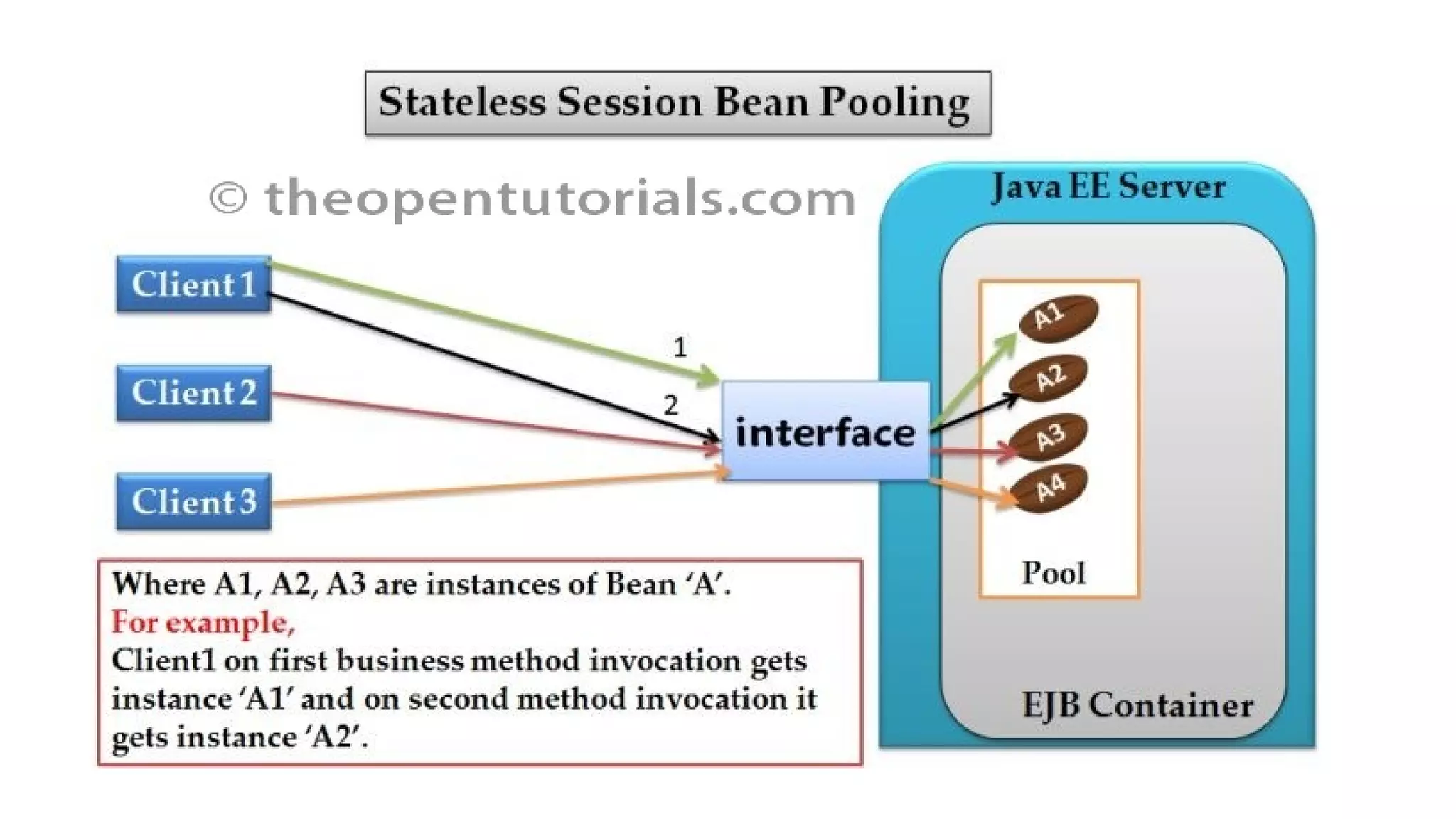

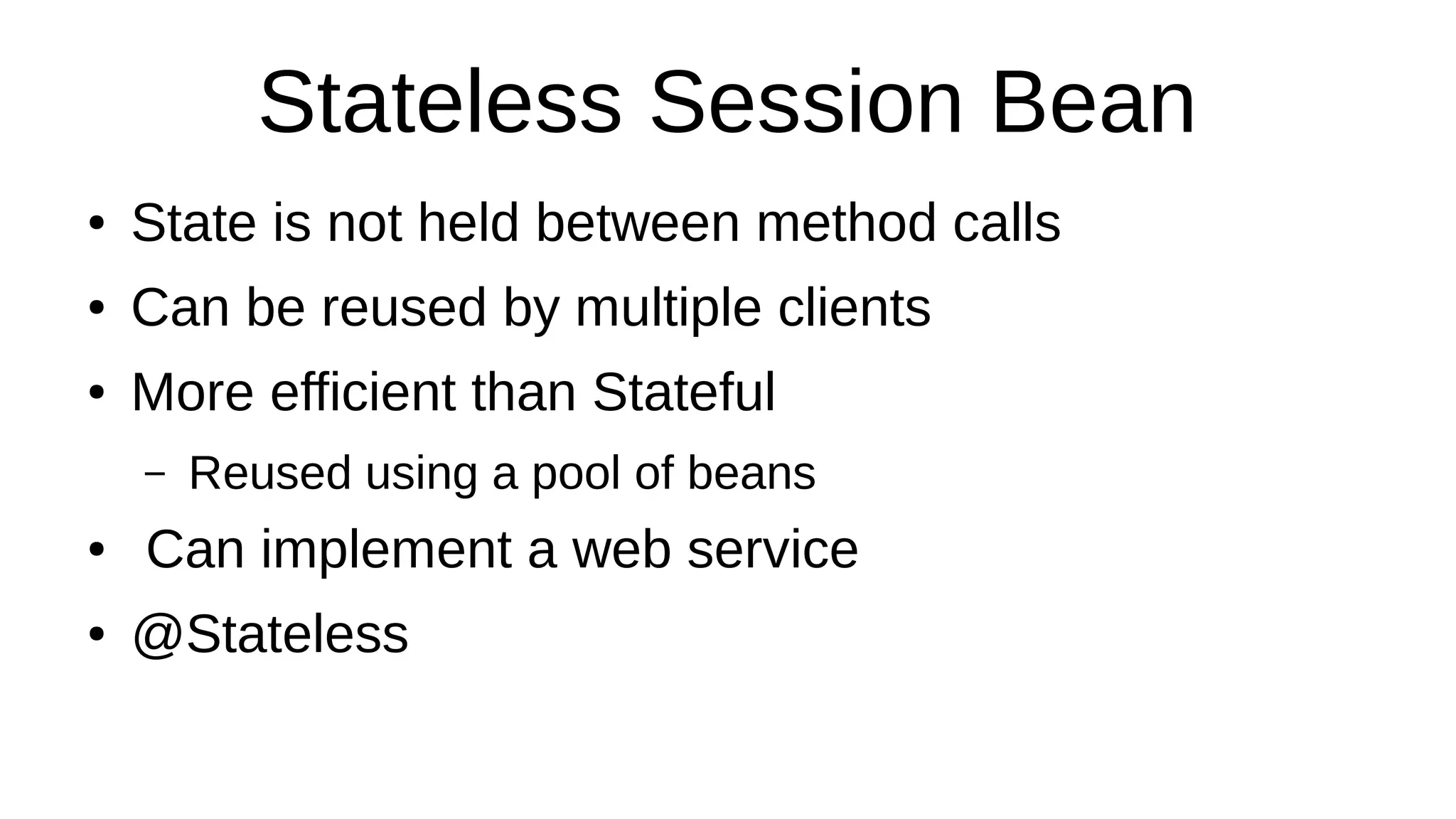

10. Stateless Session Bean
● State is not held between method calls
● Can be reused by multiple clients
● More efficient than Stateful
– Reused using a pool of beans
● Can implement a web service
● @Stateless

13. When Stateless?
● The bean does not have state.
● The bean methods are independent.
● The bean implements a web service.
● To improve performance, whenever
Stateful is not necessary.

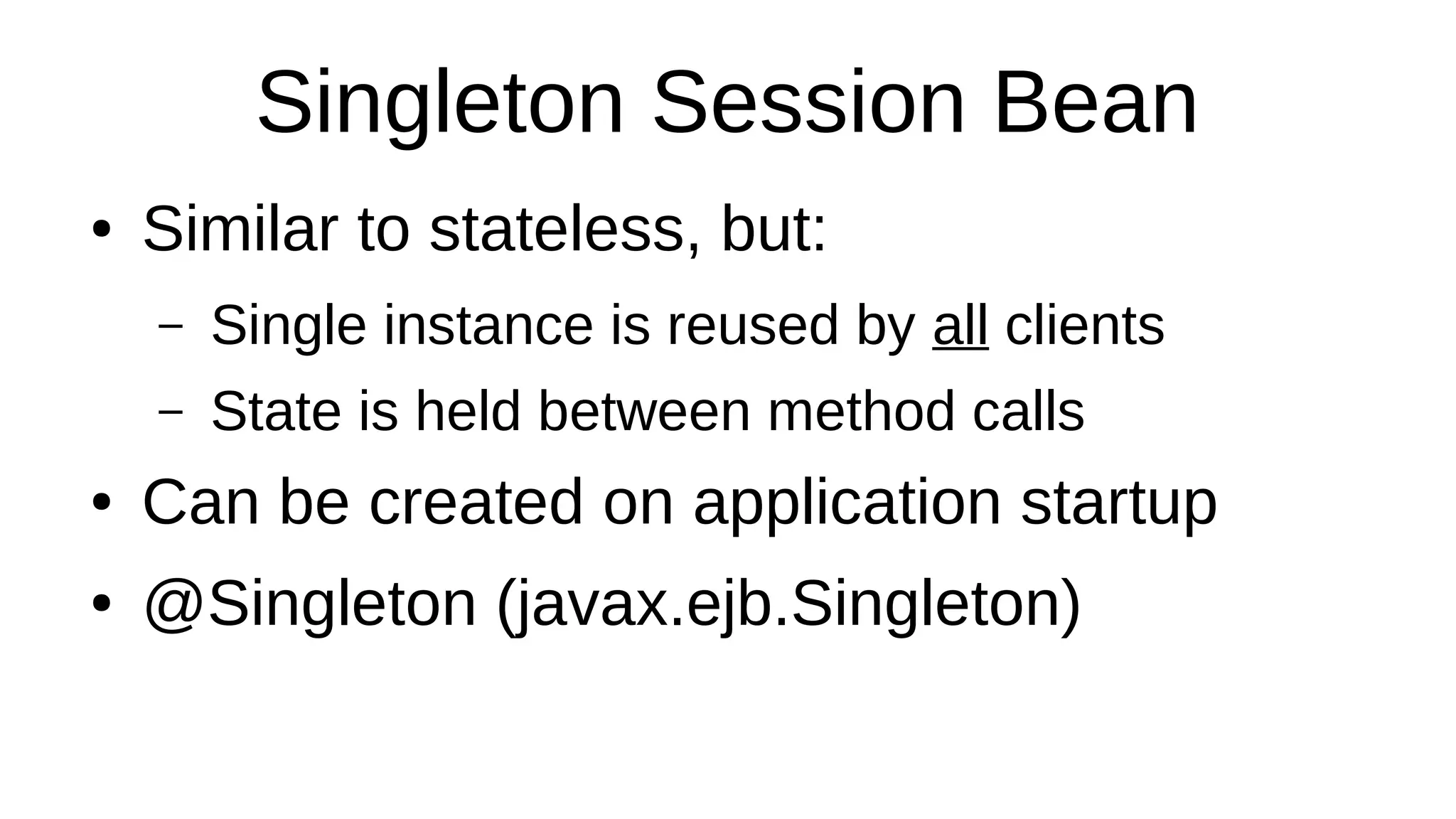

14. Singleton Session Bean
● Similar to stateless, but:
– Single instance is reused by all clients
– State is held between method calls
● Can be created on application startup
● @Singleton (javax.ejb.Singleton)

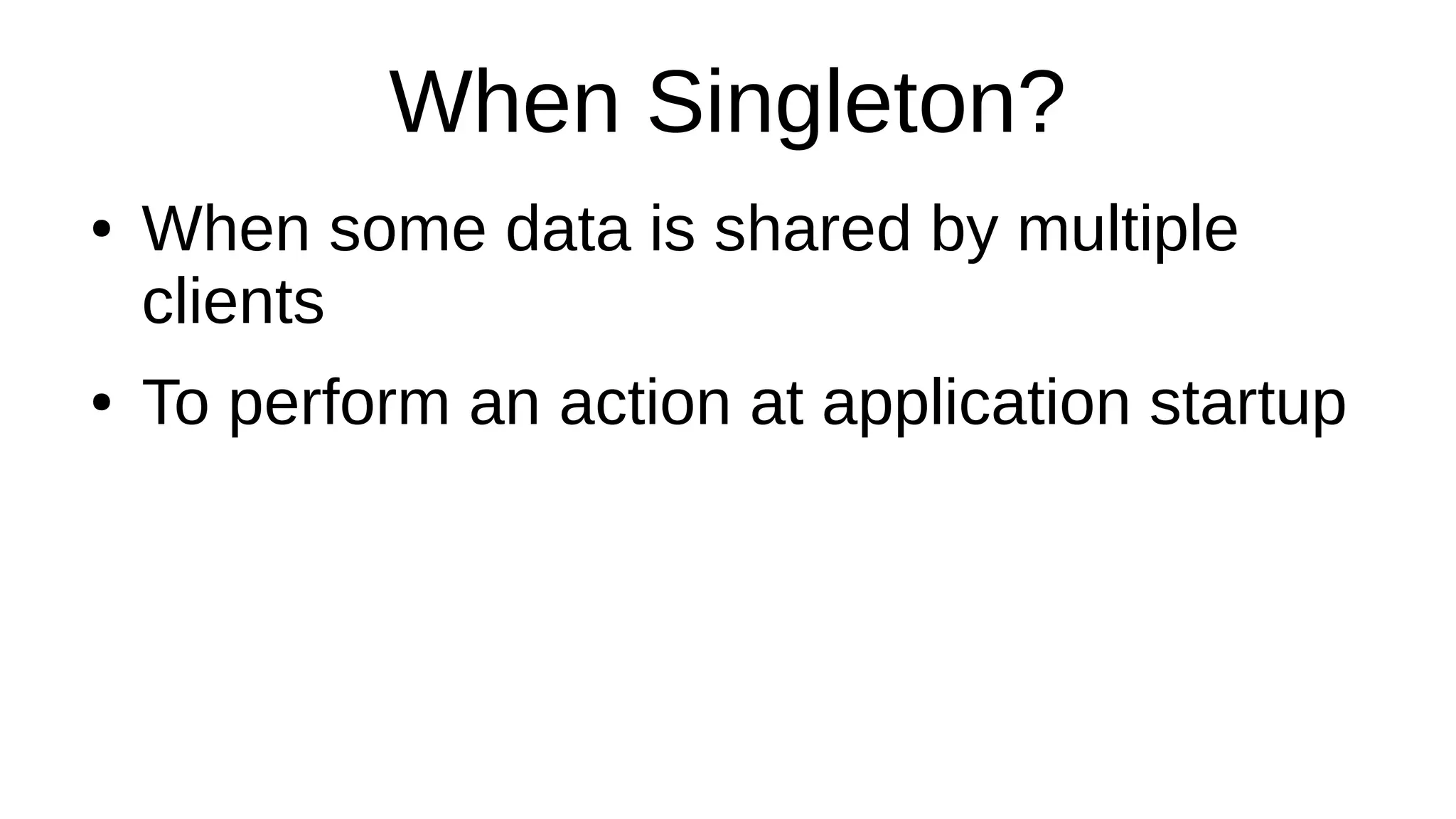

15. When Singleton?
● When some data is shared by multiple
clients
● To perform an action at application startup

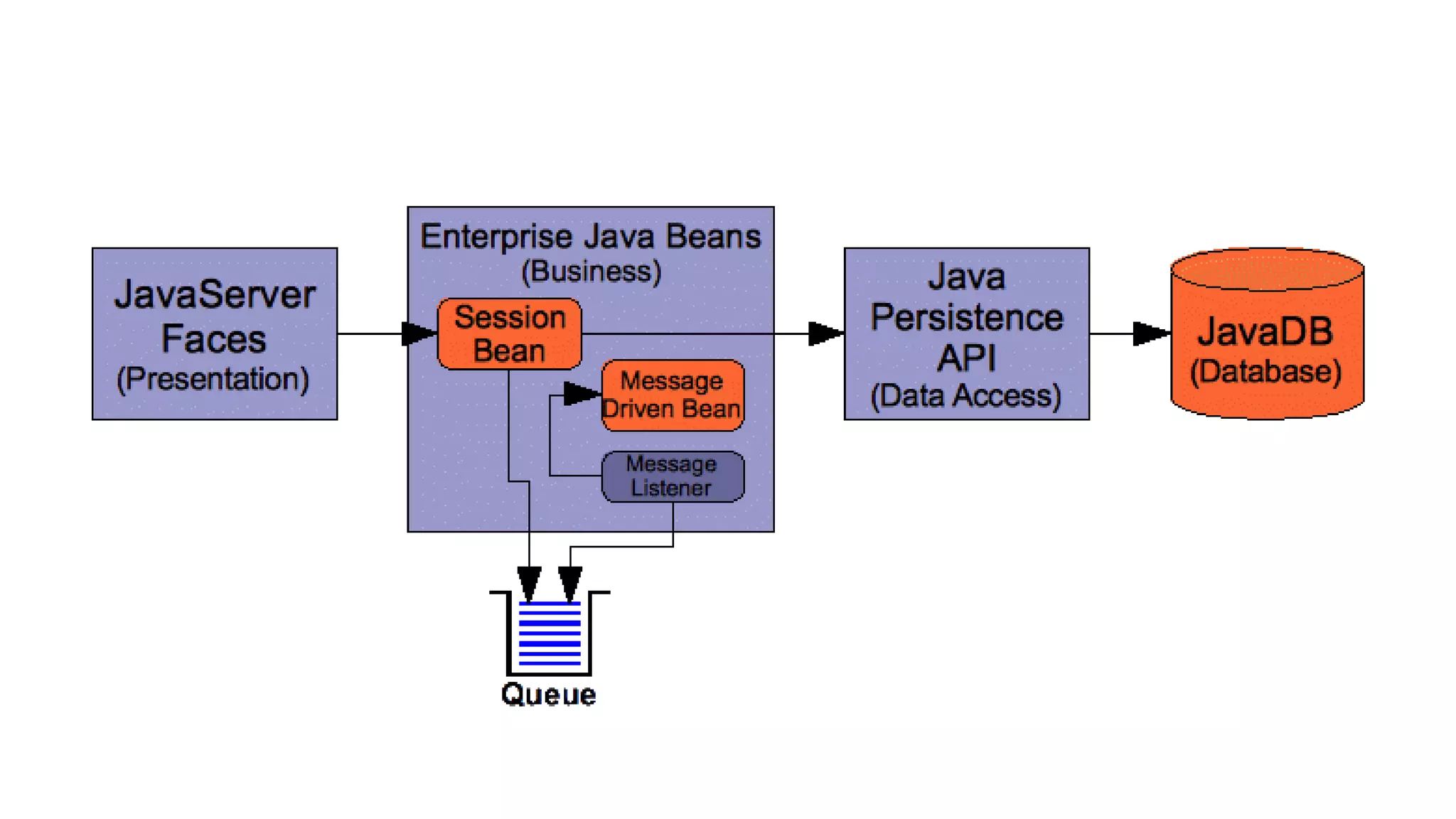

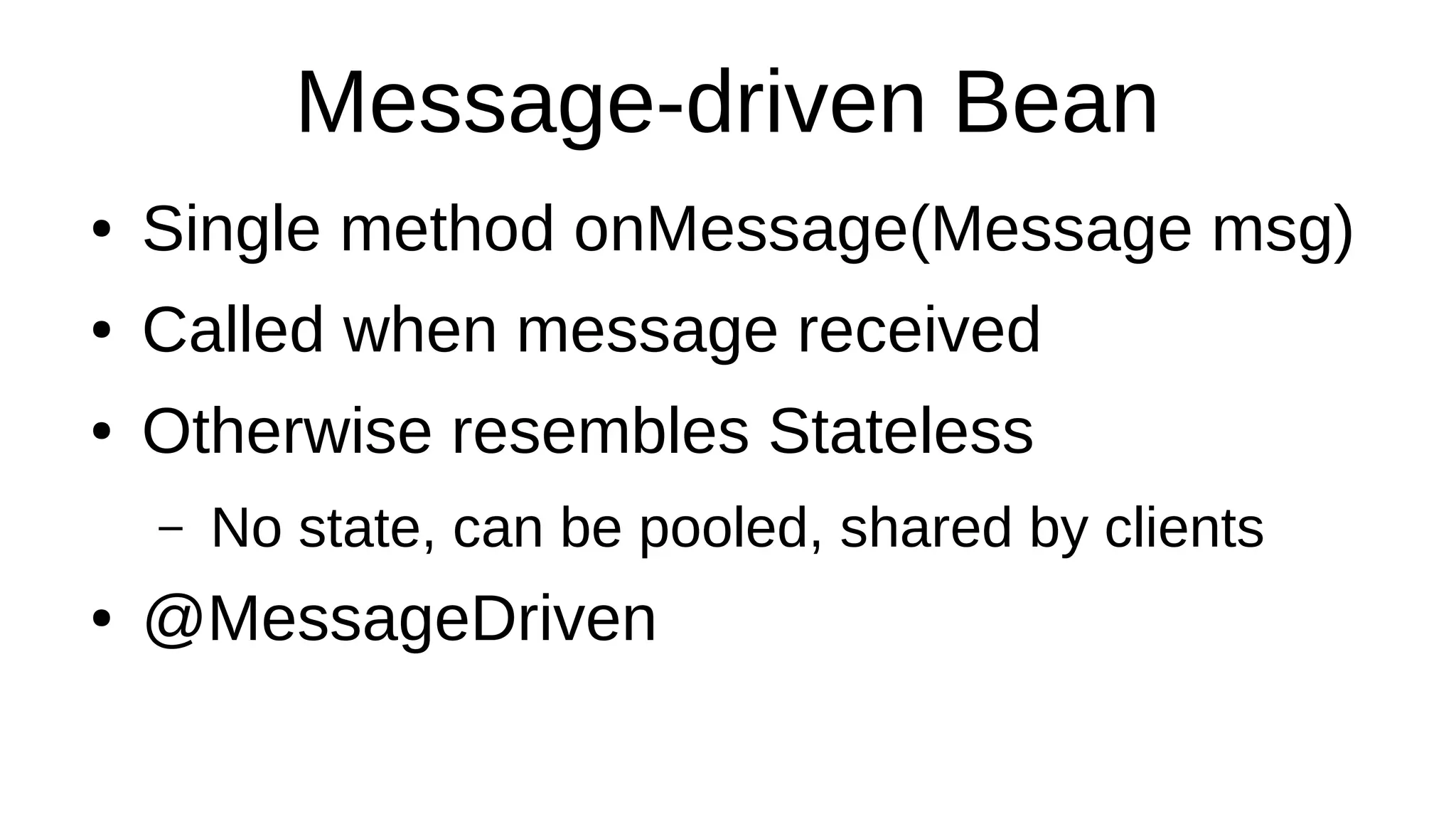

16. Message-driven Bean
● Single method onMessage(Message msg)
● Called when message received
● Otherwise resembles Stateless
– No state, can be pooled, shared by clients
● @MessageDriven

18. When Message-driven?
● Asynchronous processing
– Distribute processing on multiple nodes
– Do not block other requests
– Queue execution after pending requests

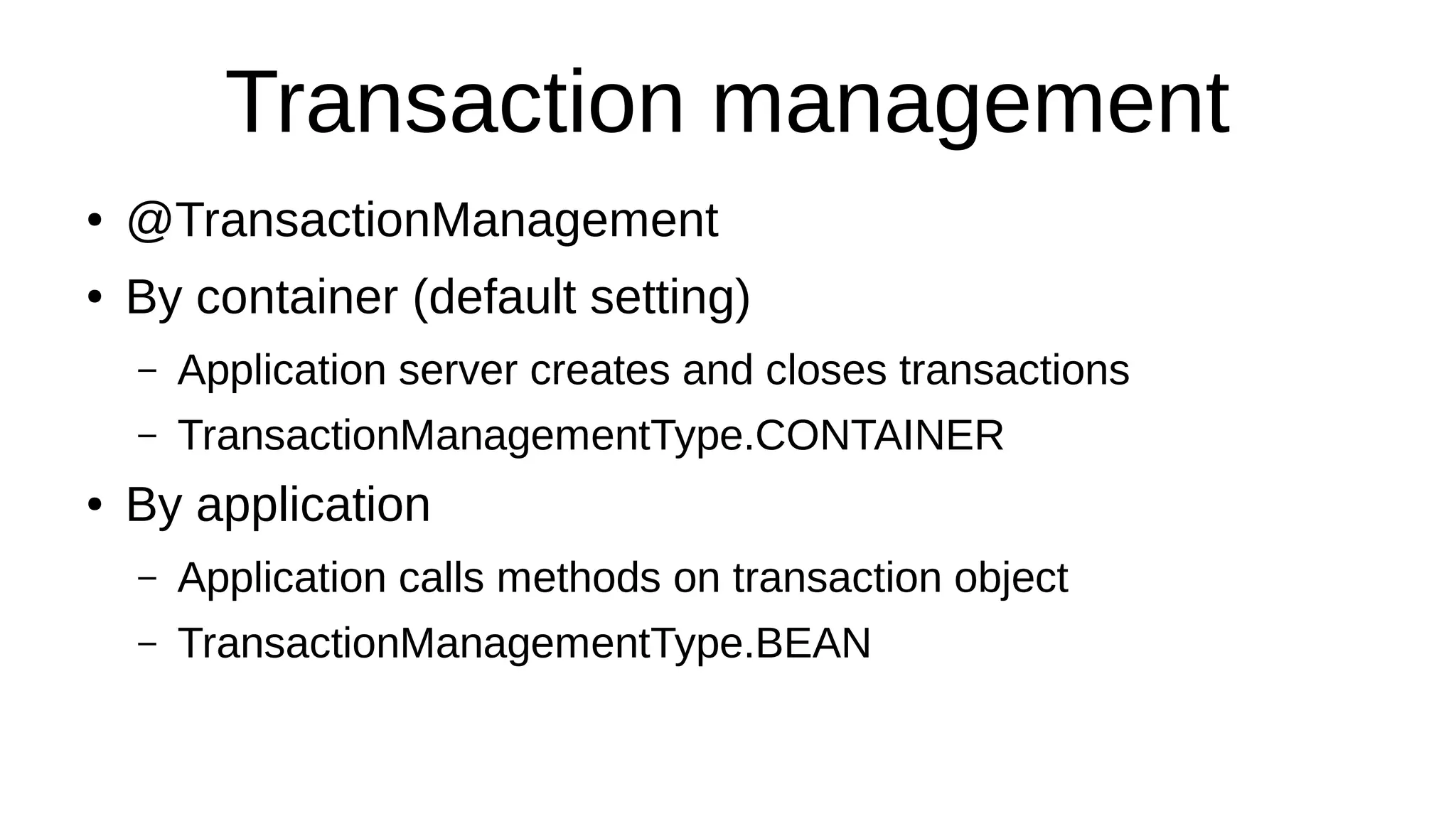

19. Transaction management
● @TransactionManagement
● By container (default setting)
– Application server creates and closes transactions
– TransactionManagementType.CONTAINER
● By application
– Application calls methods on transaction object
– TransactionManagementType.BEAN

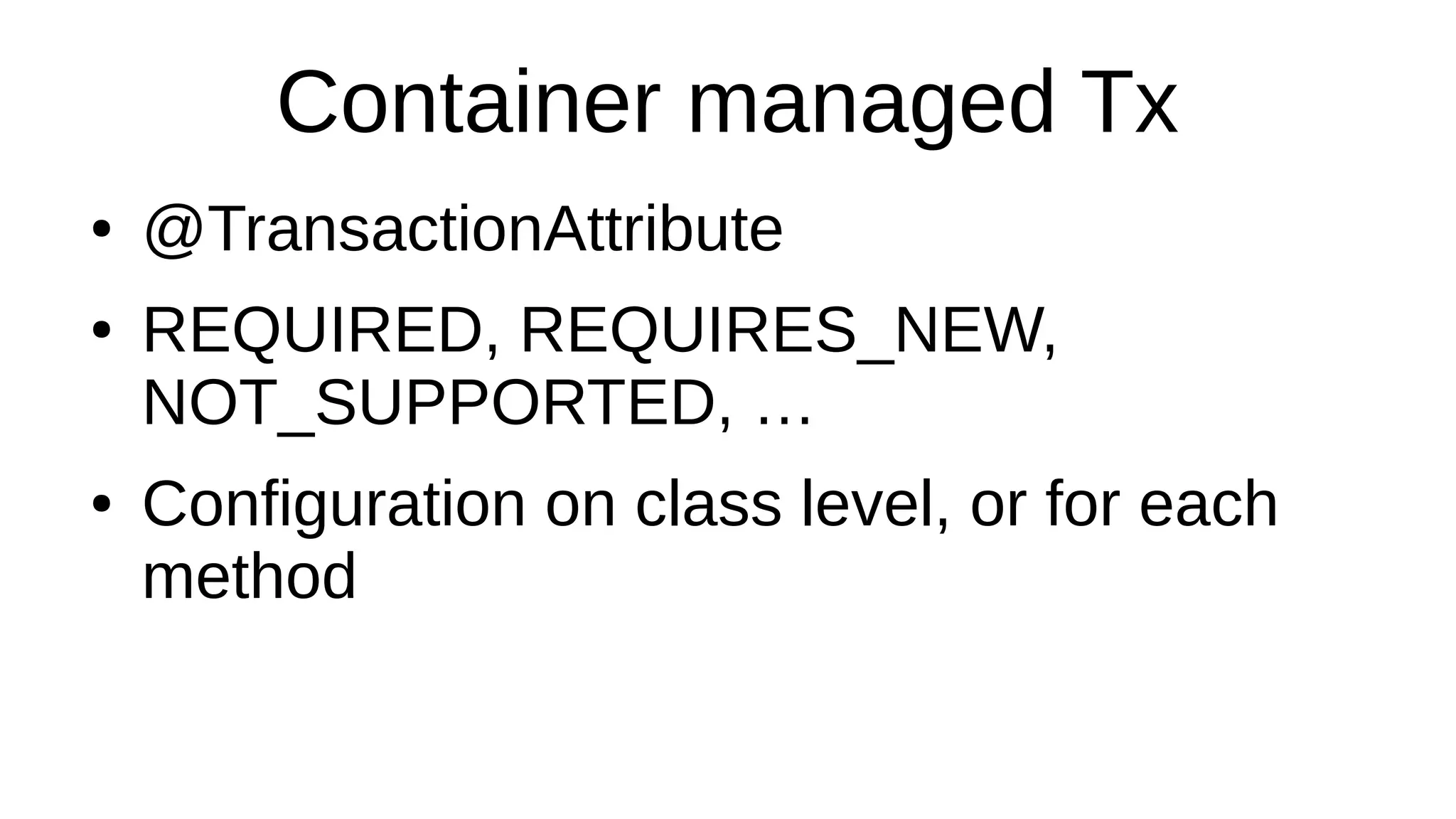

20. Container managed Tx
● @TransactionAttribute
● REQUIRED, REQUIRES_NEW,
NOT_SUPPORTED, …
● Configuration on class level, or for each
method

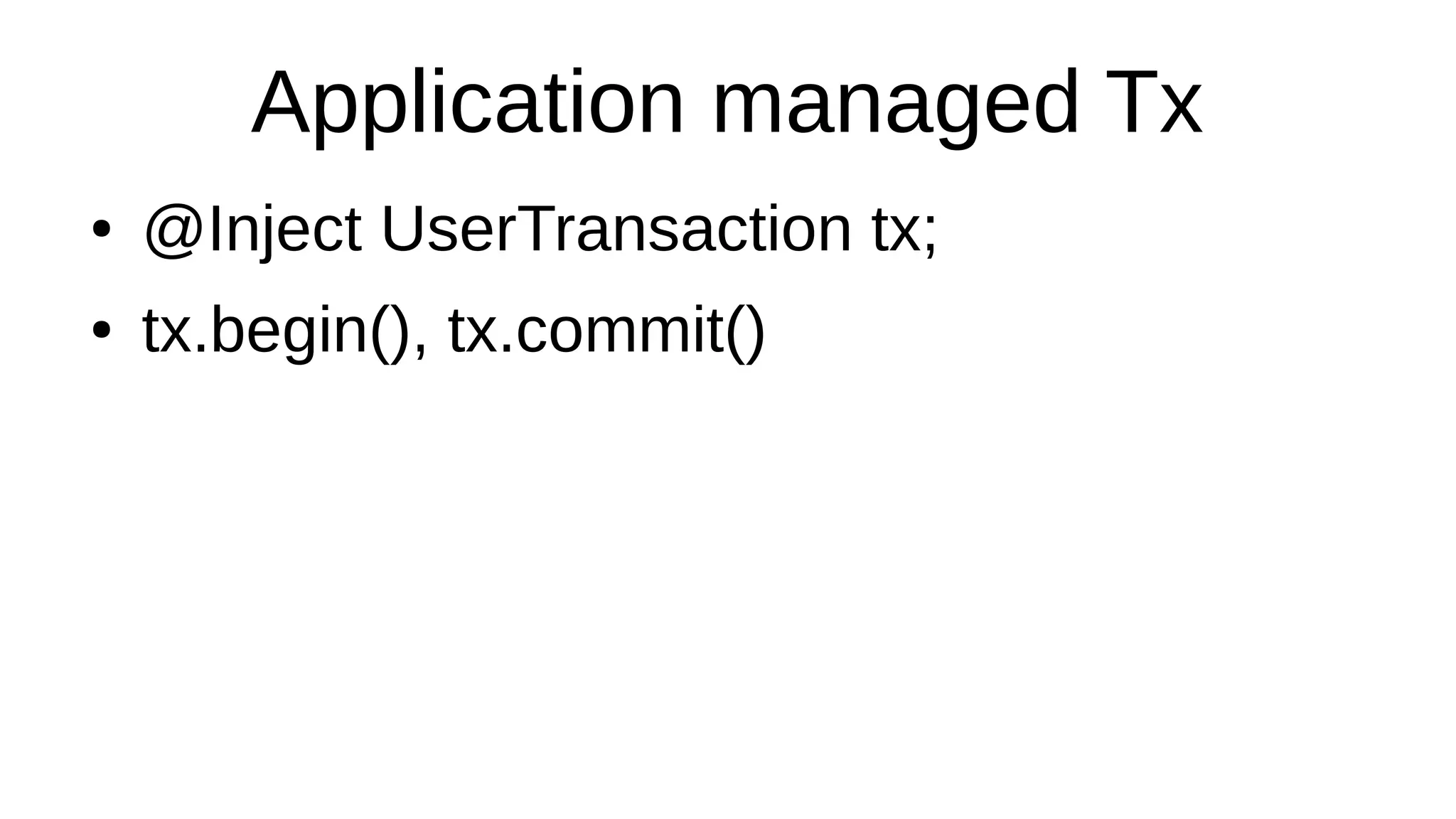

21. Application managed Tx
● @Inject UserTransaction tx;
● tx.begin(), tx.commit()

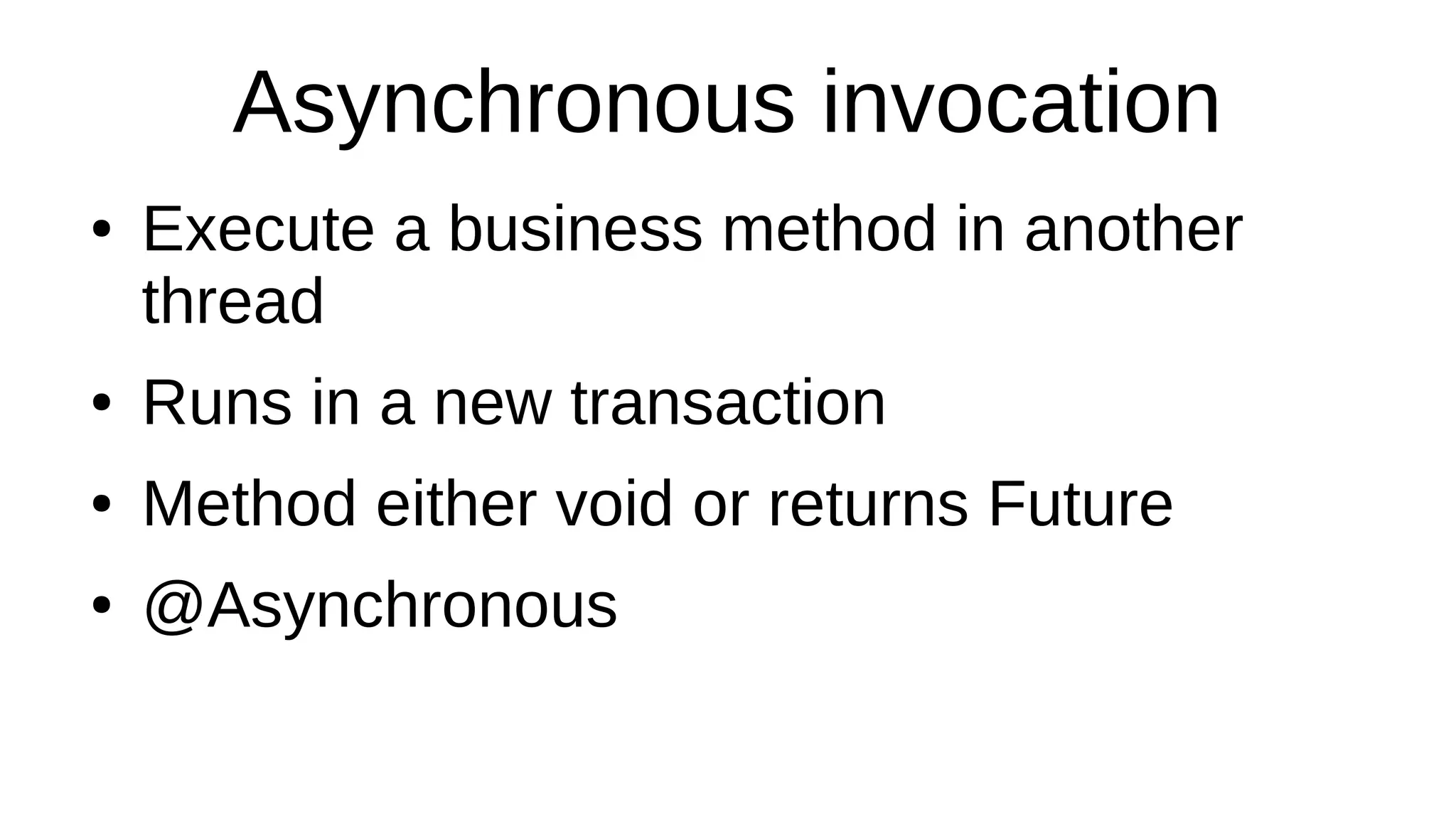

22. Asynchronous invocation
● Execute a business method in another
thread
● Runs in a new transaction
● Method either void or returns Future
● @Asynchronous

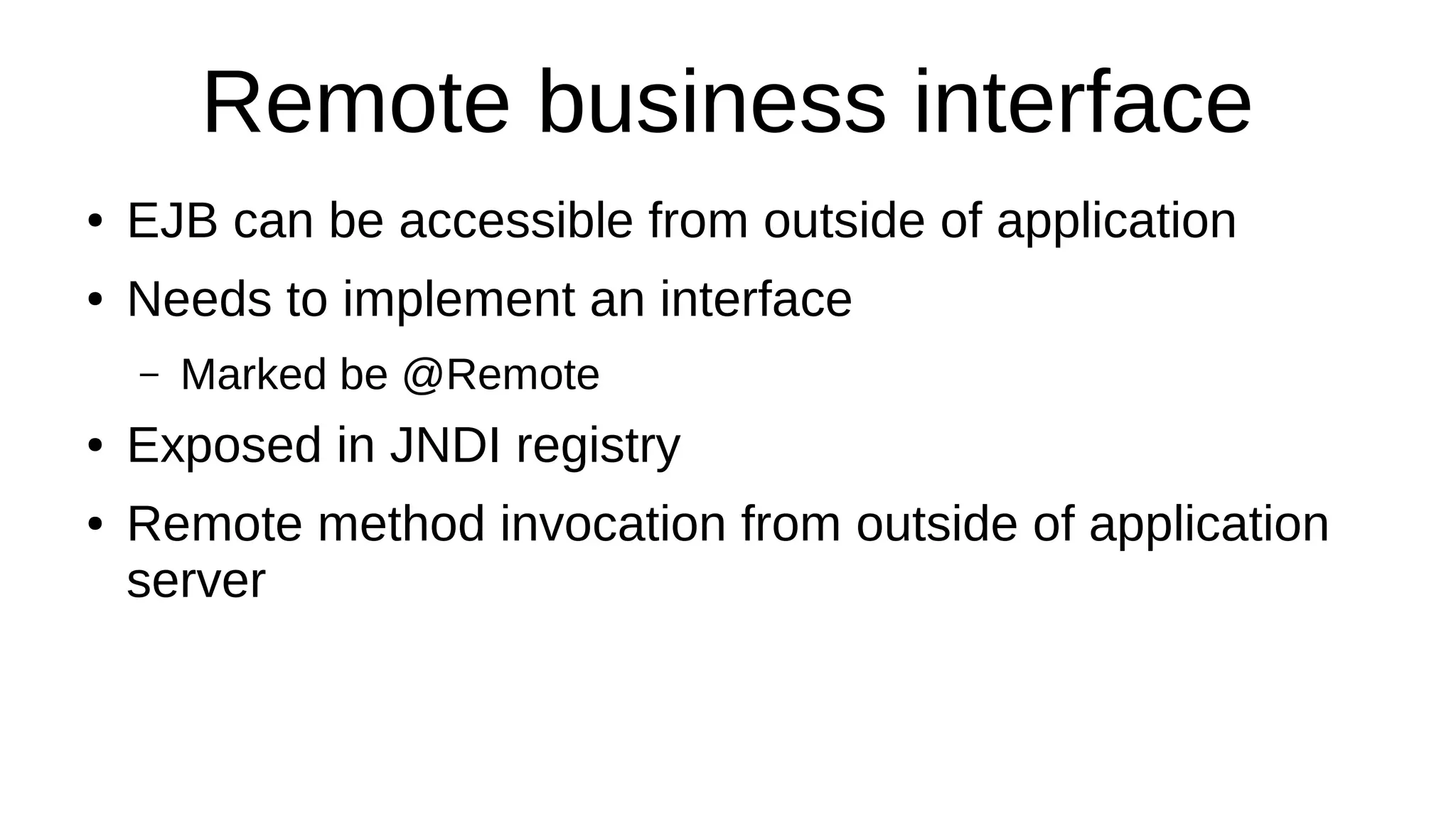

23. Remote business interface
● EJB can be accessible from outside of application
● Needs to implement an interface
– Marked be @Remote
● Exposed in JNDI registry
● Remote method invocation from outside of application
server

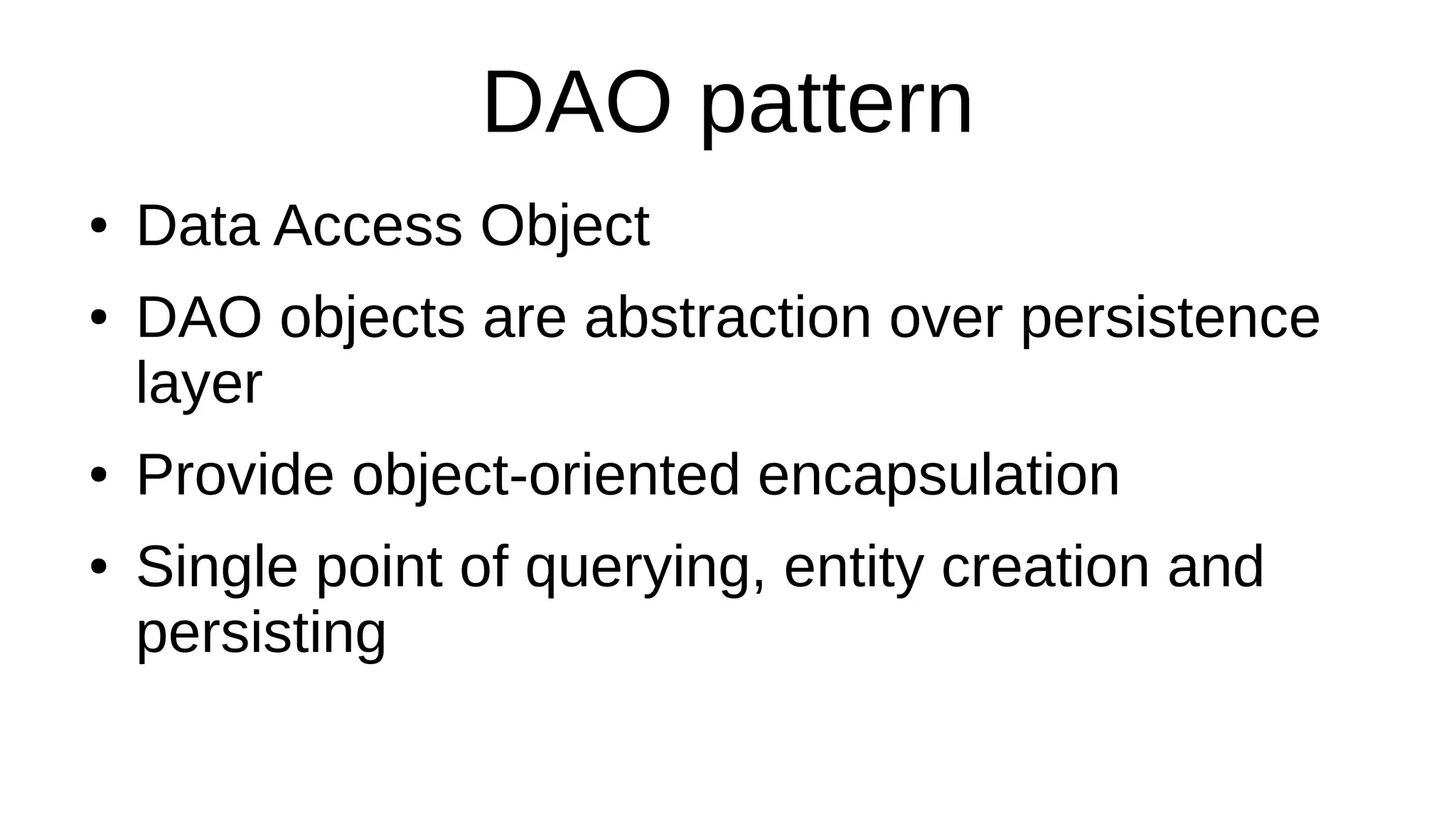

24. DAO pattern
● Data Access Object
● DAO objects are abstraction over persistence
layer
● Provide object-oriented encapsulation
● Single point of querying, entity creation and
persisting

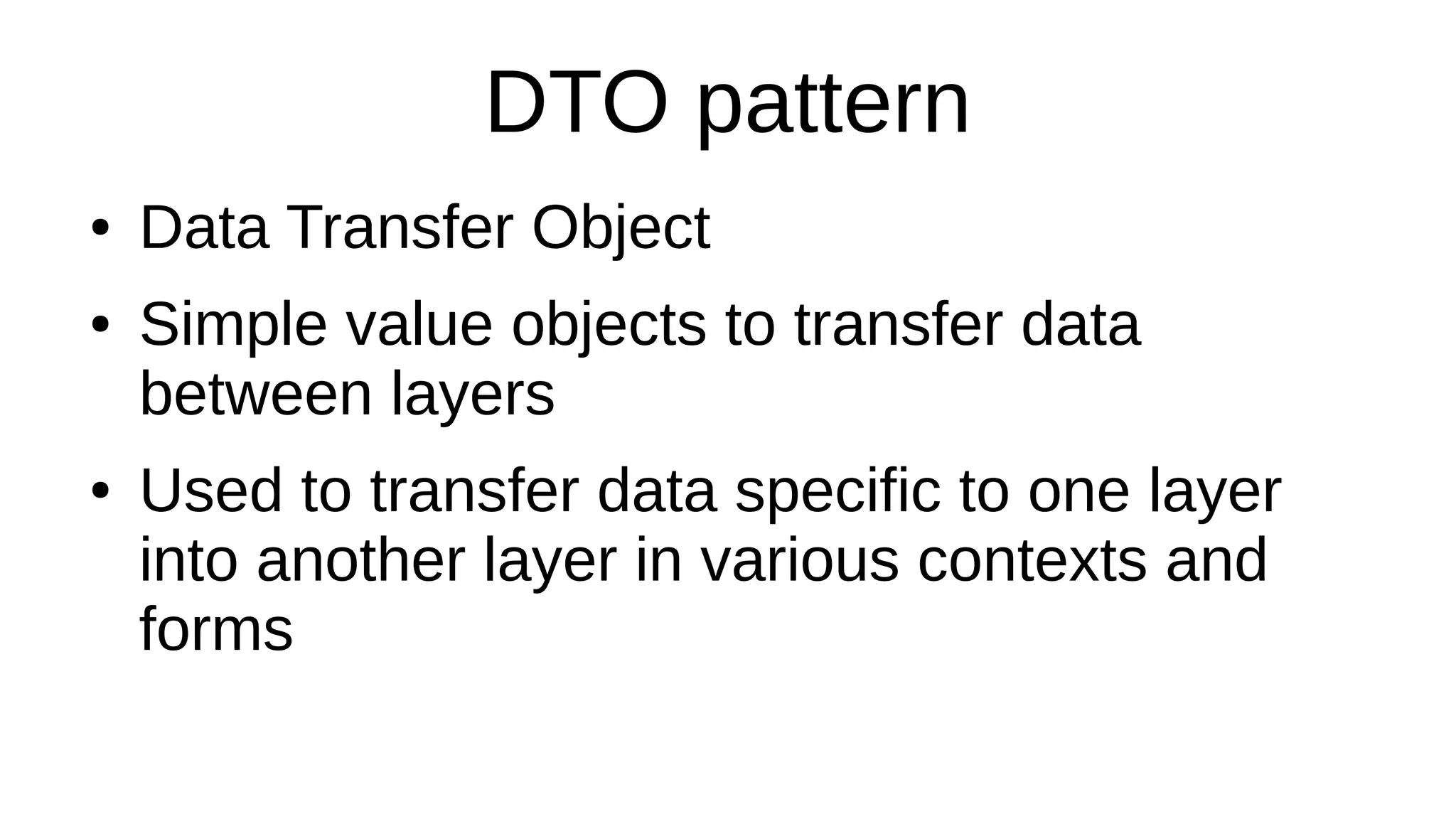

25. DTO pattern
● Data Transfer Object
● Simple value objects to transfer data
between layers
● Used to transfer data specific to one layer
into another layer in various contexts and
forms

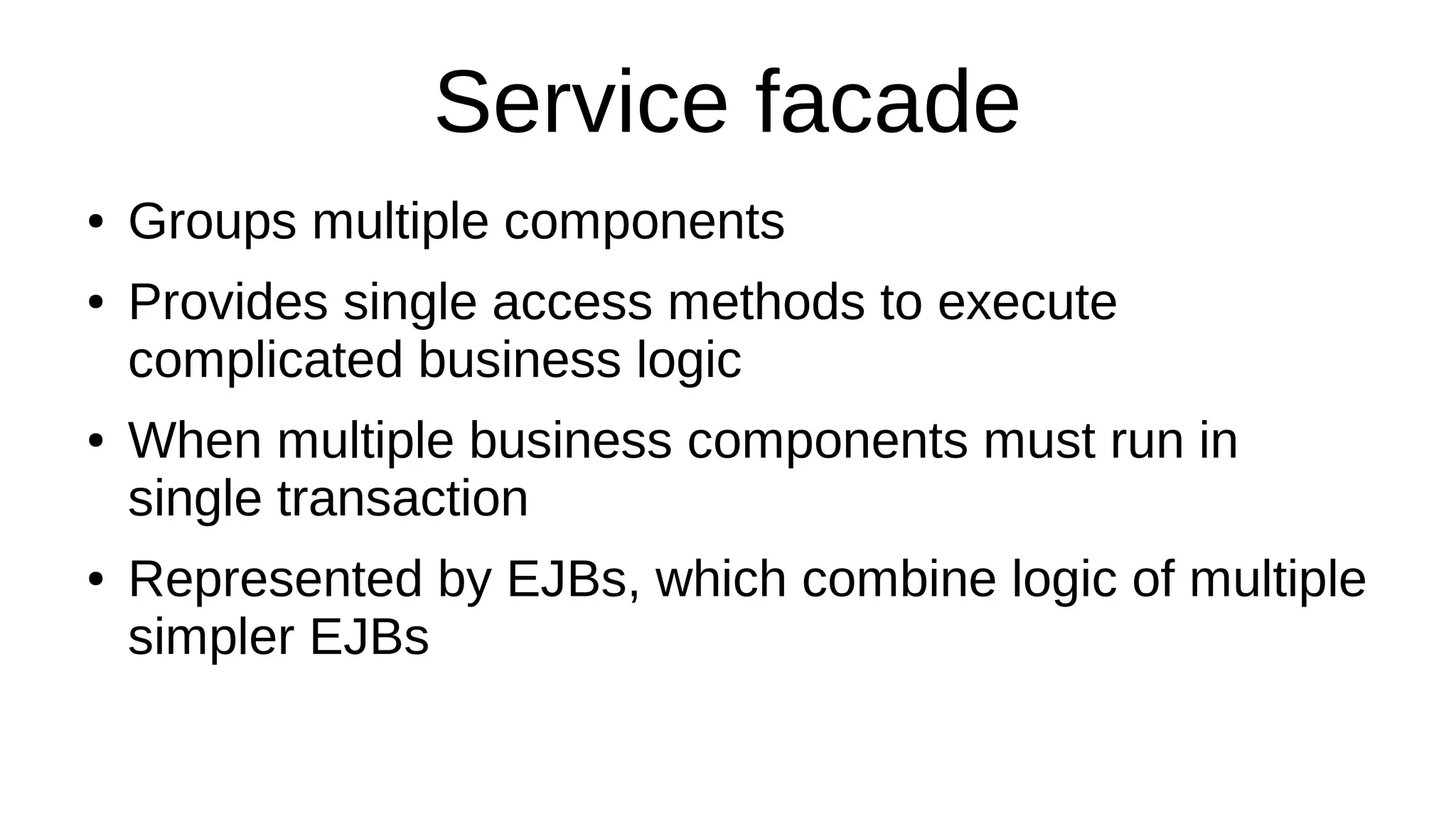

26. Service facade
● Groups multiple components
● Provides single access methods to execute
complicated business logic
● When multiple business components must run in
single transaction
● Represented by EJBs, which combine logic of multiple
simpler EJBs
