Bulk-flow trailer van liners optimize bulk shipping by converting trailers into efficient bulk containers, significantly reducing costs. Customizable for various loading methods and designed to handle a range of commodities, they offer food-grade, water-resistant packaging. The liners can be constructed from specialized materials for easy installation and tailored features to enhance flow for difficult products.

1. BULK-FLOW Trailer Van Liners for long distance bulk deliveries
www.bulk-flow.com
www.bulk-flow.com

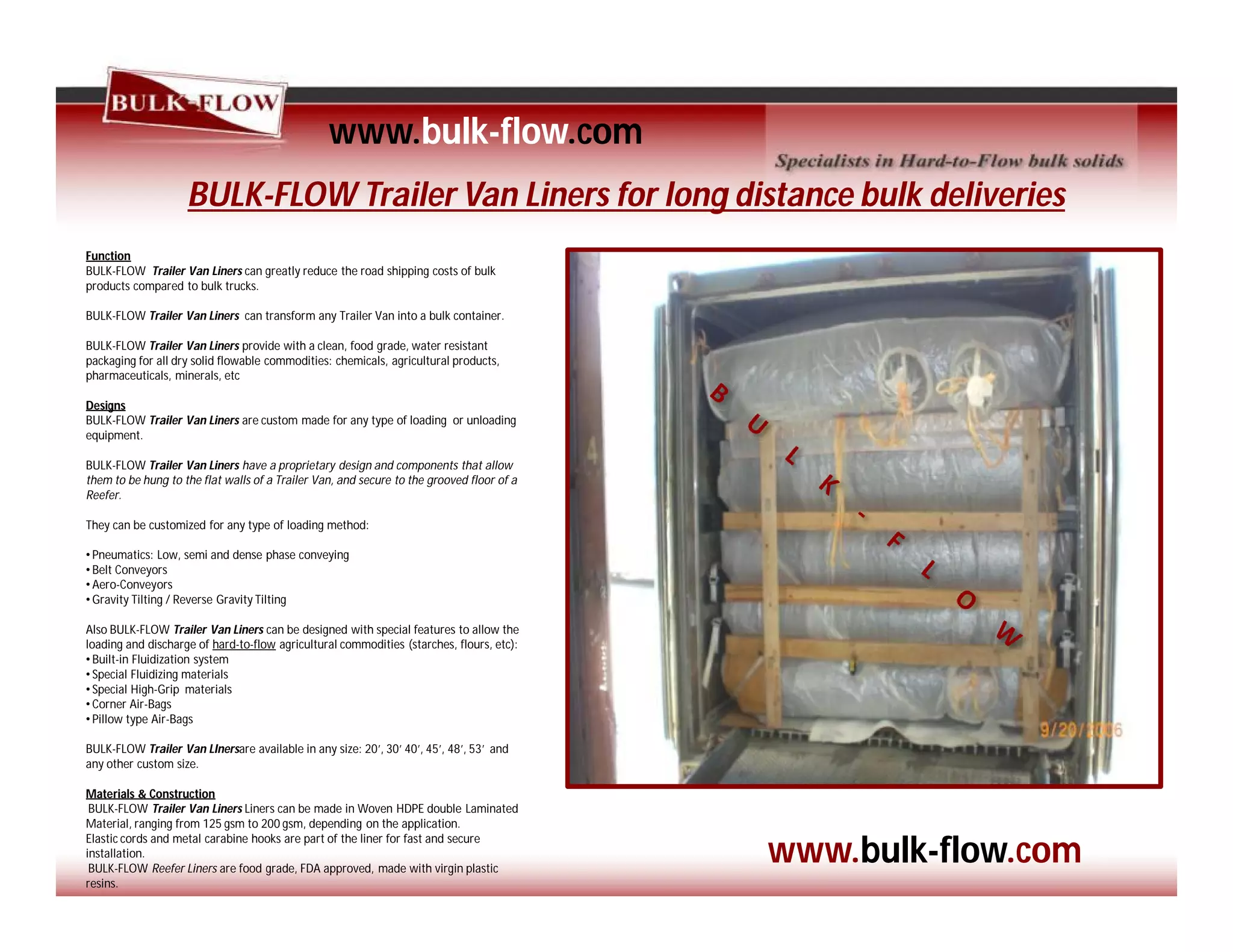

Function
BULK-FLOW Trailer Van Liners can greatly reduce the road shipping costs of bulk
products compared to bulk trucks.
BULK-FLOW Trailer Van Liners can transform any Trailer Van into a bulk container.
BULK-FLOW Trailer Van Liners provide with a clean, food grade, water resistant
packaging for all dry solid flowable commodities: chemicals, agricultural products,
pharmaceuticals, minerals, etc
Designs
BULK-FLOW Trailer Van Liners are custom made for any type of loading or unloading
equipment.
BULK-FLOW Trailer Van Liners have a proprietary design and components that allow
them to be hung to the flat walls of a Trailer Van, and secure to the grooved floor of a
Reefer.
They can be customized for any type of loading method:
• Pneumatics: Low, semi and dense phase conveying
• Belt Conveyors
• Aero-Conveyors
• Gravity Tilting / Reverse Gravity Tilting
Also BULK-FLOW Trailer Van Liners can be designed with special features to allow the
loading and discharge of hard-to-flow agricultural commodities (starches, flours, etc):
• Built-in Fluidization system
• Special Fluidizing materials
• Special High-Grip materials
• Corner Air-Bags
• Pillow type Air-Bags
BULK-FLOW Trailer Van LInersare available in any size: 20’, 30’ 40’, 45’, 48’, 53’ and
any other custom size.
Materials & Construction
BULK-FLOW Trailer Van Liners Liners can be made in Woven HDPE double Laminated
Material, ranging from 125 gsm to 200 gsm, depending on the application.
Elastic cords and metal carabine hooks are part of the liner for fast and secure
installation.
BULK-FLOW Reefer Liners are food grade, FDA approved, made with virgin plastic
resins.

2. www.bulk-flow.com
www.bulk-flow.com

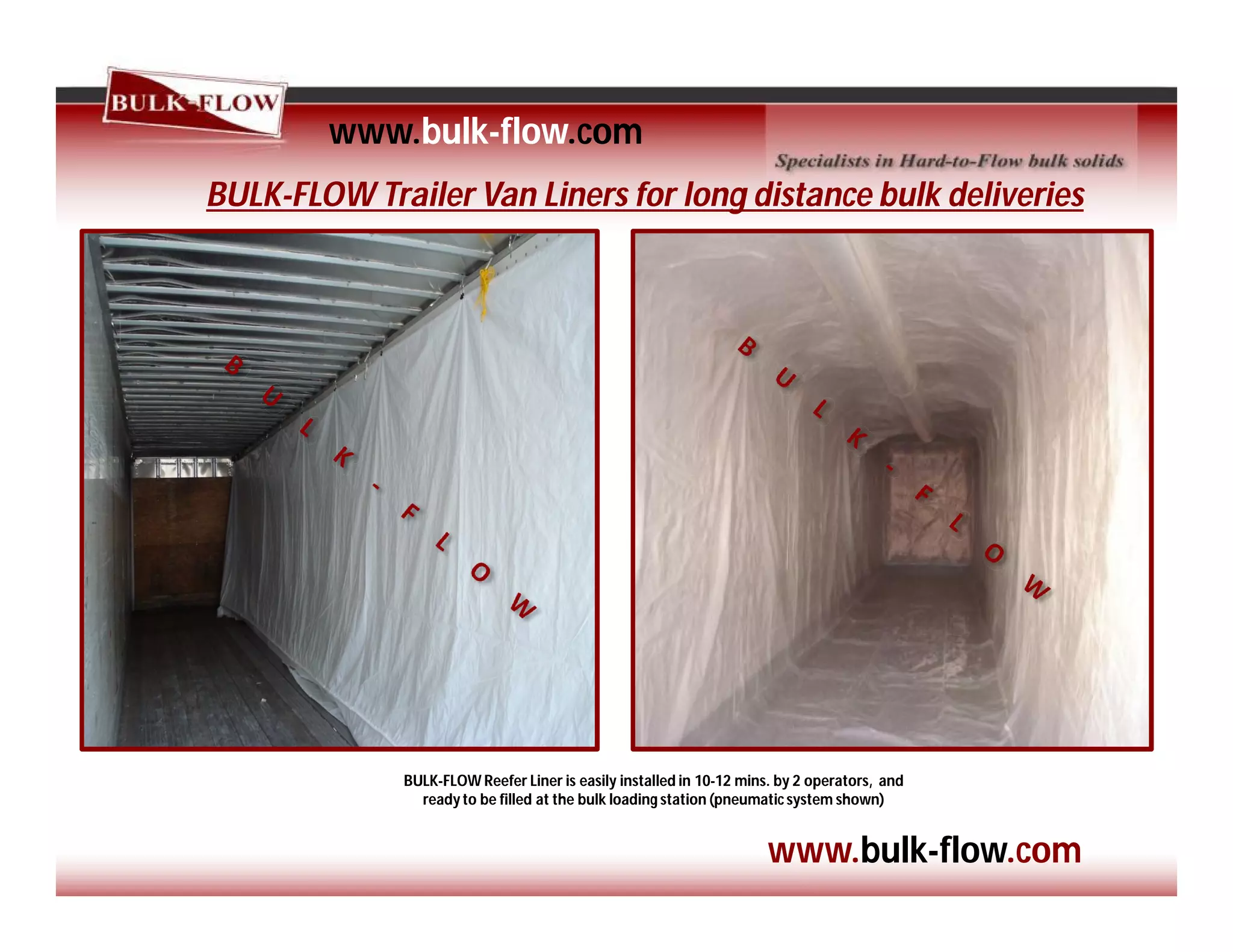

BULK-FLOW Reefer Liner is easily installed in 10-12 mins. by 2 operators, and
readyto be filled at the bulk loading station (pneumatic system shown)
BULK-FLOW Trailer Van Liners for long distance bulk deliveries

3. BULK-FLOW Trailer Van Liners for long distance bulk deliveries
www.bulk-flow.com
www.bulk-flow.com

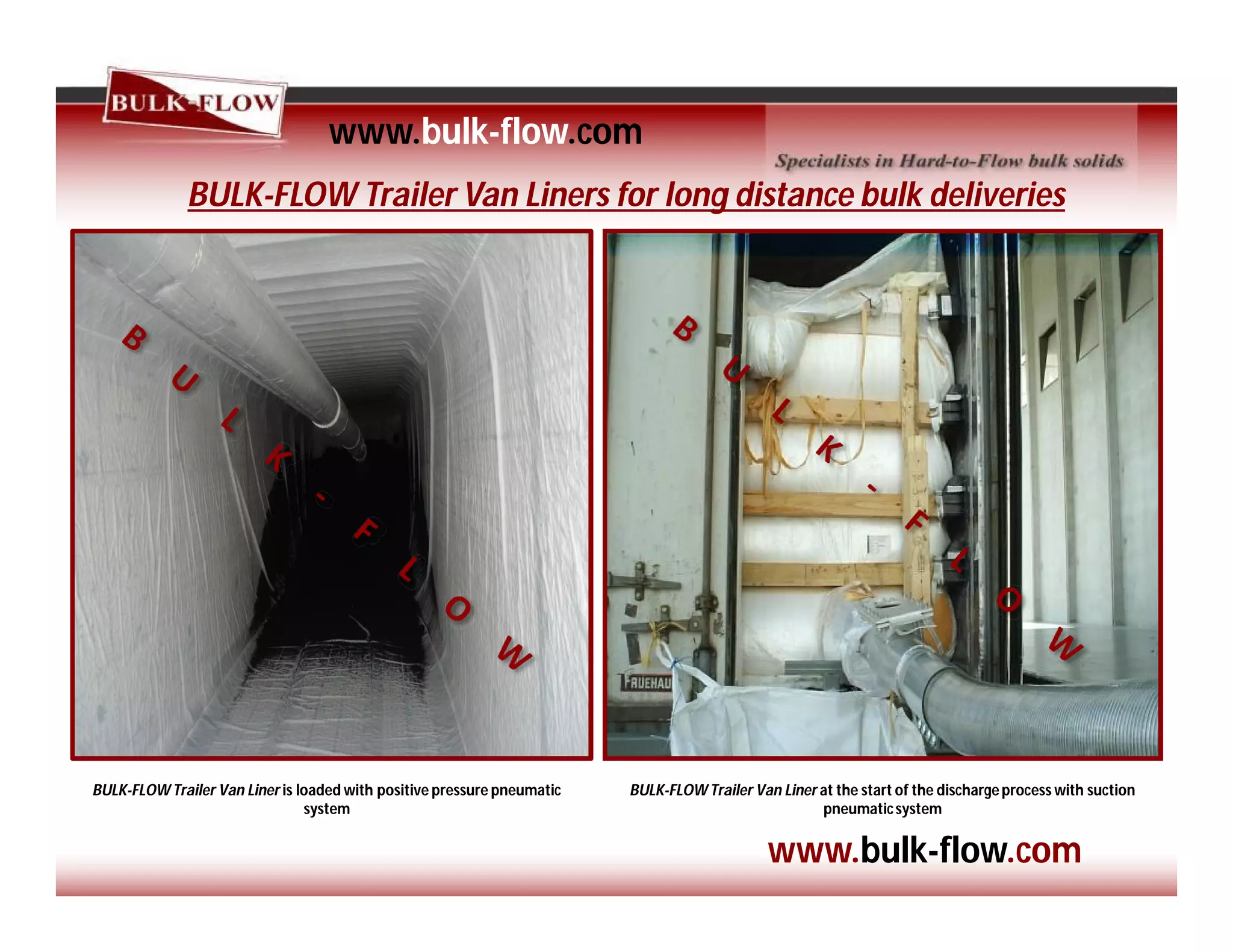

BULK-FLOW Trailer Van Liner is loaded with positive pressure pneumatic
system
BULK-FLOW Trailer Van Liner at the start of the dischargeprocess with suction
pneumaticsystem

4. www.bulk-flow.com
www.bulk-flow.com

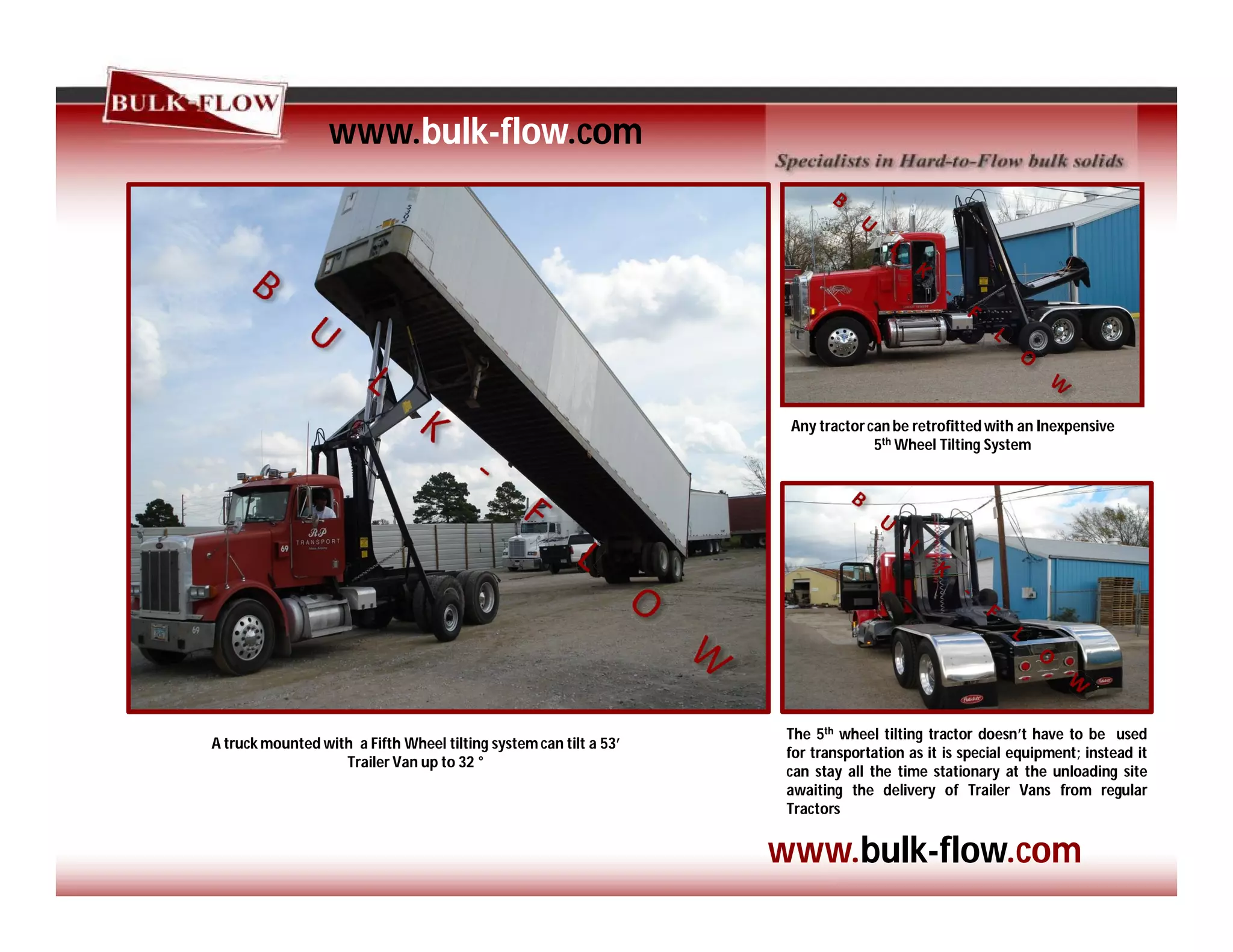

A truck mounted with a Fifth Wheel tilting system can tilt a 53’
Trailer Van up to 32 °
Any tractorcan be retrofitted with an Inexpensive
5th Wheel Tilting System
The 5th wheel tilting tractor doesn’t have to be used
for transportation as it is special equipment; instead it
can stay all the time stationary at the unloading site
awaiting the delivery of Trailer Vans from regular
Tractors
