Building robust REST APIs
The document discusses the importance and methodology for creating robust APIs, emphasizing an 'api-first' approach where API specifications are defined before coding begins. It outlines various tools and frameworks for API documentation and the validation process, highlighting the integration between API design and implementation. Key lessons include the necessity for writable, testable documents and the maintenance of API specification as a single source of truth.
More Related Content
![[BreizhCamp, format 15min] Construire et automatiser l'ecosystème de son Saa...](https://cdn.slidesharecdn.com/ss_thumbnails/20170418construireetautomatiserlecosystemedesonsaasgraceaunespecificationswagger-170426174720-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BreizhCamp, format 15min] Une api rest et GraphQL sans code grâce à PostgR...](https://cdn.slidesharecdn.com/ss_thumbnails/20170418uneapirestetgraphqlsanscodegraceapostgrestsub0etpostgresql-170426174719-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Building robust REST APIs
Building robust REST APIs
- 1. Robust APIs Nejc Zupan/ @nzupan /
- 2. Why → What→ How Robust APIs:
- 9. Why → What→ How Robust APIs:
- 10.

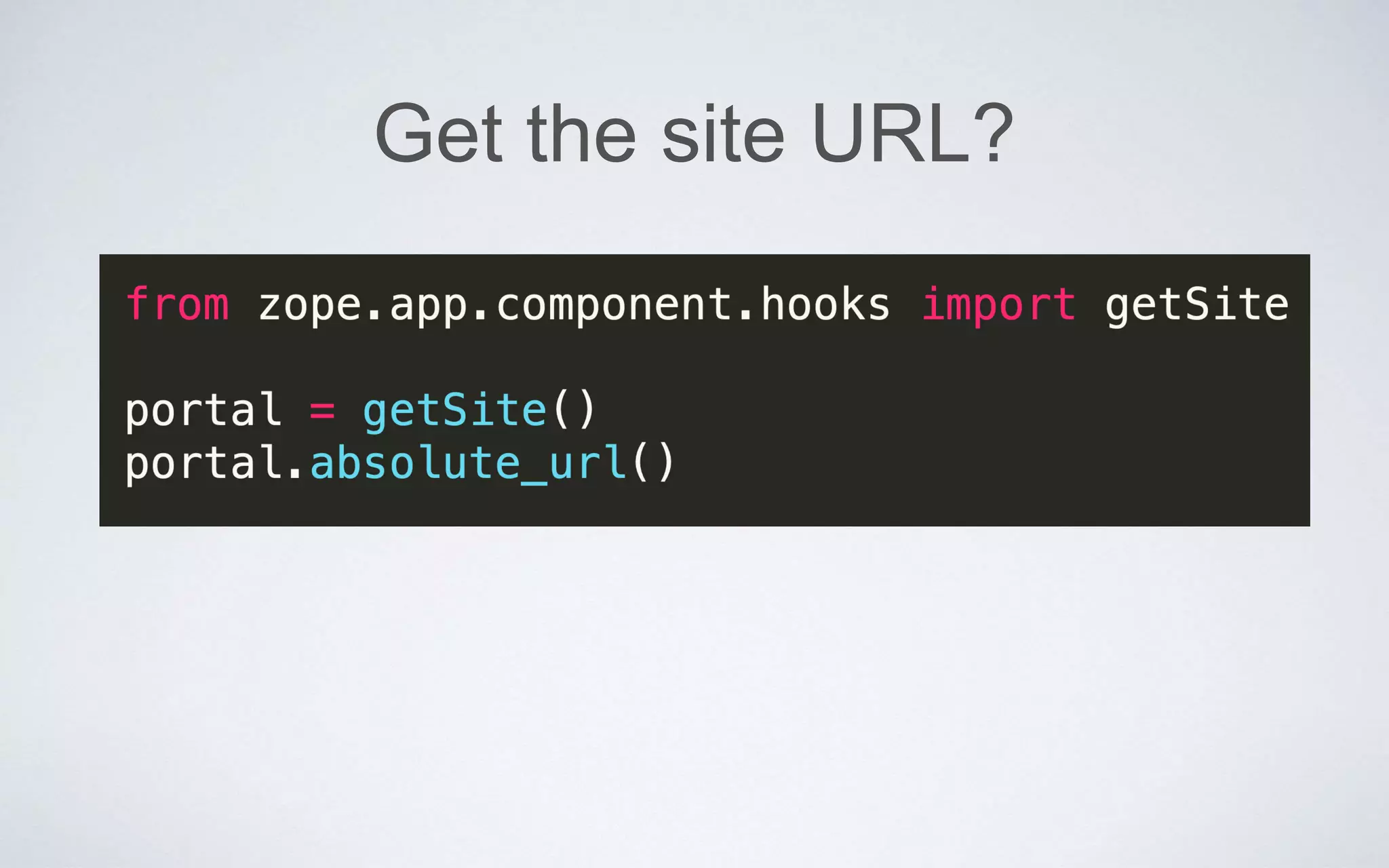

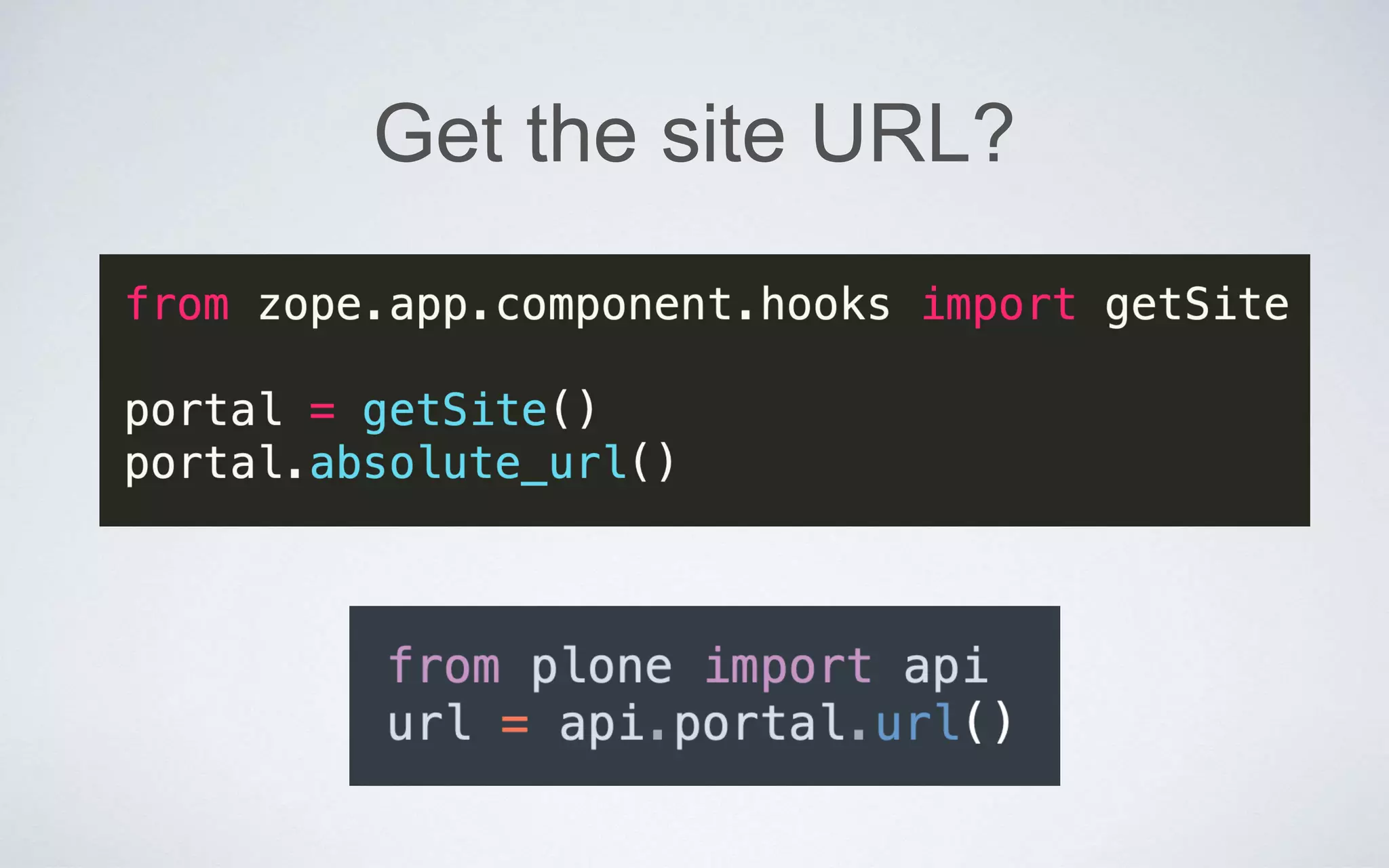

- 12. Get the siteURL?
- 13. Get the siteURL?
- 14.
- 15.

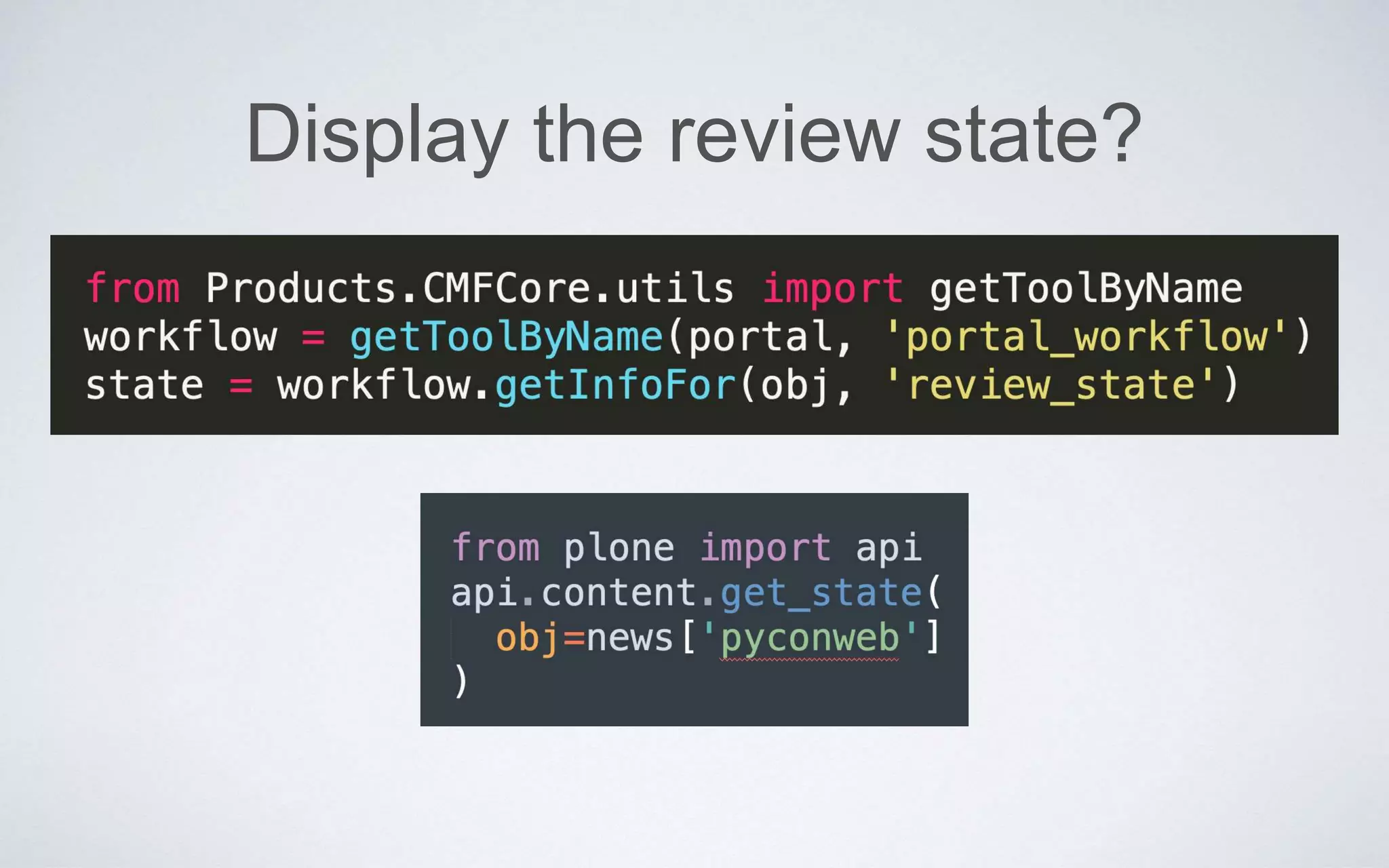

- 16. Display the reviewstate?

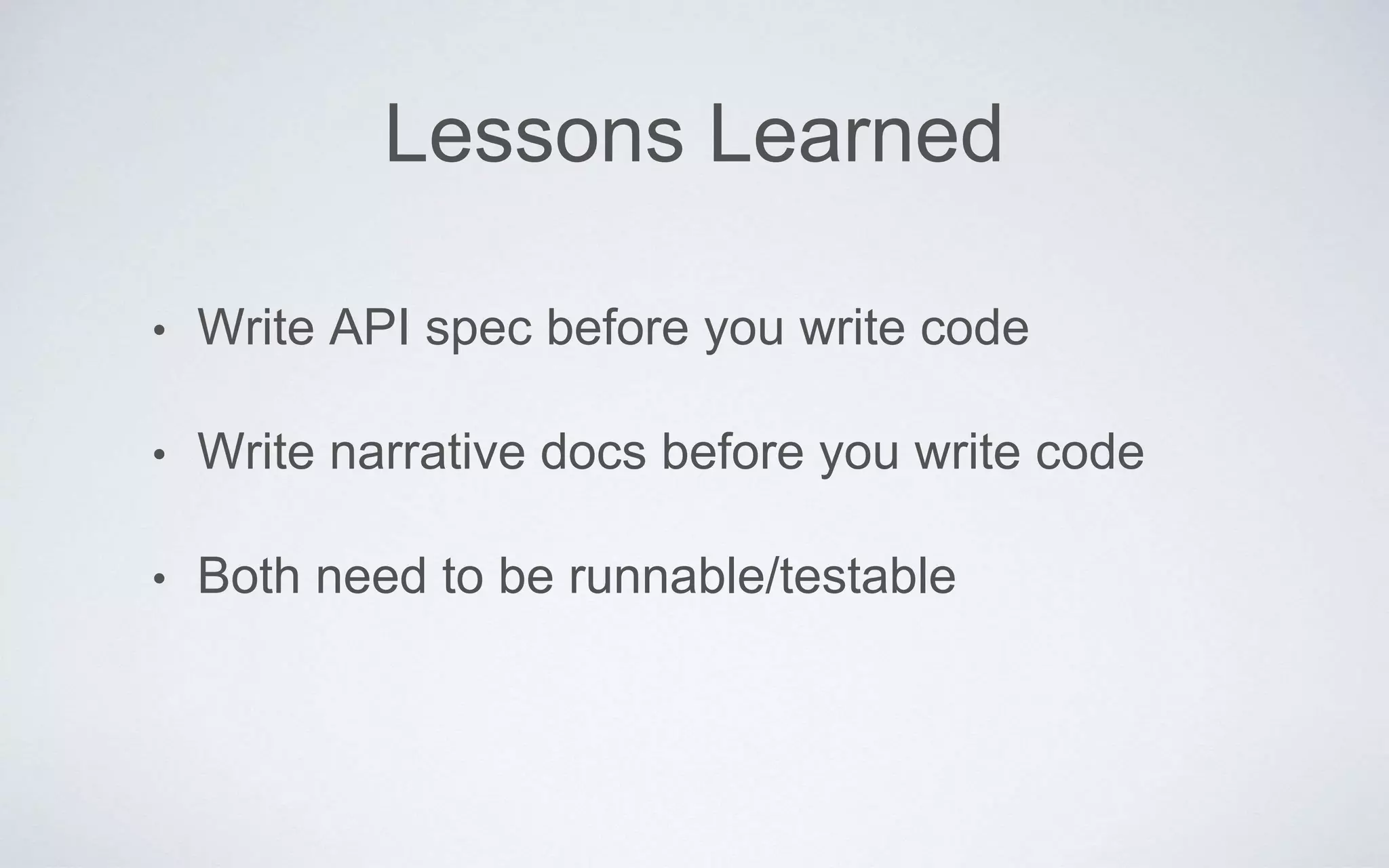

- 20. Lessons Learned • WriteAPI spec before you write code • Write narrative docs before you write code • Both need to be runnable/testable
- 23.
- 24.
- 25. Why → What→ How Robust APIs:
- 27.
- 28.
- 29.
- 30.

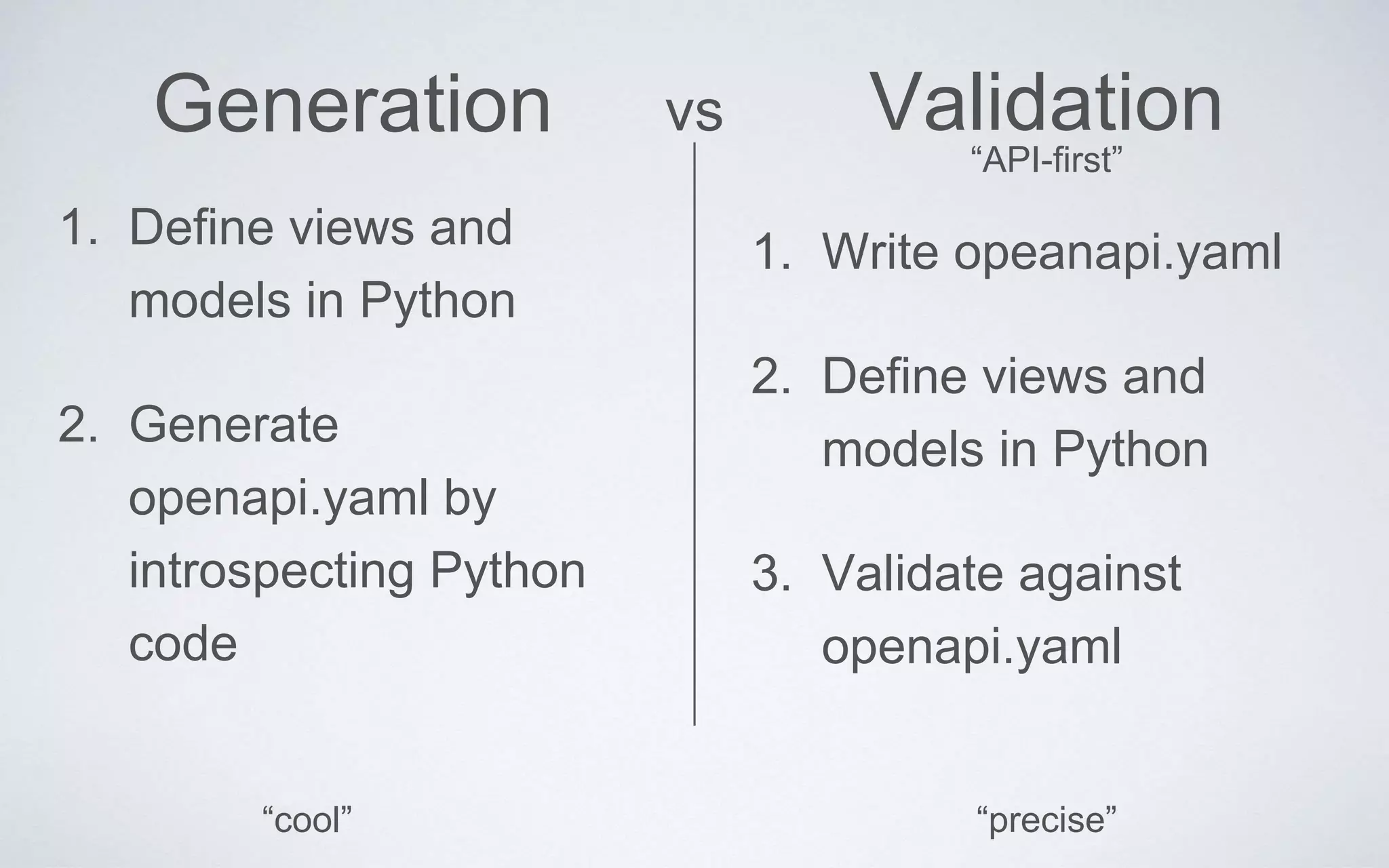

- 31. Generation Validation 1. Defineviews and models in Python 2. Generate openapi.yaml by introspecting Python code 1. Write opeanapi.yaml 2. Define views and models in Python 3. Validate against openapi.yaml “API-first” vs “cool” “precise”

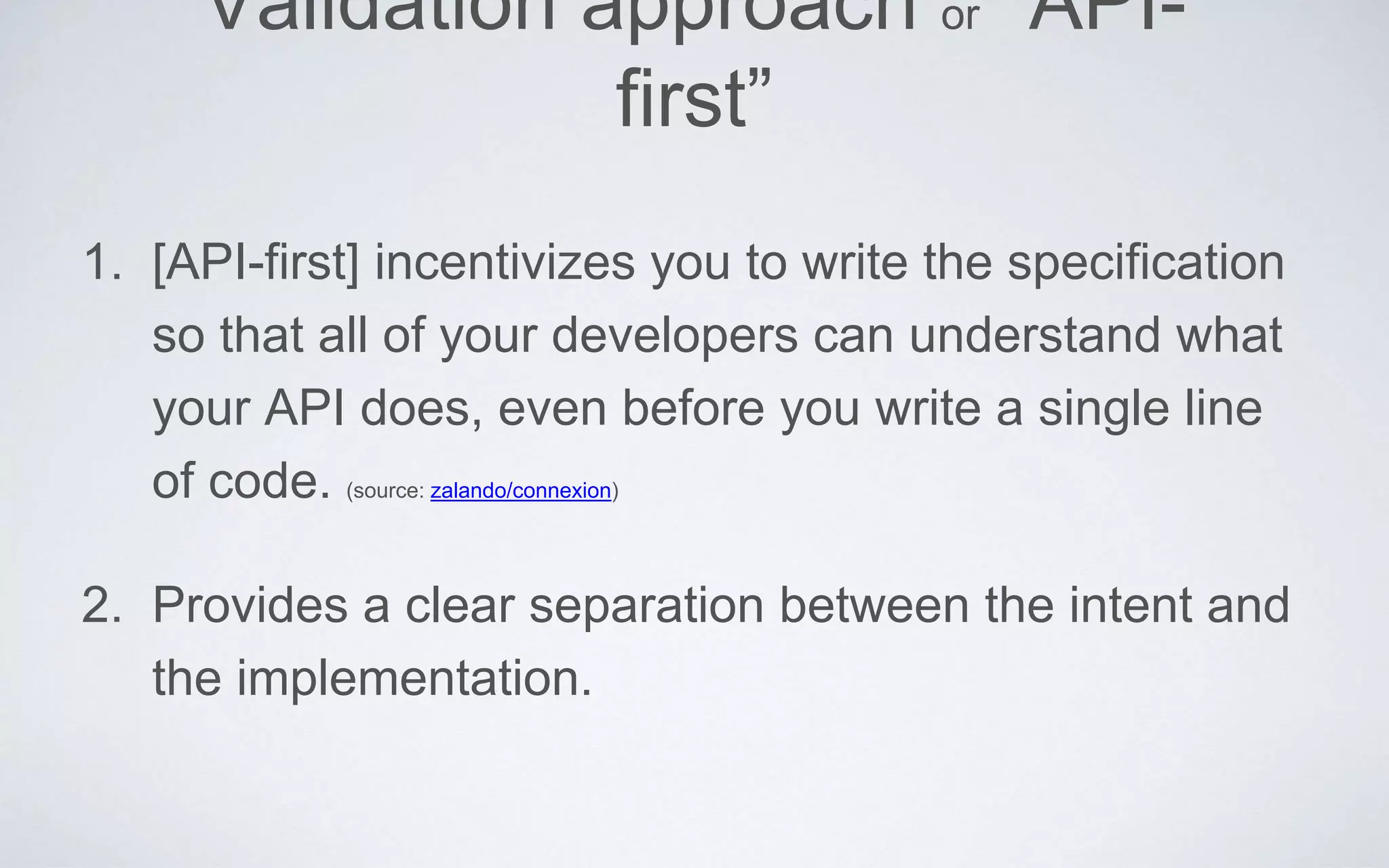

- 32. Validation approach or“API- first” 1. [API-first] incentivizes you to write the specification so that all of your developers can understand what your API does, even before you write a single line of code. (source: zalando/connexion) 2. Provides a clear separation between the intent and the implementation.

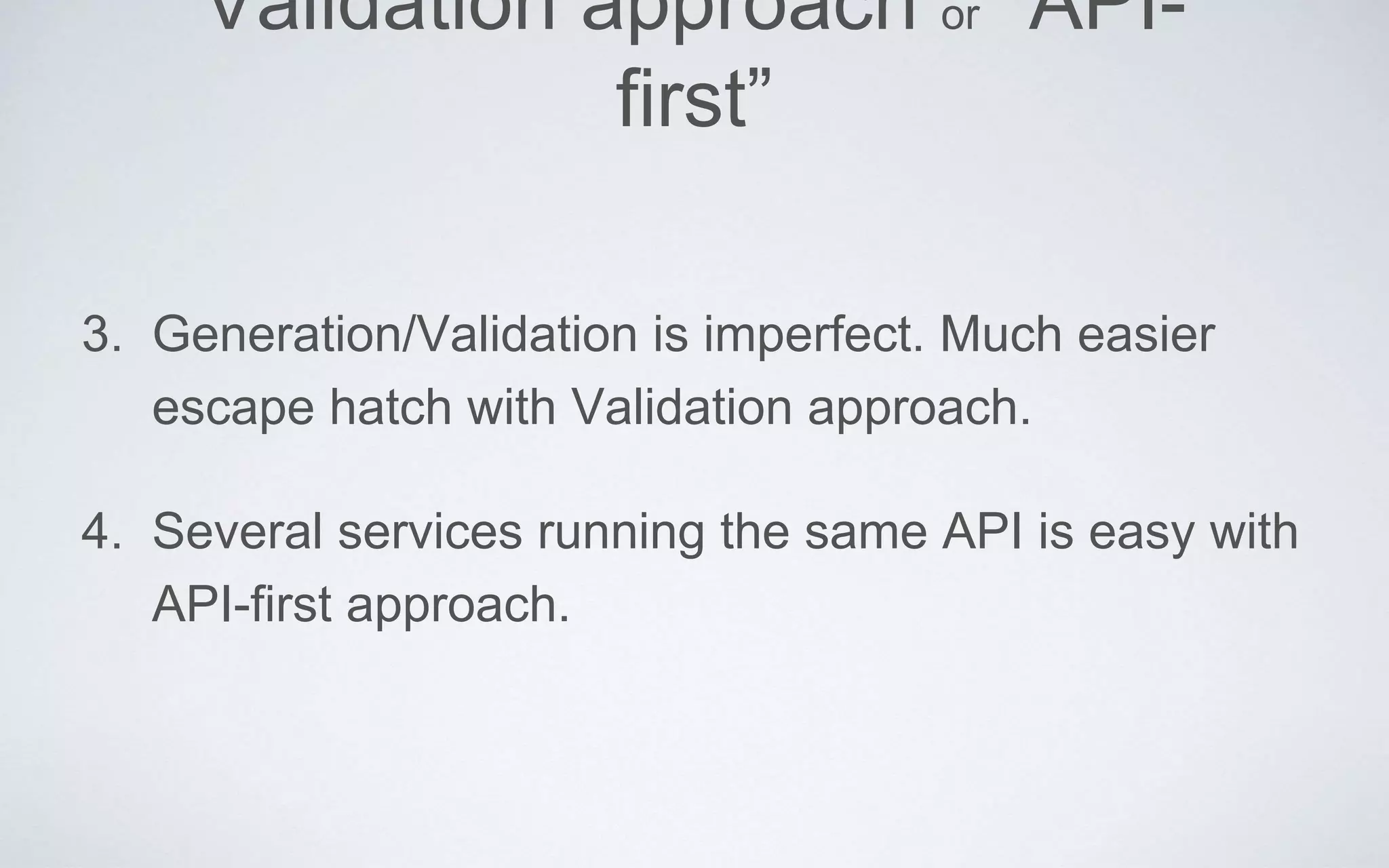

- 33. Validation approach or“API- first” 3. Generation/Validation is imperfect. Much easier escape hatch with Validation approach. 4. Several services running the same API is easy with API-first approach.
- 35. Validation approach or“API- first” 3. Generation/Validation is imperfect. Much easier escape hatch with Validation approach. 4. Several services running the same API is easy with API-first approach
- 36. –Adam Savage “Use morecooling liquid”
- 37.
- 38.
- 39.
- 41.

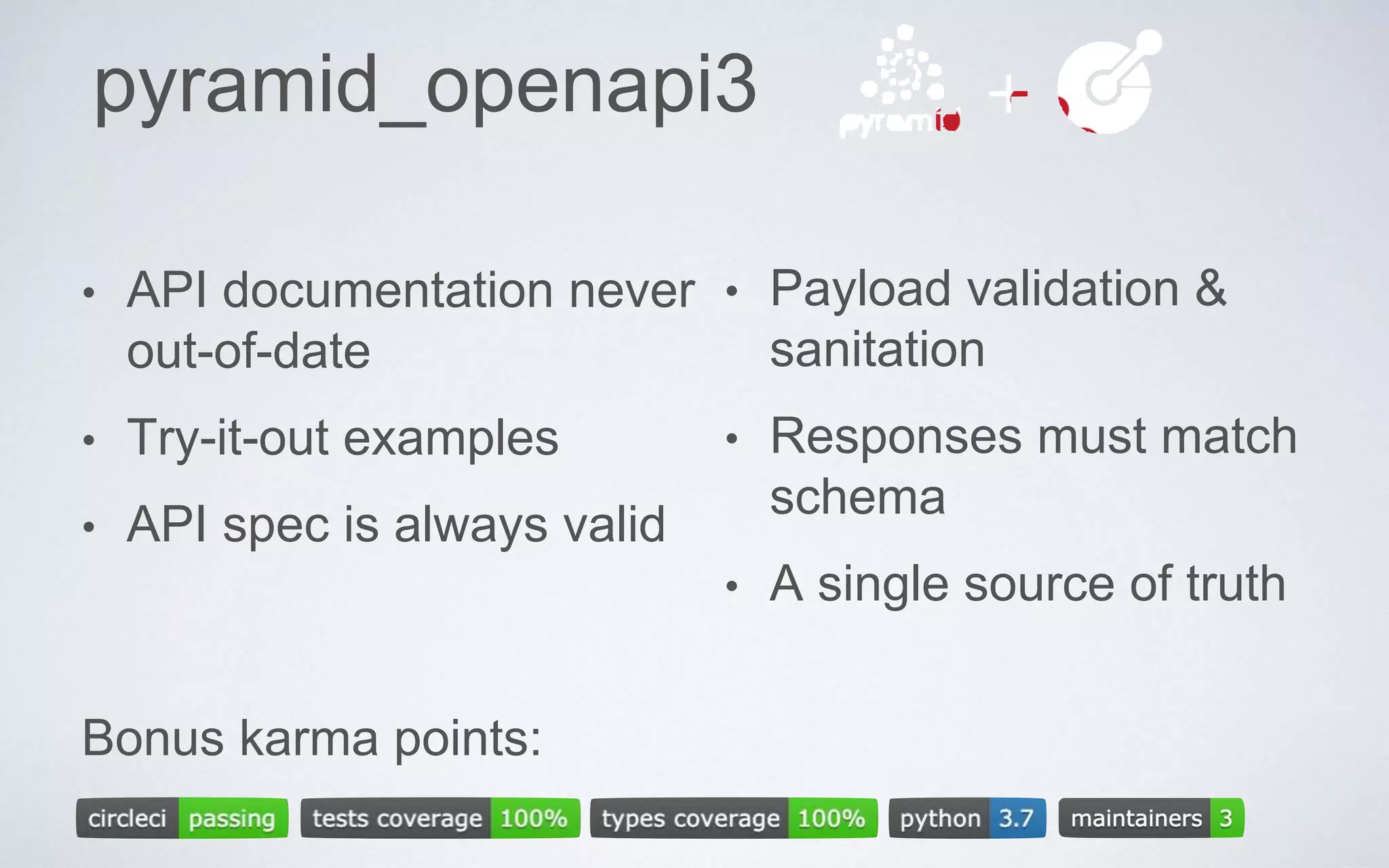

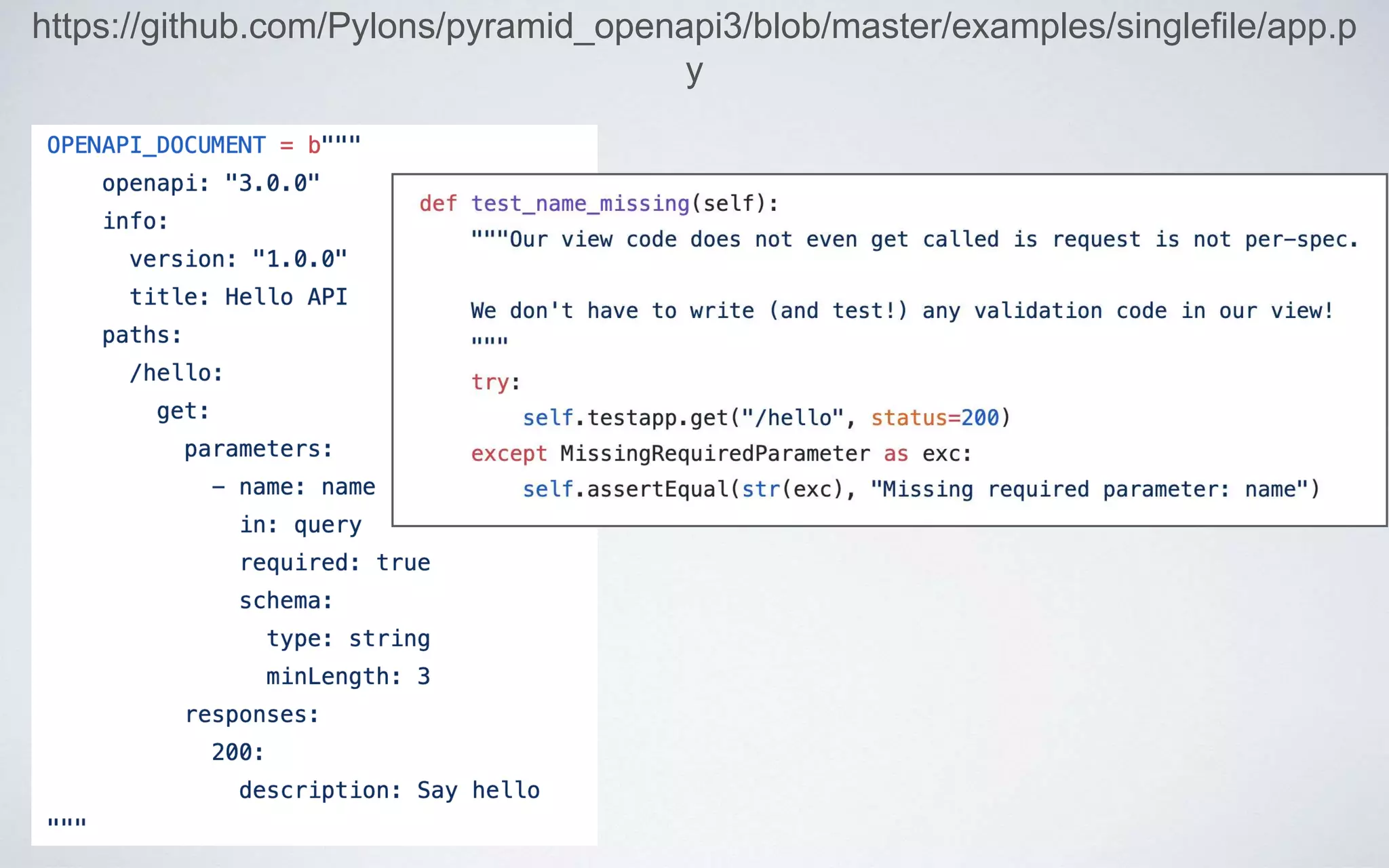

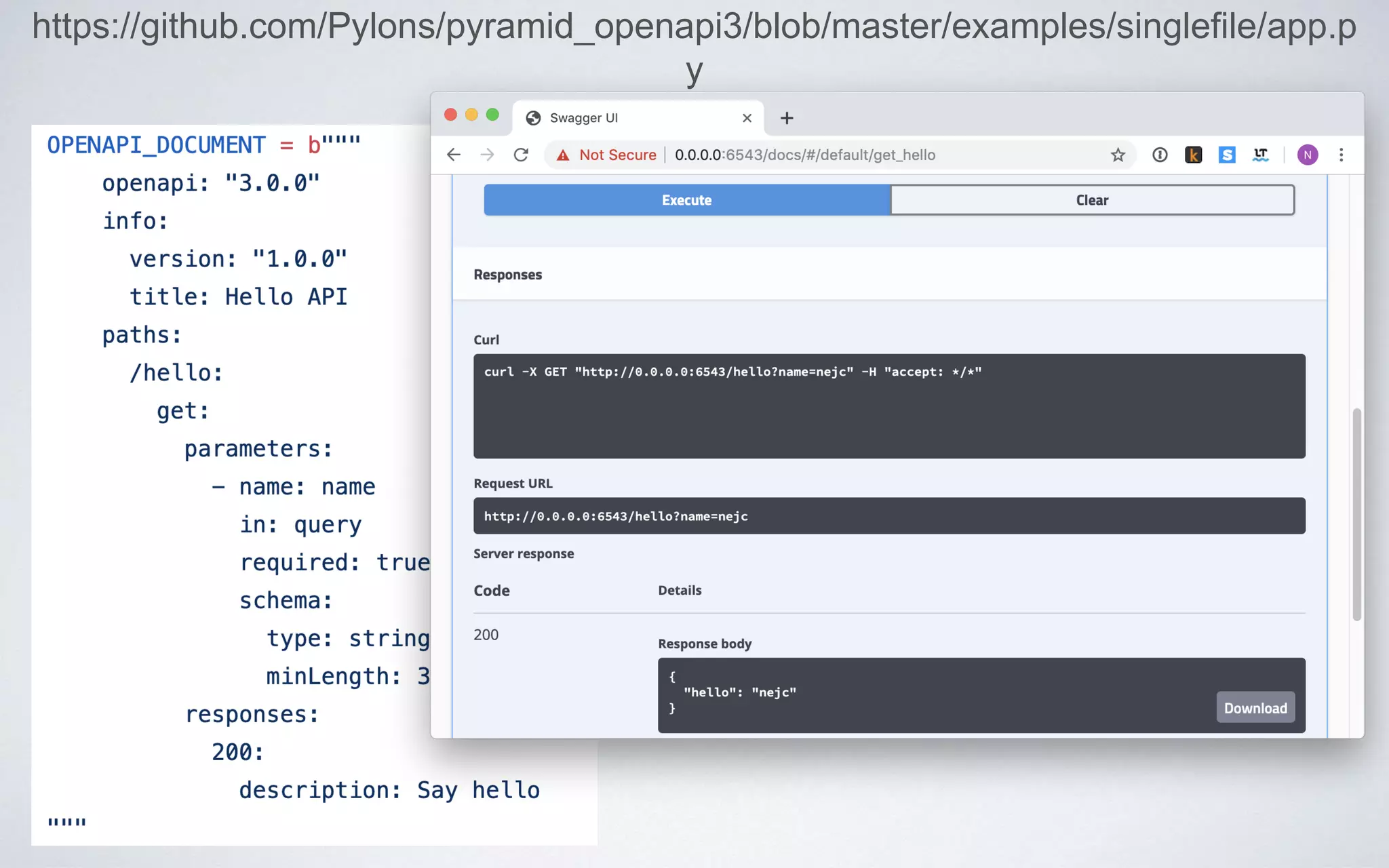

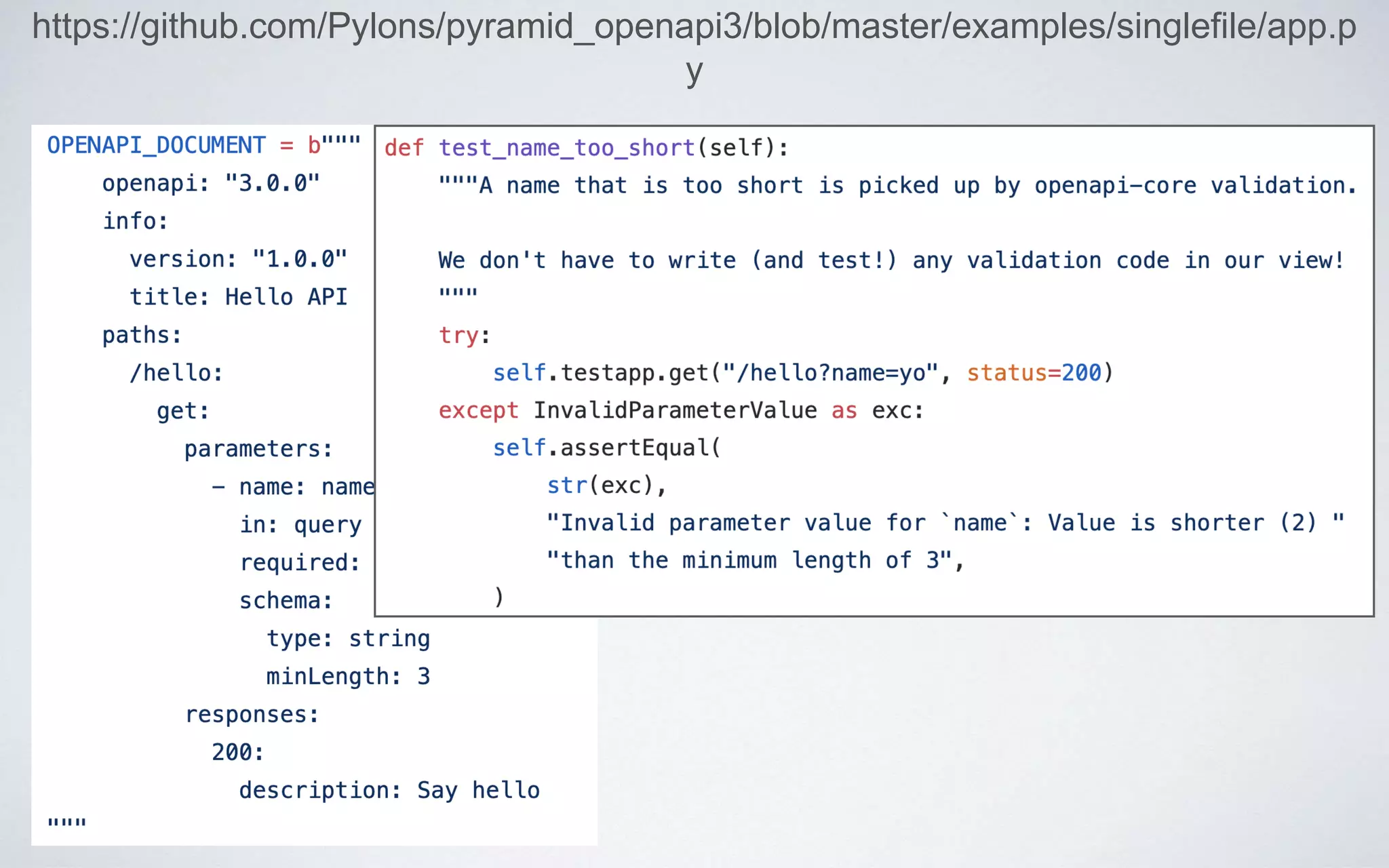

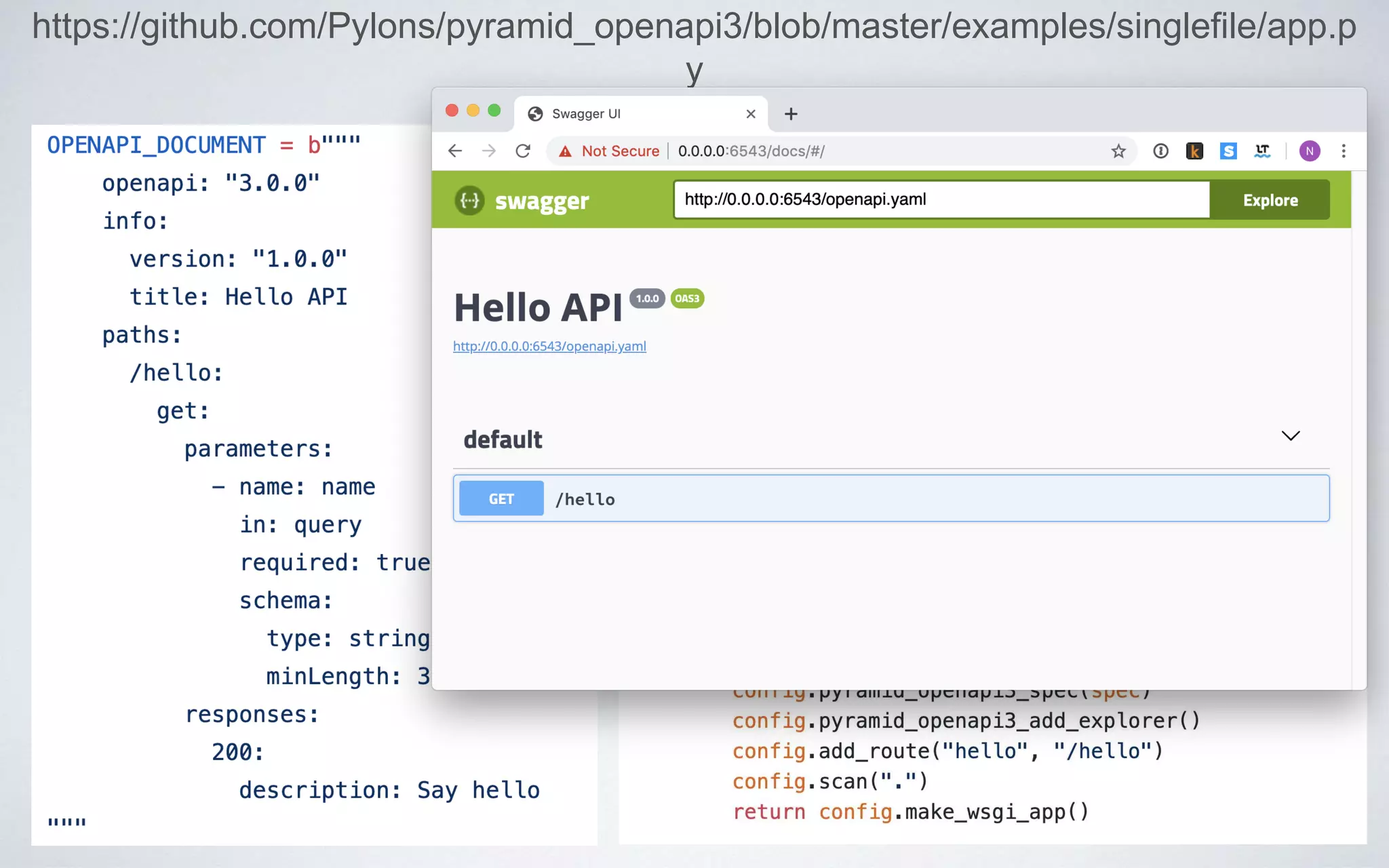

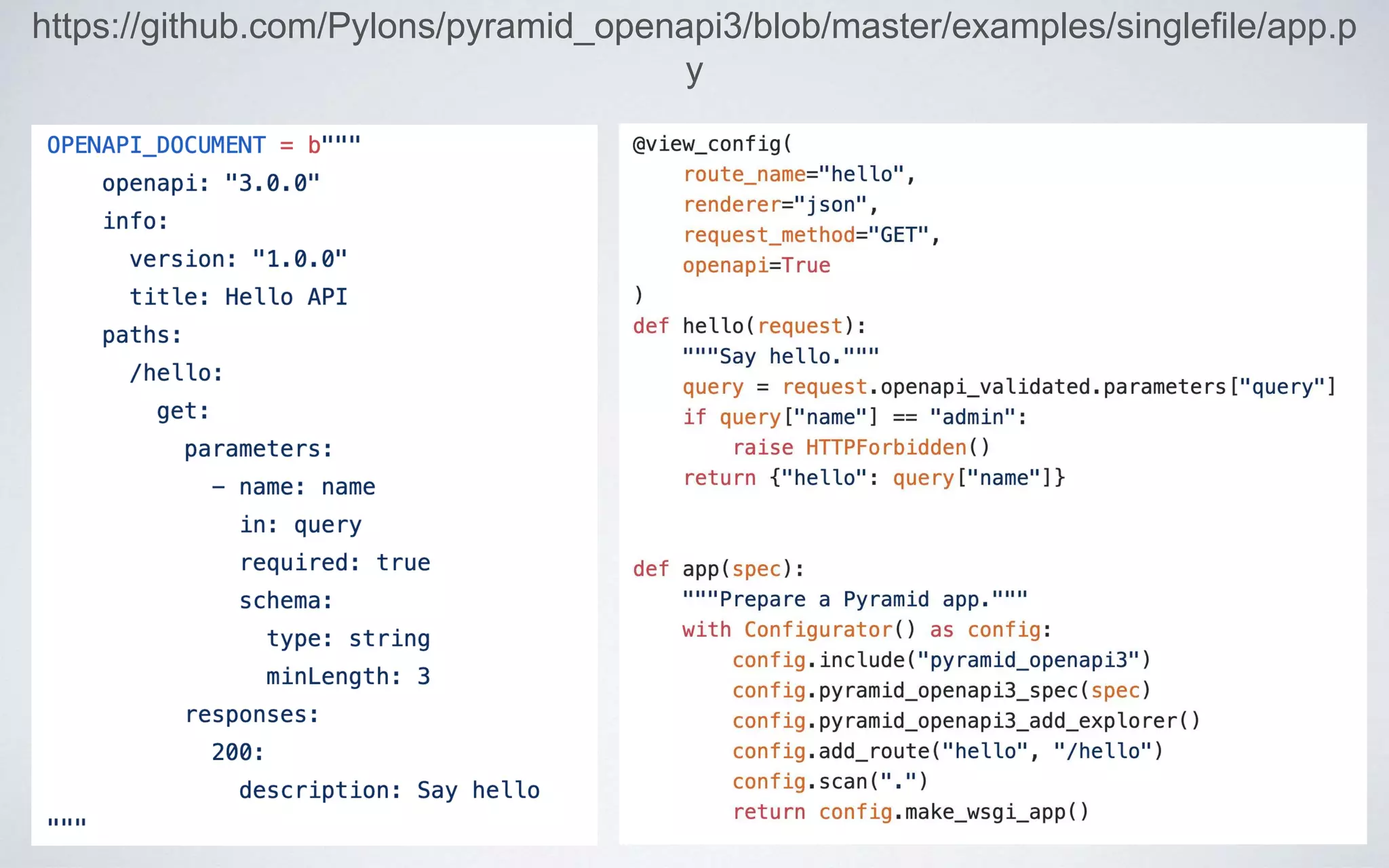

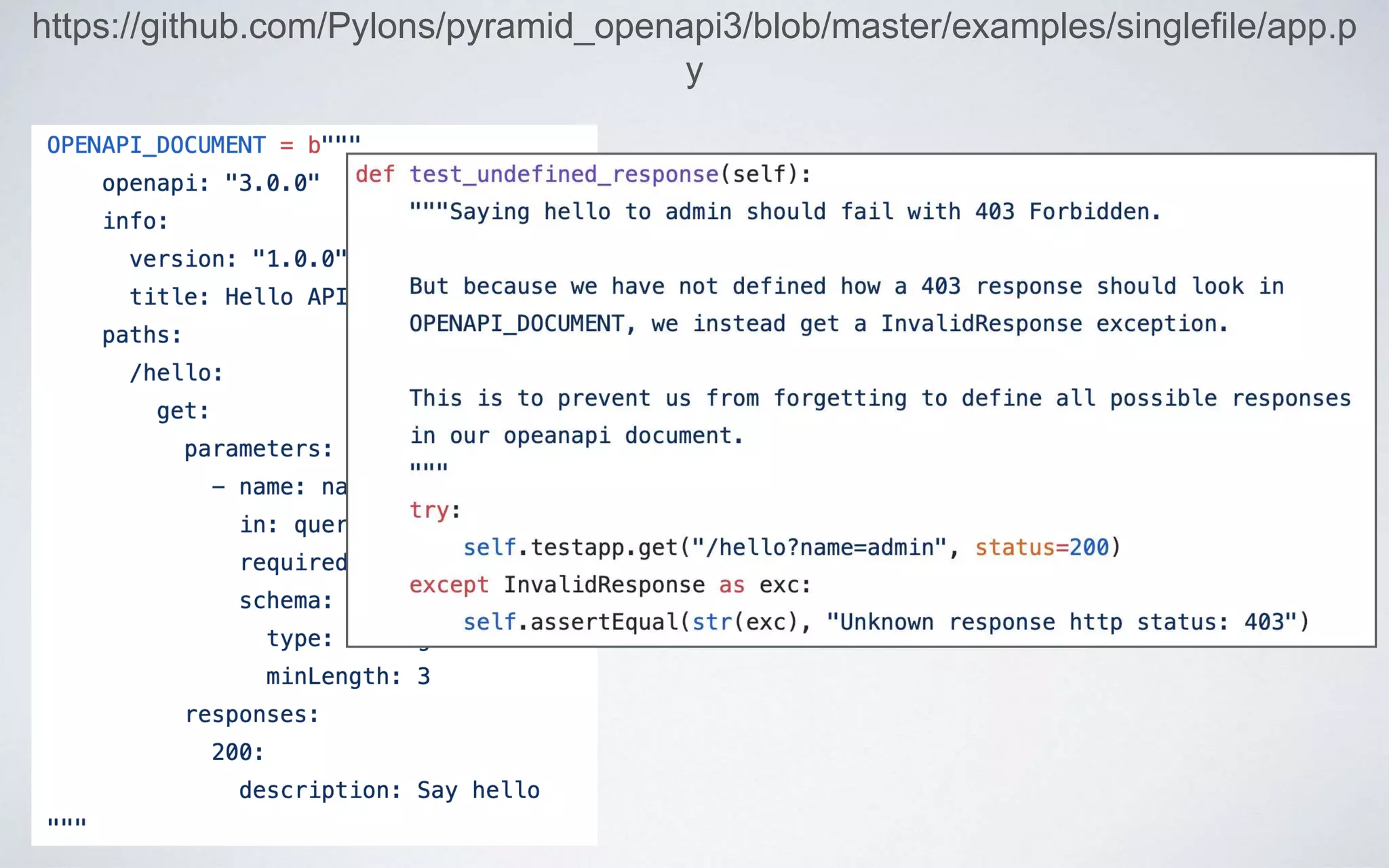

- 42. pyramid_openapi3 • API documentationnever out-of-date • Try-it-out examples • API spec is always valid • Payload validation & sanitation • Responses must match schema • A single source of truth Bonus karma points:
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.

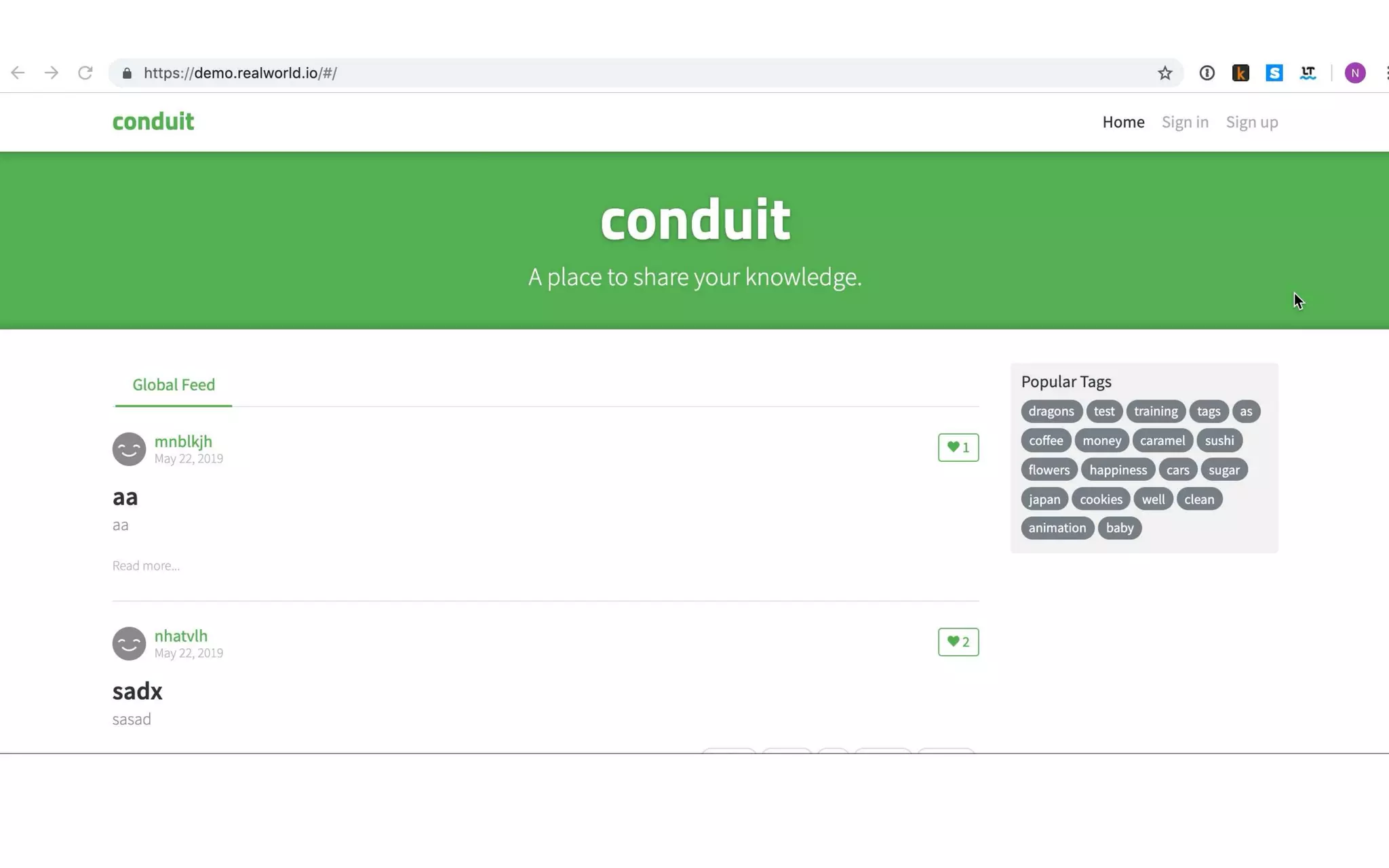

- 49. “See how theexact same Medium.com clone (called Conduit) is built using any of our “supported frontends and backends. Yes, you can mix and match them, because they all adhere to the same API spec 😮😎” "The mother of all demo apps"

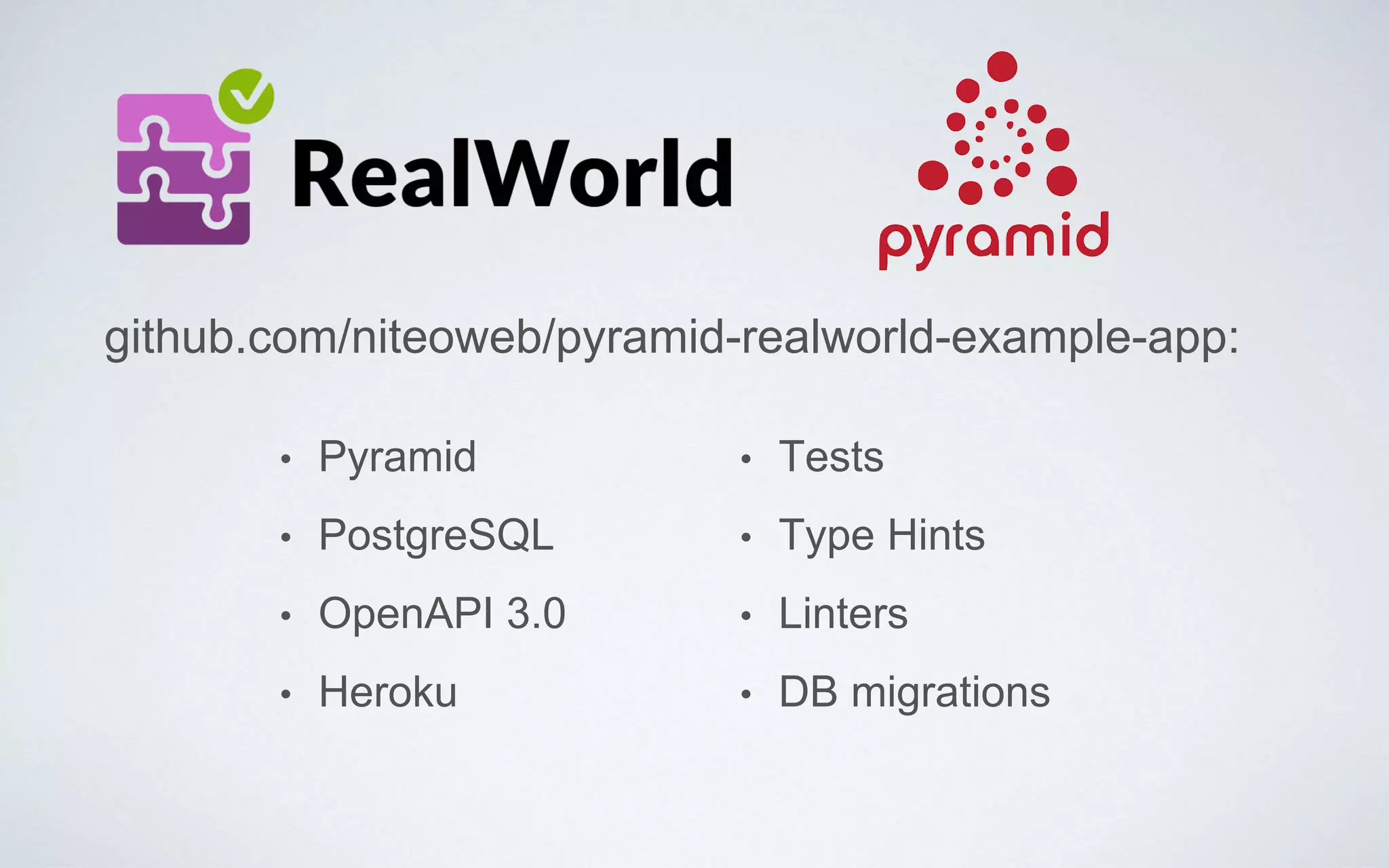

- 51. github.com/niteoweb/pyramid-realworld-example-app: • Pyramid • PostgreSQL •OpenAPI 3.0 • Heroku • Tests • Type Hints • Linters • DB migrations
- 52. Why → What→ How Robust APIs: Nejc Zupan / @nzupan / github.com/pylons/pyramid_openapi3
Editor's Notes
- #2 This talk is about building Robust APIs with Python.
- #3 We’re gonna look at what drives me to spend so much time and energy on designing and building robust APIs. What Robust APIs even are And how you can do them as well
- #4 It all started back when I was in college and Niteo was a young consulting agency. I read about a famous slovenian businessman, how he spends half a year in Slovenia, working, and the remaining half a year kitesurfing in Brasil. One day, I thought to myself, one day … I couldn’t get that thought out of my head for months. Then I came to a realization: There is not really anything preventing me to do it! We have international clients in Niteo, they don’t care where I am located as long as work gets done!
- #5 And so I did. I spent my first winter in Spain. Sorry, I meant Catalonia :) It was a total blast, spending my mornings working from a sailing club in Barcelona and afternoons on the water. When it was time to go home I was convinced I need to do this again.
- #6 And sure enough, when it got properly depressing in the coming winter, as it does in our part of Europe (I don’t mind cold and snow, but I hate it when it’s cloudy, foggy and slush instead of snow), well I packed up my car and headed South.
- #7 This time to Valencia.
- #8 And I have been escaping winter ever since. You know what sucks though? You come to the beach, the waves are pumping, the wind is howling, and then THIS
- #9 Getting called in because we have a production issue: One of our VIP customers is claiming that our API suddenly started returning different results. Or the app is crashing because the view code is trying to process invalid data. AARGHHH This is my WHY. I hate “stupid” bugs. Preventable bugs. Sure, some bugs will happen, nothing is perfect. But I hate it when they are of the kind that is totally preventable. This is why I want to build Robust APIs.
- #10 Now you know WHY. So people don’t break your schedule.
- #12 My first proper dive into the world of APIs was 7 years ago, on a PloneKonferenz. We started the “plone.api” project during the after-conference sprints. I got to experience first-hand everything that is hard about designing APIs.

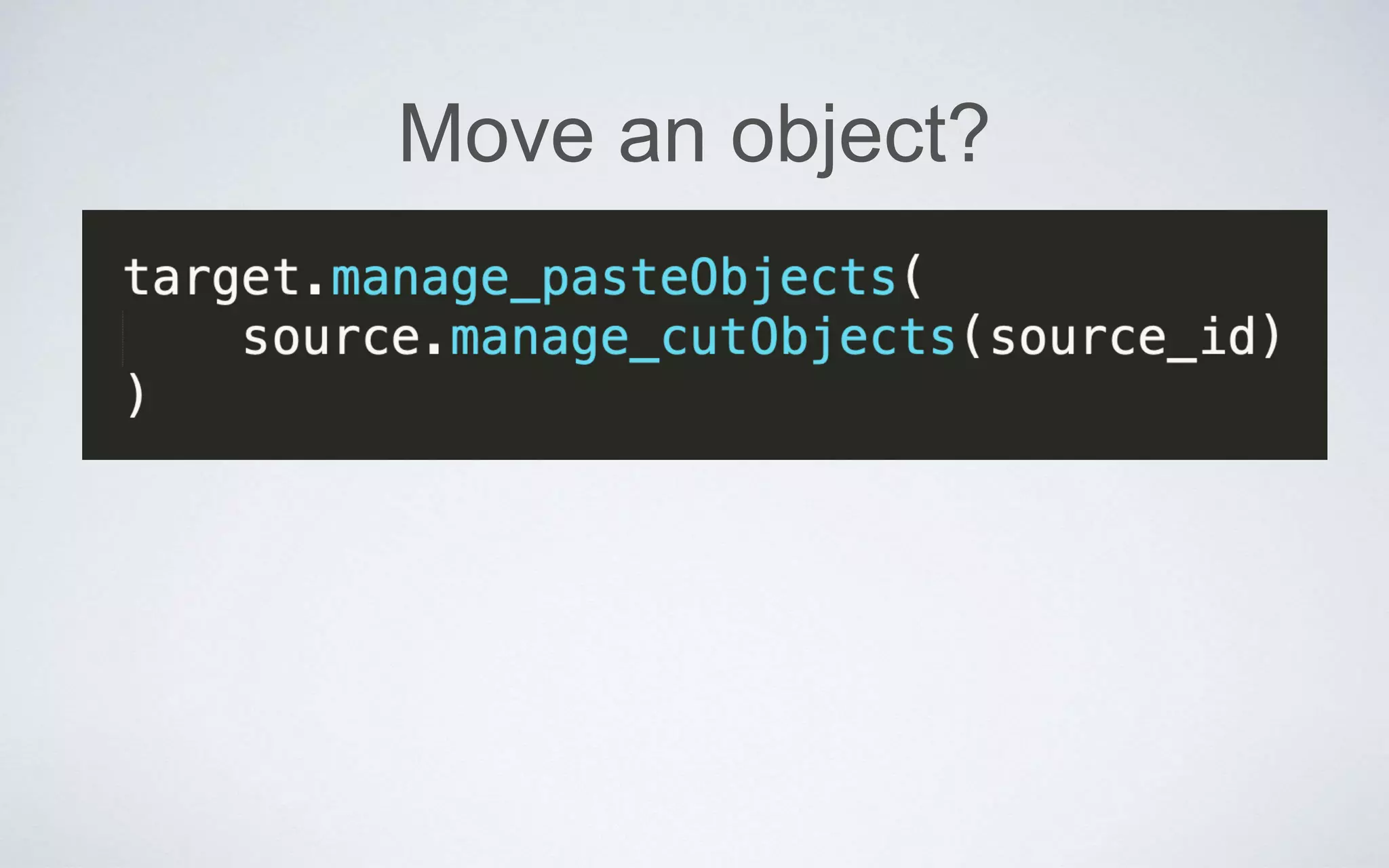

- #13 The plone.api project started because back then, Plone was already 10 years old working with Plone required memorizing a buuuunch of boilerplate code. For example,

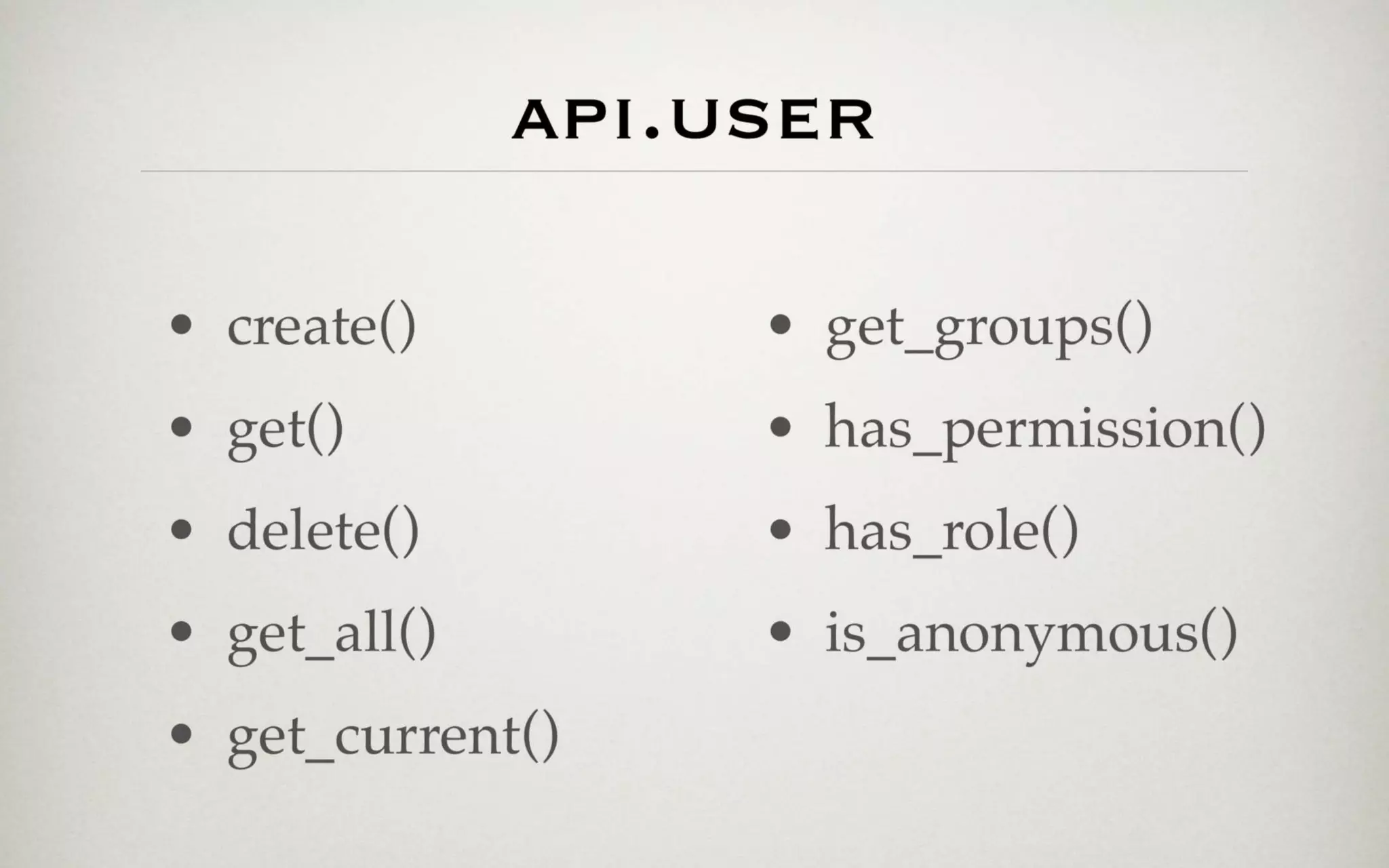

- #18 What we did, essentially, is survey a bunch of Plone code and identified 20% the tasks that people did 80% of the time. Then we put them down on a piece of paper and asked ourselves how would it make the most sense to name them. We wanted the API to be easy to remember, and easy to guess.

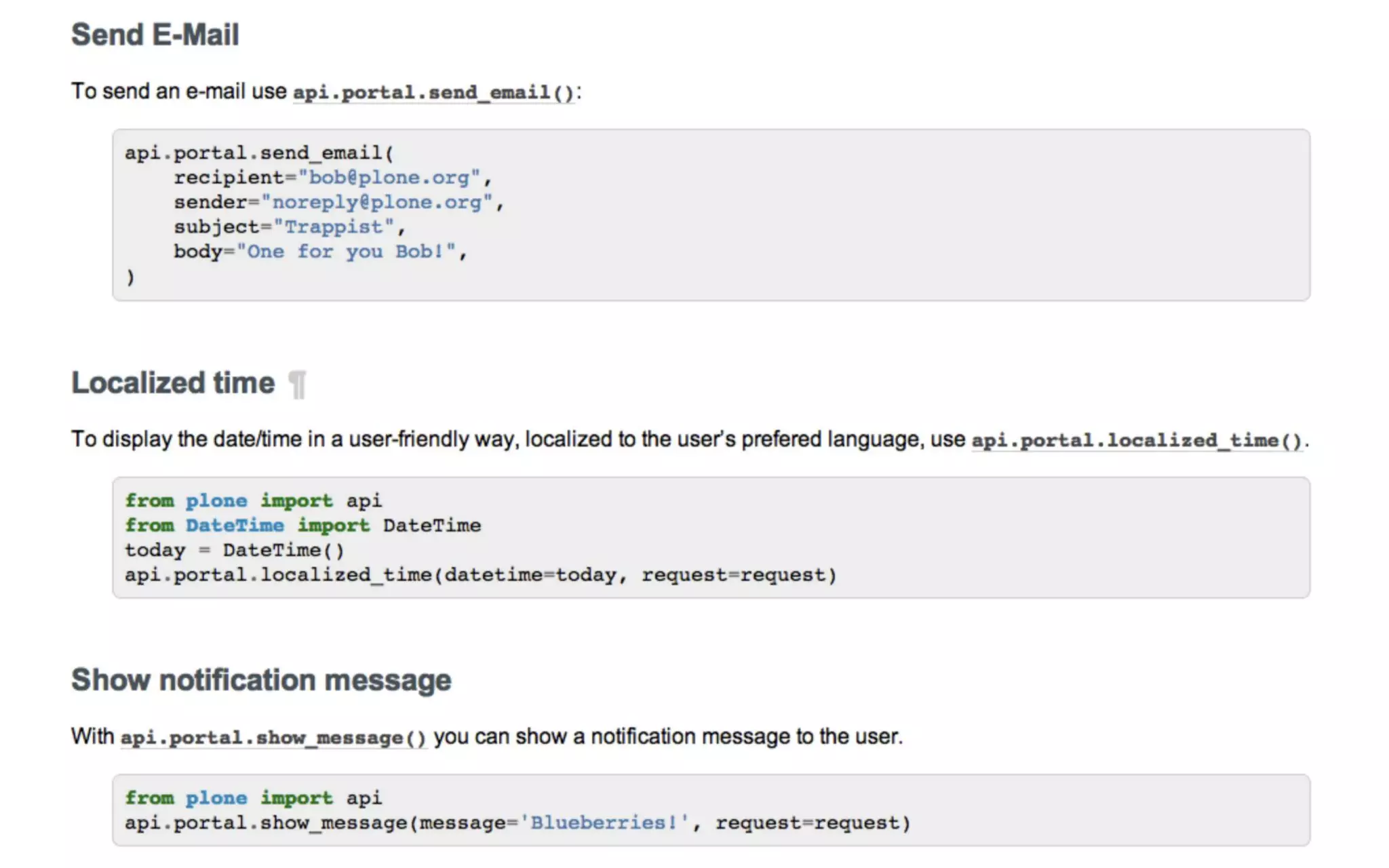

- #19 Then we wrote documentation on how people will use the API. By writing the docs we really polished the naming of API methods. It might sound trivial, but naming things is one of the hardest things in programming. Especially when designing APIs, it’s really hard to change your API once you have users, without causing pain and suffering among your users. BTW: these snippets were (and still are) tests. These bits of code are being run on every commit and asserted that they do what they claim. Fantastic for preventing regressions in a project with a great number of contributors.
- #20 the API can’t change without also changing the docs over 60 contributors, people have given talks about it nowadays ships with Plone by default I haven’t touched it in years, completely taken over by the community
- #22 It turns out, if you’re building RESTful webservices API these days, you don’t have to look far. Use Swagger.

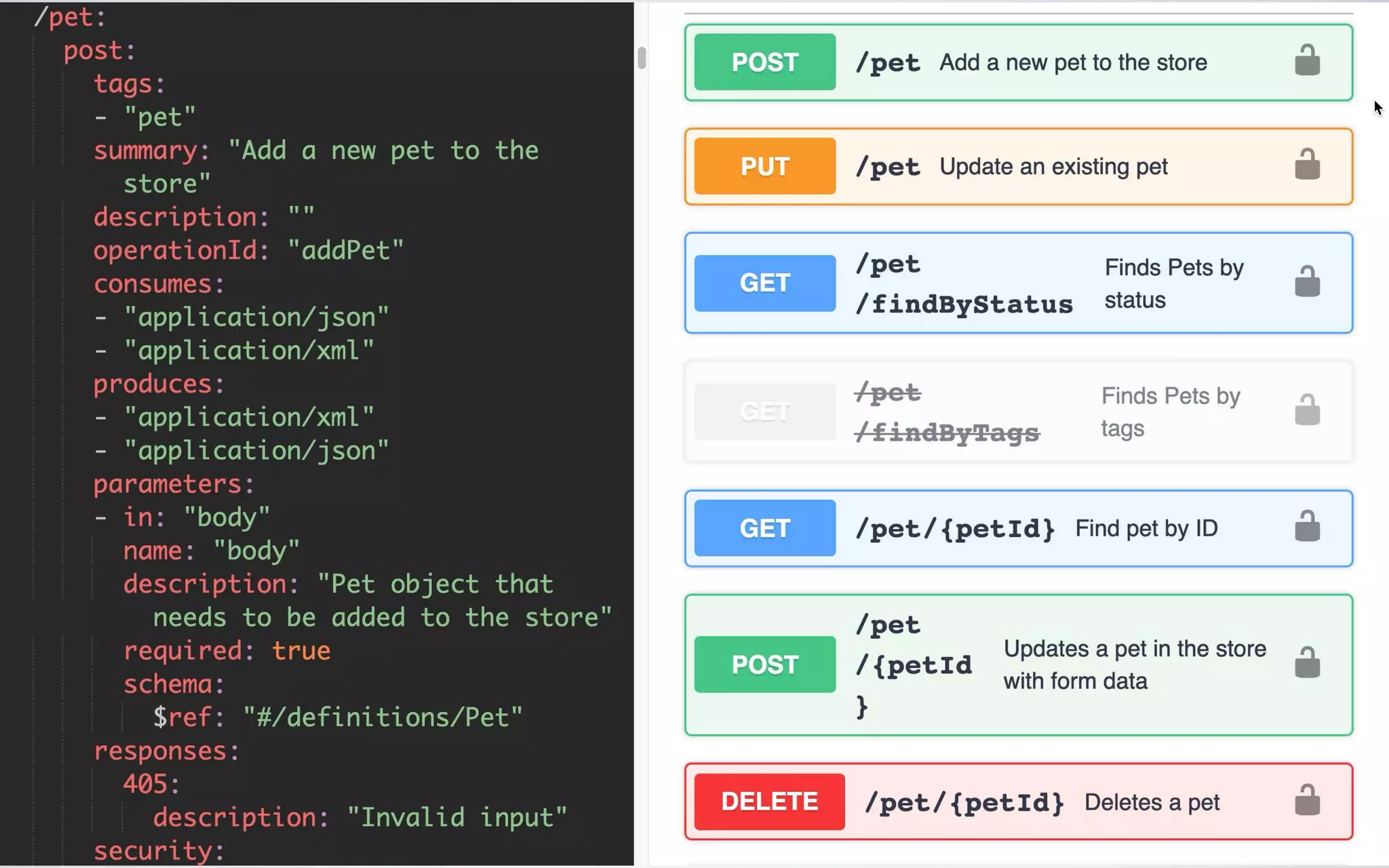

- #23 The defacto tool for describing and documenting REST APIs is Swagger. It’s a YAML specification for your API, that generates into nice HTML documentation with an integrated test client. And the ecosystem around it built a number of tools such as client generation tools. I.e. you can generate a React client for your API, no need to manually write API connectors.

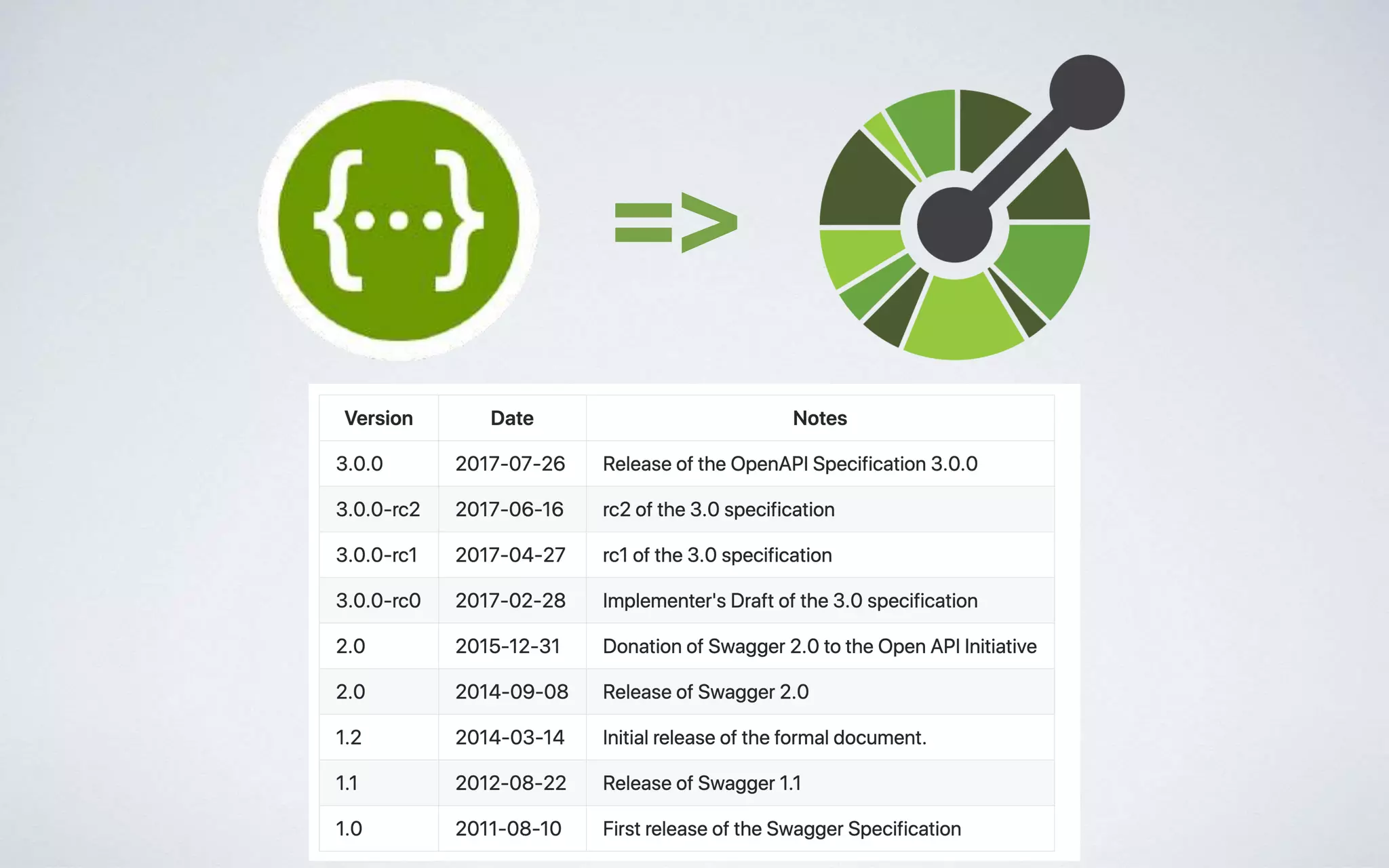

- #24 Actually, Swagger was recently renamed to OpenAPI. If you are used to Swagger, from now on when I say OpenAPI, you translater to Swagger in your heads :)
- #25 Swagger/OpenAPI has been in in refinement for almost a decade so it’s pretty solid and not something that’s just fashionable this month.
- #26 Now you know What makes an API robust: automatically up-to-date documentation signature that does not change without intent

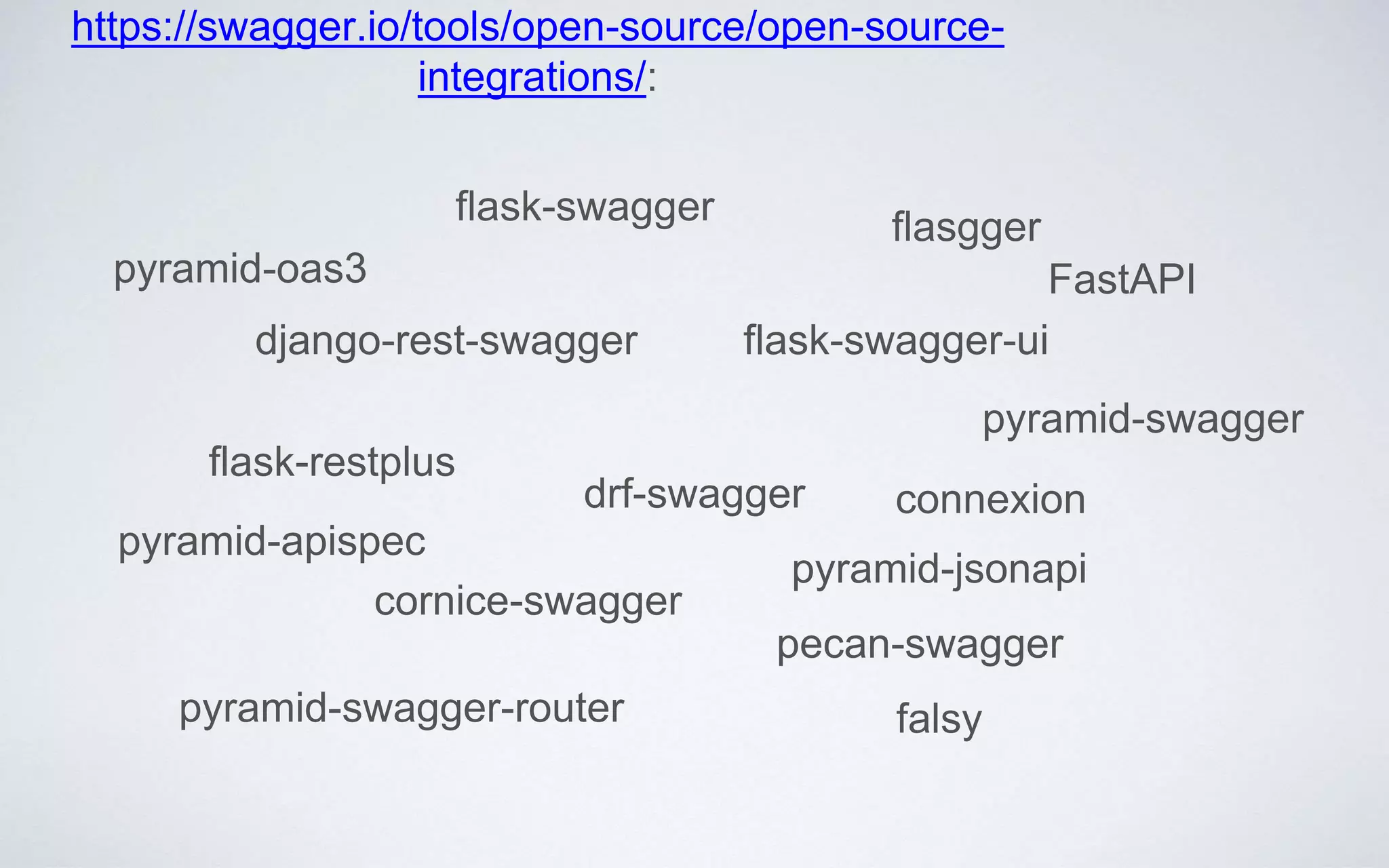

- #27 Last summer we started working on our new project WooCart. It’s a complete-autopilot hosting for webshops built on Wordpress and WooCommerce. I was in charge of building the API that will glue together the client-facing control panel built in React (first time!) and the deployment machinery on Kubernetes. I.e. when a client wants to create a new store, they click a button, wait about a minute, and see the new store in their WooCart Control Panel. I knew I want to use OpenAPI specification to declare how the API will work and to have runnable documentation. So I went to swagger’s website to check what Python integration are available. And found this:
- #28 Ugh. Almost like looking for a JavaScript packages. A bunch of overlapping packages, hard to decide which to choose.

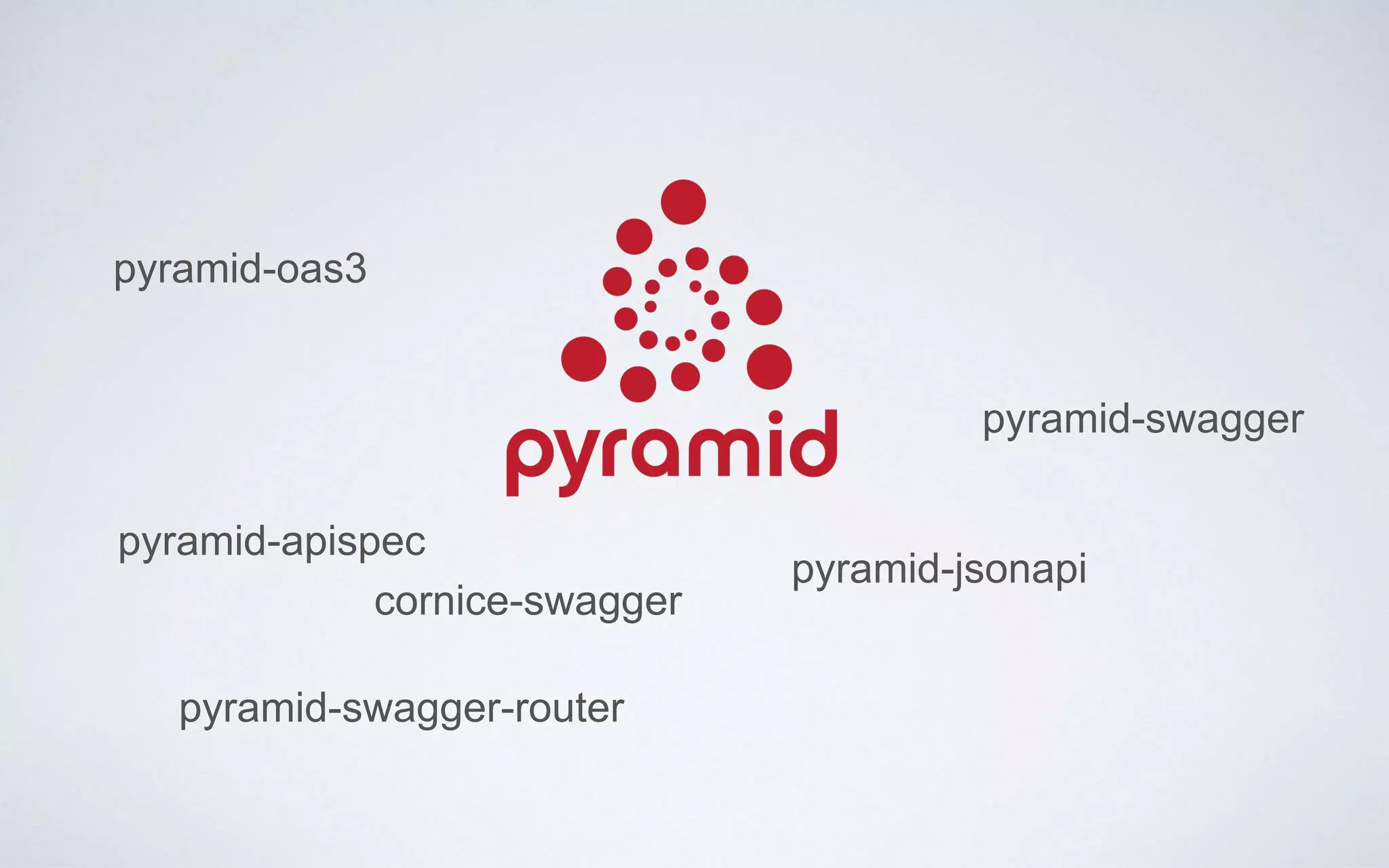

- #29 But not really. I was quite sure I want to use Pyramid. I want to build a robust API, remember? So I can go surfing? Yes, and Pyramid is a really mature web framework. It allows me to start small, even in a single file, and scale easily from there. Moreover, the people that rewrote and launched the new PyPI.org last year, used Pyramid to do it. They are one of the most knowledgeable people in our community, and if Pyramid is their choice, it’s probably a good choice for me too. Still, six packages.
- #30 Growing up, I was a huge fan of Mythbusters. I loved watching Adam and Jamie bust one myth after the other. I consider myself a tinkerer and a maker, just dying to find time to do some DIY projects. You can imagine my joy when Adam’s first book came out recently: Every Tool’s A Hammer. Sort of an autobiography, mixed with a collection of tips on how to be a maker, how to be creative. One of the main chapters of the book is called “Use More Cooling Liquid”. It’s also an answer to “what would you tell to 25 year old self“ that Adam gave during a recent interview. Use More Cooling Liquid. Such a strange advice, isn’t it? Use More Cooling Liquid. Why would Adam tell his 25-year-old self that? It’s not about the act of cutting or drilling, it’s about preparation. About using the right tools for the job and not risking damaging the tool or the piece. Of cutting in the right place, at correct dimension. I realized that advice (next slide) applies to my use case as well.
- #31 next slide

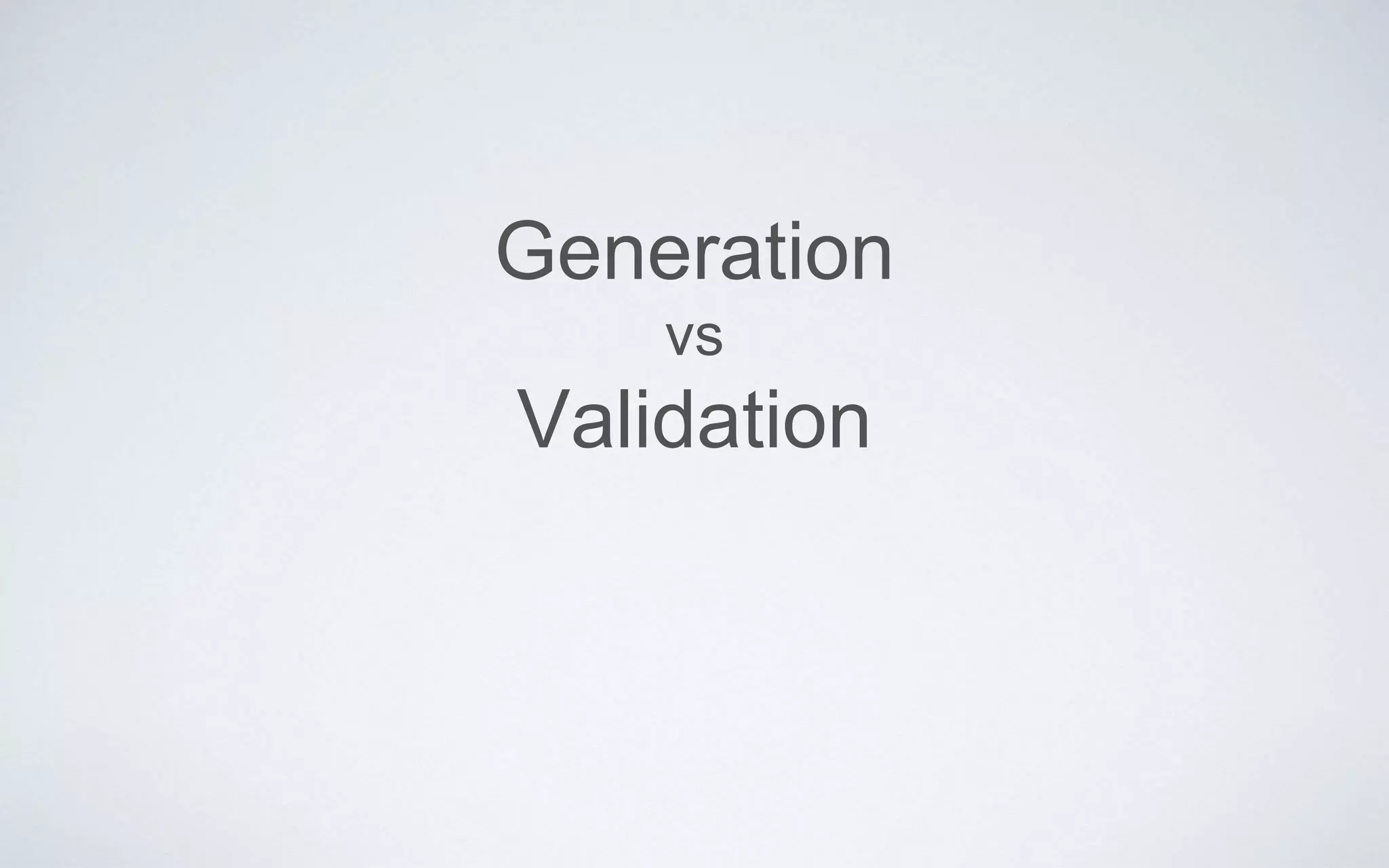

- #32 There are two distinct approaches to doing OpenAPI with web frameworks.
- #33 2. -> code reviews are MUCH easier -> if openapi.yaml did not change, API did not change
- #34 3. NEXT SLIDE

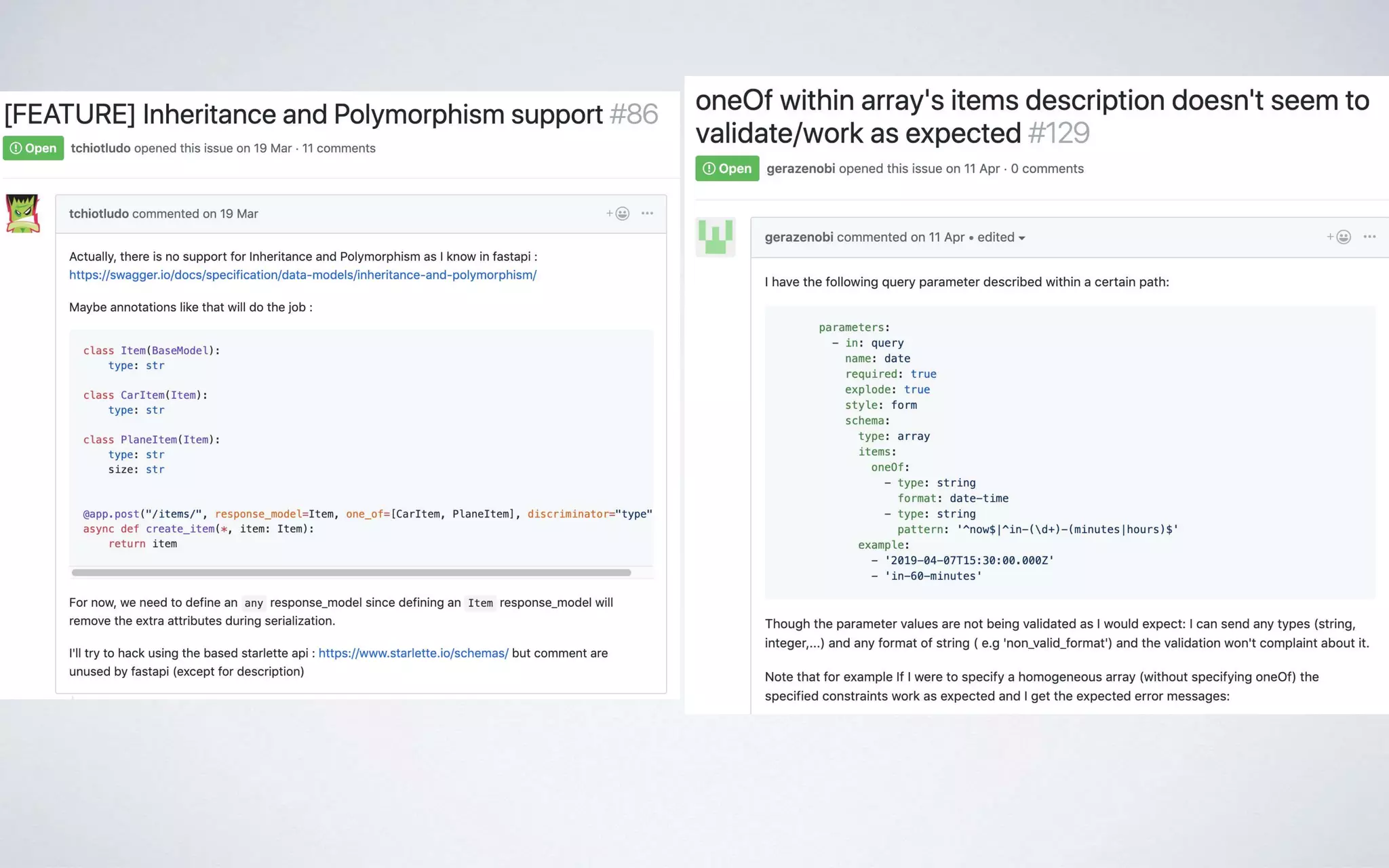

- #35 basically the same problem, but if you are generating openapi spec from code you need to monkeypatch or fork the framework to wrestle it to produce the api spec that you want with validation, you make a big # TODO: fix this upstream, and write your own validation in your view code, and move on
- #36 4. In WooCart we had to rewrite some of our endpoints in GoLang to get better performance & concurrency. If we would generate openapi spec with python code we would have to keep “dead” python code around, just to generate and server the spec that we need.

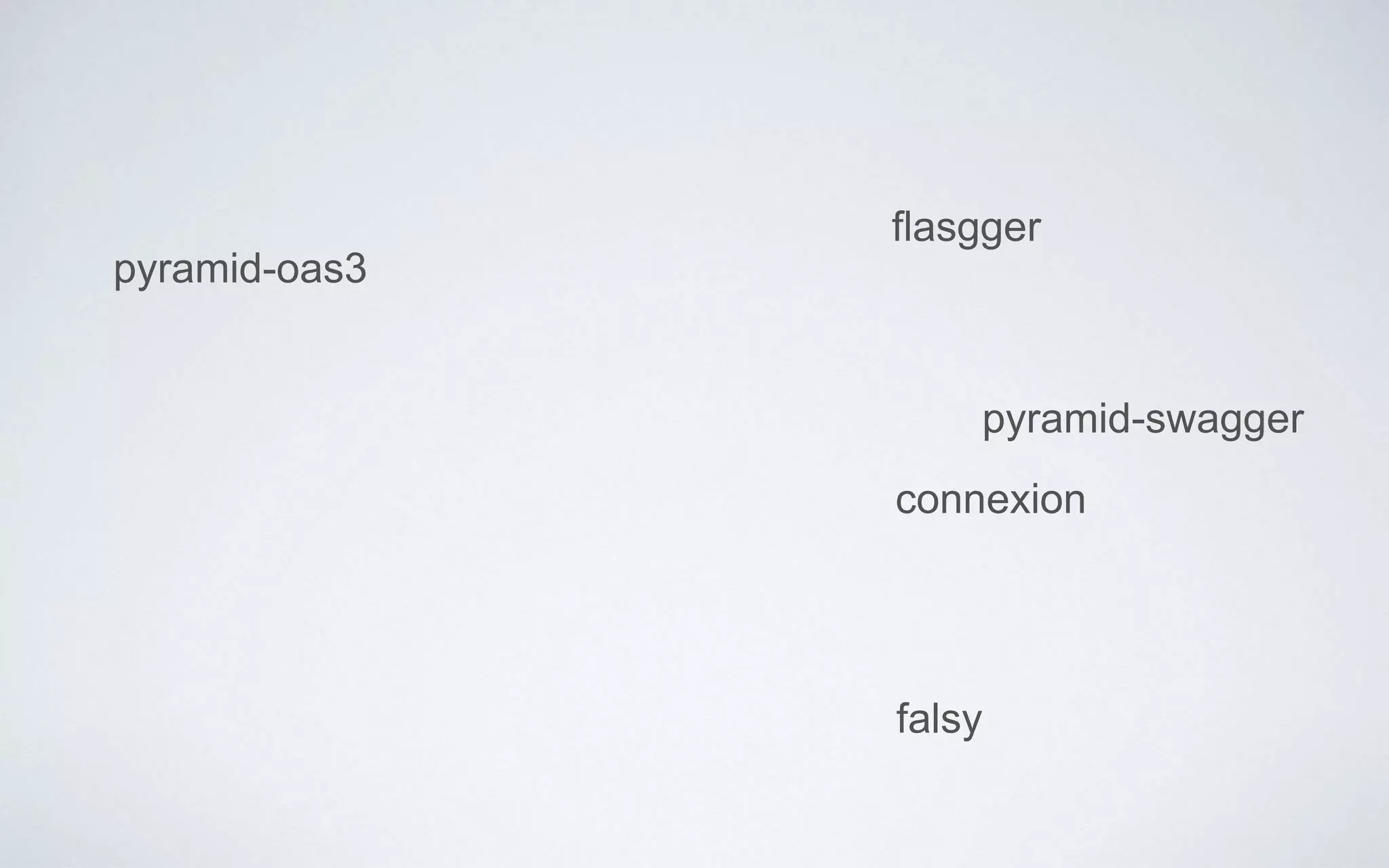

- #38 Going back to list of python integrations for swagger, and removing those that are not written in API-first approach I get …

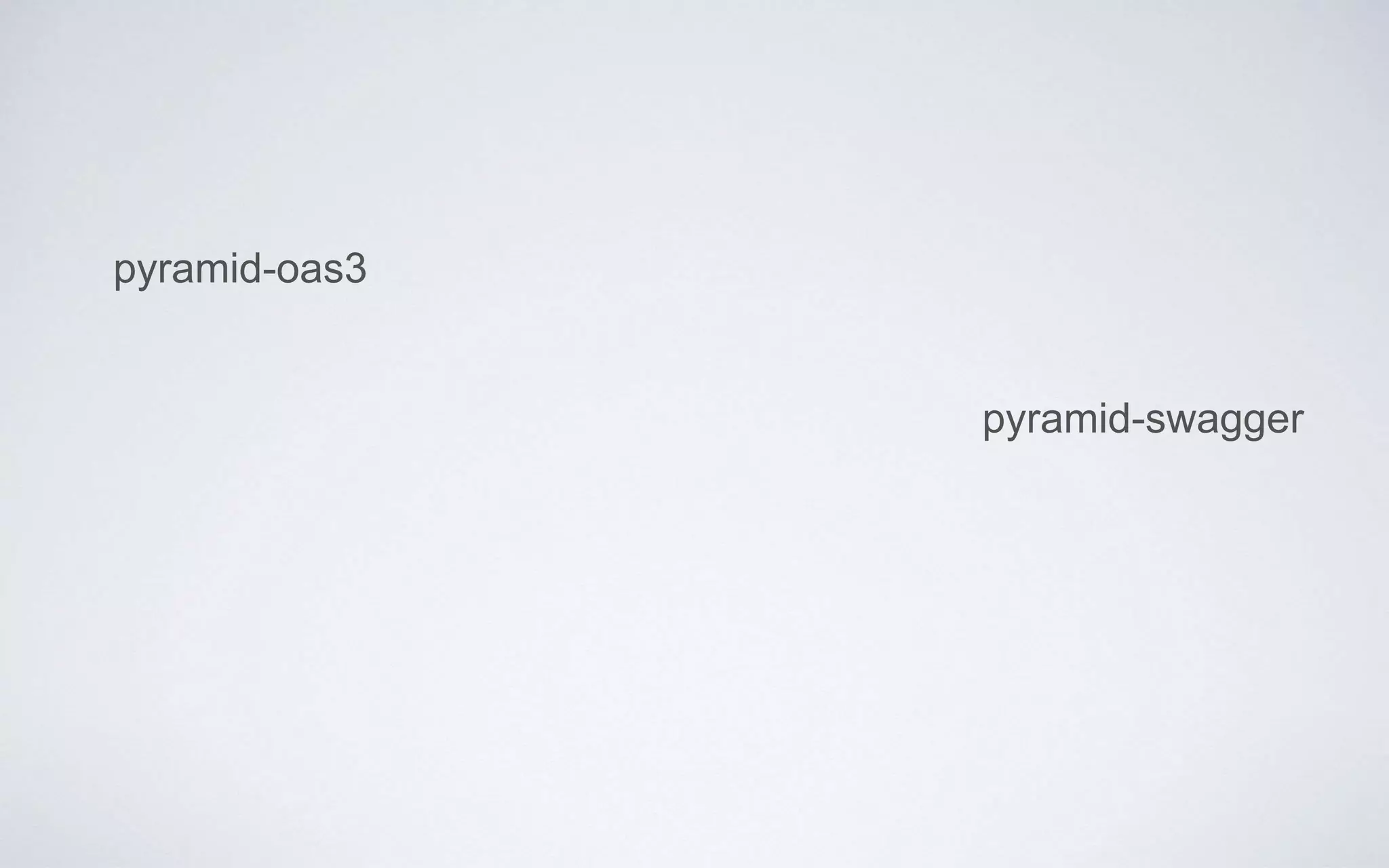

- #39 … these five, three done on top of flask and two done on top of pyramid and since I prefer Pyramid, I’m down to two
- #40 One with documentation in Japanese, the other only supporting the old Swagger 2.0, not OpenAPIv3 spec.
- #41 So I was only left with one solution
- #52 Slide text Use as a scaffold!
- #53 And remember: Use More Cooling Liquid!
