1. Dojo Web Builder
Building Dojo in the Cloud
http://www.flickr.com/photos/turtlemom_nancy/2046347762/
James Thomas

2. Me.
@thomasj

3. Who uses the Dojo
builder for their app?

5. So... why do we need a
“Web Builder”?

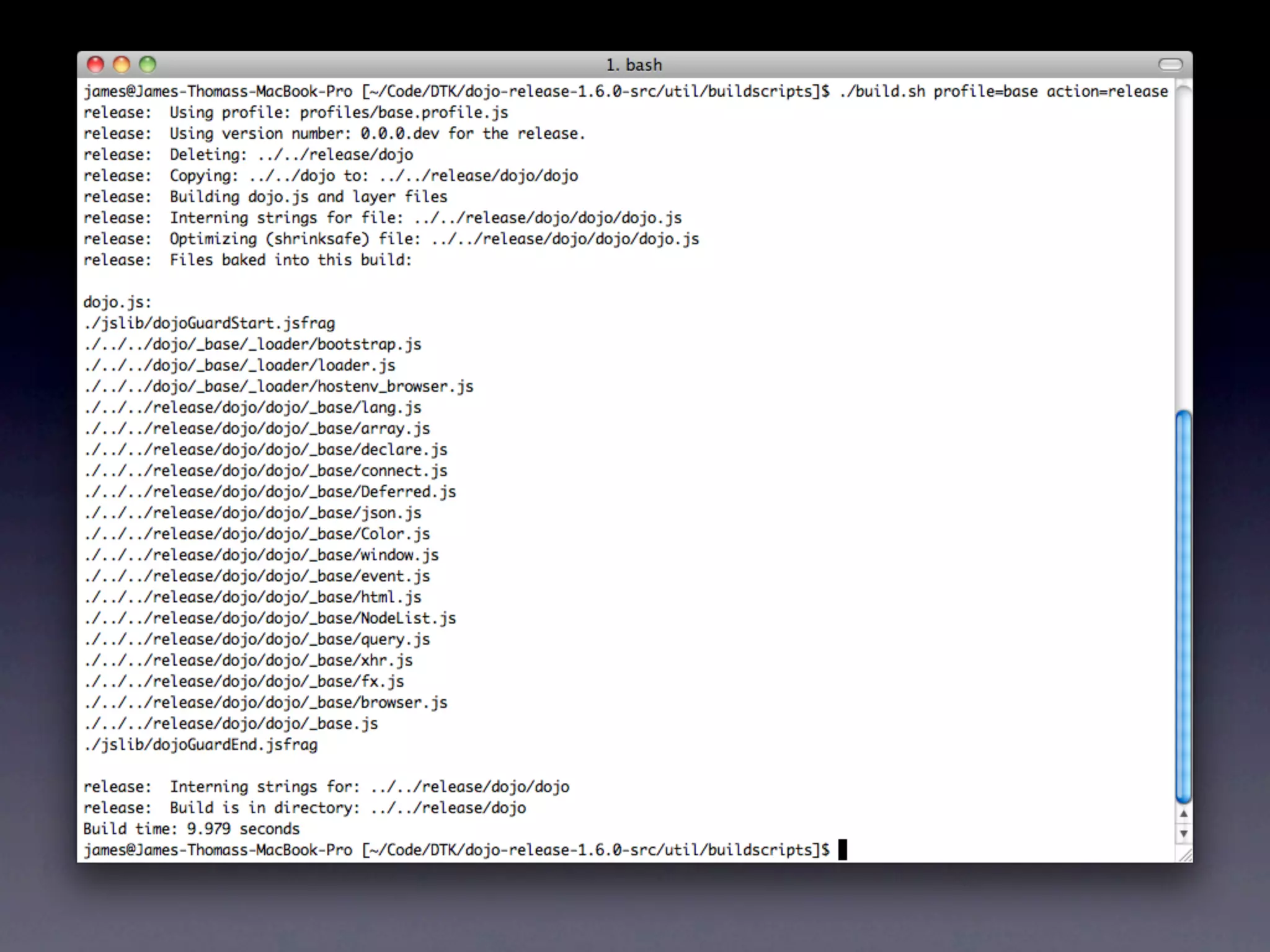

6. Existing Dojo Build
• Learning curve too steep for many users
• Toolset may put some some users, i.e.
commands lines and shell scripts
• Users from simpler toolkits aren’t used to
“building” JavaScript components

7. Why does this matter?

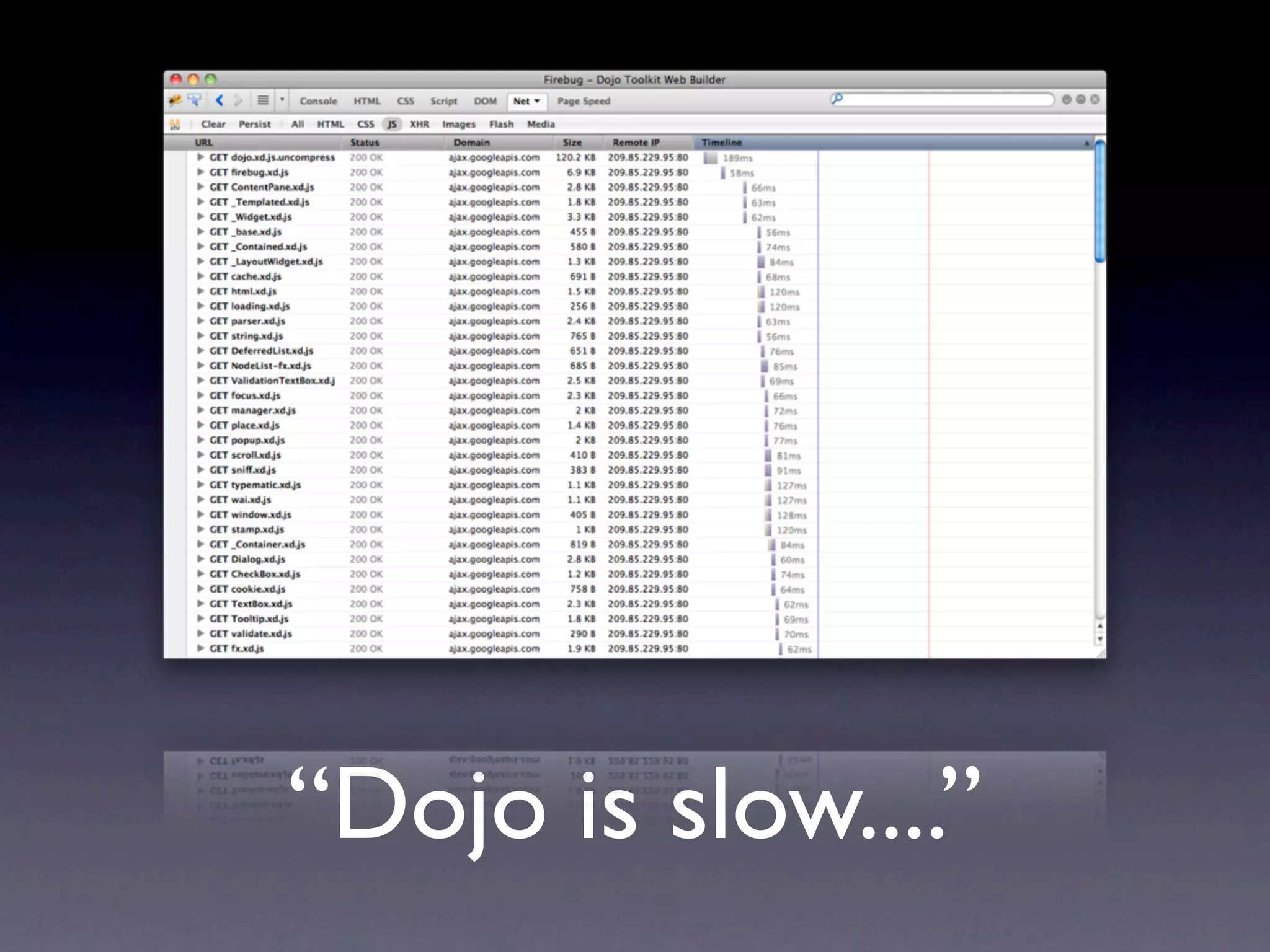

8. “Dojo is slow....”

9. http://www.flickr.com/photos/mrhayata/107290472/

10. http://www.flickr.com/photos/88933162@N00/5190194408/

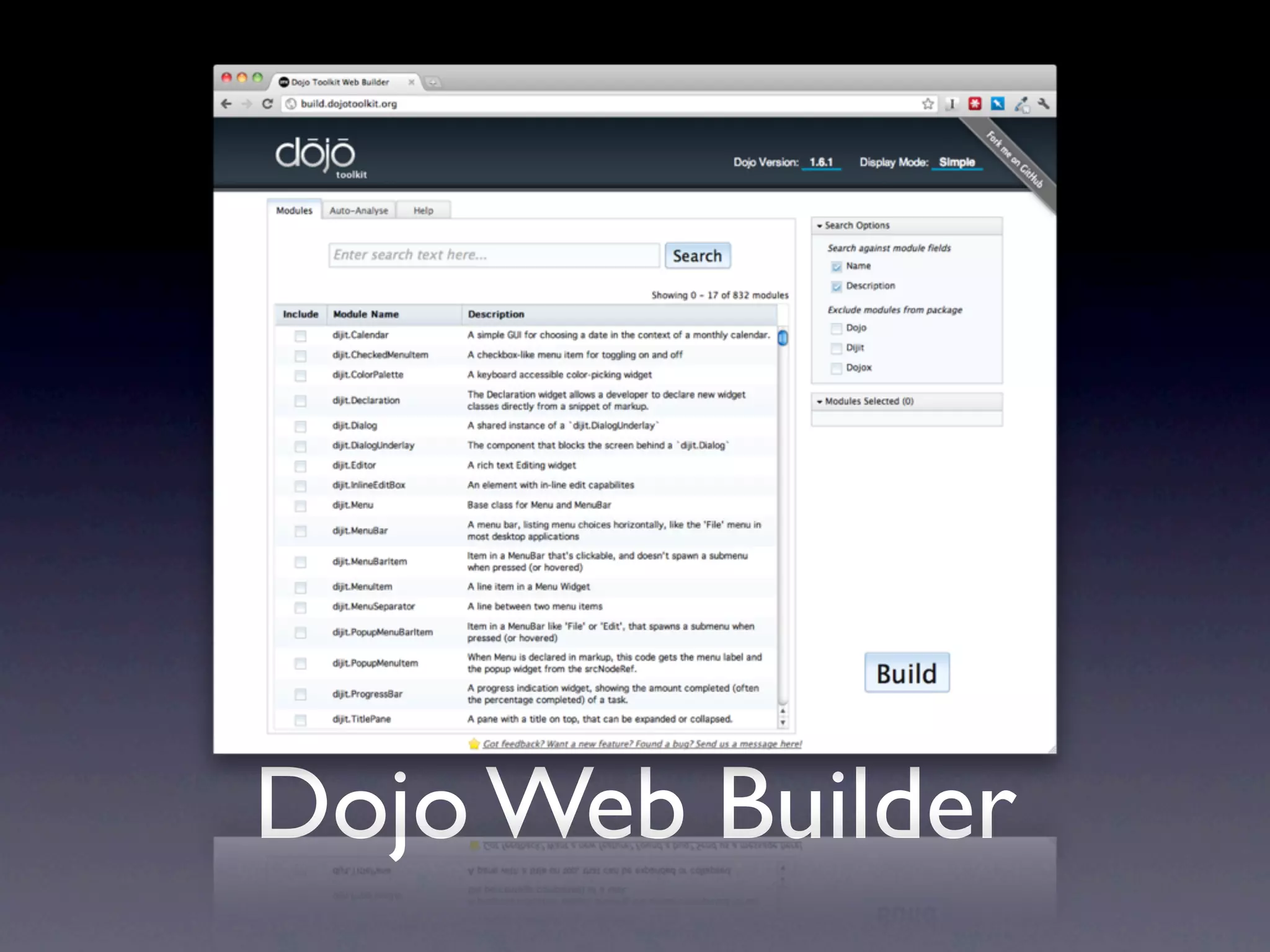

11. Dojo Web Builder

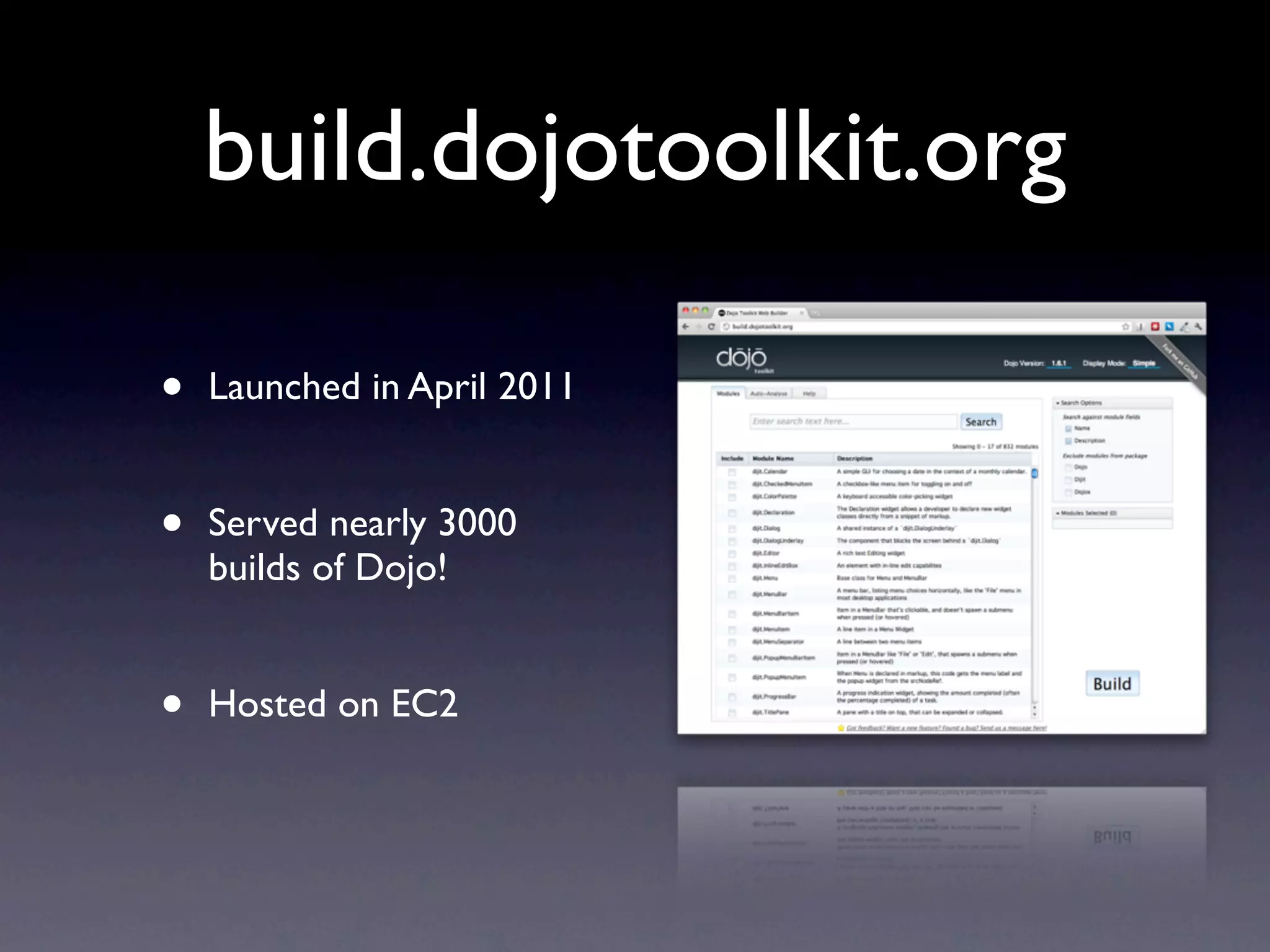

12. build.dojotoolkit.org
• Launched in April 2011
• Served nearly 3000
builds of Dojo!
• Hosted on EC2

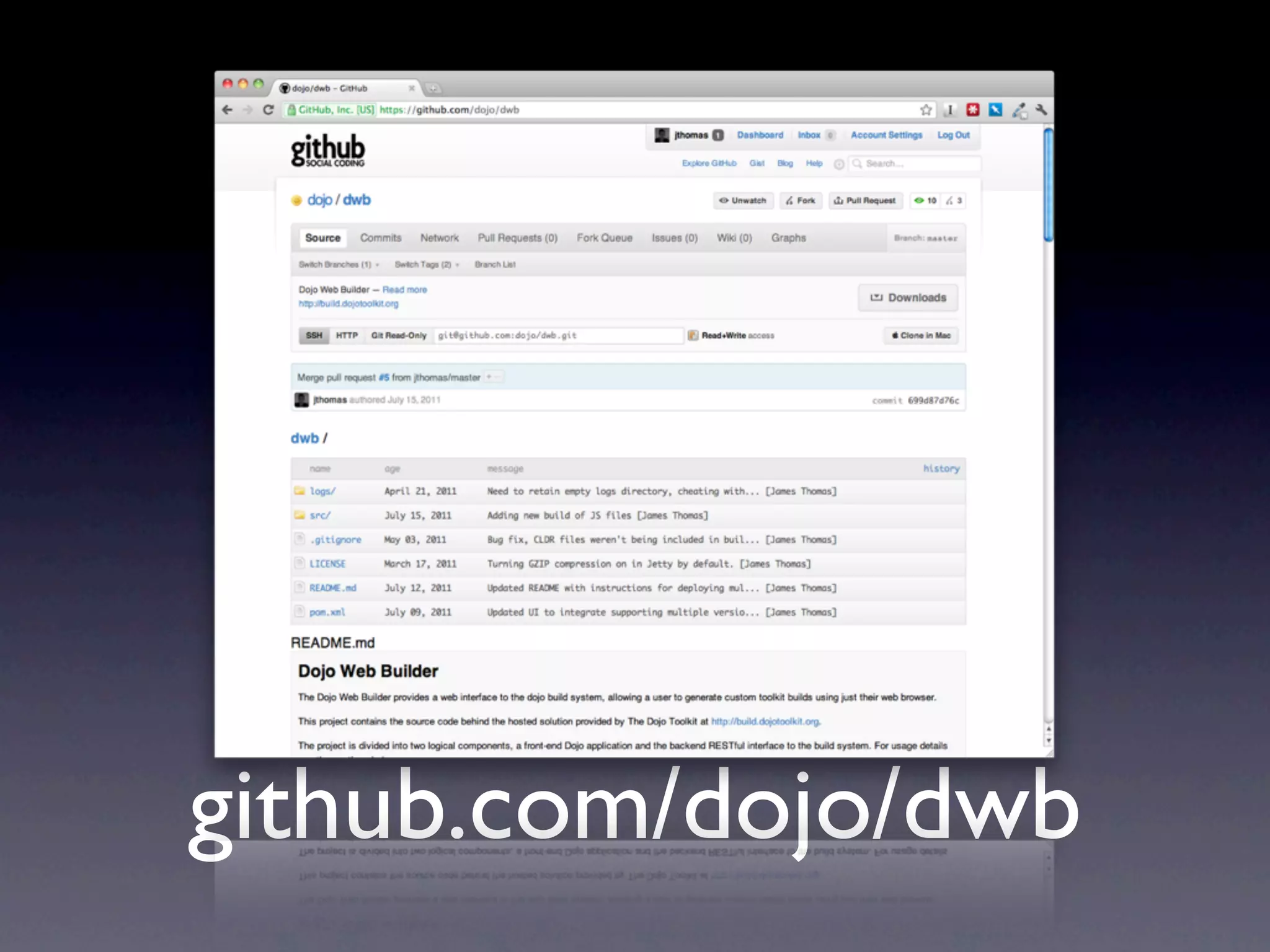

13. github.com/dojo/dwb

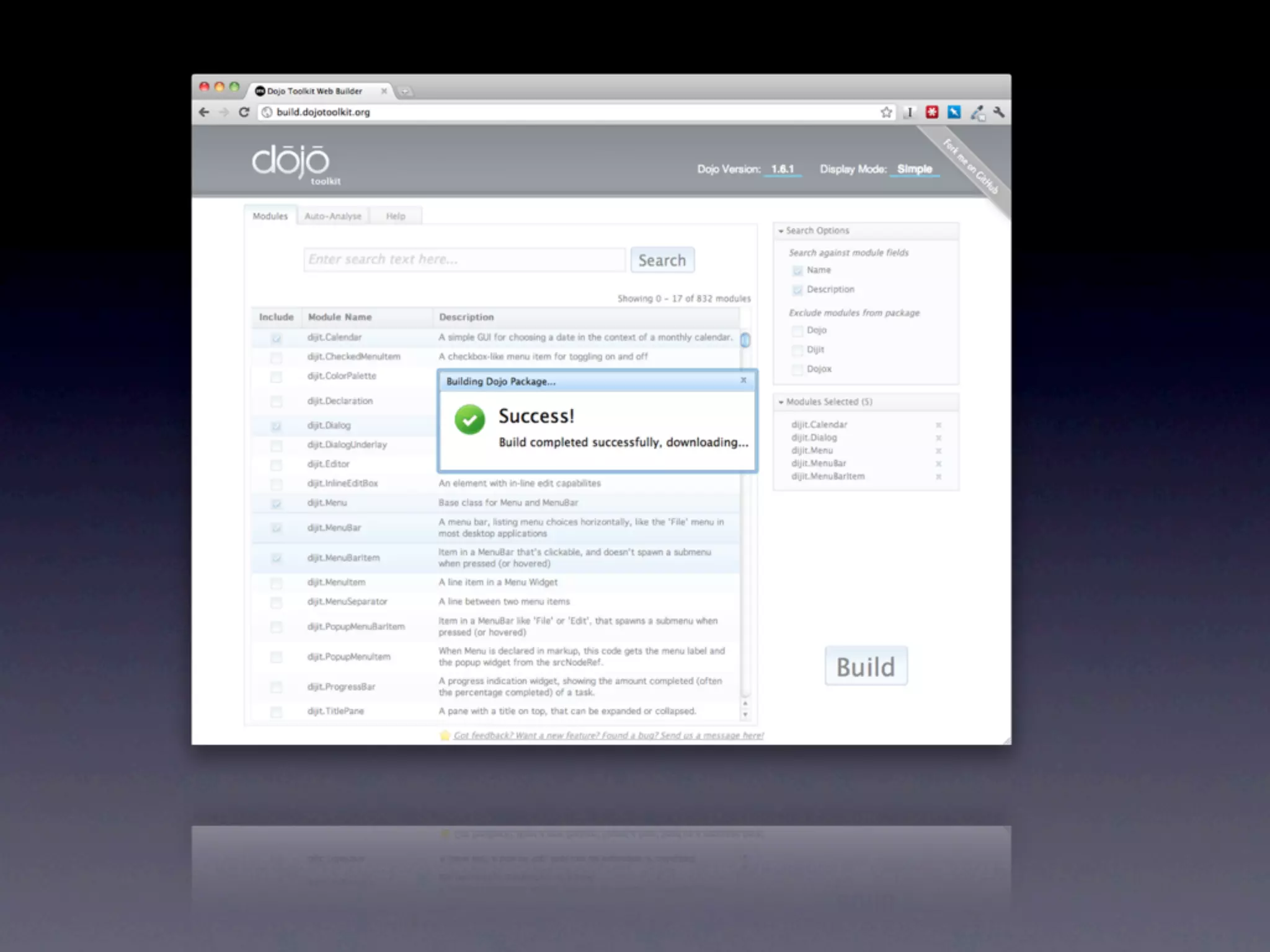

14. Time for a demo!

15. How does it work?

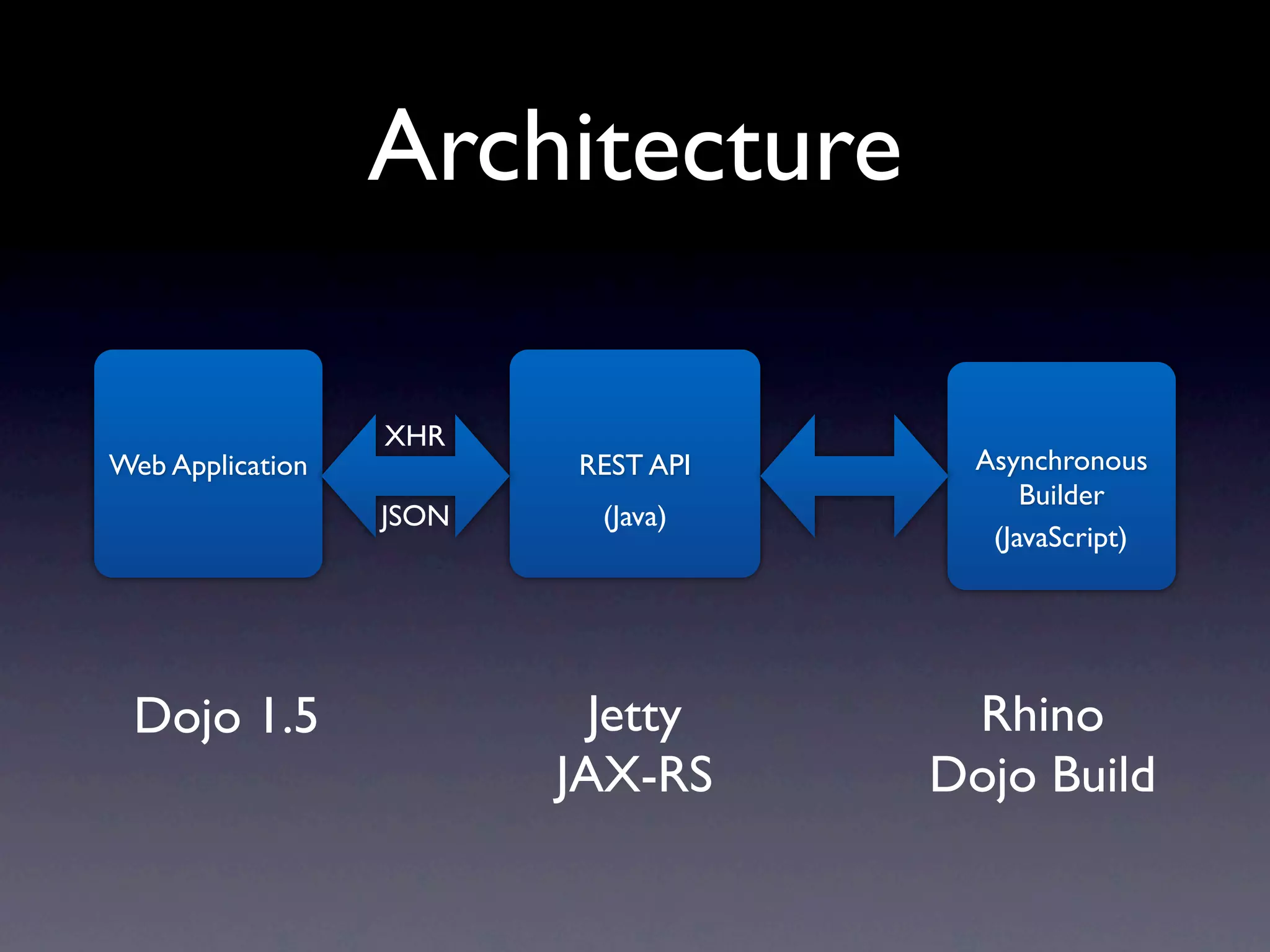

16. Architecture
XHR
Web Application REST API Asynchronous
Builder
JSON (Java)
(JavaScript)
Dojo 1.5 Jetty Rhino
JAX-RS Dojo Build

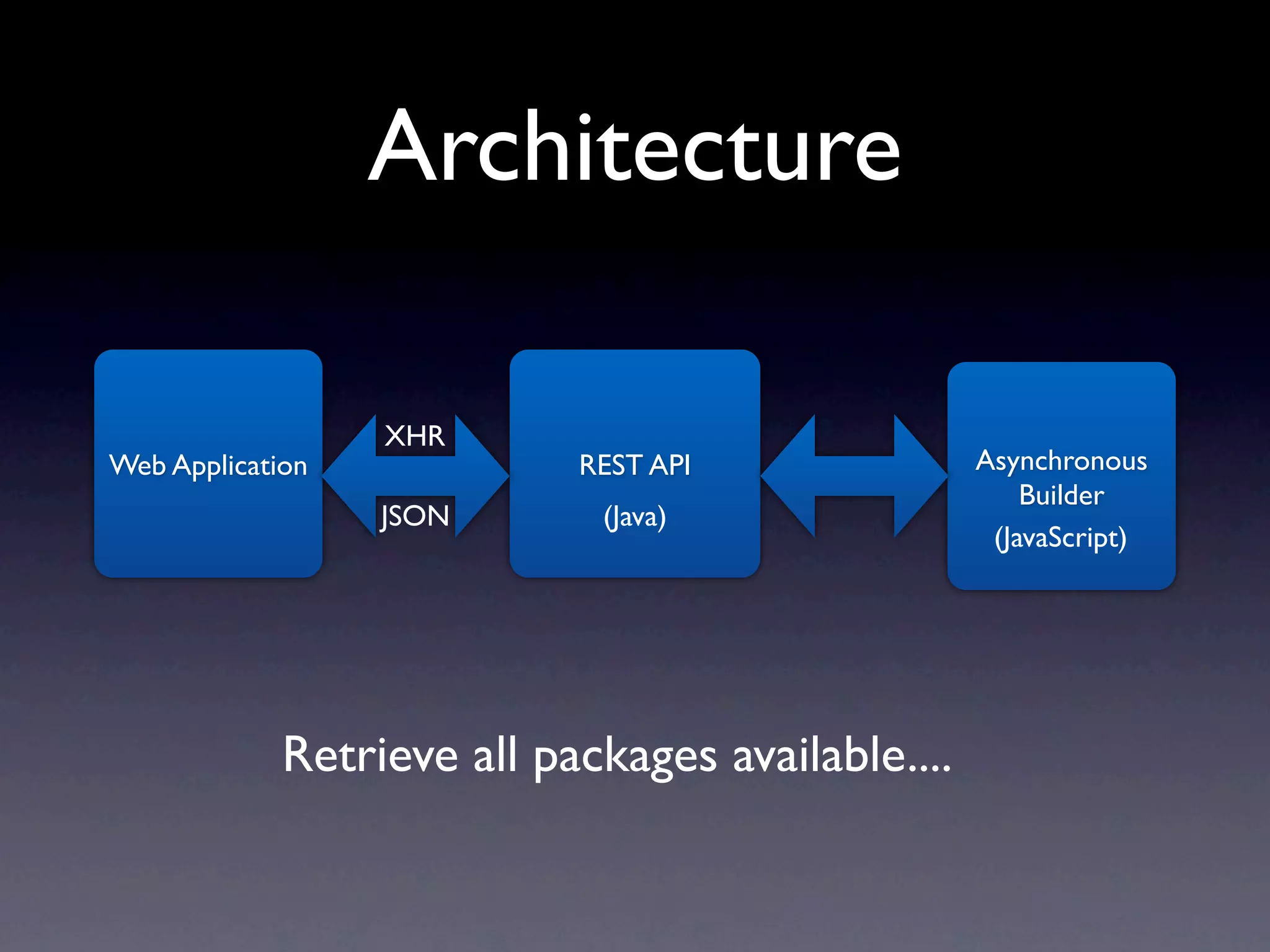

17. Architecture
XHR
Web Application REST API Asynchronous
Builder
JSON (Java)
(JavaScript)
Retrieve all packages available....

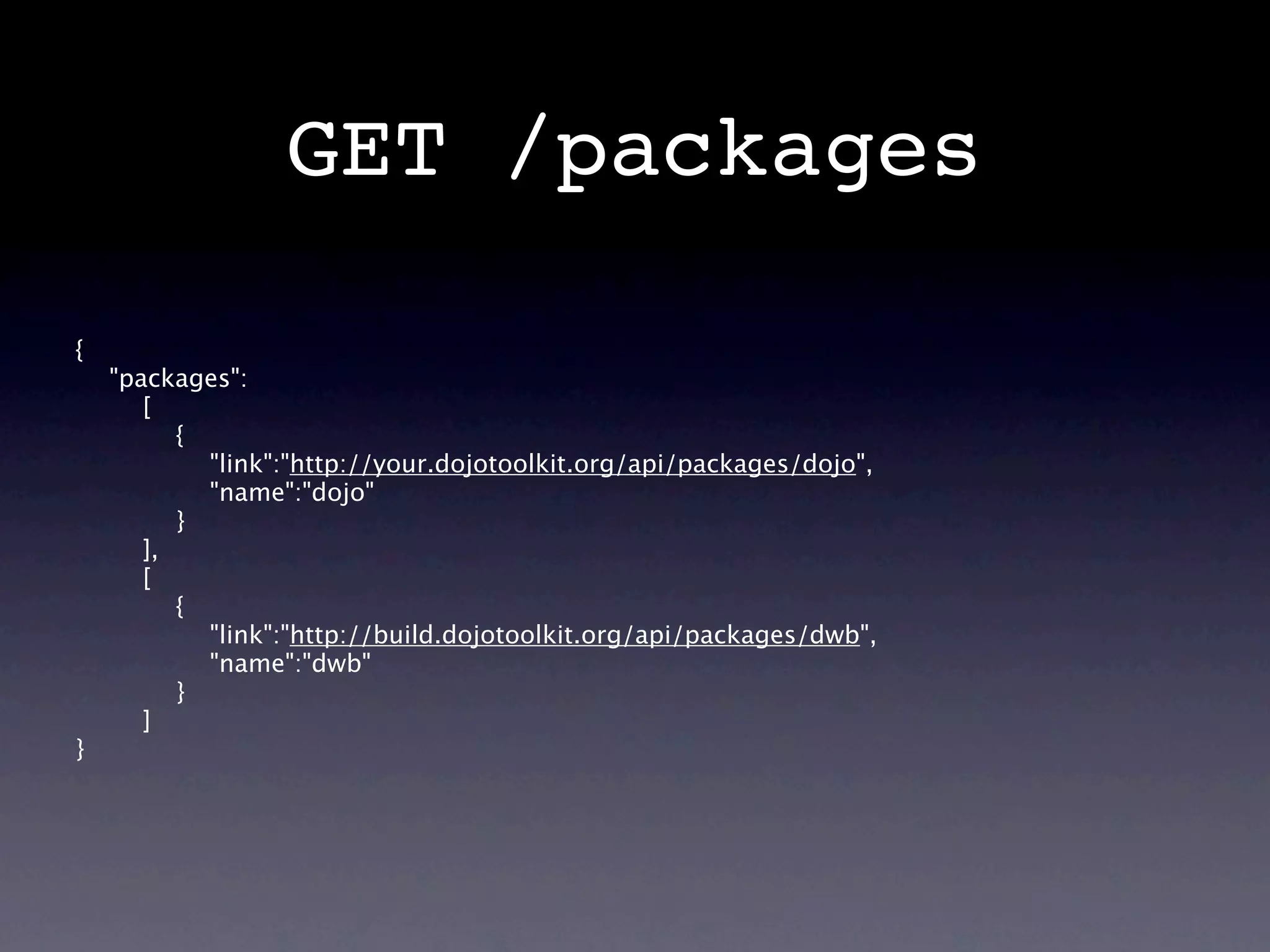

18. GET /packages
{
"packages":
[
{
"link":"http://your.dojotoolkit.org/api/packages/dojo",
"name":"dojo"
}
],
[
{
"link":"http://build.dojotoolkit.org/api/packages/dwb",
"name":"dwb"
}
]
}

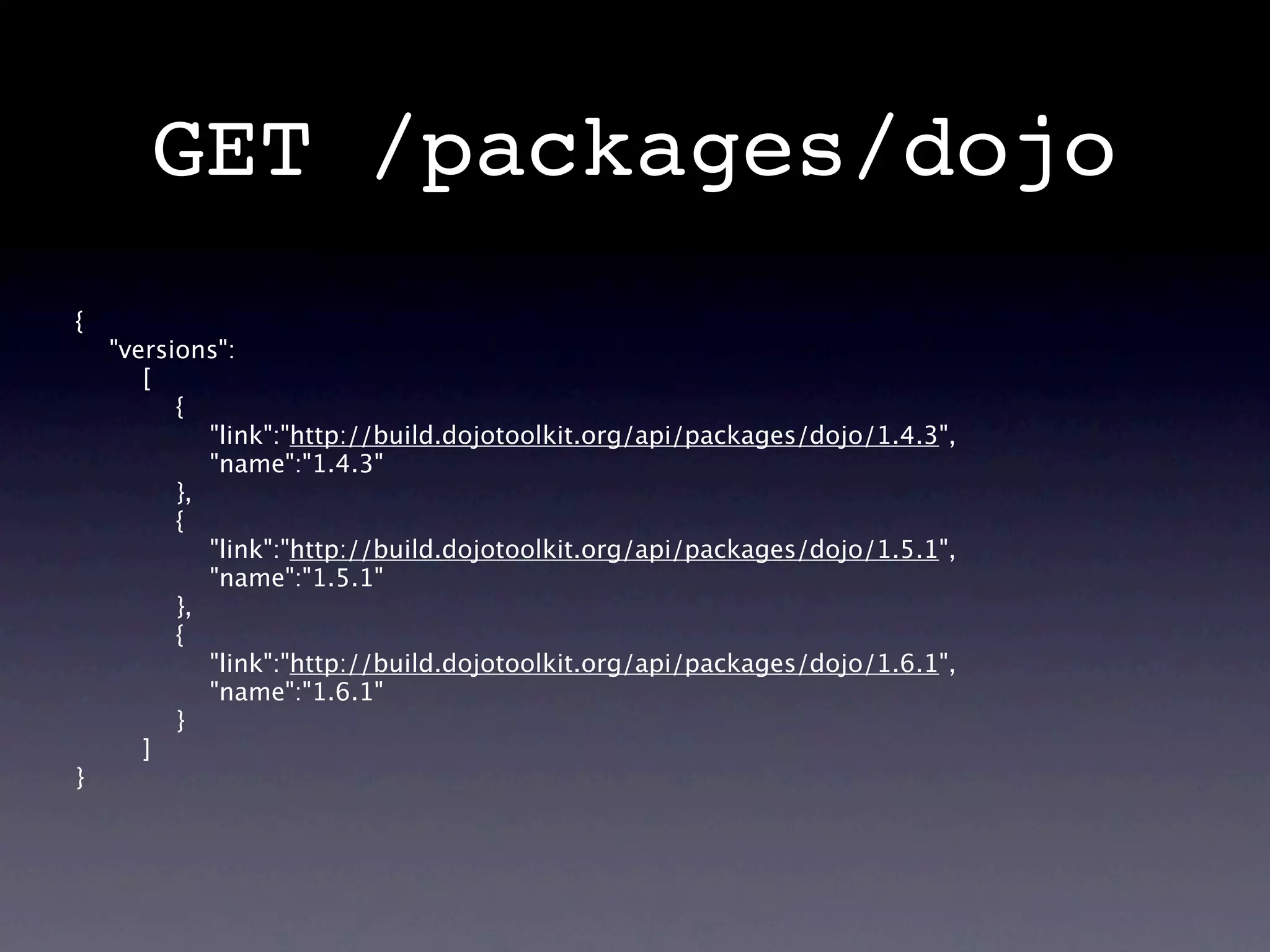

19. GET /packages/dojo
{
"versions":
[
{
"link":"http://build.dojotoolkit.org/api/packages/dojo/1.4.3",
"name":"1.4.3"
},
{
"link":"http://build.dojotoolkit.org/api/packages/dojo/1.5.1",
"name":"1.5.1"
},
{
"link":"http://build.dojotoolkit.org/api/packages/dojo/1.6.1",
"name":"1.6.1"
}
]
}

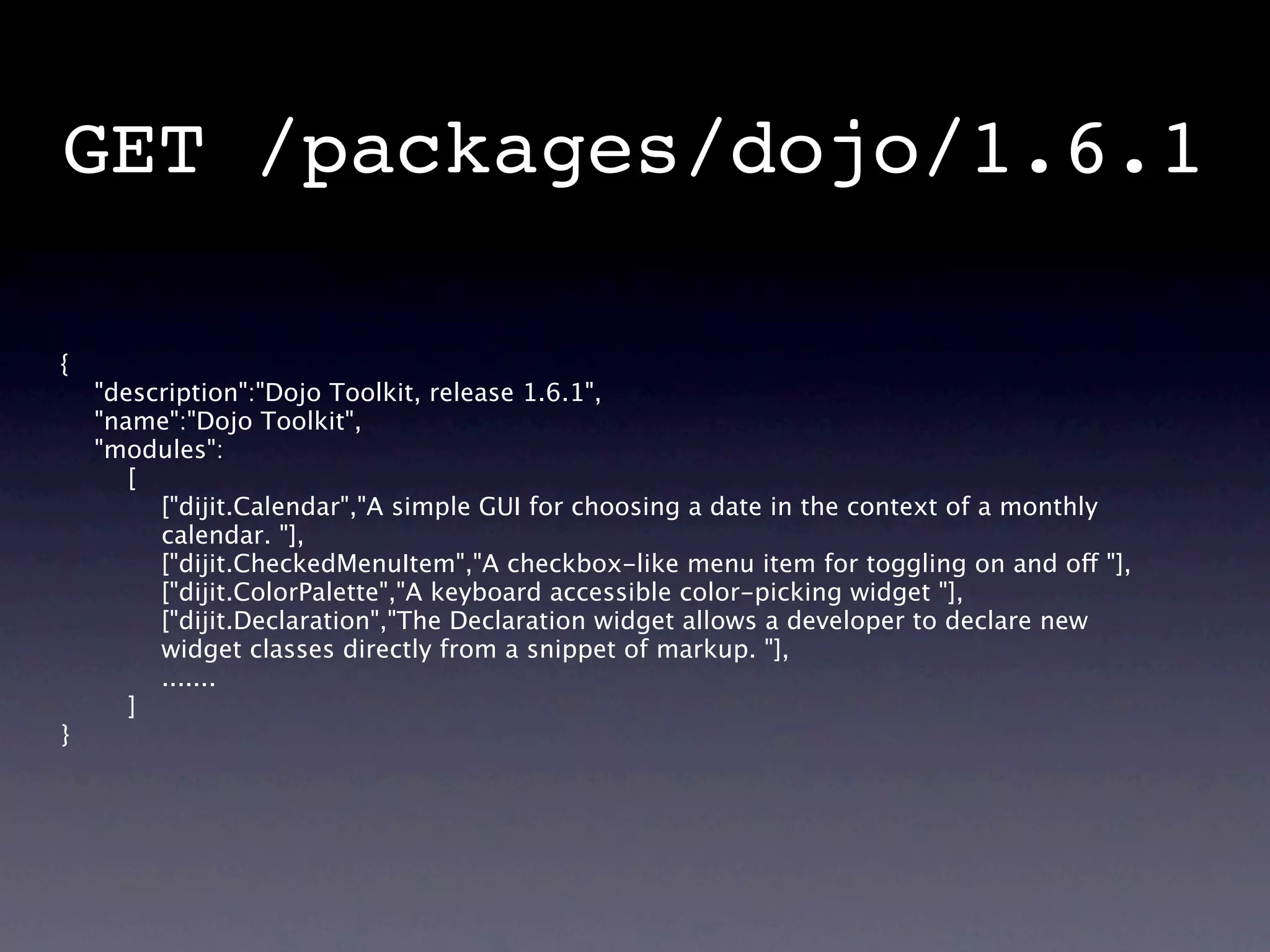

20. GET /packages/dojo/1.6.1
{
"description":"Dojo Toolkit, release 1.6.1",
"name":"Dojo Toolkit",
"modules":
[
["dijit.Calendar","A simple GUI for choosing a date in the context of a monthly
calendar. "],
["dijit.CheckedMenuItem","A checkbox-like menu item for toggling on and off "],
["dijit.ColorPalette","A keyboard accessible color-picking widget "],
["dijit.Declaration","The Declaration widget allows a developer to declare new
widget classes directly from a snippet of markup. "],
.......
]
}

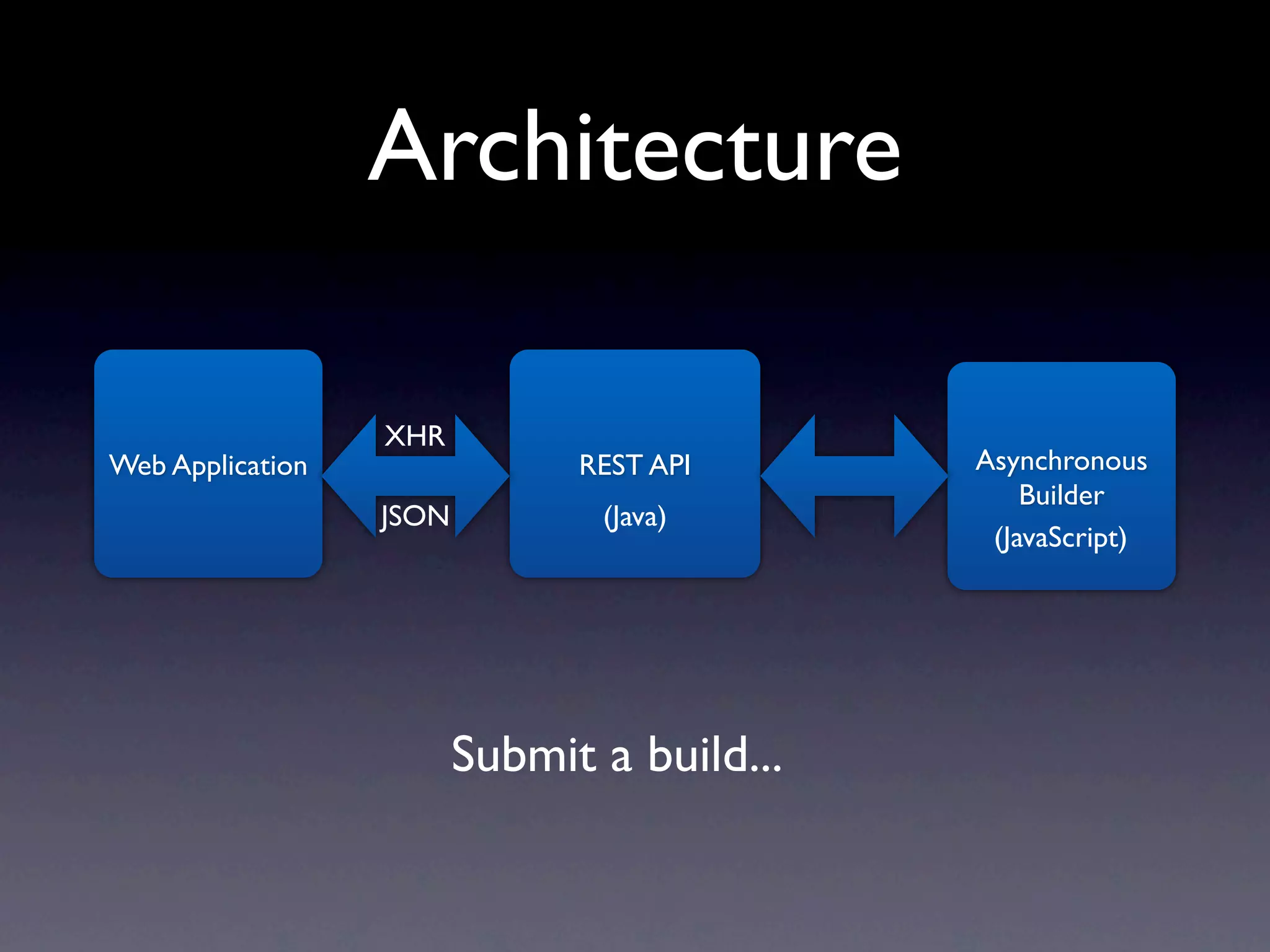

21. Architecture
XHR
Web Application REST API Asynchronous
Builder
JSON (Java)
(JavaScript)
Submit a build...

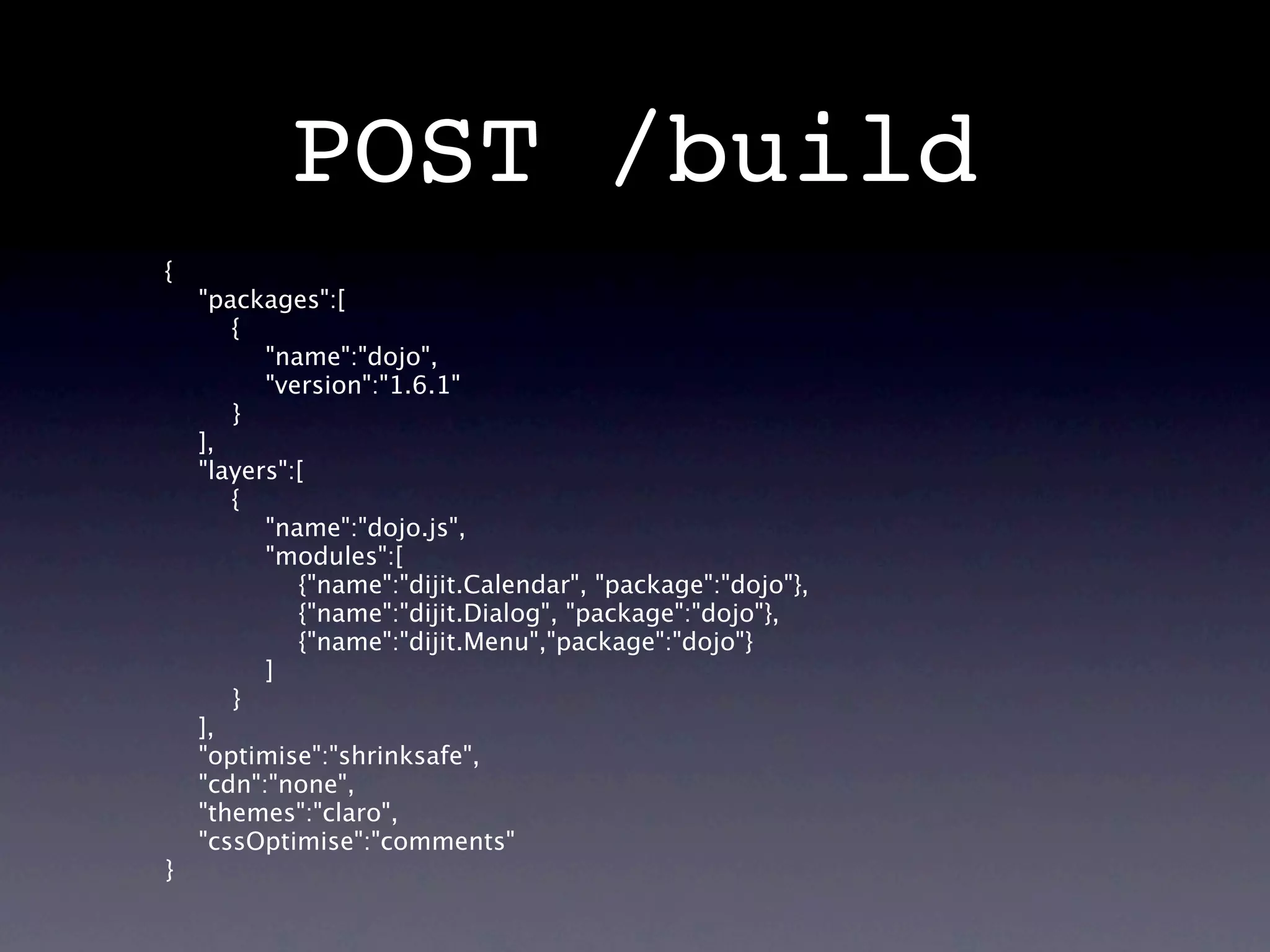

22. POST /build
{
"packages":[
{
"name":"dojo",
"version":"1.6.1"
}
],
"layers":[
{
"name":"dojo.js",
"modules":[
{"name":"dijit.Calendar", "package":"dojo"},
{"name":"dijit.Dialog", "package":"dojo"},
{"name":"dijit.Menu","package":"dojo"}
]
}
],
"optimise":"shrinksafe",
"cdn":"none",
"themes":"claro",
"cssOptimise":"comments"
}

23. HTTP 202 Accepted
{
"buildStatusLink": "http://build.dojotoolkit.org/api/build/status/
HtHlqBVzBAztHRKMlClyYPzBofk_"
}

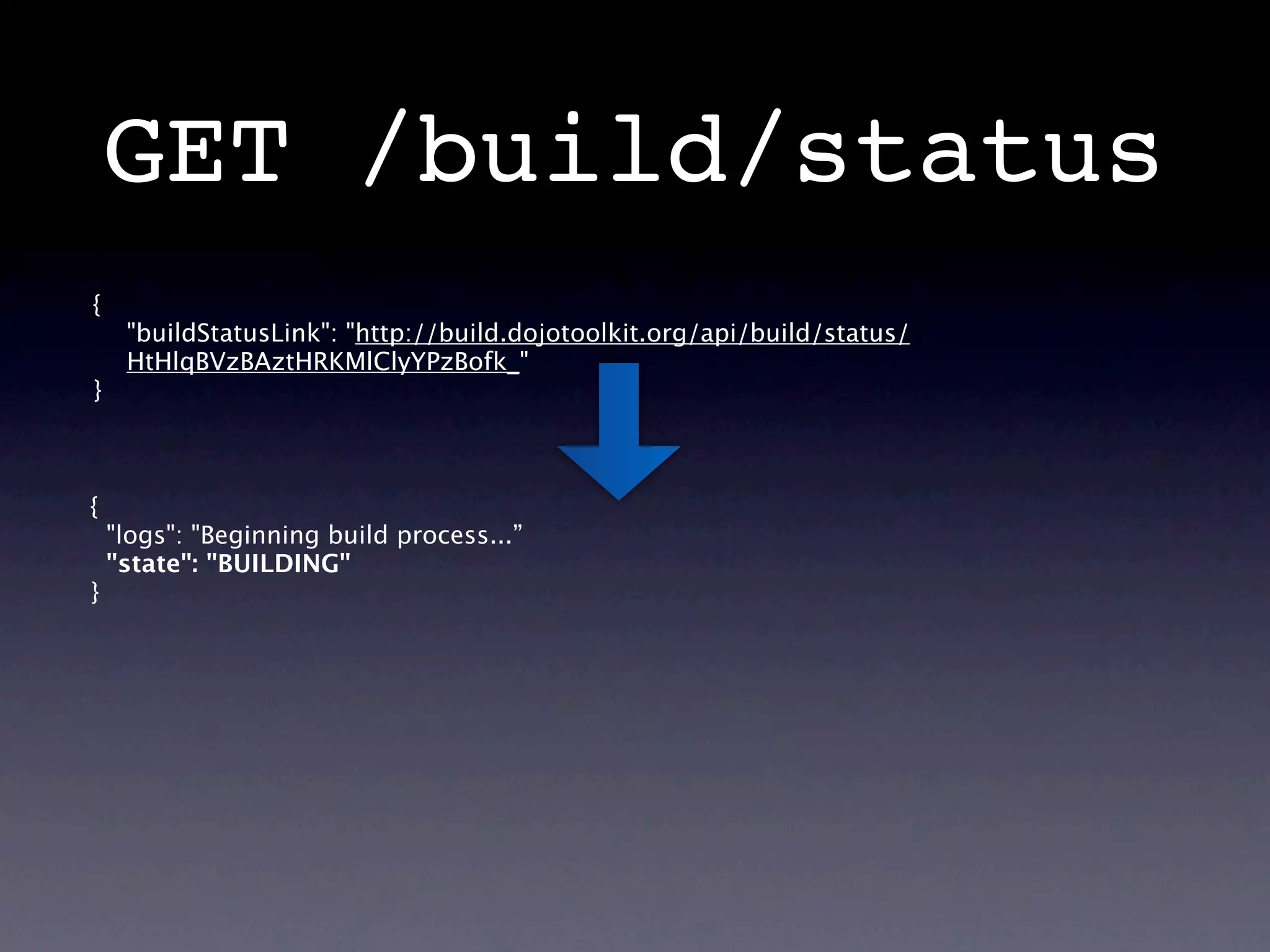

24. GET /build/status
{
"buildStatusLink": "http://build.dojotoolkit.org/api/build/status/
HtHlqBVzBAztHRKMlClyYPzBofk_"
}
{
"logs": "Beginning build process...”
"state": "BUILDING"
}

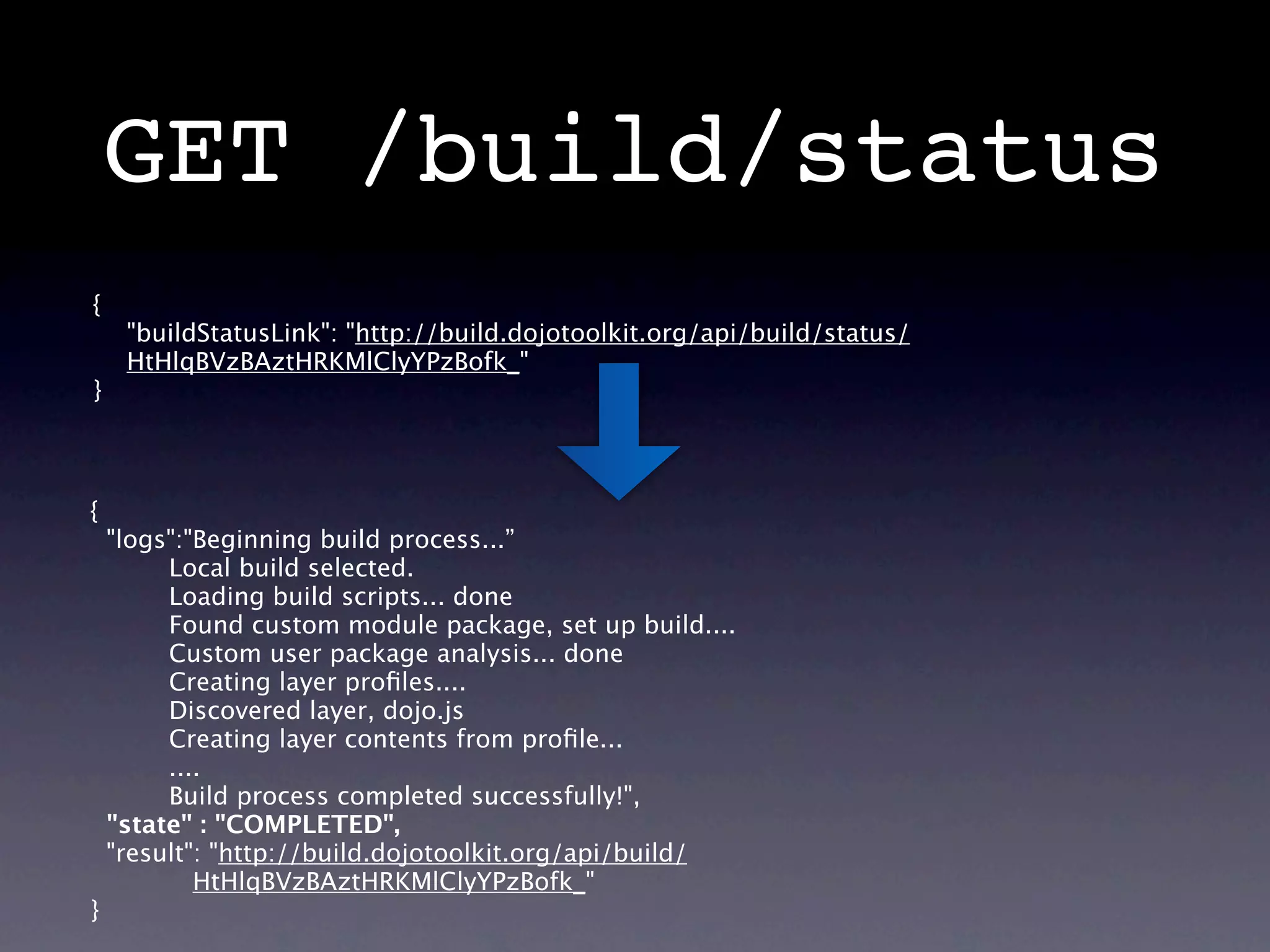

25. GET /build/status
{
"buildStatusLink": "http://build.dojotoolkit.org/api/build/status/
HtHlqBVzBAztHRKMlClyYPzBofk_"
}
{
"logs":"Beginning build process...”
Local build selected.
Loading build scripts... done
Found custom module package, set up build....
Custom user package analysis... done
Creating layer profiles....
Discovered layer, dojo.js
Creating layer contents from profile...
....
Build process completed successfully!",
"state" : "COMPLETED",
"result": "http://build.dojotoolkit.org/api/build/
HtHlqBVzBAztHRKMlClyYPzBofk_"
}

27. http://www.flickr.com/photos/decade_null/142235888/

28. LOGS
http://www.flickr.com/photos/decade_null/142235888/

29. Statistics!
http://www.flickr.com/photos/gasi/348050339/

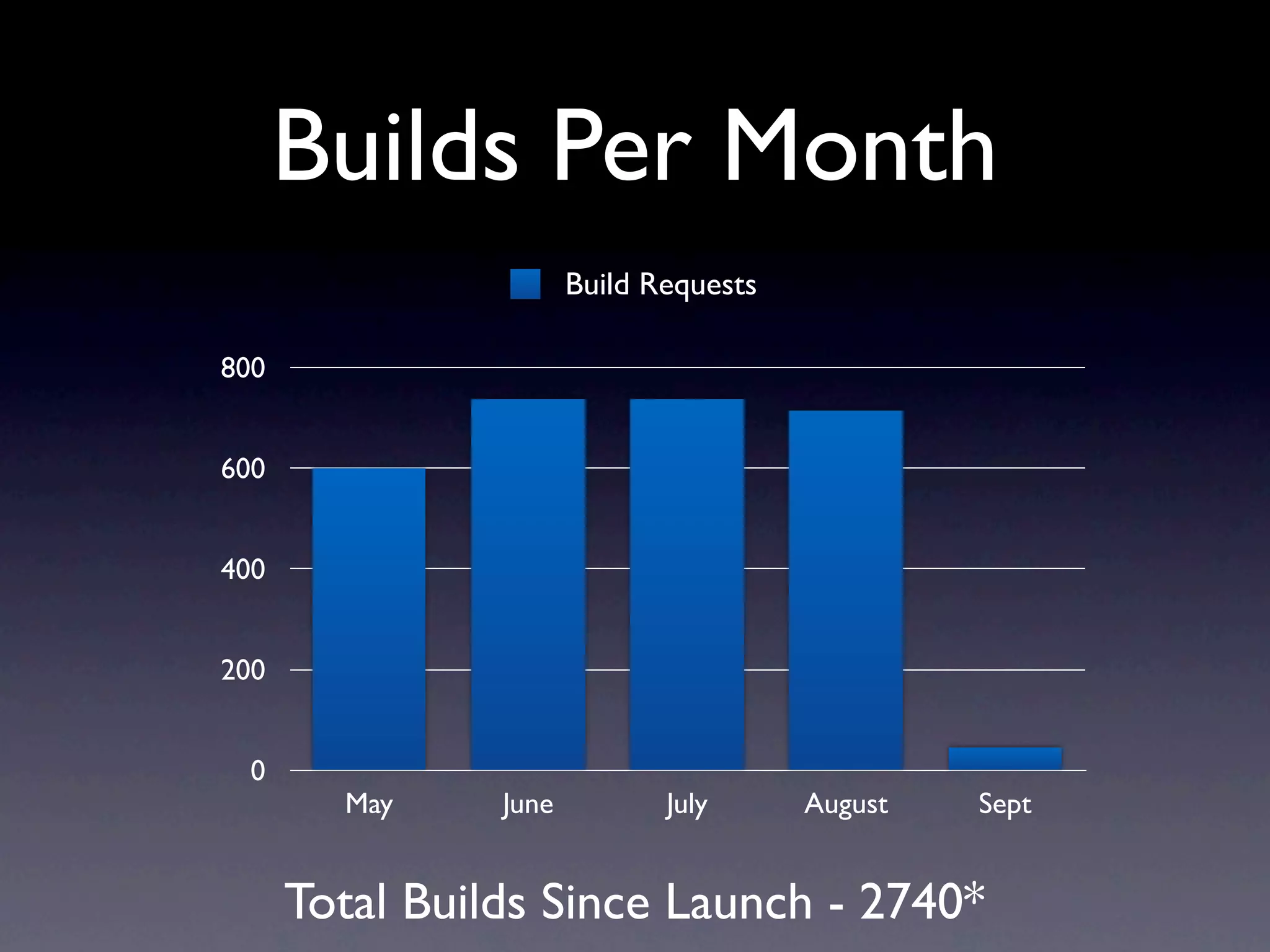

30. Builds Per Month
Build Requests
800
600
400
200
0
May June July August Sept
Total Builds Since Launch - 2740*

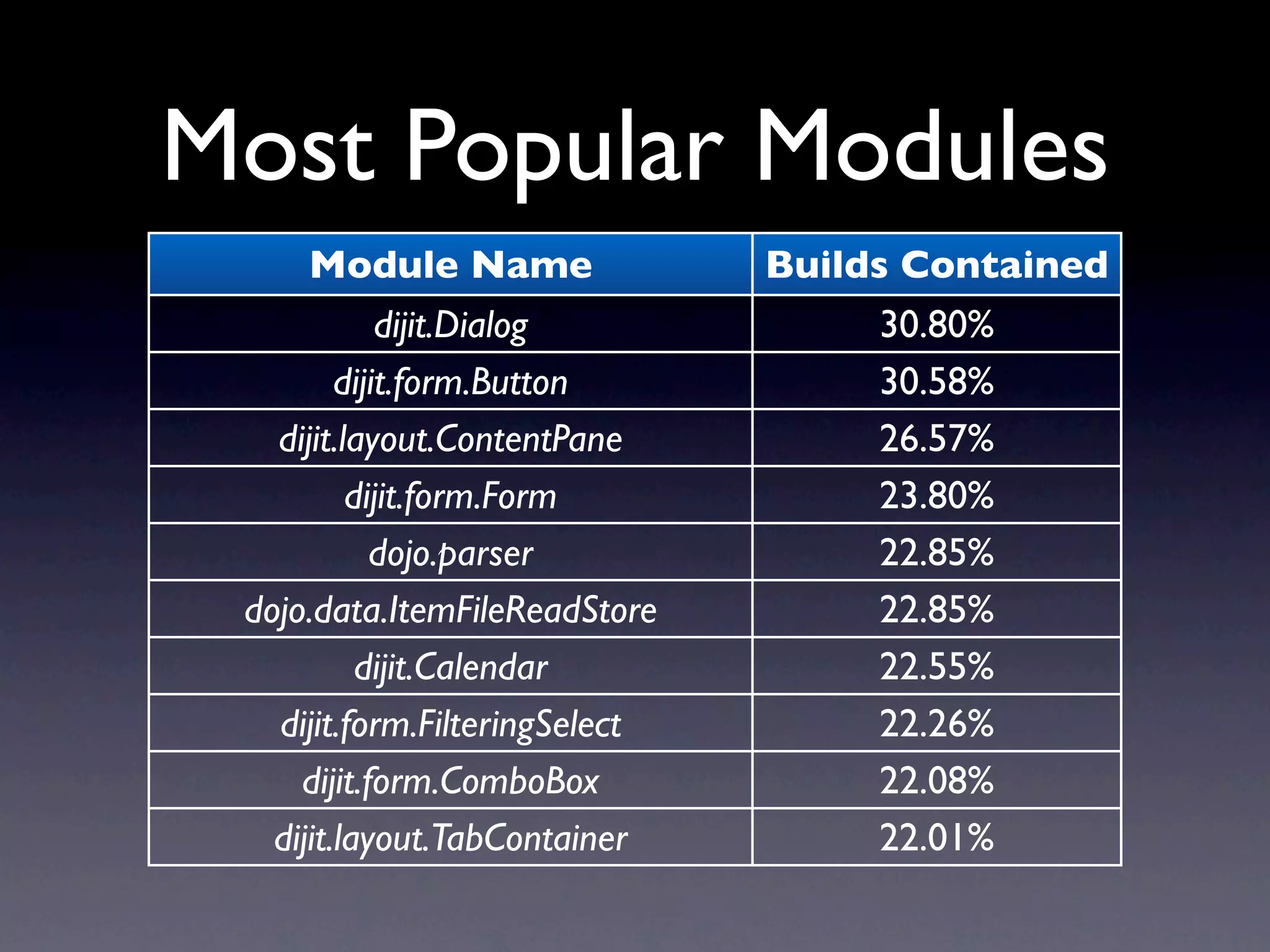

31. Most Popular Modules
Module Name Builds Contained
dijit.Dialog 30.80%
dijit.form.Button 30.58%
dijit.layout.ContentPane 26.57%
dijit.form.Form 23.80%
dojo.parser 22.85%
dojo.data.ItemFileReadStore 22.85%
dijit.Calendar 22.55%
dijit.form.FilteringSelect 22.26%
dijit.form.ComboBox 22.08%
dijit.layout.TabContainer 22.01%

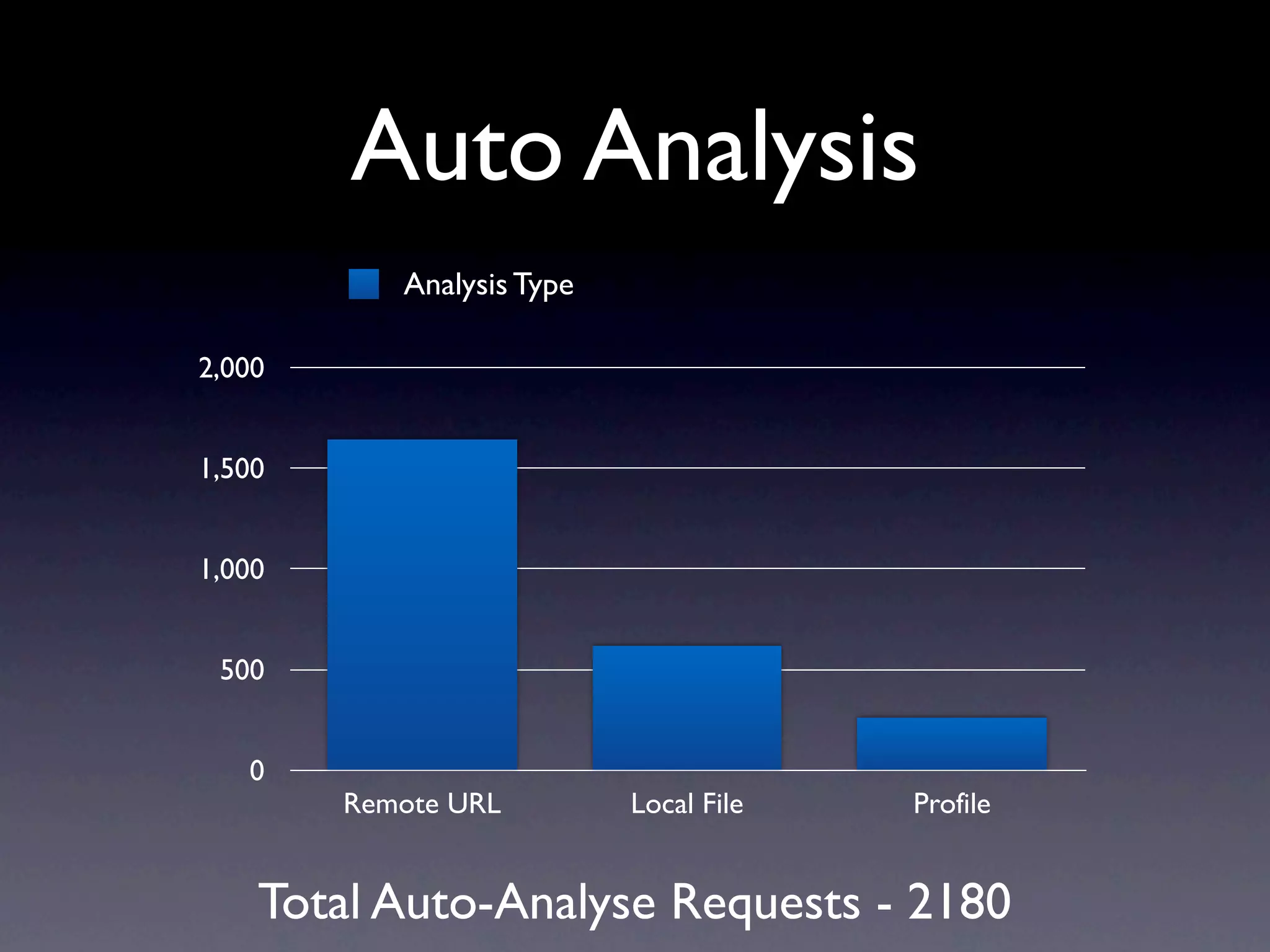

32. Auto Analysis
Analysis Type
2,000
1,500
1,000
500
0
Remote URL Local File Profile
Total Auto-Analyse Requests - 2180

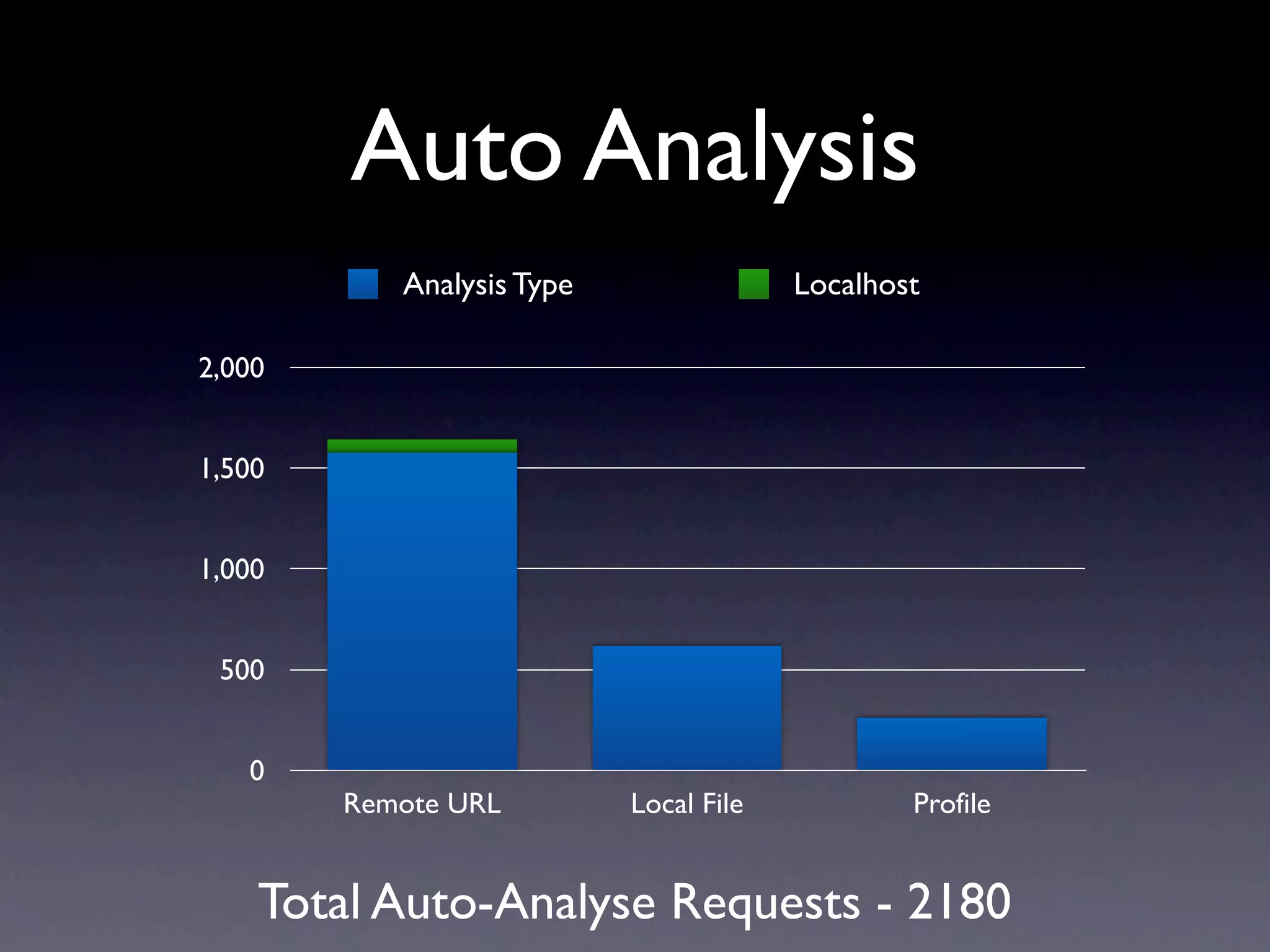

33. Auto Analysis
Analysis Type Localhost
2,000
1,500
1,000
500
0
Remote URL Local File Profile
Total Auto-Analyse Requests - 2180

34. What’s next?

35. • Full AMD support (build & auto-analysis)

36. • Full AMD support (build & auto-analysis)
• Dojo Foundation Package Repository

37. • Full AMD support (build & auto-analysis)
• Dojo Foundation Package Repository
• Build process purely client-side?

38. Thank you for listening!
http://build.dojotoolkit.org
http://github.com/dojo/dwb
