Be ready for high density power distribution challenges with the ePanel-HD2 High Density Remote Power Panel. Designed and quality manufactured by LayerZero Power Systems in Aurora, Ohio USA.

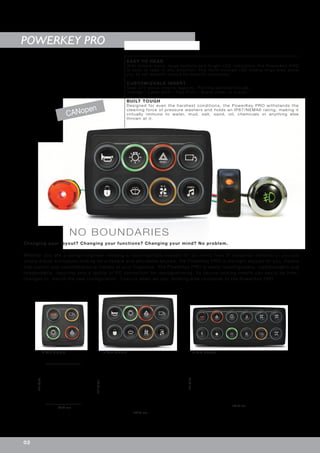

2. NO BOUNDARIES
Changing your layout? Changing your functions? Changing your mind? No problem.
Whether you are a design engineer needing a reconfigurable keypad for an entire fleet of industrial vehicles or you are
simply a boat enthusiast looking for a flexible and affordable keypad, the PowerKey PRO is the right keypad for you. Hassle
free control and customization is literally at your fingertips. The PowerKey PRO is easily reconfigurable, readdressable and
relegendable, requiring only a laptop or PC connection for reprogramming. Its secure-locking inserts can easily be inter-
changed to match the new configuration. Trust us when we say: Nothing else compares to the PowerKey PRO
99.00 mm
149.41 mm
186.50 mm
99.00mm
78.65mm
104.20mm
PKP2200 PKP2400 PKP2600
CANopen
POWERKEY PRO
02
EASY TO READ
With simple icons, large buttons and bright LED indicators, the PowerKey PRO
is easy to read in any situation. The multi-colored LED status rings also allow
you to set specific colors for specific functions.
CUSTOMIZABLE INSERT
Over 270 stock inserts legends. Printing options include:
Overlay - Laser etch - Pad Print - Blank (clear or black)
BUILT TOUGH
Designed for even the harshest conditions, the PowerKey PRO withstands the
cleaning force of pressure washers and holds an IP67/NEMA6 rating, making it
virtually immune to water, mud, salt, sand, oil, chemicals or anything else
thrown at it.
3. SOFTWARE FEATURES
CAN and RS485 Keypad Addresses – Assign any valid CAN
(J1939) address to the keypad while also assigning the same
or a different RS485 address. Communicate on either BUS
simultaneously.
J1939 Address Claim Transmission – Keypads no longer
have to be pre-programmed to a specific address. This
enables customers that work in applications in the field without
access to a GUI to use any replacement keypad on-hand. The
keypad can be configured to automatically announce its
address and accept a new address assignment as appropriate.
Event Status Transmission – The keypad can send messages
to the BUS indicating a button press or a button release event
has occurred. This confirmation allows digital systems to have
the same input acknowledgements as that of the latching
position of a mechanical switch.
Periodic Heartbeat – The keypad sends a continuous
broadcast of messages to indicate it is functioning correctly.
The message indicates the press or release status of each
button at that instance. The frequency of these messages is
preset to one message every 100 milliseconds, but can be
adjusted as needed.
CANopen Communications Protocol – Fully compliant with
Device Profile 401d.
Add-On Buttons – Up to three Add-On Button ports, each
allowing for one input and two outputs, are available for discre-
et switches such as push buttons, rocker switches and toggle
switches. The extra contacts send and receive CAN, CANopen
and RS485 messages, appearing on the BUS as though they
were additional buttons on the keypad. Each Add-On Button
port comes with two output circuits which can be used to
power indicator lamps or LED’s on the switch.
HARDWARE FEATURES
IP67/NEMA 6 rated – Guaranteed to be dust tight and sealed
against water immersion to a depth of 1 meter for up to 1 hour.
UV Protected – UVB 400 hours: Keypad is highly resistant to
deterioration caused by exposure to sunlight.
DeviceNet Indicator – LED indicator status is used when
configuring the keypad in a DeviceNet system.
Application Programming Interface (API) – The Powerkey
Pro Development Kit allows access to the source code that
controls the functional logic of the keypad. An experienced
programmer can make configuration changes that would allow
for such things as changing the PGN’s and structure of both
received and generated messages. Additional functionality
such as automatically setting LED’s based upon a button press
can also be added.
MODEL UNIVERSAL PROTOCOL MOUNTING AUPPLY VOLTAGE STANDBY CURRENT CONNECTOR KEYPAD
PKP 2200 NMEA2000-CANopen-RS485 HORIZONTALLY 12-24VDC <50 mA Deutsch DT04-4P Silicone rubber with
-J1939/J1939-11 VERTICALLY Nominal (8-32VDC) polyurethane hardcoat
PKP 2400 NMEA2000-CANopen-RS485 HORIZONTALLY 12-24VDC <50 mA Deutsch DT04-4P Silicone rubber with
-J1939/J1939-11 VERTICALLY Nominal (8-32VDC) polyurethane hardcoat
PKP 2600 NMEA2000-CANopen-RS485 HORIZONTALLY 12-24VDC <50 mA Deutsch DT04-4P Silicone rubber with
-J1939/J1939-11 VERTICALLY Nominal (8-32VDC) polyurethane hardcoat
IP67
Icon shown on this keypad are for visual demonstration only. 03
Accessories
• Configuration manager
• Add-on button
Insert Legend
• Overlay
• Laser Etch
• Pad Print
• Blank: -Clear or black insert
STANDARD FEATURE
• Reconfigurable keys
• Relegendable buttons
• LED state & status configurable
• Sealed (coated silicone rubber)
• Vertical or horizontal mount
• Flush-mount or front-mount
• Snap dome positive tactile feedback
• LED backlit icons
• Amber, red, green indicator ring
• ON/OFF, momenteary, toggle&scroll
• Over 270 stock icons
• Supply voltage: 12-24VDC Nominal (8-32VDC)
OTHER BENEFITS
• Programmers manual available to help support
plug-and-play reconfigurability
• Can be back mounted for a flush look
CUSTOM OPTION
4. COMPACT - SMART - FLEXIBLE

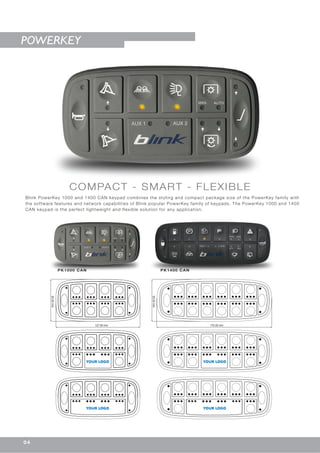

Blink PowerKey 1000 and 1400 CAN keypad combines the styling and compact package size of the PowerKey family with
the software features and network capabilities of Blink popular PowerKey family of keypads. The PowerKey 1000 and 1400
CAN keypad is the perfect lightweight and flexible solution for any application.
PK1000 CAN PK1400 CAN
POWERKEY
127.00 mm
63.50mm
170.00 mm
63.50mm
YOUR LOGO
YOUR LOGO
YOUR LOGO
YOUR LOGO
04
5. IP67
Icon shown on this keypad are for visual demonstration only.
SOFTWARE FEATURES

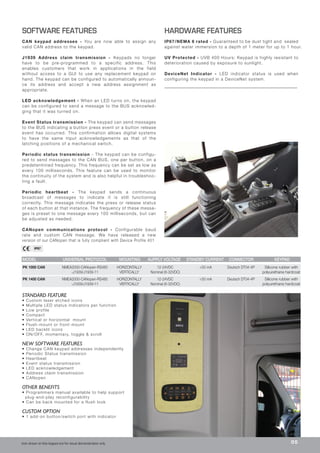

CAN keypad addresses - You are now able to assign any
valid CAN address to the keypad.
J1939 Address claim transmission - Keypads no longer
have to be pre-programmed to a specific address. This
enables customers that work in applications in the field
without access to a GUI to use any replacement keypad on
hand. The keypad can be configured to automatically announ-
ce its address and accept a new address assignment as
appropriate.
LED acknowledgement - When an LED turns on, the keypad
can be configured to send a message to the BUS acknowled-
ging that it was turned on.
Event Status transmission - The keypad can send messages
to the BUS indicating a button press event or a button release
event has occurred. This confirmation allows digital systems
to have the same input acknowledgements as that of the
latching positions of a mechanical switch.
Periodic status transmission - The keypad can be configu-
red to send messages to the CAN BUS, one per button, on a
predetermined frequency. This frequency can be set as low as
every 100 milliseconds. This feature can be used to monitor
the continuity of the system and is also helpful in troubleshoo-
ting a fault.
Periodic heartbeat - The keypad sends a continuous
broadcast of messages to indicate it is still functioning
correctly. This message indicates the press or release status
of each button at that instance. The frequency of these messa-
ges is preset to one message every 100 milliseconds, but can
be adjusted as needed.
CANopen communications protocol - Configurable baud
rate and custom CAN message. We have released a new
version of our CANopen that is fully compliant with Device Profile 401
HARDWARE FEATURES
IP67/NEMA 6 rated - Guaranteed to be dust tight and sealed
against water immersion to a depth of 1 meter for up to 1 hour.
UV Protected - UVB 400 Hours: Keypad is highly resistant to
deterioration caused by exposure to sunlight.
DeviceNet Indicator - LED indicator status is used when
configuring the keypad in a DeviceNet system.
05
STANDARD FEATURE
• Custom laser etched icons
• Multiple LED status indicators per function
• Low profile
• Compact
• Vertical or horizontal mount
• Flush-mount or front-mount
• LED backlit icons
• ON/OFF, momentary, toggle & scroll
NEW SOFTWARE FEATURES
• Change CAN keypad addresses independently
• Periodic Status transmission
• Heartbeat
• Event status transmission
• LED acknowledgement
• Address claim transmission
• CANopen
OTHER BENEFITS
• Programmers manual available to help support
plug-and-play reconfigurability
• Can be back mounted for a flush look
CUSTOM OPTION
• 1 add-on button/switch port with indicator
MODEL UNIVERSAL PROTOCOL MOUNTING AUPPLY VOLTAGE STANDBY CURRENT CONNECTOR KEYPAD
PK 1000 CAN NMEA2000-CANopen-RS485 HORIZONTALLY 12-24VDC <50 mA Deutsch DT04-4P Silicone rubber with
-J1939/J1939-11 VERTICALLY Nominal (8-32VDC) polyurethane hardcoat
PK 1400 CAN NMEA2000-CANopen-RS485 HORIZONTALLY 12-24VDC <50 mA Deutsch DT04-4P Silicone rubber with
-J1939/J1939-11 VERTICALLY Nominal (8-32VDC) polyurethane hardcoat

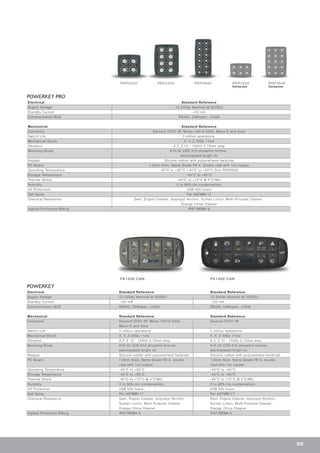

6. POWERKEY PRO
POWERKEY
PKP2200 PKP2400 PKP2600 PKP3200
Coming soon
PKP3500
Coming soon
PK1000 CAN PK1400 CAN
Electrical Standard Reference
Supply Voltage 12-24Vdc Nominal (8-32VDC)
Standby Current <50 mA
Communication BUS RS485, CANopen, J1939
Mechanical Standard Reference
Connector Deutsch DT04-4P, Molex 19418-0004, Micro-C and more
Switch Life 3 million operations
Mechanical Shock X, Y, Z 50Gs 11ms
Vibration X,Y, Z 10 - 150Hz 0.15mm amp
Mounting Studs #10-32 CDS-510 phosphor bronze,
electroplated bright tin
Keypad Silicone rubber with polyurethane hardcoat
PC Board 1,6mm thick, Nema Grade FR-4, double clad with 1oz copper
Operating Temperature -40°C to +85°C (-40°C to +50°C Only PKP2600)
Storage Temperature -40°C to +85°C
Thermal Shock -40°C to +72°C @ 4°C/Min
Humidity 0 to 98% (no condensation)
UV Protection UVB 400 hours
Salt Spray Per ASTMB117
Chemical Resistance Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner,
Orange Citrus Cleaner
Ingress Protection Rating IP67/NEMA 6
Electrical Standard Reference Standard Reference
Supply Voltage 12-24Vdc Nominal (8-32VDC) 12-24Vdc Nominal (8-32VDC)
Standby Current <50 mA <50 mA
Communication BUS RS485, CANopen, J1939 RS485, CANopen, J1939
Mechanical Standard Reference Standard Reference
Connector Deutsch DT04-4P, Molex 19418-0004, Deutsch DT04-4P
Micro-C and more
Switch Life 3 million operations 3 million operations
Mechanical Shock X, Y, Z 50Gs 11ms X, Y, Z 50Gs 11ms
Vibration X,Y, Z 10 - 150Hz 0.15mm amp X,Y, Z 10 - 150Hz 0.15mm amp
Mounting Studs #10-32 CDS-510 phosphor bronze, #10-32 CDS-510 phosphor bronze,
electroplated bright tin electroplated bright tin
Keypad Silicone rubber with polyurethane hardcoat Silicone rubber with polyurethane hardcoat
PC Board 1,6mm thick, Nema Grade FR-4, double 1,6mm thick, Nema Grade FR-4, double
clad with 1oz copper clad with 1oz copper
Operating Temperature -40°C to +85°C -40°C to +85°C
Storage Temperature -40°C to +85°C -40°C to +85°C
Thermal Shock -40°C to +72°C @ 4°C/Min -40°C to +72°C @ 4°C/Min
Humidity 0 to 98% (no condensation) 0 to 98% (no condensation)
UV Protection UVB 400 hours UVB 400 hours
Salt Spray Per ASTMB117 Per ASTMB117
Chemical Resistance Deet, Engine Cleaner, Isopropyl Alcohol, Deet, Engine Cleaner, Isopropyl Alcohol,
Suntan Lotion, Multi-Purpose Cleaner, Suntan Lotion, Multi-Purpose Cleaner,
Orange Citrus Cleaner Orange Citrus Cleaner
Ingress Protection Rating IP67/NEMA 6 IP67/NEMA 6
06
7. Blink S.r.l.
Via Barnaba Oriani, 44 - 20156 Milan - Italy
Tel. +39 02 3088583 - Fax +39 02 33406697
www.blinkmarine.com - info@blinkgroup.com
Blink S.r.l. continues to be the leading supplier of ruggedized, reliable, versatile, affordable and state-of-the-art Blink technology. From beginning to end, Blink
manages all of the details behind the design and manufacturing of each of their keypads, load controllers and gateways to ensure optimum performance to meet
it’s customers’ diverse needs.
With over 10 years of the collaborative efforts and experience of a global engineering team, Blink strives to continuously improve on ways to communicate with
power and has developed and brought to the forefront omni-BUS, the most universal open source application software for managing multiplexed DC power distribu-
tion systems. With more installations than all of its competitors combined Blink has nearly 150.000 systems installed across the Americas, Eroupe and the Asia
Pacific region. Customers from the marine, industrial and trasportation industries continue to rely on Blink for their digital switching solutions every day.
INDA_ENG_02-15
M A R I N E
POWERCORE

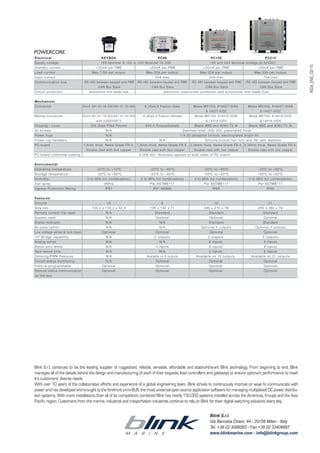

Electrical KEYBOX PC06 PC100 PC210
Supply voltage 12V Nominal 9-15V or 24V Nominal 18-30V 12V and 24V Nominal Voltage (8-32VDC)
Standby current <30mA per PME <30mA per PME <30mA per PME <30mA per PME
Load current Max 7,5A per output Max 20A per output Max 20A per output Max 20A per output
Input current 50A max 50A max 75A max
Communication bus -RS-485 between keypad and PME -RS-485 between keypad and PME -RS-485 between keypad and PME -RS-485 between keypad and PME
-CAN Bus Slave -CAN Bus Slave -CAN Bus Slave -CAN Bus Slave
Circuit protection Automotive mini blade fuse electronic overcurrent protection and automotive mini blade fuse
Mechanical
Connector Cinch 581-01-18-038/581-01-30-064 6,35x0,8 Faston male Molex MX150L #19427-0049 Molex MX150L #19427-0049
& 19427-0032 & 19427-0032
Mating connector Cinch 581-01-18-023/581-01-30-029 6,35x0,8 Faston female Molex MX150L #19418-0030 Molex MX150L #19418-0030
with 4250000873 & 19418-0004 & 19418-0004
Housing / cover 33% Glass Filled Polymer 94V-2 Polycarbonate Black ABS and 6063-T5 Al Black ABS and 6063-T5 Al
All screws N/A Stainless steel, AISI 300, passivated finish
Power lugs N/A 1/4-20 phosphor bronze, electroplated bright tin
Power lug hardware N/A N/A Silicone bronze hex nuts and flat split washers
PC board 1,6mm thick, Nema Grade FR-4, 1,6mm thick, Nema Grade FR-4, 2,36mm thick, Nema Grade FR-4, 2,36mm thick, Nema Grade FR-4,
Double clad with 2oz copper Double clad with 3oz copper Double clad with 3oz copper Double clad with 3oz copper
PC board conformal coating 0.008 min. thickness applied to both sides of PC board
Enviromental
Operating temperature -20ºC to +70ºC -20ºC to +85ºC -20ºC to +85ºC -20ºC to +85ºC
Storage temperature -20ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC
Humidity 0 to 98% (no condensation) 0 to 98% (no condensation) 0 to 98% (no condensation) 0 to 98% (no condensation)
Salt spray 96Hrs Per ASTMB117 Per ASTMB117 Per ASTMB117
Ingress Protection Rating IP67 IP67 /NEMA6 IP65 IP65
Features
Circuits 13 6 10 21
Size mm 135,4 x 130,3 x 42,3 196 x 132 x 71 280 x 215 x 76 280 x 280 x 76
Remote current trip reset N/A Standard Standard Standard
System reset N/A Optional Optional Optional
Status indicator N/A N/A Standard Standard
By-pass option N/A N/A Optional 4 outputs Optional 4 outputs
Low voltage sense & lock down Optional Optional Optional Optional
“H” Bridge capability N/A 2 outputs 2 outputs 4 outputs
Analog sense N/A N/A 8 inputs 8 inputs
Sense pins levels N/A 4 inputs 8 inputs 8 inputs
Tach sense pins N/A N/A 2 inputs 2 inputs
Dimming/PWM Features N/A Available on 6 outputs Available on 10 outputs Available on 21 outputs
Circuit status monitoring N/A Optional Optional Optional
Field re-programmable Optional Optional Optional Optional
External status communication Optional Optional Optional Optional
on the bus
