Exchange Online Protection,
Mail flow, and Encryption:
Notes from the Field
Jennifer Gagnon
Scott Landry
BRK3161

 What is EOP?
 Planning & Deployment
 Protection: Anti-spam & Malware
 Encryption
 Troubleshooting
 Q&A
Agenda

 Cloud-based email filtering service
 Protect from spam and malware
 Data Loss Prevention ( DLP)
 Encryption
Exchange Online Protection

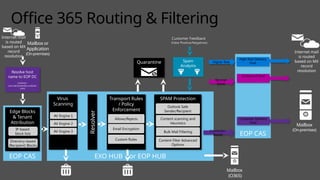

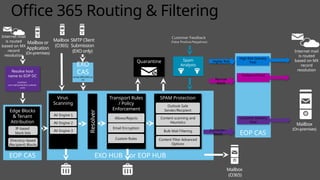

EXO HUB or EOP HUB
EOP CAS
Connector-
Based
Customer Delivery
Pool
Mailbox
(On-premises)
Office 365 Routing & Filtering
Mailbox or
Application
(On-premises)
Higher Risk
High Risk Delivery
Pool
Resolve host
name to EOP DC
(contoso-
com.mail.protection.outlook.
com)
Virus
Scanning
AV Engine 1
AV Engine 2
AV Engine 3
EOP CAS
Edge Blocks
& Tenant
Attribution
IP-based
block lists
Directory-based
(Recipient) Blocks
Internet mail
is routed
based on MX
record
resolution
Spam
Analysts
Customer Feedback
(False Positive/Negatives)
Outbound Pool
Normal
Score
Internet mail
is routed
based on MX
record
resolution
Mailbox
(O365)
Transport Rules
/ Policy
Enforcement
Custom Rules
Email Encryption
Quarantine
Allows/Rejects
SPAM Protection
Content scanning and
Heuristics
Content Filter Advanced
Options
Outlook Safe
Sender/Recipient
Bulk Mail Filtering
Resolver

EOP Types
Filtering only… or with Exchange
Online, including
Hybrid:
You can easily upgrade

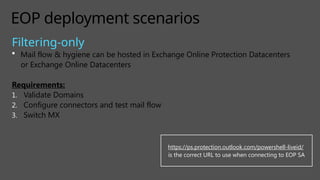

EOP deployment scenarios
Filtering-only
 Mail flow & hygiene can be hosted in Exchange Online Protection Datacenters
or Exchange Online Datacenters
Requirements:
1. Validate Domains
2. Configure connectors and test mail flow
3. Switch MX
https://ps.protection.outlook.com/powershell-liveid/
is the correct URL to use when connecting to EOP SA

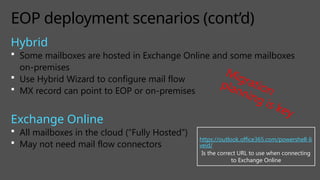

Hybrid
 Some mailboxes are hosted in Exchange Online and some mailboxes
on-premises
 Use Hybrid Wizard to configure mail flow
 MX record can point to EOP or on-premises
Exchange Online
 All mailboxes in the cloud (“Fully Hosted”)
 May not need mail flow connectors
EOP deployment scenarios (cont’d)
https://outlook.office365.com/powershell-li
veid/
Is the correct URL to use when connecting
to Exchange Online
Migration
planning is key

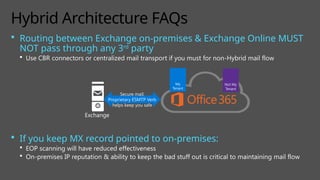

 Routing between Exchange on-premises & Exchange Online MUST
NOT pass through any 3rd
party
 Use CBR connectors or centralized mail transport if you must for non-Hybrid mail flow
 If you keep MX record pointed to on-premises:
 EOP scanning will have reduced effectiveness
 On-premises IP reputation & ability to keep the bad stuff out is critical to maintaining mail flow
Hybrid Architecture FAQs
Exchange
Secure mail:
Proprietary ESMTP Verb
helps keep you safe
My
Tenant
Not My
Tenant

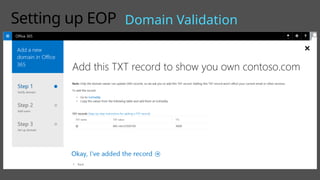

Setting up EOP Domain Validation

Setting up EOP (On-Prem/Hybrid)

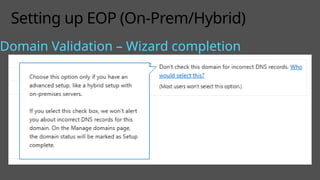

Domain Validation – Wizard completion

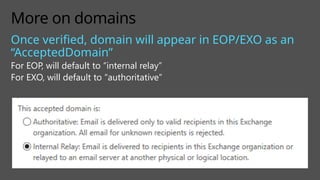

More on domains
Once verified, domain will appear in EOP/EXO as an
“AcceptedDomain”
For EOP, will default to “internal relay”
For EXO, will default to “authoritative”

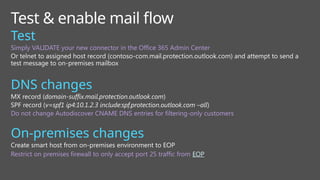

Test & enable mail flow
Test
Simply VALIDATE your new connector in the Office 365 Admin Center
Or telnet to assigned host record (contoso-com.mail.protection.outlook.com) and attempt to send a
test message to on-premises mailbox
DNS changes
MX record (domain-suffix.mail.protection.outlook.com)
SPF record (v=spf1 ip4:10.1.2.3 include:spf.protection.outlook.com –all)
Do not change Autodiscover CNAME DNS entries for filtering-only customers
On-premises changes
Create smart host from on-premises environment to EOP
Restrict on premises firewall to only accept port 25 traffic from EOP

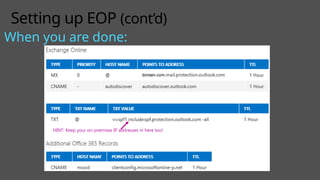

Setting up EOP (cont’d)
When you are done:
HINT: Keep your on-premises IP addresses in here too!

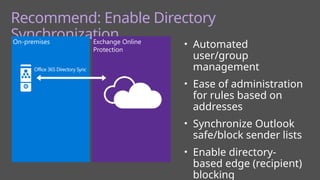

Recommend: Enable Directory
Synchronization
• Automated
user/group
management
• Ease of administration
for rules based on
addresses
• Synchronize Outlook
safe/block sender lists
• Enable directory-
based edge (recipient)
blocking
On-premises Exchange Online
Protection
Office 365 Directory Sync

Protection: Anti-Spam &
Anti-Malware

Migrating from third party to EOP
Setting expectations
May see a change in email patterns
Every product needs to be tuned to your environment
Features may function differently
Porting configuration
Good opportunity to trim old safe/block lists
Spam filtering rules may not be needed
Review filtering policies (transport rules)

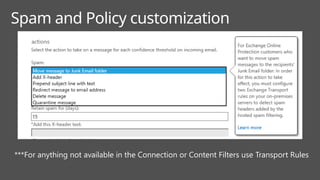

Spam and Policy customization
***For anything not available in the Connection or Content Filters use Transport Rules

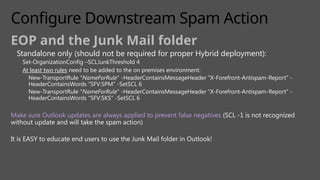

Configure Downstream Spam Action
EOP and the Junk Mail folder
Standalone only (should not be required for proper Hybrid deployment):
Set-OrganizationConfig –SCLJunkThreshold 4
At least two rules need to be added to the on premises environment:
New-TransportRule "NameForRule" -HeaderContainsMessageHeader "X-Forefront-Antispam-Report" -
HeaderContainsWords "SFV:SPM" -SetSCL 6
New-TransportRule "NameForRule" -HeaderContainsMessageHeader "X-Forefront-Antispam-Report" -
HeaderContainsWords "SFV:SKS" -SetSCL 6
Make sure Outlook updates are always applied to prevent false negatives (SCL -1 is not recognized
without update and will take the spam action)
It is EASY to educate end users to use the Junk Mail folder in Outlook!

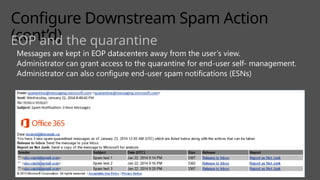

Configure Downstream Spam Action
(cont’d)
EOP and the quarantine
Messages are kept in EOP datacenters away from the user’s view.
Administrator can grant access to the quarantine for end-user self- management.
Administrator can also configure end-user spam notifications (ESNs)

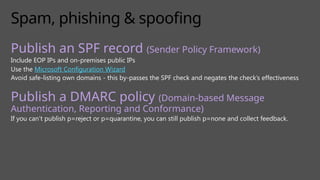

Spam, phishing & spoofing
Publish an SPF record (Sender Policy Framework)
Include EOP IPs and on-premises public IPs
Use the Microsoft Configuration Wizard
Avoid safe-listing own domains - this by-passes the SPF check and negates the check’s effectiveness
Publish a DMARC policy (Domain-based Message
Authentication, Reporting and Conformance)
If you can’t publish p=reject or p=quarantine, you can still publish p=none and collect feedback.

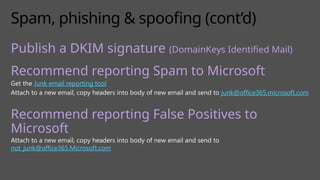

Spam, phishing & spoofing (cont’d)
Publish a DKIM signature (DomainKeys Identified Mail)
Recommend reporting Spam to Microsoft
Get the Junk email reporting tool
Attach to a new email, copy headers into body of new email and send to junk@office365.microsoft.com
Recommend reporting False Positives to
Microsoft
Attach to a new email, copy headers into body of new email and send to
not_junk@office365.Microsoft.com

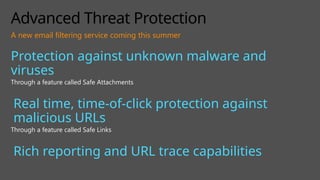

Advanced Threat Protection
Protection against unknown malware and
viruses
Through a feature called Safe Attachments
Real time, time-of-click protection against
malicious URLs
Through a feature called Safe Links
Rich reporting and URL trace capabilities
A new email filtering service coming this summer

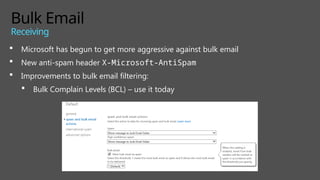

Bulk Email
Receiving
 Microsoft has begun to get more aggressive against bulk email
 New anti-spam header X-Microsoft-AntiSpam
 Improvements to bulk email filtering:
 Bulk Complain Levels (BCL) – use it today

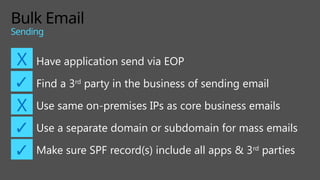

Bulk Email
Sending
Have application send via EOP
Find a 3rd
party in the business of sending email
Use same on-premises IPs as core business emails
Use a separate domain or subdomain for mass emails
Make sure SPF record(s) include all apps & 3rd
parties
X
✓
X
✓
✓

 Make adjustments to rules or settings as needed
 Evaluate effectiveness of spam settings
 Did you report that to the Microsoft Anti-spam team?

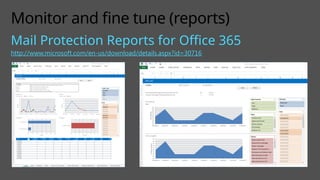

 Reports (Office 365 Portal or Mail Protection Reports for Office
365) – Updates Coming!
Monitor and fine tune

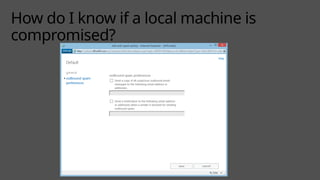

How do I know if a local machine is
compromised?

 Transport Layer Security (TLS)
 Great for securing email between Office 365 and on-premises or with specific partner/external
servers
 All Office 365 SMTP is defaulted to opportunistic; TLS 1.0-1.2 secure ciphers
 Office 365 Message Encryption
 Allows recipient to be external and on any device; if recipient’s mailbox can be accessed,
then the message can be decrypted
 Information Rights Management (Azure AD)
 Keys held on RMS server; organization can set usage rights and custom templates; requires
organizational authentication; does not get in the way of e-Discovery
 S/MIME
 Secure from client-to-client, as long as the private keys remain secure
Office 365 Encryption Features/Options
Increasing
Complexity

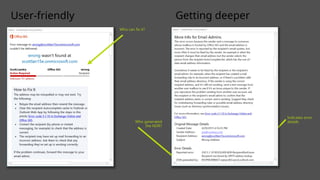

User-friendly Getting deeper
Who can fix it?
Indicates error
details
Who generated
the NDR?
joe@contoso.com

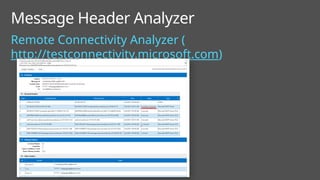

Remote Connectivity Analyzer (
http://testconnectivity.microsoft.com)
Message Header Analyzer

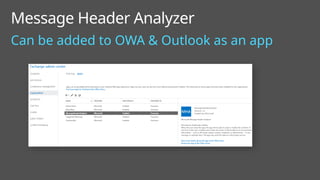

Message Header Analyzer
Can be added to OWA & Outlook as an app

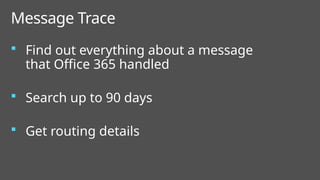

 Find out everything about a message
that Office 365 handled
 Search up to 90 days
 Get routing details
Message Trace

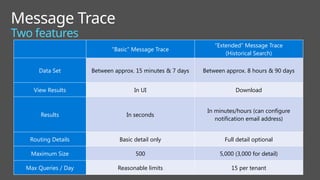

Message Trace
Two features
Ne
w!
“Basic” Message Trace
“Extended” Message Trace
(Historical Search)
Data Set Between approx. 15 minutes & 7 days Between approx. 8 hours & 90 days
View Results In UI Download
Results In seconds
In minutes/hours (can configure
notification email address)
Routing Details Basic detail only Full detail optional
Maximum Size 500 5,000 (3,000 for detail)
Max Queries / Day Reasonable limits 15 per tenant

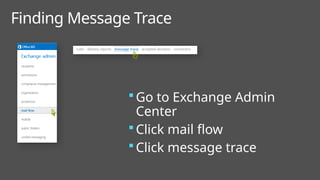

Finding Message Trace
 Go to Exchange Admin
Center
 Click mail flow
 Click message trace

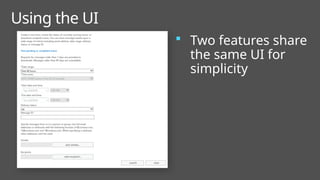

Using the UI
 Two features share
the same UI for
simplicity

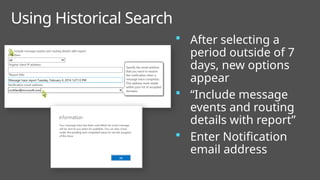

Using Historical Search
 After selecting a
period outside of 7
days, new options
appear
 “Include message
events and routing
details with report”
 Enter Notification
email address

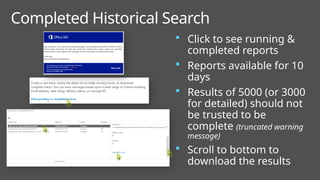

Completed Historical Search
 Click to see running &
completed reports
 Reports available for 10
days
 Results of 5000 (or 3000
for detailed) should not
be trusted to be
complete (truncated warning
message)
 Scroll to bottom to
download the results

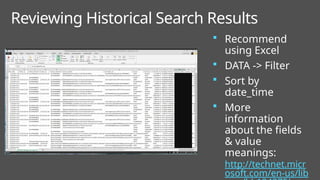

Reviewing Historical Search Results
 Recommend
using Excel
 DATA -> Filter
 Sort by
date_time
 More
information
about the fields
& value
meanings:
http://technet.micr
osoft.com/en-us/lib

47

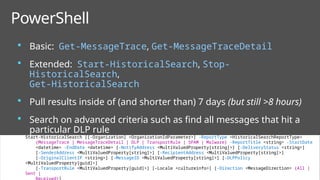

 Basic: Get-MessageTrace, Get-MessageTraceDetail
 Extended: Start-HistoricalSearch, Stop-
HistoricalSearch,
Get-HistoricalSearch
 Pull results inside of (and shorter than) 7 days (but still >8 hours)
 Search on advanced criteria such as find all messages that hit a
particular DLP rule
PowerShell
Start-HistoricalSearch [[-Organization] <OrganizationIdParameter>] -ReportType <HistoricalSearchReportType>
{MessageTrace | MessageTraceDetail | DLP | TransportRule | SPAM | Malware} -ReportTitle <string> -StartDate
<datetime> -EndDate <datetime> [-NotifyAddress <MultiValuedProperty[string]>] [-DeliveryStatus <string>]
[-SenderAddress <MultiValuedProperty[string]>] [-RecipientAddress <MultiValuedProperty[string]>]
[-OriginalClientIP <string>] [-MessageID <MultiValuedProperty[string]>] [-DLPPolicy
<MultiValuedProperty[guid]>]
[-TransportRule <MultiValuedProperty[guid]>] [-Locale <cultureinfo>] [-Direction <MessageDirection> {All |
Sent |

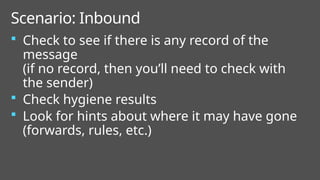

 Check to see if there is any record of the
message
(if no record, then you’ll need to check with
the sender)
 Check hygiene results
 Look for hints about where it may have gone
(forwards, rules, etc.)
Scenario: Inbound

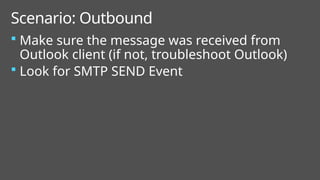

 Make sure the message was received from
Outlook client (if not, troubleshoot Outlook)
 Look for SMTP SEND Event
Scenario: Outbound

Visit Myignite at
http://myignite.microsoft.com
or download and use the Ignite Mobile
Please evaluate this session
Your feedback is important to us!

EXO HUB or EOP HUB
EOP CAS
Connector-
Based
Customer Delivery
Pool
Mailbox
(On-premises)
Office 365 Routing & Filtering
Mailbox or
Application
(On-premises)
Higher Risk
High Risk Delivery
Pool
Resolve host
name to EOP DC
(contoso-
com.mail.protection.outlook.
com)
Virus
Scanning
AV Engine 1
AV Engine 2
AV Engine 3
EOP CAS
Edge Blocks
& Tenant
Attribution
IP-based
block lists
Directory-based
(Recipient) Blocks
Internet mail
is routed
based on MX
record
resolution
Spam
Analysts
Customer Feedback
(False Positive/Negatives)
Outbound Pool
Normal
Score
Internet mail
is routed
based on MX
record
resolution
Mailbox
(O365)
Transport Rules
/ Policy
Enforcement
Custom Rules
Email Encryption
Quarantine
Allows/Rejects
SPAM Protection
Content scanning and
Heuristics
Content Filter Advanced
Options
Outlook Safe
Sender/Recipient
Bulk Mail Filtering
SMTP Client
Submission
(EXO only)
EXO
CAS
(smtp.office365.co
m)
Mailbox
(O365)
Resolver

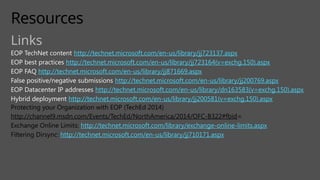

Resources
Links
EOP TechNet content http://technet.microsoft.com/en-us/library/jj723137.aspx
EOP best practices http://technet.microsoft.com/en-us/library/jj723164(v=exchg.150).aspx
EOP FAQ http://technet.microsoft.com/en-us/library/jj871669.aspx
False positive/negative submissions http://technet.microsoft.com/en-us/library/jj200769.aspx
EOP Datacenter IP addresses http://technet.microsoft.com/en-us/library/dn163583(v=exchg.150).aspx
Hybrid deployment http://technet.microsoft.com/en-us/library/jj200581(v=exchg.150).aspx
Protecting your Organization with EOP (TechEd 2014)
http://channel9.msdn.com/Events/TechEd/NorthAmerica/2014/OFC-B322#fbid=
Exchange Online Limits: http://technet.microsoft.com/library/exchange-online-limits.aspx
Filtering Dirsync: http://technet.microsoft.com/en-us/library/jj710171.aspx

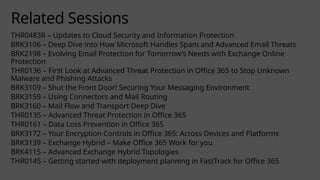

Related Sessions
THR0483R – Updates to Cloud Security and Information Protection
BRK3106 – Deep Dive into How Microsoft Handles Spam and Advanced Email Threats
BRK2198 – Evolving Email Protection for Tomorrow’s Needs with Exchange Online
Protection
THR0136 – First Look at Advanced Threat Protection in Office 365 to Stop Unknown
Malware and Phishing Attacks
BRK3109 – Shut the Front Door! Securing Your Messaging Environment
BRK3159 – Using Connectors and Mail Routing
BRK3160 – Mail Flow and Transport Deep Dive
THR0135 – Advanced Threat Protection in Office 365
THR0161 – Data Loss Prevention in Office 365
BRK3172 – Your Encryption Controls in Office 365: Across Devices and Platforms
BRK3139 – Exchange Hybrid – Make Office 365 Work for you
BRK4115 – Advanced Exchange Hybrid Topologies
THR0145 – Getting started with deployment planning in FastTrack for Office 365

Monitor and fine tune (reports)
Mail Protection Reports for Office 365
http://www.microsoft.com/en-us/download/details.aspx?id=30716

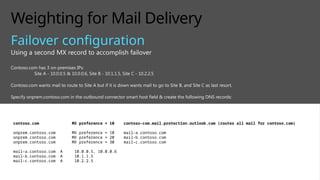

Weighting for Mail Delivery
Failover configuration
Using a second MX record to accomplish failover
Contoso.com has 3 on-premises IPs:
Site A - 10.0.0.5 & 10.0.0.6, Site B - 10.1.1.5, Site C - 10.2.2.5
Contoso.com wants mail to route to Site A but if it is down wants mail to go to Site B, and Site C as last resort.
Specify onprem.contoso.com in the outbound connector smart host field & create the following DNS records:
contoso.com MX preference = 10 contoso-com.mail.protection.outlook.com (routes all mail for contoso.com)
onprem.contoso.com MX preference = 10 mail-a.contoso.com
onprem.contoso.com MX preference = 20 mail-b.contoso.com
onprem.contoso.com MX preference = 30 mail-c.contoso.com
mail-a.contoso.com A 10.0.0.5, 10.0.0.6
mail-b.contoso.com A 10.1.1.5
mail-c.contoso.com A 10.2.2.5

Testing with Telnet
How to telnet from EOP/Exchange online Tenant:
You do/type this Server responds with this
Telnet tenantDomainMxRecordHere 25 220
HELO your_sending_server_fqdn 250 (followed by human readable message)
MAIL FROM: you@host.com 250 Sender OK
RCPT TO: recipient@domain.com 250 Recipient OK
DATA (followed by the enter key) Tells you to send data and how to end.
SUBJECT: Test (hit enter twice) Hitting enter twice conforms to the standard.
Enter the body message. To end put a single period on a line by itself and press
enter.
You should see something about message accepted or message queued.
QUIT

BRK3161_Gagnon copilot for m365 microsoft

More Related Content

Similar to BRK3161_Gagnon copilot for m365 microsoft

More from YasmineBoudhina

Recently uploaded

BRK3161_Gagnon copilot for m365 microsoft
