Fanless Embedded BOXPC Fanless Embedded Box PC, robust housing with Intel® Bay Trail SoC processor, for the space-limited space applications.

1. Boxster 3
Fanless Embedded Box PC
EBN Technology Corp.
July 2016
www.ebn.com.tw

2. Agenda
2
User Driven Innovation
High Connectivity Design
Eco-friendly Enclosure
Product Specifications
Applications
Why EBN?
Global Recognized RMA Policy

3. Silent dual core performance,
yet exceptionally energy
efficient
User Driven Innovation
3
Wide range of CPU selections
provides your computing power
with scalability

4. User Driven Innovation
 Rugged, front IP65 designed
Boxster 3 is built to survive the
environment-sensitive stresses
4

5.  Support a variety of
internal wireless dongles
 High effectiveness on
wireless connectivity
achieved by Omi-
directional VSWR
User Driven Innovation
5

6. User Driven Innovation
Serviceability of motherboard and
storage makes the maintenance a
pleasure to technicians
6

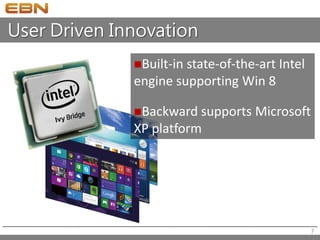

7. User Driven Innovation
Built-in state-of-the-art Intel
engine supporting Win 8
Backward supports Microsoft
XP platform
7

8. User Driven Innovation
 Skidproof rubber feet offers fixed position
 VESA Mount supported
Excellent heat dissipation
8

9. User Driven Innovation
 Fast boot up featured by
SATA DOM & HDD combo
storage infrastructure
9

10. High Connectivity Design – I/O Layout
 Rich IO wall ensures the wide
utilizations of POS peripherals
10

11. Product Specifications
Main Board
Main Board X7C
CPU
Intel® Bay Trail-Mobile/Desktop SoC Processor:
Celeron® N2930
(4 cores, up to 2.16 GHz, max TDP 7.5 Watt)
Celeron® J1900
(4 cores, up to 2.42 GHz, max TDP 10 Watt)
System Memory 1 x SO-DIMM DDR3L 1067/1333MHz, Max. 8GB
Graphic Intel® HD Graphics
Thermal Solution Fan-less
BIOS Phoenix uEFI BIOS
O.S. support
Windows 7, WES 7, POSReady 7
Windows 8, Windows Embedded 8 Standard/Industry Retail
Linux kernel 3.X
Storage Device
Interface 2 x SATA2
HDD / SSD 1 x 2.5"
DOM 1 x mSATA slot
I/O Ports
Serial
6 x COM Port, pin9 with RI/5V/12V selectable by BIOS
COM 1 / 2 : RS232, RJ50
COM 3 : RS232/422/485, DB-9
COM 4 / 5 / 6 : RS232, DB-9
USB 1 x USB 3.0, 6 x USB 2.0
LAN 1 x Gigabit Ethernet by RJ-45, support Wake on LAN
11

12. Product Specifications
I/O Ports
Cash Drawer 1 x RJ12, support 12V / 24V DC cash drawer
Audio 1 x Line out / Mic -in
VGA 1 x DB15
DP
1 x mini Display Port (supporting active converter cable to VGA,
DVI, HDMI)
DC-in 1 x 19VDC input, 2pins jack
DC-out 1 x 12V DC/1A output
Others
Wall mount Support VESA Mount (75x75 / 100x100mm available)
Power Supply External adapter, 65W, 19V DC input
Connectivity Wireless LAN module with antenna (Optional)
Color Black
Material SECC / Silicon Rubber
Certifications FCC / CE / RoHS / VCCI / WEEE
Dimension 202Wx140Dx55H mm
Weight 1.2 kg
Operating
Temperature
0°C ~ 50°C
Storage
Temperature
-20°C ~ 60°C
Humidity 5% - 95% RH, non-condensing
12

13. Product Dimensions
unit: mm
13

14. Applications
Hospitality
• Location: Restaurants & Fastfood
Chains
• Usage: Checkout / Ads. /
Promotion / Menu List
Corporate Communication
• Location: Corporation Facilities
• Usage: Production numbers/
Kanban system/ Plan Visitors/
Safety messages
Education
• Location: Schools
• Usage: School morning
announcement, Campus-wide
info system
Guiding Signs
• Location: Stadiums, Sports Arenas
• Usage: Special Event direction
guides/ announcements
Casino & Gaming Signage
• Location: Casino & Gaming Center
• Usage: Gambling rule explanation,
new game and show introduction
Financial Centers & Banks
• Location: Financial institutes &
Bank
• Usage: Updated interest rate,
exchange rate and bank advertising
14

15. Why EBN?
Global level Center of Excellence standard pre-sales
technical service
World’s 1st Class manufacturing facility
Volume mass production shipments with no
compromise on quality
Full fledged in-house RD design
Taiwan is a major hub and logistics operations center for R&D, manufacturing, and
operations in the Asia-Pacific region. With EBN headquarters located in the capital of
Taiwan, it gives your company a strategic advantage to leverage these resources.
Leveraging Taiwan as the Technical Supply Hub
15

16. Global Warranty Coverage
 Warranty period: 2 years for
EBN standard product.
 Warranty coverage: EBN
standard products, excluding
mechanical parts and cosmetic
issues.
 EBN’s customer should return
failure parts to EBN or EBN branch
for repair or replacement.
 EBN repair turn around time is
in house 10 working days (Will
provide the RMA# for customer
tracking status)
 It is possible to obtain a
replacement during the first 45
days of the purchase, if the
products were purchased directly
from EBN and the product is DOA
(Dead-on-Arrival).
16
