The document discusses the critical aspects of requirements gathering, architecture, and project contracts in software development, highlighting the importance of user stories and the roles of customers and developers. It emphasizes the need for clear communication and trust between stakeholders while managing changes in project scope, particularly through agile methodologies like Scrum. The presentation concludes with a focus on delivering business value and the complexities involved in project contracts.

1. Anforderungen, Architektur
und Projektvertrag – ein Trio
von Freunden(?)!
Vortrag auf der OOP 2010
Matthias Bohlen <mbohlen@mbohlen.de>
Unabhängiger Coach und Berater

2. Requirements
How should they look like?

3. 3

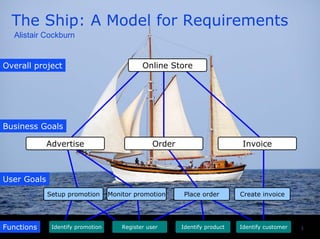

The Ship: A Model for Requirements
Online Store
Advertise Order Invoice
Identify promotion Register user
Setup promotion Monitor promotion Place order Create invoice
Business Goals
User Goals
Alistair Cockburn
Overall project
Functions Identify product Identify customer

4. 4
User Stories: The three C's
Card
Conversation
Confirmation
Ron Jeffries

5. 5
A story template
<Story title>
<Role> can <do what>
so that <why>
How to demo:
1. System does this…
2. User does that…
3. System reacts like this…
Business value
Effort estimate
Issue#

6. 6

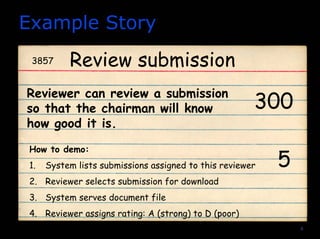

Example Story
Review submission
Reviewer can review a submission
so that the chairman will know
how good it is.
How to demo:
1. System lists submissions assigned to this reviewer
2. Reviewer selects submission for download
3. System serves document file
4. Reviewer assigns rating: A (strong) to D (poor)
300
3857
5

7. 7

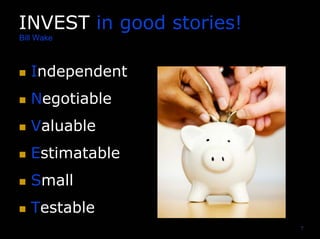

INVEST in good stories!
Bill Wake
Independent
Negotiable
Valuable
Estimatable
Small
Testable

8. Architecture
How do we find it?

9. 9

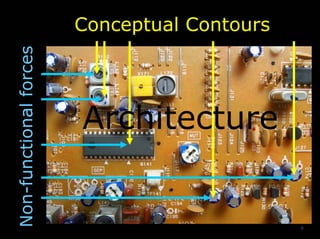

Conceptual Contours
Non-functionalforces
Architecture

10. 10
NFR
Transformation
Non-Functional
Requirements
z
Architectural metamodel
Architect

11. 11

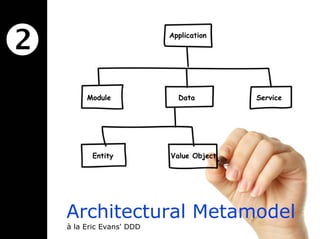

Architectural Metamodel
Application
Module Data Service
Entity Value Object
à la Eric Evans' DDD

12. 12

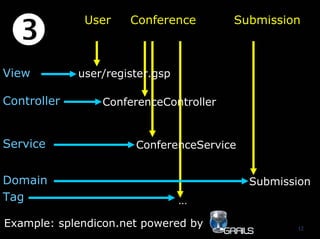

User
ConferenceController
user/register.gsp
…
Conference Submission
Submission
View
Controller
Service ConferenceService
Domain
Tag
Example: splendicon.net powered by

13. 13

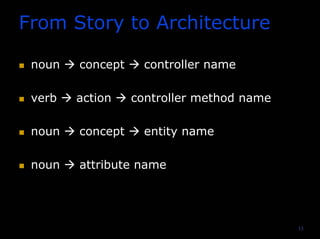

From Story to Architecture
noun concept controller name
verb action controller method name
noun concept entity name
noun attribute name

14. 14

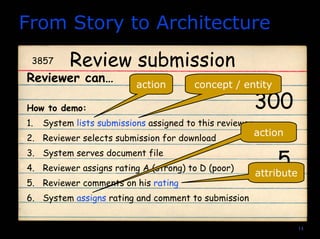

From Story to Architecture
Review submission
Reviewer can…
How to demo:
1. System lists submissions assigned to this reviewer
2. Reviewer selects submission for download
3. System serves document file
4. Reviewer assigns rating A (strong) to D (poor)
5. Reviewer comments on his rating
6. System assigns rating and comment to submission
300
3857
5
concept / entityaction
attribute
action

15. 15

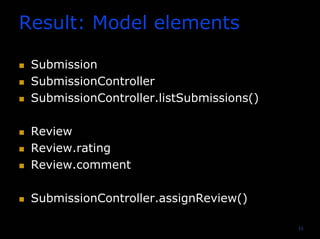

Result: Model elements
Submission
SubmissionController
SubmissionController.listSubmissions()
Review
Review.rating
Review.comment
SubmissionController.assignReview()

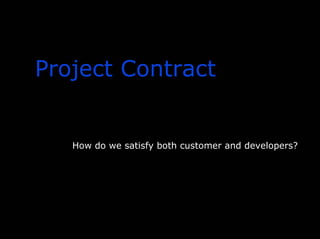

16. Project Contract
How do we satisfy both customer and developers?

17. 17

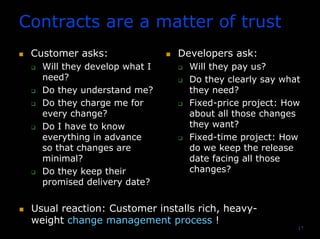

Contracts are a matter of trust
Customer asks:
Will they develop what I
need?
Do they understand me?
Do they charge me for
every change?
Do I have to know
everything in advance
so that changes are
minimal?
Do they keep their
promised delivery date?
Developers ask:
Will they pay us?
Do they clearly say what
they need?
Fixed-price project: How
about all those changes
they want?
Fixed-time project: How
do we keep the release
date facing all those
changes?
Usual reaction: Customer installs rich, heavy-
weight change management process !

18. 18

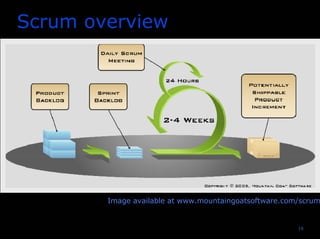

Scrum overview
Image available at www.mountaingoatsoftware.com/scrum

19. 19

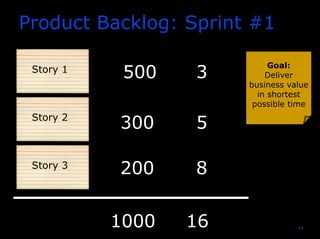

Product Backlog: Sprint #1
Story 1 Goal:
Deliver
business value
in shortest
possible time
500 3
Story 2
300 5
Story 3
200 8
1000 16

20. 20

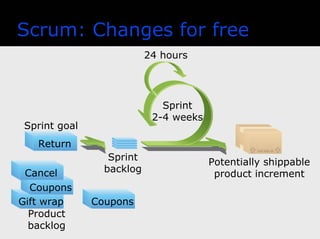

Scrum: Changes for free
Cancel
Gift wrap
Return
Sprint
2-4 weeks
Return
Sprint goal
Sprint
backlog
Potentially shippable
product increment
Product
backlog
CouponsGift wrap
Coupons
Cancel
24 hours

21. 21

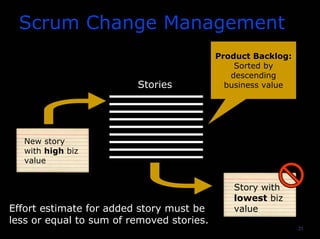

Scrum Change Management
Product Backlog:
Sorted by
descending
business valueStories
New story
with high biz
value
Story with
lowest biz
valueEffort estimate for added story must be
less or equal to sum of removed stories.

22. 22

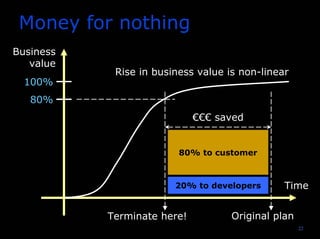

Money for nothing
Business
value
Rise in business value is non-linear
100%
Terminate here! Original plan
€€€ saved
80% to customer
20% to developers Time
80%

23. 23
Three friends, now! Questions?
Call:
+49 (170) 7728545
e-mail:
mbohlen@mbohlen.de
