1. FIRMWARE UPDATE
BLUETOOTH OVER-THE-AIR
SVIOS MEETUP - APRIL 2017 - RAMIN FIROOZYE - RAMIN@GMAIL.COM - @RAMINF

2. DEVICES ARE GETTING SMARTER

3. TYPICAL BLUETOOTH DEVICE
=
EMBEDDED CPU + WIRELESS + SOFTWARE

4. FIRMWARE IS…
▸ Software that runs on an
embedded device CPU
▸ App typically written in ‘C’ and
compiled into binary
▸ First loaded onto device using
a wired connection or
‘programmer’ device
▸ App runs on power on

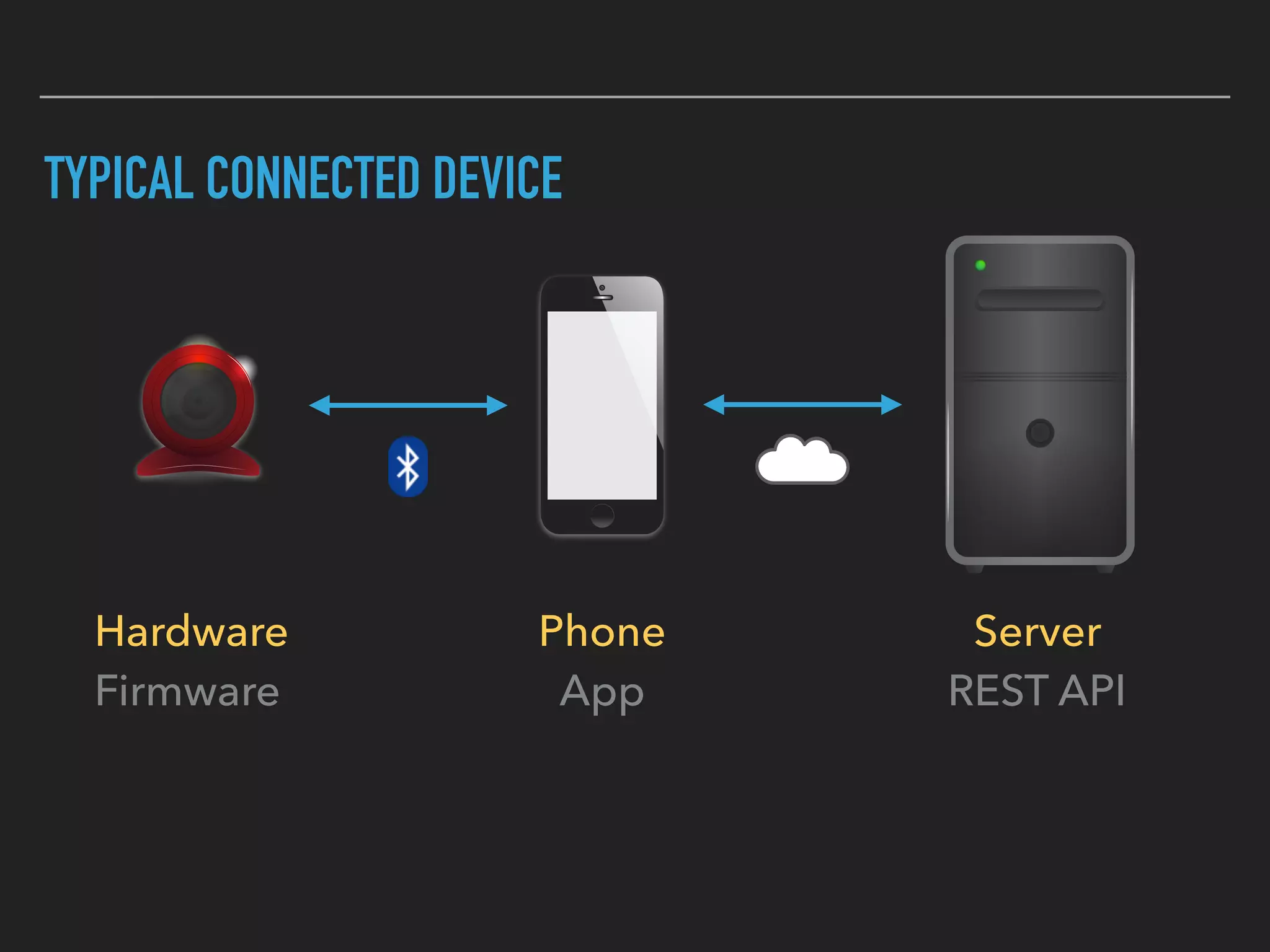

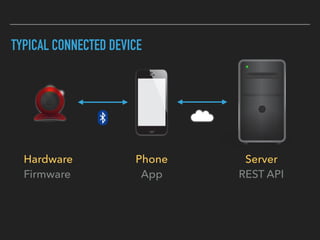

5. TYPICAL CONNECTED DEVICE
Hardware
Firmware
Phone
App
Server
REST API

6. IF THERE’S A PROBLEM WITH YOUR PHONE APP…
▸ You push out an update to the App Store
▸ But what if there’s a problem with the firmware?

7. IF PROBLEM IS WITH FIRMWARE YOU CAN:
▸ Ignore it. Maybe no one will notice
▸ Ask user to plug into a USB cable and manually update
▸ Factory recall the device then update and send back
▸ Send a new device to every new customer

10. THERE’S AN EASIER WAY
▸ Over the Air Updates
▸ OTA
▸ DFU
▸ OAD

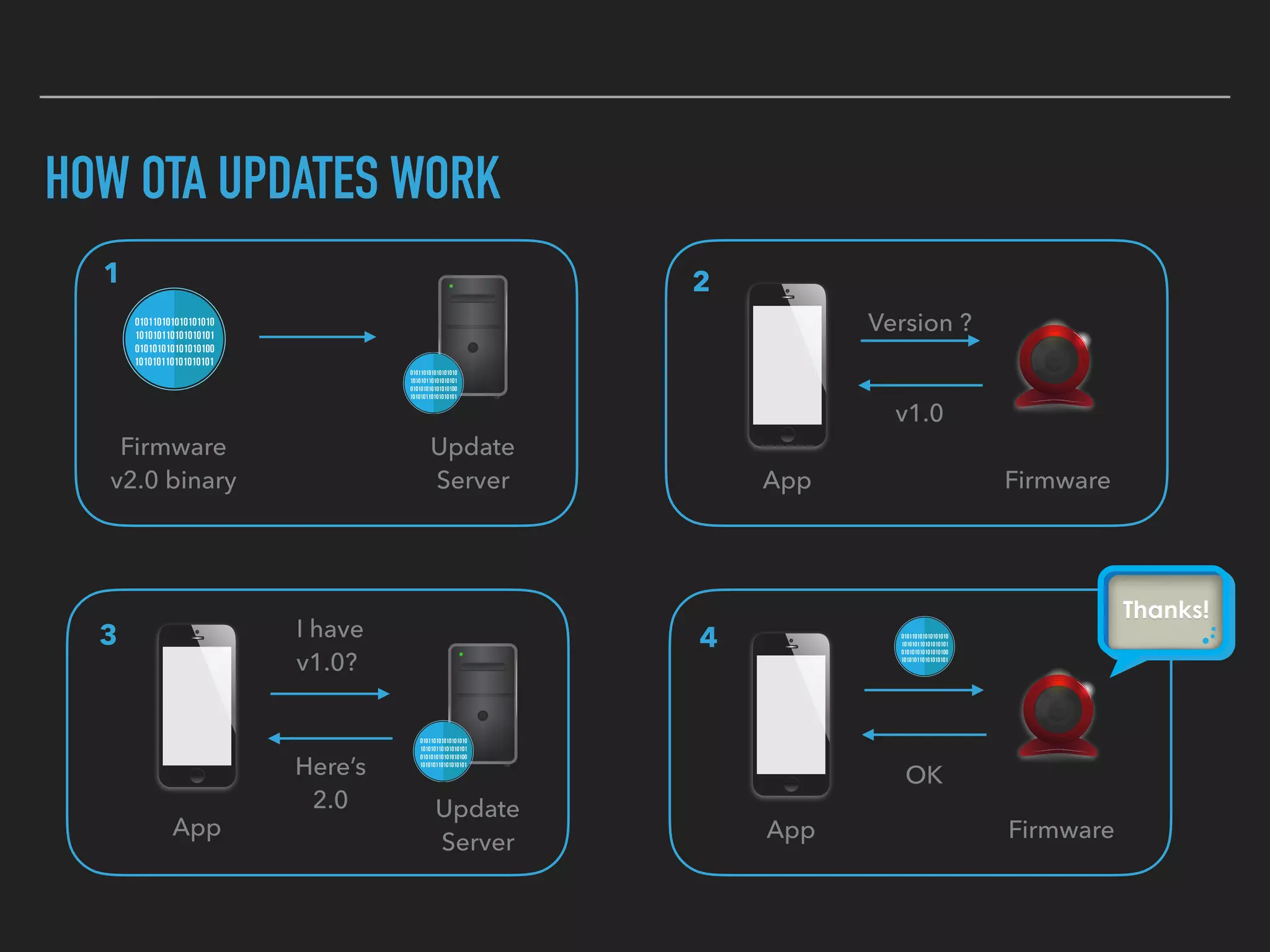

11. HOW OTA UPDATES WORK
Firmware
v2.0 binary
Update
Server
1
Version ?
v1.0
App Firmware
2
OK
App Firmware
4
Here’s
2.0
I have
v1.0?
3
App
Update
Server

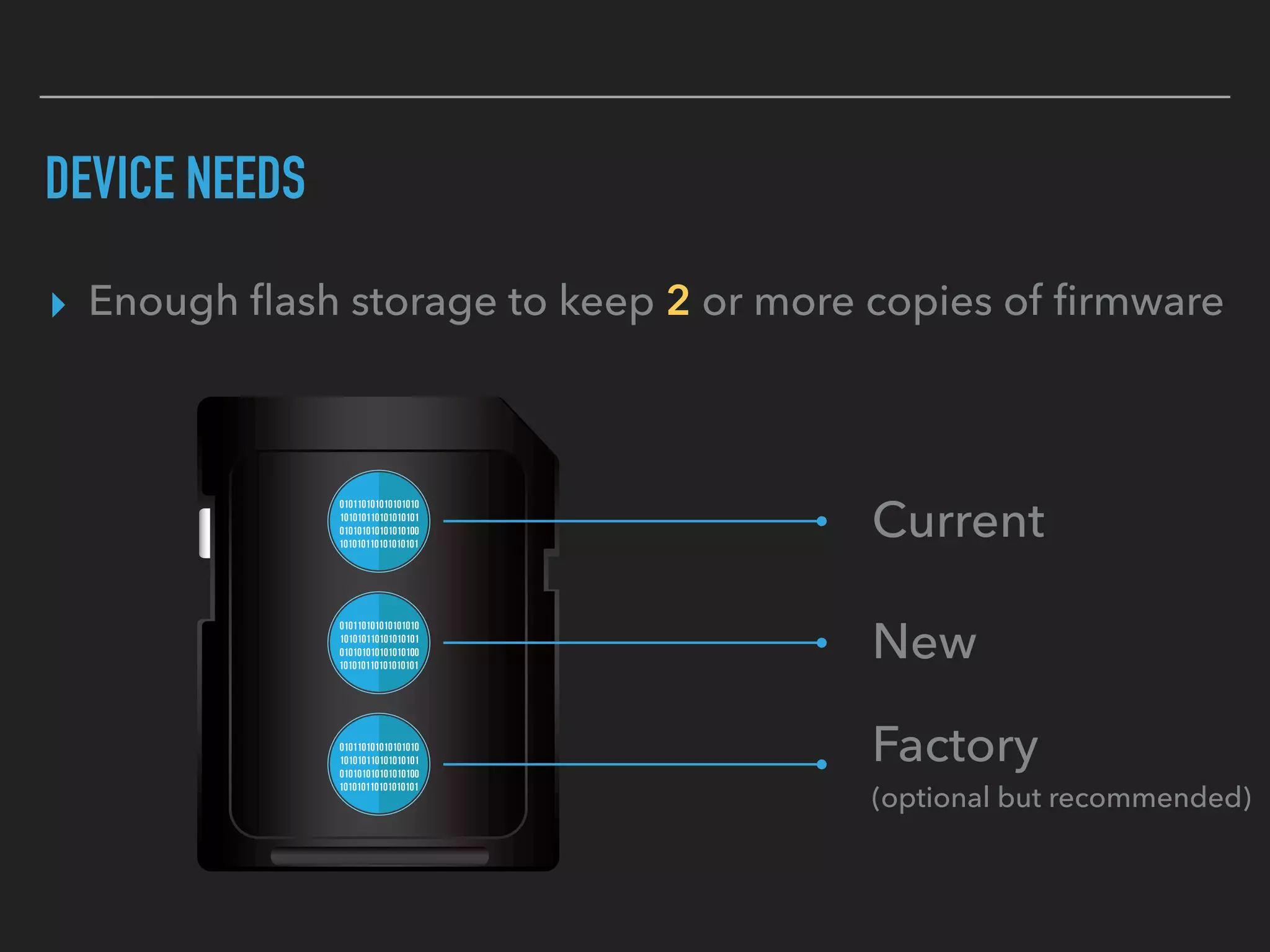

12. DEVICE NEEDS
▸ Enough flash storage to keep 2 or more copies of firmware
Current
New
Factory
(optional but recommended)

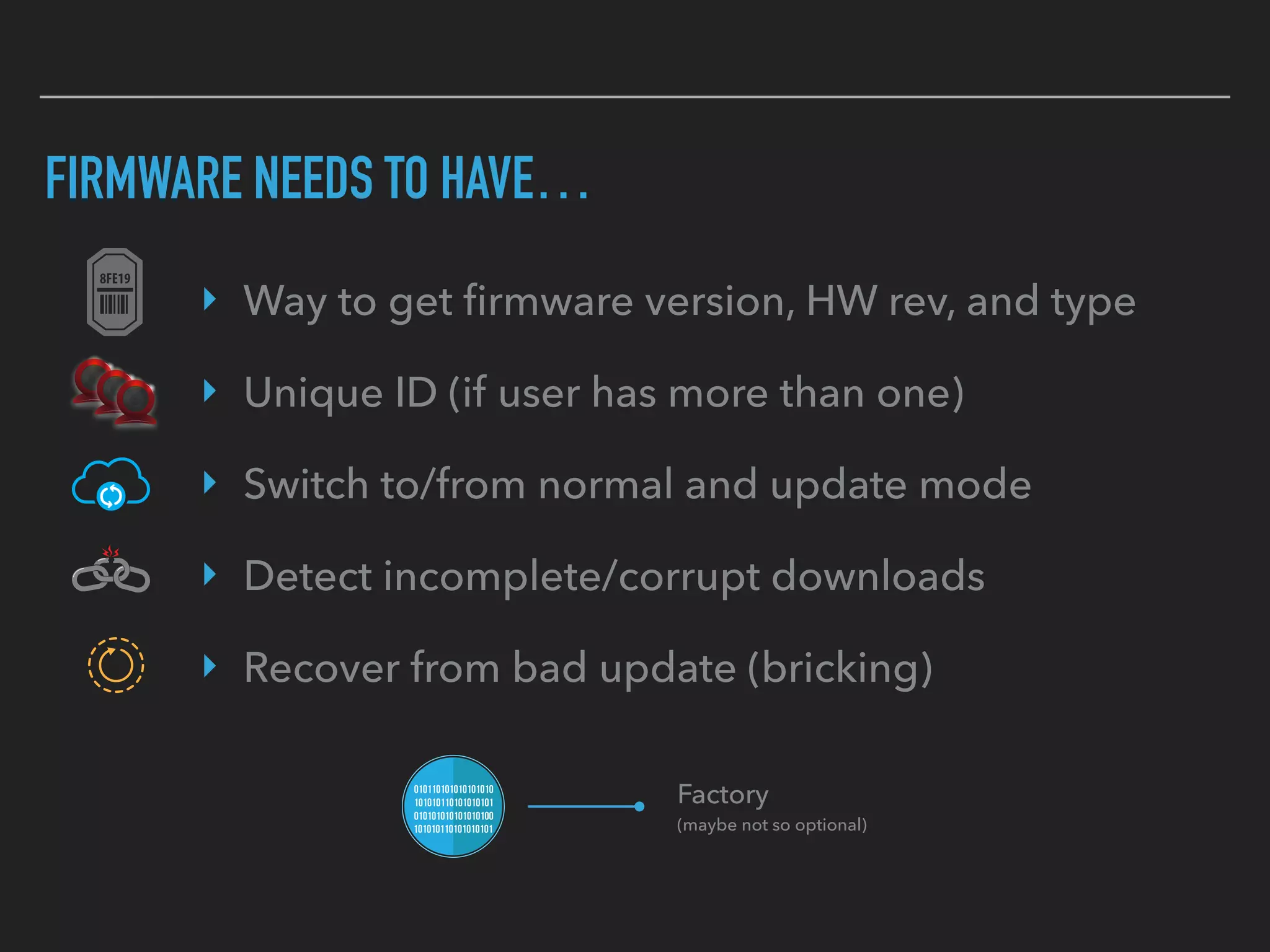

13. FIRMWARE NEEDS TO HAVE…
‣ Way to get firmware version, HW rev, and type
‣ Unique ID (if user has more than one)
‣ Switch to/from normal and update mode
‣ Detect incomplete/corrupt downloads
‣ Recover from bad update (bricking)
Factory
(maybe not so optional)

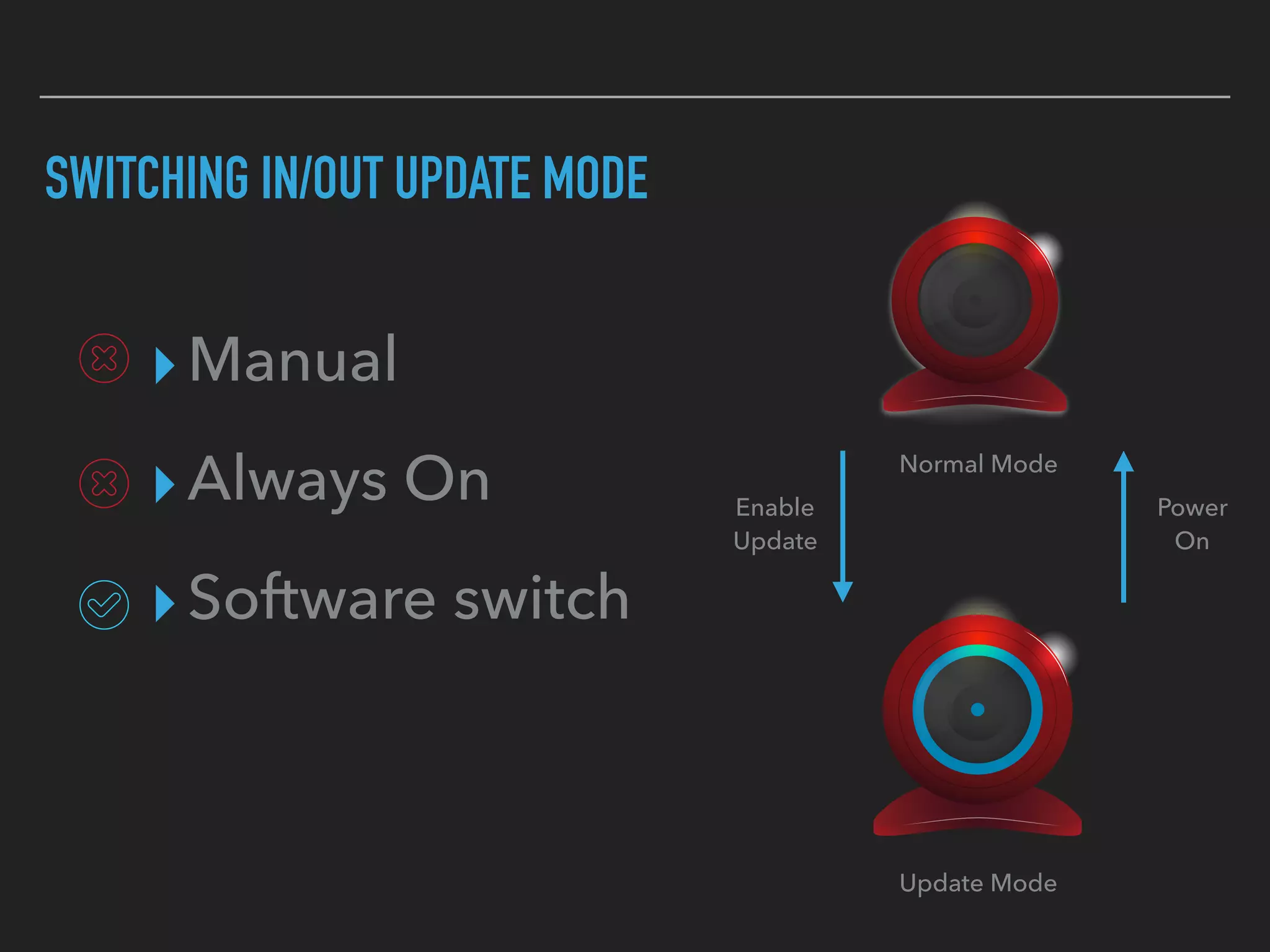

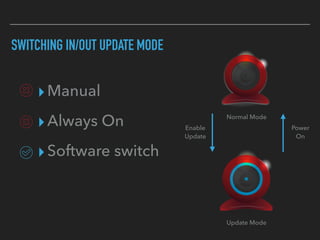

14. ▸Manual
▸Always On
▸Software switch
SWITCHING IN/OUT UPDATE MODE
Normal Mode
Update Mode
Enable
Update
Power
On

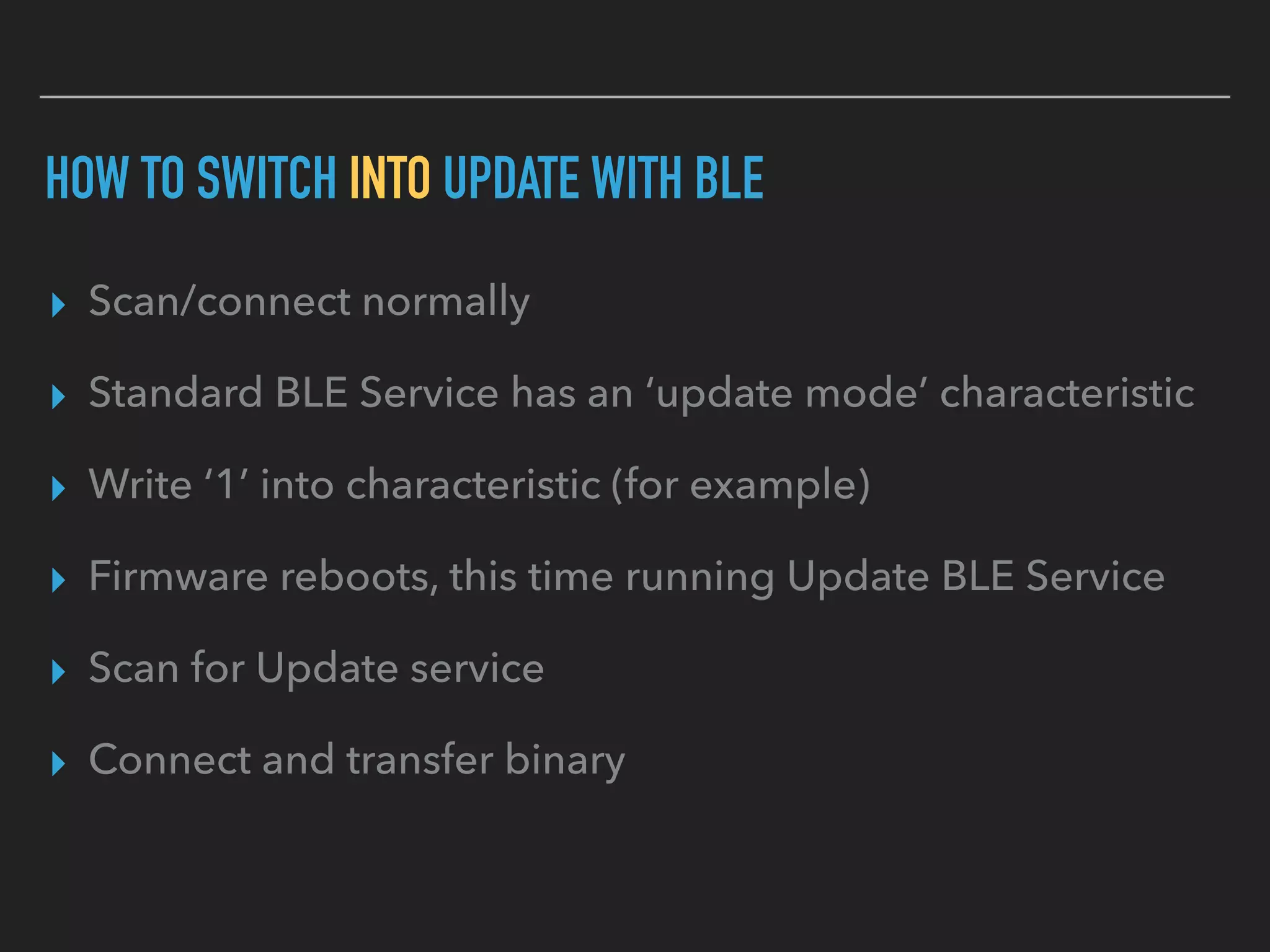

15. HOW TO SWITCH INTO UPDATE WITH BLE
▸ Scan/connect normally
▸ Standard BLE Service has an ‘update mode’ characteristic
▸ Write ‘1’ into characteristic (for example)
▸ Firmware reboots, this time running Update BLE Service
▸ Scan for Update service
▸ Connect and transfer binary

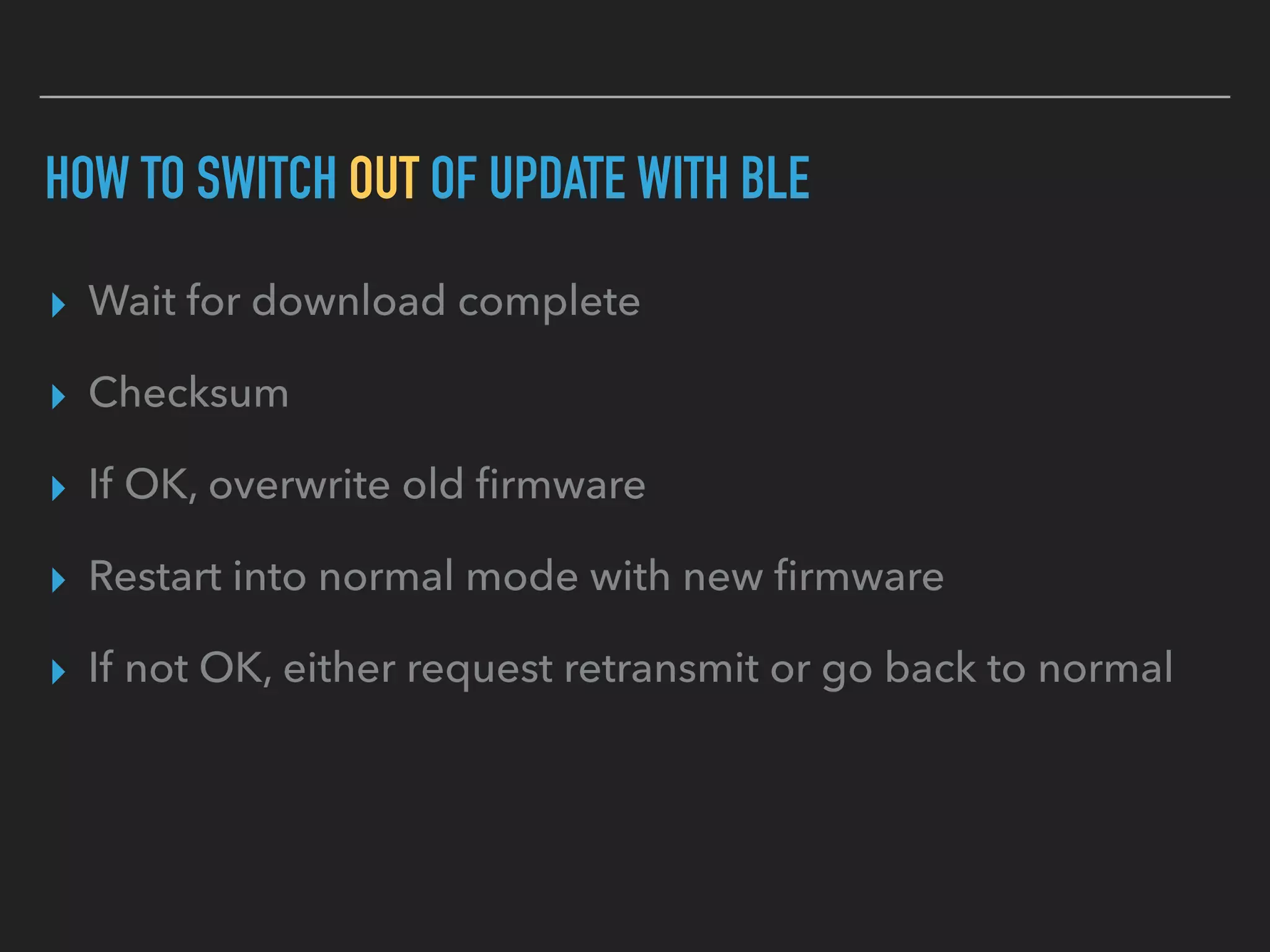

16. HOW TO SWITCH OUT OF UPDATE WITH BLE
▸ Wait for download complete
▸ Checksum
▸ If OK, overwrite old firmware
▸ Restart into normal mode with new firmware
▸ If not OK, either request retransmit or go back to normal

17. RECOVER FROM BAD FIRMWARE/STATE
▸ Make it hard to accidentally
invoke factory reset
▸ Overwrite current firmware from
on-board factory version
▸ Should not require connection
(may not be there)
▸ OK to lose cached data

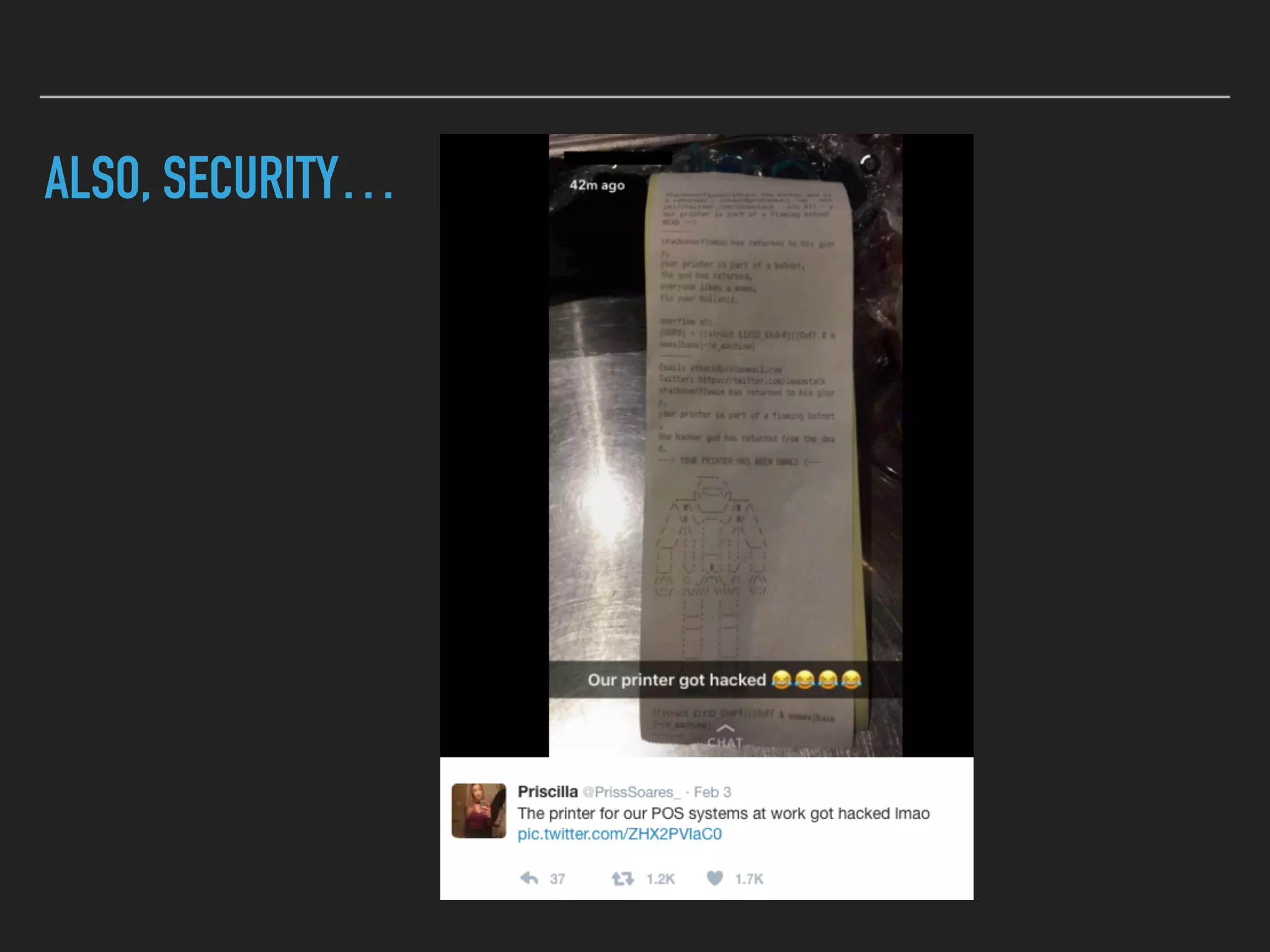

18. ALSO, SECURITY…

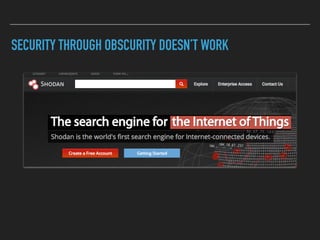

19. SECURITY THROUGH OBSCURITY DOESN’T WORK

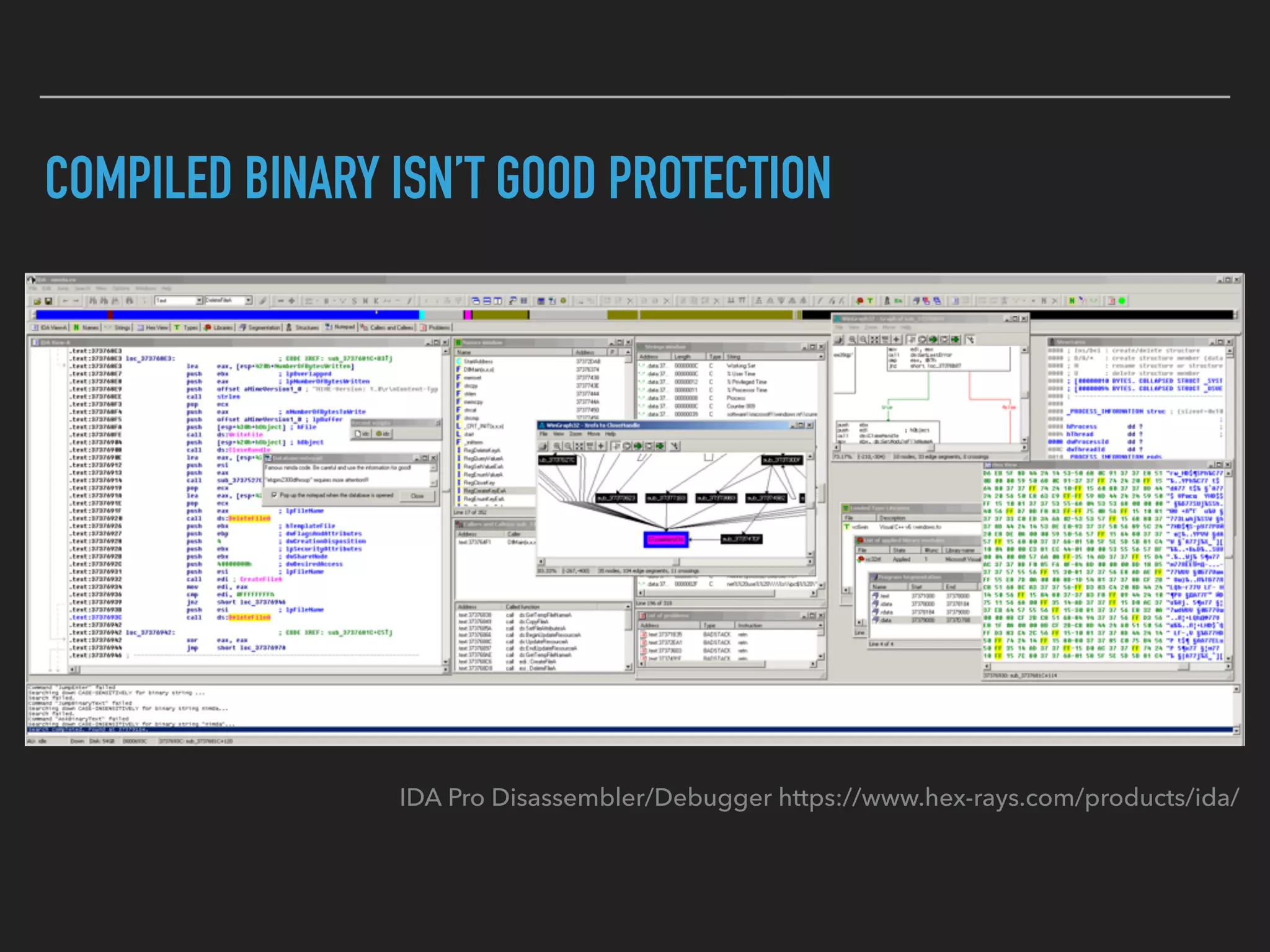

20. COMPILED BINARY ISN’T GOOD PROTECTION
IDA Pro Disassembler/Debugger https://www.hex-rays.com/products/ida/

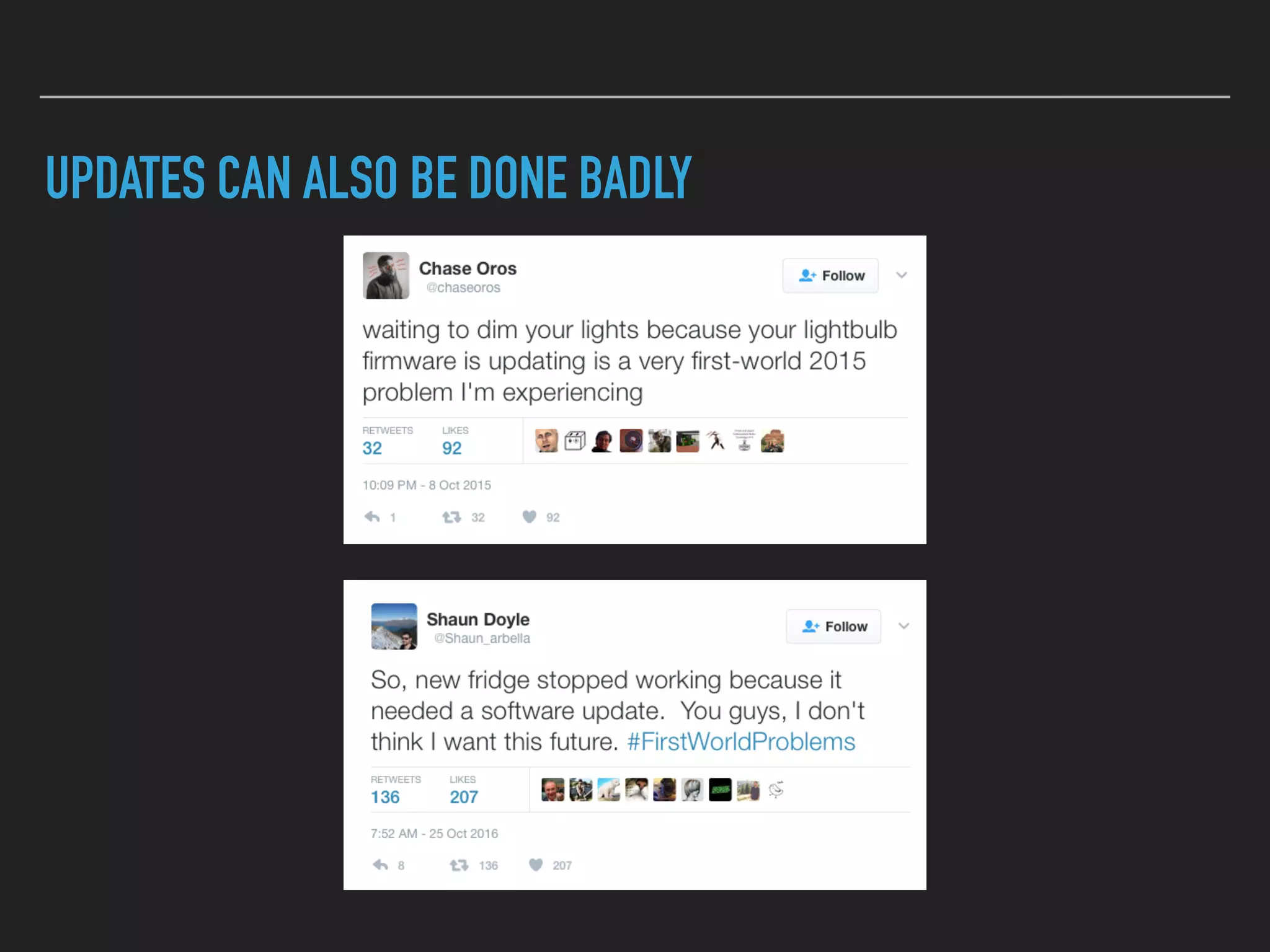

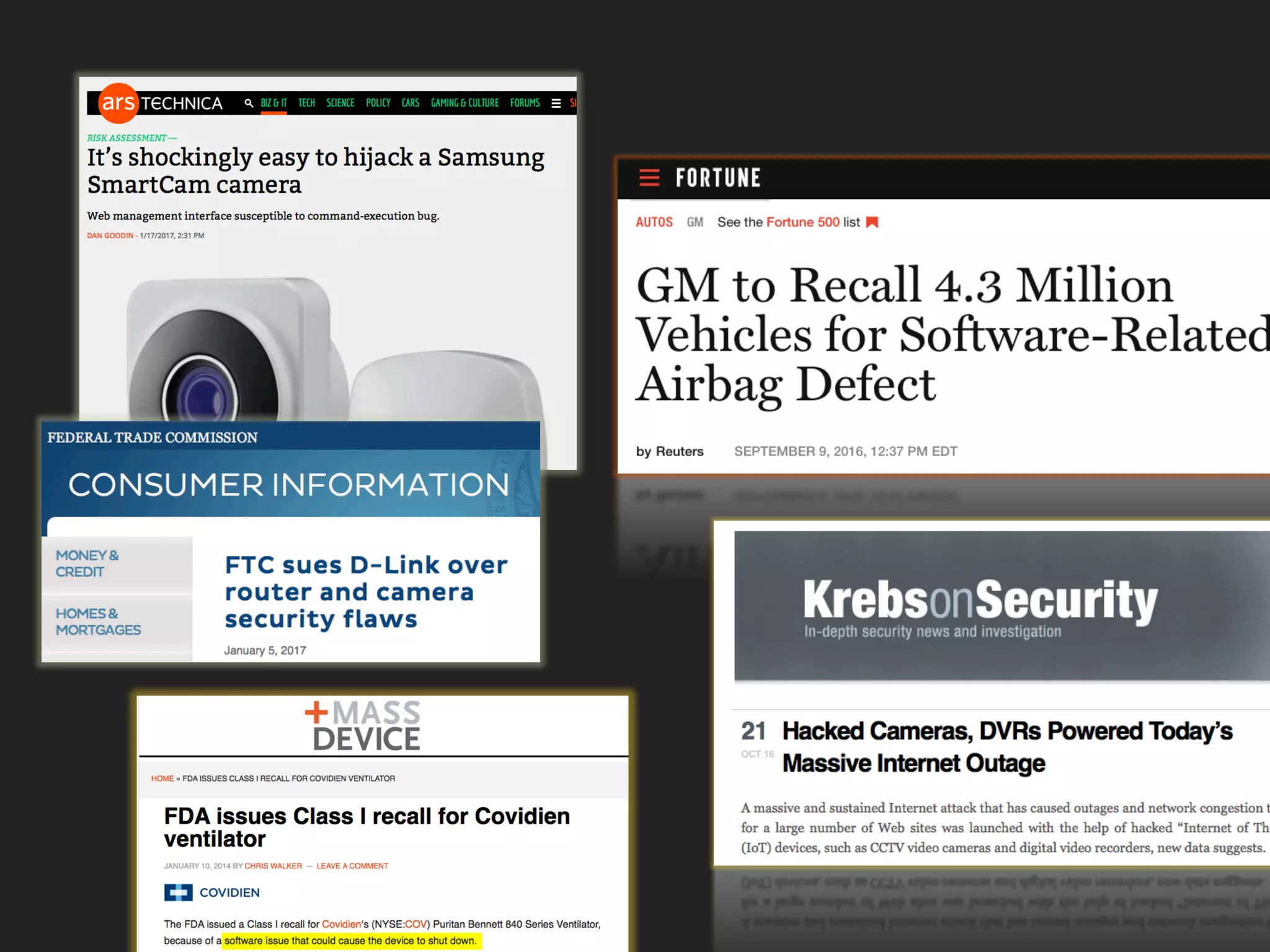

21. UPDATES CAN ALSO BE DONE BADLY

22. PRO-TIPS

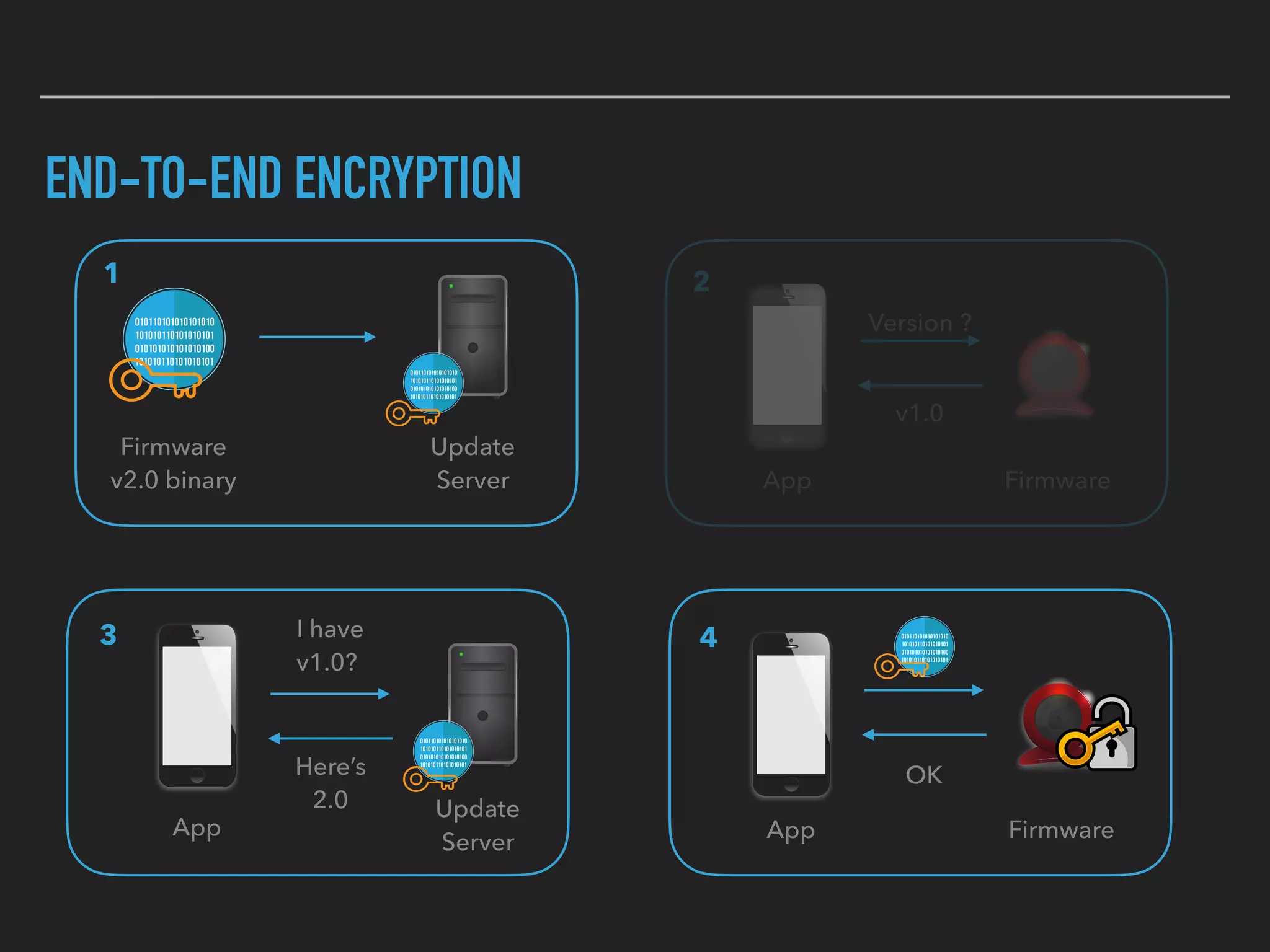

23. END-TO-END ENCRYPTION
Firmware
v2.0 binary
Update
Server
1
Version ?
v1.0
App Firmware
2
OK
App Firmware
4
Here’s
2.0
I have
v1.0?
3
App
Update
Server

24. ENCRYPTION BEST-PRACTICES
▸ Use asymmetric public-key encryption
▸ Use digital signatures to verify devices
▸ Choose BLE chip with built-in crypto hardware
▸ Do full security audit/code review before launch
▸ If feasible, use a ‘secure enclave’ chip to hold private keys

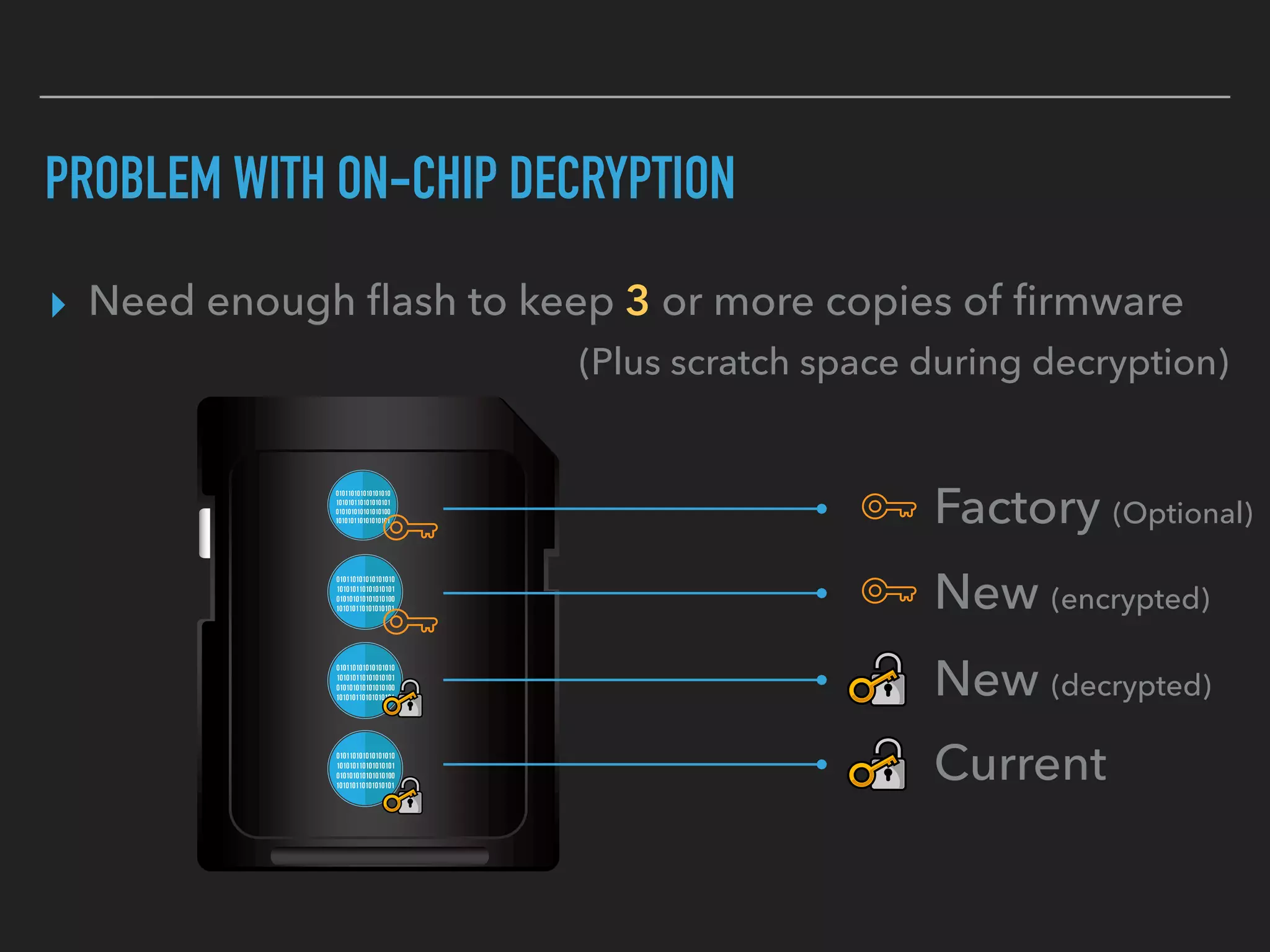

25. PROBLEM WITH ON-CHIP DECRYPTION
▸ Need enough flash to keep 3 or more copies of firmware
Factory (Optional)
New (encrypted)
Current
New (decrypted)
(Plus scratch space during decryption)

26. ENCRYPTION TRADE-OFF
▸ Bill Of Material Cost
▸ Processing Power
▸ Added Complexity
▸ Development Time
$$$

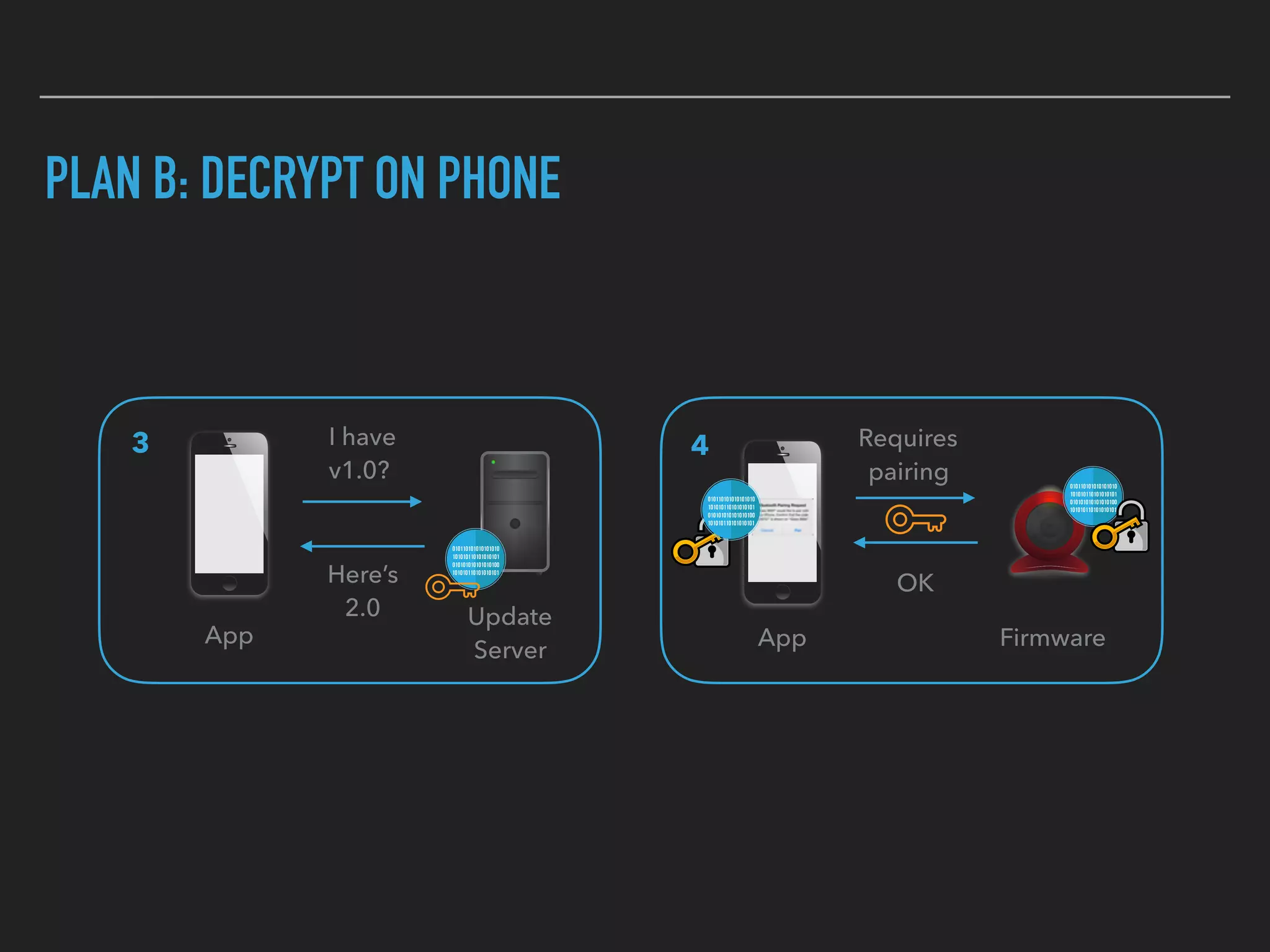

27. PLAN B: DECRYPT ON PHONE
OK
App Firmware
4
Here’s
2.0
I have
v1.0?
3
App
Update
Server
Requires
pairing

28. DECRYPTING ON IPHONE (HOMEWORK)
▸ Don’t decrypt until absolutely necessary
▸ Go watch WWDC 2015 Video: “Security and Your Apps”
▸ https://developer.apple.com/videos/play/wwdc2015/706/
▸ If too lazy check out: SecureEnclaveCrypto library on GitHub
▸ https://github.com/trailofbits/SecureEnclaveCrypto
▸ Set up bonding/pairing between phone and device
▸ https://devzone.nordicsemi.com/question/47091/getting-an-ios-
central-app-to-bond/

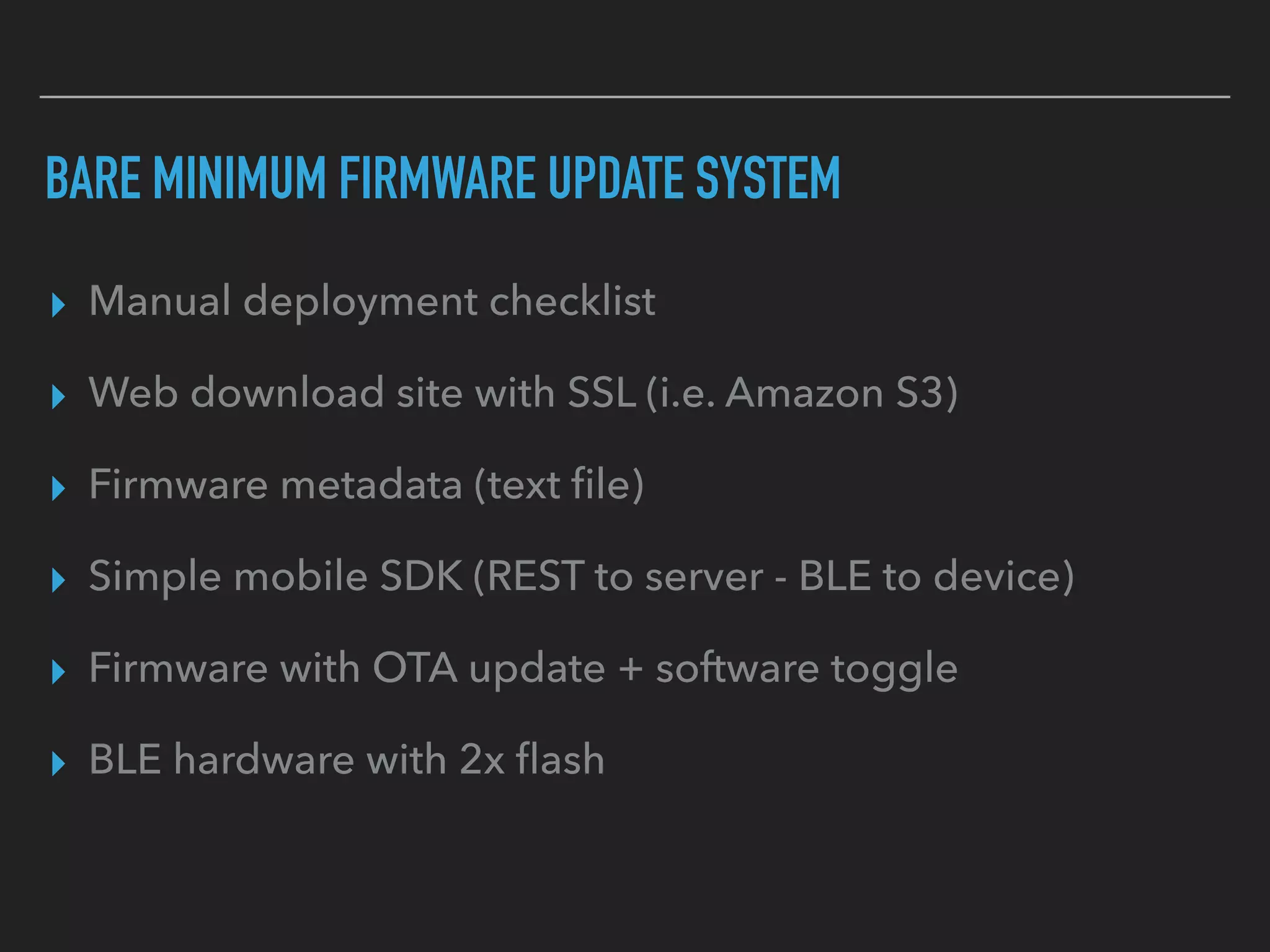

29. BARE MINIMUM FIRMWARE UPDATE SYSTEM
▸ Manual deployment checklist
▸ Web download site with SSL (i.e. Amazon S3)
▸ Firmware metadata (text file)
▸ Simple mobile SDK (REST to server - BLE to device)
▸ Firmware with OTA update + software toggle
▸ BLE hardware with 2x flash

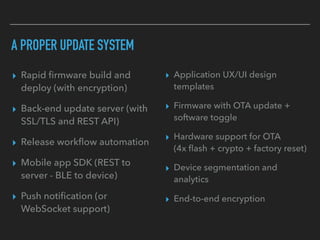

30. A PROPER UPDATE SYSTEM
▸ Rapid firmware build and
deploy (with encryption)
▸ Back-end update server (with
SSL/TLS and REST API)
▸ Release workflow automation
▸ Mobile app SDK (REST to
server - BLE to device)
▸ Push notification (or
WebSocket support)
▸ Application UX/UI design
templates
▸ Firmware with OTA update +
software toggle
▸ Hardware support for OTA
(4x flash + crypto + factory reset)
▸ Device segmentation and
analytics
▸ End-to-end encryption

31. THINK DIFFERENT
▸ Treat Firmware Updates like App Updates
▸ Release an MVP device then iterate
quickly with new features
▸ Have different firmware for different
markets (or users)
▸ Use serial numbers & encryption to avoid
piracy
▸ Do not load final firmware at factory (!?!)

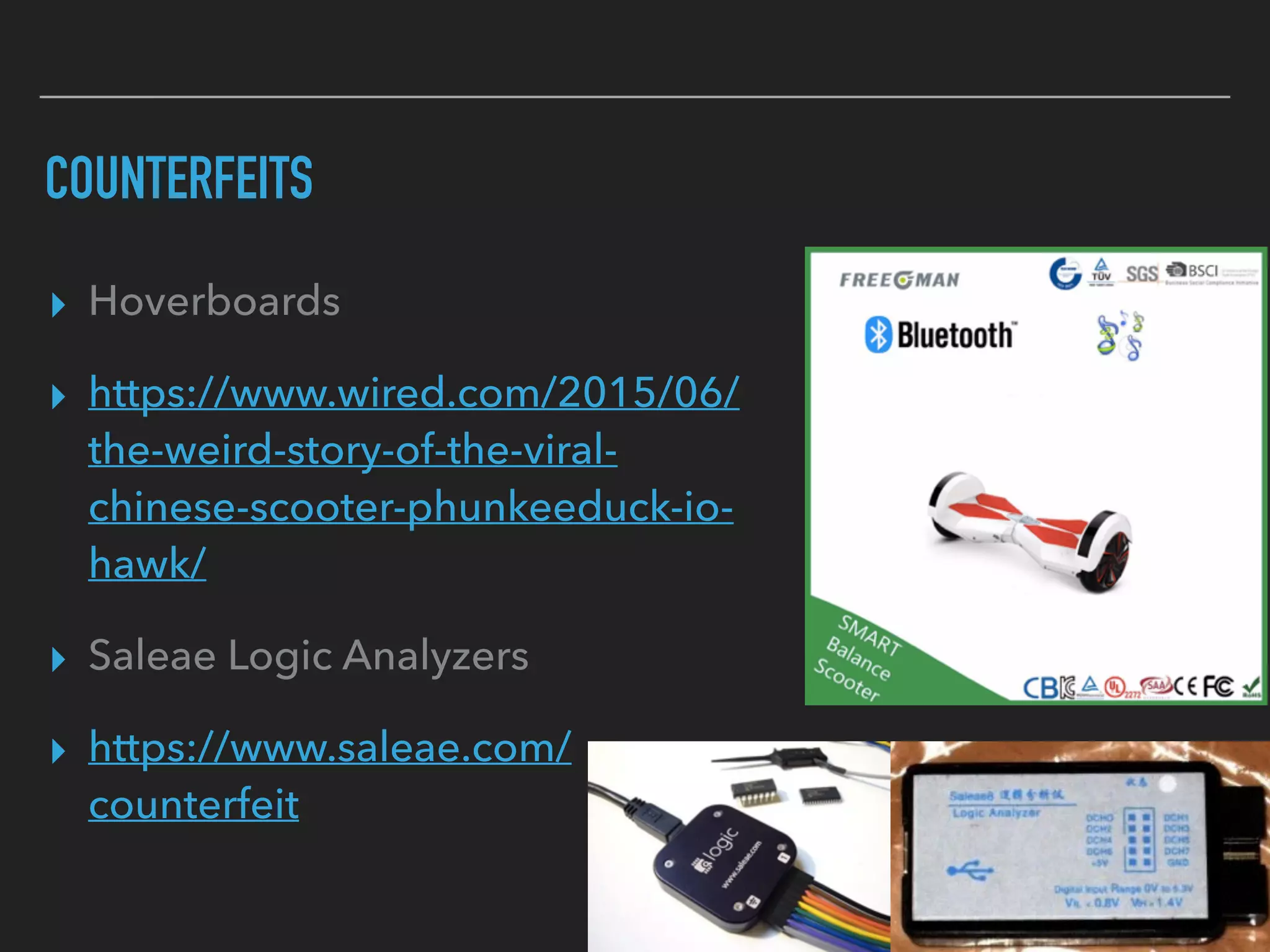

32. COUNTERFEITS
▸ Hoverboards
▸ https://www.wired.com/2015/06/
the-weird-story-of-the-viral-
chinese-scooter-phunkeeduck-io-
hawk/
▸ Saleae Logic Analyzers
▸ https://www.saleae.com/
counterfeit

33. PLAN AHEAD
▸ Don’t leave firmware update support to the last minute
▸ Don’t host firmware updates on same back-end as app-server
▸ Always have a fallback plan / factory reset
▸ Design app UX with firmware update in mind
▸ Test, test, test

34. ▸ If all this seems too daunting…
▸ Get in touch: raminf@gmail.com
Q&A
