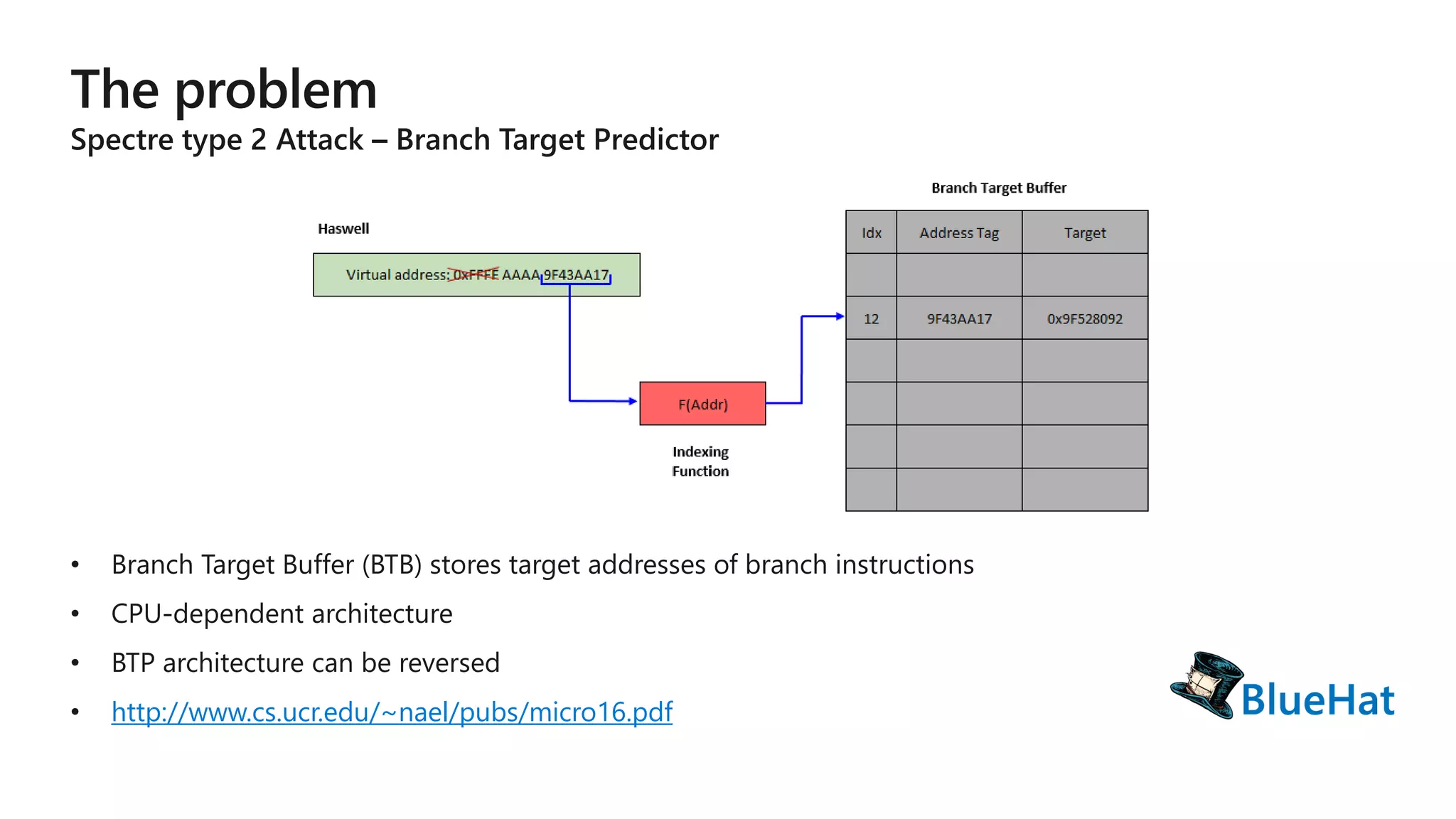

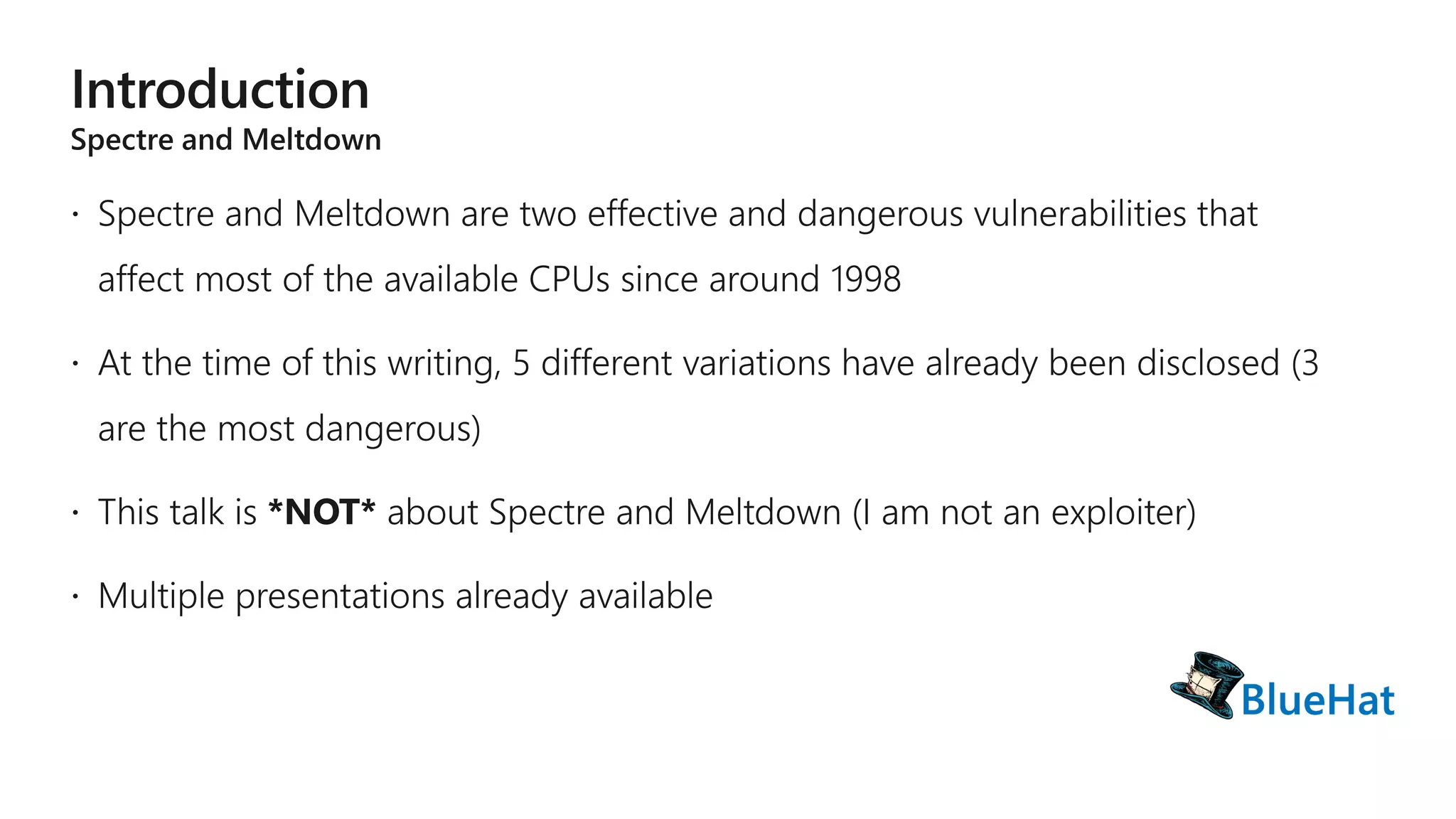

6. http://www.cs.ucr.edu/~nael/pubs/micro16.pdf

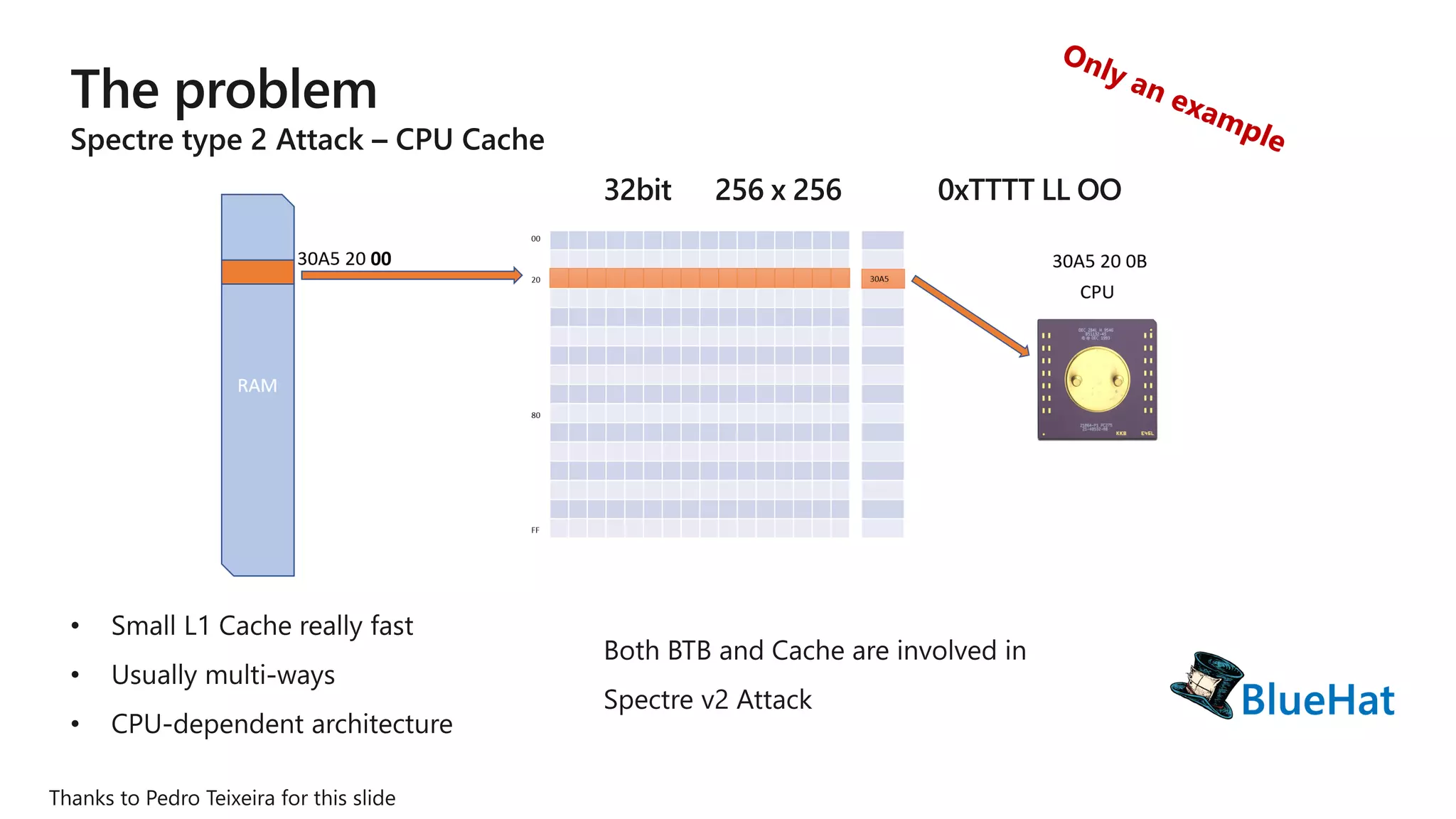

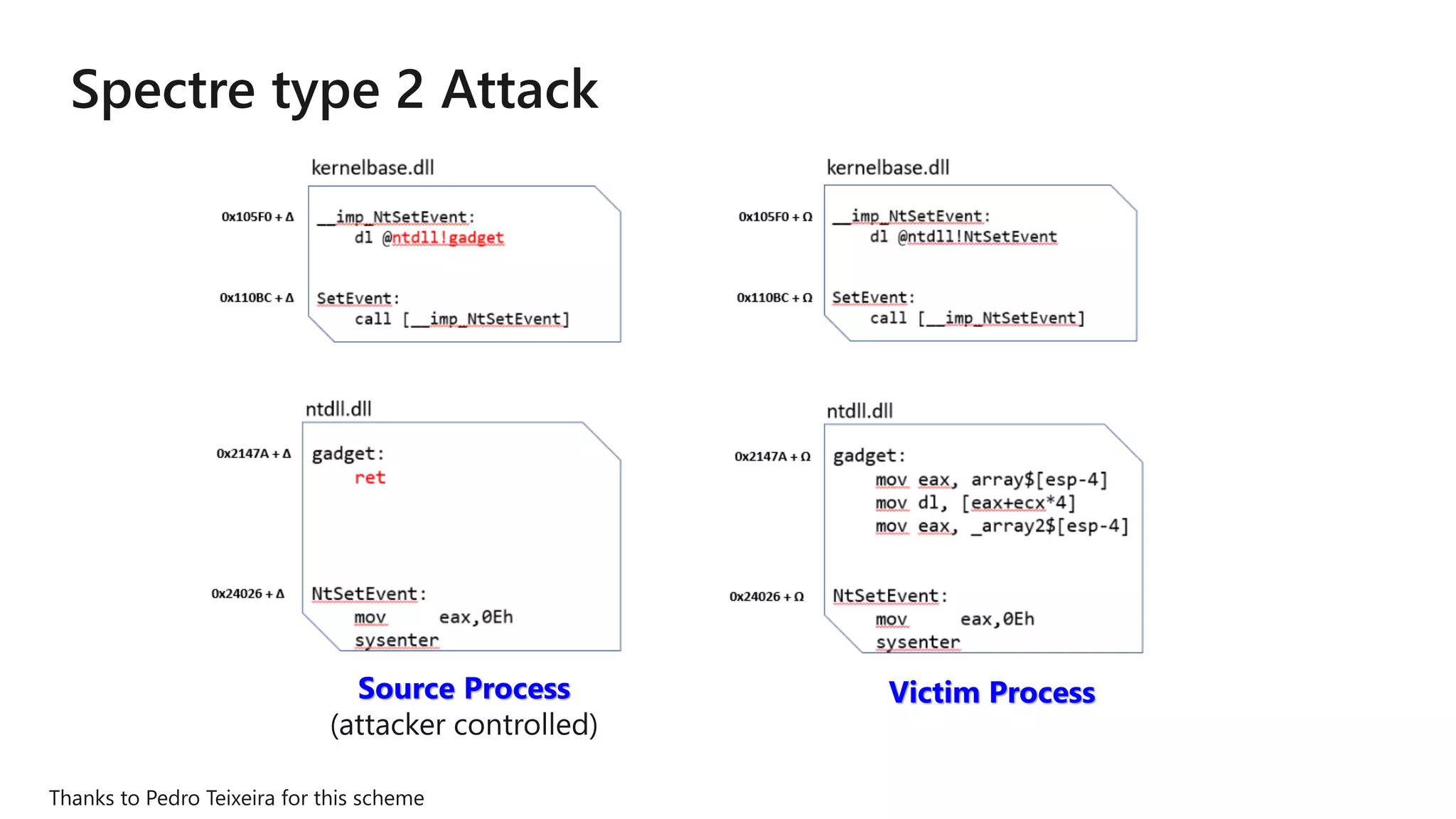

8. Source Process Victim Process

9. *

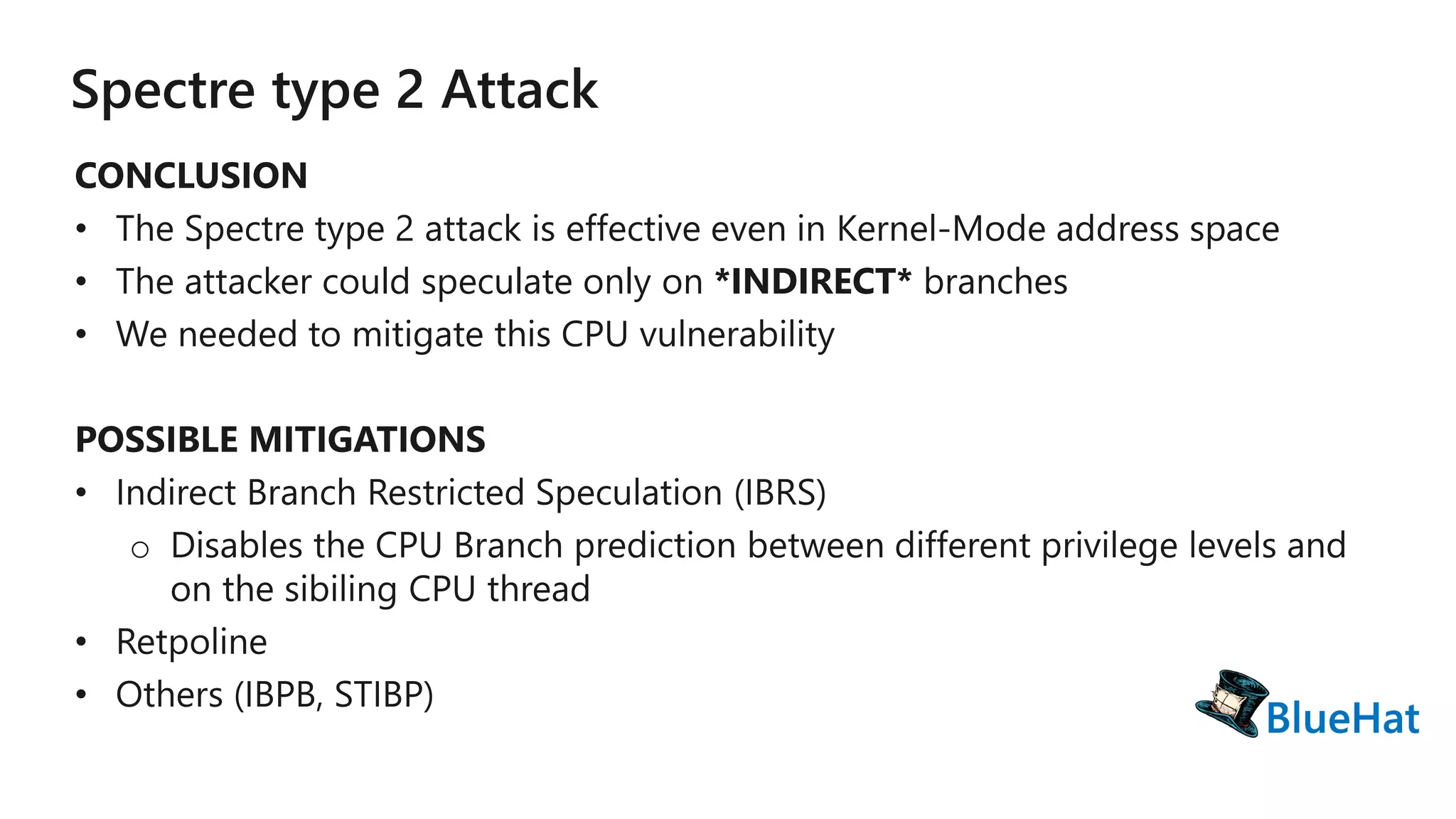

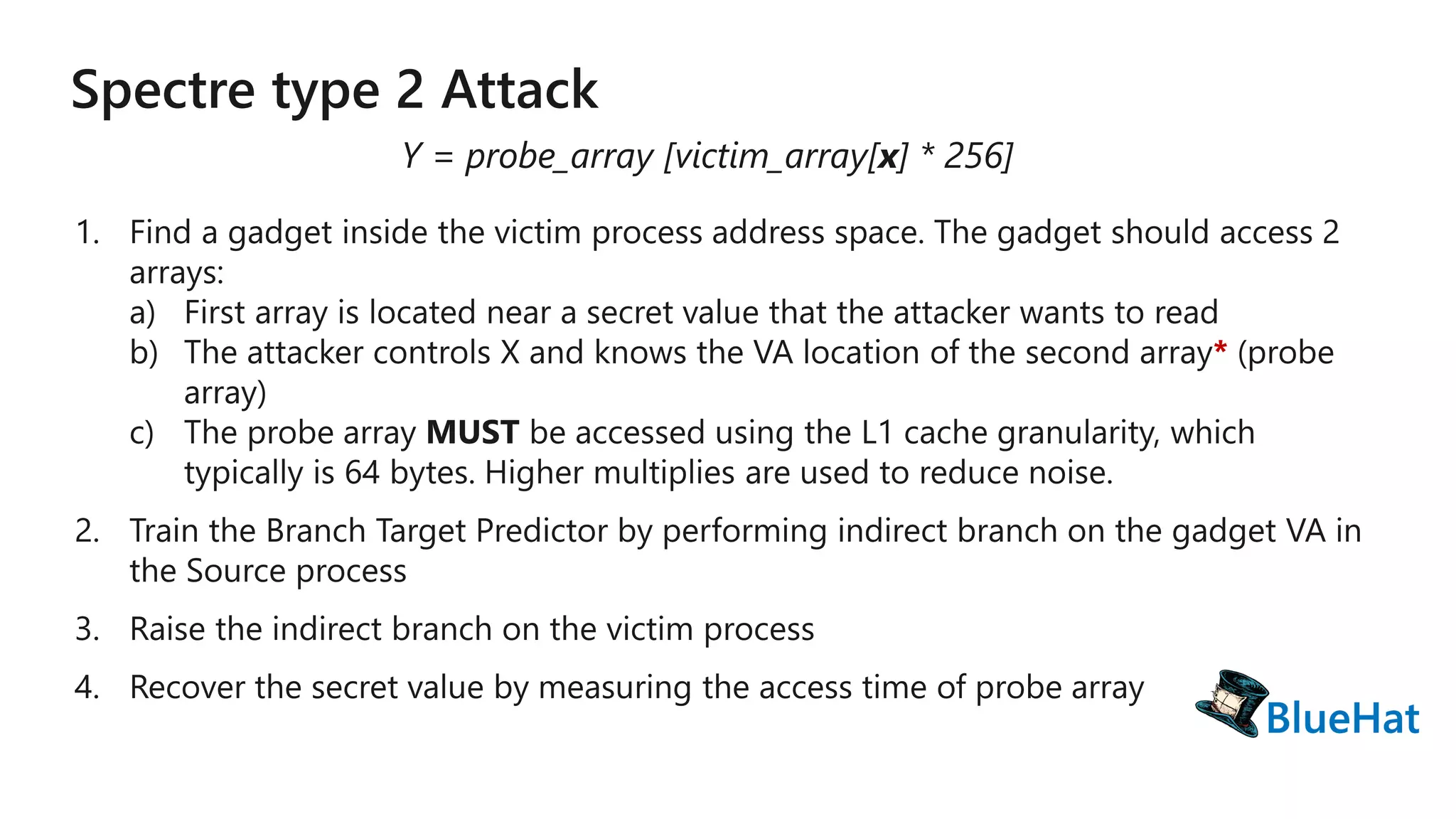

10. • The attacker could speculate only on *INDIRECT* branches

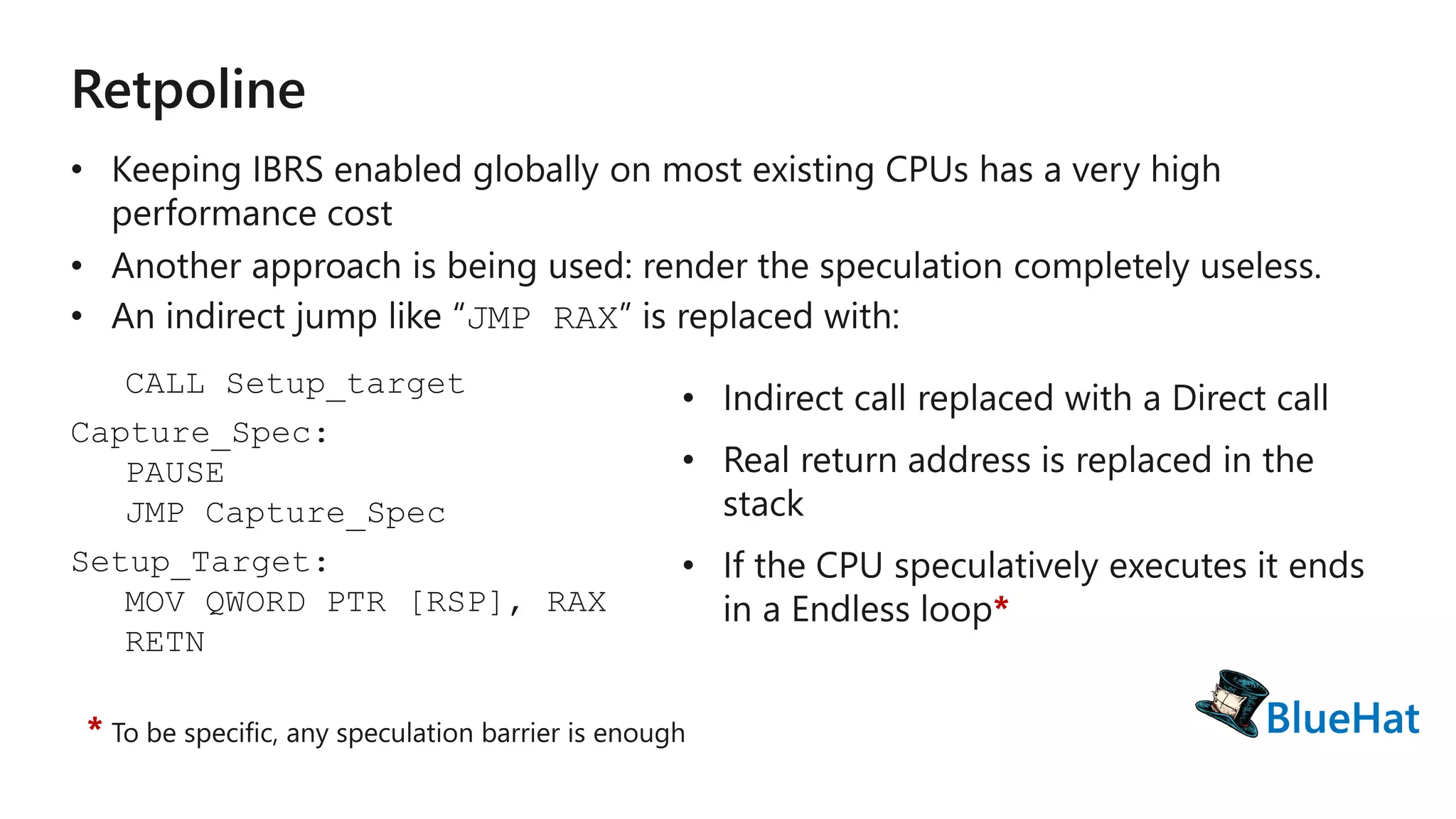

11. *
*

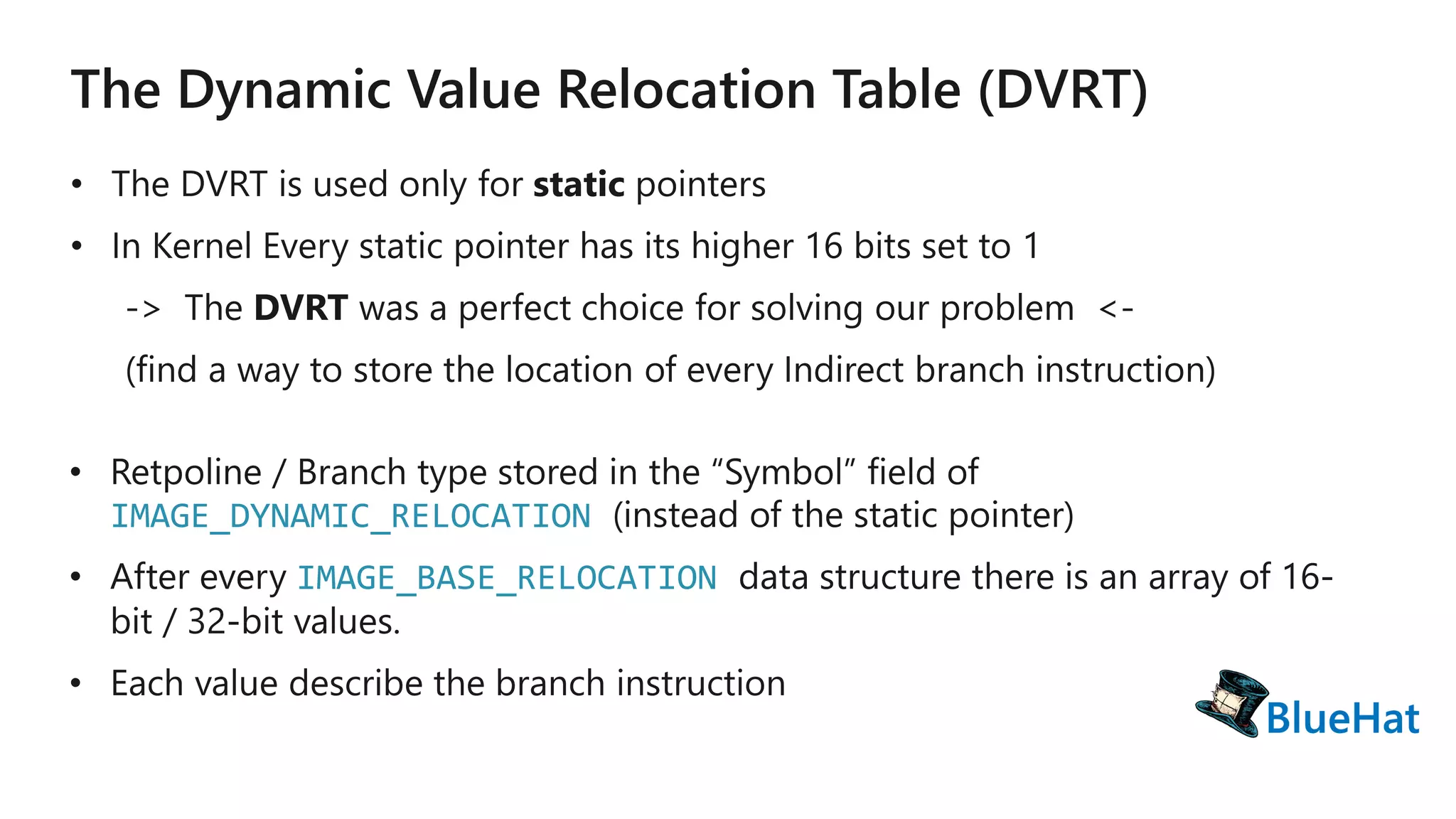

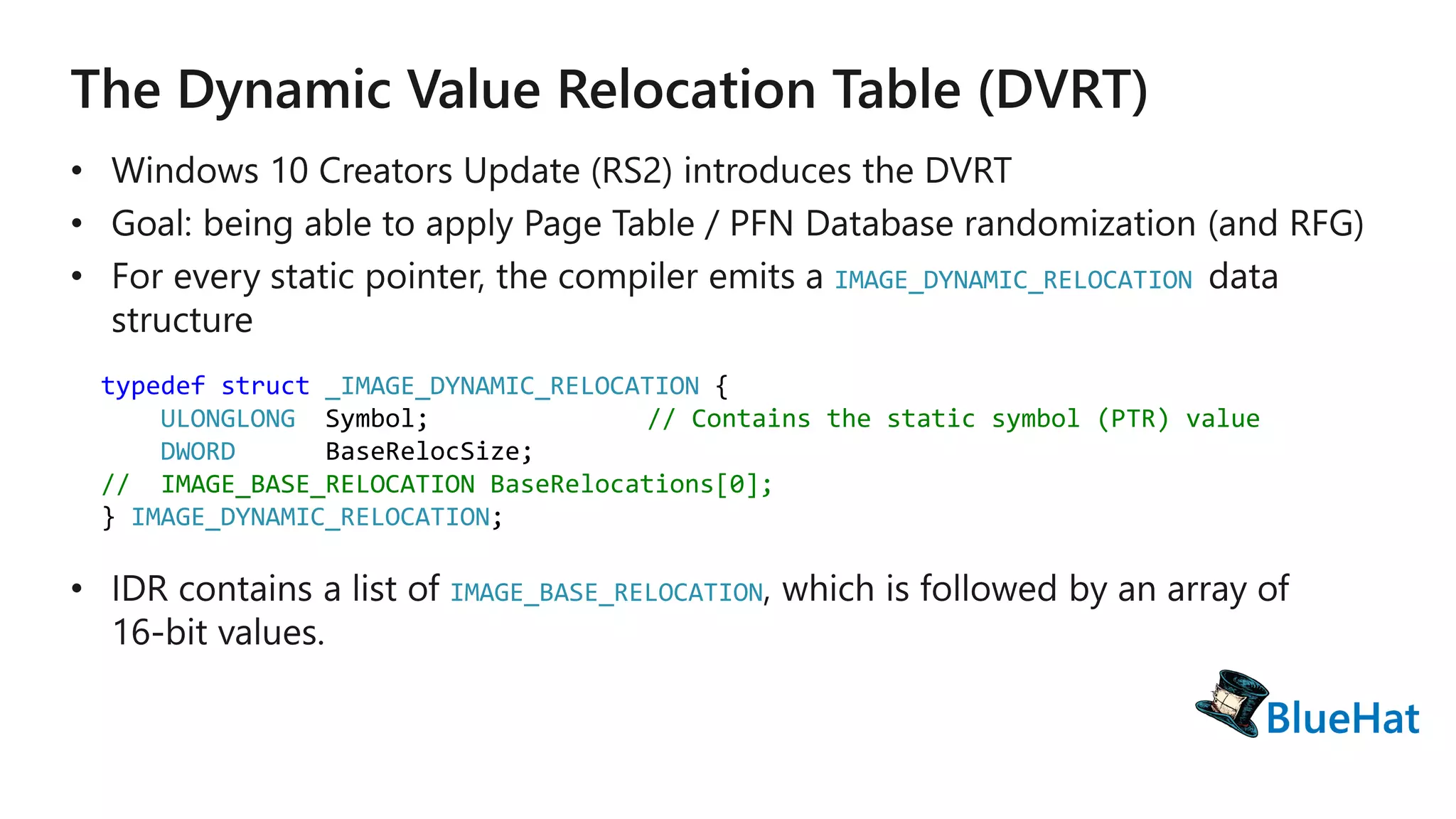

13. IMAGE_DYNAMIC_RELOCATION
typedef struct _IMAGE_DYNAMIC_RELOCATION {
ULONGLONG Symbol; // Contains the static symbol (PTR) value
DWORD BaseRelocSize;
// IMAGE_BASE_RELOCATION BaseRelocations[0];
} IMAGE_DYNAMIC_RELOCATION;

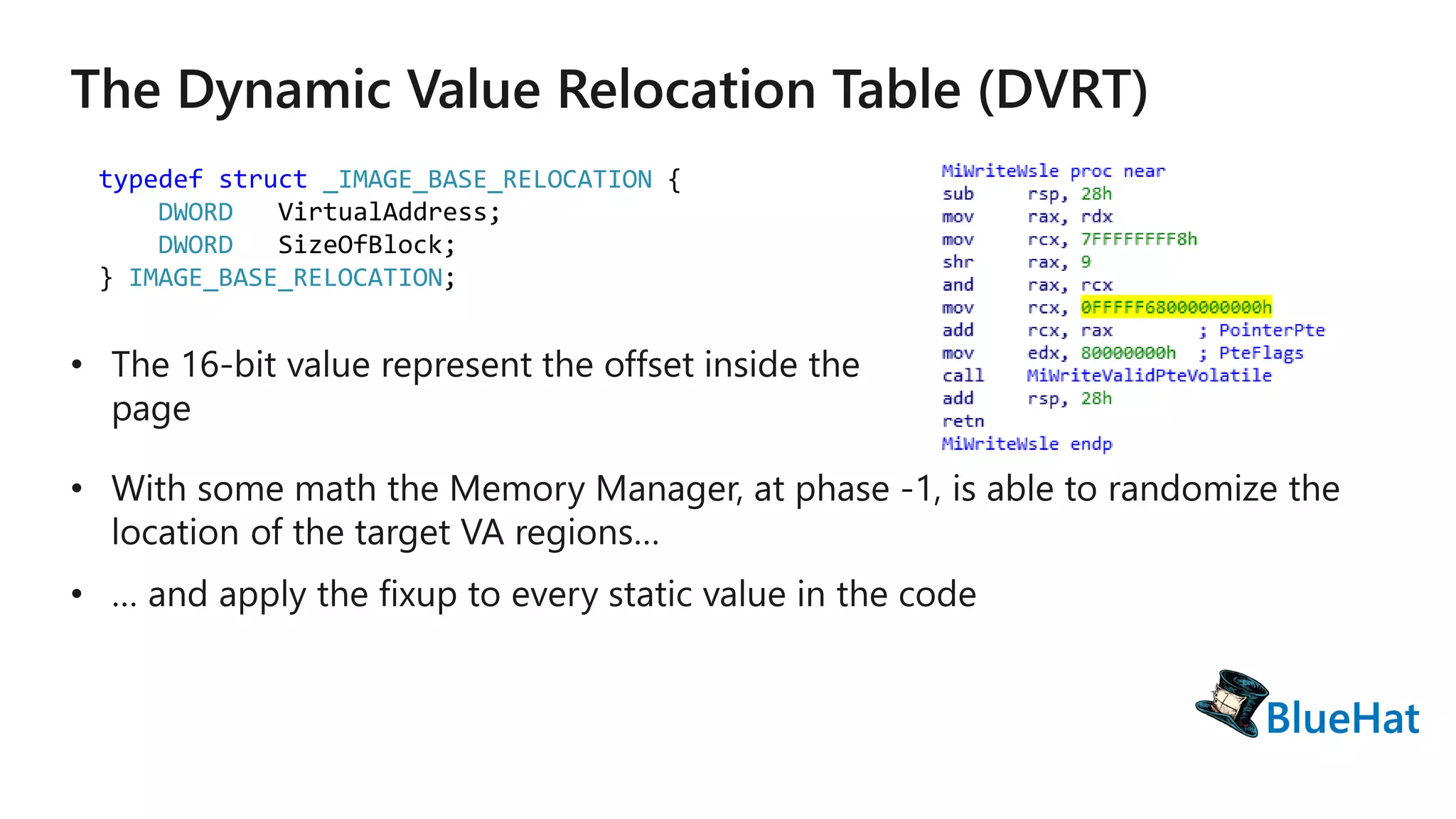

IMAGE_BASE_RELOCATION

14. typedef struct _IMAGE_BASE_RELOCATION {
DWORD VirtualAddress;
DWORD SizeOfBlock;
} IMAGE_BASE_RELOCATION;

15. IMAGE_DYNAMIC_RELOCATION
IMAGE_BASE_RELOCATION

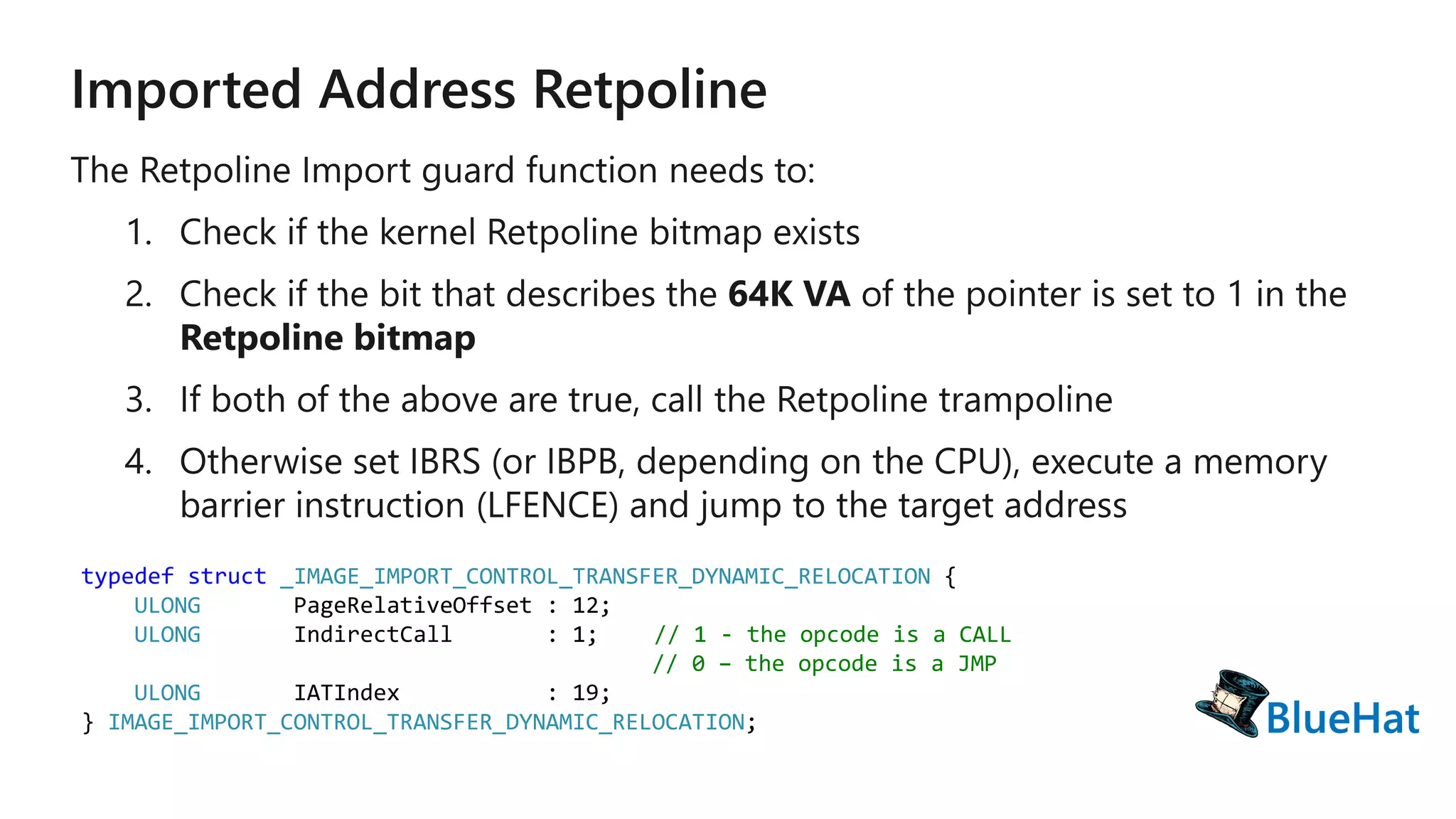

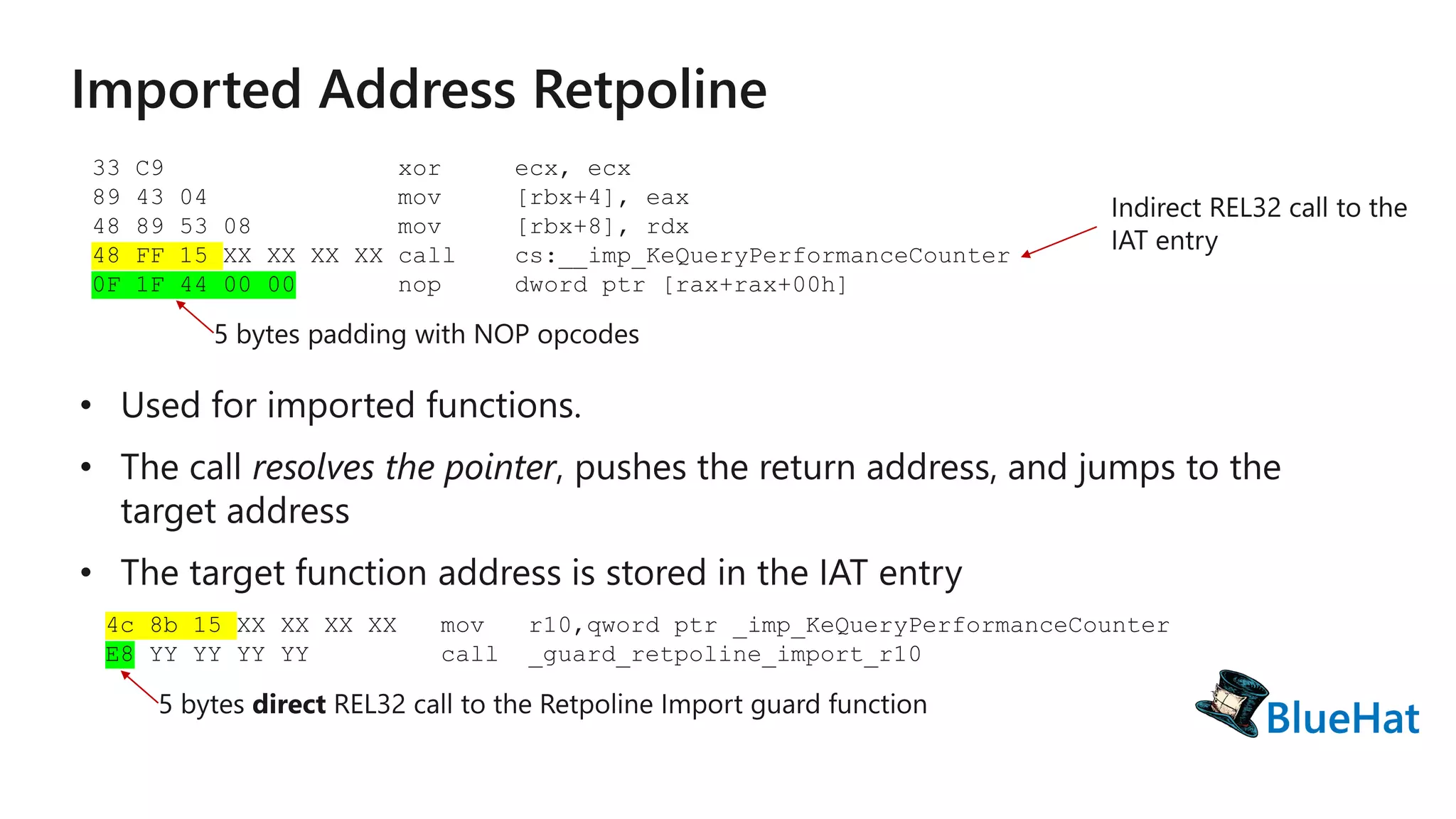

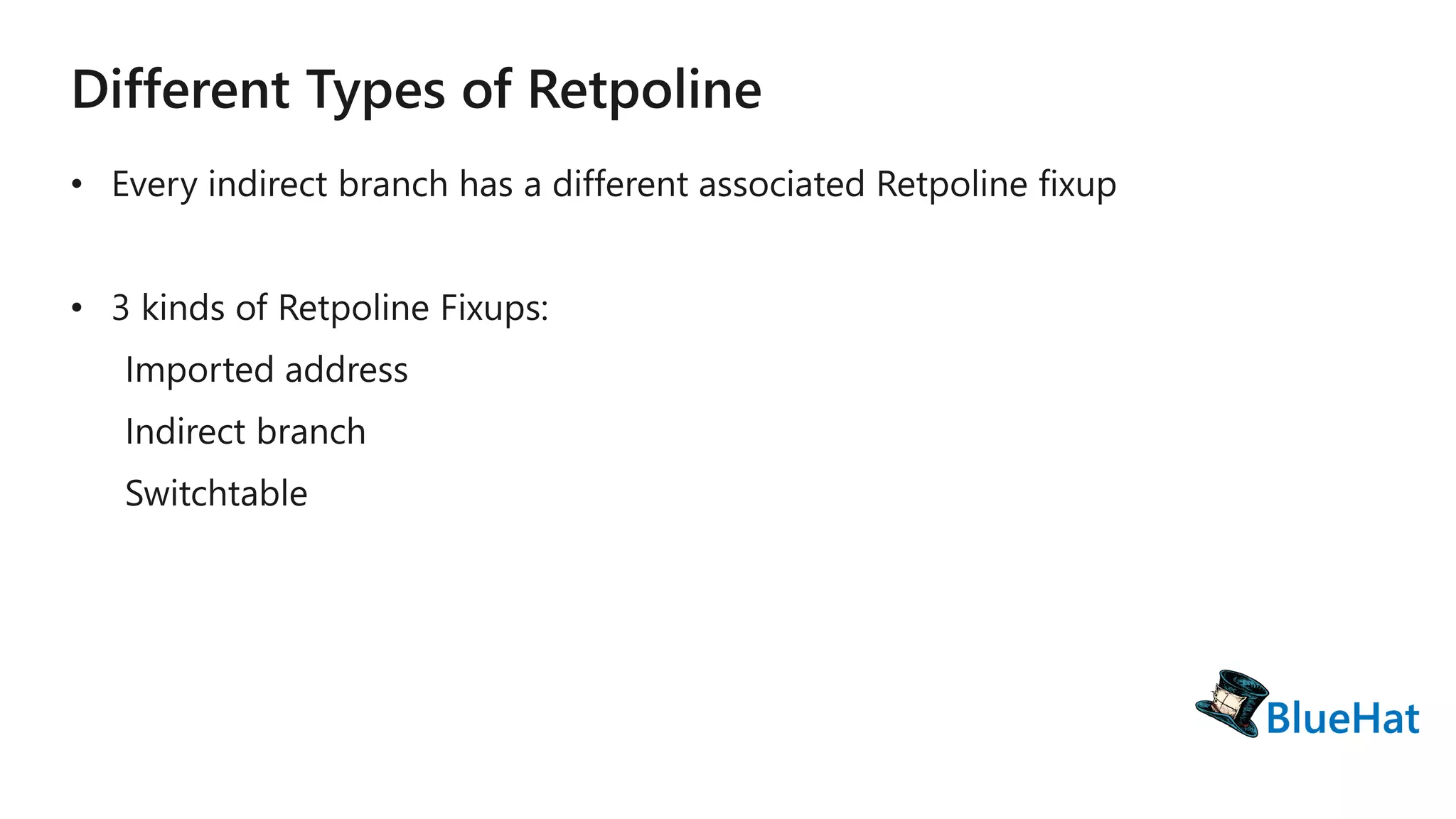

18. typedef struct _IMAGE_IMPORT_CONTROL_TRANSFER_DYNAMIC_RELOCATION {
ULONG PageRelativeOffset : 12;
ULONG IndirectCall : 1; // 1 - the opcode is a CALL
// 0 – the opcode is a JMP
ULONG IATIndex : 19;
} IMAGE_IMPORT_CONTROL_TRANSFER_DYNAMIC_RELOCATION;

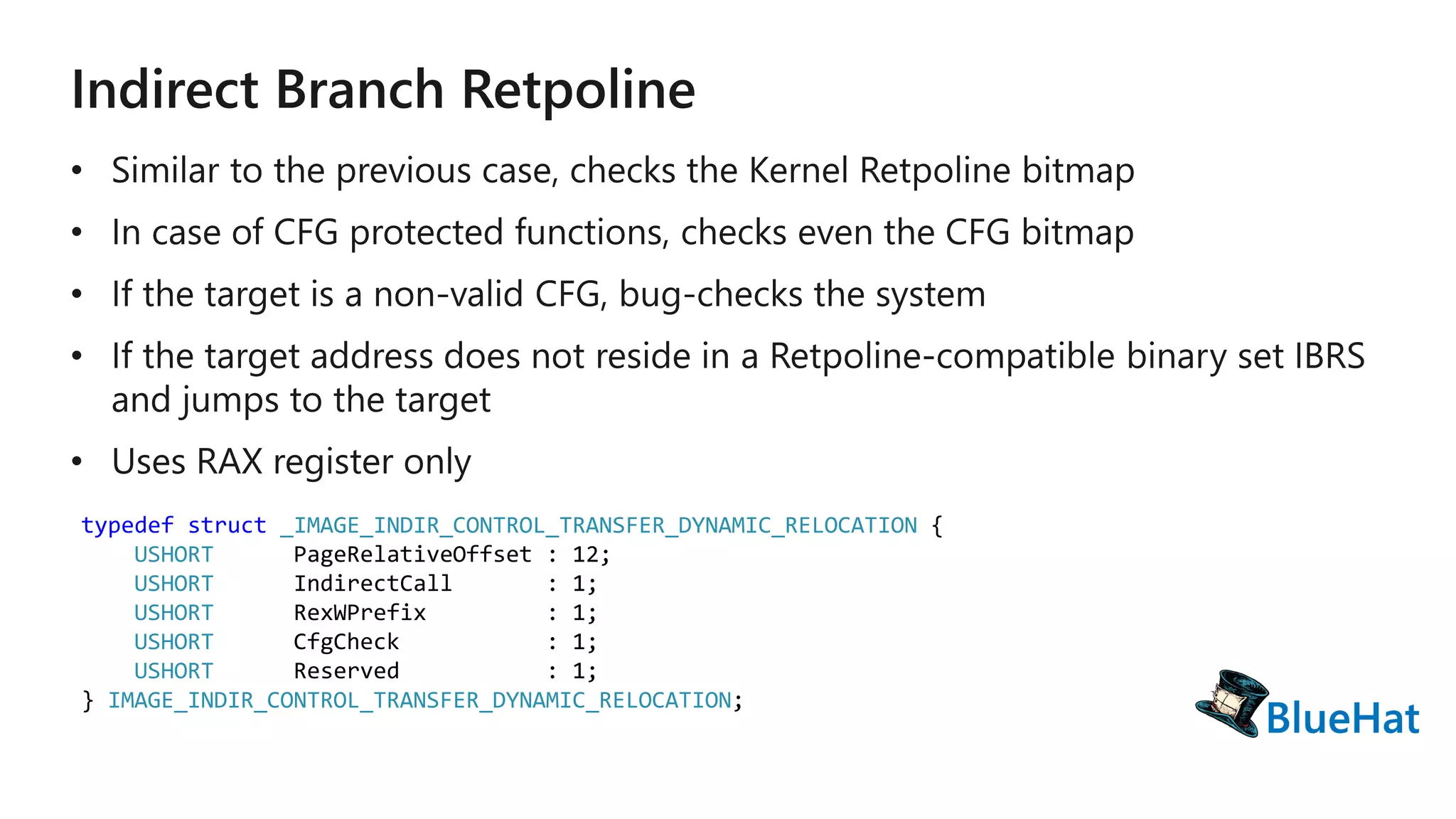

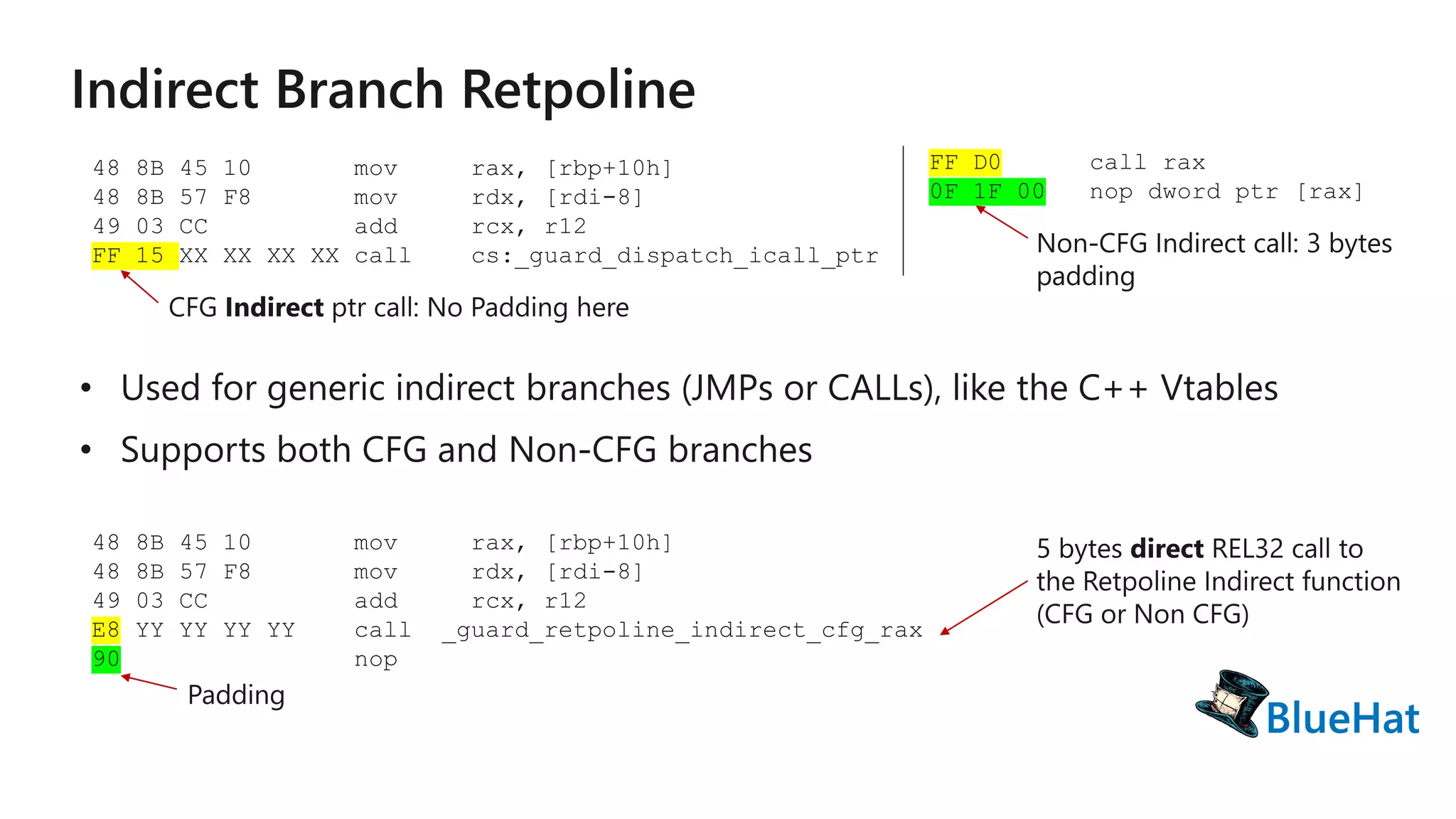

20. typedef struct _IMAGE_INDIR_CONTROL_TRANSFER_DYNAMIC_RELOCATION {
USHORT PageRelativeOffset : 12;
USHORT IndirectCall : 1;
USHORT RexWPrefix : 1;
USHORT CfgCheck : 1;
USHORT Reserved : 1;
} IMAGE_INDIR_CONTROL_TRANSFER_DYNAMIC_RELOCATION;

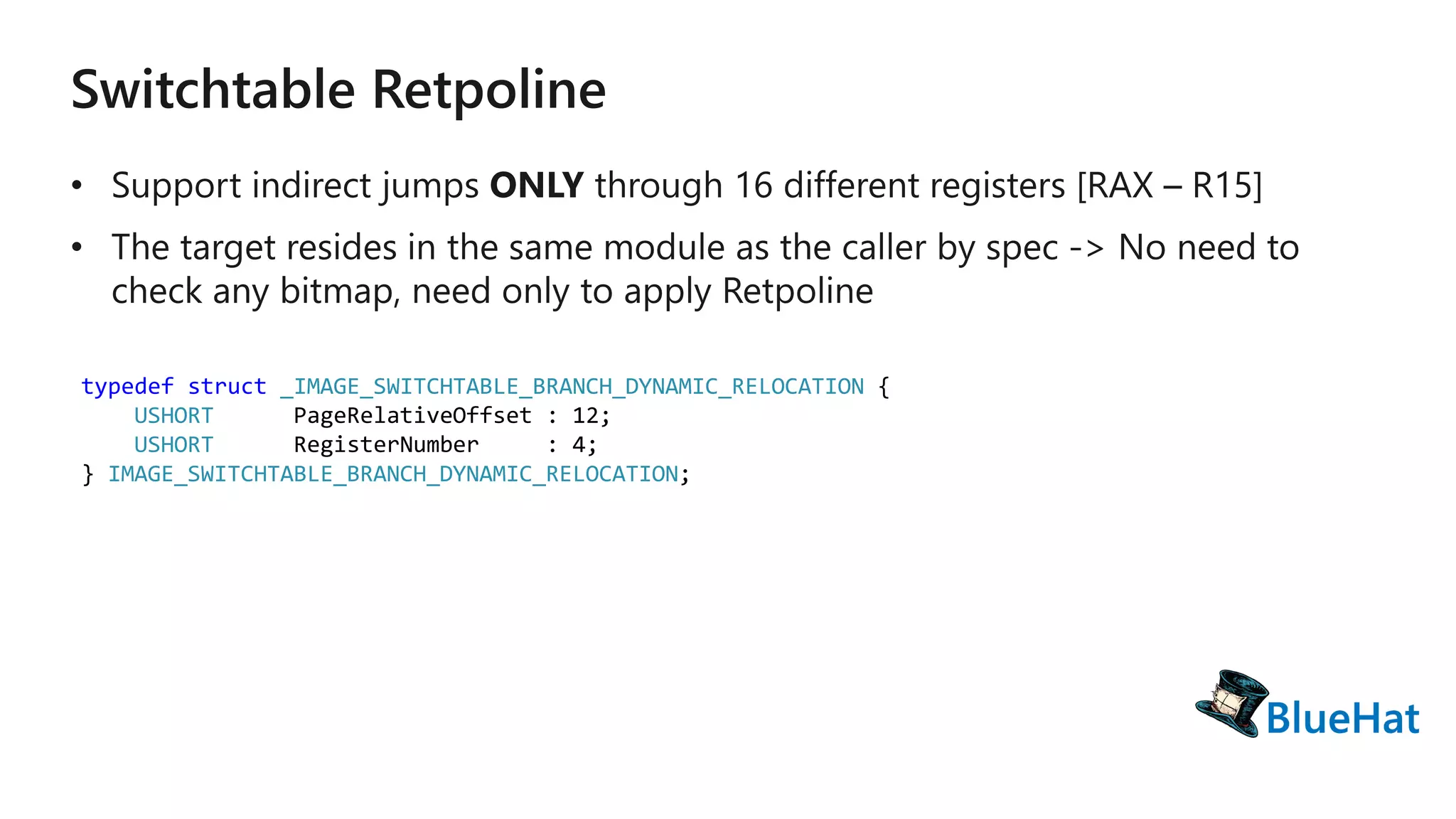

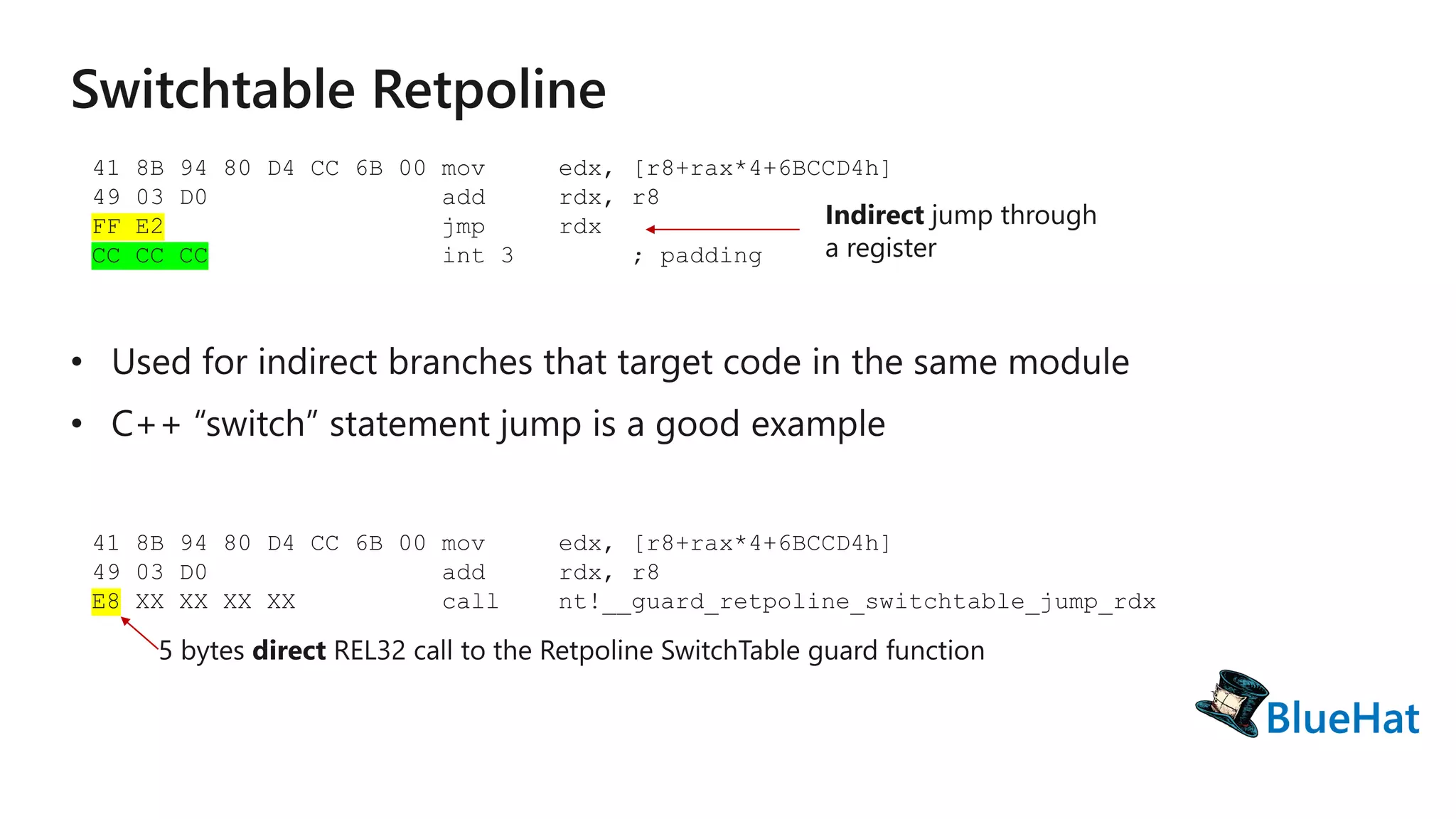

22. typedef struct _IMAGE_SWITCHTABLE_BRANCH_DYNAMIC_RELOCATION {
USHORT PageRelativeOffset : 12;
USHORT RegisterNumber : 4;
} IMAGE_SWITCHTABLE_BRANCH_DYNAMIC_RELOCATION;

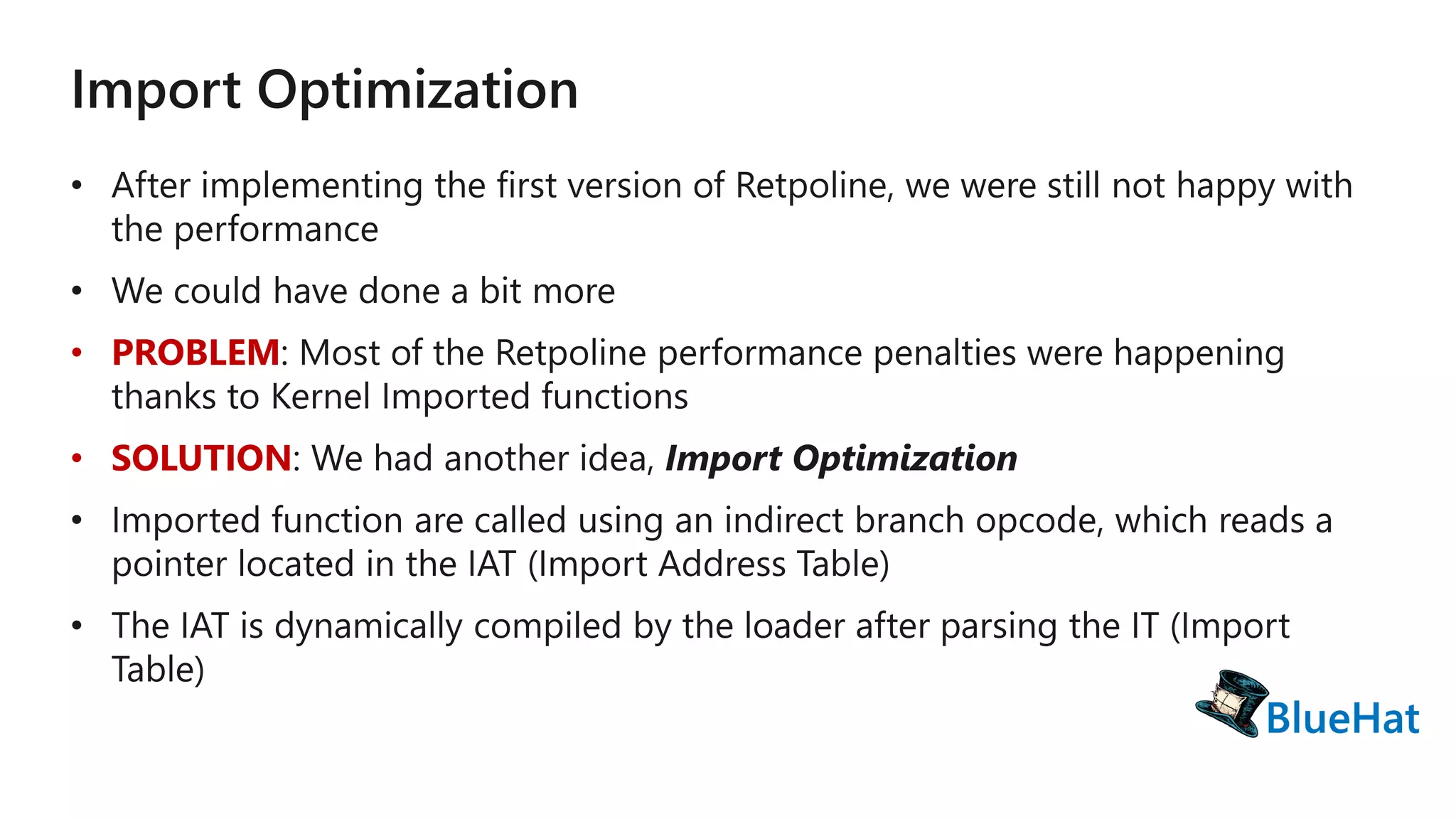

23. • PROBLEM
• SOLUTION

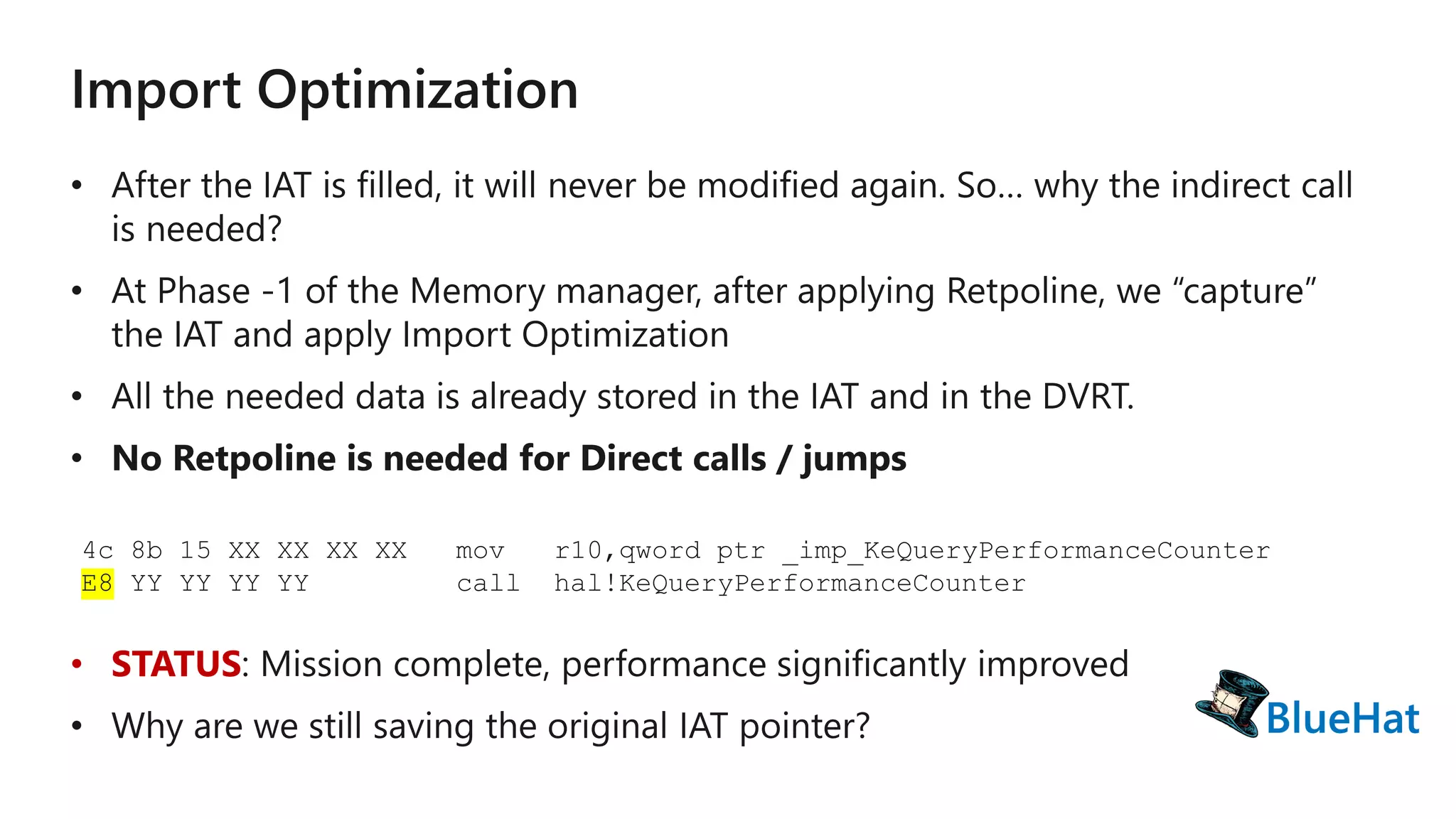

24. • STATUS

26. ▪ CPU hardware speculation control features
▪ Memory Manager Features Settings

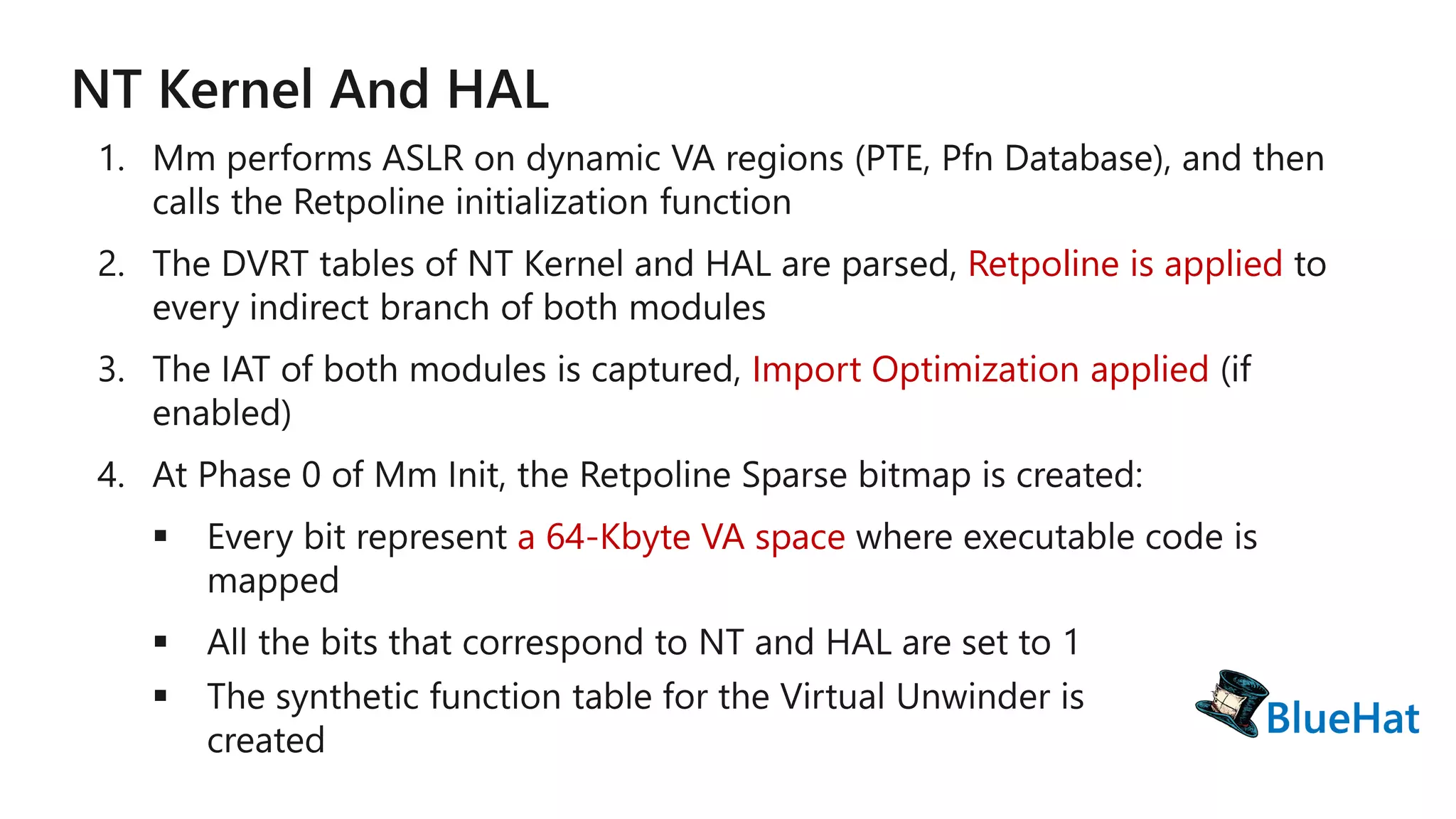

27. Retpoline is applied
Import Optimization applied
a 64-Kbyte VA space

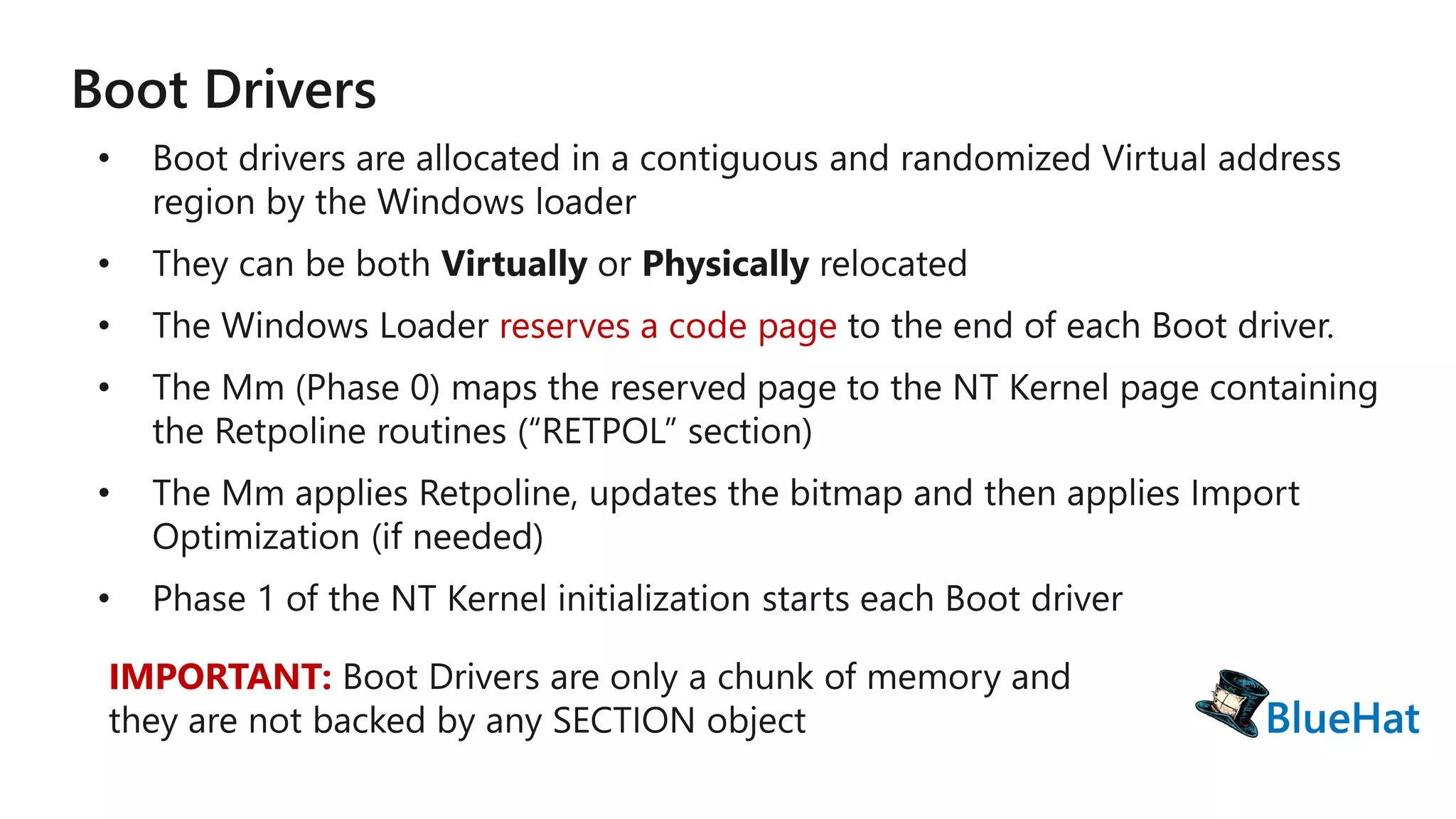

28. reserves a code page
IMPORTANT:

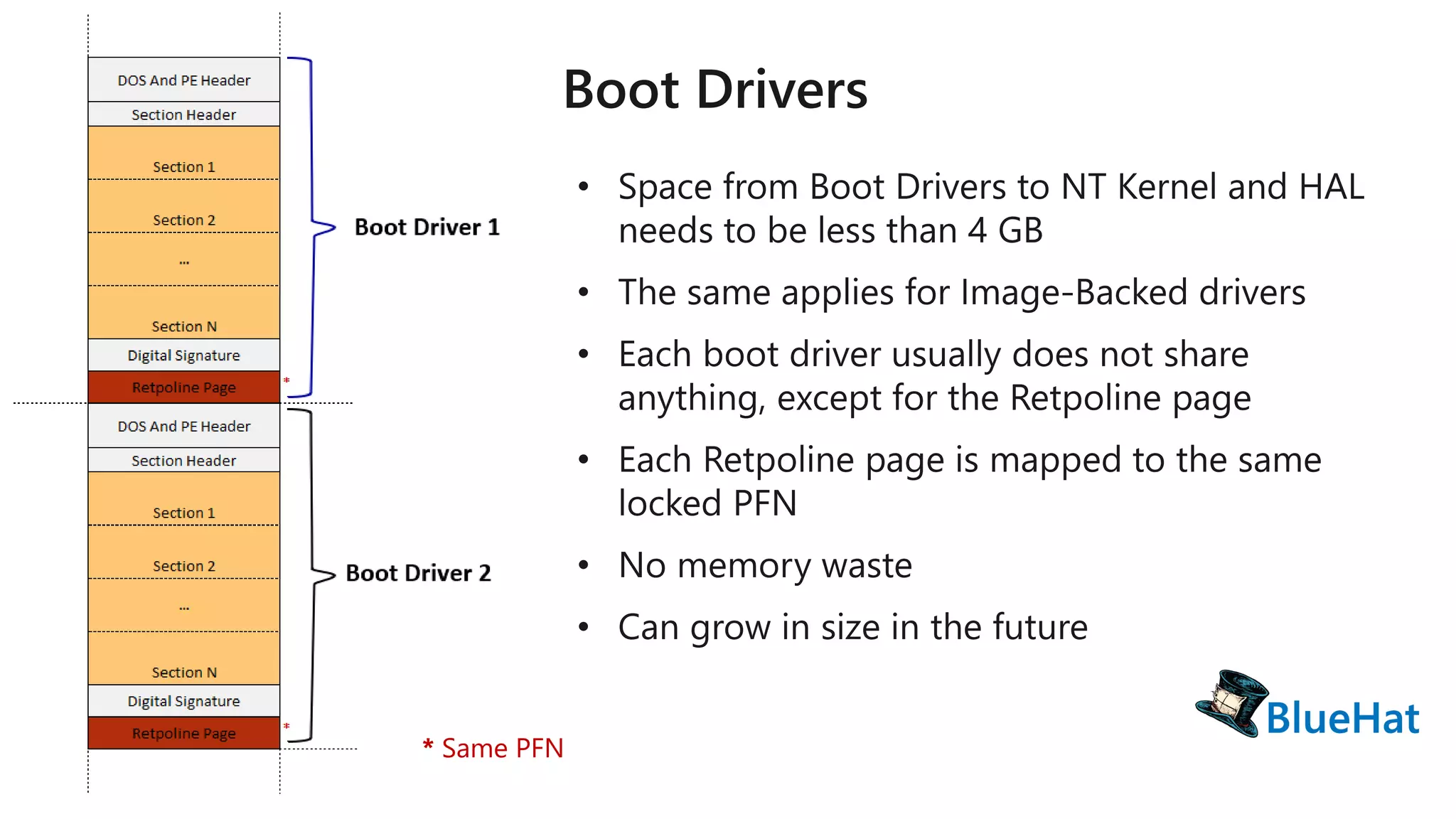

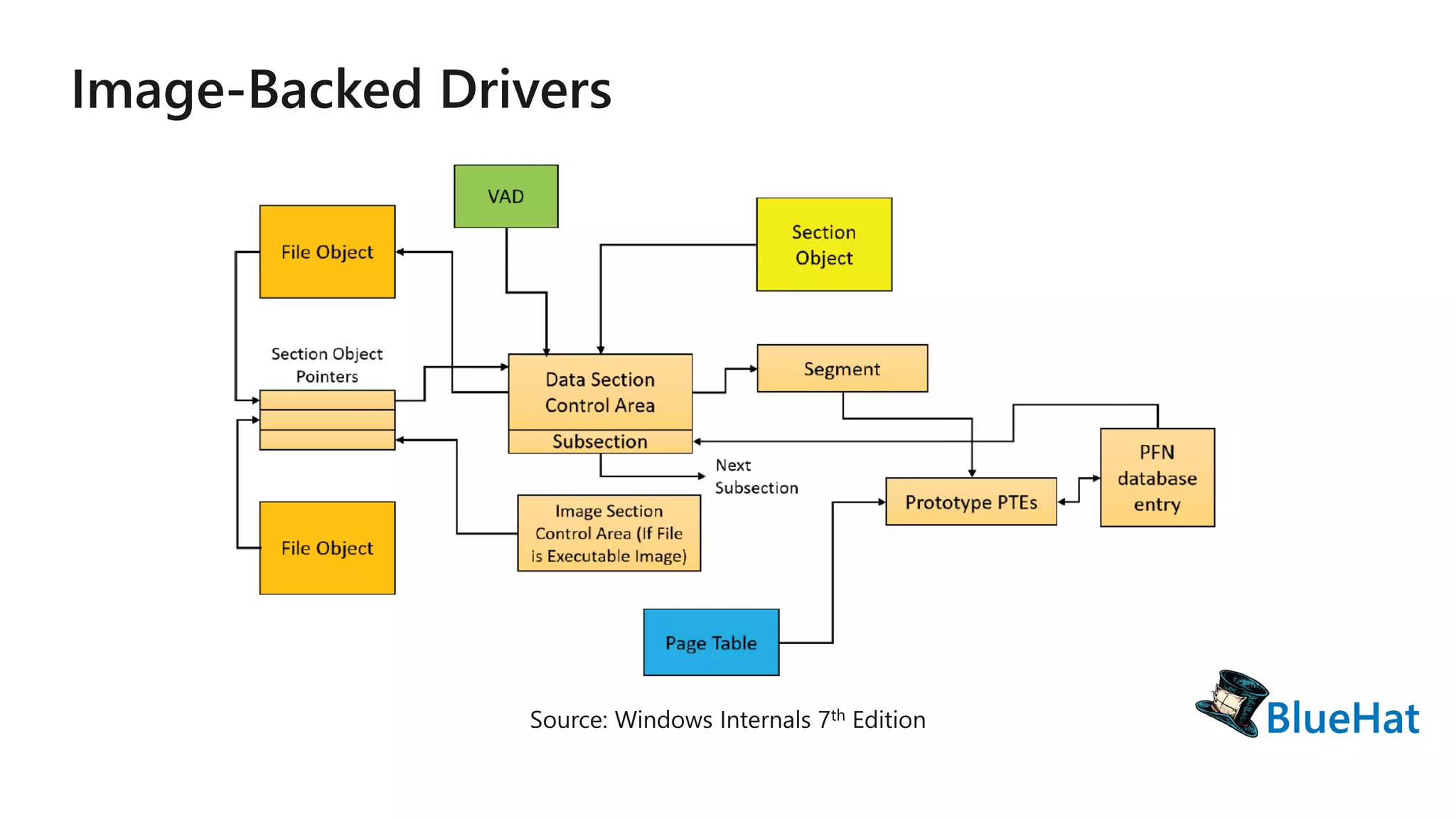

29. * Same PFN

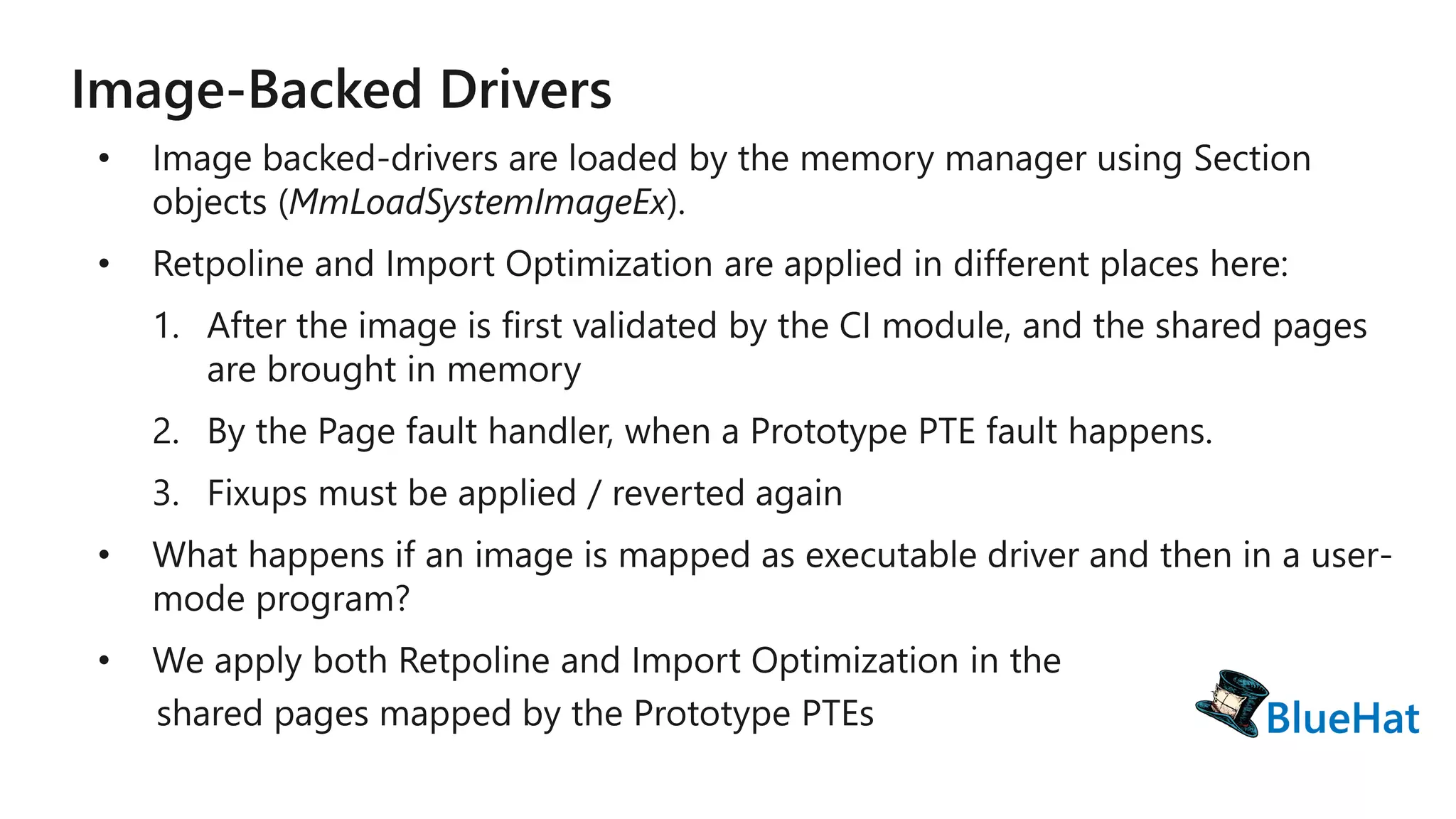

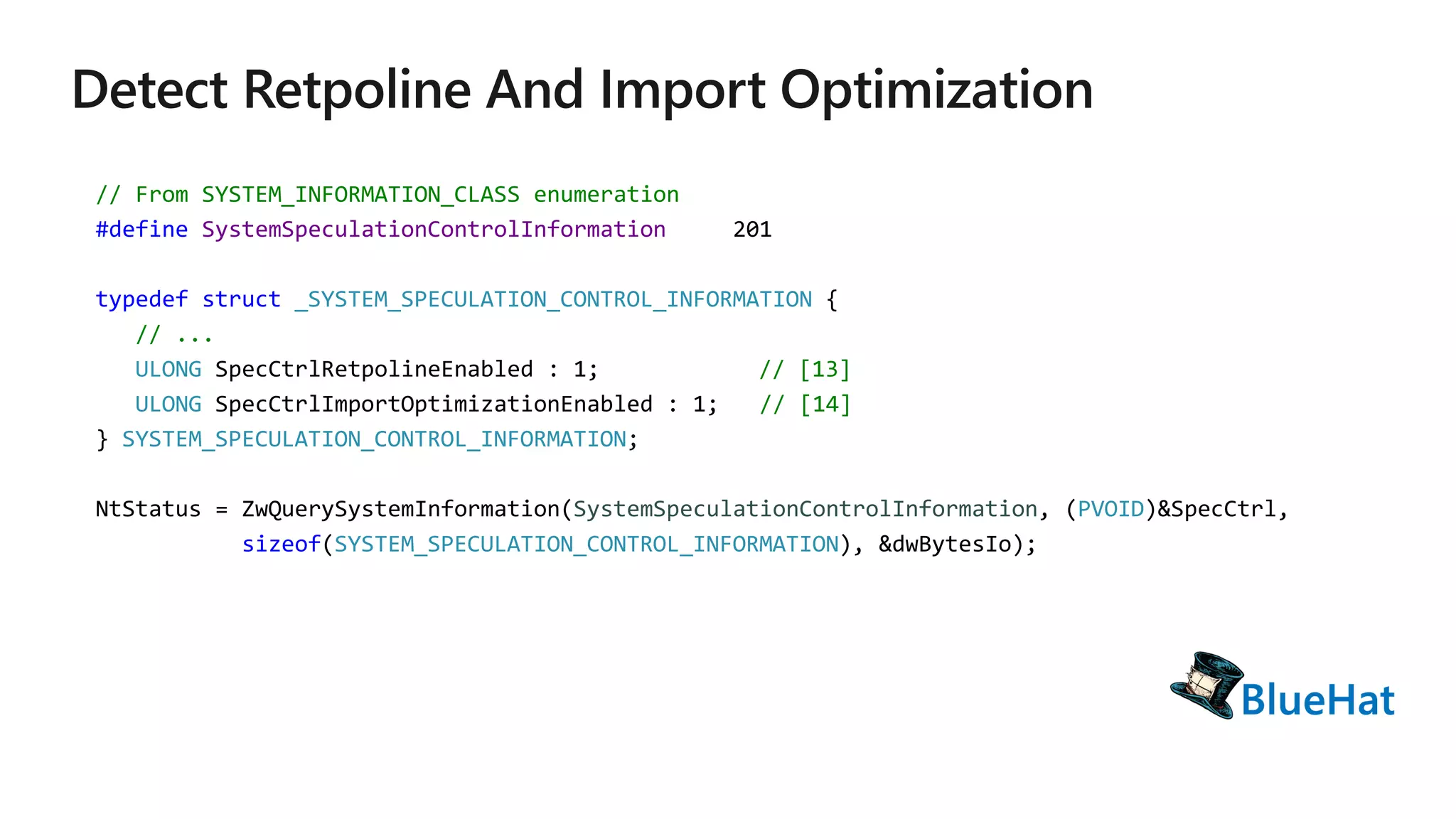

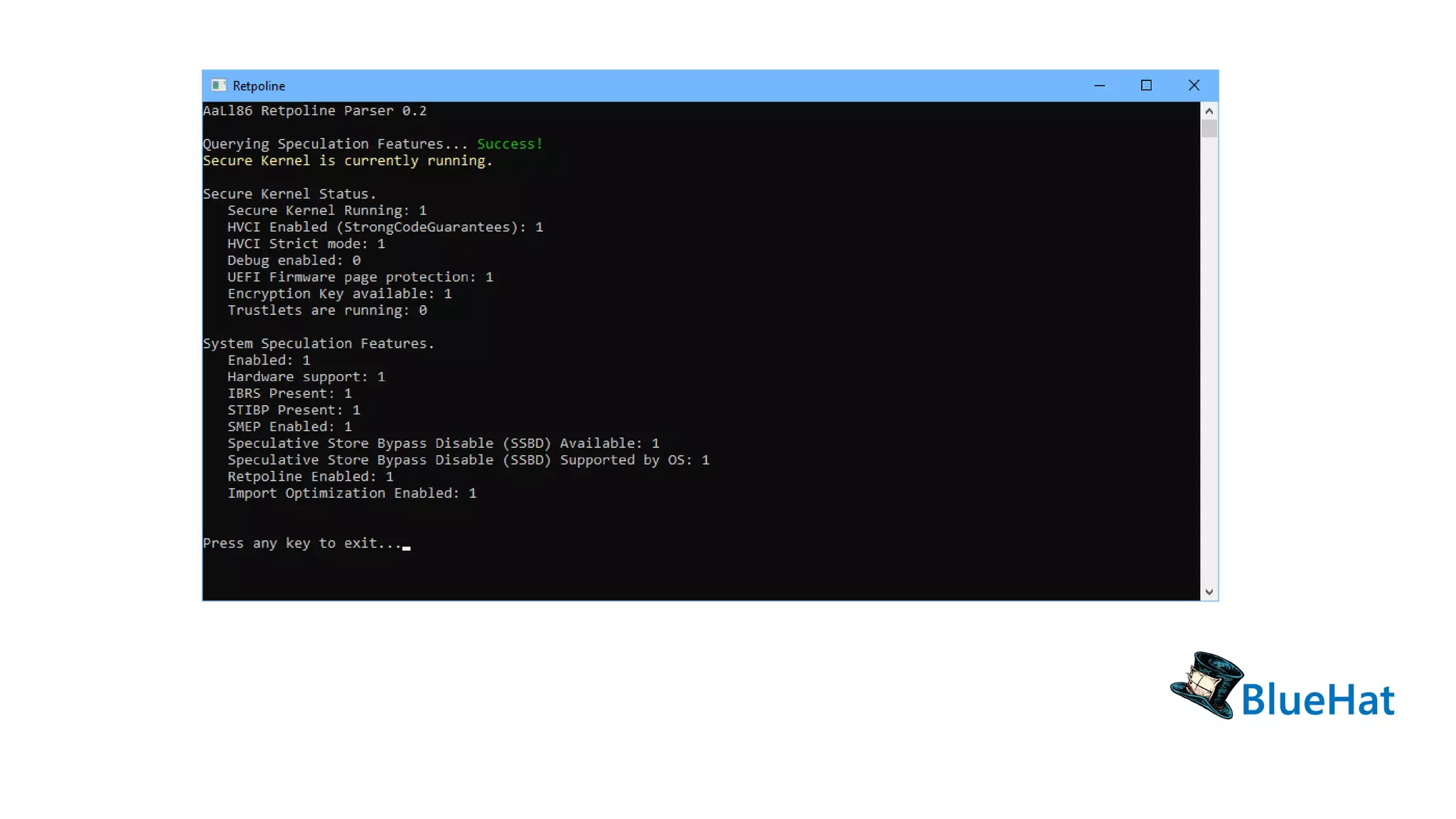

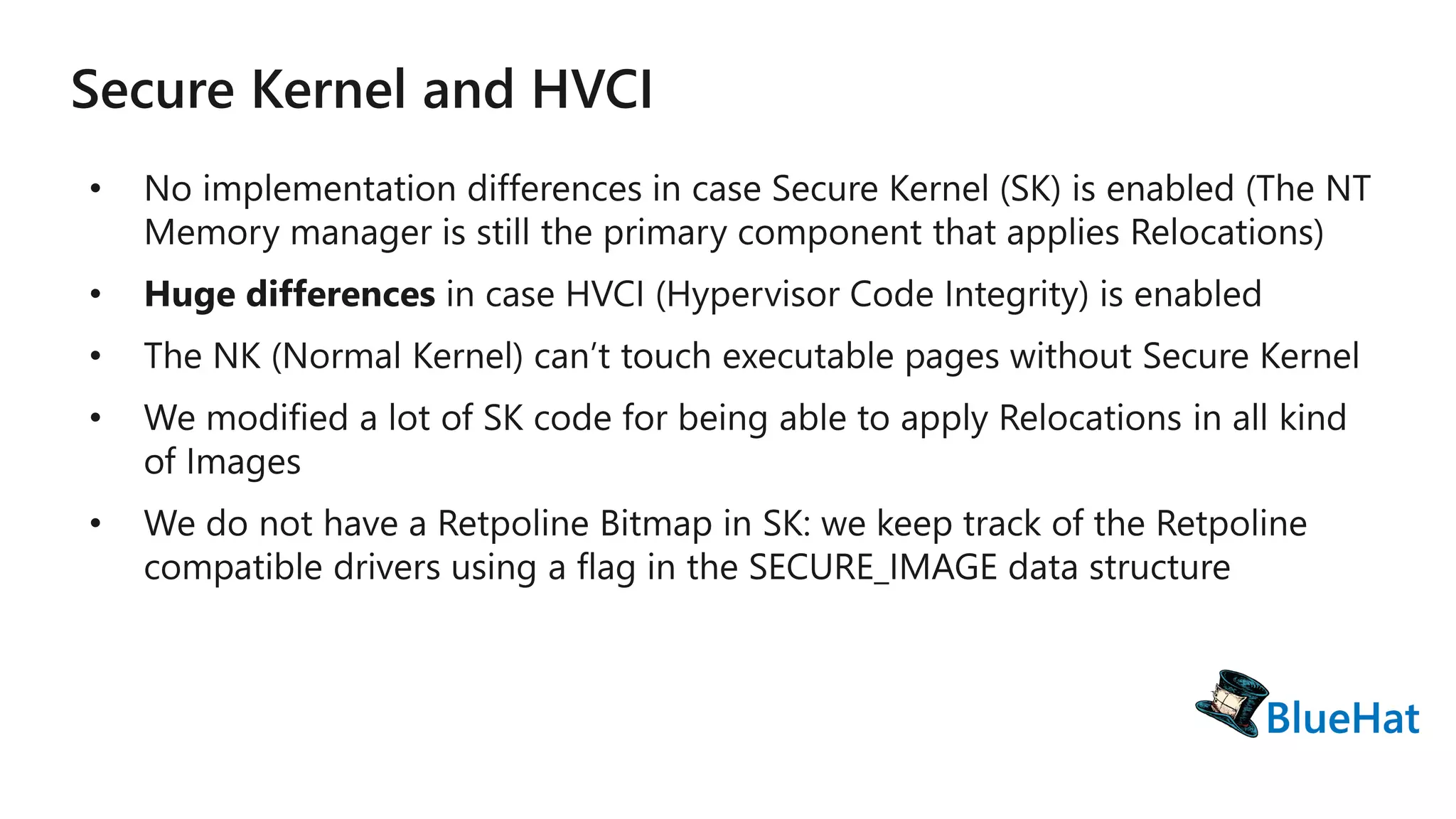

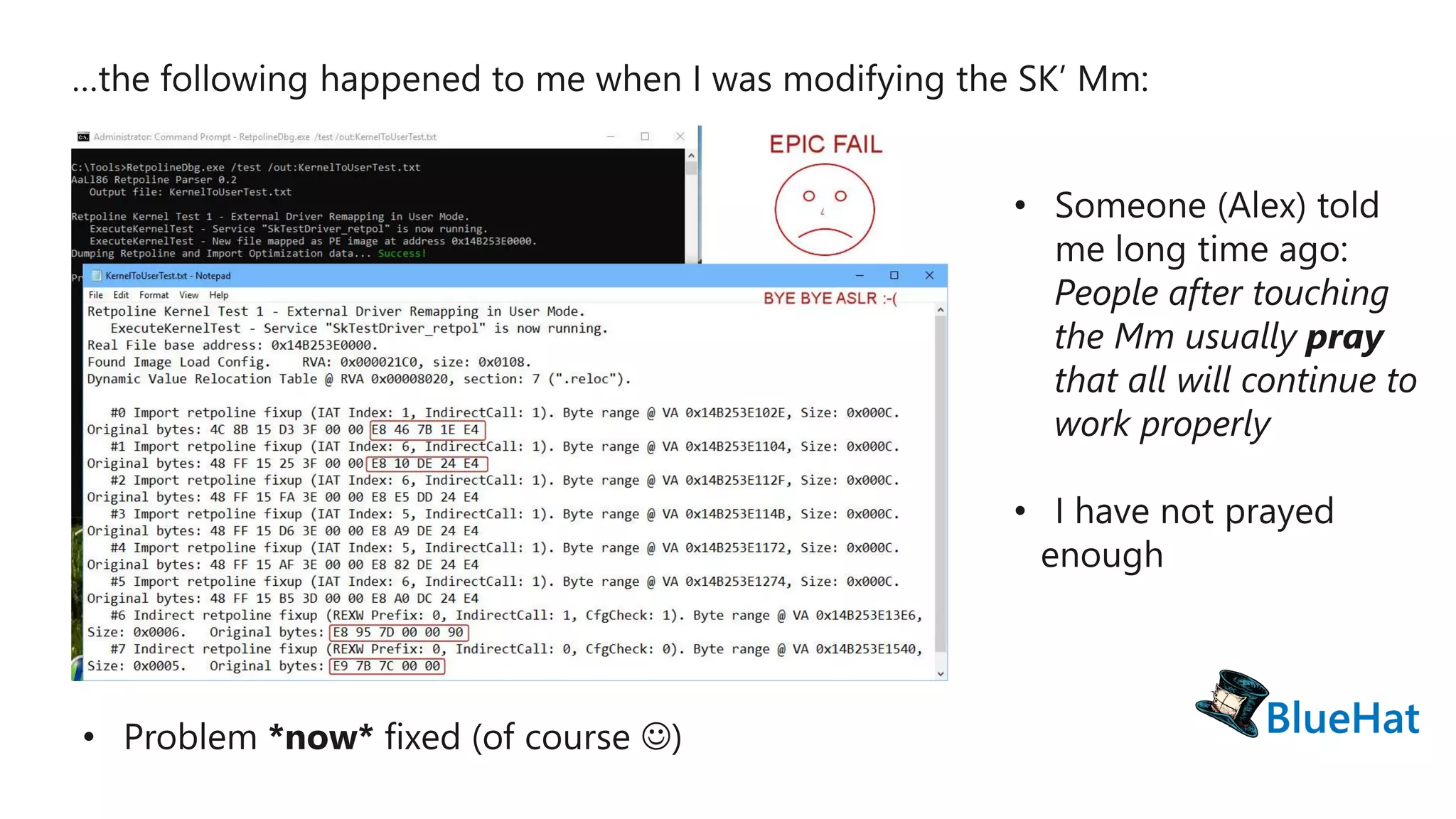

37. // From SYSTEM_INFORMATION_CLASS enumeration
#define SystemSpeculationControlInformation 201
typedef struct _SYSTEM_SPECULATION_CONTROL_INFORMATION {
// ...
ULONG SpecCtrlRetpolineEnabled : 1; // [13]
ULONG SpecCtrlImportOptimizationEnabled : 1; // [14]
} SYSTEM_SPECULATION_CONTROL_INFORMATION;
NtStatus = ZwQuerySystemInformation(SystemSpeculationControlInformation, (PVOID)&SpecCtrl,
sizeof(SYSTEM_SPECULATION_CONTROL_INFORMATION), &dwBytesIo);
