The document provides technical specifications for a flexible air duct system, including details on models, air flow rates, power consumption, noise levels, and additional features such as timers and humidity sensors. Specifically highlighted is the Sileo Design model with its energy-saving options and performance metrics. The overall focus is on residential ventilation equipment and its efficient operation.

1. Accessories
Duct system Flexible air ducts Grilles and hoods Speed controls Clamps
BlauPlast BlauFlex Decor, GM MCD 60/0.3 K, KZ
NEW
Air flow:
up to 90 m³/h
25 l/s
Power:
from 7.5 W
SFP:
from 0.30 W/l/s
Noise level:
from 26 dB(A)

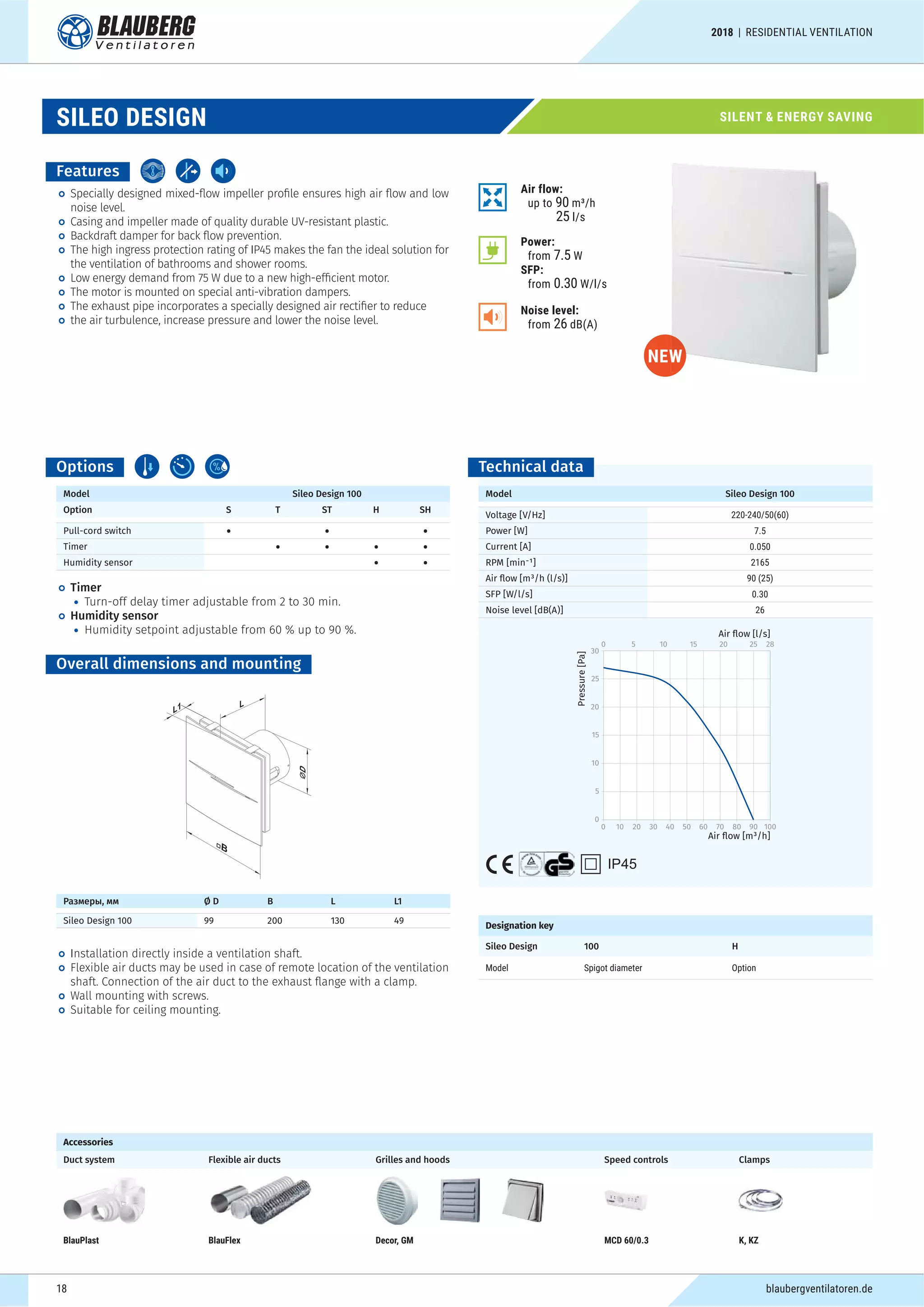

SILEO DESIGN SILENT & ENERGY SAVING
Options
Model Sileo Design 100
Option S T ST H SH
• • •
Timer • • • •
Humidity sensor • •
Timer
•
Humidity sensor
•
Features
Designation key
Sileo Design 100 H
Model Spigot diameter Option
Overall dimensions and mounting
Ø D B L L1
Sileo Design 100 99 200 130 49
Technical data
Model Sileo Design 100
Voltage [V/Hz] 220-240/50(60)
7.5
Current [A] 0.050
2165
90 (25)
SFP [W/l/s] 0.30
Noise level [dB(A)] 26
0
0 2010 30 40 50 60 70 80 10090
5
10
15
20
25
30
0 25 285 201510
Pressure[Pa]
Air flow [m³/h]
Air flow [l/s]
blaubergventilatoren.de18
2018 | RESIDENTIAL VENTILATION
