In this presentation, we would like to present how BITS and CHIPSEC can be utilized on top of coreboot enabled platform to verify the quality of underlying firmware. Firmware security is mostly about validation and formal development processes. To achieve some level of confidence about firmware implementation quality various tools were developed, of which most notable are CHIPSEC and BITS. BITS (BIOS Implementation Test Suite) consist of a GRUB2 bootloader extended with runtime Python support. CHIPSEC is a Platform Security Assessment Framework which mostly focuses on platform configuration but can also be used for other purposes (e.g. verification of Spectre mitigation presence). We would like to present what issues firmware developers may face and what we were able to achieve at this ground using BITS and CHIPSEC for validation of PC Engines apu2 and MinnowBoard Turbot platform. We want to present what modifications are required to integrated Python code along with CHIPSEC and BITS scripts. We also would like to demonstrate practical usage of mentioned frameworks by showing short demo.

1. BITS and CHIPSEC as coreboot payloads
OSFC 2018
Piotr Król and Michał Żygowski
1 / 18

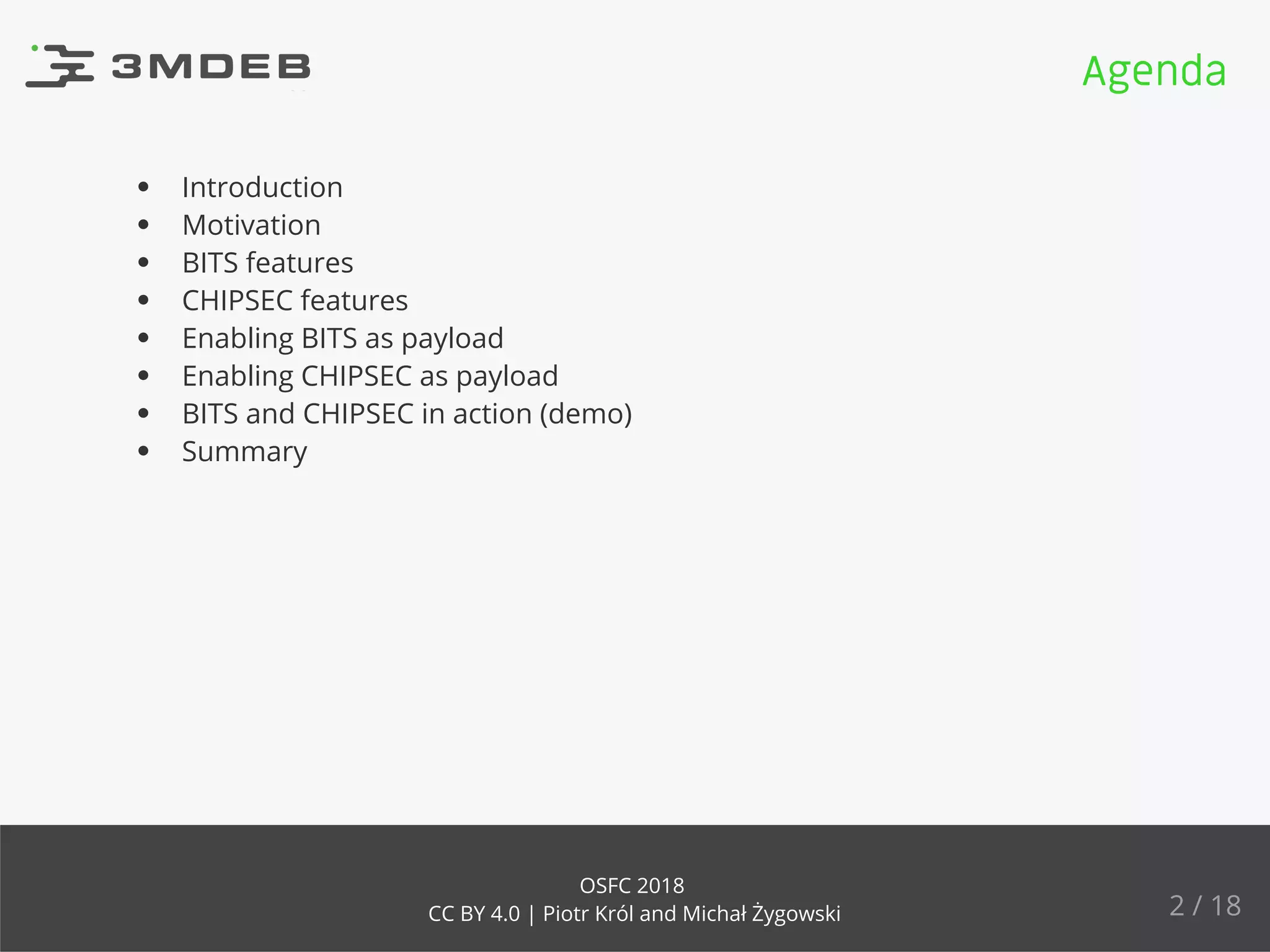

2. Introduction
Motivation
BITS features
CHIPSEC features
Enabling BITS as payload
Enabling CHIPSEC as payload
BITS and CHIPSEC in action (demo)
Summary
Agenda
2 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

3. Piotr Król Michał Żygowski
Founder & Embedded Systems
Consultant
Firmware Engineer
michal.zygowski@3mdeb.com
linkedin.com/in/michał-żygowski-
88954416b
@pietrushnic
piotr.krol@3mdeb.com
linkedin.com/in/krolpiotr
facebook.com/piotr.krol.756859
Introduction
3 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

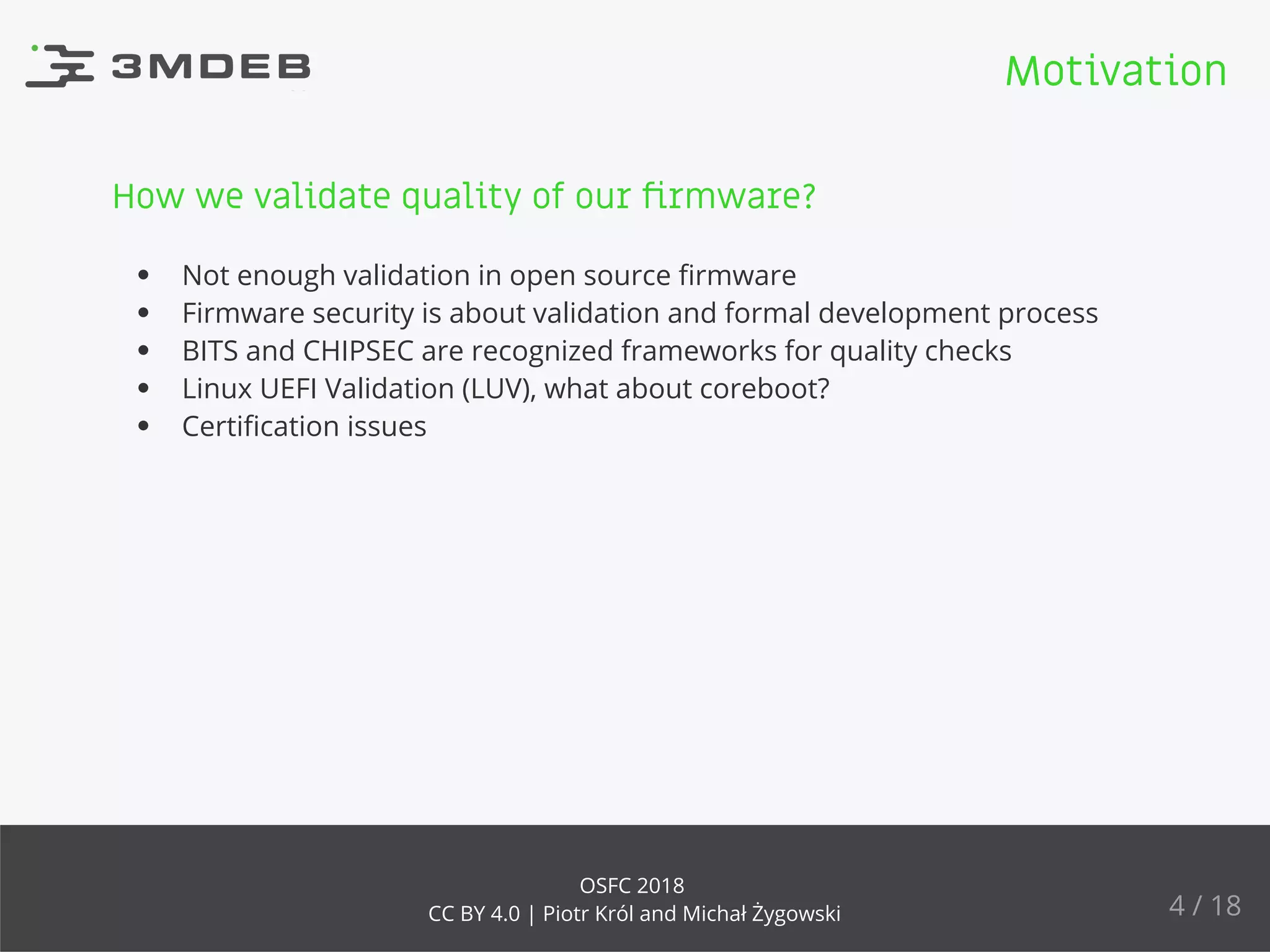

4. How we validate quality of our firmware?
Not enough validation in open source firmware
Firmware security is about validation and formal development process
BITS and CHIPSEC are recognized frameworks for quality checks
Linux UEFI Validation (LUV), what about coreboot?
Certification issues
Motivation
4 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

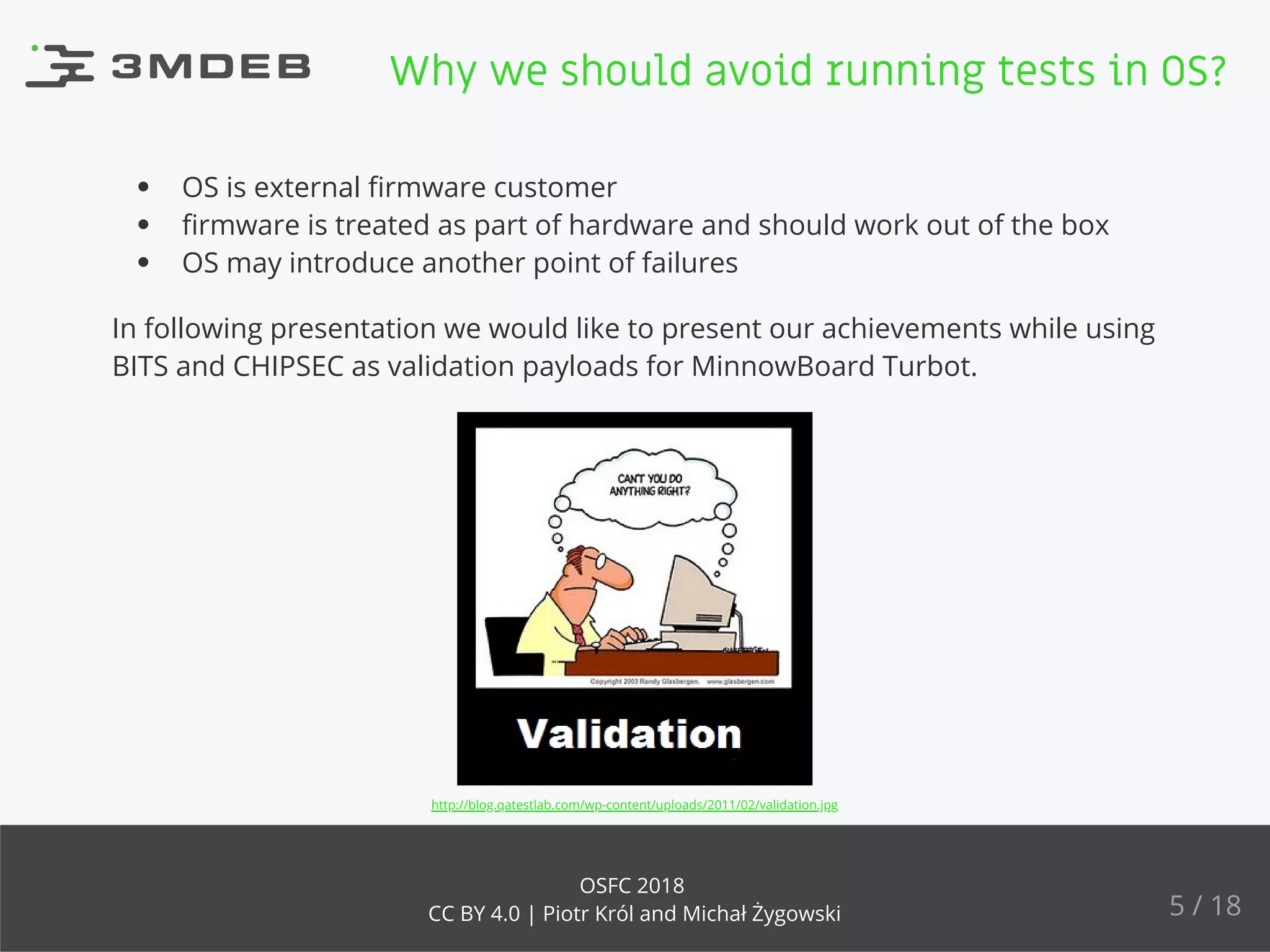

5. OS is external firmware customer
firmware is treated as part of hardware and should work out of the box
OS may introduce another point of failures
In following presentation we would like to present our achievements while using
BITS and CHIPSEC as validation payloads for MinnowBoard Turbot.
http://blog.qatestlab.com/wp-content/uploads/2011/02/validation.jpg
Why we should avoid running tests in OS?
5 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

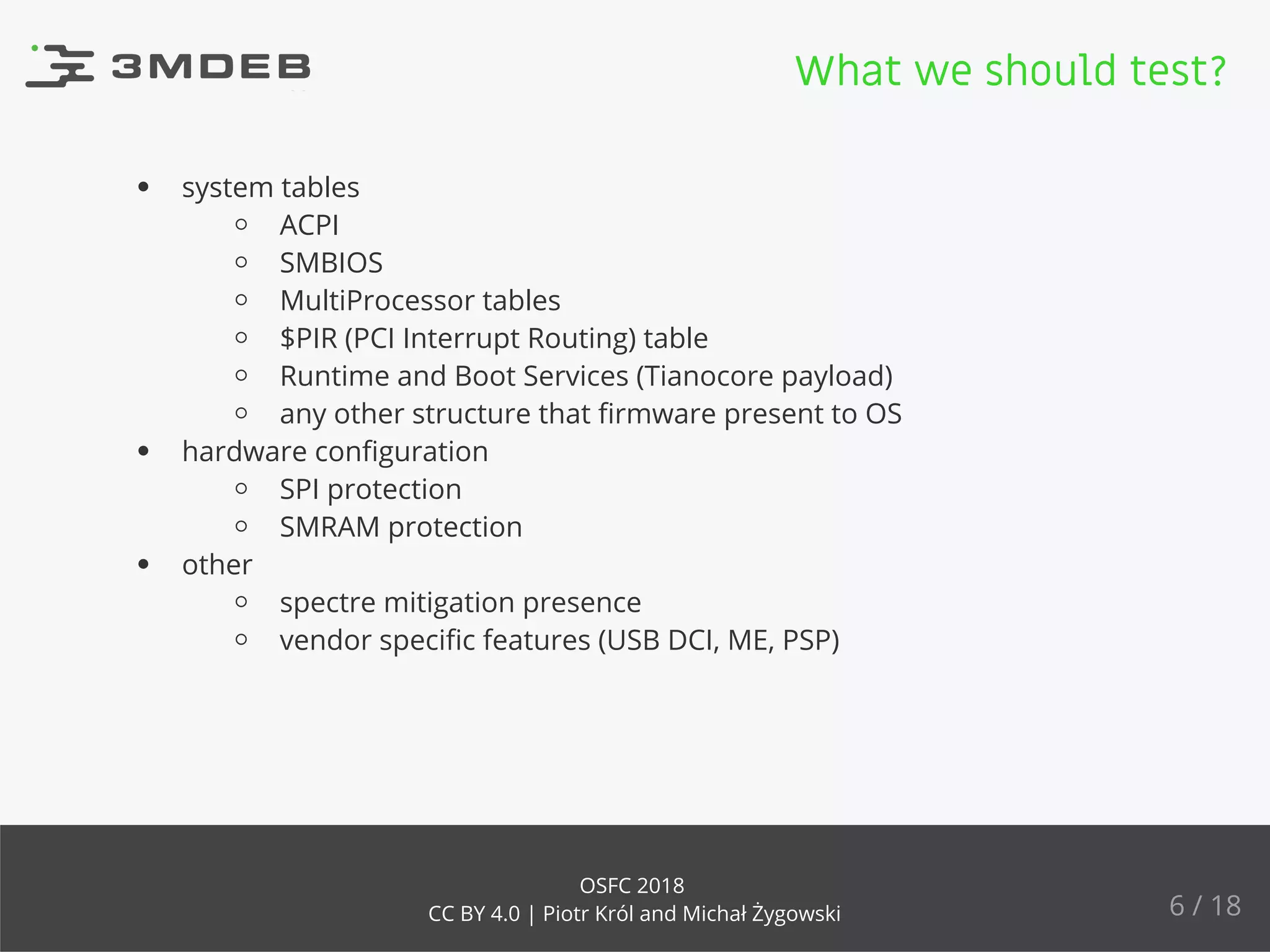

6. system tables
ACPI
SMBIOS
MultiProcessor tables
$PIR (PCI Interrupt Routing) table
Runtime and Boot Services (Tianocore payload)
any other structure that firmware present to OS
hardware configuration
SPI protection
SMRAM protection
other
spectre mitigation presence
vendor specific features (USB DCI, ME, PSP)
What we should test?
6 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

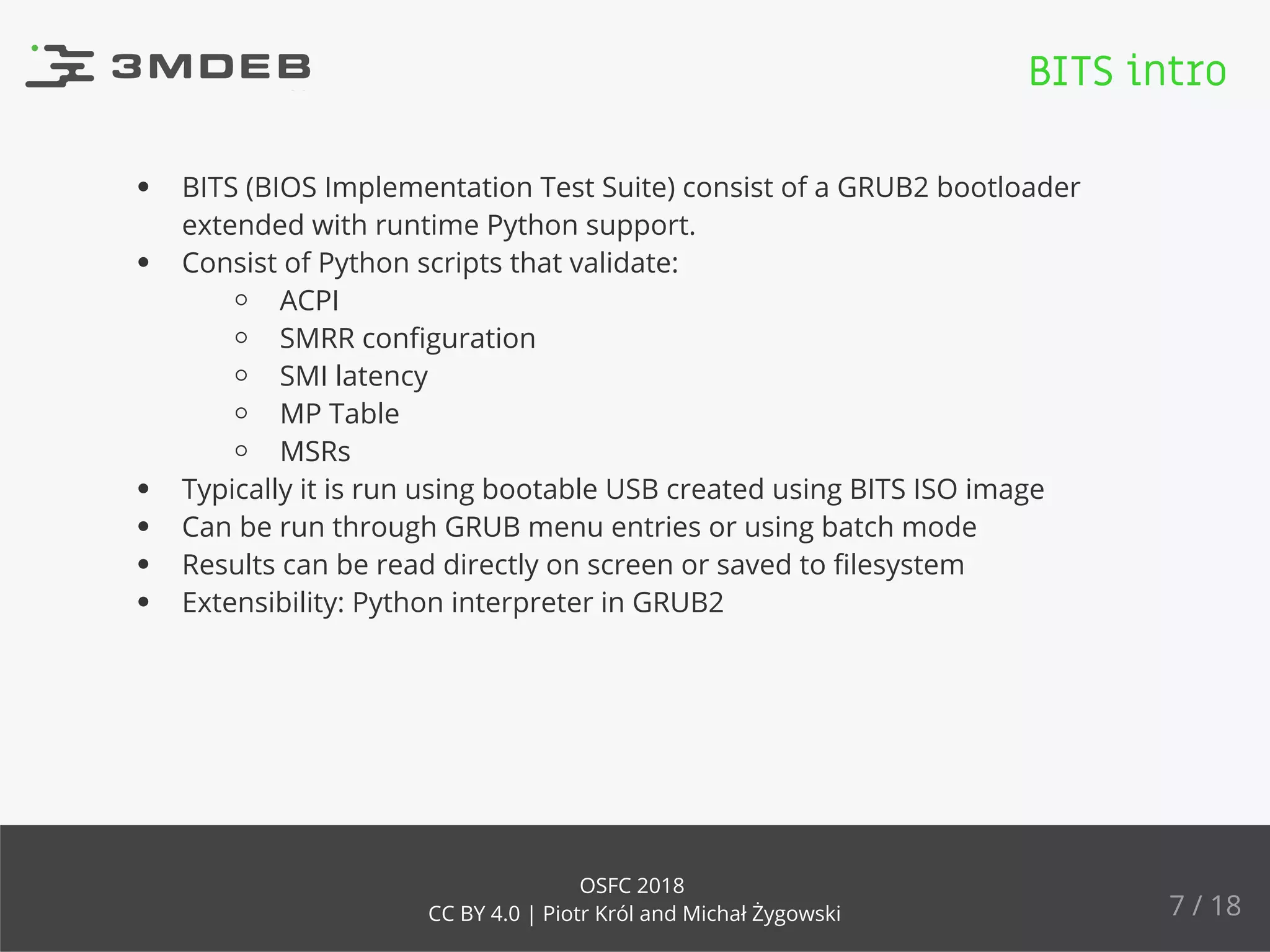

7. BITS (BIOS Implementation Test Suite) consist of a GRUB2 bootloader
extended with runtime Python support.
Consist of Python scripts that validate:
ACPI
SMRR configuration
SMI latency
MP Table
MSRs
Typically it is run using bootable USB created using BITS ISO image
Can be run through GRUB menu entries or using batch mode
Results can be read directly on screen or saved to filesystem
Extensibility: Python interpreter in GRUB2
BITS intro
7 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

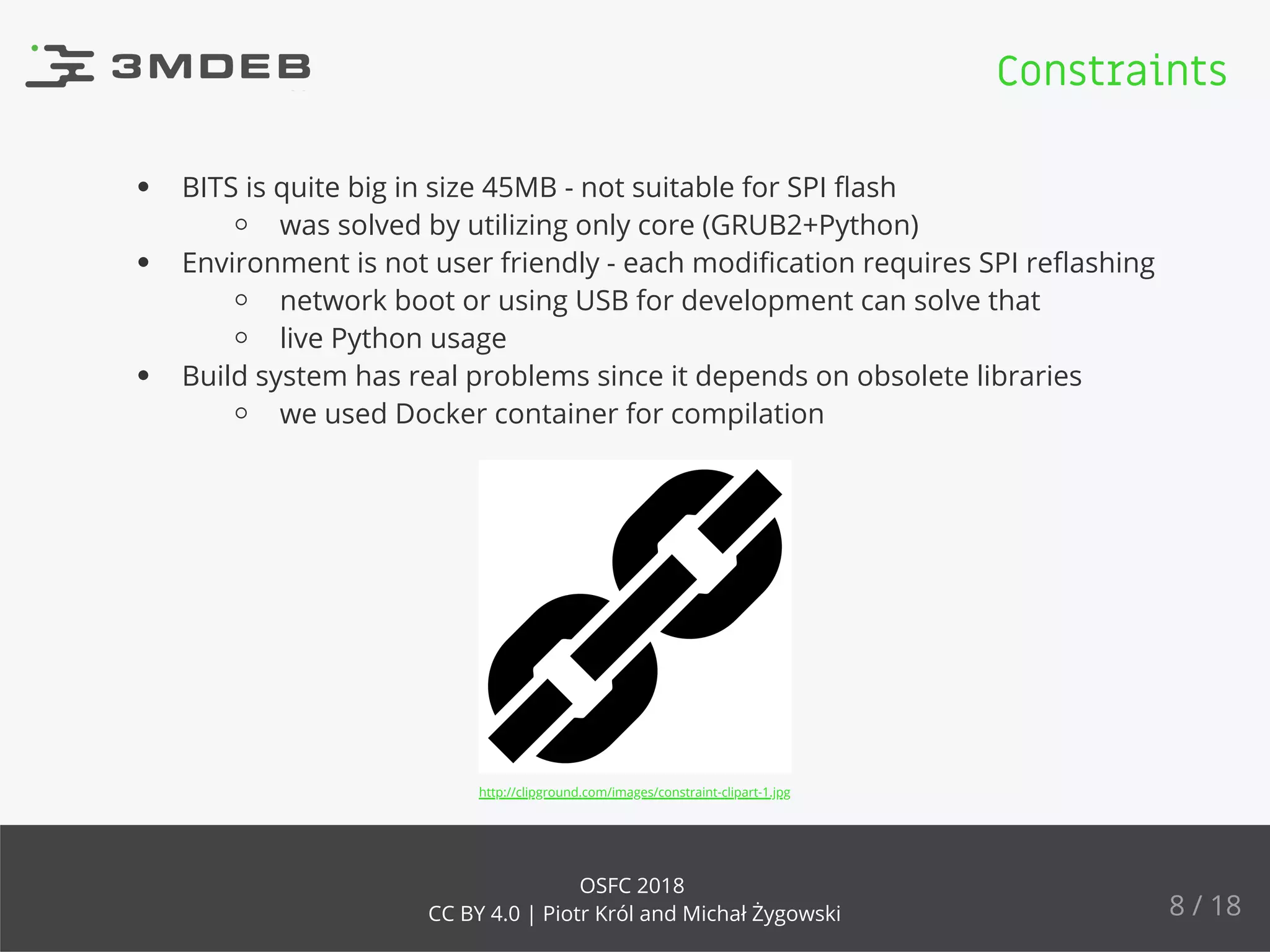

8. BITS is quite big in size 45MB - not suitable for SPI flash
was solved by utilizing only core (GRUB2+Python)
Environment is not user friendly - each modification requires SPI reflashing
network boot or using USB for development can solve that
live Python usage
Build system has real problems since it depends on obsolete libraries
we used Docker container for compilation
http://clipground.com/images/constraint-clipart-1.jpg
Constraints
8 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

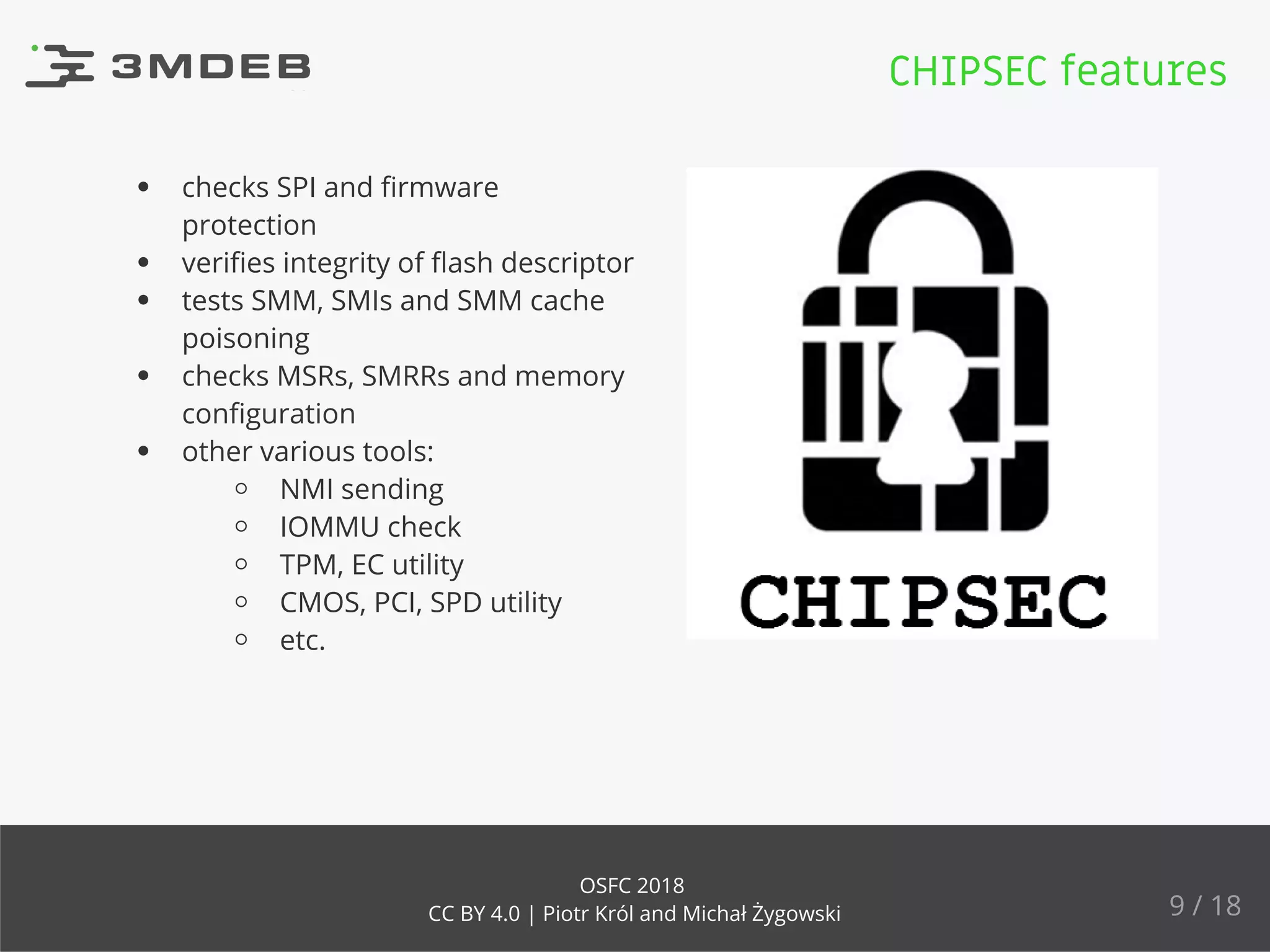

9. checks SPI and firmware
protection
verifies integrity of flash descriptor
tests SMM, SMIs and SMM cache
poisoning
checks MSRs, SMRRs and memory
configuration
other various tools:
NMI sending
IOMMU check
TPM, EC utility
CMOS, PCI, SPD utility
etc.
CHIPSEC features
9 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

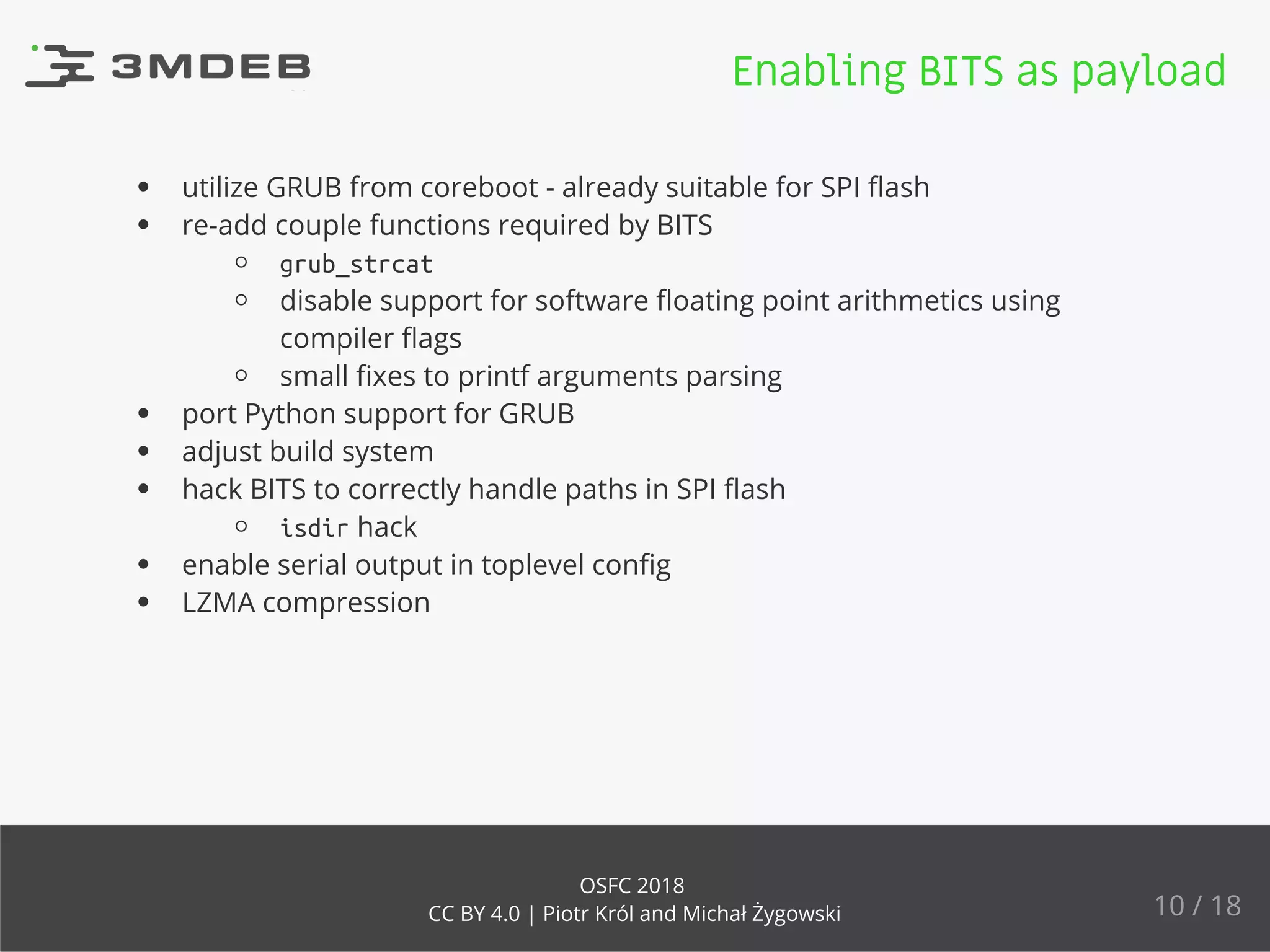

10. utilize GRUB from coreboot - already suitable for SPI flash
re-add couple functions required by BITS
grub_strcat
disable support for software floating point arithmetics using
compiler flags
small fixes to printf arguments parsing
port Python support for GRUB
adjust build system
hack BITS to correctly handle paths in SPI flash
isdir hack
enable serial output in toplevel config
LZMA compression
Enabling BITS as payload
10 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

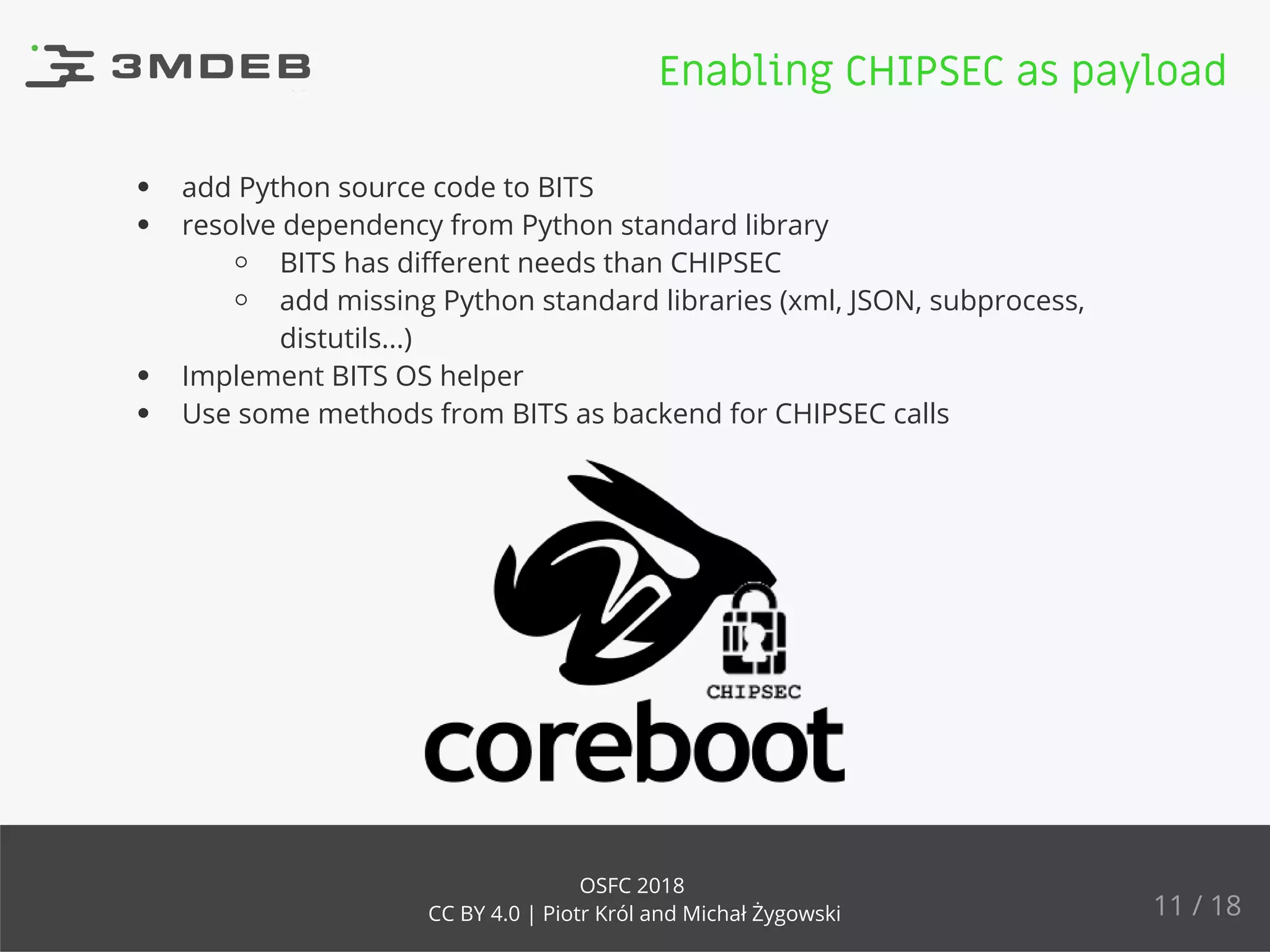

11. add Python source code to BITS
resolve dependency from Python standard library
BITS has different needs than CHIPSEC
add missing Python standard libraries (xml, JSON, subprocess,
distutils...)
Implement BITS OS helper
Use some methods from BITS as backend for CHIPSEC calls
Enabling CHIPSEC as payload
11 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

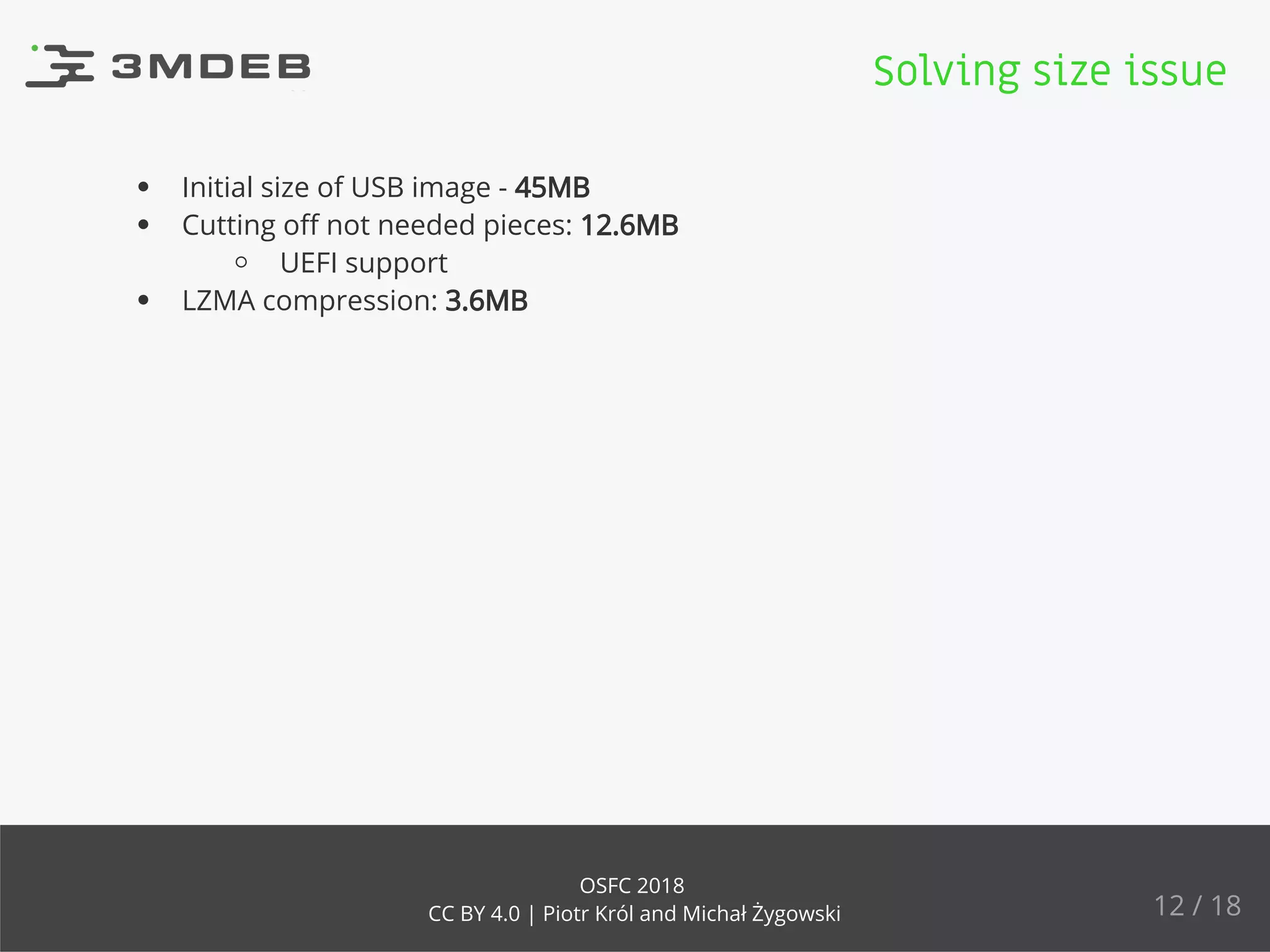

12. Initial size of USB image - 45MB
Cutting off not needed pieces: 12.6MB
UEFI support
LZMA compression: 3.6MB
Solving size issue
12 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

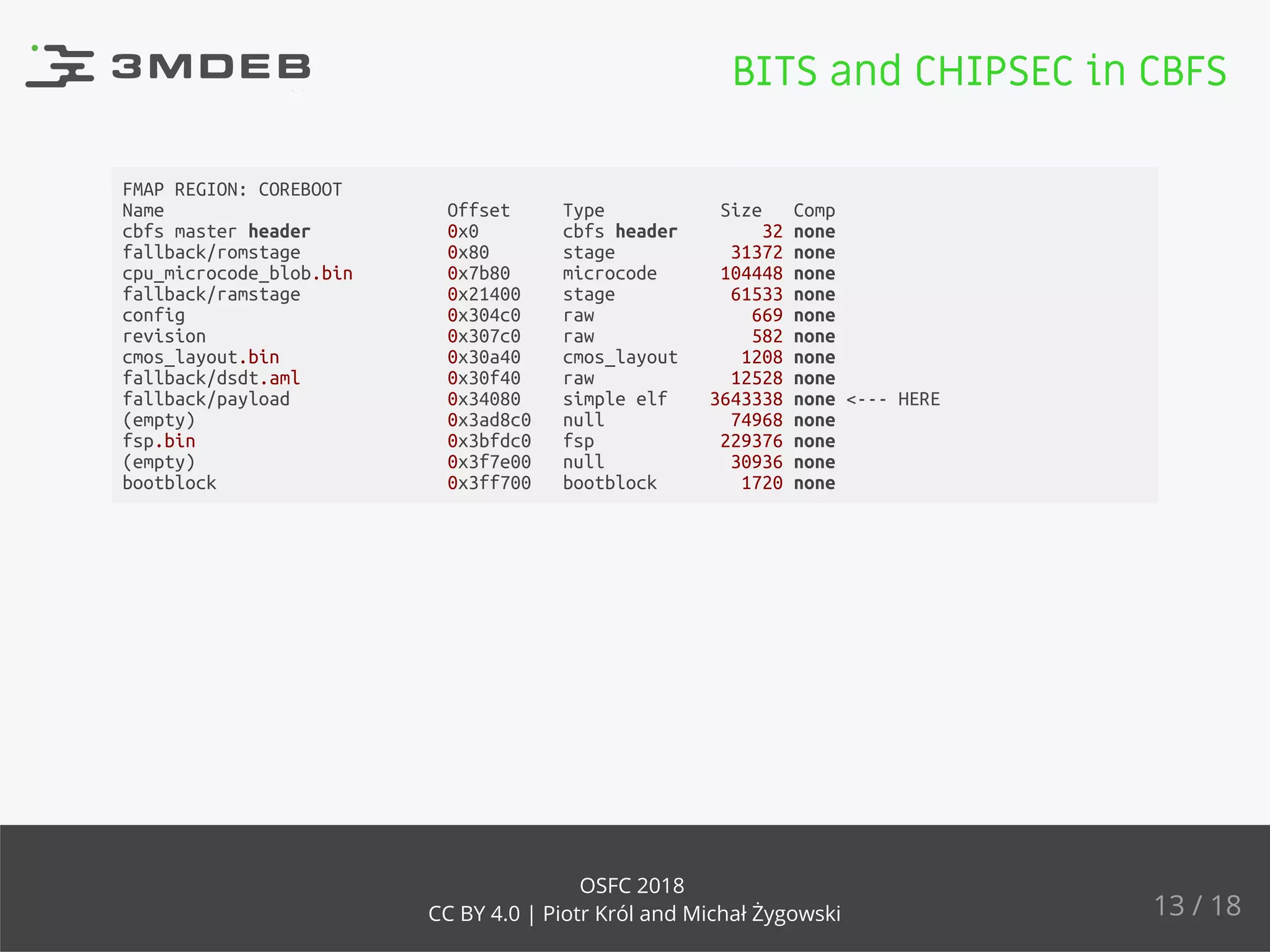

13. FMAP REGION: COREBOOT
Name Offset Type Size Comp
cbfs master header 0x0 cbfs header 32 none
fallback/romstage 0x80 stage 31372 none
cpu_microcode_blob.bin 0x7b80 microcode 104448 none
fallback/ramstage 0x21400 stage 61533 none
config 0x304c0 raw 669 none
revision 0x307c0 raw 582 none
cmos_layout.bin 0x30a40 cmos_layout 1208 none
fallback/dsdt.aml 0x30f40 raw 12528 none
fallback/payload 0x34080 simple elf 3643338 none <--- HERE
(empty) 0x3ad8c0 null 74968 none
fsp.bin 0x3bfdc0 fsp 229376 none
(empty) 0x3f7e00 null 30936 none
bootblock 0x3ff700 bootblock 1720 none
BITS and CHIPSEC in CBFS
13 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

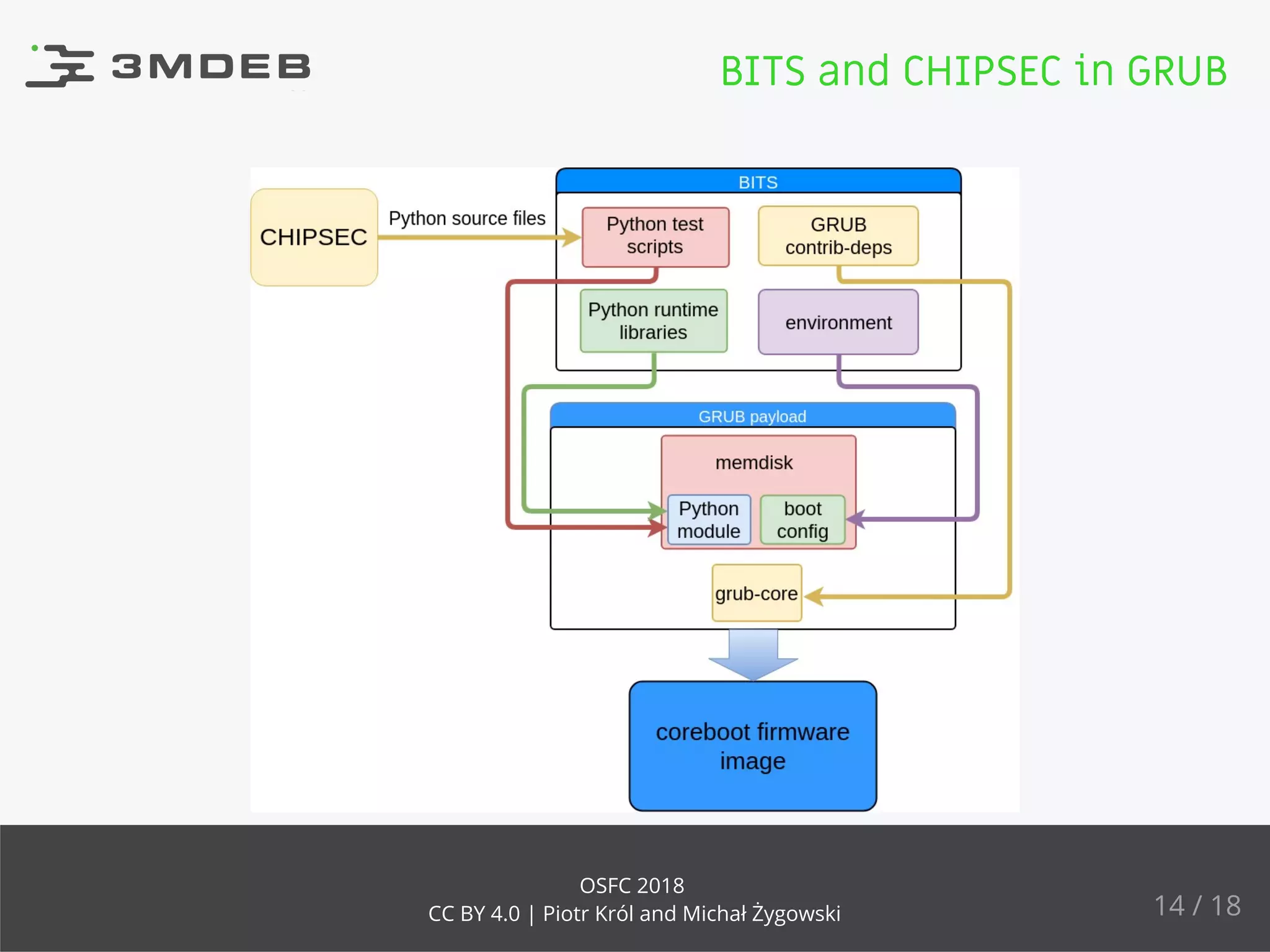

14. BITS and CHIPSEC in GRUB
14 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

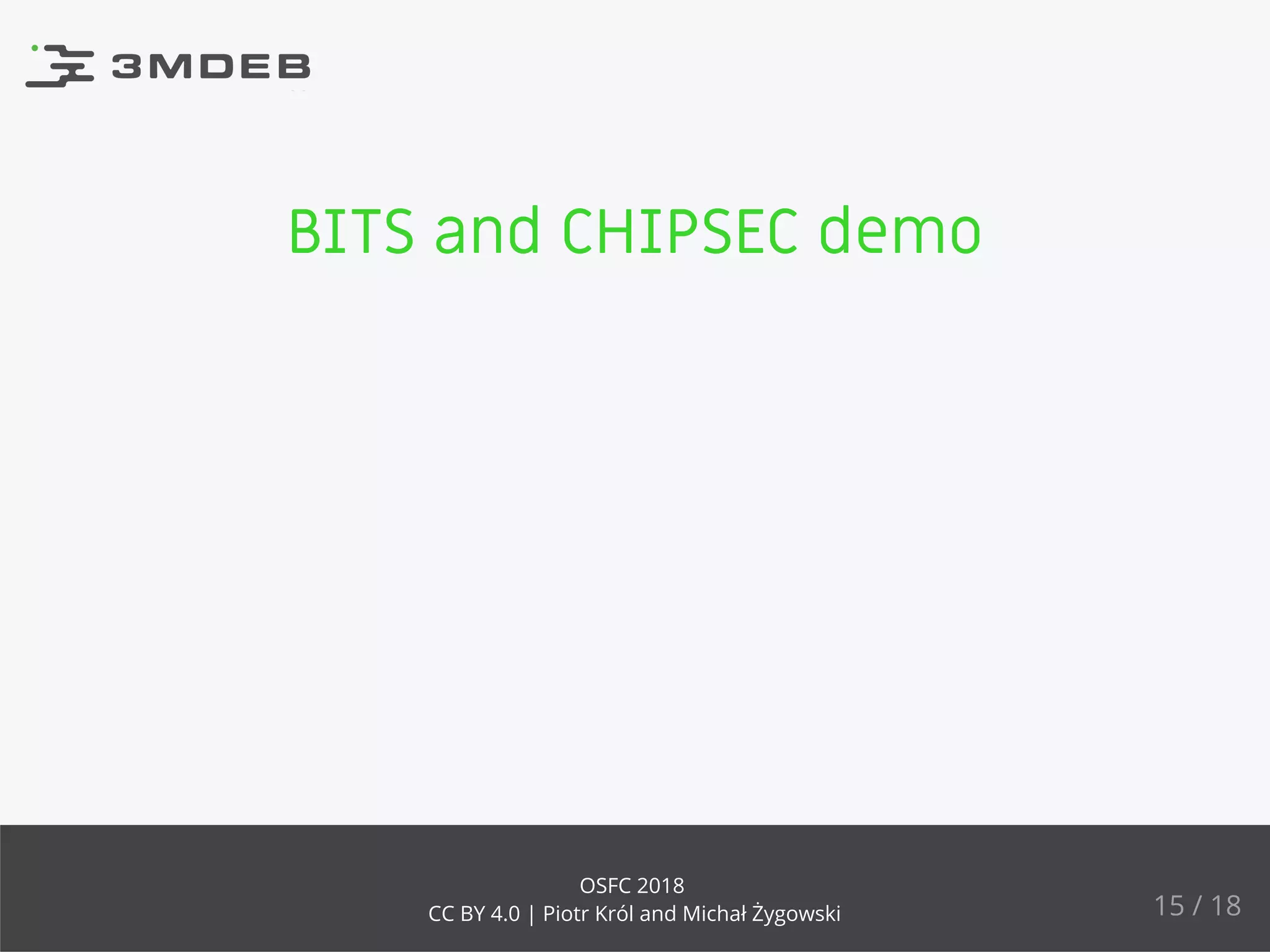

15. BITS and CHIPSEC demo
15 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

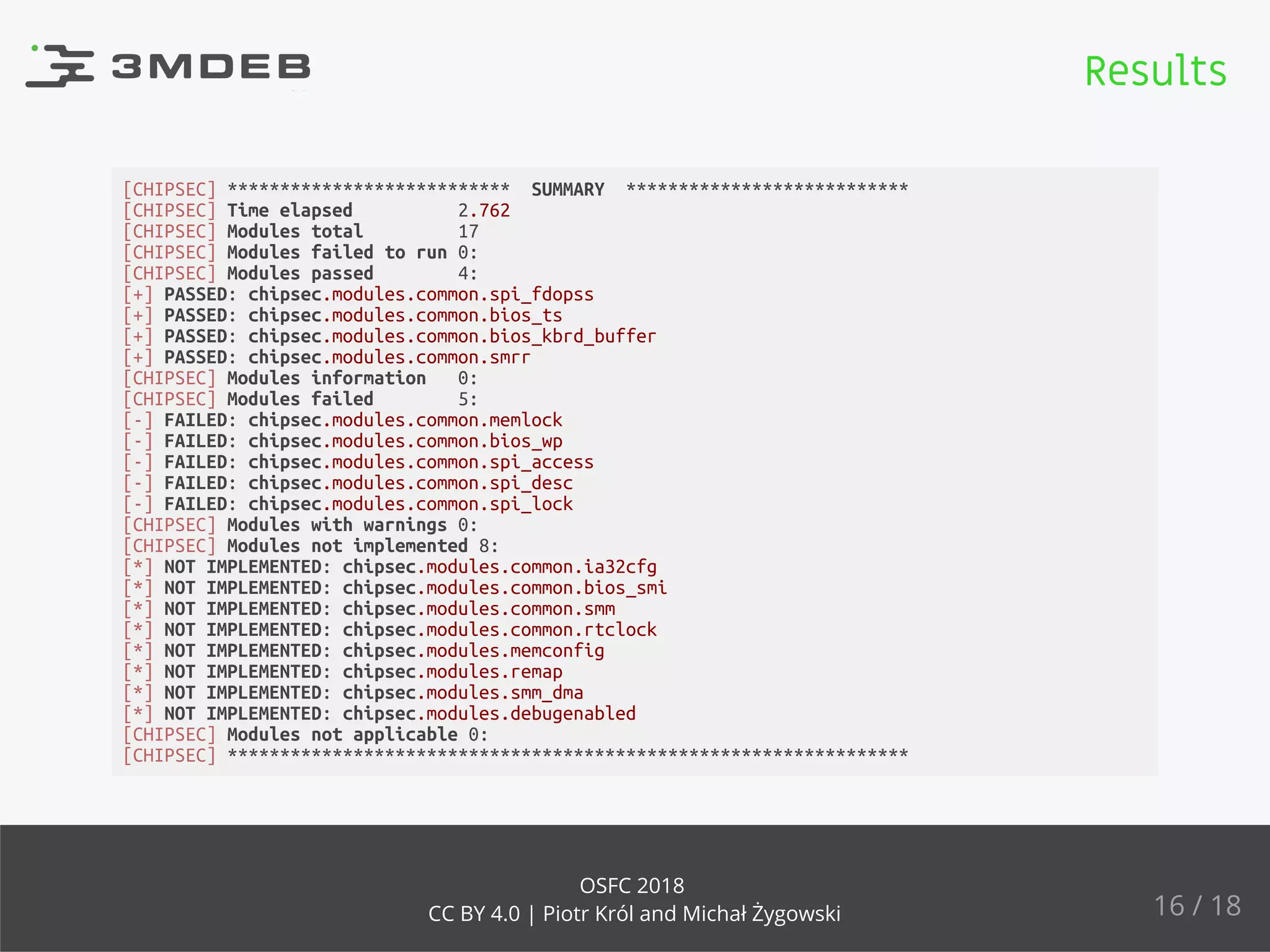

16. [CHIPSEC] *************************** SUMMARY ***************************
[CHIPSEC] Time elapsed 2.762
[CHIPSEC] Modules total 17
[CHIPSEC] Modules failed to run 0:
[CHIPSEC] Modules passed 4:
[+] PASSED: chipsec.modules.common.spi_fdopss
[+] PASSED: chipsec.modules.common.bios_ts
[+] PASSED: chipsec.modules.common.bios_kbrd_buffer
[+] PASSED: chipsec.modules.common.smrr
[CHIPSEC] Modules information 0:
[CHIPSEC] Modules failed 5:
[-] FAILED: chipsec.modules.common.memlock
[-] FAILED: chipsec.modules.common.bios_wp
[-] FAILED: chipsec.modules.common.spi_access
[-] FAILED: chipsec.modules.common.spi_desc
[-] FAILED: chipsec.modules.common.spi_lock
[CHIPSEC] Modules with warnings 0:
[CHIPSEC] Modules not implemented 8:
[*] NOT IMPLEMENTED: chipsec.modules.common.ia32cfg
[*] NOT IMPLEMENTED: chipsec.modules.common.bios_smi
[*] NOT IMPLEMENTED: chipsec.modules.common.smm
[*] NOT IMPLEMENTED: chipsec.modules.common.rtclock
[*] NOT IMPLEMENTED: chipsec.modules.memconfig
[*] NOT IMPLEMENTED: chipsec.modules.remap
[*] NOT IMPLEMENTED: chipsec.modules.smm_dma
[*] NOT IMPLEMENTED: chipsec.modules.debugenabled
[CHIPSEC] Modules not applicable 0:
[CHIPSEC] *****************************************************************
Results
16 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

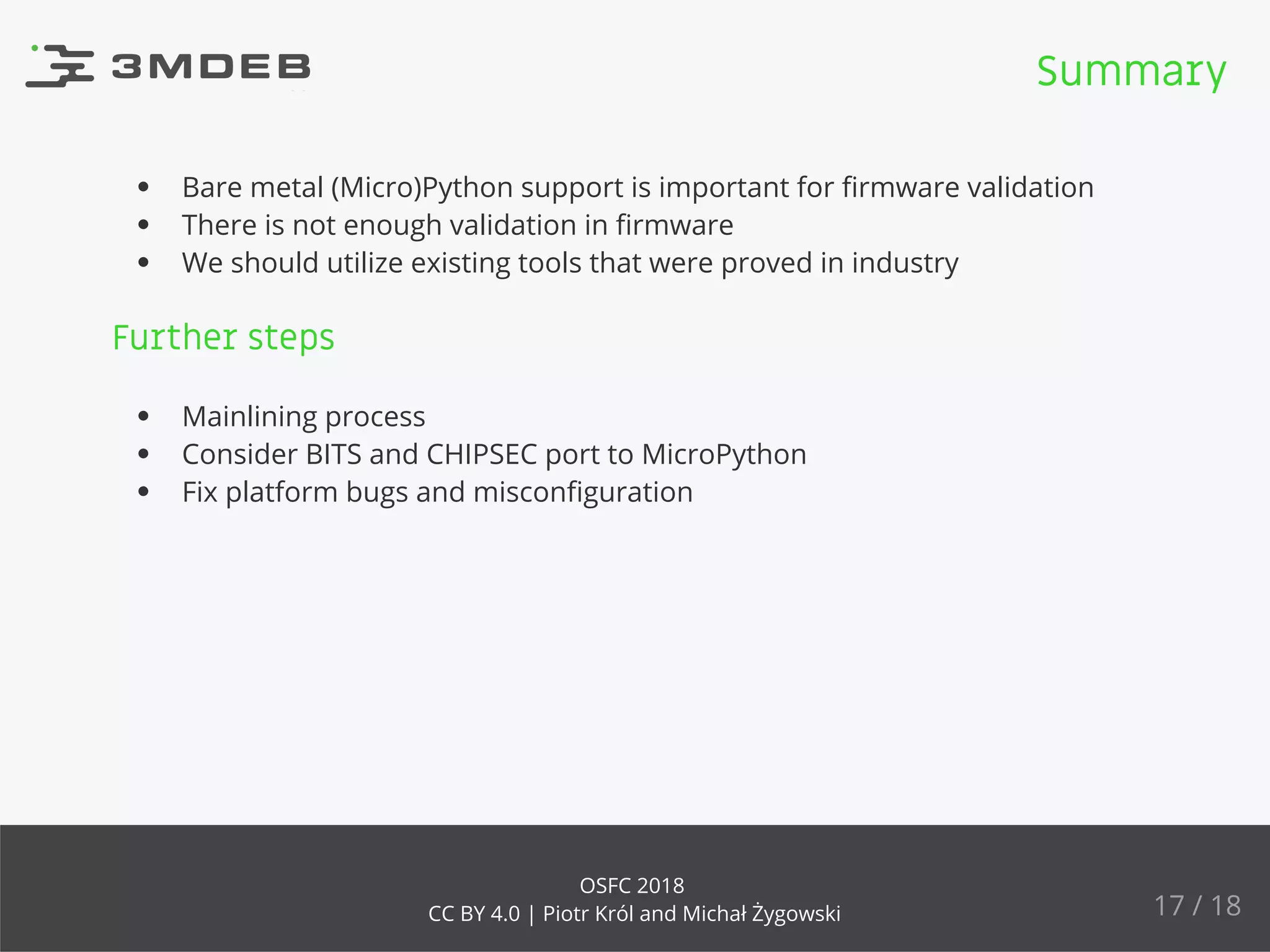

17. Bare metal (Micro)Python support is important for firmware validation
There is not enough validation in firmware
We should utilize existing tools that were proved in industry
Further steps
Mainlining process
Consider BITS and CHIPSEC port to MicroPython
Fix platform bugs and misconfiguration
Summary
17 / 18
OSFC 2018
CC BY 4.0 | Piotr Król and Michał Żygowski

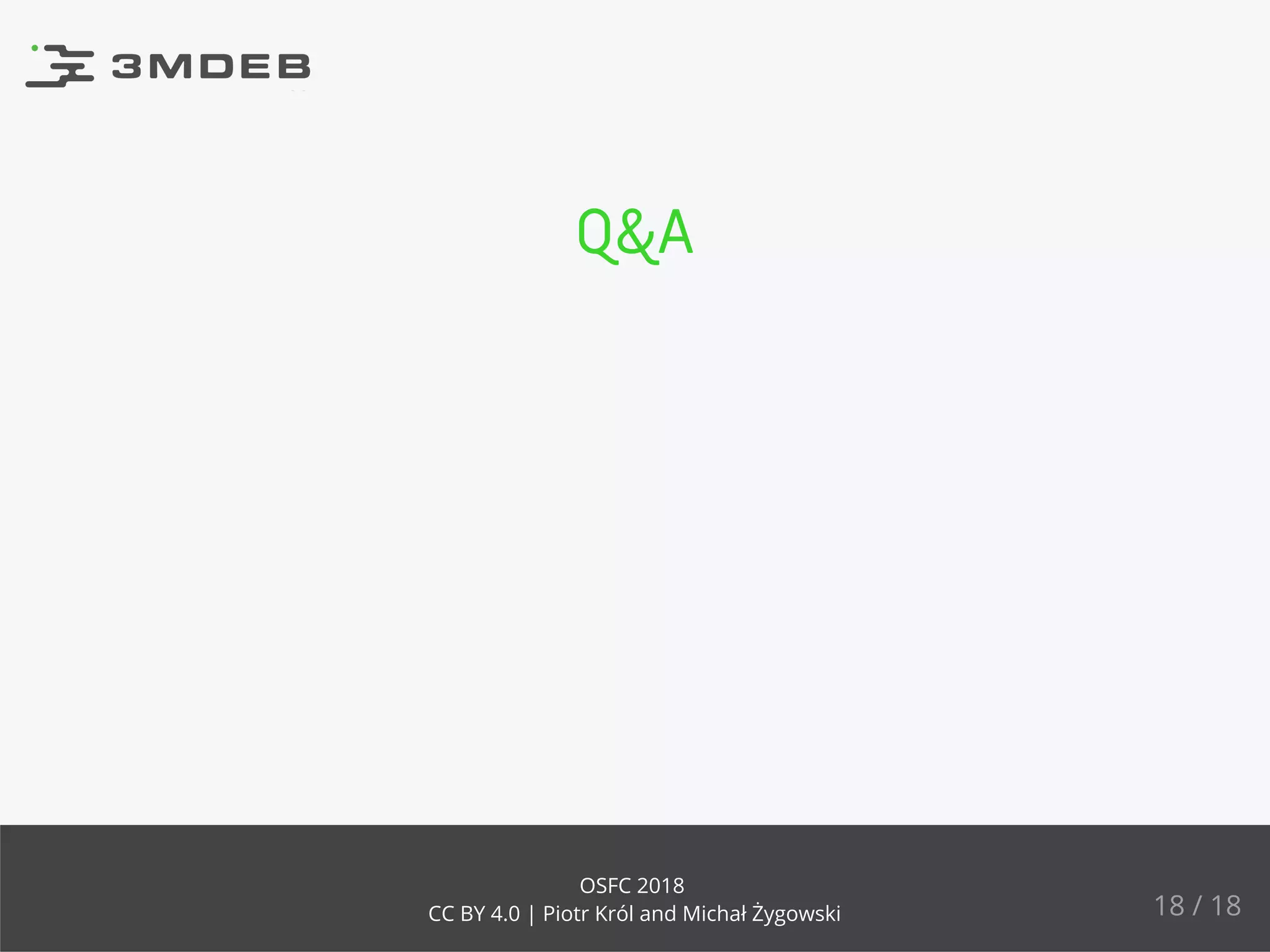

18. Q&A
18 / 18
