1. Logic gates and Binary Operations

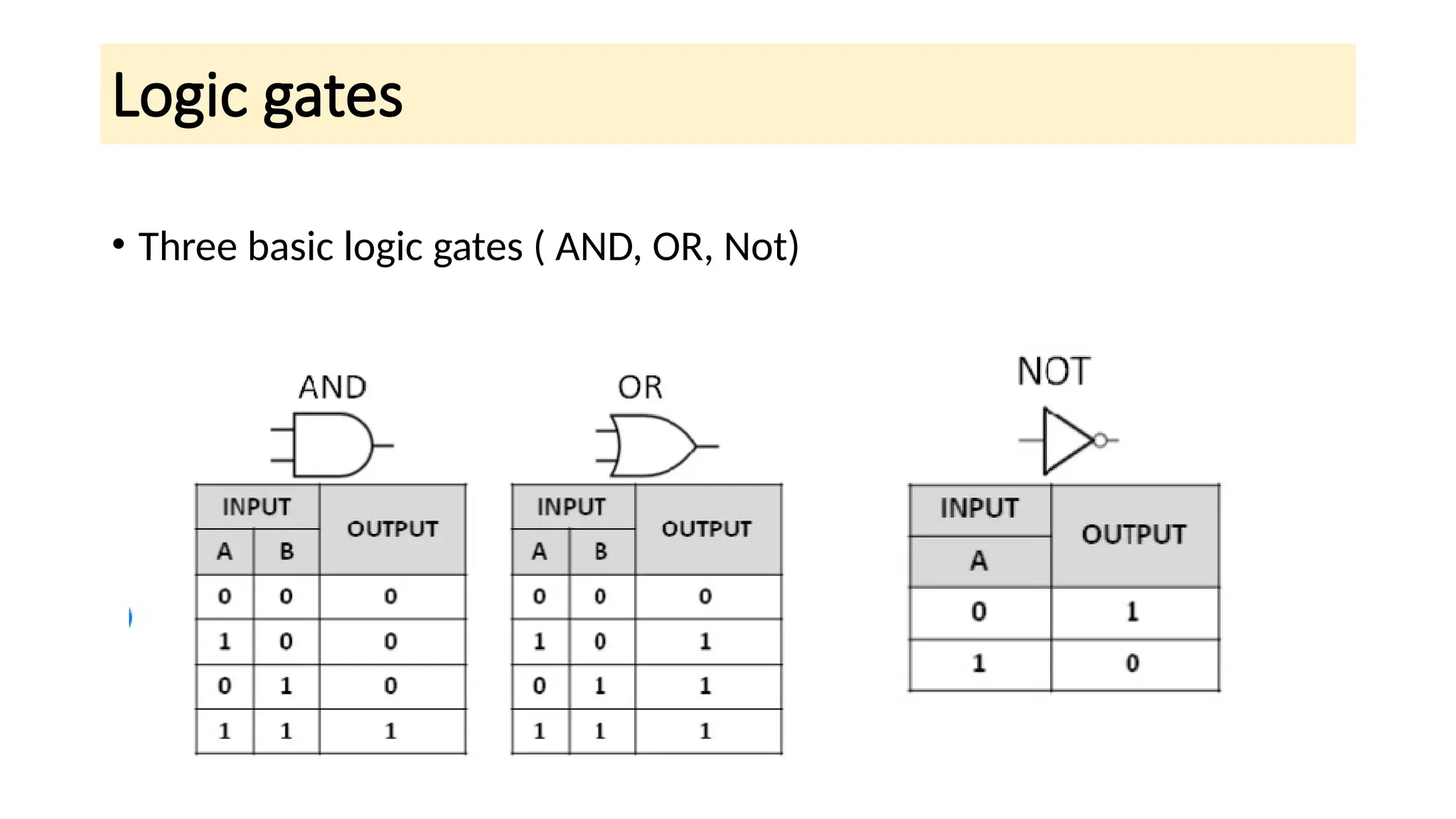

3. Logic gates
• Three basic logic gates ( AND, OR, Not)

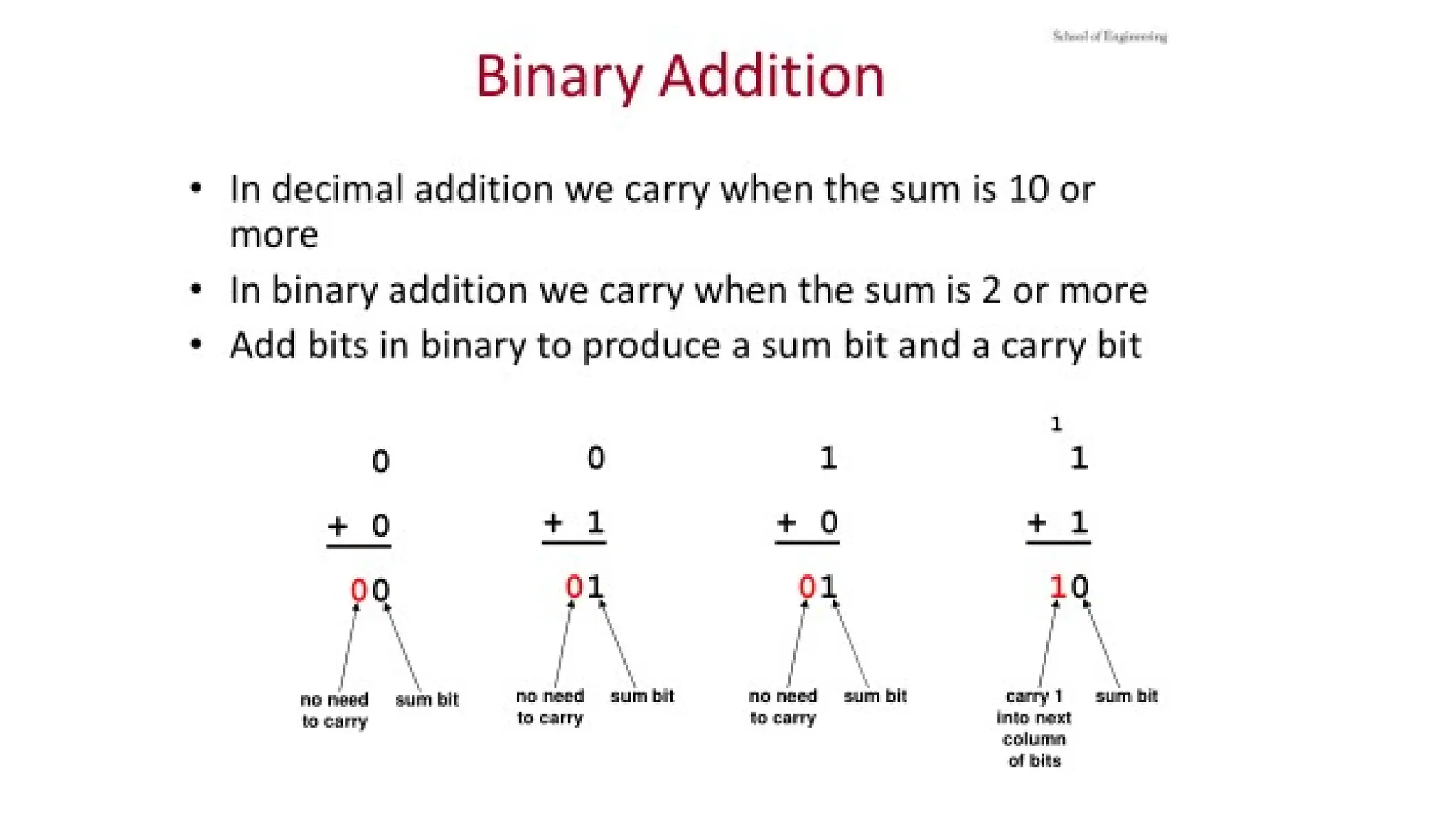

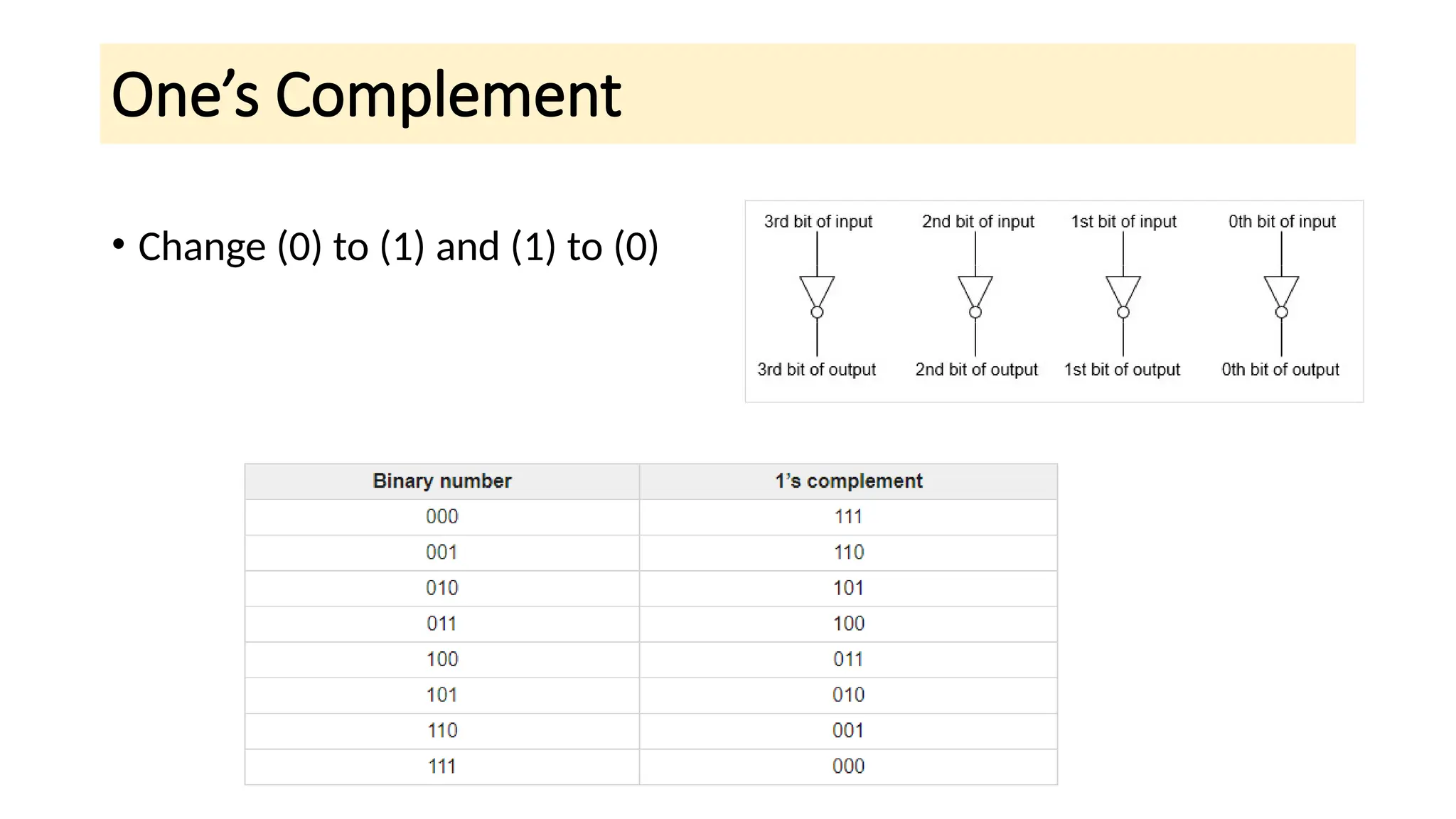

6. One’s Complement
• Change (0) to (1) and (1) to (0)

7. Examples

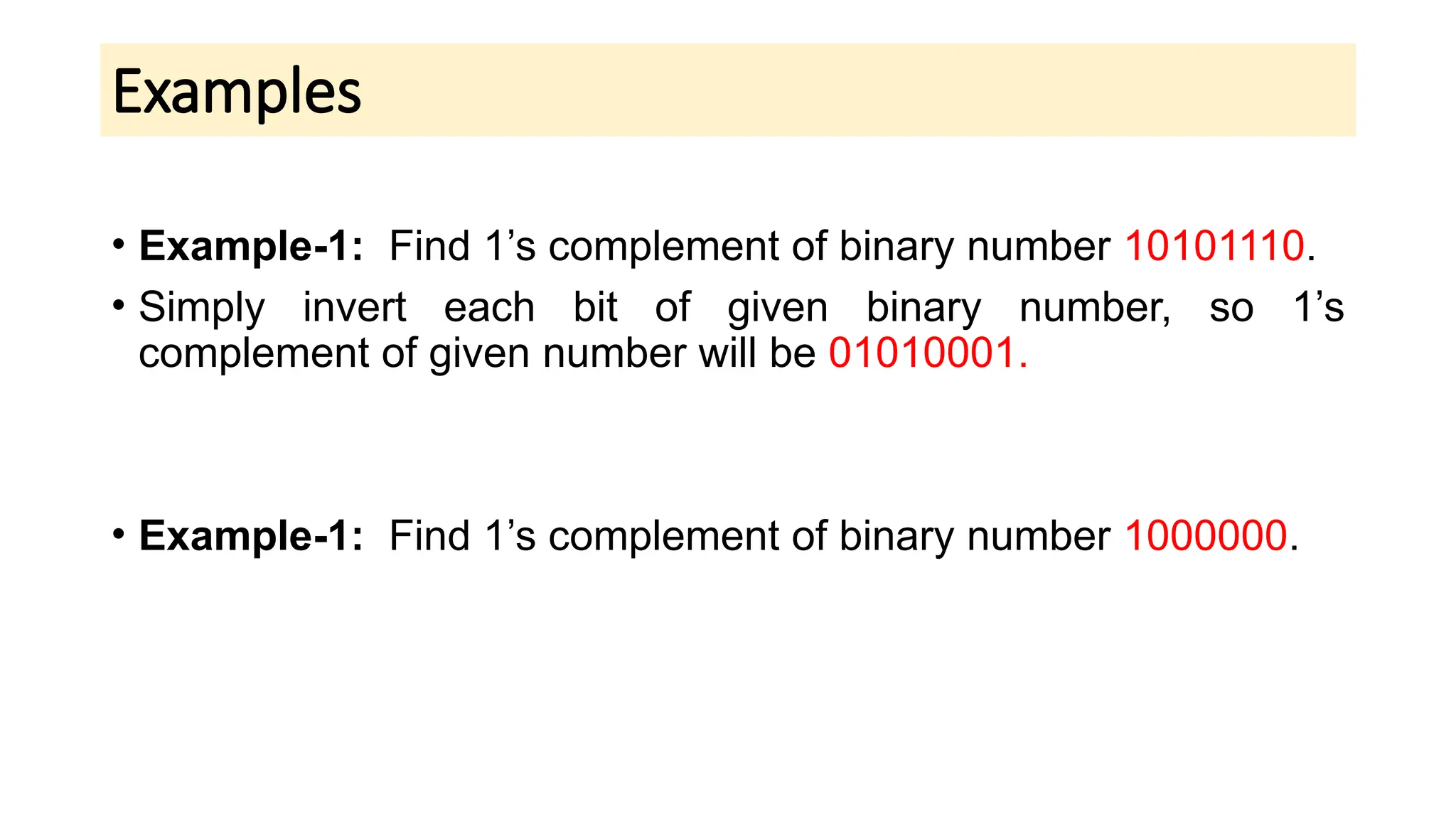

• Example-1: Find 1’s complement of binary number 10101110.
• Simply invert each bit of given binary number, so 1’s
complement of given number will be 01010001.
• Example-1: Find 1’s complement of binary number 1000000.

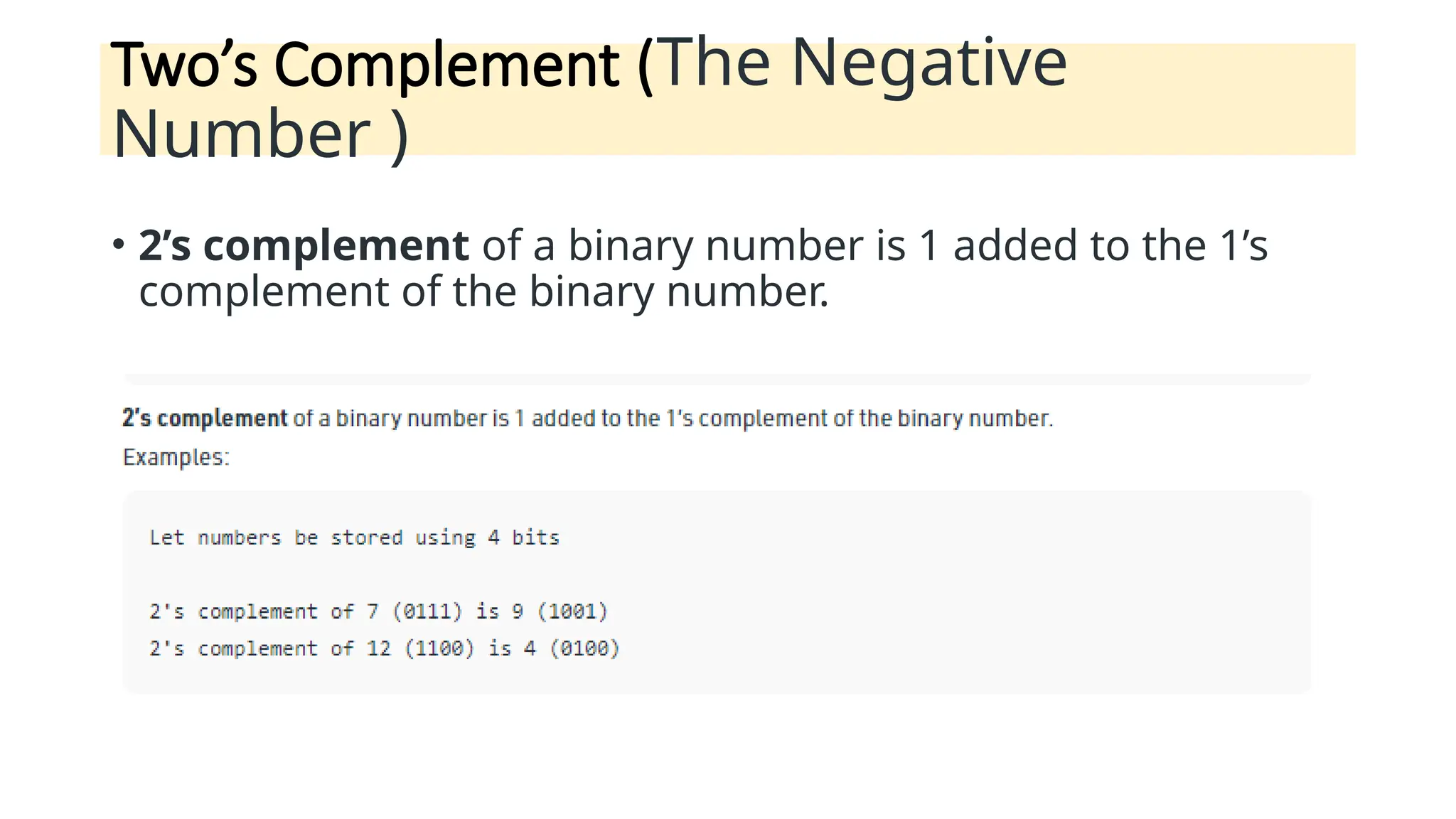

8. Two’s Complement (The Negative
Number )
• 2’s complement of a binary number is 1 added to the 1’s
complement of the binary number.

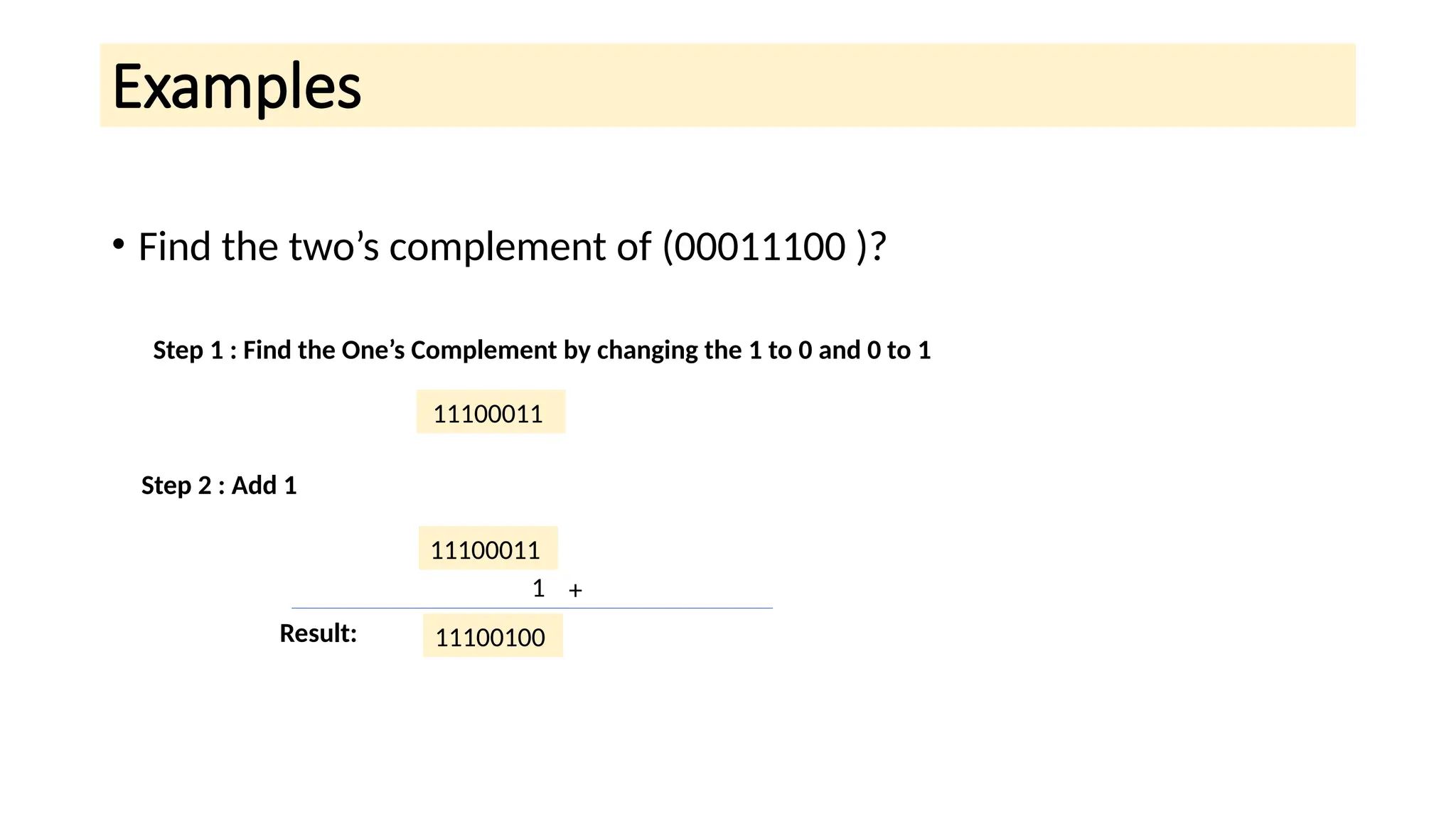

9. Examples
• Find the two’s complement of (00011100 )?
Step 1 : Find the One’s Complement by changing the 1 to 0 and 0 to 1
11100011
Step 2 : Add 1
11100011
1
11100100
+
Result:

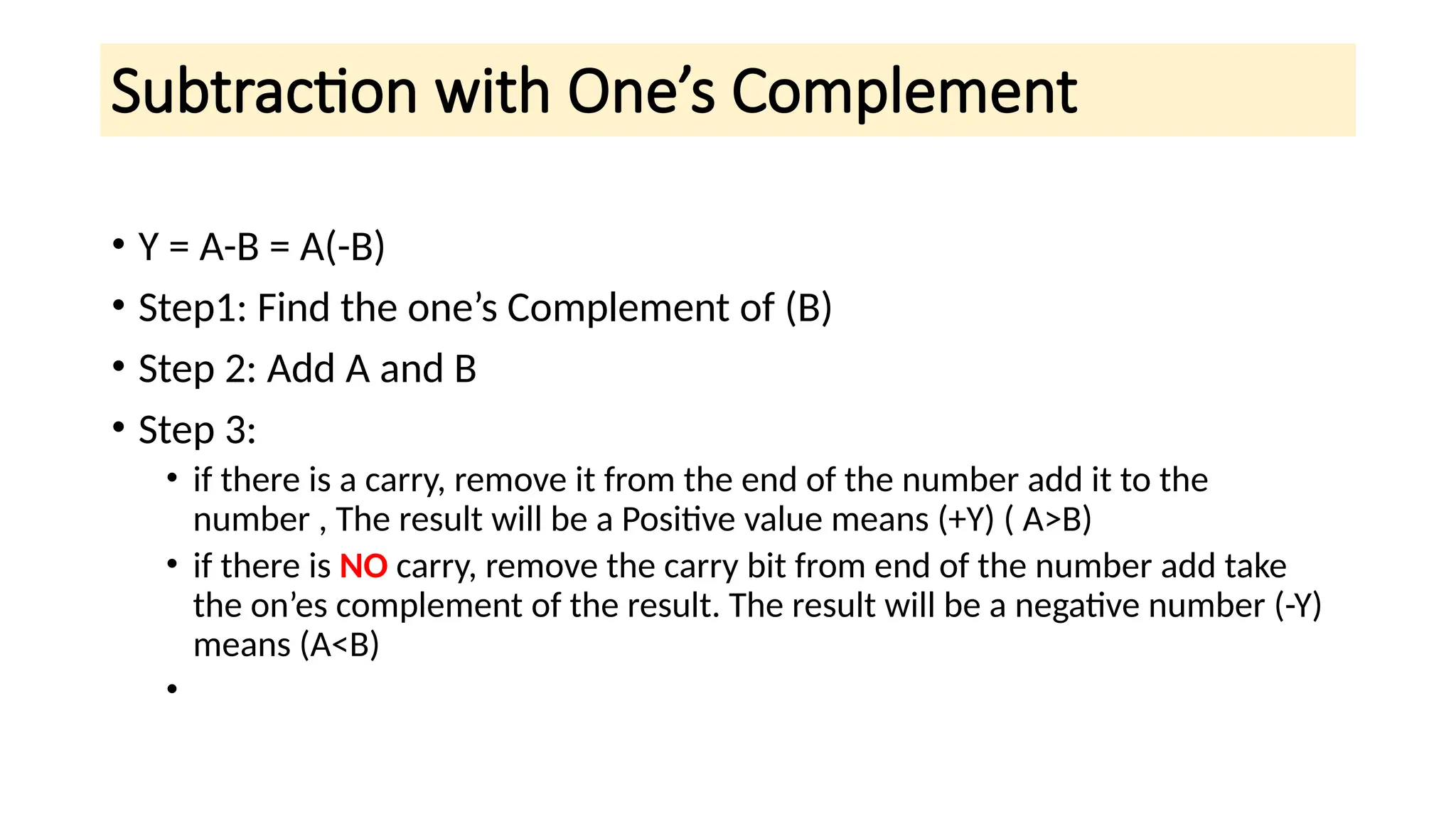

10. Subtraction with One’s Complement
• Y = A-B = A(-B)
• Step1: Find the one’s Complement of (B)
• Step 2: Add A and B
• Step 3:
• if there is a carry, remove it from the end of the number add it to the
number , The result will be a Positive value means (+Y) ( A>B)
• if there is NO carry, remove the carry bit from end of the number add take
the on’es complement of the result. The result will be a negative number (-Y)
means (A<B)
•

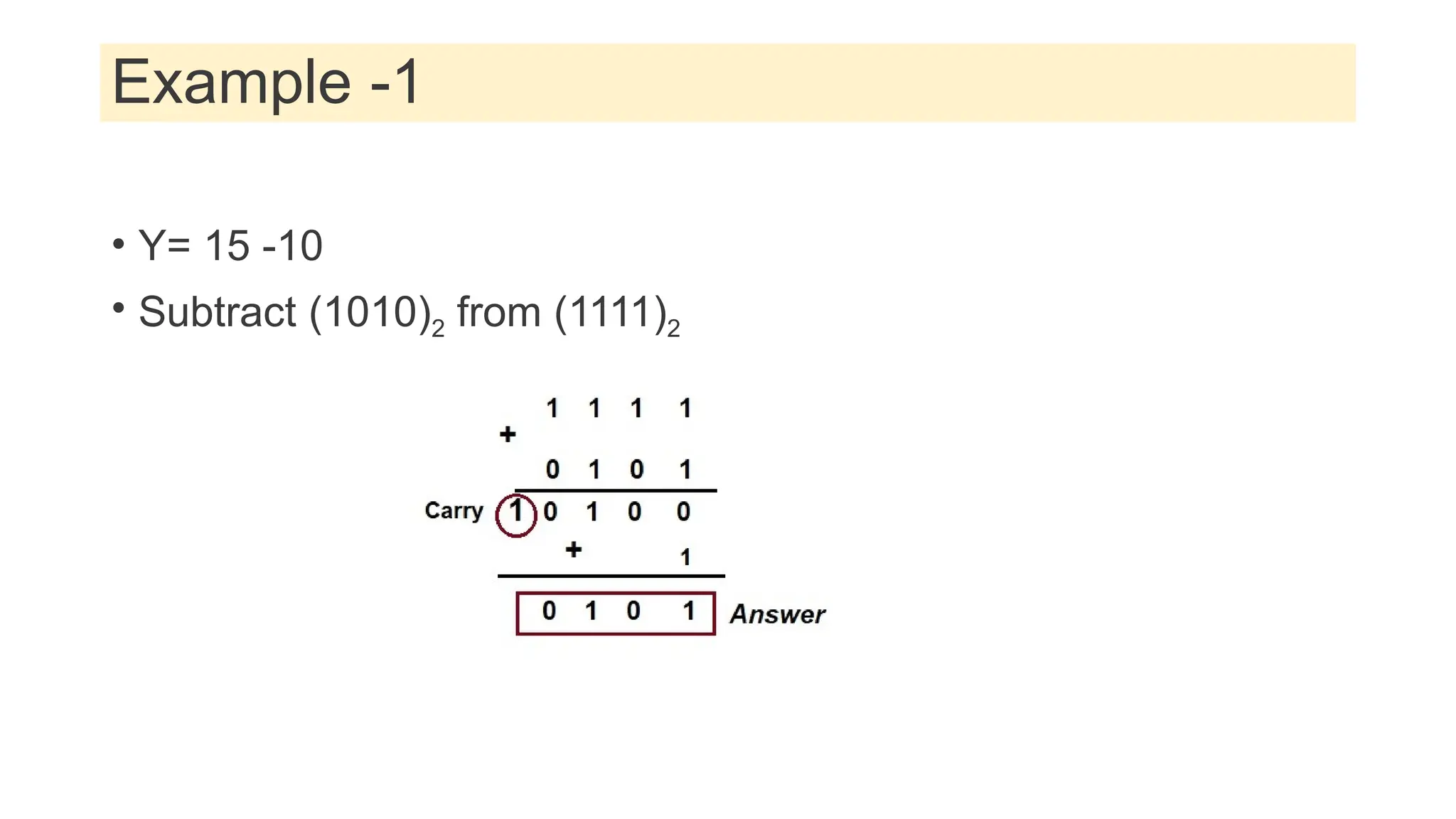

11. Example -1
• Y= 15 -10
• Subtract (1010)2 from (1111)2

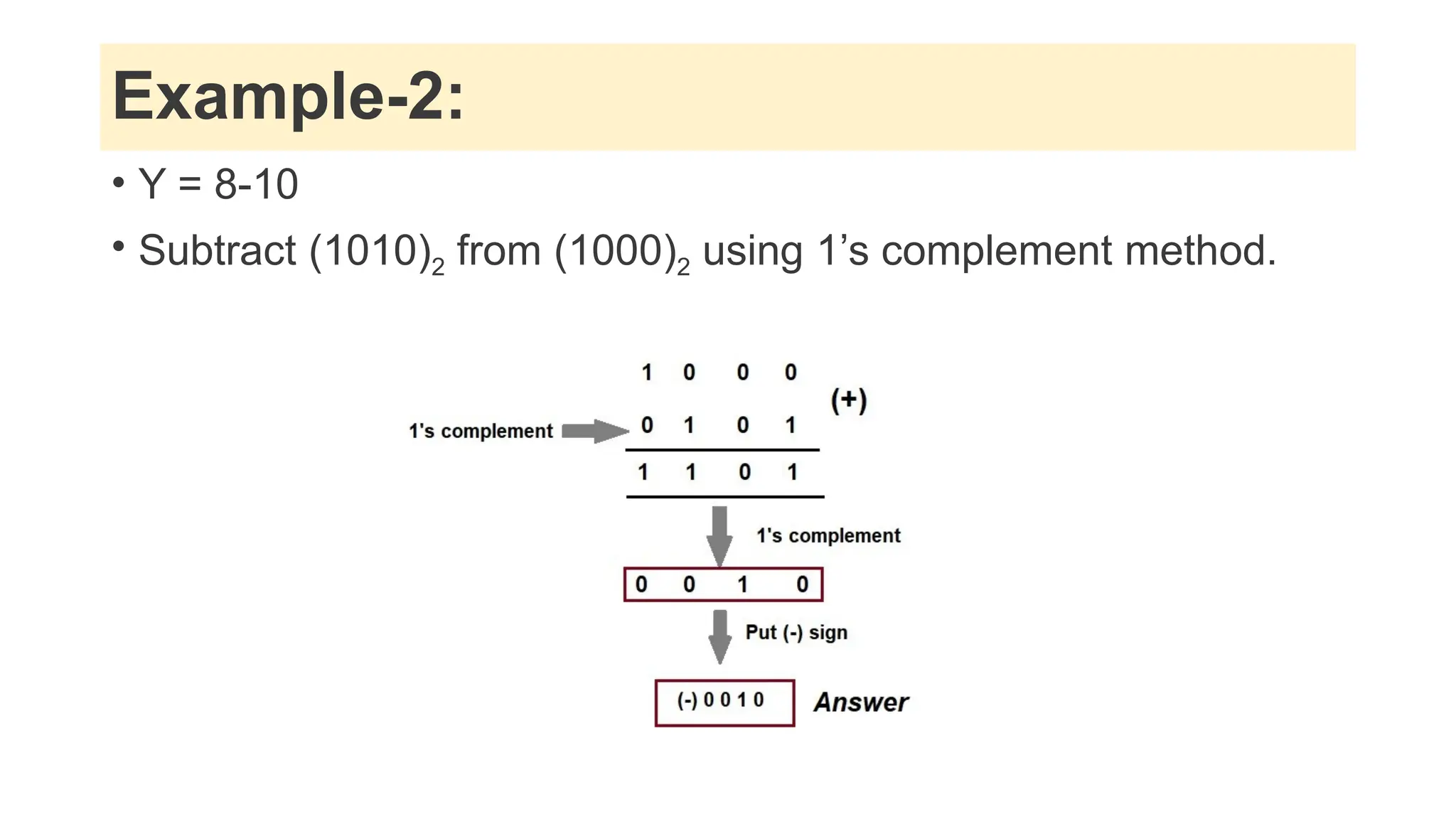

12. Example-2:
• Y = 8-10
• Subtract (1010)2 from (1000)2 using 1’s complement method.

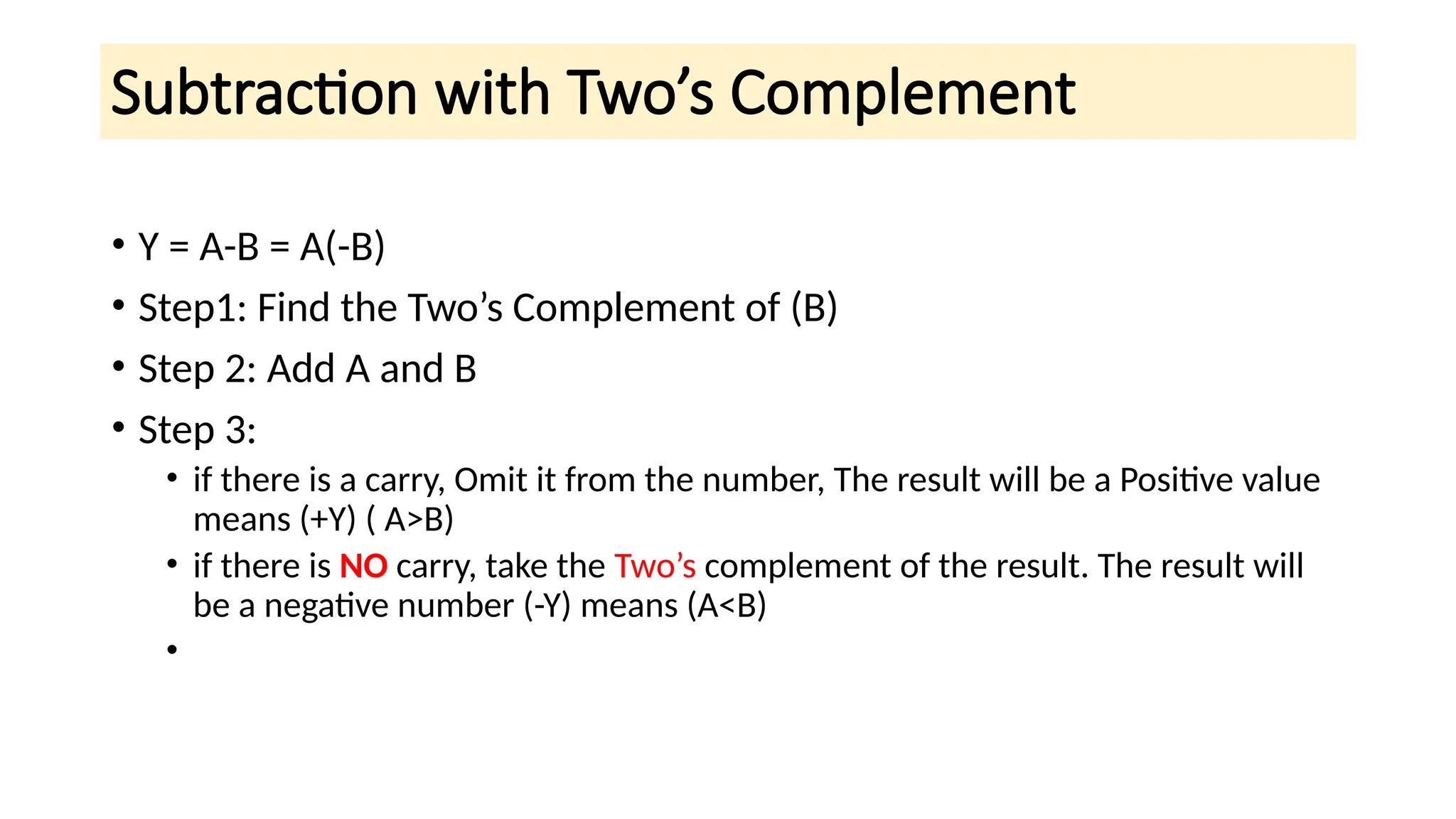

13. Subtraction with Two’s Complement
• Y = A-B = A(-B)
• Step1: Find the Two’s Complement of (B)
• Step 2: Add A and B
• Step 3:
• if there is a carry, Omit it from the number, The result will be a Positive value
means (+Y) ( A>B)
• if there is NO carry, take the Two’s complement of the result. The result will
be a negative number (-Y) means (A<B)
•

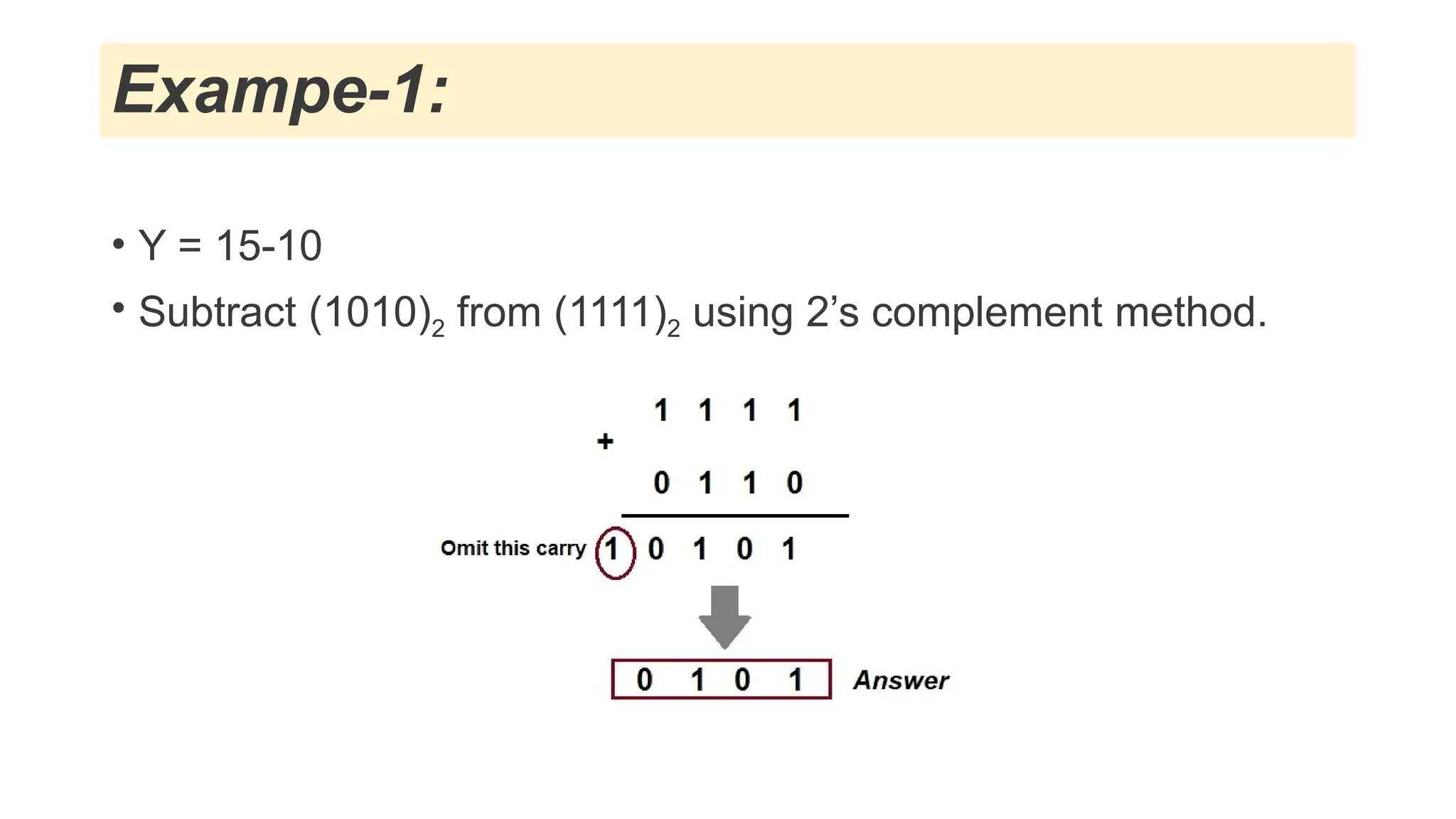

14. Exampe-1:
• Y = 15-10
• Subtract (1010)2 from (1111)2 using 2’s complement method.

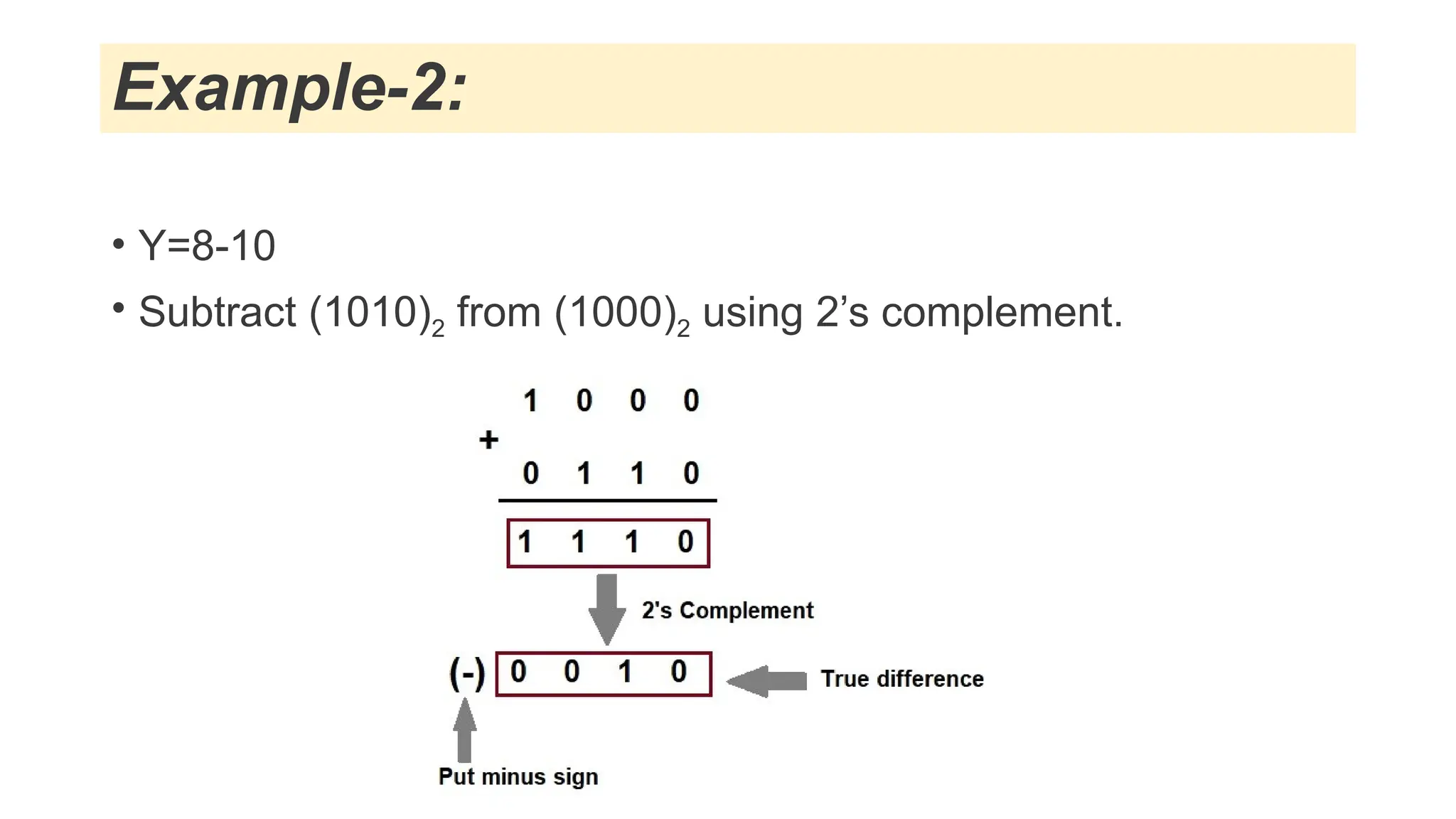

15. Example-2:
• Y=8-10
• Subtract (1010)2 from (1000)2 using 2’s complement.

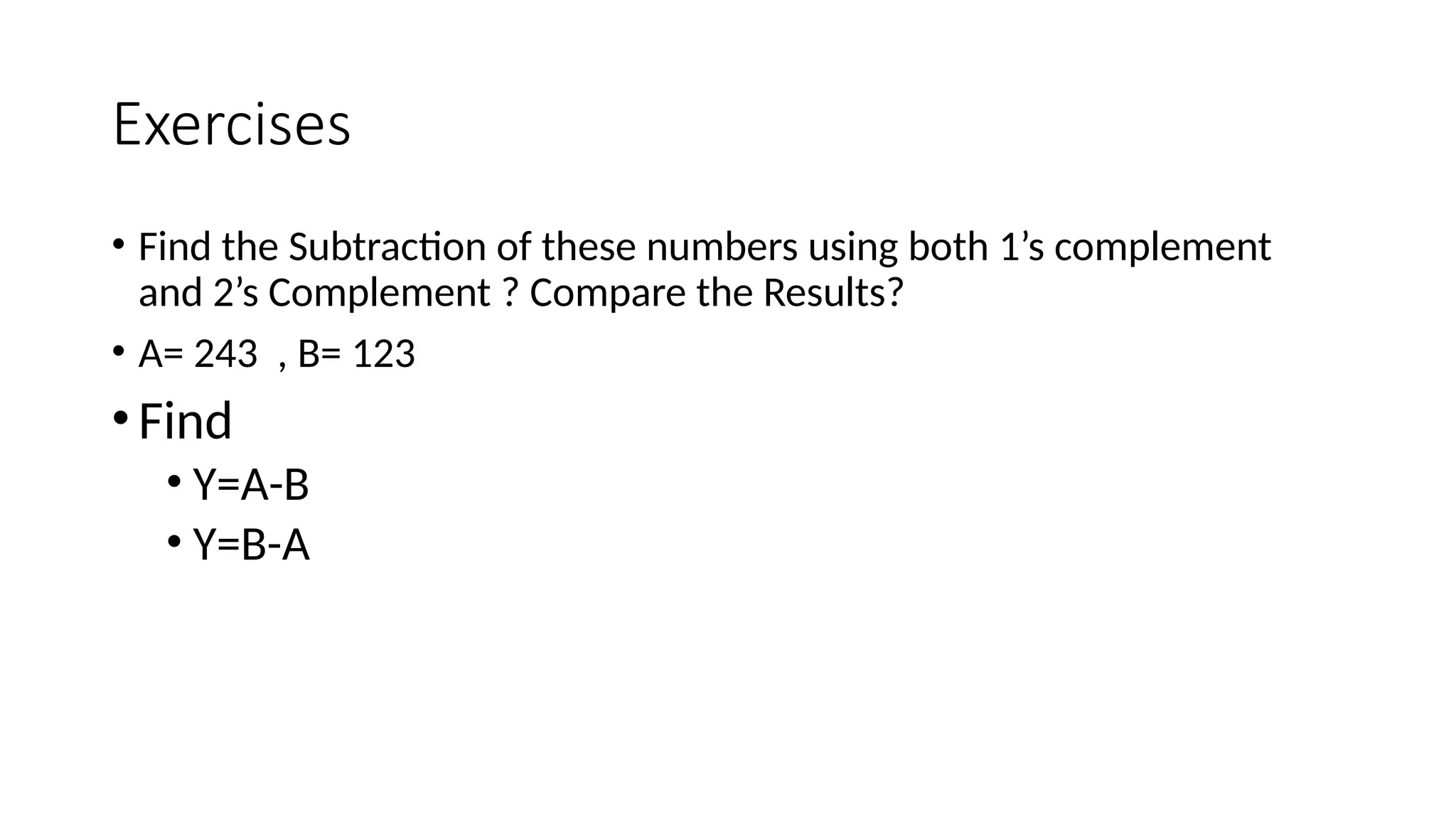

16. Exercises
• Find the Subtraction of these numbers using both 1’s complement
and 2’s Complement ? Compare the Results?
• A= 243 , B= 123
•Find
• Y=A-B
• Y=B-A

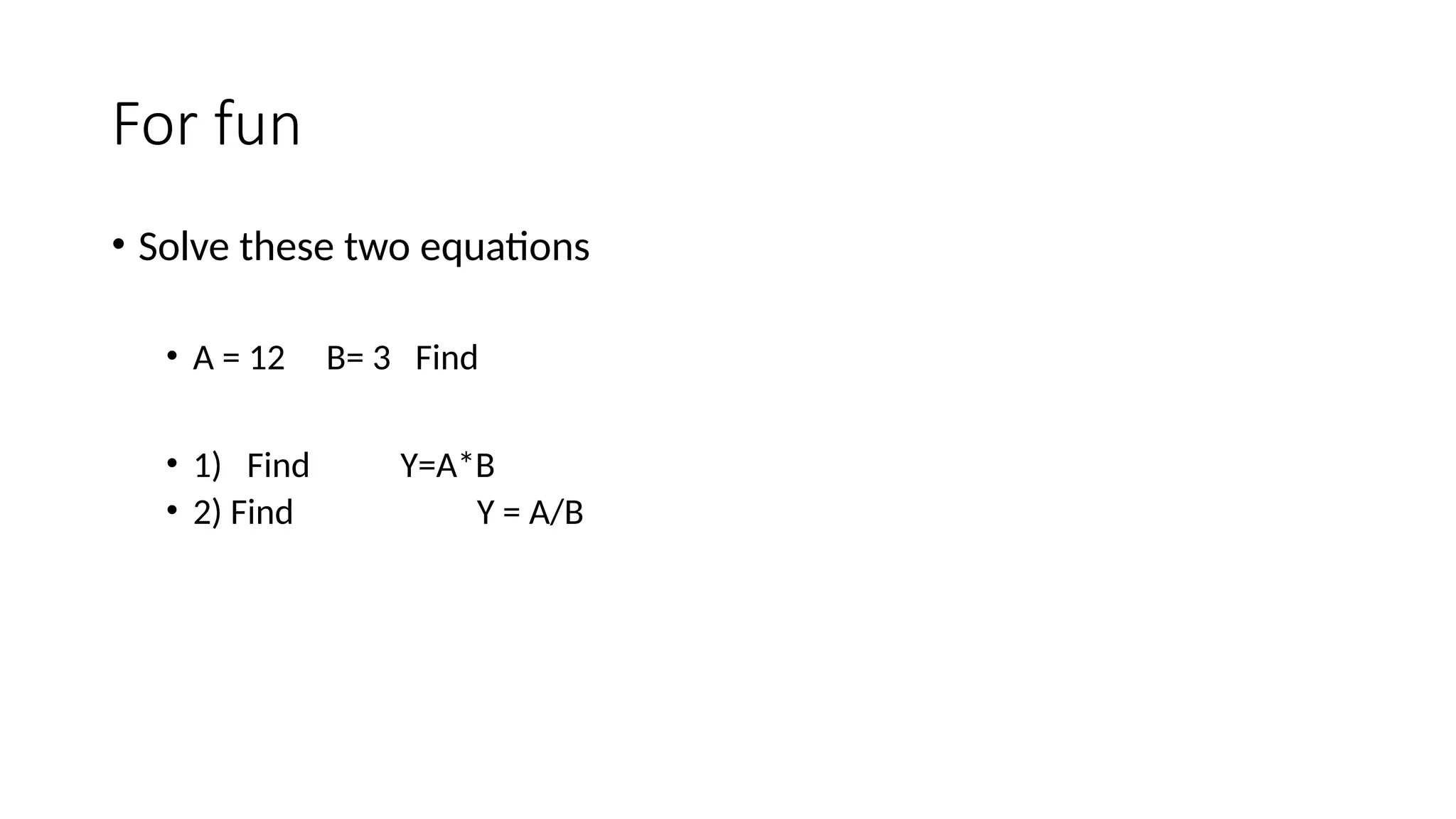

17. For fun
• Solve these two equations
• A = 12 B= 3 Find
• 1) Find Y=A*B
• 2) Find Y = A/B
