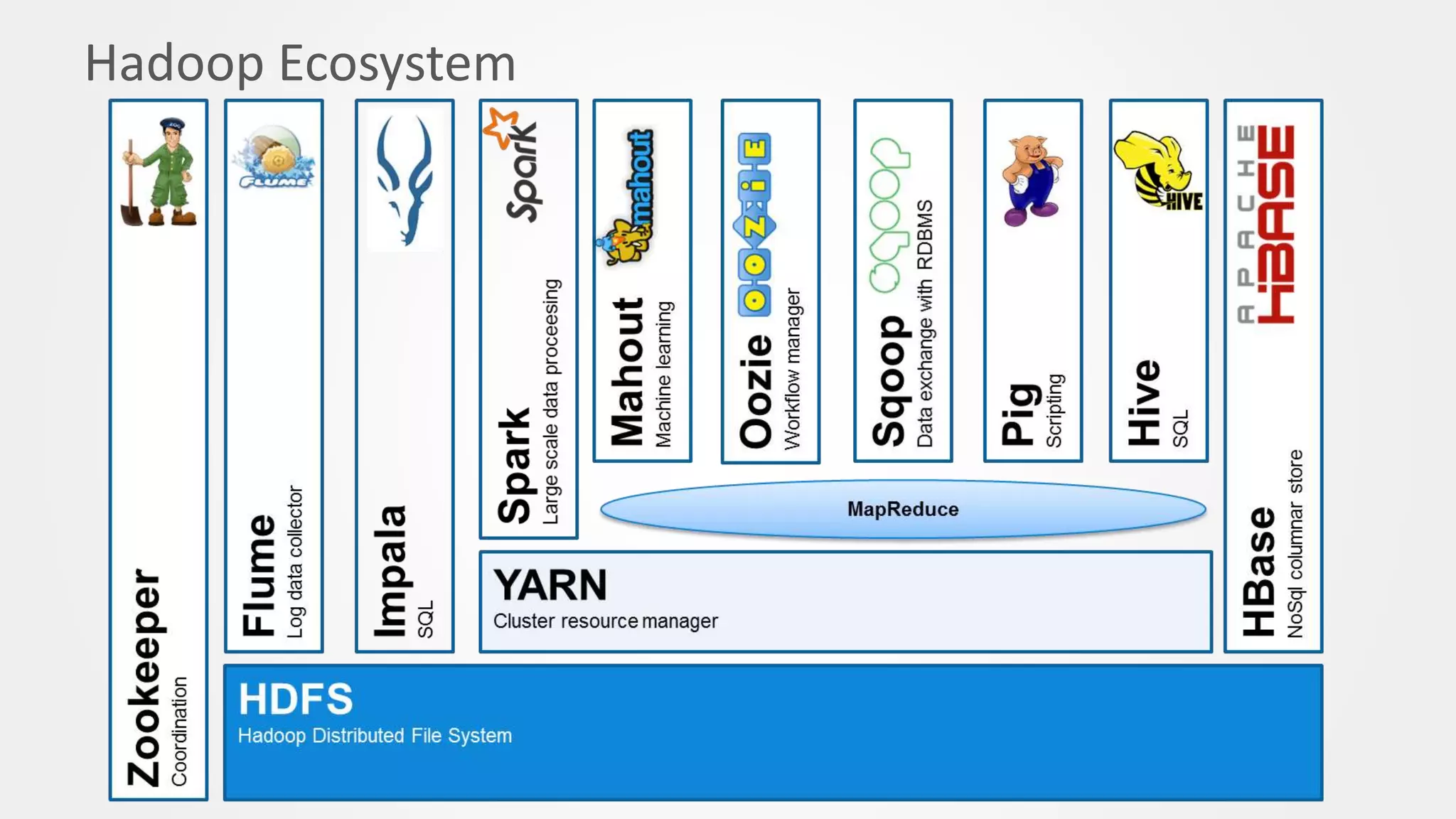

1. Hadoop Ecosystem

2. Components of a Big Data Architecture

3. Orchestration
• Most big data solutions consist of repeated data
processing operations, encapsulated in workflows that:
– transform source data,
– move data between multiple sources and sinks,
– load the processed data into an analytical data store,
– or push the results straight to a report or dashboard.

4. Orchestration

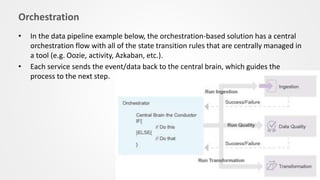

• In the data pipeline example below, the orchestration-based solution has a central
orchestration flow with all of the state transition rules that are centrally managed in
a tool (e.g. Oozie, activity, Azkaban, etc.).
• Each service sends the event/data back to the central brain, which guides the
process to the next step.

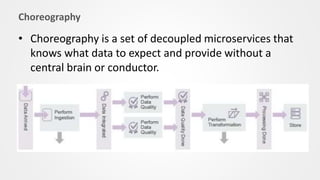

5. Choreography
• Choreography is a set of decoupled microservices that
knows what data to expect and provide without a
central brain or conductor.

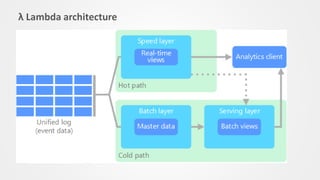

6. λ Lambda architecture
• First proposed by Nathan Marz,
– Addresses this problem by creating two paths for data flow.
• All data coming into the system goes through these two paths:
– A batch layer (cold path) stores all of the incoming data in its raw form and performs batch processing on the data. The result of this processing is stored as
a batch view.
– A speed layer (hot path) analyzes data in real time. This layer is designed for low latency, at the expense of accuracy.
– The batch layer feeds into a serving layer that indexes the batch view for efficient querying.
– The speed layer updates the serving layer with incremental updates based on the most recent data.

7. λ Lambda architecture

8. λ Lambda architecture
• A drawback to the lambda architecture
– is its complexity.
• Processing logic appears in two different places
– — the cold and hot paths — using different frameworks.
– leads to duplicate computation logic and the complexity of managing the architecture for both paths.
• Example of Projects implementing Lambda Architecture
– Generic: Twitter Summingbird
• https://github.com/twitter/summingbird
– Dedicated to machine Learning: Cloudera Oryx 2
• http://oryx.io/)

9. λ Lambda architecture: strengths
• Immutability - retaining master data
– With timestamped events
– Appended versus overwritten events
• Attempt to beat CAP
• Pre-computed views for
– further processing
– faster ad-hoc querying

10. λ Lambda architecture: weakness
• Two Analytics systems to support
• Operational complexity
• By the time a scheduled job is run 90% of the data is stale
• Many moving parts: KV store, real time platform, batch
technologies
• Running similar code and reconciling queries in dual systems
• Analytics logic changes on dual systems

11. Kappa Architecture - Where Every Thing Is A Stream
• The kappa architecture was proposed by Jay Kreps as
an alternative to the lambda architecture.
• It has the same basic goals as the lambda architecture,
but with an important distinction:
– All data flows through a single path, using a stream
processing system.

12. Kappa Architecture

13. Kappa Architecture:
• strengths
– solution to do everything,
– independent technology,
– simpler than the Lambda architecture.
• weakness
– no separation between needs,
– growing competence.
• Kappa architecture is used by companies like Linkedin.

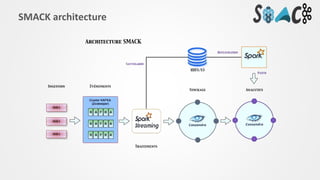

14. SMACK architecture
• The SMACK architecture (for Spark Mesos Akka Cassandra Kafka)
– is quite different from the Lambda or Kappa architectures since it
consists of a list of solutions.
– It is therefore necessary to understand the advantages and weaknesses
of the solutions before validating the implementation of a use case.
– Kafka is sometimes replaced by Kinesis on the cloud (Amazon AWS)

15. • Spark - fast and general engine for distributed, large-scale data processing
• Mesos - cluster resource management system that provides efficient resource isolation and sharing across
distributed applications
• Akka - a toolkit and runtime for building highly concurrent, distributed, and resilient message-driven
applications on the JVM
• Cassandra - distributed, highly available database designed to handle large amounts of data across multiple
datacenters
• Kafka - a high-throughput, low-latency distributed messaging system/commit log designed for handling real-
time data feeds
SMACK architecture

16. SMACK architecture

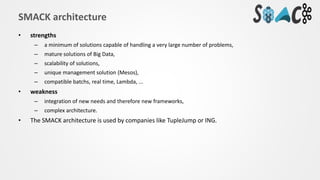

17. • strengths
– a minimum of solutions capable of handling a very large number of problems,
– mature solutions of Big Data,
– scalability of solutions,
– unique management solution (Mesos),
– compatible batchs, real time, Lambda, ...
• weakness
– integration of new needs and therefore new frameworks,
– complex architecture.
• The SMACK architecture is used by companies like TupleJump or ING.
SMACK architecture

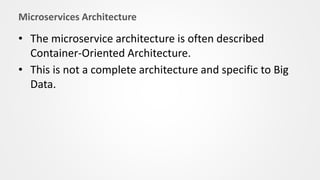

18. Microservices Architecture
• The microservice architecture is often described
Container-Oriented Architecture.
• This is not a complete architecture and specific to Big
Data.

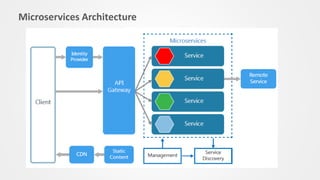

19. Microservices Architecture

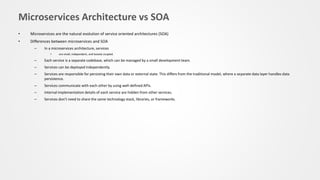

20. Microservices Architecture vs SOA
• Microservices are the natural evolution of service oriented architectures (SOA)
• Differences between microservices and SOA
– In a microservices architecture, services
• are small, independent, and loosely coupled.
– Each service is a separate codebase, which can be managed by a small development team.
– Services can be deployed independently.
– Services are responsible for persisting their own data or external state. This differs from the traditional model, where a separate data layer handles data
persistence.
– Services communicate with each other by using well-defined APIs.
– Internal implementation details of each service are hidden from other services.
– Services don't need to share the same technology stack, libraries, or frameworks.

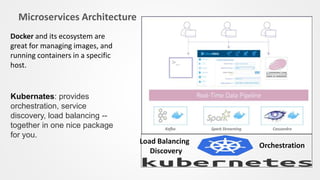

21. Microservices Architecture
Orchestration
Docker and its ecosystem are
great for managing images, and
running containers in a specific
host.
Kubernates: provides
orchestration, service
discovery, load balancing --
together in one nice package
for you.
Discovery
Load Balancing

22. Criteria for selecting an architecture
Architecture Main criterion Use case
Hadoop Store data at a low cost Data Lake
lambda Build a complete view of
the data
Chain of treatment /
valuation of the data
Kappa Provide a fresh vision of the
data
Business data for users
SMACK Deal with data at a low cost Data Analysis (Machine
Learning)
Microservices Scalability (elasticity),
decoupling
Smart Cities

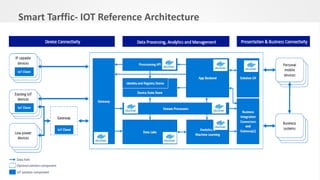

23. Smart Tarffic- IOT Reference Architecture

24. Data sources
• All big data solutions start with one or more data
sources. Examples include:
– Application data stores, such as relational databases.
– Static files produced by applications, such as web server
log files.
– Real-time data sources, such as IoT devices.

25. Data storage
• Data for batch processing operations is typically stored in a
distributed file store that can hold high volumes of large files in
various formats.
– Data lake (Azure Data Lake Store , S3, HDFS(Cloudera, Hortonworks)
– NoSQL Store (Cassandra, Hbase, Neo4j, mongodb)
– Database as Service : DBaaS
• Oracle Database as a Service ,
• Azure Storage (Microsoft Azure Cloud SQL Database )

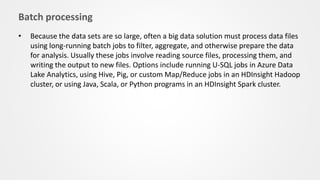

26. Batch processing
• Because the data sets are so large, often a big data solution must process data files
using long-running batch jobs to filter, aggregate, and otherwise prepare the data
for analysis. Usually these jobs involve reading source files, processing them, and
writing the output to new files. Options include running U-SQL jobs in Azure Data
Lake Analytics, using Hive, Pig, or custom Map/Reduce jobs in an HDInsight Hadoop
cluster, or using Java, Scala, or Python programs in an HDInsight Spark cluster.

27. Real-time message ingestion.
• If the solution includes real-time sources, the architecture must include a way to capture and store real-
time messages for stream processing. This might be a simple data store, where incoming messages are
dropped into a folder for processing. However, many solutions need a message ingestion store to act as a
buffer for messages, and to support scale-out processing, reliable delivery, and other message queuing
semantics. This portion of a streaming architecture is often referred to as stream buffering. Options
include Azure Event Hubs, Azure IoT Hub, and Kafka.

28. Stream processing
• After capturing real-time messages, the solution must process them by filtering,
aggregating, and otherwise preparing the data for analysis. The processed stream
data is then written to an output sink. Azure Stream Analytics provides a managed
stream processing service based on perpetually running SQL queries that operate
on unbounded streams. You can also use open source Apache streaming
technologies like Storm and Spark Streaming in an HDInsight cluster.

29. Analytical data store
• Many big data solutions prepare data for analysis and then serve the processed data in a structured format that can be queried using analytical tools. The
analytical data store used to serve these queries can be a Kimball-style relational data warehouse, as seen in most traditional business intelligence (BI)
solutions. Alternatively, the data could be presented through a low-latency NoSQL technology such as HBase, or an interactive Hive database that
provides a metadata abstraction over data files in the distributed data store. Azure SQL Data Warehouse provides a managed service for large-scale,
cloud-based data warehousing. HDInsight supports Interactive Hive, HBase, and Spark SQL, which can also be used to serve data for analysis.

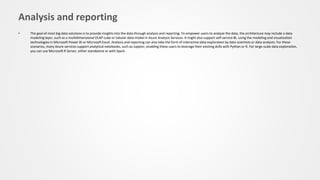

30. Analysis and reporting
• The goal of most big data solutions is to provide insights into the data through analysis and reporting. To empower users to analyze the data, the architecture may include a data
modeling layer, such as a multidimensional OLAP cube or tabular data model in Azure Analysis Services. It might also support self-service BI, using the modeling and visualization
technologies in Microsoft Power BI or Microsoft Excel. Analysis and reporting can also take the form of interactive data exploration by data scientists or data analysts. For these
scenarios, many Azure services support analytical notebooks, such as Jupyter, enabling these users to leverage their existing skills with Python or R. For large-scale data exploration,
you can use Microsoft R Server, either standalone or with Spark.
