2. Trigger Warning
This presentation, and materials to
which it links, contains triggers.
These will be triggering reactive,
asynchronous, and message-driven
environments.
A safe room is available in Empire
West, where Alan Viars is
presenting Modernizing National
Health Care.
8. 8

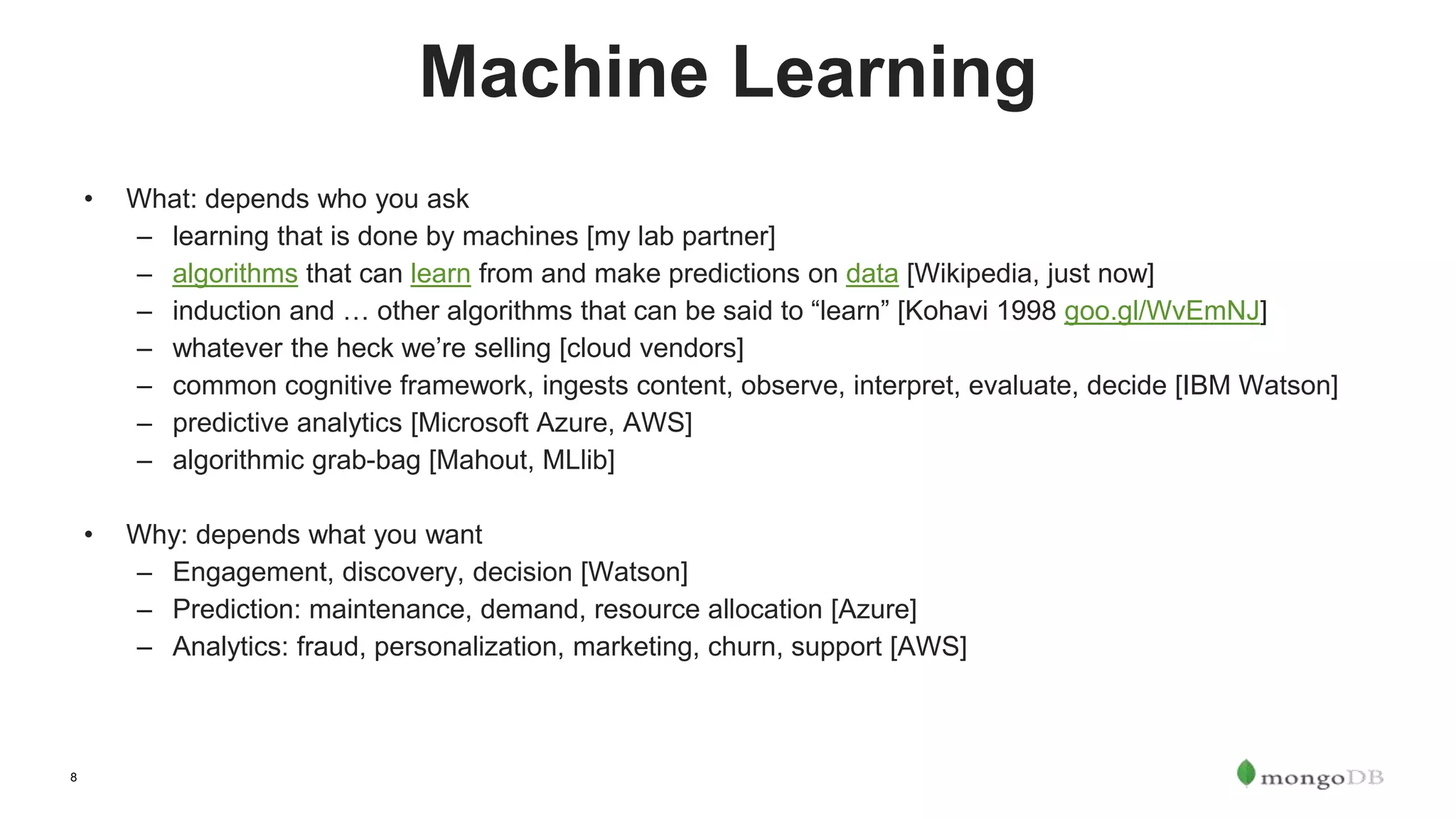

Machine Learning
• What: depends who you ask
– learning that is done by machines [my lab partner]
– algorithms that can learn from and make predictions on data [Wikipedia, just now]
– induction and … other algorithms that can be said to “learn” [Kohavi 1998 goo.gl/WvEmNJ]
– whatever the heck we’re selling [cloud vendors]
– common cognitive framework, ingests content, observe, interpret, evaluate, decide [IBM Watson]
– predictive analytics [Microsoft Azure, AWS]
– algorithmic grab-bag [Mahout, MLlib]
• Why: depends what you want
– Engagement, discovery, decision [Watson]
– Prediction: maintenance, demand, resource allocation [Azure]
– Analytics: fraud, personalization, marketing, churn, support [AWS]
10. 10

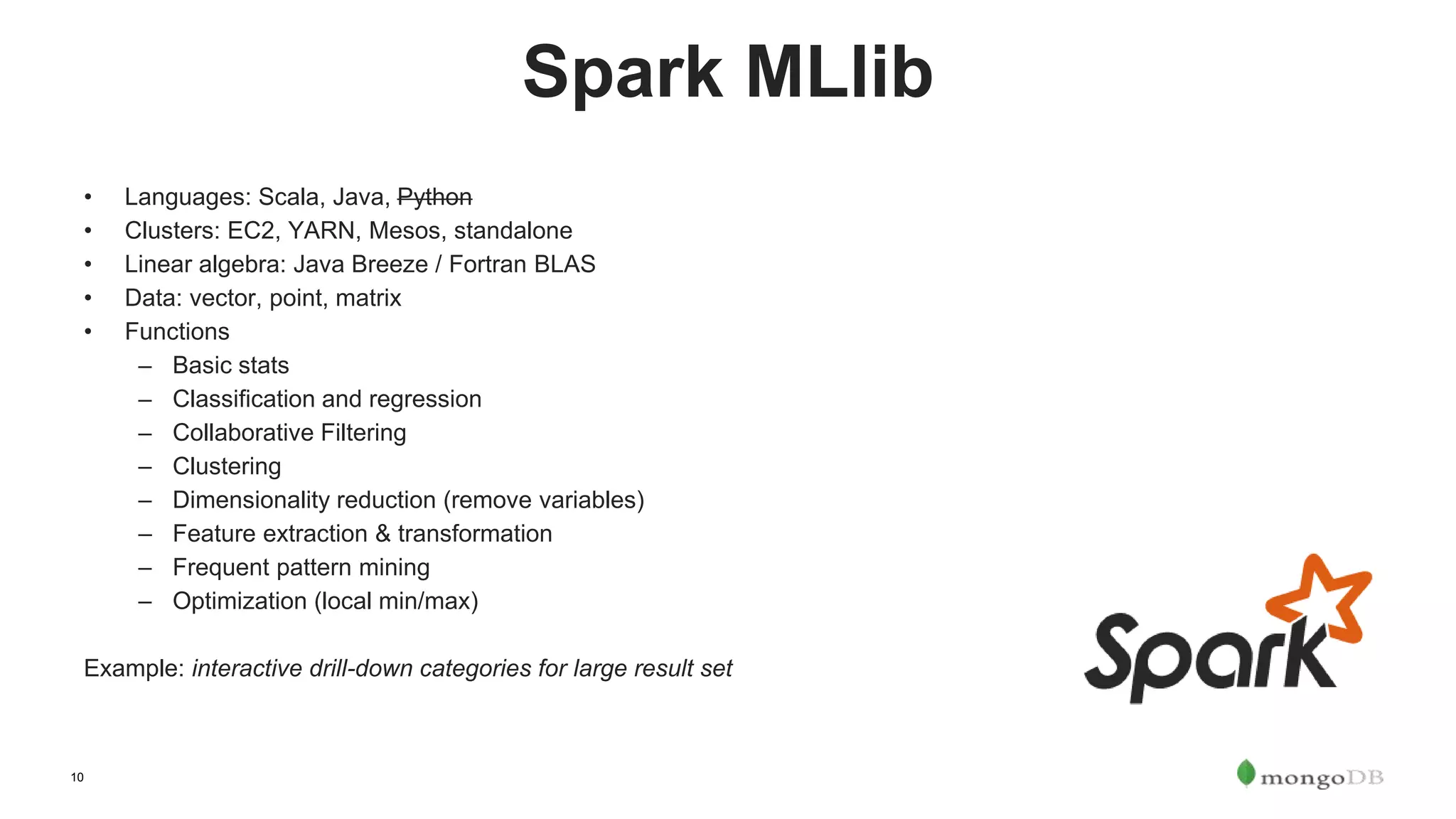

Spark MLlib
• Languages: Scala, Java, Python
• Clusters: EC2, YARN, Mesos, standalone
• Linear algebra: Java Breeze / Fortran BLAS
• Data: vector, point, matrix
• Functions
– Basic stats
– Classification and regression
– Collaborative Filtering
– Clustering
– Dimensionality reduction (remove variables)
– Feature extraction & transformation
– Frequent pattern mining
– Optimization (local min/max)
Example: interactive drill-down categories for large result set
11. 11

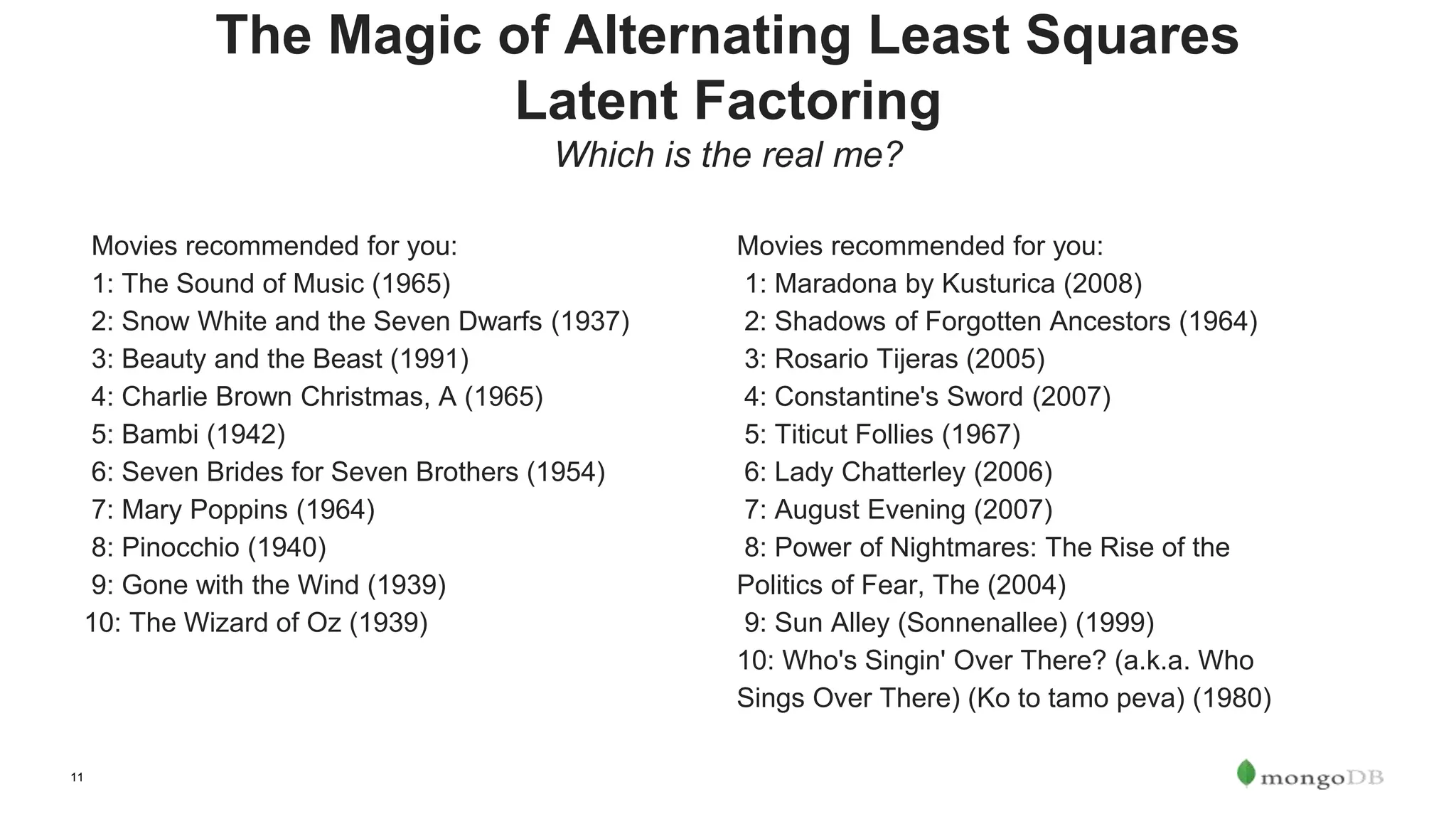

The Magic of Alternating Least Squares
Latent Factoring
Which is the real me?
Movies recommended for you:
1: The Sound of Music (1965)
2: Snow White and the Seven Dwarfs (1937)
3: Beauty and the Beast (1991)
4: Charlie Brown Christmas, A (1965)
5: Bambi (1942)
6: Seven Brides for Seven Brothers (1954)
7: Mary Poppins (1964)
8: Pinocchio (1940)
9: Gone with the Wind (1939)
10: The Wizard of Oz (1939)
Movies recommended for you:
1: Maradona by Kusturica (2008)
2: Shadows of Forgotten Ancestors (1964)
3: Rosario Tijeras (2005)
4: Constantine's Sword (2007)
5: Titicut Follies (1967)
6: Lady Chatterley (2006)
7: August Evening (2007)
8: Power of Nightmares: The Rise of the
Politics of Fear, The (2004)
9: Sun Alley (Sonnenallee) (1999)
10: Who's Singin' Over There? (a.k.a. Who
Sings Over There) (Ko to tamo peva) (1980)
12. 12

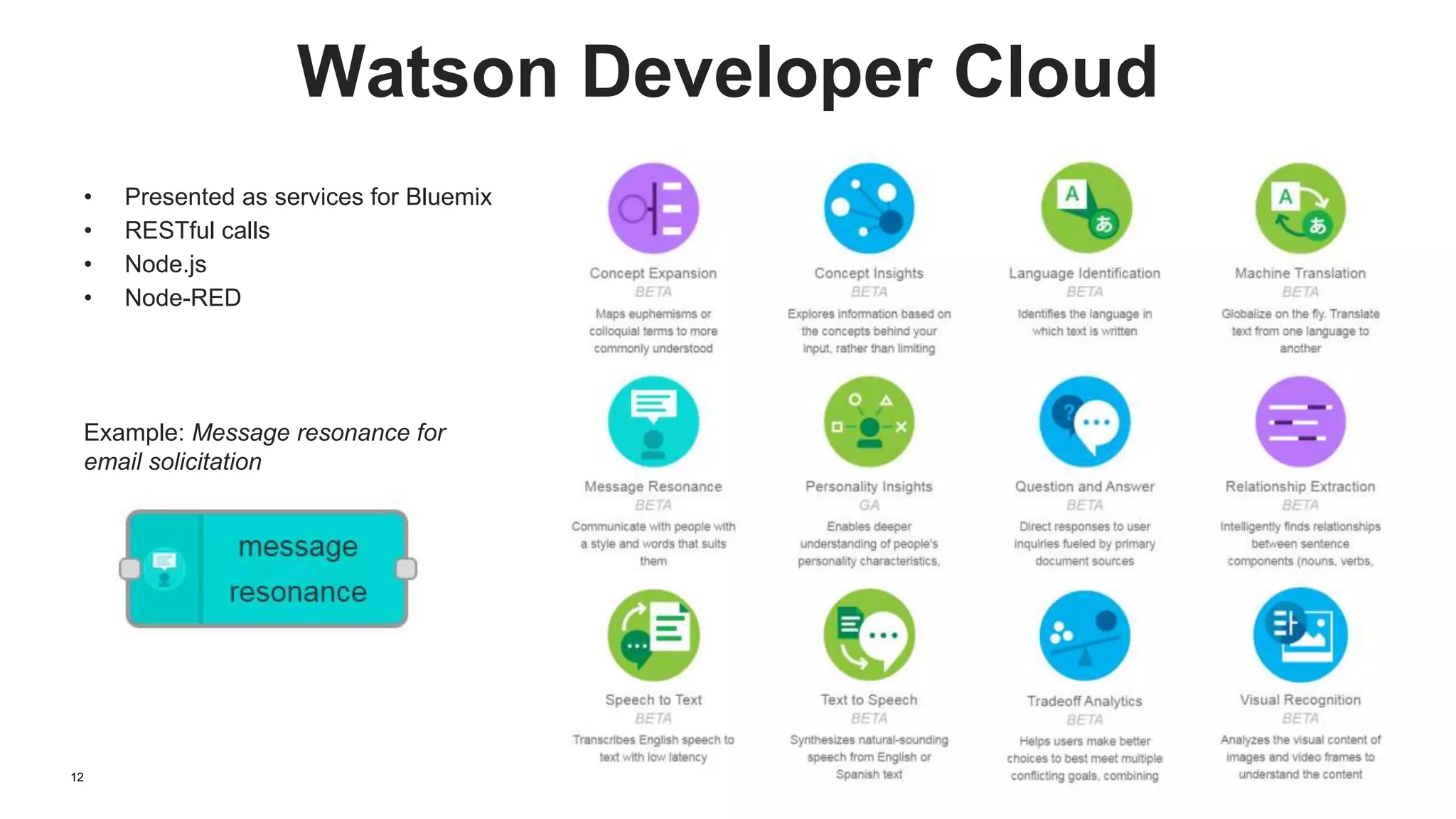

Watson Developer Cloud
• Presented as services for Bluemix
• RESTful calls
• Node.js
• Node-RED
Example: Message resonance for
email solicitation
13. 13

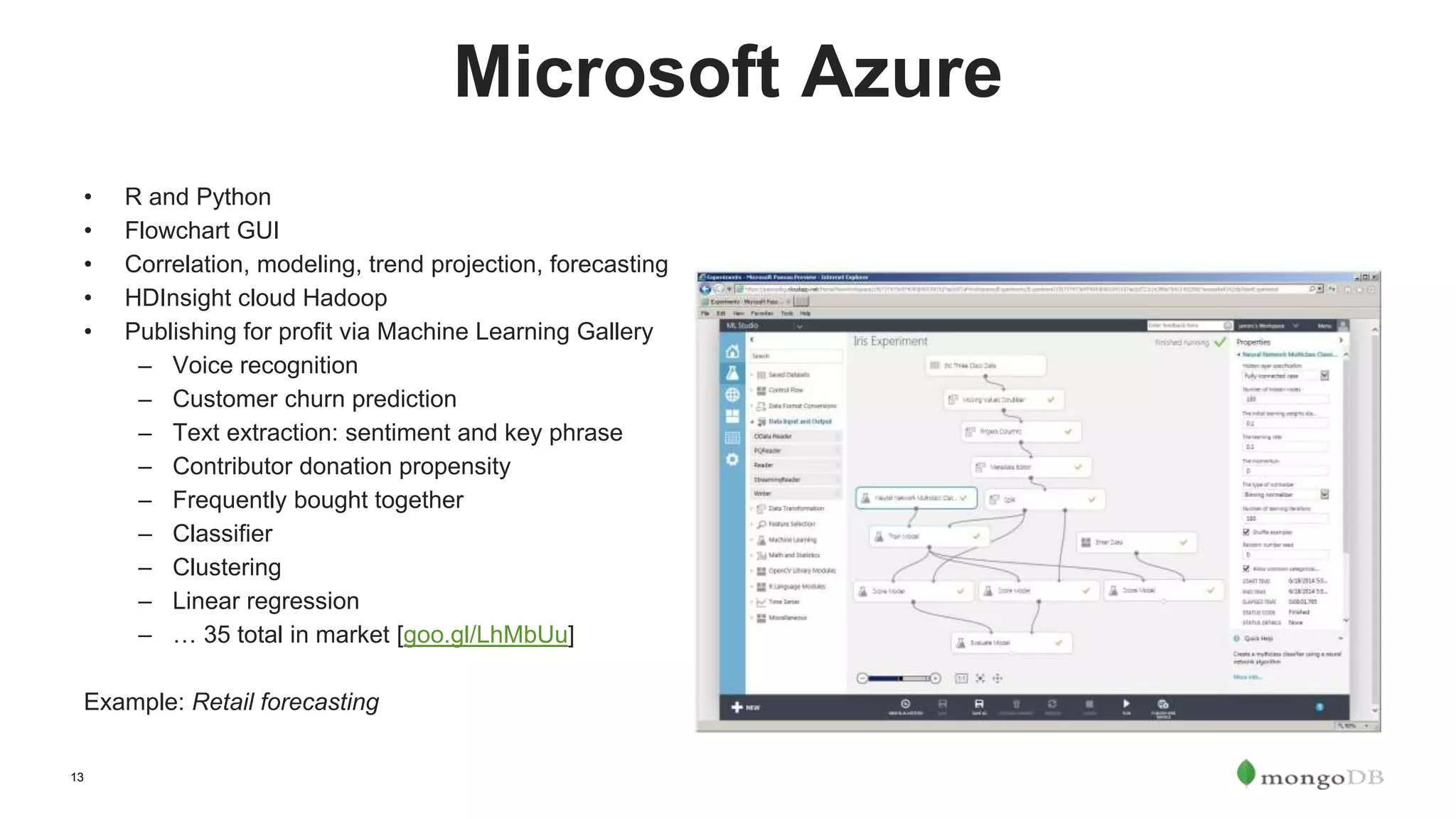

Microsoft Azure
• R and Python
• Flowchart GUI
• Correlation, modeling, trend projection, forecasting
• HDInsight cloud Hadoop
• Publishing for profit via Machine Learning Gallery
– Voice recognition
– Customer churn prediction
– Text extraction: sentiment and key phrase
– Contributor donation propensity
– Frequently bought together
– Classifier
– Clustering
– Linear regression
– … 35 total in market [goo.gl/LhMbUu]
Example: Retail forecasting
15. 15

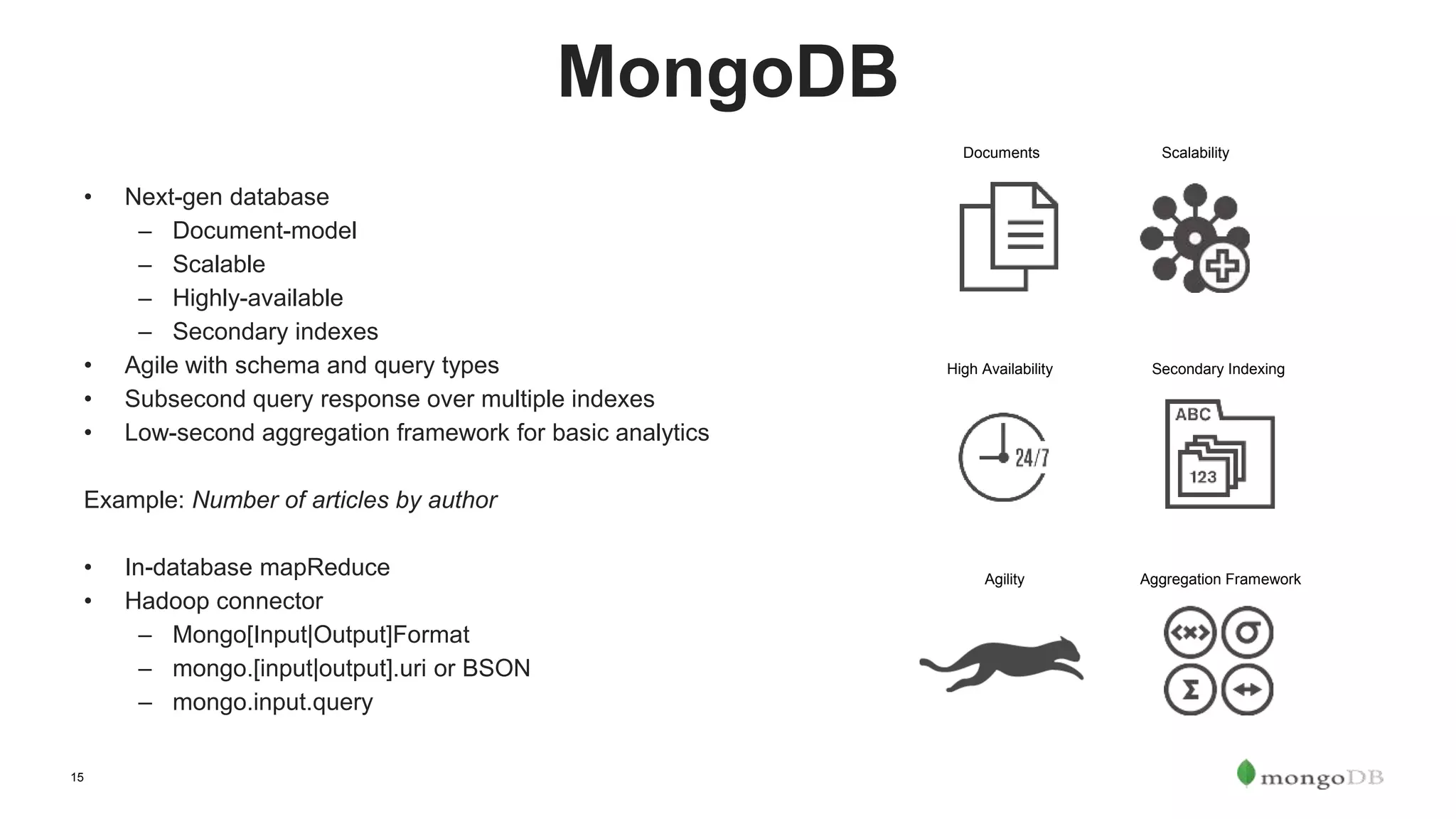

MongoDB
• Next-gen database
– Document-model
– Scalable
– Highly-available
– Secondary indexes
• Agile with schema and query types
• Subsecond query response over multiple indexes
• Low-second aggregation framework for basic analytics
Example: Number of articles by author
• In-database mapReduce
• Hadoop connector
– Mongo[Input|Output]Format
– mongo.[input|output].uri or BSON
– mongo.input.query
Agility Aggregation Framework
Documents
High Availability Secondary Indexing
Scalability
16. 16

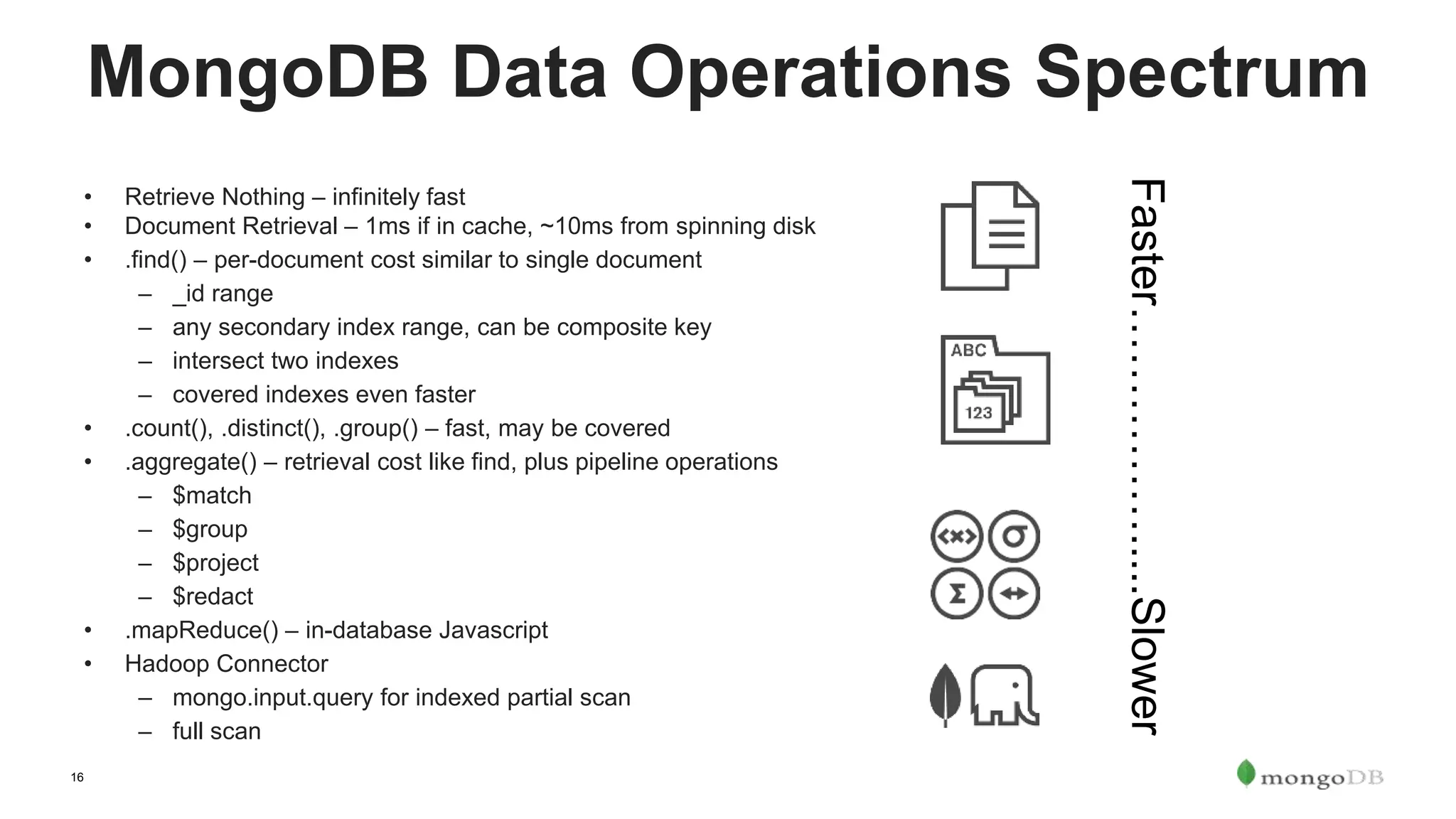

MongoDB Data Operations Spectrum
• Retrieve Nothing – infinitely fast
• Document Retrieval – 1ms if in cache, ~10ms from spinning disk
• .find() – per-document cost similar to single document
– _id range
– any secondary index range, can be composite key
– intersect two indexes
– covered indexes even faster
• .count(), .distinct(), .group() – fast, may be covered
• .aggregate() – retrieval cost like find, plus pipeline operations
– $match
– $group
– $project
– $redact
• .mapReduce() – in-database Javascript
• Hadoop Connector
– mongo.input.query for indexed partial scan
– full scan
Faster…………….....Slower
19. 19

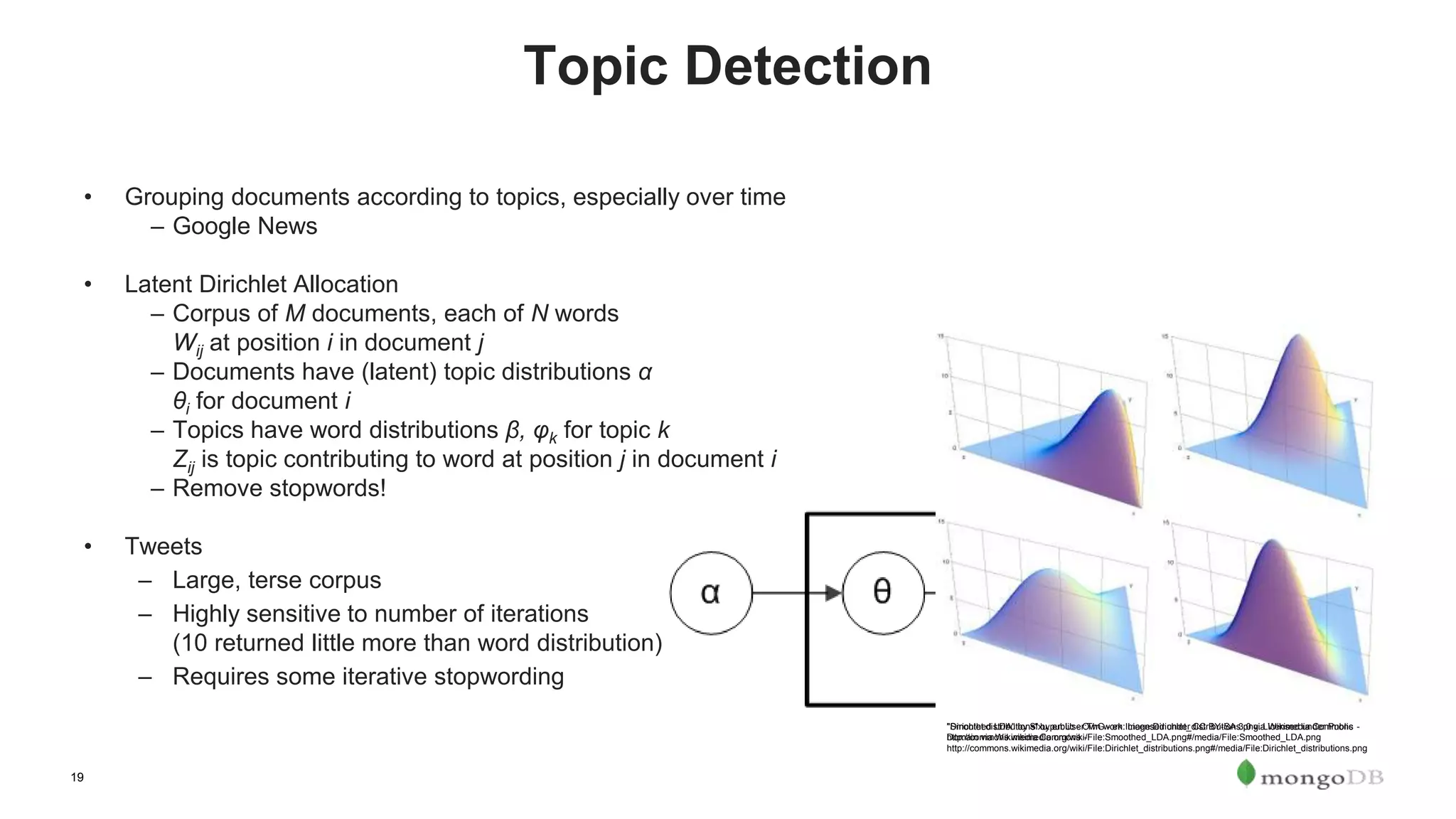

Topic Detection
• Grouping documents according to topics, especially over time
– Google News
• Latent Dirichlet Allocation
– Corpus of M documents, each of N words
Wij at position i in document j
– Documents have (latent) topic distributions α
θi for document i
– Topics have word distributions β, φk for topic k
Zij is topic contributing to word at position j in document i
– Remove stopwords!
• Tweets
– Large, terse corpus
– Highly sensitive to number of iterations
(10 returned little more than word distribution)
– Requires some iterative stopwording
"Smoothed LDA" by Slxu.public - Own work. Licensed under CC BY-SA 3.0 via Wikimedia Commons -
http://commons.wikimedia.org/wiki/File:Smoothed_LDA.png#/media/File:Smoothed_LDA.png
"Dirichlet distributions" by en:User:ThG - en:Image:Dirichlet_distributions.png. Licensed under Public
Domain via Wikimedia Commons -
http://commons.wikimedia.org/wiki/File:Dirichlet_distributions.png#/media/File:Dirichlet_distributions.png

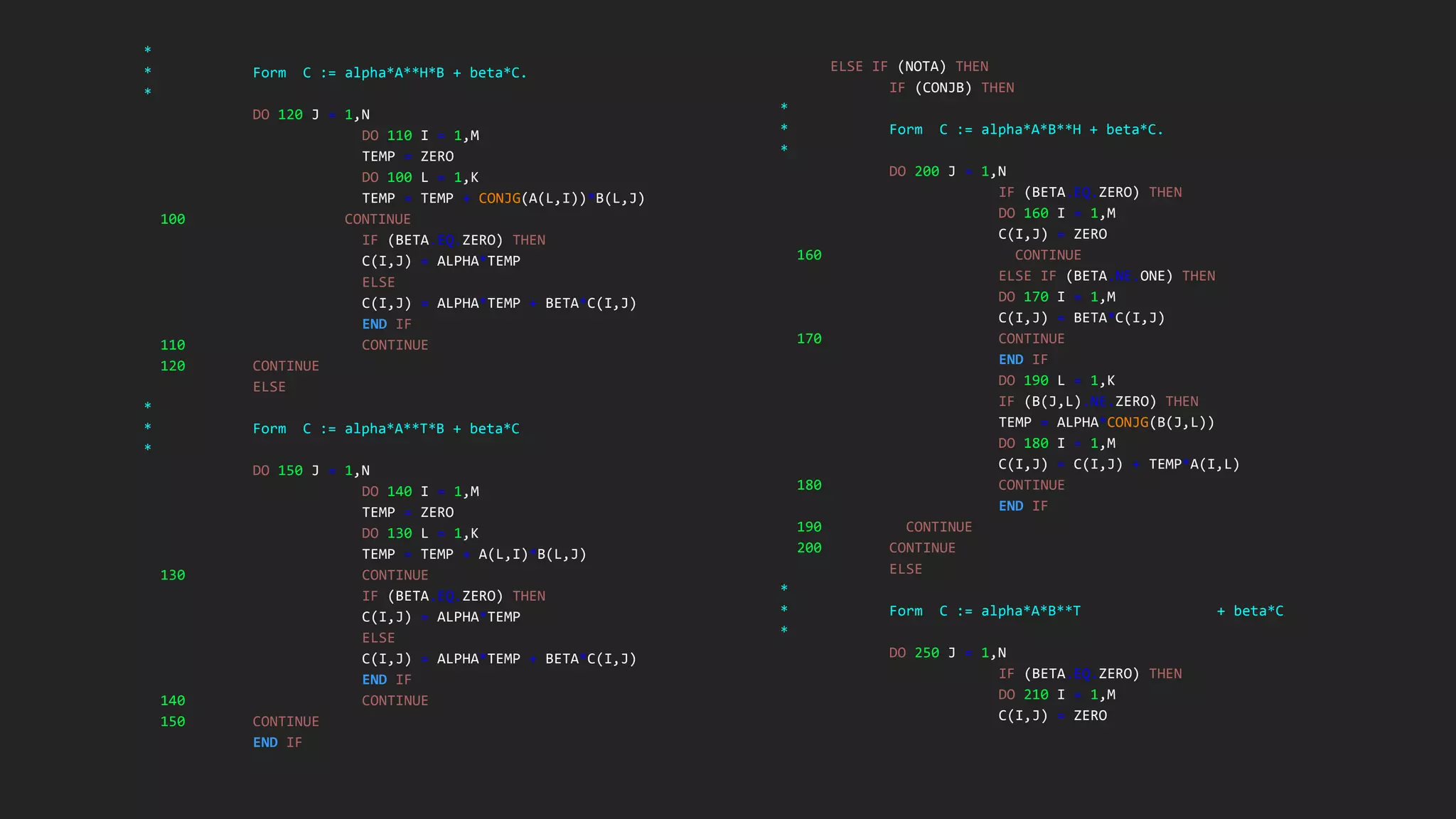

20. *
* Form C := alpha*A**H*B + beta*C.
*
DO 120 J = 1,N
DO 110 I = 1,M
TEMP = ZERO
DO 100 L = 1,K
TEMP = TEMP + CONJG(A(L,I))*B(L,J)
100 CONTINUE
IF (BETA.EQ.ZERO) THEN
C(I,J) = ALPHA*TEMP
ELSE
C(I,J) = ALPHA*TEMP + BETA*C(I,J)
END IF
110 CONTINUE
120 CONTINUE
ELSE
*
* Form C := alpha*A**T*B + beta*C
*
DO 150 J = 1,N
DO 140 I = 1,M
TEMP = ZERO
DO 130 L = 1,K
TEMP = TEMP + A(L,I)*B(L,J)
130 CONTINUE
IF (BETA.EQ.ZERO) THEN
C(I,J) = ALPHA*TEMP
ELSE
C(I,J) = ALPHA*TEMP + BETA*C(I,J)
END IF
140 CONTINUE
150 CONTINUE
END IF
ELSE IF (NOTA) THEN
IF (CONJB) THEN
*
* Form C := alpha*A*B**H + beta*C.
*
DO 200 J = 1,N
IF (BETA.EQ.ZERO) THEN
DO 160 I = 1,M
C(I,J) = ZERO
160 CONTINUE
ELSE IF (BETA.NE.ONE) THEN
DO 170 I = 1,M
C(I,J) = BETA*C(I,J)
170 CONTINUE
END IF
DO 190 L = 1,K
IF (B(J,L).NE.ZERO) THEN
TEMP = ALPHA*CONJG(B(J,L))
DO 180 I = 1,M
C(I,J) = C(I,J) + TEMP*A(I,L)
180 CONTINUE
END IF
190 CONTINUE
200 CONTINUE
ELSE
*
* Form C := alpha*A*B**T + beta*C
*
DO 250 J = 1,N
IF (BETA.EQ.ZERO) THEN
DO 210 I = 1,M
C(I,J) = ZERO

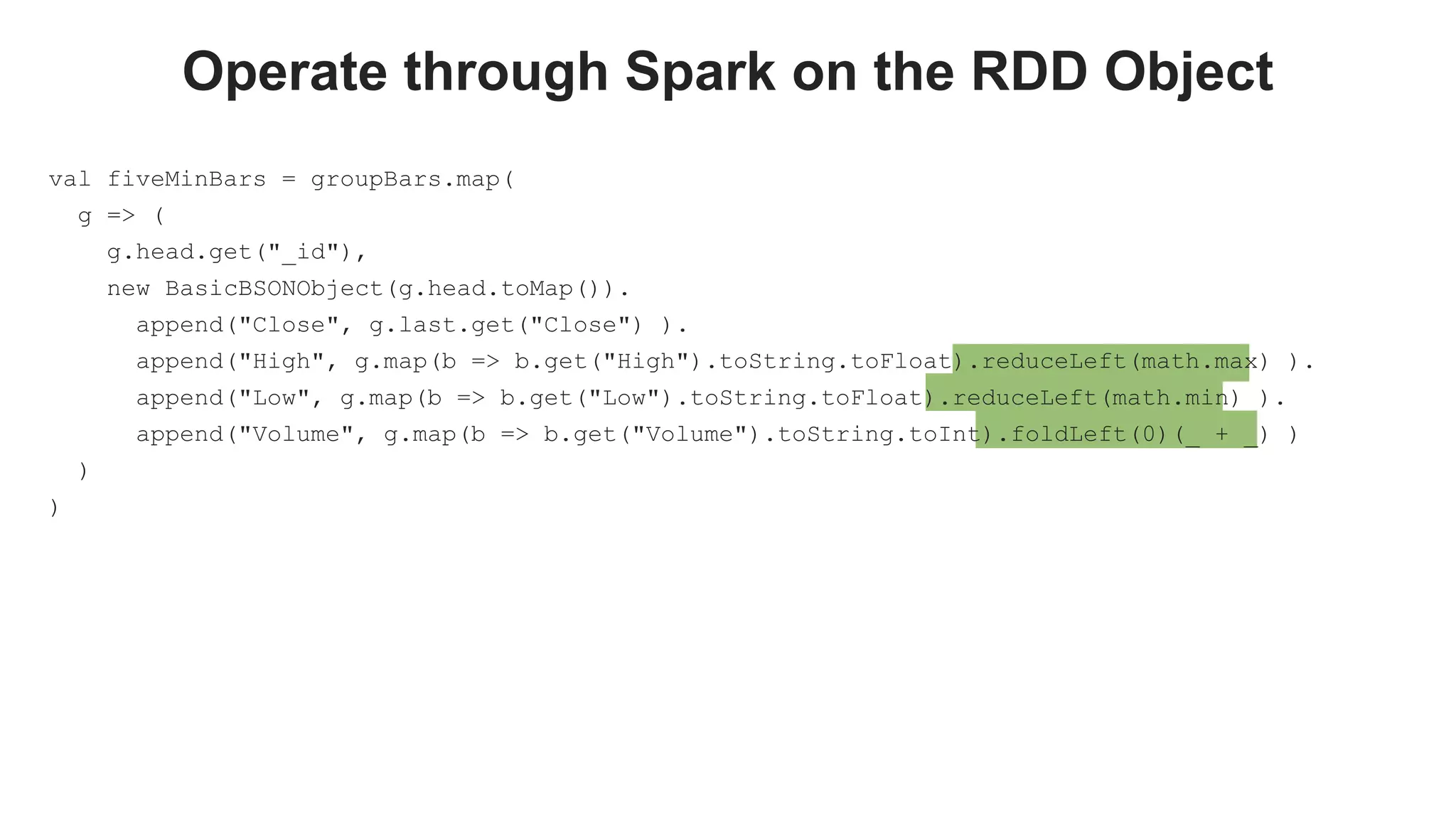

22. val fiveMinBars = groupBars.map(
g => (
g.head.get("_id"),
new BasicBSONObject(g.head.toMap()).
append("Close", g.last.get("Close") ).
append("High", g.map(b => b.get("High").toString.toFloat).reduceLeft(math.max) ).
append("Low", g.map(b => b.get("Low").toString.toFloat).reduceLeft(math.min) ).
append("Volume", g.map(b => b.get("Volume").toString.toInt).foldLeft(0)(_ + _) )
)
)
Operate through Spark on the RDD Object

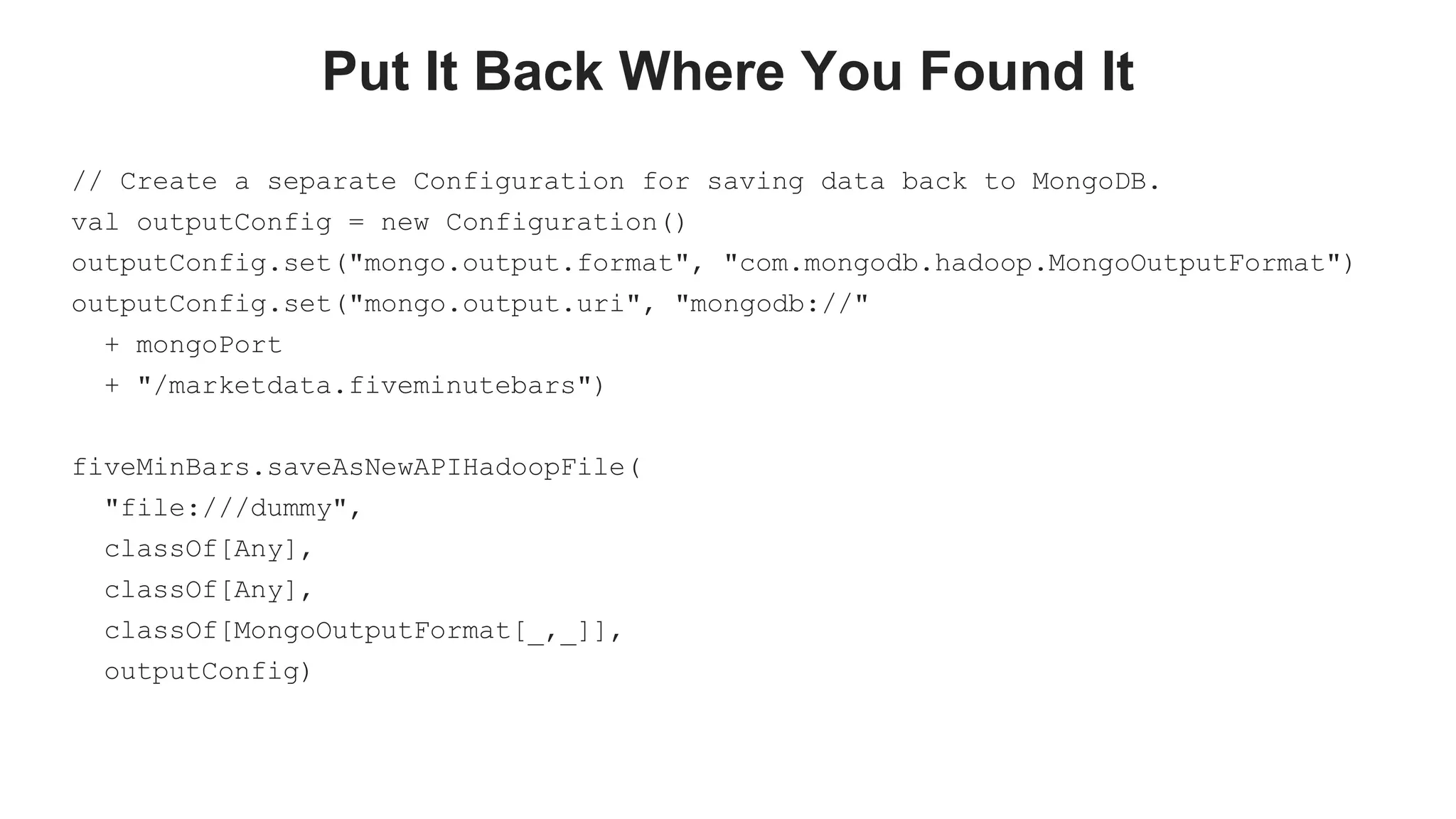

23. // Create a separate Configuration for saving data back to MongoDB.
val outputConfig = new Configuration()
outputConfig.set("mongo.output.format", "com.mongodb.hadoop.MongoOutputFormat")
outputConfig.set("mongo.output.uri", "mongodb://"
+ mongoPort
+ "/marketdata.fiveminutebars")
fiveMinBars.saveAsNewAPIHadoopFile(
"file:///dummy",
classOf[Any],
classOf[Any],
classOf[MongoOutputFormat[_,_]],
outputConfig)
Put It Back Where You Found It

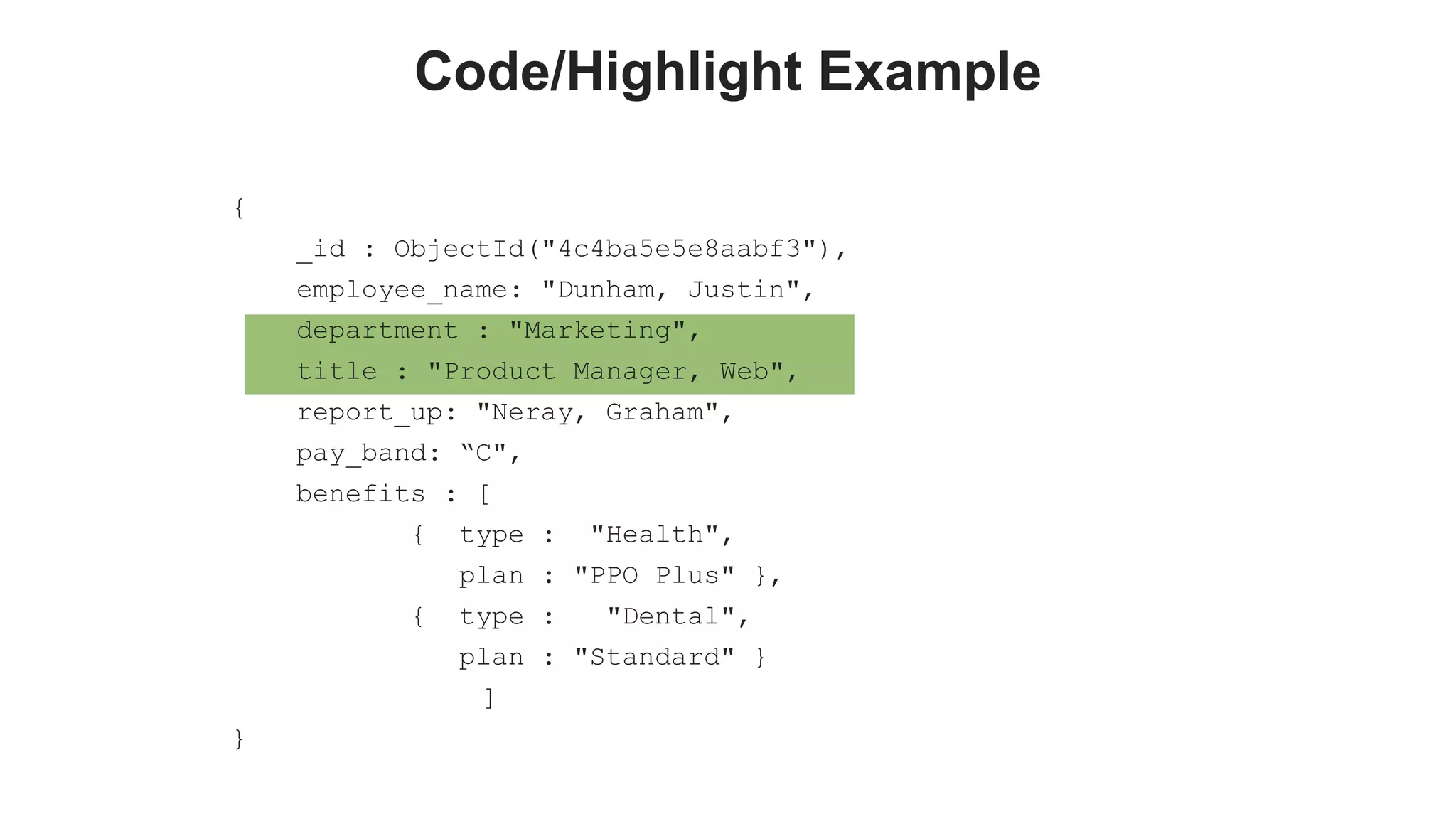

28. {
_id : ObjectId("4c4ba5e5e8aabf3"),
employee_name: "Dunham, Justin",
department : "Marketing",
title : "Product Manager, Web",
report_up: "Neray, Graham",
pay_band: “C",
benefits : [
{ type : "Health",
plan : "PPO Plus" },
{ type : "Dental",
plan : "Standard" }
]
}
Code/Highlight Example
