- 1. Beyond Tuning: Getting themost out of your Oracle application Mike Ault, Oracle Guru, TMS Inc. Texas Memory Systems, Inc. - The World's Fastest Storage®
- 2. Michael R. Ault Oracle Guru - Nuclear Navy 6 years - Nuclear Chemist/Programmer 10 years - Kennedy Western University Graduate - Bachelors Degree Computer Science - Certified in all Oracle Versions Since 6 - Oracle DBA, author, since 1990 Texas Memory Systems, Inc. - The World's Fastest Storage®
- 3. Books by MichaelR. Ault Texas Memory Systems, Inc. - The World's Fastest Storage®

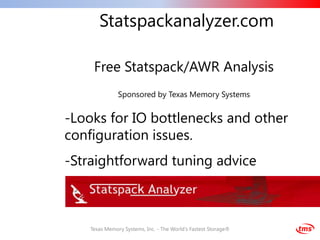

- 4. Statspackanalyzer.com Free Statspack/AWR Analysis Sponsored by Texas Memory Systems -Looks for IO bottlenecks and other configuration issues. -Straightforward tuning advice Texas Memory Systems, Inc. - The World's Fastest Storage®

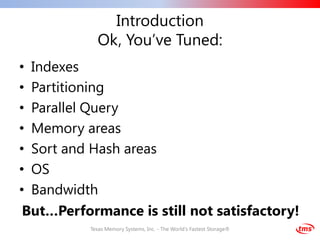

- 5. Introduction Ok, You’ve Tuned: • Indexes • Partitioning • Parallel Query • Memory areas • Sort and Hash areas • OS • Bandwidth But…Performance is still not satisfactory! Texas Memory Systems, Inc. - The World's Fastest Storage®

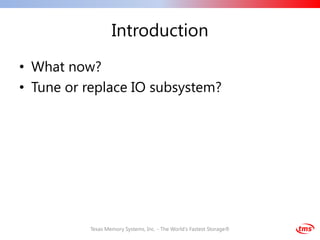

- 6. Introduction • What now? •Tune or replace IO subsystem? Texas Memory Systems, Inc. - The World's Fastest Storage®

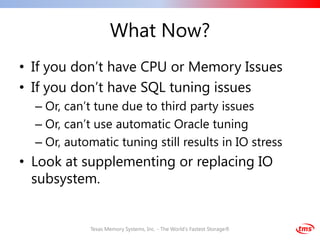

- 7. What Now? • Ifyou don’t have CPU or Memory Issues • If you don’t have SQL tuning issues – Or, can’t tune due to third party issues – Or, can’t use automatic Oracle tuning – Or, automatic tuning still results in IO stress • Look at supplementing or replacing IO subsystem. Texas Memory Systems, Inc. - The World's Fastest Storage®

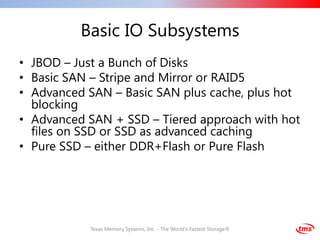

- 8. Basic IO Subsystems •JBOD – Just a Bunch of Disks • Basic SAN – Stripe and Mirror or RAID5 • Advanced SAN – Basic SAN plus cache, plus hot blocking • Advanced SAN + SSD – Tiered approach with hot files on SSD or SSD as advanced caching • Pure SSD – either DDR+Flash or Pure Flash Texas Memory Systems, Inc. - The World's Fastest Storage®

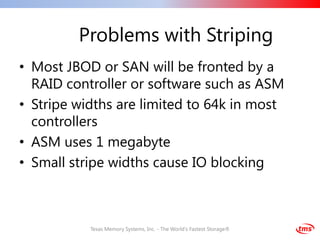

- 9. Problems with Striping •Most JBOD or SAN will be fronted by a RAID controller or software such as ASM • Stripe widths are limited to 64k in most controllers • ASM uses 1 megabyte • Small stripe widths cause IO blocking Texas Memory Systems, Inc. - The World's Fastest Storage®

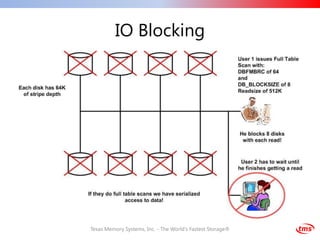

- 10. IO Blocking Texas MemorySystems, Inc. - The World's Fastest Storage®

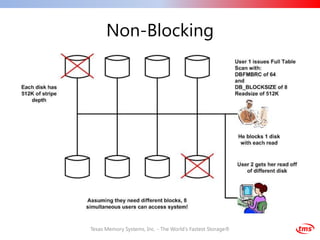

- 11. Non-Blocking Texas Memory Systems,Inc. - The World's Fastest Storage®
- 12. So…. • Maximize bandwidth – More HBAs – Infiniband – Most SANs can’t utilize existing bandwidth due to disk limits • Use luns to map hot/cold disk areas (11g ASM does this) • Tune RAID set stripe depth to IO size • Tune to max expected IO size • Reduces blocking reads and writes – Oracle says it doesn’t block reads – This is internal to Oracle once block is in cache – Blocking reads are due to physical issues with disk Texas Memory Systems, Inc. - The World's Fastest Storage®

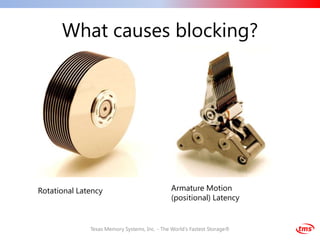

- 13. What causes blocking? RotationalLatency Armature Motion (positional) Latency Texas Memory Systems, Inc. - The World's Fastest Storage®

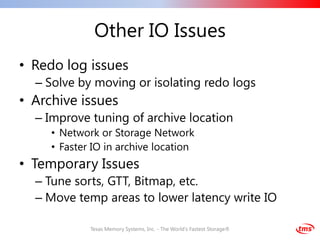

- 14. Other IO Issues •Redo log issues – Solve by moving or isolating redo logs • Archive issues – Improve tuning of archive location • Network or Storage Network • Faster IO in archive location • Temporary Issues – Tune sorts, GTT, Bitmap, etc. – Move temp areas to lower latency write IO Texas Memory Systems, Inc. - The World's Fastest Storage®

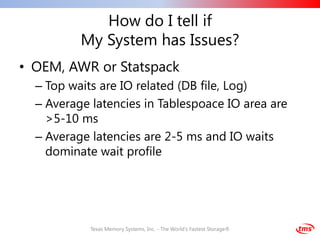

- 15. How do Itell if My System has Issues? • OEM, AWR or Statspack – Top waits are IO related (DB file, Log) – Average latencies in Tablespoace IO area are >5-10 ms – Average latencies are 2-5 ms and IO waits dominate wait profile Texas Memory Systems, Inc. - The World's Fastest Storage®
- 16. How do SANsOvercome These Forms of Latency? • More disks – May not help latency • Caching into Flash or DDR – Good until cache is flooded • Selective files (hot) moved to Flash • Hot blocks moved to faster portions of disk – still limited to 2-5 ms Texas Memory Systems, Inc. - The World's Fastest Storage®

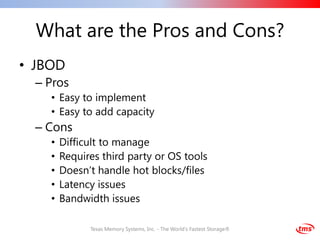

- 17. What are thePros and Cons? • JBOD – Pros • Easy to implement • Easy to add capacity – Cons • Difficult to manage • Requires third party or OS tools • Doesn’t handle hot blocks/files • Latency issues • Bandwidth issues Texas Memory Systems, Inc. - The World's Fastest Storage®

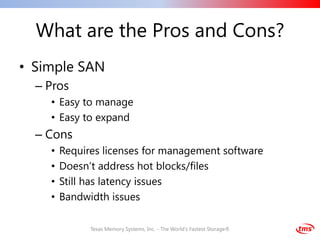

- 18. What are thePros and Cons? • Simple SAN – Pros • Easy to manage • Easy to expand – Cons • Requires licenses for management software • Doesn’t address hot blocks/files • Still has latency issues • Bandwidth issues Texas Memory Systems, Inc. - The World's Fastest Storage®

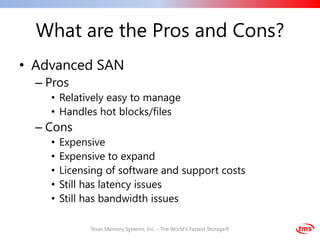

- 19. What are thePros and Cons? • Advanced SAN – Pros • Relatively easy to manage • Handles hot blocks/files – Cons • Expensive • Expensive to expand • Licensing of software and support costs • Still has latency issues • Still has bandwidth issues Texas Memory Systems, Inc. - The World's Fastest Storage®

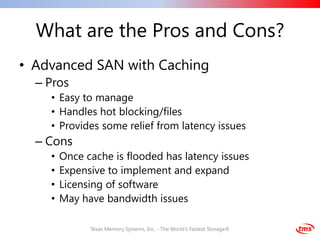

- 20. What are thePros and Cons? • Advanced SAN with Caching – Pros • Easy to manage • Handles hot blocking/files • Provides some relief from latency issues – Cons • Once cache is flooded has latency issues • Expensive to implement and expand • Licensing of software • May have bandwidth issues Texas Memory Systems, Inc. - The World's Fastest Storage®

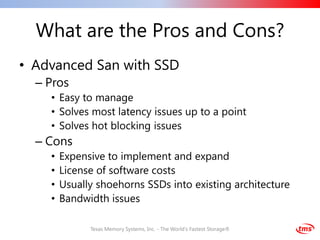

- 21. What are thePros and Cons? • Advanced San with SSD – Pros • Easy to manage • Solves most latency issues up to a point • Solves hot blocking issues – Cons • Expensive to implement and expand • License of software costs • Usually shoehorns SSDs into existing architecture • Bandwidth issues Texas Memory Systems, Inc. - The World's Fastest Storage®

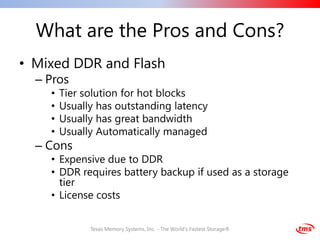

- 22. What are thePros and Cons? • Mixed DDR and Flash – Pros • Tier solution for hot blocks • Usually has outstanding latency • Usually has great bandwidth • Usually Automatically managed – Cons • Expensive due to DDR • DDR requires battery backup if used as a storage tier • License costs Texas Memory Systems, Inc. - The World's Fastest Storage®

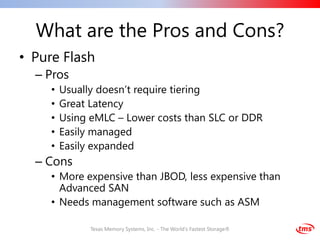

- 23. What are thePros and Cons? • Pure Flash – Pros • Usually doesn’t require tiering • Great Latency • Using eMLC – Lower costs than SLC or DDR • Easily managed • Easily expanded – Cons • More expensive than JBOD, less expensive than Advanced SAN • Needs management software such as ASM Texas Memory Systems, Inc. - The World's Fastest Storage®

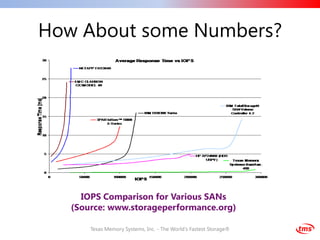

- 24. How About someNumbers? IOPS Comparison for Various SANs (Source: www.storageperformance.org) Texas Memory Systems, Inc. - The World's Fastest Storage®

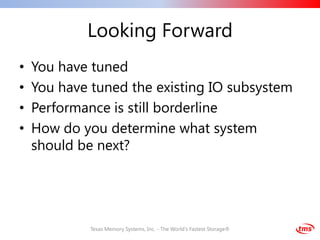

- 25. Looking Forward • You have tuned • You have tuned the existing IO subsystem • Performance is still borderline • How do you determine what system should be next? Texas Memory Systems, Inc. - The World's Fastest Storage®

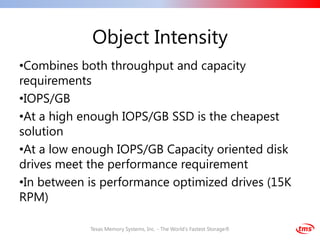

- 26. Object Intensity •Combines boththroughput and capacity requirements •IOPS/GB •At a high enough IOPS/GB SSD is the cheapest solution •At a low enough IOPS/GB Capacity oriented disk drives meet the performance requirement •In between is performance optimized drives (15K RPM) Texas Memory Systems, Inc. - The World's Fastest Storage®

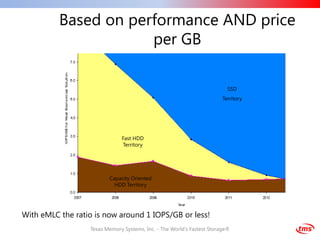

- 27. Based on performanceAND price per GB SSD Territory Fast HDD Territory Capacity Oriented HDD Territory With eMLC the ratio is now around 1 IOPS/GB or less! Texas Memory Systems, Inc. - The World's Fastest Storage®

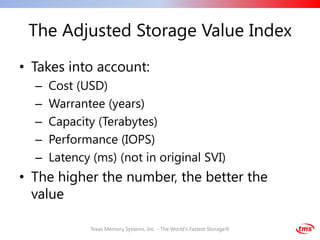

- 28. The Adjusted StorageValue Index • Takes into account: – Cost (USD) – Warrantee (years) – Capacity (Terabytes) – Performance (IOPS) – Latency (ms) (not in original SVI) • The higher the number, the better the value Texas Memory Systems, Inc. - The World's Fastest Storage®

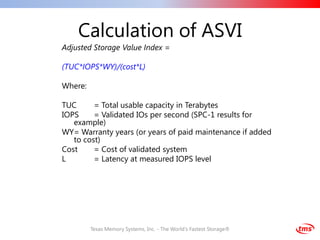

- 29. Calculation of ASVI AdjustedStorage Value Index = (TUC*IOPS*WY)/(cost*L) Where: TUC = Total usable capacity in Terabytes IOPS = Validated IOs per second (SPC-1 results for example) WY= Warranty years (or years of paid maintenance if added to cost) Cost = Cost of validated system L = Latency at measured IOPS level Texas Memory Systems, Inc. - The World's Fastest Storage®

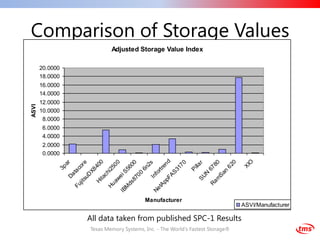

- 30. Comparison of StorageValues Adjusted Storage Value Index 20.0000 18.0000 16.0000 14.0000 12.0000 ASVI 10.0000 8.0000 6.0000 4.0000 2.0000 0.0000 d O 0 0 0 ar re 80 0 0 2s r en 40 lla 62 60 50 XI 17 co 3p 6n 67 Pi rtr S5 X8 i2 S3 n ta fo ch 00 Sa N Da D FA ei SU In ta su 87 m aw pp Hi Ra jit ds Hu Fu tA M Ne IB Manufacturer ASVI/Manufacturer All data taken from published SPC-1 Results Texas Memory Systems, Inc. - The World's Fastest Storage®

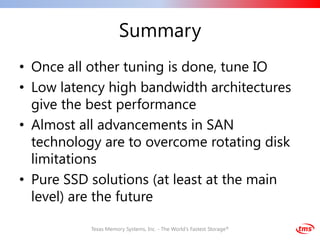

- 31. Summary • Once allother tuning is done, tune IO • Low latency high bandwidth architectures give the best performance • Almost all advancements in SAN technology are to overcome rotating disk limitations • Pure SSD solutions (at least at the main level) are the future Texas Memory Systems, Inc. - The World's Fastest Storage®
