AWS User Group July 2014 - Getting Started with cloud computing and AWS Getting Started with cloud computing and AWS Slides for the following AWS User Group Talks: "Public Cloud and AWS Overview" - Ryan Koop, Director of Products and Marketing at Cohesive @ryankoop "Getting Started in AWS" - Jonny Sywulak, Continuous Delivery Engineer at Stelligent Systems LLC @jonathansywulak July Sponsors: Hosts: Cohesive Beers and drinks: Cohesive Pizza: el el see Organizers: Cohesive Interested in getting involved next time? Have an idea for a talk? email margaret.walkerATcohesive.net #AWSChicago

1. copyright 2013

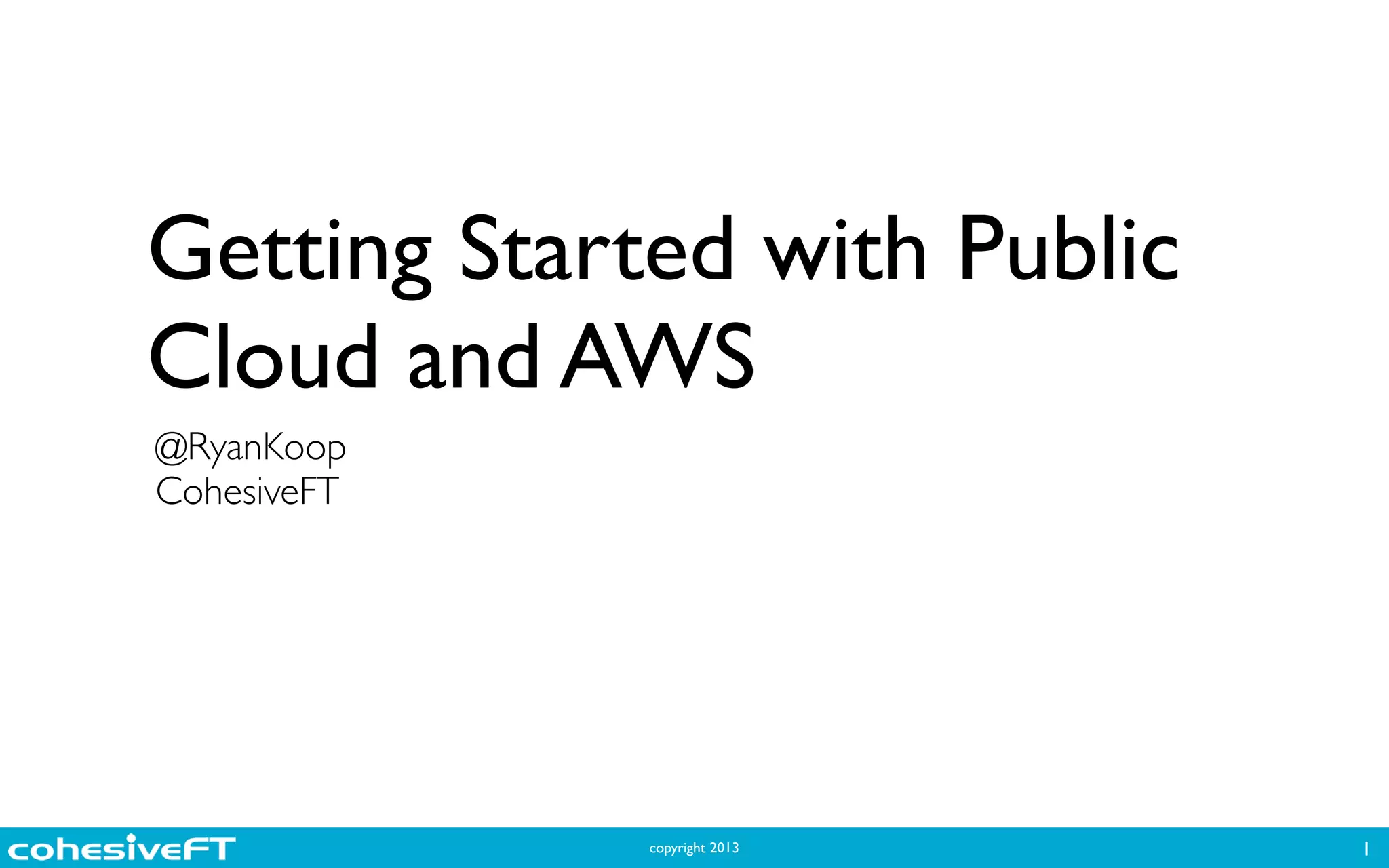

Getting Started with Public
Cloud and AWS
1
@RyanKoop
CohesiveFT

2. copyright 2013

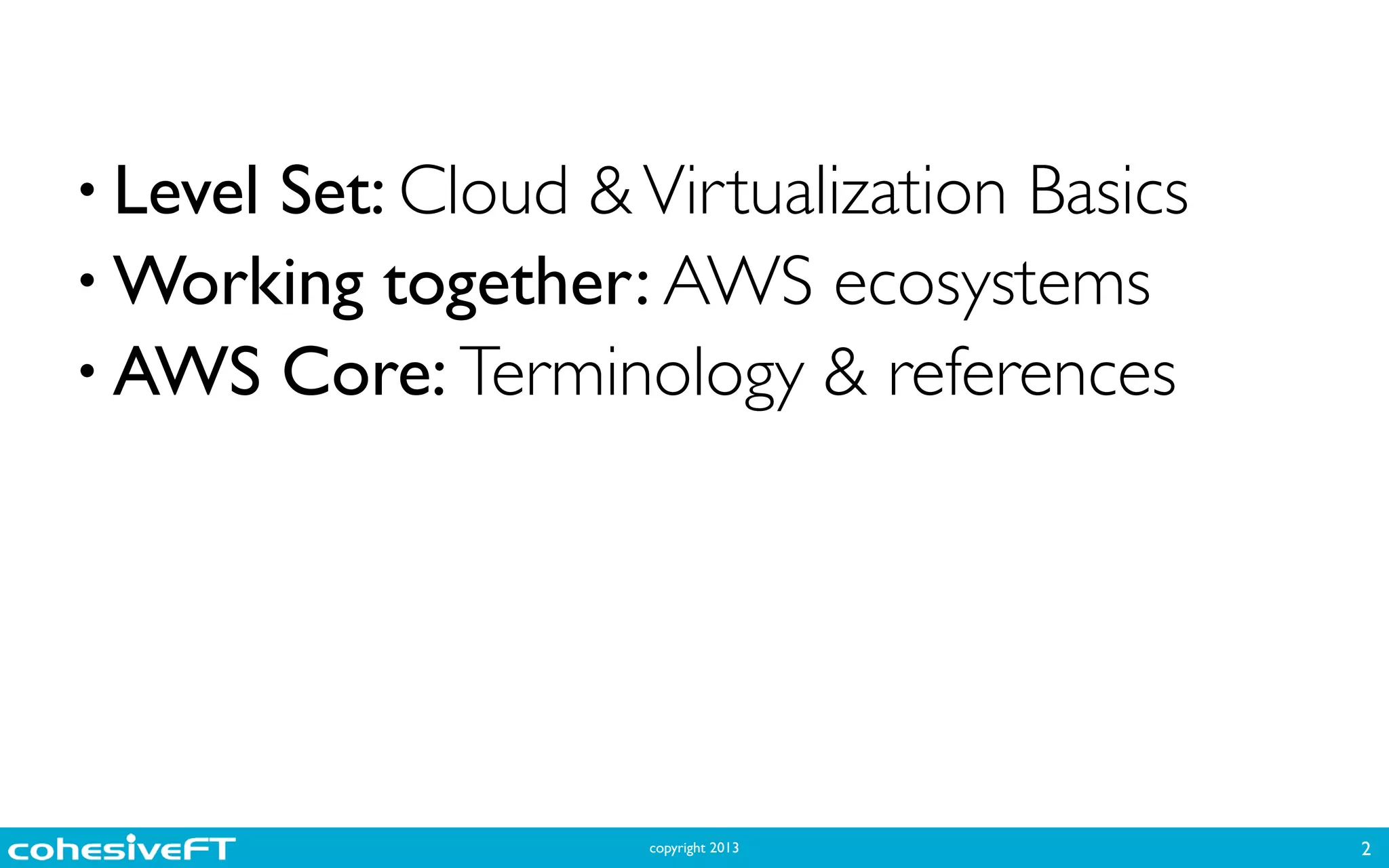

• Level Set: Cloud &Virtualization Basics
• Working together: AWS ecosystems
• AWS Core: Terminology & references
2

3. copyright 2013
Public cloud computing
3

4. copyright 2013

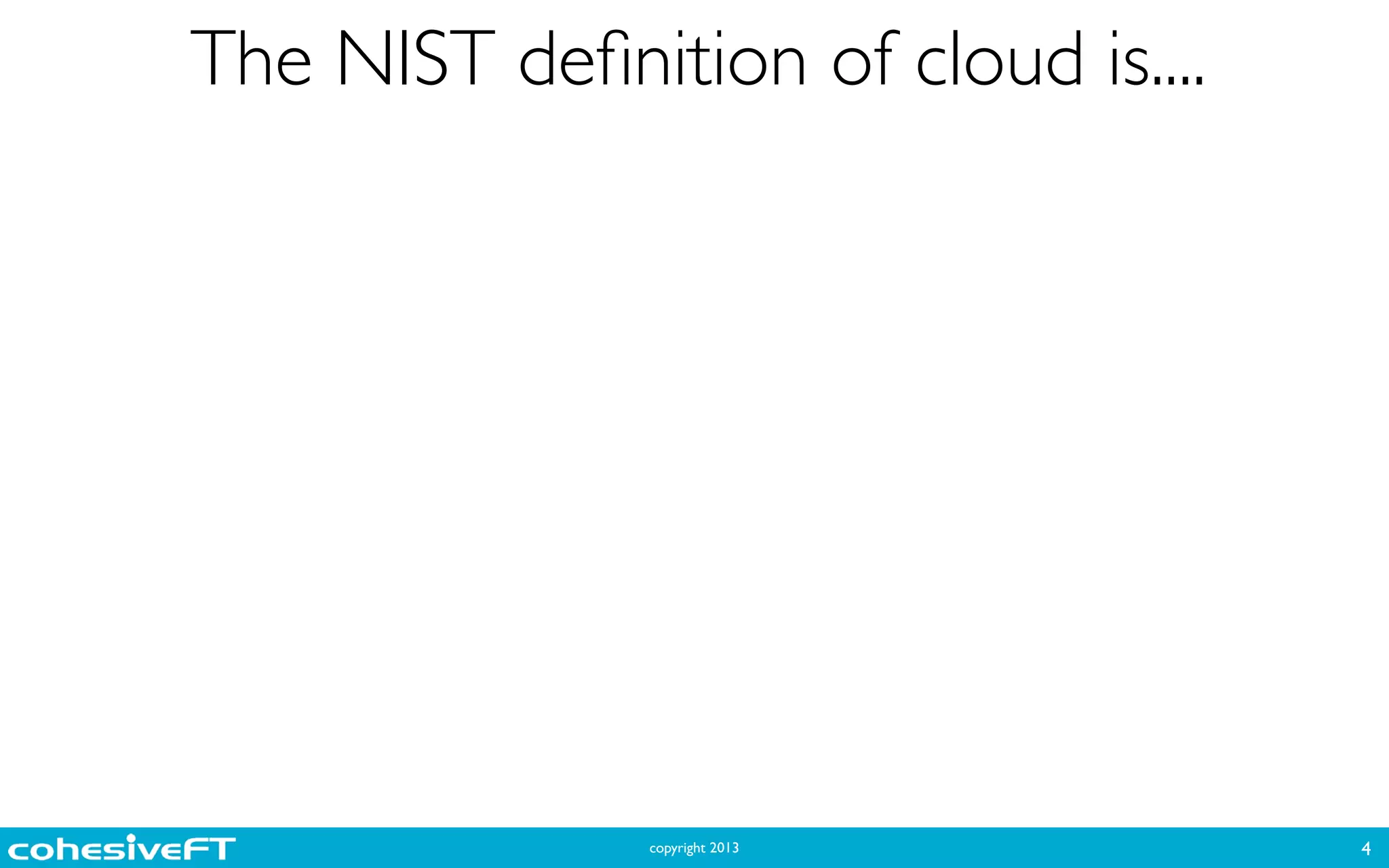

The NIST definition of cloud is....
4

5. copyright 2013
Layer 0
Layer 4
Layer 3
Layer 2
Layer 1
Layer 5
Layer 7
Layer 6

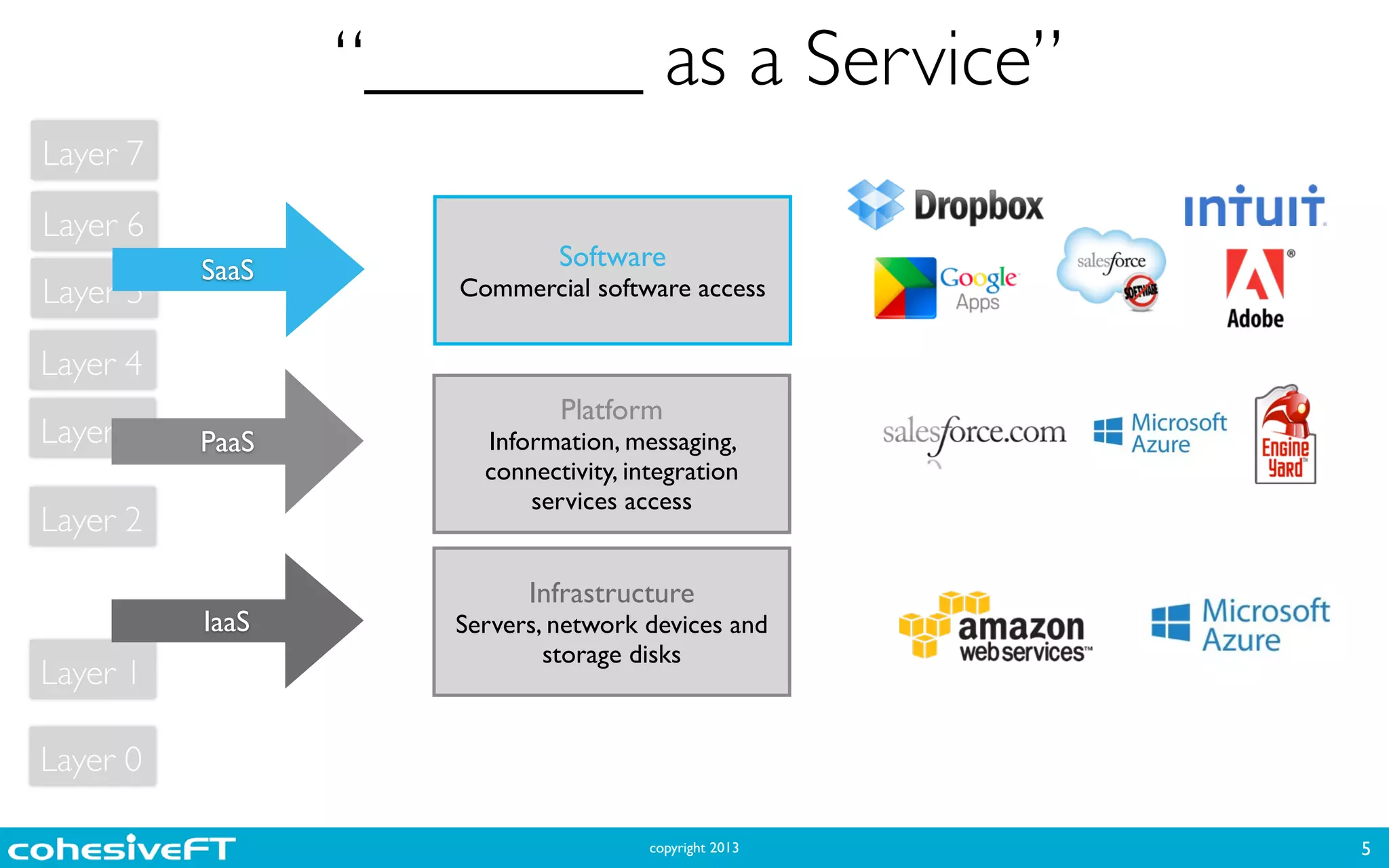

“_______ as a Service”
5
Software
Commercial software access
SaaS
Platform
Information, messaging,
connectivity, integration
services access
PaaS
Infrastructure
Servers, network devices and
storage disks
IaaS

6. copyright 2013

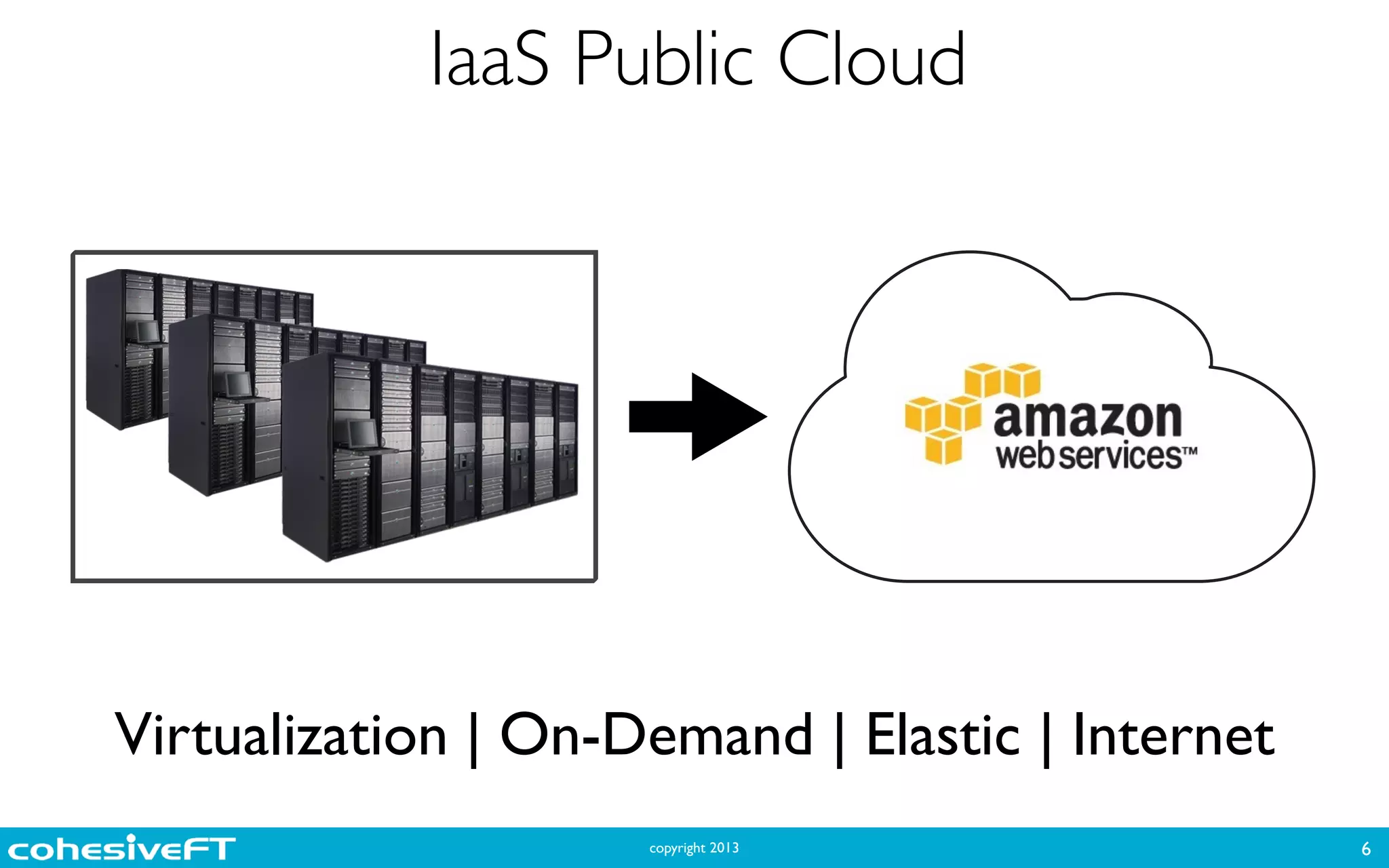

IaaS Public Cloud
6
Virtualization | On-Demand | Elastic | Internet

7. copyright 2013

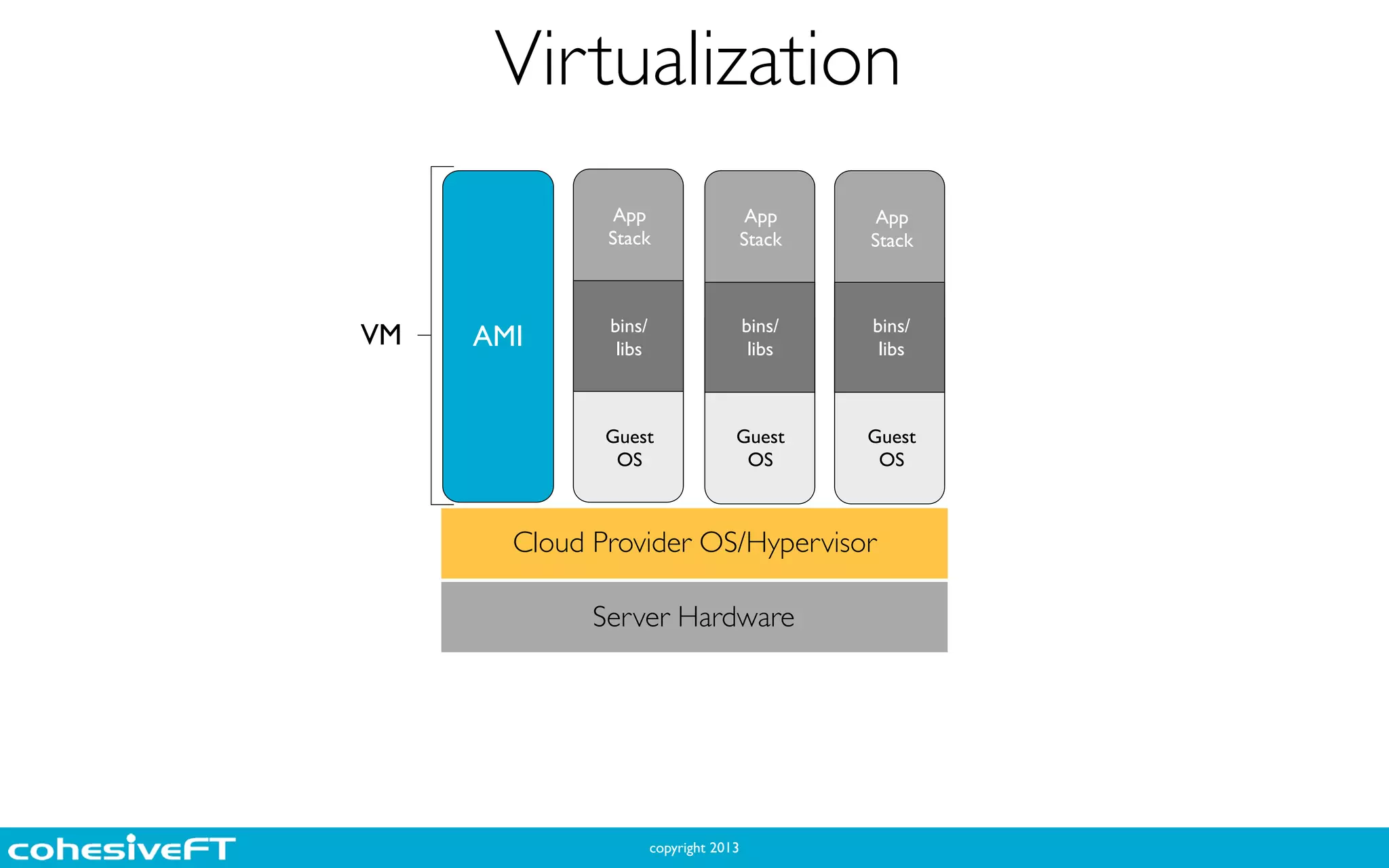

Virtualization
Cloud Provider OS/Hypervisor
Server Hardware
AMI bins/
libs
bins/
libs
bins/
libs
Guest
OS
Guest
OS
Guest
OS
App
Stack
App
Stack
App
Stack
VM

8. copyright 2013
On-Demand
8
source: imsa.edusource: theweightofdebt.com
NOThourly pricing capital expense

9. copyright 2013

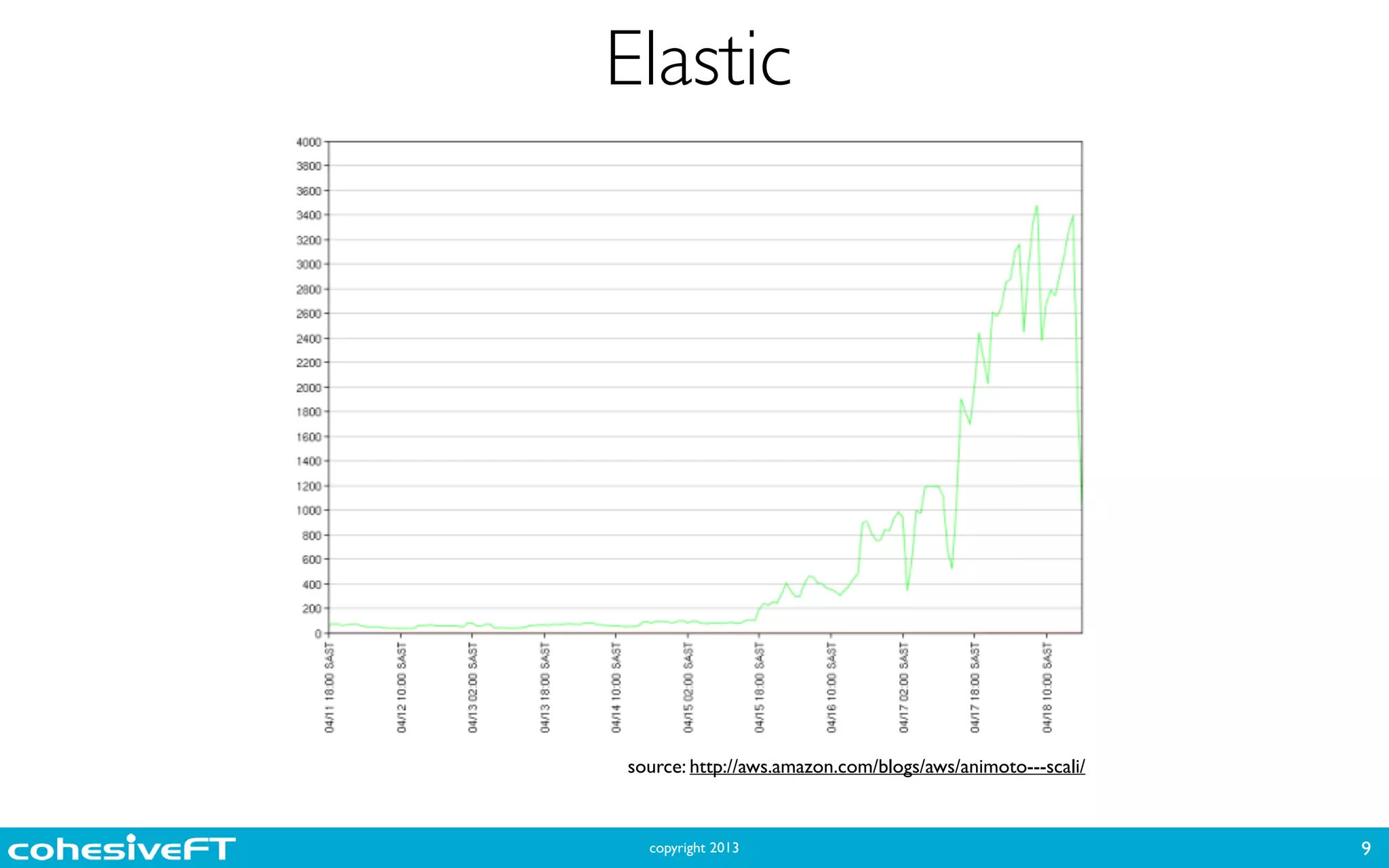

Elastic
9
source: http://aws.amazon.com/blogs/aws/animoto---scali/

10. copyright 2013

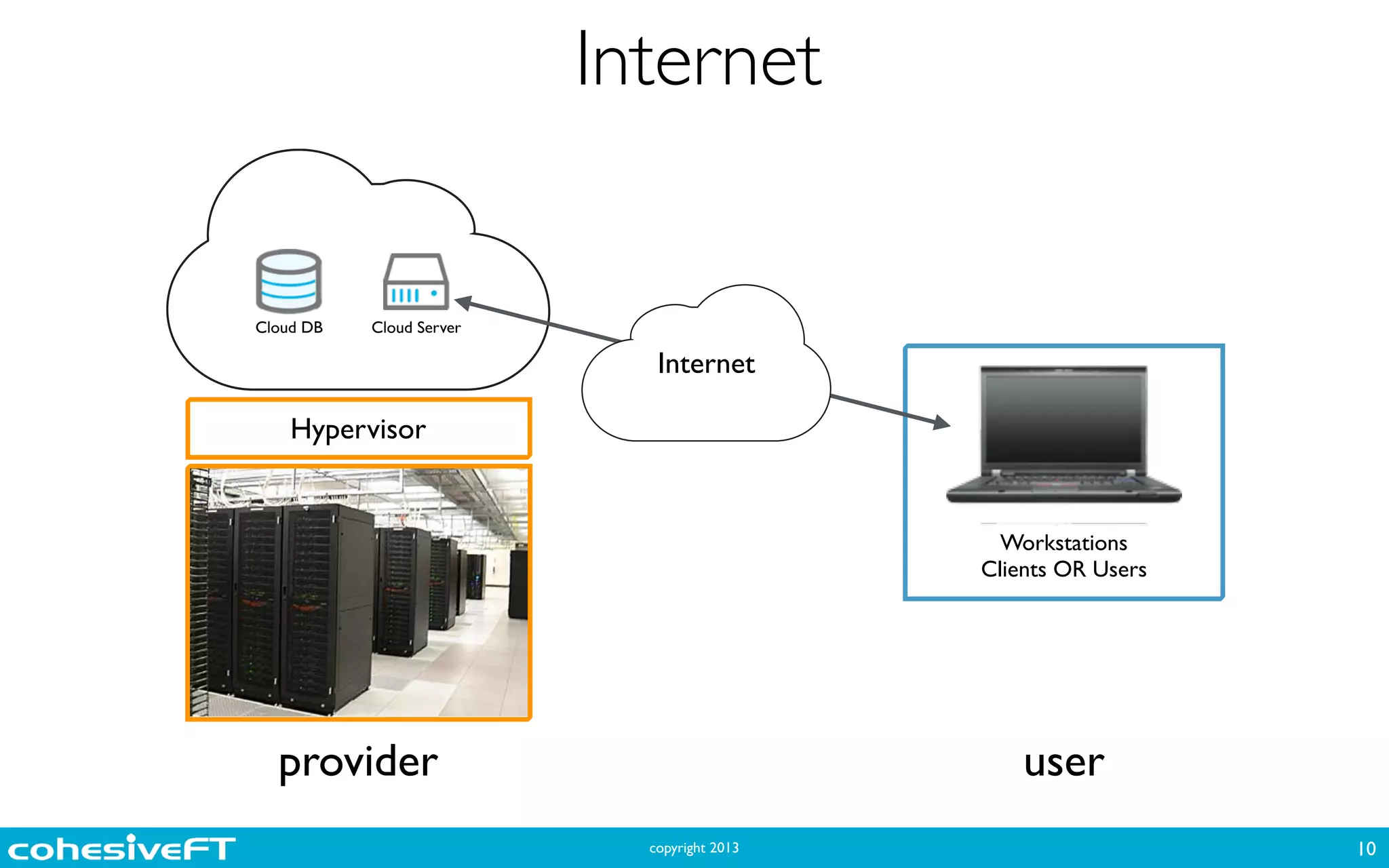

Internet
10
Cloud DB Cloud Server
Hypervisor
Workstations
Clients OR Users
Internet
provider user

11. copyright 2013
Public Cloud: the Zipcar of Computing
11
Cloud Computing and Zipcar are:
• On-demand
• Self-service
• Flexible & easy to use
• Shared resources
• Pay-as-you-go pricing
• Creating new ways to use and connect resources
SaaSSaaS
Images: Wikipedia

12. copyright 2013
Why AWS?
12

13. copyright 2013

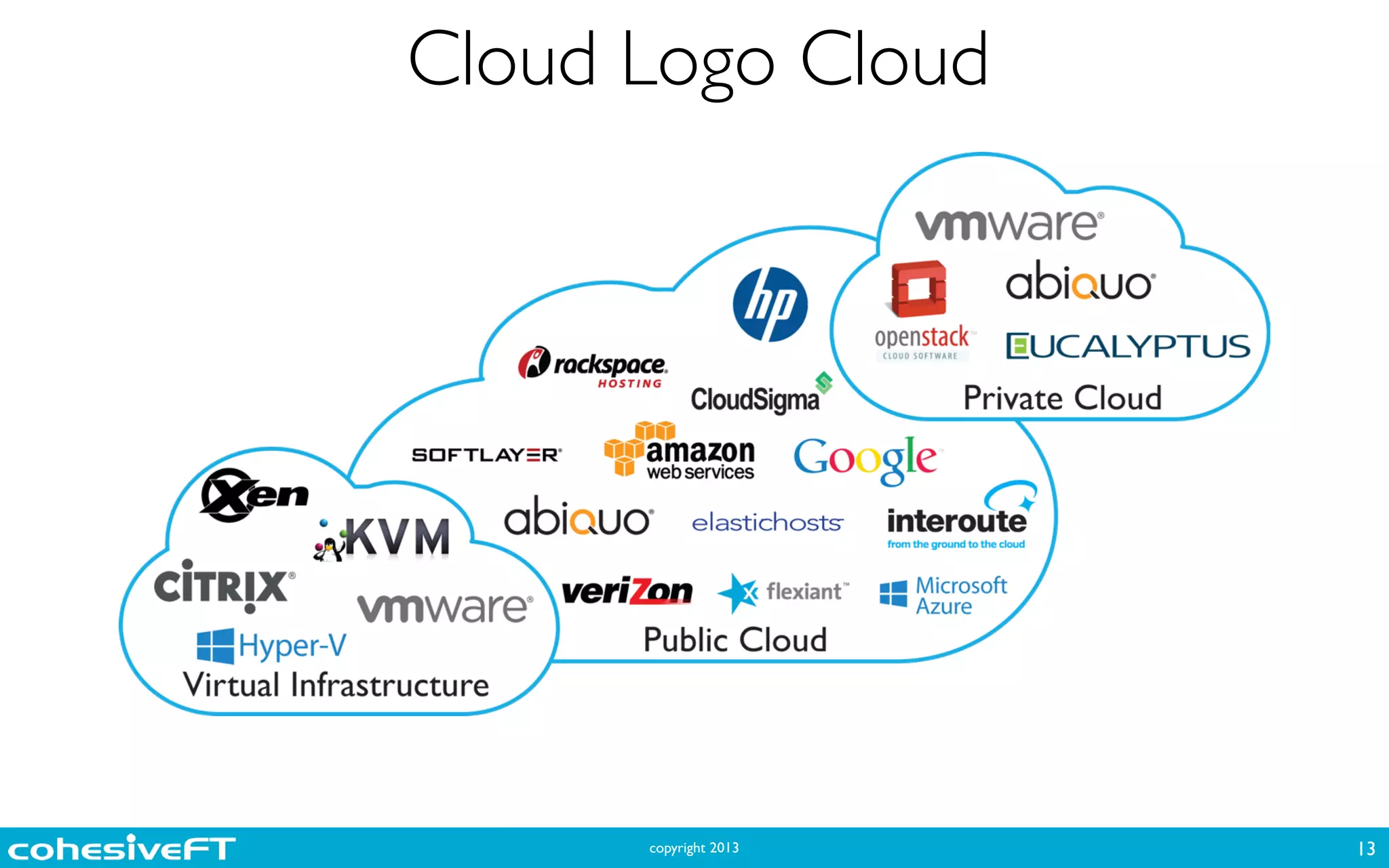

Cloud Logo Cloud
13

14. copyright 2013

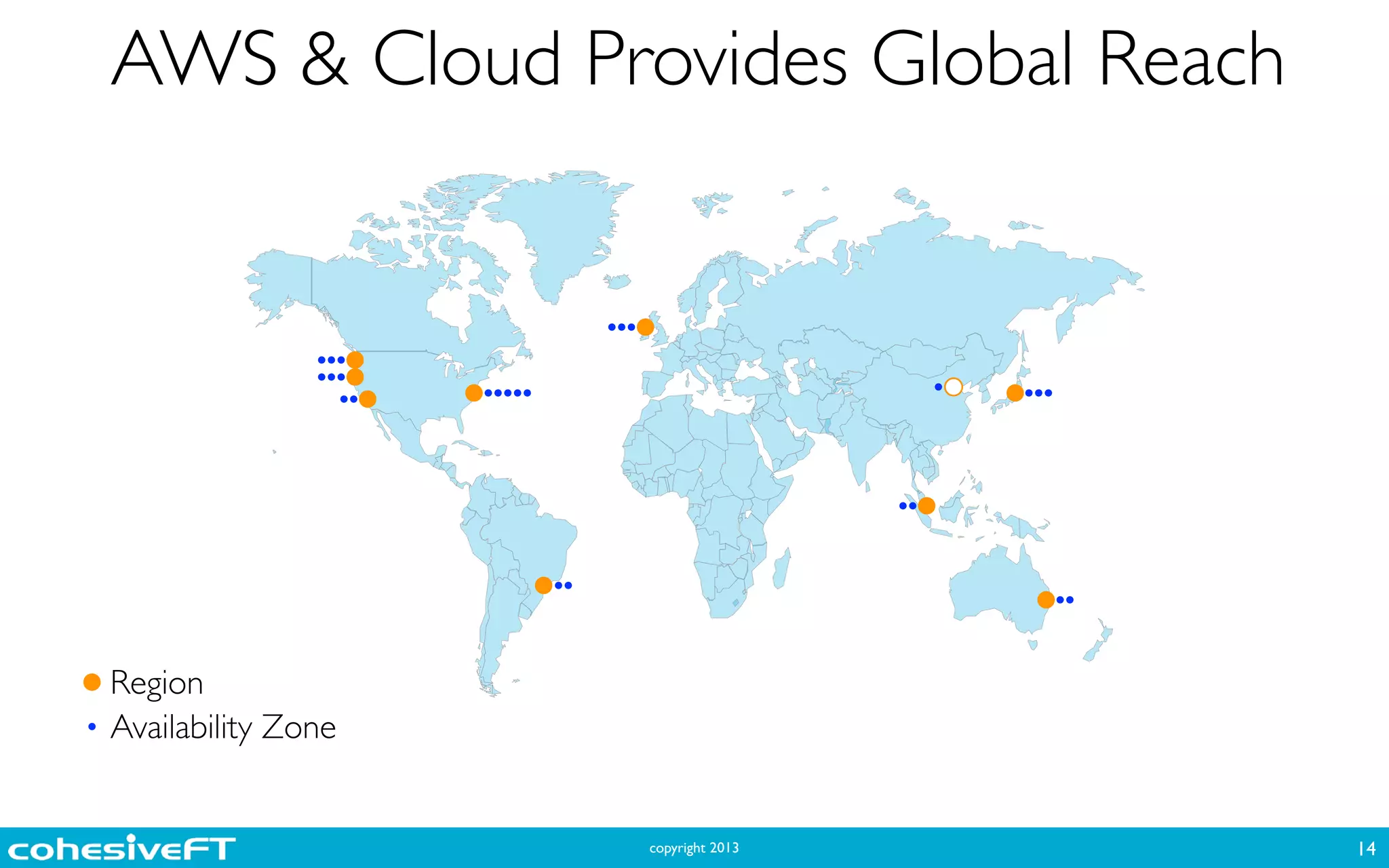

AWS & Cloud Provides Global Reach
14
Region
Availability Zone

15. copyright 2013

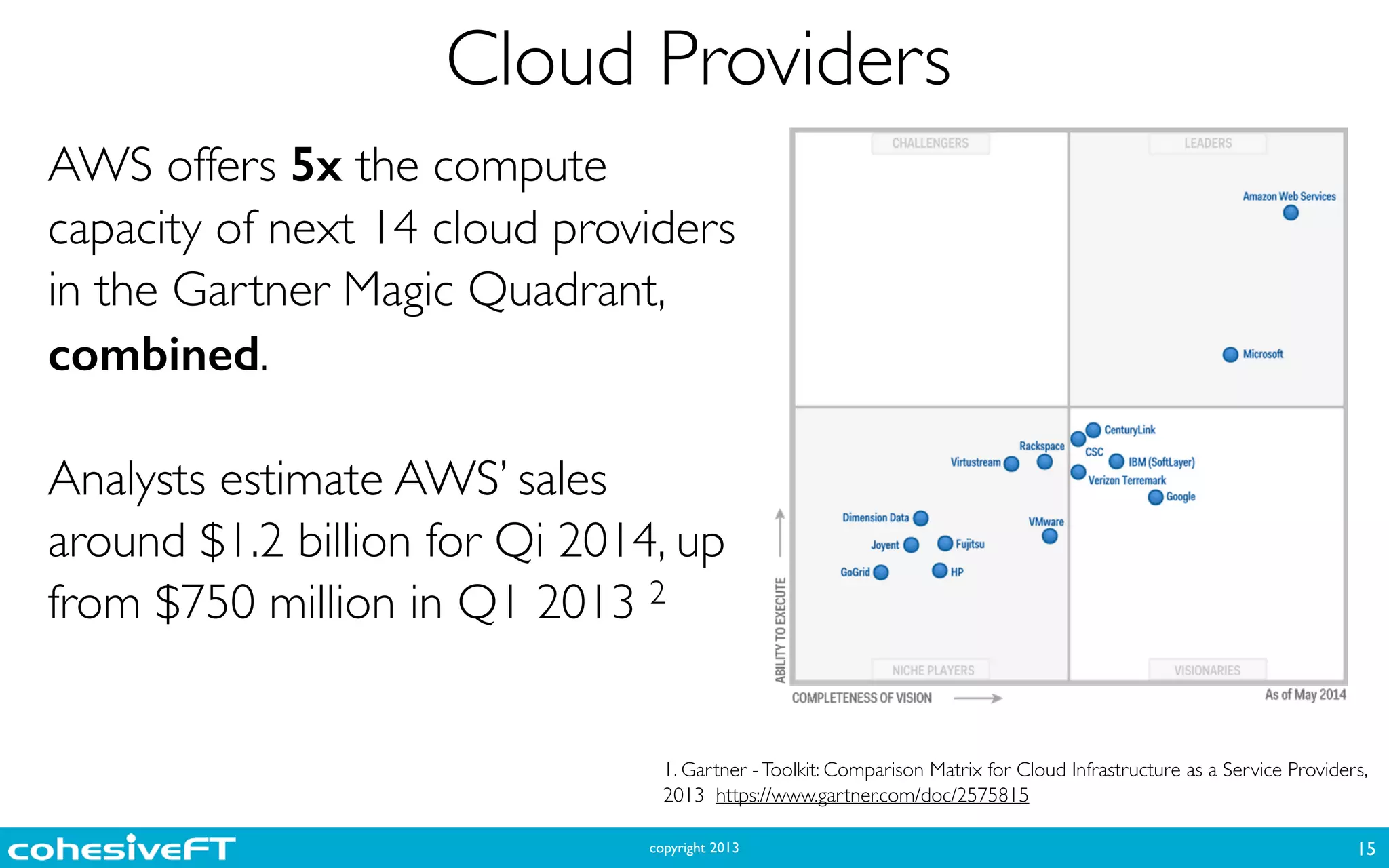

Cloud Providers
15
AWS offers 5x the compute
capacity of next 14 cloud providers
in the Gartner Magic Quadrant,
combined.
!
Analysts estimate AWS’ sales
around $1.2 billion for Qi 2014, up
from $750 million in Q1 2013 2
1. Gartner -Toolkit: Comparison Matrix for Cloud Infrastructure as a Service Providers,
2013 https://www.gartner.com/doc/2575815

16. copyright 2013
AWS ecosystem
16
AWS Cloud
AWS Marketplace
CohesiveFTVNS3
networking product

17. copyright 2013

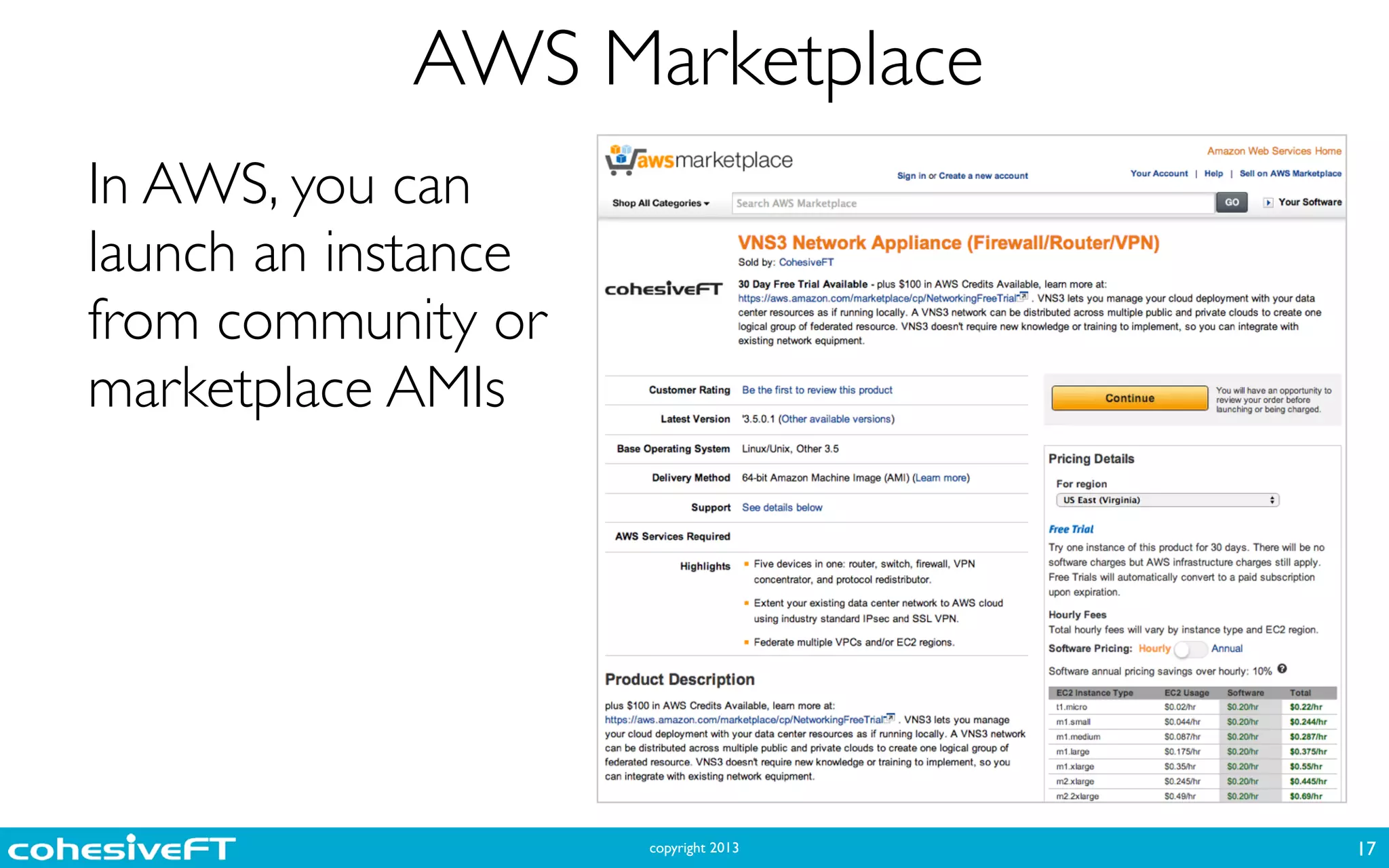

AWS Marketplace
In AWS, you can
launch an instance
from community or
marketplace AMIs
17

18. copyright 2013
This is an AWS UG
18

19. copyright 2013

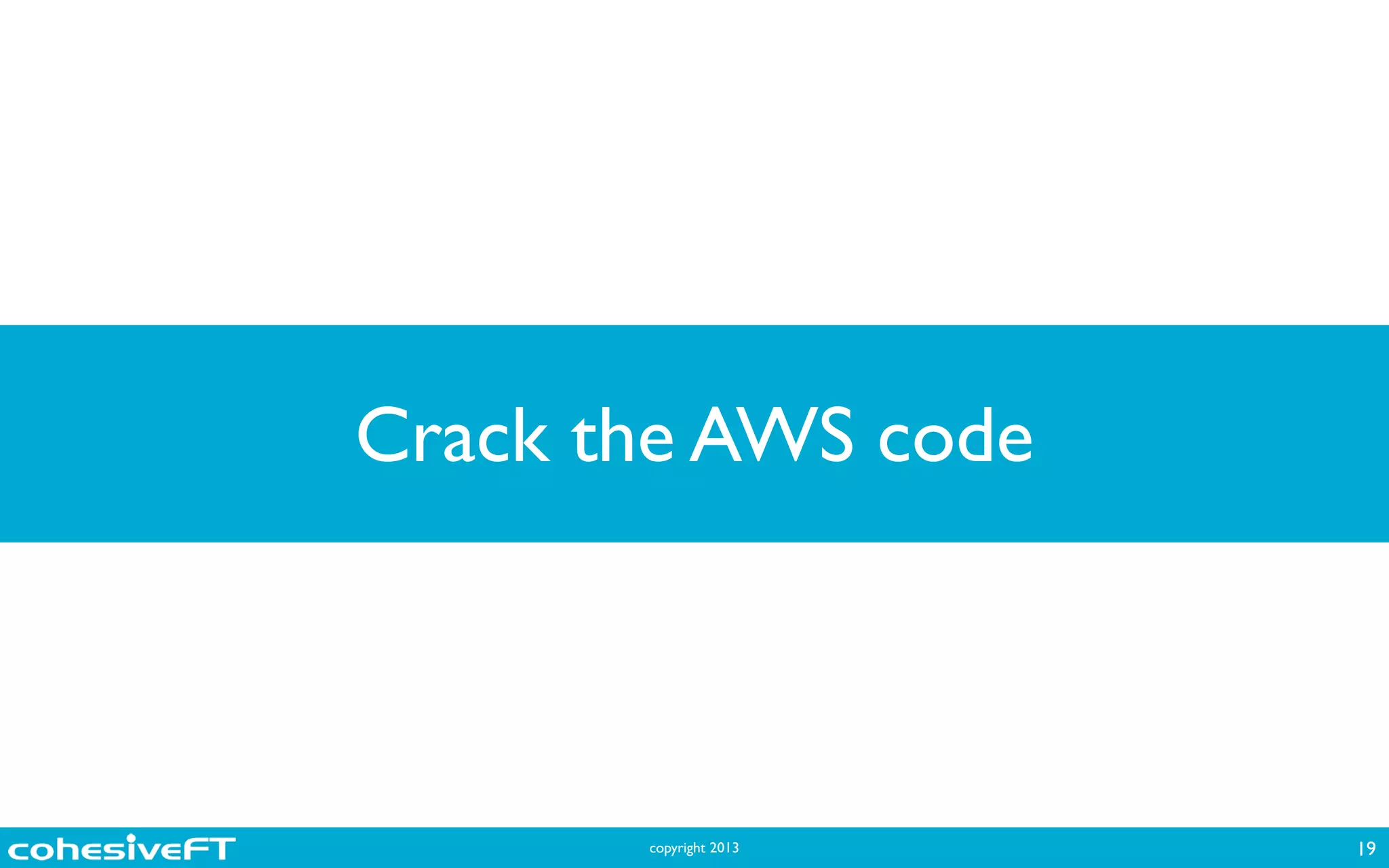

Crack the AWS code
19

20. copyright 2013

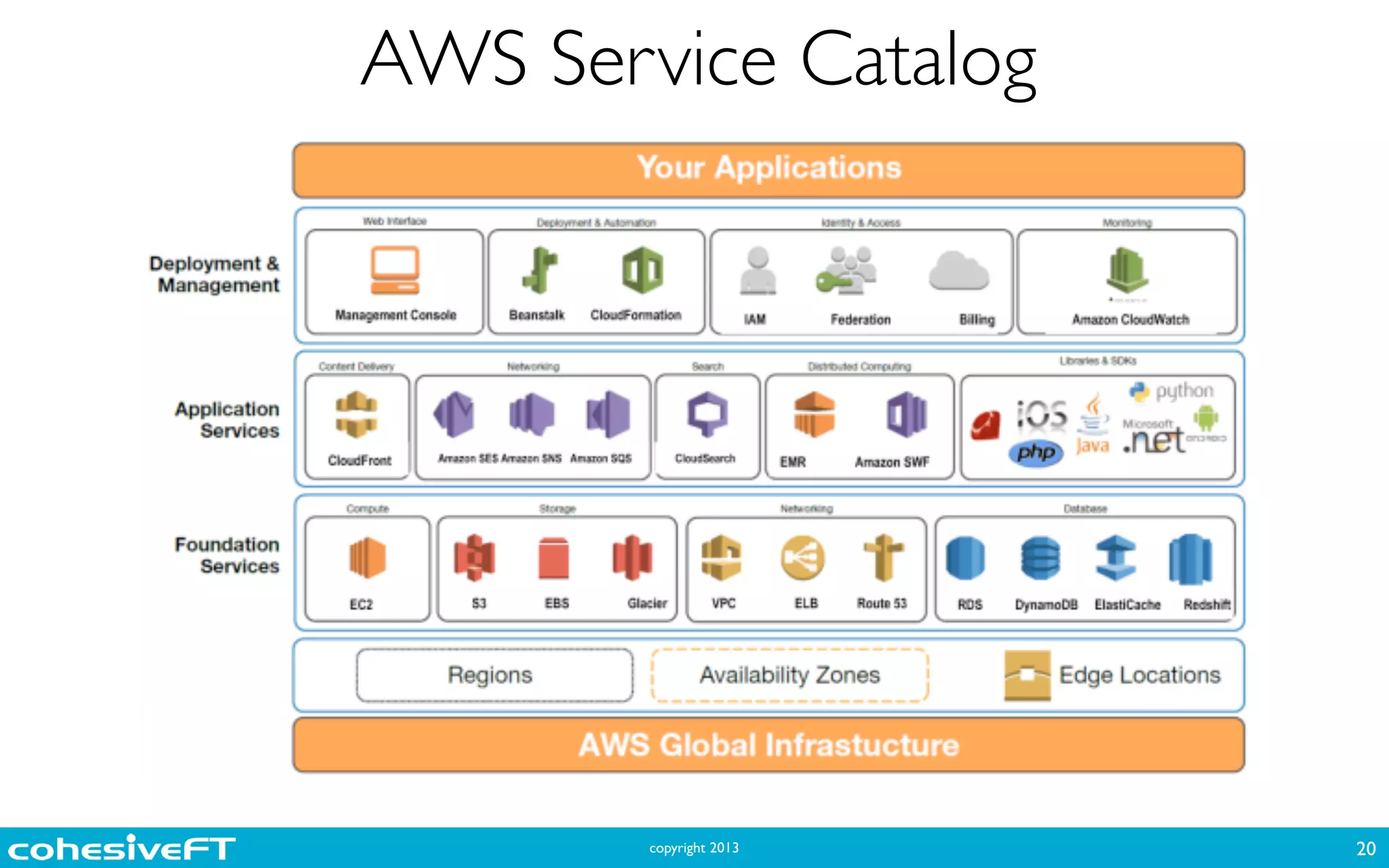

AWS Service Catalog
20

21. copyright 2013

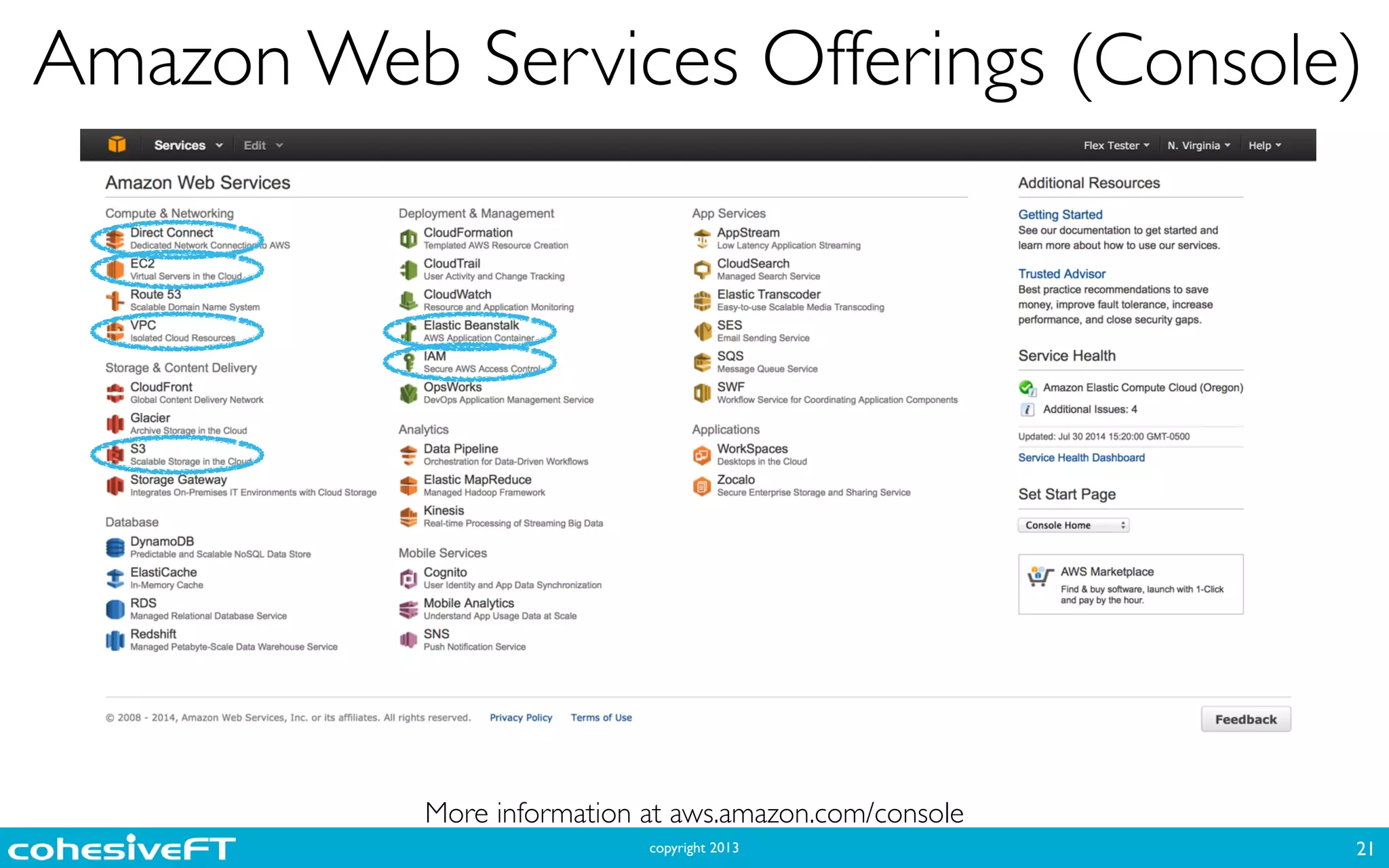

Amazon Web Services Offerings (Console)
21
More information at aws.amazon.com/console

22. copyright 2013

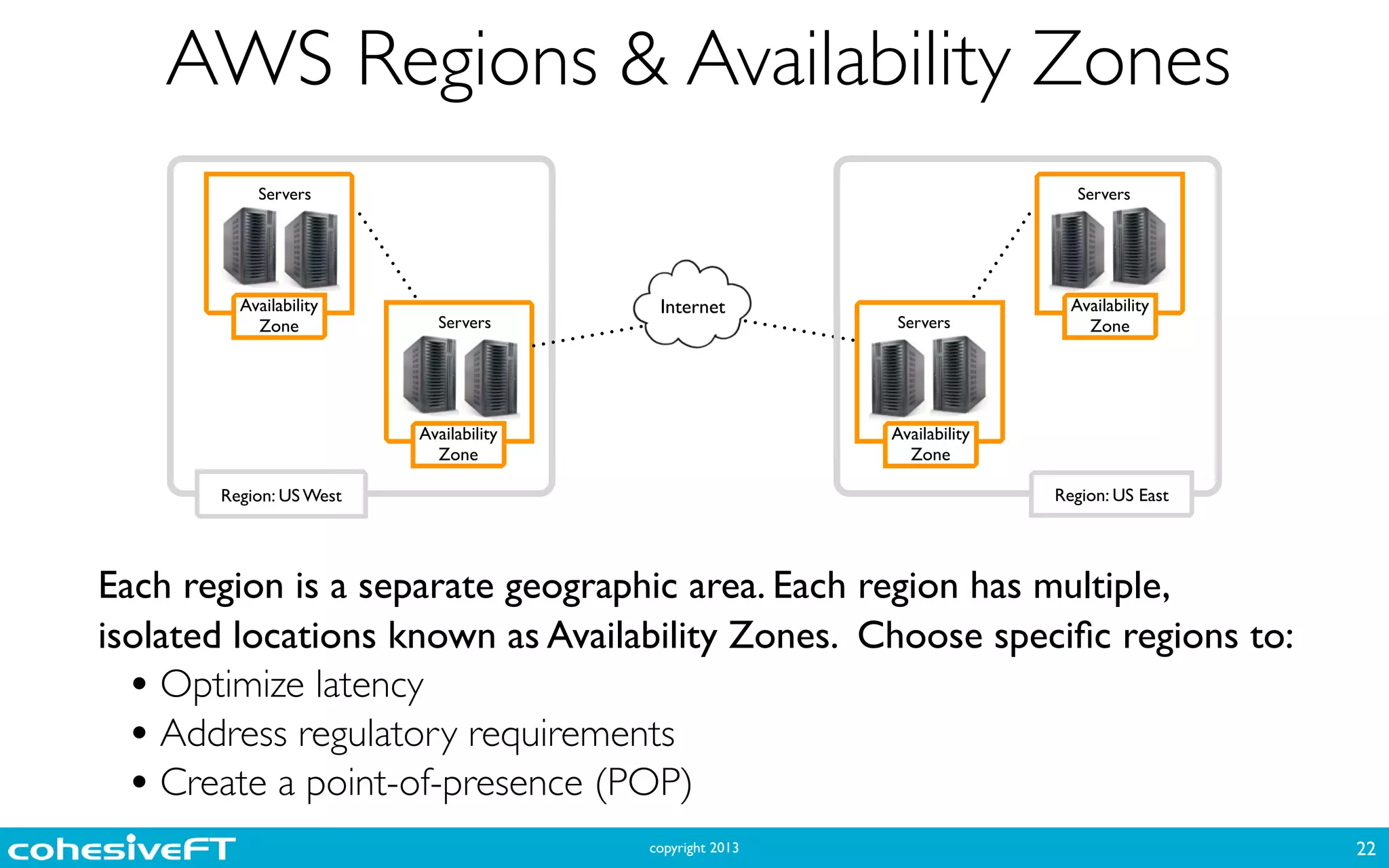

AWS Regions & Availability Zones
22
Each region is a separate geographic area. Each region has multiple,
isolated locations known as Availability Zones. Choose specific regions to:
• Optimize latency
• Address regulatory requirements
• Create a point-of-presence (POP)
Internet Availability
Zone
Servers
Region: US East
Servers
Availability
Zone
Availability
Zone
Servers
Region: US West
Servers
Availability
Zone

23. copyright 2013

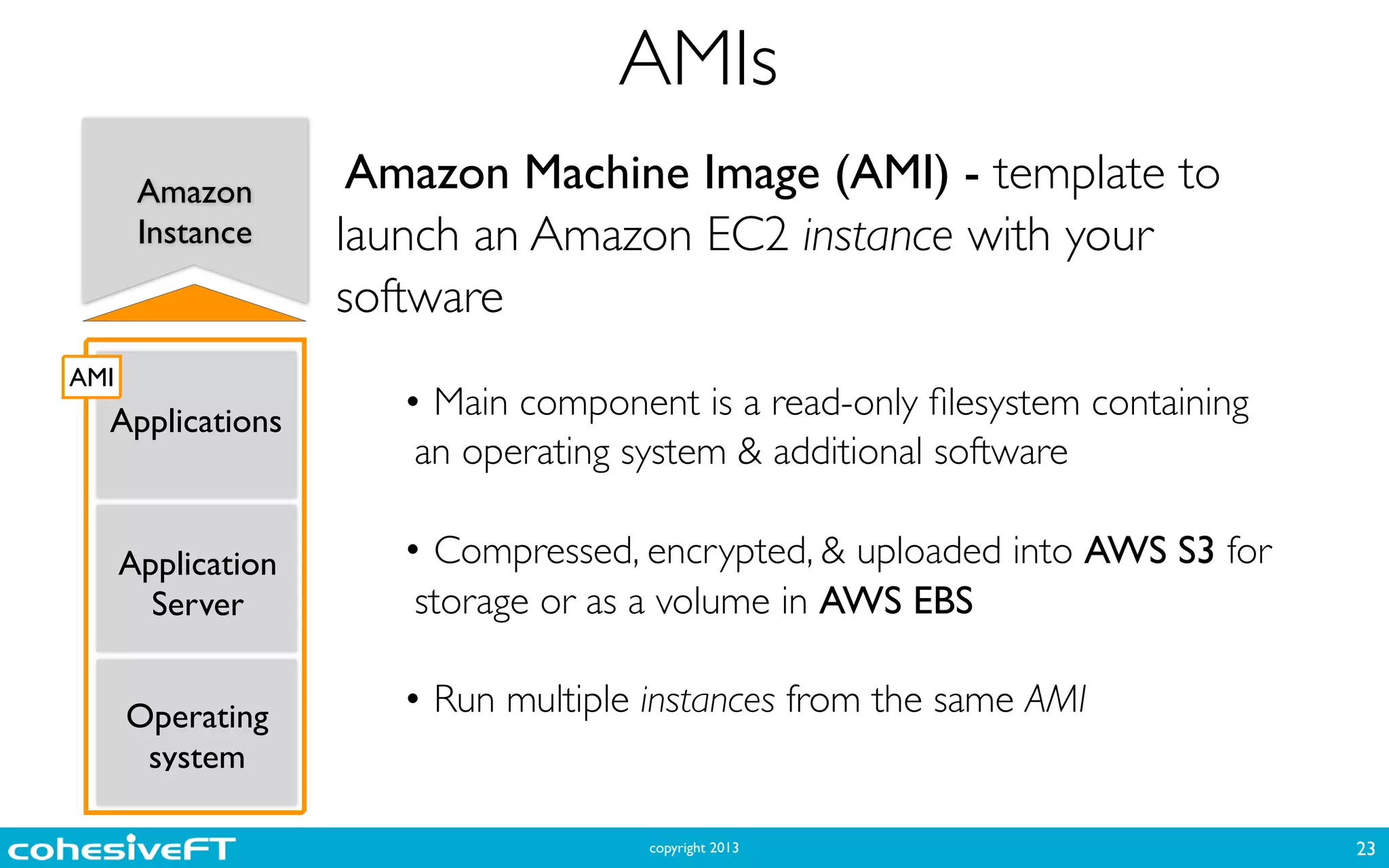

AMIs
23
Applications
Operating
system
Application
Server
Amazon
Instance
AMI
Amazon Machine Image (AMI) - template to
launch an Amazon EC2 instance with your
software
!
• Main component is a read-only filesystem containing
an operating system & additional software
!
• Compressed, encrypted, & uploaded into AWS S3 for
storage or as a volume in AWS EBS
!
• Run multiple instances from the same AMI

24. copyright 2013

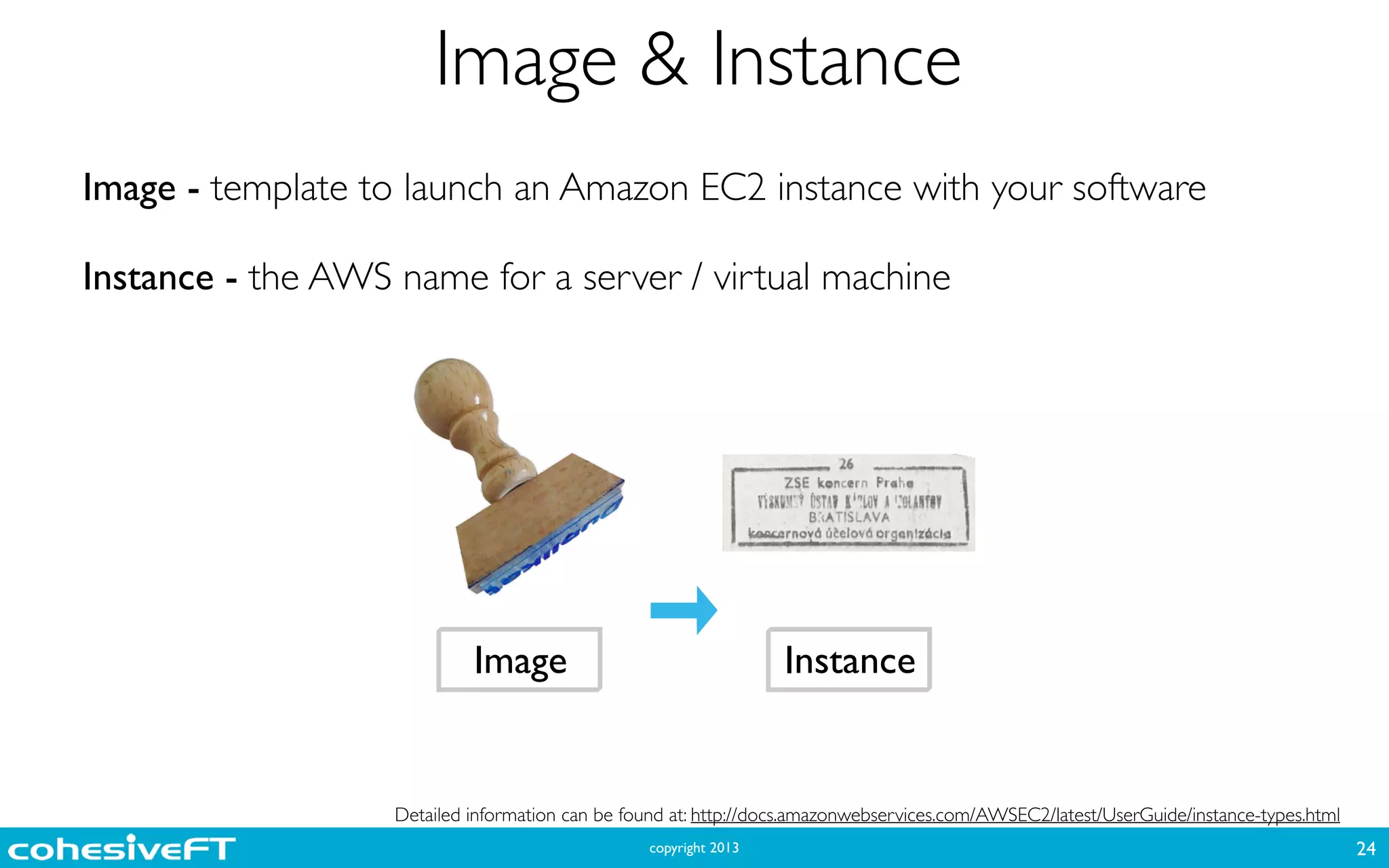

Image & Instance
24
Image - template to launch an Amazon EC2 instance with your software
!
Instance - the AWS name for a server / virtual machine
Detailed information can be found at: http://docs.amazonwebservices.com/AWSEC2/latest/UserGuide/instance-types.html
Instance

25. copyright 2013
EBS-BackedInstance Store-Backed
Two Kinds of AMI Storage
• Boot in <5mins
• Limited to 10GB*
• Data on instance only
persists during the life of
the instance
• Instance attributes are fixed
for the life of the instance
• Cheaper only charged
runtime
• Boot in <1min
• Limited to 1TB
• Data persists after instance
termination
• Stop to change instance
settings
• Pay for runtime & storage
• All AWS Marketplace AMIs
are EBS-backed
25

26. copyright 2013

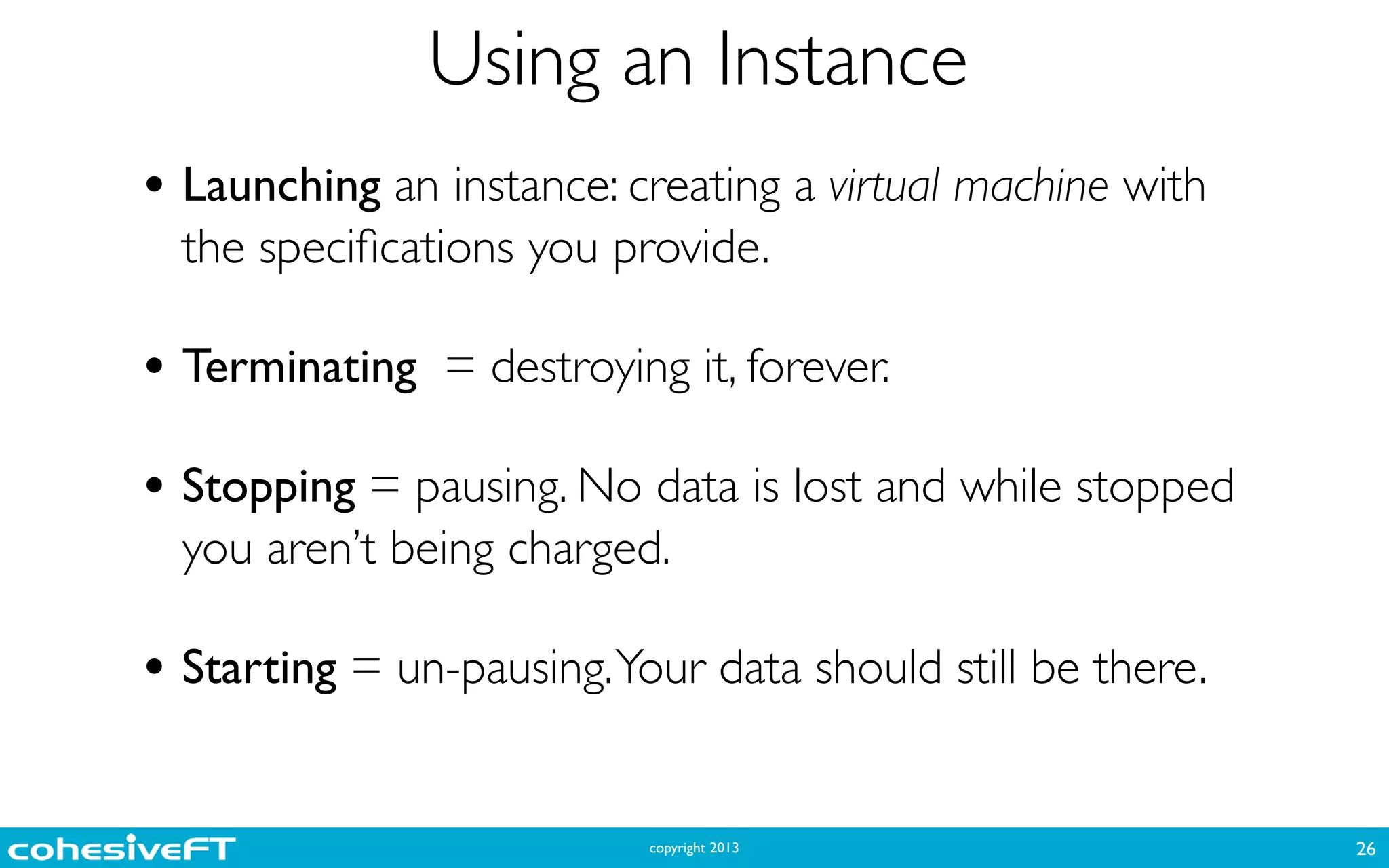

Using an Instance
26
• Launching an instance: creating a virtual machine with
the specifications you provide.
!
• Terminating = destroying it, forever.
!
• Stopping = pausing. No data is lost and while stopped
you aren’t being charged.
!
• Starting = un-pausing.Your data should still be there.

27. copyright 2013

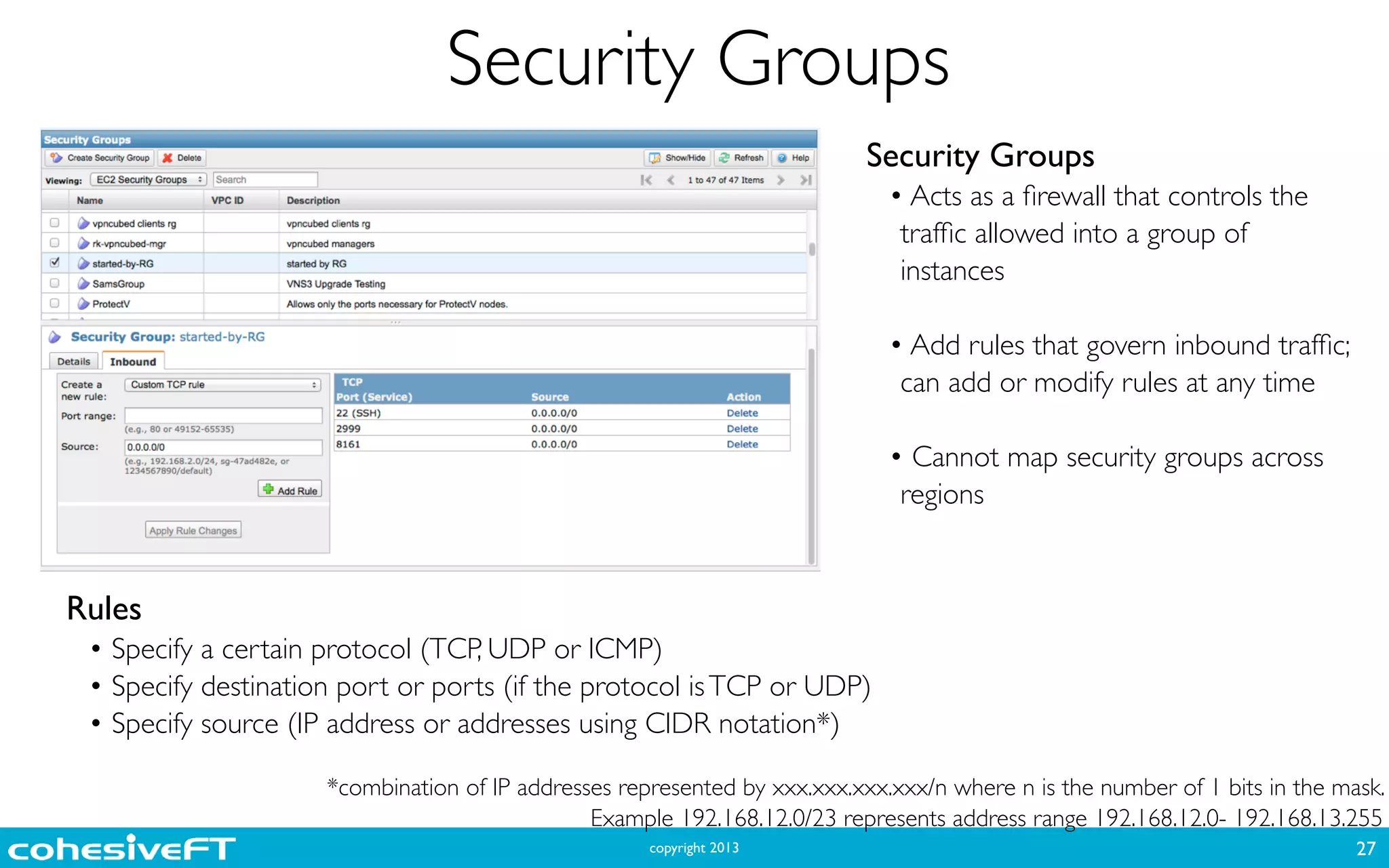

Security Groups
27
Security Groups
• Acts as a firewall that controls the
traffic allowed into a group of
instances
!
• Add rules that govern inbound traffic;
can add or modify rules at any time
!
• Cannot map security groups across
regions
Rules
• Specify a certain protocol (TCP, UDP or ICMP)
• Specify destination port or ports (if the protocol isTCP or UDP)
• Specify source (IP address or addresses using CIDR notation*)
*combination of IP addresses represented by xxx.xxx.xxx.xxx/n where n is the number of 1 bits in the mask.
Example 192.168.12.0/23 represents address range 192.168.12.0- 192.168.13.255

28. copyright 2013

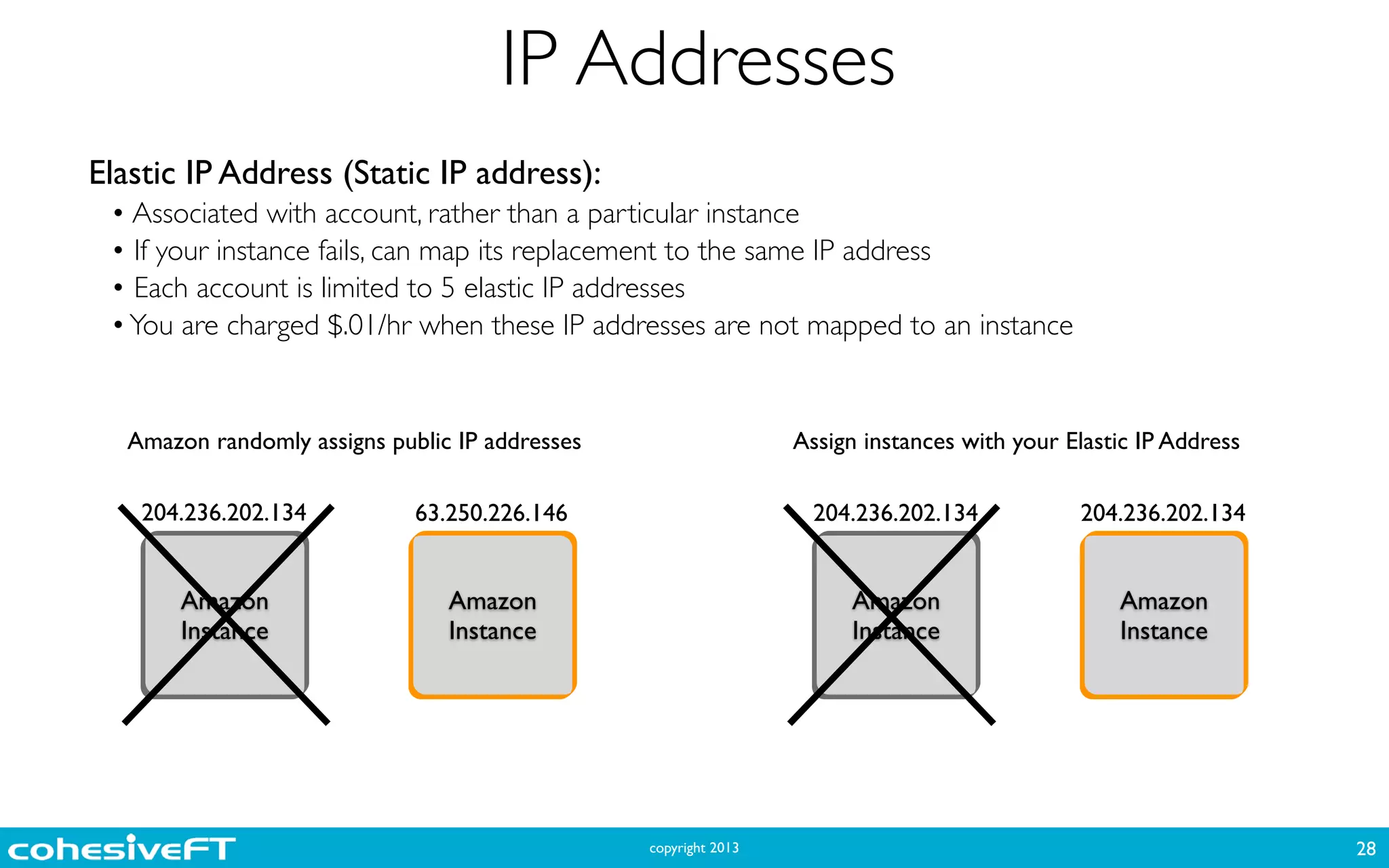

IP Addresses
28
Elastic IP Address (Static IP address):
• Associated with account, rather than a particular instance
• If your instance fails, can map its replacement to the same IP address
• Each account is limited to 5 elastic IP addresses
•You are charged $.01/hr when these IP addresses are not mapped to an instance
Amazon
Instance
Amazon
Instance
204.236.202.134 63.250.226.146
Amazon
Instance
Amazon
Instance
204.236.202.134 204.236.202.134
Amazon randomly assigns public IP addresses Assign instances with your Elastic IP Address

29. copyright 2013

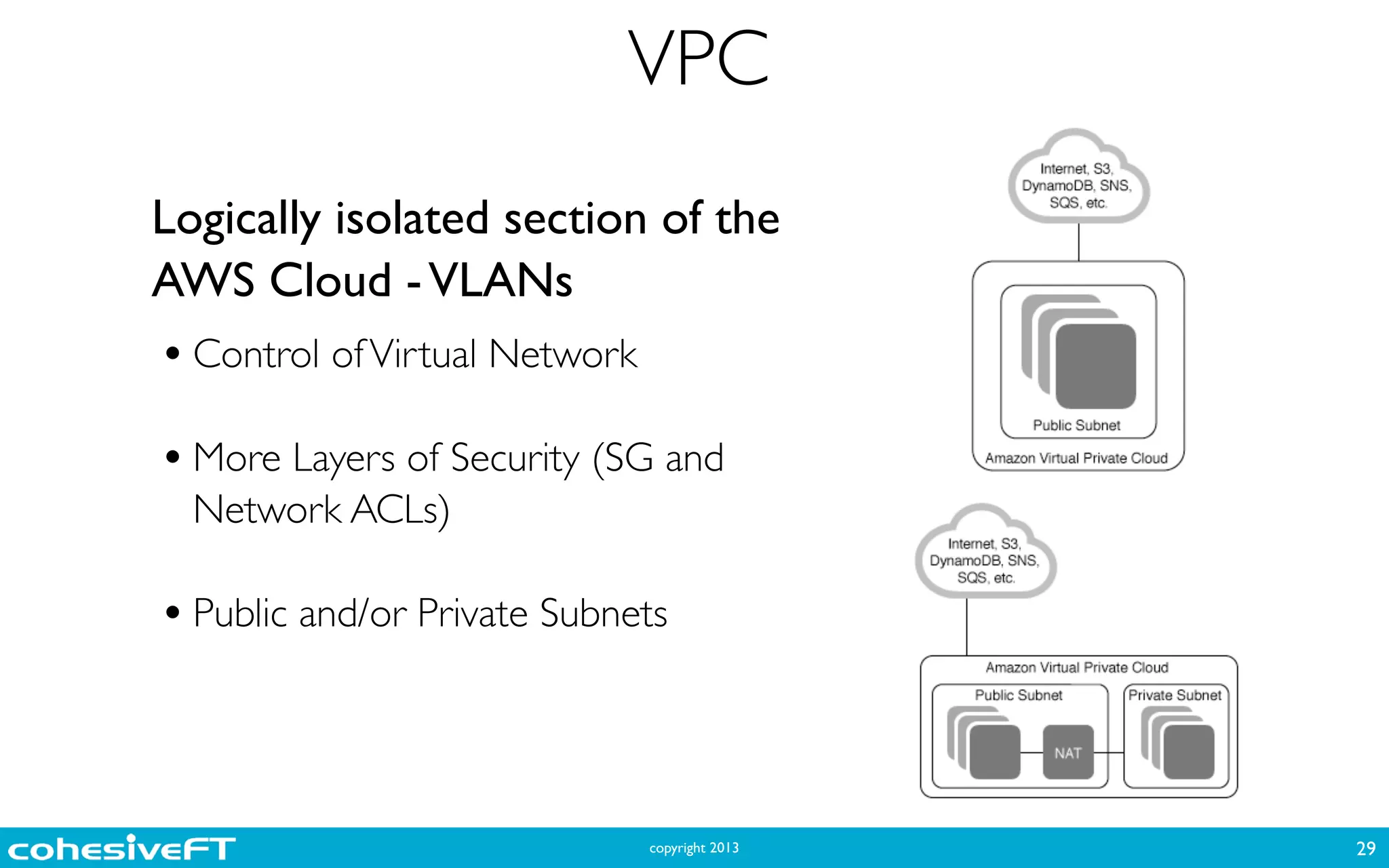

VPC
29
Logically isolated section of the
AWS Cloud -VLANs
•Control ofVirtual Network
!
•More Layers of Security (SG and
Network ACLs)
!
•Public and/or Private Subnets

30. copyright 2013
Getting Started
30

31. copyright 2013
AWS FreeTier
31
http://aws.amazon.com/free/

32. copyright 2013

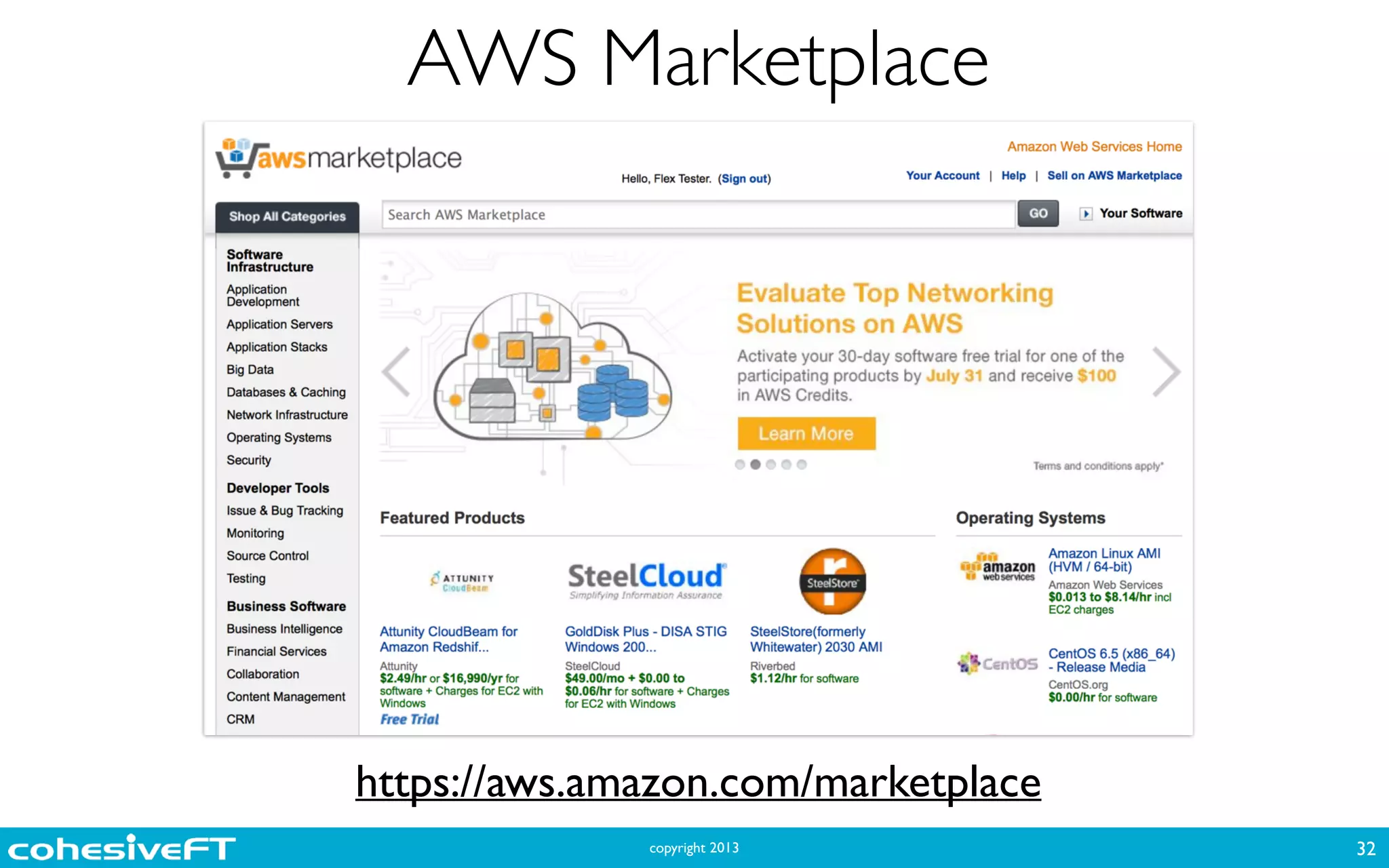

AWS Marketplace
32
https://aws.amazon.com/marketplace

33. copyright 2013

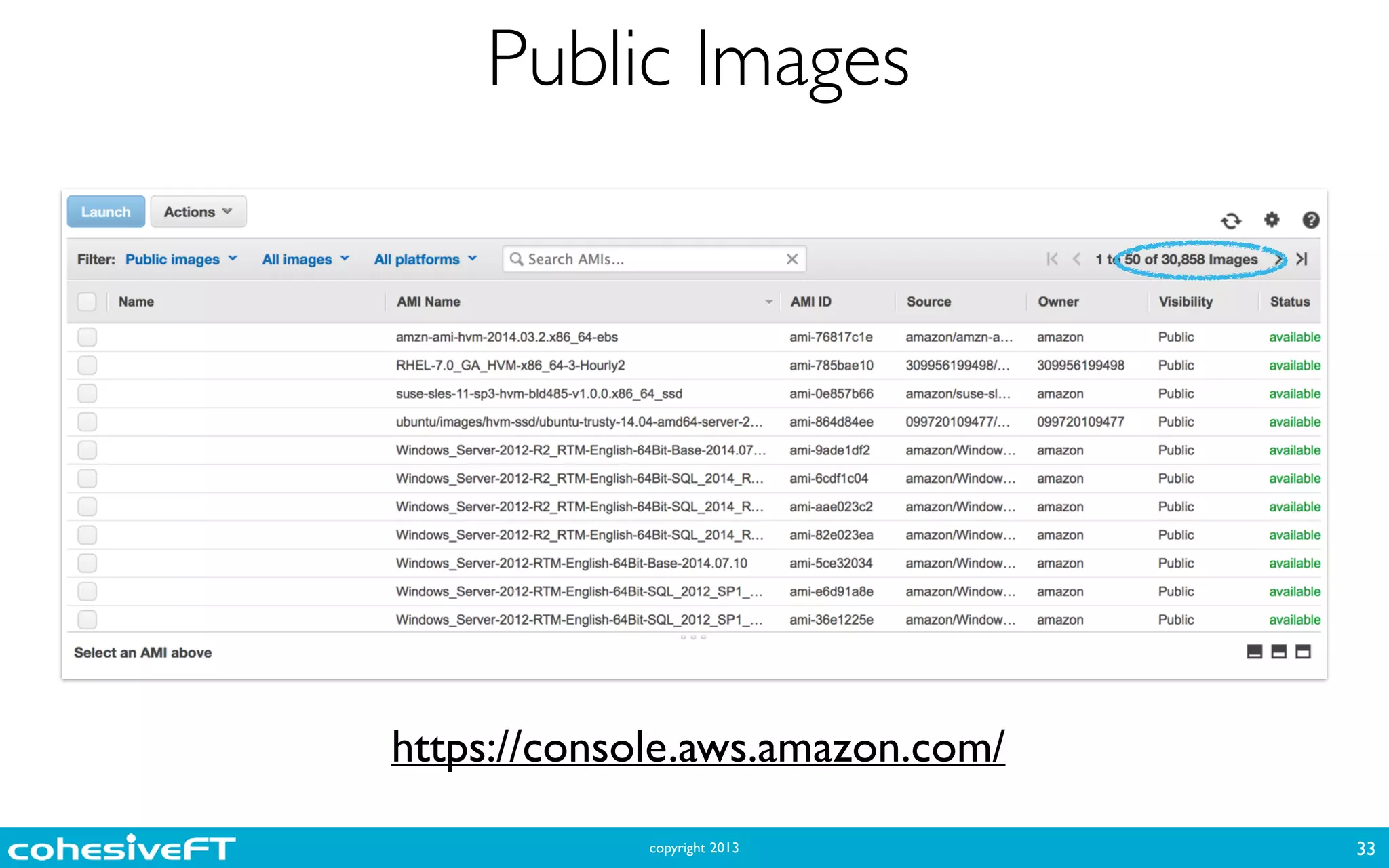

Public Images
33
https://console.aws.amazon.com/

34. copyright 2013

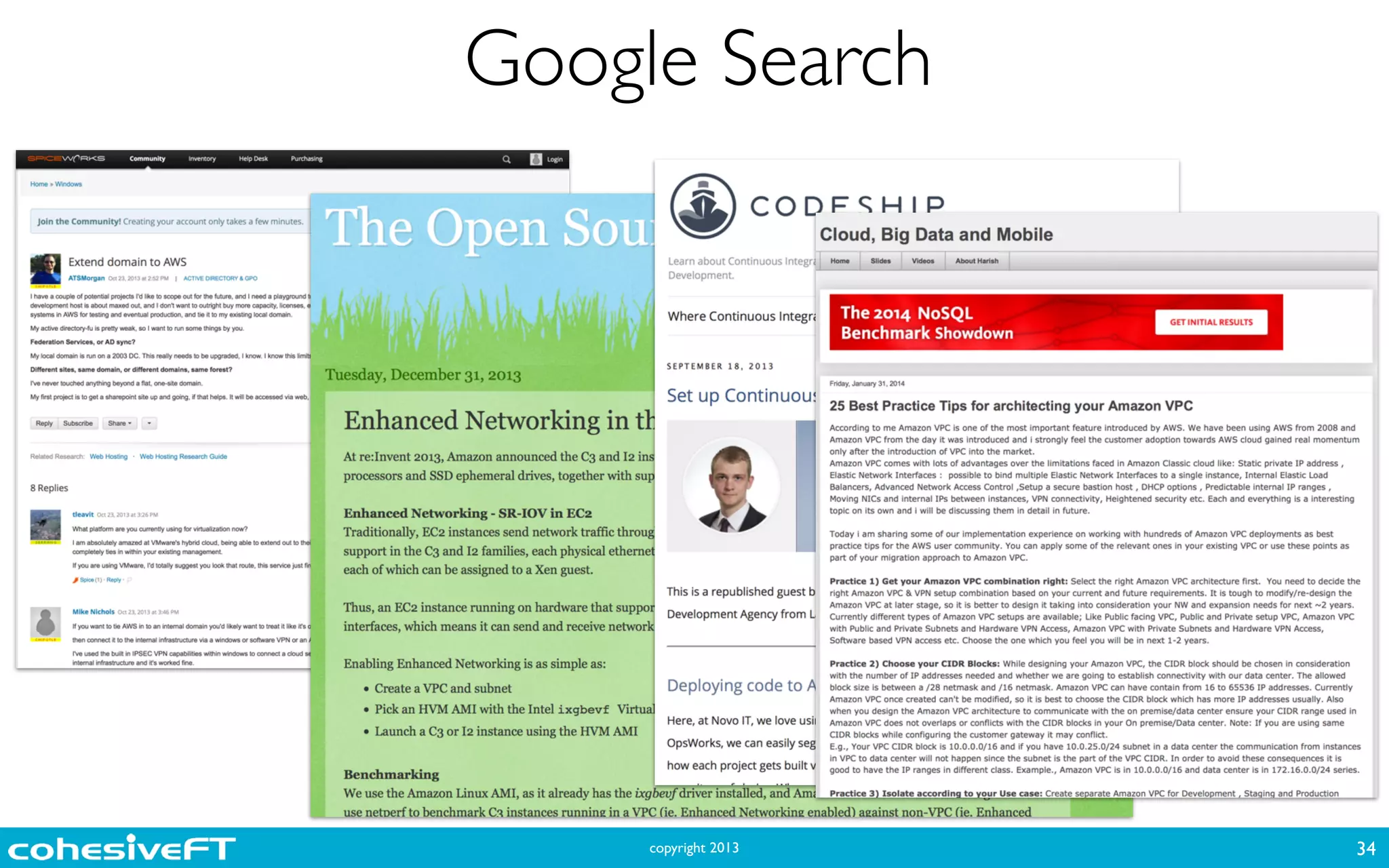

Google Search
34

35. copyright 2013
AWS UG Buddies
35
start with the organizers...
