This document discusses system migration solutions for moving existing systems to the AWS cloud. It describes the speaker's experience migrating 100 VMs from an on-premise VMware environment to AWS. Several commercial migration solutions are presented, including CloudVelocity One Hybrid Cloud and Yuruware Bolt VTA, which aim to minimize downtime during migration. The document also covers using AWS VM Import/Export to import virtual machine images from VMware or Hyper-V directly into AWS as Amazon Machine Images.

1. AWS Migration
Solution
JAWS DAYS 2014
Mar 15, 2014
Naoya Hashimoto
3/15/2014 1

2. Table of contents
• Who am I?
• System migration
• Why migration solution is needed?
• My case about migrating system
• System Migration Process
• Issues of System Migration
• System Migration Solution
• Migration Solution Model
• Features of CloudVelocity One Hybrid Cloud
• Features of Yuruware Bolt VTA
• AWS VM Import/Export
3/15/2014 2

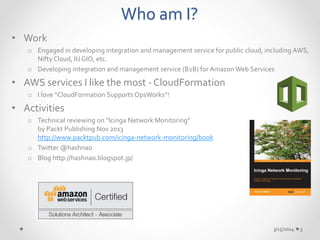

3. Who am I?
• Work
o Engaged in developing integration and management service for public cloud, including AWS,
Nifty Cloud, IIJ GIO, etc.
o Developing integration and management service (B2B) for Amazon Web Services
• AWS services I like the most - CloudFormation
o I love “CloudFormation Supports OpsWorks”!
• Activities
o Technical reviewing on “Icinga Network Monitoring”
by Packt Publishing Nov 2013
http://www.packtpub.com/icinga-network-monitoring/book
o Twitter @hashnao
o Blog http://hashnao.blogspot.jp/
3/15/2014 3

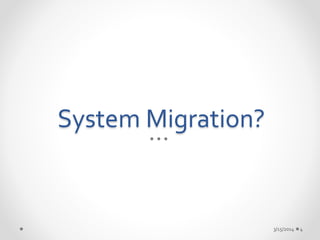

4. System Migration?
3/15/2014 4

5. System Migration?
“System migration is an awesome project that no one wants to
manage or get involved in.”
System migration on Wikipedia. 29 November 2013
<http://en.wikipedia.org/wiki/xxx>
3/15/2014 5
“Anybody who wants to volunteer or
raise you hand?”

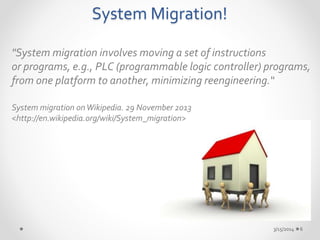

6. System Migration!
"System migration involves moving a set of instructions
or programs, e.g., PLC (programmable logic controller) programs,
from one platform to another, minimizing reengineering.“
System migration on Wikipedia. 29 November 2013
<http://en.wikipedia.org/wiki/System_migration>
3/15/2014 6

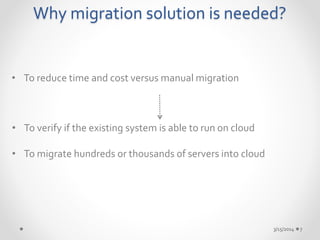

7. Why migration solution is needed?
• To reduce time and cost versus manual migration
3/15/2014 7
• To verify if the existing system is able to run on cloud
• To migrate hundreds or thousands of servers into cloud

8. My case about migrating system
• About 100 VMs with 30
customers on VMware ESXi
• Windows OS, Linux
OS(Debian, RedHat)
• Mainly composed as 3 Tier
system
(WEB/AP/DB, WEB/DB, WEB,
HA Clusterig)
3/15/2014 8
VMware vCenter Server
VMware vSphere VMware vSphere VMware vSphere

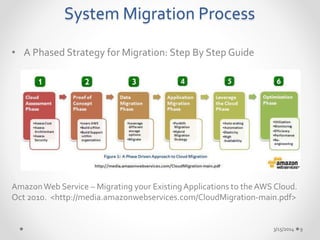

9. System Migration Process
• A Phased Strategy for Migration: Step By Step Guide
Amazon Web Service – Migrating your Existing Applications to the AWS Cloud.
Oct 2010. <http://media.amazonwebservices.com/CloudMigration-main.pdf>
3/15/2014 9

10. Issues of System Migration
• By reverse engineering and manually integrating & migrating
o Who?
o How?
o How much?
o How long?
• By automatically migrating
o Who?
o How?
o How much?
o How long?
3/15/2014 10

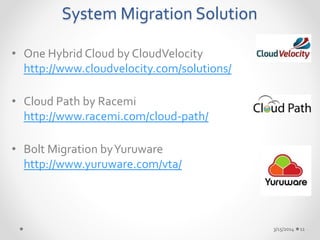

11. System Migration Solution
• One Hybrid Cloud by CloudVelocity
http://www.cloudvelocity.com/solutions/
• Cloud Path by Racemi
http://www.racemi.com/cloud-path/
• Bolt Migration by Yuruware
http://www.yuruware.com/vta/
3/15/2014 11

12. Migration Solution Model
• Agent Type
o Installing agents on the server
o Discovering and blueprinting its component, configurations
o Provisioning
o Synchronizing data
o Creating and deploying IAM image
o Initiating instances
• Image cloning Type
o Implementing and Installing plugin to set up management server
o Discovering and blueprinting VM images
o Provisioning
o Synchronizing data
o Creating and deploying IAM image
o Initiating instances
3/15/2014 12

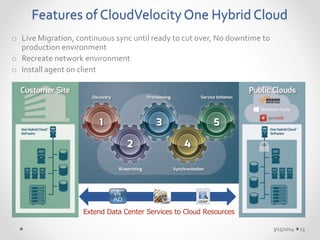

13. Features of CloudVelocity One Hybrid Cloud
o Live Migration, continuous sync until ready to cut over, No downtime to
production environment
o Recreate network environment
o Install agent on client
3/15/2014 13
Extend Data Center Services to Cloud Resources

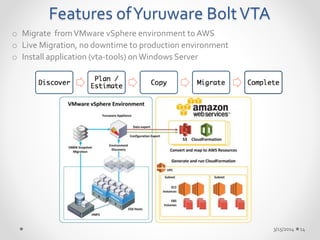

14. Features of Yuruware Bolt VTA
3/15/2014 14
o Migrate from VMware vSphere environment to AWS
o Live Migration, no downtime to production environment
o Install application (vta-tools) on Windows Server

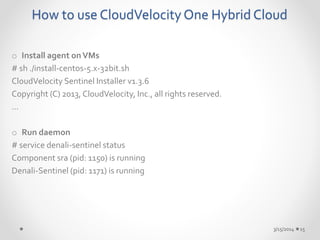

15. How to use CloudVelocity One Hybrid Cloud
o Install agent on VMs
# sh ./install-centos-5.x-32bit.sh
CloudVelocity Sentinel Installer v1.3.6
Copyright (C) 2013, CloudVelocity, Inc., all rights reserved.
…
o Run daemon
# service denali-sentinel status
Component sra (pid: 1150) is running
Denali-Sentinel (pid: 1171) is running
3/15/2014 15

16. How to use Yuruware Bolt VTA
o Create snapshot of VM
C:> vta-copy-pg -g "dev-test-cent64_64" "/vSphere5/vm/test/dev-test-cent64_64"
Validating vSphere Credentials..Ok!
Validating S3 Bucket...Ok!
…
Copy of the protection group dev-test-cent64_64 successfully completed. The
version is 20131224222303
o Deploy VM
C:>vta-deploy-pg -g "dev-test-cent64_64"
Validating S3 Bucket Access...Ok!
Validating VPC Configuration of the AWS Account...Ok!
…
Creating Cloud Formation Stack Stack-2013-12-24-22-31-53 with id
arn:aws:cloudformation:ap-northeast-1:
3/15/2014 16

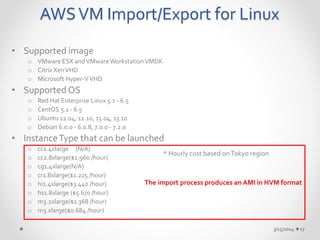

17. AWS VM Import/Export for Linux
• Supported image
o VMware ESX and VMware Workstation VMDK
o Citrix Xen VHD
o Microsoft Hyper-V VHD
• Supported OS
o Red Hat Enterprise Linux 5.1 - 6.5
o CentOS 5.1 - 6.5
o Ubuntu 12.04, 12.10, 13.04, 13.10
o Debian 6.0.0 - 6.0.8, 7.0.0 - 7.2.0
• Instance Type that can be launched
o cc1.4xlarge (N/A)
o cc2.8xlarge($2.960 /hour)
o cg1.4xlarge(N/A)
o cr1.8xlarge($1.225 /hour)
o hi1.4xlarge($3.440 /hour)
o hs1.8xlarge ($5.670 /hour)
o m3.2xlarge($1.368 /hour)
o m3.xlarge($0.684 /hour)
3/15/2014 17
* Hourly cost based on Tokyo region
The import process produces an AMI in HVM format

18. Thank you for listening!
3/15/2014 18
