Auto Layout Under Control
Giuseppe Arici
iOS & OS X Developer
Speaker
• Giuseppe Arici

• #pragma mark § Founder, Preacher & VP ;-)

• Tiltap & Superpartes § iOS & (OS X) Developer

• [ lk | tt | fb ] / giuseppearici § giuseppe@pragmamark.org
Session
1. Auto Layout Theory

2. Interface Builder Practice

3. Coding Practice

4. Special Cases

5. Compatibility & Migration

6. Final Thoughts
1/6 Auto Layout Theory
History
• Display Form Factor Evolution:

• iPhone, iPad, iPhone Retina, iPad Retina, iPhone 4-inch Display !


• Inspired by: Cassowary A Constraint Solving Toolkit

• http://www.cs.washington.edu/research/constraints/cassowary/


• Auto Layout Evolution:

• OS X Lion 10.7 ~ iOS 6.0 ~ Xcode 5

5

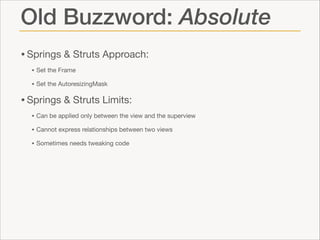

Old Buzzword: Absolute
• Springs & Struts Approach:

• Set the Frame

• Set the AutoresizingMask


• Springs & Struts Limits:

• Can be applied only between the view and the superview

• Cannot express relationships between two views

• Sometimes needs tweaking code

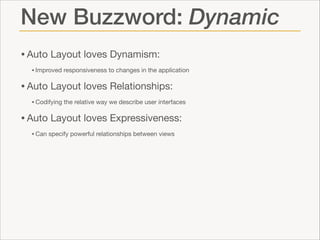

New Buzzword: Dynamic
• Auto Layout loves Dynamism:

• Improved responsiveness to changes in the application


• Auto Layout loves Relationships:

• Codifying the relative way we describe user interfaces


• Auto Layout loves Expressiveness:

• Can specify powerful relationships between views

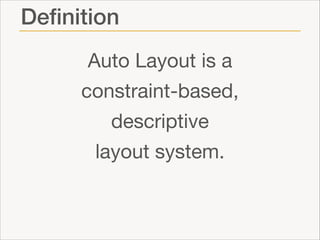

Definition
Auto Layout is a

constraint-based,

descriptive

layout system.

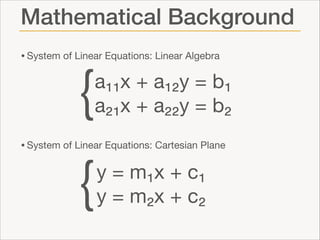

Mathematical Background
• System of Linear Equations: Linear Algebra












{

a₁₁x + a₁₂y = b₁

a₂₁x + a₂₂y = b₂

• System of Linear Equations: Cartesian Plane

{

y = m₁x + c₁

y = m₂x + c₂

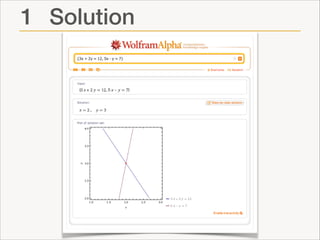

1 Solution

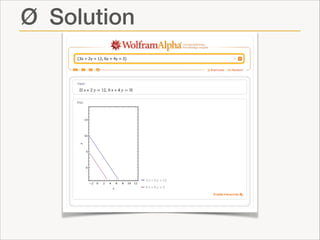

Ø Solution

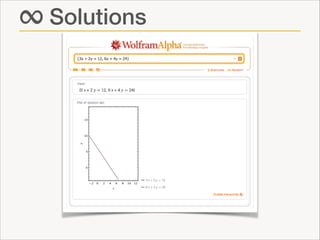

∞ Solutions

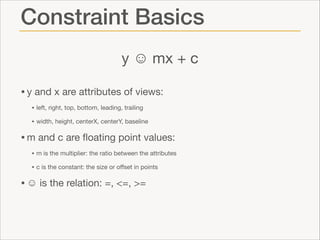

Constraint Basics
y ☺ mx + c
• y and x are attributes of views:

• left, right, top, bottom, leading, trailing

• width, height, centerX, centerY, baseline


• m and c are floating point values:

• m is the multiplier: the ratio between the attributes

• c is the constant: the size or offset in points


• ☺ is the relation: =, <=, >=

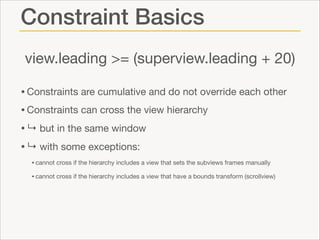

Constraint Basics
view.leading >= (superview.leading + 20)
• Constraints are cumulative and do not override each other

• Constraints can cross the view hierarchy

• ↳ but in the same window

• ↳ with some exceptions:

• cannot cross if the hierarchy includes a view that sets the subviews frames manually

• cannot cross if the hierarchy includes a view that have a bounds transform (scrollview)

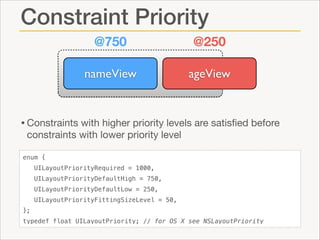

Constraint Priority
@750

@250

nameView

ageView

• Constraints with higher priority levels are satisfied before
constraints with lower priority level

enum {
UILayoutPriorityRequired = 1000,
UILayoutPriorityDefaultHigh = 750,
UILayoutPriorityDefaultLow = 250,
UILayoutPriorityFittingSizeLevel = 50,
};
typedef float UILayoutPriority; // for OS X see NSLayoutPriority

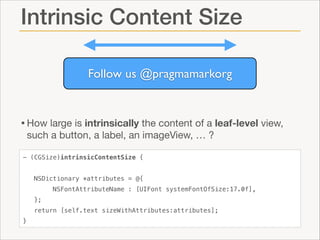

Intrinsic Content Size
Follow us @pragmamarkorg

• How large is intrinsically the content of a leaf-level view,
such a button, a label, an imageView, … ?

- (CGSize)intrinsicContentSize {
NSDictionary *attributes = @{
NSFontAttributeName : [UIFont systemFontOfSize:17.0f],
};
return [self.text sizeWithAttributes:attributes];
}

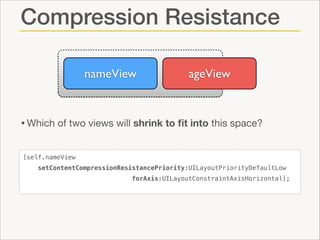

Compression Resistance
nameView

ageView

• Which of two views will shrink to fit into this space?
[self.nameView
setContentCompressionResistancePriority:UILayoutPriorityDefaultLow
forAxis:UILayoutConstraintAxisHorizontal];

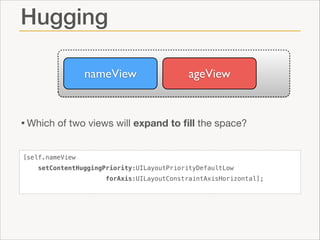

Hugging
nameView

ageView

• Which of two views will expand to fill the space?
[self.nameView
setContentHuggingPriority:UILayoutPriorityDefaultLow
forAxis:UILayoutConstraintAxisHorizontal];
How Auto Layout Works

{

y = m₁x + c₁

y = m₂x + c₂

• Install constraints on views

• Convert constraints into inequalities

• Solve system of inequalities all at once

• Update views frames

• Display layers on screen

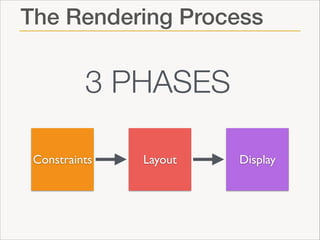

The Rendering Process

3 PHASES
Constraints

Layout

Display

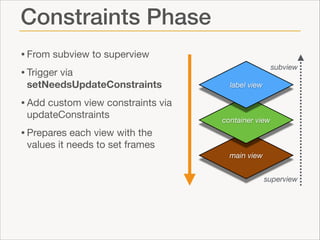

Constraints Phase
• From subview to superview

• Trigger via

setNeedsUpdateConstraints


subview
label view

• Add custom view constraints via
updateConstraints


container view

• Prepares each view with the

values it needs to set frames
main view
superview

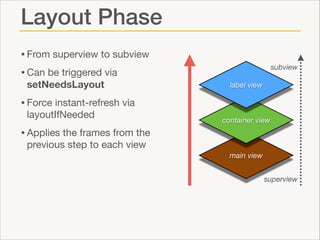

Layout Phase
• From superview to subview

• Can be triggered via
setNeedsLayout


subview
label view

• Force instant-refresh via
layoutIfNeeded


container view

• Applies the frames from the
previous step to each view

main view
superview
Display Phase
• From superview to subview

• Can be triggered via
setNeedsDisplay

• Same as Springs & Struts

• drawRect: lives here

subview
label view

container view

main view
superview
2/6 Interface Builder Practice
Why ?
• Easier to understand than Auto Layout code

• Easier to implement than Auto Layout code

• Easier to debug than Auto Layout code
Why Not ?
• Xcode 4 (FOUR) Interface Builder can be a real pain in the …

• Some complex views are hard to work with !

• Why Not Storyboards ?

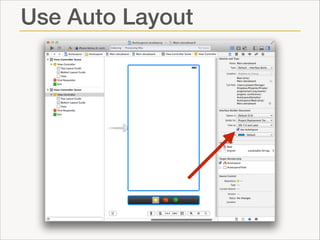

Use Auto Layout
New Age

5

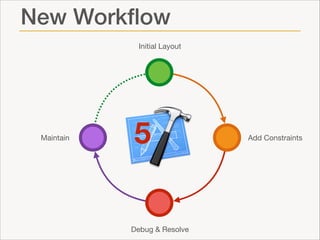

New Workflow
Initial Layout

Maintain

5
Debug & Resolve

Add Constraints
Initial Layout

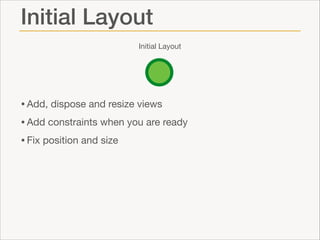

Initial Layout

• Add, dispose and resize views

• Add constraints when you are ready

• Fix position and size

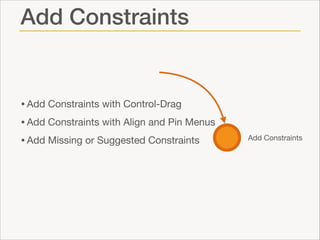

Add Constraints

• Add Constraints with Control-Drag

• Add Constraints with Align and Pin Menus

• Add Missing or Suggested Constraints

Add Constraints

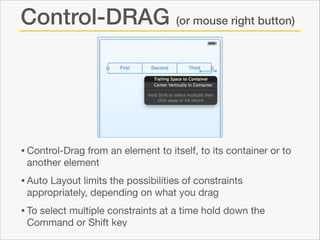

Control-DRAG (or mouse right button)

• Control-Drag from an element to itself, to its container or to
another element


• Auto Layout limits the possibilities of constraints
appropriately, depending on what you drag


• To select multiple constraints at a time hold down the
Command or Shift key
Align and Pin Menus

• Align: create alignment constraints:

• Edges, Center and Baseline


• Pin: create spacing constraints:

• Width, Height and Distance from another view

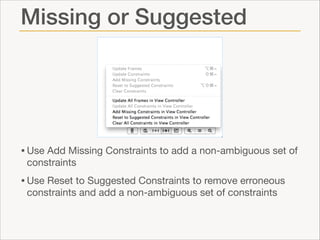

Missing or Suggested

• Use Add Missing Constraints to add a non-ambiguous set of
constraints


• Use Reset to Suggested Constraints to remove erroneous
constraints and add a non-ambiguous set of constraints

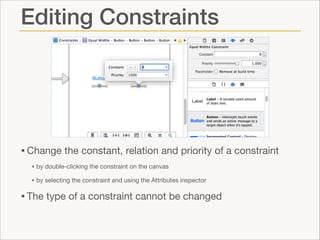

Editing Constraints

• Change the constant, relation and priority of a constraint

• by double-clicking the constraint on the canvas

• by selecting the constraint and using the Attributes inspector


• The type of a constraint cannot be changed
Wrong Intermediate States

• Ambiguous Layout: Not enough information	 { ∞ solutions

• Conflicting Constraints: Too much information	 { Ø solution

• Misplaced Views: Mismatched position or size

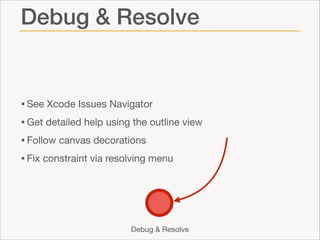

Debug & Resolve

• See Xcode Issues Navigator

• Get detailed help using the outline view

• Follow canvas decorations

• Fix constraint via resolving menu

Debug & Resolve
Identifying Issues

!

In the Issues
Navigator

!

In the Interface Builder
outline view

On the canvas

Misplaced or ambiguous
constraints are shown in orange,
conflicting constraints are red

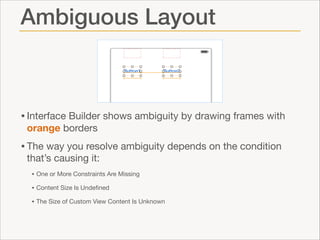

Ambiguous Layout

• Interface Builder shows ambiguity by drawing frames with
orange borders


• The way you resolve ambiguity depends on the condition
that’s causing it:


• One or More Constraints Are Missing

• Content Size Is Undefined

• The Size of Custom View Content Is Unknown
Missing Constraints

• To add missing constraints:


Choose Issues > Add Missing Constraints

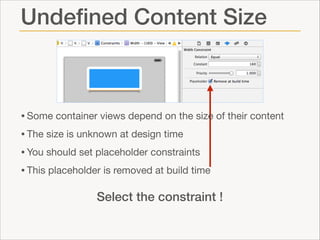

Undefined Content Size

• Some container views depend on the size of their content

• The size is unknown at design time

• You should set placeholder constraints

• This placeholder is removed at build time
Select the constraint !
Custom View Unknown

• A Custom View can have a intrinsic content size

• The content size is unknown at design time

• You should set a placeholder intrinsic content size

• The view will not have this intrinsic content size at runtime
Select the view !

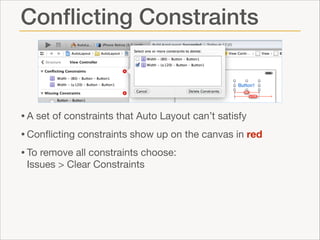

Conflicting Constraints

• A set of constraints that Auto Layout can’t satisfy

• Conflicting constraints show up on the canvas in red

• To remove all constraints choose:

Issues > Clear Constraints
Misplaced Views

• In Interface Builder constraints and frames are separate

• If there is a mismatch you have view misplacement

• Not satisfied constraints show up in orange, with a delta

• A dotted red frame show where the view will be at runtime
Misplaced Views

• Choose Issues > Update Frames

• The element moves back to where it was before it was misplaced

• The frames change to satisfy existing constraints


• Choose Issues > Update Constraints

• The constraints are updated to the new location of the element

• The constraints change to match the current frames

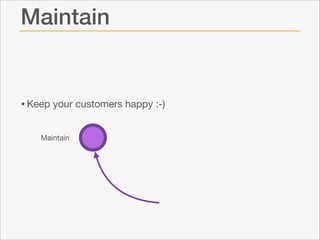

Maintain

• Keep your customers happy :-)
Maintain
3/6 Coding Practice

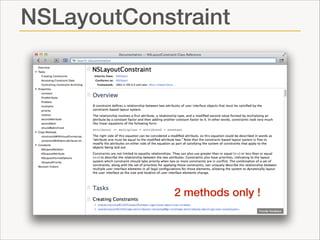

NSLayoutConstraint

2 methods only !

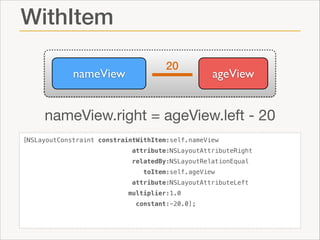

WithItem
nameView

20

ageView

nameView.right = ageView.left - 20
[NSLayoutConstraint constraintWithItem:self.nameView
attribute:NSLayoutAttributeRight
relatedBy:NSLayoutRelationEqual
toItem:self.ageView
attribute:NSLayoutAttributeLeft
multiplier:1.0
constant:-20.0];

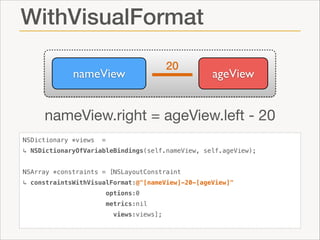

WithVisualFormat
nameView

20

ageView

nameView.right = ageView.left - 20
NSDictionary *views

=

↳ NSDictionaryOfVariableBindings(self.nameView, self.ageView);

!
NSArray *constraints = [NSLayoutConstraint
↳ constraintsWithVisualFormat:@"[nameView]-20-[ageView]"
options:0
metrics:nil
views:views];

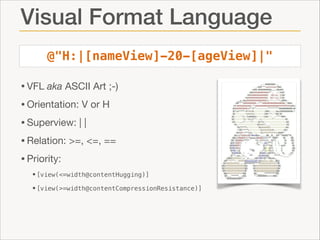

Visual Format Language
@"H:|[nameView]-20-[ageView]|"

• VFL aka ASCII Art ;-)

• Orientation: V or H

• Superview: | |

• Relation: >=, <=, ==

• Priority:

•[view(<=width@contentHugging)]
•[view(>=width@contentCompressionResistance)]

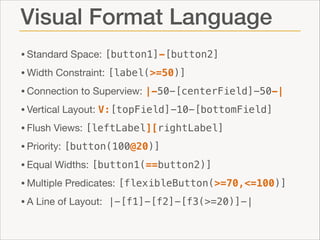

Visual Format Language
• Standard Space: [button1]-[button2]
• Width Constraint: [label(>=50)]
• Connection to Superview: |-50-[centerField]-50-|
• Vertical Layout: V:[topField]-10-[bottomField]
• Flush Views: [leftLabel][rightLabel]

• Priority: [button(100@20)]

• Equal Widths: [button1(==button2)]

• Multiple Predicates: [flexibleButton(>=70,<=100)]

• A Line of Layout: |-[f1]-[f2]-[f3(>=20)]-|

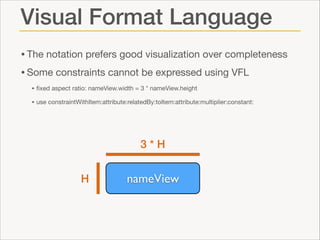

Visual Format Language
• The notation prefers good visualization over completeness

• Some constraints cannot be expressed using VFL

• fixed aspect ratio: nameView.width = 3 * nameView.height

• use constraintWithItem:attribute:relatedBy:toItem:attribute:multiplier:constant:

3*H
H

nameView

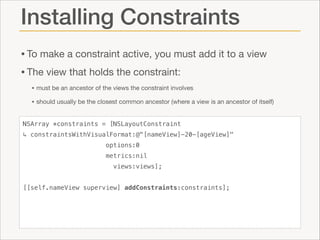

Installing Constraints
• To make a constraint active, you must add it to a view

• The view that holds the constraint:

• must be an ancestor of the views the constraint involves

• should usually be the closest common ancestor (where a view is an ancestor of itself)
NSArray *constraints = [NSLayoutConstraint
↳ constraintsWithVisualFormat:@"[nameView]-20-[ageView]"
options:0
metrics:nil
views:views];

!
[[self.nameView superview] addConstraints:constraints];

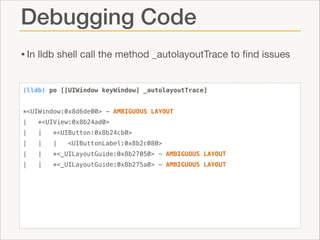

Debugging Code
• In lldb shell call the method _autolayoutTrace to find issues
(lldb) po [[UIWindow keyWindow] _autolayoutTrace]

!
*<UIWindow:0x8d6de00> - AMBIGUOUS LAYOUT
|

*<UIView:0x8b24ad0>

|

|

*<UIButton:0x8b24cb0>

|

|

|

|

|

*<_UILayoutGuide:0x8b27050> - AMBIGUOUS LAYOUT

|

|

*<_UILayoutGuide:0x8b275a0> - AMBIGUOUS LAYOUT

<UIButtonLabel:0x8b2c080>

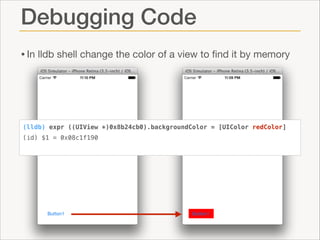

Debugging Code
• In lldb shell change the color of a view to find it by memory

(lldb) expr ((UIView *)0x8b24cb0).backgroundColor = [UIColor redColor]
(id) $1 = 0x08c1f190

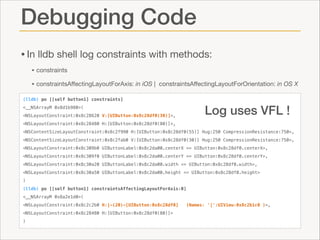

Debugging Code
• In lldb shell log constraints with methods:

• constraints

• constraintsAffectingLayoutForAxis: in iOS |

constraintsAffectingLayoutForOrientation: in OS X

(lldb) po [[self button1] constraints]

Log uses VFL !

<__NSArrayM 0x8d1b980>(
<NSLayoutConstraint:0x8c28620 V:[UIButton:0x8c28df0(30)]>,
<NSLayoutConstraint:0x8c28480 H:[UIButton:0x8c28df0(80)]>,

<NSContentSizeLayoutConstraint:0x8c2f990 H:[UIButton:0x8c28df0(55)] Hug:250 CompressionResistance:750>,
<NSContentSizeLayoutConstraint:0x8c2fab0 V:[UIButton:0x8c28df0(30)] Hug:250 CompressionResistance:750>,
<NSLayoutConstraint:0x8c309b0 UIButtonLabel:0x8c2da00.centerX == UIButton:0x8c28df0.centerX>,
<NSLayoutConstraint:0x8c309f0 UIButtonLabel:0x8c2da00.centerY == UIButton:0x8c28df0.centerY>,
<NSLayoutConstraint:0x8c30a20 UIButtonLabel:0x8c2da00.width <= UIButton:0x8c28df0.width>,
<NSLayoutConstraint:0x8c30a50 UIButtonLabel:0x8c2da00.height <= UIButton:0x8c28df0.height>
)
(lldb) po [[self button1] constraintsAffectingLayoutForAxis:0]
<__NSArrayM 0x8a2e1d0>(
<NSLayoutConstraint:0x8c2c2b0 H:|-(20)-[UIButton:0x8c28df0]
<NSLayoutConstraint:0x8c28480 H:[UIButton:0x8c28df0(80)]>
)

(Names: '|':UIView:0x8c2b1c0 )>,
4/6 Special Cases

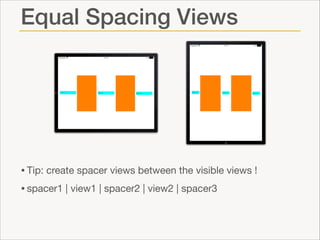

Equal Spacing Views

• Tip: create spacer views between the visible views !

• spacer1 | view1 | spacer2 | view2 | spacer3

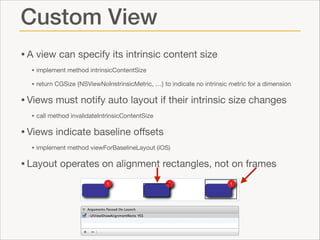

Custom View
• A view can specify its intrinsic content size

• implement method intrinsicContentSize

• return CGSize {NSViewNoInstrinsicMetric, …} to indicate no intrinsic metric for a dimension


• Views must notify auto layout if their intrinsic size changes

• call method invalidateIntrinsicContentSize


• Views indicate baseline offsets

• implement method viewForBaselineLayout (iOS)


• Layout operates on alignment rectangles, not on frames
Best Practices
• Add constraints in updateConstraints

• Always call [super updateConstraints]


• Store constraints in strong ivars

• Remove constraints before calling
setNeedsUpdateConstraints


• Don’t remove constraints unnecessarily

• Updating faster than removing/re-adding

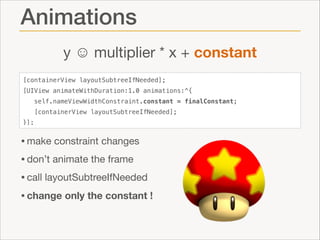

Animations
y ☺ multiplier * x + constant
[containerView layoutSubtreeIfNeeded];
[UIView animateWithDuration:1.0 animations:^{
self.nameViewWidthConstraint.constant = finalConstant;
[containerView layoutSubtreeIfNeeded];
}];

• make constraint changes

• don’t animate the frame

• call layoutSubtreeIfNeeded

• change only the constant !

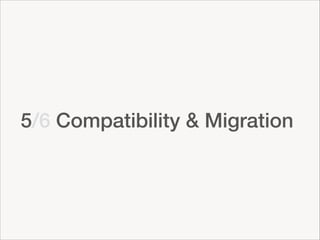

5/6 Compatibility & Migration

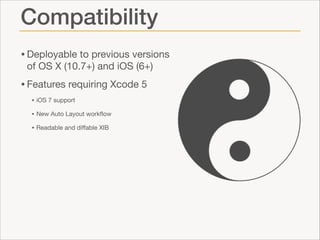

Compatibility
• Deployable to previous versions
of OS X (10.7+) and iOS (6+)


• Features requiring Xcode 5

• iOS 7 support

• New Auto Layout workflow

• Readable and diffable XIB
Migration Rules
• Start using Auto Layout today for all new User Interfaces

• Use Auto Layout when it makes sense

• Don’t use setFrame:

view.frame = CGRectMake(x, y, width, height);

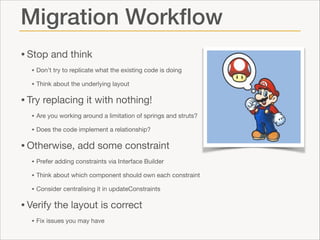

Migration Workflow
• Stop and think

• Don’t try to replicate what the existing code is doing

• Think about the underlying layout


• Try replacing it with nothing!

• Are you working around a limitation of springs and struts?

• Does the code implement a relationship?


• Otherwise, add some constraint

• Prefer adding constraints via Interface Builder

• Think about which component should own each constraint

• Consider centralising it in updateConstraints


• Verify the layout is correct

• Fix issues you may have

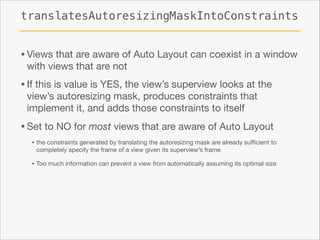

translatesAutoresizingMaskIntoConstraints

• Views that are aware of Auto Layout can coexist in a window
with views that are not


• If this is value is YES, the view’s superview looks at the
view’s autoresizing mask, produces constraints that
implement it, and adds those constraints to itself


• Set to NO for most views that are aware of Auto Layout

• the constraints generated by translating the autoresizing mask are already sufficient to
completely specify the frame of a view given its superview’s frame


• Too much information can prevent a view from automatically assuming its optimal size
6/6 Final Thoughts

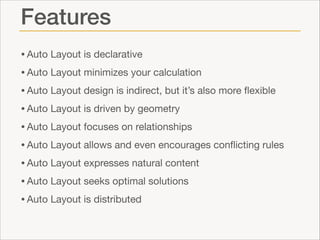

Features
• Auto Layout is declarative

• Auto Layout minimizes your calculation

• Auto Layout design is indirect, but it’s also more flexible

• Auto Layout is driven by geometry

• Auto Layout focuses on relationships

• Auto Layout allows and even encourages conflicting rules

• Auto Layout expresses natural content

• Auto Layout seeks optimal solutions

• Auto Layout is distributed

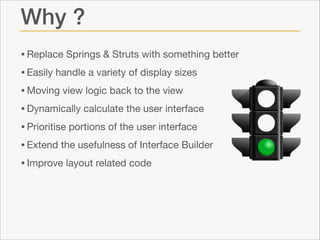

Why ?
• Replace Springs & Struts with something better

• Easily handle a variety of display sizes

• Moving view logic back to the view

• Dynamically calculate the user interface

• Prioritise portions of the user interface

• Extend the usefulness of Interface Builder

• Improve layout related code

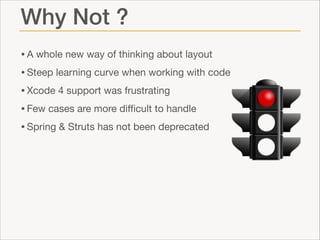

Why Not ?
• A whole new way of thinking about layout

• Steep learning curve when working with code

• Xcode 4 support was frustrating

• Few cases are more difficult to handle

• Spring & Struts has not been deprecated

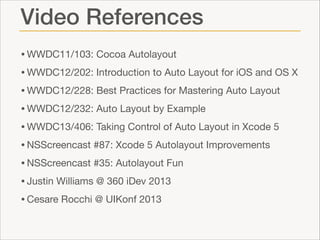

Video References
• WWDC11/103: Cocoa Autolayout

• WWDC12/202: Introduction to Auto Layout for iOS and OS X

• WWDC12/228: Best Practices for Mastering Auto Layout

• WWDC12/232: Auto Layout by Example

• WWDC13/406: Taking Control of Auto Layout in Xcode 5

• NSScreencast #87: Xcode 5 Autolayout Improvements

• NSScreencast #35: Autolayout Fun

• Justin Williams @ 360 iDev 2013

• Cesare Rocchi @ UIKonf 2013

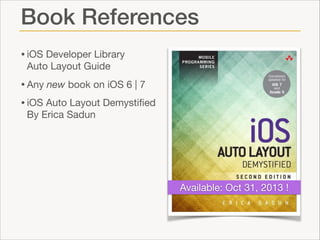

Book References
• iOS Developer Library
Auto Layout Guide


• Any new book on iOS 6 | 7

• iOS Auto Layout Demystified
By Erica Sadun

Available: Oct 31, 2013 !
Thank you !

Giuseppe Arici

giuseppe@pragmamark.org

More Related Content

Viewers also liked

Digital Universitas
Digital UniversitasDigital Universitas
Digital Universitas
Giuseppe Arici

Autolayout primer
Autolayout primerAutolayout primer
Autolayout primer
Inferis

Automatic Reference Counting @ Pragma Night
Automatic Reference Counting @ Pragma NightAutomatic Reference Counting @ Pragma Night
Automatic Reference Counting @ Pragma Night
Giuseppe Arici

Autolayout
AutolayoutAutolayout
Autolayout
Jorge Ortiz

Objective-C @ ITIS
Objective-C @ ITISObjective-C @ ITIS
Objective-C @ ITIS
Giuseppe Arici

Automatic Reference Counting
Automatic Reference CountingAutomatic Reference Counting
Automatic Reference Counting
Giuseppe Arici

Parte II Objective C
Parte II   Objective CParte II   Objective C
Parte II Objective C
Paolo Quadrani

AutoLayout y Size Classes
AutoLayout y Size ClassesAutoLayout y Size Classes
AutoLayout y Size Classes
NSCoder Mexico

Swift Introduction
Swift IntroductionSwift Introduction
Swift Introduction
Giuseppe Arici

Objective-C
Objective-CObjective-C
Objective-C
Giuseppe Arici

Objective c slide I
Objective c slide IObjective c slide I
Objective c slide I
Diksha Bhargava

Introduction to Objective - C
Introduction to Objective - CIntroduction to Objective - C
Introduction to Objective - C
Jussi Pohjolainen

A swift introduction to Swift
A swift introduction to SwiftA swift introduction to Swift
A swift introduction to Swift
Giordano Scalzo

Swift Programming Language
Swift Programming LanguageSwift Programming Language
Swift Programming Language
Giuseppe Arici


Viewers also liked (14)

Digital Universitas
Digital UniversitasDigital Universitas
Digital Universitas

Autolayout primer
Autolayout primerAutolayout primer
Autolayout primer

Automatic Reference Counting @ Pragma Night
Automatic Reference Counting @ Pragma NightAutomatic Reference Counting @ Pragma Night
Automatic Reference Counting @ Pragma Night

Autolayout
AutolayoutAutolayout
Autolayout

Objective-C @ ITIS
Objective-C @ ITISObjective-C @ ITIS
Objective-C @ ITIS

Automatic Reference Counting
Automatic Reference CountingAutomatic Reference Counting
Automatic Reference Counting

Parte II Objective C
Parte II   Objective CParte II   Objective C
Parte II Objective C

AutoLayout y Size Classes
AutoLayout y Size ClassesAutoLayout y Size Classes
AutoLayout y Size Classes

Swift Introduction
Swift IntroductionSwift Introduction
Swift Introduction

Objective-C
Objective-CObjective-C
Objective-C

Objective c slide I
Objective c slide IObjective c slide I
Objective c slide I

Introduction to Objective - C
Introduction to Objective - CIntroduction to Objective - C
Introduction to Objective - C

A swift introduction to Swift
A swift introduction to SwiftA swift introduction to Swift
A swift introduction to Swift

Swift Programming Language
Swift Programming LanguageSwift Programming Language
Swift Programming Language


Similar to Auto Layout Under Control @ Pragma conference 2013

Improving the Quality of Existing Software - DevIntersection April 2016
Improving the Quality of Existing Software - DevIntersection April 2016Improving the Quality of Existing Software - DevIntersection April 2016
Improving the Quality of Existing Software - DevIntersection April 2016
Steven Smith

Sitecore mvc
Sitecore mvcSitecore mvc
Sitecore mvc
pratik satikunvar

Improving the Quality of Existing Software
Improving the Quality of Existing SoftwareImproving the Quality of Existing Software
Improving the Quality of Existing Software
Steven Smith

Improving the Quality of Existing Software
Improving the Quality of Existing SoftwareImproving the Quality of Existing Software
Improving the Quality of Existing Software
Steven Smith

Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"
Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"
Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"
Fwdays

Entity Framework: To the Unit of Work Design Pattern and Beyond
Entity Framework: To the Unit of Work Design Pattern and BeyondEntity Framework: To the Unit of Work Design Pattern and Beyond
Entity Framework: To the Unit of Work Design Pattern and Beyond
Steve Westgarth

OpenNTF Webinar, October 2020
OpenNTF Webinar, October 2020OpenNTF Webinar, October 2020
OpenNTF Webinar, October 2020
Howard Greenberg

Designing True Cross-Platform Apps
Designing True Cross-Platform AppsDesigning True Cross-Platform Apps
Designing True Cross-Platform Apps
FITC

Android Development - ConstraintLayout
Android Development - ConstraintLayoutAndroid Development - ConstraintLayout
Android Development - ConstraintLayout
Manuel Vicente Vivo

JSLink for ITPros - SharePoint Saturday Jersey
JSLink for ITPros - SharePoint Saturday JerseyJSLink for ITPros - SharePoint Saturday Jersey
JSLink for ITPros - SharePoint Saturday Jersey
Paul Hunt

iOS Programming 101
iOS Programming 101iOS Programming 101
iOS Programming 101
rwenderlich

View controllers: The Right Way
View controllers: The Right WayView controllers: The Right Way
View controllers: The Right Way
Fran Depascuali

Improving the Design of Existing Software
Improving the Design of Existing SoftwareImproving the Design of Existing Software
Improving the Design of Existing Software
Steven Smith

Introduction to j2 ee patterns online training class
Introduction to j2 ee patterns online training classIntroduction to j2 ee patterns online training class
Introduction to j2 ee patterns online training class
QUONTRASOLUTIONS

A modern architecturereview–usingcodereviewtools-ver-3.5
A modern architecturereview–usingcodereviewtools-ver-3.5A modern architecturereview–usingcodereviewtools-ver-3.5
A modern architecturereview–usingcodereviewtools-ver-3.5
SSW

Common Project Mistakes: Visualization, Alarms, and Security
Common Project Mistakes: Visualization, Alarms, and SecurityCommon Project Mistakes: Visualization, Alarms, and Security
Common Project Mistakes: Visualization, Alarms, and Security
Inductive Automation

CATiled Layer - Melbourne Cocoheads February 2012
CATiled Layer - Melbourne Cocoheads February 2012CATiled Layer - Melbourne Cocoheads February 2012
CATiled Layer - Melbourne Cocoheads February 2012
Jesse Collis

Implementing CATiledLayer
Implementing CATiledLayerImplementing CATiledLayer
Implementing CATiledLayer
Jesse Collis

Features, Exportables & You
Features, Exportables & YouFeatures, Exportables & You
Features, Exportables & You
jskulski

Design Principles
Design PrinciplesDesign Principles
Design Principles
Kartheek Nagasuri


Similar to Auto Layout Under Control @ Pragma conference 2013 (20)

Improving the Quality of Existing Software - DevIntersection April 2016
Improving the Quality of Existing Software - DevIntersection April 2016Improving the Quality of Existing Software - DevIntersection April 2016
Improving the Quality of Existing Software - DevIntersection April 2016

Sitecore mvc
Sitecore mvcSitecore mvc
Sitecore mvc

Improving the Quality of Existing Software
Improving the Quality of Existing SoftwareImproving the Quality of Existing Software
Improving the Quality of Existing Software

Improving the Quality of Existing Software
Improving the Quality of Existing SoftwareImproving the Quality of Existing Software
Improving the Quality of Existing Software

Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"
Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"
Алексей Ященко и Ярослав Волощук "False simplicity of front-end applications"

Entity Framework: To the Unit of Work Design Pattern and Beyond
Entity Framework: To the Unit of Work Design Pattern and BeyondEntity Framework: To the Unit of Work Design Pattern and Beyond
Entity Framework: To the Unit of Work Design Pattern and Beyond

OpenNTF Webinar, October 2020
OpenNTF Webinar, October 2020OpenNTF Webinar, October 2020
OpenNTF Webinar, October 2020

Designing True Cross-Platform Apps
Designing True Cross-Platform AppsDesigning True Cross-Platform Apps
Designing True Cross-Platform Apps

Android Development - ConstraintLayout
Android Development - ConstraintLayoutAndroid Development - ConstraintLayout
Android Development - ConstraintLayout

JSLink for ITPros - SharePoint Saturday Jersey
JSLink for ITPros - SharePoint Saturday JerseyJSLink for ITPros - SharePoint Saturday Jersey
JSLink for ITPros - SharePoint Saturday Jersey

iOS Programming 101
iOS Programming 101iOS Programming 101
iOS Programming 101

View controllers: The Right Way
View controllers: The Right WayView controllers: The Right Way
View controllers: The Right Way

Improving the Design of Existing Software
Improving the Design of Existing SoftwareImproving the Design of Existing Software
Improving the Design of Existing Software

Introduction to j2 ee patterns online training class
Introduction to j2 ee patterns online training classIntroduction to j2 ee patterns online training class
Introduction to j2 ee patterns online training class

A modern architecturereview–usingcodereviewtools-ver-3.5
A modern architecturereview–usingcodereviewtools-ver-3.5A modern architecturereview–usingcodereviewtools-ver-3.5
A modern architecturereview–usingcodereviewtools-ver-3.5

Common Project Mistakes: Visualization, Alarms, and Security
Common Project Mistakes: Visualization, Alarms, and SecurityCommon Project Mistakes: Visualization, Alarms, and Security
Common Project Mistakes: Visualization, Alarms, and Security

CATiled Layer - Melbourne Cocoheads February 2012
CATiled Layer - Melbourne Cocoheads February 2012CATiled Layer - Melbourne Cocoheads February 2012
CATiled Layer - Melbourne Cocoheads February 2012

Implementing CATiledLayer
Implementing CATiledLayerImplementing CATiledLayer
Implementing CATiledLayer

Features, Exportables & You
Features, Exportables & YouFeatures, Exportables & You
Features, Exportables & You

Design Principles
Design PrinciplesDesign Principles
Design Principles


Recently uploaded

Christine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptxChristine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptx
christinelarrosa

Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
Fwdays

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024
Vadym Kazulkin

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |
AstuteBusiness

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota
Fwdays

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
Jason Yip

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
LizaNolte

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
Neo4j

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan


Recently uploaded (20)

Christine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptxChristine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptx

Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf


Auto Layout Under Control @ Pragma conference 2013

  • 1. Auto Layout Under Control Giuseppe Arici iOS & OS X Developer
  • 2. Speaker • Giuseppe Arici • #pragma mark § Founder, Preacher & VP ;-) • Tiltap & Superpartes § iOS & (OS X) Developer • [ lk | tt | fb ] / giuseppearici § giuseppe@pragmamark.org
  • 3. Session 1. Auto Layout Theory 2. Interface Builder Practice 3. Coding Practice 4. Special Cases 5. Compatibility & Migration 6. Final Thoughts
  • 5. History • Display Form Factor Evolution: • iPhone, iPad, iPhone Retina, iPad Retina, iPhone 4-inch Display ! • Inspired by: Cassowary A Constraint Solving Toolkit • http://www.cs.washington.edu/research/constraints/cassowary/ • Auto Layout Evolution: • OS X Lion 10.7 ~ iOS 6.0 ~ Xcode 5 5
  • 6. Old Buzzword: Absolute • Springs & Struts Approach: • Set the Frame • Set the AutoresizingMask • Springs & Struts Limits: • Can be applied only between the view and the superview • Cannot express relationships between two views • Sometimes needs tweaking code
  • 7. New Buzzword: Dynamic • Auto Layout loves Dynamism: • Improved responsiveness to changes in the application • Auto Layout loves Relationships: • Codifying the relative way we describe user interfaces • Auto Layout loves Expressiveness: • Can specify powerful relationships between views
  • 8. Definition Auto Layout is a constraint-based, descriptive layout system.
  • 9. Mathematical Background • System of Linear Equations: Linear Algebra





 { a₁₁x + a₁₂y = b₁ a₂₁x + a₂₂y = b₂ • System of Linear Equations: Cartesian Plane { y = m₁x + c₁ y = m₂x + c₂
  • 13. Constraint Basics y ☺ mx + c • y and x are attributes of views: • left, right, top, bottom, leading, trailing • width, height, centerX, centerY, baseline • m and c are floating point values: • m is the multiplier: the ratio between the attributes • c is the constant: the size or offset in points • ☺ is the relation: =, <=, >=
  • 14. Constraint Basics view.leading >= (superview.leading + 20) • Constraints are cumulative and do not override each other • Constraints can cross the view hierarchy • ↳ but in the same window • ↳ with some exceptions: • cannot cross if the hierarchy includes a view that sets the subviews frames manually • cannot cross if the hierarchy includes a view that have a bounds transform (scrollview)
  • 15. Constraint Priority @750 @250 nameView ageView • Constraints with higher priority levels are satisfied before constraints with lower priority level enum { UILayoutPriorityRequired = 1000, UILayoutPriorityDefaultHigh = 750, UILayoutPriorityDefaultLow = 250, UILayoutPriorityFittingSizeLevel = 50, }; typedef float UILayoutPriority; // for OS X see NSLayoutPriority
  • 16. Intrinsic Content Size Follow us @pragmamarkorg • How large is intrinsically the content of a leaf-level view, such a button, a label, an imageView, … ? - (CGSize)intrinsicContentSize { NSDictionary *attributes = @{ NSFontAttributeName : [UIFont systemFontOfSize:17.0f], }; return [self.text sizeWithAttributes:attributes]; }
  • 17. Compression Resistance nameView ageView • Which of two views will shrink to fit into this space? [self.nameView setContentCompressionResistancePriority:UILayoutPriorityDefaultLow forAxis:UILayoutConstraintAxisHorizontal];
  • 18. Hugging nameView ageView • Which of two views will expand to fill the space? [self.nameView setContentHuggingPriority:UILayoutPriorityDefaultLow forAxis:UILayoutConstraintAxisHorizontal];
  • 19. How Auto Layout Works { y = m₁x + c₁ y = m₂x + c₂ • Install constraints on views • Convert constraints into inequalities • Solve system of inequalities all at once • Update views frames • Display layers on screen
  • 20. The Rendering Process 3 PHASES Constraints Layout Display
  • 21. Constraints Phase • From subview to superview • Trigger via setNeedsUpdateConstraints subview label view • Add custom view constraints via updateConstraints container view • Prepares each view with the values it needs to set frames main view superview
  • 22. Layout Phase • From superview to subview • Can be triggered via setNeedsLayout subview label view • Force instant-refresh via layoutIfNeeded container view • Applies the frames from the previous step to each view main view superview
  • 23. Display Phase • From superview to subview • Can be triggered via setNeedsDisplay • Same as Springs & Struts • drawRect: lives here subview label view container view main view superview
  • 25. Why ? • Easier to understand than Auto Layout code • Easier to implement than Auto Layout code • Easier to debug than Auto Layout code
  • 26. Why Not ? • Xcode 4 (FOUR) Interface Builder can be a real pain in the … • Some complex views are hard to work with ! • Why Not Storyboards ?
  • 30. Initial Layout Initial Layout • Add, dispose and resize views • Add constraints when you are ready • Fix position and size
  • 31. Add Constraints • Add Constraints with Control-Drag • Add Constraints with Align and Pin Menus • Add Missing or Suggested Constraints Add Constraints
  • 32. Control-DRAG (or mouse right button) • Control-Drag from an element to itself, to its container or to another element • Auto Layout limits the possibilities of constraints appropriately, depending on what you drag • To select multiple constraints at a time hold down the Command or Shift key
  • 33. Align and Pin Menus • Align: create alignment constraints: • Edges, Center and Baseline • Pin: create spacing constraints: • Width, Height and Distance from another view
  • 34. Missing or Suggested • Use Add Missing Constraints to add a non-ambiguous set of constraints • Use Reset to Suggested Constraints to remove erroneous constraints and add a non-ambiguous set of constraints
  • 35. Editing Constraints • Change the constant, relation and priority of a constraint • by double-clicking the constraint on the canvas • by selecting the constraint and using the Attributes inspector • The type of a constraint cannot be changed
  • 36. Wrong Intermediate States • Ambiguous Layout: Not enough information { ∞ solutions • Conflicting Constraints: Too much information { Ø solution • Misplaced Views: Mismatched position or size
  • 37. Debug & Resolve • See Xcode Issues Navigator • Get detailed help using the outline view • Follow canvas decorations • Fix constraint via resolving menu Debug & Resolve
  • 38. Identifying Issues ! In the Issues Navigator ! In the Interface Builder outline view On the canvas
 Misplaced or ambiguous constraints are shown in orange, conflicting constraints are red
  • 39. Ambiguous Layout • Interface Builder shows ambiguity by drawing frames with orange borders • The way you resolve ambiguity depends on the condition that’s causing it: • One or More Constraints Are Missing • Content Size Is Undefined • The Size of Custom View Content Is Unknown
  • 40. Missing Constraints • To add missing constraints:
 Choose Issues > Add Missing Constraints
  • 41. Undefined Content Size • Some container views depend on the size of their content • The size is unknown at design time • You should set placeholder constraints • This placeholder is removed at build time Select the constraint !
  • 42. Custom View Unknown • A Custom View can have a intrinsic content size • The content size is unknown at design time • You should set a placeholder intrinsic content size • The view will not have this intrinsic content size at runtime Select the view !
  • 43. Conflicting Constraints • A set of constraints that Auto Layout can’t satisfy • Conflicting constraints show up on the canvas in red • To remove all constraints choose:
 Issues > Clear Constraints
  • 44. Misplaced Views • In Interface Builder constraints and frames are separate • If there is a mismatch you have view misplacement • Not satisfied constraints show up in orange, with a delta • A dotted red frame show where the view will be at runtime
  • 45. Misplaced Views • Choose Issues > Update Frames • The element moves back to where it was before it was misplaced • The frames change to satisfy existing constraints • Choose Issues > Update Constraints • The constraints are updated to the new location of the element • The constraints change to match the current frames
  • 46. Maintain • Keep your customers happy :-) Maintain
  • 49. WithItem nameView 20 ageView nameView.right = ageView.left - 20 [NSLayoutConstraint constraintWithItem:self.nameView attribute:NSLayoutAttributeRight relatedBy:NSLayoutRelationEqual toItem:self.ageView attribute:NSLayoutAttributeLeft multiplier:1.0 constant:-20.0];
  • 50. WithVisualFormat nameView 20 ageView nameView.right = ageView.left - 20 NSDictionary *views = ↳ NSDictionaryOfVariableBindings(self.nameView, self.ageView); ! NSArray *constraints = [NSLayoutConstraint ↳ constraintsWithVisualFormat:@"[nameView]-20-[ageView]" options:0 metrics:nil views:views];
  • 51. Visual Format Language @"H:|[nameView]-20-[ageView]|" • VFL aka ASCII Art ;-) • Orientation: V or H • Superview: | | • Relation: >=, <=, == • Priority: •[view(<=width@contentHugging)] •[view(>=width@contentCompressionResistance)]
  • 52. Visual Format Language • Standard Space: [button1]-[button2] • Width Constraint: [label(>=50)] • Connection to Superview: |-50-[centerField]-50-| • Vertical Layout: V:[topField]-10-[bottomField] • Flush Views: [leftLabel][rightLabel] • Priority: [button(100@20)] • Equal Widths: [button1(==button2)] • Multiple Predicates: [flexibleButton(>=70,<=100)] • A Line of Layout: |-[f1]-[f2]-[f3(>=20)]-|
  • 53. Visual Format Language • The notation prefers good visualization over completeness • Some constraints cannot be expressed using VFL • fixed aspect ratio: nameView.width = 3 * nameView.height • use constraintWithItem:attribute:relatedBy:toItem:attribute:multiplier:constant: 3*H H nameView
  • 54. Installing Constraints • To make a constraint active, you must add it to a view • The view that holds the constraint: • must be an ancestor of the views the constraint involves • should usually be the closest common ancestor (where a view is an ancestor of itself) NSArray *constraints = [NSLayoutConstraint ↳ constraintsWithVisualFormat:@"[nameView]-20-[ageView]" options:0 metrics:nil views:views]; ! [[self.nameView superview] addConstraints:constraints];
  • 55. Debugging Code • In lldb shell call the method _autolayoutTrace to find issues (lldb) po [[UIWindow keyWindow] _autolayoutTrace] ! *<UIWindow:0x8d6de00> - AMBIGUOUS LAYOUT | *<UIView:0x8b24ad0> | | *<UIButton:0x8b24cb0> | | | | | *<_UILayoutGuide:0x8b27050> - AMBIGUOUS LAYOUT | | *<_UILayoutGuide:0x8b275a0> - AMBIGUOUS LAYOUT <UIButtonLabel:0x8b2c080>
  • 56. Debugging Code • In lldb shell change the color of a view to find it by memory (lldb) expr ((UIView *)0x8b24cb0).backgroundColor = [UIColor redColor] (id) $1 = 0x08c1f190
  • 57. Debugging Code • In lldb shell log constraints with methods: • constraints • constraintsAffectingLayoutForAxis: in iOS | constraintsAffectingLayoutForOrientation: in OS X (lldb) po [[self button1] constraints] Log uses VFL ! <__NSArrayM 0x8d1b980>( <NSLayoutConstraint:0x8c28620 V:[UIButton:0x8c28df0(30)]>, <NSLayoutConstraint:0x8c28480 H:[UIButton:0x8c28df0(80)]>, <NSContentSizeLayoutConstraint:0x8c2f990 H:[UIButton:0x8c28df0(55)] Hug:250 CompressionResistance:750>, <NSContentSizeLayoutConstraint:0x8c2fab0 V:[UIButton:0x8c28df0(30)] Hug:250 CompressionResistance:750>, <NSLayoutConstraint:0x8c309b0 UIButtonLabel:0x8c2da00.centerX == UIButton:0x8c28df0.centerX>, <NSLayoutConstraint:0x8c309f0 UIButtonLabel:0x8c2da00.centerY == UIButton:0x8c28df0.centerY>, <NSLayoutConstraint:0x8c30a20 UIButtonLabel:0x8c2da00.width <= UIButton:0x8c28df0.width>, <NSLayoutConstraint:0x8c30a50 UIButtonLabel:0x8c2da00.height <= UIButton:0x8c28df0.height> ) (lldb) po [[self button1] constraintsAffectingLayoutForAxis:0] <__NSArrayM 0x8a2e1d0>( <NSLayoutConstraint:0x8c2c2b0 H:|-(20)-[UIButton:0x8c28df0] <NSLayoutConstraint:0x8c28480 H:[UIButton:0x8c28df0(80)]> ) (Names: '|':UIView:0x8c2b1c0 )>,
  • 59. Equal Spacing Views • Tip: create spacer views between the visible views ! • spacer1 | view1 | spacer2 | view2 | spacer3
  • 60. Custom View • A view can specify its intrinsic content size • implement method intrinsicContentSize • return CGSize {NSViewNoInstrinsicMetric, …} to indicate no intrinsic metric for a dimension • Views must notify auto layout if their intrinsic size changes • call method invalidateIntrinsicContentSize • Views indicate baseline offsets • implement method viewForBaselineLayout (iOS) • Layout operates on alignment rectangles, not on frames
  • 61. Best Practices • Add constraints in updateConstraints • Always call [super updateConstraints] • Store constraints in strong ivars • Remove constraints before calling setNeedsUpdateConstraints • Don’t remove constraints unnecessarily • Updating faster than removing/re-adding
  • 62. Animations y ☺ multiplier * x + constant [containerView layoutSubtreeIfNeeded]; [UIView animateWithDuration:1.0 animations:^{ self.nameViewWidthConstraint.constant = finalConstant; [containerView layoutSubtreeIfNeeded]; }]; • make constraint changes • don’t animate the frame • call layoutSubtreeIfNeeded • change only the constant !
  • 63. 5/6 Compatibility & Migration
  • 64. Compatibility • Deployable to previous versions of OS X (10.7+) and iOS (6+) • Features requiring Xcode 5 • iOS 7 support • New Auto Layout workflow • Readable and diffable XIB
  • 65. Migration Rules • Start using Auto Layout today for all new User Interfaces • Use Auto Layout when it makes sense • Don’t use setFrame: view.frame = CGRectMake(x, y, width, height);
  • 66. Migration Workflow • Stop and think • Don’t try to replicate what the existing code is doing • Think about the underlying layout • Try replacing it with nothing! • Are you working around a limitation of springs and struts? • Does the code implement a relationship? • Otherwise, add some constraint • Prefer adding constraints via Interface Builder • Think about which component should own each constraint • Consider centralising it in updateConstraints • Verify the layout is correct • Fix issues you may have
  • 67. translatesAutoresizingMaskIntoConstraints • Views that are aware of Auto Layout can coexist in a window with views that are not • If this is value is YES, the view’s superview looks at the view’s autoresizing mask, produces constraints that implement it, and adds those constraints to itself • Set to NO for most views that are aware of Auto Layout • the constraints generated by translating the autoresizing mask are already sufficient to completely specify the frame of a view given its superview’s frame • Too much information can prevent a view from automatically assuming its optimal size
  • 69. Features • Auto Layout is declarative • Auto Layout minimizes your calculation • Auto Layout design is indirect, but it’s also more flexible • Auto Layout is driven by geometry • Auto Layout focuses on relationships • Auto Layout allows and even encourages conflicting rules • Auto Layout expresses natural content • Auto Layout seeks optimal solutions • Auto Layout is distributed
  • 70. Why ? • Replace Springs & Struts with something better • Easily handle a variety of display sizes • Moving view logic back to the view • Dynamically calculate the user interface • Prioritise portions of the user interface • Extend the usefulness of Interface Builder • Improve layout related code
  • 71. Why Not ? • A whole new way of thinking about layout • Steep learning curve when working with code • Xcode 4 support was frustrating • Few cases are more difficult to handle • Spring & Struts has not been deprecated
  • 72. Video References • WWDC11/103: Cocoa Autolayout • WWDC12/202: Introduction to Auto Layout for iOS and OS X • WWDC12/228: Best Practices for Mastering Auto Layout • WWDC12/232: Auto Layout by Example • WWDC13/406: Taking Control of Auto Layout in Xcode 5 • NSScreencast #87: Xcode 5 Autolayout Improvements • NSScreencast #35: Autolayout Fun • Justin Williams @ 360 iDev 2013 • Cesare Rocchi @ UIKonf 2013
  • 73. Book References • iOS Developer Library Auto Layout Guide • Any new book on iOS 6 | 7 • iOS Auto Layout Demystified By Erica Sadun Available: Oct 31, 2013 !
  • 74. Thank you ! Giuseppe Arici giuseppe@pragmamark.org
