1. Erstes Treffen 2014 der Atlassian
Usergroup Hamburg - AUGHH
2 1 .01. 2014, ergo n D ate n p ro j e kte Gmb H

2. Nils Hofmeister
Bigpoint GmbH
Canada
Russia
Europe
North America
Atlassian meets Kerberos
How we imp lemented S S O 3 t imes ; )
South America
Asia
Africa
Australia
Drehbahn 47-48, 20354 HAMBURG, GERMANY
PRESENTATION

3. Intro





Intro - Environment
Jira and LAMP
Confluence and „native“ kerberization
Proxy solution
Next steps

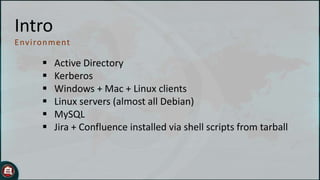

4. Intro
E nviron ment






Active Directory
Kerberos
Windows + Mac + Linux clients
Linux servers (almost all Debian)
MySQL
Jira + Confluence installed via shell scripts from tarball

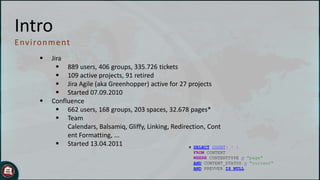

5. Intro
E nviron ment


Jira
 889 users, 406 groups, 335.726 tickets
 109 active projects, 91 retired
 Jira Agile (aka Greenhopper) active for 27 projects
 Started 07.09.2010
Confluence
 662 users, 168 groups, 203 spaces, 32.678 pages*
 Team
Calendars, Balsamiq, Gliffy, Linking, Redirection, Cont
ent Formatting, ...
 Started 13.04.2011
SELECT COUNT(
*
* )
FROM CONTENT
WHERE CONTENTTYPE = "page"
AND CONTENT_STATUS = "current"
AND PREVVER IS NULL

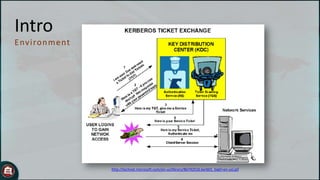

6. Intro
E nviron ment
http://technet.microsoft.com/en-us/library/Bb742516.kerb01_big(l=en-us).gif

7. Canada
Russia
North America
What we tried
Europe
Asia
South America
Africa
Australia

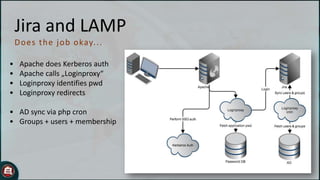

8. Jira and LAMP
D oes t h e j o b o kay. . .
•
•
•
•
Apache does Kerberos auth
Apache calls „Loginproxy“
Loginproxy identifies pwd
Loginproxy redirects
• AD sync via php cron
• Groups + users + membership

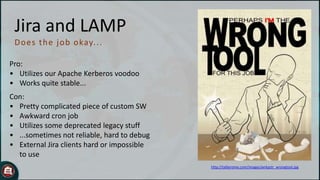

9. Jira and LAMP
D oes t h e j o b o kay. . .
Pro:
• Utilizes our Apache Kerberos voodoo
• Works quite stable...
Con:
• Pretty complicated piece of custom SW
• Awkward cron job
• Utilizes some deprecated legacy stuff
• ...sometimes not reliable, hard to debug
• External Jira clients hard or impossible
to use
http://talljerome.com/images/wrkpstr_wrongtool.jpg

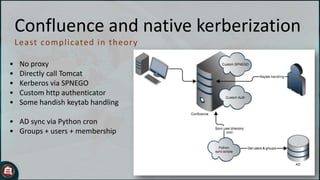

10. Confluence and native kerberization
Least comp licated in t h eor y
•
•
•
•
•
No proxy
Directly call Tomcat
Kerberos via SPNEGO
Custom http authenticator
Some handish keytab handling
• AD sync via Python cron
• Groups + users + membership

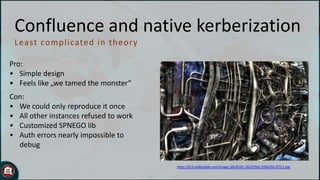

11. Confluence and native kerberization
Least comp licated in t h eor y
Pro:
• Simple design
• Feels like „we tamed the monster“
Con:
• We could only reproduce it once
• All other instances refused to work
• Customized SPNEGO lib
• Auth errors nearly impossible to
debug
http://ih3.redbubble.net/image.3818192.2622/flat,550x550,075,f.jpg

12. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
•
•
•
•
Apache does Kerberos auth
Apache reverse proxy
Rewrite rules + write header
Custom http authenticator
• AD sync via standard AD directory

13. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
Pro:
• Reuse of given Apache expertise
• Reuse of http authenticator
• Little application customizing
• Easy handling of SSL
• No custom AD synchronization
• Least customized stack
Con:
• AD/LDAP config is a pain
• Hard to find the right vhost
configuration
http://www.mantiburi.com/files/5113/7329/5814/my-little-pony.png

14. Canada
Russia
North America
How the proxy stuff works
Europe
Asia
South America
Africa
Australia

15. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
...
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader set REMOTE_USER "%{RU}e" env=RU
...
<Location />
AuthType Kerberos
AuthName confluence_%_user
Krb5Keytab /var/lib/cfg-apache/keytab.http_xyz.nue.bigpoint.net
KrbServiceName HTTP/xyz.nue.bigpoint.net
...
KrbAuthRealm BIGPOINT.LOCAL
<VirtualHost 0.0.0.0:80>
KrbMethodNegotiate on
RewriteEngine On
KrbSaveCredentials on
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
KrbVerifyKDC off
Include "/etc/apache2/vhost-override.d/"
AuthDBMGroupFile /var/lib/cfg-apache/dbmadgroups
</VirtualHost>
Require group confluence_%_user
Order deny,allow
<VirtualHost 0.0.0.0:8080>
Deny from all
RewriteEngine On
Allow from xx.xx.xx.xx 127.0.0.1
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
ProxyPass ajp://localhost/
Include "/etc/apache2/vhost-override.d/"
Satisfy any
</VirtualHost>
</Location>
...

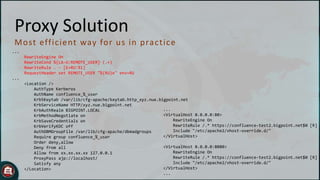

16. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
...
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader set REMOTE_USER "%{RU}e" env=RU
...
<Location />
AuthType Kerberos
AuthName confluence_%_user
Krb5Keytab /var/lib/cfg-apache/keytab.http_xyz.nue.bigpoint.net
KrbServiceName HTTP/xyz.nue.bigpoint.net
...
KrbAuthRealm BIGPOINT.LOCAL
<VirtualHost 0.0.0.0:80>
KrbMethodNegotiate on
RewriteEngine On
KrbSaveCredentials on
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
KrbVerifyKDC off
Include "/etc/apache2/vhost-override.d/"
AuthDBMGroupFile /var/lib/cfg-apache/dbmadgroups
</VirtualHost>
Require group confluence_%_user
Order deny,allow
<VirtualHost 0.0.0.0:8080>
Deny from all
RewriteEngine On
Allow from xx.xx.xx.xx 127.0.0.1
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
ProxyPass ajp://localhost/
Include "/etc/apache2/vhost-override.d/"
Satisfy any
</VirtualHost>
</Location>
...

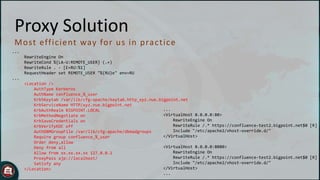

17. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
...
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader set REMOTE_USER "%{RU}e" env=RU
...
<Location />
AuthType Kerberos
AuthName confluence_%_user
Krb5Keytab /var/lib/cfg-apache/keytab.http_xyz.nue.bigpoint.net
KrbServiceName HTTP/xyz.nue.bigpoint.net
...
KrbAuthRealm BIGPOINT.LOCAL
<VirtualHost 0.0.0.0:80>
KrbMethodNegotiate on
RewriteEngine On
KrbSaveCredentials on
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
KrbVerifyKDC off
Include "/etc/apache2/vhost-override.d/"
AuthDBMGroupFile /var/lib/cfg-apache/dbmadgroups
</VirtualHost>
Require group confluence_%_user
Order deny,allow
<VirtualHost 0.0.0.0:8080>
Deny from all
RewriteEngine On
Allow from xx.xx.xx.xx 127.0.0.1
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
ProxyPass ajp://localhost/
Include "/etc/apache2/vhost-override.d/"
Satisfy any
</VirtualHost>
</Location>
...

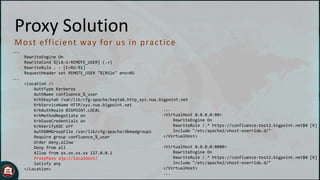

18. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
...
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader set REMOTE_USER "%{RU}e" env=RU
...
<Location />
AuthType Kerberos
AuthName confluence_%_user
Krb5Keytab /var/lib/cfg-apache/keytab.http_xyz.nue.bigpoint.net
KrbServiceName HTTP/xyz.nue.bigpoint.net
...
KrbAuthRealm BIGPOINT.LOCAL
<VirtualHost 0.0.0.0:80>
KrbMethodNegotiate on
RewriteEngine On
KrbSaveCredentials on
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
KrbVerifyKDC off
Include "/etc/apache2/vhost-override.d/"
AuthDBMGroupFile /var/lib/cfg-apache/dbmadgroups
</VirtualHost>
Require group confluence_%_user
Order deny,allow
<VirtualHost 0.0.0.0:8080>
Deny from all
RewriteEngine On
Allow from xx.xx.xx.xx 127.0.0.1
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
ProxyPass ajp://localhost/
Include "/etc/apache2/vhost-override.d/"
Satisfy any
</VirtualHost>
</Location>
...

19. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
...
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader set REMOTE_USER "%{RU}e" env=RU
...
<Location />
AuthType Kerberos
AuthName confluence_%_user
Krb5Keytab /var/lib/cfg-apache/keytab.http_xyz.nue.bigpoint.net
KrbServiceName HTTP/xyz.nue.bigpoint.net
...
KrbAuthRealm BIGPOINT.LOCAL
<VirtualHost 0.0.0.0:80>
KrbMethodNegotiate on
RewriteEngine On
KrbSaveCredentials on
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
KrbVerifyKDC off
Include "/etc/apache2/vhost-override.d/"
AuthDBMGroupFile /var/lib/cfg-apache/dbmadgroups
</VirtualHost>
Require group confluence_%_user
Order deny,allow
<VirtualHost 0.0.0.0:8080>
Deny from all
RewriteEngine On
Allow from xx.xx.xx.xx 127.0.0.1
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
ProxyPass ajp://localhost/
Include "/etc/apache2/vhost-override.d/"
Satisfy any
</VirtualHost>
</Location>
...

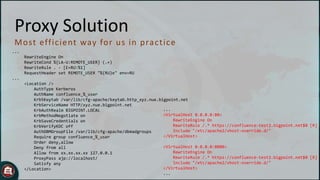

20. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
...
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader set REMOTE_USER "%{RU}e" env=RU
...
<Location />
AuthType Kerberos
AuthName confluence_%_user
Krb5Keytab /var/lib/cfg-apache/keytab.http_xyz.nue.bigpoint.net
KrbServiceName HTTP/xyz.nue.bigpoint.net
...
KrbAuthRealm BIGPOINT.LOCAL
<VirtualHost 0.0.0.0:80>
KrbMethodNegotiate on
RewriteEngine On
KrbSaveCredentials on
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
KrbVerifyKDC off
Include "/etc/apache2/vhost-override.d/"
AuthDBMGroupFile /var/lib/cfg-apache/dbmadgroups
</VirtualHost>
Require group confluence_%_user
Order deny,allow
<VirtualHost 0.0.0.0:8080>
Deny from all
RewriteEngine On
Allow from xx.xx.xx.xx 127.0.0.1
RewriteRule /.* https://confluence-test2.bigpoint.net$0 [R]
ProxyPass ajp://localhost/
Include "/etc/apache2/vhost-override.d/"
Satisfy any
</VirtualHost>
</Location>
...

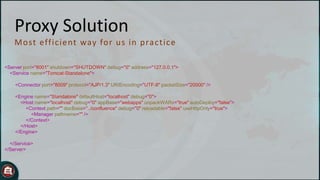

21. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
<Server port="8001" shutdown="SHUTDOWN" debug="0" address="127.0.0.1">
<Service name="Tomcat-Standalone">
<Connector port="8009" protocol="AJP/1.3" URIEncoding="UTF-8" packetSize="20000" />
<Engine name="Standalone" defaultHost="localhost" debug="0">
<Host name="localhost" debug="0" appBase="webapps" unpackWARs="true" autoDeploy="false">
<Context path="" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">
<Manager pathname="" />
</Context>
</Host>
</Engine>
</Service>
</Server>

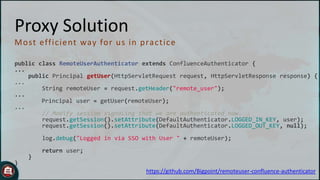

22. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
public class RemoteUserAuthenticator extends ConfluenceAuthenticator {
...
public Principal getUser(HttpServletRequest request, HttpServletResponse response) {
...
String remoteUser = request.getHeader("remote_user");
...
Principal user = getUser(remoteUser);
...
// Modify session signaling that we are authenticated now.
request.getSession().setAttribute(DefaultAuthenticator.LOGGED_IN_KEY, user);
request.getSession().setAttribute(DefaultAuthenticator.LOGGED_OUT_KEY, null);
log.debug("Logged in via SSO with User " + remoteUser);
return user;
}
}
https://github.com/Bigpoint/remoteuser-confluence-authenticator

23. Proxy Solution
M o st eff ic ient way fo r u s in p rac t ic e
"ldap.group.filter": "(&(objectCategory=Group)(|(cn=confluence*)(cn=balsamiq*)(cn=AllEmployees)))“
...
"ldap.user.filter": "(&(objectCategory=Person)(sAMAccountName=*))"

24. Canada
Russia
Next steps
Europe
North America
Asia
South America
Africa
Australia

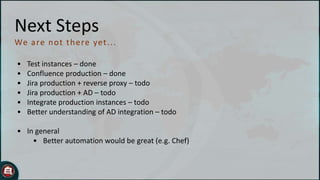

25. Next Steps
We are n o t t h ere yet . . .
•
•
•
•
•
•
Test instances – done
Confluence production – done
Jira production + reverse proxy – todo
Jira production + AD – todo
Integrate production instances – todo
Better understanding of AD integration – todo
• In general
• Better automation would be great (e.g. Chef)
