This document describes a program to display running text on a 7-segment display using an Arduino Uno microcontroller and 74HC595 IC. The program code defines the digits, letters, and underscores of the text "IDRIS_FISE_14306141051_UNY" in a byte array. The code uses shiftOut to sequentially display each element of the array on the 7-segment display by shifting the byte out to the 74HC595 and holding it for 0.5 seconds.

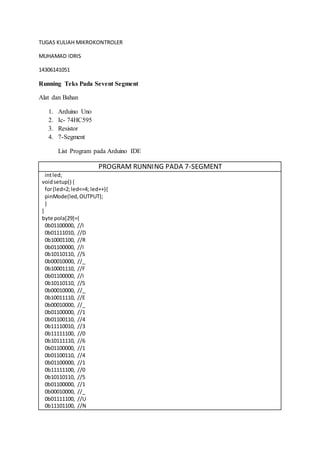

1. TUGAS KULIAH MIKROKONTROLER
MUHAMAD IDRIS
14306141051
Running Teks Pada Sevent Segment
Alat dan Bahan
1. Arduino Uno
2. Ic- 74HC595
3. Resistor
4. 7-Segment
List Program pada Arduino IDE
PROGRAM RUNNING PADA 7-SEGMENT
intled;
voidsetup() {
for(led=2;led<=4; led++){
pinMode(led,OUTPUT);
}
}
byte pola[29]={
0b01100000, //I
0b01111010, //D
0b10001100, //R
0b01100000, //I
0b10110110, //S
0b00010000, //_
0b10001110, //F
0b01100000, //I
0b10110110, //S
0b00010000, //_
0b10011110, //E
0b00010000, //_
0b01100000, //1
0b01100110, //4
0b11110010, //3
0b11111100, //0
0b10111110, //6
0b01100000, //1
0b01100110, //4
0b01100000, //1
0b11111100, //0
0b10110110, //5
0b01100000, //1
0b00010000, //_
0b01111100, //U
0b11101100, //N

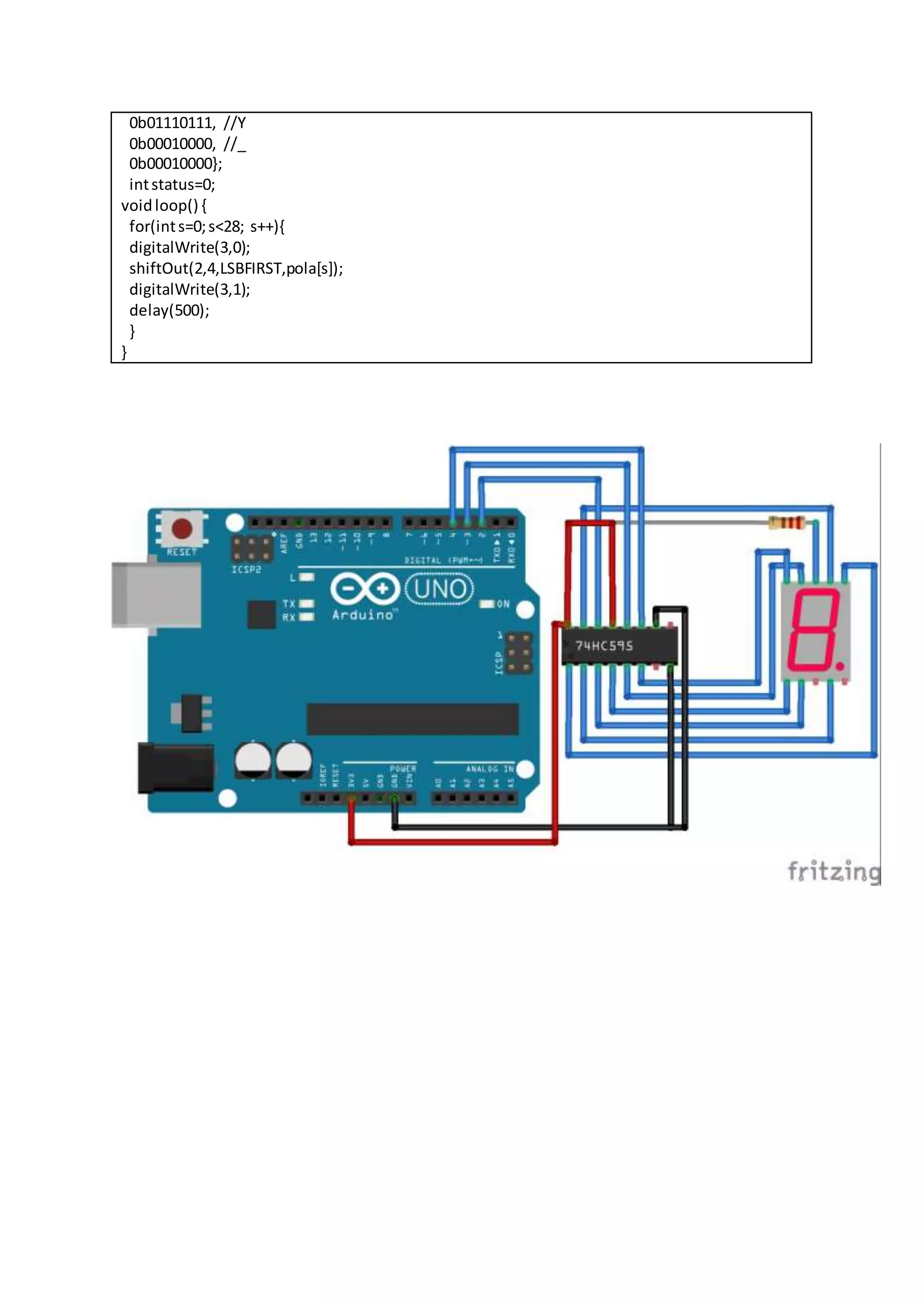

2. 0b01110111, //Y
0b00010000, //_
0b00010000};
intstatus=0;
voidloop() {
for(ints=0;s<28; s++){
digitalWrite(3,0);
shiftOut(2,4,LSBFIRST,pola[s]);
digitalWrite(3,1);
delay(500);
}
}
