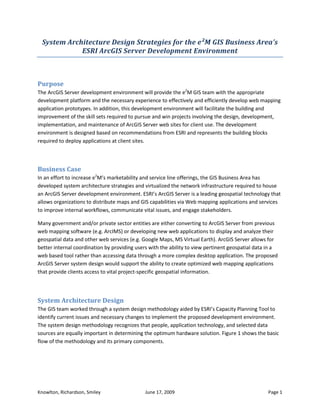

1. System Architecture Design Strategies for the e²M GIS Business Area’s
ESRI ArcGIS Server Development Environment
Purpose
The ArcGIS Server development environment will provide the e2M GIS team with the appropriate
development platform and the necessary experience to effectively and efficiently develop web mapping
application prototypes. In addition, this development environment will facilitate the building and
improvement of the skill sets required to pursue and win projects involving the design, development,
implementation, and maintenance of ArcGIS Server web sites for client use. The development
environment is designed based on recommendations from ESRI and represents the building blocks
required to deploy applications at client sites.
Business Case
In an effort to increase e2M’s marketability and service line offerings, the GIS Business Area has
developed system architecture strategies and virtualized the network infrastructure required to house
an ArcGIS Server development environment. ESRI’s ArcGIS Server is a leading geospatial technology that
allows organizations to distribute maps and GIS capabilities via Web mapping applications and services
to improve internal workflows, communicate vital issues, and engage stakeholders.
Many government and/or private sector entities are either converting to ArcGIS Server from previous
web mapping software (e.g. ArcIMS) or developing new web applications to display and analyze their
geospatial data and other web services (e.g. Google Maps, MS Virtual Earth). ArcGIS Server allows for
better internal coordination by providing users with the ability to view pertinent geospatial data in a
web based tool rather than accessing data through a more complex desktop application. The proposed
ArcGIS Server system design would support the ability to create optimized web mapping applications
that provide clients access to vital project-specific geospatial information.
System Architecture Design
The GIS team worked through a system design methodology aided by ESRI’s Capacity Planning Tool to
identify current issues and necessary changes to implement the proposed development environment.
The system design methodology recognizes that people, application technology, and selected data
sources are equally important in determining the optimum hardware solution. Figure 1 shows the basic
flow of the methodology and its primary components.
Knowlton, Richardson, Smiley June 17, 2009 Page 1

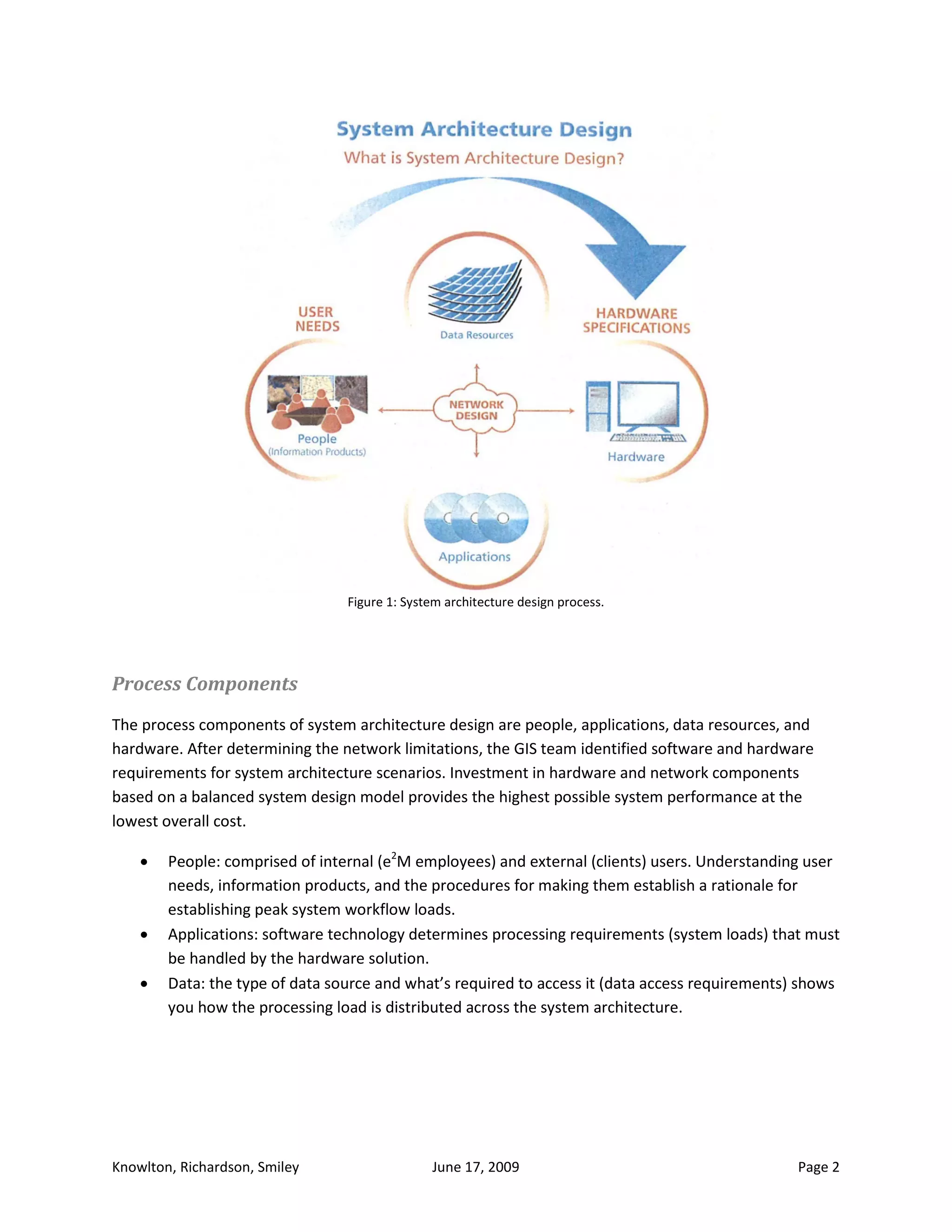

2. Figure 1: System architecture design process.
Process Components
The process components of system architecture design are people, applications, data resources, and
hardware. After determining the network limitations, the GIS team identified software and hardware
requirements for system architecture scenarios. Investment in hardware and network components
based on a balanced system design model provides the highest possible system performance at the
lowest overall cost.
• People: comprised of internal (e2M employees) and external (clients) users. Understanding user
needs, information products, and the procedures for making them establish a rationale for
establishing peak system workflow loads.
• Applications: software technology determines processing requirements (system loads) that must
be handled by the hardware solution.
• Data: the type of data source and what’s required to access it (data access requirements) shows
you how the processing load is distributed across the system architecture.
Knowlton, Richardson, Smiley June 17, 2009 Page 2

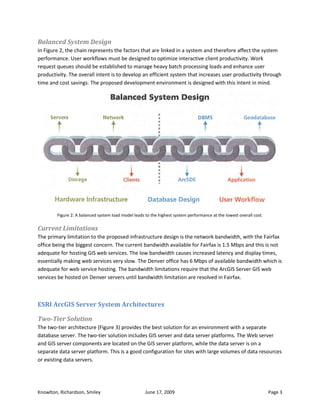

3. Balanced System Design
In Figure 2, the chain represents the factors that are linked in a system and therefore affect the system
performance. User workflows must be designed to optimize interactive client productivity. Work
request queues should be established to manage heavy batch processing loads and enhance user
productivity. The overall intent is to develop an efficient system that increases user productivity through
time and cost savings. The proposed development environment is designed with this intent in mind.
Figure 2: A balanced system load model leads to the highest system performance at the lowest overall cost.
Current Limitations
The primary limitation to the proposed infrastructure design is the network bandwidth, with the Fairfax
office being the biggest concern. The current bandwidth available for Fairfax is 1.5 Mbps and this is not
adequate for hosting GIS web services. The low bandwidth causes increased latency and display times,
essentially making web services very slow. The Denver office has 6 Mbps of available bandwidth which is
adequate for web service hosting. The bandwidth limitations require that the ArcGIS Server GIS web
services be hosted on Denver servers until bandwidth limitation are resolved in Fairfax.
ESRI ArcGIS Server System Architectures
Two-Tier Solution
The two-tier architecture (Figure 3) provides the best solution for an environment with a separate
database server. The two-tier solution includes GIS server and data server platforms. The Web server
and GIS server components are located on the GIS server platform, while the data server is on a
separate data server platform. This is a good configuration for sites with large volumes of data resources
or existing data servers.
Knowlton, Richardson, Smiley June 17, 2009 Page 3

4. Figure 3: Two-tier platform configuration
Three-Tier Solution
The three-tier configuration includes a single Web server with a separate map server/container machine
layer and a separate data server. The map server/container machine layer can be a single platform or
can be expanded to include several platforms, depending on the required site capacity. SOM load
balancing is provided by the GIS Web server service manager and multiple SOC instances can be
deployed to support optimum capacity requirements.
Figure 4: Three-tier platform configuration
Knowlton, Richardson, Smiley June 17, 2009 Page 4

5. Licensing Requirements
e2M’s current licensing stack is built using a host of development licenses. Specifically, an ESRI EDN
license consisting of development licenses for ArcGIS Server Advanced Enterprise Edition with 3D and
Image Server extensions, ArcSDE, and ArcGIS Info Workstation. In addition, e2M is also utilizing a
Microsoft Enterprise Agreement allowing use of development licenses for SQL Server 2008, Visual Studio
2008, and Microsoft Virtualization.
Conclusions
1. The e²M development environment is not designed and should not be implemented as a
production environment because of 1) hardware and bandwidth limitations, 2) licensing
restrictions, and 3) low availability and backup systems.
2. The e²M ArcGIS Server working group recommends entering a three-phase deployment strategy
consisting of 1) a pilot phase, 2) an initial production phase, and 3) a final implementation phase
in order to reduce implementation risk and allow for adequate skill development.
3. The goals and objectives of a web mapping site (i.e. process versus data) should dictate the
appropriate API when designing and developing an ArcGIS Server application, e.g. SOAP (.NET,
Java) versus REST (Flex, Javascript API’s).
4. A large-scale deployment of ArcGIS Server that is intended to support significant numbers of
users with numerous displays per minute requires large bandwidths typically only available
through data centers, i.e. colocation facilities.
5. The e²M ArcGIS Server working group recommends a three-tier stack consisting of Microsoft
SQL Server 2008 (database server), ArcGIS Server 9.3.1 (container machine/SOC), and a web
application server running IIS.
6. The e2M GIS team currently has the know-how and skill sets required to stand-up and support
LAN-based web applications capable of supporting company-wide project efforts.
Action Items
1. Install ArcGIS Server 9.3.1, ArcSDE, and MS SQL Server to establish our development
environment in Denver.
2. Procure a license and develop a proficiency in Adobe Flex so we can develop RESTful ArcGIS
Server applications.
3. Catalog and price a number of deployment scenarios in order to have an understanding of the
range of magnitude associated with specific ArcGIS Server configurations, e.g. two versus three-
tier deployments with and without redundancies and backups.
4. Demonstrate balanced system design by implementing best practices by following
recommended ESRI system performance tuning criteria.
5. Determine hardware specifications and bandwidths available at HDR’s Innovation Center.
6. Investigate current available hardware to support LAN-based web applications in a production
level environment.
Knowlton, Richardson, Smiley June 17, 2009 Page 5

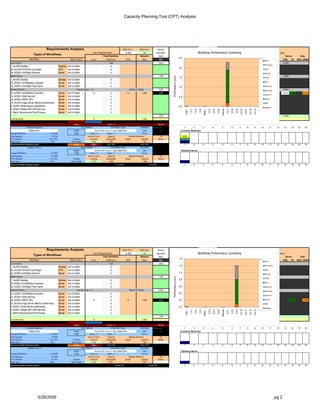

6. Capacity Planning Tool (CPT) Analysis
SOAP vs REST
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
3.5 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
1_ArcGIS Desktop Desktop SDE DC/DBMS 10
3.0 6.0 1000.0 10.01
NW Latency
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 2.5 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 2.0 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 1.5 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 4 Internet =0.8 Mbps 1.500 0.53 0.00003 0.000 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 4 6 24 0.800 1,440 1.0 6.7 3.29 18.2 6.01 0.089 1.333 1.680 0.187
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 0.5 10.0 1000.0 6.01 App Svr
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 4 0.800
1 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.864 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 24 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 17% CPU 4 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users .............................................................. 23.8 23.8 / Node 1.680 143 1 143 1.0
Recommend 64bit Operating System 2 Mbps 2 Mbps 8,571 TPH 8,571 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.096 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 24 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 2% CPU 4 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 214.3 214.3 / Node 0.187 1,286 1 1,286 1 1.0
Recommend 64bit Operating System 77,143 TPH 77,143 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOAP w 4 core, 1chip, 2 Ghz
Bandwidth (Mbps): 1.5
CPU Utilization: 17%
Performance: 3.3 sec
Maximum Users: 4
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
2.5 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2.0
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000
Performance (sec)
1.5 WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6
1.0 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 4 Internet =0.8 Mbps 1.500 0.53 0.00003 0.000 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.5 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 4 6 24 0.800 1,440 7.8 2.22 27.0 6.01 0.089 1.333 App Svr 0.709 0.093
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 4 0.800
1 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 24 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 7% CPU 4 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users .............................................................. 56.4 56.4 / Node 0.709 338 1 338 1.0
Recommend 64bit Operating System 2 Mbps 2 Mbps 20,301 TPH 20,301 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 24 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 1% CPU 4 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 428.6 428.6 / Node 0.093 2,571 1 2,571 1 1.0
Recommend 64bit Operating System 154,286 TPH 154,286 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 1chip, 2 Ghz
Bandwidth (Mbps): 1.5
CPU Utilization: 7%
5/28/2009 Performance: 2.2 sec pg 1
Maximum Users: 4

7. Capacity Planning Tool (CPT) Analysis
SOAP vs REST
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
2.5 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010 0.000
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2.0
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000 0.000
Performance (sec)
1.5 WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6
1.0 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 12 Internet =2.4 Mbps 5.000 0.48 0.00003 0.000 Web Server
0.000
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 12 6 72 2.400 4,320 7.7 2.28 26.3 6.01 0.400 0.013 1.680 0.187
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.5 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 10.0 1000.0 6.01 App Svr
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000 0.000
Total Workload 12 2.400
2 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.864 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix 50%
CPU Utilization ...................................................... 50% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes +
Peak Users .............................................................. 23.8 23.8 / Node 1.680 143 1 143 1.0
Recommend 64bit Operating System 6 Mbps 6 Mbps 8,571 TPH 8,571 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.096 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 6% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 214.3 214.3 / Node 0.187 1,286 1 1,286 1 1.0
Recommend 64bit Operating System 77,143 TPH 77,143 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOAP w 4 core, 1chip, 2 Ghz
Bandwidth (Mbps): 5.0
CPU Utilization: 50%
Performance: 2.3 sec
Maximum Users: 12
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
1.4 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
1_ArcGIS Desktop Desktop SDE DC/DBMS 10
1.2 6.0 1000.0 10.01
NW Latency
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 1.0 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.8 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 0.6 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 12 Internet =2.4 Mbps 5.000 0.48 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 0.4 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 12 6 72 2.400 4,320 0.2 8.8 1.20 49.9 6.01 0.400 App Svr 0.709 0.093
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 12 2.400
2 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 21% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users .............................................................. 56.4 56.4 / Node 0.709 338 1 338 1.0
Recommend 64bit Operating System 6 Mbps 6 Mbps 20,301 TPH 20,301 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 3% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 428.6 428.6 / Node 0.093 2,571 1 2,571 1 1.0
Recommend 64bit Operating System 154,286 TPH 154,286 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 1chip, 2 Ghz
Bandwidth (Mbps): 5.0
CPU Utilization: 21%
5/28/2009 Performance: 1.2 sec pg 2
Maximum Users: 12

8. Capacity Planning Tool (CPT) Analysis
SOAP vs REST
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
2.5 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010 0.000
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2.0
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000 0.000
Performance (sec)
1.5 WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6
1.0 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 12 Internet =2.4 Mbps 10.000 0.24 0.00003 0.000 Web Server
0.000
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 12 6 72 2.400 4,320 7.9 2.08 28.8 6.01 0.200 0.013 1.680 0.187
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.5 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 10.0 1000.0 6.01 App Svr
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000 0.000
Total Workload 12 2.400
2 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.864 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix 50%
CPU Utilization ...................................................... 50% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes +
Peak Users .............................................................. 23.8 23.8 / Node 1.680 143 1 143 1.0
Recommend 64bit Operating System 6 Mbps 6 Mbps 8,571 TPH 8,571 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.096 Cores = 4 Chips = 1 4 9.0/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 6% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 214.3 214.3 / Node 0.187 1,286 1 1,286 1 1.0
Recommend 64bit Operating System 77,143 TPH 77,143 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOAP w 4 core, 1chip, 2 Ghz
Bandwidth (Mbps): 10.0
CPU Utilization: 50%
Performance: 2.1 sec
Maximum Users: 12
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
1.2 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 1.0 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
0.8
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 0.6 10.0 1000.0 6.01 WTS
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 25 Internet =5.0 Mbps 10.000 0.4 0.50 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 25 6 150 5.000 9,000
0.2 9.0 1.00 59.8 6.01 0.200 App Svr 0.709 0.093
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 25 5.000
5 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 1 4 9.0/Core
Total Required ........................................................ 150 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 44% CPU 25 Users Seconds Display/Min Nodes Capacity Nodes 44%
Peak Users .............................................................. 56.4 56.4 / Node 0.709 338 1 338 1.0
Recommend 64bit Operating System 13 Mbps 13 Mbps 20,301 TPH 20,301 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 1 4 9.0/Core
Total Required ........................................................ 150 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 6% CPU 25 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 428.6 428.6 / Node 0.093 2,571 1 2,571 1 1.0
Recommend 64bit Operating System 154,286 TPH 154,286 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 1chip, 2 Ghz
Bandwidth (Mbps): 10.0
CPU Utilization: 44%
5/28/2009 Performance: 1.0 sec pg 3
Maximum Users: 25

9. Capacity Planning Tool (CPT) Analysis
SOAP vs REST
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
1.0 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 0.9 100000 0.00001 0.010
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
0.8
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 0.7 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000
Performance (sec)
0.6 WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 0.5 10.0 1000.0 6.01
WTS
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6
0.4 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 28 Internet =5.6 Mbps 20.000 0.28 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6
0.3 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 28 6 168 5.600 10,080 9.1 0.90 66.5 6.01 0.100 App Svr 0.709 0.093
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6
0.1 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 28 5.600
6 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 1 4 9.0/Core
Total Required ........................................................ 168 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 50% CPU 28 Users Seconds Display/Min Nodes Capacity Nodes 50%
Peak Users .............................................................. 56.4 56.4 / Node 0.709 338 1 338 1.0
Recommend 64bit Operating System 14 Mbps 14 Mbps 20,301 TPH 20,301 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 12 GB RAM / Node SRint2006
Arc08 Xeon E5335 4 core (1 chip) 2000(8) MHz 36.0 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 1 4 9.0/Core
Total Required ........................................................ 168 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 7% CPU 28 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 428.6 428.6 / Node 0.093 2,571 1 2,571 1 1.0
Recommend 64bit Operating System 154,286 TPH 154,286 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 1 chip, 2 Ghz
Bandwidth (Mbps): 20.0
CPU Utilization: 50%
Performance: 0.9 sec
Maximum Users: 28
5/28/2009 pg 4

10. Capacity Planning Tool (CPT) Analysis
Recommended Hardware
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
1.6 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
1.4 NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 1.2 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
WAN Clients 1.500 1.0 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 0.8 10.0 1000.0 6.01 WTS
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 12 Internet =2.4 Mbps 5.000
0.6 0.48 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 12 6 72 2.400 4,320 8.6 1.36 44.2 6.01 0.400 0.863 0.096
0.4 App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 App Svr
0.2 10.0 1000.0 6.01
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 12 2.400
2 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.864 Cores = 4 Chips = 2 2 1 .5/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 26% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes 26%
Peak Users .............................................................. 46.4 46.4 / Node 0.863 278 1 278 1.0
Recommend 64bit Operating System 6 Mbps 6 Mbps 16,690 TPH 16,690 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
Average DPM/client .................................................. 6.0 DPM 0.096 Cores = 4 Chips = 2 2 1 .5/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 3% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 417.3 417.3 / Node 0.096 2,504 1 2,504 1 1.0
Recommend 64bit Operating System 150,214 TPH 150,214 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOAP w 4 core, 2 chip, 3.33 Ghz
Bandwidth (Mbps): 5.0
CPU Utilization: 26%
Performance: 1.35 sec
Maximum Users: 12
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
0.9 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 0.8 100000 0.00001 0.010
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 0.7 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
0.6
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.5 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 0.4 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 12 Internet =2.4 Mbps 5.000 0.3 0.48 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 12 6 72 2.400 4,320 9.2 0.81 73.9 6.01 0.400 App Svr 0.364 0.048
0.1
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 12 2.400
2 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 2 2 1 .5/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 11% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 109.8 109.8 / Node 0.364 659 1 659 1.0
Recommend 64bit Operating System 6 Mbps 6 Mbps 39,530 TPH 39,530 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 2 2 1 .5/Core
Total Required .......................................................... 72 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 1% CPU 12 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 834.5 834.5 / Node 0.048 5,007 1 5,007 1 1.0
Recommend 64bit Operating System 300,429 TPH 300,429 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 2 chip, 3.33 Ghz
Bandwidth (Mbps): 5.0
CPU Utilization: 11%
5/28/2009 Performance: 0.81 sec pg 5
Maximum Users: 12

11. Capacity Planning Tool (CPT) Analysis
Recommended Hardware
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
1.4 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
1_ArcGIS Desktop Desktop SDE DC/DBMS 10
1.2 6.0 1000.0 10.01
NW Latency
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 1.0 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.8 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 0.6 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 23 Internet =4.6 Mbps 10.000 0.46 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 23 6 138 4.600 8,280 0.4 8.8 1.16 51.8 6.01 0.200 0.863 0.096
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01 App Svr
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 23 4.600
5 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.864 Cores = 4 Chips = 2 2 1 .5/Core
Total Required ........................................................ 138 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 50% CPU 23 Users Seconds Display/Min Nodes Capacity Nodes 50%
Peak Users .............................................................. 46.4 46.4 / Node 0.863 278 1 278 1.0
Recommend 64bit Operating System 12 Mbps 12 Mbps 16,690 TPH 16,690 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
Average DPM/client .................................................. 6.0 DPM 0.096 Cores = 4 Chips = 2 2 1 .5/Core
Total Required ........................................................ 138 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 6% CPU 23 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 417.3 417.3 / Node 0.096 2,504 1 2,504 1 1.0
Recommend 64bit Operating System 150,214 TPH 150,214 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOAP w 4 core, 2 chip, 3.33 Ghz
Bandwidth (Mbps): 10.0
CPU Utilization: 50%
Performance: 1.15 sec
Maximum Users: 23
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
0.7 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
1_ArcGIS Desktop Desktop SDE DC/DBMS 10
0.6 6.0 1000.0 10.01
NW Latency
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 0.5 10.0 1000.0 6.01 Network
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.4 6.00 1000.0 10.01
WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 0.3 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 25 Internet =5.0 Mbps 10.000 0.50 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 25 6 150 5.000 9,000 0.1 9.4 0.61 98.0 6.01 0.200 App Svr 0.364 0.048
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 25 5.000
5 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 2 2 1 .5/Core
Total Required ........................................................ 150 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 23% CPU 25 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 109.8 109.8 / Node 0.364 659 1 659 1.0
Recommend 64bit Operating System 13 Mbps 13 Mbps 39,530 TPH 39,530 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 2 2 1 .5/Core
Total Required ........................................................ 150 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 3% CPU 25 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 834.5 834.5 / Node 0.048 5,007 1 5,007 1 1.0
Recommend 64bit Operating System 300,429 TPH 300,429 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 2 chip, 3.33 Ghz
Bandwidth (Mbps): 10.0
CPU Utilization: 23%
Performance: 0.62 sec
5/28/2009 pg 6
Maximum Users: 25

12. Capacity Planning Tool (CPT) Analysis
Recommended Hardware
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
Types of Workflows
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12
0.6 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
Client
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010
NW Latency
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.5 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NWQ
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01 Network
0.4
WAN Clients 1.500 0.00002 0.000
Performance (sec)
WTSQ
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 0.3 10.0 1000.0 6.01
WTS
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01 Web Svr Q
Internet Clients Internet Clients = 50 Internet =10.0 Mbps 20.000 0.2 0.50 0.00003 0.000 Web Server
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
App Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 50 6 300 10.000 18,000
0.1 9.5 0.51 117.1 6.01 0.100 App Svr 0.364 0.048
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01 DBQ
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 0.0 10.0 1000.0 6.01
Database
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01
3.0.11
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
LAN --
WAN --
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000
Total Workload 50 10.000
10 Mbps Cores = 4 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 70.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 4 Chips = 2 2 17.5/Core
Total Required ........................................................ 300 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 46% CPU 50 Users Seconds Display/Min Nodes Capacity Nodes 46%
Peak Users ............................................................ 109.8 109.8 / Node 0.364 659 1 659 1.0
Recommend 64bit Operating System 25 Mbps 25 Mbps 39,530 TPH 39,530 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 70.1 Database Server
Average DPM/client .................................................. 6.0 DPM 0.048 Cores = 4 Chips = 2 2 17.5/Core
Total Required ........................................................ 300 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 6% CPU 50 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ............................................................ 834.5 834.5 / Node 0.048 5,007 1 5,007 1 1.0
Recommend 64bit Operating System 300,429 TPH 300,429 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
REST w 4 core, 1 chip, 2 Ghz
Bandwidth (Mbps): 20.0
CPU Utilization: 46%
Performance: 0.51 sec
Maximum Users: 50
5/28/2009 pg 7

13. Capacity Planning Tool (CPT) Analysis
Two Container Machines
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Types of Workflows Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
1.2
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010 Client
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 NW Latency
1.0 6.0 1000.0 10.01
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
NWQ
WAN Clients 1.500 0.00002 0.000
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 Network
0.8 6.00 1000.0 10.01
Performance (sec)
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
WTSQ
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01
Internet Clients Internet Clients = 46 Internet =9.2 Mbps 20.000 0.6 0.46 0.00003 0.000 WTS
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 46 6 276 9.200 16,560 8.9 1.06 56.7 6.01 0.100 0.863 0.096
Web Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 0.4 10.0 1000.0 6.01 Web Server
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01
App Svr Q
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01 App Svr
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000 DBQ
Total Workload 46 9.200 0.0 Database
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
WAN --
3.0.11
LAN --
Web Application Server Intel Platform / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Minimal Web Application Server
2 1 .5/Core HA
Service Times Capacity Multiple Platforms Fix
Seconds Display/Min Nodes Capacity Nodes
5 Mbps Cores = 8 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.864 Cores = 8 Chips = 4 2 1 .5/Core
Total Required ........................................................ 276 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 50% CPU 46 Users Seconds Display/Min Nodes Capacity Nodes 50% 50%
Peak Users .............................................................. 92.7 46.4 / Node 0.863 278 2 556 2.0 1
Recommend 64bit Operating System 23 Mbps 12 Mbps 16,690 TPH 33,381 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
SOAP w 4 core, 2 chip, 3.33 Ghz
Bandwidth (Mbps): 20.0
CPU Utilization: 50%
Performance: 1.05 sec
Maximum Users: 46
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Types of Workflows Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
0.5
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010 Client 0.000
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.5 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NW Latency
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 0.4 10.0 1000.0 6.01
NWQ
WAN Clients 1.500 0.00002 0.000 0.000
0.4 Network
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
Performance (sec)
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6
0.3 10.0 1000.0 6.01
WTSQ
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01
Internet Clients Internet Clients = 110 Internet =22.0 Mbps 50.000 0.3 0.44 0.00003 0.001 WTS 0.000
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
Web Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 110 6 660 22.000 39,600 9.5 0.45 132.5 6.01 0.040 Web Server 0.001 0.364 0.048
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
App Svr Q
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01
0.1
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01 App Svr
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6
0.1 10.0 1000.0 6.01
1.500 1.11E-05 0.000 DBQ 0.000
Total Workload 110 22.000 0.0 Database
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
WAN --
3.0.11
LAN --
Web Application Server Intel Platform / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Minimal Web Application Server
2 1 .5/Core HA
Service Times Capacity Multiple Platforms Fix
Seconds Display/Min Nodes Capacity Nodes
11 Mbps Cores = 8 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
WEBtier+SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.365 Cores = 8 Chips = 4 2 1 .5/Core
Total Required ........................................................ 660 DPM Service Times Capacity Multiple Platforms Fix 50% 50%
CPU Utilization ...................................................... 50% CPU 110 Users Seconds Display/Min Nodes Capacity Nodes + +
Peak Users ............................................................ 219.6 109.8 / Node 0.364 659 2 1,318 2.0 1
Recommend 64bit Operating System 55 Mbps 28 Mbps 39,530 TPH 79,060 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1
REST w 4 core, 2 chip, 3.33 Ghz
Database Server
Bandwidth (Mbps): 50.0
CPU Utilization: 50%
Performance: 0.5 sec
5/28/2009 pg 8
Maximum Users: 110

14. Capacity Planning Tool (CPT) Analysis
Three-Tier Configuration
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Types of Workflows Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
1.2
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010 Client 0.000
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 NW Latency
1.0 6.0 1000.0 10.01
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
NWQ
WAN Clients 1.500 0.00002 0.000 0.000
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 Network
0.8 6.00 1000.0 10.01
Performance (sec)
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
WTSQ
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01
Internet Clients Internet Clients = 60 Internet =12.0 Mbps 25.000 0.6 0.48 0.00003 0.000 WTS 0.000
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 60 6 360 12.000 21,600 9.0 1.04 57.5 6.01 0.080 0.192 0.004 0.671 0.096
Web Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 6 0.4 10.0 1000.0 6.01 Web Server
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01
App Svr Q
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01 App Svr
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6 10.0 1000.0 6.01
1.500 1.11E-05 0.000 DBQ 0.000
Total Workload 60 12.000 0.0 Database
12 Mbps
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
WAN --
3.0.11
LAN --
Web Application Server Intel Platform 8 GB RAM / Node SRint2006
WEBtier Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Minimal Web Application Server
Average DPM/client .................................................. 6.0 DPM 0.192 Cores = 4 Chips = 2 2 1 .5/Core HA
Total Required ........................................................ 360 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ...................................................... 29% CPU 60 Users Seconds Display/Min Nodes Capacity Nodes 29%
Peak Users ............................................................ 208.6 208.6 / Node 0.192 1,252 1 1,252 1.0
6 Mbps 12 Mbps Cores = 12 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.672 Cores = 8 Chips = 4 2 1 .5/Core
Total Required ........................................................ 360 DPM Service Times Capacity Multiple Platforms Fix 50% 50%
CPU Utilization ...................................................... 50% CPU 60 Users Seconds Display/Min Nodes Capacity Nodes + +
Peak Users ............................................................ 119.2 59.6 / Node 0.671 358 2 715 2.0 1
Recommend 64bit Operating System 30 Mbps 15 Mbps 21,459 TPH 42,918 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
SOAP w WEBtier (web app server)
Bandwidth (Mbps): 25.0
CPU Utilization: 50%
Performance: 1.05 sec
Maximum Users: 60
Requirements Analysis WEB TPH => WEB Users Network Unique 4 2
User Requirements 12,000 33 Bandwidth Display User Workflow Blink
Performance Summary Adjusted Platform and Network service times
Types of Workflows Peak Workflow Network Mbps Traffic Think R_time Batch 0.01 Desktop Network Desktop Web Server Data
Workflow Data Source Users DPM/Client DPM Mbps DPH 12 Time sec DPM Latency Client Latency NWQ Xport WTQ WTS WAQ WA SSQ SS DBQ DBMS
0.5
Local Clients 3 sec 1,000.0 Mbpd 100000 0.00001 0.010 Client 0.000
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 0.5 6.0 1000.0 10.01
2b_ArcGIS WTS/Citrix (w/image) WTS SDE DC/DBMS 10 6.0 1000.0 10.01 NW Latency
3a_AGS9.3 AJAXlight Dynamic Server SDE DC/DBMS 6 0.4 10.0 1000.0 6.01
NWQ
WAN Clients 1.500 0.00002 0.000 0.000
0.4 Network
1_ArcGIS Desktop Desktop SDE DC/DBMS 10 6.00 1000.0 10.01
Performance (sec)
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6
0.3 10.0 1000.0 6.01
WTSQ
3d_AGS9.3 AJAXlight Fully Cache Server SDE DC/DBMS 6 10.0 1000.0 6.01
Internet Clients Internet Clients = 120 Internet =24.0 Mbps 50.000 0.3 0.48 0.00003 0.001 WTS 0.000
3b_AGS9.3 AJAXMedium Dynamic Server SDE DC/DBMS 6 10.0 1000.0 6.01
Web Svr Q
3c_AGS9.3 (Web Service) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
3e_AGS9.3 (REST API) Server SDE DC/DBMS 120 6 720 24.000 43,200 9.5 0.45 132.0 6.01 0.040 Web Server 0.029 0.002 0.336 0.048
7a_ArcGIS Image Server Medium (preliminary) Server SDE DC/DBMS 6 0.2 10.0 1000.0 6.01
App Svr Q
8_AGS9.3 Globe Server (preliminary) Server SDE DC/DBMS 6 10.0 1000.0 6.01
0.1
9_AGS9.3 Mobile ADF AGS Services Server SDE DC/DBMS 6 10.0 1000.0 6.01 App Svr
2_Batch Reconcile and Post Process Server SDE DC/DBMS 6
0.1 10.0 1000.0 6.01
1.500 1.11E-05 0.000 DBQ 0.000
Total Workload 120 24.000 0.0 Database
24 Mbps
Internet
1.0.1
1.0.2
1.0.3
2.0.4
2.0.5
2.0.6
3.0.7
3.0.8
3.0.9
3.0.10
3.0.12
3.0.13
WAN --
3.0.11
LAN --
Web Application Server Intel Platform 8 GB RAM / Node SRint2006
WEBtier Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Minimal Web Application Server
Average DPM/client .................................................. 6.0 DPM 0.029 Cores = 4 Chips = 2 2 1 .5/Core HA
Total Required ........................................................ 720 DPM Service Times Capacity Multiple Platforms Fix
CPU Utilization ........................................................ 9% CPU 120 Users Seconds Display/Min Nodes Capacity Nodes
Peak Users ......................................................... 1,390.9 1390.9 / Node 0.029 8,345 1 8,345 1.0
12 Mbps 24 Mbps Cores = 12 Minimal
Container Machines Intel Platform 8 GB RAM / Node SRint2006 WEBtier+SOC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SOC Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 SOC Container Machines
Average DPM/client .................................................. 6.0 DPM 0.336 Cores = 8 Chips = 4 2 1 .5/Core
Total Required ........................................................ 720 DPM Service Times Capacity Multiple Platforms Fix 50% 50%
CPU Utilization ...................................................... 50% CPU 120 Users Seconds Display/Min Nodes Capacity Nodes + +
Peak Users ............................................................ 238.4 119.2 / Node 0.336 715 2 1,431 2.0 1
Recommend 64bit Operating System 60 Mbps 30 Mbps 42,918 TPH 85,837 TPH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Database Server Intel Platform 20 GB RAM / Node SRint2006
Arc08 Xeon X5260 4 core (2 chip) 3333(6) MHz 0.1 Database Server
REST w WEBtier (web app server)
Bandwidth (Mbps): 50.0
CPU Utilization: 50%
Performance: 0.5 sec
5/28/2009 pg 9
Maximum Users: 120
