Applet.pptx

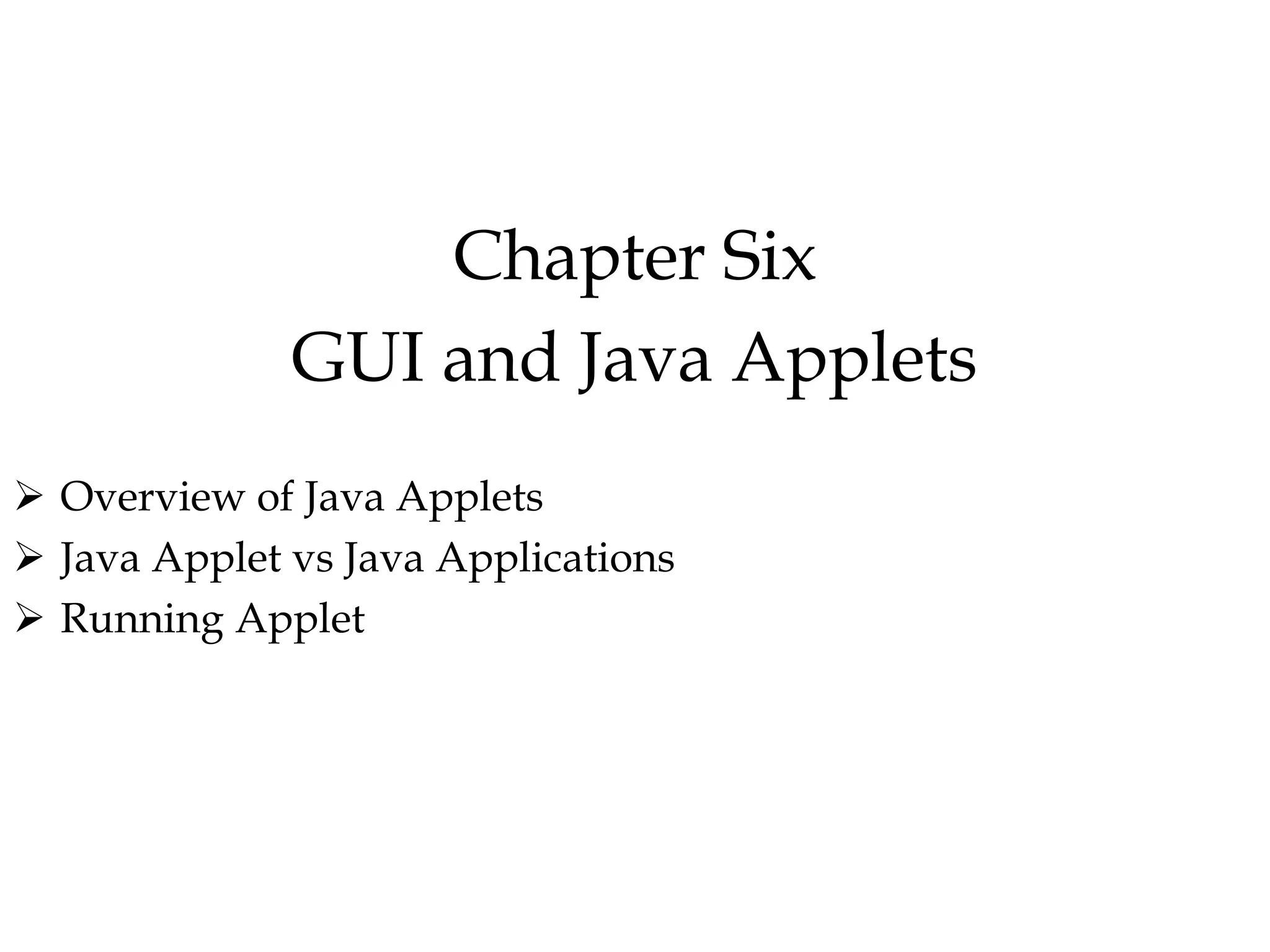

- 1. Chapter Six GUI andJava Applets Overview of Java Applets Java Applet vs Java Applications Running Applet

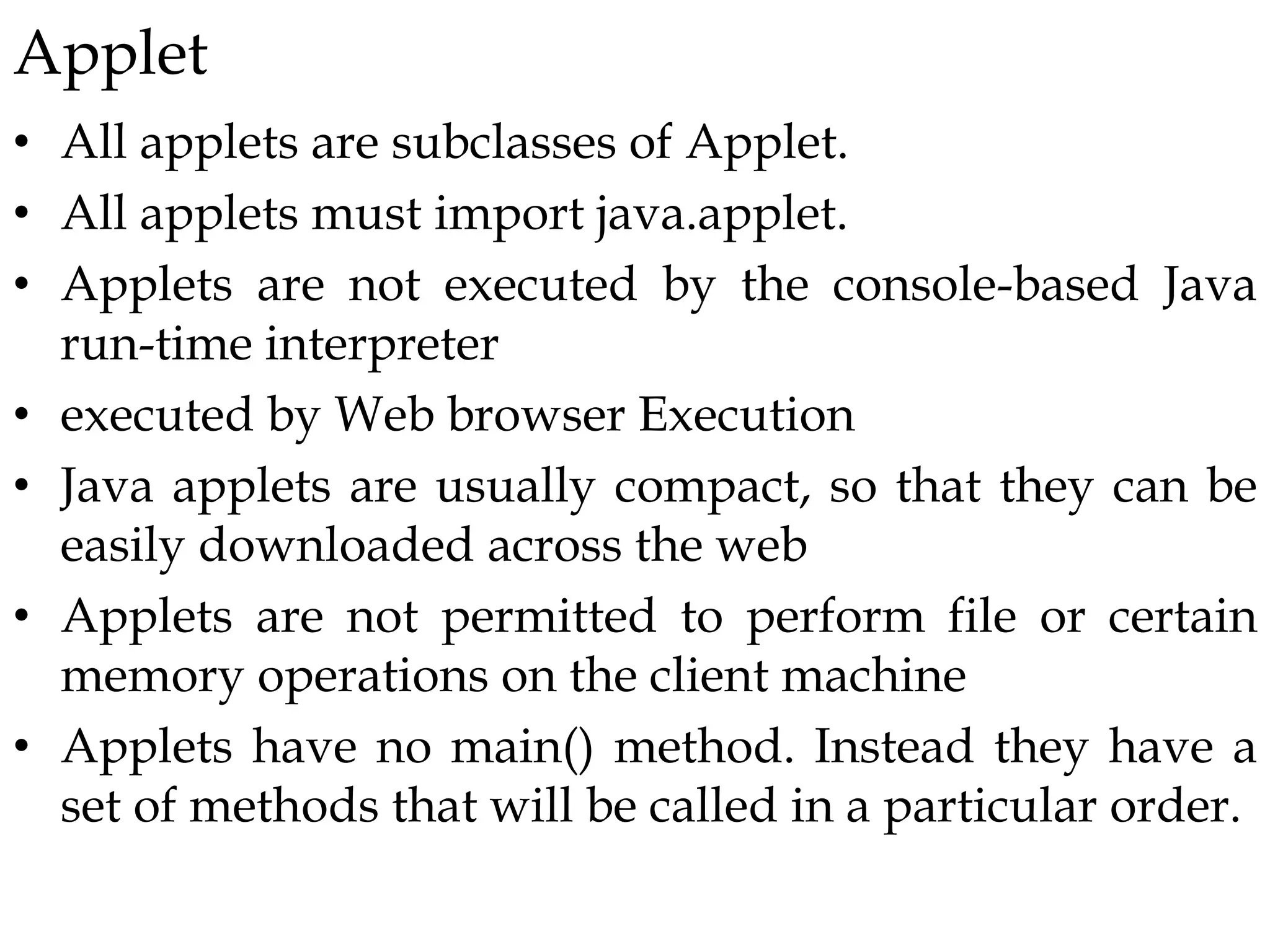

- 2. Applet • All appletsare subclasses of Applet. • All applets must import java.applet. • Applets are not executed by the console-based Java run-time interpreter • executed by Web browser Execution • Java applets are usually compact, so that they can be easily downloaded across the web • Applets are not permitted to perform file or certain memory operations on the client machine • Applets have no main() method. Instead they have a set of methods that will be called in a particular order.

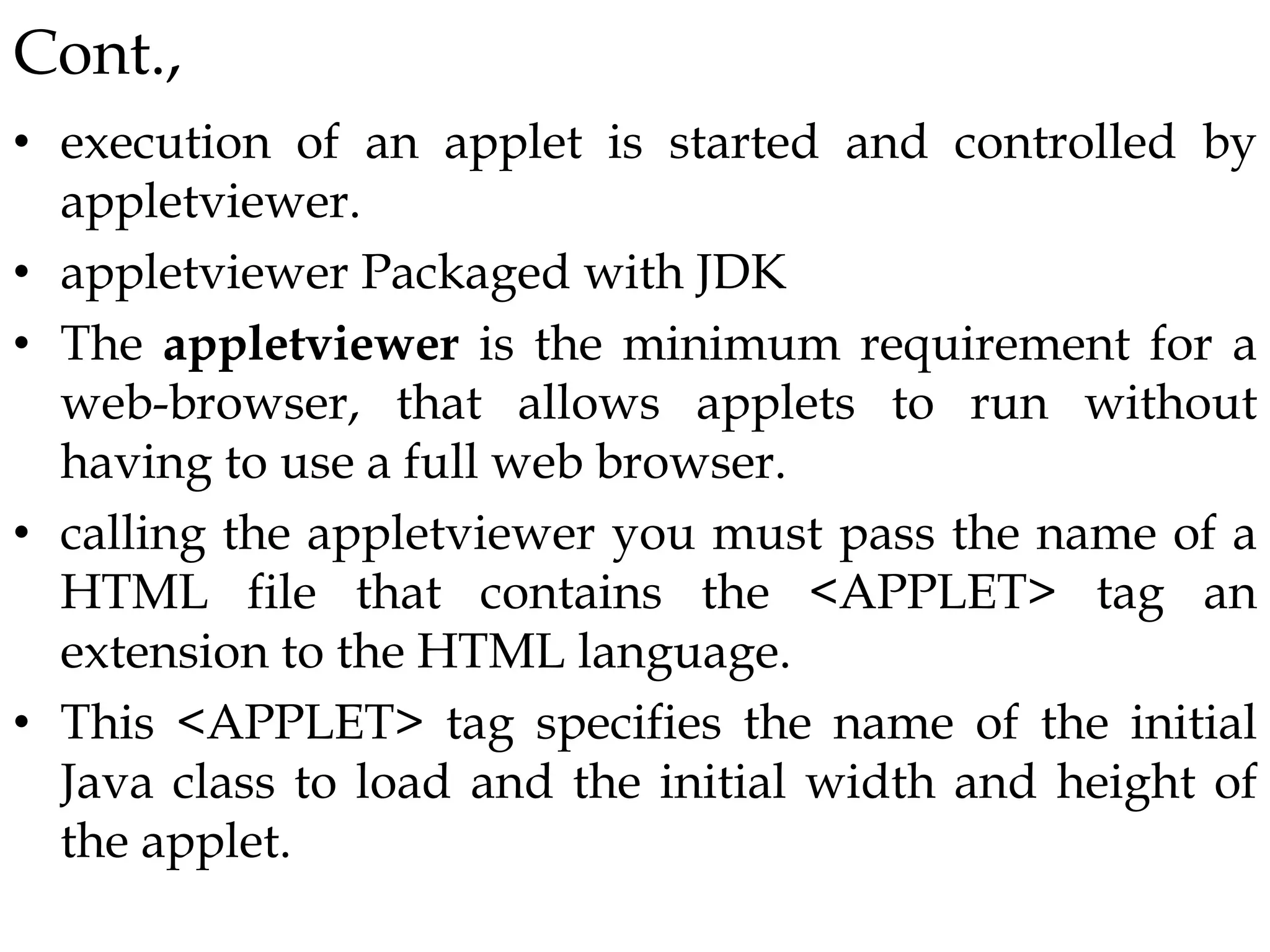

- 3. Cont., • execution ofan applet is started and controlled by appletviewer. • appletviewer Packaged with JDK • The appletviewer is the minimum requirement for a web-browser, that allows applets to run without having to use a full web browser. • calling the appletviewer you must pass the name of a HTML file that contains the <APPLET> tag an extension to the HTML language. • This <APPLET> tag specifies the name of the initial Java class to load and the initial width and height of the applet.
- 4. Life Cycle ofApplet The life cycle of the applet has the following stages: • The appletviewer loads and creates the specified class. • The applet initializes itself. • The applet starts running. • When finished the applet is destroyed.

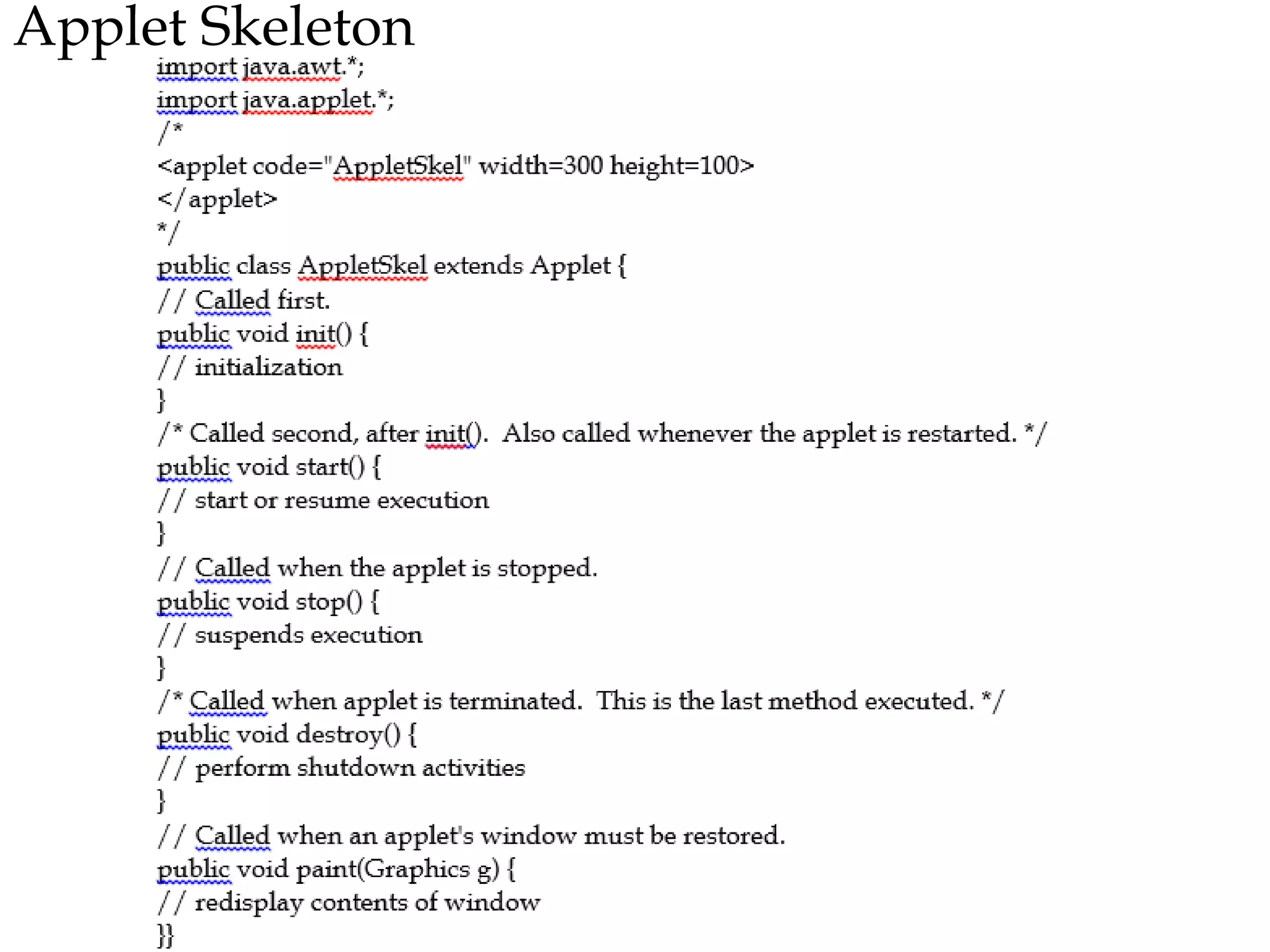

- 5.
- 6. Cont., Although this skeletondoes not do anything, it can be compiled and run. When run, it generates the following window when viewed with an applet viewer:

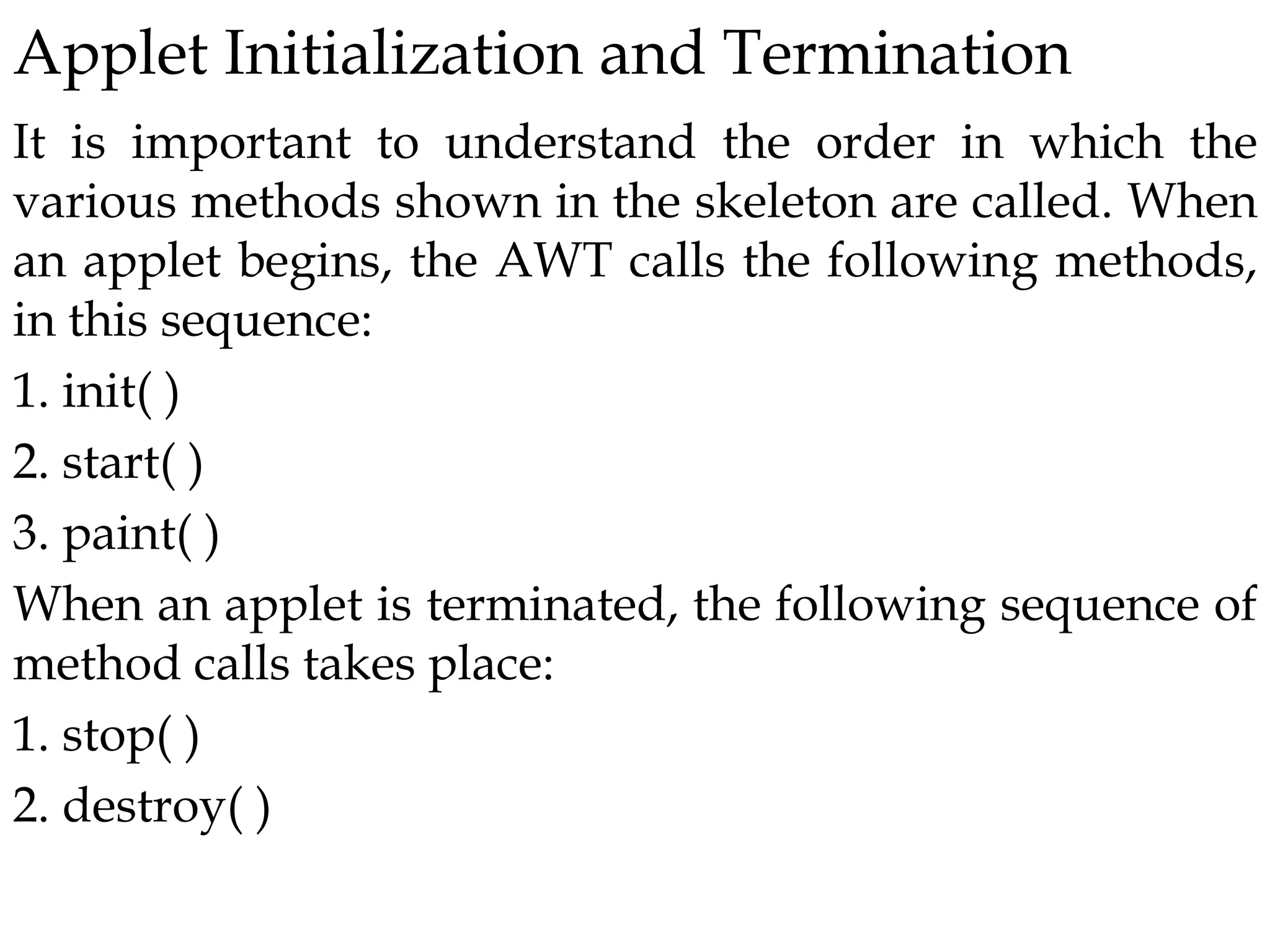

- 7. Applet Initialization andTermination It is important to understand the order in which the various methods shown in the skeleton are called. When an applet begins, the AWT calls the following methods, in this sequence: 1. init( ) 2. start( ) 3. paint( ) When an applet is terminated, the following sequence of method calls takes place: 1. stop( ) 2. destroy( )

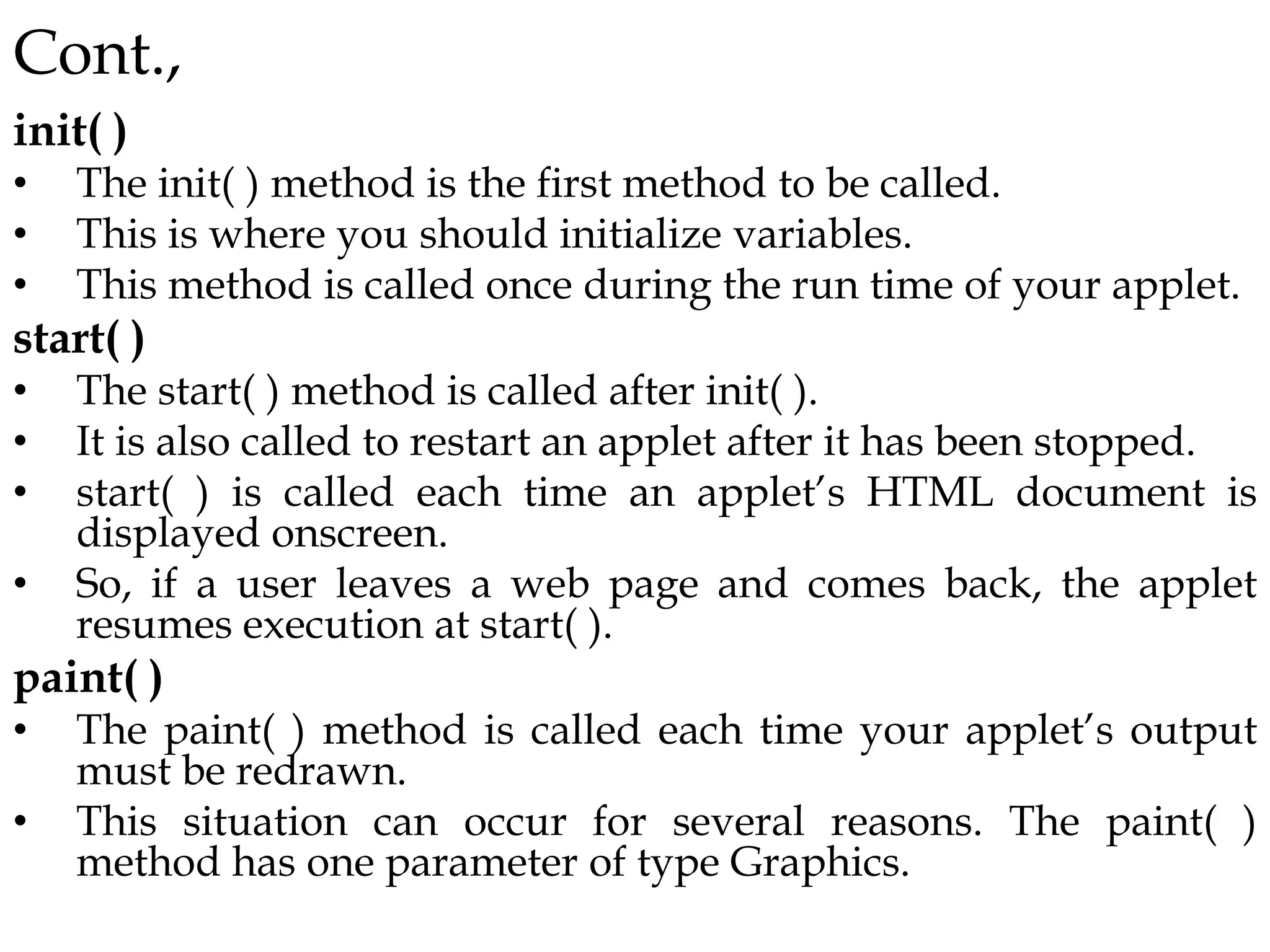

- 8. Cont., init( ) • Theinit( ) method is the first method to be called. • This is where you should initialize variables. • This method is called once during the run time of your applet. start( ) • The start( ) method is called after init( ). • It is also called to restart an applet after it has been stopped. • start( ) is called each time an applet’s HTML document is displayed onscreen. • So, if a user leaves a web page and comes back, the applet resumes execution at start( ). paint( ) • The paint( ) method is called each time your applet’s output must be redrawn. • This situation can occur for several reasons. The paint( ) method has one parameter of type Graphics.
- 9. Cont., stop( ) • Thestop( ) method is called when a web browser leaves the HTML document containing the applet. • when it goes to another page, for example. • When stop( ) is called, the applet is probably running. You should use stop( ) to suspend threads. destroy( ) • The destroy( ) method is called when the environment determines that your applet needs to be removed completely from memory. • At this point, you should free up any resources the applet may be using. • The stop( ) method is always called before destroy( ).

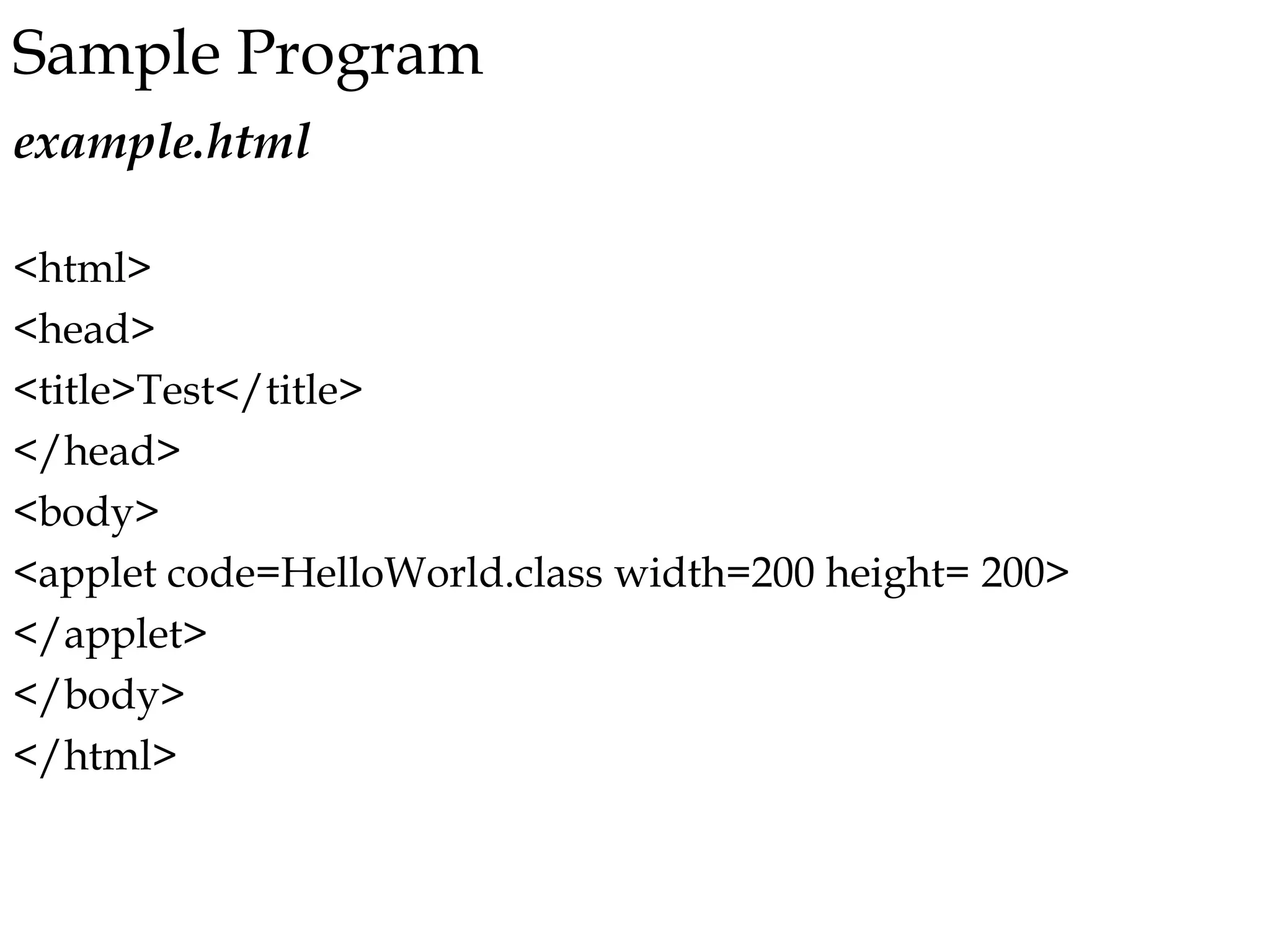

- 10. Sample Program example.html <html> <head> <title>Test</title> </head> <body> <applet code=HelloWorld.classwidth=200 height= 200> </applet> </body> </html>

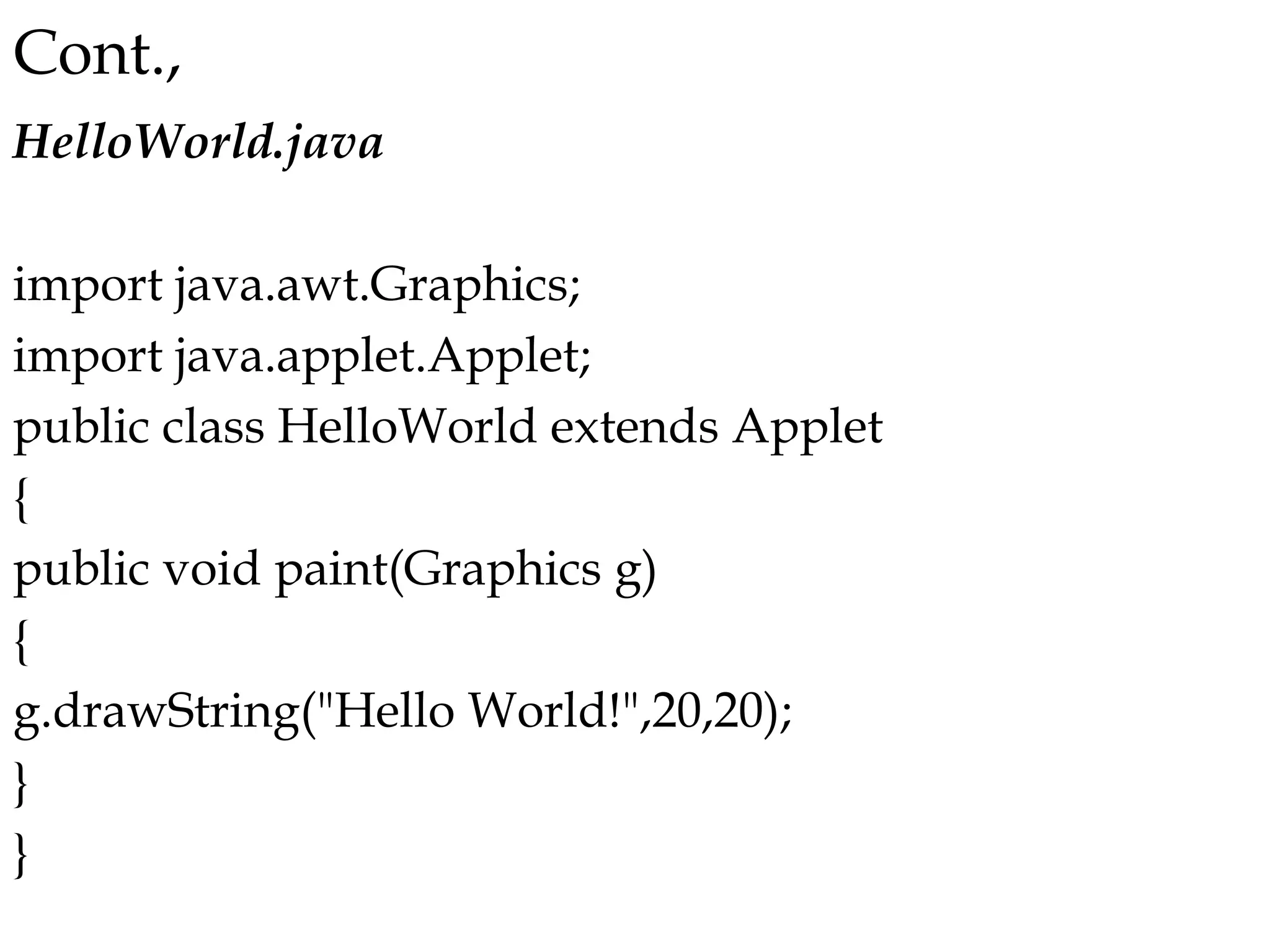

- 11. Cont., HelloWorld.java import java.awt.Graphics; import java.applet.Applet; publicclass HelloWorld extends Applet { public void paint(Graphics g) { g.drawString("Hello World!",20,20); } }

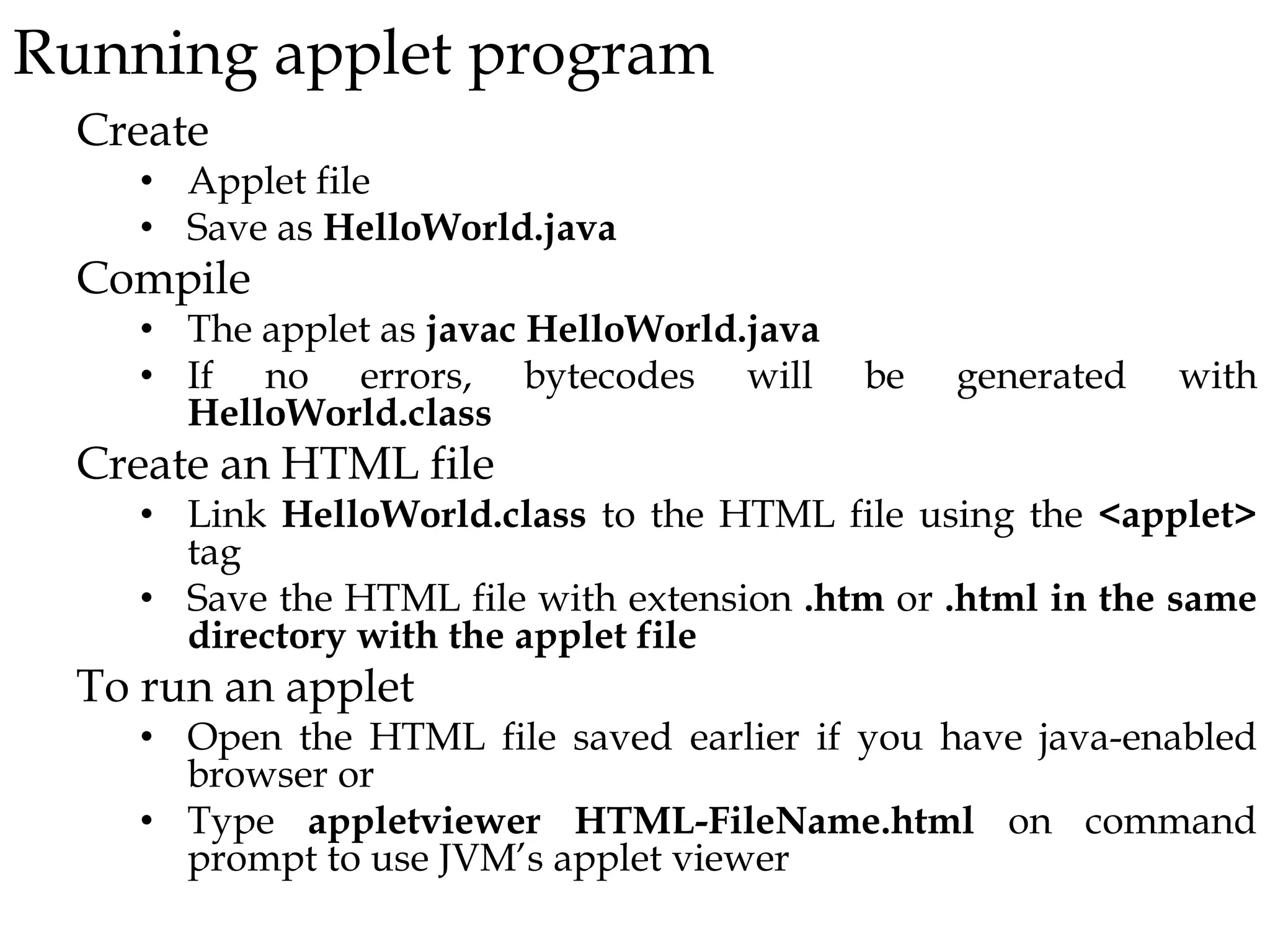

- 12. Running applet program Create •Applet file • Save as HelloWorld.java Compile • The applet as javac HelloWorld.java • If no errors, bytecodes will be generated with HelloWorld.class Create an HTML file • Link HelloWorld.class to the HTML file using the <applet> tag • Save the HTML file with extension .htm or .html in the same directory with the applet file To run an applet • Open the HTML file saved earlier if you have java-enabled browser or • Type appletviewer HTML-FileName.html on command prompt to use JVM’s applet viewer

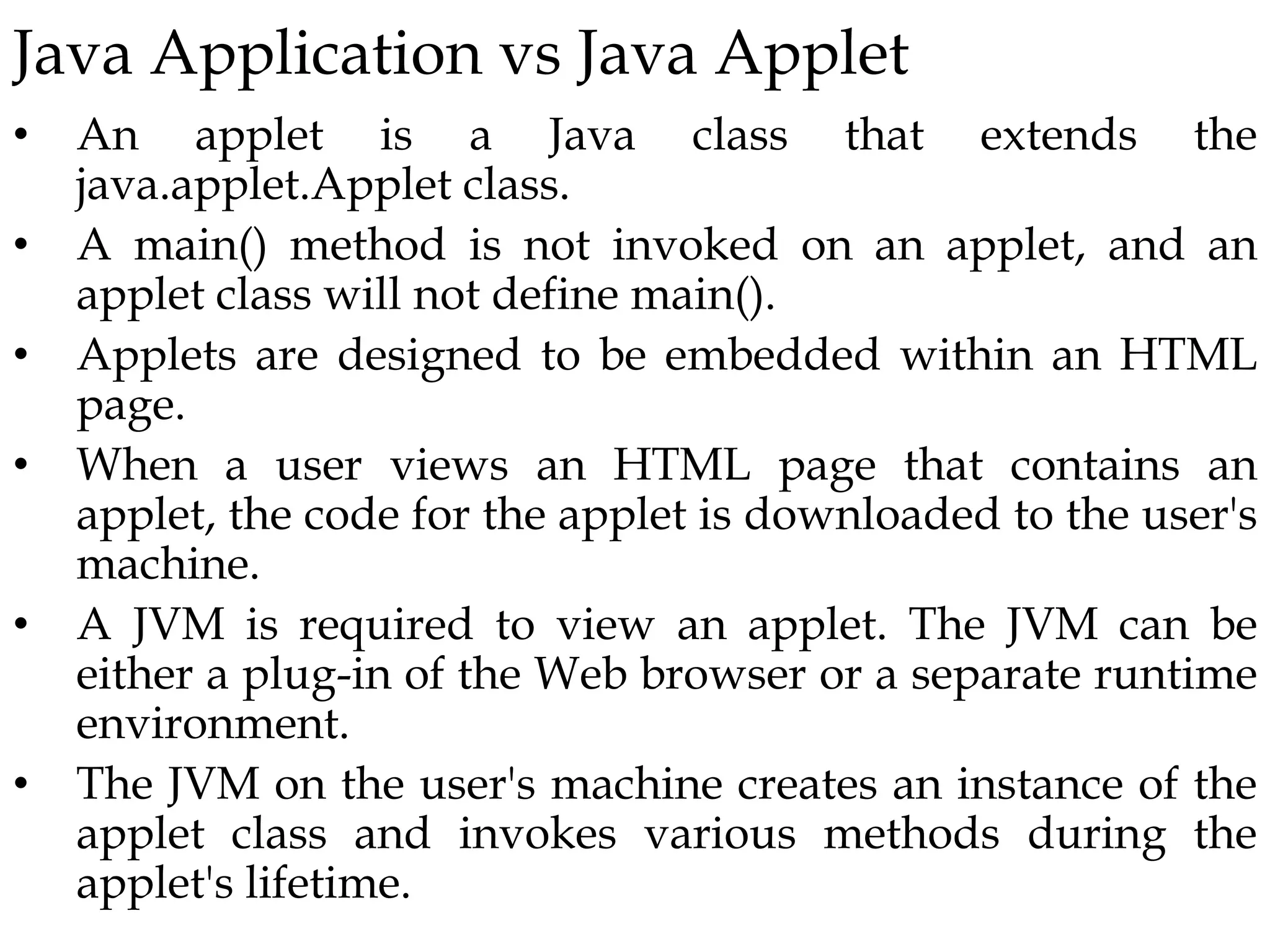

- 13. Java Application vsJava Applet • An applet is a Java class that extends the java.applet.Applet class. • A main() method is not invoked on an applet, and an applet class will not define main(). • Applets are designed to be embedded within an HTML page. • When a user views an HTML page that contains an applet, the code for the applet is downloaded to the user's machine. • A JVM is required to view an applet. The JVM can be either a plug-in of the Web browser or a separate runtime environment. • The JVM on the user's machine creates an instance of the applet class and invokes various methods during the applet's lifetime.

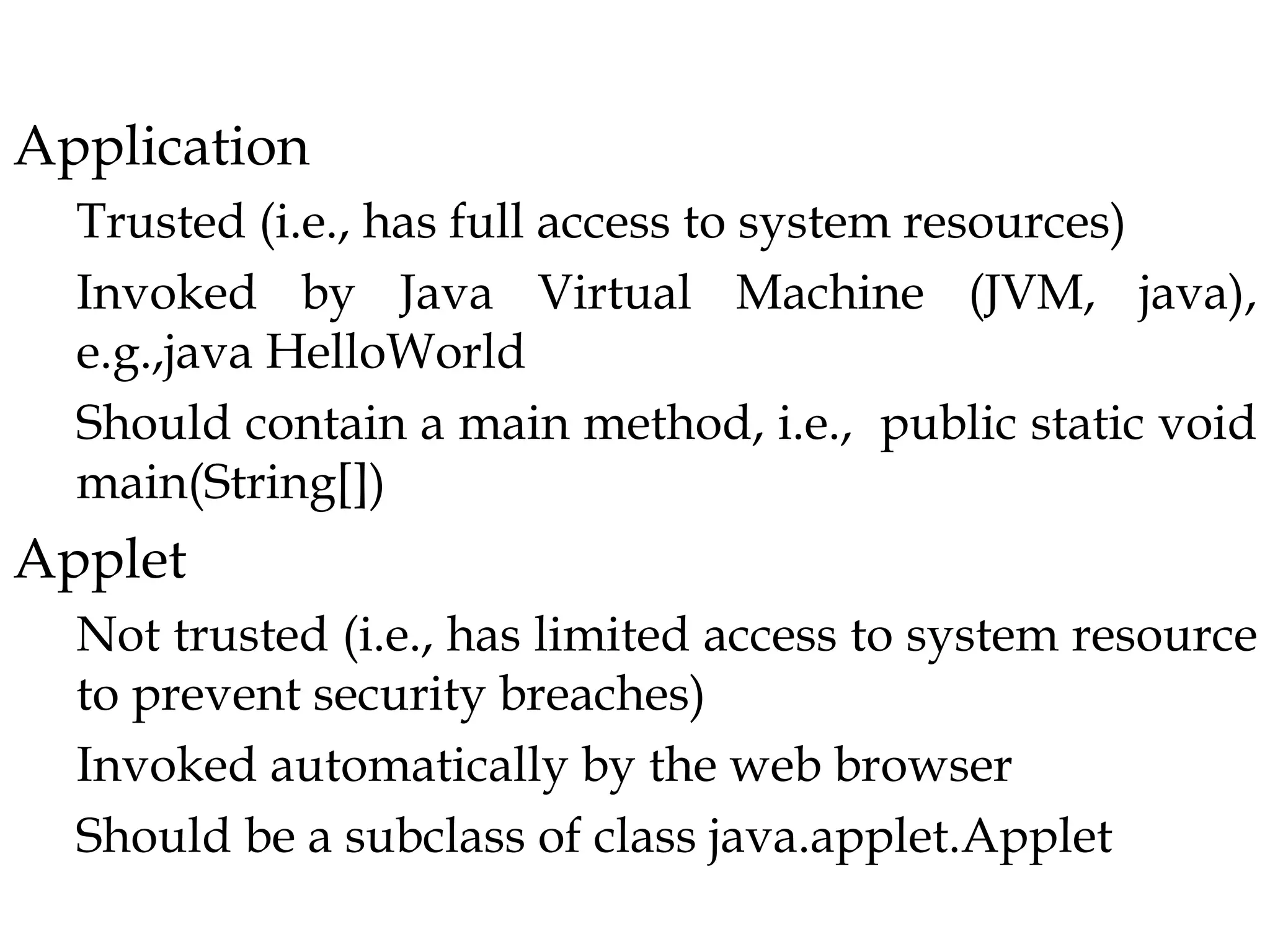

- 14. Application Trusted (i.e., hasfull access to system resources) Invoked by Java Virtual Machine (JVM, java), e.g.,java HelloWorld Should contain a main method, i.e., public static void main(String[]) Applet Not trusted (i.e., has limited access to system resource to prevent security breaches) Invoked automatically by the web browser Should be a subclass of class java.applet.Applet
