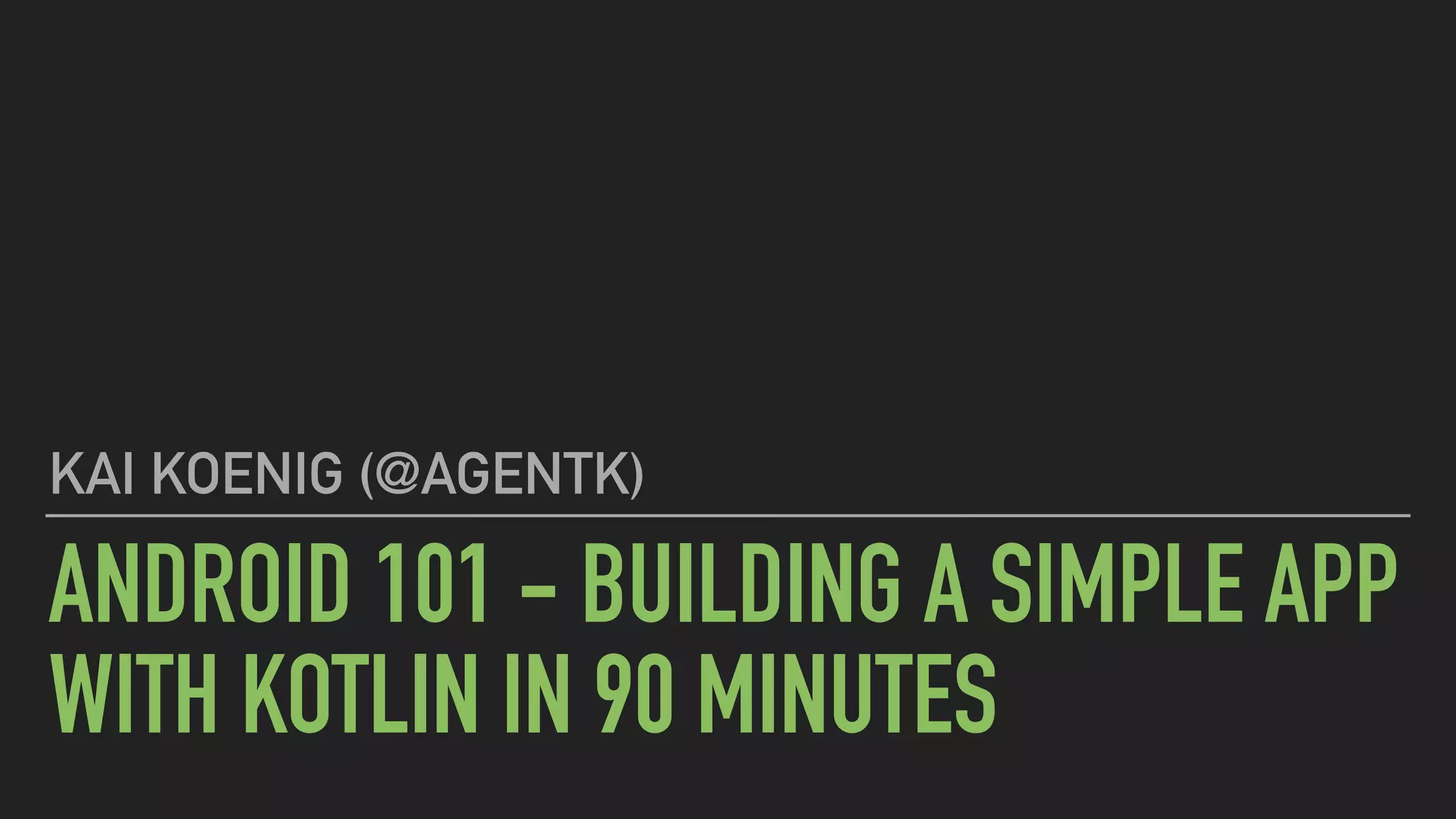

Android 101 - Building a simple app with Kotlin in 90 minutes

ANDROID 101 - BUILDING A SIMPLE APP
WITH KOTLIN IN 90 MINUTES
KAI KOENIG (@AGENTK)

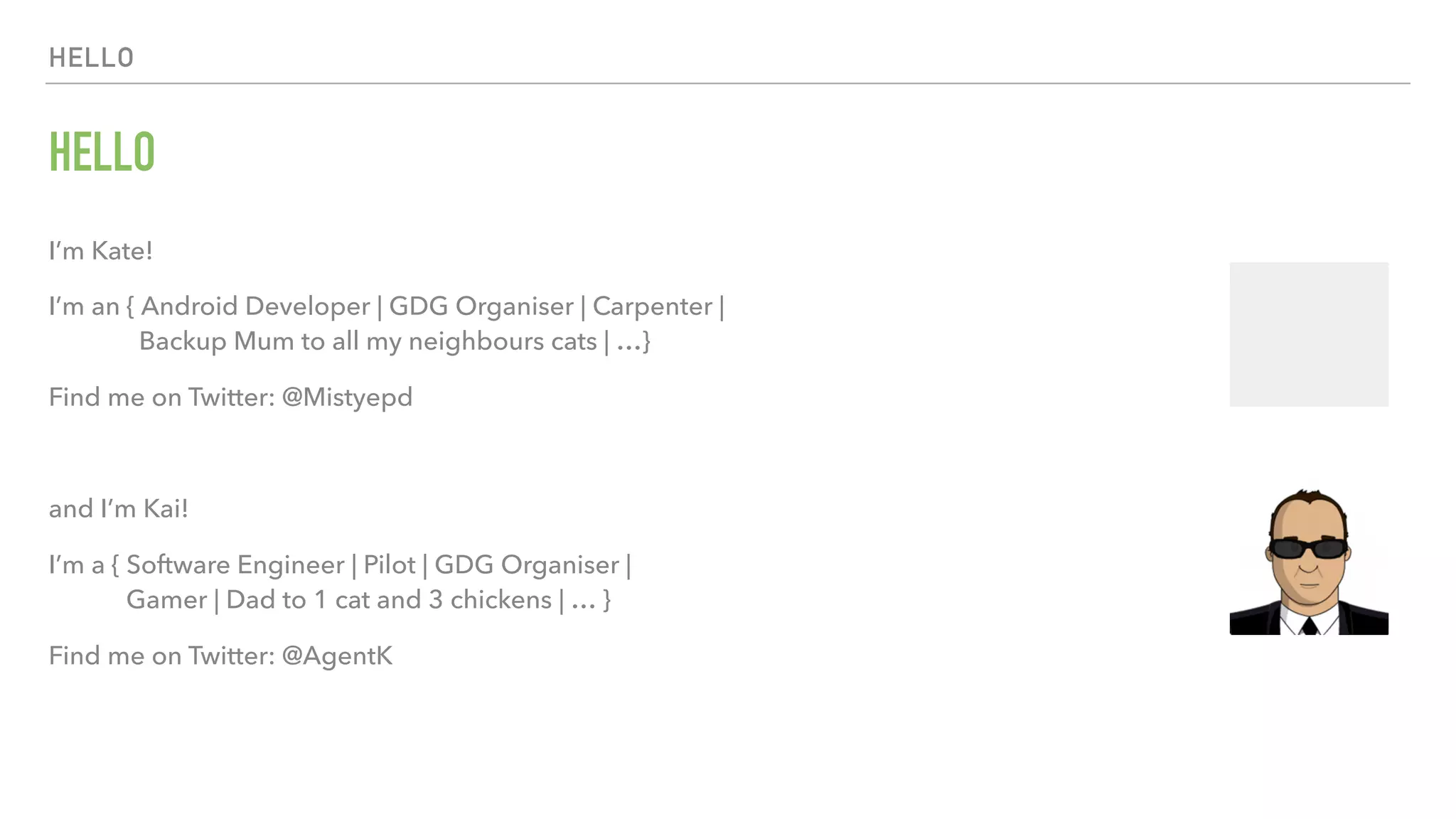

HELLO
HELLO
I’m Kate!
I’m an { Android Developer | GDG Organiser | Carpenter |  
Backup Mum to all my neighbours cats | …}
Find me on Twitter: @Mistyepd
and I’m Kai!
I’m a { Software Engineer | Pilot | GDG Organiser |  
Gamer | Dad to 1 cat and 3 chickens | … }
Find me on Twitter: @AgentK

HELLO
CODE
https://github.com/TheRealAgentK/
SummerOfTech-Android-2018

AGENDA
▸ What is Kotlin?
▸ Language idioms & concepts
▸ Kotlin and Android
▸ Anko DSL

WHAT IS KOTLIN?
SOME FUNDAMENTALS
▸ Statically typed programming
language for the JVM and Android
▸ Started as internal language “Project
Kotlin” at Jetbrains in 2010
▸ Now: Open-Source, Apache License
▸ Kotlin SDK plus tool support for IntelliJ,
Android Studio, Eclipse
▸ Named after an island in the Gulf of
Finland

WHAT IS KOTLIN?
MOTIVATION FOR KOTLIN
▸ The Java platform is awesome, but it has its issues:
▸ sometimes tied to backwards/legacy compatibility
▸ can be a very verbose language and produce bloated code
▸ type system has various ﬂaws
▸ Kotlin aims to ﬁx a lot of those issues
▸ compiles to Java 6 byte code therefore caters well for Android runtimes

LANGUAGE IDIOMS &
CONCEPTS
https://www.ﬂickr.com/photos/geraldford/6976818221/

LANGUAGE IDIOMS & CONCEPTS
OVERVIEW
▸ Immutability
▸ String templates & Enum classes
▸ Null safety
▸ Properties and Fields
▸ Type inference and casts
▸ Data classes
▸ Syntactic sugar (loops, ranges etc)
▸ Extension functions
▸ Lambdas
▸ Collection API
▸ Type-safe builders
▸ Java-Kotlin-Interop

IMMUTABILITY
▸ Built-in support for mutable and
immutable variables, properties and
ﬁelds
▸ Keywords var and val
▸ val - immutable (recommended)
▸ var - mutable
▸ Similar concept applies for class
properties, val creates getters, var
creates getters and setters (more later)
val a: Int = 1
val b = 1
val c: Int
c = 1
var x = 23
x += 1

STRING TEMPLATES & ENUM CLASSES (I)
▸ Kotlin Strings can contain template
expressions
▸ String templates start with a $ character
and
▸ can contain simple references such
as $s, as well as
▸ complex expressions in curly braces:  
${s.length}
val s = "abc"
val str = "$s.length is ${s.length}"
Output:
abc.length is 3

STRING TEMPLATES & ENUM CLASSES (II)
▸ Kotlin has a dedicated and expressive
enum class
▸ Can be used very nicely in conjunction
with String templates
enum class Locale(val hello: String) {
DE_DE("Hallo"),
EN_NZ("Hello"),
MI_NZ("Kia Ora")
}
class Customer(val firstName:String,
val lastName:String,
val locale: Locale = Locale.DE_DE) {
fun sayHello() = println(
"${locale.hello}, $firstName $lastName")
}
fun main(args : Array<String>) {
val myCustomer = Customer("Sandra",
"Musterfrau",
Locale.MI_NZ)
myCustomer.sayHello()
}

NULL SAFETY
▸ Motivation: A better way to deal with NPEs
▸ Kotlin differentiates nullable types from non-
nullable types by adding a ? to the type:
▸ String: no nullable
▸ String?: nullable
▸ Handle manually
▸ Use Safe Call operator ?.
▸ Use the !! operator to allow/trigger a NPE
// Won't compile
var lastName: String = null
// Will compile
var lastNameNullable: String? = null
// Will also not compile
println(lastNameNullable.length)
// Option 1 (-1)
println(if (lastNameNullable != null)
lastNameNullable.length else -1)
// Option 2 (null)
println(lastNameNullable?.length)
// Option 3 (NPE)
println(lastNameNullable!!.length)

PROPERTIES AND FIELDS
▸ Kotlin classes have mutable or
immutable properties
▸ Default getter/setters for properties,
can be customised
▸ An automated backing ﬁeld can be
provided by the compiler (if required)
▸ Alternative: use an explicit backing
property
var counter = 0
set(value) {
if (value >= 0)
field = value
}
public class Address {
public var name: String = ...
public var street: String = ...
public var city: String = ...
public var state: String? = ...
public var zip: String = ...
}

TYPE INFERENCE AND CASTS (I)
▸ When possible, Kotlin will infer the type
of variables
▸ Explicit conversions, type widening and
inference
▸ Smaller types are not subtypes of
bigger types, no implicit conversion
▸ Types are often inferred from the
context
val b: Byte = 1
// This won't work
val i: Int = b
// This will
val i: Int = b.toInt()
val l: Long = 1L + 3

TYPE INFERENCE AND CASTS (II)
▸ is or !is checks if an object adheres to a
certain type
▸ Smart cast: Compiler tracks is-expressions
for immutable values
▸ works for val local variables and private,
internal or in-module performed casts
▸ works for var local variables if the
variable hasn’t been modiﬁed between
check and usage, never for var
properties
fun whatIs(x: Any) {
when (x) {
is Int -> println(x + 42)
is String -> println(x.length)
is IntArray -> println(x.sum())
}
}
whatIs(4) // 46
whatIs("4") // 1
whatIs(intArrayOf(1,2,3,4,5)) // 15

DATA CLASSES
▸ The POJOs/Beans of other languages
▸ Data classes implicitly create:
▸ getters/setters (non-data classes
have those too) - recommend to use
val as often as possible.
▸ useful implementations for equals(),
hashCode(), toString(), copy()
▸ copy() has default parameters and
can be used to alter a copy
data class ChromeEncryptedPayload(
val encryptedPayload: String,
val encryptionHeader: String,
val cryptoKeyHeader: String)
val pl = ChromeEncryptedPayload(
encryptedPayload = "...",
encryptionHeader = "...",
cryptoKeyHeader = "...")
val anotherPl = pl.copy(
encryptedPayload = "...")

EXTENSION FUNCTIONS
▸ Allow adding new functionality to a
class without inheritance or Decorators
▸ Kotlin has extension functions as well
as extension properties
▸ Resolved statically, don’t actually
modify the class (excellent example
why this has to be the case at http://
goo.gl/EN6bTs
fun Int.sum(otherInt: Int): Int =
this + otherInt
3.sum(7)
fun Activity.toast(message: CharSequence,
duration: Int =
TOAST.LENGTH_SHORT) {
Toast.makeText(this, message,
duration).show()
}
// In onCreate of an Activity
override fun onCreate(...) {
...
toast("Hi there")
...
}

LAMBDAS
▸ Anonymous function or “function
literal”, closely related to the ideas of
Higher-Order-Functions
val sum = { x: Int, y: Int -> x + y }
val sum: (Int, Int) -> Int = { x, y ->
x + y }
private fun convertPetListToDomain(list: List<Pet>): List<PetDomain> {
return list.map { convertPetItemToDomain(it) }
}
private fun convertPetItemToDomain(pet: Pet): PetDomain {
return PetDomain(pet.age,pet.size,pet.id,pet.name,pet.sex,pet.breed)
}

TYPE-SAFE BUILDERS (I)
▸ Builders are a very popular approach in
Groovy to deﬁne data in a declarative
way
▸ Often used for:
▸ generating XML or JSON
▸ UI layout (Swing components) etc
▸ In Kotlin, builders even can be type-
checked
JsonBuilder builder = new JsonBuilder()
builder.records {
car {
name 'HSV Maloo'
make 'Holden'
year 2006
country 'Australia'
}
}
String json = JsonOutput.prettyPrint
(builder.toString())

TYPE-SAFE BUILDERS (II)
▸ html() is a function with a lambda as an
argument (init)
▸ init’s type is a function type with
receiver, this allows you to:
▸ pass receiver (of type HTML) to
function
▸ call members of instance inside the
function
fun result(args: Array<String>) =
html {
head {
title {”HTML in Kotlin"}
}
body {
...
}
}
fun html(init: HTML.() -> Unit): HTML {
val html = HTML()
html.init()
return html
}

TYPE-SAFE BUILDERS (III)
▸ HTML class has functions to build the
head and the body elements of the
DSL.
▸ Not shown: classes further down in the
hierarchy:
▸ Head, Body etc.
▸ Complete HTML builder example at:
http://goo.gl/TndcC9
class HTML {
...
fun head(headBuilder: Head.() -> Unit) {
head = Head()
head?.headBuilder()
}
fun body(bodyBuilder: Body.() -> Unit) {
body = Body()
body?.bodyBuilder()
}
}

JAVA-KOTLIN-INTEROP
▸ Java and Kotlin are fully interoperable from an integration point of view
▸ Your Java code can call and use Kotlin code
▸ Your Kotlin code can call and use Java code
▸ The latter is in particular useful because it means you can continue to use pretty
much any existing Android/Java library
▸ Check out Hendrik Kokocinski’s sample Kotlin app that uses all kinds of well
known Android/Java libs: https://goo.gl/xdYqf5

KOTLIN AND ANDROID
https://realm.io/assets/img/news/tutorial-kotlin-anko-cover.png

APP
STEP 1 - KOTLIN SETUP
▸ Setup Kotlin Plugin and tooling
▸ Automated vs. manual

APP
STEP 2 - REFACTOR JAVA -> KOTLIN
▸ Kotlin Source Path

APP
STEP 3 - KOTLIN ANDROID EXTENSIONS
▸ Finding views with KAE (built into the plugin)

APP
STEP 4 - MORE KAE
▸ KAE Click handler - compare to classic Kotlin code
▸ Lambdas

APP
STEP 5 - BUTTERKNIFE
▸ View Bindings with Butterknife in Kotlin
▸ KAPT setup

APP
STEP 6 - RECYCLERVIEW AND SOME DATA
▸ Adding Adapter and RecyclerView
▸ Displaying hardcoded data for now

APP
STEP 7 - DATA (I)
▸ Loading and returning some hard JSON sample data
▸ Companion object
▸ No UI changes, use debugger in MainActivity

APP
STEP 8 - DATA (II) / GSON PARSING
▸ Kotlin data classes
▸ GSON parsing
▸ String templates
▸ No UI changes, use debugger in MainActivity

APP
STEP 9 - ARCHITECTURE
▸ Command pattern
▸ Introducing Anko for async
▸ More String templates
▸ with
▸ Interface
▸ .map

ANKO DSL
WHAT IS A DSL?
▸ Domain-Speciﬁc Language
▸ Limited expressiveness:
▸ DSLs are usually not general-purpose languages
▸ strongly focussed on a particular domain
▸ examples: SQL, Ant XML, XSLT, Gradle etc.

ANKO DSL
A DSL FOR LAYOUTS
▸ The most important element of Anko is the Layout DSL
▸ Idea: replace XML layout deﬁnitions by Kotlin code - without having to build
the layout in a fully programmatic sense
▸ Modular: as we’re talking about UI/Layout, it’s very important to select the
right library for your minSDKVersion
▸ Extensible: you can add your own DSL elements for custom UI controls

ANKO DSL
LAYOUT XML
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
<EditText
android:gravity="center"
android:text="@string/empty_todos_message"
android:layout_weight="7"
android:layout_height="wrap_content" />
<Button
android:layout_weight="1"
android:text="Say Hello"
android:layout_height="0dp" />
</LinearLayout>

ANKO DSL
PROGRAMMATIC LAYOUT IN KOTLIN
val act = this
val layout = LinearLayout(act)
layout.orientation = LinearLayout.VERTICAL
val name = EditText(act)
val button = Button(act)
button.text = "Say Hello"
button.setOnClickListener {
Toast.makeText(act, "Hello, ${name.text}!", Toast.LENGTH_SHORT).show()
}
layout.addView(name)
layout.addView(button)

ANKO DSL
ANKO DSL
verticalLayout {
val name = editText()
button("Say Hello") {
onClick { toast("Hello, ${name.text}!") }
}
}

ANKO DSL
ANKO DSL INTERNALS
▸ Anko DSL example from previous slide looks very similar to the earlier HTML
builder example
▸ Anko uses extension functions arranged into type-safe builders and lambdas
▸ You don’t have to write all those extensions by hand though - Anko generates
them based on the Android SDK’s android.jar

ANKO DSL
GETTING STARTED WITH ANKO DSL (I)
▸ Depending on minSdkVersion of project, import: 
compile "org.jetbrains.anko:anko-sdk{15|19|21|23}:0.9"
▸ If the project uses an Android Support library, import matching Anko library: 
compile "org.jetbrains.anko:anko-recyclerview-v7:0.9"

ANKO DSL
GETTING STARTED WITH ANKO DSL (II)
▸ General approach:
▸ Anko DSL automatically becomes
available in onCreate() in an Activity
▸ no need for setContentView(), Anko
DSL also automatically sets the
content view for activities
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
verticalLayout {
padding = dip(30)
editText {
hint = "Name"
textSize = 24f
}
editText {
hint = "Password"
textSize = 24f
}
button("Login") {
textSize = 26f
}
}
}

ANKO DSL
ANKO DSL IN FRAGMENTS
▸ In fragments, use  
onCreateView(…)
▸ Returns UI {…}.view:
▸ mandatory before Anko 0.8
▸ works well for Fragments
▸ createTodo() is a fragment-private
method
override fun onCreateView(inflater: LayoutInflater?,
container: ViewGroup?,
savedInstanceState: Bundle?): View? {
return UI {
verticalLayout {
padding = dip(24)
var title = editText {
id = R.id.title
hintResource = R.string.hint
}
...
button {
id = R.id.add
textResource = R.string.add
onClick { view -> createTodo(title, desc) }
}
}
}.view
}

ANKO DSL
ANKO COMPONENTS (I)
▸ Often it’s nicer to have UI code separated from onCreate or other livecycle
methods
▸ AnkoComponent helps organising your UI code in their own classes

ANKO DSL
ANKO COMPONENTS (II)
override fun onCreateView(...)= EditFragmentUI().createView(AnkoContext.create(ctx,this))
class EditFragmentUI : AnkoComponent<EditFragment> {
override fun createView(ui: AnkoContext<EditFragment>) = with(ui) {
verticalLayout {
padding = dip(24)
var title = editText {
id = R.id.title
hintResource = R.string.hint
}
...
button {
id = R.id.add
textResource = R.string.add
onClick { view -> ui.owner.createTodoFrom(title, desc) }
}
}
}
}

ANKO DSL
ANKO COMPONENTS (III)
▸ Anko Preview plugin for
AnkoComponent layouts
▸ Get it here: http://goo.gl/5CVmAA
▸ Can preview layouts and convert XML
to Anko DSL
▸ Can be ﬁddly to get going with AS,
Kotlin plugin versions

ANKO DSL
EXTENDING ANKOS DSL FUNCTIONALITY (I)
▸ Multiple ways to do this:
▸ insert an existing XML layout into an Anko DSL declaration: 
▸ adding new DSL elements to the language
include<View>(R.layout.mylayout) { ... }
inline fun ViewManager.customView(theme: Int = 0) = customView(theme) {}
inline fun ViewManager.customView(theme: Int = 0, init: CustomView.() -> Unit) =
ankoView({ CustomView(it) }, theme, init)
inline fun Activity.customView(theme: Int = 0) = customView(theme) {}
inline fun Activity.customView(theme: Int = 0, init: CustomView.() -> Unit) =
ankoView({ CustomView(it) }, theme, init)

ANKO DSL
EXTENDING ANKOS DSL FUNCTIONALITY (II)
▸ Extending Anko’s DSL to support your own custom view groups is currently rather
painful
▸ Essentially it comes down to .lparams (for layout purposes) not being easily accessible
▸ More here:
▸ http://goo.gl/qpb3SL
▸ http://goo.gl/tMHs2c
▸ Fix targeted for Anko 0.9.1

THE HIDDEN PARTS OF ANKO
BUT THERE’S MORE
▸ Intent wrappers for various purposes: e.g. sendSMS(number, [text])
▸ Intent builders
▸ Service shortcuts
▸ Configuration qualifiers: configuration(screenSize = ScreenSize.LARGE,
orientation = Orientation.LANDSCAPE) { … }
▸ Asynchronous tasks
▸ SQLLite

INTENT WRAPPERS AND SERVICE SHORTCUTS
▸ Anko provides wrappers for commonly used Intents:
▸ makeCall(number), sendSMS(number, text), browse(url) etc.
▸ Shortcuts to Android services:
▸ notiﬁcationManager, displayManager, sensorManager etc.
▸ Useful, but both not major features of Anko

INTENT BUILDERS
▸ Syntactic sugar to cut down the amount of code needed to start a new activity
val intent = Intent(this, javaClass<MyActivity>())
intent.putExtra("customerId", 4711)
intent.putExtra("country", "NZ")
startActivity(intent)
startActivity(Intent(this, MyActivity::class.java).
putExtra("customerId", 4711).putExtra("country", "NZ"))
startActivity<MyActivity>("customerId" to 4711, "country" to "NZ")

CONFIGURATION QUALIFIERS
▸ “CSS Media Queries for Android”
▸ Screen features:
▸ screenSize, density, orientation, long,  
nightMode, rightToLeft, smallestWidth
▸ SDK versions:
▸ fromSdk, sdk
▸ Other:
▸ language, uiMode
configuration(screenSize = ScreenSize.LARGE,
orientation =
Orientation.LANDSCAPE)
{
/*
This code will be only executed
if the screen is large and its
orientation is landscape
*/
}

ASYNC DSL
▸ Does anyone enjoy working with AsyncTasks?
▸ Anko: async and asyncResult (return future respectively future with result)
async() {
val result = PetFindCommand("90210","cat").execute()
uiThread {
animalList.adapter = AnimalListAdapter(result,
object: AnimalListAdapter.ItemClickListener{
override fun invoke(pet:Pet) {
toast(pet.name)
}
}
)
}
}

SQLITE (I)
▸ Working with SQLite usually requires a lot of boilerplate code and try/catch-
structures, issues around concurrency, dealing with cached code and
references etc.
▸ Anko aims to make that easier
▸ Dependency: compile ‘org.jetbrains.anko:anko-sqlite:0.9'
▸ Setup class extending ManagedSQLiteOpenHelper in your code

SQLITE (II)
▸ database.use ensures DB is opened
and closed correctly
▸ Asynchronous use of the DB is possible
through Anko’s async DSL
▸ Important: There can still be
SQLiteExceptions when handling SQL
code - Anko doesn’t abstract those.
▸ Handling of cursors and parsing data
via lambdas
database.use {
createTable("Customer", ifNotExists = true,
"id" to INTEGER + PRIMARY_KEY + UNIQUE,
"name" to TEXT,
"photo" to BLOB)
}

APP
STEP 10 - CLICK ON LIST
▸ Adapter/RecyclerView click handler changes
▸ when-statement

APP
STEP 11 - EXCEPTIONS
▸ Exception handler in Anko

APP
STEP 12 - ANKO DSL
▸ Anko layout for main view
▸ Removing layout XML and replacing it with Anko DSL

APP
STEP 13 - ANKO COMPONENTS
▸ Refactoring into Anko component

APP
STEP 14
▸ Mini refactoring for better testing
▸ jUnit tests in Kotlin

APP
STEP 15
▸ Using Spek for BDD testing

APP
IDEAS
▸ Add second Activity or Fragment to display and edit details
▸ Change layout to ConstraintLayout
▸ Use Kotson instead of Gson
▸ Store data locally
▸ Change RecyclerView to Anko Layout DSL
▸ Use Butterknife instead of Kotterknife
▸ Write some proper tests
▸ Try Android integration tests

RESOURCES
RESOURCES
▸ Kotlin: http://kotlinlang.org
▸ Anko: https://github.com/Kotlin/anko
▸ Kotter Knife: https://github.com/JakeWharton/kotterknife
▸ Spek: http://jetbrains.github.io/spek/
▸ Kotson: https://github.com/SalomonBrys/Kotson

RESOURCES
GET IN TOUCH
Kai Koenig
Email: kai@ventego-creative.co.nz
Twitter: @AgentK
Kate Henderson
Email: hi@kate.nz
Twitter: @Mistyepd

Android 101 - Building a simple app with Kotlin in 90 minutes

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Android 101 - Building a simple app with Kotlin in 90 minutes

Similar to Android 101 - Building a simple app with Kotlin in 90 minutes (20)

More from Kai Koenig

More from Kai Koenig (17)

Recently uploaded

Recently uploaded (20)

Android 101 - Building a simple app with Kotlin in 90 minutes
