This document summarizes the Anapurna ABF, a semi-automatic board feeding system for the Anapurna M-series wide format printer. The ABF reduces idle time between jobs by automatically positioning media up to 5mm from the edges. It supports a wide range of standard European and US media sizes using adjustable horizontal and vertical alignment pins. The ABF is easy to operate via a single button or foot pedal and can be quickly disconnected and reconnected when changing between roll-to-roll and rigid media modes.

1. Wide Format Printing
:Anapurna M Auto Board Feeder

2. :Anapurna ABF
Semi-automatic board feeding system
for the :Anapurna M-series
•
Today available for :Anapurna M2050

3. :Anapurna ABF
• Concept
•
•
•
•
•
Auto Board Feeder, designed for semi-automatic input of media.
Media preparation and positioning during printing.
Idle time between multicopy jobs is reduced significant.
Table designed for Both US and European media sizes
Borderless printing up to 5 mm on each media.
With use of Belt protection paper.
• Easy operator manipulation.
• One button principle, with button access on Left and Right side of the
table or the moveable footpedal on the rear side
• Table Connection
• One time adjustment with fixed height position.
– Footclamp mechanism
• Easy disconnect and reconnect of the table.
– When changing from R2R to Rigid.

4. :Anapurna ABF
• Technical specifications
• Table Dimensions (Depth x Width x Height)
• 110 cm x 222 cm x 110 cm
• Height adjustment between 0 an 90 mm
• Table Weight
• 350 Kg
• Electrical Power
• Single phase auto detection 110 ~ 240 V – 50/60 Hz
• Average Power consumption < 500 W

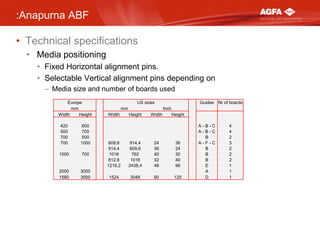

5. :Anapurna ABF
• Technical specifications
• Media positioning
• Fixed Horizontal alignment pins.
• Selectable Vertical alignment pins depending on
– Media size and number of boards used
Europe
mm
Width
Height
420
500
700
700
600
700
500
1000
1000
700
2000
1580
3000
3000
US sizes
mm
Width
Guides Nr of boards
Inch
Height
Width
Height
609,6
914,4
1016
812,8
1219,2
914,4
609,6
762
1016
2438,4
24
36
40
32
48
36
24
30
40
96
1524
3048
60
120
A-B-C
A-B-C
B
A-F-C
B
B
B
E
A
D
4
4
2
3
2
2
2
1
1
1

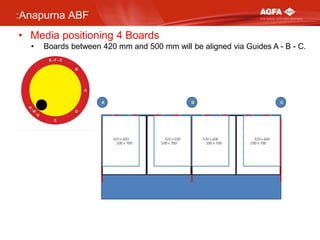

6. :Anapurna ABF
• Media positioning 4 Boards
•
Boards between 420 mm and 500 mm will be aligned via Guides A - B - C.

7. :Anapurna ABF
• Media positioning 3 Boards
•
Boards with a width 0f 600 will be aligned via Guides A – F - C.
A
F
24” x 36 “
610 x 914
B
0
24” x 36 “
610 x 914
C
24” x 36 “
610 x 914

8. :Anapurna ABF
• Media positioning 2 boards
•
Boards with a width between 610 mm and 1000 mm
will be aligned via Guide B.

9. :Anapurna ABF
• Media positioning 1 board
•
Boards with a width between 1580 and 2000 mm
will be aligned via Guide A

10. :Anapurna ABF
• Media positioning 1 board
•
Boards with a width between 1200 mm and 1580 mm
will be aligned via Guide D

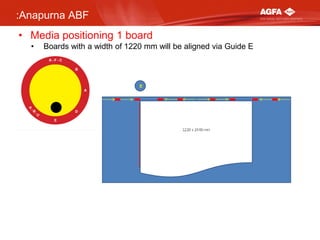

11. :Anapurna ABF
• Media positioning 1 board
•
Boards with a width of 1220 mm will be aligned via Guide E
