1. Windows Phone 7Jonas FollesøBEKK Avdelingsmøte 02. Desember 2010

2. ABOUT MEJONAS FOLLESØjonas@follesoe.nohttp://jonas.follesoe.no@follesoe

3. AGENDA:- WP7 PLATFORM- PHONE APIs- BLEND 4- MARKET PLACE- TDD- RUBY- DEMOS!http://www.flickr.com/photos/20792787@N00/2248623391/

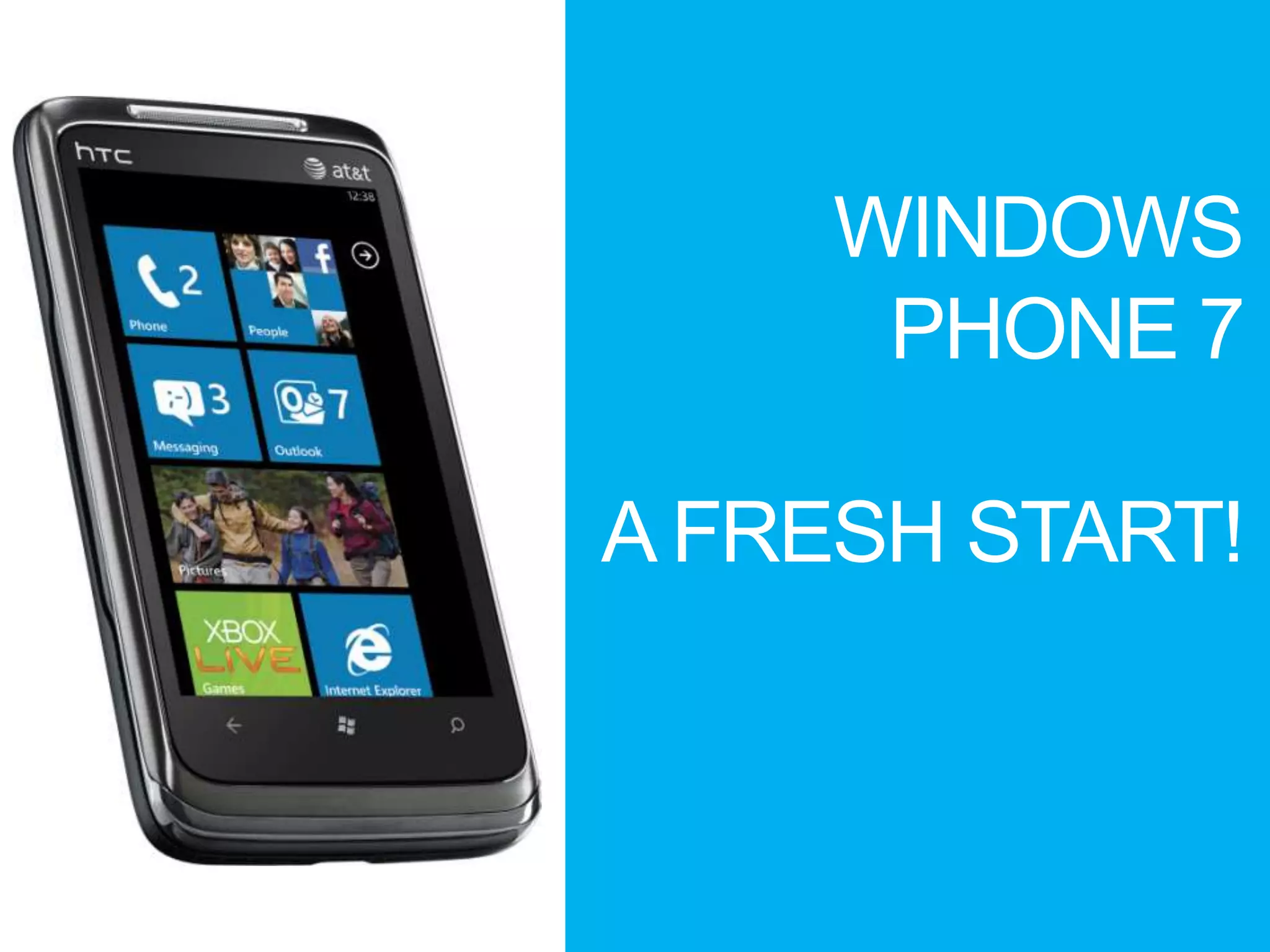

5. WINDOWS PHONE 7A FRESH START!

6. XNA FOR GAMESSILVERLIGHT FOR APPS

7. KNOW SILVERLIGHT?THEN YOU KNOW WP7!

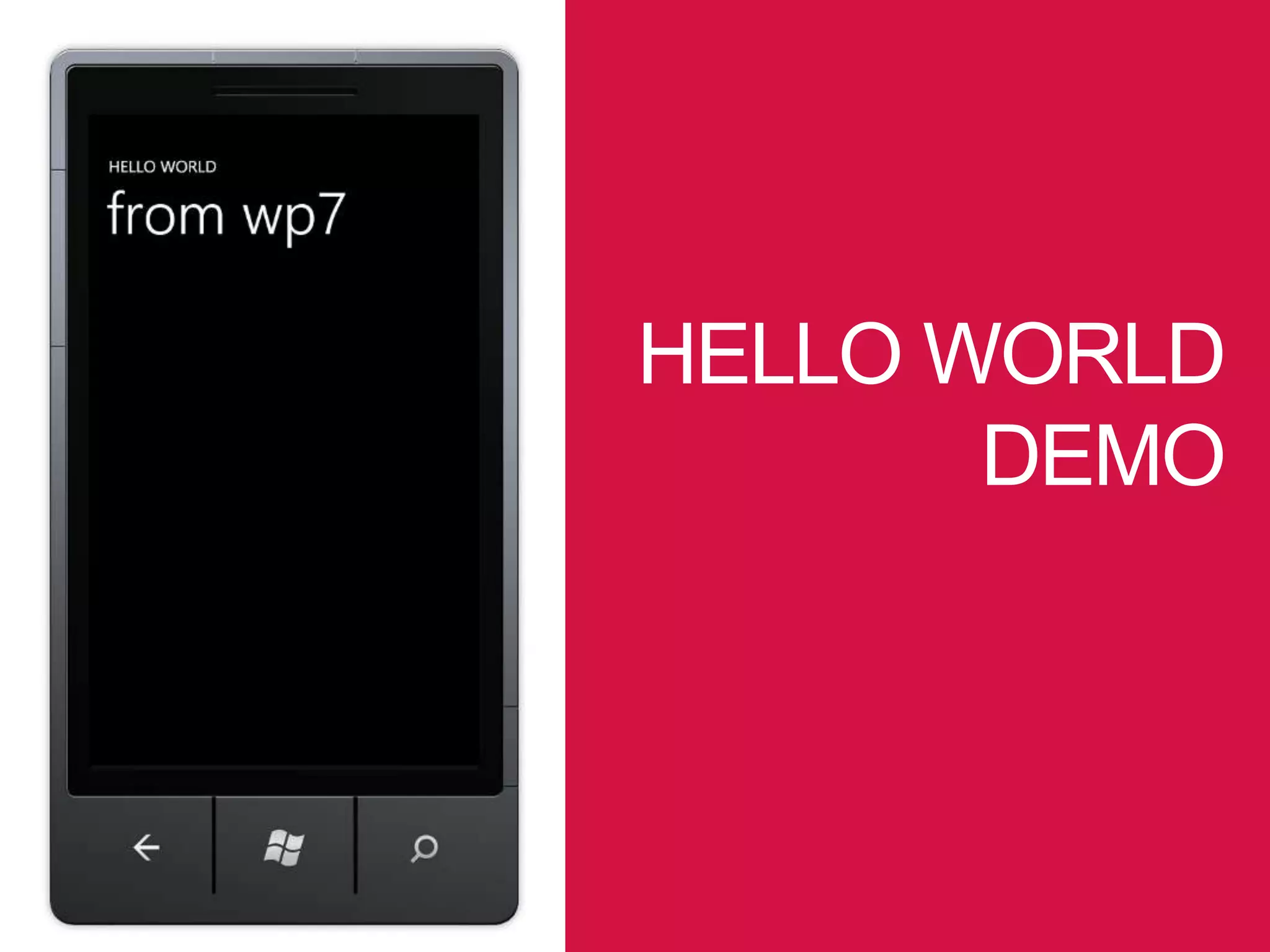

8. HELLO WORLDDEMO

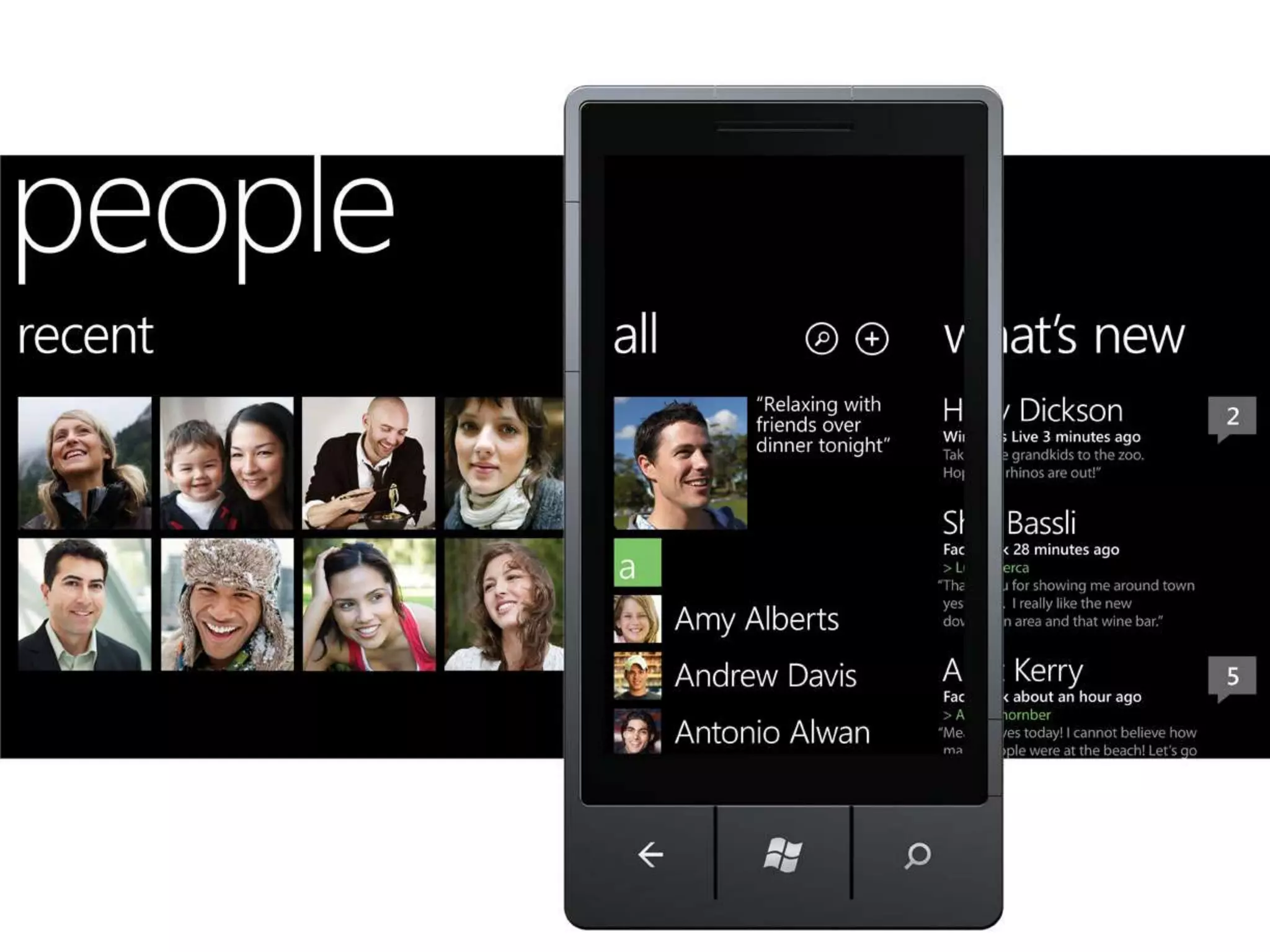

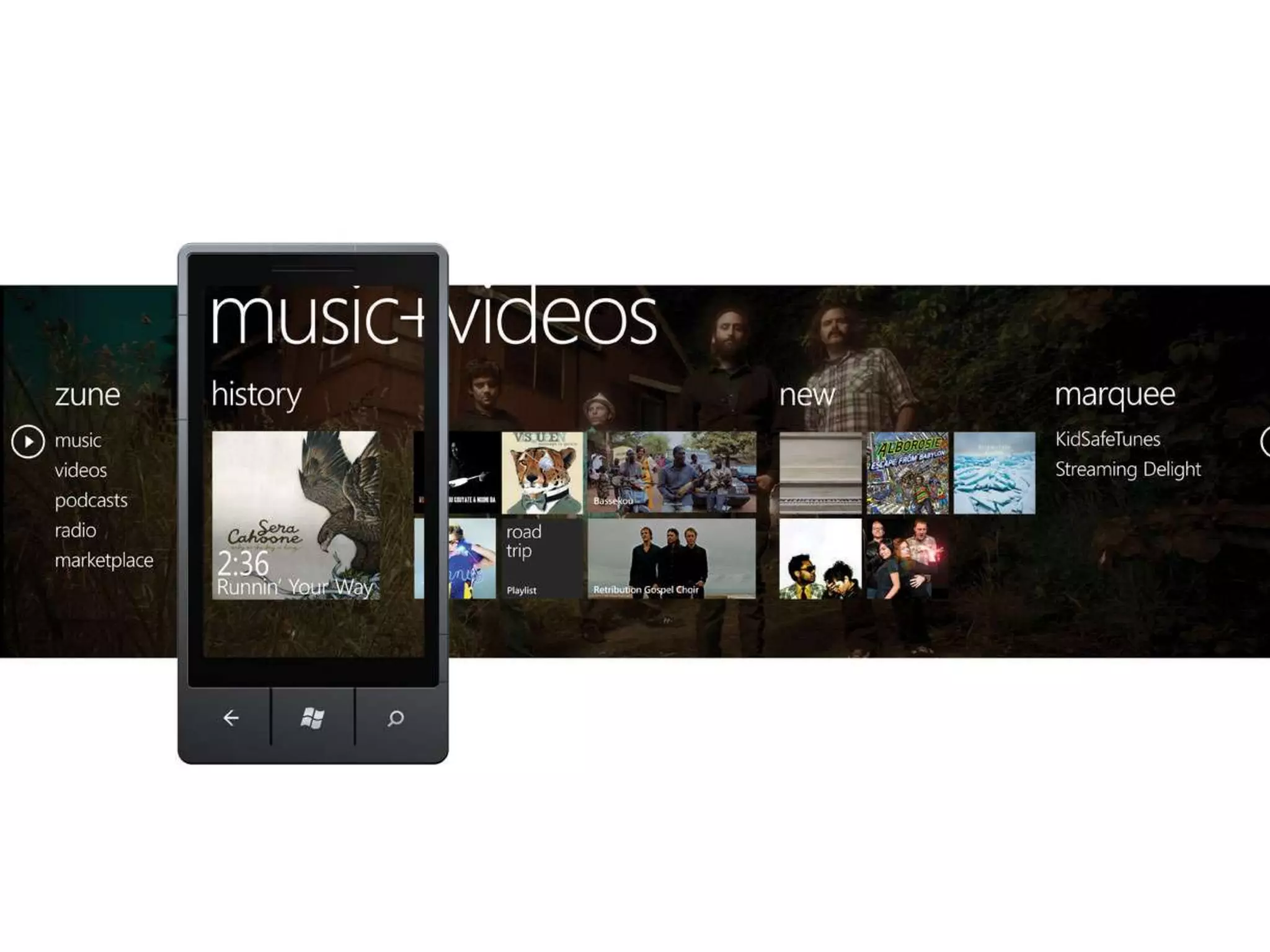

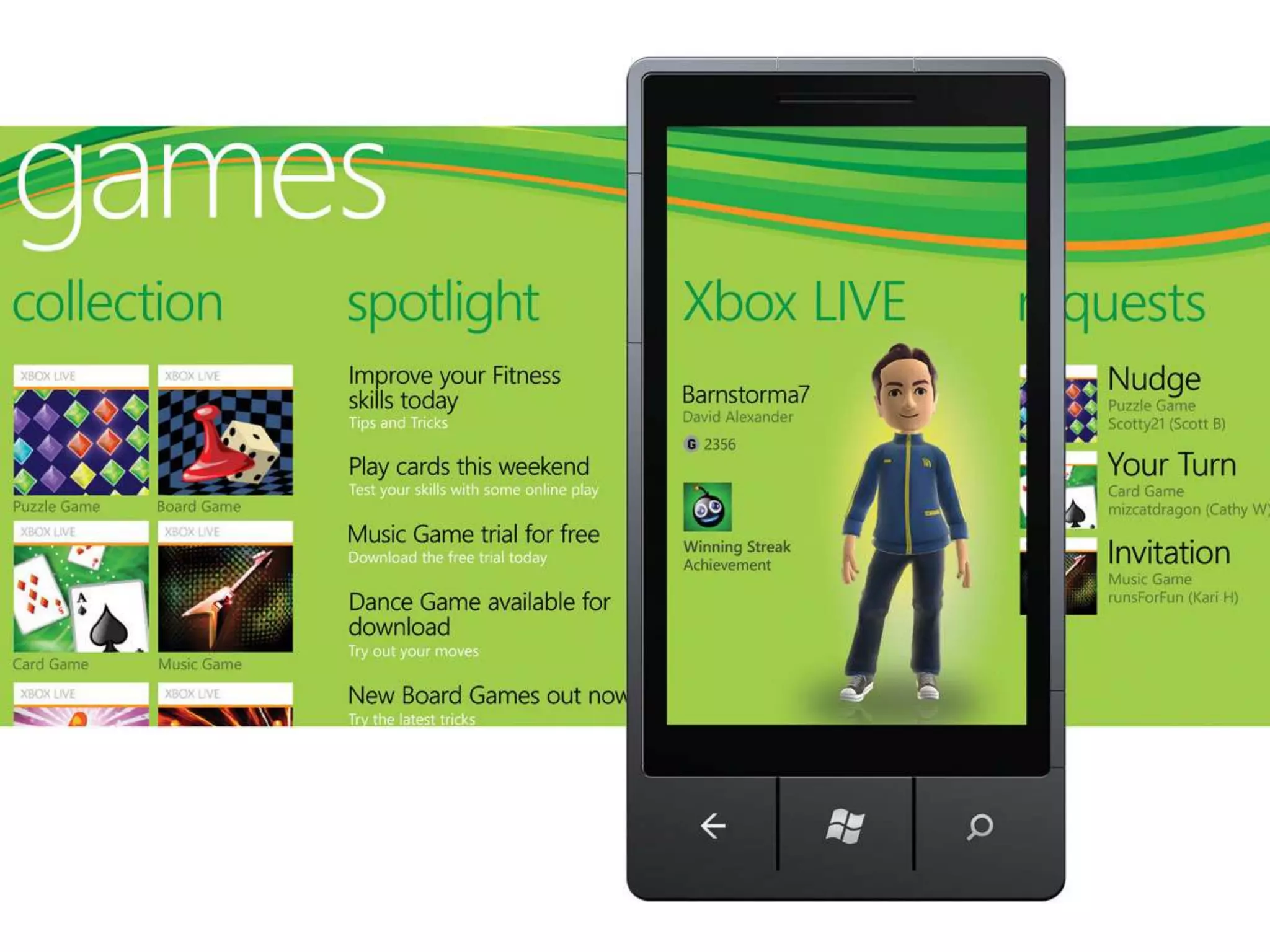

9. METRO DESIGN LANGUAGE

18. PIVOT CONTROL

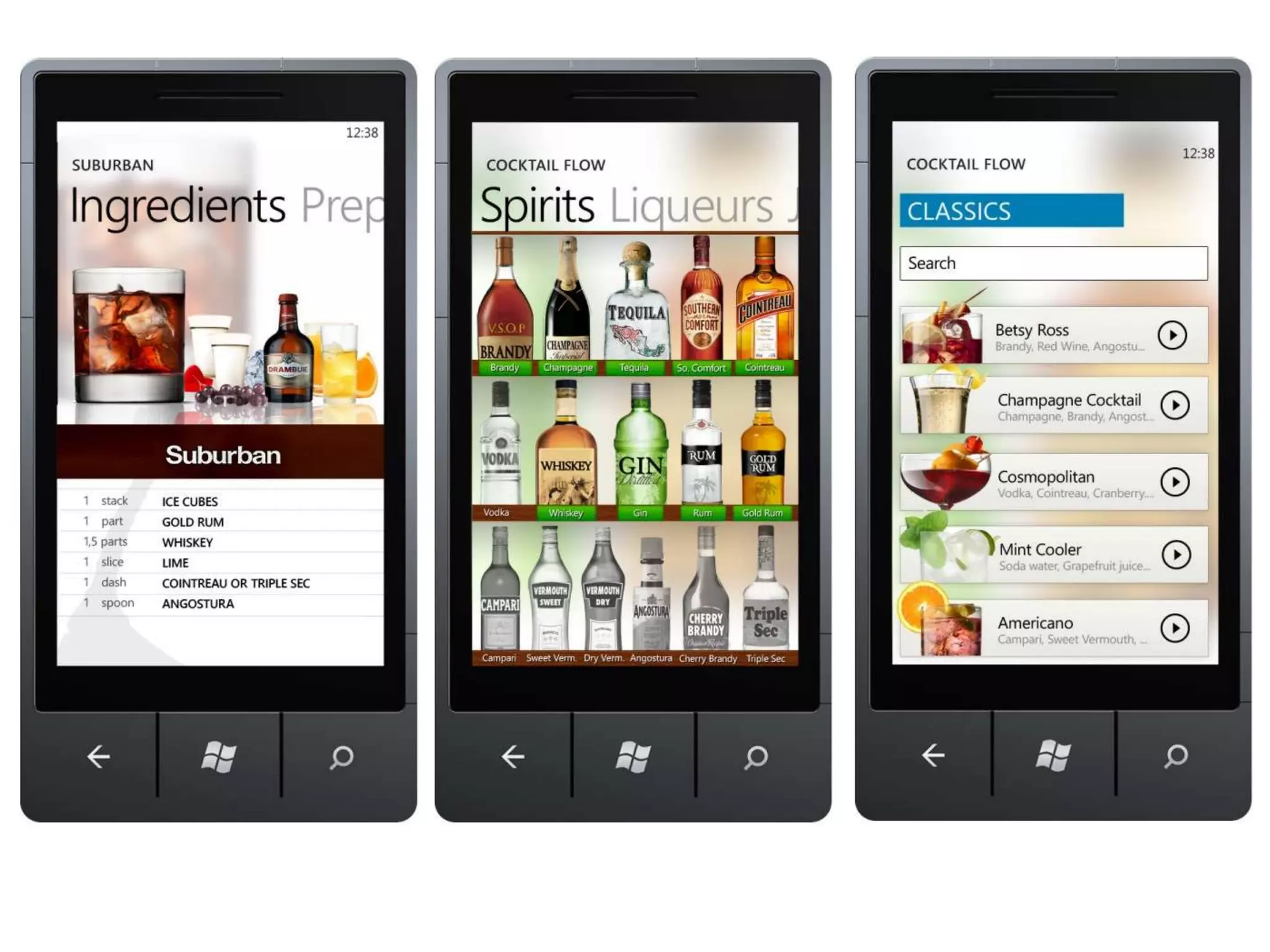

19. HUB CONTROL

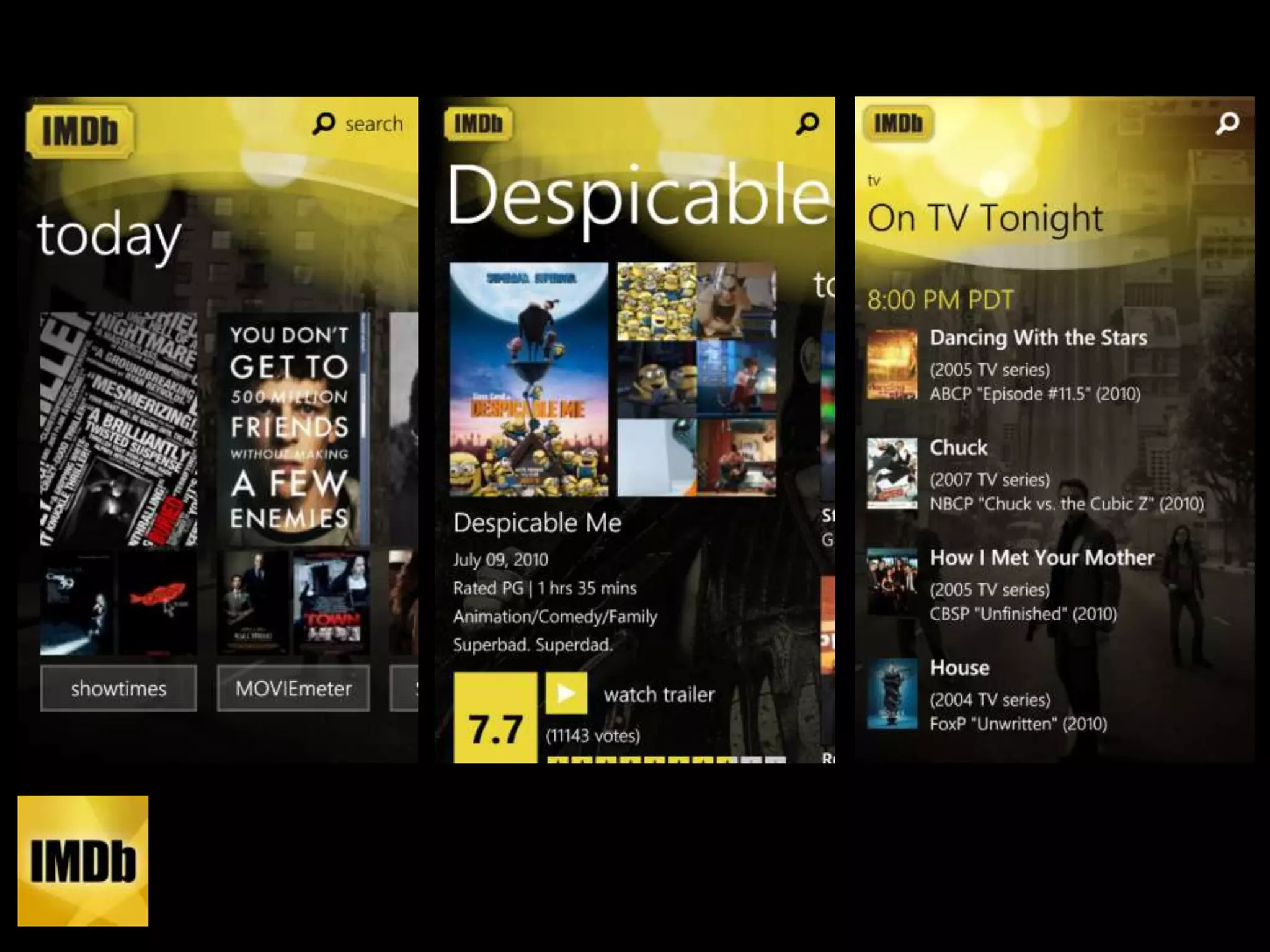

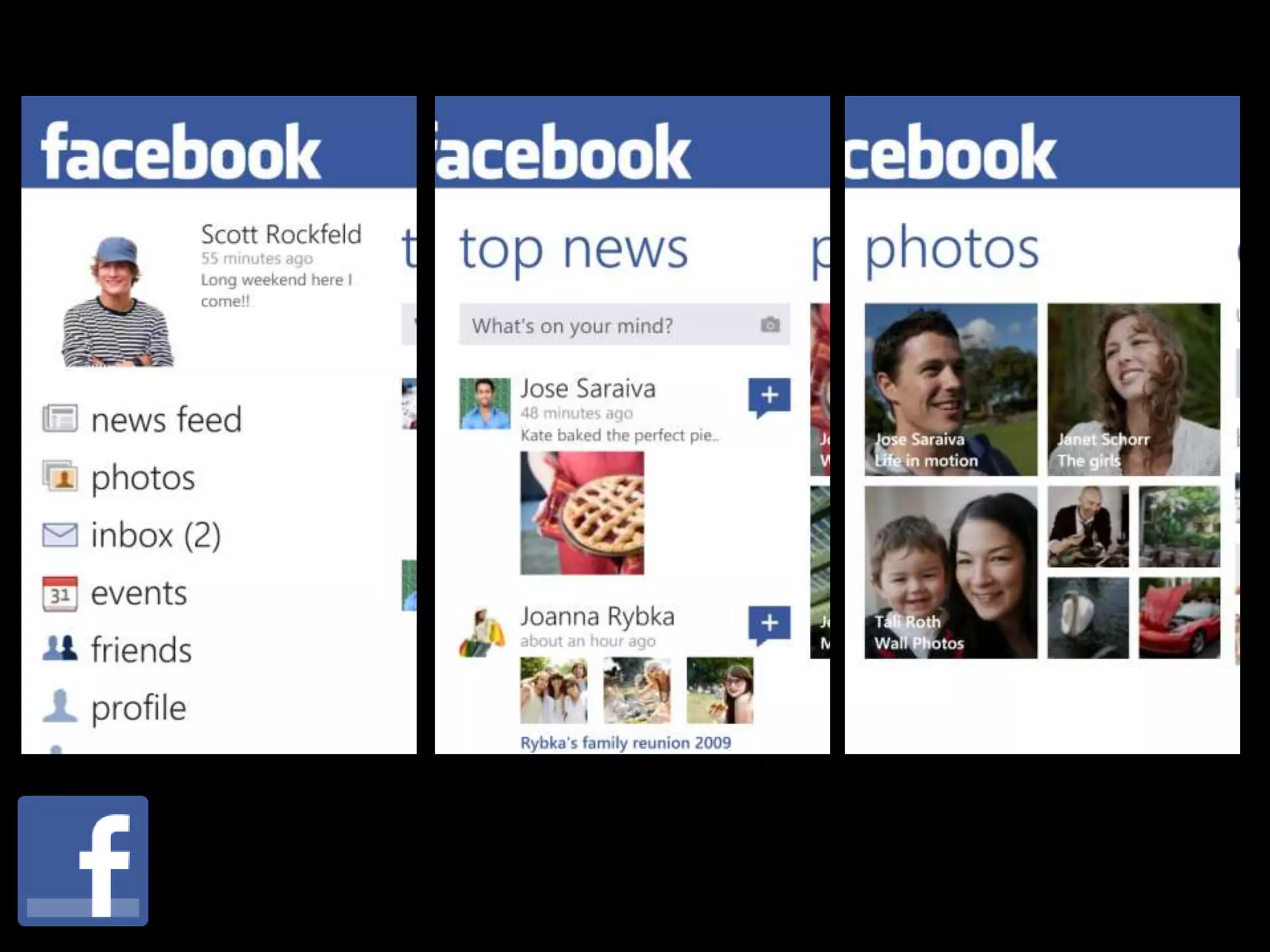

20. BLEND 4DEMO

24. METRO RESOURCESWindows Phone 7 Metro Design UI Book PDF - http://bit.ly/fFPDzw

25. UI Design and Interaction Guide for Windows Phone 7 v2.0 - http://bit.ly/b2SUlh

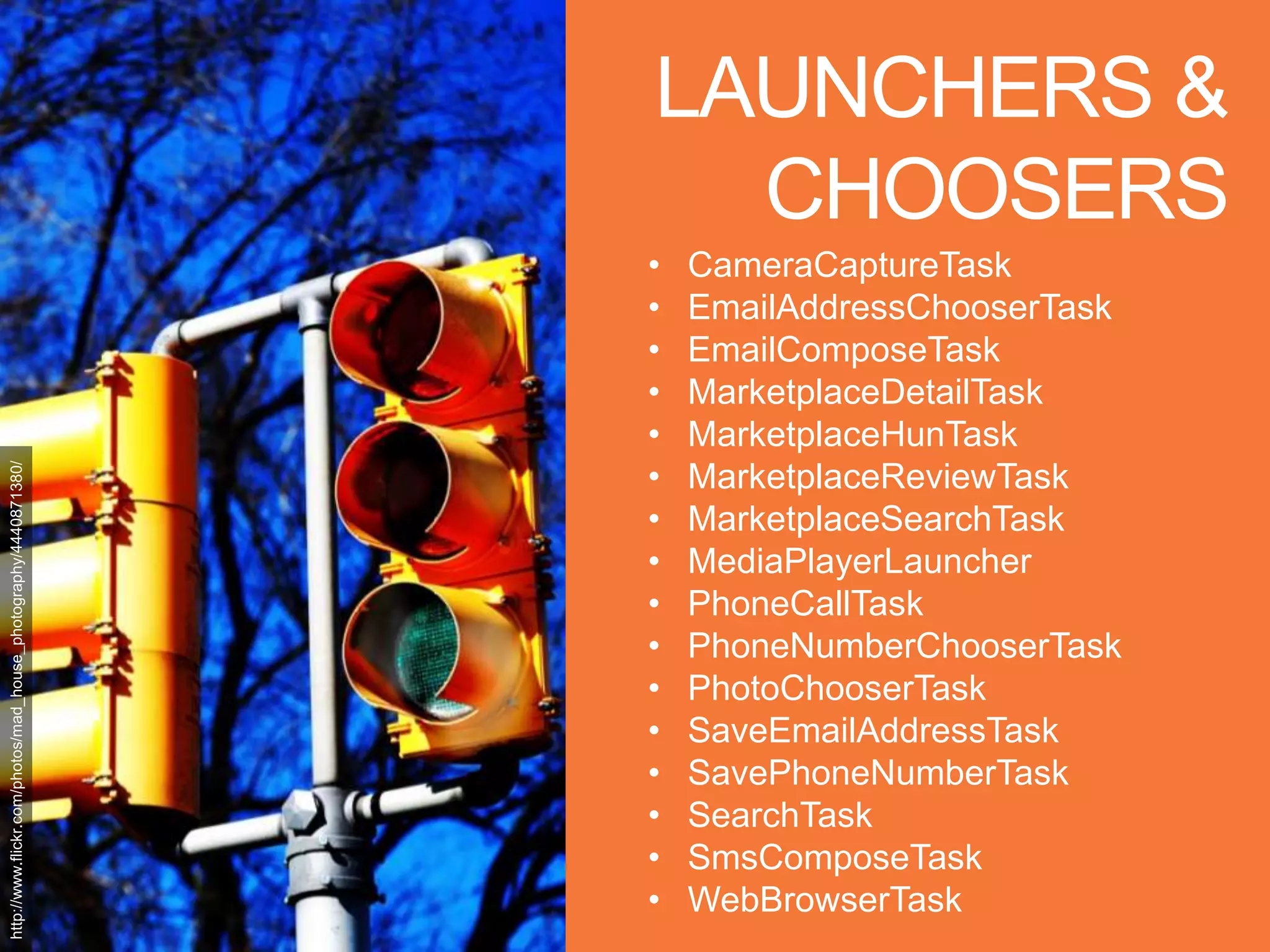

26. Design Templates for Windows Phone 7 - http://bit.ly/cNQO8jLAUNCHERS & CHOOSERSCameraCaptureTask

27. EmailAddressChooserTask

28. EmailComposeTask

29. MarketplaceDetailTask

30. MarketplaceHunTask

31. MarketplaceReviewTask

32. MarketplaceSearchTask

33. MediaPlayerLauncher

34. PhoneCallTask

35. PhoneNumberChooserTask

36. PhotoChooserTask

37. SaveEmailAddressTask

38. SavePhoneNumberTask

39. SearchTask

40. SmsComposeTask

41. WebBrowserTaskhttp://www.flickr.com/photos/mad_house_photography/4440871380/

42. LAUNCH BUILT IN APP WITH SOME DATAhttp://www.flickr.com/photos/28634332@N05/4054766770/

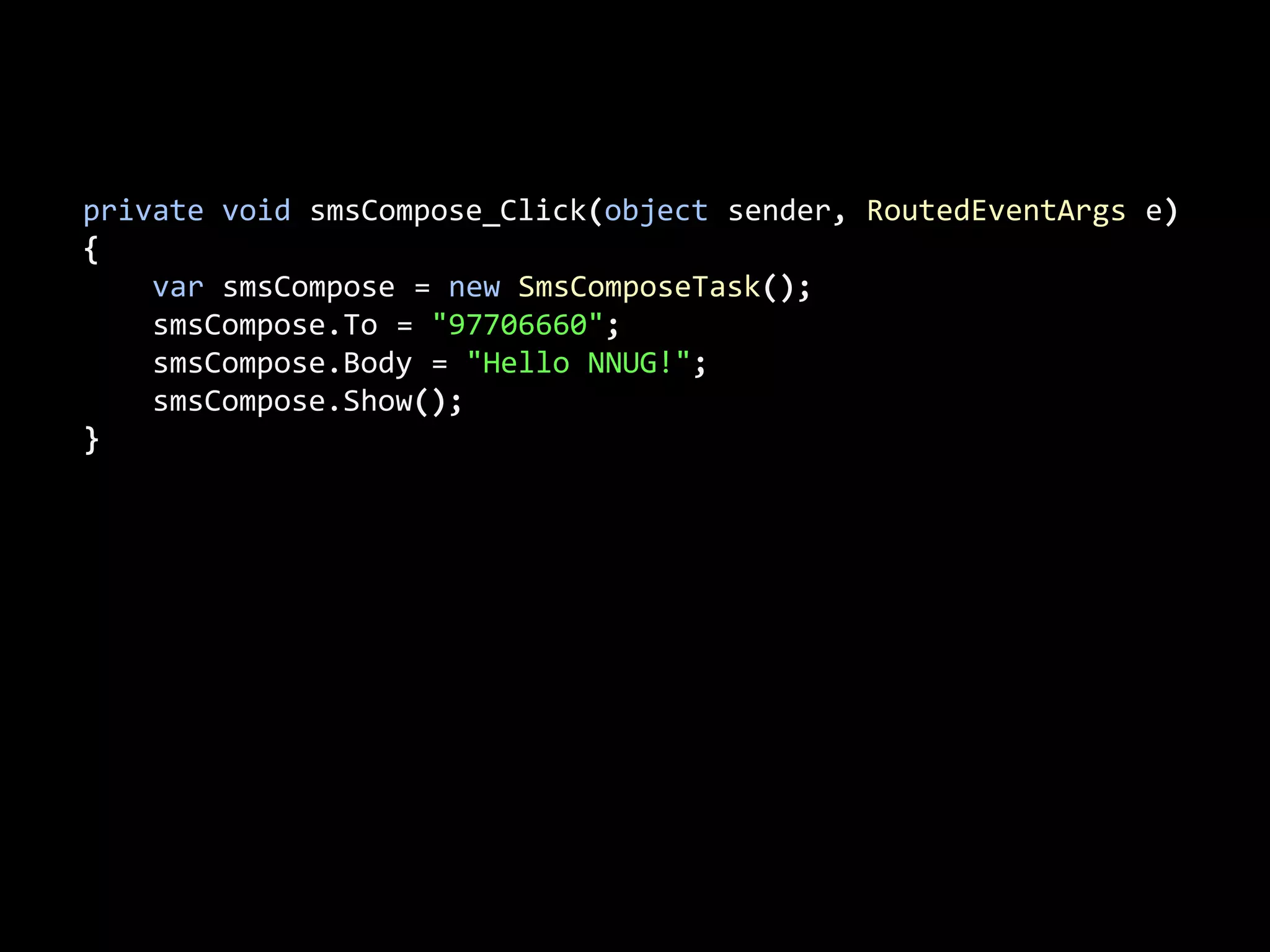

43. privatevoidsmsCompose_Click(objectsender, RoutedEventArgse){varsmsCompose=newSmsComposeTask();smsCompose.To="97706660";smsCompose.Body="Hello NNUG!";smsCompose.Show();}

44. LAUNCH BUILT IN APP TO CHOOSE SOME DATA

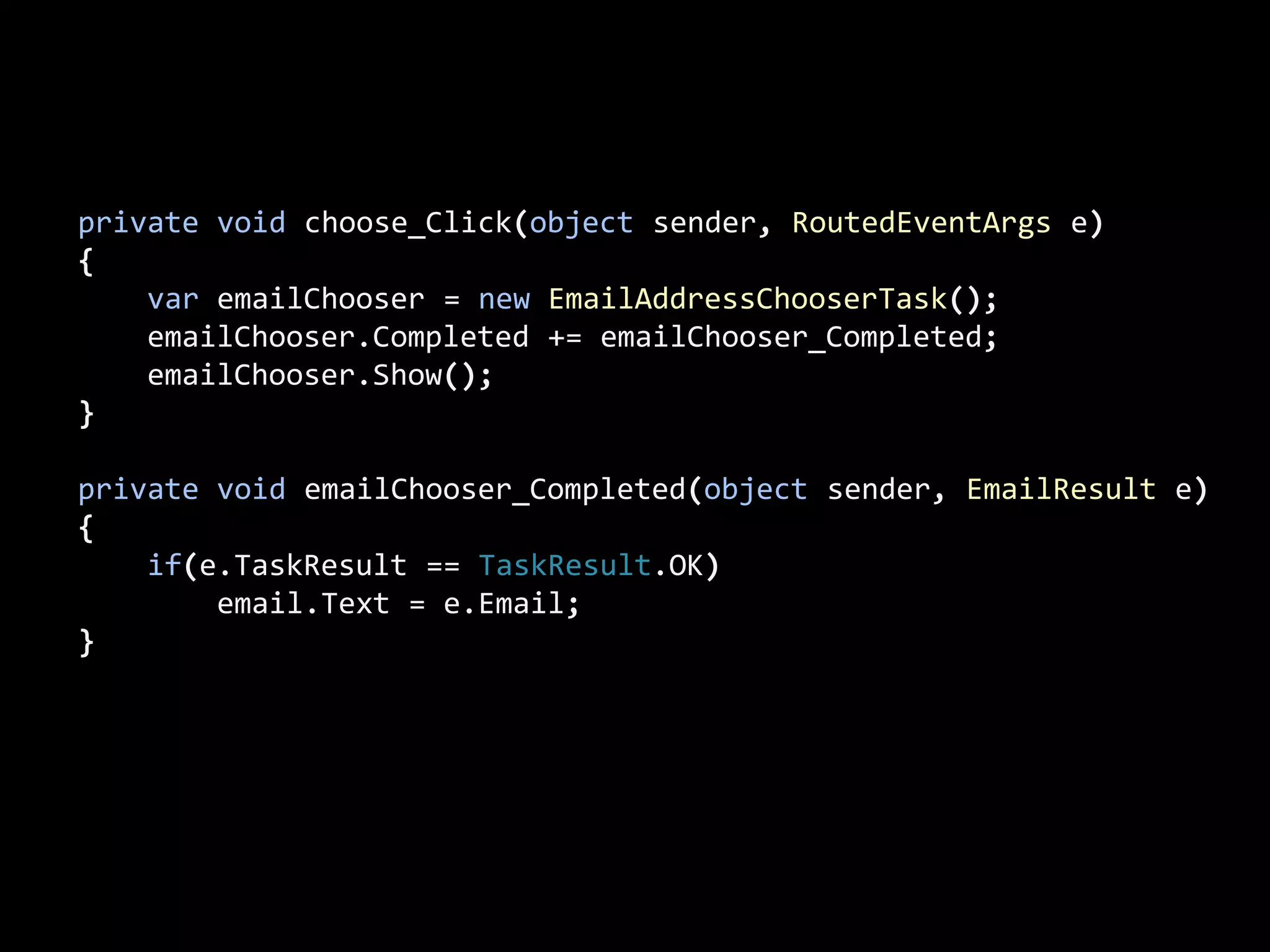

45. privatevoidchoose_Click(objectsender, RoutedEventArgse){varemailChooser=newEmailAddressChooserTask();emailChooser.Completed+=emailChooser_Completed;emailChooser.Show();}privatevoidemailChooser_Completed(objectsender, EmailResulte){if(e.TaskResult==TaskResult.OK)email.Text=e.Email;}

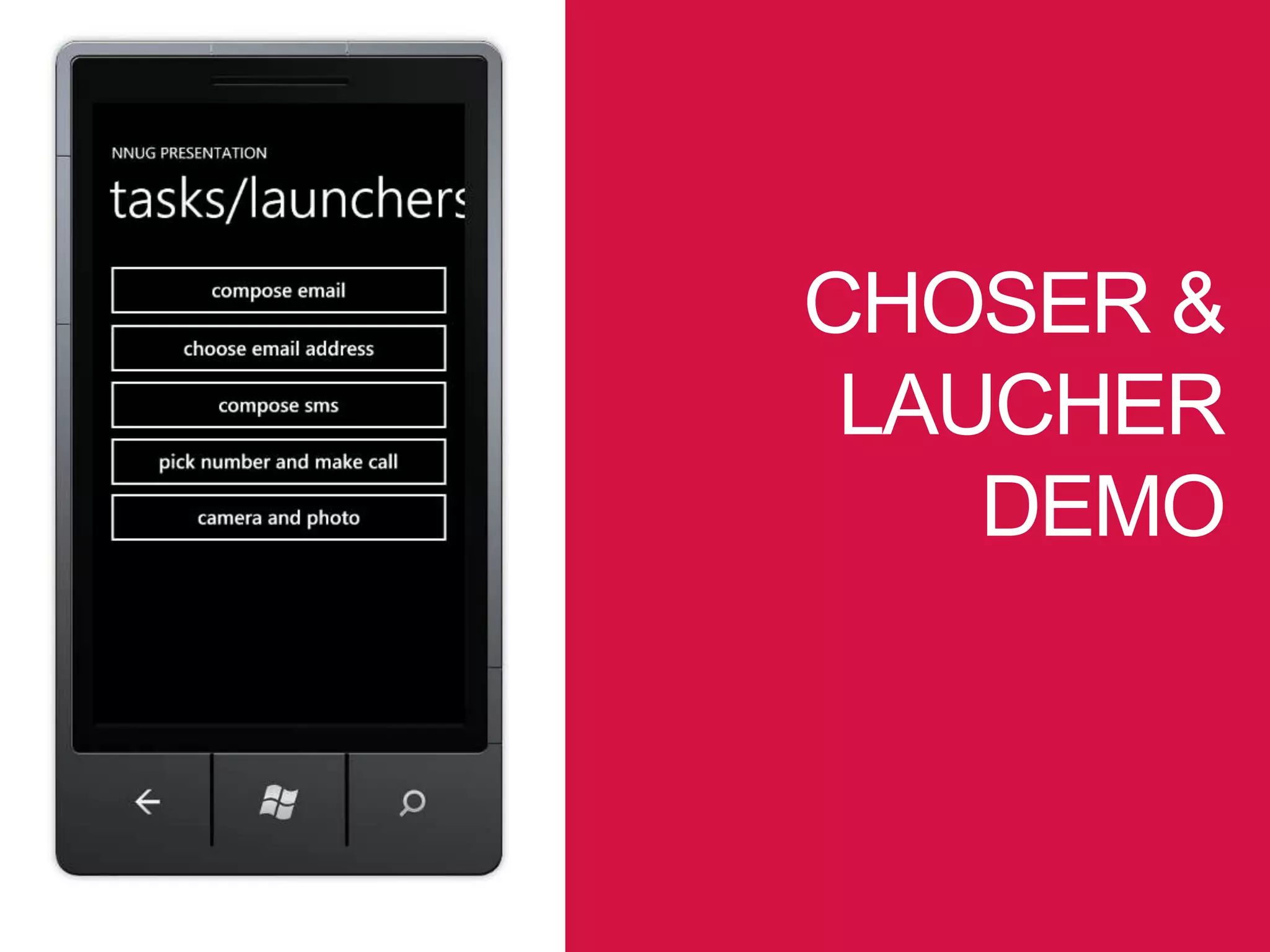

46. CHOSER & LAUCHER DEMO

47. EXECUTION MODEL & TOMBSTONINGhttp://www.flickr.com/photos/9810948@N05/1583506787/

48. NO MULTI TASKINGBUT...http://www.flickr.com/photos/n3ptun3r/3376697490/

49. FAST ACTIVATION & DEACTIVATION GIVES IMPRESSION OF APP RUNNING IN BACKGROUNDhttp://www.flickr.com/photos/cirox/363284194/

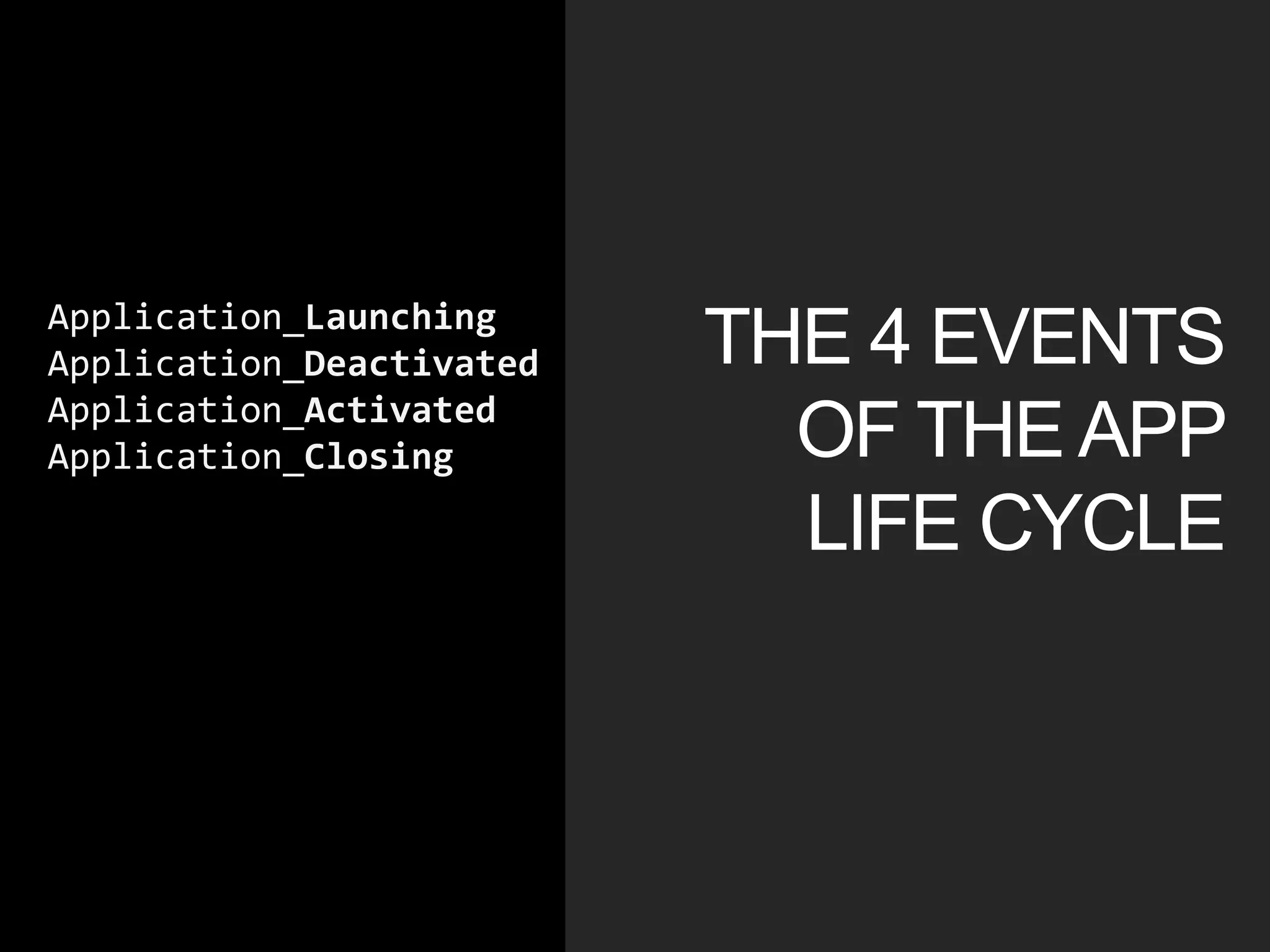

50. THE 4 EVENTS OF THE APP LIFE CYCLEApplication_LaunchingApplication_DeactivatedApplication_ActivatedApplication_Closing

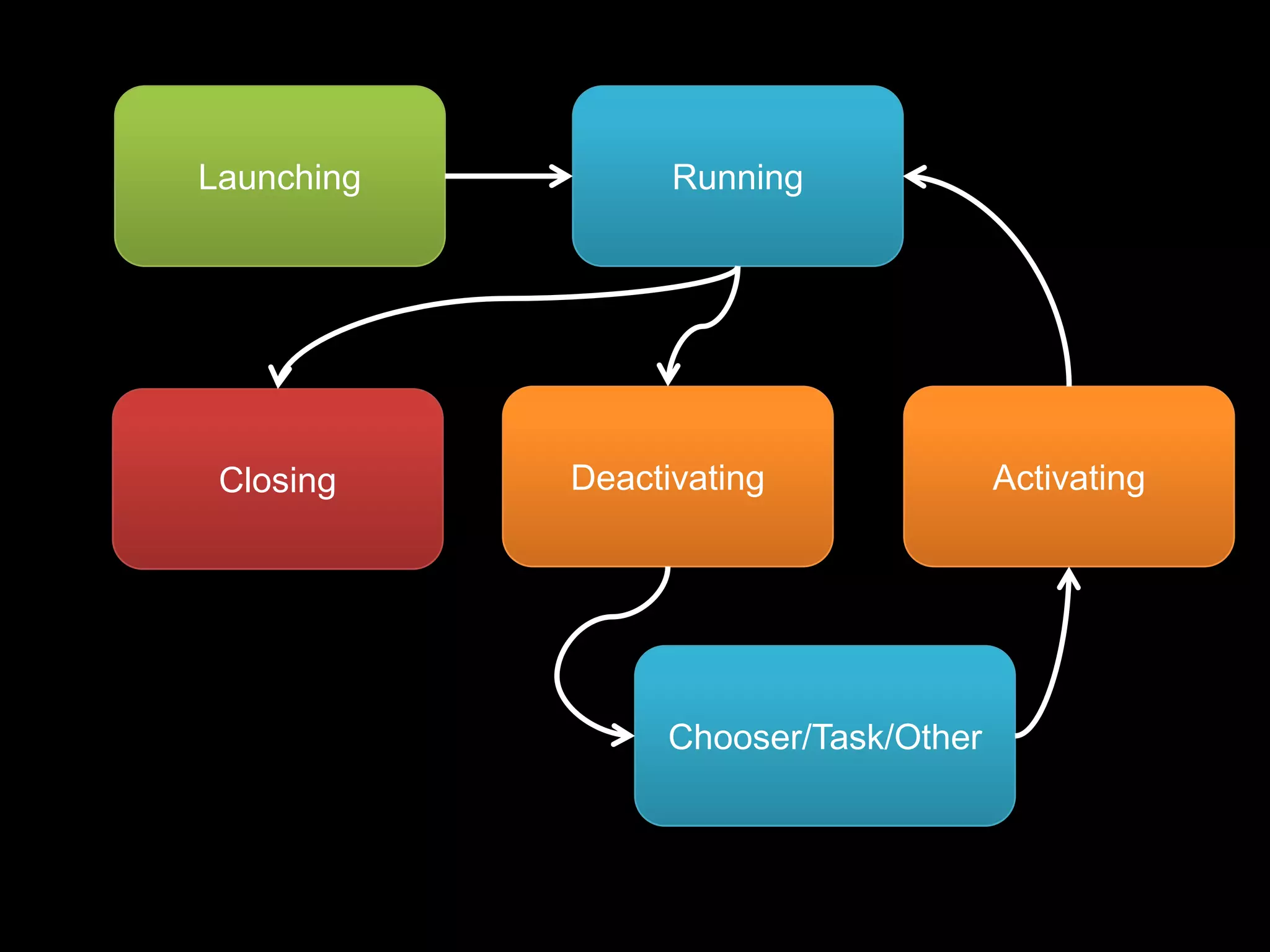

51. LaunchingRunningDeactivatingActivatingClosingChooser/Task/Other

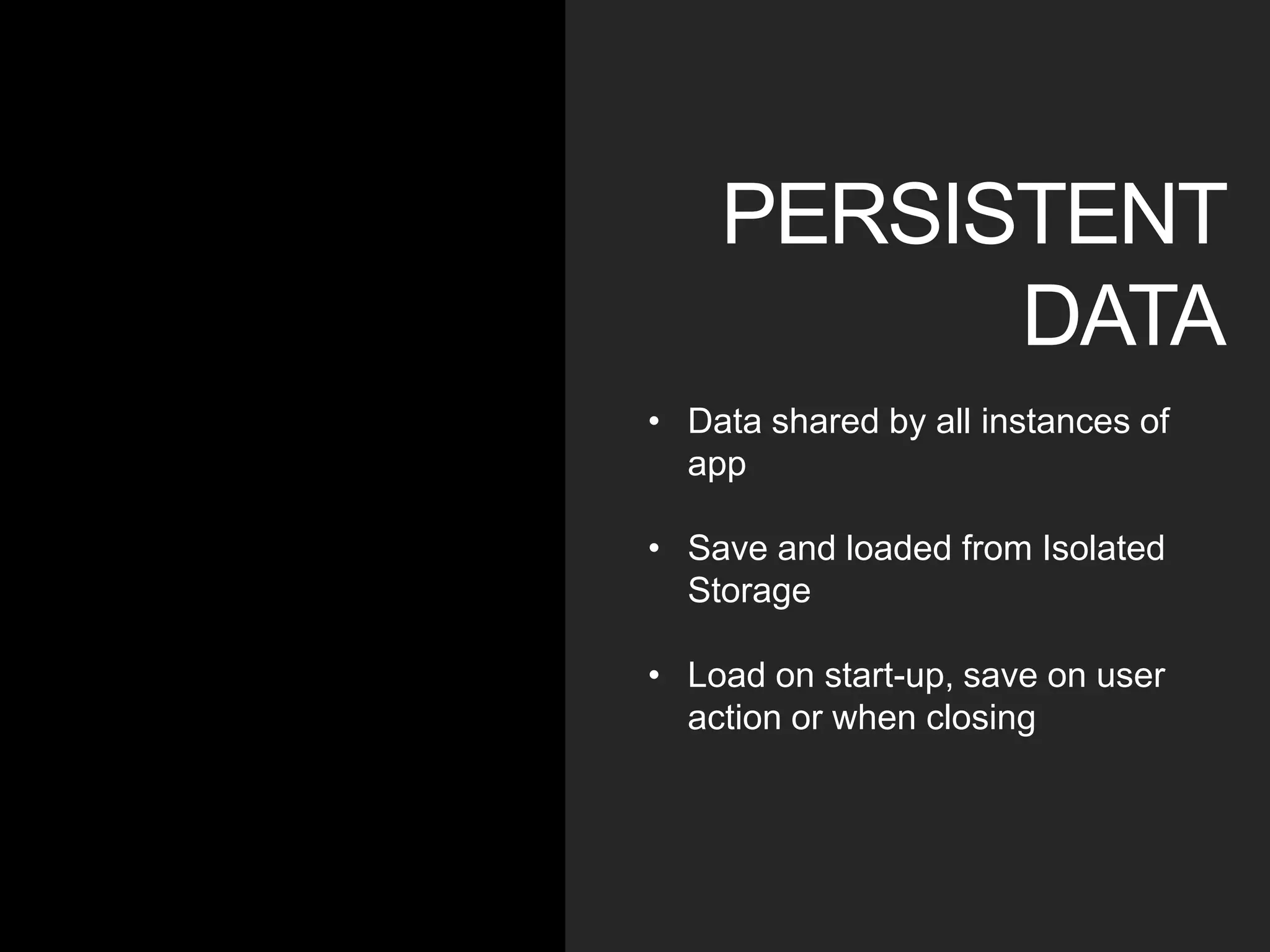

52. PERSISTENT DATAData shared by all instances of app

53. Save and loaded from Isolated Storage

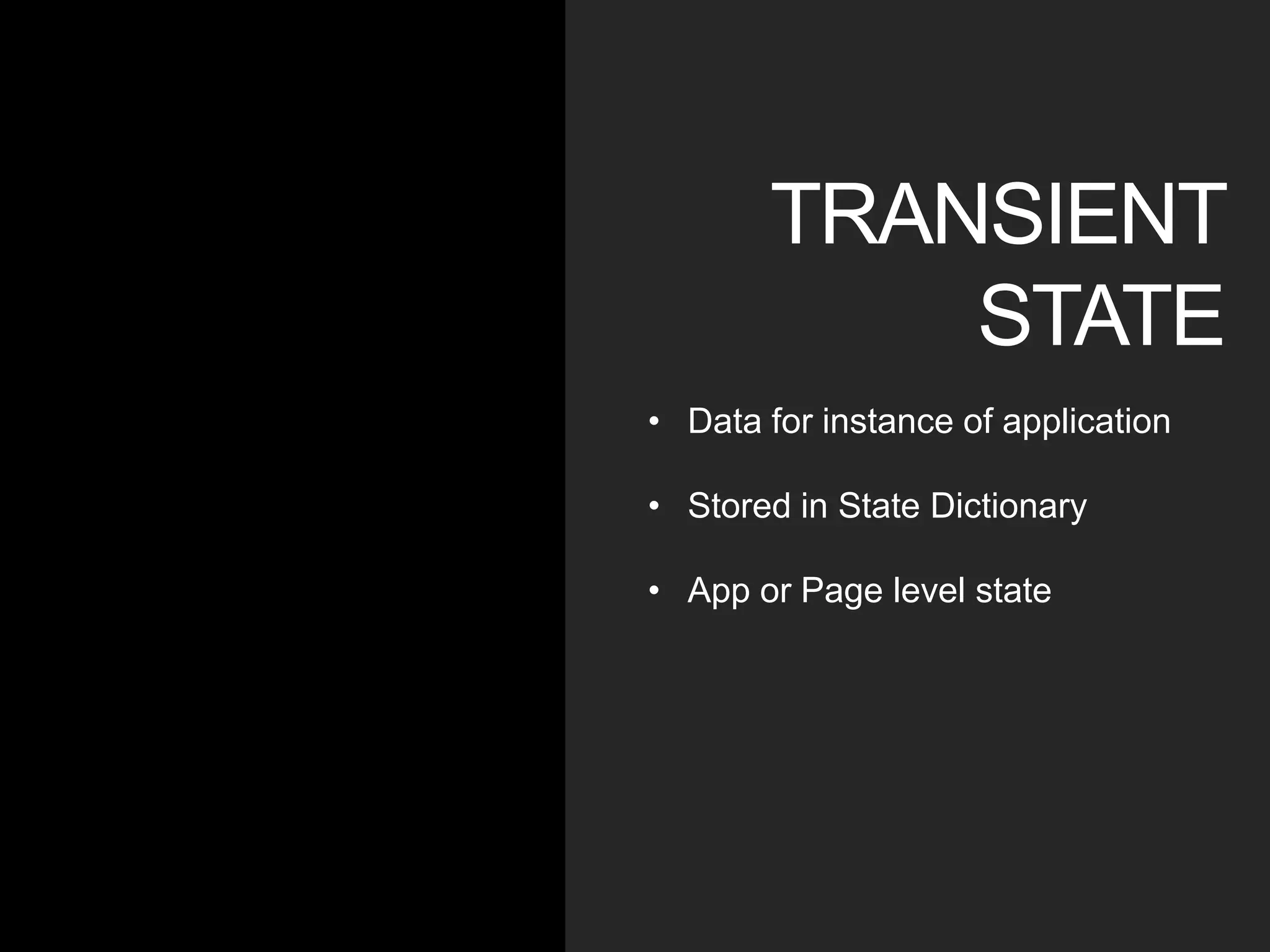

54. Load on start-up, save on user action or when closingTRANSIENT STATEData for instance of application

55. Stored in State Dictionary

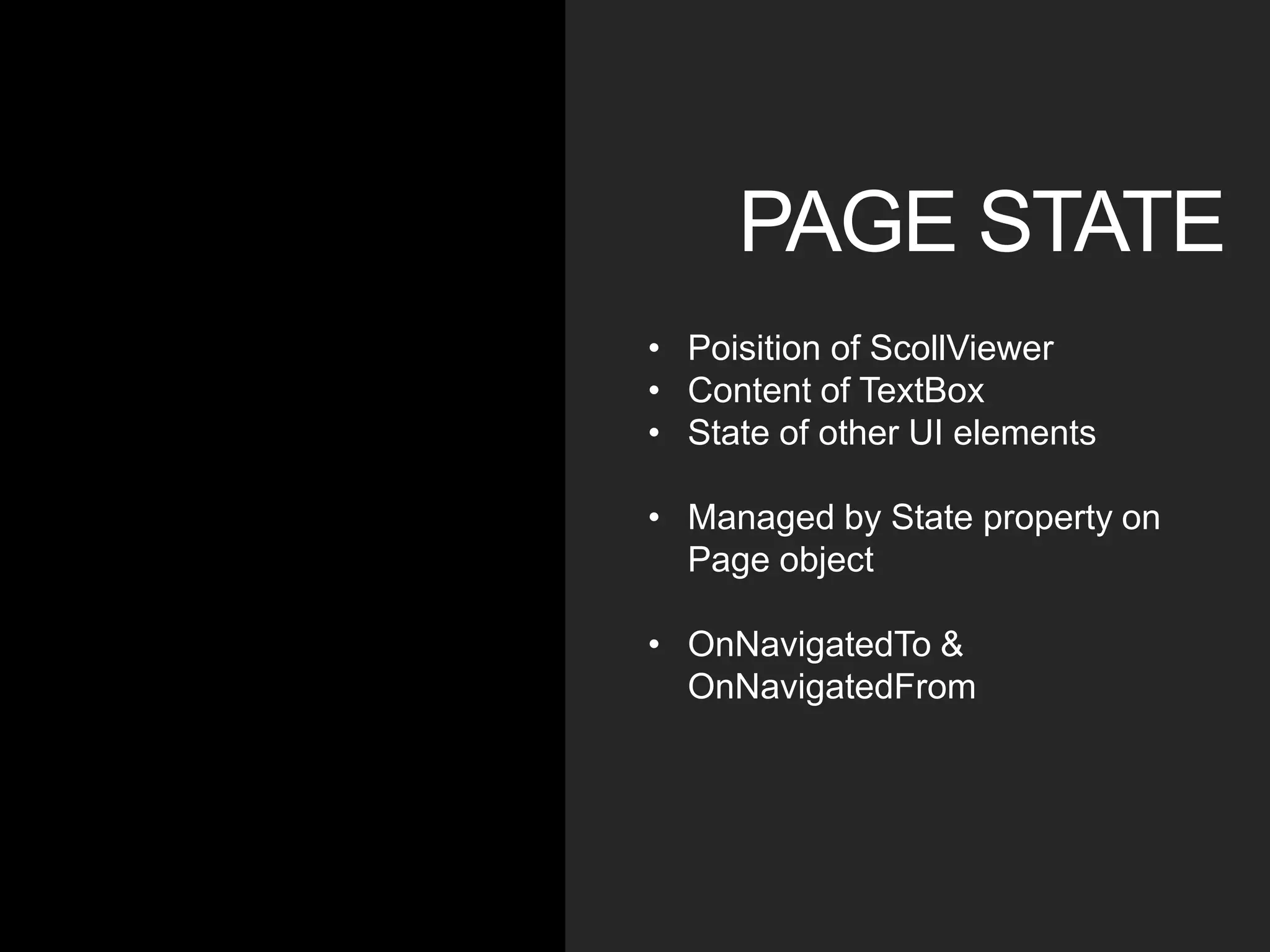

56. App or Page level statePAGE STATEPoisition of ScollViewer

57. Content of TextBox

58. State of other UI elements

59. Managed by State property on Page object

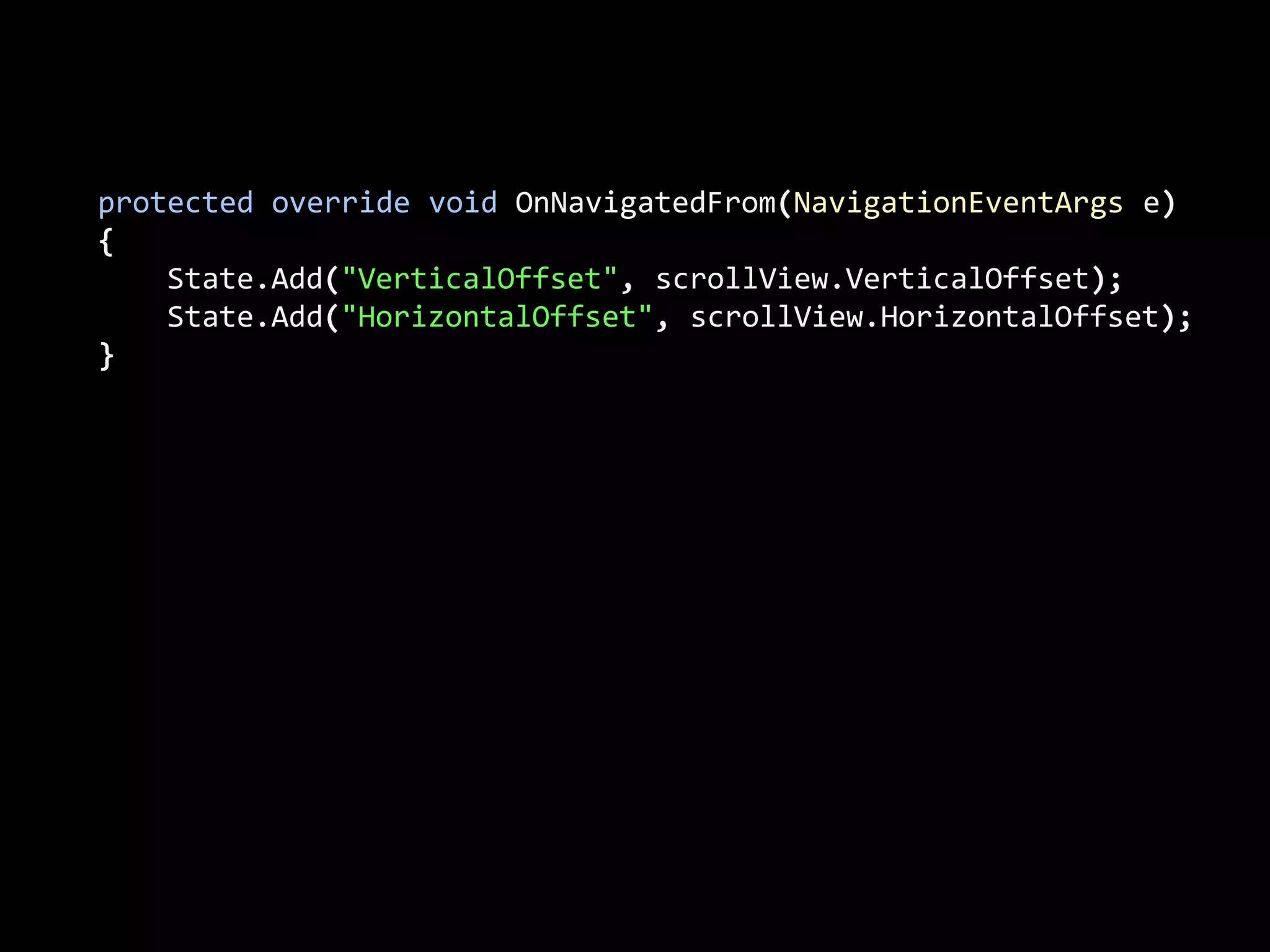

60. OnNavigatedTo & OnNavigatedFromprotectedoverridevoidOnNavigatedFrom(NavigationEventArgse){State.Add("VerticalOffset", scrollView.VerticalOffset);State.Add("HorizontalOffset", scrollView.HorizontalOffset);}

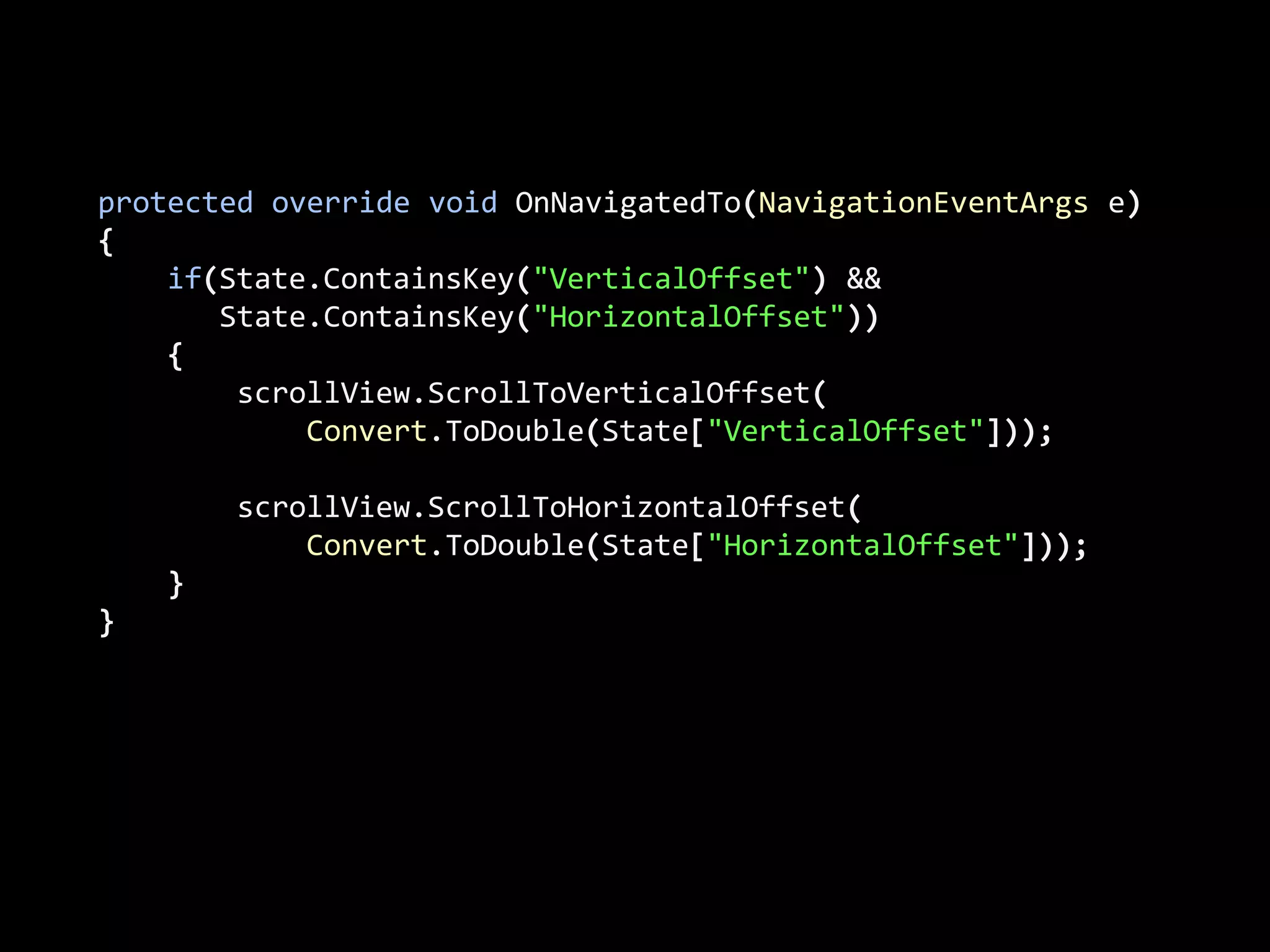

61. protectedoverridevoidOnNavigatedTo(NavigationEventArgse){if(State.ContainsKey("VerticalOffset") &&State.ContainsKey("HorizontalOffset")) {scrollView.ScrollToVerticalOffset(Convert.ToDouble(State["VerticalOffset"]));scrollView.ScrollToHorizontalOffset(Convert.ToDouble(State["HorizontalOffset"])); }}

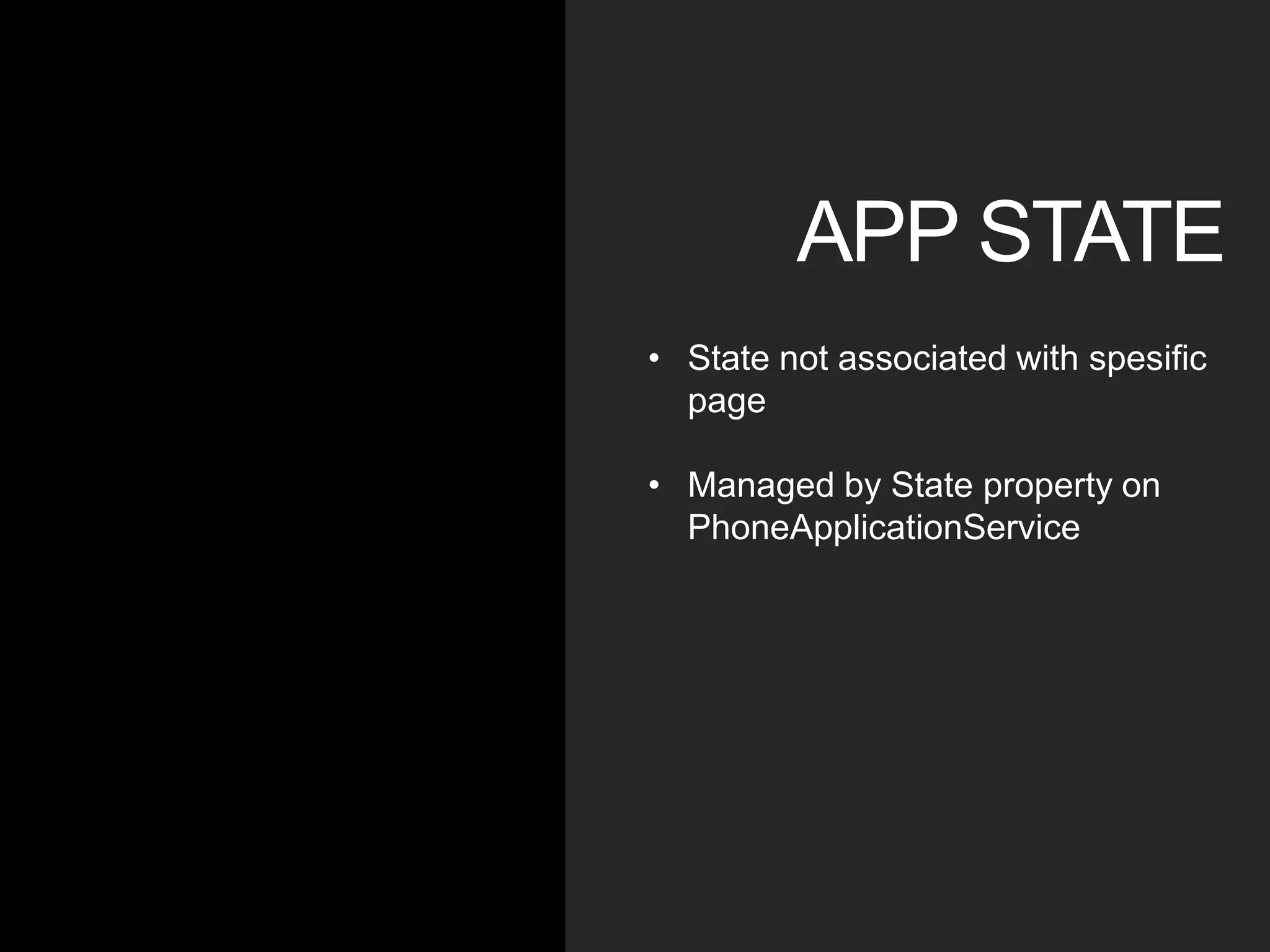

62. APP STATEState not associated with spesific page

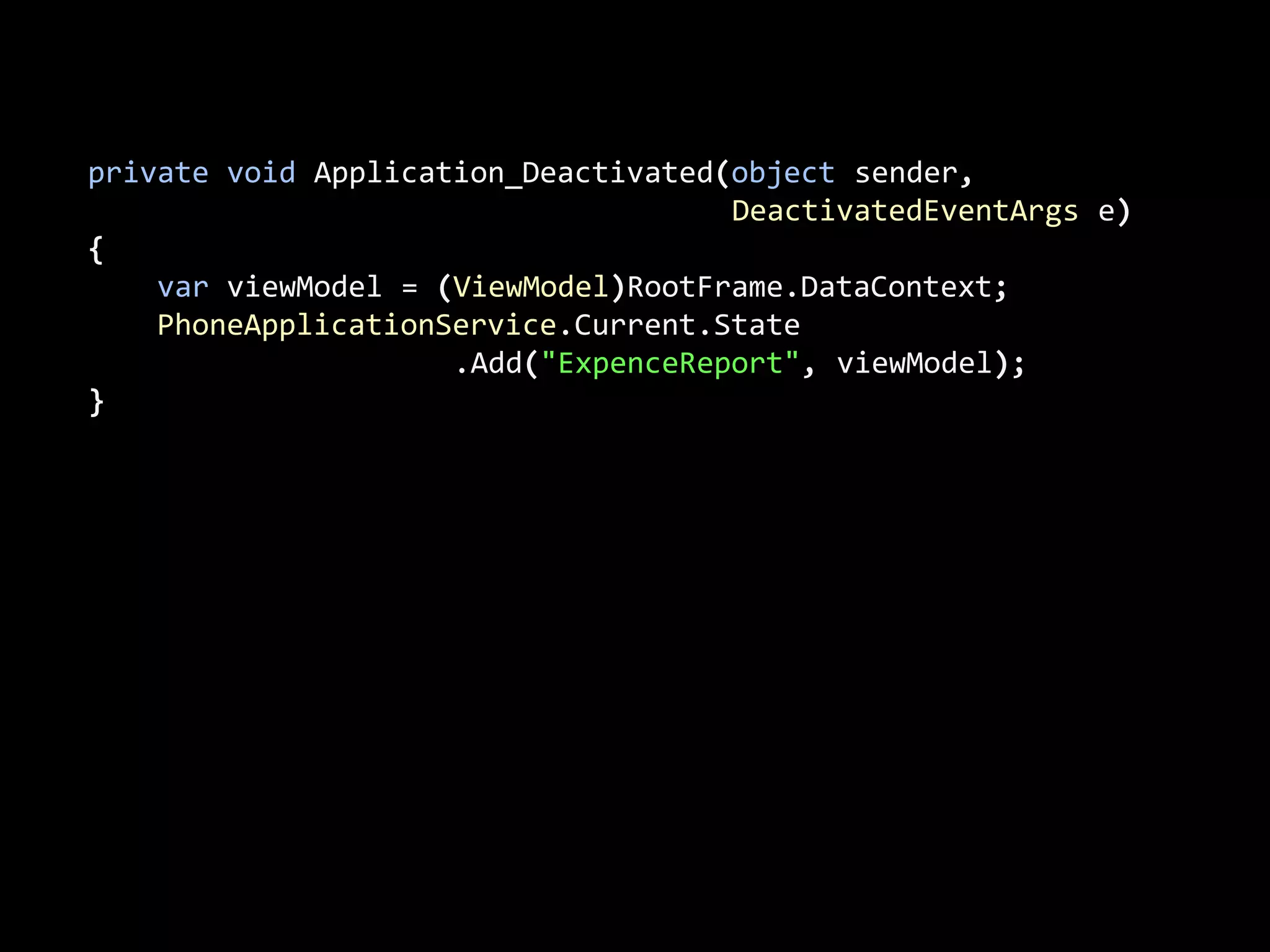

63. Managed by State property on PhoneApplicationServiceprivatevoidApplication_Deactivated(objectsender, DeactivatedEventArgse){varviewModel= (ViewModel)RootFrame.DataContext; PhoneApplicationService.Current.State .Add("ExpenceReport", viewModel);}

64. privatevoidApplication_Launching(objectsender, LaunchingEventArgse){ if(StorageHelper.FileExists("ExpenceReport.xml")) {varviewModel=StorageHelper.Load<ViewModel>("ExpenceReport.xml");viewModel.IsDirty=false;RootFrame.DataContext=viewModel; }else {RootFrame.DataContext=newViewModel(); }}

65. APP MODEL DEMOhttp://www.flickr.com/photos/n3ptun3r/3376697490/

66. LaunchingRunningDeactivatingActivatingClosingChooser/Task/Other

67. PUSH NOTIFICATIONS WHEN APP IS NOT RUNNING

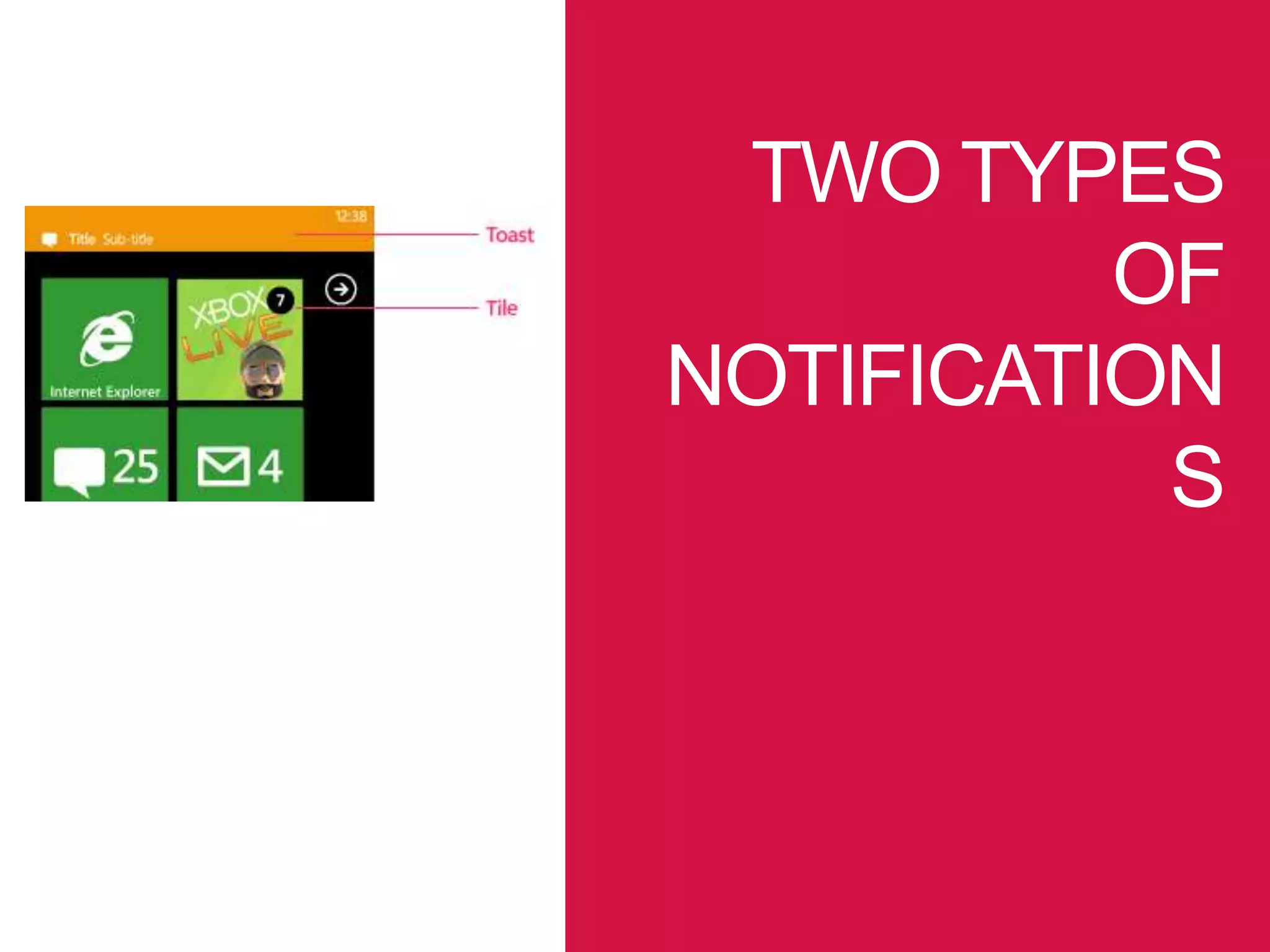

68. TWO TYPES OF NOTIFICATIONS

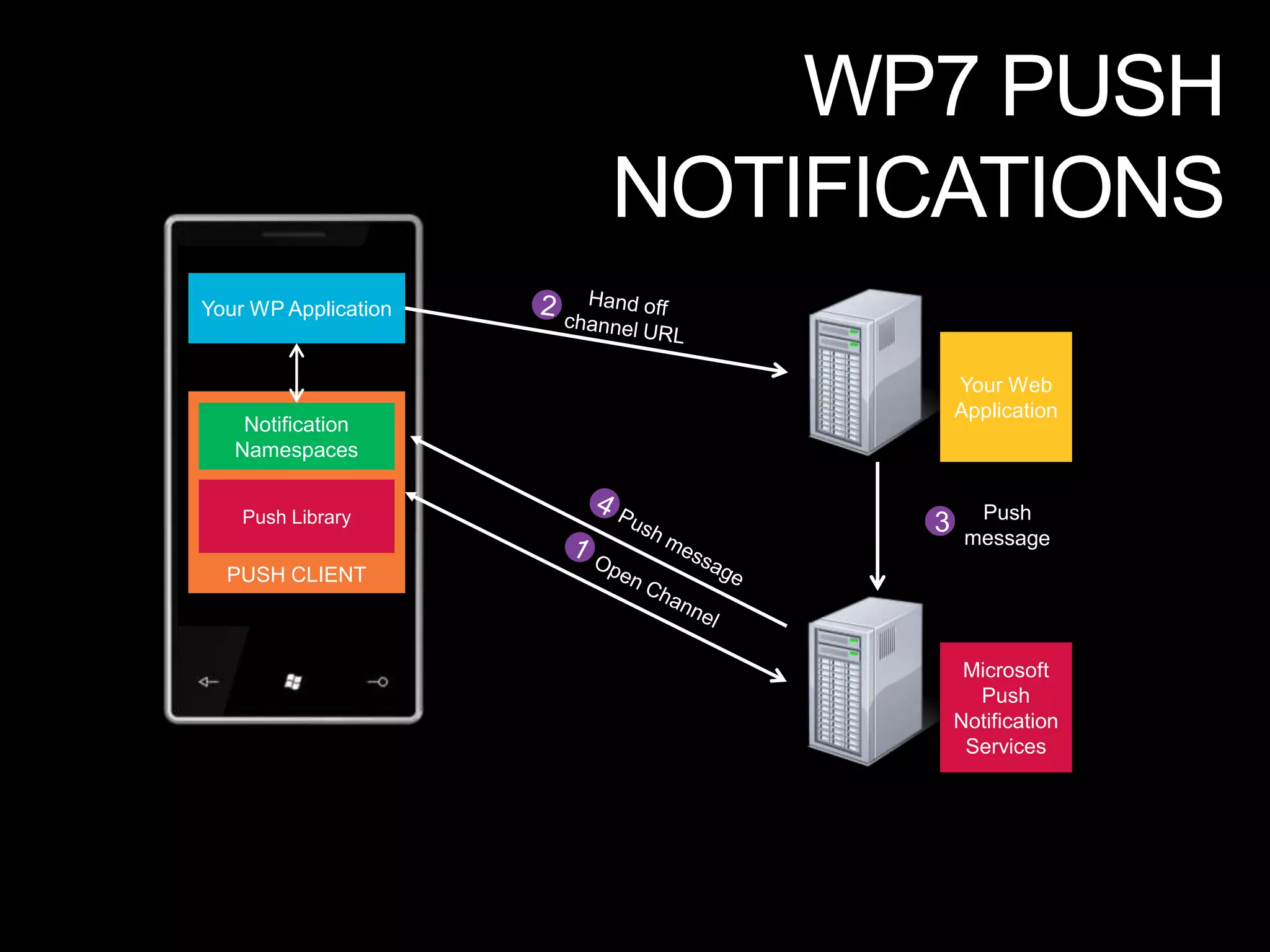

69. WP7 PUSH NOTIFICATIONSYour WP ApplicationHand off channel URL2Your Web ApplicationPUSH CLIENTNotification NamespacesPush Library4Pushmessage3Push message1Open ChannelMicrosoft Push Notification Services

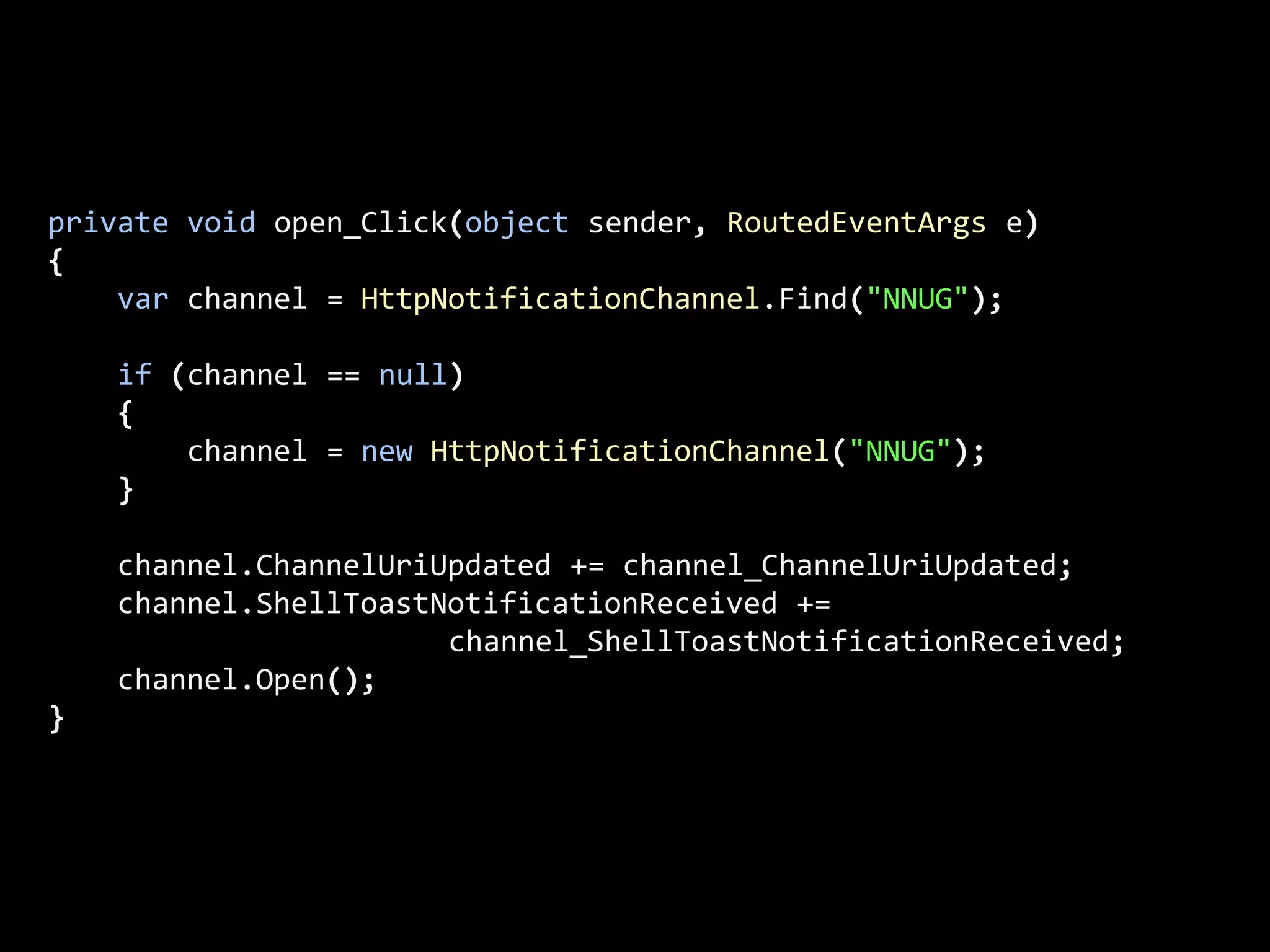

70. privatevoidopen_Click(objectsender, RoutedEventArgse){varchannel=HttpNotificationChannel.Find("NNUG");if (channel==null) {channel=newHttpNotificationChannel("NNUG"); }channel.ChannelUriUpdated+=channel_ChannelUriUpdated;channel.ShellToastNotificationReceived+=channel_ShellToastNotificationReceived;channel.Open();}

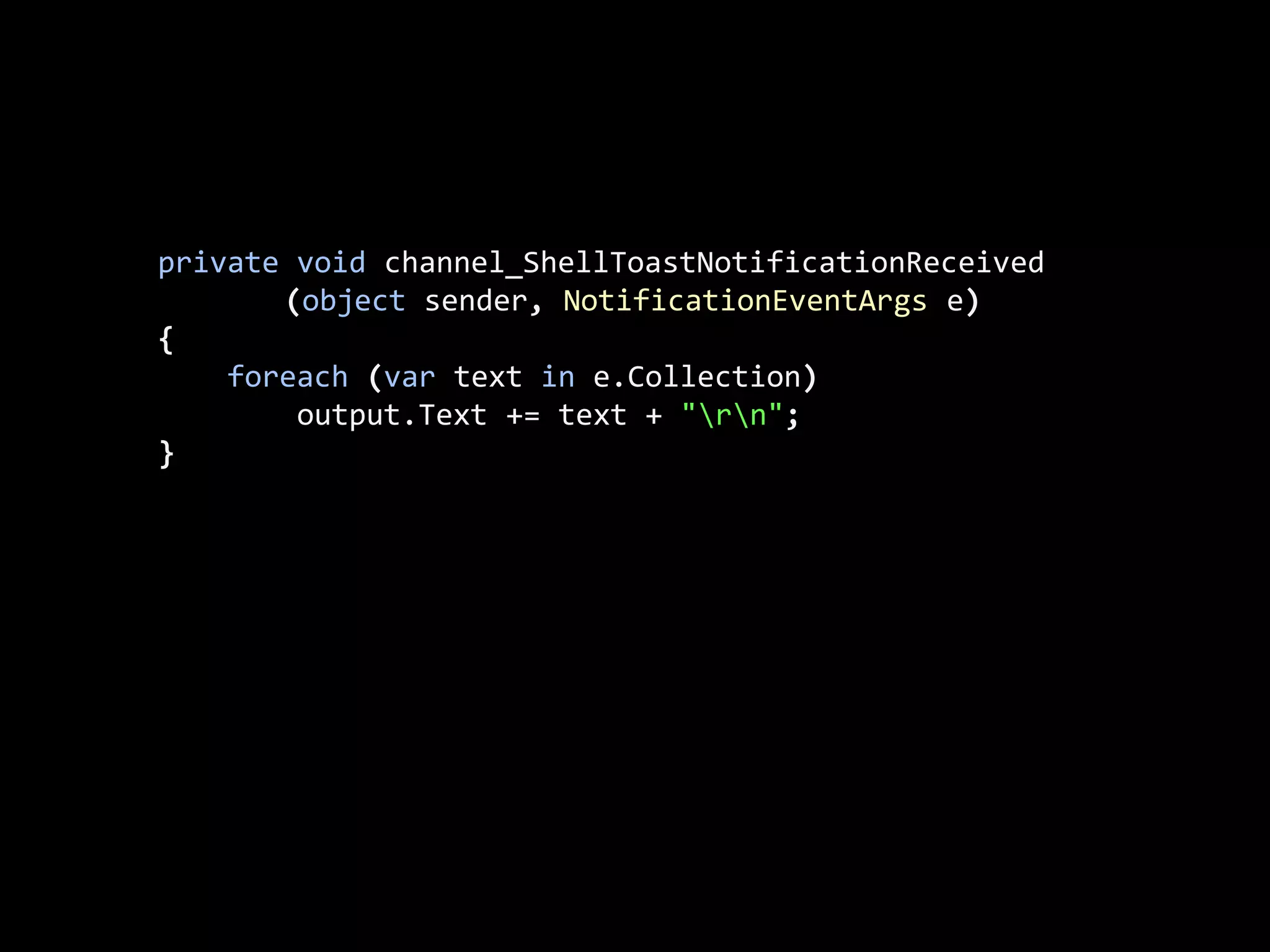

71. privatevoidchannel_ShellToastNotificationReceived(objectsender, NotificationEventArgse){foreach (vartextine.Collection)output.Text+=text+"\r\n";}

72. PUSH NOTIFICATIONS FOR TILES

73. PUSH NOTIFICATIONS DEMOhttp://www.flickr.com/photos/kozloski/2306510520/

74. ISOLATED STORAGEFOR SIMPLE DATA STORAGE

75. NOSQL?NO PROBLEM!

76. ISOLATED STORAGEDEMOhttp://www.flickr.com/photos/omarrun/4672531253/in/photostream

77. ACCELEROMETERhttp://www.flickr.com/photos/howzey/2880455762/

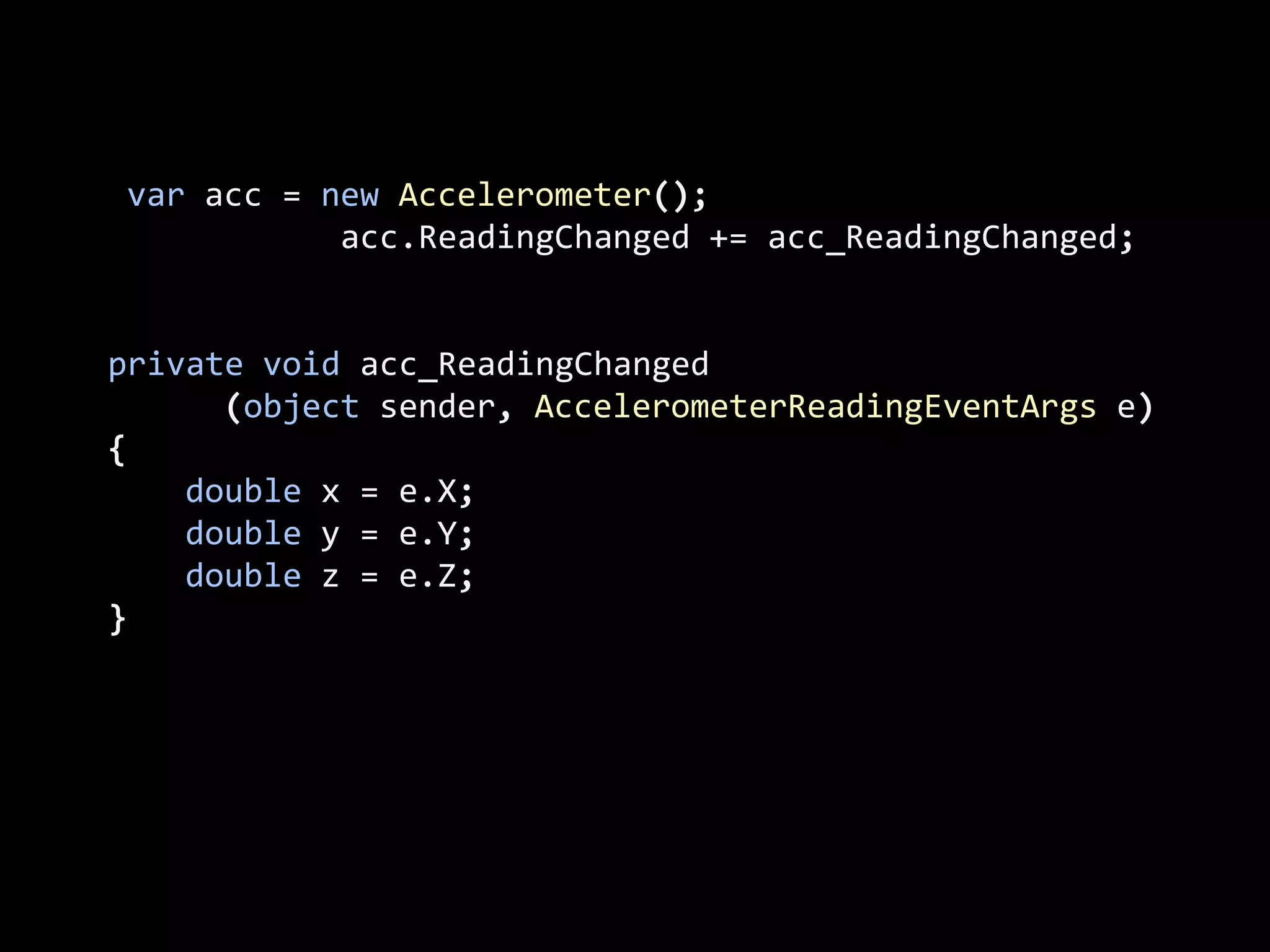

78. varacc=newAccelerometer();acc.ReadingChanged+=acc_ReadingChanged;privatevoidacc_ReadingChanged (objectsender, AccelerometerReadingEventArgse){doublex=e.X;doubley=e.Y;doublez=e.Z;}

79. LOCATION AWARENESSIS KEY WHEN ON THE GO

80. SAME API IN .NET 4 & WP7http://www.flickr.com/photos/photograham/198324031/

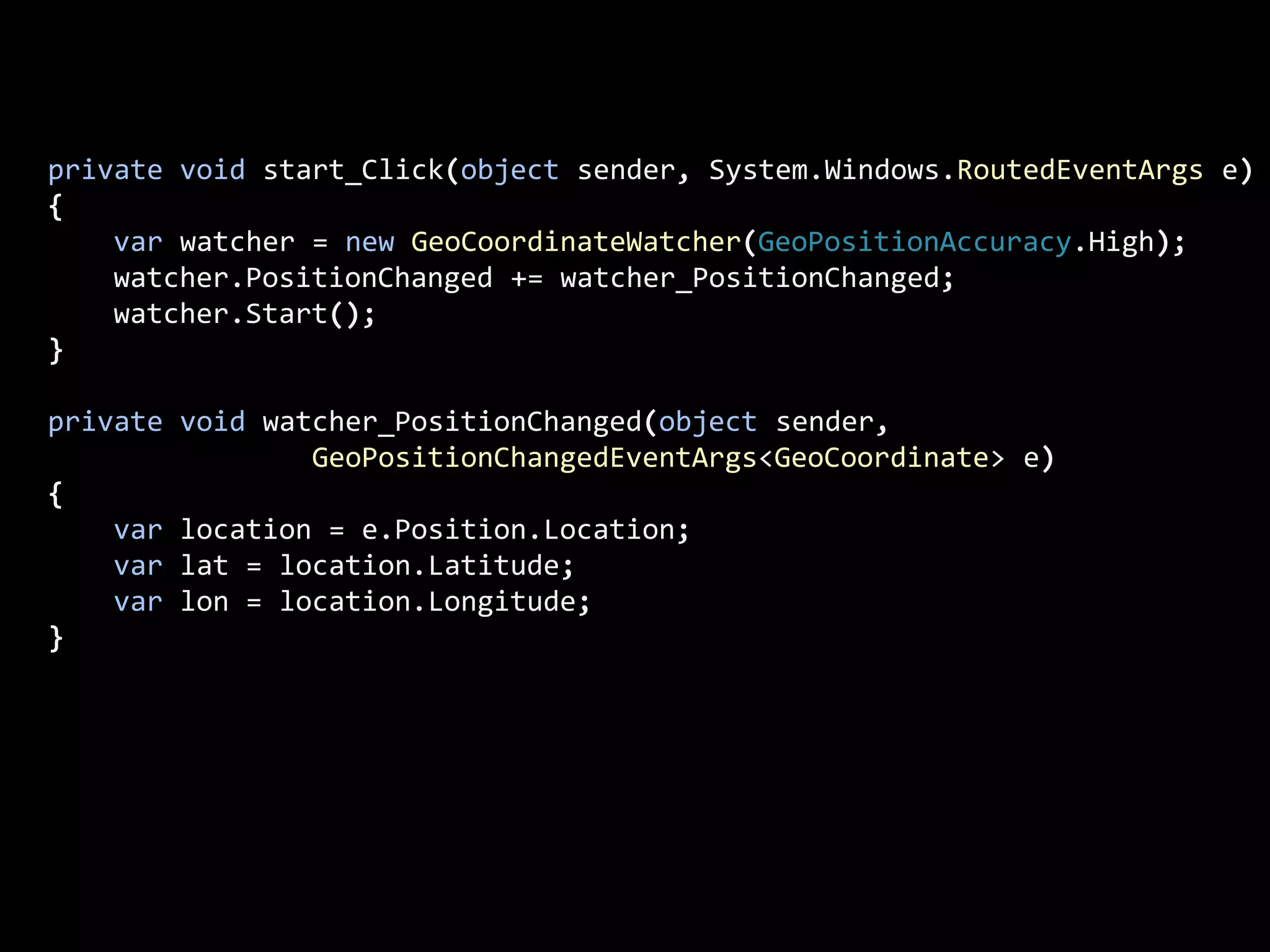

81. privatevoidstart_Click(objectsender, System.Windows.RoutedEventArgse){varwatcher=newGeoCoordinateWatcher(GeoPositionAccuracy.High);watcher.PositionChanged+=watcher_PositionChanged;watcher.Start();}privatevoidwatcher_PositionChanged(objectsender, GeoPositionChangedEventArgs<GeoCoordinate>e){varlocation=e.Position.Location;varlat=location.Latitude;varlon=location.Longitude;}

82. TDD FUNDAMENTALPRACTICEhttp://www.flickr.com/photos/mad_house_photography/4440871380/

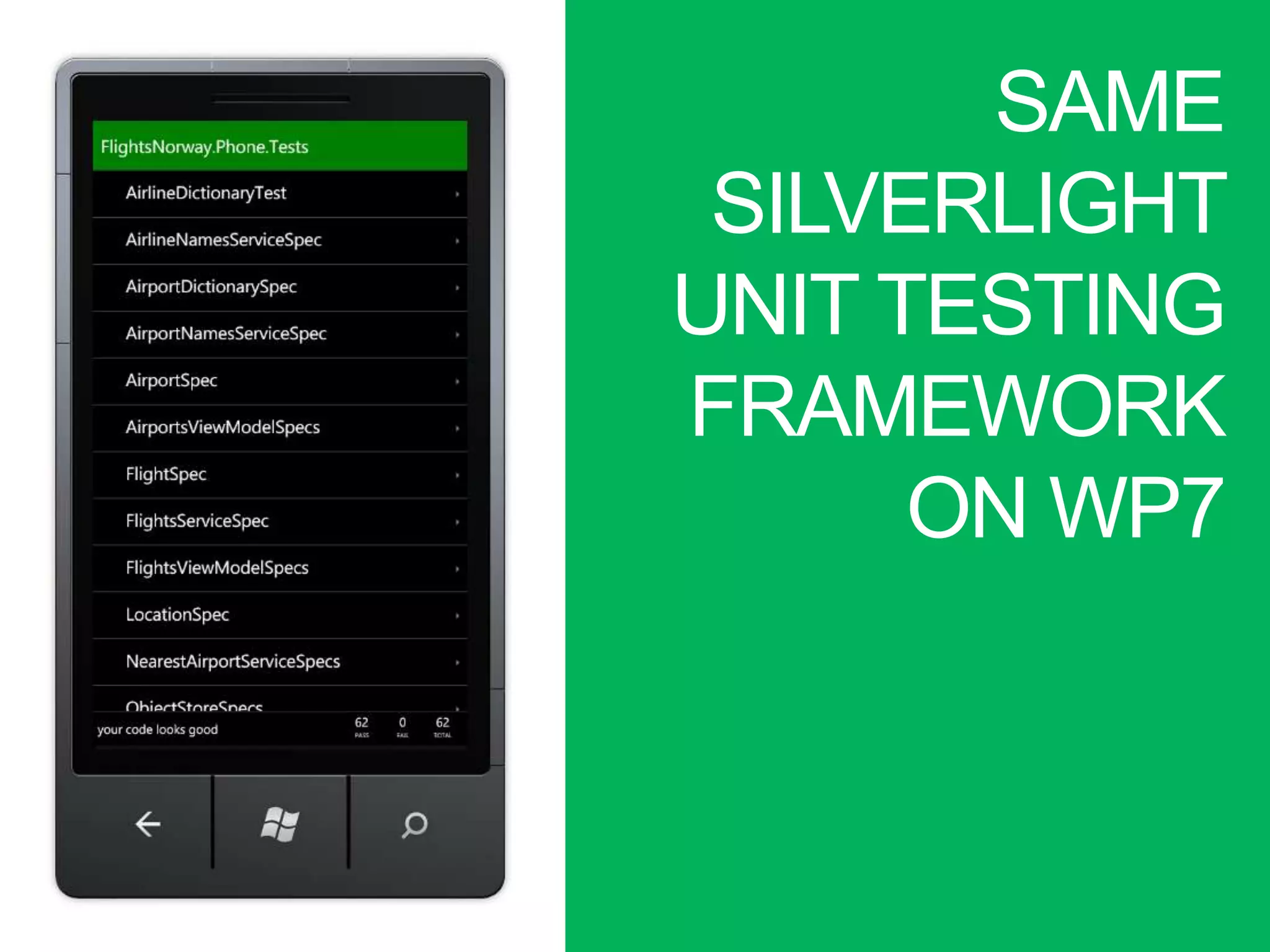

83. SAME SILVERLIGHT UNIT TESTING FRAMEWORK ON WP7

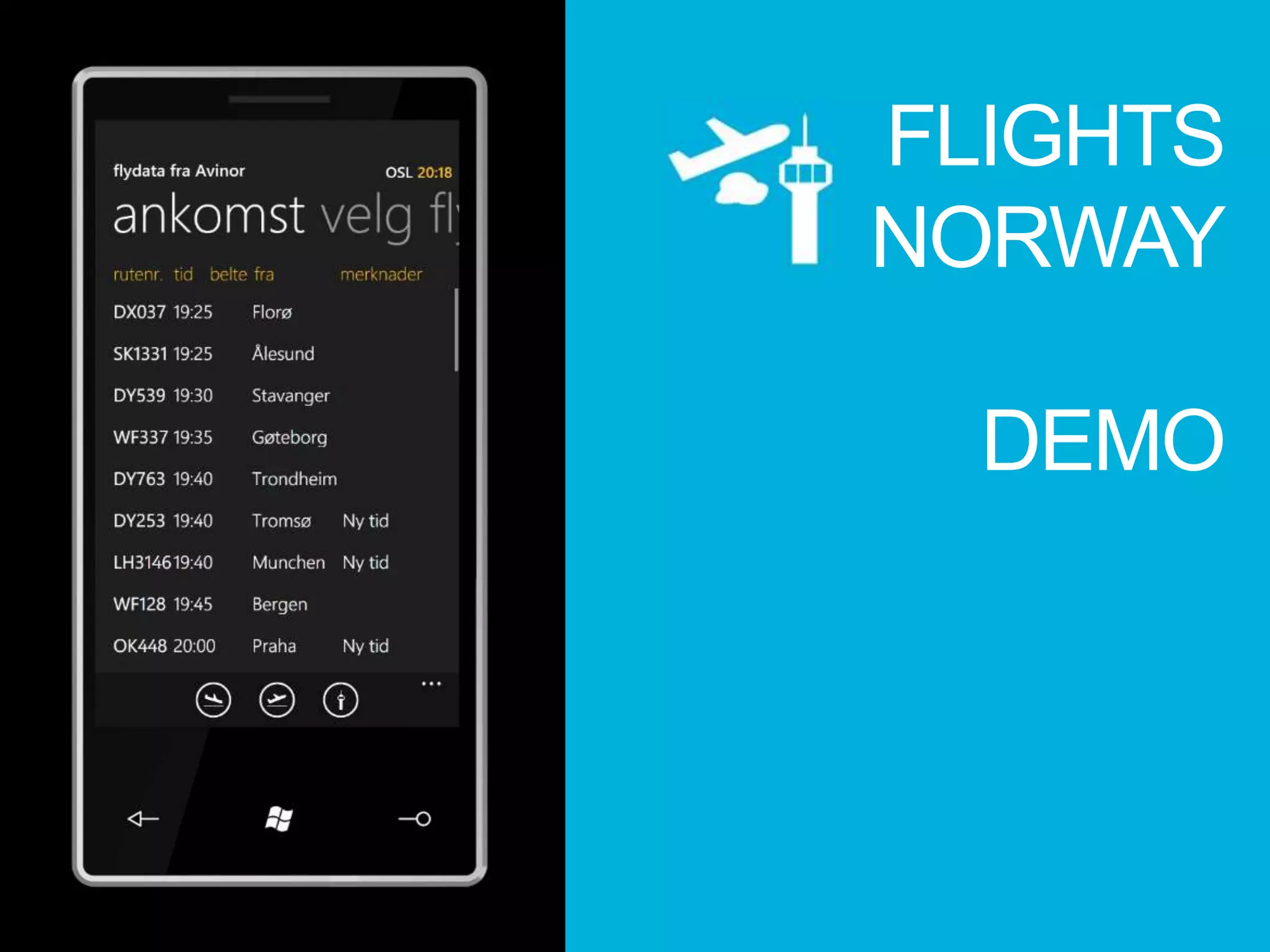

84. FLIGHTS NORWAYMONITORARRIVALS AND DEPARTUREShttp://www.flickr.com/photos/svenwerk/2181849280/

85. RESTSERVICESWITH FLIGHT INFORMATIONhttp://flydata.avinor.no/http://open.bekk.no/2009/12/13/hva-skjer-nar-man-gir-bort-flydata-gratis/

86. FLIGHTS NORWAYDEMO

87. RUBY ON WP7IronRuby runs on WP7

88. Bases on Silverlight & DLR

89. Somelimitations:

90. No Reflection.Emit

91. No Gems

92. And probably many more...IronRuby on WP7 DEMO

93. DEMOWP7 TWITTER CLIENT

94. MARKET PLACENot available in Norway on launch... but you can Publish Apps

95. 99$ for membership

96. 30/70 splittTILE FLOOD

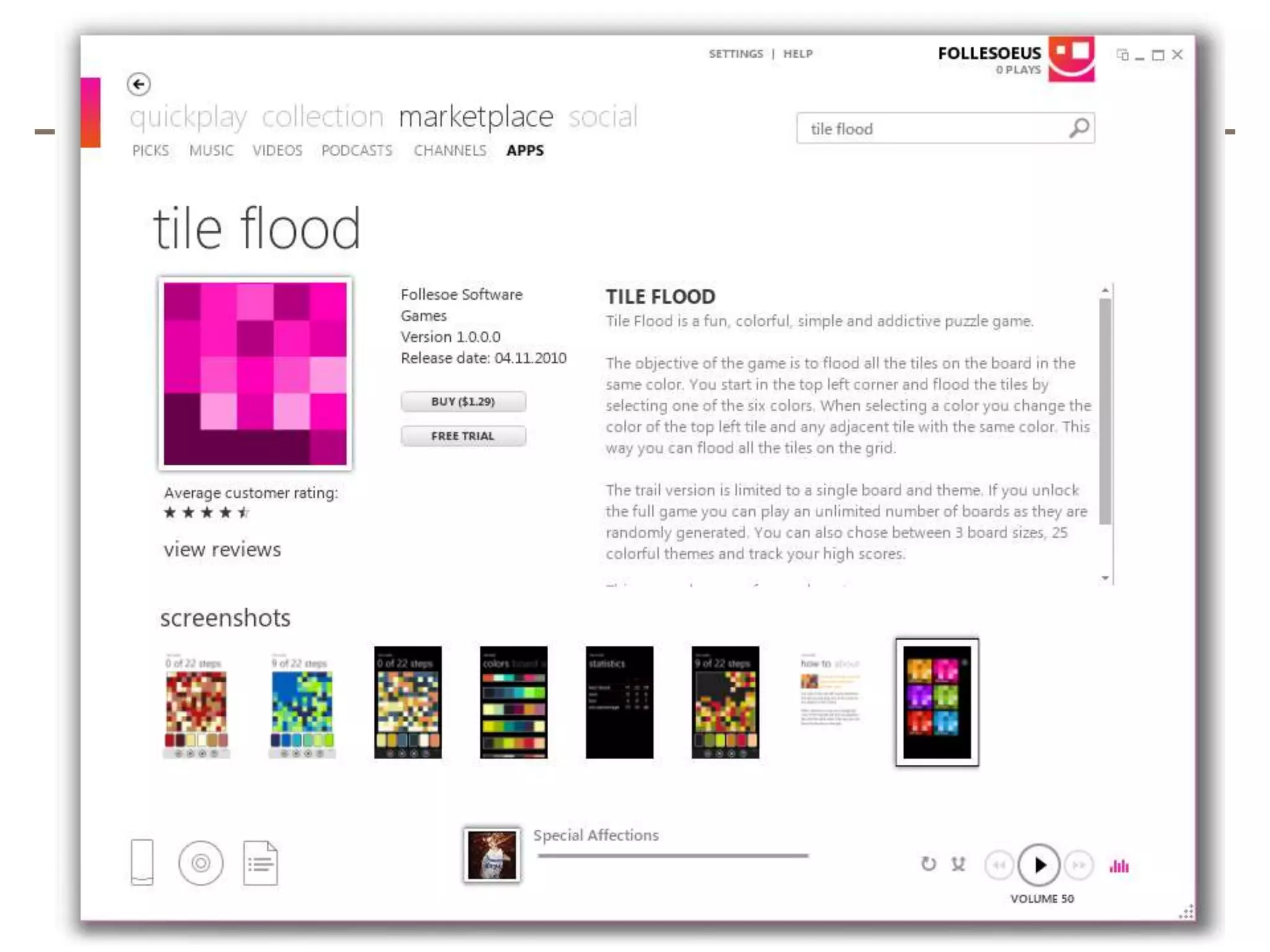

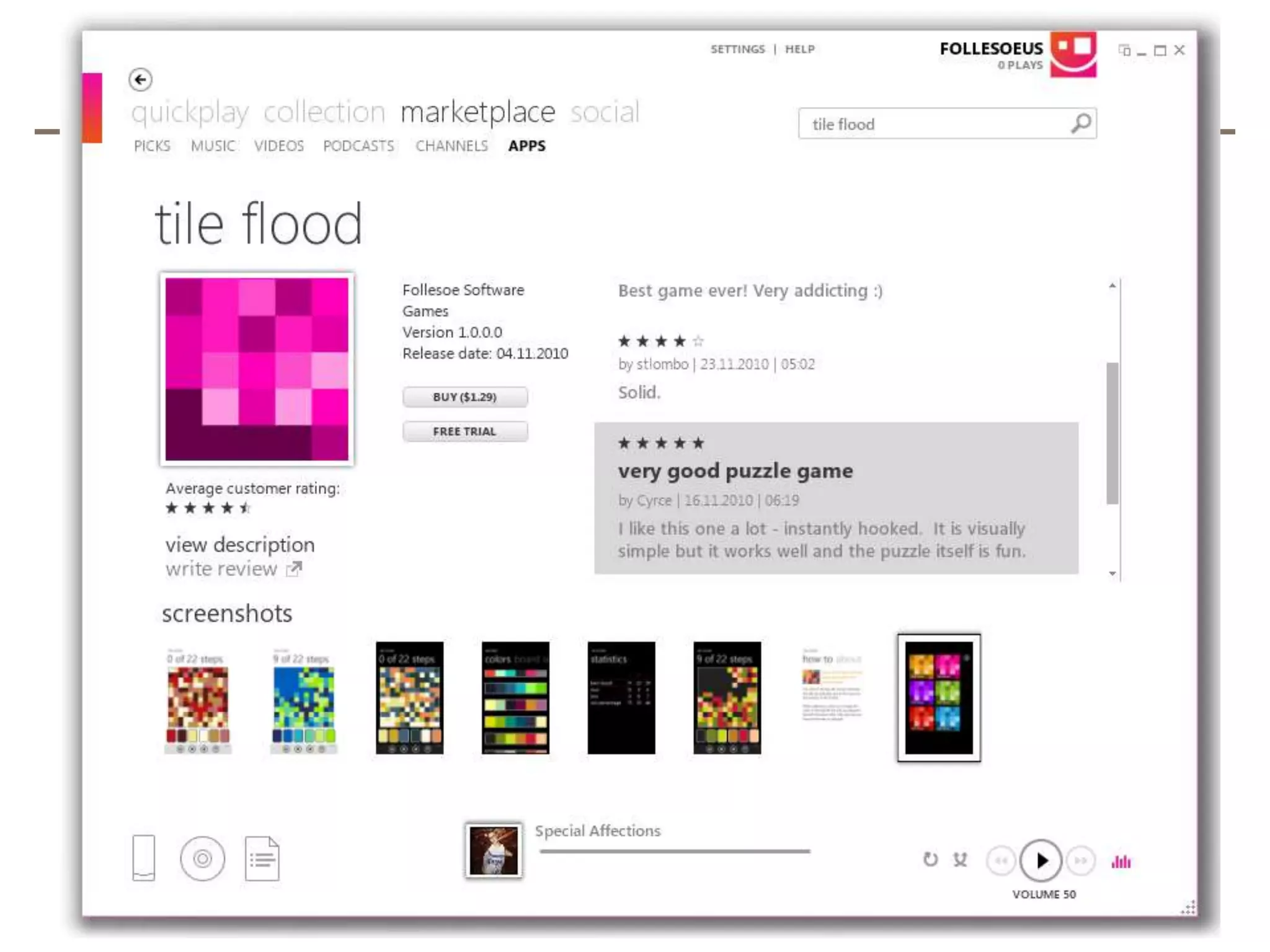

97. TILE FLOOD

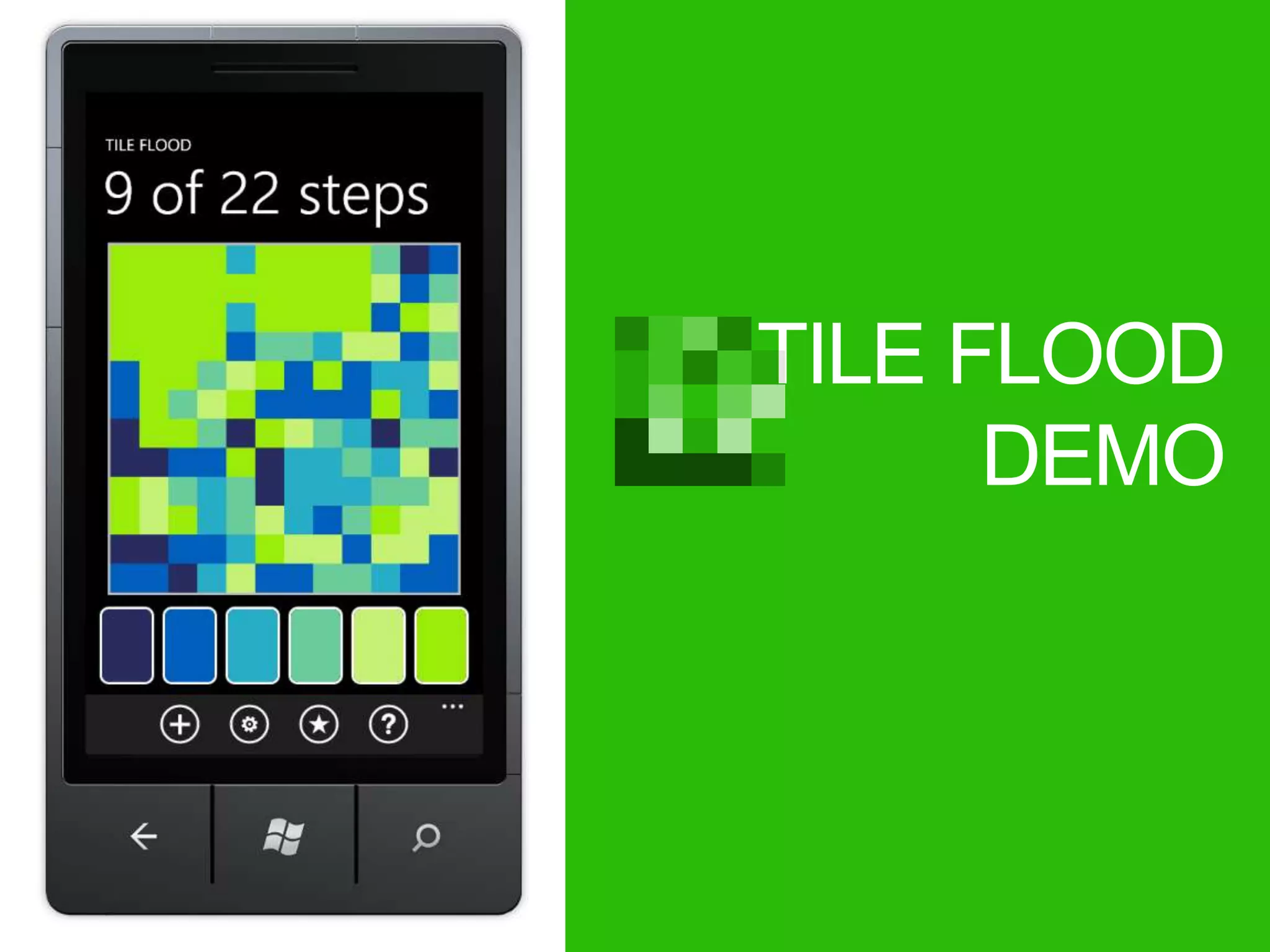

98. TILE FLOODDEMO

100. SUMMARY:- WP7 PLATFORM- PHONE APIs- TDD- BLEND 4- RUBY- DEMOS!http://www.flickr.com/photos/20792787@N00/2248623391/

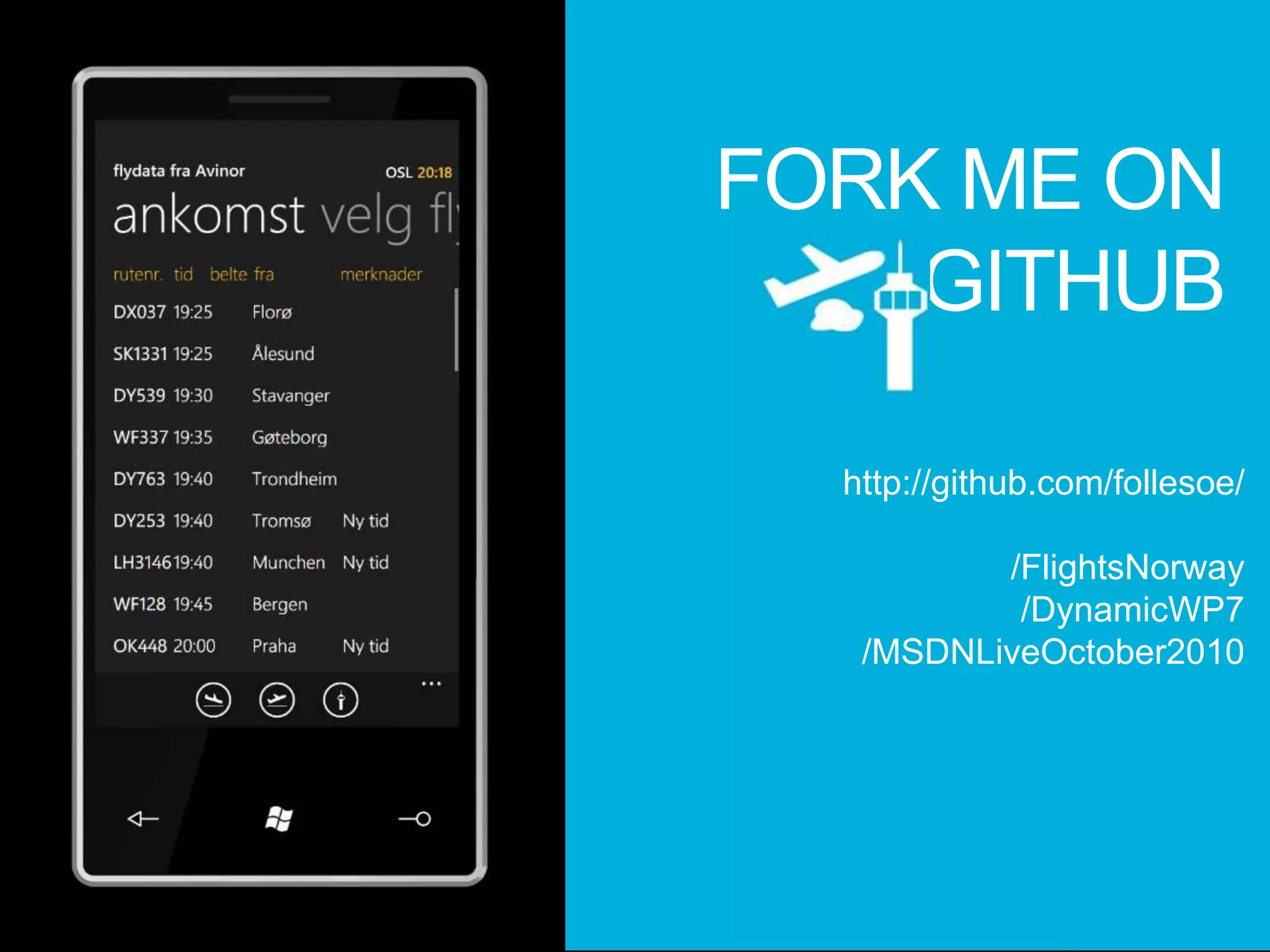

101. FORK ME ON GITHUBhttp://github.com/follesoe//FlightsNorway/DynamicWP7/MSDNLiveOctober2010

102. Jonas FollesøSenior Consultant+47 977 06660Jonas.folleso@bekk.nojonas@follesoe.no
