This document provides an overview of several enterprise design patterns, including dependency injection, the onion architecture, the repository pattern, unit of work pattern, and view models. It discusses the benefits of each pattern such as loose coupling, increased testability and code reuse. It also provides examples of implementing the repository and unit of work patterns when accessing data with Entity Framework.

1. Enterprise Design Patterns Intro
Designing your app the correct way – SSW Module 1725

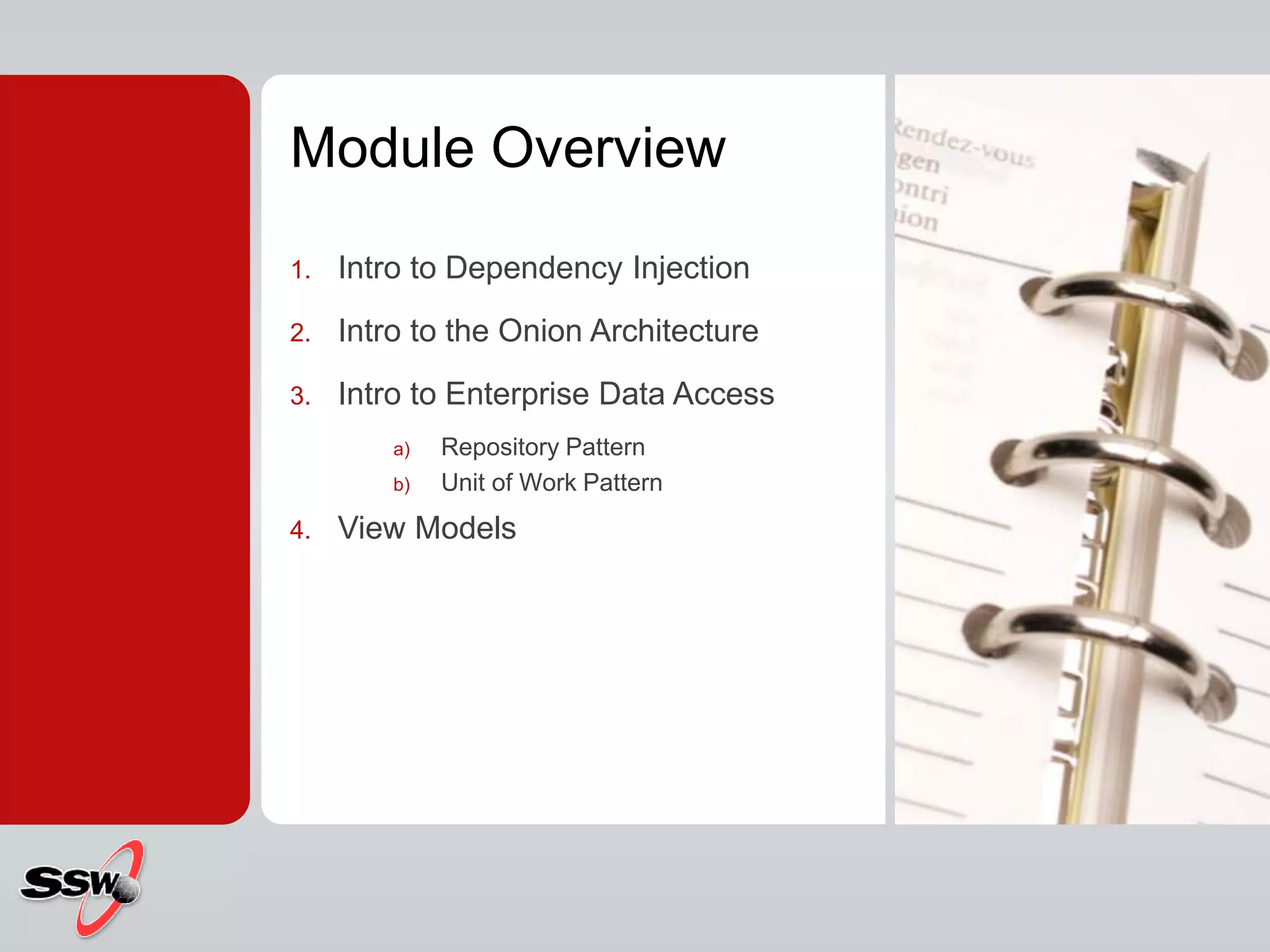

2. Module Overview
1. Intro to Dependency Injection
2. Intro to the Onion Architecture
3. Intro to Enterprise Data Access
a) Repository Pattern
b) Unit of Work Pattern
4. View Models

3. Are you using Dependency Injection?
 Tried it?
 Like it?
 Used it in a project?

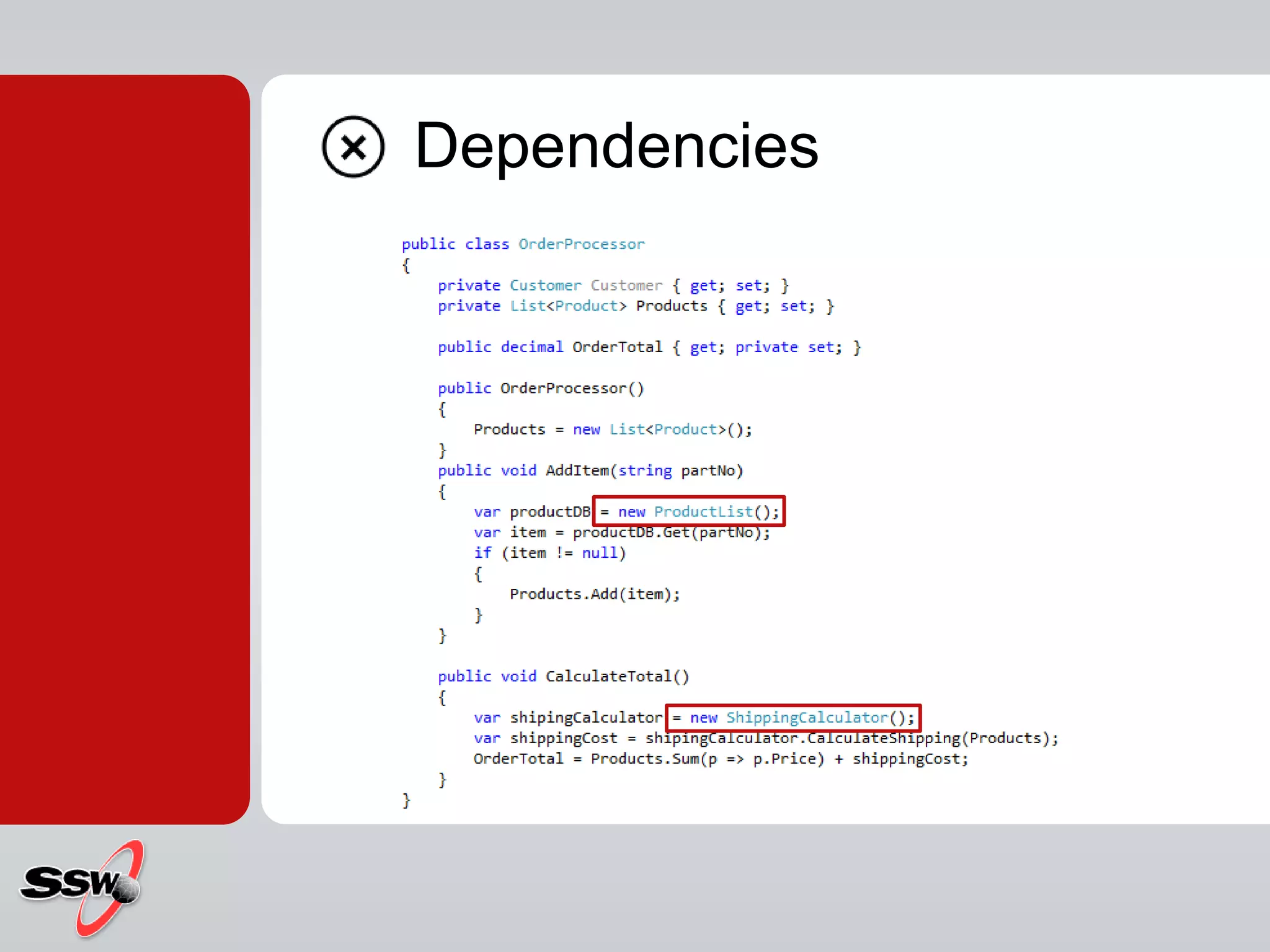

4. Dependencies

7. The answer:
Dependency Injection
Loosely coupled classes
Increased code reuse
Maintainable code
Testable methods
All dependencies are specified in one
place
Class dependencies are clearly
visible in the constructor

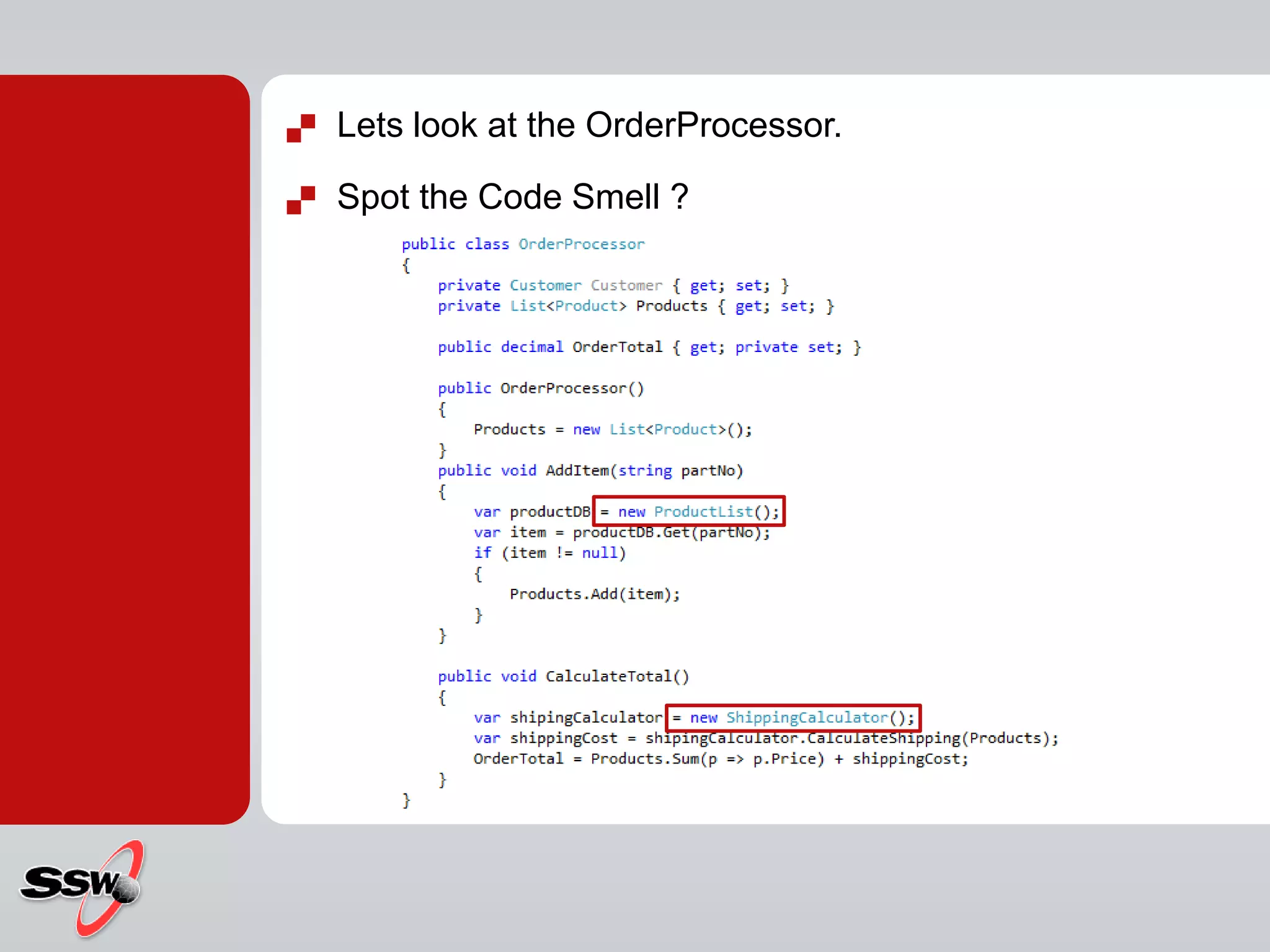

8.  Lets look at the OrderProcessor.
 Spot the Code Smell ?

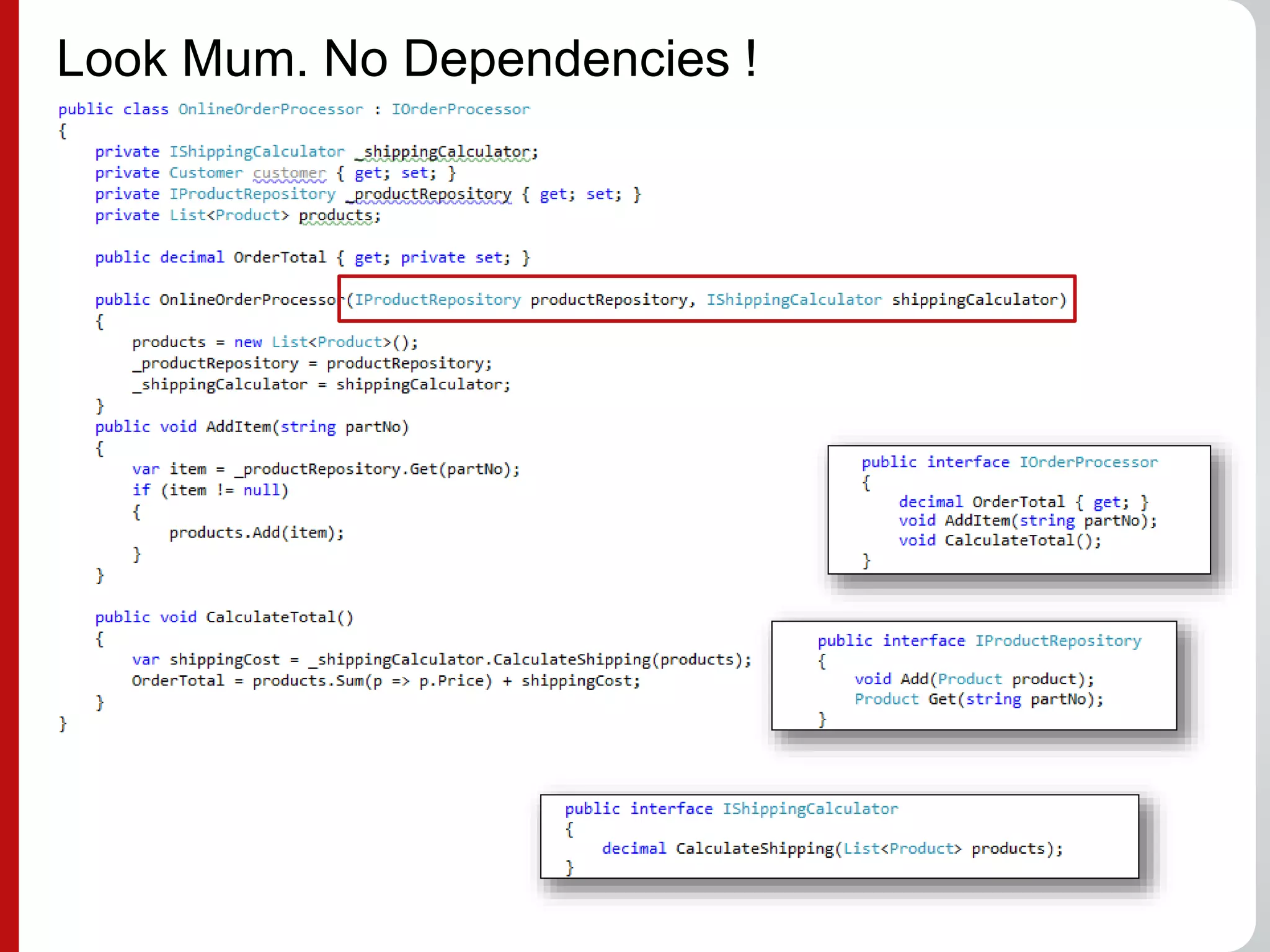

9. Look Mum. No Dependencies !

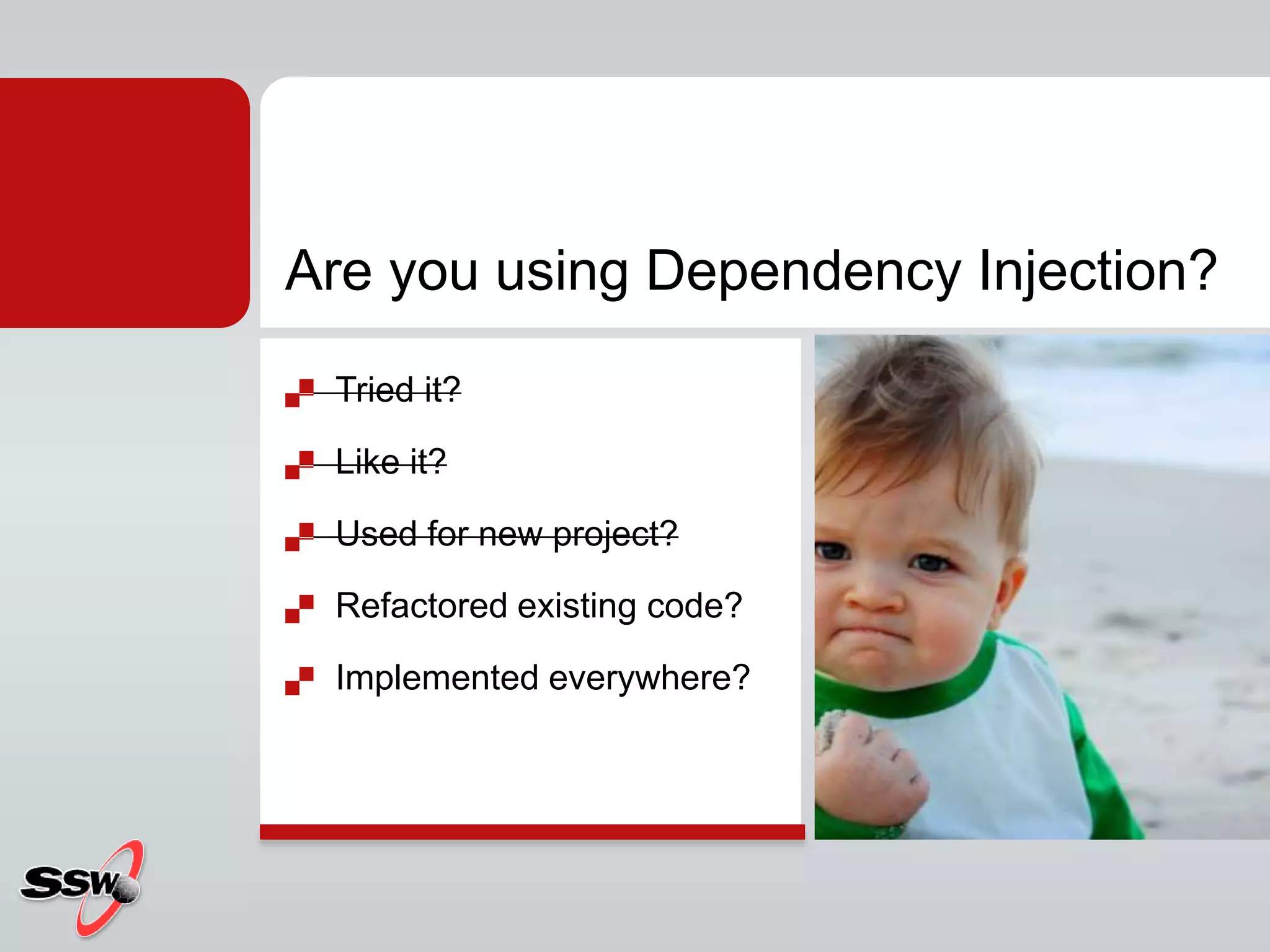

10. Are you using Dependency Injection?
 Tried it?
 Like it?
 Used for new project?
 Refactored existing code?
 Implemented everywhere?

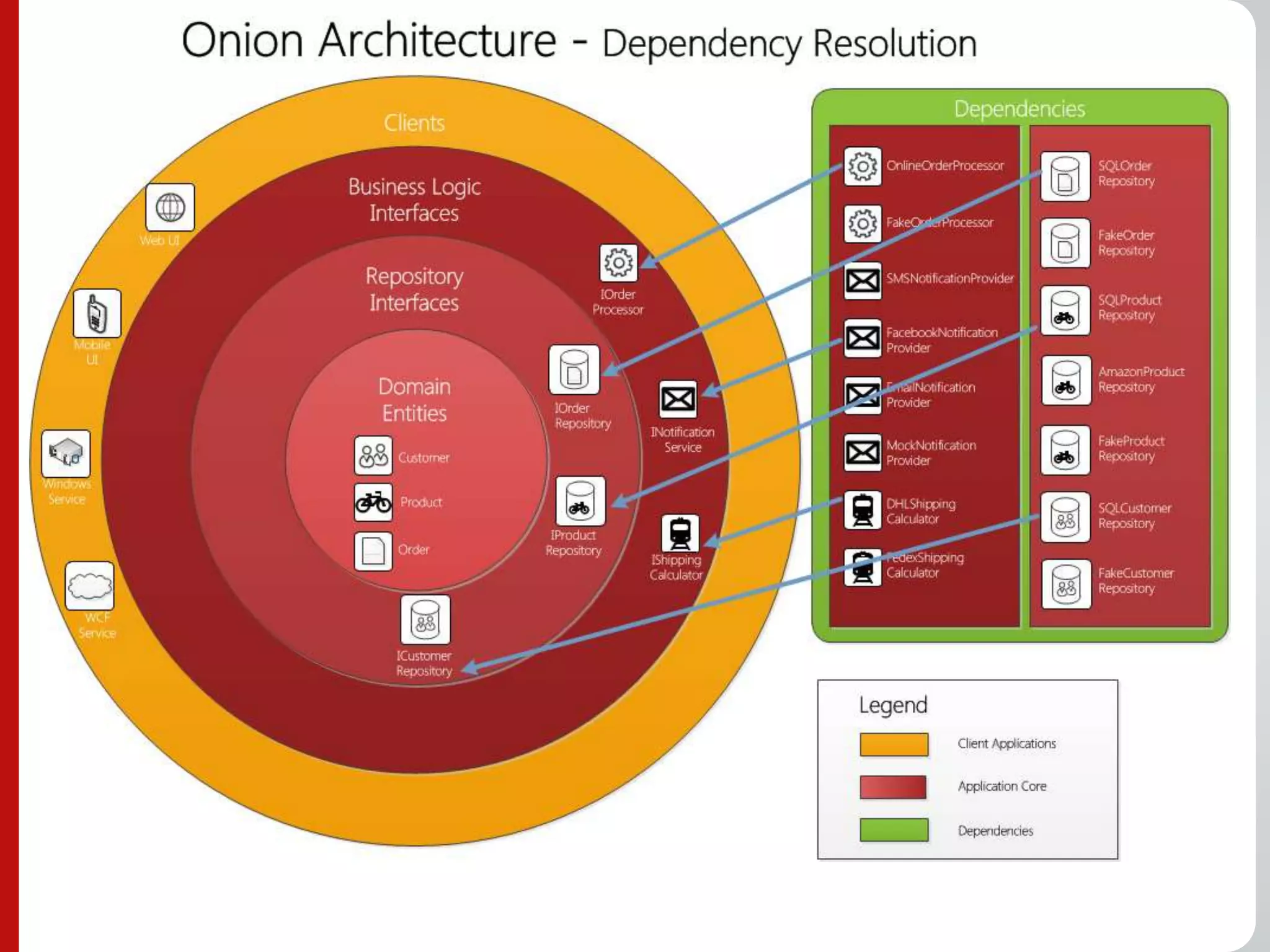

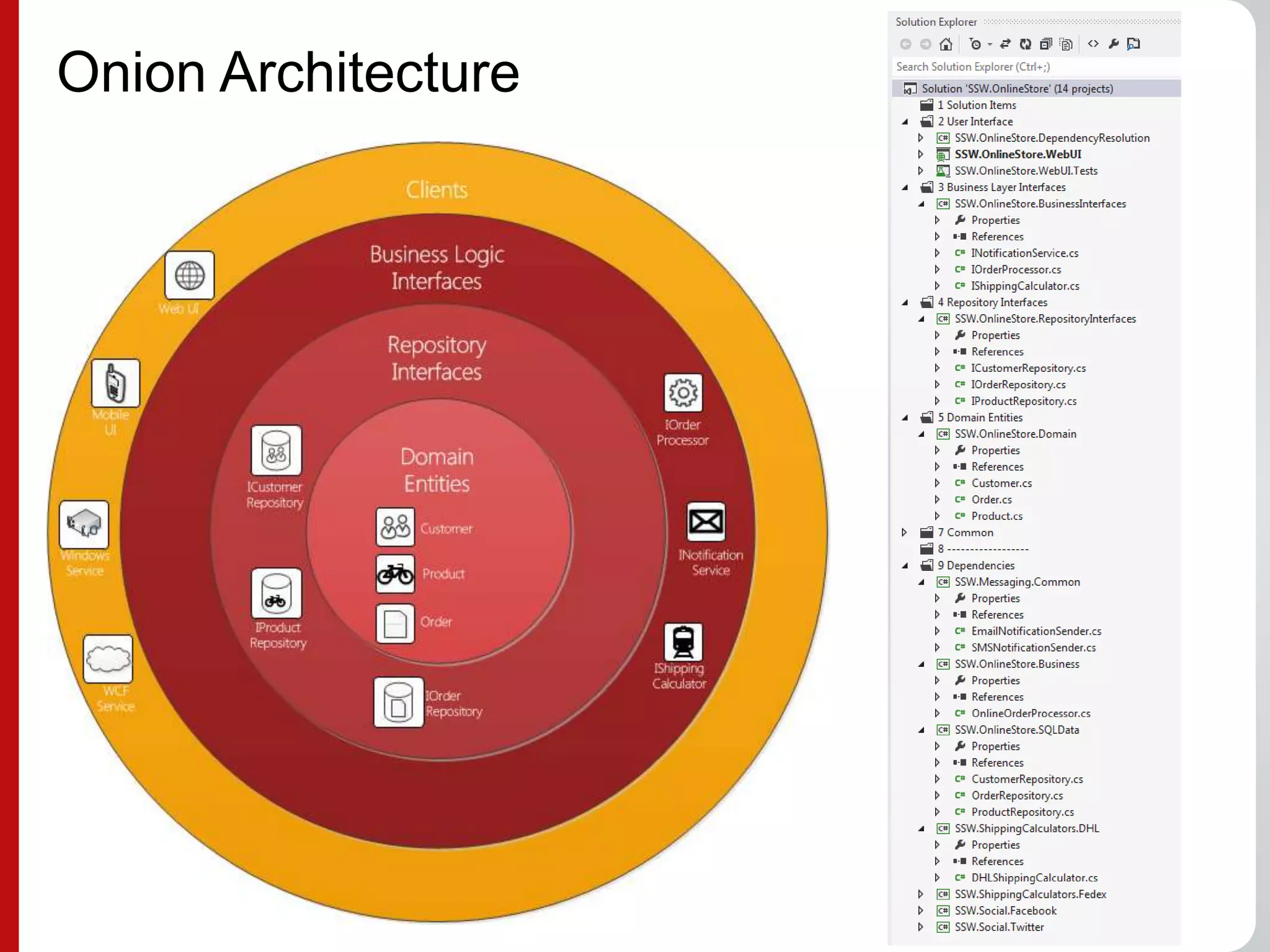

11. Onion Architecture

12. Enterprise Data Access Patterns

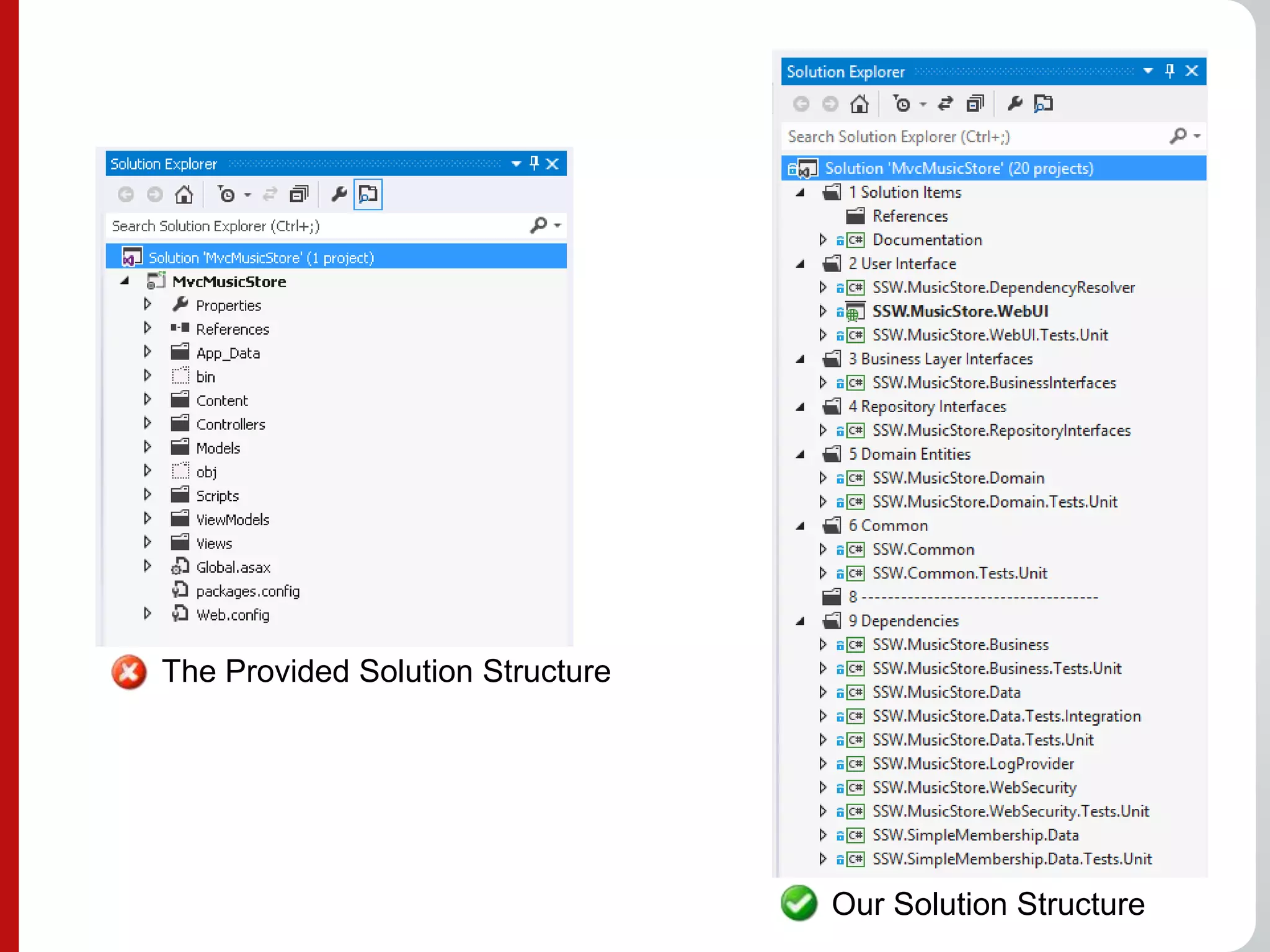

13. The Provided Solution Structure
Our Solution Structure

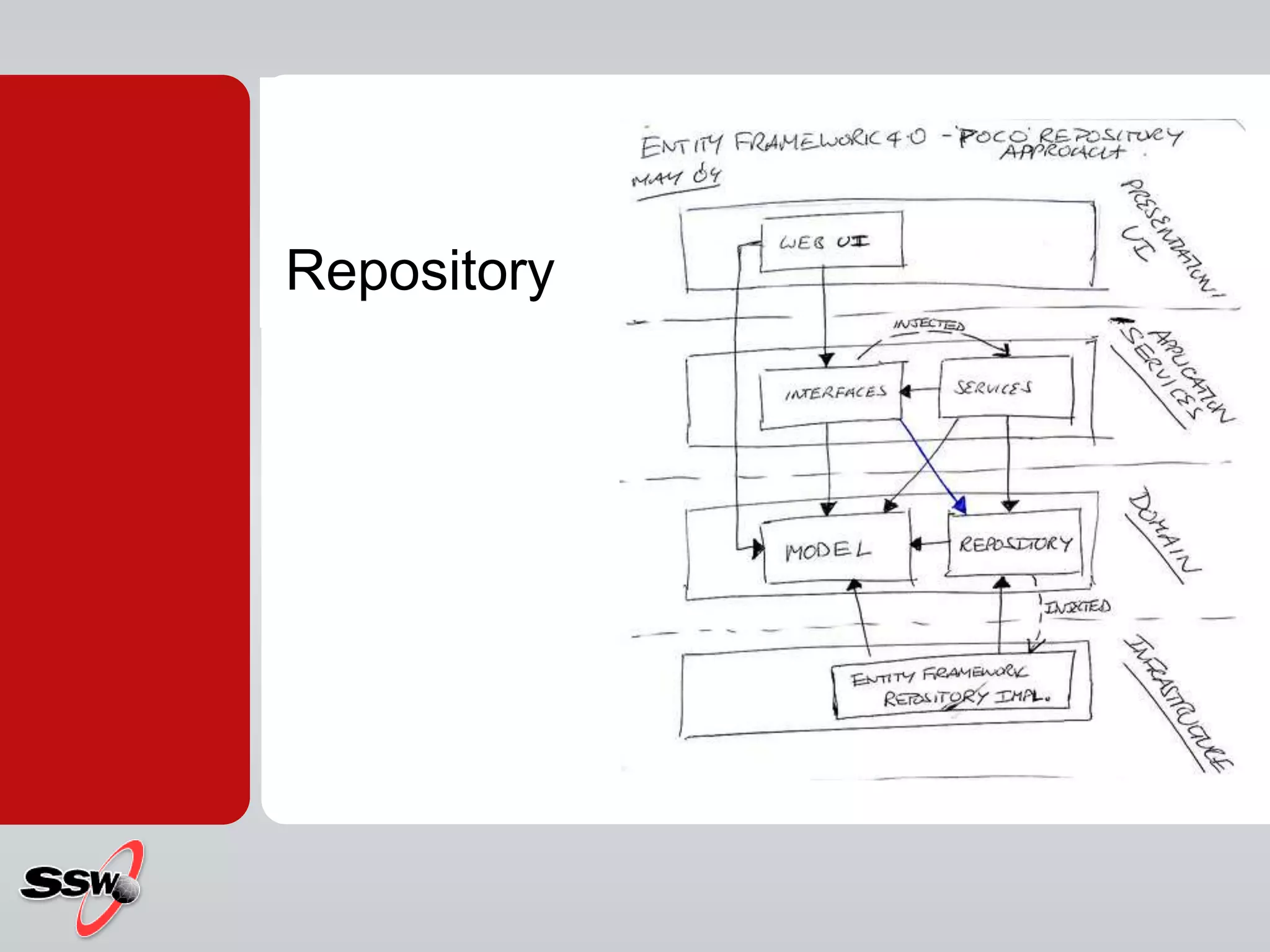

14. Repository

15. Directly Accessing Data
Duplicated code / No code re-use
Hard to centralize data-related policies (i.e. caching)
Hard to write unit tests

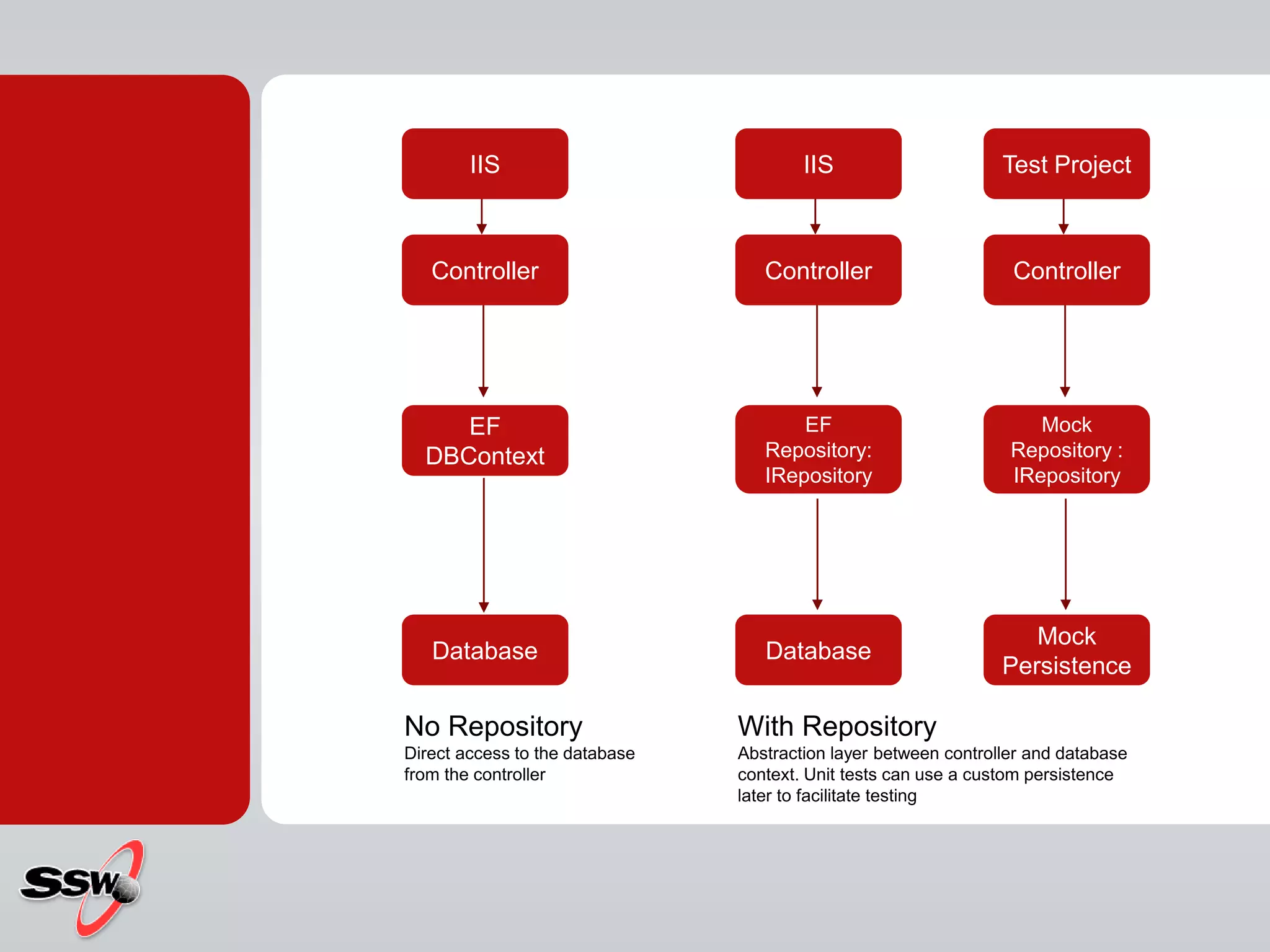

16. IIS
Controller
EF
DBContext
Database
No Repository
Direct access to the database
from the controller
IIS
Controller
EF
Repository:
IRepository
Database
With Repository
Abstraction layer between controller and database
context. Unit tests can use a custom persistence
later to facilitate testing
Test Project
Controller
Mock
Repository :
IRepository
Mock
Persistence

17. Use the Repository Pattern
Isolates the data layer
better unit testing support
Centralised, consistent access rules, logic and caching
Maintainability
improved code re-use
Readability
e.g. GetTopSellingItemsByCategory – Simple method name, complex SQL Query
http://blog.damianbrady.com.au/2012/03/07/a-generic-crud-repository-for-entity-framework/
http://rules.ssw.com.au/SoftwareDevelopment/RulestobetterArchitectureandCodeReview/Pages/RepositoryPattern.aspx

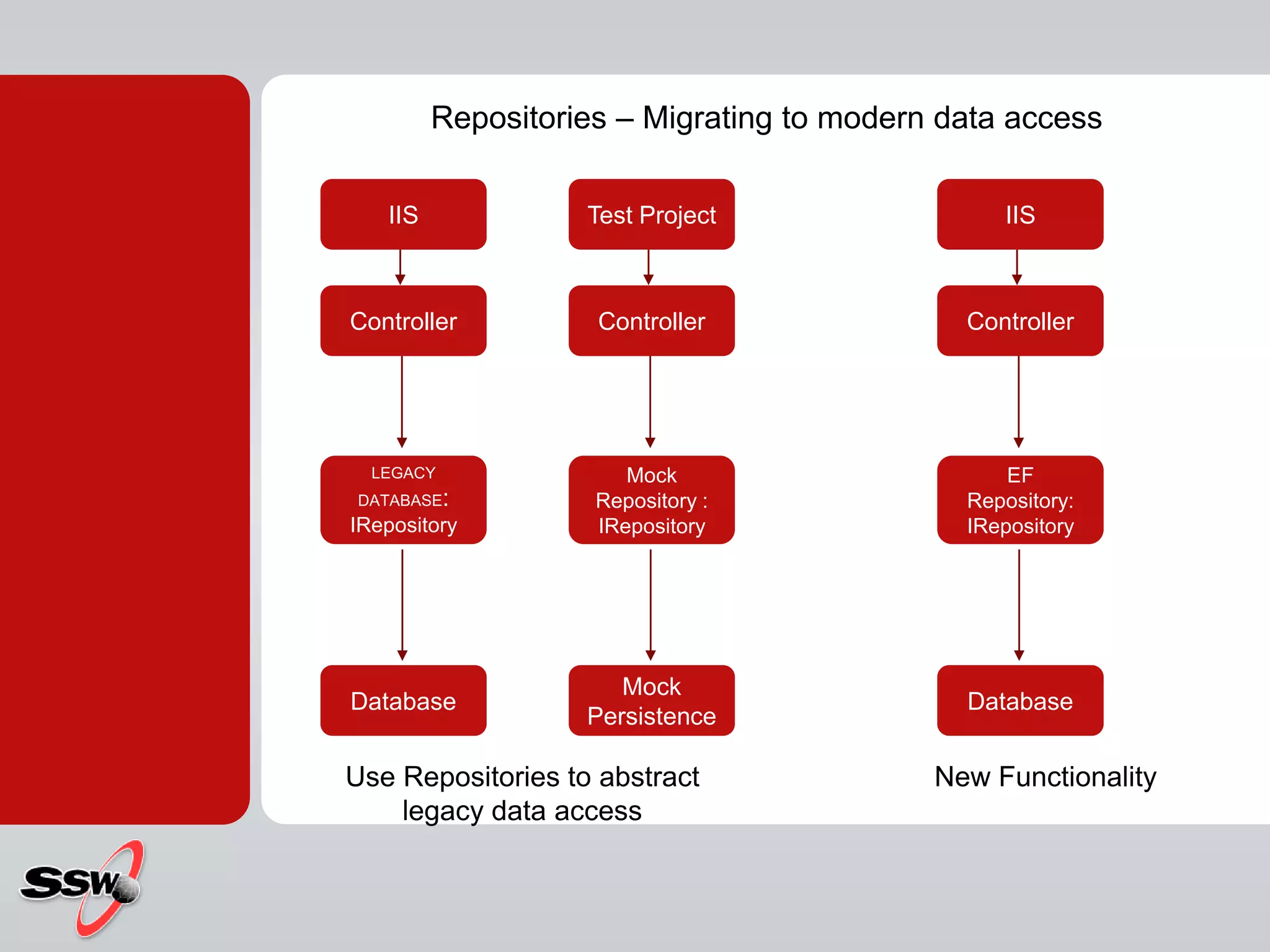

18. IIS
Controller
LEGACY
DATABASE:
IRepository
Database
Use Repositories to abstract
legacy data access
Test Project
Controller
Mock
Repository :
IRepository
Mock
Persistence
IIS
Controller
EF
Repository:
IRepository
Database
New Functionality
Repositories – Migrating to modern data access

19. Implementing the Repository
Pattern with Code First

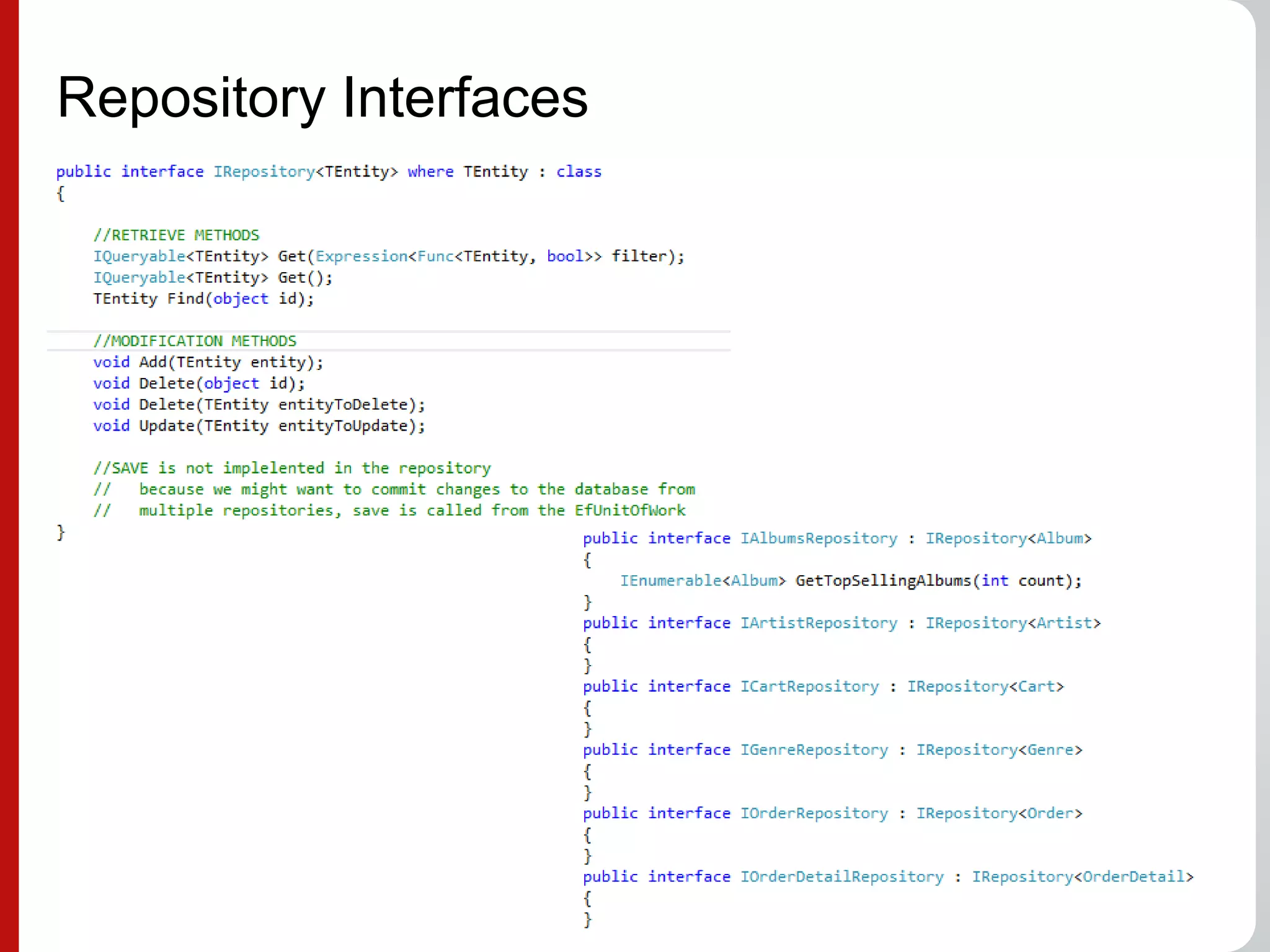

20. Repository Interfaces

21. Generic Repository - Overview

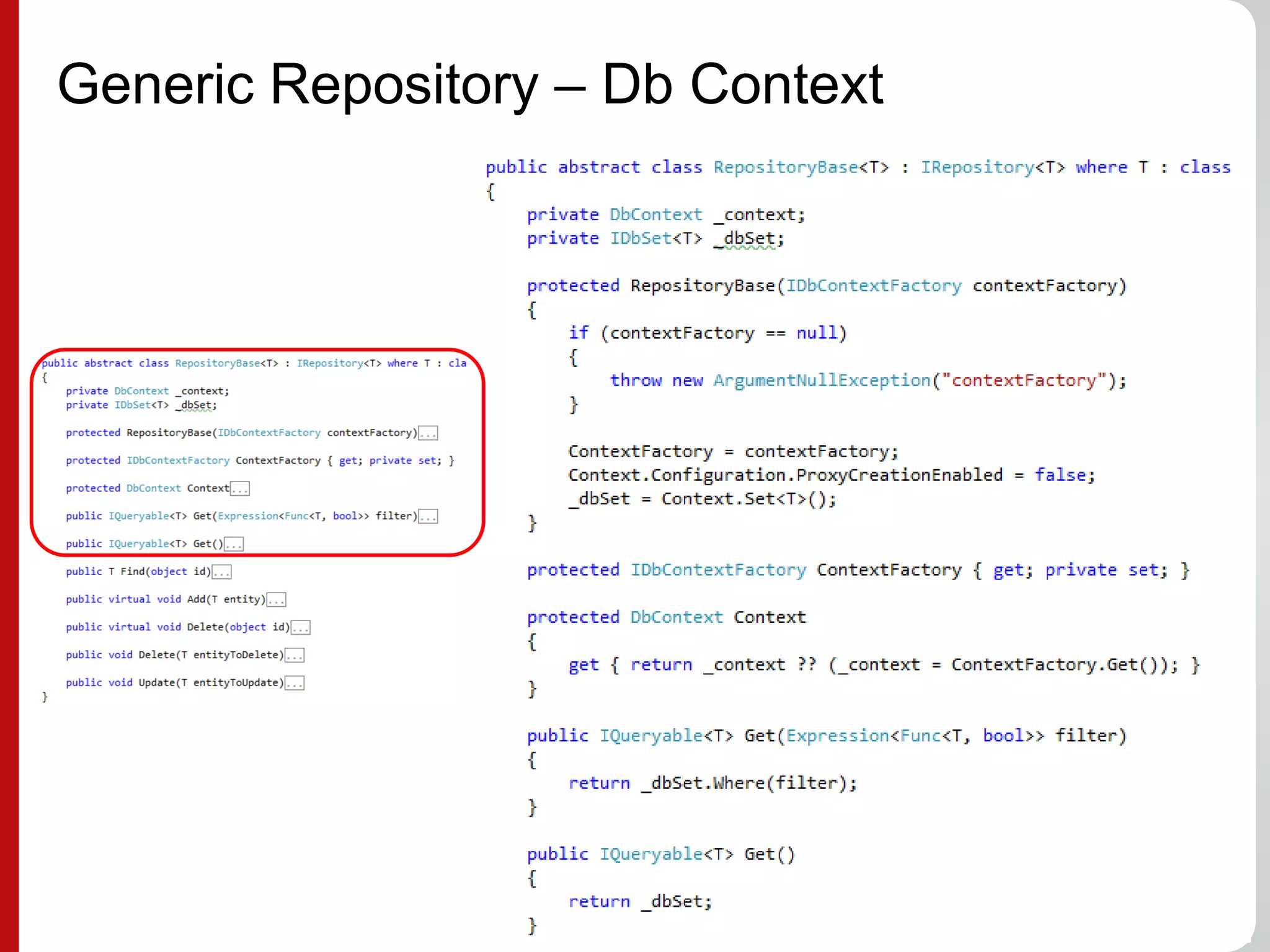

22. Generic Repository – Db Context

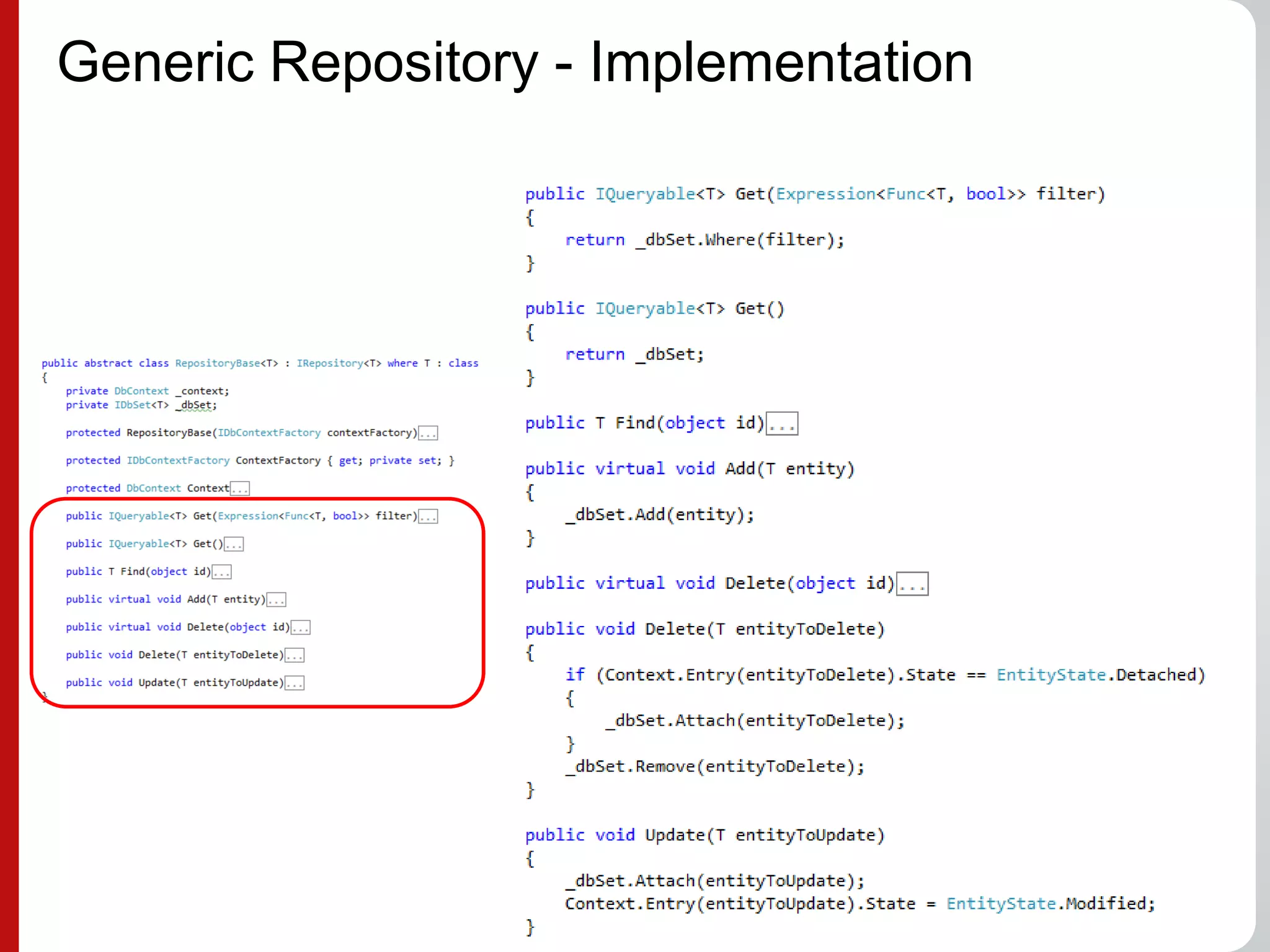

23. Generic Repository - Implementation

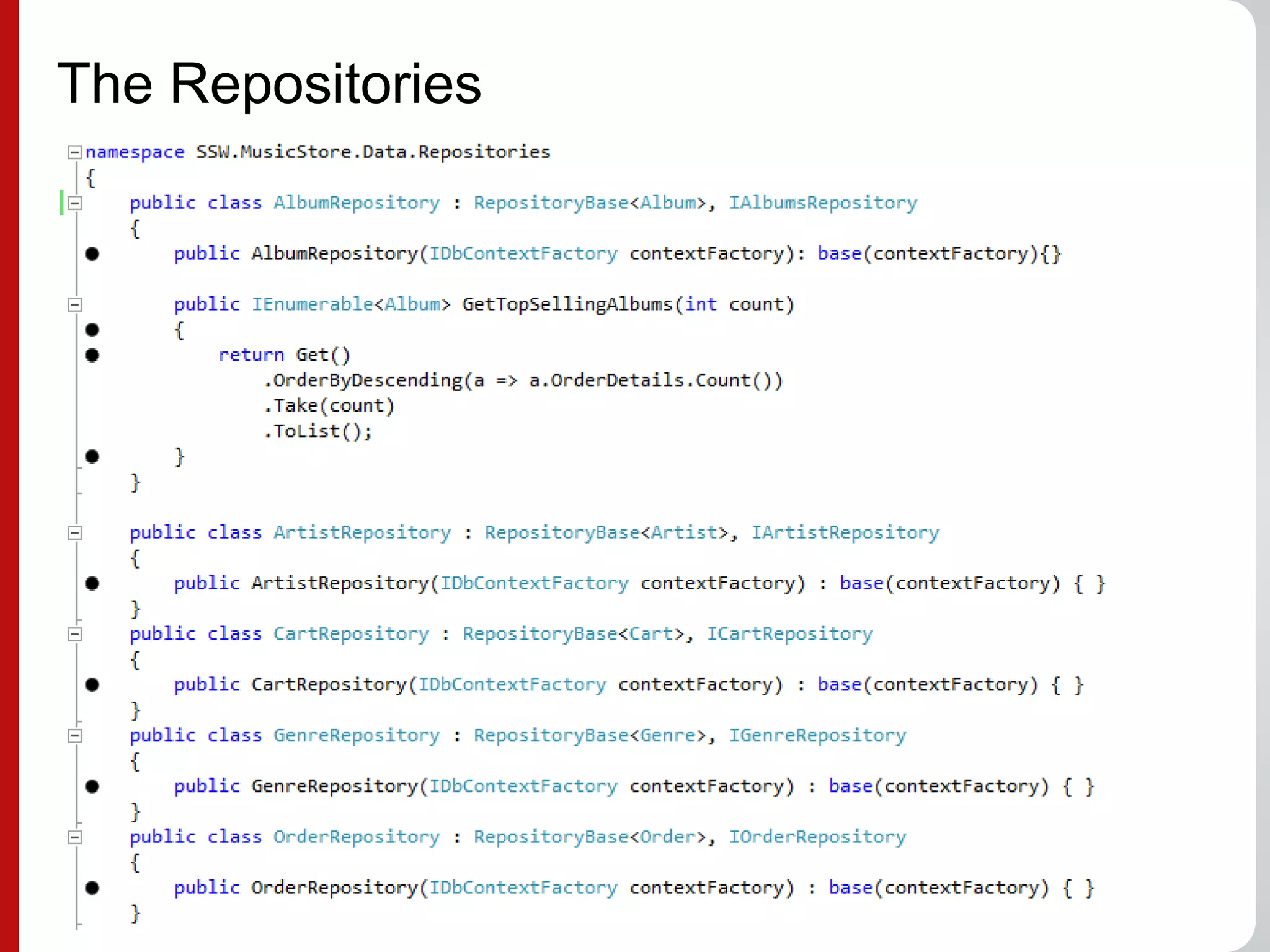

24. The Repositories

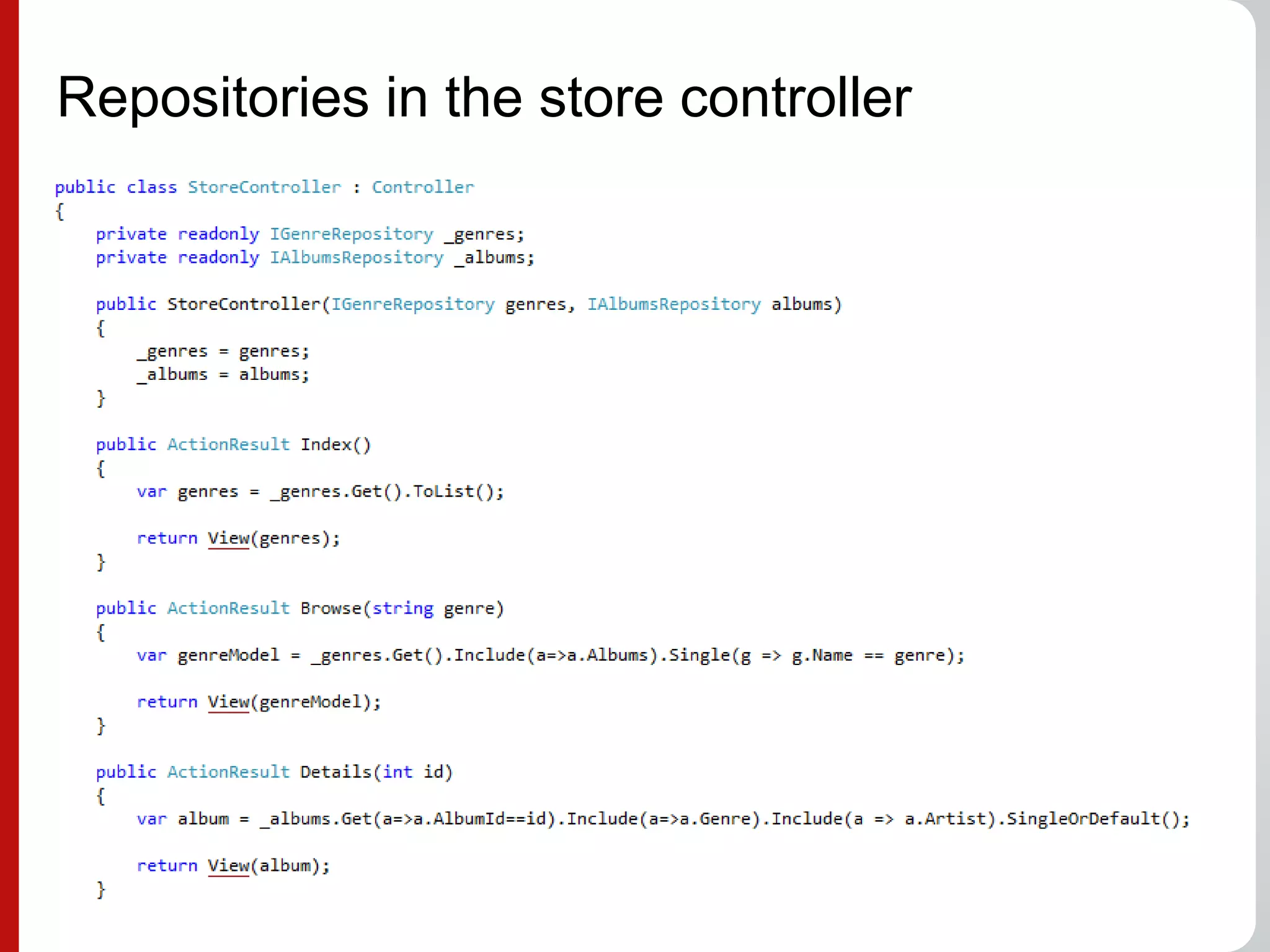

25. Repositories in the store controller

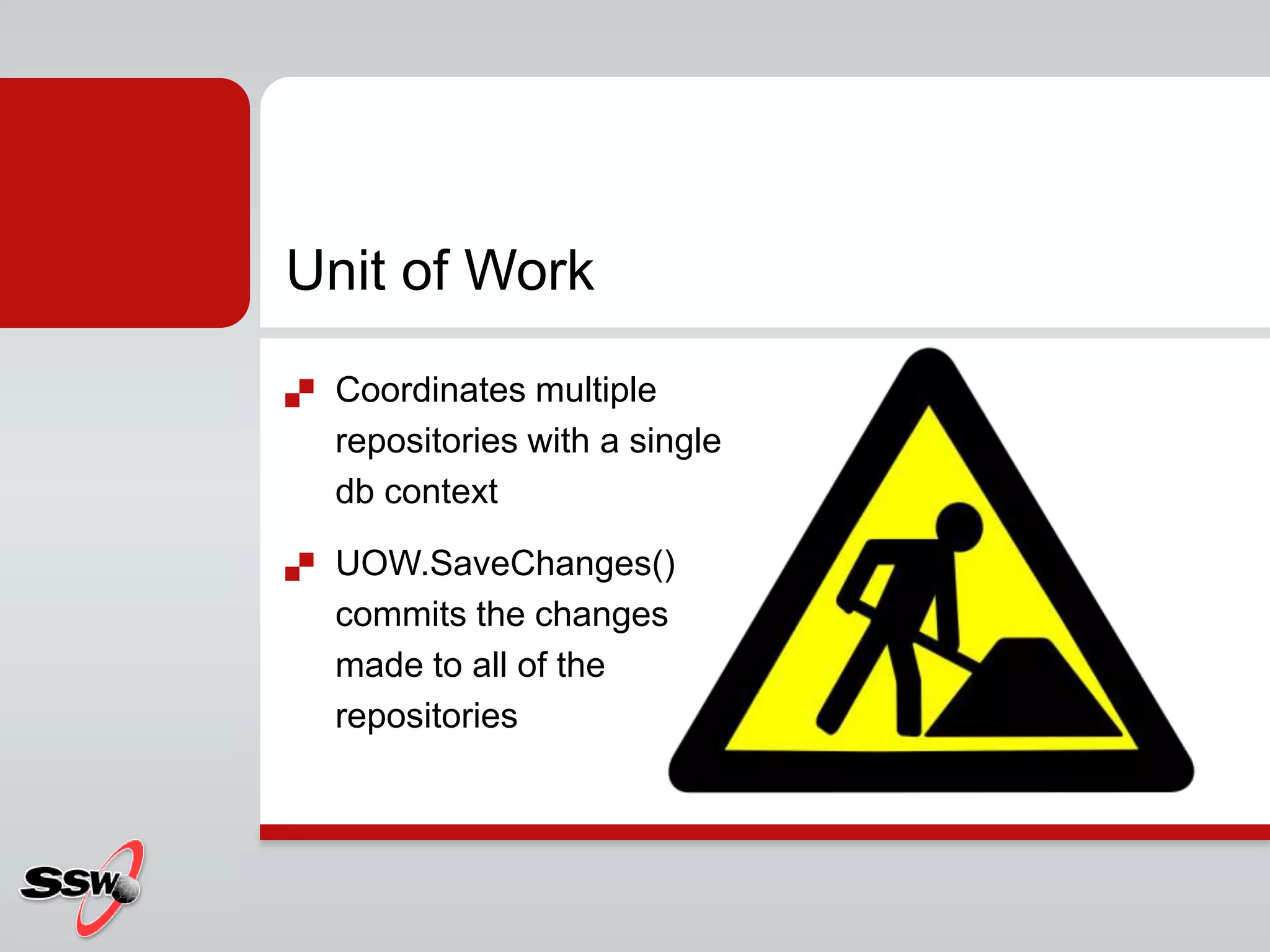

26. Unit of Work
 Coordinates multiple
repositories with a single
db context
 UOW.SaveChanges()
commits the changes
made to all of the
repositories

27. IIS
Controller
Unit of Work
Database
Unit of Work
Ensures that multiple repositories share a
single database context
Test Project
Controller
Mock Unit Of Work
Mock
Persistence
Repository
Mock
Repository
Repository
Mock
Repository
DbContext

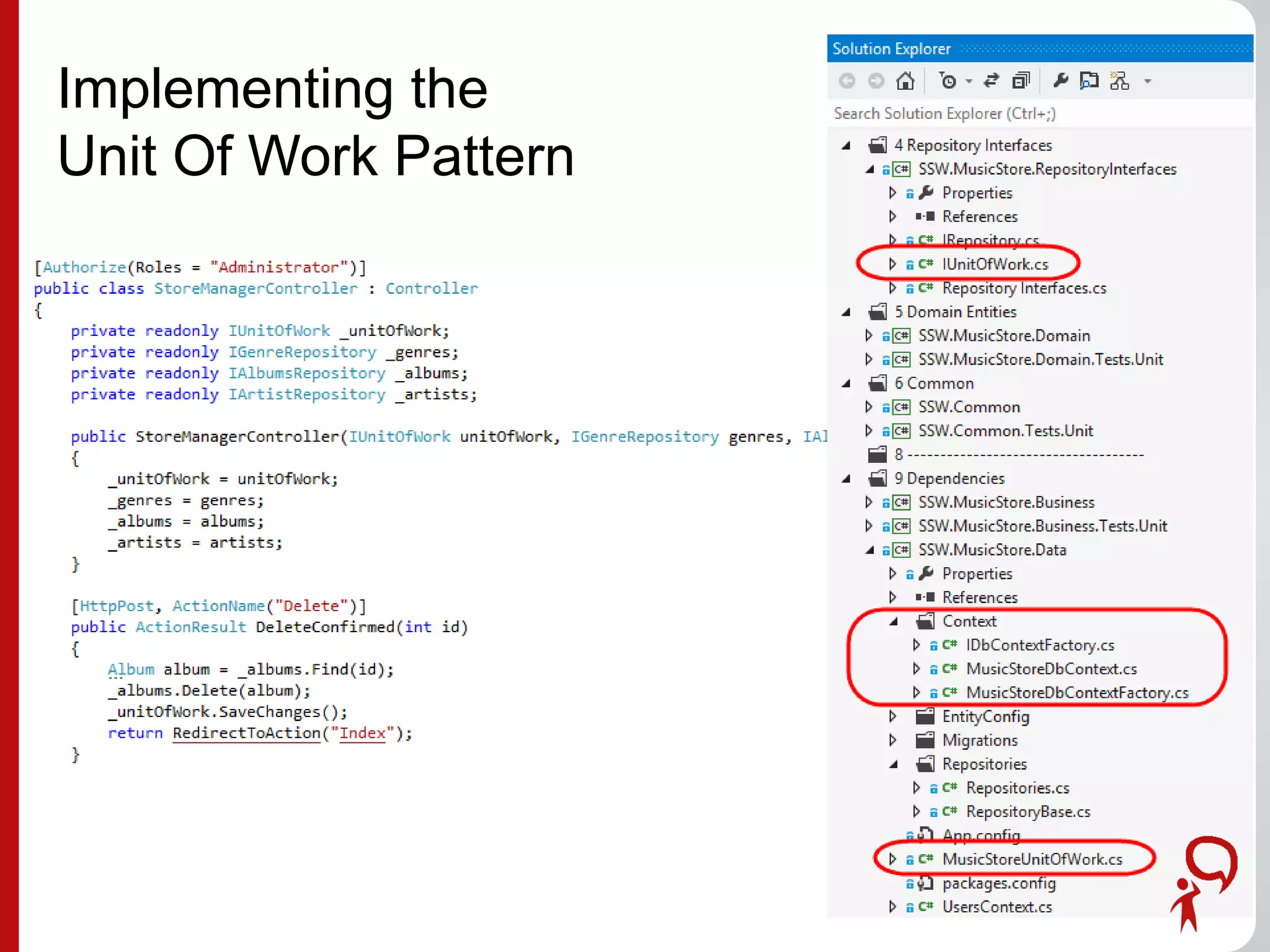

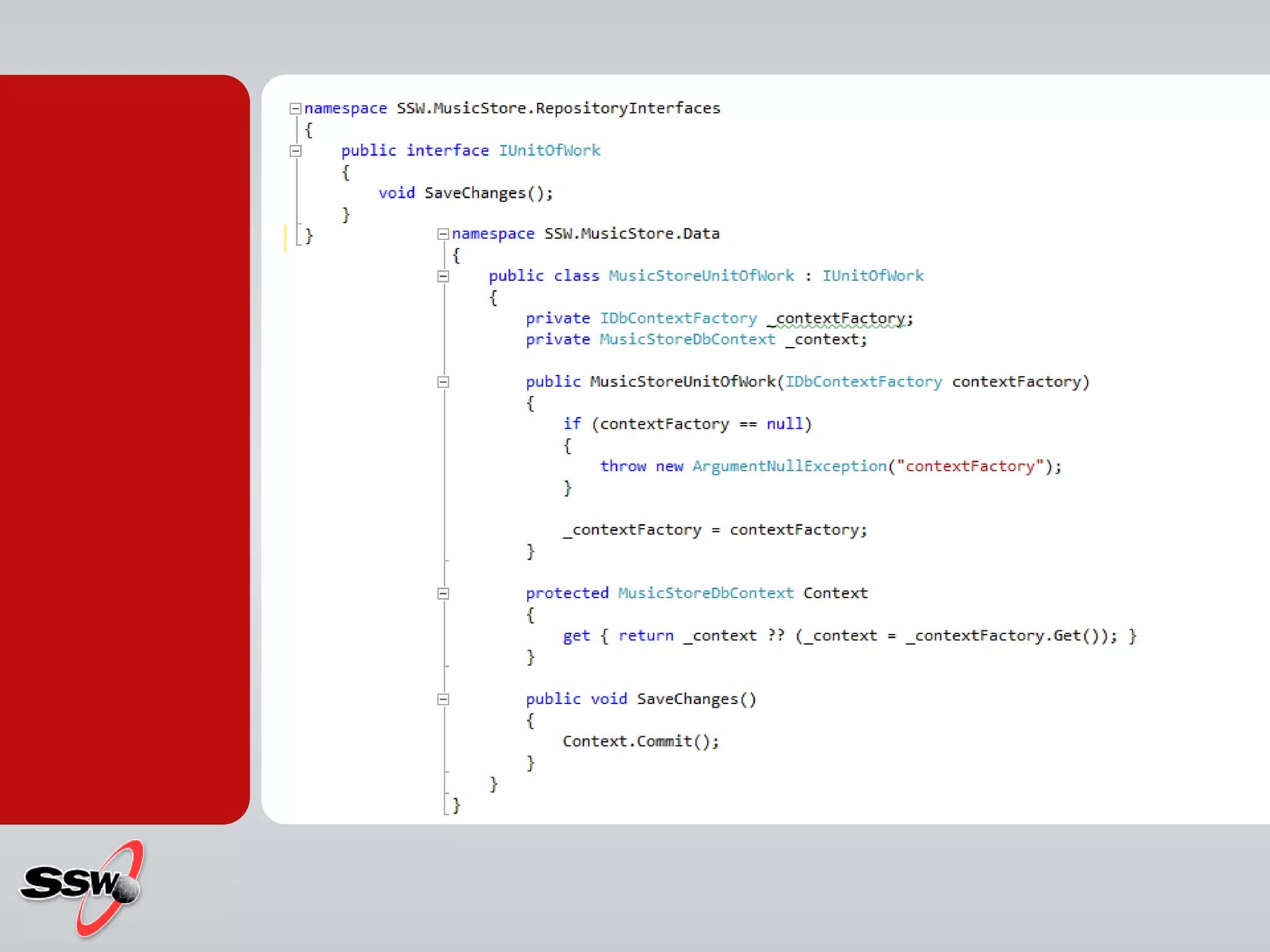

28. Implementing the
Unit Of Work Pattern

30. Where Is My Context?

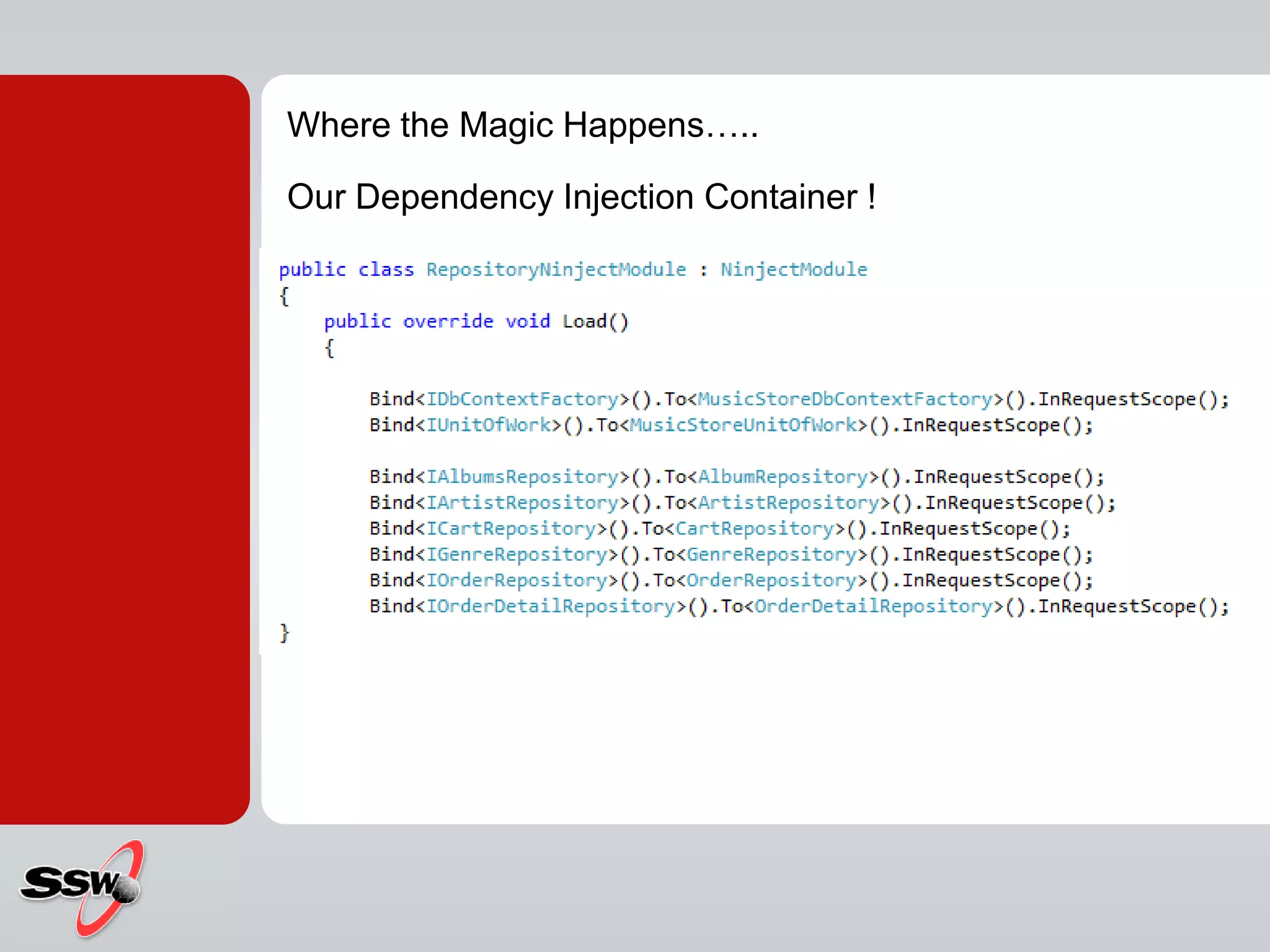

31. Where the Magic Happens…..
Our Dependency Injection Container !

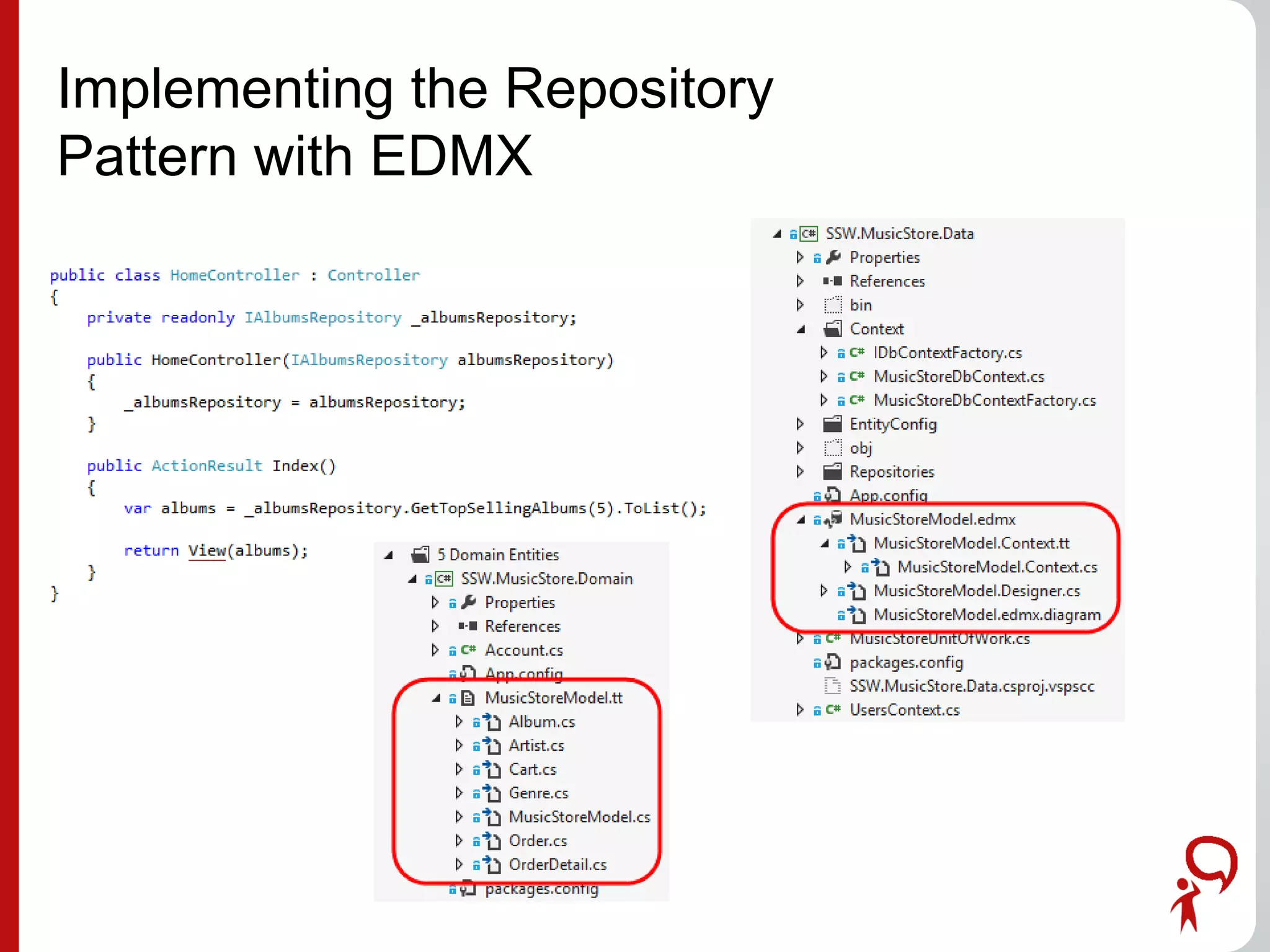

32. Implementing the Repository
Pattern with EDMX

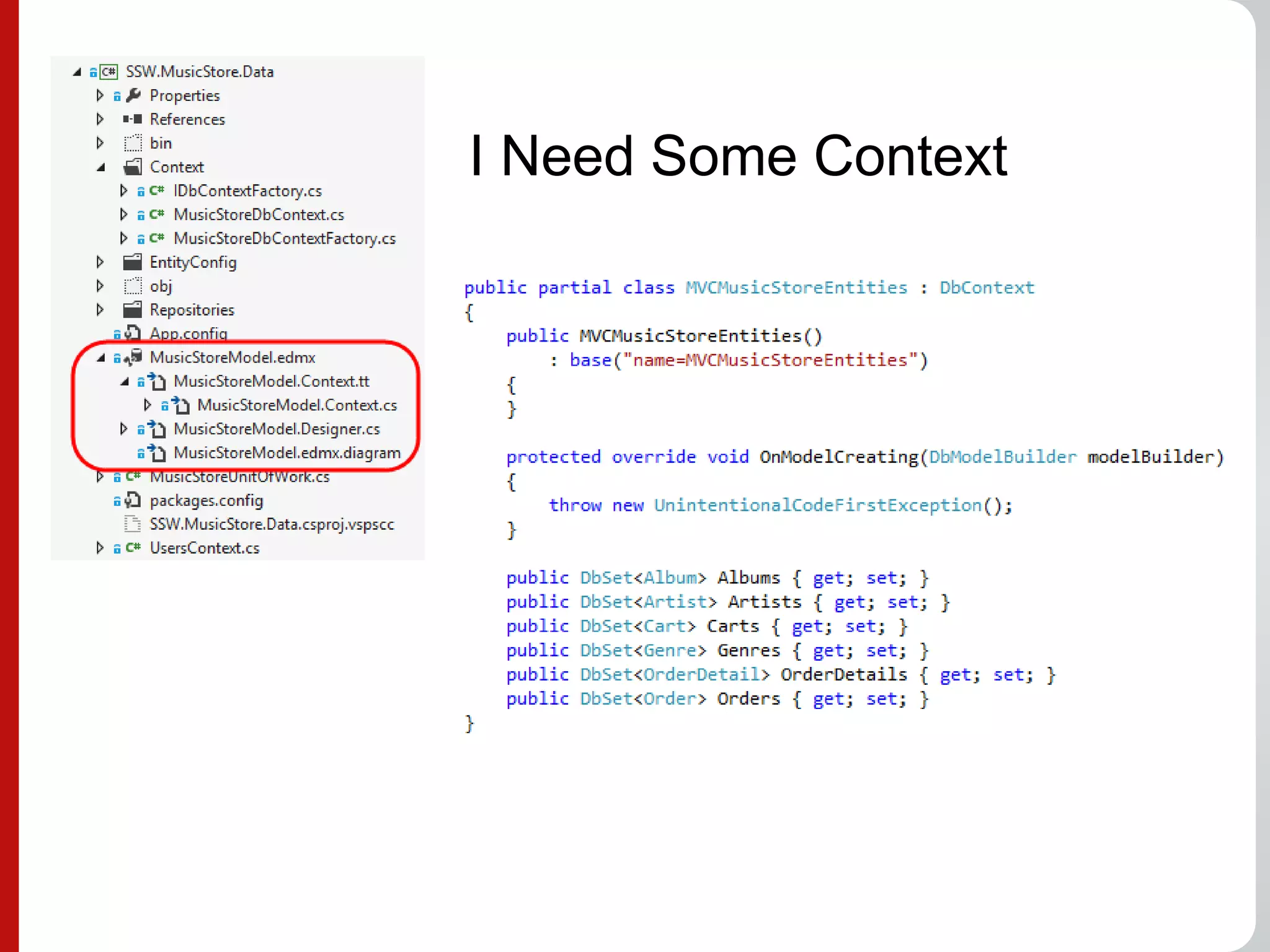

33. I Need Some Context

34. Code First Context vs Edmx Generated Context

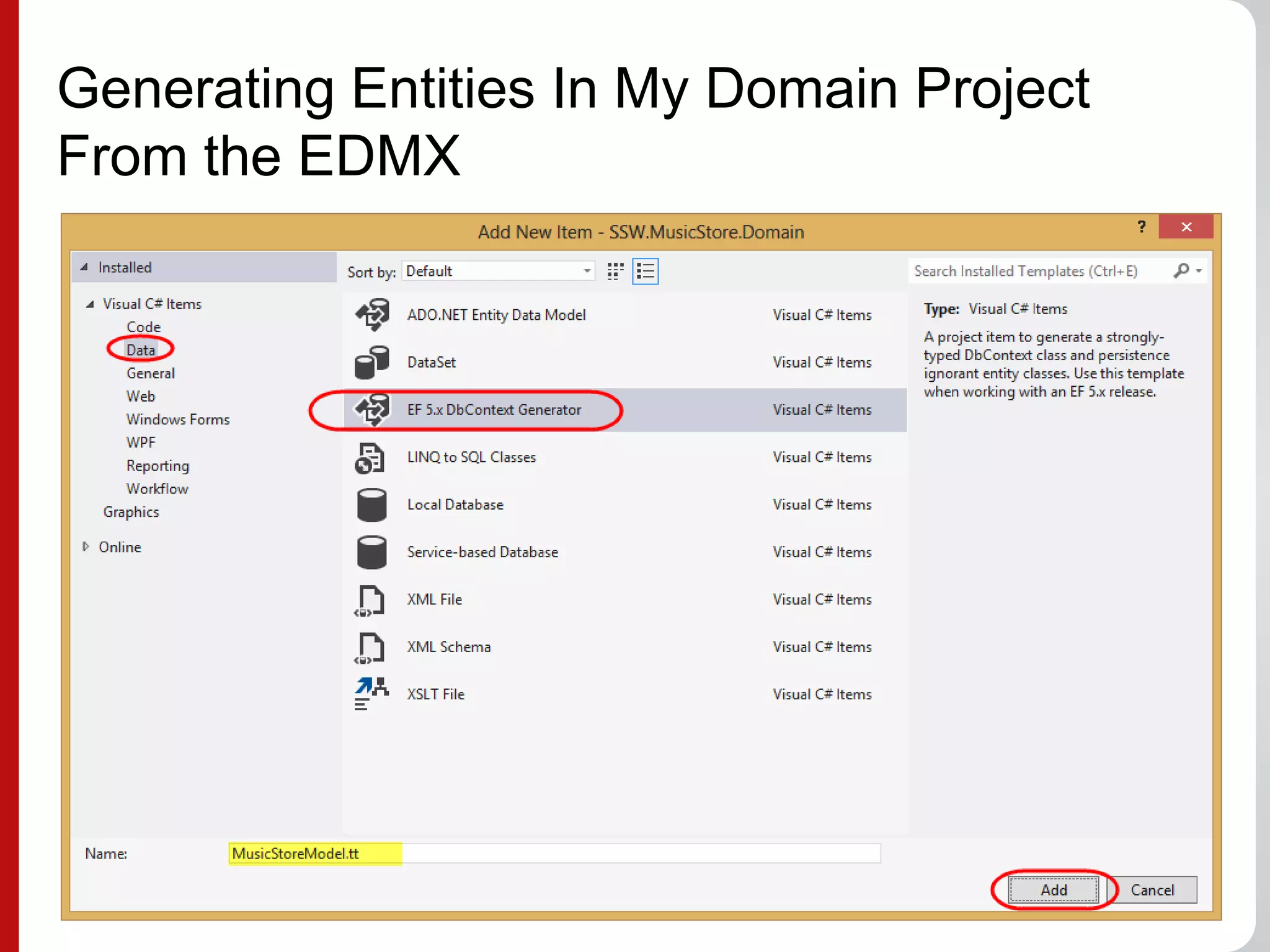

35. Generating Entities In My Domain Project
From the EDMX

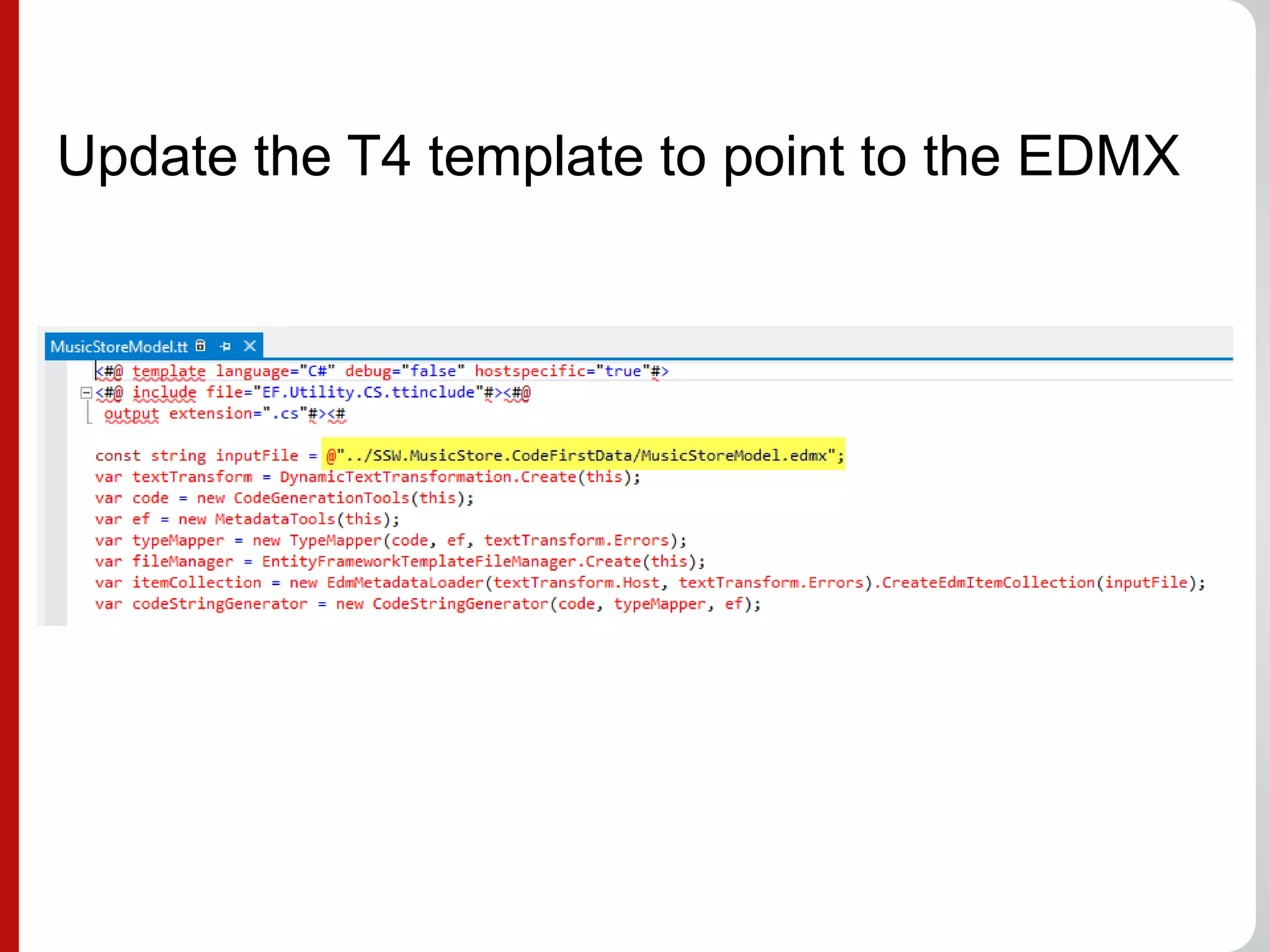

36. Update the T4 template to point to the EDMX

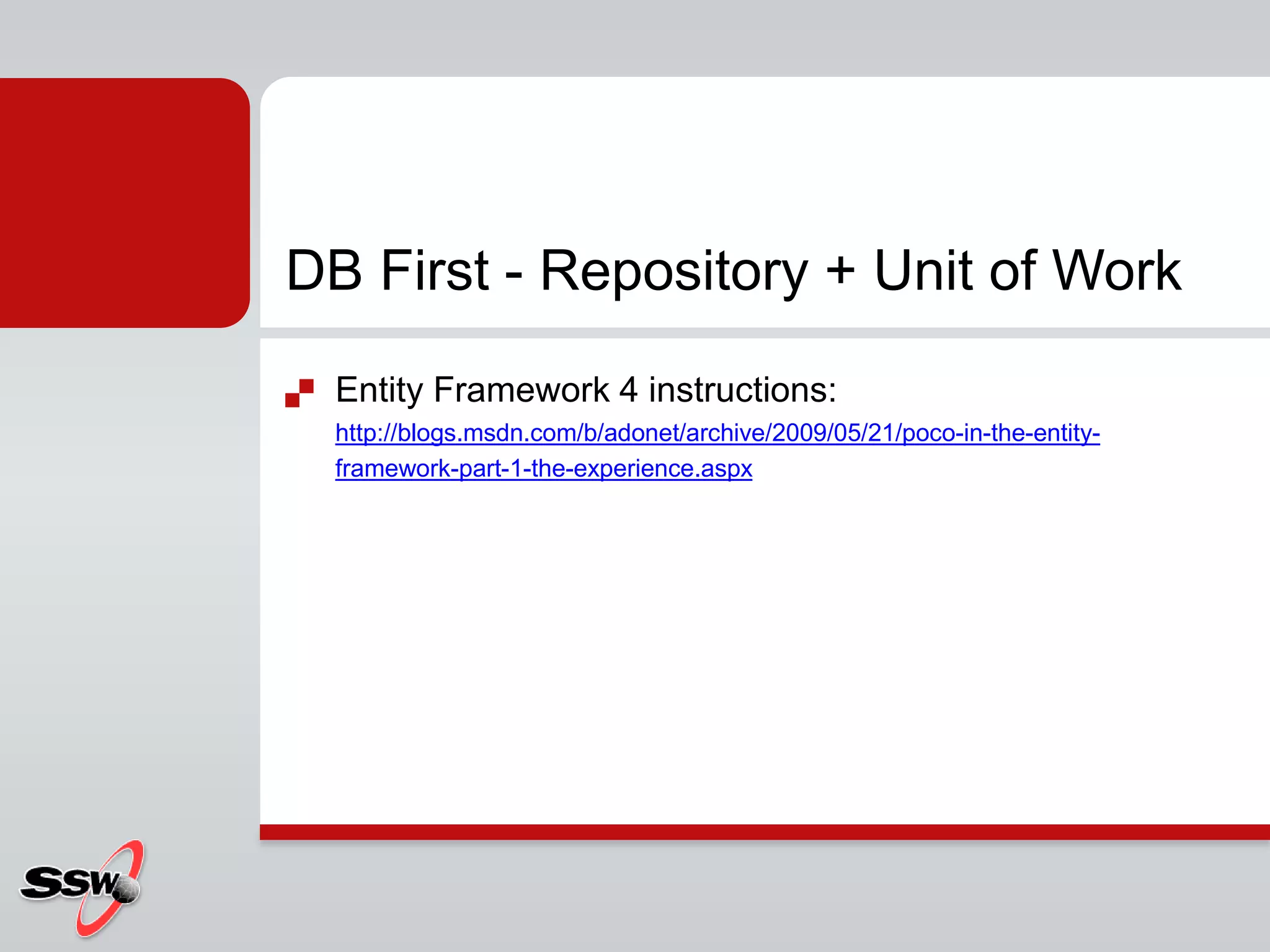

37. DB First - Repository + Unit of Work
 Entity Framework 4 instructions:
http://blogs.msdn.com/b/adonet/archive/2009/05/21/poco-in-the-entity-
framework-part-1-the-experience.aspx

38. View Models
 models that describe a view
 pass data from a controller to a view.
 provides a convenient way of representing
complex view data

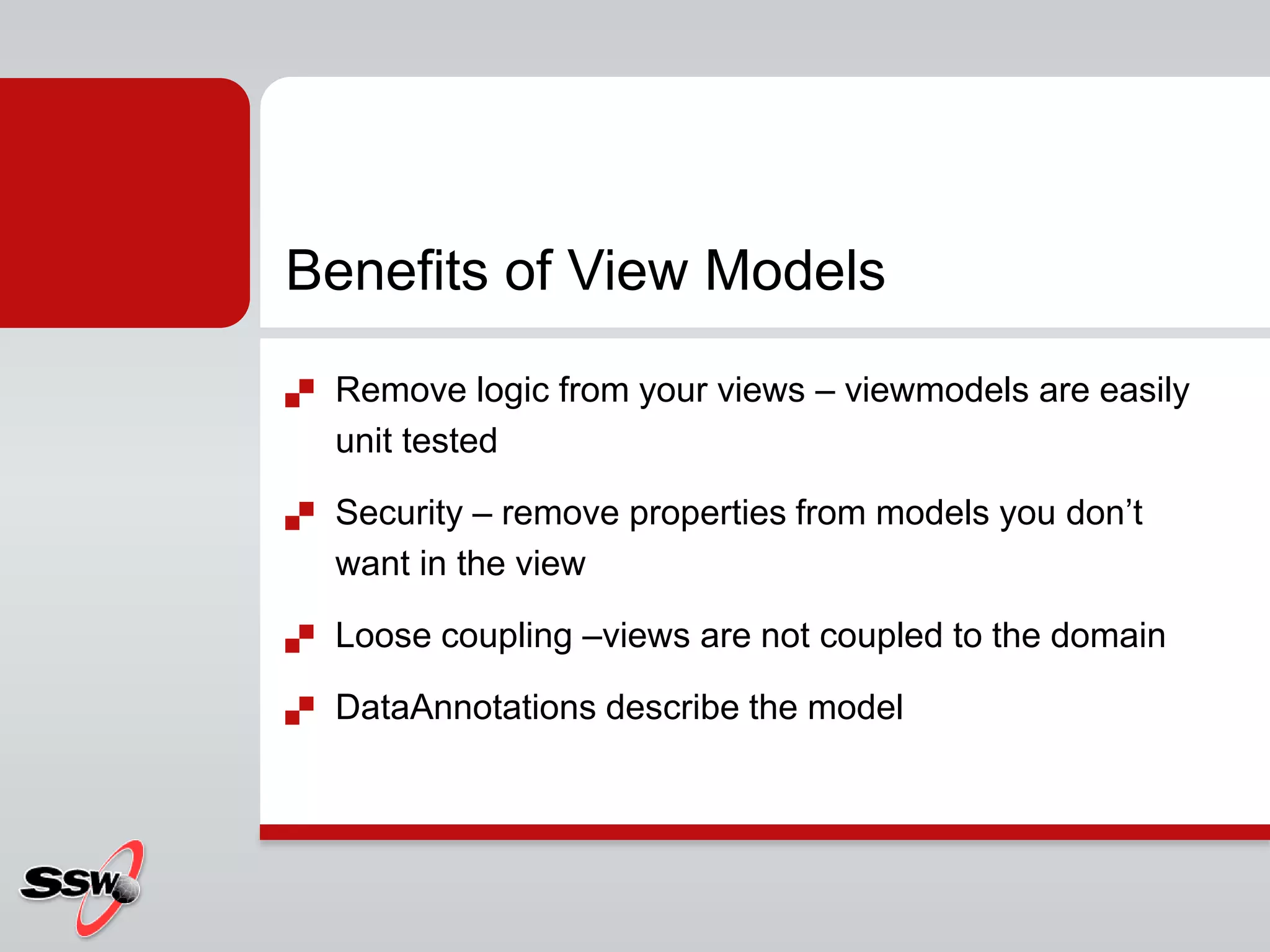

39. Benefits of View Models
 Remove logic from your views – viewmodels are easily
unit tested
 Security – remove properties from models you don’t
want in the view
 Loose coupling –views are not coupled to the domain
 DataAnnotations describe the model

41. Summary
1. Intro to Dependency Injection
2. Intro to the Onion Architecture
3. Intro to Enterprise Data Access
a) Repository Pattern
b) Unit of Work Pattern
4. View Models
