Amazon AWS & IAAS
- 1. AMAZON AWS &IAAS D H R U V PA D H I YA R D I V YA N G O Z A

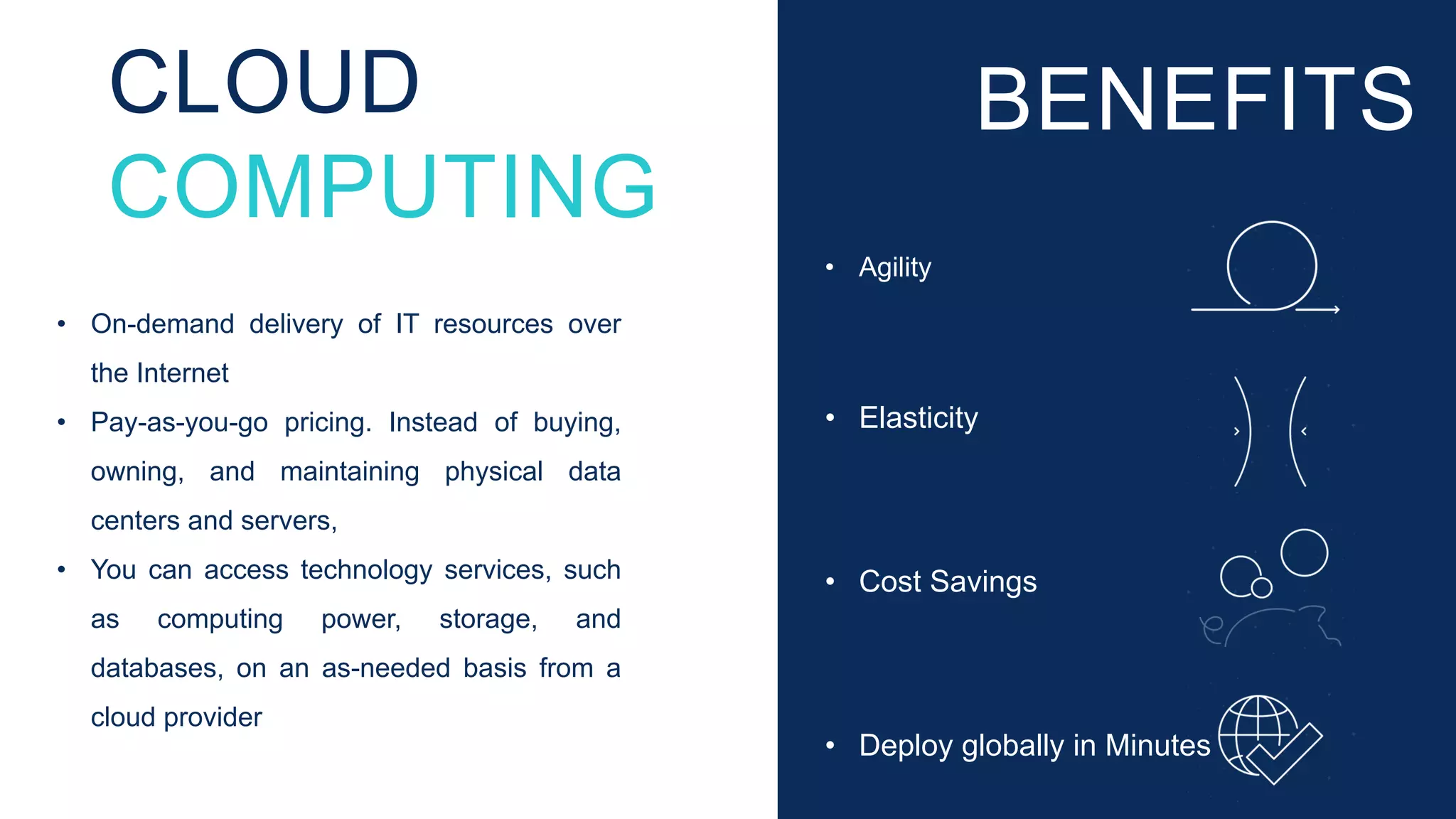

- 2. • On-demand deliveryof IT resources over the Internet • Pay-as-you-go pricing. Instead of buying, owning, and maintaining physical data centers and servers, • You can access technology services, such as computing power, storage, and databases, on an as-needed basis from a cloud provider CLOUD COMPUTING • Agility • Elasticity • Cost Savings • Deploy globally in Minutes BENEFITS

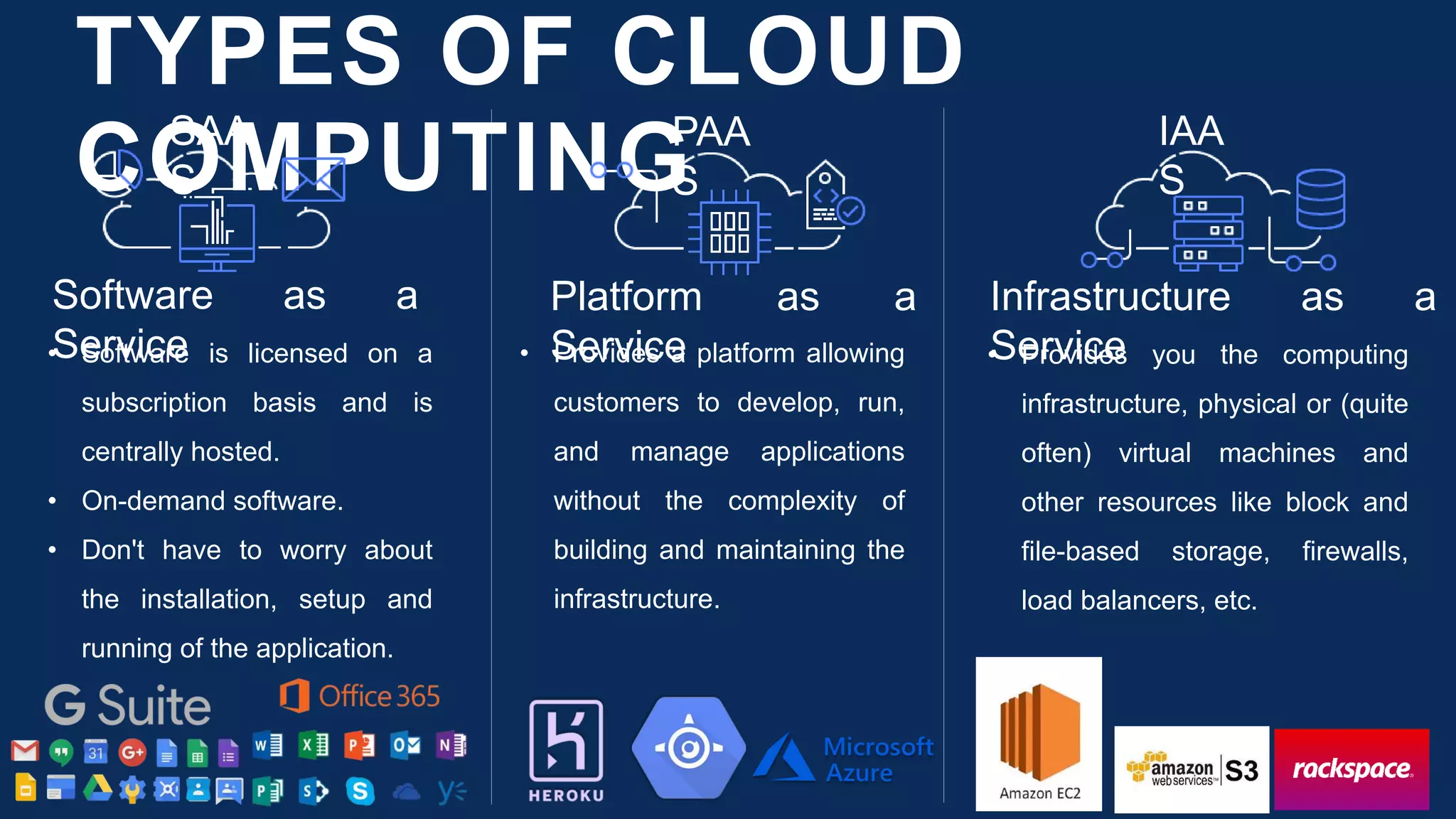

- 3. TYPES OF CLOUD COMPUTINGSAA S PAA S IAA S Softwareas a Service Platform as a Service Infrastructure as a Service• Software is licensed on a subscription basis and is centrally hosted. • On-demand software. • Don't have to worry about the installation, setup and running of the application. • Provides a platform allowing customers to develop, run, and manage applications without the complexity of building and maintaining the infrastructure. • Provides you the computing infrastructure, physical or (quite often) virtual machines and other resources like block and file-based storage, firewalls, load balancers, etc.

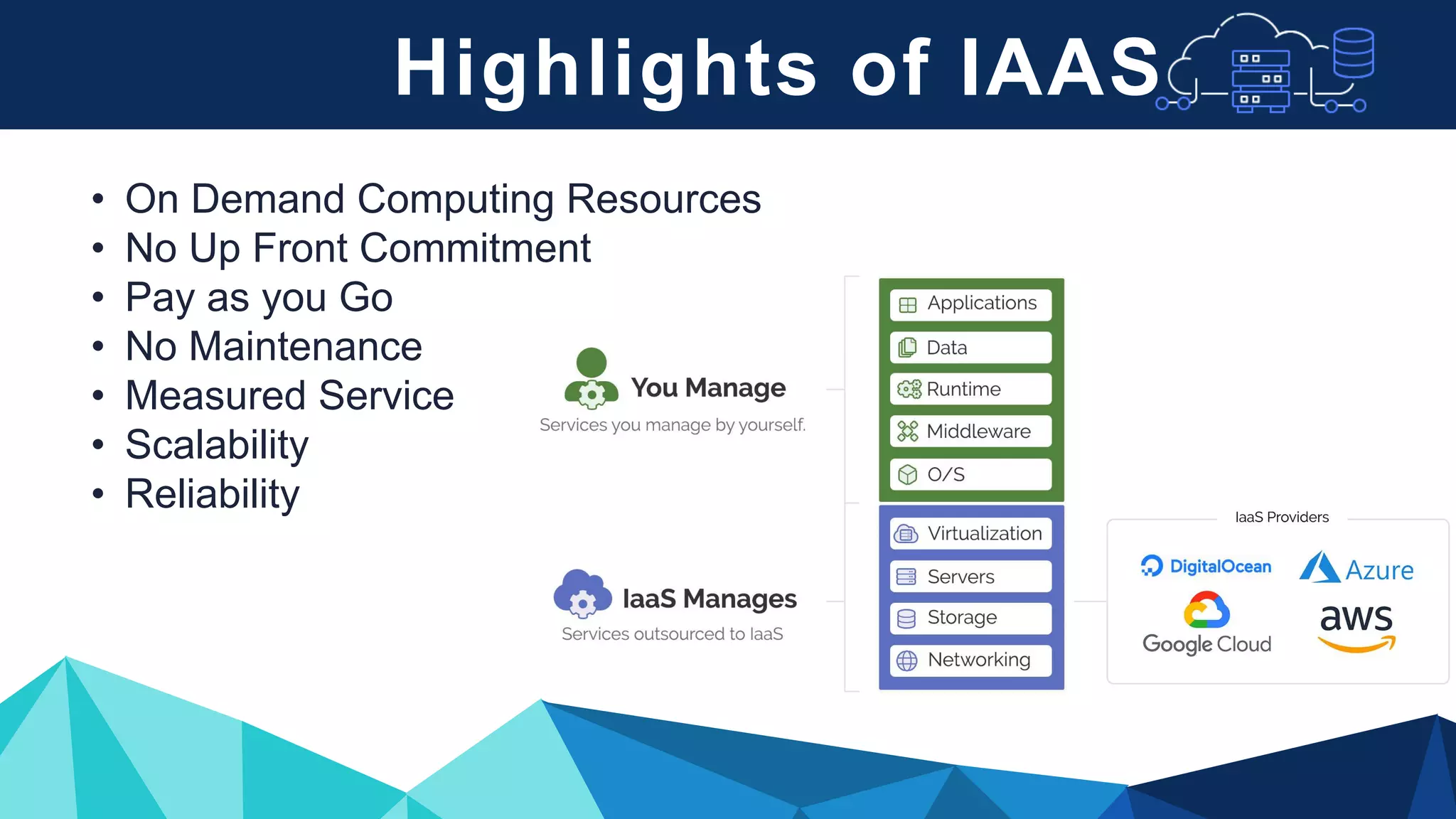

- 5. • On DemandComputing Resources • No Up Front Commitment • Pay as you Go • No Maintenance • Measured Service • Scalability • Reliability Highlights of IAAS

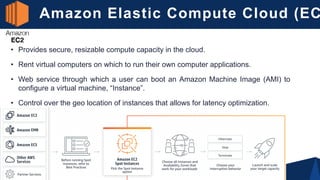

- 6. Amazon Elastic ComputeCloud (EC • Provides secure, resizable compute capacity in the cloud. • Rent virtual computers on which to run their own computer applications. • Web service through which a user can boot an Amazon Machine Image (AMI) to configure a virtual machine, “Instance”. • Control over the geo location of instances that allows for latency optimization.

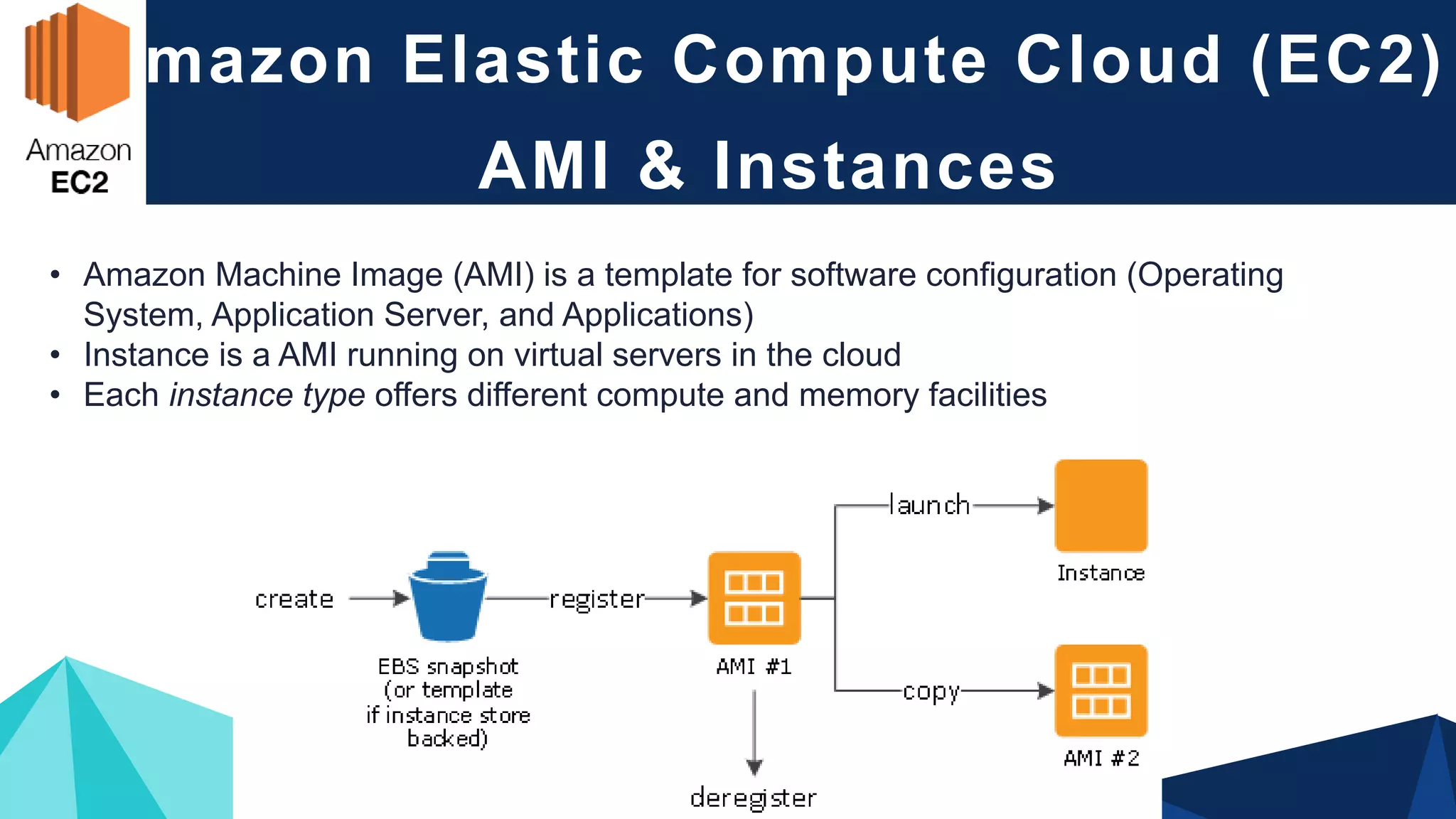

- 7. Amazon Elastic ComputeCloud (EC2) AMI & Instances • Amazon Machine Image (AMI) is a template for software configuration (Operating System, Application Server, and Applications) • Instance is a AMI running on virtual servers in the cloud • Each instance type offers different compute and memory facilities

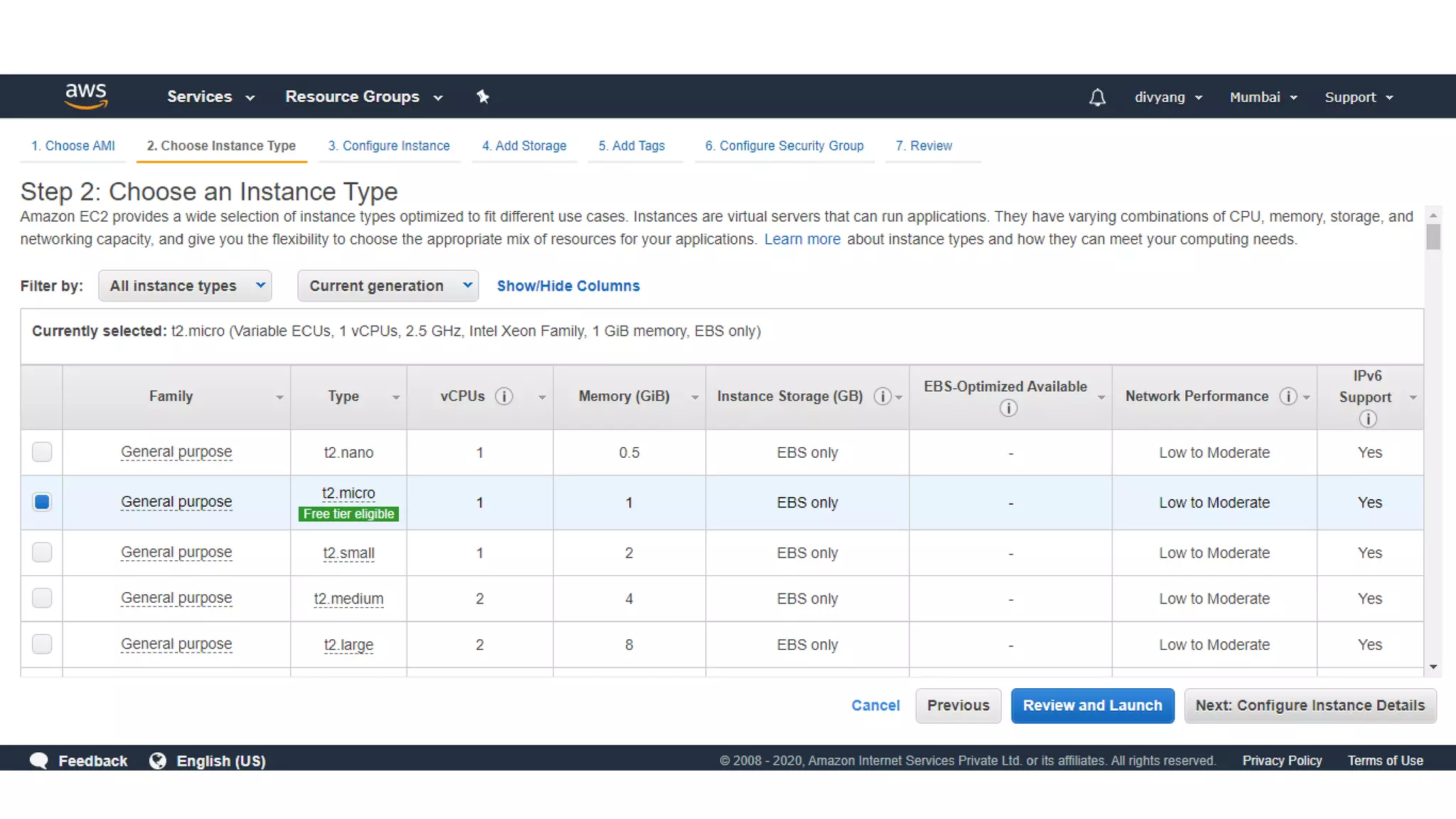

- 8. Amazon Elastic ComputeCloud (EC2) Instance Types • General Purpose - balance of compute, memory and networking resources • Compute Optimized - deal for compute bound applications that benefit from high performance processors. • Memory Optimized - designed to deliver fast performance for workloads that process large data sets in memory. • Accelerated Computing - hardware accelerators, or co-processors, to perform functions, such as floating point number calculations, graphics processing, or data pattern matching, more efficiently. NVIDIA Tesla V100 GPUs each pairing 5,120 CUDA Cores and 640 Tensor Cores • Storage Optimized - designed for workloads that require high, sequential read and write access to very large data sets on local storage.

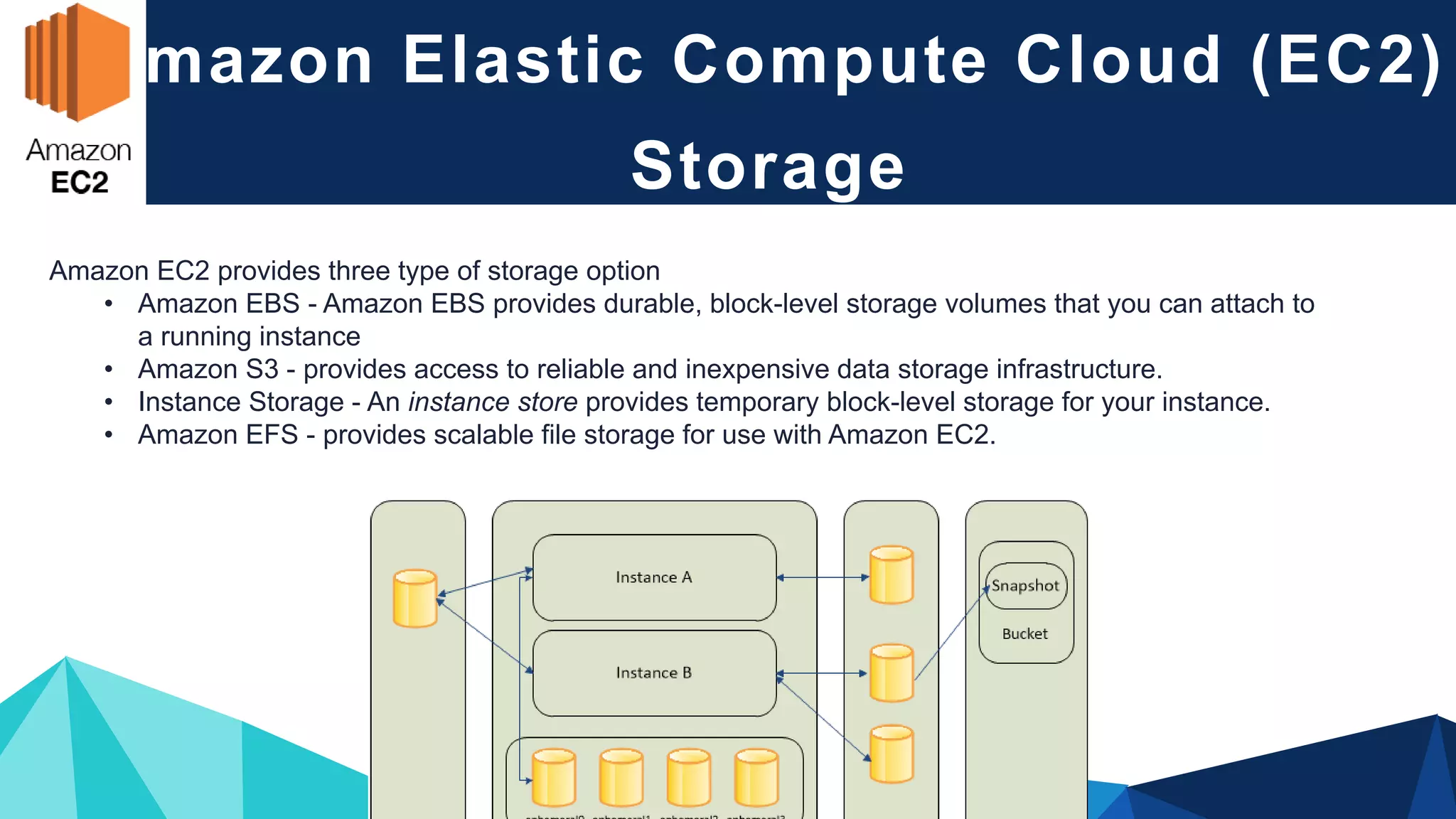

- 9. Amazon Elastic ComputeCloud (EC2) Storage Amazon EC2 provides three type of storage option • Amazon EBS - Amazon EBS provides durable, block-level storage volumes that you can attach to a running instance • Amazon S3 - provides access to reliable and inexpensive data storage infrastructure. • Instance Storage - An instance store provides temporary block-level storage for your instance. • Amazon EFS - provides scalable file storage for use with Amazon EC2.

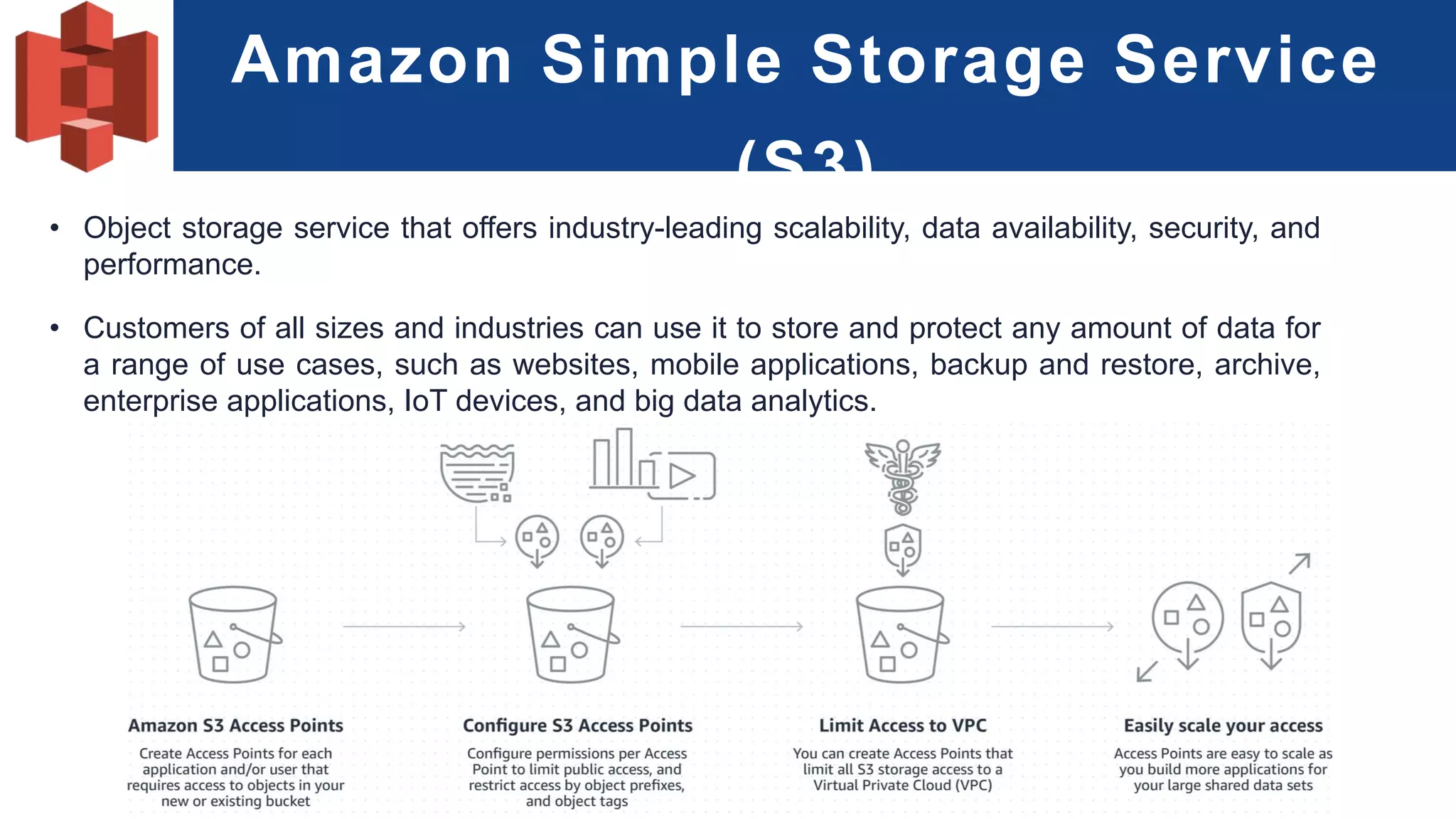

- 10. Amazon Simple StorageService (S3) • Object storage service that offers industry-leading scalability, data availability, security, and performance. • Customers of all sizes and industries can use it to store and protect any amount of data for a range of use cases, such as websites, mobile applications, backup and restore, archive, enterprise applications, IoT devices, and big data analytics.
- 21.
