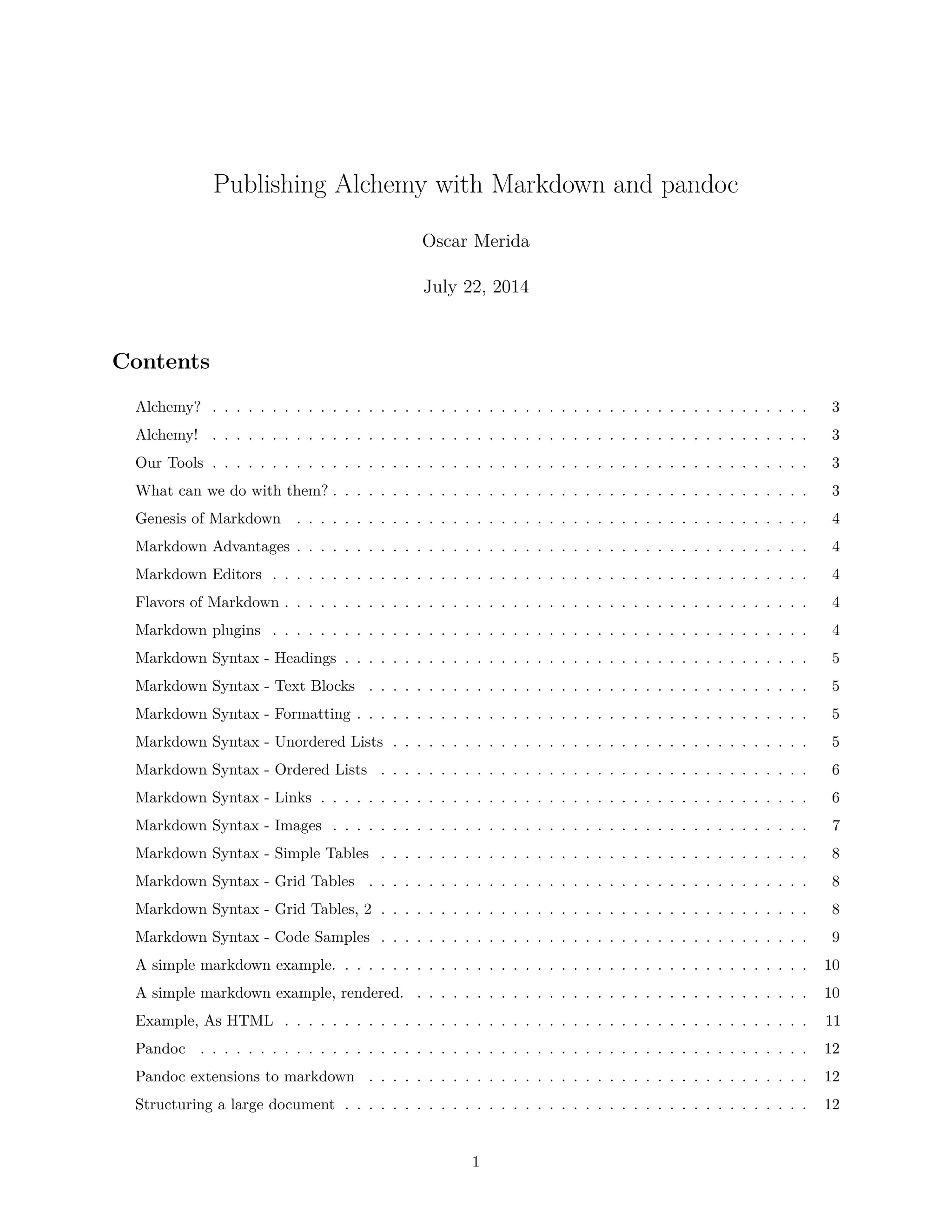

1. Publishing Alchemy with Markdown and pandoc
Oscar Merida
July 22, 2014
Contents
Alchemy? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Alchemy! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Our Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
What can we do with them? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Genesis of Markdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Markdown Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Markdown Editors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Flavors of Markdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Markdown plugins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Markdown Syntax - Headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Markdown Syntax - Text Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Markdown Syntax - Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Markdown Syntax - Unordered Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Markdown Syntax - Ordered Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Markdown Syntax - Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Markdown Syntax - Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Markdown Syntax - Simple Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Markdown Syntax - Grid Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Markdown Syntax - Grid Tables, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Markdown Syntax - Code Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
A simple markdown example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
A simple markdown example, rendered. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Example, As HTML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pandoc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pandoc extensions to markdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Structuring a large document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1

2. PDF output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
.epub output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Further Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
About me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2

3. Alchemy?
Figure 1: Alchemist - Joseph Wright
Alchemy!
Alchemy is an influential philosophical tradition whose practitioners have, from antiquity, claimed
it to be the precursor to profound powers.
Our Tools
• Markdown, a plain text format for writing.
• Pandoc, a command line tool for converting from one markup to another.
What can we do with them?
• Prepare technical and other documentation for projects
• Write articles for a blog
• Publish a book
• Create slides for a presentation
3

4. Genesis of Markdown
Created in 2004 by John Gruber and contributions from Aaron Swartz
“to write using an easy-to-read, easy-to-write plain text format, and optionally convert it to
structurally valid XHTML (or HTML)”
See the release: http://daringfireball.net/projects/markdown/
Markdown Advantages
• Plain text, easier to focus on writing
• Files are easy to version with git, svn, etc
• Much more readable than raw HTML
• Editable in any text editor, and. . .
Markdown Editors
• MarkdownPad for Windows
• Mou, iA Writer on
• ReText for Linux
• Online markdown editors like dillinger.io
• and many others for iOs, Android, etc
Flavors of Markdown
Unfortunately there is not a clearly defined Markdown standard
• Github markdown
– URL autolinking, strikethrough, fenced code blocks, syntax highlighting
• MultiMarkdown
– footnotes, tables, citations, captions
• Markdown Extra
– fenced code blocks, tables, footnotes
• Pandoc Markdown
– tables, syntax highlighting, inline footnotes
Markdown plugins
• For Wordpress, WP-Markdown
• For Drupal, Markdown filter
• PHP, PHP Markdown Extra
• As a service StackEdit
• Javascript Editor EpicEditor
4

5. Markdown Syntax - Headings
• One or more #
• Provide document structure
# Heading 1
## Heading 2
### Heading 3
#### Heading 4
##### Heading 5
<h1>Heading 1</h1>
<h2>Heading 2</h2>
<h3>Heading 3</h3>
<h4>Heading 4</h4>
<h5>Heading 5</h5>
Markdown Syntax - Text Blocks
• Paragraphs are separated by a new line.
• Block Quotes begin with a >.
I should have used lorem ipsum here as an example of text
> And here is another paragraph
I should have used lorem ipsum here as an example of text
And here is another paragraph
Markdown Syntax - Formatting
*italic* _italic_
**bold**__bold__
‘monospace‘
italic italic
bold bold
monospace
Markdown Syntax - Unordered Lists
• Bullets can be +, -, *
• Nested lists are indented by 4 spaces.
- One
* Sub One
- Two
- Three
5

6. • One
– Sub One
• Two
• Three
Markdown Syntax - Ordered Lists
• Numbered lists use numbers followed by a period.
• Nested lists are indented by 4 spaces.
1. One
1. Another Level
3. And more
1. Two
1. Something Else
1. One
1. Another Level
2. And more
2. Two
3. Something Else
Markdown Syntax - Links
• Link text is enclosed with square brackets [].
• Alternatively, links in angled brackets <> will show the URL
• URL in Parentheses,
– can use absolute, relative paths too
Read [my blog](http://bytesinthemargin.com/)
<http://bytesinthemargin.com>
Read my blog
http://bytesinthemargin.com
6

7. Markdown Syntax - Images
• Same format as URL, but starts with !
7

8. Markdown Syntax - Simple Tables
• More than one way to specify tables, varies by implementation
• Simple tables
Right Left Center Default
------- ------ ---------- -------
12 12 12 12
123 123 123 123
1 1 1 1
Right Left Center Default
12 12 12 12
123 123 123 123
1 1 1 1
Markdown Syntax - Grid Tables
+---------------+---------------+--------------------+
| Fruit | Price | Advantages |
+===============+===============+====================+
| Bananas | $1.34 | - built-in wrapper |
| | | - bright color |
+---------------+---------------+--------------------+
| Oranges | $2.10 | - cures scurvy |
| | | - tasty |
+---------------+---------------+--------------------+
Markdown Syntax - Grid Tables, 2
Fruit Price Advantages
Bananas $1.34 • built-in wrapper
• bright color
Oranges $2.10 • cures scurvy
• tasty
8

9. Markdown Syntax - Code Samples
• Original markdown indents code block with four spaces
• Larger code blocks should use fenced code blocks
~~~~{.php}
<?php
echo "Hello World. Today is";
echo date(’Y-m-d H:i’);
~~~~
<?php
echo "Hello World. Today is";
echo date(’Y-m-d H:i’);
9

10. A simple markdown example.
The United States Men’s national team advanced from Group G
in the 2014 World Cup held in Brazil.
With a win against Ghana, a last minute tie against Brazil,
the team secured 4 points and second place. Final standings
are shown below.
Team W D L
------- --- --- ---
Germany 2 1 0
USA 1 1 1
Portugal 1 1 1
Ghana 0 1 2
Source: [Wikipedia](https://en.wikipedia.org/wiki/2014_FIFA_World_Cup#Group_G)
A simple markdown example, rendered.
Figure 2: USSF Logo
The United States Men’s national team advanced from Group G in the 2014 World Cup held in Brazil.
With a win against Ghana, a last minute tie against Brazil, the team secured 4 points and second place.
Final standings are shown below.
Team W D L
Germany 2 1 0
USA 1 1 1
Portugal 1 1 1
Ghana 0 1 2
Source: Wikipedia
10

11. Example, As HTML
<h1>A simple markdown example, rendered.</h1>
<div class="figure">
<img src="./images/US_Soccer_logo.png" alt="USSF Logo"><p class="caption">USSF Logo</p>
</div>
<p>The United States Men’s national team advanced from Group G in the 2014 World Cup
held in Brazil.</p>
<p>With a win against Ghana, a last minute tie against Brazil, the team secured 4
points and second place. Final standings are shown below.</p>
<table>
<thead>
<tr class="header">
<th align="left">Team</th>
<th align="left">W</th>
<th align="left">D</th>
<th align="left">L</th>
</tr>
</thead>
<tbody>
<tr class="odd">
<td align="left">Germany</td>
<td align="left">2</td>
<td align="left">1</td>
<td align="left">0</td>
</tr>
<tr class="even">
<td align="left">USA</td>
<td align="left">1</td>
<td align="left">1</td>
<td align="left">1</td>
</tr>
<tr class="odd">
<td align="left">Portugal</td>
<td align="left">1</td>
<td align="left">1</td>
<td align="left">1</td>
</tr>
<tr class="even">
<td align="left">Ghana</td>
<td align="left">0</td>
<td align="left">1</td>
<td align="left">2</td>
</tr>
</tbody>
</table>
<p>Source: <a href="https://en.wikipedia.org/wiki/2014_FIFA_World_Cup#Group_G">Wikipedia</a></p>
11

12. Pandoc
• Written in Haskell
• Converts markup in one format to another
• From
– Markdown
– HTML
– LaText, and more
• To
– PDF
– Latex,
– EPUP, and more
• Read the Instructions for Installing Pandoc
– Windows, Mac OS X, Linux, BSD
Pandoc extensions to markdown
Thus, while pandoc allows the embedding of raw HTML, it discourages it, and provides other,
non-HTMLish ways of representing important document elements like definition lists, tables,
mathematics, and footnotes.
• Fancier lists
– Uppercase & lowercase letters, or Roman numerals
• Definition lists
• Inline footnotes
• Built in syntax highlighting
Read the Pandoc Documentation for details.
Structuring a large document
What if you’re writing a book, or long report? What if you have multiple contributors?
• Break up document into multiple files.
– One chapter per file
– Use a naming convention so that listing the files will put them in sequence
∗ 001-introduction.md
∗ chapter-01.md
• Put figures & Images in an images folder
• Use Git or Subversion to commit your changes, update to get other’s changes.
• Use a build script to execute pandoc
12

13. PDF output
• Requires a LaTeX engine
• --toc --toc-depth=N adds a Table of Contents
• “ to use raw tex commands
• Use pagebreak in your markdown to control Page Breaks
Convert markdown to pdf:
pandoc -s --toc --toc-depth=2 -o alchemy-markdown-pandoc.pdf slides.md
See this presentation a PDF
.epub output
• epub is a free & open e-book standard that uses HTML & CSS.
• Need an xml file for epub metadata.
<dc:title>Publishing Alchemy with Markdown and pandoc</dc:title>
<dc:language>en-US</dc:language>
<dc:creator opf:file-as="Merida, Oscar" opf:role="aut">Oscar Merida</dc:creator>
<dc:date opf:event="publication">2014-07-29</dc:date>
<dc:rights>Copyright c 2014 by Oscar Merida</dc:rights>
Convert markdown to epub
pandoc -s --toc --toc-depth=2 -o alchemy-markdown-pandoc.epub
--epub-cover-image=images/cover.jpg
--epub-metadata=book.xml slides.md
See this presentation an epub
Further Reading
• PuppetLabs: How We Automated Our Ebook Builds With Pandoc and KindleGen
• Convert from Word to markdown
• A Markdown Epub Builder
• Convert epub to MOBI with KindleGen
• S5 Html based Slide Shows
• Pandoc and LaTeX
About me
• PHP Developer since PHP3 day
• Drupal since 4.x
• php[architect] monthly magazine
– always looking for contributors
– we do books & training too!
• Follow me @omerida
• php[world] this November http://world.phparch.com
13
