1. Akka for real-time Multiplayer
mobile games

2. Who am I?

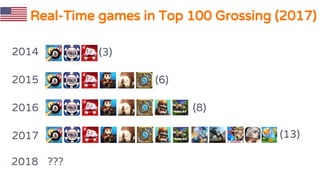

3. Real-Time games in Top 100 Grossing (2017)
2014
2015
2016
2017
(3)
(6)
(8)
(13)
2018 ???

4. Enabling Factors
Source: PC Mag

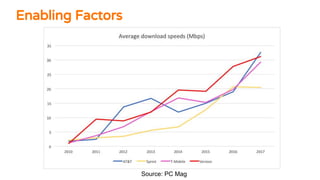

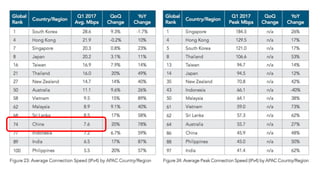

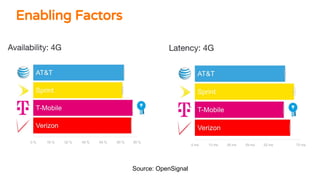

5. Enabling Factors

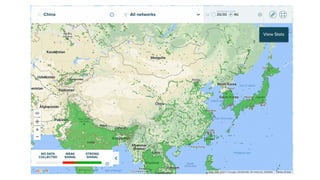

Source: OpenSignal

6. Enabling Factors

7. > $400M Monthly Revenue
Source: Bloomberg
> 80M DAU
Source: Tencent

9. 10-20 inputs/s, sensitive to lags (> 300ms)

10. unpredictable network, limited bandwidth

12. Decisions, decisions...
Build vs Buy?
Global deployment vs Centralized?
TCP vs UDP?
Server Authoritative vs Lock-Step?

13. Constraints/Trade-offs
Latency (RTT)
Cost
Complexity
Scalability
Operational overhead

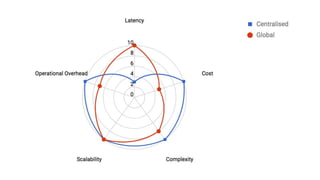

14. Global Deployment
vs
Centralised

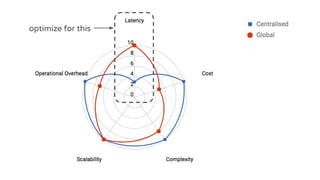

17. 10-20 inputs/s, sensitive to lags (> 300ms)

20. optimize for this

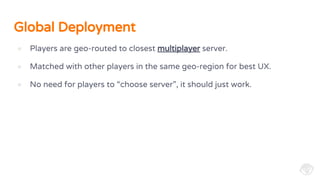

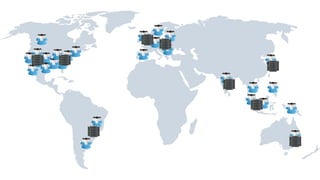

21. Global Deployment

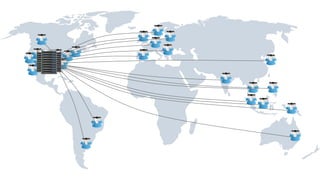

● Players are geo-routed to closest multiplayer server.
● Matched with other players in the same geo-region for best UX.
● No need for players to “choose server”, it should just work.

22. Global Deployment
● Should leaderboards be global or regional?
● Should guilds/alliances be global or regional?
● Should chatrooms be global or regional?
● Should liveops events be global or regional?
● Should players be allowed to play with others in another region?
ie. play with distant relatives/friends.
● Should players be allowed to switch default region?
eg. moved to Europe after Brexit

23. Server Authoritative
vs
Lock-Step

24. Server Authoritative
● Server decides game logic.
● Client sends all inputs to server.
● Client receives game state (either full, or delta) from server.

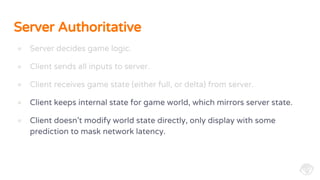

25. Server Authoritative
● Server decides game logic.
● Client sends all inputs to server.
● Client receives game state (either full, or delta) from server.
● Client keeps internal state for game world, which mirrors server state.
● Client doesn’t modify world state directly, only display with some
prediction to mask network latency.

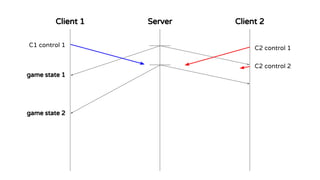

26. Client 1 Client 2Server
C1 control 1 C2 control 1
game state 1

27. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
game state 1
game state 2

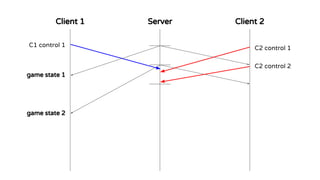

28. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
game state 1
game state 2

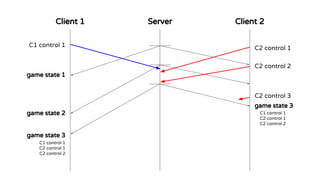

29. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
game state 1
game state 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 3
C1 control 1
C2 control 1
C2 control 2
C2 control 3

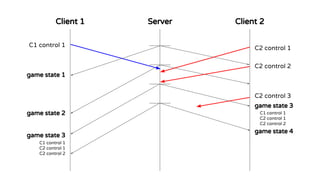

30. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
game state 1
game state 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 4

31. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
game state 1
game state 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 4

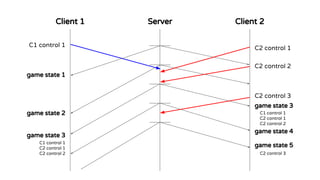

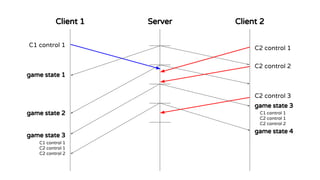

32. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
game state 1
game state 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 5
C2 control 3
game state 4

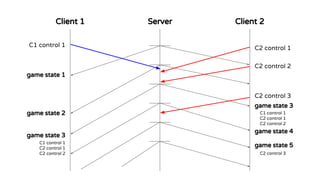

33. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
game state 1
game state 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 3
C1 control 1
C2 control 1
C2 control 2
game state 5
C2 control 3
game state 4

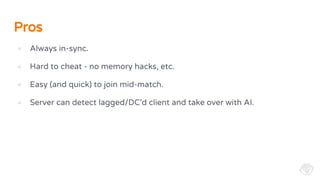

35. Pros
● Always in-sync.
● Hard to cheat - no memory hacks, etc.
● Easy (and quick) to join mid-match.
● Server can detect lagged/DC’d client and take over with AI.

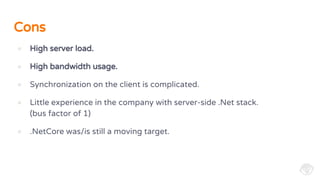

36. Cons
● High server load.
● High bandwidth usage.
● Synchronization on the client is complicated.
● Little experience in the company with server-side .Net stack.
(bus factor of 1)
● .NetCore was/is still a moving target.

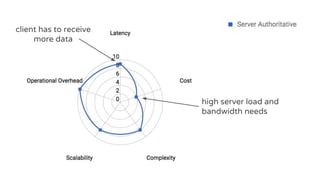

37. high server load and
bandwidth needs
client has to receive
more data

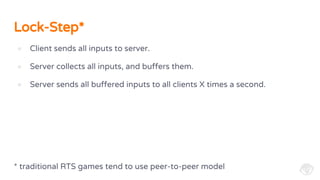

38. Lock-Step*
● Client sends all inputs to server.
● Server collects all inputs, and buffers them.
● Server sends all buffered inputs to all clients X times a second.
* traditional RTS games tend to use peer-to-peer model

39. Lock-Step*
● Client sends all inputs to server.
● Server collects all inputs, and buffers them.
● Server sends all buffered inputs to all clients X times a second.
● Client executes all inputs in the same order.
● Because everyone is 'guaranteed' to have executed the same input at
the same frame in the same order, we get synchronicity.
● Use prediction to mask network latency.
* traditional RTS games tend to use peer-to-peer model

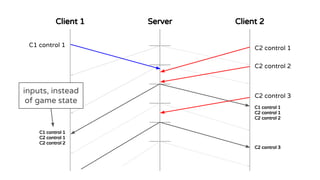

40. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
C1 control 1
C2 control 1
C2 control 2
C1 control 1
C2 control 1
C2 control 2
C2 control 3
inputs, instead
of game state

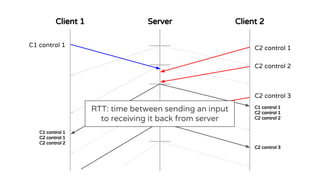

41. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
C1 control 1
C2 control 1
C2 control 2
C1 control 1
C2 control 1
C2 control 2
C2 control 3
RTT: time between sending an input
to receiving it back from server

42. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
C1 control 1
C2 control 1
C2 control 2
C1 control 1
C2 control 1
C2 control 2
C2 control 3

43. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
C1 control 1
C2 control 1
C2 control 2
C1 control 1
C2 control 1
C2 control 2
C2 control 3
RTT
frame time
latency

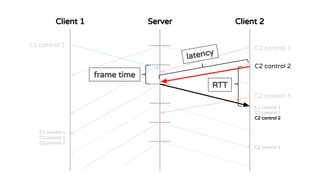

44. Client 1 Client 2Server
C1 control 1 C2 control 1
C2 control 2
C2 control 3
C1 control 1
C2 control 1
C2 control 2
C1 control 1
C2 control 1
C2 control 2
C2 control 3
RTT
frame time
RTT = latency x 2 + X
Xmin = 0, Xmax = frame time
latency

46. Pros
● Light server load.
● Lower bandwidth usage.
● Simpler server implementation.

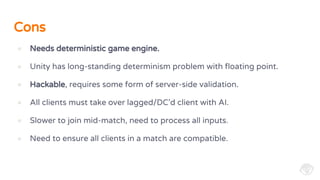

47. Cons
● Needs deterministic game engine.
● Unity has long-standing determinism problem with floating point.
● Hackable, requires some form of server-side validation.
● All clients must take over lagged/DC’d client with AI.
● Slower to join mid-match, need to process all inputs.
● Need to ensure all clients in a match are compatible.

48. fix-point math,
server validation, ...

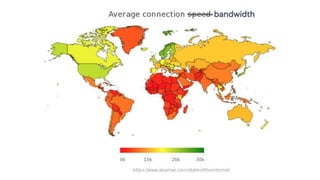

51. bandwidth

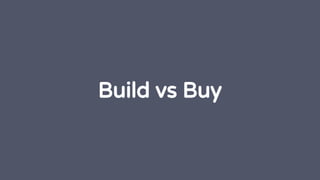

52. Build vs Buy

54. ApeSync

55. +

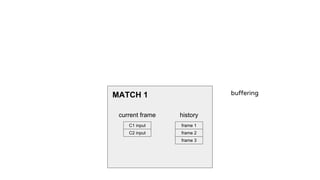

56. MATCH 1
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3
buffering

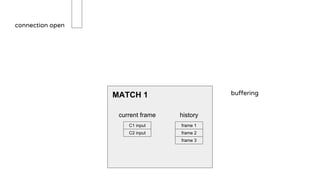

57. connection open
MATCH 1
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3
buffering

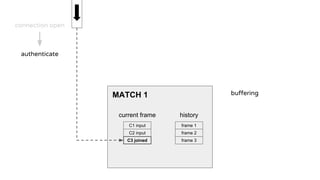

58. connection open
authenticate
MATCH 1
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3C3 joined
buffering

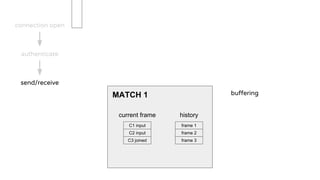

59. connection open
authenticate
send/receive
MATCH 1
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3C3 joined
buffering

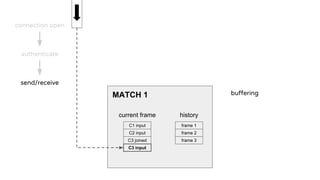

60. MATCH 1
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3C3 joined
C3 input
connection open
authenticate
send/receive
buffering

61. MATCH 1
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3C3 joined
C3 input
connection open
authenticate
send/receive
buffering
broadcast!

62. MATCH 1
current frame history
frame 1
frame 2
frame 3
C1 input
C2 input
C3 joined
C3 input
connection open
authenticate
send/receive
buffering
broadcast!

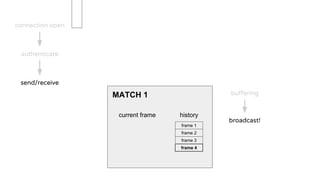

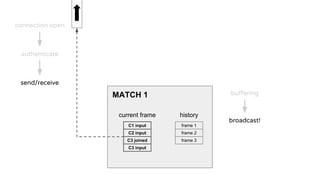

63. MATCH 1
current frame history
frame 1
frame 2
frame 3
frame 4
connection open
authenticate
send/receive
buffering
broadcast!

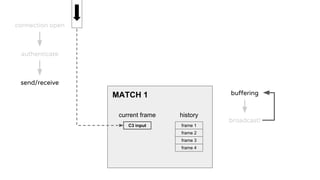

64. MATCH 1
current frame history
frame 1
frame 2
frame 3
frame 4
connection open
authenticate
send/receive
buffering

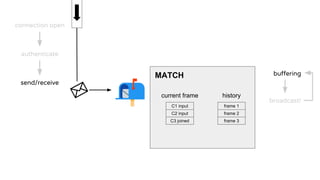

broadcast!
C3 input

66. concurrency

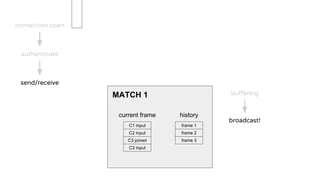

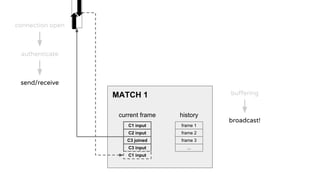

67. MATCH 1
current frame history
frame 1
frame 2
frame 3
...
C1 input
C2 input
C3 joined
C3 input
connection open
authenticate
send/receive
buffering
broadcast!
C1 input

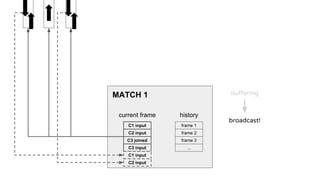

68. MATCH 1
current frame history
frame 1
frame 2
frame 3
...
C1 input
C2 input
C3 joined
C3 input
buffering
broadcast!
C1 input
C2 input

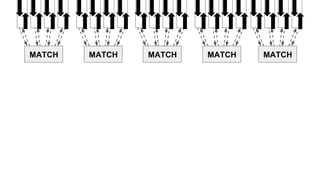

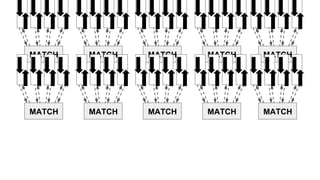

69. MATCH MATCH MATCH MATCH MATCH

70. MATCH MATCH MATCH MATCH MATCH
MATCH MATCH MATCH MATCH MATCH

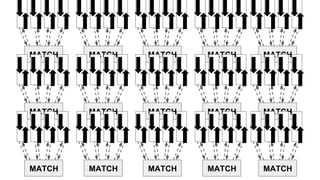

71. MATCH MATCH MATCH MATCH MATCH
MATCH MATCH MATCH MATCH MATCH
MATCH MATCH MATCH MATCH MATCH

72. MATCH
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3C3 joined
connection open
authenticate
send/receive
buffering
broadcast!

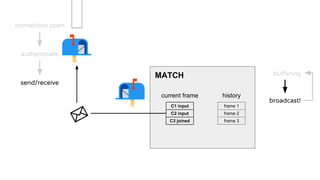

73. MATCH
C1 input
C2 input
current frame history
frame 1
frame 2
frame 3C3 joined
connection open
authenticate
send/receive
buffering
broadcast!

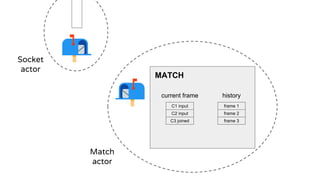

74. MATCH
current frame history
frame 1
frame 2
frame 3
C1 input
C2 input
C3 joined
Socket
actor
Match
actor

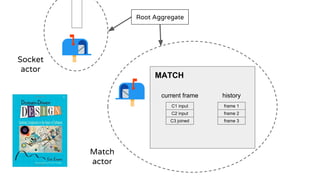

75. MATCH
current frame history
frame 1
frame 2
frame 3
C1 input
C2 input
C3 joined
Root Aggregate
Socket
actor
Match
actor

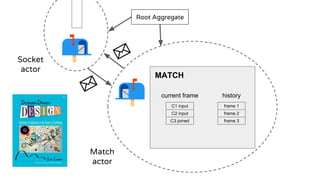

76. MATCH
current frame history
frame 1
frame 2
frame 3
C1 input
C2 input
C3 joined
Root Aggregate
Socket
actor
Match
actor

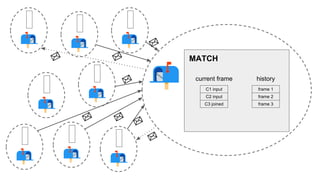

77. MATCH
current frame history
frame 1
frame 2
frame 3
C1 input
C2 input
C3 joined

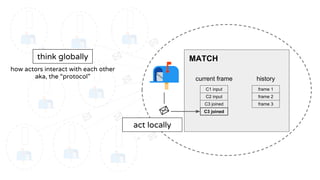

78. MATCH
current frame history
frame 1
frame 2
frame 3
C1 input
C2 input
C3 joined
C3 joined
act locally
think globally
how actors interact with each other
aka, the “protocol”

80. the secret to building high
performance systems is simplicity
complexity kills performance

81. Higher CCU per server
Fewer servers
Lower cost
Less operational overhead
Performance Matters

82. We should forget about small
efficiencies, say about 97% of the
time: premature optimization is
the root of all evil. Yet we should
not pass up our opportunities in
that critical 3%.
Performance Matters

83. We should forget about small
efficiencies, say about 97% of the
time: premature optimization is
the root of all evil. Yet we should
not pass up our opportunities in
that critical 3%.
Performance Matters

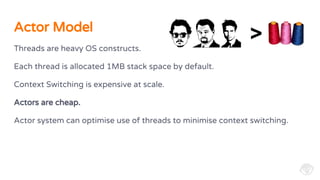

84. Threads are heavy OS constructs.
Each thread is allocated 1MB stack space by default.
Context Switching is expensive at scale.
Actors are cheap.
Actor system can optimise use of threads to minimise context switching.
Actor Model
>

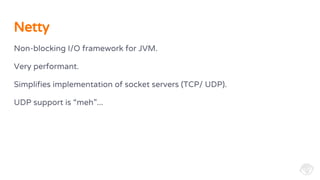

85. Non-blocking I/O framework for JVM.
Very performant.
Simplifies implementation of socket servers (TCP/ UDP).
UDP support is “meh”...
Netty

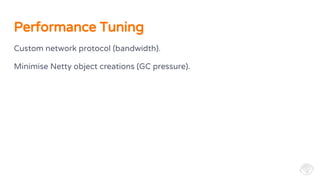

86. Custom network protocol (bandwidth).
Minimise Netty object creations (GC pressure).
Performance Tuning

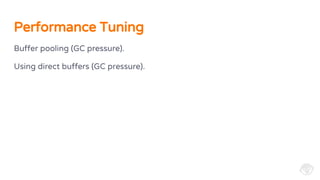

87. Buffer pooling (GC pressure).
Using direct buffers (GC pressure).
Performance Tuning

88. Disable Nagle's algorithm (latency).
TCP tuning (including BBR, etc. with differing results).
Epoll.
ENA-enabled EC2 instances.
Performance Tuning

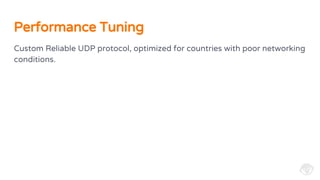

89. Custom Reliable UDP protocol, optimized for countries with poor networking
conditions.
Performance Tuning

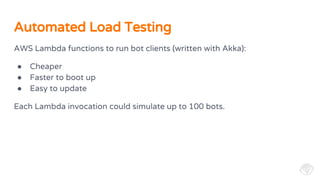

90. AWS Lambda functions to run bot clients (written with Akka):
● Cheaper
● Faster to boot up
● Easy to update
Each Lambda invocation could simulate up to 100 bots.
Automated Load Testing

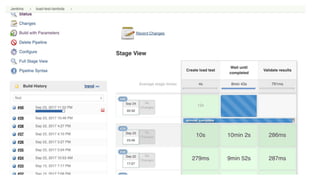

93. from US-EAST (Lambda)
to EU-WEST (game server)

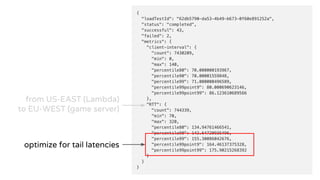

94. optimize for tail latencies
from US-EAST (Lambda)
to EU-WEST (game server)

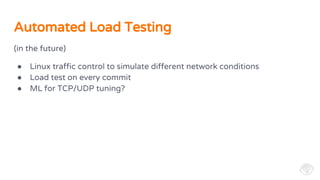

95. (in the future)
● Linux traffic control to simulate different network conditions
● Load test on every commit
● ML for TCP/UDP tuning?
Automated Load Testing

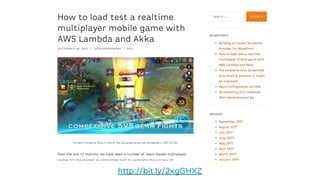

96. http://bit.ly/2xgGHXZ

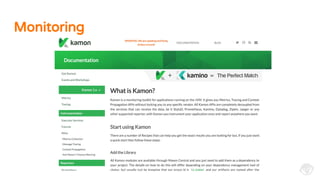

97. Monitoring

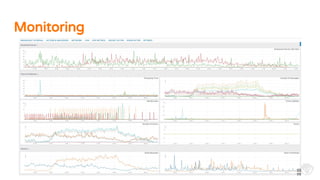

98. Monitoring

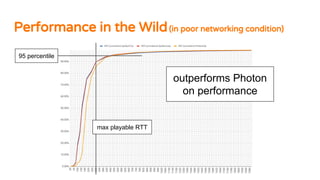

99. Performance in the Wild(in poor networking condition)
95 percentile
max playable RTT
outperforms Photon
on performance

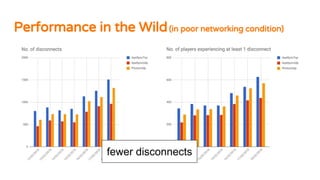

100. Performance in the Wild(in poor networking condition)
fewer disconnects

101. Performance in the Wild
● Improved KPIs - D1 retention, session time, etc.
● 14% cheaper vs. Photon, based on current cost projection

102. We are hiring! :-)
http://www.spaceapegames.com/careers
talk to this guy for more detail =>
Alessandro Simi

103. Thank You!
