1. Advance Unit
Testing
Or How I Learned to Stop Worrying
and Love the unit-test

2. Why?
▪ Unit-test is the first client of your
code
▪ Verification and regression through
automation
▪ Powerful design tool
▪ Higher quality code
▪ Any many more…
2

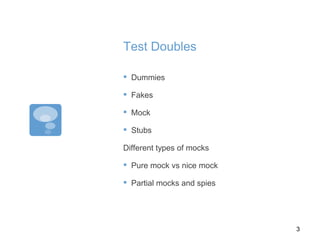

3. Test Doubles
▪ Dummies
▪ Fakes
▪ Mock
▪ Stubs
Different types of mocks
▪ Pure mock vs nice mock
▪ Partial mocks and spies
3

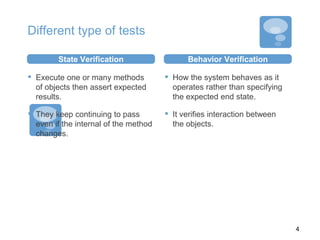

4. Different type of tests
State Verification
▪ Execute one or many methods
of objects then assert expected
results.
▪ They keep continuing to pass
even if the internal of the method
changes.
Behavior Verification
▪ How the system behaves as it
operates rather than specifying
the expected end state.
▪ It verifies interaction between
the objects.
4

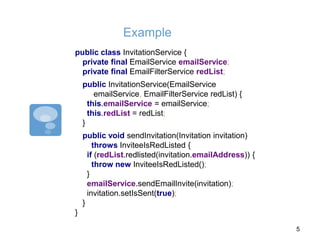

5. Example
public class InvitationService {
private final EmailService emailService;
private final EmailFilterService redList;
public InvitationService(EmailService
emailService, EmailFilterService redList) {
this.emailService = emailService;
this.redList = redList;
}
public void sendInvitation(Invitation invitation)
throws InviteeIsRedListed {
if (redList.redlisted(invitation.emailAddress)) {
throw new InviteeIsRedListed();
}
emailService.sendEmailInvite(invitation);
invitation.setIsSent(true);
}
}
5

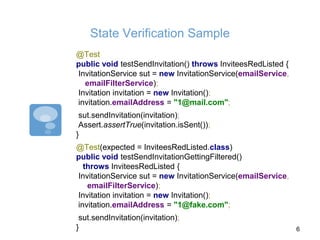

6. State Verification Sample
@Test
public void testSendInvitation() throws InviteesRedListed {
InvitationService sut = new InvitationService(emailService,
emailFilterService);
Invitation invitation = new Invitation();
invitation.emailAddress = "1@mail.com";
sut.sendInvitation(invitation);
Assert.assertTrue(invitation.isSent());
}
@Test(expected = InviteesRedListed.class)
public void testSendInvitationGettingFiltered()
throws InviteesRedListed {
InvitationService sut = new InvitationService(emailService,
emailFilterService);
Invitation invitation = new Invitation();
invitation.emailAddress = "1@fake.com";
sut.sendInvitation(invitation);
} 6

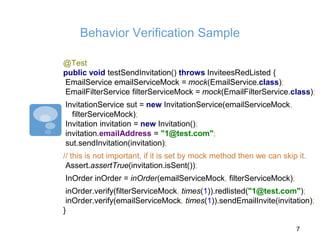

7. Behavior Verification Sample
@Test
public void testSendInvitation() throws InviteesRedListed {
EmailService emailServiceMock = mock(EmailService.class);
EmailFilterService filterServiceMock = mock(EmailFilterService.class);
InvitationService sut = new InvitationService(emailServiceMock,
filterServiceMock);
Invitation invitation = new Invitation();
invitation.emailAddress = "1@test.com";
sut.sendInvitation(invitation);
// this is not important, if it is set by mock method then we can skip it.
Assert.assertTrue(invitation.isSent());
InOrder inOrder = inOrder(emailServiceMock, filterServiceMock);
inOrder.verify(filterServiceMock, times(1)).redlisted("1@test.com");
inOrder.verify(emailServiceMock, times(1)).sendEmailInvite(invitation);
}
7

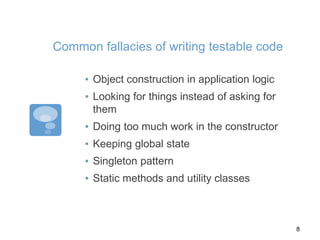

8. Common fallacies of writing testable code
▪ Object construction in application logic
▪ Looking for things instead of asking for
them
▪ Doing too much work in the constructor
▪ Keeping global state
▪ Singleton pattern
▪ Static methods and utility classes
8

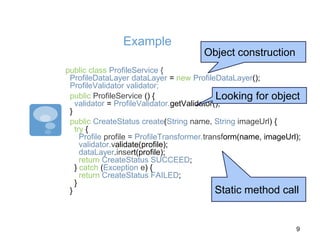

9. Example
public class ProfileService {
ProfileDataLayer dataLayer = new ProfileDataLayer();
ProfileValidator validator;
public ProfileService () {
validator = ProfileValidator.getValidator();
}
public CreateStatus create(String name, String imageUrl) {
try {
Profile profile = ProfileTransformer.transform(name, imageUrl);
validator.validate(profile);
dataLayer.insert(profile);
return CreateStatus.SUCCEED;
} catch (Exception e) {
return CreateStatus.FAILED;
}
}
Object construction
Looking for object
Static method call
9

10. Fixed example
public class ProfileService {
final ProfileDataLayer dataLayer;
final ProfileValidator validator;
final ProfileTransformer transformer
@Inject
public ProfileService (
ProfileDataLayer dataLayer,
ProfileValidator validator,
ProfileTransformer transformer) {
this.validator = validator;
this.dataLayer = dataLayer;
this.transformer = transformer;
}
Objects passed in
the constructor
through dependency
injection framework
10

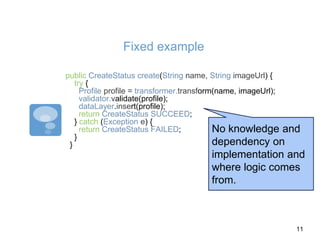

11. Fixed example
public CreateStatus create(String name, String imageUrl) {
try {
Profile profile = transformer.transform(name, imageUrl);
validator.validate(profile);
dataLayer.insert(profile);
return CreateStatus.SUCCEED;
} catch (Exception e) {
return CreateStatus.FAILED;
}
}
No knowledge and
dependency on
implementation and
where logic comes
from.
11

12. Common fallacies of writing testable code
▪ Overusing inheritance as a method of code
reuse
▪ Lots of conditionals (IF and SWITCH
statements)
▪ Mixing value objects and service objects
▪ Breaking SRP (Single Responsibility
Principle)
12

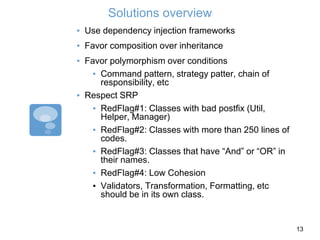

13. Solutions overview
▪ Use dependency injection frameworks
▪ Favor composition over inheritance
▪ Favor polymorphism over conditions
▪ Command pattern, strategy patter, chain of
responsibility, etc
▪ Respect SRP
▪ RedFlag#1: Classes with bad postfix (Util,
Helper, Manager)
▪ RedFlag#2: Classes with more than 250 lines of
codes.
▪ RedFlag#3: Classes that have “And” or “OR” in
their names.
▪ RedFlag#4: Low Cohesion
▪ Validators, Transformation, Formatting, etc
should be in its own class.
13

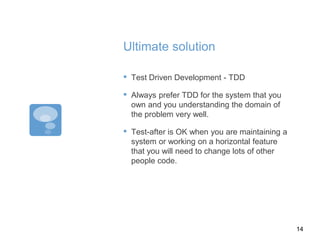

14. Ultimate solution
▪ Test Driven Development - TDD
▪ Always prefer TDD for the system that you
own and you understanding the domain of
the problem very well.
▪ Test-after is OK when you are maintaining a
system or working on a horizontal feature
that you will need to change lots of other
people code.
14

15. Testing Legacy Code
▪ In this context Legacy code is a
code that is written and designed
without having testing in mind,
and it is still live code.
▪ They are usually hard to test.
15

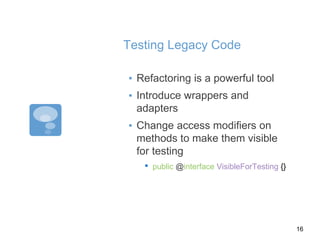

16. Testing Legacy Code
▪ Refactoring is a powerful tool
▪ Introduce wrappers and
adapters
▪ Change access modifiers on
methods to make them visible
for testing
▪ public @interface VisibleForTesting {}
16

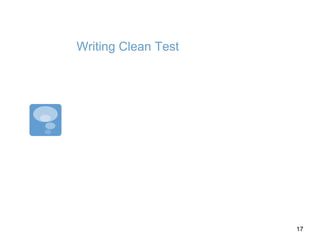

17. Writing Clean Test
17

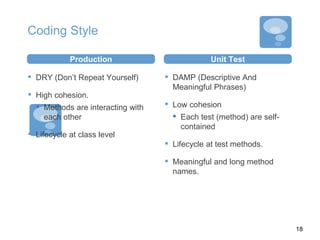

18. Coding Style
Production
▪ DRY (Don’t Repeat Yourself)
▪ High cohesion.
▪ Methods are interacting with
each other
▪ Lifecycle at class level
Unit Test
▪ DAMP (Descriptive And
Meaningful Phrases)
▪ Low cohesion
▪ Each test (method) are self-
contained
▪ Lifecycle at test methods.
▪ Meaningful and long method
names.
18

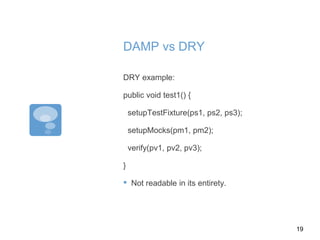

19. DAMP vs DRY
DRY example:
public void test1() {
setupTestFixture(ps1, ps2, ps3);
setupMocks(pm1, pm2);
verify(pv1, pv2, pv3);
}
▪ Not readable in its entirety.
19

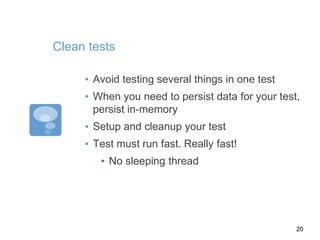

20. Clean tests
▪ Avoid testing several things in one test
▪ When you need to persist data for your test,
persist in-memory
▪ Setup and cleanup your test
▪ Test must run fast. Really fast!
▪ No sleeping thread
20

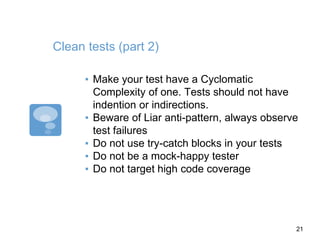

21. Clean tests (part 2)
▪ Make your test have a Cyclomatic
Complexity of one. Tests should not have
indention or indirections.
▪ Beware of Liar anti-pattern, always observe
test failures
▪ Do not use try-catch blocks in your tests
▪ Do not be a mock-happy tester
▪ Do not target high code coverage
21

22. Test life cycle, threading and
frameworks
▪ Tests’ life cycle is separate from
applications
▪ For example TestNG runs Suite,
Group, Class, Test, Method
configurations before and after tests
▪ Tests have different threading models
▪ Parallel forks vs single threaded
▪ Frameworks do a lot of legwork
▪ Exception and failure handling
▪ Reports
▪ Tooling: Assertions, data providers,
factories, dependencies
22

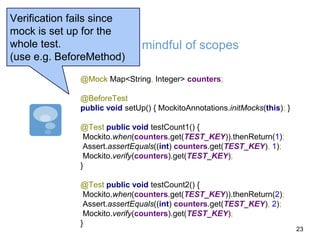

23. Be mindful of scopes
@Mock Map<String, Integer> counters;
@BeforeTest
public void setUp() { MockitoAnnotations.initMocks(this); }
@Test public void testCount1() {
Mockito.when(counters.get(TEST_KEY)).thenReturn(1);
Assert.assertEquals((int) counters.get(TEST_KEY), 1);
Mockito.verify(counters).get(TEST_KEY);
}
@Test public void testCount2() {
Mockito.when(counters.get(TEST_KEY)).thenReturn(2);
Assert.assertEquals((int) counters.get(TEST_KEY), 2);
Mockito.verify(counters).get(TEST_KEY);
}
Verification fails since
mock is set up for the
whole test.
(use e.g. BeforeMethod)
23

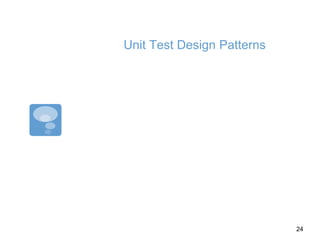

24. Unit Test Design Patterns
24

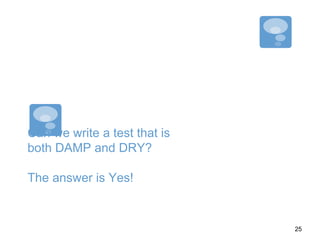

25. Can we write a test that is
both DAMP and DRY?
The answer is Yes!
25

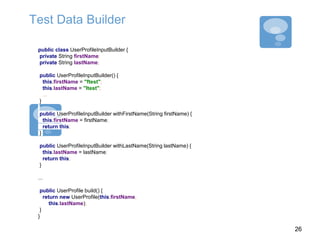

26. Test Data Builder
public class UserProfileInputBuilder {
private String firstName;
private String lastName;
public UserProfileInputBuilder() {
this.firstName = "ftest";
this.lastName = "ltest";
...
}
public UserProfileInputBuilder withFirstName(String firstName) {
this.firstName = firstName;
return this;
}
public UserProfileInputBuilder withLastName(String lastName) {
this.lastName = lastName;
return this;
}
...
public UserProfile build() {
return new UserProfile(this.firstName,
this.lastName);
}
}
26

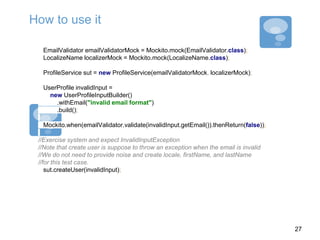

27. How to use it
EmailValidator emailValidatorMock = Mockito.mock(EmailValidator.class);
LocalizeName localizerMock = Mockito.mock(LocalizeName.class);
ProfileService sut = new ProfileService(emailValidatorMock, localizerMock);
UserProfile invalidInput =
new UserProfileInputBuilder()
.withEmail("invalid email format")
.build();
Mockito.when(emailValidator.validate(invalidInput.getEmail()).thenReturn(false));
//Exercise system and expect InvalidInputException
//Note that create user is suppose to throw an exception when the email is invalid
//We do not need to provide noise and create locale, firstName, and lastName
//for this test case.
sut.createUser(invalidInput);
27

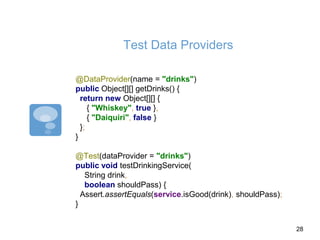

28. Test Data Providers
@DataProvider(name = "drinks")
public Object[][] getDrinks() {
return new Object[][] {
{ "Whiskey", true },
{ "Daiquiri", false }
};
}
@Test(dataProvider = "drinks")
public void testDrinkingService(
String drink,
boolean shouldPass) {
Assert.assertEquals(service.isGood(drink), shouldPass);
}
28

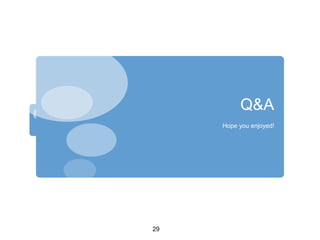

29. Q&A
Hope you enjoyed!
