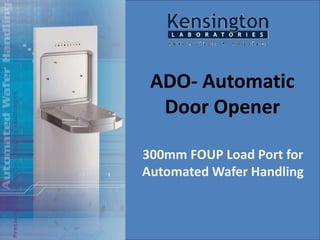

1. ADO- Automatic
Door Opener
300mm FOUP Load Port for
Automated Wafer Handling

2. Kensington Laboratories, an industry leader in advanced robotic
automation, offers the Automatic Door Opener™ (ADO), a
300mm Load Port designed for today’s rigorous wafer isolation
and fab requirements. The ADO offers a host of patented, unique
design features which combine to provide superior operational
speed, cleanliness, reliability, and integration flexibility for
loading and unloading SEMI standard 300mm FOUPs.
Kensington’s ADO is proven in volume manufacturing at major
300mm production fabs and is backed by Kensington’s global
service and support network.

3. Additional Key Features
• Carrier ID R/W at dock and undock
• Twist and Pull FOUP door attach
• Twist and Pull center lock FOUP clamp
• Servo control/force feedback motion
technology
• FEOL and BEOL lockout pins
• Five FOUP placement sensors
• Programmable AMHS drop off position
• Finger safe motion control safety circuit
• Flash firmware up-loadable
• Integrated self-test diagnostics
• Configurable status lights

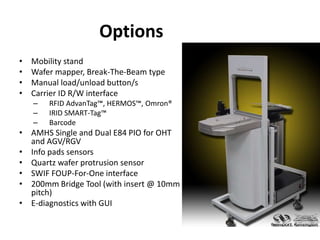

4. Options
• Mobility stand
• Wafer mapper, Break-The-Beam type
• Manual load/unload button/s
• Carrier ID R/W interface
– RFID AdvanTag™, HERMOS™, Omron®
– IRID SMART-Tag™
– Barcode
• AMHS Single and Dual E84 PIO for OHT
and AGV/RGV
• Info pads sensors
• Quartz wafer protrusion sensor
• SWIF FOUP-For-One interface
• 200mm Bridge Tool (with insert @ 10mm
pitch)
• E-diagnostics with GUI
